Exterior Helicopter Light Data Sheet (Interface Displays)

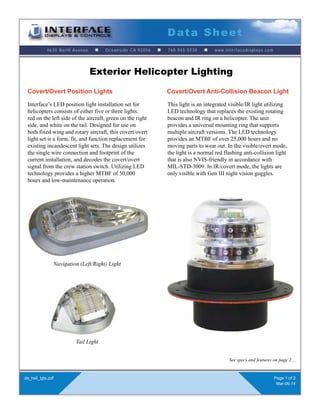

- 1. 4630 North Avenue Oceanside CA 92056 760.945.0230 www.interfacedisplays.com Data Sheet ds_heli_lgts.pdf Page 1 of 2 Mar-06-14 Interface’s LED position light installation set for helicopters consists of either five or three lights: red on the left side of the aircraft, green on the right side, and white on the tail. Designed for use on both fixed wing and rotary aircraft, this covert/overt light set is a form, fit, and function replacement for existing incandescent light sets. The design utilizes the single wire connection and footprint of the current installation, and decodes the covert/overt signal from the crew station switch. Utilizing LED technology provides a higher MTBF of 50,000 hours and low-maintenance operation. Covert/Overt Position Lights See specs and features on page 2 ... Navigation (Left/Right) Light Exterior Helicopter Lighting Tail Light Covert/Overt Anti-Collision Beacon Light This light is an integrated visible/IR light utilizing LED technology that replaces the existing rotating beacon and IR ring on a helicopter. The unit provides a universal mounting ring that supports multiple aircraft versions. The LED technology provides an MTBF of over 25,000 hours and no moving parts to wear out. In the visible/overt mode, the light is a normal red flashing anti-collision light that is also NVIS-friendly in accordance with MIL-STD-3009. In IR/covert mode, the lights are only visible with Gen III night vision goggles.
- 2. 4630 North Avenue Oceanside CA 92056 760.945.0230 www.interfacedisplays.com Data Sheet Tail Light Part Number 19850-02 Voltage Range 9–36 V DC Current Draw (Covert / Overt) 0.5A @ 14 V 0.25A @ 28 V Power Consumption 7 Watts Dimmable To 5% maximum intensity Thermal Protection Built-in Light Output Covert / IR > 4 mW/sr Overt / Visible > 100 Candela Light Color White Weight 3 ounces Heat Sink Material Clear anodized aluminum Lens Material Polycarbonate Temperature Range -55˚C to +70˚C Light Unit MTBF 50,000 hours ds_heli_lgts.pdf Page 2 of 2 Mar-06-14 Navigation Light Part Numbers 19750-02 (left/red light) 19800-02 (right/green light) Voltage Range 9–36 V DC Current Draw (Covert / Overt) 0.5A @ 14 V 0.25A @ 28 V Power Consumption 7 Watts Dimmable To 5% maximum intensity Thermal Protection Built-in Light Output Covert / IR > 4 mW/sr Overt / Visible > 100 Candela Light Colors Red / Green Weight 4 ounces Heat Sink Material Clear anodized aluminum Lens Material Polycarbonate Temperature Range -55˚C to +70˚C Light Unit MTBF 50,000 hours Position Light Features Anti-Collision Light Features Anti-Collision Light Part Number 20650-02 Miscellaneous Input/Output protection Lightning protection Compliant with FAR 27.1401 and FAR 29.1401 Supports multiple aircraft versions Environmental & EMI RTCA/DO160E Input Voltage 28 V DC Power Consumption Visible/overt mode: < 20 W IR/covert mode: < 6 W Light Color Aviation Red Flash Frequency Visible/overt mode: 40–90 per minute IR/covert mode: 200 ms ON, 500 ms OFF IR Dimming Capability 1–20 ms/sr, discrete or continuous steps Equipment Weight < 2 lbs Maximum Intensity Visible mode: > 150 cd IR/covert mode: > 20 mw/sr Light Unit MTBF > 25,000 hours Dimensions and visible coverage specs for all lights available upon request. Connections J1 Pin Connection Pin Connection A Ground N Ground B NC P IR ON/OFF C NC R DIM Level 2 D BRIGHT S DIM Level 3 E NC T DIM Level 1 F NC U NC G NC V DIM H NC J NC J2 K NC A +28 V DC Visible L +28 V DC IR B +28 V DC Visible M +28 V DC IR C Ground
