Exploring ScyllaDB’s DynamoDB-Compatible API by Guilherme Nogueira & Nadav Har'El
In this talk we inspect how ScyllaDB implemented Alternator, the DynamoDB-compatible API. We review internal table structure, load balancing and deployment characteristics. We also inspect an existing workload in DynamoDB and compare it running on Scylla Cloud as a DBaaS. Aspects include performance, cost, feature comparison with DynamoDB.
More Related Content
Similar to Exploring ScyllaDB’s DynamoDB-Compatible API by Guilherme Nogueira & Nadav Har'El
Exploring ScyllaDB’s DynamoDB-Compatible API by Guilherme Nogueira & Nadav Har'El
- 1. A ScyllaDB Community ExploringScyllaDB’s DynamoDB-Compatible API Guilherme Nogueira Technical Director Nadav Har'El Distinguished Engineer
- 2. Guilherme Nogueira Guilherme isa Technical Director at ScyllaDB, assists users in their journey to see ScyllaDB's potential. Geek, passionate about Linux and open source software. Presenters Nadav Har'El Nadav Har'El has had a diverse 30-year career in computer programming and computer science, working in areas including information retrieval, virtualization and operating systems. Today he works on ScyllaDB, and among other things led the Alternator development.

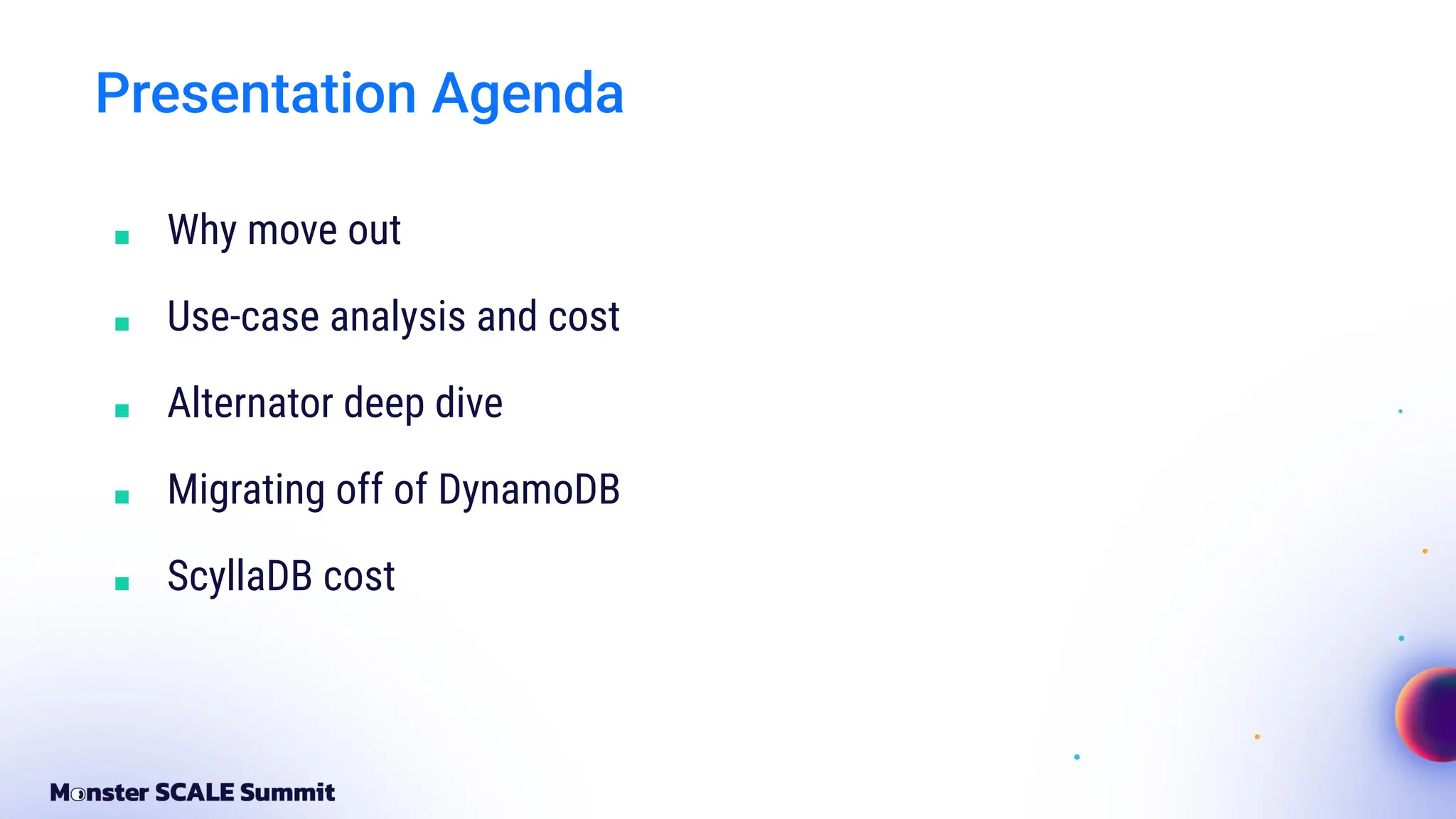

- 3. ■ Why moveout ■ Use-case analysis and cost ■ Alternator deep dive ■ Migrating off of DynamoDB ■ ScyllaDB cost Presentation Agenda
- 4. Why move outof DynamoDB?

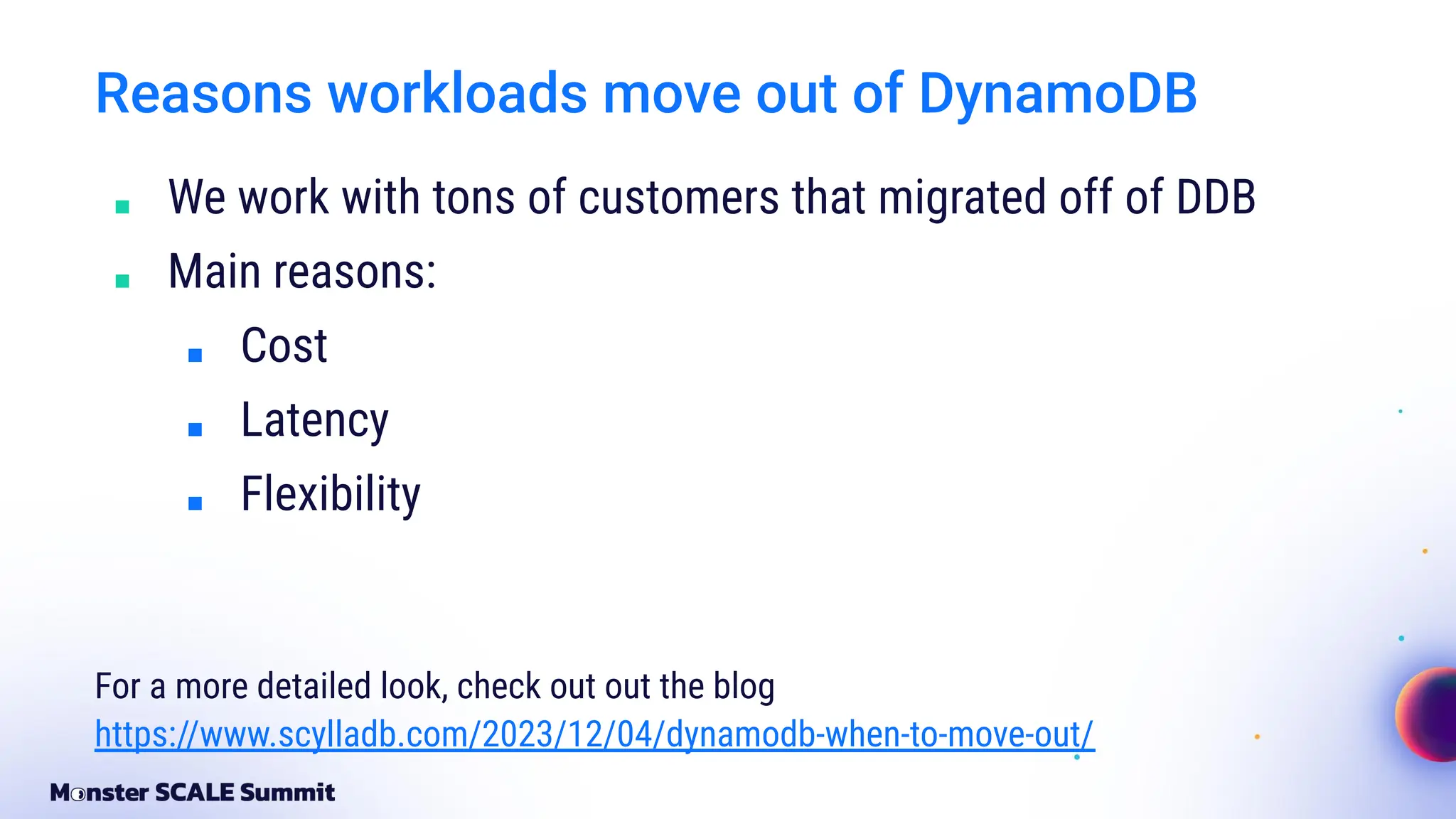

- 5. Reasons workloads moveout of DynamoDB ■ We work with tons of customers that migrated off of DDB ■ Main reasons: ■ Cost ■ Latency ■ Flexibility For a more detailed look, check out out the blog https://www.scylladb.com/2023/12/04/dynamodb-when-to-move-out/
- 6.
- 7. Pains that causechange

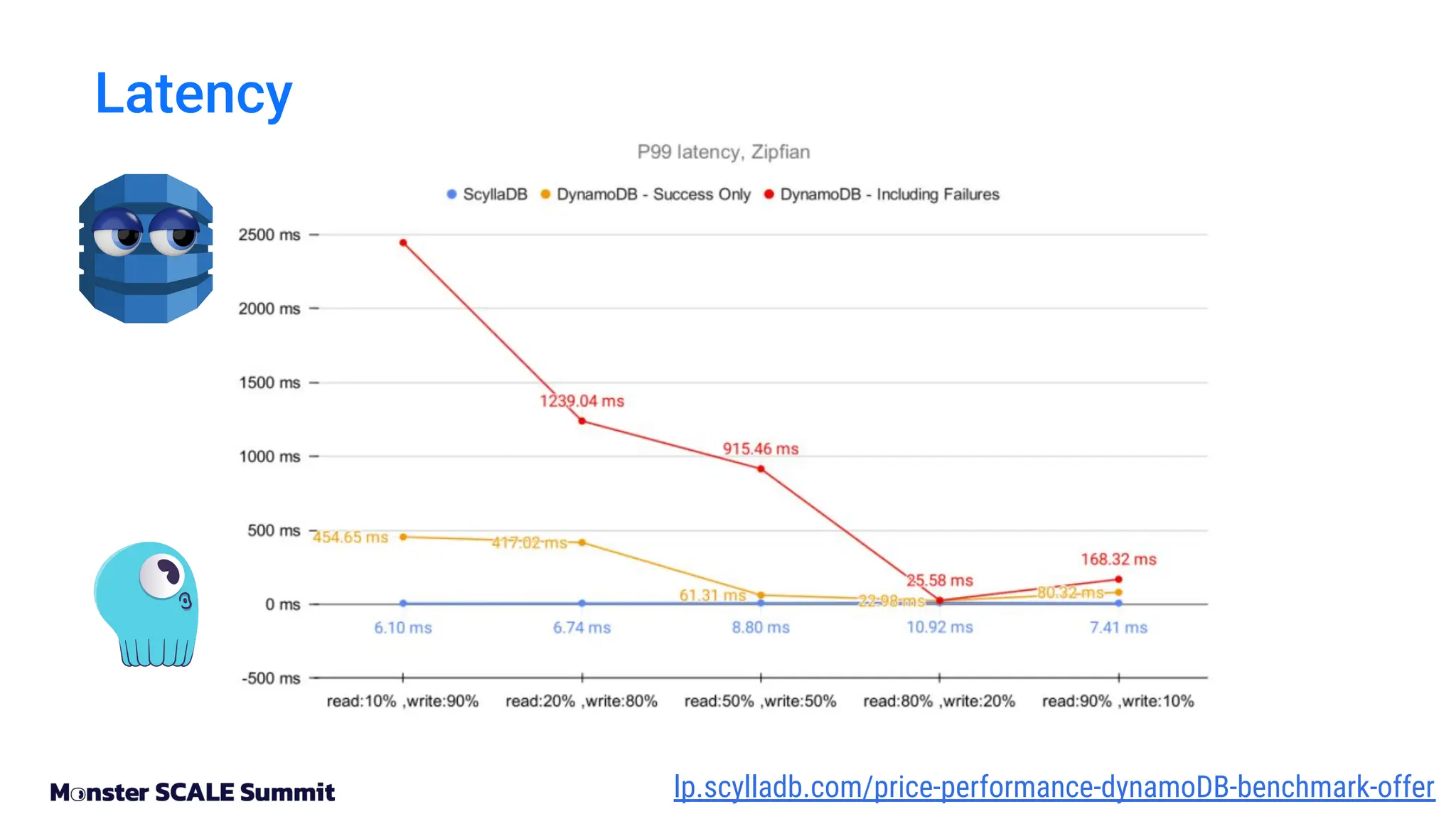

- 8.

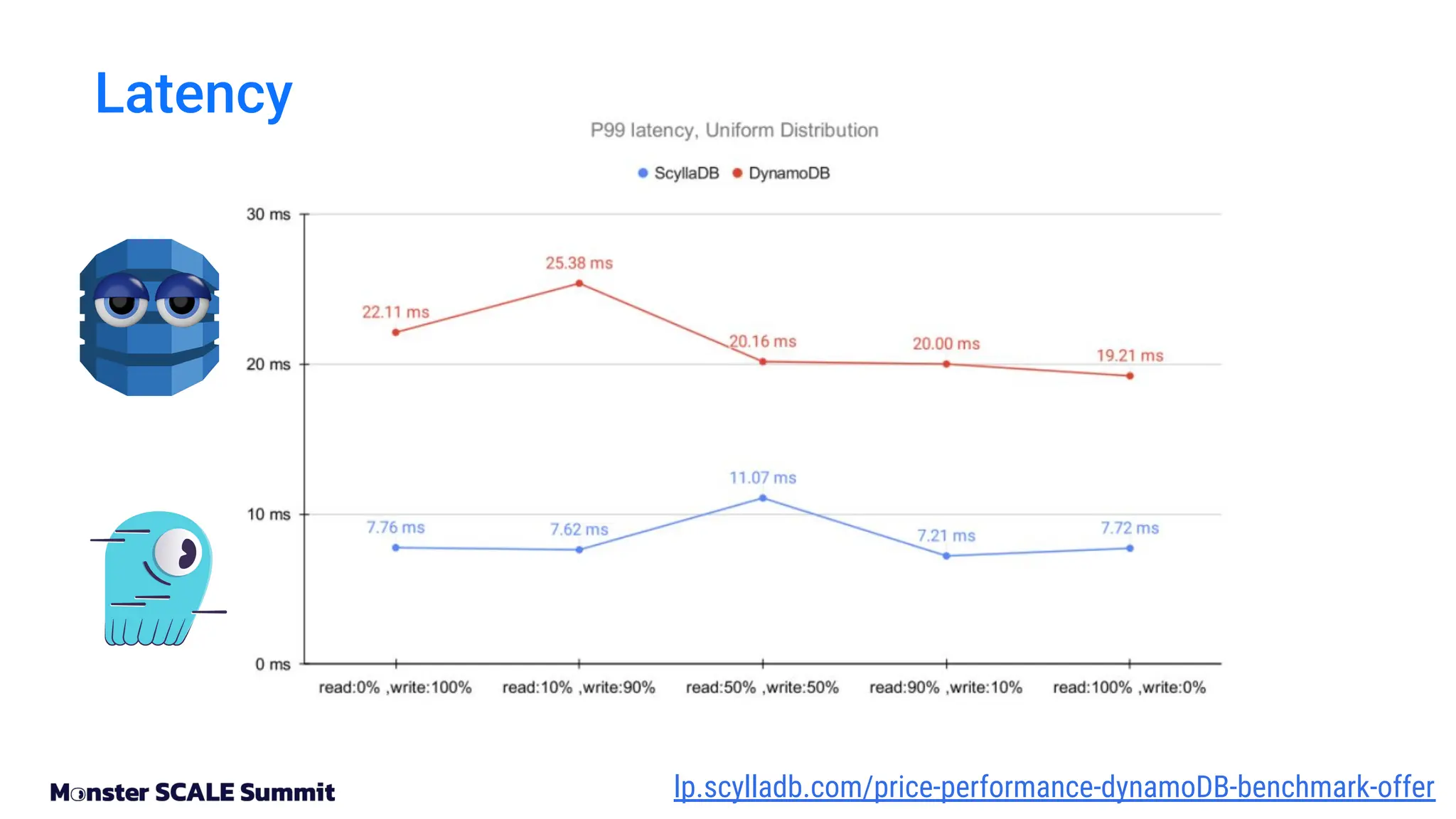

- 9.

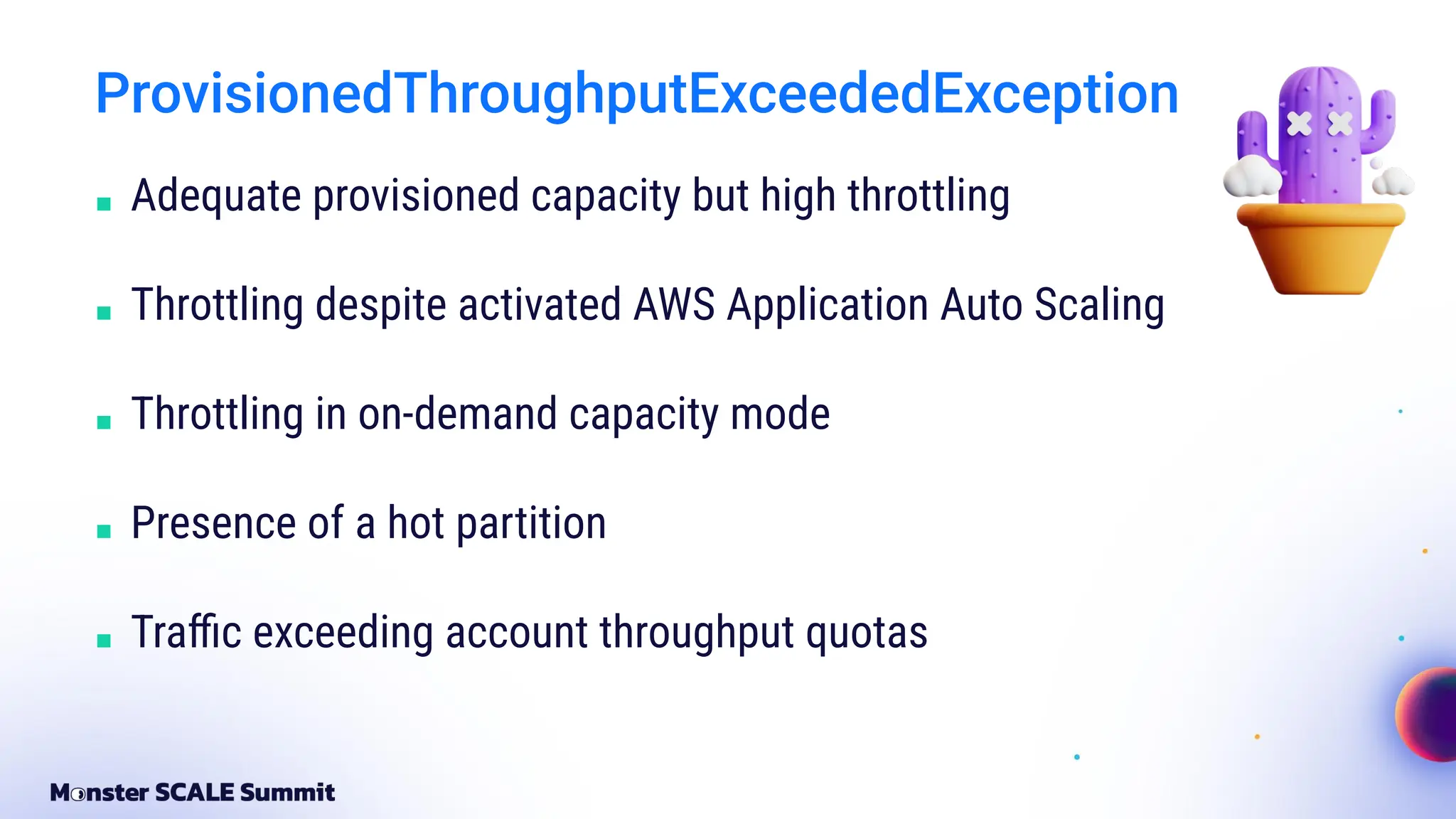

- 10. ProvisionedThroughputExceededException ■ Adequate provisionedcapacity but high throttling ■ Throttling despite activated AWS Application Auto Scaling ■ Throttling in on-demand capacity mode ■ Presence of a hot partition ■ Traffic exceeding account throughput quotas

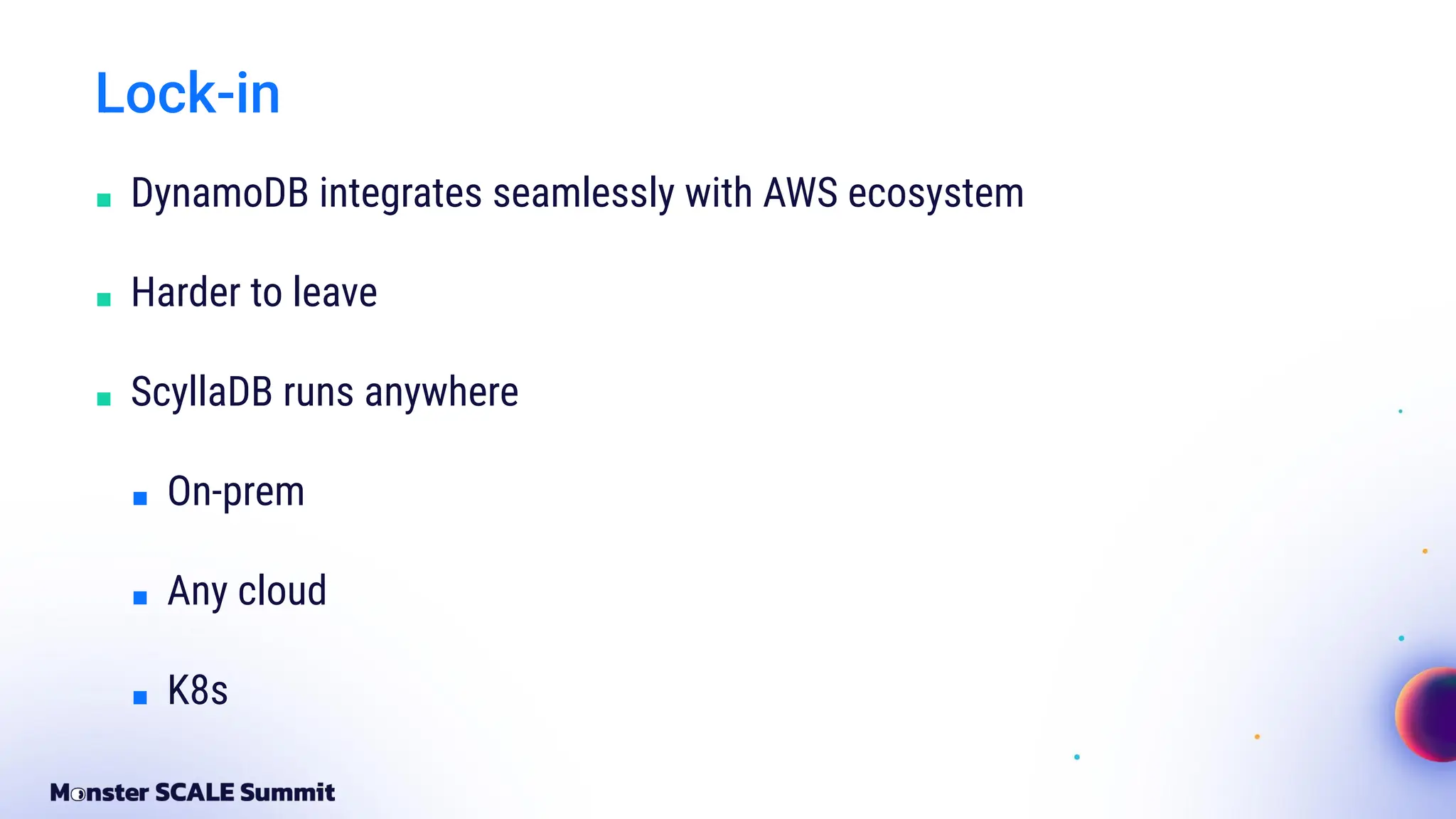

- 11. Lock-in ■ DynamoDB integratesseamlessly with AWS ecosystem ■ Harder to leave ■ ScyllaDB runs anywhere ■ On-prem ■ Any cloud ■ K8s
- 12.

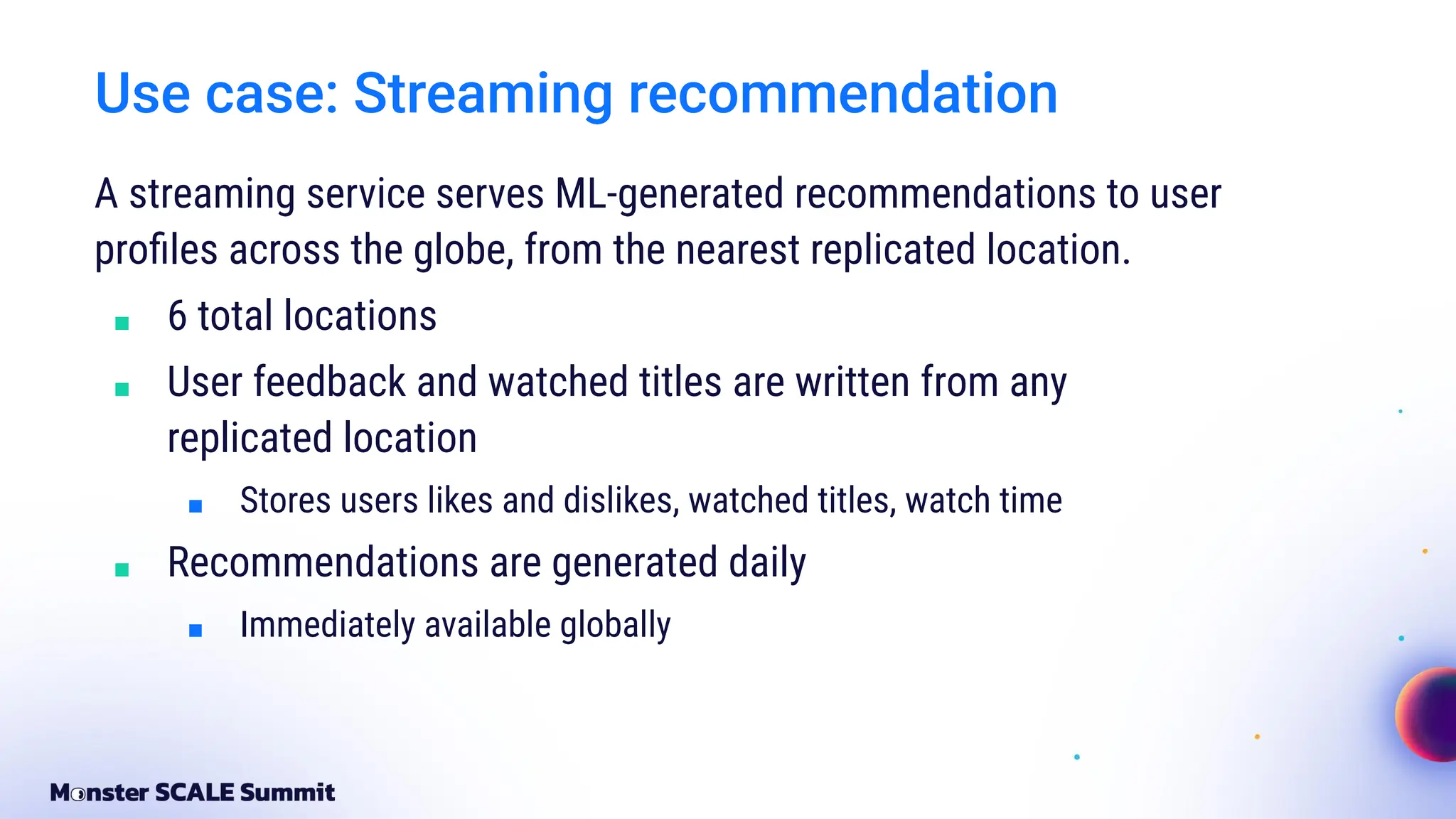

- 13. Use case: Streamingrecommendation A streaming service serves ML-generated recommendations to user profiles across the globe, from the nearest replicated location. ■ 6 total locations ■ User feedback and watched titles are written from any replicated location ■ Stores users likes and dislikes, watched titles, watch time ■ Recommendations are generated daily ■ Immediately available globally

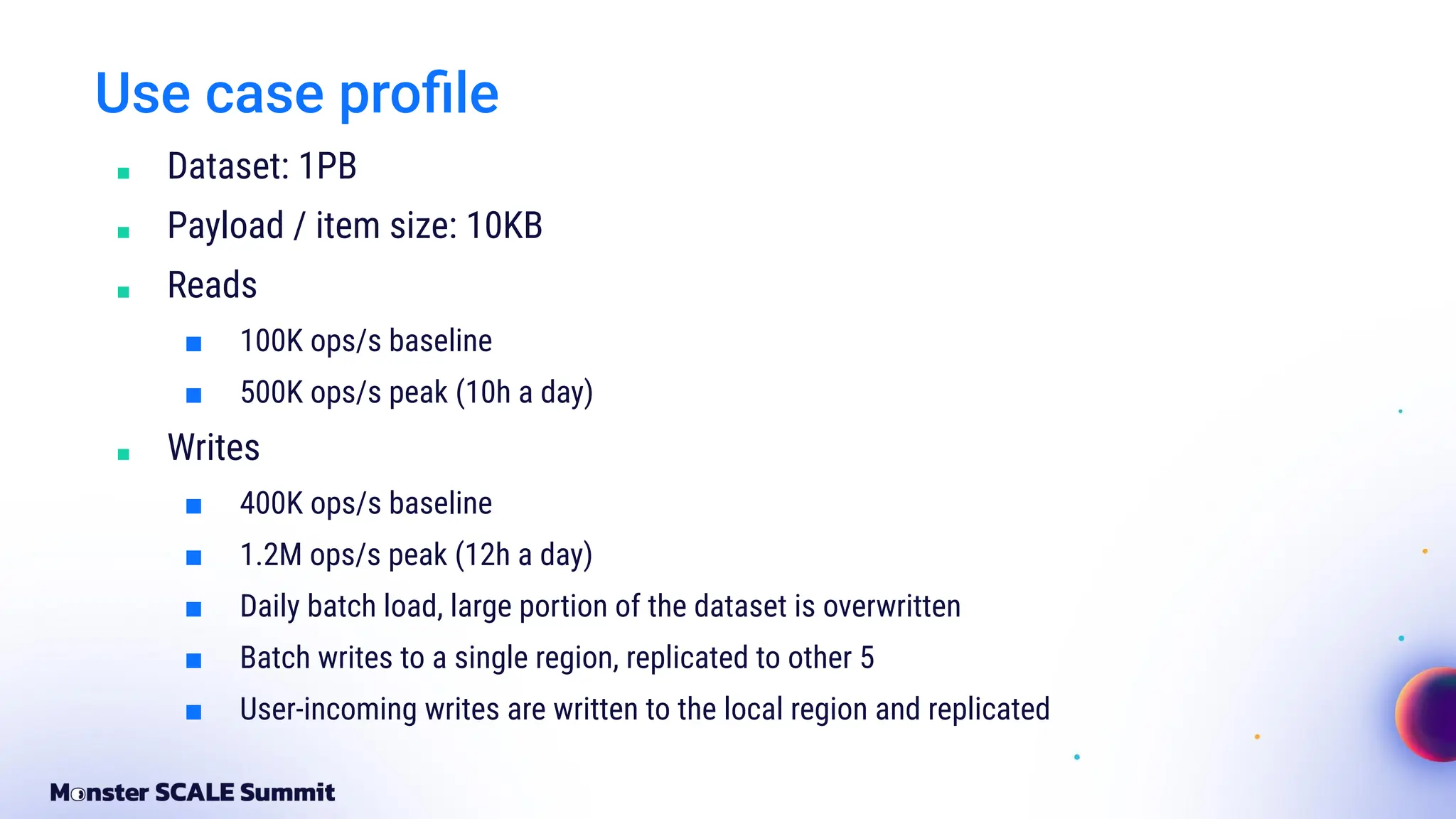

- 14. Use case profile ■Dataset: 1PB ■ Payload / item size: 10KB ■ Reads ■ 100K ops/s baseline ■ 500K ops/s peak (10h a day) ■ Writes ■ 400K ops/s baseline ■ 1.2M ops/s peak (12h a day) ■ Daily batch load, large portion of the dataset is overwritten ■ Batch writes to a single region, replicated to other 5 ■ User-incoming writes are written to the local region and replicated

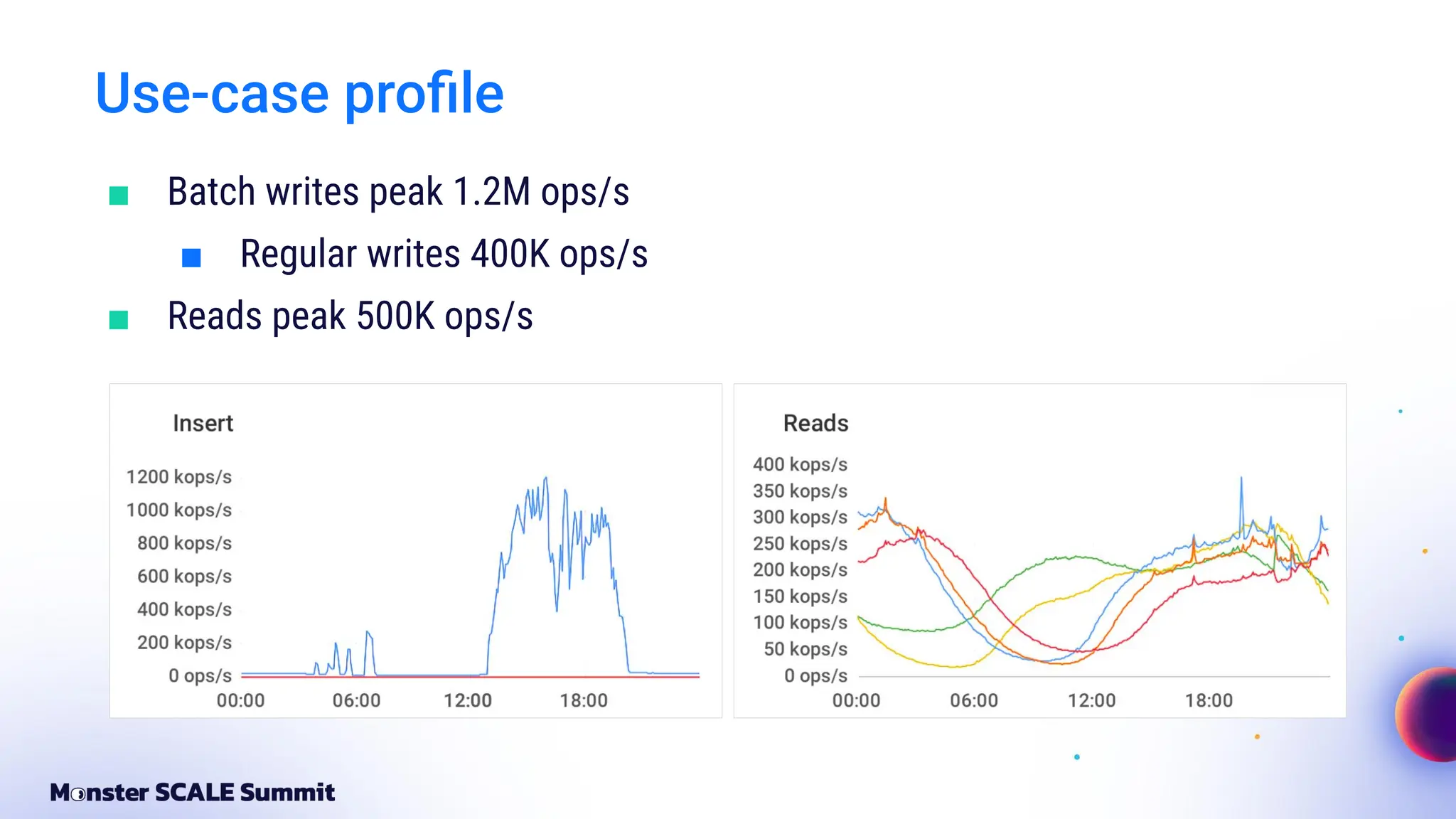

- 15. Use-case profile ■ Batchwrites peak 1.2M ops/s ■ Regular writes 400K ops/s ■ Reads peak 500K ops/s

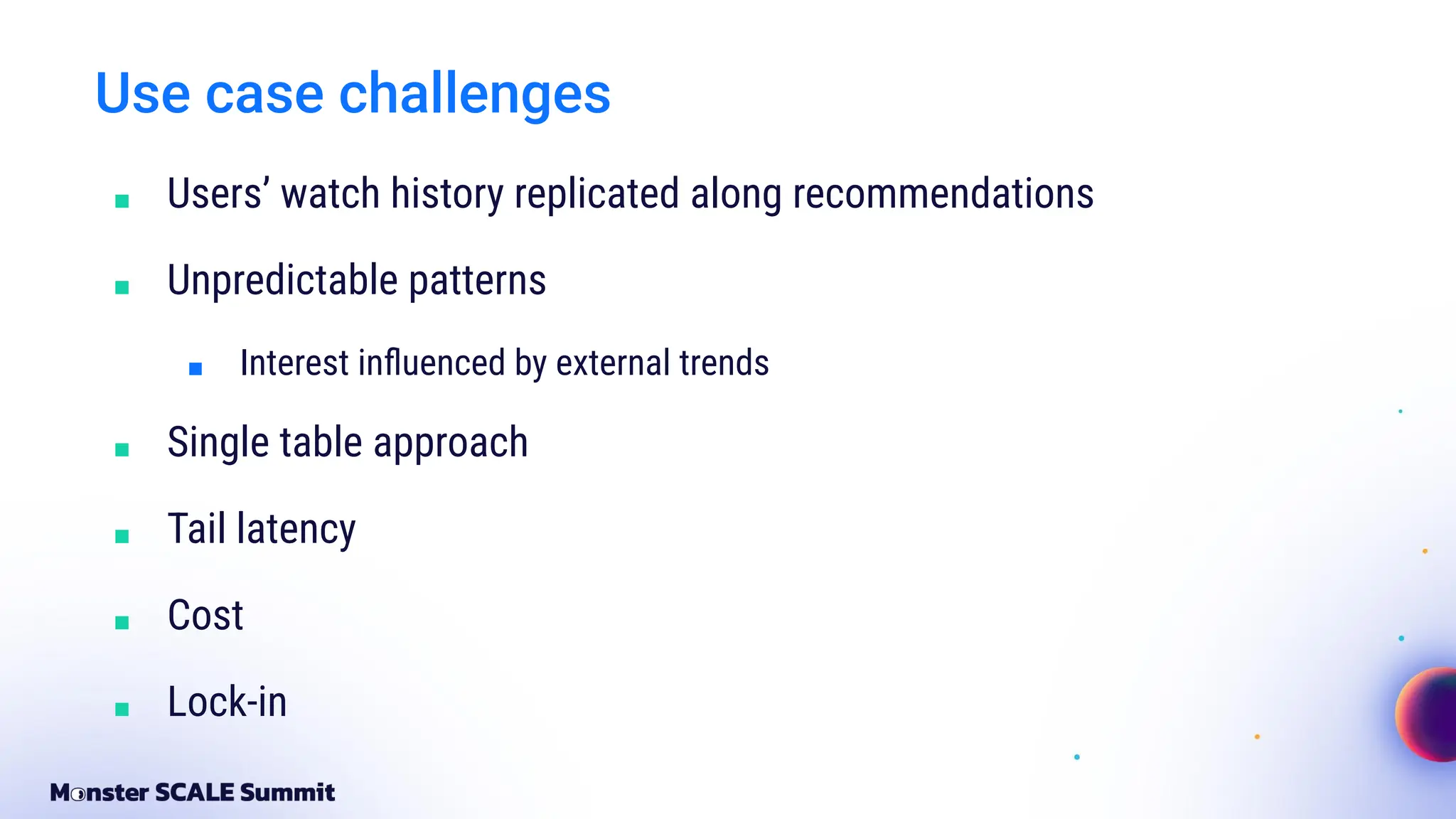

- 16. Use case challenges ■Users’ watch history replicated along recommendations ■ Unpredictable patterns ■ Interest influenced by external trends ■ Single table approach ■ Tail latency ■ Cost ■ Lock-in
- 17.

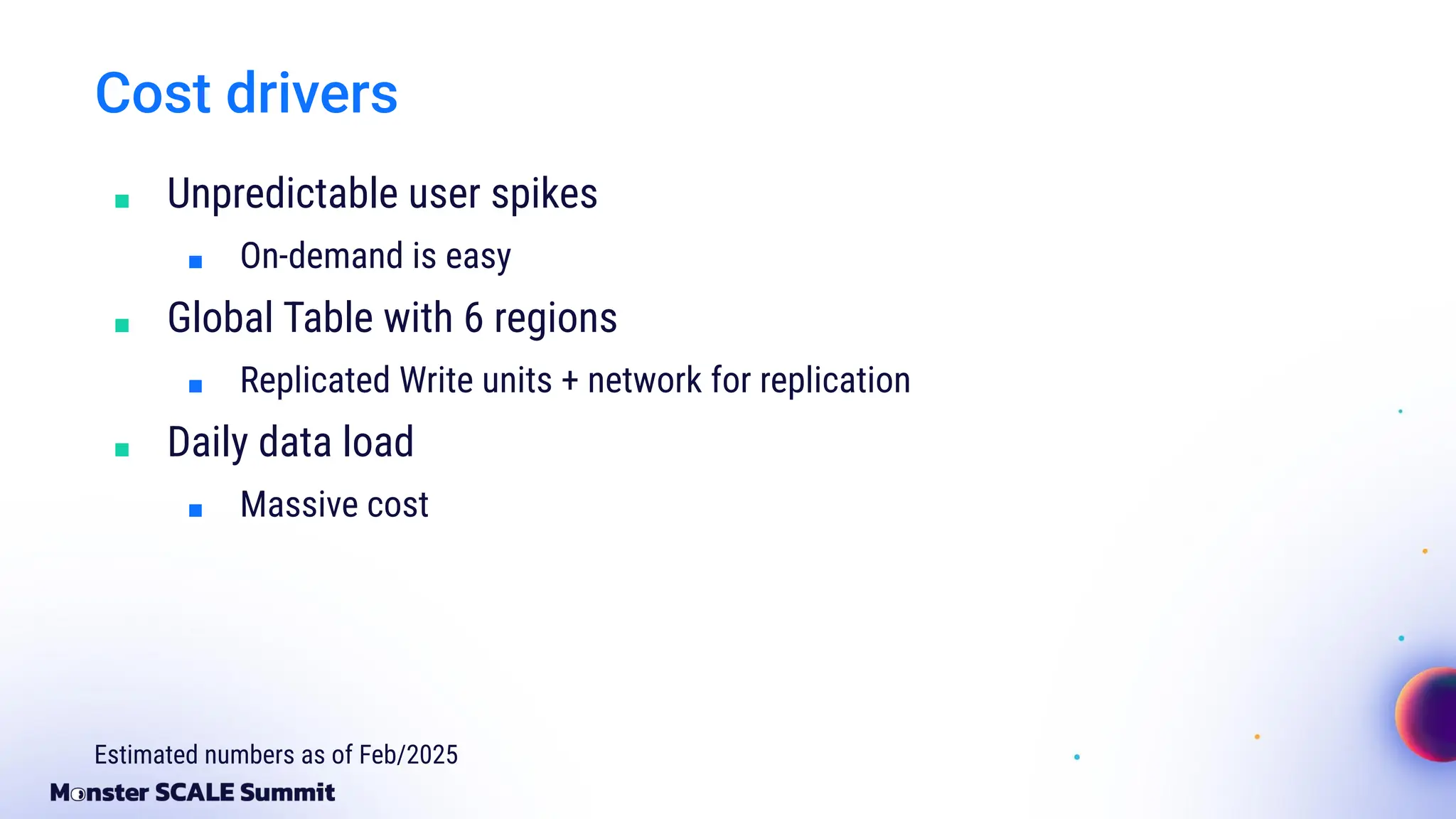

- 18. Cost drivers ■ Unpredictableuser spikes ■ On-demand is easy ■ Global Table with 6 regions ■ Replicated Write units + network for replication ■ Daily data load ■ Massive cost Estimated numbers as of Feb/2025

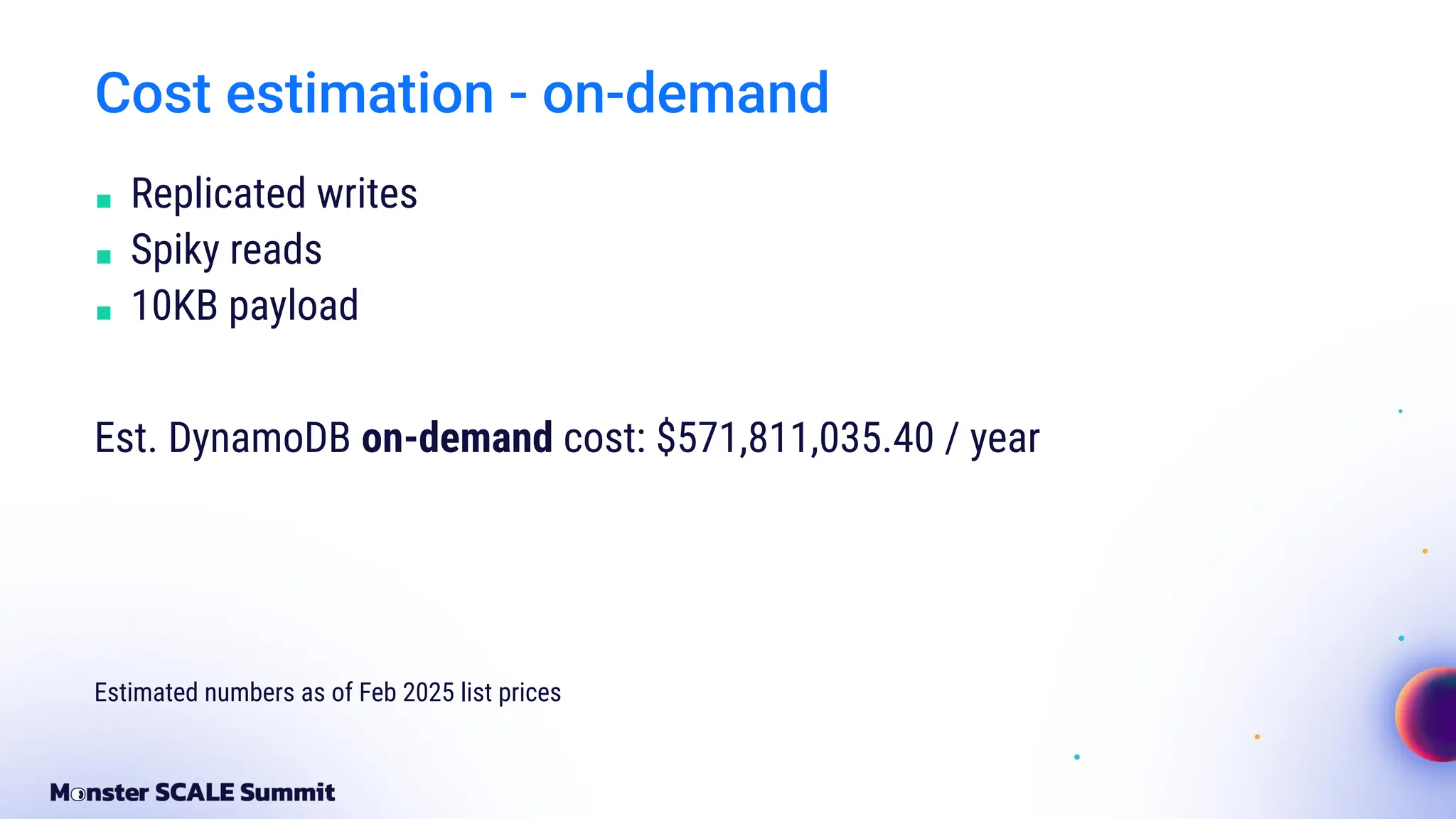

- 19. Cost estimation -on-demand ■ Replicated writes ■ Spiky reads ■ 10KB payload Est. DynamoDB on-demand cost: $571,811,035.40 / year Estimated numbers as of Feb 2025 list prices

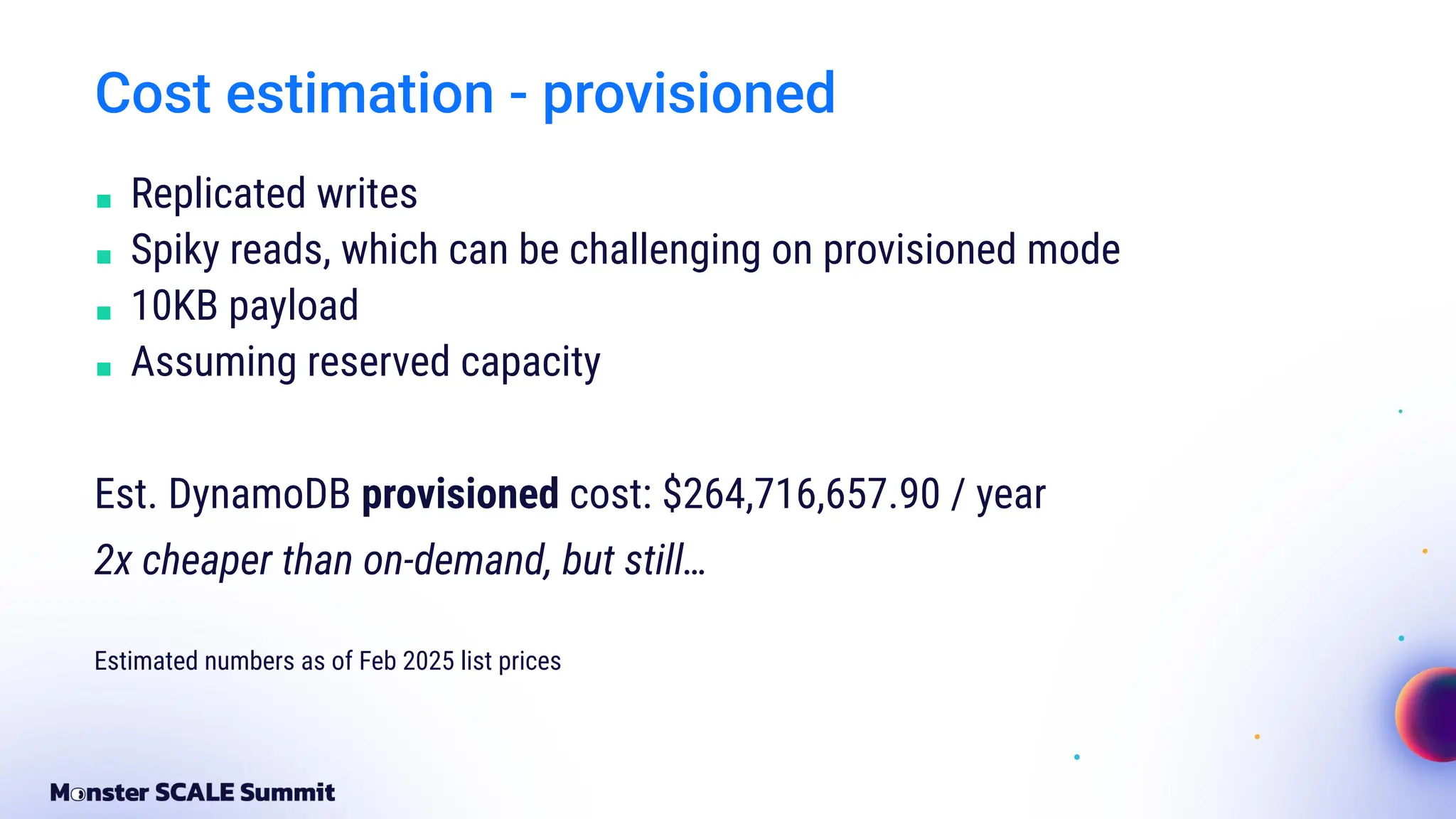

- 20. Cost estimation -provisioned ■ Replicated writes ■ Spiky reads, which can be challenging on provisioned mode ■ 10KB payload ■ Assuming reserved capacity Est. DynamoDB provisioned cost: $264,716,657.90 / year 2x cheaper than on-demand, but still… Estimated numbers as of Feb 2025 list prices
- 21. What is ScyllaDBAlternator?

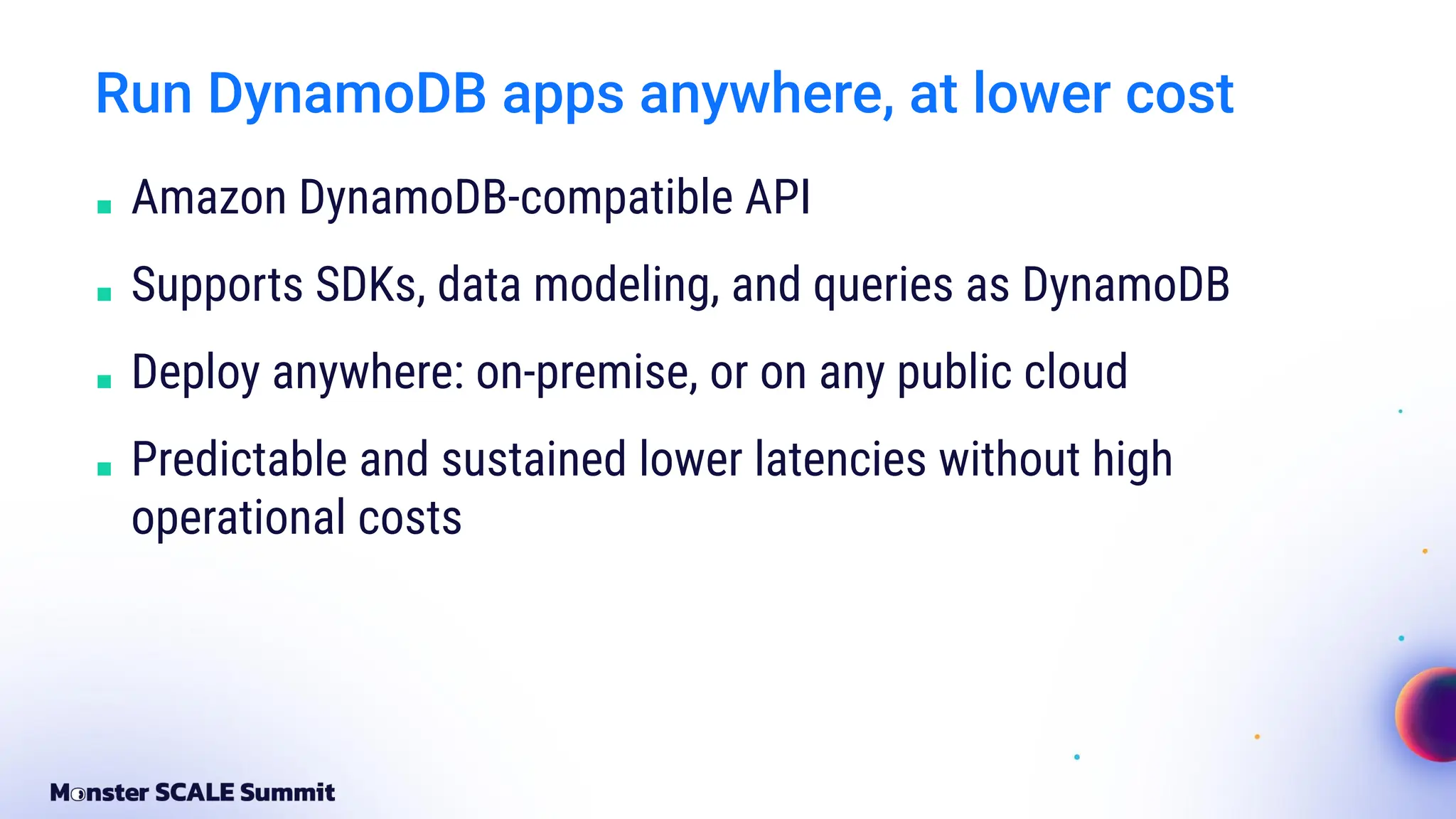

- 22. Run DynamoDB appsanywhere, at lower cost ■ Amazon DynamoDB-compatible API ■ Supports SDKs, data modeling, and queries as DynamoDB ■ Deploy anywhere: on-premise, or on any public cloud ■ Predictable and sustained lower latencies without high operational costs
- 23.

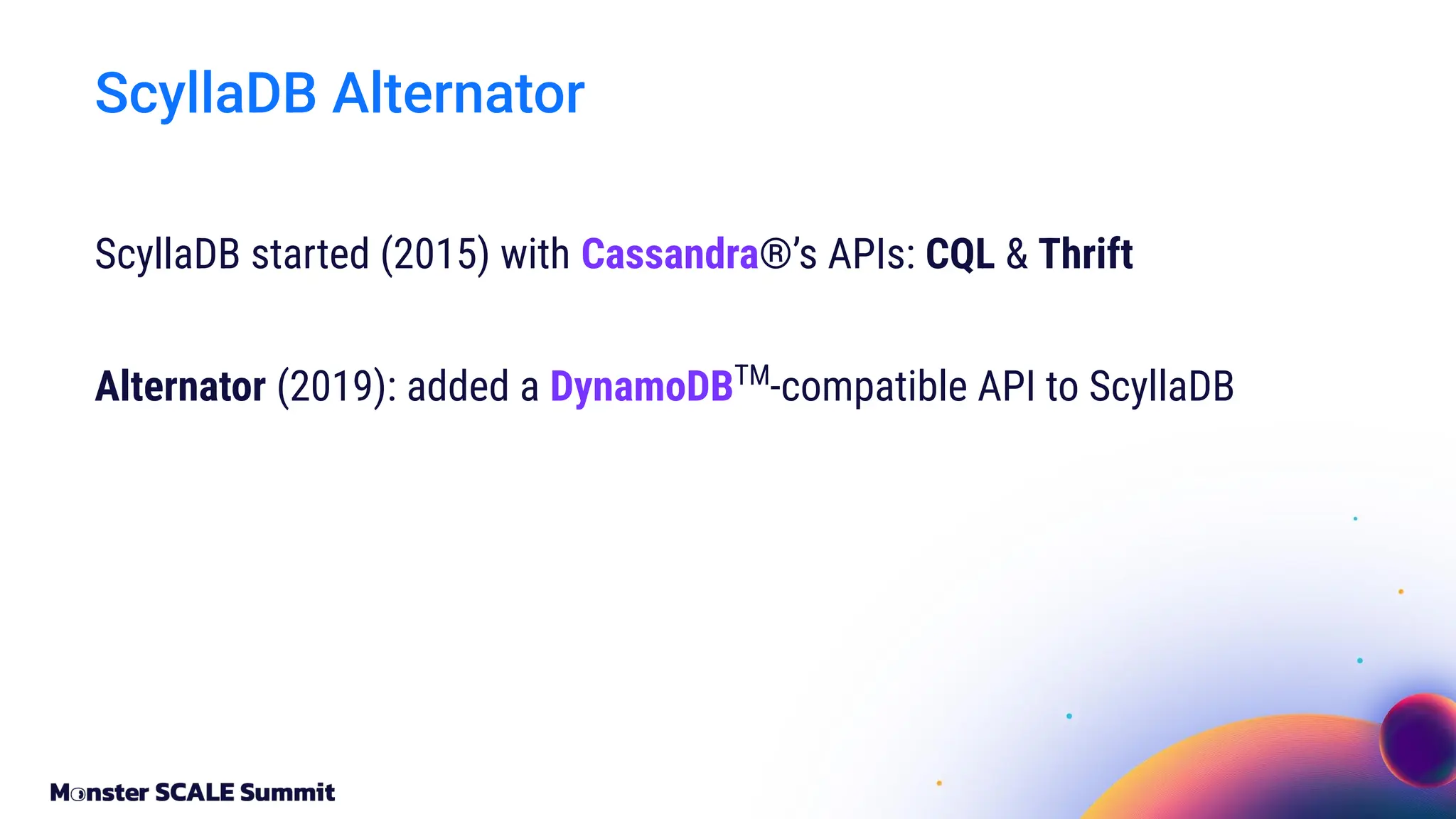

- 24. ScyllaDB started (2015)with Cassandra®’s APIs: CQL & Thrift Alternator (2019): added a DynamoDBTM -compatible API to ScyllaDB ScyllaDB Alternator

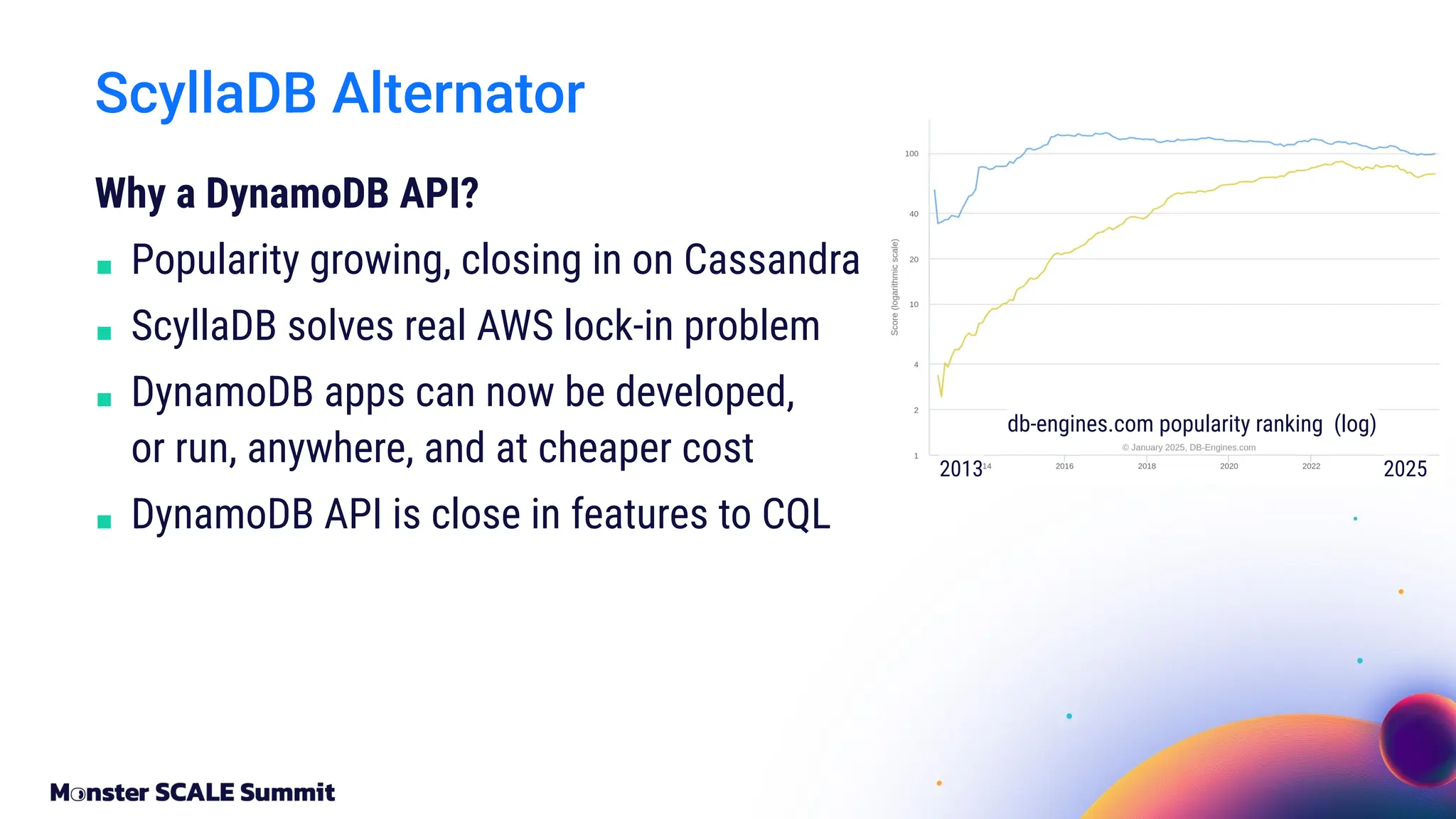

- 25. Why a DynamoDBAPI? ■ Popularity growing, closing in on Cassandra ■ ScyllaDB solves real AWS lock-in problem ■ DynamoDB apps can now be developed, or run, anywhere, and at cheaper cost ■ DynamoDB API is close in features to CQL ScyllaDB Alternator db-engines.com popularity ranking (log) 2013 2025

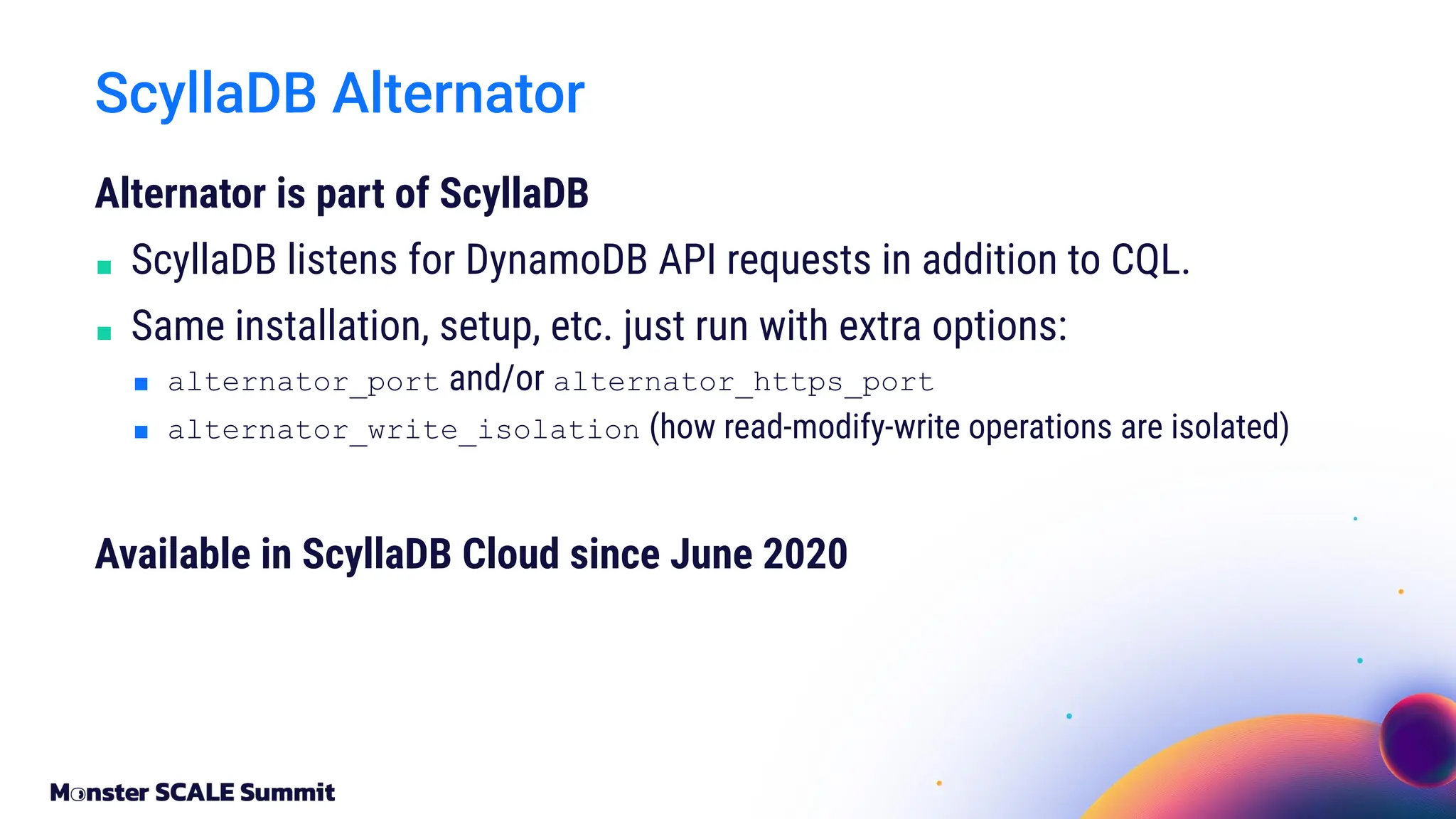

- 26. Alternator is partof ScyllaDB ■ ScyllaDB listens for DynamoDB API requests in addition to CQL. ■ Same installation, setup, etc. just run with extra options: ■ alternator_port and/or alternator_https_port ■ alternator_write_isolation (how read-modify-write operations are isolated) Available in ScyllaDB Cloud since June 2020 ScyllaDB Alternator

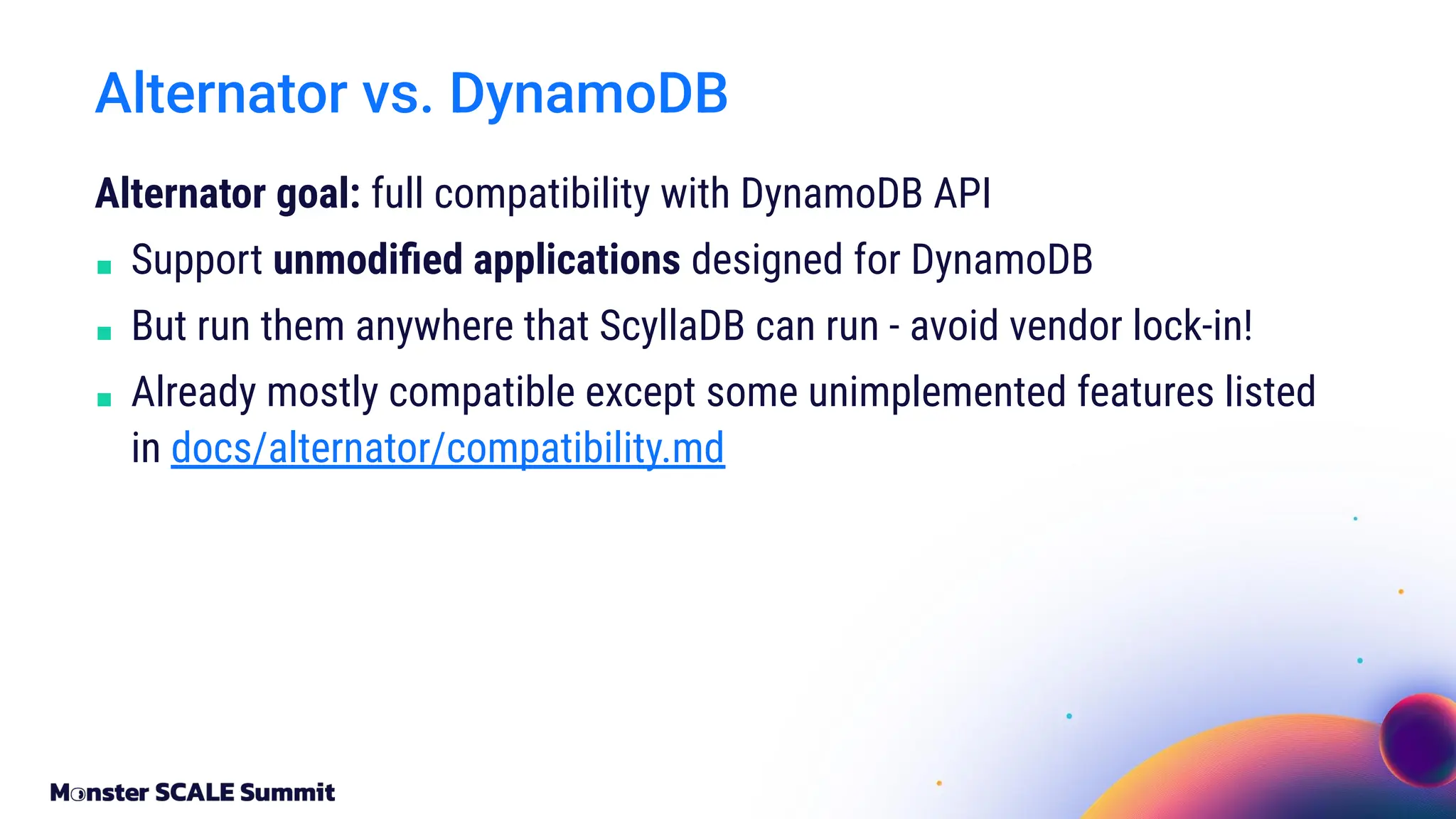

- 27. Alternator goal: fullcompatibility with DynamoDB API ■ Support unmodified applications designed for DynamoDB ■ But run them anywhere that ScyllaDB can run - avoid vendor lock-in! ■ Already mostly compatible except some unimplemented features listed in docs/alternator/compatibility.md Alternator vs. DynamoDB

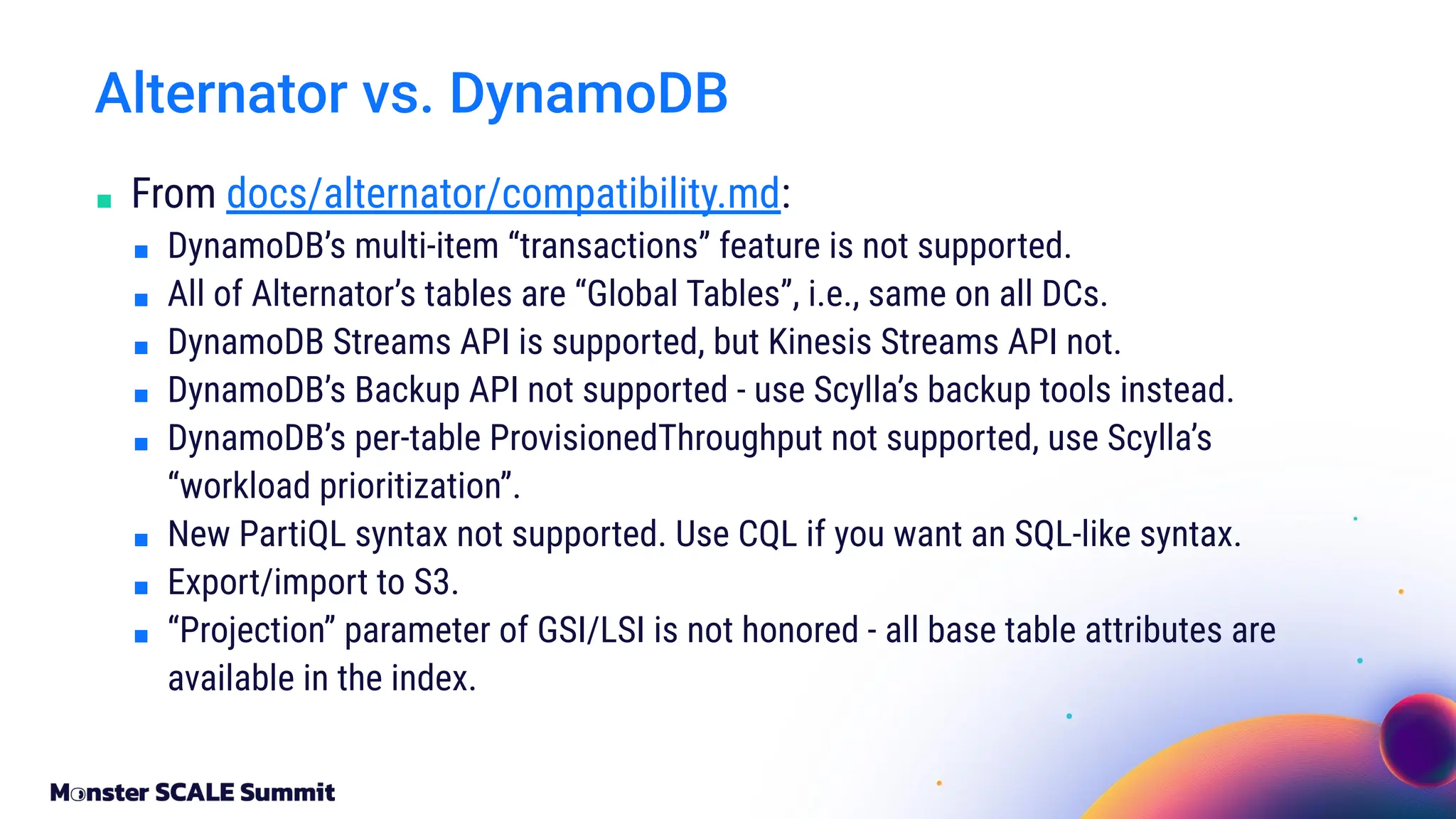

- 28. ■ From docs/alternator/compatibility.md: ■DynamoDB’s multi-item “transactions” feature is not supported. ■ All of Alternator’s tables are “Global Tables”, i.e., same on all DCs. ■ DynamoDB Streams API is supported, but Kinesis Streams API not. ■ DynamoDB’s Backup API not supported - use Scylla’s backup tools instead. ■ DynamoDB’s per-table ProvisionedThroughput not supported, use Scylla’s “workload prioritization”. ■ New PartiQL syntax not supported. Use CQL if you want an SQL-like syntax. ■ Export/import to S3. ■ “Projection” parameter of GSI/LSI is not honored - all base table attributes are available in the index. Alternator vs. DynamoDB

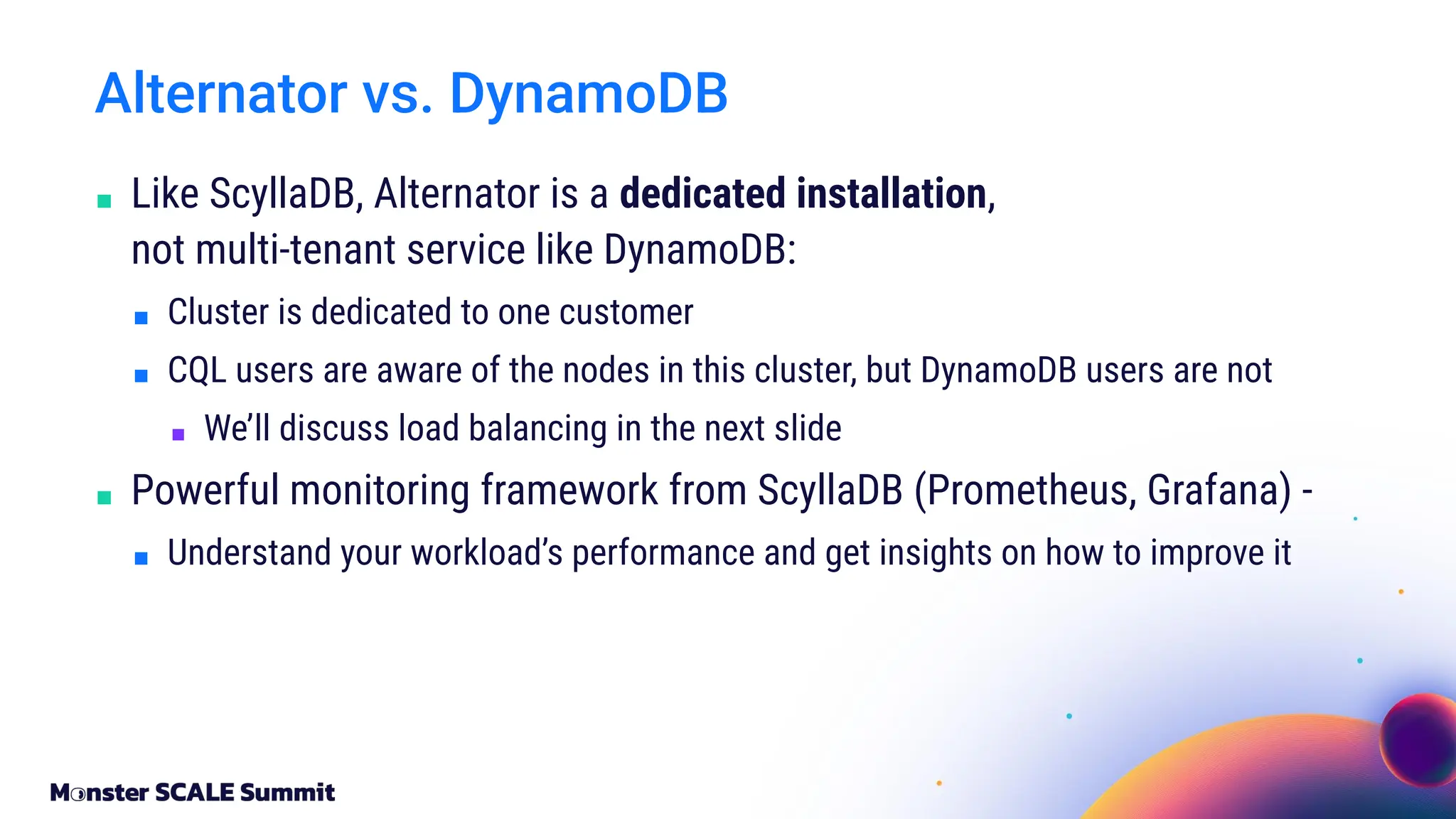

- 29. ■ Like ScyllaDB,Alternator is a dedicated installation, not multi-tenant service like DynamoDB: ■ Cluster is dedicated to one customer ■ CQL users are aware of the nodes in this cluster, but DynamoDB users are not ■ We’ll discuss load balancing in the next slide ■ Powerful monitoring framework from ScyllaDB (Prometheus, Grafana) - ■ Understand your workload’s performance and get insights on how to improve it Alternator vs. DynamoDB

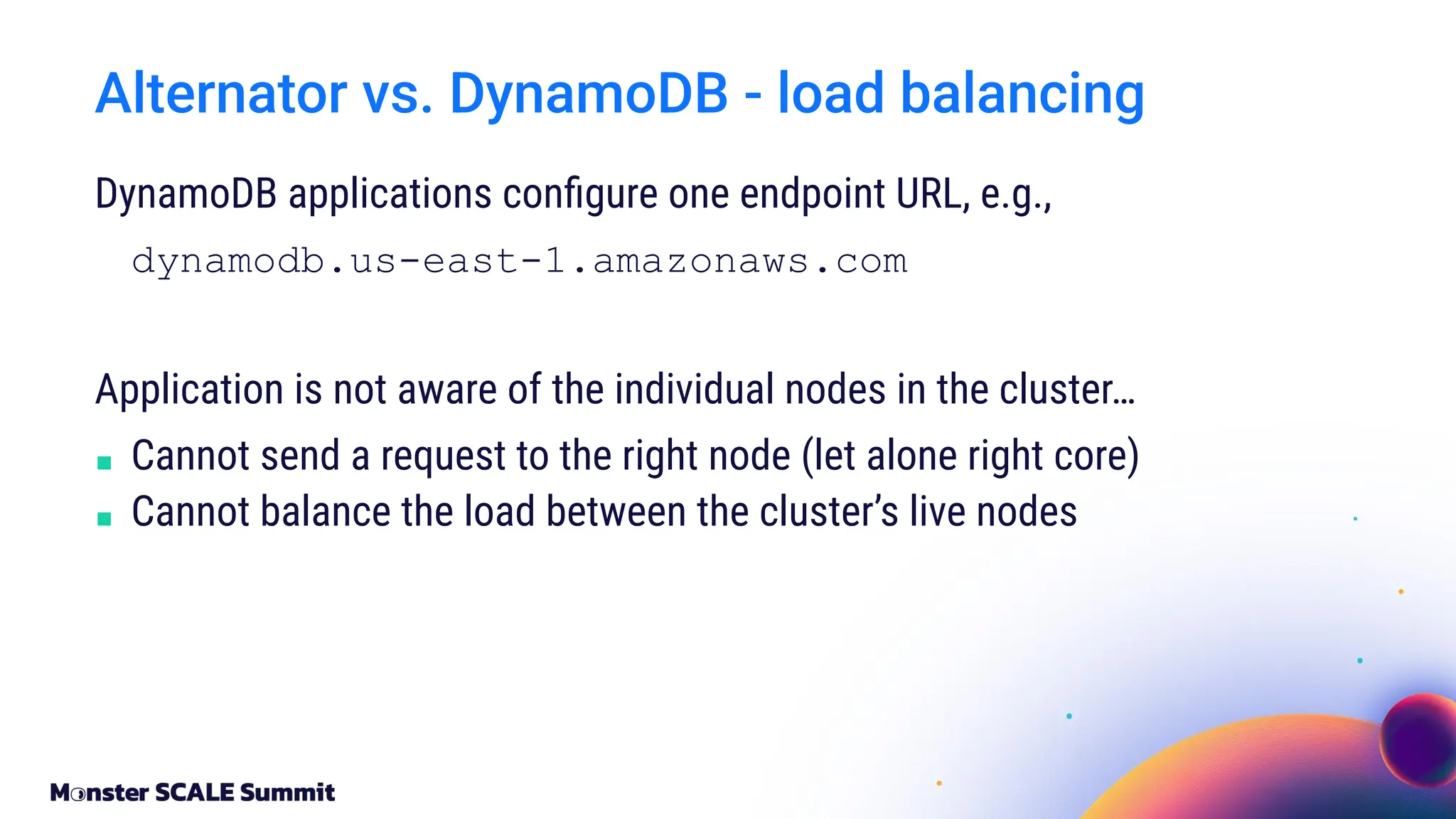

- 30. DynamoDB applications configureone endpoint URL, e.g., dynamodb.us-east-1.amazonaws.com Application is not aware of the individual nodes in the cluster… ■ Cannot send a request to the right node (let alone right core) ■ Cannot balance the load between the cluster’s live nodes Alternator vs. DynamoDB - load balancing

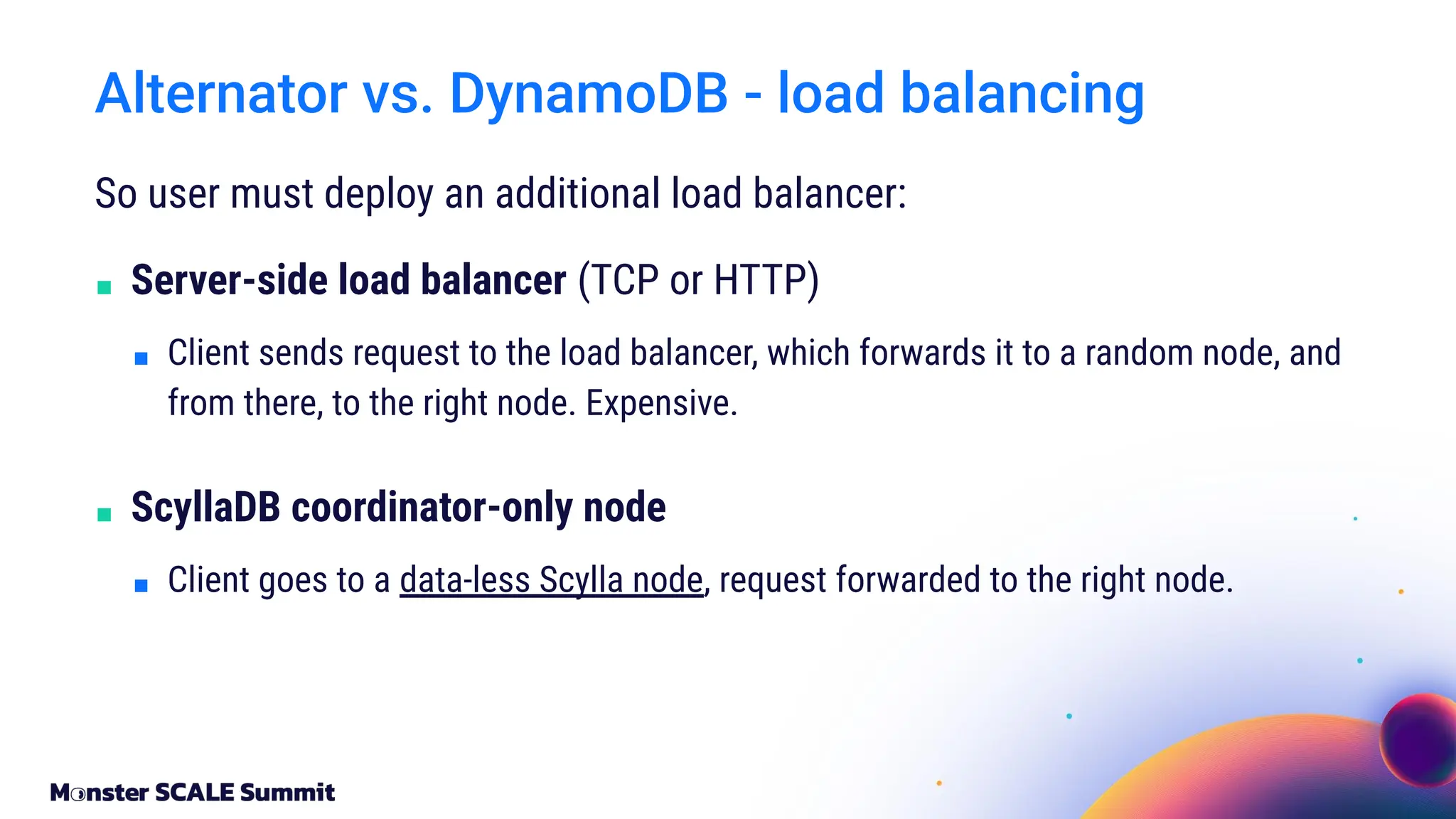

- 31. So user mustdeploy an additional load balancer: ■ Server-side load balancer (TCP or HTTP) ■ Client sends request to the load balancer, which forwards it to a random node, and from there, to the right node. Expensive. ■ ScyllaDB coordinator-only node ■ Client goes to a data-less Scylla node, request forwarded to the right node. Alternator vs. DynamoDB - load balancing

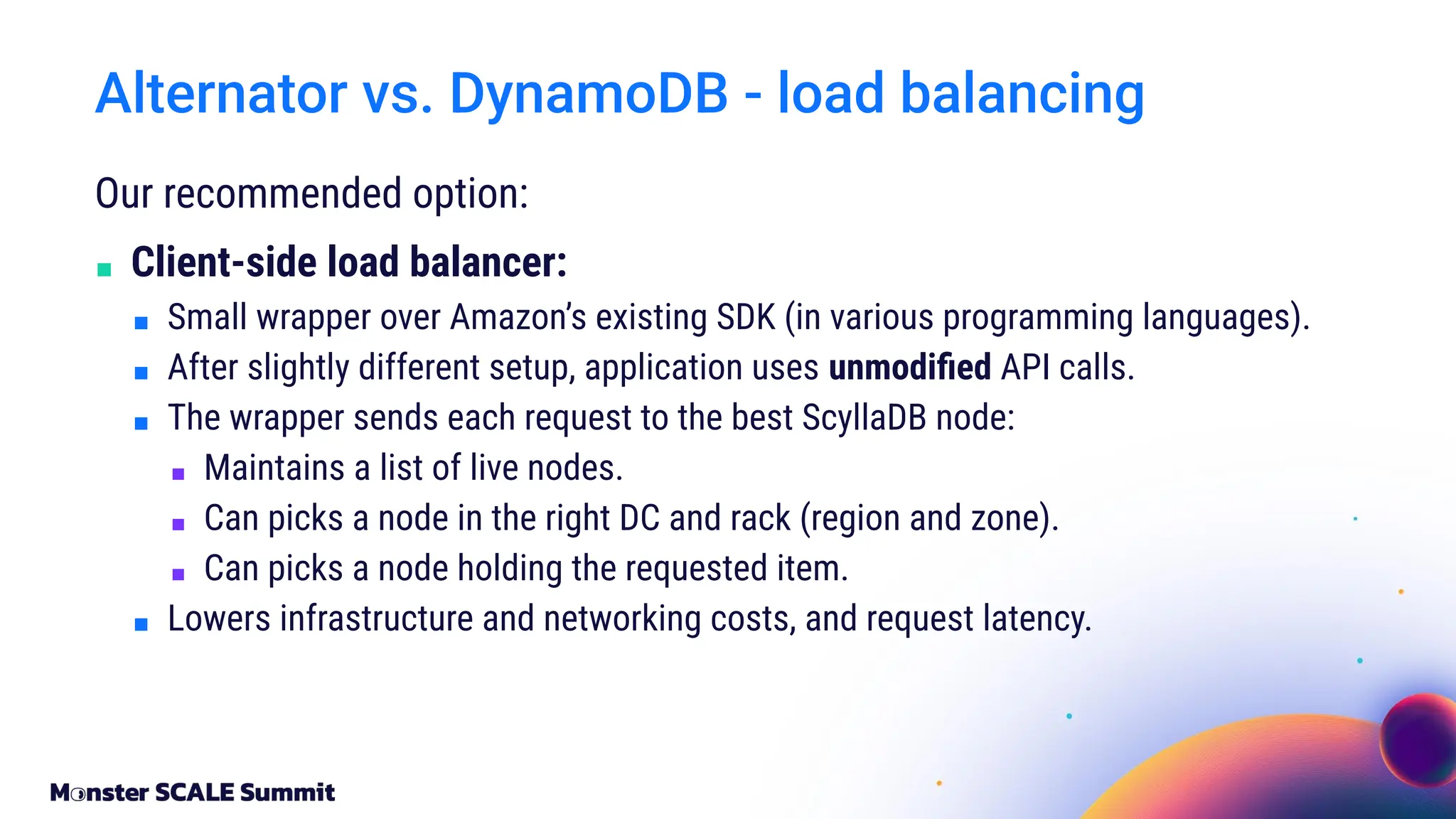

- 32. Our recommended option: ■Client-side load balancer: ■ Small wrapper over Amazon’s existing SDK (in various programming languages). ■ After slightly different setup, application uses unmodified API calls. ■ The wrapper sends each request to the best ScyllaDB node: ■ Maintains a list of live nodes. ■ Can picks a node in the right DC and rack (region and zone). ■ Can picks a node holding the requested item. ■ Lowers infrastructure and networking costs, and request latency. Alternator vs. DynamoDB - load balancing

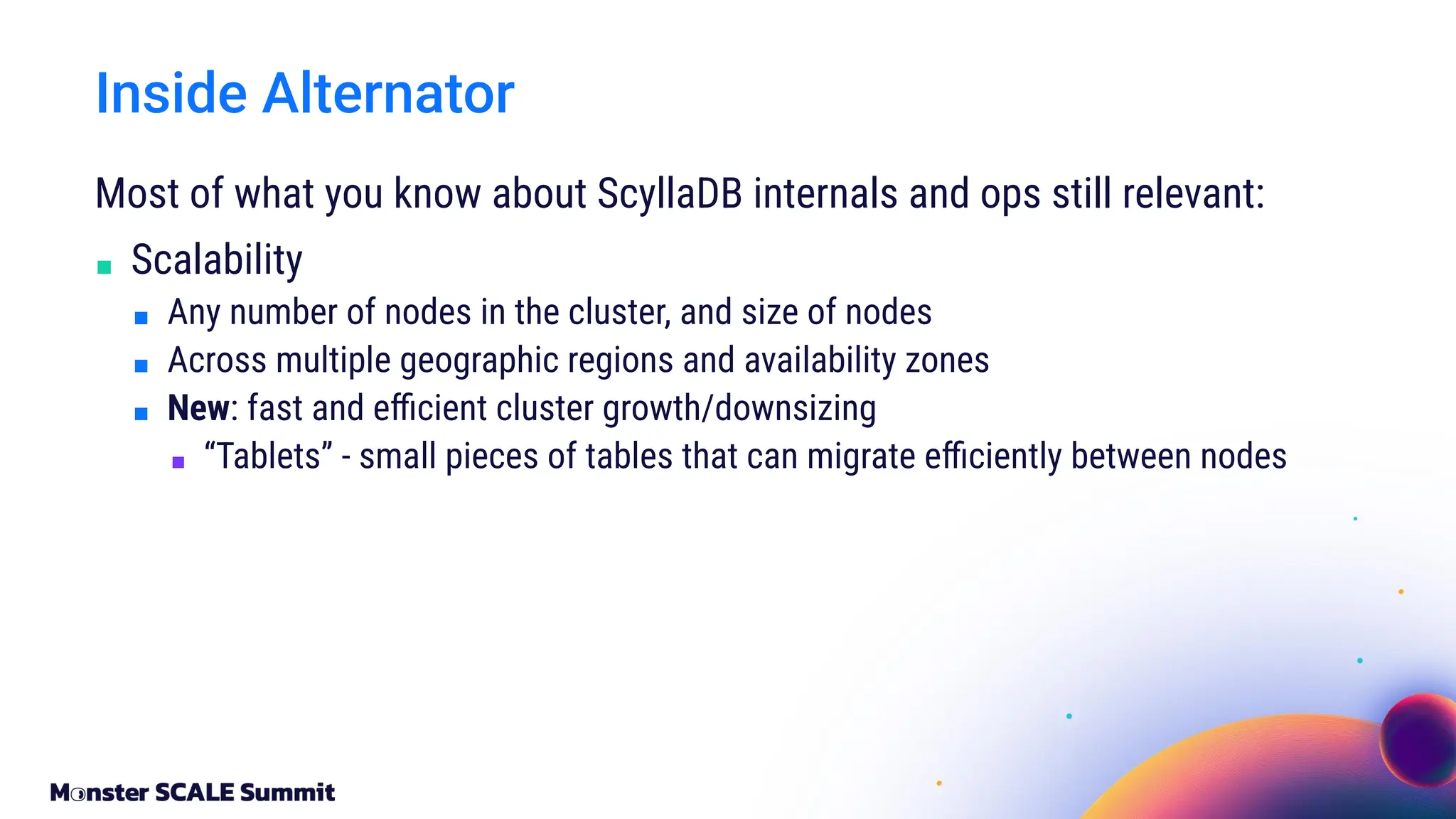

- 33. Most of whatyou know about ScyllaDB internals and ops still relevant: ■ Scalability ■ Any number of nodes in the cluster, and size of nodes ■ Across multiple geographic regions and availability zones ■ New: fast and efficient cluster growth/downsizing ■ “Tablets” - small pieces of tables that can migrate efficiently between nodes Inside Alternator

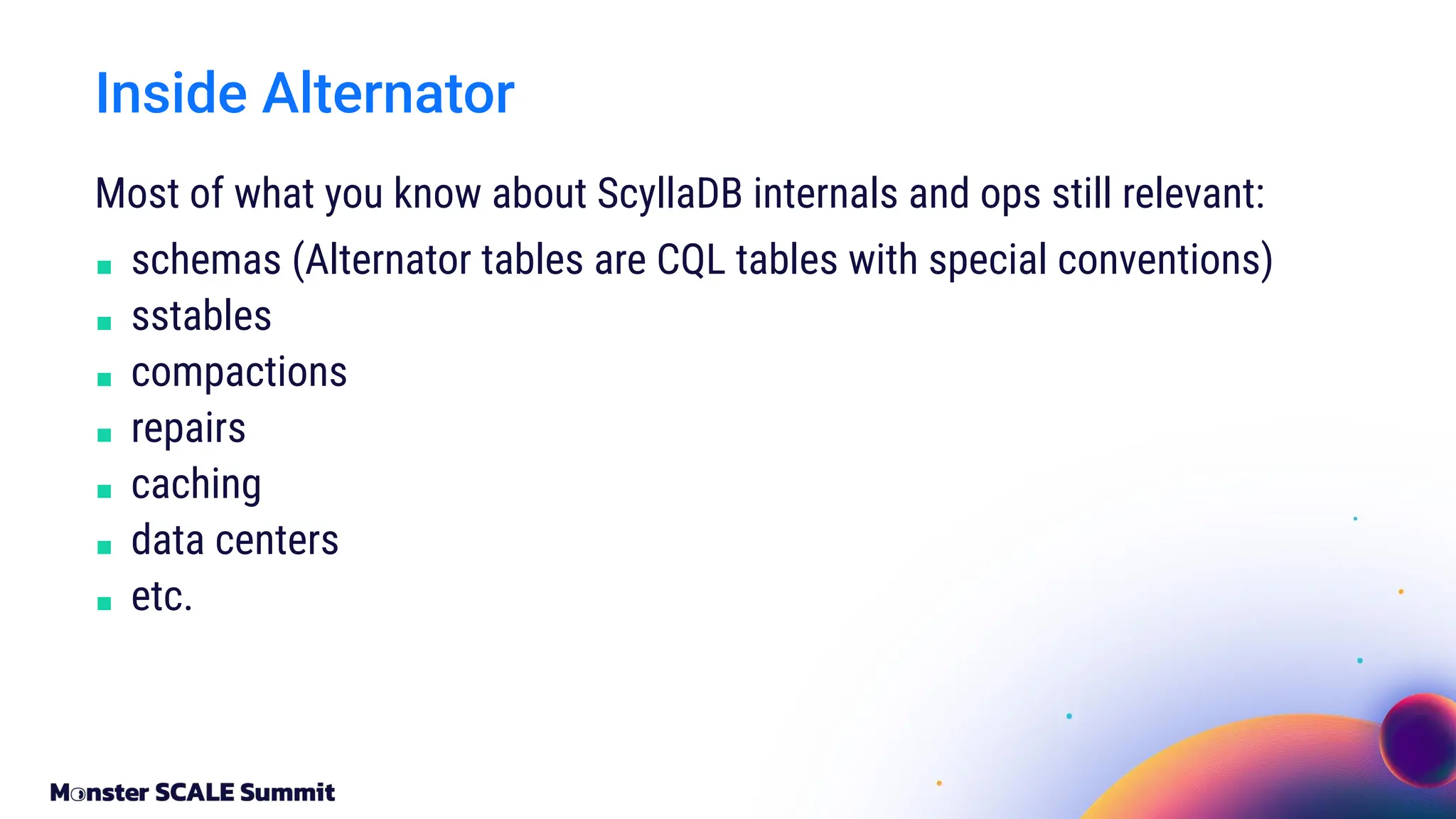

- 34. Most of whatyou know about ScyllaDB internals and ops still relevant: ■ schemas (Alternator tables are CQL tables with special conventions) ■ sstables ■ compactions ■ repairs ■ caching ■ data centers ■ etc. Inside Alternator

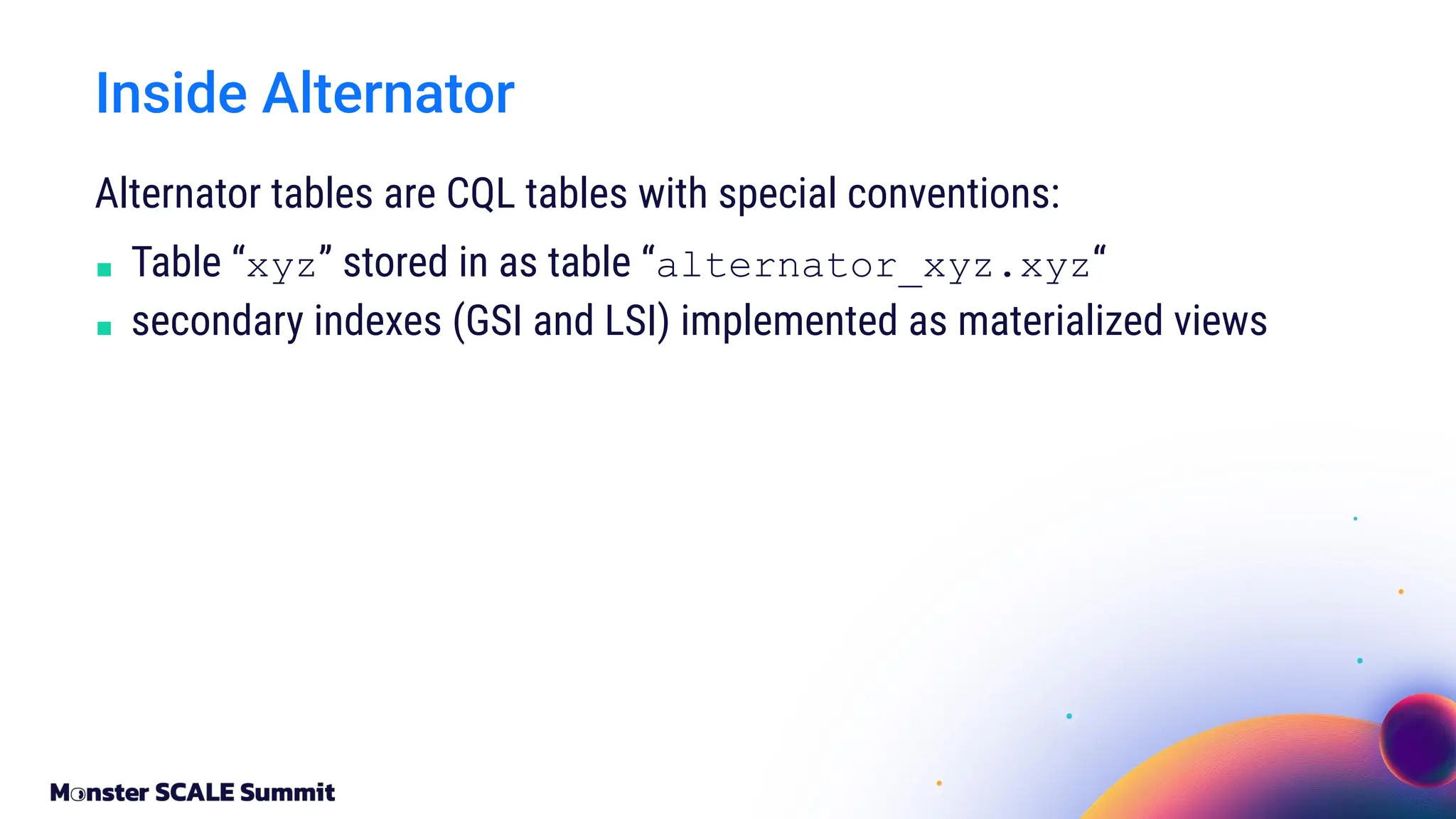

- 35. Alternator tables areCQL tables with special conventions: ■ Table “xyz” stored in as table “alternator_xyz.xyz“ ■ secondary indexes (GSI and LSI) implemented as materialized views Inside Alternator

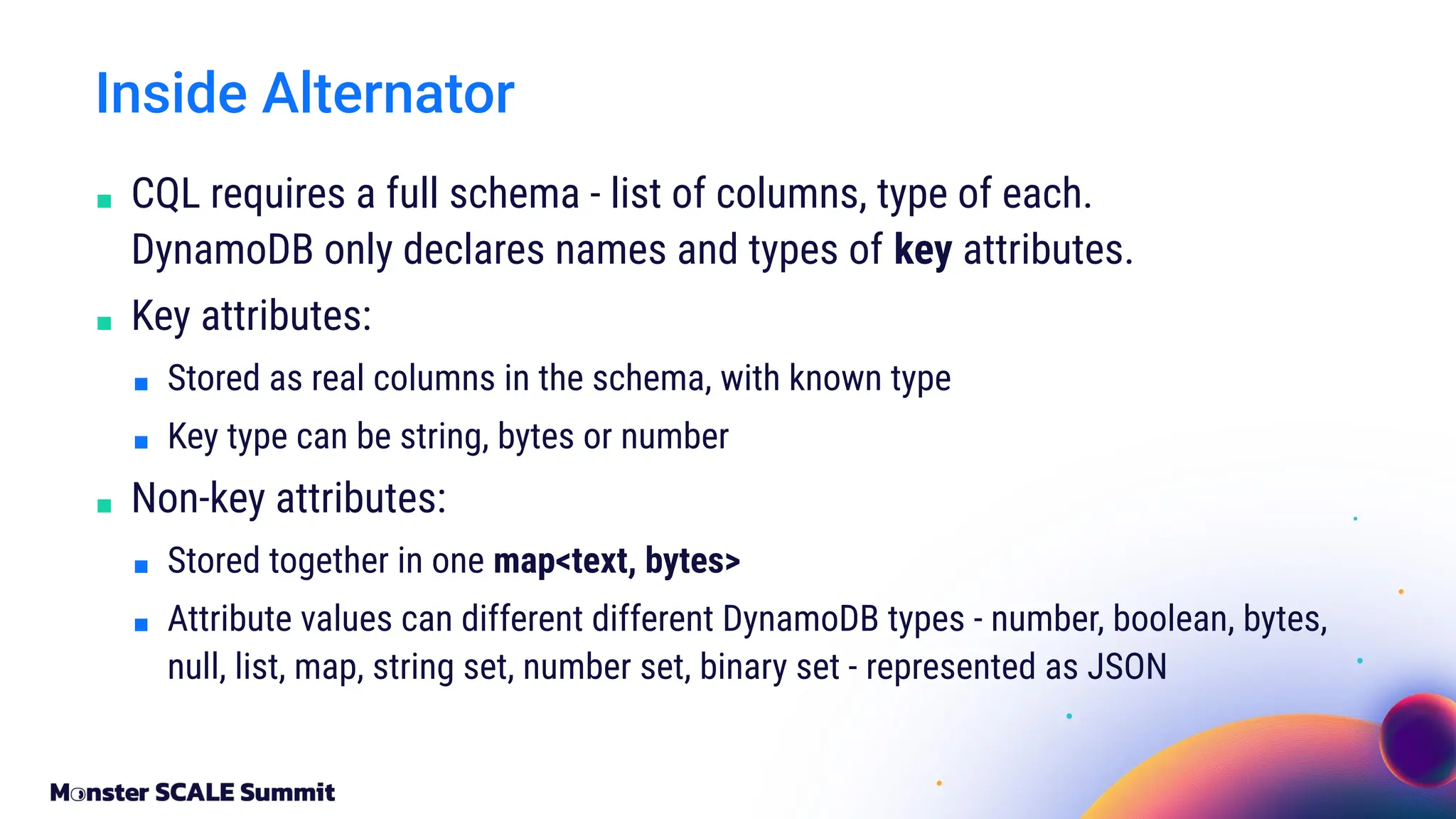

- 36. ■ CQL requiresa full schema - list of columns, type of each. DynamoDB only declares names and types of key attributes. ■ Key attributes: ■ Stored as real columns in the schema, with known type ■ Key type can be string, bytes or number ■ Non-key attributes: ■ Stored together in one map<text, bytes> ■ Attribute values can different different DynamoDB types - number, boolean, bytes, null, list, map, string set, number set, binary set - represented as JSON Inside Alternator

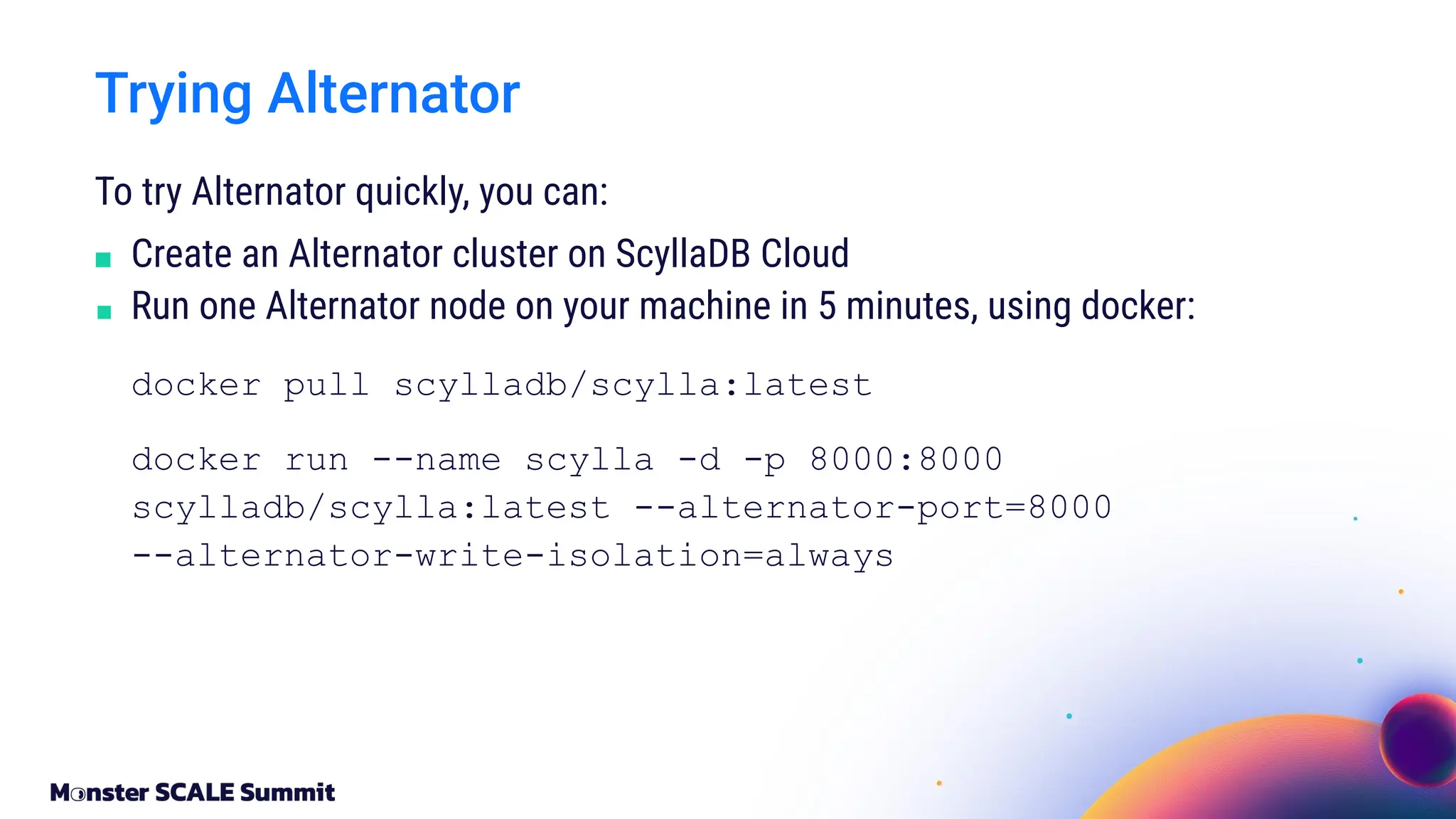

- 37. To try Alternatorquickly, you can: ■ Create an Alternator cluster on ScyllaDB Cloud ■ Run one Alternator node on your machine in 5 minutes, using docker: docker pull scylladb/scylla:latest docker run --name scylla -d -p 8000:8000 scylladb/scylla:latest --alternator-port=8000 --alternator-write-isolation=always Trying Alternator
- 38.

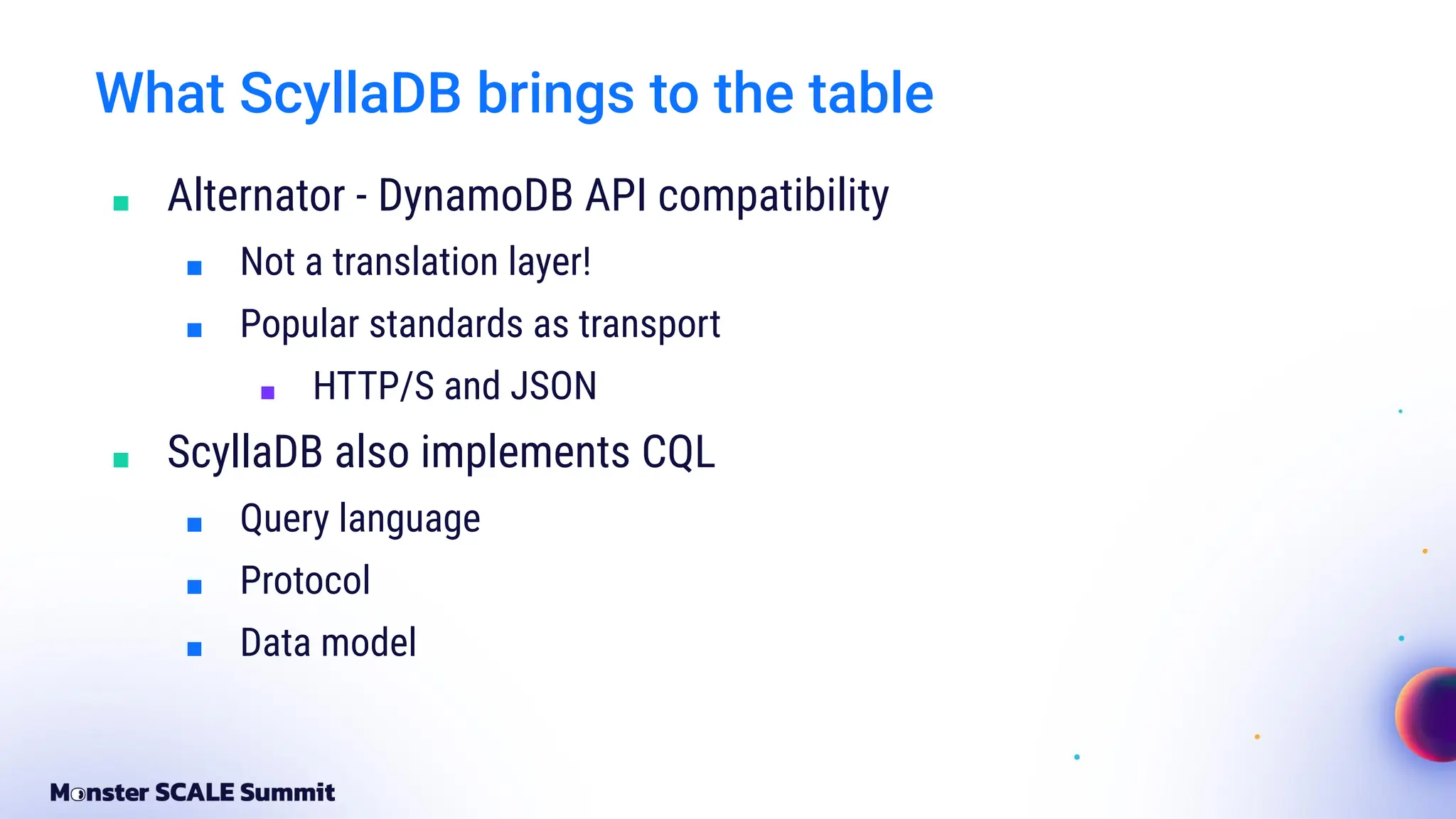

- 39. What ScyllaDB bringsto the table ■ Alternator - DynamoDB API compatibility ■ Not a translation layer! ■ Popular standards as transport ■ HTTP/S and JSON ■ ScyllaDB also implements CQL ■ Query language ■ Protocol ■ Data model

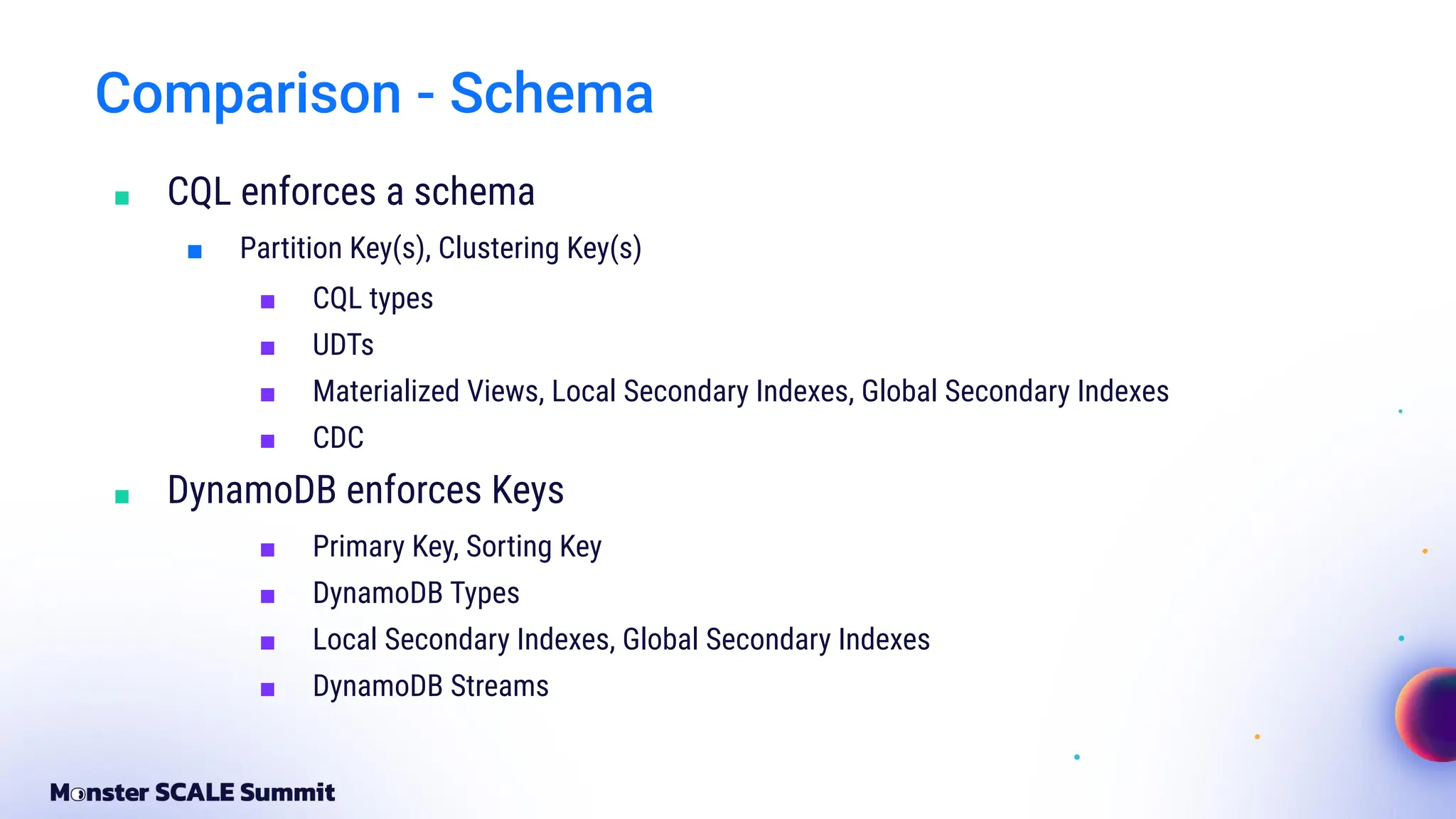

- 40. Comparison - Schema ■CQL enforces a schema ■ Partition Key(s), Clustering Key(s) ■ CQL types ■ UDTs ■ Materialized Views, Local Secondary Indexes, Global Secondary Indexes ■ CDC ■ DynamoDB enforces Keys ■ Primary Key, Sorting Key ■ DynamoDB Types ■ Local Secondary Indexes, Global Secondary Indexes ■ DynamoDB Streams

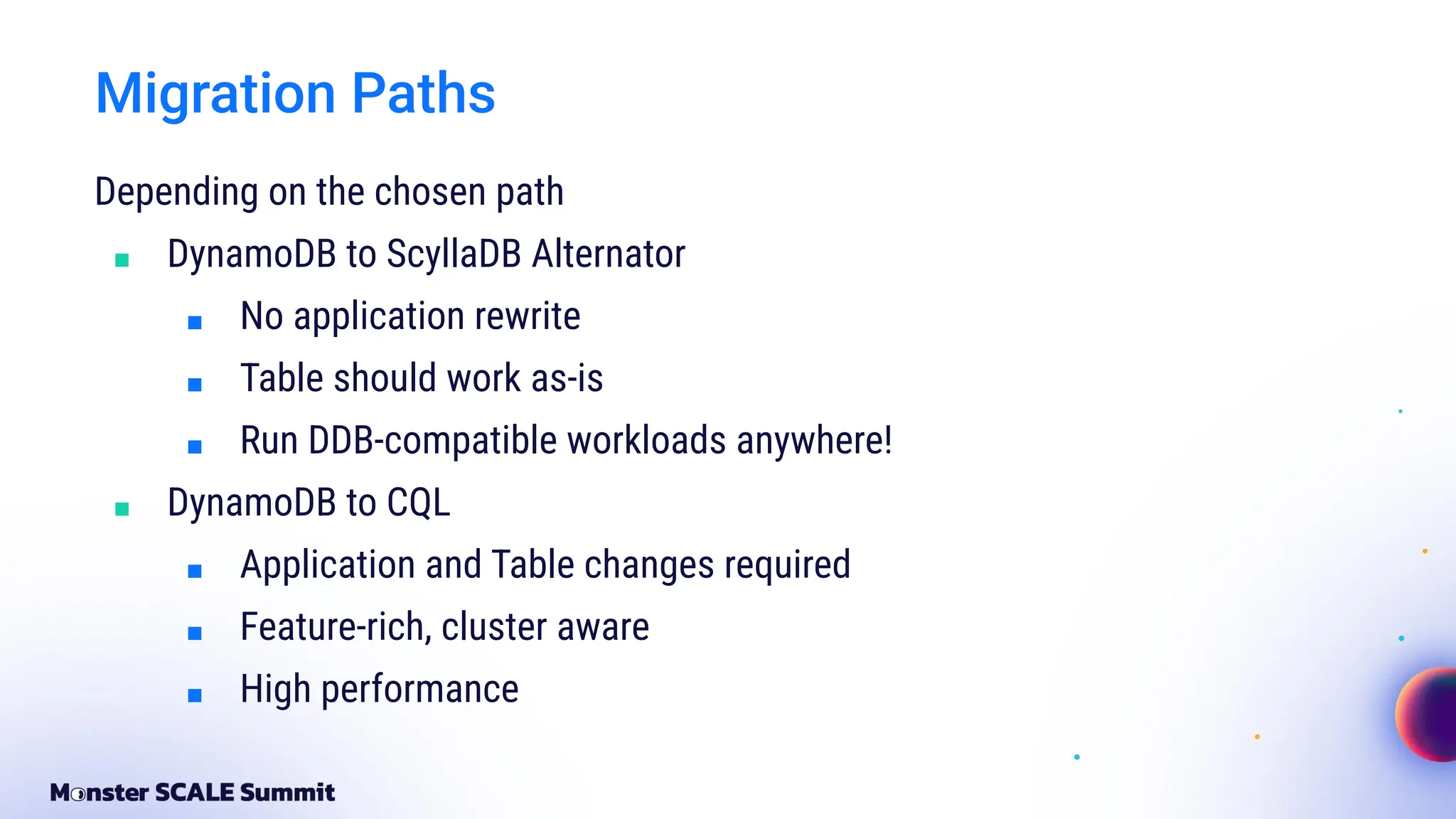

- 41. Migration Paths Depending onthe chosen path ■ DynamoDB to ScyllaDB Alternator ■ No application rewrite ■ Table should work as-is ■ Run DDB-compatible workloads anywhere! ■ DynamoDB to CQL ■ Application and Table changes required ■ Feature-rich, cluster aware ■ High performance

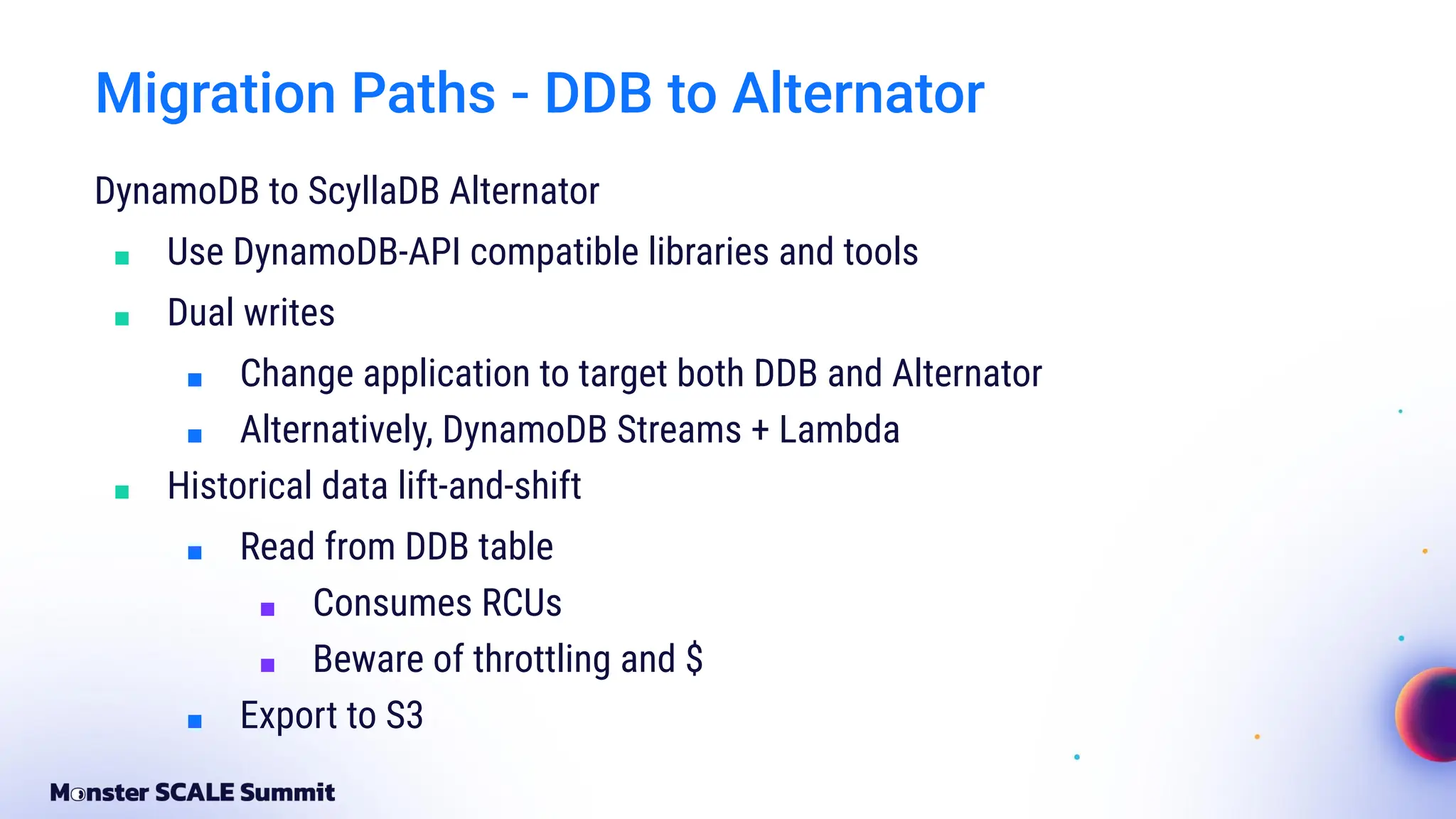

- 42. Migration Paths -DDB to Alternator DynamoDB to ScyllaDB Alternator ■ Use DynamoDB-API compatible libraries and tools ■ Dual writes ■ Change application to target both DDB and Alternator ■ Alternatively, DynamoDB Streams + Lambda ■ Historical data lift-and-shift ■ Read from DDB table ■ Consumes RCUs ■ Beware of throttling and $ ■ Export to S3

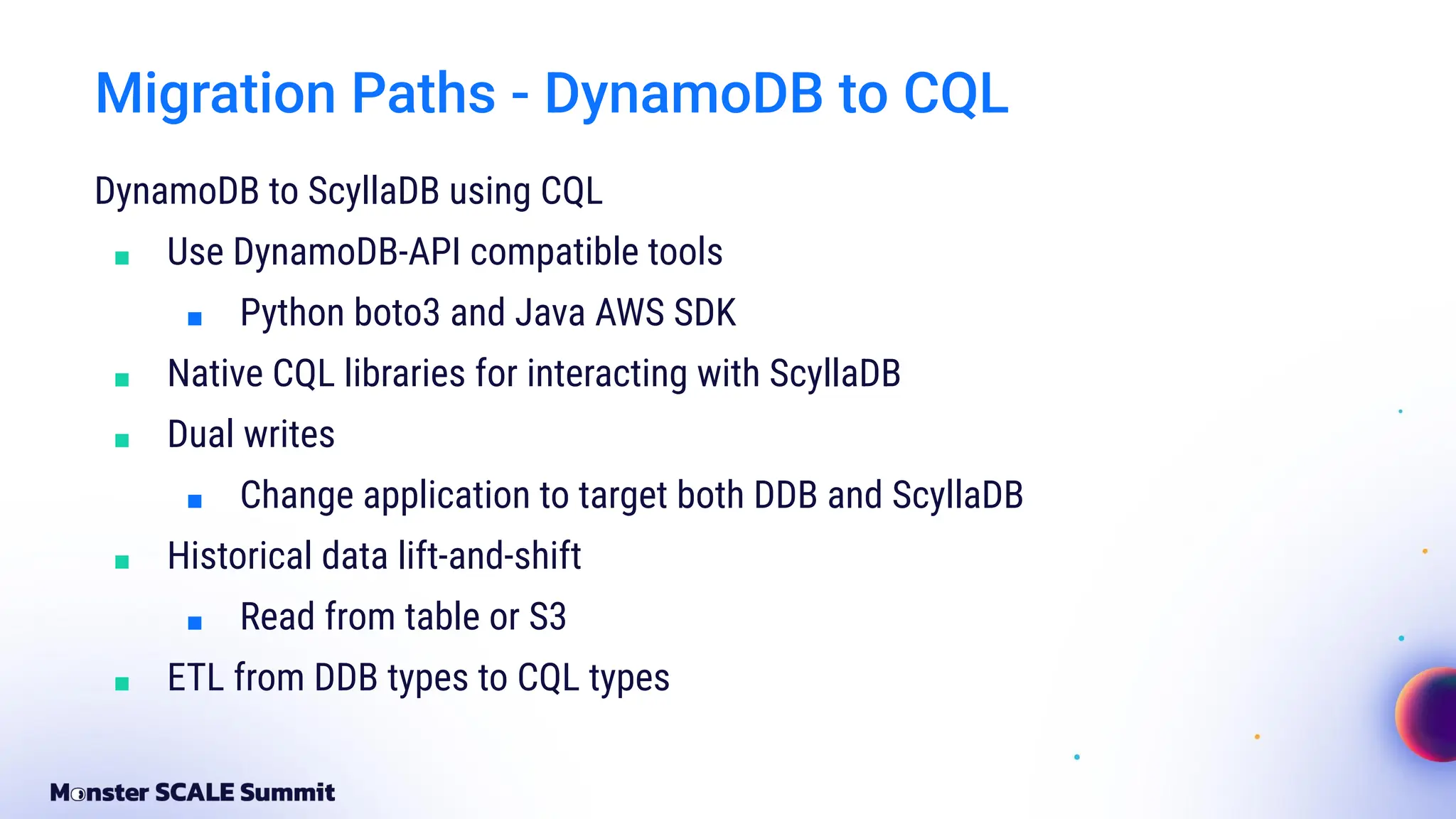

- 43. Migration Paths -DynamoDB to CQL DynamoDB to ScyllaDB using CQL ■ Use DynamoDB-API compatible tools ■ Python boto3 and Java AWS SDK ■ Native CQL libraries for interacting with ScyllaDB ■ Dual writes ■ Change application to target both DDB and ScyllaDB ■ Historical data lift-and-shift ■ Read from table or S3 ■ ETL from DDB types to CQL types

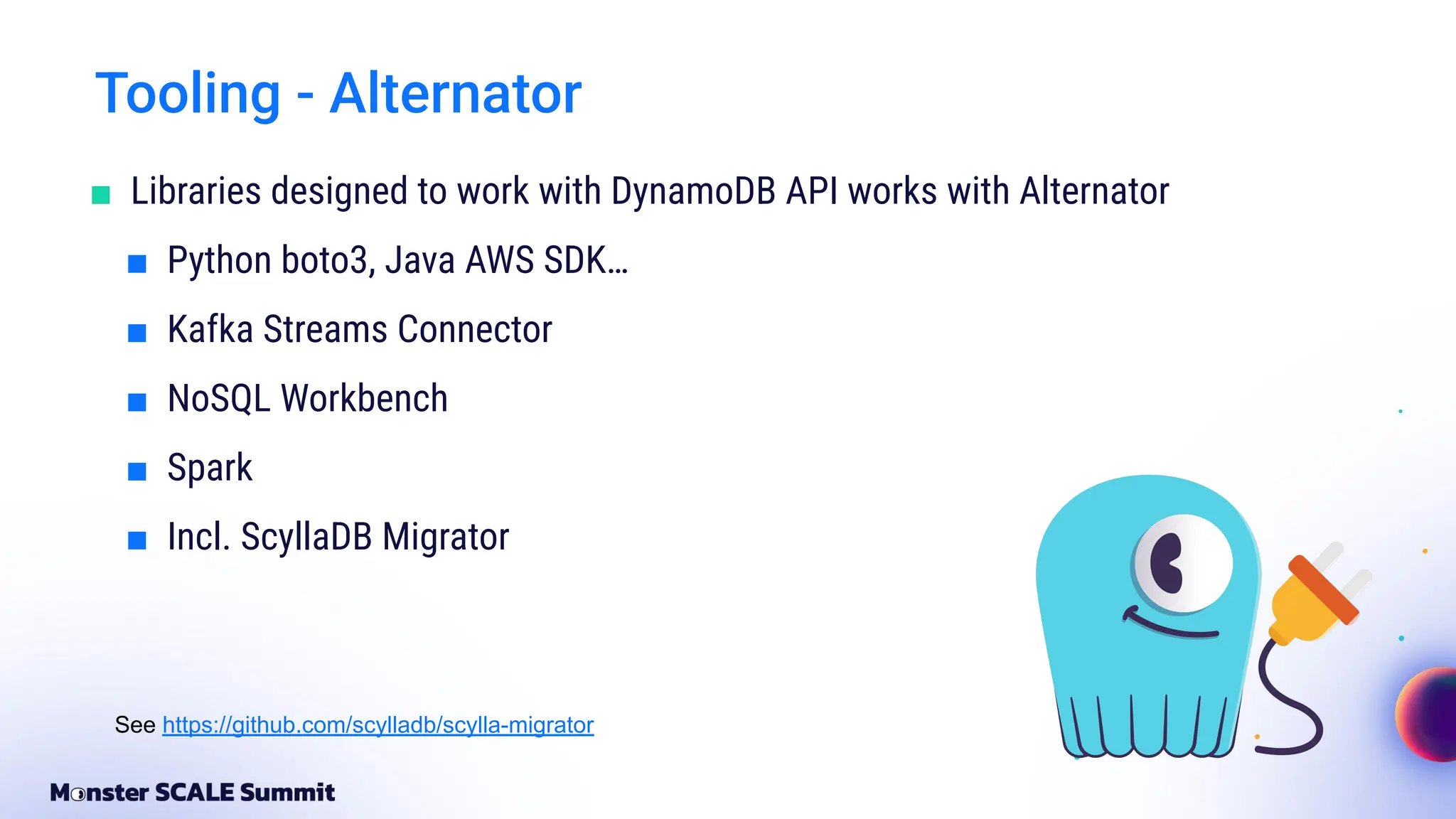

- 44. Tooling - Alternator ■Libraries designed to work with DynamoDB API works with Alternator ■ Python boto3, Java AWS SDK… ■ Kafka Streams Connector ■ NoSQL Workbench ■ Spark ■ Incl. ScyllaDB Migrator See https://github.com/scylladb/scylla-migrator
- 45. Tooling - CQL ■Built-in shard awareness on ScyllaDB drivers ■ Enabled by default ■ Supports many languages: ■ Leveraged by connectors: ■ Rack awareness (save on Cloud networking)

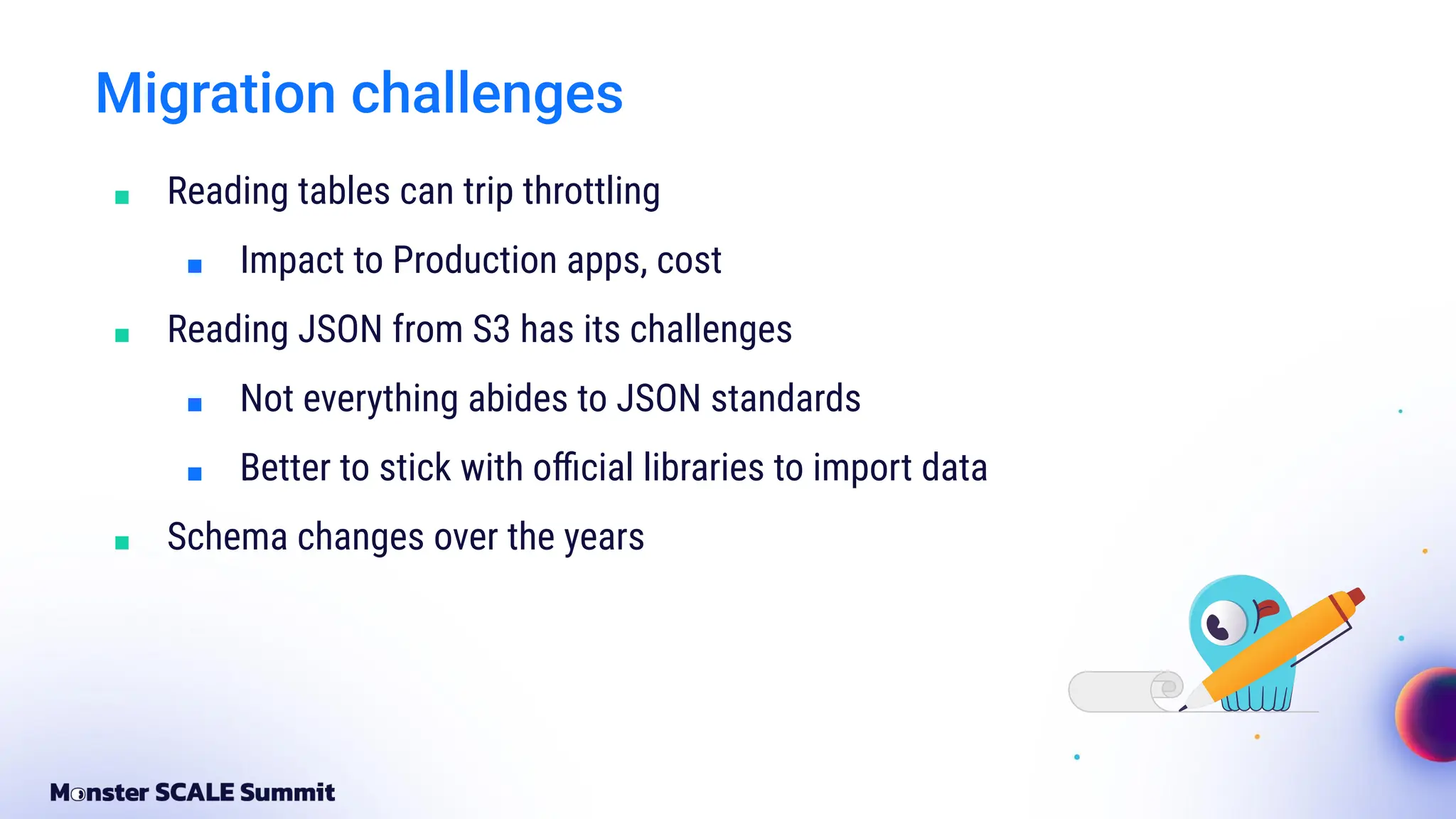

- 46. Migration challenges ■ Readingtables can trip throttling ■ Impact to Production apps, cost ■ Reading JSON from S3 has its challenges ■ Not everything abides to JSON standards ■ Better to stick with official libraries to import data ■ Schema changes over the years
- 47. What about ScyllaDBcost?
- 48.

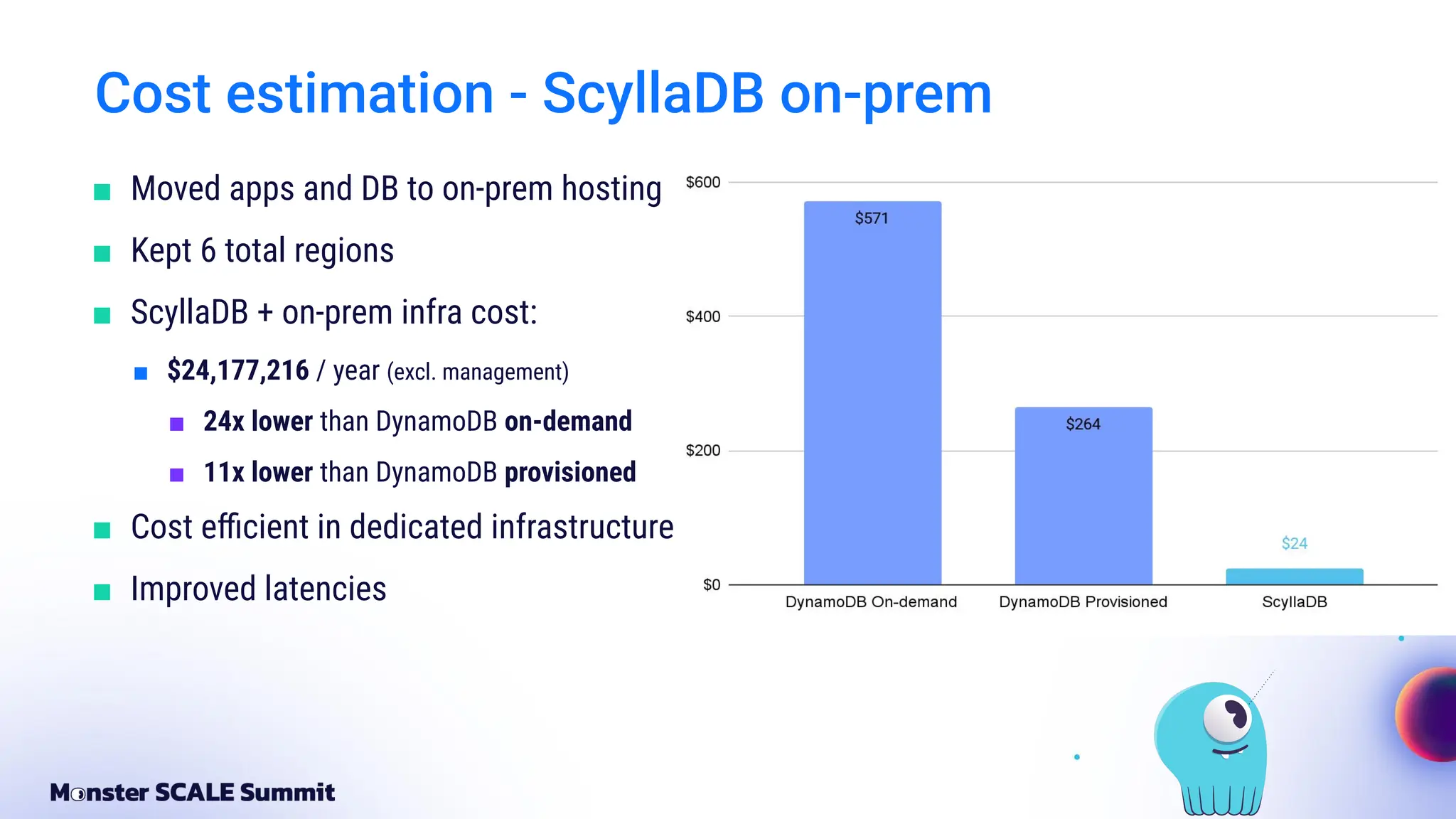

- 49. Cost estimation -ScyllaDB on-prem ■ Moved apps and DB to on-prem hosting ■ Kept 6 total regions ■ ScyllaDB + on-prem infra cost: ■ $24,177,216 / year (excl. management) ■ 24x lower than DynamoDB on-demand ■ 11x lower than DynamoDB provisioned ■ Cost efficient in dedicated infrastructure ■ Improved latencies

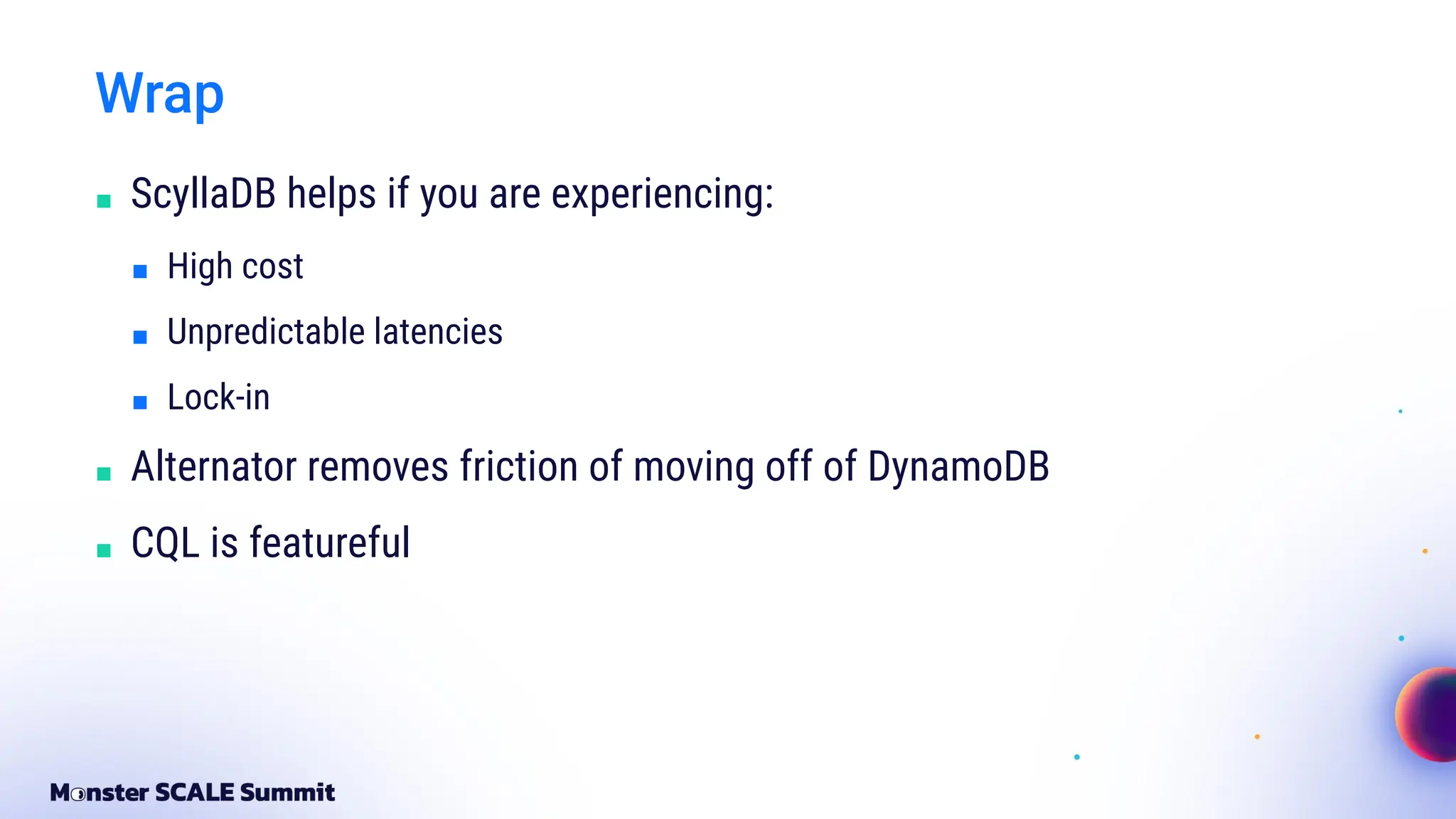

- 50. Wrap ■ ScyllaDB helpsif you are experiencing: ■ High cost ■ Unpredictable latencies ■ Lock-in ■ Alternator removes friction of moving off of DynamoDB ■ CQL is featureful
- 51. Stay in Touch GuilhermeNogueira guilherme.nogueira@scylladb.com hopugop https://www.linkedin.com/in/guilherme-no gueira-4740a116/ Nadav Har’El nyh@scylladb.com nyh https://www.linkedin.com/in/nyharel/
