This document discusses three solutions for a 101km point-to-point transmission project requiring 8 channels of 10Gb/s data transmission. Solution A uses a single eWAVE2108 unit with a pre-EDFA and DCM to compensate for 29dB of loss. Solution B uses a single eWAVE2108 unit with a boost-EDFA and DCM. Solution C uses separate eWAVE2108 and DCM units, requiring two rack units. The document provides diagrams of the network layout and components for each solution.

1. eWAVE2108 Application
In Commercial Confidential

2. Agenda
1. Project’s requirement
2. Solution A: eWAVE2108: Pre-EDFA+DCM (1U)
In Commercial Confidential
3. Solution B: eWAVE2108: Boost-EDFA+DCM (1U)
3. Solution C: eWAVE2108 + DCM (2U in total)

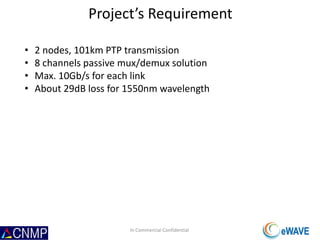

3. Project’s Requirement
In Commercial Confidential
• 2 nodes, 101km PTP transmission
• 8 channels passive mux/demux solution
• Max. 10Gb/s for each link
• About 29dB loss for 1550nm wavelength

4. Agenda
1. Project’s requirement
2. Solution A: eWAVE2108: Pre-EDFA + DCM (1U)
In Commercial Confidential
3. Solution B: eWAVE2108: Boost-EDFA + DCM (1U)
3. Solution C: eWAVE2108 + DCM (2U in total)

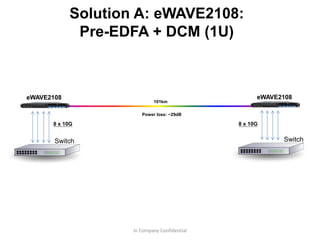

5. Solution A: eWAVE2108:
Pre-EDFA + DCM (1U)
In Company Confidential
eWAVE2108 eWAVE2108
101km
Switch Switch
8 x 10G 8 x 10G
Power loss: ~29dB

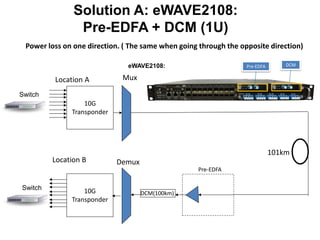

6. Location A
10G
Transponder
Mux
Location B Demux
DCM(100km)
101km
Pre-EDFA
Switch
Switch 10G
Transponder
Power loss on one direction. ( The same when going through the opposite direction)
Pre-EDFA DCMeWAVE2108:
Solution A: eWAVE2108:
Pre-EDFA + DCM (1U)

7. Agenda
1. Project’s requirement
2. Solution A: eWAVE2108: Pre-EDFA + DCM (1U)
In Commercial Confidential
3. Solution B: eWAVE2108: Boost-EDFA + DCM (1U)
3. Solution C: eWAVE2108 + DCM (2U in total)

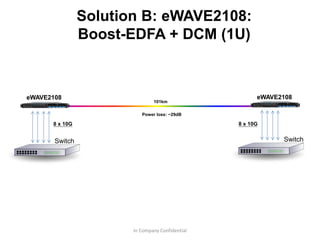

8. Solution B: eWAVE2108:
Boost-EDFA + DCM (1U)
In Company Confidential
eWAVE2108 eWAVE2108
101km
Switch Switch
8 x 10G 8 x 10G
Power loss: ~29dB

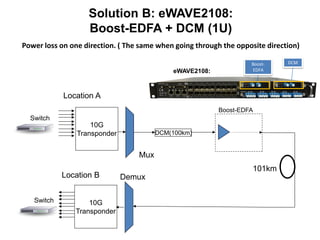

9. Power loss on one direction. ( The same when going through the opposite direction)
Boost-
EDFA
DCM
eWAVE2108:
Solution B: eWAVE2108:
Boost-EDFA + DCM (1U)
Location A
10G
Transponder
Mux
Location B Demux
101km
Switch
Switch 10G
Transponder
Boost-EDFA
DCM(100km)

10. Agenda
1. Project’s requirement
2. Solution A: eWAVE2108: Pre-EDFA + DCM (1U)
In Commercial Confidential
3. Solution B: eWAVE2108: Boost-EDFA + DCM (1U)
4. Solution C: eWAVE2108 + DCM (2U in total)

11. Solution C: eWAVE2108 + DCM (2U in total)
In Company Confidential
eWAVE2108
101km
Switch Switch
8 x 10G 8 x 10G
Power loss: ~29dB
DCM: oWAVE15100
eWAVE2108
DCM: oWAVE15100

12. Solution C: eWAVE2108 + DCM (2U in total)
Location A
10G
Transponder
Mux
Location B Demux
DCM(100km)
100km
Pre-EDFA
Switch
Switch 10G
Transponder
Boost-EDFA
Power loss on one direction. ( The same when going through the opposite direction)
Pre-EDFA Boost-EDFA
eWAVE2108:
DCM: oWAVE15100:

13. For more information, please contact us:
Email: anthony.lau@ewave.com.hk
www.ewave.com.hk
In Commercial Confidential
