Everspring lighting
This document showcases various lighting products from Everspring including flood lights, sensor flood lights, spot lights, decorative lights, and lighting sensors. The flood lights and sensor flood lights come in both regular and ultra slim models with power ratings from 10W to 50W and light output ranging from 750 lumens to 3800 lumens. The spot lights include double headed models and come with optional customizable SecurEffect inserts. The decorative lights have motion/light sensors and glass diffusers, and come in styles suitable for front doors, gardens, and corridors.
Everspring lighting
- 1.

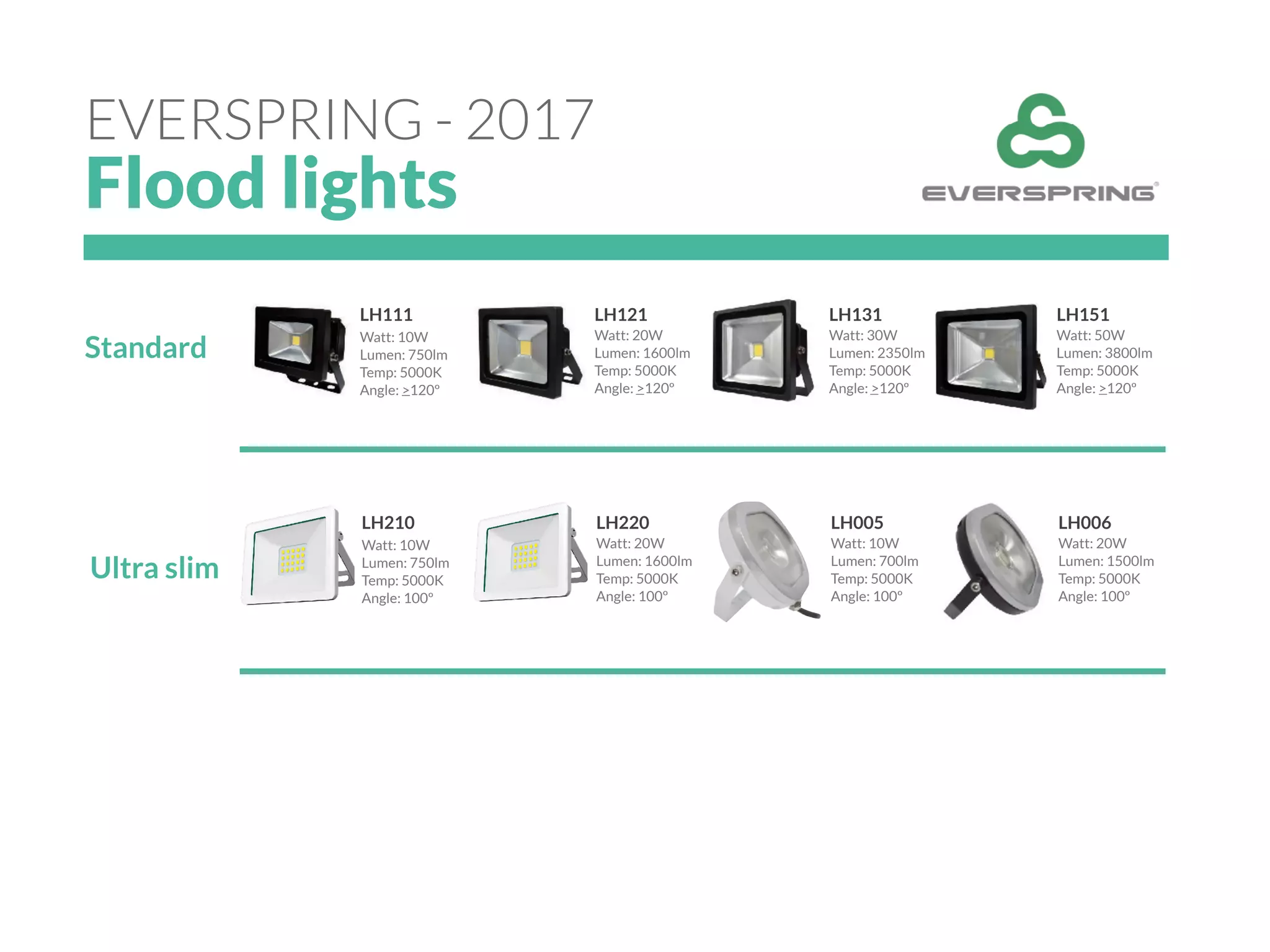

- 2. EVERSPRING - 2017 Floodlights Standard Ultra slim LH111 Watt: 10W Lumen: 750lm Temp: 5000K Angle: >120º LH121 Watt: 20W Lumen: 1600lm Temp: 5000K Angle: >120º LH131 Watt: 30W Lumen: 2350lm Temp: 5000K Angle: >120º LH151 Watt: 50W Lumen: 3800lm Temp: 5000K Angle: >120º LH210 Watt: 10W Lumen: 750lm Temp: 5000K Angle: 100º LH220 Watt: 20W Lumen: 1600lm Temp: 5000K Angle: 100º LH005 Watt: 10W Lumen: 700lm Temp: 5000K Angle: 100º LH006 Watt: 20W Lumen: 1500lm Temp: 5000K Angle: 100º

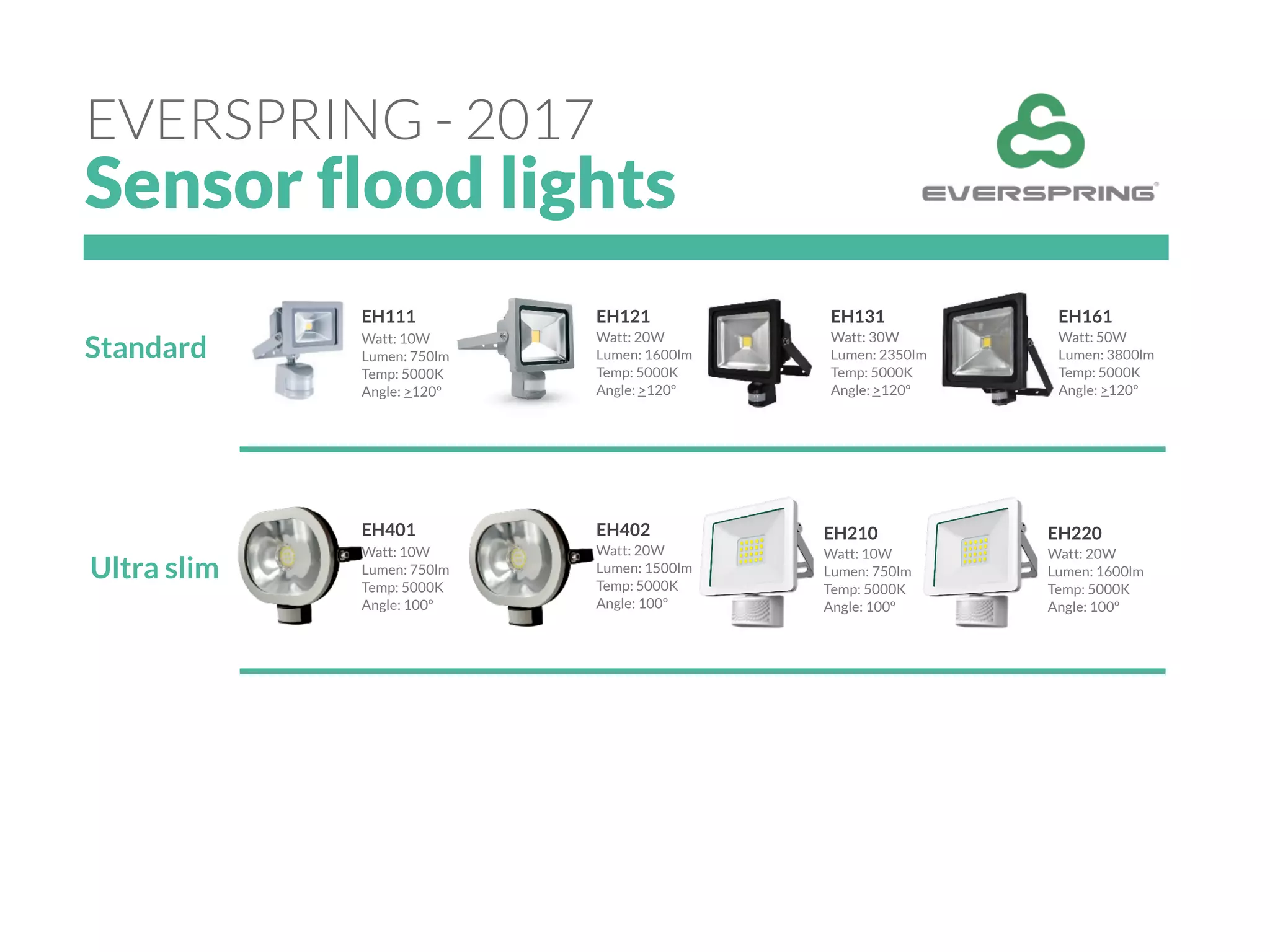

- 3. EVERSPRING - 2017 Sensorflood lights Standard Ultra slim EH111 Watt: 10W Lumen: 750lm Temp: 5000K Angle: >120º EH121 Watt: 20W Lumen: 1600lm Temp: 5000K Angle: >120º EH131 Watt: 30W Lumen: 2350lm Temp: 5000K Angle: >120º EH161 Watt: 50W Lumen: 3800lm Temp: 5000K Angle: >120º EH401 Watt: 10W Lumen: 750lm Temp: 5000K Angle: 100º EH402 Watt: 20W Lumen: 1500lm Temp: 5000K Angle: 100º EH220 Watt: 20W Lumen: 1600lm Temp: 5000K Angle: 100º EH210 Watt: 10W Lumen: 750lm Temp: 5000K Angle: 100º
- 4. EVERSPRING - 2017 Decorativelights Decorative ED524 Light load: 13W FL, 40W INC, 20W LED Night light: 0.6W Protection: IP44 ED521 Light load: 23W FL, 60W INC, 20W LED Night light: 0.6W Protection: IP44 ED520 Light load: 25W HAL, 20W LED Night light: 0.6W Protection: IP44 ED522 Light load: 20W FL, 60W INC, 20W LED Night light: 0.6W Protection: IP44 ED523 Light load: 23W FL, 60W INC, 20W LED Night light: 0.6W Protection: IP44 ED165 Light load: 60W INC, 23W Saving Protection: IP44 ED166 Light load: 60W INC, 23W Saving Protection: IP44 ES49 Light load: 100W Protection: IP44

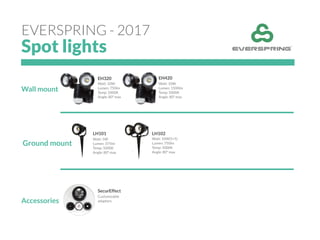

- 5. EVERSPRING - 2017 Spotlights Wall mount EH320 Watt: 10W Lumen: 750lm Temp: 5000K Angle: 80º max EH420 Watt: 10W Lumen: 1500lm Temp: 5000K Angle: 80º max SecurEffect Customizable adaptorsAccessories Ground mount LH101 Watt: 5W Lumen: 375lm Temp: 5000K Angle: 80º max LH102 Watt: 10W(5+5) Lumen: 750lm Temp: 5000K Angle: 80º max
- 6. EVERSPRING - 2017 Lightingsensors PAM60 Angle: 180º Distance: 12m Light on duration Set lux level IP54 PES48 Angle: 160º Distance: 12m Light on duration Set lux level IP40 Special sensors PAS21 Angle: 360º Micro motion: 3m Motion: 5m Light on duration Set lux level IP20 PAS22 Angle: 360º Micro motion: 3m Motion: 5m Light on duration Set lux level IP44 PAS23 Angle: 360º Micro motion: 3m Motion: 5m Light on duration Set lux level IR controller supp. PAS25 Angle: 360º Micro motion: 3m Motion: 5m Light on duration Set lux level Occupancy detectors Motion sensors PAM21 Angle: 240º Distance: 12m Light on duration Set lux & sensitivity levels IP55 PAM41 Angle: 180º Distance: 12m Light on duration Set lux level PAM42 Angle: 110º~180º Distance: 12m Light on duration Set lux level IP44 PAM43 Angle: 110º~180º Distance: 12m Light on duration Set lux level IP44
- 7.

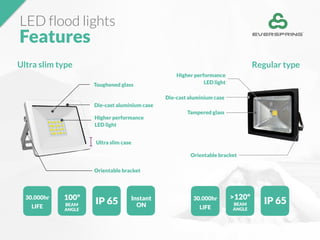

- 8. LED flood lights Features Higherperformance LED light Toughened glass Die-cast aluminium case Orientable bracket Ultra slim case Higher performance LED light Tampered glass Die-cast aluminium case Orientable bracket Ultra slim type Regular type >120º BEAM ANGLE IP 6530.000hr LIFE 100º BEAM ANGLE IP 65 30.000hr LIFE Instant ON

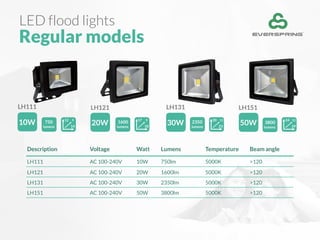

- 9. LED flood lights Regularmodels LH121 1600 lumens 18 17 9 LH111 750 lumens 14 12 9 LH151 3800 lumens 29 24 12 LH131 2350 lumens 23 20 11 10W 20W 30W 50W Description Voltage Watt Lumens Temperature Beam angle LH111 AC 100-240V 10W 750lm 5000K >120 LH121 AC 100-240V 20W 1600lm 5000K >120 LH131 AC 100-240V 30W 2350lm 5000K >120 LH151 AC 100-240V 50W 3800lm 5000K >120

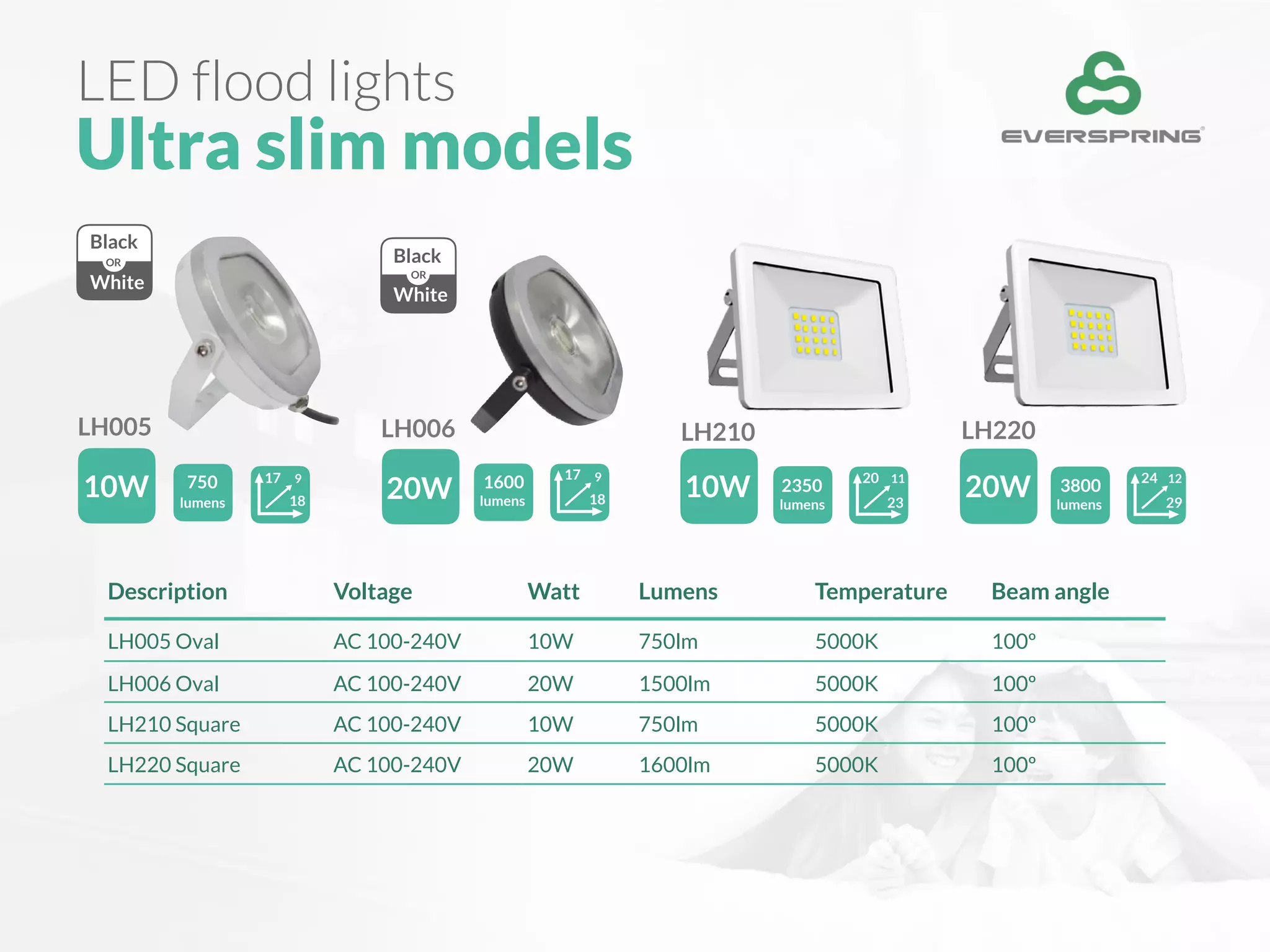

- 10. LED flood lights Ultraslim models LH005 10W 750 lumens 18 17 9 Black White OR LH006 1600 lumens 18 17 9 Black White OR 20W LH210 2350 lumens 23 20 11 10W LH220 3800 lumens 29 24 12 20W Description Voltage Watt Lumens Temperature Beam angle LH005 Oval AC 100-240V 10W 750lm 5000K 100º LH006 Oval AC 100-240V 20W 1500lm 5000K 100º LH210 Square AC 100-240V 10W 750lm 5000K 100º LH220 Square AC 100-240V 20W 1600lm 5000K 100º

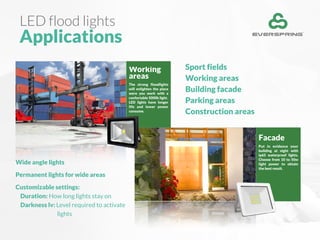

- 11. LED flood lights Applications Sportfields Working areas Building facade Parking areas Construction areas Working areas The strong floodlights will enlighten the place were you work with a confortable 5000k light. LED lights have longer life and lower power consume. Facade Put in evidence your building at night with ip65 waterproof lights. Choose from 10 to 50w light power to obtain the best result. Wide angle lights Permanent lights for wide areas Customizable settings: Duration: How long lights stay on Darkness lv: Level required to activate lights

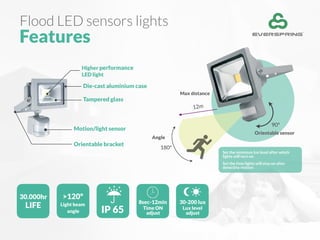

- 12. Flood LED sensorslights Features Higher performance LED light Tampered glass Motion/light sensor Die-cast aluminium case Orientable bracket Orientable sensor Angle 180º 12m 90º Max distance Set the minimum lux level after which lights will turn on. Set the time lights will stay on after detecting motion. 30.000hr LIFE >120º Light beam angle IP 65 8sec-12min Time ON adjust 30-200 lux Lux level adjust
- 13. LED sensor floodlights Models EH161 3800 lumens 30 29 13 Black Silver OR 50W EH121 1600 lumens 21 18 9 Black Silver OR 20W EH131 2350 lumens 25 22 11 Black Silver OR 30W EH111 750 lumens 19 11 9 Black Silver OR 10W Description Voltage Watt Lumens Temperature Beam angle EH111 AC 100-240V 10W 750lm 5000K >120 EH121 AC 100-240V 20W 1600lm 5000K >120 EH131 AC 100-240V 30W 2350lm 5000K >120 EH161 AC 100-240V 50W 3800lm 5000K >120
- 14. LED sensor floodlights Models EH402 20W 1500 lumens 18 20 4 Black White OR EH220 1600 lumens 21 18 9 20W EH401 750 lumens 16 18 4 Black White OR 10W EH210 750 lumens 19 11 9 10W Description Voltage Watt Lumens Temperature Beam angle EH210 Square AC 100-240V 10W 750lm 5000K 100º EH220 Square AC 100-240V 20W 1600lm 5000K 100º EH401 Oval AC 100-240V 10W 750lm 5000K 100º EH402 Oval AC 100-240V 20W 1500lm 5000K 100º

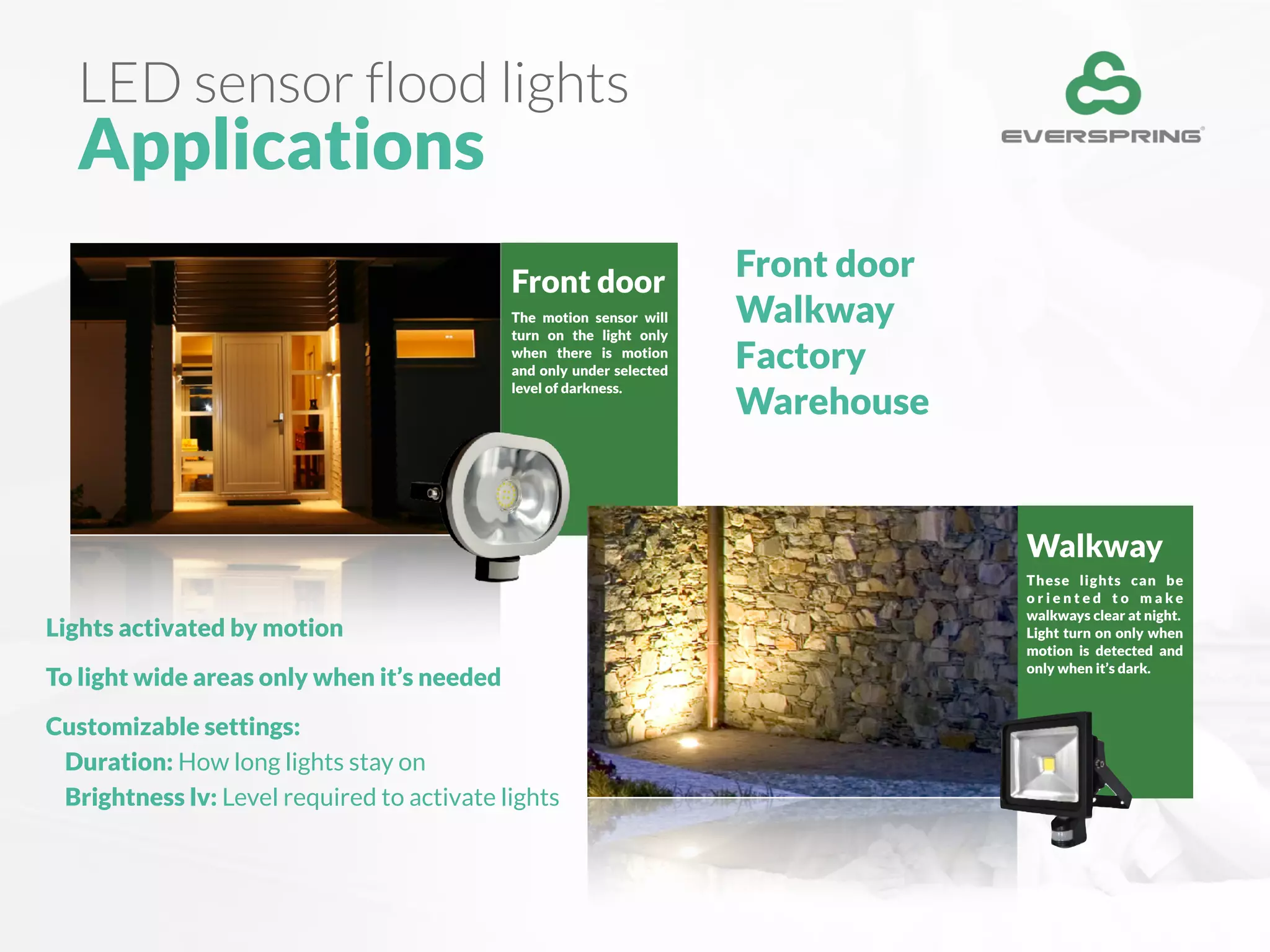

- 15. LED sensor floodlights Applications Front door Walkway Factory Warehouse Front door The motion sensor will turn on the light only when there is motion and only under selected level of darkness. Walkway These lights can be o r i e n t e d t o m a k e walkways clear at night. Light turn on only when motion is detected and only when it’s dark. Lights activated by motion To light wide areas only when it’s needed Customizable settings: Duration: How long lights stay on Brightness lv: Level required to activate lights

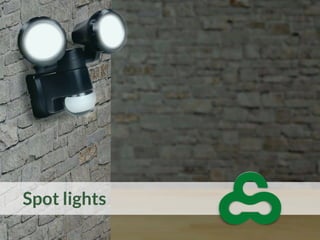

- 16.
- 17. LED spot lights Features Orientablelight Motion/light sensor Light1 Light2 Motion/light sensor Policarbonate case Set the minimum lux level after which lights will turn on. Set the time lights will stay on after detecting motion. 90º 180º 37.5º 80º 40º Spread Spot 2 orientable LED lights User can adjust each light beam angle: SPOT: Narrow angle & longer distance SPREAD: Wider angle & shorter distance 40º~80º BEAM ANGLE IP 44 30.000hr LIFE 5sec-12min Time ON adjust 30-200 lux Lux level adjust Ground installation bracket

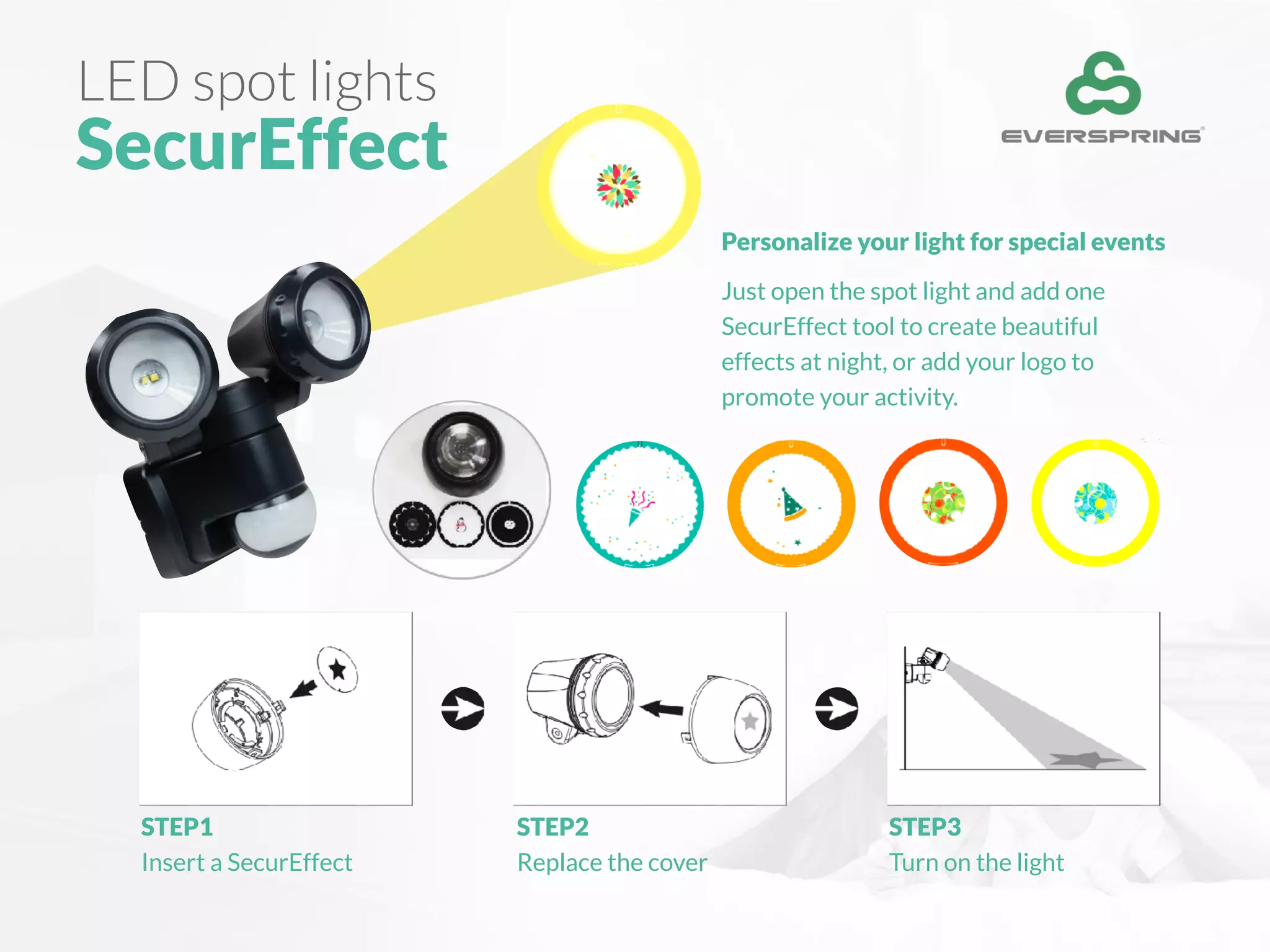

- 18. LED spot lights SecurEffect Personalizeyour light for special events Just open the spot light and add one SecurEffect tool to create beautiful effects at night, or add your logo to promote your activity. STEP1 Insert a SecurEffect STEP2 Replace the cover STEP3 Turn on the light

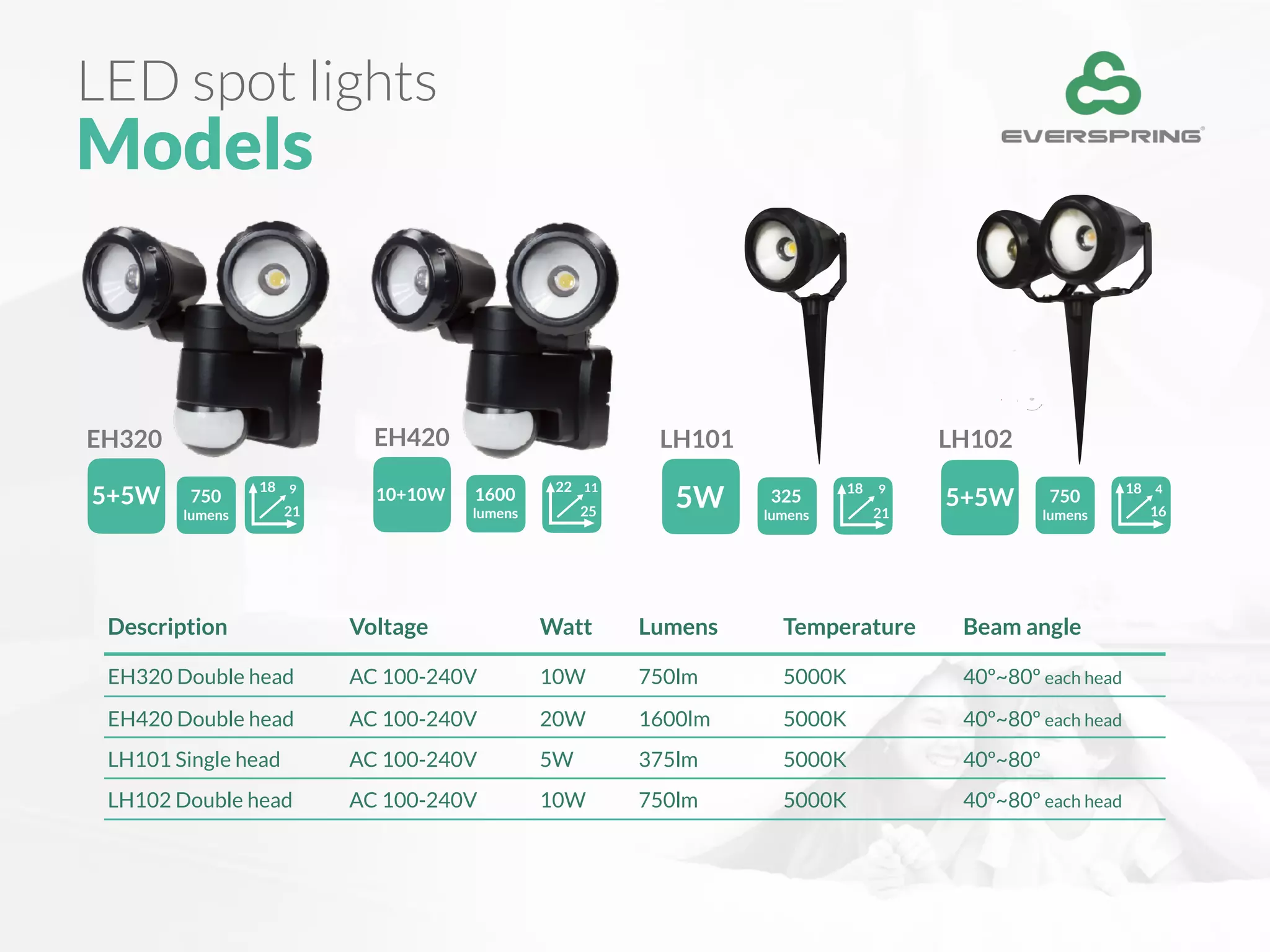

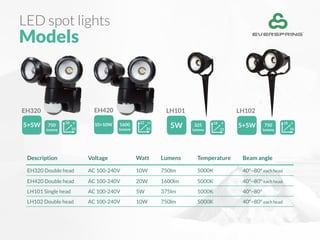

- 19. LH102 750 lumens 16 18 4 5+5W LEDspot lights Models EH420 1600 lumens 25 22 11 10+10W LH101 325 lumens 21 18 9 5W EH320 750 lumens 5+5W 21 18 9 Description Voltage Watt Lumens Temperature Beam angle EH320 Double head AC 100-240V 10W 750lm 5000K 40º~80º each head EH420 Double head AC 100-240V 20W 1600lm 5000K 40º~80º each head LH101 Single head AC 100-240V 5W 375lm 5000K 40º~80º LH102 Double head AC 100-240V 10W 750lm 5000K 40º~80º each head

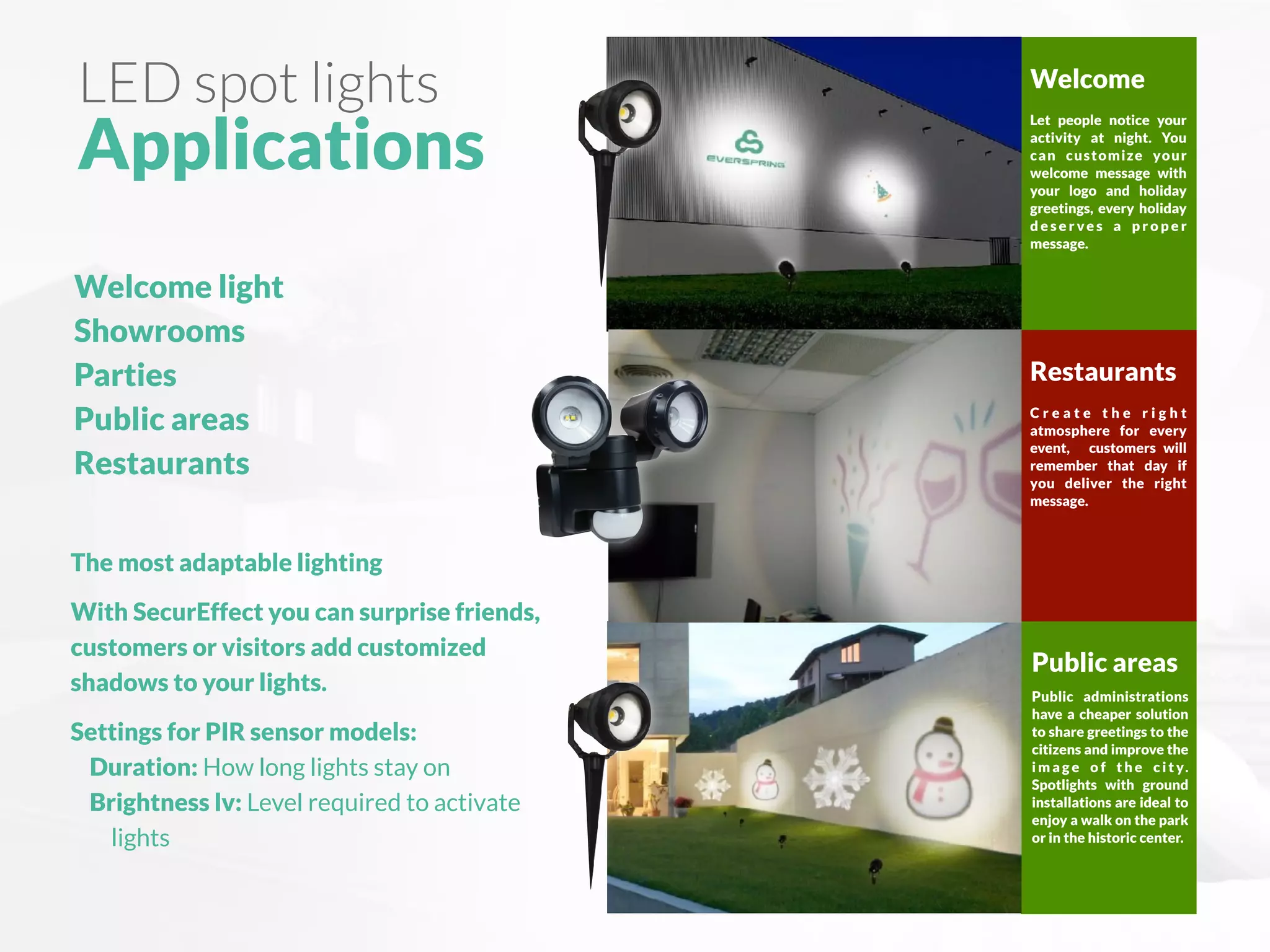

- 20. LED spot lights Applications Welcomelight Showrooms Parties Public areas Restaurants The most adaptable lighting With SecurEffect you can surprise friends, customers or visitors add customized shadows to your lights. Settings for PIR sensor models: Duration: How long lights stay on Brightness lv: Level required to activate lights Restaurants C r e a t e t h e r i g h t atmosphere for every event, customers will remember that day if you deliver the right message. Public areas Public administrations have a cheaper solution to share greetings to the citizens and improve the i m a g e o f t h e c i t y. Spotlights with ground installations are ideal to enjoy a walk on the park or in the historic center. Welcome Let people notice your activity at night. You can customize your welcome message with your logo and holiday greetings, every holiday d e s e r ve s a p r o p e r message.
- 21.

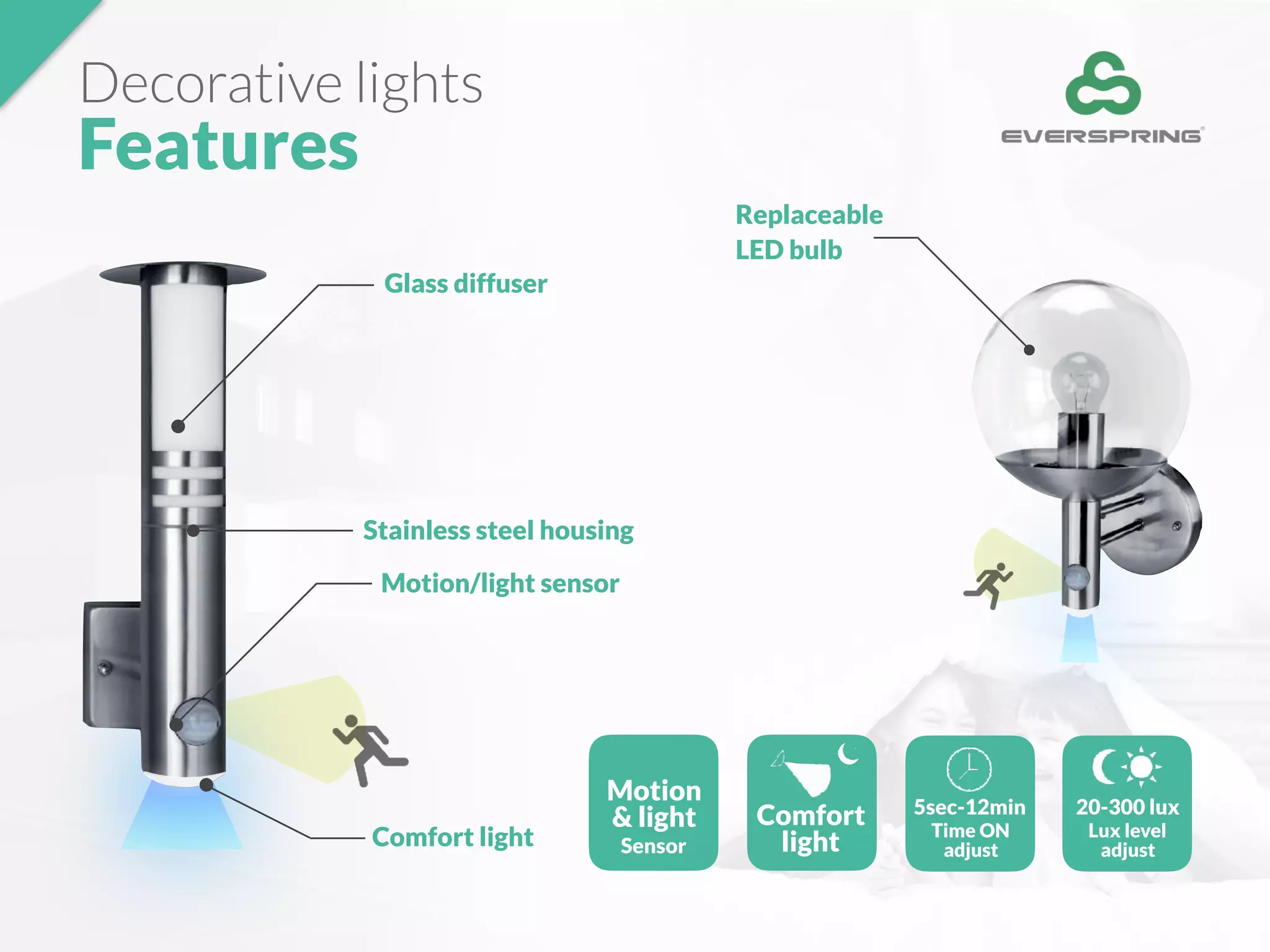

- 22. Glass diffuser Motion/light sensor Stainlesssteel housing Decorative lights Features Comfort light Replaceable LED bulb 5sec-12min Time ON adjust 20-300 lux Lux level adjust Comfort light Motion & light Sensor
- 23. Decorative lights Models ED522 IP44110º Angle 8 3415 ED523 110º Angle IP4418 34 12 ED521 IP4420 32 25 110º PIR angle ED524 IP448 33 14 110º PIR angle Description Voltage Incand. Fluoresc. LED Comfort light ED524 Decorative lantern AC 100-240V 60W 23W 20W YES ED521 Decorative lantern AC 100-240V 60W 23W 20W YES ED523 Decorative lantern AC 100-240V 60W 23W 20W YES ED522 Decorative lantern AC 100-240V 60W 23W 20W YES
- 24. Decorative lights Models ES49 IP4421 33 22 110º PIRangle ED165 IP4420 43 15 180º PIR angle ED166 IP4424 42 18 180º PIR angle ED520 IP44110º PIR angle Description Voltage Incand. Ener. saving Halogen Comfort light ED520 Decorative lantern AC 100-240V - - 25W YES ES49 Decorative lantern AC 100-240V 100W - - - ED165 Decorative lantern AC 100-240V 60W 23W - - ED166 Decorative lantern AC 100-240V 60W 23W - -
- 25. Decorative lights Applications Front door Villas Gardens Corridors Villas Everspringdeco lights not only have style, they will turn on when it’s necessary and with the r e q u i r e d l i g h t conditions. The comfort light will still provide low consume light even when there is no motion Front door Keep your front door bright with low power consume comfort light. W h e n m o t i o n i s detected, also the main l i g h t w i l l t u r n o n automatically for the time you setup. Decorative lights Best choice for high style buildings Customizable settings: Duration: How long lights stay on Brightness lv: Level required to activate lights Night light: Additional LED light

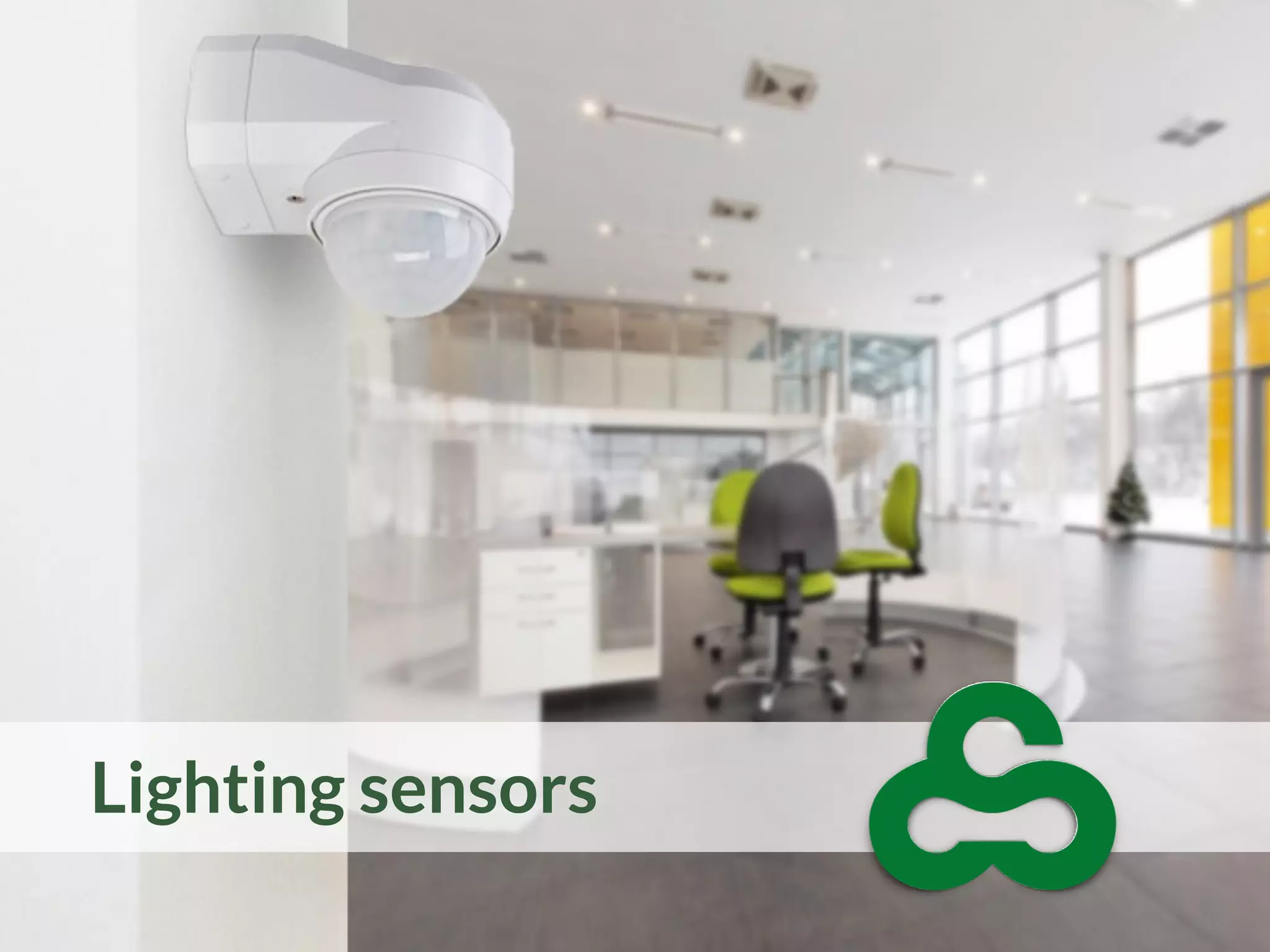

- 26.

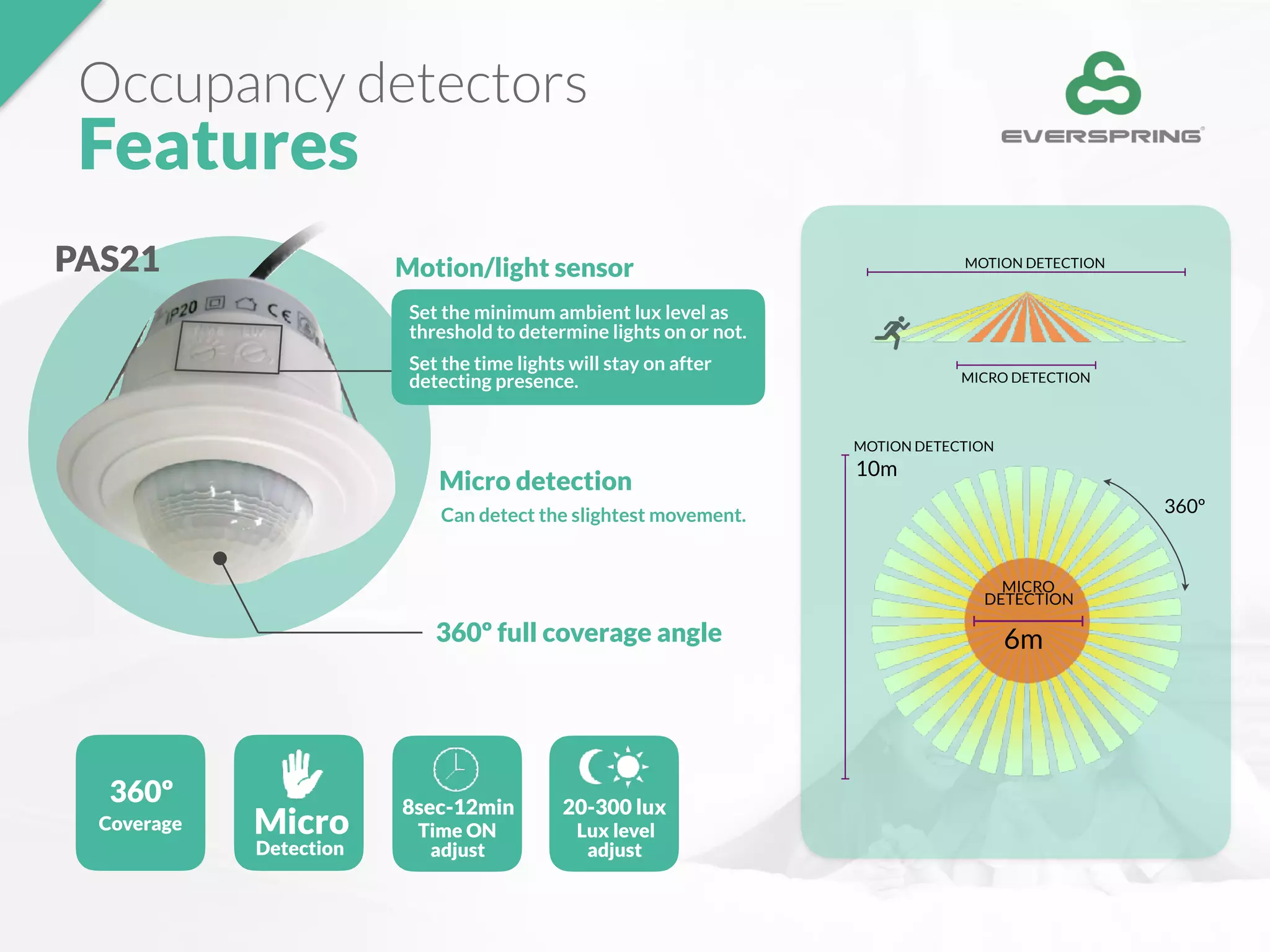

- 27. Motion/light sensor Occupancy detectors Features Setthe minimum ambient lux level as threshold to determine lights on or not. Set the time lights will stay on after detecting presence. 6m MICRO DETECTION MICRO DETECTION MOTION DETECTION 10m MOTION DETECTION 360º 360º full coverage angle Micro detection Can detect the slightest movement. 360º Coverage Micro 8sec-12min Time ON adjust 20-300 lux Lux level adjustDetection PAS21
- 28. Occupancy detectors Models PAS21 PAS22 PAS23PAS25 360º Angle Micro 6m Walk 12m IP20 IP20 Incand. max 2000W Fluor. max 1500W Time/lux adjust Ceiling recessed 360º Angle 360º Angle Micro 6m Walk 12m IP20 360º Angle IP44 Incand. max 2000W Fluor. max 1500W Time/lux adjust Built-in smart relay Incand. max 2000W Fluor. max 1500W Time/lux adjust Surface mount Incand. max 2000W Fluor. max 1000W Time/lux adjust Ceiling recessed Micro 6m Walk 12m Micro 6m Walk 12m
- 29. Occupancy detectors Applications Office Classroom Recreative areas Conferenceroom Toilet Office These sensors will turn on lights automatically when there is people in the office and only at selected darkness level. Conference room By installing these detectors in a conference room your lights will activate by human presence . Some models can control lights with a remote control. Automated system using existing lights Suitable for places with sitting people Customizable settings: Duration: How long lights stay on Brightness lv: Level required to activate lights

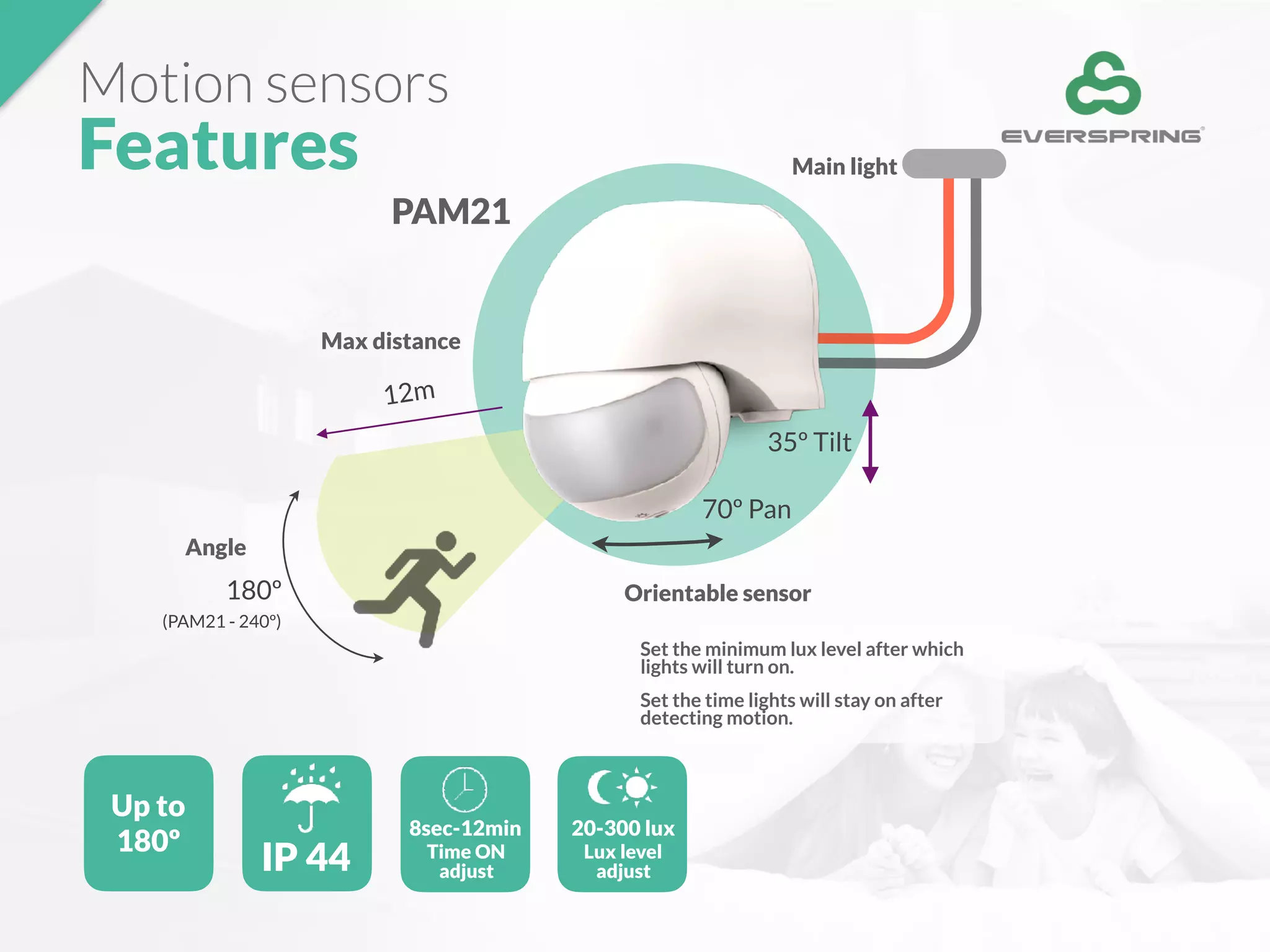

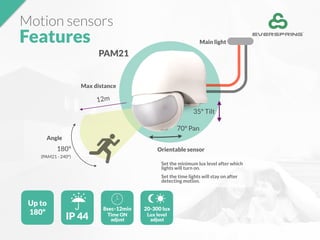

- 30. Motion sensors Features Up to 180º IP44 8sec-12min Time ON adjust 20-300 lux Lux level adjust Set the minimum lux level after which lights will turn on. Set the time lights will stay on after detecting motion. Orientable sensor Angle PAM21 180º 12m 70º Pan Max distance (PAM21 - 240º) 35º Tilt Main light

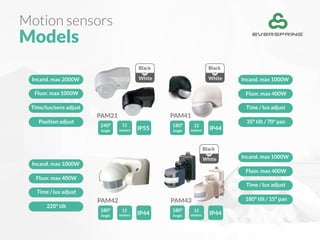

- 31. Motion sensors Models PAM21 PAM41 PAM42PAM43 240º Angle 12 meters Incand. max 2000W Fluor. max 1000W Time/lux/sens adjust Position adjust IP55 Incand. max 1000W Fluor. max 400W Time / lux adjust 35º tilt / 70º pan Incand. max 1000W Fluor. max 400W Time / lux adjust 220º tilt Incand. max 1000W Fluor. max 400W Time / lux adjust 180º tilt / 15º pan 180º Angle 12 meters IP44 180º Angle 12 meters IP44 180º Angle 12 meters IP44 Black White OR Black White OR Black White OR

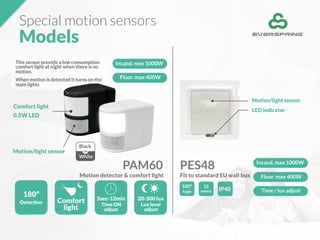

- 32. This sensor providea low consumption comfort light at night when there is no motion. When motion is detected it turns on the main lights Special motion sensors Models PAM60 PES48 Incand. max 1000W Fluor. max 400W Time / lux adjust 180º Angle 12 meters IP40 Black White OR 180º Detection 5sec-12min Time ON adjust 20-300 lux Lux level adjust Motion/light sensor Comfort light 0.5W LED Motion/light sensor LED indicator Fit to standard EU wall boxMotion detector & comfort light Incand. max 1000W Fluor. max 400W Comfort light

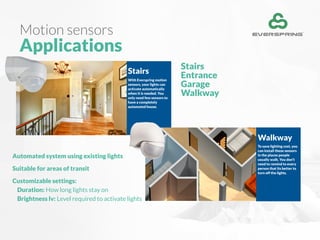

- 33. Motion sensors Applications Stairs Entrance Garage Walkway Stairs With Everspringmotion sensors, your lights can activate automatically when it is needed. You only need few sensors to have a completely automated house. Walkway To save lighting cost, you can install these sensors in the places people usually walk. You don’t need to remind to every person that its better to turn off the lights. Automated system using existing lights Suitable for areas of transit Customizable settings: Duration: How long lights stay on Brightness lv: Level required to activate lights
