1. ‘More’ Legible Loop Drawings
Name: Gene Haney
Company: CB&I
Date: May 21, 2008
or . . .
How to Make Almost Everyone Happy
With Enhanced Smart Loops

2. Intergraph 2008 – Experience The Power
July 1, 2008 – 2 –

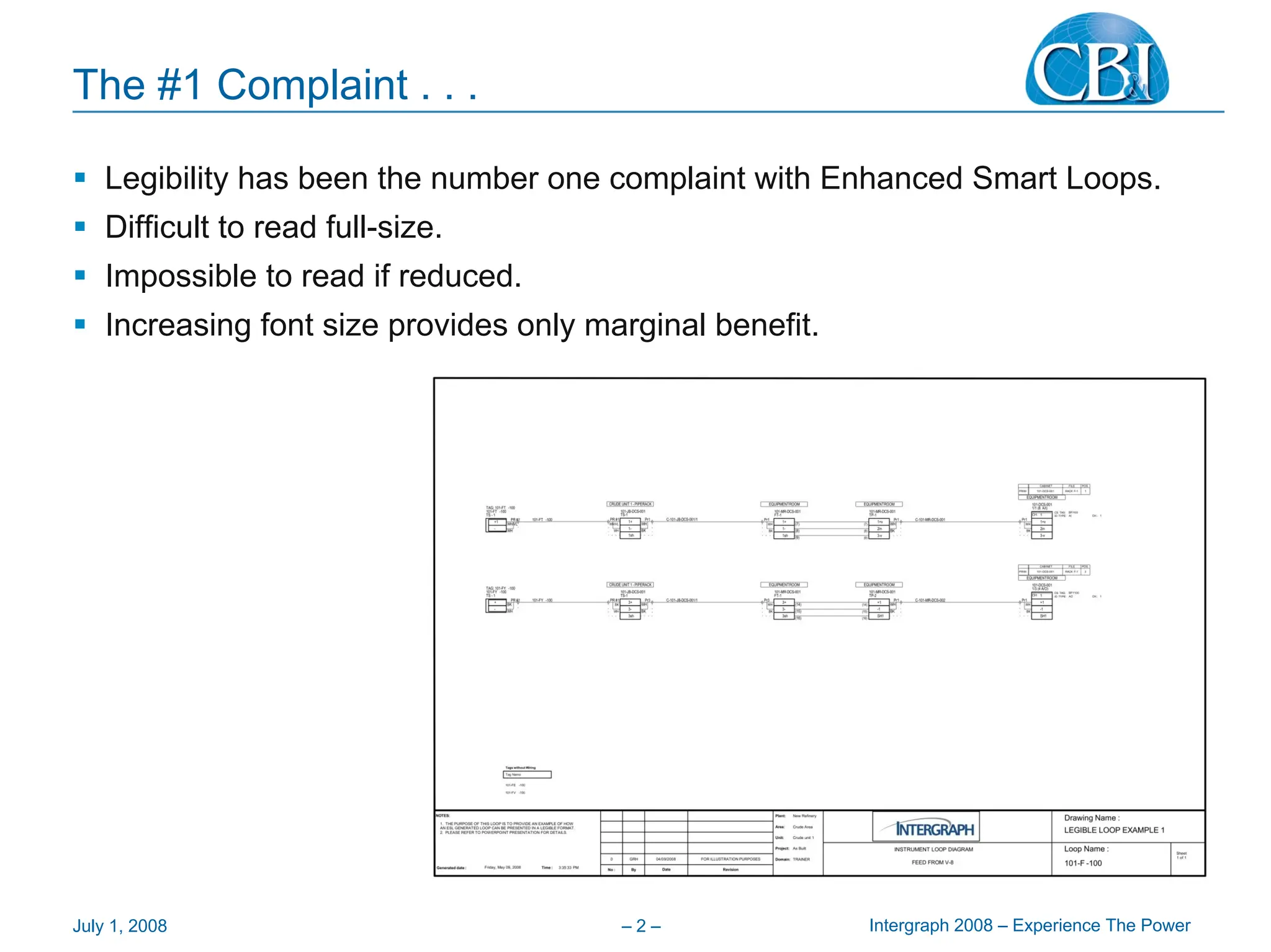

The #1 Complaint . . .
ƒ Legibility has been the number one complaint with Enhanced Smart Loops.
ƒ Difficult to read full-size.
ƒ Impossible to read if reduced.
ƒ Increasing font size provides only marginal benefit.

3. Intergraph 2008 – Experience The Power
July 1, 2008 – 3 –
“Necessity is the Mother of Invention”
ƒ Construction complained that they could not read the loop drawings.
ƒ They were using 8-1/2 x 11 reductions of an 11 x 17 ESL drawing.
ƒ No matter, we’ll find a way to take care of it!
ƒ Here’s the remedy . . .

4. Intergraph 2008 – Experience The Power
July 1, 2008 – 4 –
A Simple Approach
The method used was simple, certainly not original . . .
ƒ Scale the titleblock down.
ƒ The loop graphics remain the same.
ƒ When printed on an 11x17 in the “Print to Fit” mode, the
loop is significantly more legible.

5. Intergraph 2008 – Experience The Power
July 1, 2008 – 5 –
1. Select and launch the Enhanced Report Utility program.
2. From the “File” drop down menu, select “Open”.
Step By Step

6. Intergraph 2008 – Experience The Power
July 1, 2008 – 6 –
Step By Step

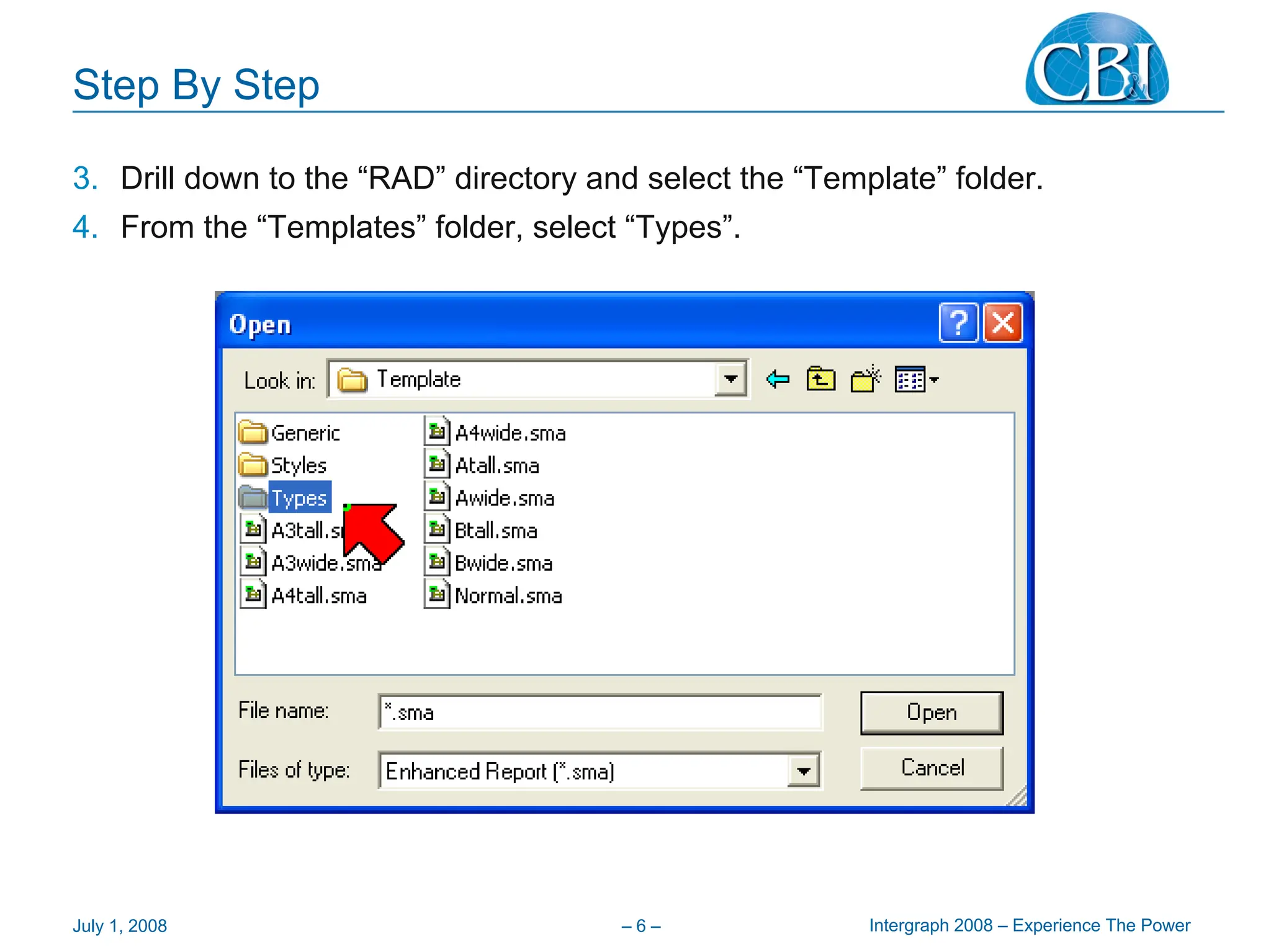

3. Drill down to the “RAD” directory and select the “Template” folder.
4. From the “Templates” folder, select “Types”.

7. Intergraph 2008 – Experience The Power
July 1, 2008 – 7 –
Step By Step
5. Under “Types”, select the “loop” folder.
6. From the “loop” folder, select the “Normal.sma” file.

8. Intergraph 2008 – Experience The Power
July 1, 2008 – 8 –
Step By Step
7. The “Normal.sma” file will open displaying the current “Working” sheet.

9. Intergraph 2008 – Experience The Power
July 1, 2008 – 9 –
Step By Step
8. Select the “View” drop-down menu and change the setting to “Background
Sheets”.

10. Intergraph 2008 – Experience The Power
July 1, 2008 – 10 –
Step By Step

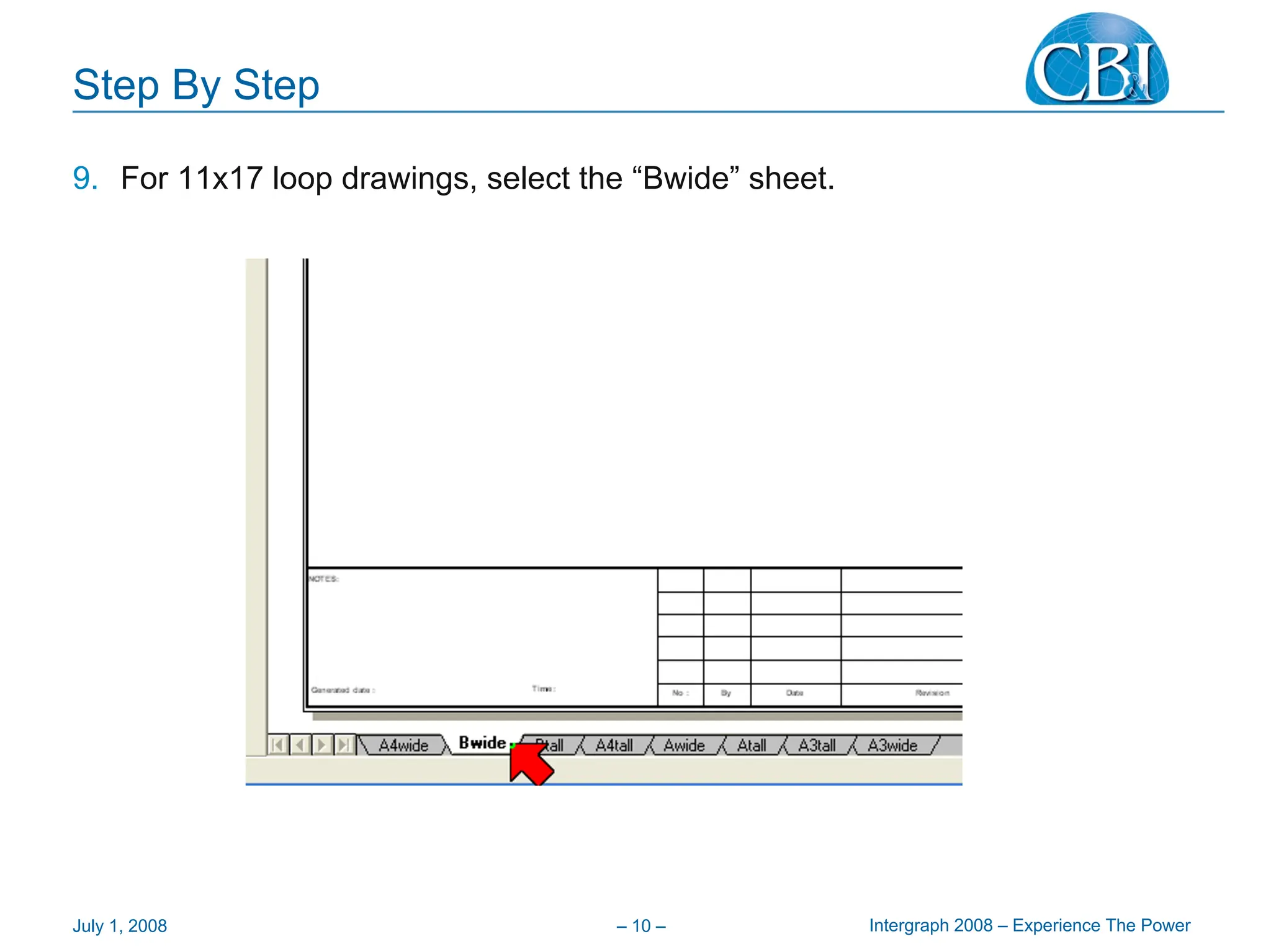

9. For 11x17 loop drawings, select the “Bwide” sheet.

11. Intergraph 2008 – Experience The Power
July 1, 2008 – 11 –
Step By Step

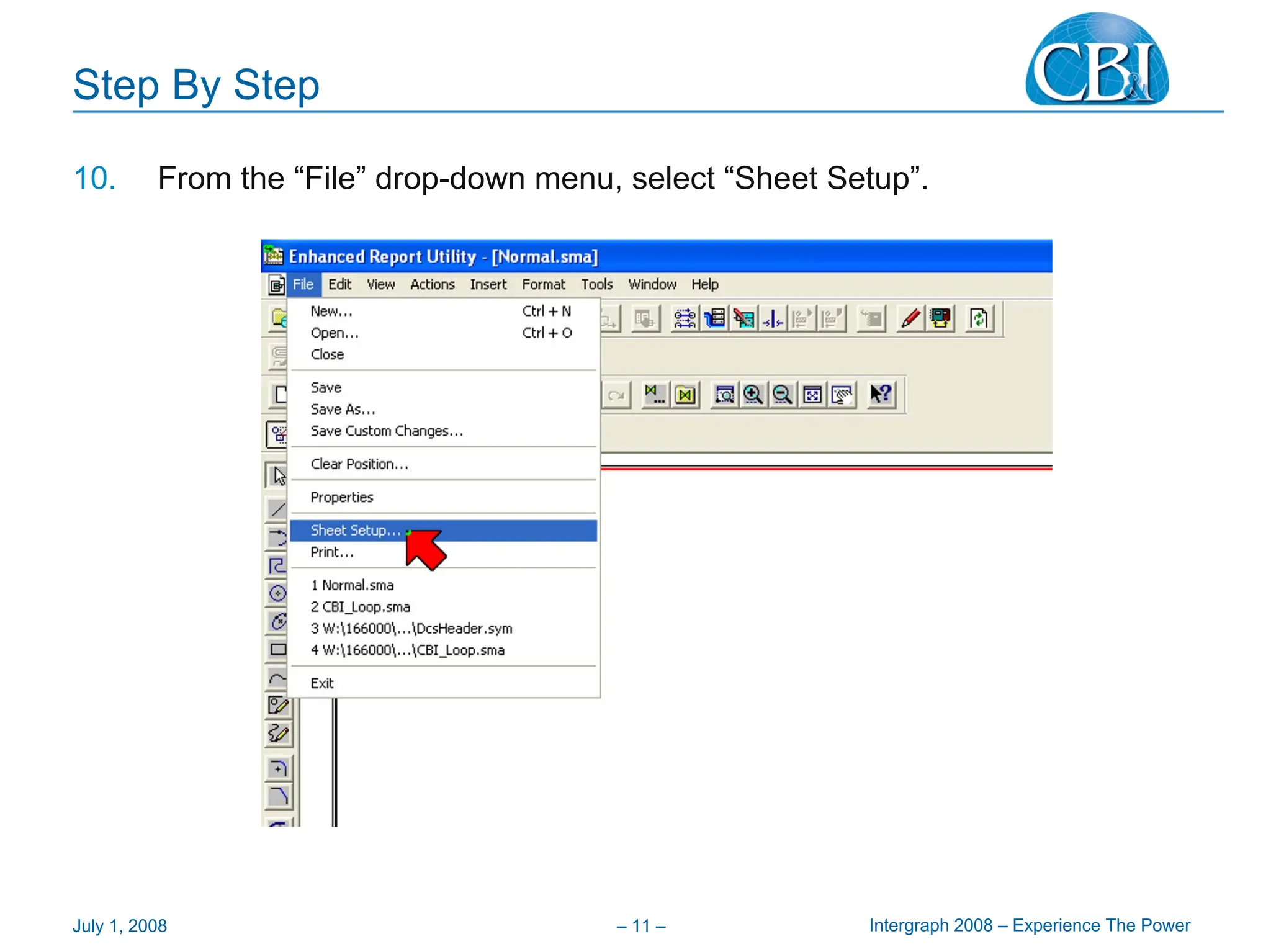

10. From the “File” drop-down menu, select “Sheet Setup”.

12. Intergraph 2008 – Experience The Power
July 1, 2008 – 12 –
Step By Step
11. In the “Sheet Setup” window, in the “Paper Units” section, the set the
“Precision” pick list to “0.001”.
12. In the “Sheet Size” section, select the “Custom” radio button .

13. Intergraph 2008 – Experience The Power
July 1, 2008 – 13 –
Step By Step
13. Set the width to “11.166” and the height to “7.225”. This represents
approximately 2/3 of the full 11x17 landscape presentation.
14. Select “OK” to save these settings and close the “Sheet Setup” window.

14. Intergraph 2008 – Experience The Power
July 1, 2008 – 14 –
Step By Step
15. The modifications made to the Background Sheet “Bwide” are now
displayed.

15. Intergraph 2008 – Experience The Power
July 1, 2008 – 15 –
Step By Step
16. Open the “Tools” drop-down menu and select “Customize”.
The process to scale the actual lines, graphics and macros to fit the new
background begins by adding “Scale” to the “Actions” drop-down menu.

16. Intergraph 2008 – Experience The Power
July 1, 2008 – 16 –
Step By Step
17. In the “Customize” window select the “Menu” tab.
18. In the “System Menus / Categories” pick list, select “Manipulation”.
19. Under “Manipulation” select “Scale”.

17. Intergraph 2008 – Experience The Power
July 1, 2008 – 17 –
Step By Step
20. With “Scale” highlighted, check the box “Place into selected menu”.
21. Highlight “A&ctions” (Intergraph typo).
22. Press the “Add Command” button and “Close”.

18. Intergraph 2008 – Experience The Power
July 1, 2008 – 18 –
Step By Step
23. From the “Edit” drop-down menu, choose “Select All”.

19. Intergraph 2008 – Experience The Power
July 1, 2008 – 19 –
Step By Step

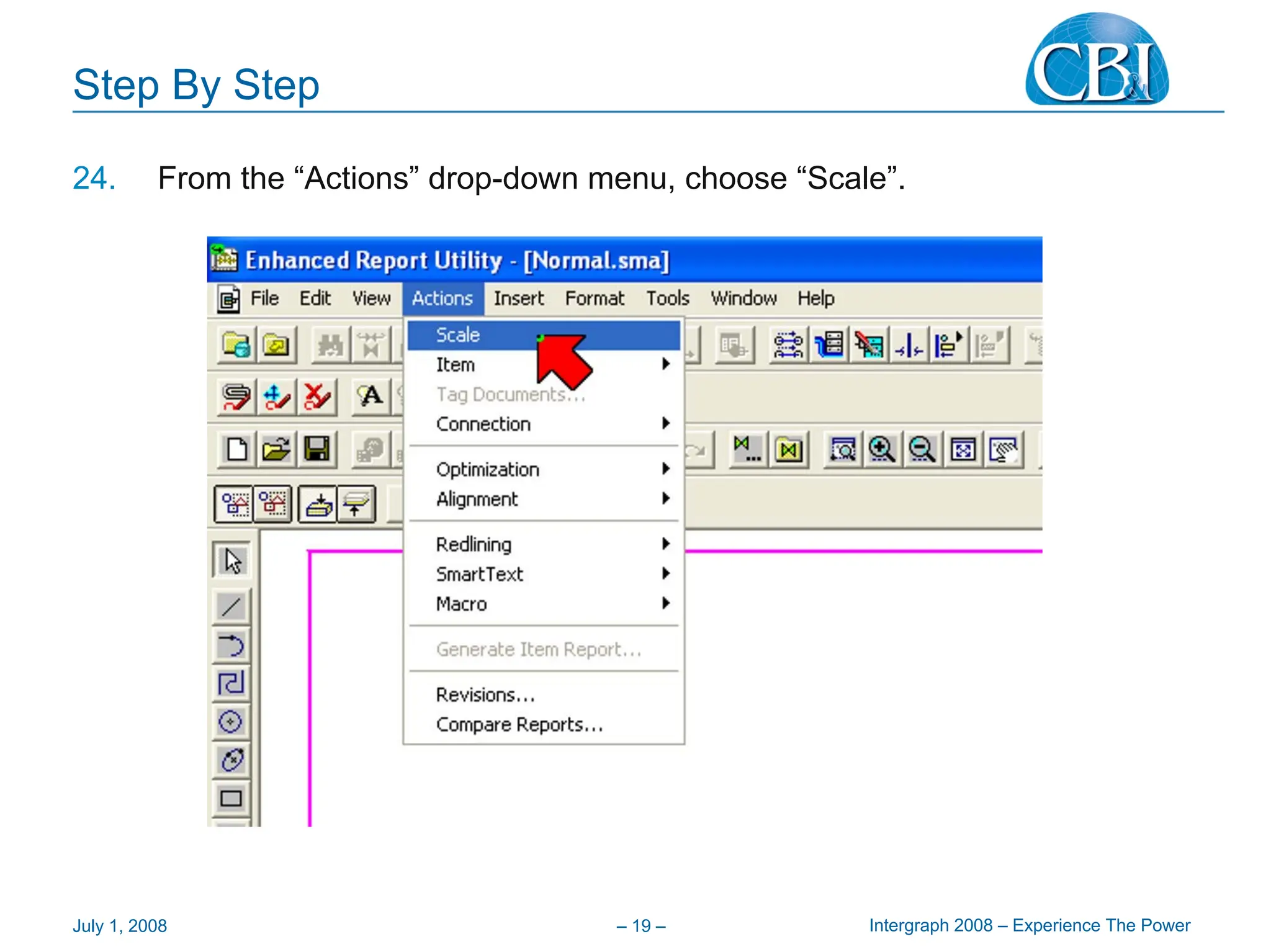

24. From the “Actions” drop-down menu, choose “Scale”.

20. Intergraph 2008 – Experience The Power
July 1, 2008 – 20 –
Step By Step

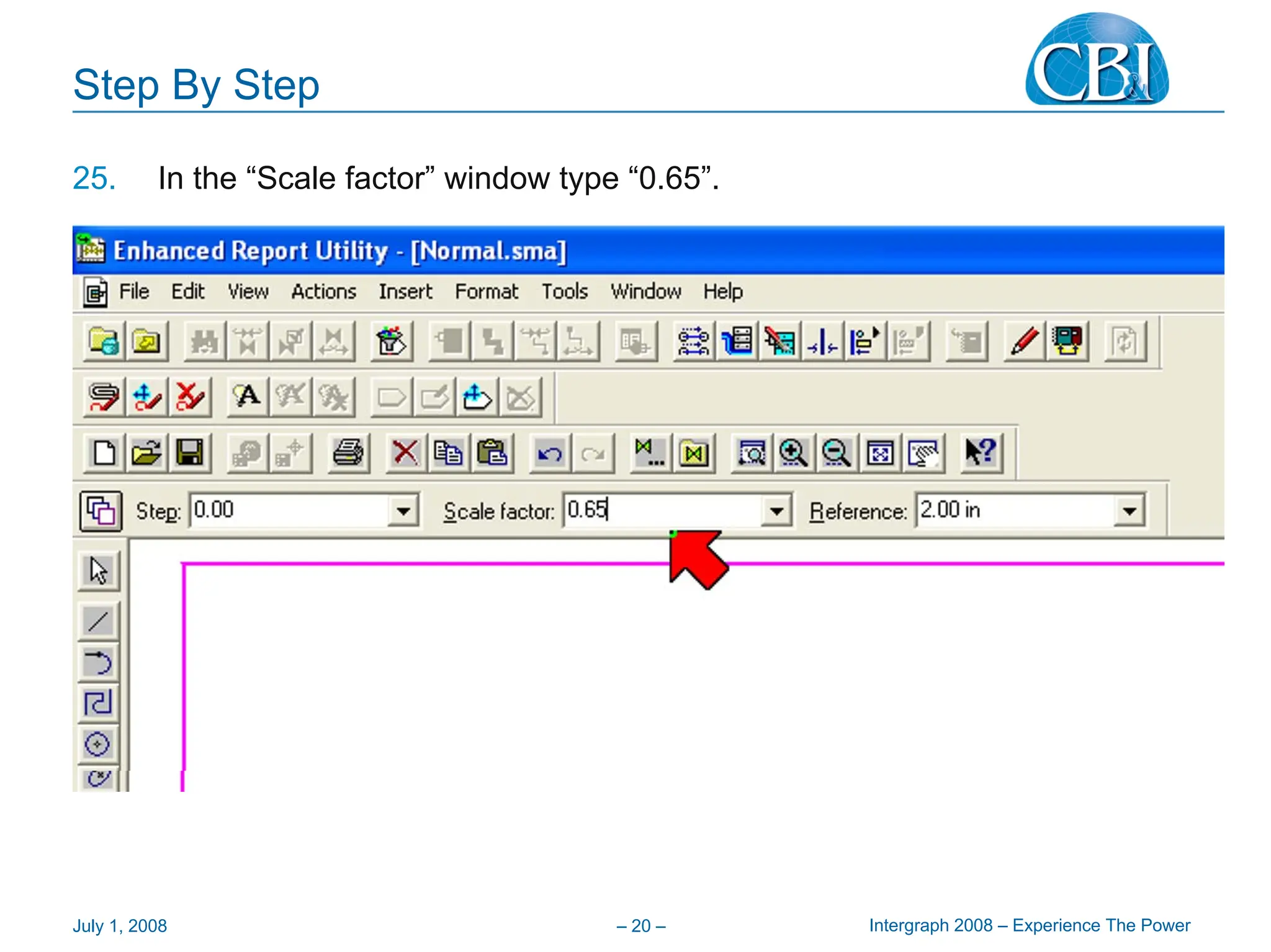

25. In the “Scale factor” window type “0.65”.

21. Intergraph 2008 – Experience The Power
July 1, 2008 – 21 –
Step By Step
26. The ‘scaled down’ titleblock entities will be displayed in a different color
and can be moved as a whole to the desired location on the background.

22. Intergraph 2008 – Experience The Power
July 1, 2008 – 22 –
Step By Step

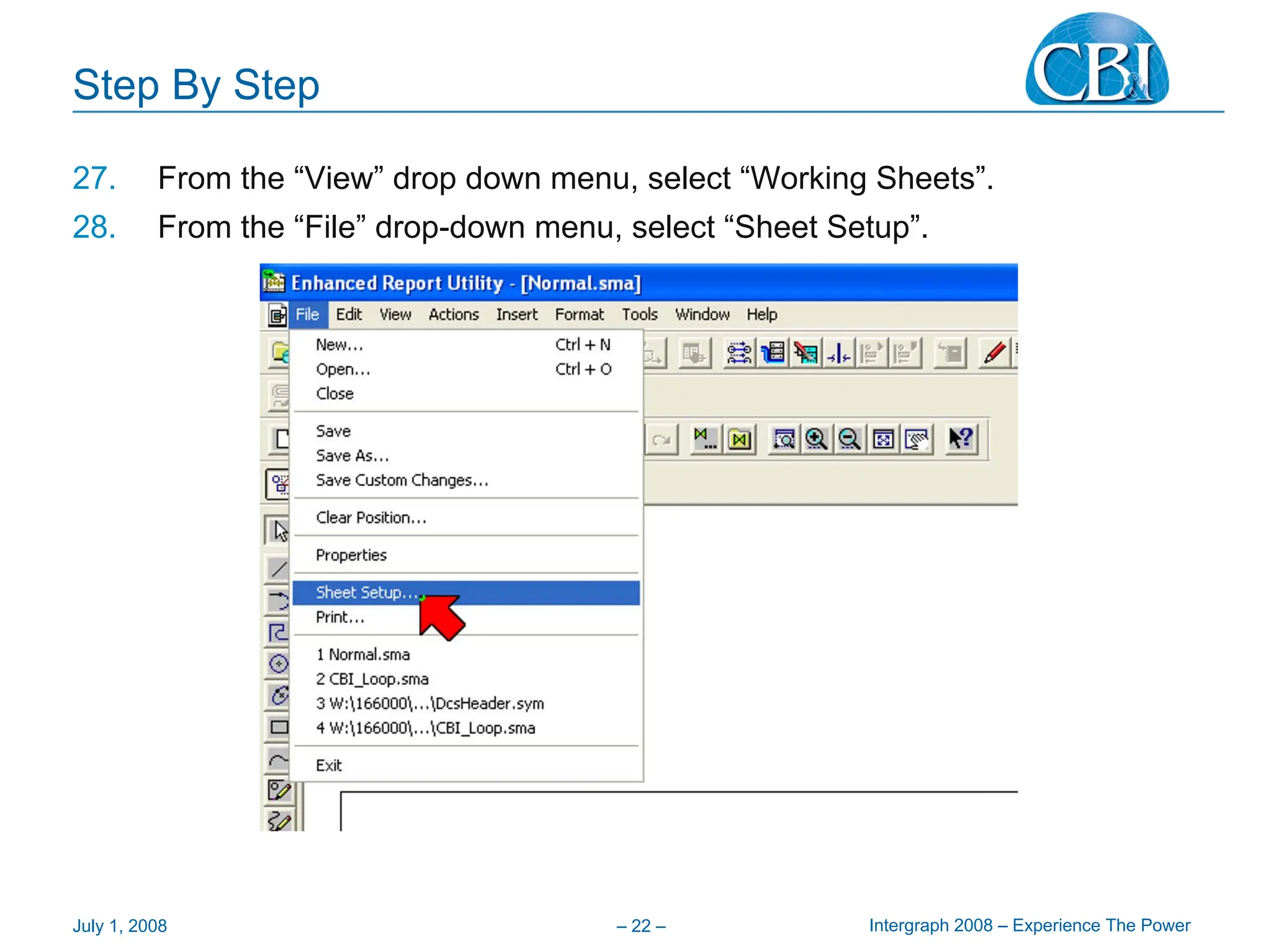

27. From the “View” drop down menu, select “Working Sheets”.
28. From the “File” drop-down menu, select “Sheet Setup”.

23. Intergraph 2008 – Experience The Power
July 1, 2008 – 23 –
Step By Step

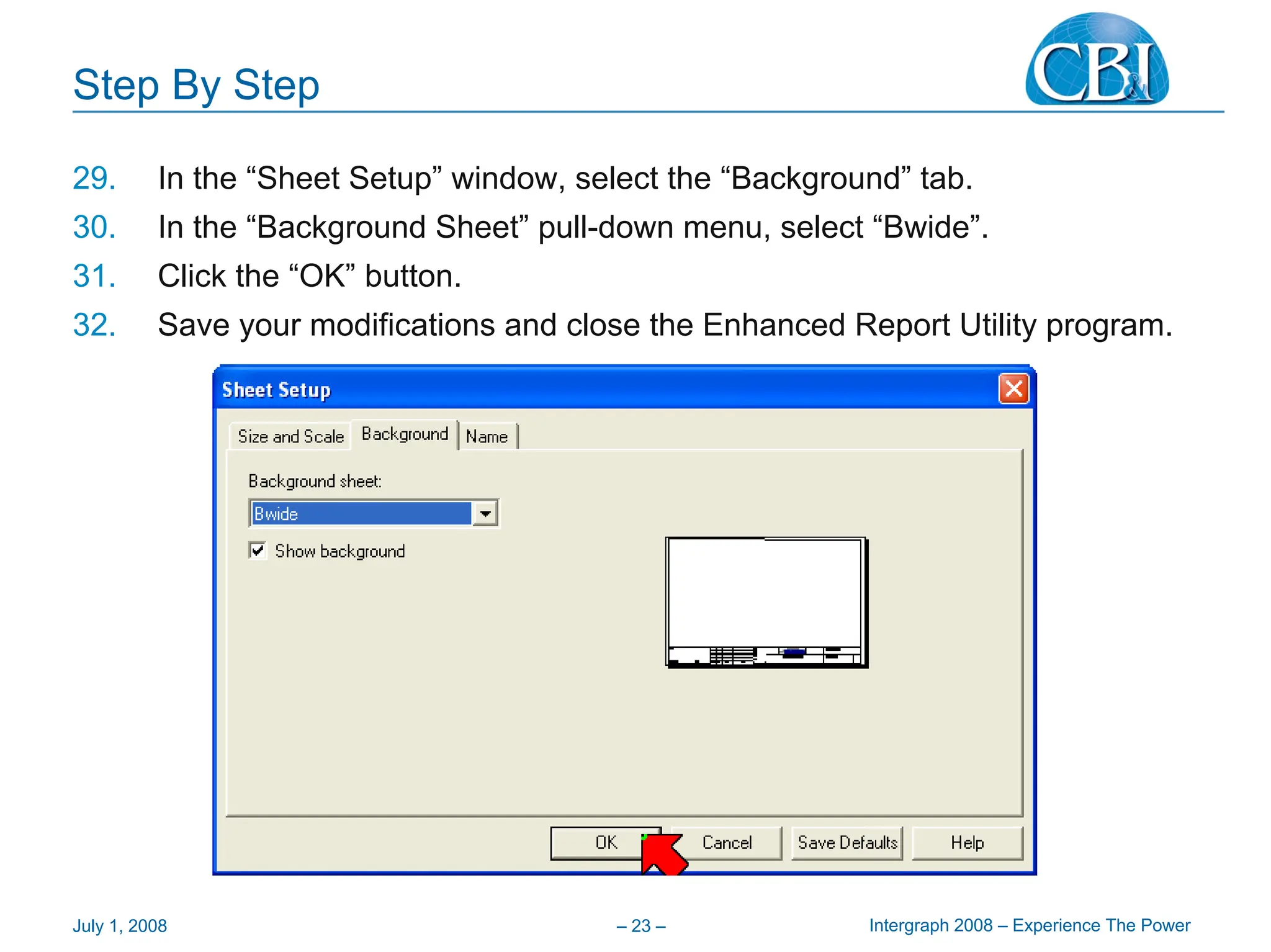

29. In the “Sheet Setup” window, select the “Background” tab.
30. In the “Background Sheet” pull-down menu, select “Bwide”.
31. Click the “OK” button.
32. Save your modifications and close the Enhanced Report Utility program.

24. Intergraph 2008 – Experience The Power
July 1, 2008 – 24 –
Step By Step
33. Launch the program SmartPlant Instrumentation.
34. From the “File” drop-down menu, select “Preferences”.

25. Intergraph 2008 – Experience The Power
July 1, 2008 – 25 –
Step By Step
35. Select “Enhanced Reports”
36. Under “Enhanced Reports” select “Enhanced SmartLoop”.
37. Under “Enhanced SmartLoop” select “File Locations

26. Intergraph 2008 – Experience The Power
July 1, 2008 – 26 –
Step By Step
38. Populate the “Template for default layout” window with the path to the
Normal.sma file just edited.
39. Click the “OK” button.

27. Intergraph 2008 – Experience The Power
July 1, 2008 – 27 –
Step By Step
All the modifications and settings have been made to
generate loops that, …
when sent to the printer in the “Print to Fit” mode, …
will produce a more legible loop drawing.

28. Intergraph 2008 – Experience The Power
July 1, 2008 – 28 –
Other Recommended Settings and Modifications
1. ESL Font should be set to “Arial Narrow”.
2. Font size should be set to “14”.
3. SYM files used in loop generation, for example:
ƒ DCS Header / Detail
ƒ Non-Wired Tags Header / Detail
ƒ Loop Reference Drawings Header / Detail
Should be resized and the macro text size be modified to “0.06”.
