Engine 404 Specs and Equipment
1. 1

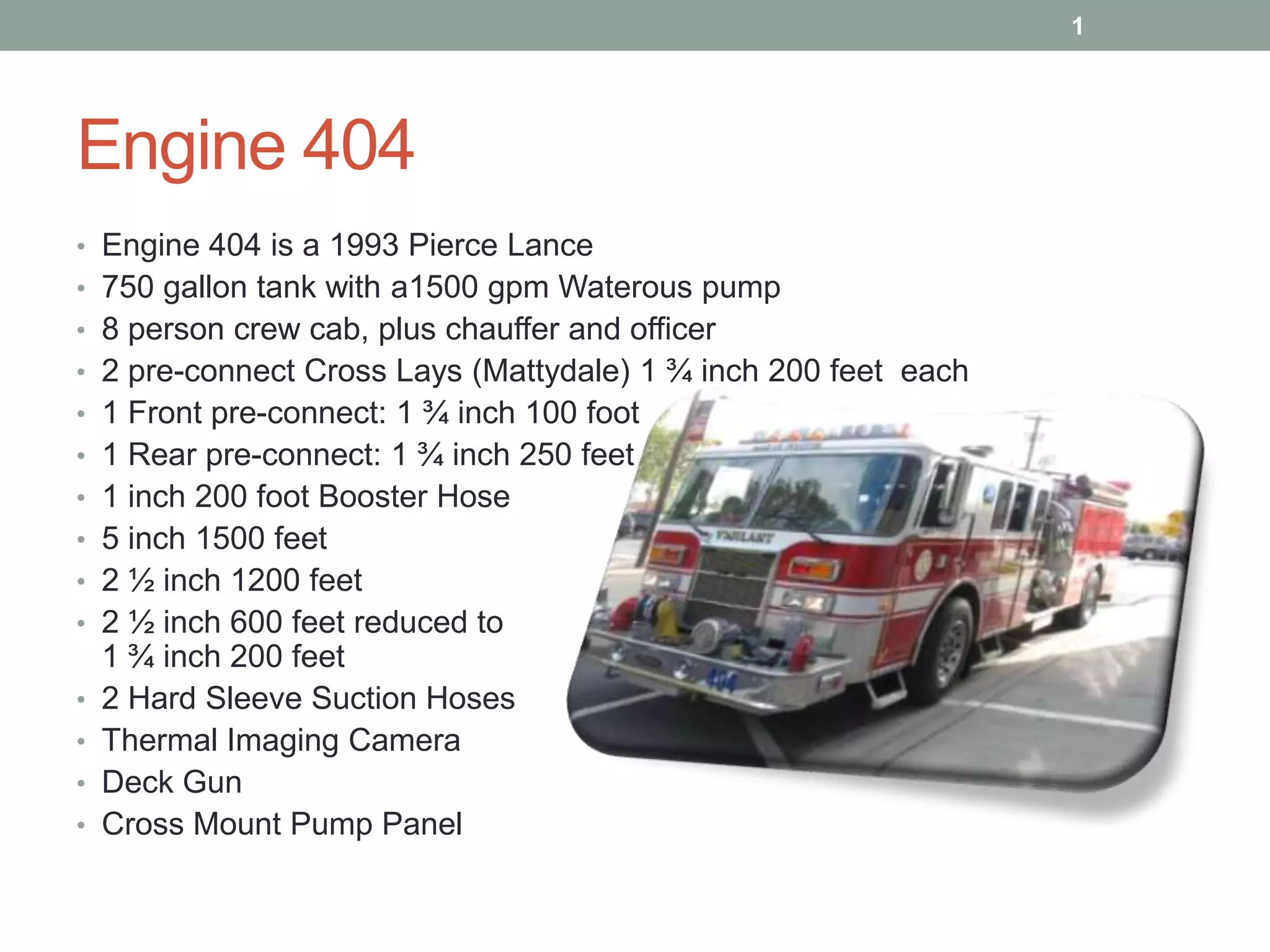

Engine 404
• Engine 404 is a 1993 Pierce Lance
• 750 gallon tank with a1500 gpm Waterous pump
• 8 person crew cab, plus chauffer and officer
• 2 pre-connect Cross Lays (Mattydale) 1 ¾ inch 200 feet each
• 1 Front pre-connect: 1 ¾ inch 100 foot
• 1 Rear pre-connect: 1 ¾ inch 250 feet
• 1 inch Booster Hose (Red Line)
• 5 inch 1500 feet
• 2 ½ inch 1200 feet
• 2 ½ inch 600 feet reduced to
1 ¾ inch 200 feet
• 2 Hard Sleeve Suction Hoses
• Thermal Imaging Camera
• CO Meter
• Deck Gun
• Cross Mount Pump Panel
2. 2

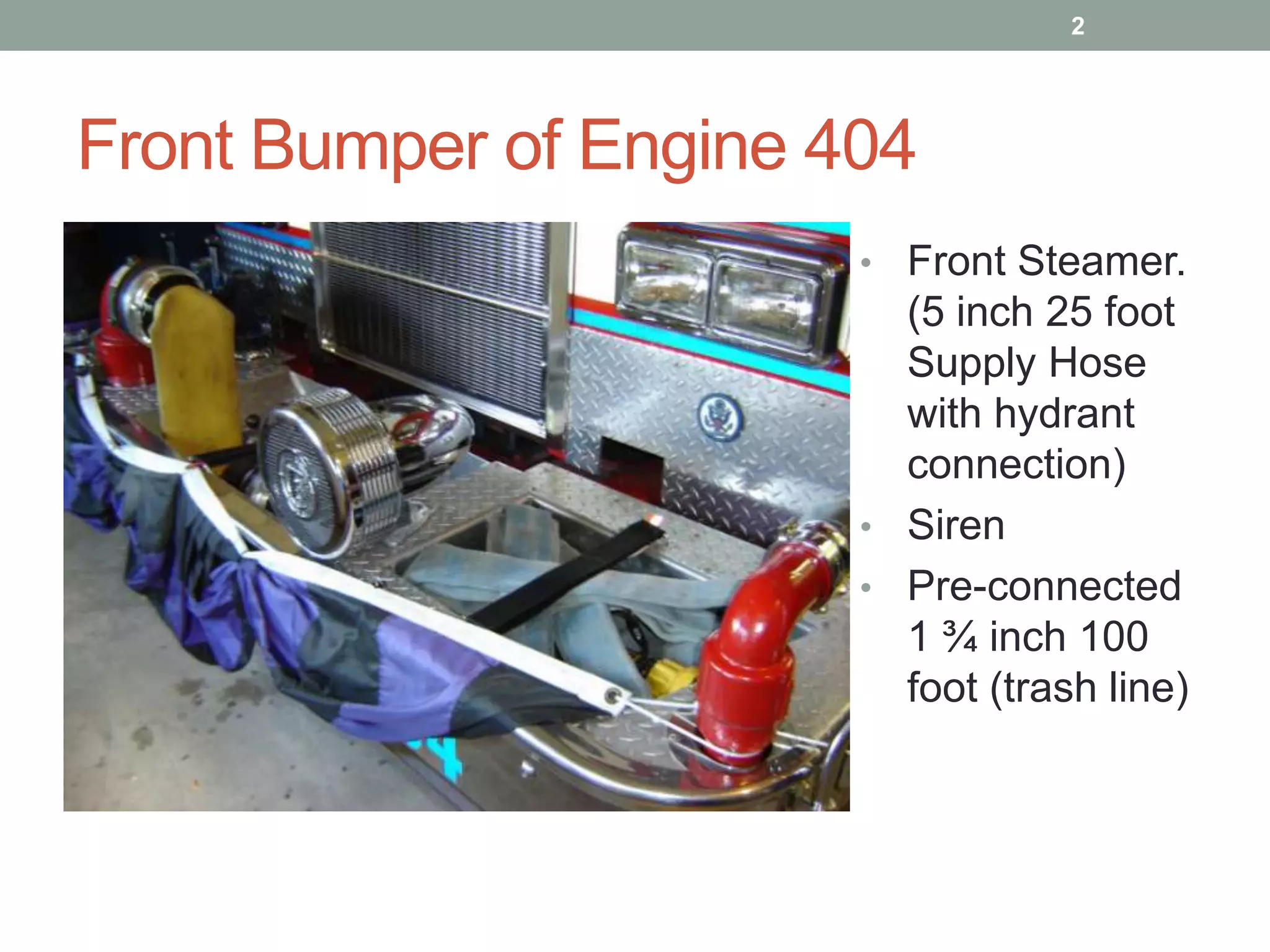

Front Bumper of Engine 404
• Front Steamer
(5 inch 25 foot
Supply Hose)
• Siren
• 1 ¾ inch 100 foot
Pre-connect (Trash
Line)
3. 3
Front Bumper of Engine 404
Close-up of
Front
Steamer:
• 2 Spanner
Wrenches
• Hydrant
Wrench
• Two 2 ½
inch Single
Gate Valve
4. 4
Front Bumper of Engine 404
• Hydrant bag
• Reducer
• Hydrant cap
• 5 inch Spanner
Wrench
• Hydrant
Connection from
the 5 inch Front
Steamer
5. 5
Front of Engine 404
Hydrant Bag:
• 3 Spanner Wrenches
• Rubber Mallet
• Hydrant Wrench
• 2 ½ inch Single Gate
Valve
6. 6
Front of Engine 404
• Close up of
Reducer
• Hydrant cap
• 5 inch
Spanner
Wrench
7. 7
Front of Engine 404
• Siren
• 1 ¾ inch 100
feet Pre-
Connect
(Trash Line)
8. 8
Passenger Cabinets
• Window Wash
• Radiator Fill
• Power
Steering Fluid
• Transmission
Oil Level
• Engine Oil
Level
• Engine Oil Fill
9. 9
Passenger Cabinets
• Spanners (on door)
• 2 Hand Lights
• 1 Single Gate 2 ½ inch
• Hydrant Wrench
• Air Hose
• 1 Sexless Coupling
• Close-up of Sexless Coupling
10. 10
Passenger Cabinets
• Pike Head
Axe
• 1 ¾ inch 200
feet Pre-
Connect
Crosslay
(Mattydale)
Lines with a
Straight Tip
Nozzle
11. 11
Passenger Side
• Discharge 3 & 4
• Bleeder
• Open
• Bleeder valves
• 2 ½ Passenger Side – Aux Inlet
13. 13
Passenger Cabinets
• 6 Scott Bottles
(SCBA - Self
Contained
Breathing
Apparatus -
30 min. bottles
filled at 45 PSI
made of
aluminum
wrapped in
fiberglass)
14. 14
Passenger Side
3 Ladders:
1) 10 foot folding
attic ladder
2) 14 foot roof
ladder with
folding hooks
3) 24 foot
extension
ladder
Parts of Extension Ladder:
butt, tip-top,
halyard, rails,
dawgs, rungs, fly
and bed section.
17. 17
Passenger Side
• Mated Pair or Irons
(Halligan & Flat
Headed Axe)
• Duck Bill Lock Breaker
• 5 inch Spanners
• Hose straps
• Officer Tool
• Manhole Cover
Remover
• K- Tool
• Door Chock
• Officer Tool
18. 18
K-Tool Bag
The K-tool is a tool
used for forcible entry.
It is used in conjunction
with a Halligan bar and
a flat-headed axe or
maul. Then the key tool
can be inserted into the
lock cylinder hole to
move the bolt to the
open position
• Square Head Key
• Shove Knife
• Key Tool
• Screw Driver
19. 19
Passenger Side
Officer Tool
Small Pry-Crow Bar
Merkel Tool
Hammer
Small Pry-Crow Bar
Slim Jim Car Lock Tool
2 Small Pry-Crow Bars, Officer Tool, Hammer, Merkel Tool, Slim Jim Car Lock Tool
20. 20
Passenger Side
Types of Fire Extinguishers
1. Blue – foam can (AB)
2. Red – dry chemical (ABC)
3. Clear – water can (A)
24. 24
Passenger Side
• 3 inch 25 foot
Pony Length
• Box of Water
• Fast Pack
• Tarp for SCBA
(Green is Full /
Red is Empty)
25. 25
Passenger Side
Water
Thief 5
inch
Feeder
Line
5 inch
25 foot
Pony
Length
Spanner/Hydrant Wrench,
Manuel Cranks, Hose Roller
26. 26
Engine 404 – Hose Bed
• 5 inch 1500 feet
Supply Hose
• 2 ½ inch 1200 feet
• 2 ½ inch 600 feet
Reduced
1 ¾ inch 200 feet
• Pre-connected
1 ¾ inch 250 feet
• 5 inch 25 foot Pony
Length
• 1 inch Booster Hose
with a Fog Nozzle
• Hydrant Bag
• Driver and
Passenger Rear
Discharge
• Pike & Halligan
Poles
27. 27
Back of Engine 404
• 2 Pike Poles
• 2 Halligan Hooks
(one has a gas shut off at
end – all poles are 6 feet)
(Not Shown)
Stevie Box: 3 cases of
water, 3 inch 25 foot pony
length connected to a
Bresnan Distributor,
Baker Cellar Pipe, Foam
Eductor applicator, 4
foam containers.
28. 28
Back of Engine 404
• 1 inch approx.
300 feet Booster
Hose
• Warning Buzzer
• Fire Extinguisher
(Dry Chemical for
Class ABC Fires)
29. 29
Driver Side
• Speedy Dry
• First Aid Bag
• Caution Tape
• Flares
• Gloves
• Utility Rope
• Hazmat Box
30. 30
Driver Side
Standpipe / Hose Packs:
• 100 feet 1 ¾ inch
3 inch 25 foot Pony Length w/
a Gated Wye Valve
43. 43
Overview of 404 – Driver Side
3 Spare Scotts (SCBA) Standpipe/ Hose Packs
1 Spare Mask 3 inch 25 foot
Gated Wye Valve
Standpipe Bag
Smooth Bore Straight Tip Nozzles
Water Can Variant Fog Nozzles
Tool Box Gated Wye Valve
Rabbit Tool Bag Siamese Gate Valve
Assorted Couplings and Adapters
2 Mated Pair
(Halligan & Flat Headed Axe)
5 inch Spanners
Speedy Dry
Hose Straps
First Aid Bag
6 Spare Scott K-Tool
Caution Tape
Bottles Hydraulic Spreader-Cutter (Porta Power)
Flares
Gloves
Utility Rope
Hazmat Box
44. 44
Overview of 404 – Driver Side
6 Spare Scott
Bottles
2 Hand Lights
Air Hose
2 Spanner Wrenches
Hydrant Connection
1 Single Gate Valve
(2 ½ inch)
Hydrant Wrench
45. 45
Overview of 404 – Passenger Side
6 Spare Scott Bottles
2 Spanner Wrenches
2 Hand Lights
1 Single Gate 2 ½ inch
Hydrant Wrench
Air Hose
1 Sexless Coupling
46. 46
Overview of 404 – Passenger Side
Bolt Cutter & Wire Cutter
Pipe Wrench (Stillson)
2 Shovels
1 Maul
Mated Pair (Halligan & Flat
Headed Axe)
Duck Bill Lock Breaker
5 inch Spanners
Hose straps
Officer Tool
Manhole Cover Remover
K- Tool
Door Chock
2 Small Pry-Crow Bars, Officer
Tool, Hammer, Merkel Tool,
Slim Jim Car Lock Tool, Panic
Door Opener
Manuel Cranks, Hydrant/Spanner
Wrench, Hose Roller
3 inch 25 foot Pony Length
1 Large Pry Bar Types of Fire Extinguishers Box of Water
3 Closet Hooks 1. Blue – foam can (AB) Tarp for SCBA (Green is Full / Red
2. Red – dry chemical (ABC) is Empty)
3. Clear – water can (A) 5 inch 25 foot Pony Length
Water Thief 5 inch Feeder Line
47. 47
Fire Extinguishers Types
• Class A extinguishers are for ordinary combustible materials such as paper,
wood, cardboard, and most plastics. The numerical rating on these types of
extinguishers indicates the amount of water it holds and the amount of fire it can
extinguish. Geometric symbol (green triangle)
• Class B fires involve flammable or combustible liquids such as gasoline,
kerosene, grease and oil. The numerical rating for class B extinguishers indicates
the approximate number of square feet of fire it can extinguish. Geometric symbol
(red square)
• Class C fires involve electrical equipment, such as appliances, wiring, circuit
breakers and outlets. Never use water to extinguish class C fires - the risk of
electrical shock is far too great! Class C extinguishers do not have a numerical
rating. The C classification means the extinguishing agent is non-conductive.
Geometric symbol (blue circle)
• Class D fire extinguishers are commonly found in a chemical laboratory. They are
for fires that involve combustible metals, such as magnesium, titanium, potassium
and sodium. These types of extinguishers also have no numerical rating, nor are
they given a multi-purpose rating - they are designed for class D fires only.
Geometric symbol (Yellow Decagon)
• Class K fire extinguishers are for fires that involve cooking oils, trans-fats, or fats
in cooking appliances and are typically found in restaurant and cafeteria kitchens.
Geometric symbol (black hexagon)
48. 48
Self Contained Breathing Apparatus
SCBA – Scott Pack
Head Net
Face Piece Control Console Assembly
Remote Gauge Hose
Remote Gauge
Pra
Frame
Alligator Clip
High Pressure Hose
Pressure Switch Assembly
Low Pressure Hose
Tank Gauge
Regulator
Purge Valve
Waist Strap
Quick Release Buckle
49. 49
Self Contained Breathing Apparatus
SCBA – Scott Pack
Head Net
Face Piece
Remote Gauge Hose Pressure Switch Assembly
Cylinder Band Control Console Assembly
Adjustable Link
Pra Alligator Clip
Low Pressure Hose
Remote Gauge
Toggle Lever
Regulator High Pressure Hose
Purge Valve Sensor Module Assembly
Tank Gauge
Quick Release Buckle Waist Strap
50. 50
Self Contained Breathing Apparatus
SCBA – Scott Pack
High Pressure Coupling
Locking Tab
High Pressure Coupling
Teflon O Ring
51. 51
Self Contained Breathing Apparatus
SCBA – Scott Pack
Control Console Assembly
Remote Gauge
Manual Alarm Button
Red Signal Light (Red Indicator)
Green Signal Light Reset Button
(Yellow Indicator)
Console Lens
Pressure Switch Assembly
