Enforce reproducibility: dependency management and build automation

images/logo
Developing, maintaining, and sharing software tools for research
Enforce reproducibility: dependency management and build automation
Danilo Pianini
danilo.pianini@unibo.it
Alma Mater Studiorum—Università di Bologna
Ph.D. course in Data Science and Computation
June 7, 2018 - Bologna (Italy)
D. Pianini (UniBo) 03 - Dependency Management June 7, 2018 1 / 166

images/logo

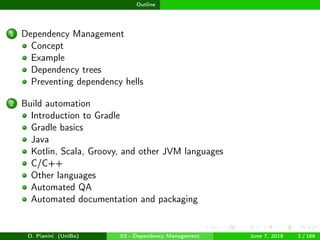

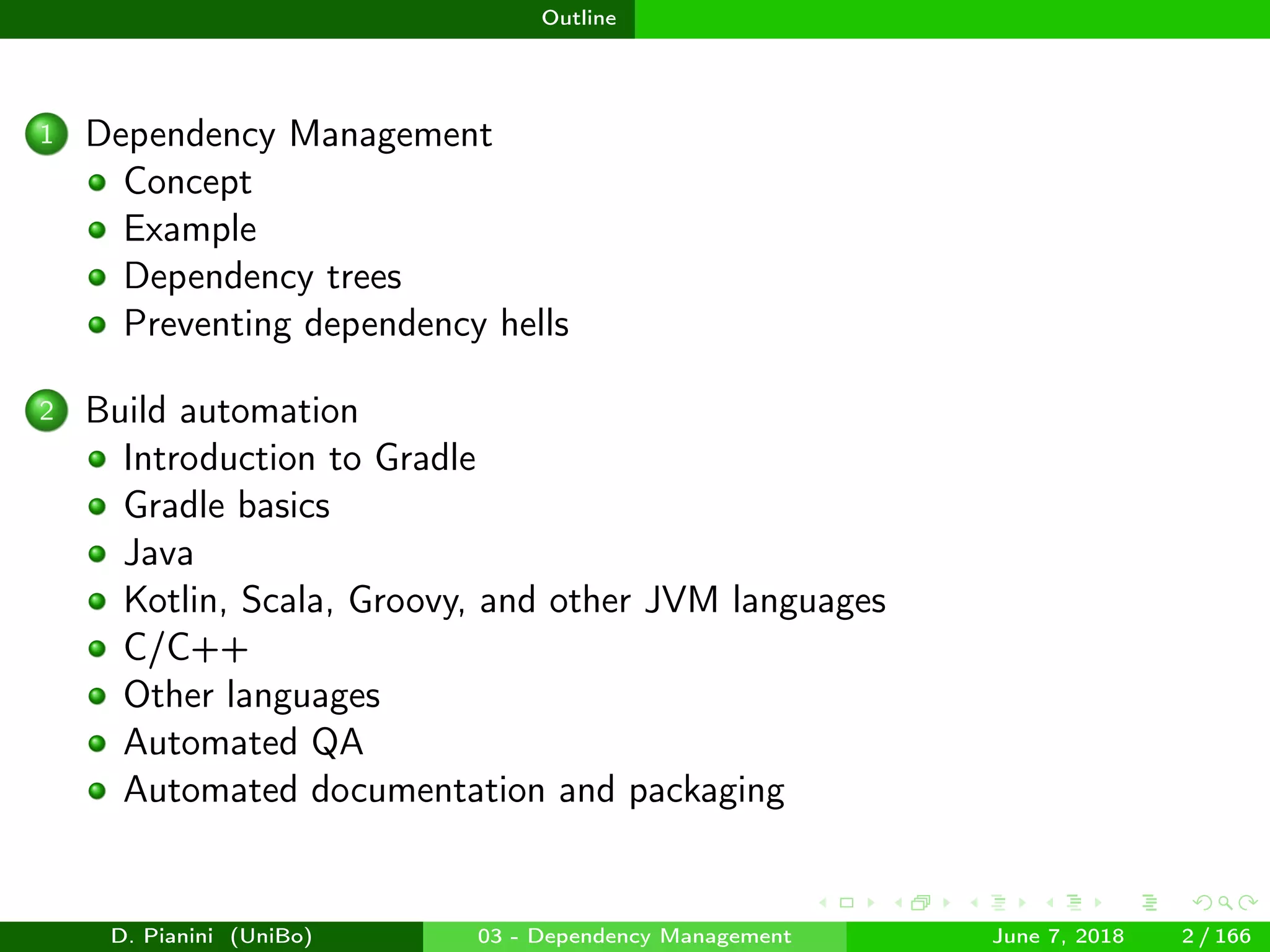

Outline
1 Dependency Management
Concept
Example
Dependency trees
Preventing dependency hells
2 Build automation
Introduction to Gradle
Gradle basics
Java
Kotlin, Scala, Groovy, and other JVM languages
C/C++
Other languages
Automated QA
Automated documentation and packaging

images/logo

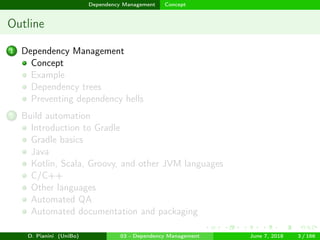

Dependency Management Concept
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo
Dependency Management Concept

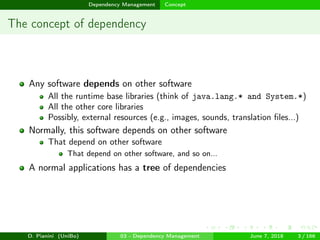

The concept of dependency
Any software depends on other software
All the runtime base libraries (think of java.lang.* and System.*)
All the other core libraries
Possibly, external resources (e.g., images, sounds, translation ﬁles...)
Normally, this software depends on other software
That depend on other software
That depend on other software, and so on...
A normal applications has a tree of dependencies

images/logo

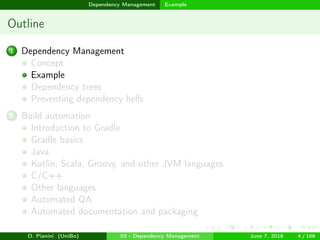

Dependency Management Example
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo

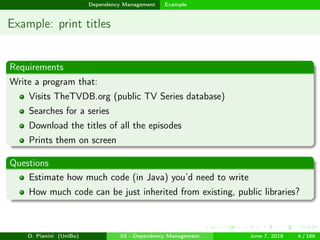

Example: print titles
Requirements
Write a program that:
Visits TheTVDB.org (public TV Series database)
Searches for a series
Download the titles of all the episodes
Prints them on screen
Questions
Estimate how much code (in Java) you’d need to write
How much code can be just inherited from existing, public libraries?

images/logo

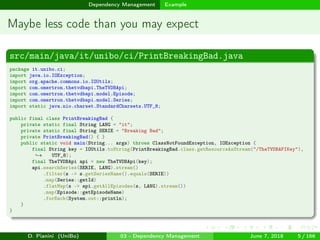

Maybe less code than you may expect

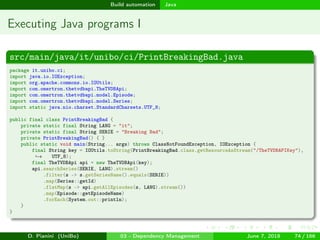

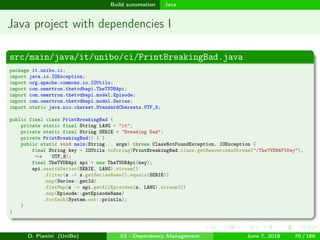

src/main/java/it/unibo/ci/PrintBreakingBad.java
package it.unibo.ci;
import java.io.IOException;
import org.apache.commons.io.IOUtils;
import com.omertron.thetvdbapi.TheTVDBApi;
import com.omertron.thetvdbapi.model.Episode;
import com.omertron.thetvdbapi.model.Series;
import static java.nio.charset.StandardCharsets.UTF_8;
public final class PrintBreakingBad {
private static final String LANG = "it";
private static final String SERIE = "Breaking Bad";
private PrintBreakingBad() { }
public static void main(String... args) throws ClassNotFoundException, IOException {
final String key = IOUtils.toString(PrintBreakingBad.class.getResourceAsStream("/TheTVDBAPIKey"),
UTF_8);→
final TheTVDBApi api = new TheTVDBApi(key);
api.searchSeries(SERIE, LANG).stream()
.filter(s -> s.getSeriesName().equals(SERIE))
.map(Series::getId)
.flatMap(s -> api.getAllEpisodes(s, LANG).stream())
.map(Episode::getEpisodeName)
.forEach(System.out::println);
}
}

images/logo
Trick revealed
I used a few existing libraries!
Google Guava
Used for referencing the UTF-8 Charset without using Strings (less
error-prone)
Apache Commons I/O
Used for converting a resource stream pointing to a String
Omertron’s thetvdbapi
Queries TheTVDB given a valid API key, hiding all the HTTP
communication and XML parsing
But wait, there is more!
I only needed three libraries to get the job done. But are those libraries
using other libraries?

images/logo

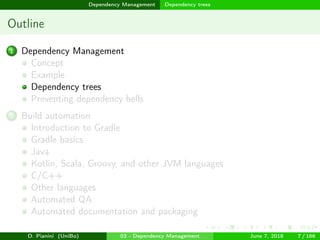

Dependency Management Dependency trees
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo
Dependency Management Dependency trees

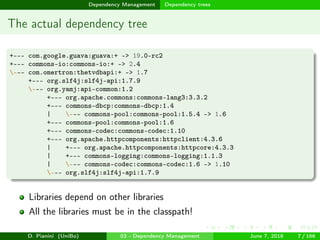

The actual dependency tree
+--- com.google.guava:guava:+ -> 19.0-rc2
+--- commons-io:commons-io:+ -> 2.4
--- com.omertron:thetvdbapi:+ -> 1.7
+--- org.slf4j:slf4j-api:1.7.9
--- org.yamj:api-common:1.2
+--- org.apache.commons:commons-lang3:3.3.2
+--- commons-dbcp:commons-dbcp:1.4
| --- commons-pool:commons-pool:1.5.4 -> 1.6
+--- commons-pool:commons-pool:1.6
+--- commons-codec:commons-codec:1.10
+--- org.apache.httpcomponents:httpclient:4.3.6
| +--- org.apache.httpcomponents:httpcore:4.3.3
| +--- commons-logging:commons-logging:1.1.3
| --- commons-codec:commons-codec:1.6 -> 1.10
--- org.slf4j:slf4j-api:1.7.9
Libraries depend on other libraries
All the libraries must be in the classpath!

images/logo

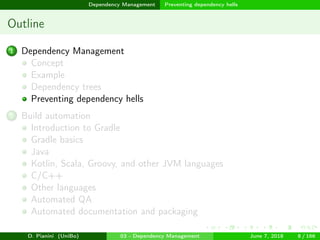

Dependency Management Preventing dependency hells
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo
Towards a dependency hell I
This was a toy program, consisting of a single Java source file of some
twenty lines of code.
Regardless, it requires 12 external libraries in order to run.
Libraries explosion
It is very common for a non-toy project to get past 50 dependencies
Alchemist, big but not huge, counts more than 120 dependencies
Hard to search, download and verify compatibilities by hand
Version conflicts soon arise
one of your direct dependencies uses library A at version 1
another uses library A at version 2
you have a so-called transitive dependency conflict on A
Upgrading by hand requires, time, effort and tons of testing

images/logo

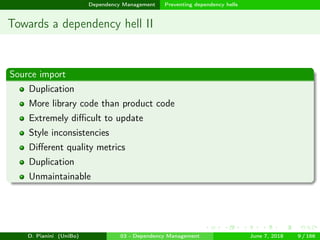

Towards a dependency hell II
Source import
Duplication
More library code than product code
Extremely diﬃcult to update
Style inconsistencies
Diﬀerent quality metrics
Duplication
Unmaintainable

images/logo

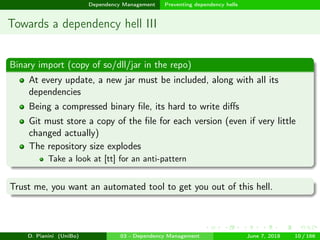

Towards a dependency hell III
Binary import (copy of so/dll/jar in the repo)
At every update, a new jar must be included, along with all its
dependencies
Being a compressed binary file, its hard to write diffs
Git must store a copy of the file for each version (even if very little
changed actually)
The repository size explodes
Take a look at [tt] for an anti-pattern
Trust me, you want an automated tool to get you out of this hell.

images/logo

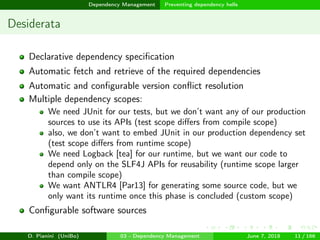

Desiderata
Declarative dependency specification
Automatic fetch and retrieve of the required dependencies
Automatic and configurable version conflict resolution
Multiple dependency scopes:
We need JUnit for our tests, but we don’t want any of our production
sources to use its APIs (test scope differs from compile scope)
also, we don’t want to embed JUnit in our production dependency set
(test scope differs from runtime scope)
We need Logback [tea] for our runtime, but we want our code to
depend only on the SLF4J APIs for reusability (runtime scope larger
than compile scope)
We want ANTLR4 [Par13] for generating some source code, but we
only want its runtime once this phase is concluded (custom scope)
Configurable software sources

images/logo

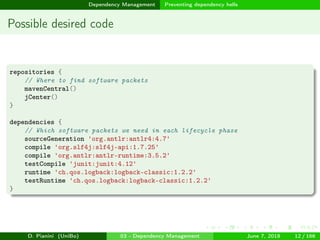

Possible desired code
repositories {
// Where to find software packets
mavenCentral()
jCenter()
}
dependencies {
// Which software packets we need in each lifecycle phase
sourceGeneration 'org.antlr:antlr4:4.7'
compile 'org.slf4j:slf4j-api:1.7.25'
compile 'org.antlr:antlr-runtime:3.5.2'
testCompile 'junit:junit:4.12'
runtime 'ch.qos.logback:logback-classic:1.2.2'
testRuntime 'ch.qos.logback:logback-classic:1.2.2'
}

images/logo
Build automation
Moar automation
Dependency management is just the ﬁrst need that arises.
What you really want to automatize
Dependency management
Software compilation
Test execution compilation
Documentation generation
Reports generation
Artefacts assemblage
Artefacts signing
Everything that goes from declaring what your software needs to
having it ready for deployment
Except actually developing the project

images/logo
Build automation

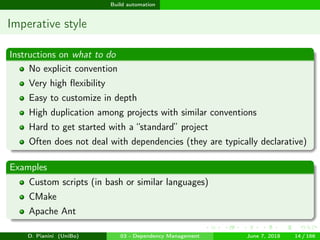

Imperative style
Instructions on what to do
No explicit convention
Very high ﬂexibility
Easy to customize in depth
High duplication among projects with similar conventions
Hard to get started with a “standard” project
Often does not deal with dependencies (they are typically declarative)
Examples
Custom scripts (in bash or similar languages)
CMake
Apache Ant

images/logo
Build automation
Declarative style
A configuration with a the settings of the project
Default configuration based on a convention
Low flexibility
Hard to customize in depth
Custom behaviour must be implemented separately, e.g. as plugin
Low duplication among projects following the convention
Very easy to get started with a conventional project
Examples
Apache Ivy (dependencies only)
Apache Maven
Python pip

images/logo

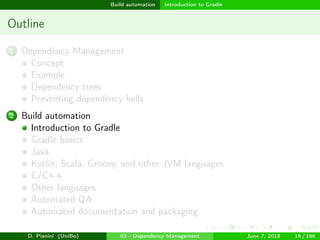

Build automation Introduction to Gradle
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo

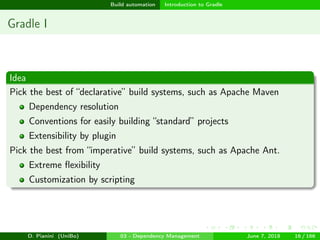

Gradle I
Idea
Pick the best of “declarative” build systems, such as Apache Maven
Dependency resolution
Conventions for easily building “standard” projects
Extensibility by plugin
Pick the best from “imperative” build systems, such as Apache Ant.
Extreme ﬂexibility
Customization by scripting

images/logo

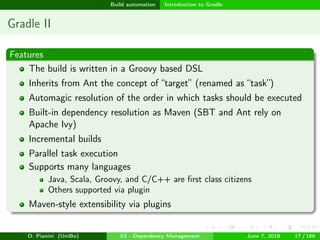

Gradle II
Features
The build is written in a Groovy based DSL
Inherits from Ant the concept of “target” (renamed as “task”)
Automagic resolution of the order in which tasks should be executed
Built-in dependency resolution as Maven (SBT and Ant rely on
Apache Ivy)
Incremental builds
Parallel task execution
Supports many languages
Java, Scala, Groovy, and C/C++ are ﬁrst class citizens
Others supported via plugin
Maven-style extensibility via plugins

images/logo

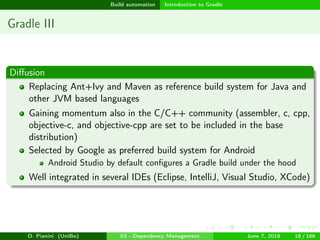

Gradle III
Diﬀusion
Replacing Ant+Ivy and Maven as reference build system for Java and
other JVM based languages
Gaining momentum also in the C/C++ community (assembler, c, cpp,
objective-c, and objective-cpp are set to be included in the base
distribution)
Selected by Google as preferred build system for Android
Android Studio by default conﬁgures a Gradle build under the hood
Well integrated in several IDEs (Eclipse, IntelliJ, Visual Studio, XCode)

images/logo

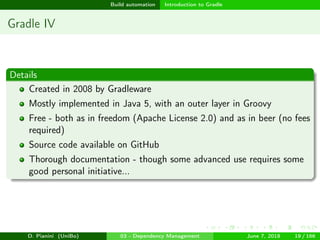

Gradle IV
Details
Created in 2008 by Gradleware
Mostly implemented in Java 5, with an outer layer in Groovy
Free - both as in freedom (Apache License 2.0) and as in beer (no fees
required)
Source code available on GitHub
Thorough documentation - though some advanced use requires some
good personal initiative...

images/logo
Under the hood
The Gradle build script is a valid Groovy script (if you consider the
Gradle API)
Anything that has not a valid Groovy syntax is not a valid Gradle build
script
Groovy makes it easy to create DSLs, Gradle is built relying on such a
feature
Everything you write is actually proper Groovy code (method calls,
closures, and so on), but (you’ll see) that aspect is very nicely hidden
At the high level, the feeling is to just have to configure an existing
plugin, much like Maven, for most of the things you normally do
When needed, it is easy to configure custom behavior, or fiddle with
the internals, in a functional or imperative fashion

images/logo
Build automation Gradle basics
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo

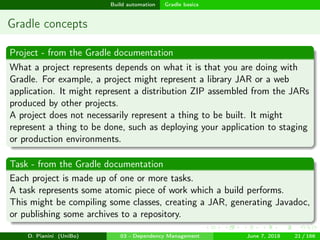

Gradle concepts
Project - from the Gradle documentation
What a project represents depends on what it is that you are doing with
Gradle. For example, a project might represent a library JAR or a web
application. It might represent a distribution ZIP assembled from the JARs
produced by other projects.
A project does not necessarily represent a thing to be built. It might
represent a thing to be done, such as deploying your application to staging
or production environments.
Task - from the Gradle documentation
Each project is made up of one or more tasks.
A task represents some atomic piece of work which a build performs.
This might be compiling some classes, creating a JAR, generating Javadoc,
or publishing some archives to a repository.

images/logo
My first Gradle build I
Takeaways
A Gradle build is configured in the build.gradle file.
build.gradle
task hello {
doLast {
println 'Hello world!'
}
}

images/logo

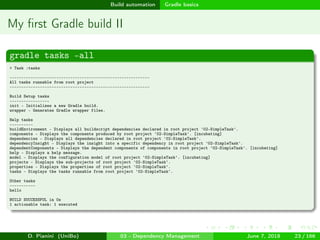

My ﬁrst Gradle build II
gradle tasks –all
> Task :tasks
------------------------------------------------------------
All tasks runnable from root project
------------------------------------------------------------
Build Setup tasks
-----------------
init - Initializes a new Gradle build.
wrapper - Generates Gradle wrapper files.
Help tasks
----------
buildEnvironment - Displays all buildscript dependencies declared in root project '02-SimpleTask'.
components - Displays the components produced by root project '02-SimpleTask'. [incubating]
dependencies - Displays all dependencies declared in root project '02-SimpleTask'.
dependencyInsight - Displays the insight into a specific dependency in root project '02-SimpleTask'.
dependentComponents - Displays the dependent components of components in root project '02-SimpleTask'. [incubating]
help - Displays a help message.
model - Displays the configuration model of root project '02-SimpleTask'. [incubating]
projects - Displays the sub-projects of root project '02-SimpleTask'.
properties - Displays the properties of root project '02-SimpleTask'.
tasks - Displays the tasks runnable from root project '02-SimpleTask'.
Other tasks
-----------
hello
BUILD SUCCESSFUL in 0s
1 actionable task: 1 executed

images/logo

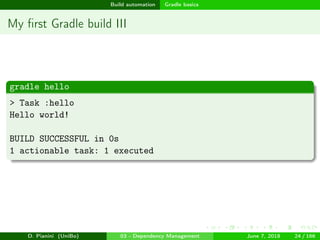

My ﬁrst Gradle build III
gradle hello
> Task :hello
Hello world!

images/logo

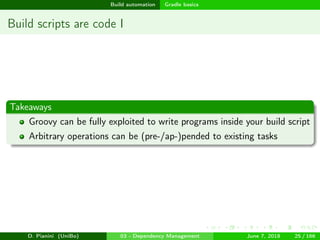

Build scripts are code I
Takeaways
Groovy can be fully exploited to write programs inside your build script
Arbitrary operations can be (pre-/ap-)pended to existing tasks

images/logo

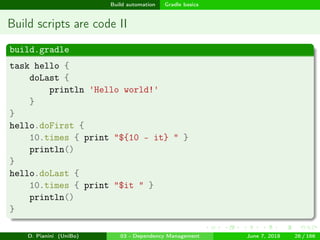

Build scripts are code II
build.gradle
task hello {
doLast {
}
}
hello.doFirst {
10.times { print "${10 - it} " }
println()
}
hello.doLast {
10.times { print "$it " }
println()
}

images/logo

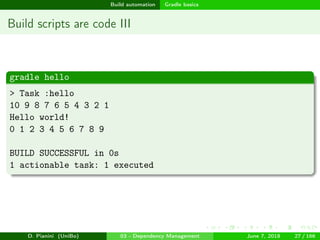

Build scripts are code III
gradle hello
> Task :hello
10 9 8 7 6 5 4 3 2 1
Hello world!
0 1 2 3 4 5 6 7 8 9

images/logo

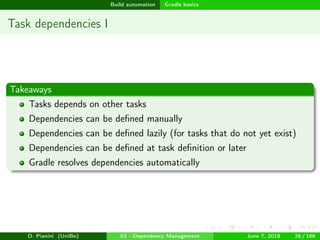

Task dependencies I
Takeaways
Tasks depends on other tasks
Dependencies can be defined manually
Dependencies can be defined lazily (for tasks that do not yet exist)
Dependencies can be defined at task definition or later
Gradle resolves dependencies automatically

images/logo

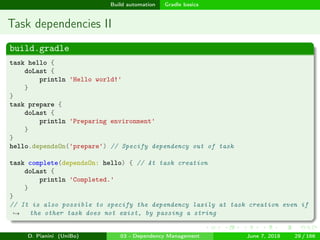

Task dependencies II
build.gradle
task hello {
doLast {
}
}
task prepare {
doLast {
println 'Preparing environment'
}
}
hello.dependsOn('prepare') // Specify dependency out of task
task complete(dependsOn: hello) { // At task creation
doLast {
println 'Completed.'
}
}
// It is also possible to specify the dependency lazily at task creation even if
the other task does not exist, by passing a string→

images/logo

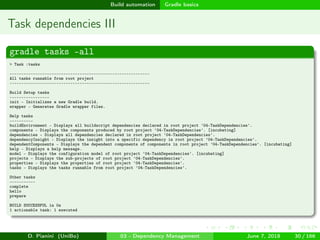

Task dependencies III
gradle tasks –all
> Task :tasks
------------------------------------------------------------
------------------------------------------------------------
Build Setup tasks
-----------------
Help tasks
----------
buildEnvironment - Displays all buildscript dependencies declared in root project '04-TaskDependencies'.
components - Displays the components produced by root project '04-TaskDependencies'. [incubating]
dependencies - Displays all dependencies declared in root project '04-TaskDependencies'.
dependencyInsight - Displays the insight into a specific dependency in root project '04-TaskDependencies'.
dependentComponents - Displays the dependent components of components in root project '04-TaskDependencies'. [incubating]
model - Displays the configuration model of root project '04-TaskDependencies'. [incubating]
projects - Displays the sub-projects of root project '04-TaskDependencies'.
properties - Displays the properties of root project '04-TaskDependencies'.
tasks - Displays the tasks runnable from root project '04-TaskDependencies'.
Other tasks
-----------
complete
hello
prepare

images/logo

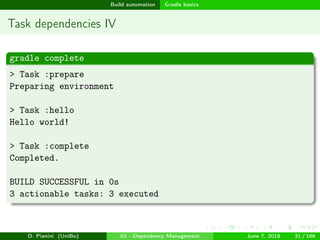

Task dependencies IV
gradle complete
> Task :prepare
Preparing environment
> Task :hello
Hello world!
> Task :complete
Completed.
3 actionable tasks: 3 executed

images/logo
Dynamic tasks I
Takeaways
Tasks can be created programmatically
The -q ﬂag quietens the output
build.gradle
task task0 {
doLast { print '0 ' }
}
100.times { n ->
task "task${n+1}"(dependsOn: "task$n") {
doLast { print "${n + 1} " }
}
}

images/logo

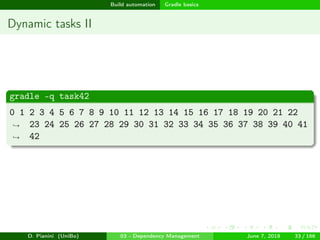

Dynamic tasks II
gradle -q task42
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41
42
→
→

images/logo

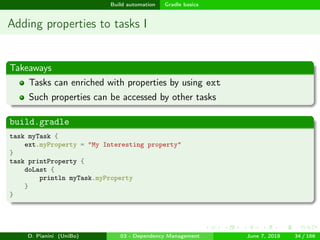

Adding properties to tasks I
Takeaways
Tasks can enriched with properties by using ext
Such properties can be accessed by other tasks
build.gradle
task myTask {
ext.myProperty = "My Interesting property"
}
task printProperty {
doLast {
println myTask.myProperty
}
}

images/logo

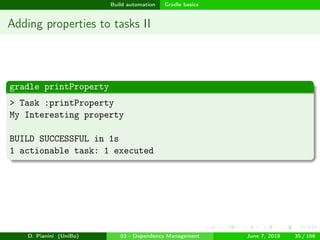

Adding properties to tasks II
gradle printProperty
> Task :printProperty
My Interesting property

images/logo

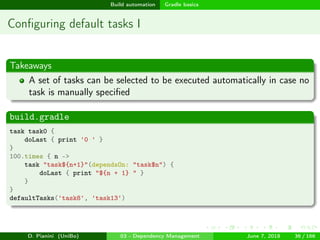

Conﬁguring default tasks I
Takeaways
A set of tasks can be selected to be executed automatically in case no
task is manually speciﬁed
build.gradle
task task0 {
doLast { print '0 ' }
}
100.times { n ->
task "task${n+1}"(dependsOn: "task$n") {
doLast { print "${n + 1} " }
}
}
defaultTasks('task8', 'task13')

images/logo

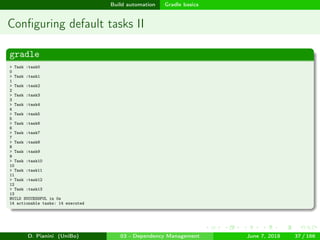

Conﬁguring default tasks II
gradle
> Task :task0
0
> Task :task1
1
> Task :task2
2
> Task :task3
3
> Task :task4
4
> Task :task5
5
> Task :task6
6
> Task :task7
7
> Task :task8
8
> Task :task9
9
> Task :task10
10
> Task :task11
11
> Task :task12
12
> Task :task13
13

images/logo

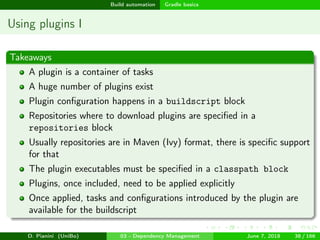

Using plugins I
Takeaways
A plugin is a container of tasks
A huge number of plugins exist
Plugin configuration happens in a buildscript block
Repositories where to download plugins are specified in a
repositories block
Usually repositories are in Maven (Ivy) format, there is specific support
for that
The plugin executables must be specified in a classpath block
Plugins, once included, need to be applied explicitly
Once applied, tasks and configurations introduced by the plugin are
available for the buildscript

images/logo

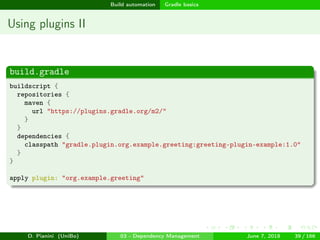

Using plugins II
build.gradle
buildscript {
repositories {
maven {
url "https://plugins.gradle.org/m2/"
}
}
dependencies {
classpath "gradle.plugin.org.example.greeting:greeting-plugin-example:1.0"
}
}
apply plugin: "org.example.greeting"

images/logo

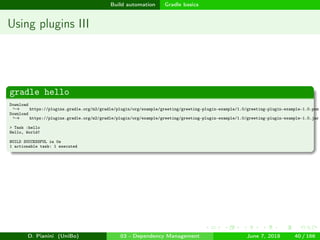

Using plugins III
gradle hello
Download
https://plugins.gradle.org/m2/gradle/plugin/org/example/greeting/greeting-plugin-example/1.0/greeting-plugin-example-1.0.pom→
Download
https://plugins.gradle.org/m2/gradle/plugin/org/example/greeting/greeting-plugin-example/1.0/greeting-plugin-example-1.0.jar→
> Task :hello
Hello, World!

images/logo

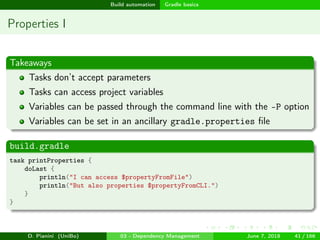

Properties I
Takeaways
Tasks don’t accept parameters
Tasks can access project variables
Variables can be passed through the command line with the -P option
Variables can be set in an ancillary gradle.properties ﬁle
build.gradle
task printProperties {
doLast {
println("I can access $propertyFromFile")
println("But also properties $propertyFromCLI.")
}
}

images/logo

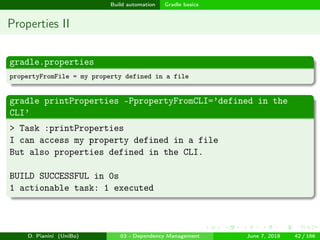

Properties II
gradle.properties
propertyFromFile = my property defined in a file
gradle printProperties -PpropertyFromCLI=’defined in the
CLI’
> Task :printProperties
I can access my property defined in a file
But also properties defined in the CLI.

images/logo

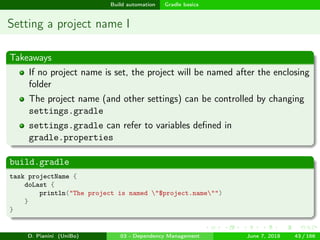

Setting a project name I
Takeaways
If no project name is set, the project will be named after the enclosing
folder
The project name (and other settings) can be controlled by changing
settings.gradle
settings.gradle can refer to variables deﬁned in
gradle.properties
build.gradle
task projectName {
doLast {
println("The project is named "$project.name"")
}
}

images/logo

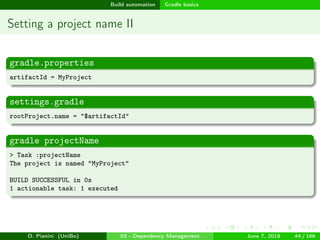

Setting a project name II
gradle.properties
artifactId = MyProject
settings.gradle
rootProject.name = "$artifactId"
gradle projectName
> Task :projectName
The project is named "MyProject"

images/logo

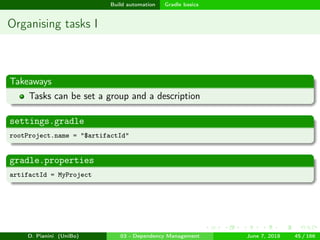

Organising tasks I
Takeaways
Tasks can be set a group and a description
settings.gradle
gradle.properties
artifactId = MyProject

images/logo

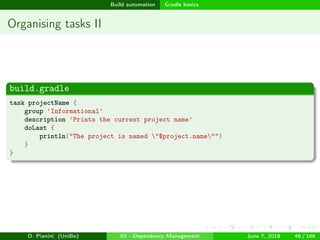

Organising tasks II
build.gradle
task projectName {
group 'Informational'
description 'Prints the current project name'
doLast {
println("The project is named "$project.name"")
}
}

images/logo

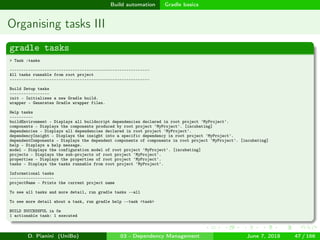

Organising tasks III
gradle tasks
> Task :tasks
------------------------------------------------------------
------------------------------------------------------------
Build Setup tasks
-----------------
Help tasks
----------
buildEnvironment - Displays all buildscript dependencies declared in root project 'MyProject'.
components - Displays the components produced by root project 'MyProject'. [incubating]
dependencies - Displays all dependencies declared in root project 'MyProject'.
dependencyInsight - Displays the insight into a specific dependency in root project 'MyProject'.
dependentComponents - Displays the dependent components of components in root project 'MyProject'. [incubating]
model - Displays the configuration model of root project 'MyProject'. [incubating]
projects - Displays the sub-projects of root project 'MyProject'.
properties - Displays the properties of root project 'MyProject'.
tasks - Displays the tasks runnable from root project 'MyProject'.
Informational tasks
-------------------
projectName - Prints the current project name
To see all tasks and more detail, run gradle tasks --all
To see more detail about a task, run gradle help --task <task>

images/logo

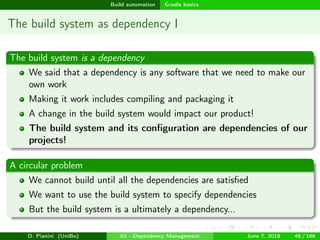

The build system as dependency I
The build system is a dependency
We said that a dependency is any software that we need to make our
own work
Making it work includes compiling and packaging it
A change in the build system would impact our product!
The build system and its conﬁguration are dependencies of our
projects!
A circular problem
We cannot build until all the dependencies are satisﬁed
We want to use the build system to specify dependencies
But the build system is a ultimately a dependency...

images/logo

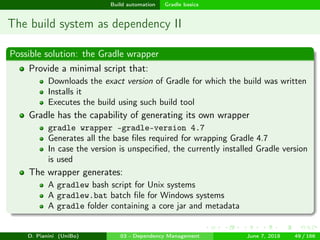

The build system as dependency II
Possible solution: the Gradle wrapper
Provide a minimal script that:
Downloads the exact version of Gradle for which the build was written
Installs it
Executes the build using such build tool
Gradle has the capability of generating its own wrapper
gradle wrapper –gradle-version 4.7
Generates all the base files required for wrapping Gradle 4.7
In case the version is unspecified, the currently installed Gradle version
is used
The wrapper generates:
A gradlew bash script for Unix systems
A gradlew.bat batch file for Windows systems
A gradle folder containing a core jar and metadata

images/logo

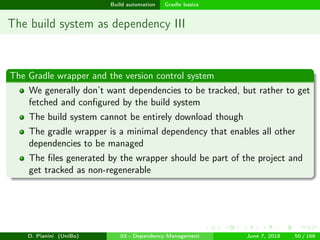

The build system as dependency III
The Gradle wrapper and the version control system
We generally don’t want dependencies to be tracked, but rather to get
fetched and conﬁgured by the build system
The build system cannot be entirely download though
The gradle wrapper is a minimal dependency that enables all other
dependencies to be managed
The ﬁles generated by the wrapper should be part of the project and
get tracked as non-regenerable

images/logo

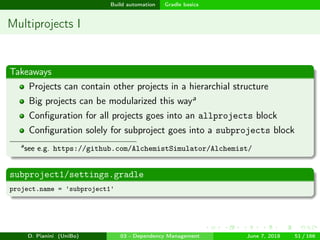

Multiprojects I
Takeaways
Projects can contain other projects in a hierarchial structure
Big projects can be modularized this waya
Conﬁguration for all projects goes into an allprojects block
Conﬁguration solely for subproject goes into a subprojects block
a
see e.g. https://github.com/AlchemistSimulator/Alchemist/
subproject1/settings.gradle
project.name = 'subproject1'

images/logo
Multiprojects II
subproject1/build.gradle
task welcome {
group 'Greetings'
doLast { println("$project.name welcomes you") }
}
subproject2/settings.gradle
project.name = 'subproject2'
subproject2/build.gradle
task hello {
group 'Greetings'
doLast { println("Hello from $project.name") }
}

images/logo

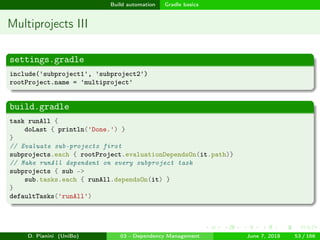

Multiprojects III
settings.gradle
include('subproject1', 'subproject2')
rootProject.name = 'multiproject'
build.gradle
task runAll {
doLast { println('Done.') }
}
// Evaluate sub-projects first
subprojects.each { rootProject.evaluationDependsOn(it.path)}
// Make runAll dependent on every subproject task
subprojects { sub ->
sub.tasks.each { runAll.dependsOn(it) }
}
defaultTasks('runAll')

images/logo

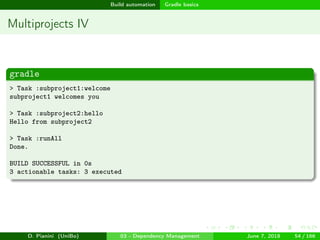

Multiprojects IV
gradle
> Task :subproject1:welcome
subproject1 welcomes you
> Task :subproject2:hello
Hello from subproject2
> Task :runAll
Done.

images/logo

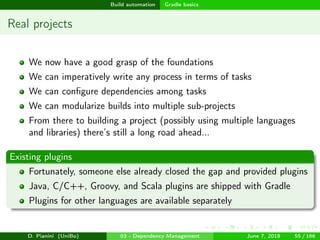

Real projects
We now have a good grasp of the foundations
We can imperatively write any process in terms of tasks
We can conﬁgure dependencies among tasks
We can modularize builds into multiple sub-projects
From there to building a project (possibly using multiple languages
and libraries) there’s still a long road ahead...
Existing plugins
Fortunately, someone else already closed the gap and provided plugins
Java, C/C++, Groovy, and Scala plugins are shipped with Gradle
Plugins for other languages are available separately

images/logo

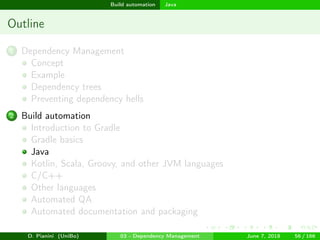

Build automation Java
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo

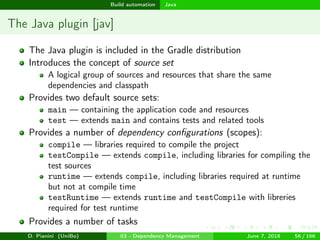

The Java plugin [jav]
The Java plugin is included in the Gradle distribution
Introduces the concept of source set
A logical group of sources and resources that share the same
dependencies and classpath
Provides two default source sets:
main — containing the application code and resources
test — extends main and contains tests and related tools
Provides a number of dependency conﬁgurations (scopes):
compile — libraries required to compile the project
testCompile — extends compile, including libraries for compiling the
test sources
runtime — extends compile, including libraries required at runtime
but not at compile time
testRuntime — extends runtime and testCompile with libreries
required for test runtime
Provides a number of tasks

images/logo

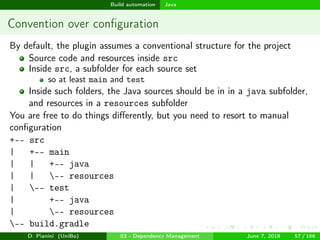

Convention over configuration
By default, the plugin assumes a conventional structure for the project
Source code and resources inside src
Inside src, a subfolder for each source set
so at least main and test
Inside such folders, the Java sources should be in in a java subfolder,
and resources in a resources subfolder
You are free to do things differently, but you need to resort to manual
configuration
+-- src
| +-- main
| | +-- java
| | -- resources
| -- test
| +-- java
| -- resources
-- build.gradle

images/logo

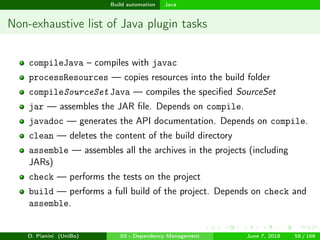

Non-exhaustive list of Java plugin tasks
compileJava – compiles with javac
processResources — copies resources into the build folder
compileSourceSet Java — compiles the speciﬁed SourceSet
jar — assembles the JAR ﬁle. Depends on compile.
javadoc — generates the API documentation. Depends on compile.
clean — deletes the content of the build directory
assemble — assembles all the archives in the projects (including
JARs)
check — performs the tests on the project
build — performs a full build of the project. Depends on check and
assemble.

images/logo
Dependencies among java plugin tasks

images/logo

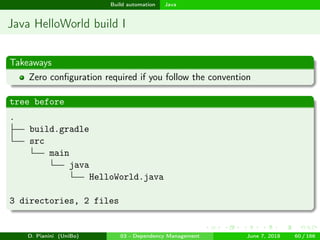

Java HelloWorld build I
Takeaways
Zero conﬁguration required if you follow the convention
tree before
.
build.gradle
src
main
java
HelloWorld.java
3 directories, 2 files

images/logo

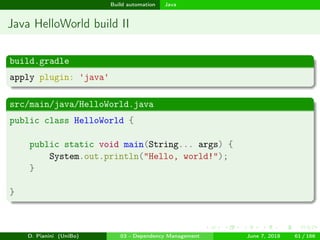

Java HelloWorld build II
build.gradle
apply plugin: 'java'
src/main/java/HelloWorld.java
public class HelloWorld {
public static void main(String... args) {
System.out.println("Hello, world!");
}
}

images/logo

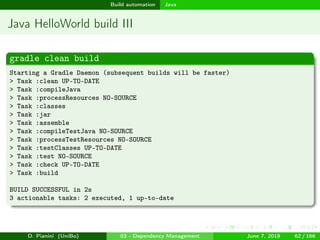

Java HelloWorld build III
gradle clean build
Starting a Gradle Daemon (subsequent builds will be faster)
> Task :clean UP-TO-DATE
> Task :compileJava
> Task :processResources NO-SOURCE
> Task :classes
> Task :jar
> Task :assemble
> Task :compileTestJava NO-SOURCE
> Task :processTestResources NO-SOURCE
> Task :testClasses UP-TO-DATE
> Task :test NO-SOURCE
> Task :check UP-TO-DATE
> Task :build
3 actionable tasks: 2 executed, 1 up-to-date

images/logo

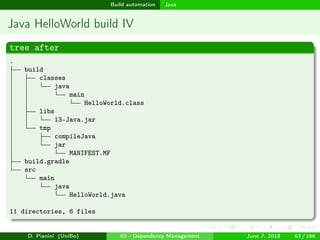

Java HelloWorld build IV
tree after
.
build
classes
java
main
HelloWorld.class
libs
13-Java.jar
tmp
compileJava
jar
MANIFEST.MF
build.gradle
src
main
java
HelloWorld.java
11 directories, 6 files

images/logo

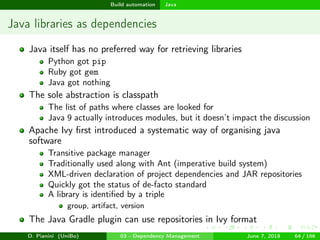

Java libraries as dependencies
Java itself has no preferred way for retrieving libraries
Python got pip
Ruby got gem
Java got nothing
The sole abstraction is classpath
The list of paths where classes are looked for
Java 9 actually introduces modules, but it doesn’t impact the discussion
Apache Ivy ﬁrst introduced a systematic way of organising java
software
Transitive package manager
Traditionally used along with Ant (imperative build system)
XML-driven declaration of project dependencies and JAR repositories
Quickly got the status of de-facto standard
A library is identiﬁed by a triple
group, artifact, version
The Java Gradle plugin can use repositories in Ivy format

images/logo

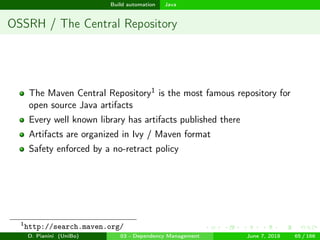

OSSRH / The Central Repository
The Maven Central Repository1 is the most famous repository for
open source Java artifacts
Every well known library has artifacts published there
Artifacts are organized in Ivy / Maven format
Safety enforced by a no-retract policy
1
http://search.maven.org/

images/logo

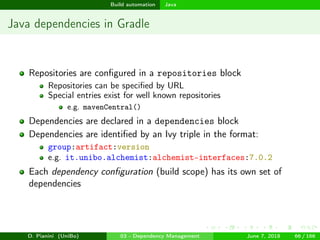

Java dependencies in Gradle
Repositories are configured in a repositories block
Repositories can be specified by URL
Special entries exist for well known repositories
e.g. mavenCentral()
Dependencies are declared in a dependencies block
Dependencies are identified by an Ivy triple in the format:
group:artifact:version
e.g. it.unibo.alchemist:alchemist-interfaces:7.0.2
Each dependency configuration (build scope) has its own set of
dependencies

images/logo
(Some of the) Dependency Conﬁgurations
compileOnly — Dependencies required for compiling the project that
should not get included at runtime
implementation — Dependencies required for compiling the project,
also required at runtime
runtimeOnly — Dependencies required for runtime, but not for
compiling (e.g. because loaded by reﬂection)
testCompileOnly — Dependencies required for compiling tests that
should not be included when the tests are executed
testImplementation — Dependencies required for compiling tests,
also required for executing them (e.g. JUnit)
testRuntimeOnly — Dependencies required at test runtime, but not
necessary for compiling the tests
annotationProcessor — Annotation processors used during
compilation. It’s an advanced Java feature.

images/logo
Dependency management and source sets
For every source set sourceSet , the following conﬁgurations are
automatically generated
sourceSet CompileOnly — Dependencies required for compiling the
source set that should not get included at runtime
sourceSet Implementation — Dependencies required for compiling
the source set, also required at runtime
sourceSet RuntimeOnly — Dependencies required for runtime, but
not for compiling (e.g. because loaded by reﬂection)
sourceSet AnnotationProcessor — Annotation processors used
during compilation.

images/logo

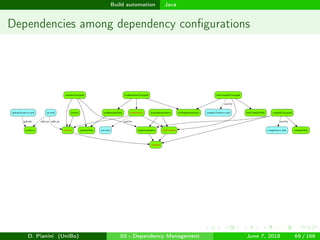

Dependencies among dependency conﬁgurations

images/logo
Java project with dependencies I
UTF_8);→
.map(Series::getId)
}
}

images/logo

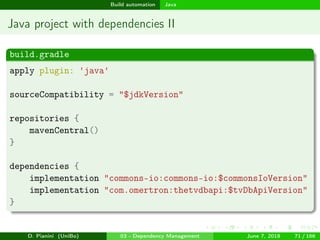

Java project with dependencies II
build.gradle
sourceCompatibility = "$jdkVersion"
repositories {
mavenCentral()
}
dependencies {
implementation "commons-io:commons-io:$commonsIoVersion"
implementation "com.omertron:thetvdbapi:$tvDbApiVersion"
}

images/logo

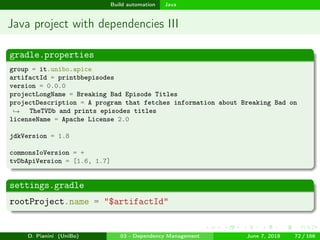

Java project with dependencies III
gradle.properties
group = it.unibo.apice
artifactId = printbbepisodes
version = 0.0.0
projectLongName = Breaking Bad Episode Titles
projectDescription = A program that fetches information about Breaking Bad on
TheTVDb and prints episodes titles→
licenseName = Apache License 2.0
jdkVersion = 1.8
commonsIoVersion = +
tvDbApiVersion = [1.6, 1.7]
settings.gradle

images/logo

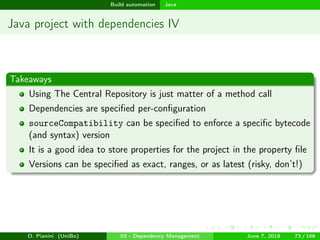

Java project with dependencies IV
Takeaways
Using The Central Repository is just matter of a method call
Dependencies are specified per-configuration
sourceCompatibility can be specified to enforce a specific bytecode
(and syntax) version
It is a good idea to store properties for the project in the property file
Versions can be specified as exact, ranges, or as latest (risky, don’t!)

images/logo
Executing Java programs I
UTF_8);→
.map(Series::getId)
}
}

images/logo

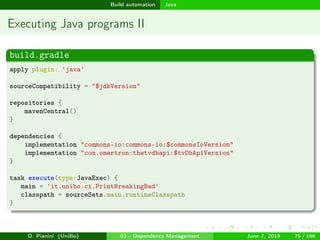

Executing Java programs II
build.gradle
repositories {
mavenCentral()
}
dependencies {
implementation "commons-io:commons-io:$commonsIoVersion"
implementation "com.omertron:thetvdbapi:$tvDbApiVersion"
}
task execute(type:JavaExec) {
main = 'it.unibo.ci.PrintBreakingBad'
classpath = sourceSets.main.runtimeClasspath
}

images/logo

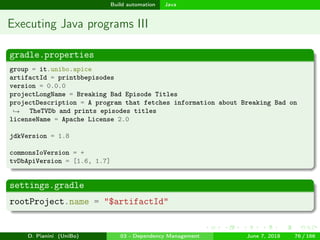

Executing Java programs III
gradle.properties
artifactId = printbbepisodes
version = 0.0.0
projectLongName = Breaking Bad Episode Titles
projectDescription = A program that fetches information about Breaking Bad on
TheTVDb and prints episodes titles→
jdkVersion = 1.8
commonsIoVersion = +
tvDbApiVersion = [1.6, 1.7]
settings.gradle

images/logo

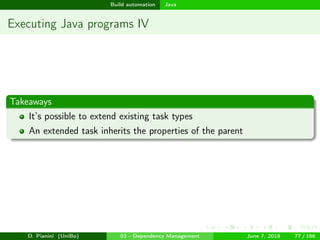

Executing Java programs IV
Takeaways
It’s possible to extend existing task types
An extended task inherits the properties of the parent

images/logo
Build automation Kotlin, Scala, Groovy, and other JVM languages
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo

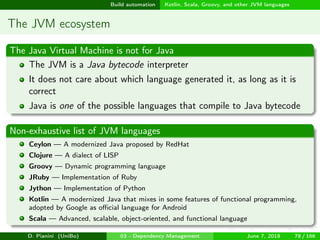

The JVM ecosystem
The Java Virtual Machine is not for Java
The JVM is a Java bytecode interpreter
It does not care about which language generated it, as long as it is
correct
Java is one of the possible languages that compile to Java bytecode
Non-exhaustive list of JVM languages
Ceylon — A modernized Java proposed by RedHat
Clojure — A dialect of LISP
Groovy — Dynamic programming language
JRuby — Implementation of Ruby
Jython — Implementation of Python
Kotlin — A modernized Java that mixes in some features of functional programming,
adopted by Google as oﬃcial language for Android
Scala — Advanced, scalable, object-oriented, and functional language

images/logo

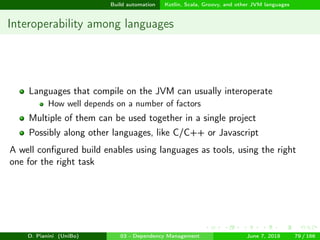

Interoperability among languages
Languages that compile on the JVM can usually interoperate
How well depends on a number of factors
Multiple of them can be used together in a single project
Possibly along other languages, like C/C++ or Javascript
A well conﬁgured build enables using languages as tools, using the right
one for the right task

images/logo

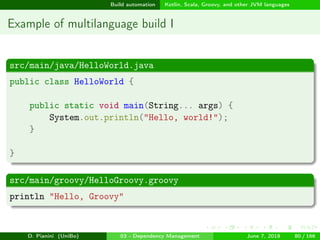

Example of multilanguage build I
src/main/java/HelloWorld.java
public class HelloWorld {
public static void main(String... args) {
System.out.println("Hello, world!");
}
}
src/main/groovy/HelloGroovy.groovy
println "Hello, Groovy"

images/logo

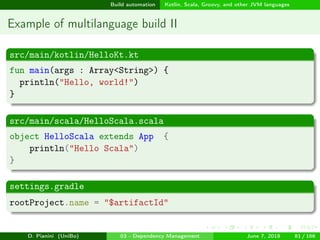

Example of multilanguage build II
src/main/kotlin/HelloKt.kt
fun main(args : Array<String>) {
println("Hello, world!")
}
src/main/scala/HelloScala.scala
object HelloScala extends App {
println("Hello Scala")
}
settings.gradle

images/logo

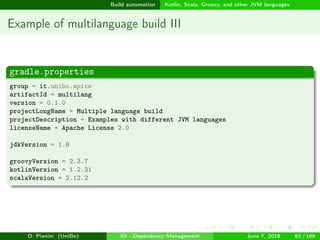

Example of multilanguage build III
gradle.properties
artifactId = multilang
version = 0.1.0
projectLongName = Multiple language build
projectDescription = Examples with different JVM languages
jdkVersion = 1.8
groovyVersion = 2.3.7
kotlinVersion = 1.2.31
scalaVersion = 2.12.2

images/logo

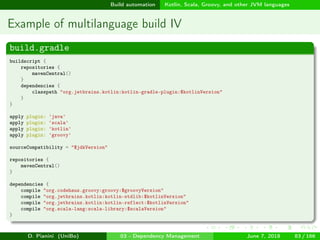

Example of multilanguage build IV
build.gradle
buildscript {
repositories {
mavenCentral()
}
dependencies {
classpath "org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlinVersion"
}
}
apply plugin: 'scala'
apply plugin: 'kotlin'
apply plugin: 'groovy'
repositories {
mavenCentral()
}
dependencies {
compile "org.codehaus.groovy:groovy:$groovyVersion"
compile "org.jetbrains.kotlin:kotlin-stdlib:$kotlinVersion"
compile "org.jetbrains.kotlin:kotlin-reflect:$kotlinVersion"
compile "org.scala-lang:scala-library:$scalaVersion"
}

images/logo

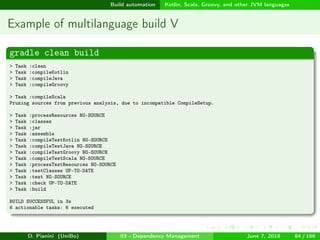

Example of multilanguage build V
gradle clean build
> Task :clean
> Task :compileKotlin
> Task :compileJava
> Task :compileGroovy
> Task :compileScala
Pruning sources from previous analysis, due to incompatible CompileSetup.
> Task :classes
> Task :jar
> Task :assemble
> Task :compileTestKotlin NO-SOURCE
> Task :compileTestJava NO-SOURCE
> Task :compileTestGroovy NO-SOURCE
> Task :compileTestScala NO-SOURCE
> Task :testClasses UP-TO-DATE
> Task :test NO-SOURCE
> Task :check UP-TO-DATE
> Task :build

images/logo

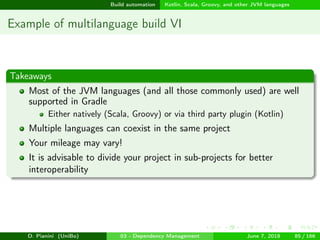

Example of multilanguage build VI
Takeaways
Most of the JVM languages (and all those commonly used) are well
supported in Gradle
Either natively (Scala, Groovy) or via third party plugin (Kotlin)
Multiple languages can coexist in the same project
Your mileage may vary!
It is advisable to divide your project in sub-projects for better
interoperability

images/logo
Build automation C/C++
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo
C/C++ and Gradle
C and C++ are ﬁrst class citizens in Gradle
Main features
No classic dependency management for C could be mimicked
You are a bit on your own
There is support for several toolchains (in italic the experimental ones)
GCC and Clang on Linux and other Unix
XCode, GCC (from Macports), and Clang (from Macports) on MacOS
VisualC++, Cygwin32, Cygwin64, and MinGW on Windows
Some care must be provided for cross-compilation
Convention over conﬁguration introduces some unusual ways of
organising code
There are guides for that a
a
https://bit.ly/2LnKHOz

images/logo

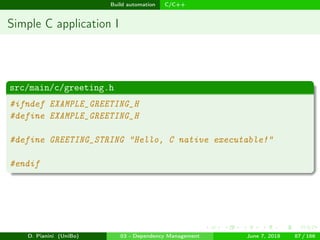

Simple C application I
src/main/c/greeting.h
#ifndef EXAMPLE_GREETING_H
#define EXAMPLE_GREETING_H
#define GREETING_STRING "Hello, C native executable!"
#endif

images/logo

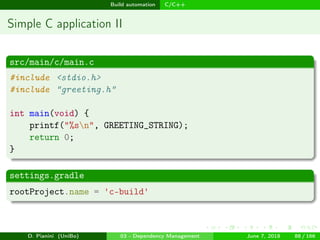

Simple C application II
src/main/c/main.c
#include <stdio.h>
#include "greeting.h"
int main(void) {
printf("%sn", GREETING_STRING);
return 0;
}
settings.gradle
rootProject.name = 'c-build'

images/logo

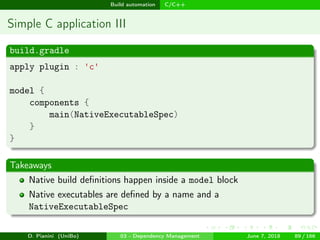

Simple C application III
build.gradle
apply plugin : 'c'
model {
components {
main(NativeExecutableSpec)
}
}
Takeaways
Native build deﬁnitions happen inside a model block
Native executables are deﬁned by a name and a
NativeExecutableSpec

images/logo

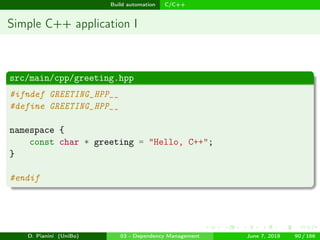

Simple C++ application I
src/main/cpp/greeting.hpp
#ifndef GREETING_HPP__
#define GREETING_HPP__
namespace {
const char * greeting = "Hello, C++";
}
#endif

images/logo

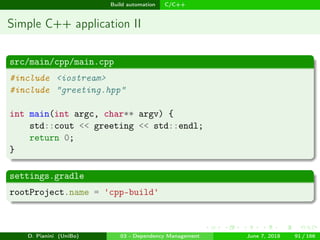

Simple C++ application II
src/main/cpp/main.cpp
#include <iostream>
#include "greeting.hpp"
int main(int argc, char** argv) {
std::cout << greeting << std::endl;
return 0;
}
settings.gradle
rootProject.name = 'cpp-build'

images/logo

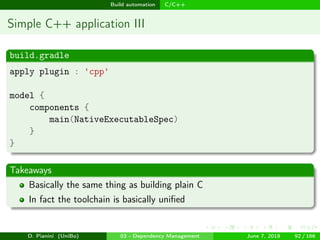

Simple C++ application III
build.gradle
apply plugin : 'cpp'
model {
components {
main(NativeExecutableSpec)
}
}
Takeaways
Basically the same thing as building plain C
In fact the toolchain is basically uniﬁed

images/logo

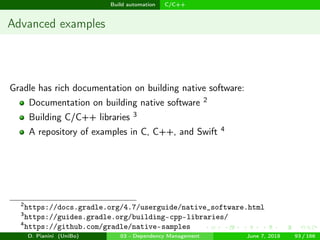

Advanced examples
Gradle has rich documentation on building native software:
Documentation on building native software 2
Building C/C++ libraries 3
A repository of examples in C, C++, and Swift 4
2
https://docs.gradle.org/4.7/userguide/native_software.html
3
https://guides.gradle.org/building-cpp-libraries/
4
https://github.com/gradle/native-samples

images/logo

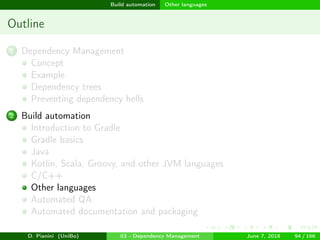

Build automation Other languages
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo

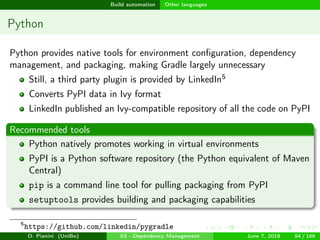

Python
Python provides native tools for environment conﬁguration, dependency
management, and packaging, making Gradle largely unnecessary
Still, a third party plugin is provided by LinkedIn5
Converts PyPI data in Ivy format
LinkedIn published an Ivy-compatible repository of all the code on PyPI
Recommended tools
Python natively promotes working in virtual environments
PyPI is a Python software repository (the Python equivalent of Maven
Central)
pip is a command line tool for pulling packaging from PyPI
setuptools provides building and packaging capabilities
5
https://github.com/linkedin/pygradle

images/logo

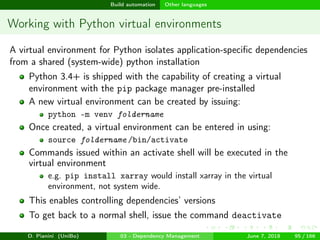

Working with Python virtual environments
A virtual environment for Python isolates application-speciﬁc dependencies
from a shared (system-wide) python installation
Python 3.4+ is shipped with the capability of creating a virtual
environment with the pip package manager pre-installed
A new virtual environment can be created by issuing:
python -m venv foldername
Once created, a virtual environment can be entered in using:
source foldername /bin/activate
Commands issued within an activate shell will be executed in the
virtual environment
e.g. pip install xarray would install xarray in the virtual
environment, not system wide.
This enables controlling dependencies’ versions
To get back to a normal shell, issue the command deactivate

images/logo
C# and .NET
Support or C# and other .NET languages is rather faltering
There is an open discussion 6 about supporting .NET in a more oﬃcial
way
Currently, the best solution is using a third party plugin: 7
Controls msbuild through Gradle
6
https://github.com/gradle/gradle/issues/1428
7
https://github.com/Ullink/gradle-msbuild-plugin

images/logo
Build automation Automated QA

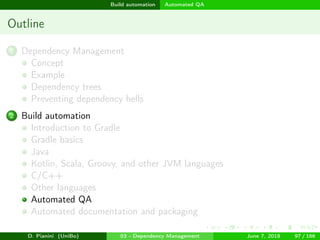

Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo
QA and research
Research projects must not be considered “immune” to QA problems
Common issues
Reproducibility — Software/experiment results are inconsistent or non-reproducible
Communicability — The software quality makes it hard to to understand and
contribute, even within the development team
Availability — Research tools are not properly packed and shared, and as such the
rest of the community can not exploit them appropriately
Scaling — Many research projects that may aim to industrial applications won’t be
able to without proper QA
Consistency — The project is written using an inconsistent style, that poses a
barrier to understanding and contribution. This is especially true for teams
Software QA is very time-consuming, performing it manually may
jeopardize the short term success of a research project
Possibly impacting publications negatively
Automatization trades an upfront cost for a long term beneﬁt

images/logo
The importance of testing
Your project should always have some tests
Why is testing software necessary
Quality assurance — Critical parts of the system can be stressed to
verify their conformance
Bug hunting — Reproducing bug in a controlled setup helps with
quick resolution
Error tracking — If a test is introduced for every defect discovered
during development, a clear trace of errors is maintained
Regression prevention — A good test suite prevents working features
to be compromised by further development
Why testing must be automated
Saves time — manual execution is time expensive
Consistency — manual execution could be not always performed

images/logo
JUnit
JUnit is one of the most famous frameworks for testing Java software
Unit testing is a in-the-small testing
Though the library is often abused to go well past units
Details are not part of the course
If you are a java developer and are not using Junit, learn it!
The Java Plugin for Gradle includes a nice support for Junit testing
Ancillary frameworks can be used in conjunction JUnit to implement
advanced features
Test Doubles (dummies, stubs, fakes, spies, mocks)
Performance / scalability test
Microbenchmarking
Browser based testing
...

images/logo

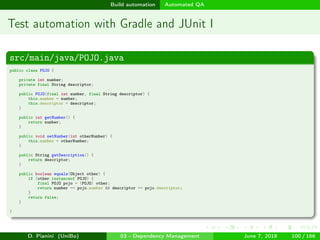

Test automation with Gradle and JUnit I
src/main/java/POJO.java
public class POJO {
private int number;
private final String descriptor;
public POJO(final int number, final String descriptor) {
this.number = number;
this.descriptor = descriptor;
}
public int getNumber() {
return number;
}
public void setNumber(int otherNumber) {
this.number = otherNumber;
}
public String getDescription() {
return descriptor;
}
public boolean equals(Object other) {
if (other instanceof POJO) {
final POJO pojo = (POJO) other;
return number == pojo.number && descriptor == pojo.descriptor;
}
return false;
}
}

images/logo

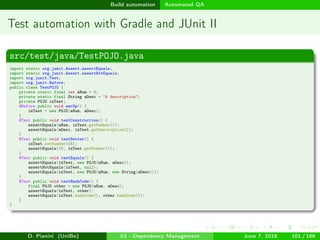

Test automation with Gradle and JUnit II
src/test/java/TestPOJO.java
import static org.junit.Assert.assertEquals;
import static org.junit.Assert.assertNotEquals;
import org.junit.Test;
import org.junit.Before;
public class TestPOJO {
private static final int aNum = 3;
private static final String aDesc = "A description";
private POJO inTest;
@Before public void setUp() {
inTest = new POJO(aNum, aDesc);
}
@Test public void testConstruction() {
assertEquals(aNum, inTest.getNumber());
assertEquals(aDesc, inTest.getDescription());
}
@Test public void testSetter() {
inTest.setNumber(15);
assertEquals(15, inTest.getNumber());
}
@Test public void testEquals() {
assertEquals(inTest, new POJO(aNum, aDesc));
assertNotEquals(inTest, null);
assertEquals(inTest, new POJO(aNum, new String(aDesc)));
}
@Test public void testHashCode() {
final POJO other = new POJO(aNum, aDesc);
assertEquals(inTest, other);
assertEquals(inTest.hashCode(), other.hashCode());
}
}

images/logo

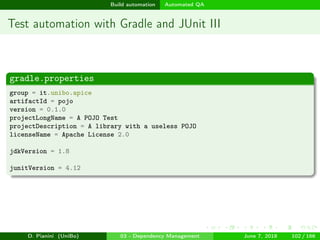

Test automation with Gradle and JUnit III
gradle.properties
artifactId = pojo
version = 0.1.0
projectLongName = A POJO Test
projectDescription = A library with a useless POJO
jdkVersion = 1.8
junitVersion = 4.12

images/logo

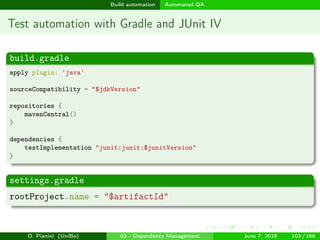

Test automation with Gradle and JUnit IV
build.gradle
repositories {
mavenCentral()
}
dependencies {
testImplementation "junit:junit:$junitVersion"
}
settings.gradle

images/logo
Test automation with Gradle and JUnit V
gradle clean build
> Task :clean
> Task :compileJava
> Task :classes
> Task :compileTestJava
> Task :testClasses
> Task :test FAILED
TestPOJO > testHashCode FAILED
java.lang.AssertionError at TestPOJO.java:41
TestPOJO > testEquals FAILED
java.lang.AssertionError at TestPOJO.java:34
4 tests completed, 2 failed
* What went wrong:
Execution failed for task ':test'.
> There were failing tests. See the report at: [...]/build/reports/tests/test/index.html
BUILD FAILED in 0s

images/logo
Test automation with Gradle and JUnit VI

images/logo
Test automation with Gradle and JUnit VII

images/logo
Test automation with Gradle and JUnit VIII

images/logo
Test automation with Gradle and JUnit IX

images/logo
Test automation with Gradle and JUnit X
Takeaways
If JUnit is included in the test classpath, the execution of tests is
automatic
Tests are performed at every build
A report is automatically produced
A description of the failures is included in the report

images/logo
Other frameworks I
C
CUnita is natively supported:
apply plugin: 'cunit-test-suite'
a
http://cunit.sourceforge.net/
C++
Google Testa is natively supported:
apply plugin: 'google-test'
a
https://github.com/google/googletest

images/logo
Other frameworks II
Javascript
Third party plugina available for Jasmineb.
a
https://github.com/dzhaughnroth/jasmine-gradle-plugin
b
https://jasmine.github.io/

images/logo
Test coverage
Test coverage detects:
The amount of lines of codes actually tested
The number of branches explored when executing tests
Which lines of code have been tested
Which branches of code have been tested
It can be used as a measure of test quality, and in turn as a measure of
software quality [HLL94], but be aware that high coverage does not
automatically mean high quality software [IH14].

images/logo
Test when needed, use coverage critically
What coverage actually tells you
If you have X% coverage, you have at least 100-X% uncovered statements
Good practices
When you are working on a new feature, write an automatic test in
place of testing it manually
If you don’t get it right at the ﬁrst attempt, you will save development
time
You get a free regression test for the future
Every time you walk into a bug, before ﬁxing it write a test that
Systematically fails if the bug is still there
Systematically passes if the bug is not there
Use coverage to spot parts of your software that are untested
Enforcing a coverage level may help with lazy collaborators, but won’t
automatically raise your software quality
Do not bask in the glory of a high coverage

images/logo
Coverage in Gradle
Coverage tools must understand the language code and tests are
written in
You must pick the right tool for the code you are writing
Gradle integrates the JaCoCo plugin for Java (also covers Scala and
Kotlin, but may be less precise)
Third-party plugins are available for the same and other languages:
Cobertura for Java 8
Scoverage for Scala 9
8
https://github.com/stevesaliman/gradle-cobertura-plugin
9
https://github.com/scoverage/gradle-scoverage

images/logo
Coverage with Gradle and JaCoCo I
public final class POJO {
private int number;
}
return number;
}
}
return descriptor;
}
@Override public boolean equals(Object other) {
if (other instanceof POJO) {
final POJO pojo = (POJO) other;
return number == pojo.number && descriptor.equals(pojo.descriptor);
}
return false;
}
@Override public int hashCode() {
return number ^ descriptor.hashCode();
}
}

images/logo
Coverage with Gradle and JaCoCo II
}
}
}
}
}
}

images/logo
Coverage with Gradle and JaCoCo III
gradle.properties
artifactId = pojo
version = 0.1.0
jdkVersion = 1.8
junitVersion = 4.12

images/logo
Coverage with Gradle and JaCoCo IV
build.gradle
apply plugin: 'jacoco'
build.dependsOn(jacocoTestReport)
repositories {
mavenCentral()
}
dependencies {
}
settings.gradle

images/logo
Coverage with Gradle and JaCoCo V

images/logo
Coverage with Gradle and JaCoCo VI

images/logo
Coverage with Gradle and JaCoCo VII

images/logo
Enforcing code conventions
Tools that enforce code conventions help in:
Spot bugs early by scanning the code for common mistakes
Spot performance pitfalls early by scanning the code for common
mistakes
Intercept practices correct in general but wrong for the specific project
e.g. calling an external random in a simulator (breaks reproducibility)
Raise the understandability of the code by making it looking
homogeneous
Nullify the possibility of having big changesets for minimal actual
changes
e.g. because different developers use systems with different newlines
Raise the communicability of the code by following a set of rules
shared by the community
Produce a report with an indication of the points where code has the
lowest quality

images/logo
Code checking tools by language I
C
Artistic Stylea
GNU Indentb
Inferc
nsiqcppstyled
Uncrustifye
a
http://astyle.sourceforge.net/
b
http://www.gnu.org/software/indent/
c
http://fbinfer.com/
d
https://code.google.com/archive/p/nsiqcppstyle/
e
http://uncrustify.sourceforge.net/

images/logo
Code checking tools by language II
C++
Artistic Stylea
cpplintb
KWStylec
Inferd
Uncrustifye
Vera++f
a
b
https://github.com/google/styleguide/tree/gh-pages/cpplint
c
http://kitware.github.io/KWStyle/
d
http://fbinfer.com/
e
f
https://bitbucket.org/verateam/vera/wiki/Home

images/logo
Code checking tools by language III
C#
Artistic Stylea
StyleCopb
Uncrustifyc
a
b
https://github.com/StyleCop
c
Go
CPDa
(Go)Checkstyleb
a
https://pmd.github.io/
b
https://github.com/qiniu/checkstyle

images/logo
Code checking tools by language IV
Java
Artistic Stylea
Checkstyleb
Inferc
PMD/CPDd
SpotBugse
Uncrustifyf
a
b
http://checkstyle.sourceforge.net/
c
http://fbinfer.com/
d
e
https://spotbugs.github.io/
f

images/logo
Code checking tools by language V
Javascript
CPDa
ESLintb
StandardJSc
a
b
https://eslint.org/
c
https://standardjs.com/
Kotlin
Klinta
Detektb
a
https://github.com/shyiko/ktlint
b
https://github.com/arturbosch/detekt

images/logo
Code checking tools by language VI
Matlab
CPDa
Matlab Code Analyzerb
MStylec
a
b
https://github.com/bastibe/MatlabCodeAnalyzer
c
https://github.com/KEClaytor/MStyle

images/logo
Code checking tools by language VII
PHP
CPDa
phlintb
PHP Mess Detectorc
progpilotd
a
b
https://gitlab.com/phlint/phlint
c
https://phpmd.org/
d
https://github.com/designsecurity/progpilot

images/logo
Code checking tools by language VIII
Objective-C
Artistic Stylea
CPDb
Inferc
Uncrustifyd
a
b
c
http://fbinfer.com/
d

images/logo
Code checking tools by language IX
Python
CPDa
pycodestyle (formerly pep8)b
Pyﬂakesc
Pylintd
Vera++e
a
b
https://github.com/PyCQA/pycodestyle
c
https://github.com/PyCQA/pyflakes
d
https://www.pylint.org/
e
https://bitbucket.org/verateam/vera/wiki/Home

images/logo
Code checking tools by language X
Ruby
CPDa
RuboCopb
a
b
https://github.com/bbatsov/rubocop
Scala
Scalastylea
CPDb
a
http://www.scalastyle.org/
b

images/logo
Code checking tools by language XI
Swift
CPDa
SwiftLintb
a
b
https://github.com/realm/SwiftLint

images/logo
Checking code quality with Checkstyle and Gradle I
protected int number;
}
return number;
}
}
return descriptor;
}
@Override public boolean equals(Object other){
if (other instanceof POJO)
return number==((POJO) other).number
&& descriptor.equals(((POJO) other).descriptor);
return false;
}
public int hashCode() {
return number^ descriptor.hashCode();
}
}

images/logo
Checking code quality with Checkstyle and Gradle II
}
}
}
}
}
}

images/logo
Checking code quality with Checkstyle and Gradle III
gradle.properties
artifactId = pojo
version = 0.1.0
jdkVersion = 1.8
junitVersion = 4.12

images/logo
Checking code quality with Checkstyle and Gradle IV
build.gradle
apply plugin: 'checkstyle'
repositories {
mavenCentral()
}
dependencies {
}

images/logo
Checking code quality with Checkstyle and Gradle V
settings.gradle

images/logo
Checking code quality with Checkstyle and Gradle VI
config/checkstyle/checkstyle.xml
<?xml version="1.0"?>
<!DOCTYPE module PUBLIC
"-//Puppy Crawl//DTD Check Configuration 1.2//EN"
"http://www.puppycrawl.com/dtds/configuration_1_2.dtd">
<module name="Checker">
<module name="SuppressionCommentFilter" />
<property name="severity" value="warning" />
<module name="Translation" />
<module name="FileTabCharacter">
<property name="fileExtensions" value="java" />
</module>
<module name="RegexpSingleline">
<property name="format" value="s{2,}$" />
<property name="fileExtensions" value="java,xtend" />
<property name="message" value="Line has trailing spaces." />
</module>
<property name="format" value="t" />
<property name="message"
value="Line is tab-indented (see Java Code Conventions, Section 4.2)." />
</module>

images/logo
Generating dashboards
A well organized project has a number of reports
Test results
Test coverage
Several code quality reports (diﬀerent tools inspect diﬀerent aspects)
Each report stands alone by default
A dashboard provides an entry point for all the reports produced by
QA tools
Gradle includes a default Build Dashboard plugin
The plugin is currently incubating

images/logo
Generating a dashboard with all project reports I
protected int number;
}
return number;
}
}
return descriptor;
}
@Override public boolean equals(Object other){
if (other instanceof POJO)
return number==((POJO) other).number
&& descriptor.equals(((POJO) other).descriptor);
return false;
}
public int hashCode() {
return number^ descriptor.hashCode();
}
}

images/logo
Generating a dashboard with all project reports II
}
}
}
}
}
}

images/logo
Generating a dashboard with all project reports III
config/checkstyle/checkstyle.xml
<?xml version="1.0"?>
<!DOCTYPE module PUBLIC
"-//Puppy Crawl//DTD Check Configuration 1.2//EN"
"http://www.puppycrawl.com/dtds/configuration_1_2.dtd">
<module name="Checker">
<module name="SuppressionCommentFilter" />
<module name="Translation" />
<module name="FileTabCharacter">
<property name="fileExtensions" value="java" />
</module>
<property name="format" value="s{2,}$" />
<property name="message" value="Line has trailing spaces." />
</module>
<property name="format" value="t" />
<property name="message"
value="Line is tab-indented (see Java Code Conventions, Section 4.2)." />
</module>

images/logo
Generating a dashboard with all project reports IV
gradle.properties
artifactId = pojo
version = 0.1.0
jdkVersion = 1.8
junitVersion = 4.12
settings.gradle

images/logo
Generating a dashboard with all project reports V
build.gradle
apply plugin: 'build-dashboard'
build.dependsOn(buildDashboard)
repositories {
mavenCentral()
}
dependencies {
}

images/logo
Gradle build scans
A rich build quickly escalates in complexity
As we want reports to inspect the quality and issues of the project,
we’d like a tool to provide better presentation of the build process itself
e.g. for improving performance
gradle provides “Build Scans” to tackle this issue
Produces a build report and publishes it online
The –scan option enables the features
A plugin exists to prevent the shell to interactively ask to accept the
license agreement
Build scans
A build scan is a shareable and centralized record of a build that provides
insights into what happened and why.

images/logo
Generating and publishing a build scan I
gradle.properties
artifactId = pojo
version = 0.1.0
jdkVersion = 1.8
junitVersion = 4.12
buildScanVersion = 1.13.4
settings.gradle

images/logo
Generating and publishing a build scan II
build.gradle
buildscript {
repositories { maven { url "https://plugins.gradle.org/m2/" } }
dependencies { classpath "com.gradle:build-scan-plugin:$buildScanVersion" }
}
apply plugin: 'com.gradle.build-scan'
buildScan {
termsOfServiceUrl = 'https://gradle.com/terms-of-service'
termsOfServiceAgree = 'yes'
}
repositories {
mavenCentral()
}
dependencies {
}

images/logo
Generating and publishing a build scan III
The result is available at
https://scans.gradle.com/s/qd2mieqffudwk

images/logo
Build automation Automated documentation and packaging
Outline
Concept
Example
Dependency trees
2 Build automation
Gradle basics
Java
C/C++
Other languages
Automated QA

images/logo
Documenting code and generating API documentation
A project should always be shipped with proper documentation
Most documentation must be prepared manually
Readmes
Tutorials
Quickstarts
Guides
The API documentation can often be deduced by proper code
comments
Tools exist that parse code and produce human-accessible API
documentation
Java’s javadoc
Scala’s Scaladoc
Kotlin’s Dokka
Python’s docstrings
...

images/logo
Generating API documentation with Gradle
The methodology varies with languages
The Java plugin has a built in javadoc task
The build task can be declared dependent from javadoc to automate
the generation
Other languages may require a diﬀerent conﬁguration
e.g. Dokka has a third party plugin, not included in the Kotlin plugin

images/logo
Packaging software
A bunch of scripts or binaries is usually not a good way to distribute
software
Practices diﬀer by languages and project types:
In the JVM ecosystem, usually libraries get published along with
Ivy-style metadata
JVM-based stand-alone programs are shipped as “fat jar”
A jar ﬁle containing not just the software itself, but all its dependencies,
in such a way that it can get executed on any standard JVM installation
In Python, setuptools is used to package software

images/logo
Generating Ivy and Maven compatible metadata in Gradle I
While a library jar is automatically produced by the jar task of the Java
plugin, the companion Ivy metadata is not by default
A maven plugin is distributed with the tool
It provides a factory for pom ﬁles
It provides an uploadArchives task for preparing a
Maven-compatible distribution
Including a valid POM descriptor

images/logo
Generating Ivy and Maven compatible metadata in Gradle II
gradle.properties
group = it.unibo.datascience
artifactId = pojo
version = 0.1.0
licenseUrl = https://www.apache.org/licenses/LICENSE-2.0
scmType = scm:git
scmRootUrl = https://github.com/MyTeam
scmLogin = git@github.com:MyTeam
scmRepoName = POJO.git
jdkVersion = 1.8
junitVersion = 4.12

images/logo
Generating Ivy and Maven compatible metadata in Gradle III
build.gradle
buildscript {
}
apply plugin: 'maven'
buildScan {
}
repositories {
mavenCentral()
}
dependencies {
}
uploadArchives {
repositories {
mavenDeployer {
repository(url: "file://$buildDir/maven-format/")
pom.project {
name artifactId
description projectDescription
def ref = "${scmRootUrl}/${artifactId}"
packaging 'jar'
url ref
licenses {
license {
name licenseName
url licenseUrl
}D. Pianini (UniBo) 03 - Dependency Management June 7, 2018 155 / 166

images/logo
Generating a “fat jar” in Gradle I
A fat jar:
Includes all the libraries required at runtime
Is executable
i.e. has a MANIFEST.MF ﬁle indicating the class to execute
No default task is provided, we need to write one manually extending the
existing jar

images/logo
Generating a “fat jar” in Gradle II
gradle.properties
group = it.unibo.datascience
artifactId = pojo
version = 0.1.0
licenseUrl = https://www.apache.org/licenses/LICENSE-2.0
scmType = scm:git
scmRootUrl = https://github.com/MyTeam
scmLogin = git@github.com:MyTeam
scmRepoName = POJO.git
jdkVersion = 1.8
junitVersion = 4.12

images/logo
Generating a “fat jar” in Gradle III
build.gradle
buildscript {
}
apply plugin: 'maven'
task fatJar(type: Jar, dependsOn: subprojects.compileJava) {
manifest {
attributes 'Implementation-Title': 'Redistributable JAR',
'Implementation-Version': rootProject.version,
'Main-Class': 'MyMain'
}
baseName = "${rootProject.name}-executable"
from(configurations.runtime.collect { it.isDirectory() ? it : zipTree(it) }) {
// remove all signature files
exclude "META-INF/*.SF"
exclude "META-INF/*.DSA"
exclude "META-INF/*.RSA"
exclude '.gradle'
exclude 'build.gradle'
exclude 'gradle'
exclude 'gradlew'
exclude 'gradlew.bat'
}
with jar
}
build.dependsOn(fatJar)
buildScan {
} D. Pianini (UniBo) 03 - Dependency Management June 7, 2018 158 / 166

images/logo
DVCS-Sensible build I
You may want the build system to automatically detect the project version
from the DVCS and act accordingly
e.g. if it is tagged and sits on main, it is a release
Otherwise, it is a beta, and we may want to identify it
No direct support in Gradle
But you can use a full ﬂedged programming language as Groovy...
And there exist a GrGit library for interacting with git!
settings.gradle
rootProject.name = "dvcs-sensitive"
gradle.properties
version = 0.1.0
grgitVersion = 1.7.2

images/logo
DVCS-Sensible build II
build.gradle
buildscript {
repositories {
maven { url "https://plugins.gradle.org/m2/" }
}
dependencies {
classpath "org.ajoberstar:gradle-git:${grgitVersion}"
}
}
apply plugin: "org.ajoberstar.grgit"
def currentSha = grgit.head().id
/*
* Check if it is a tagged version
*/
def tags = grgit.tag.list()
def tag = tags.find() { it.commit.id == currentSha }
if (tag == null) {
project.version = "${project.version}-${grgit.head().abbreviatedId}".take(20)
} else if (tag.name == project.version) {
println "This is tagged as the official version ${project.version}"
} else {
project.version = "${project.version}-${tag.name}-${grgit.head().abbreviatedId}".take(20)
}
println "Due to your git repo status, the project version is detected as ${project.version}"

images/logo
Packaging with Python setuptools I
Python provides setuptools for easily packaging your software
1 Create your project. In this case, We create just an empty package:
my_pkg/__init__.py
name = "my_pkg"
2 Create a valid README.md (GitHub ﬂavored Markdown syntax is
supported!)
README.md
# Example Package
This is a simple example package. You can use
[Github-flavored
Markdown](http://https://guides.github.com/features/mastering-markdown/)→
to write your content.

images/logo
Packaging with Python setuptools II
3 Create a LICENSE ﬁle
LICENSE
Copyright 2018 Danilo Pianini
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at
http://www.apache.org/licenses/LICENSE-2.0
Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

images/logo
Packaging with Python setuptools III
4 Create a setup.py ﬁle, along the line of:
setup.py
import setuptools
with open("README.md", "r") as fh:
long_description = fh.read()
setuptools.setup(
name="my_pkg",
version="0.1.0",
author="Danilo Pianini",
author_email="danilo.pianini@unibo.it",
description="A small example package",
long_description=long_description,
long_description_content_type="text/markdown",
url="https://github.com/DanySK/example-project",
packages=setuptools.find_packages(),
classifiers=(
"Programming Language :: Python :: 3",
"License :: OSI Approved :: Apache Software License",
"Operating System :: OS Independent",
),
)

images/logo
Packaging with Python setuptools IV
5 Create a virtual environment, by issuing:
python -m venv venv
6 Activate the virtual environment:
source venv/bin/activate
7 Upgrade pip:
pip install pip –upgrade
8 Install setuptools and wheel:
pip install –upgrade setuptools wheel
9 Generate the package!
python setup.py sdist bdist_wheel
10 Deactivate the virtual environment!
deactivate
11 Packages will be available in the dist folder

images/logo
References
References I
J.R. Horgan, S. London, and M.R. Lyu.
Achieving software quality with testing coverage measures.
Computer, 27(9):60–69, sep 1994.
Laura Inozemtseva and Reid Holmes.
Coverage is not strongly correlated with test suite eﬀectiveness.
In Proceedings of the 36th International Conference on Software Engineering, ICSE 2014,
pages 435–445, New York, NY, USA, 2014. ACM.
The java plugin - gradle user manual.
http://archive.is/DIyUx.
(Accessed on 05/22/2018).
Terence Parr.
The Deﬁnitive ANTLR 4 Reference.
Pragmatic Bookshelf, 2nd edition, 2013.
The LogBack team.
Logback project.
https://logback.qos.ch/.
Accessed: 2017-05-05.

images/logo
References
References II
The tuProlog team.
How not to maintain your dependencies.
https://bitbucket.org/danysk/exploded-repository-example.
Accessed: 2017-05-05.

Enforce reproducibility: dependency management and build automation

More Related Content

Similar to Enforce reproducibility: dependency management and build automation

More from Danilo Pianini

Recently uploaded

Enforce reproducibility: dependency management and build automation
