Energy Drilling Company is a privately owned land drilling contractor based in Natchez, MS that has been operating for over 30 years. It operates 9 drilling rigs across several states, focusing on drilling wells for independent operators. The company prides itself on understanding customer needs and emphasizing safety. It owns 3 1000 HP rigs and 6 trailer mounted rigs, which are versatile for drilling depths from 5000-12,500 feet. Implementing Kleenoil and Power Up lubrication products on its CAT C13 engines extended oil change intervals from 250 to 500 hours, saving over $33,000 in maintenance costs over 23,888 engine hours compared to using standard oils.

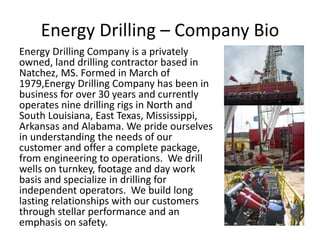

2. Energy Drilling – Company Bio
Energy Drilling Company is a privately
owned, land drilling contractor based in
Natchez, MS. Formed in March of
1979,Energy Drilling Company has been in
business for over 30 years and currently
operates nine drilling rigs in North and
South Louisiana, East Texas, Mississippi,
Arkansas and Alabama. We pride ourselves
in understanding the needs of our
customer and offer a complete package,
from engineering to operations. We drill
wells on turnkey, footage and day work
basis and specialize in drilling for
independent operators. We build long
lasting relationships with our customers
through stellar performance and an
emphasis on safety.

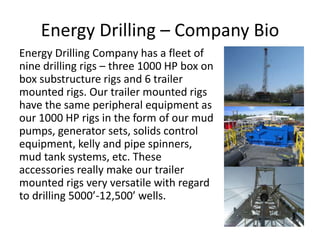

3. Energy Drilling – Company Bio
Energy Drilling Company has a fleet of
nine drilling rigs – three 1000 HP box on
box substructure rigs and 6 trailer
mounted rigs. Our trailer mounted rigs
have the same peripheral equipment as
our 1000 HP rigs in the form of our mud
pumps, generator sets, solids control
equipment, kelly and pipe spinners,
mud tank systems, etc. These
accessories really make our trailer
mounted rigs very versatile with regard
to drilling 5000’-12,500’ wells.

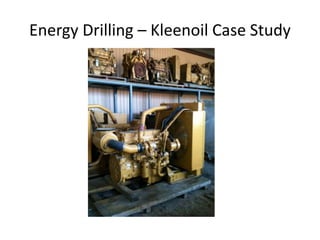

5. Energy Drilling – Kleenoil Case Study

6. Energy Drilling – Kleenoil Case Study

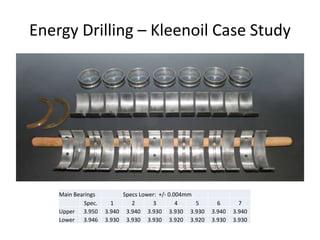

7. Energy Drilling – Kleenoil Case Study
Main Bearings Specs Lower: +/- 0.004mm
Spec. 1 2 3 4 5 6 7
Upper 3.950 3.940 3.940 3.930 3.930 3.930 3.940 3.940
Lower 3.946 3.930 3.930 3.930 3.920 3.920 3.930 3.930

8. Energy Drilling – Kleenoil Case Study
Specs Upper: +/- 0.008mm
Main Bearings Specs Lower: +/- 0.004mm
Spec. 1 2 3 4 5 6 7
Upper 3.950 3.940 3.940 3.930 3.930 3.930 3.940 3.940
Lower 3.946 3.930 3.930 3.930 3.920 3.920 3.930 3.930

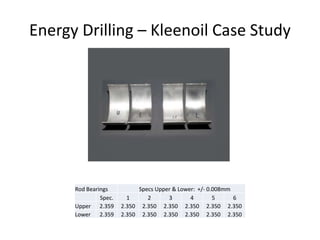

9. Energy Drilling – Kleenoil Case Study
Rod Bearings Specs Upper & Lower: +/- 0.008mm
Spec. 1 2 3 4 5 6
Upper 2.359 2.350 2.350 2.350 2.350 2.350 2.350
Lower 2.359 2.350 2.350 2.350 2.350 2.350 2.350

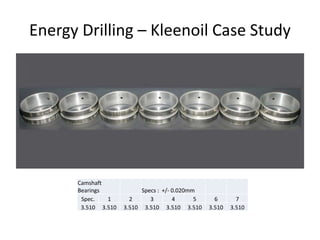

11. Energy Drilling – Kleenoil Case Study

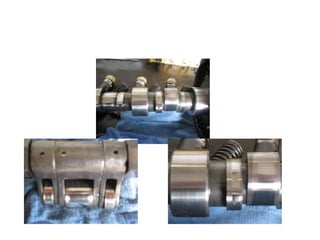

Camshaft
Bearings Specs : +/- 0.020mm
Spec. 1 2 3 4 5 6 7
3.510 3.510 3.510 3.510 3.510 3.510 3.510 3.510

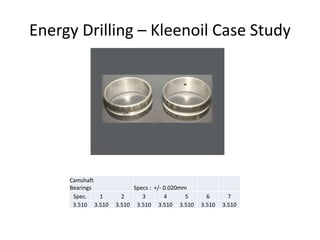

12. Energy Drilling – Kleenoil Case Study
Camshaft
Bearings Specs : +/- 0.020mm
Spec. 1 2 3 4 5 6 7
3.510 3.510 3.510 3.510 3.510 3.510 3.510 3.510

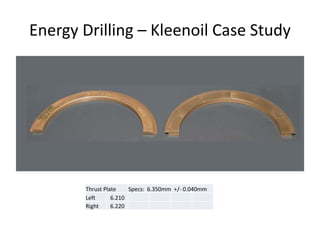

13. Energy Drilling – Kleenoil Case Study
Thrust Plate Specs: 6.350mm +/- 0.040mm
Left 6.210
Right 6.220

14. Energy Drilling Cost Breakout C13
Individual PM Breakout
Prior to Kleenoil/Power Up
• CAT C13 Engine – recommended service @
250 hours (prior to Kleenoil installation)
– Holds 15 gallons of oil @ $9.76 / gallons = $146.40
– CAT spin on filter @ $28.33 each
– Labor @ $20 / hour
– Total Cost = $194.73 per PM per engine.

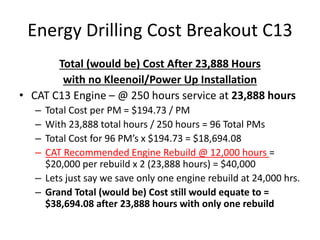

15. Energy Drilling Cost Breakout C13
Total (would be) Cost After 23,888 Hours
with no Kleenoil/Power Up Installation
• CAT C13 Engine – @ 250 hours service at 23,888 hours
– Total Cost per PM = $194.73 / PM
– With 23,888 total hours / 250 hours = 96 Total PMs
– Total Cost for 96 PM’s x $194.73 = $18,694.08
– CAT Recommended Engine Rebuild @ 12,000 hours =
$20,000 per rebuild x 2 (23,888 hours) = $40,000
– Lets just say we save only one engine rebuild at 24,000 hrs.
– Grand Total (would be) Cost still would equate to =
$38,694.08 after 23,888 hours with only one rebuild

16. Energy Drilling Cost Breakout C13
PM Breakout After Kleenoil & Power Up Installed
• CAT C13 Engine – service @ 500 hours (after
Kleenoil installation & Power Up)
– Holds 15 gallons of oil @ $9.76 / gallons = $146.40
– CAT spin on filter @ $28.33 each
– Labor @ $20 / hour
– Total Cost = $194.73 / PM
– 60 oz Power Up @ $0.99 / ounce (drum retail price) =
$59.40
– Kleenoil KU50 @ $649.00
– Total Installed Cost = $903.13

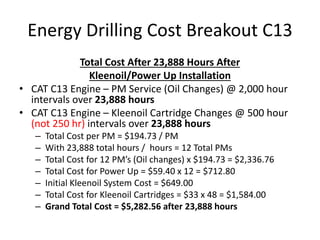

17. Energy Drilling Cost Breakout C13
Total Cost After 23,888 Hours After
Kleenoil/Power Up Installation
• CAT C13 Engine – PM Service (Oil Changes) @ 2,000 hour
intervals over 23,888 hours
• CAT C13 Engine – Kleenoil Cartridge Changes @ 500 hour
(not 250 hr) intervals over 23,888 hours
– Total Cost per PM = $194.73 / PM
– With 23,888 total hours / hours = 12 Total PMs
– Total Cost for 12 PM’s (Oil changes) x $194.73 = $2,336.76
– Total Cost for Power Up = $59.40 x 12 = $712.80
– Initial Kleenoil System Cost = $649.00
– Total Cost for Kleenoil Cartridges = $33 x 48 = $1,584.00
– Grand Total Cost = $5,282.56 after 23,888 hours

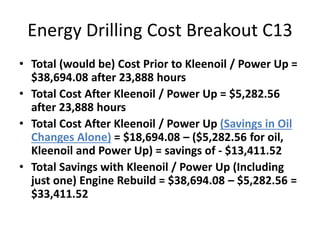

18. Energy Drilling Cost Breakout C13
• Total (would be) Cost Prior to Kleenoil / Power Up =
$38,694.08 after 23,888 hours
• Total Cost After Kleenoil / Power Up = $5,282.56
after 23,888 hours
• Total Cost After Kleenoil / Power Up (Savings in Oil
Changes Alone) = $18,694.08 – ($5,282.56 for oil,
Kleenoil and Power Up) = savings of - $13,411.52
• Total Savings with Kleenoil / Power Up (Including
just one) Engine Rebuild = $38,694.08 – $5,282.56 =
$33,411.52
