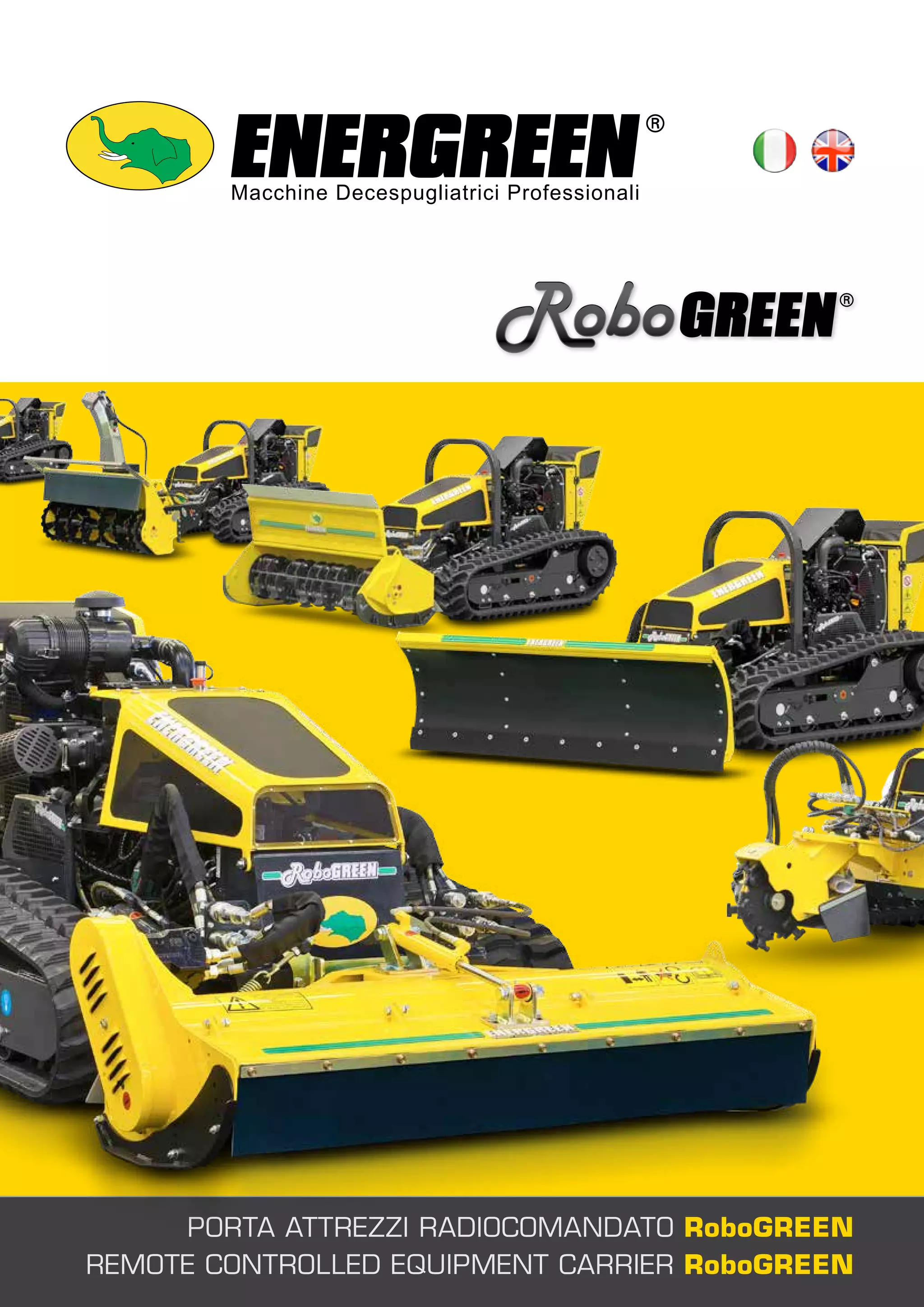

PORTA ATTREZZI RADIOCOMANDATO RoboGREEN
Energreen è orgogliosa di presentare
RoboGREEN la macchina polifunzionale
radiocomandata che consente di raggiungere i
terreni più impegnativi.
RoboGREEN è una macchina radiocomandata porta-attrezzi
multifunzione che può lavorare nei luoghi più ostili, con pendenze
fino a 55° e dove l’accesso è molto difficile. Dotato di un motore
diesel da 40 CV (27,5 kw) e di due funzioni idrauliche a doppio
effetto, può montare molteplici attrezzature. Nato per soddisfare
e rispondere ai bisogni più esigenti è la macchina porta-attrezzi
radiocomandata per eccellenza. La sua potenza, affidabilità,
robustezza e le sue prestazioni lo differenziano totalmente dalle
altre macchine radiocomandate.
RoboGREEN is a remote-controlled multifunctional equipment
carrier machine that can work in the most hostile places, with
slopes up to 55°, where the access is very difficult. Equipped with
a diesel 40 HP (27,5 kw) engine and two double effect hydraulic
functions it can carry various tools. Born to satisfy and meet the
most exigent needs is the ultimate equipment carrier remotecontrolled
machine. With its power, performances, reliability and
robustness it completely differs from other remote-controlled
machines.
RoboGREEN è una macchina radiocomandata porta-attrezzi
multifunzione che può lavorare nei luoghi più ostili, con pendenze
fino a 55° e dove l’accesso è molto difficile. Dotato di un motore
diesel da 40 CV (27,5 kw) e di due funzioni idrauliche a doppio
effetto, può montare molteplici attrezzature. Nato per soddisfare
e rispondere ai bisogni più esigenti è la macchina porta-attrezzi
radiocomandata per eccellenza. La sua potenza, affidabilità,
robustezza e le sue prestazioni lo differenziano totalmente dalle
altre macchine radiocomandate.
RoboGREEN is a remote-controlled multifunctional equipment
carrier machine that can work in the most hostile places, with
slopes up to 55°, where the access is very difficult. Equipped with
a diesel 40 HP (27,5 kw) engine and two double effect hydraulic
functions it can carry various tools. Born to satisfy and meet the
most exigent needs is the ultimate equipment carrier remotecontrolled
machine. With its power, performances, reliability and
robustness it completely differs from other remote-controlled
machines.
R850 is the biggest ride on sweeper with manual dump in the market, for heavy duty and professional use. Big: the large sweeping width allows a great productivity
La macchina decespugliatrice professionale Energreen ILF B2000 grazie a contenuti tecnologici innovativi, prestazioni eccellenti, flessibilità operative e sicurezza del lavoro rappresenta un prodotto Europeo d’avanguardia nel settore
della manutenzione del verde.
TERA is the RCM Scrubber-Drier for large surfaces. It’s Eco-friendly and allows to set customized working programs. Three possible versions: cleaning width from 1100 to 1300 mm with disk or rolling brushes. The 280 liter water tank and the 36V-525Ah battery allow a great working autonomy.
MEGA I is the line of walk behind scrubber driers for medium to large areas. Two models: MEGA I with manual brush deck lifting and MEGA I S with electric brush deck lifting and adjustable pressure.
Insha exports pvt ltd is a leading service provider for all type of bilding automation products like automatic retractible gate,automatic bollards,tripod and flap barriers,parking barriers ,rolling shutters,and high speed gates .
We are system integrators and specialize in rfid security and survellience projects.
MEGA II is the line of pedestrian scrubberdriers for the professional cleaning of medium-big sized areas. It is produced in four different models: single brush of 600 mm, twin brushes of 730 or 800 mm, counter rollers of 700 mm.
R850 is the biggest ride on sweeper with manual dump in the market, for heavy duty and professional use. Big: the large sweeping width allows a great productivity
La macchina decespugliatrice professionale Energreen ILF B2000 grazie a contenuti tecnologici innovativi, prestazioni eccellenti, flessibilità operative e sicurezza del lavoro rappresenta un prodotto Europeo d’avanguardia nel settore
della manutenzione del verde.
TERA is the RCM Scrubber-Drier for large surfaces. It’s Eco-friendly and allows to set customized working programs. Three possible versions: cleaning width from 1100 to 1300 mm with disk or rolling brushes. The 280 liter water tank and the 36V-525Ah battery allow a great working autonomy.
MEGA I is the line of walk behind scrubber driers for medium to large areas. Two models: MEGA I with manual brush deck lifting and MEGA I S with electric brush deck lifting and adjustable pressure.
Insha exports pvt ltd is a leading service provider for all type of bilding automation products like automatic retractible gate,automatic bollards,tripod and flap barriers,parking barriers ,rolling shutters,and high speed gates .
We are system integrators and specialize in rfid security and survellience projects.
MEGA II is the line of pedestrian scrubberdriers for the professional cleaning of medium-big sized areas. It is produced in four different models: single brush of 600 mm, twin brushes of 730 or 800 mm, counter rollers of 700 mm.
Visita Linea Tecnica Srl alla fiera Fornitore Offresi 2015 presso LARIOFIERE, Erba (Como) dal 5 al 7 febbraio 2015!
Separatori di nebbie oleose di 3nine: vedi la presentazione della serie GREEN LINE!
R850 is the biggest ride on sweeper with manual dump in the market, for heavy duty and professional use. It has large sweeping width allows a great productivity and the biggest container in the specific market segment.
Il ciclo Express Air System di ICR Sprint è studiato per ridurre i costi energetici legati all'utilizzo del forno, ottenendo risultati di eccellente qualità. Ciclo composto da stucco, fondo e trasparente.
Byte II is a professional scrubber-dryer to clean medium-large surfaces in a fast and efficient way. It is available in two versions: single-disk brush 530 mm width and twin-disks brushes 600 mm width. Byte II is a tool to reduce cleaning costs because of high productivity level. It is very simple to use: just press one button to start the cleaning operations.
Le piegatrici ad alto tonnellaggio sono i giganti della lamiera. Impianti e struttura sono portati a lavorare in condizioni gravose. I pezzi piegati sono particolarmente costosi, specialmente con gli acciai altoresistenziali. Ogni errore costa molto caro. Per questo è ancora più importante fare un acquisto informato e consapevole. Ma quali sono i fattori più importanti che devi tenere in considerazione?
macchine utensili, presse, macchine per lo stampaggio, ingranaggi e cuscinetti mediamente caricati, comandi
oleodinamici, sistemi a circolazione, etc.
circuiti idraulici di apparecchiature mobili, come gru semoventi, macchine movimento terra, trattori, etc.
2. 2 3

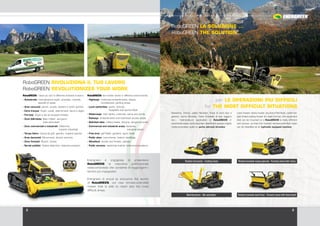

Energreen è orgogliosa di presentare
RoboGREEN la macchina polifunzionale
radiocomandata che consente di raggiungere i
terreni più impegnativi.
Energreen is proud to announce the launch
of RoboGREEN, our new remote-controlled
mower that is able to reach also the most
difficult areas.
RoboGREEN RIVOLUZIONA IL TUO LAVORO
RoboGREEN REVOLUTIONIZES YOUR WORK
RoboGREEN: i lavori più duri in differenti ambienti di lavoro:
› Autostrade: manutenzione argini, scarpate, rotonde,
piazzole di sosta
› Aree comunali: parchi, scuole, sentieri e centri sportivi
› Corsi d’acqua: Argini, canali, sbarramenti, bacini e dighe
› Ferrovie: Argini e siti ad accesso limitato
› Zone delimitate: Basi militari, aeroporti,
aree pericolose
› Zone commerciali e industriali: Fabbriche,
impianti industriali
› Tempo libero: Campi da golf, giardini, impianti sportivi
› Aree demaniali: Monumenti, dimore storiche
› Zone forestali: Boschi, tenute
› Servizi pubblici: Cabine elettriche, telecomunicazioni
RoboGREEN: the harder works in different environments:
› Highways: motorway embankments, slopes,
roundabouts, parking areas
› Local authorities: parks, schools,
footpaths and sports fields
› Waterways: river banks, channels, dams and ponds
› Railways: embankments and restricted access areas
› Delimited sites: military bases, airports, dangerous areas
› Commercial and industrial areas: factories,
industrial plants
› Free time: golf fields, gardens, sport fields
› Public sites: monuments, historic dwellings
› Woodland: woods and forests, estates
› Public services: electricity boards, telecommunications
RoboGREEN LA SOLUZIONE ...
RoboGREEN THE SOLUTION…
Macchine Decespugliatrici Professionali
... per LE OPERAZIONI PIU DIFFICILI
... for THE MOST DIFFICULT SITUATIONS
Rasaerba, trincia, piatto falciante, fresa di vario tipo e
genere, barra falciante, fresa forestale di tipo leggero
ecc... l’attrezzatura applicabile al RoboGREEN e’
veramente vasta, tanto da poter classificare questo cingolo
radiocomandato quale un porta attrezzi idraulico.
Lawn mower, rotary mower, any kind of flail head, cutter bar,
light forest cutting mower of a light kind etc..the equipment
that can be mounted on a RoboGREEN is really different
and various, so that this tracked remote-controlled mean
can be classified as an hydraulic equipped machine.
Biotrituratore - Bio-ahredder
Testata trinciante - Cutting head Testata forestale mazze girevoli - Forestry head with rotary
Testata forestale denti fissi - Forestry head with fixed teeth
3. 4 5

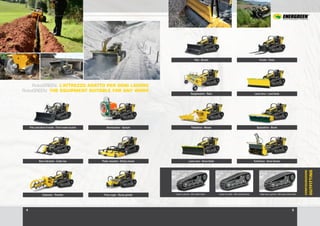

Catenaria - Trencher Fresa ceppi - Stump grinder
Atomizzatore - Sprayer
Macchine Decespugliatrici Professionali
RoboGREEN: L’attrezzo adatto per ogni lavoro
RoboGREEN: THE EQUIPMENT SUITABLE FOR ANY WORK
Barra falciante - Cutter bar
Pala caricatore frontale - Front loader bucket
Piatto rasaerba - Rotary mower
Falciatrice - Mower
Pala - Bucket Forche - Forks
Ranghinatore - Rake
Spazzatrice - Brush
Turbofresa - Snow blowerLama neve - Snow blade
Lama terra - Land blade
Super cing. in gomma - With super rubber tracksCingoli con staffe - With studded tracksCingoli in gomma - With rubber tracks
CONFIGURAZIONI
OUTFITTING
4. 6
Il RoboGREEN è progettato per lavorare
su ambienti polverosi e sporchi poichè è
equipaggiato con il ventilatore Flexxaire.
Tale sistema soffia via i residui che ostruiscono
le griglie dei radiatori di raffreddamento,
migliorandone il rendimento, che si traduce in un
risparmio di carburante del 6%. (Test effettuati
dall’università di Nuertingen Germania).
The RoboGREEN is created in order to work
in dusty and dirty areas. For this reason it is
equipped with the fan flexxaire. This system
blows away the remains on the cooling radiator
grids permitting the automatic cleaning of the
radiator and the fuel saving of about 6% (test
made by the University of Neurtingen Germany).
FLEXXAIRE
RoboGREEN GRIP ESTREMO OLTRE OGNI LIMITE
RoboGREEN EXTREME GRIP BEYOND ANY LIMIT
55 °
Baricentro ribassato
Lowered center of gravity
35 °
Ampia superficie di presa
Wide grip surface
1300 mm
Massima larghezza di taglio
Maximum cutting width
0 - 7 Km/h
Baricentro ribassato
Lowered center of gravity
Massima Velocità di lavoro
Maximum working speed
Alta sezione di taglio
High cut section
55 °
Baricentro ribassato
Lowered center of gravity
7
Macchine Decespugliatrici Professionali
1420 mm
1300 mm 1310 mm
1070 mm
Marca / Make Autec
Radio frequenza / Radio frequency 870 Mhz (EU) - 915 Mhz (US)
Raggio d’azione / Working Range 150 m / 492 ft
Joystick Proporzionale / Proportional
Batteria / Battery Ricaricabile / Rechargeable
Pendenza massima / Maximum Gradient 55°
Trasmissione / Transmission Idrostatica / Hydrostatic
Velocità I° marcia / Low range speed 0 - 4 km/h / 0 - 2.5 mph
Velocità II° marcia / High range speed 0 - 7 km/h / 0 - 4.35 mph
Peso macchina / Machine Weight 1040 kg / 2293 lb
Marca / Make Isuzu
Modello / Type 3 Cil. Diesel/3 Cylinders Diesel
Potenza / Power 40 hp (30kw)
Capacità carburante / Fuel tank 21 litri / 5,5 gal.
Giri al minuto al lavoro / Working RPM 3000 rpm
Larghezza di taglio / Cutting Width 1.300 mm / 51,2 in
Tipo di pompa / Pump type Pistoni / Piston
Portata olio / Oil Flow 50 l/min / 13,2 gal/min
Pressione / Pressure 200-350 bar / 14.5 psi
Peso testata trinciante / Flailhead Weight 160 kg / 353 lb
motore/engine
TESTATa TRINCIANTE/FLAILHEAD
COMANDI/CONTROLS
RoboGREEN
Il radiocomando
leggero, intuitivo
e semplice da usare.
Due joystick di grandi dimensioni
forniscono un controllo preciso
del movimento, dello sterzo e
dell’altezza della testata trinciante, i
comandi disposti in modo semplice
consentono di iniziare a lavorare
immediatamente ed è possibile
personalizzare i comandi velocità e
sterzo per soddisfare al meglio le
esigenze dell’operatore.
The remote control
is light, intuitive,
and easy to master.
Two large joysticks provide precise
control of both motion, steering
and flailhead height control.
Simple control layout allows you to
start working immediately.
Customise speed and steering
sensitivity to match personal
preferences.
RADIOCOMANDO
CONTROL
