Q: Why worldwide telecom dealers choose Eloik fiber welder device? A: It’s China Well-known telecom equipment ALK-88 Ultra-Mini Optic Fiber Fusion Splicer.New arrived with special Eloik SC heating system Q: Why Eloik is the most attractive fiber fusion equipment? A: Eloik factory direct ,CE Certified ,Cost-effective,OEM available. Q: Why global dealers prefer ALK-88? A: 7languages available in operating system Espanol, Russian, English, Francais, Portuguese, Chinese, Chinese Traditional. Q: Who interest in ALK-88 fusion splicer? A: It's worldwide telecom equipment dealer, engineering company,line Construction, network maintain, Security monitoring... Fusion Splicer ALK-88 is a Mini type Fusion splicing machine with intellectual property of fiber adjustment technology. It adopts advanced PAS Fiber adjustment technology, four motors drive with fiber adjustment function. The smallest volume ,the lightest weight ,the most fast splicing speed. Mainly for LAN (Local Area Networks), FTTH (Fiber To The Home) and the trunk line

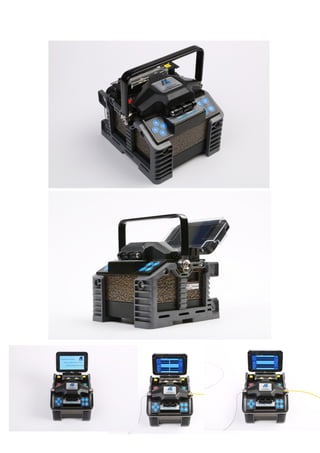

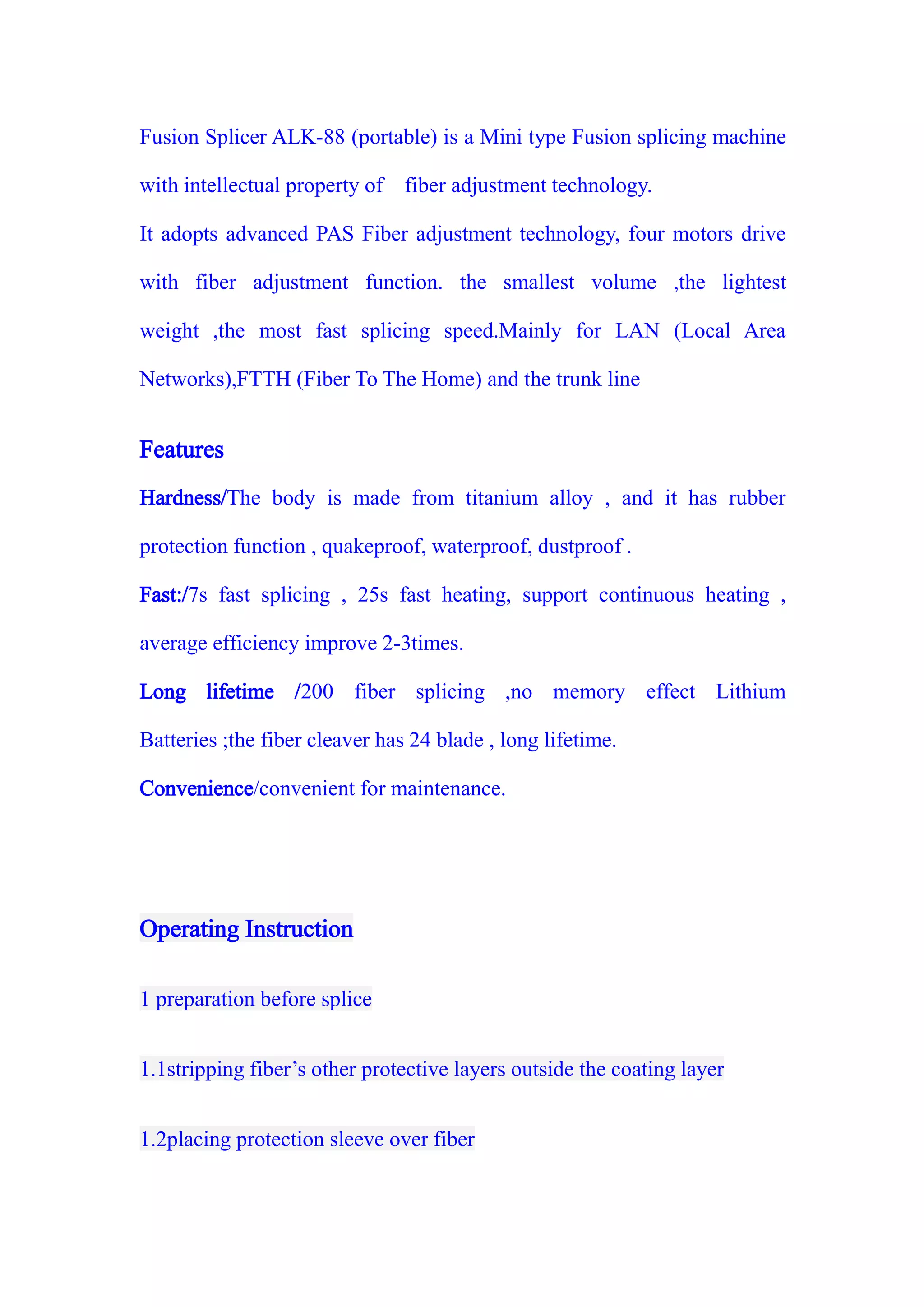

1. Fusion Splicer ALK-88 (portable) is a Mini type Fusion splicing machine
with intellectual property of fiber adjustment technology.
It adopts advanced PAS Fiber adjustment technology, four motors drive
with fiber adjustment function. the smallest volume ,the lightest
weight ,the most fast splicing speed.Mainly for LAN (Local Area
Networks),FTTH (Fiber To The Home) and the trunk line
Features
Hardness/The body is made from titanium alloy , and it has rubber
protection function , quakeproof, waterproof, dustproof .
Fast:/7s fast splicing , 25s fast heating, support continuous heating ,
average efficiency improve 2-3times.
Long lifetime /200 fiber splicing ,no memory effect Lithium
Batteries ;the fiber cleaver has 24 blade , long lifetime.
Convenience/convenient for maintenance.
Operating Instruction
1 preparation before splice
1.1stripping fiber’s other protective layers outside the coating layer
1.2placing protection sleeve over fiber

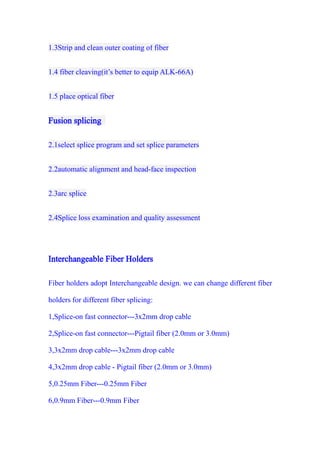

2. 1.3Strip and clean outer coating of fiber
1.4 fiber cleaving(it’s better to equip ALK-66A)
1.5 place optical fiber
Fusion splicing
2.1select splice program and set splice parameters
2.2automatic alignment and head-face inspection
2.3arc splice
2.4Splice loss examination and quality assessment
Interchangeable Fiber Holders
Fiber holders adopt Interchangeable design. we can change different fiber
holders for different fiber splicing:
1,Splice-on fast connector---3x2mm drop cable
2,Splice-on fast connector---Pigtail fiber (2.0mm or 3.0mm)
3,3x2mm drop cable---3x2mm drop cable
4,3x2mm drop cable - Pigtail fiber (2.0mm or 3.0mm)
5,0.25mm Fiber---0.25mm Fiber
6,0.9mm Fiber---0.9mm Fiber

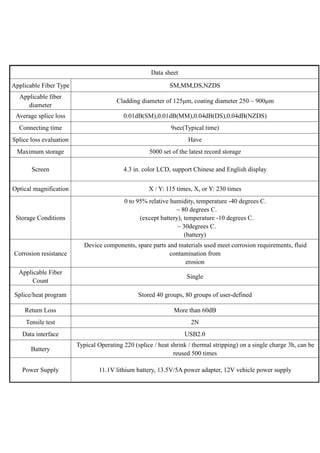

3. Data sheet
Applicable Fiber Type SM,MM,DS,NZDS
Applicable fiber
diameter
Cladding diameter of 125μm, coating diameter 250 ~ 900μm
Average splice loss 0.01dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Connecting time 9sec(Typical time)
Splice loss evaluation Have
Maximum storage 5000 set of the latest record storage
Screen 4.3 in. color LCD, support Chinese and English display
Optical magnification X / Y: 115 times, X, or Y: 230 times
Storage Conditions
0 to 95% relative humidity, temperature -40 degrees C.
~ 80 degrees C.
(except battery), temperature -10 degrees C.
~ 30degrees C.
(battery)
Corrosion resistance
Device components, spare parts and materials used meet corrosion requirements, fluid
contamination from
erosion
Applicable Fiber
Count
Single
Splice/heat program Stored 40 groups, 80 groups of user-defined
Return Loss More than 60dB
Tensile test 2N
Data interface USB2.0
Battery
Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be
reused 500 times
Power Supply 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply

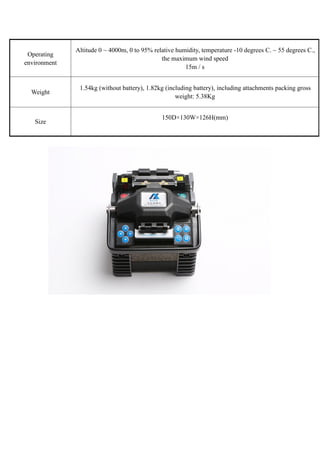

4. Operating
environment
Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 degrees C. ~ 55 degrees C.,
the maximum wind speed
15m / s
Weight
1.54kg (without battery), 1.82kg (including battery), including attachments packing gross
weight: 5.38Kg
Size
150D×130W×126H(mm)
