Electronic Countermeasure Processor Unit Data Sheet (Interface Displays)
1. 4630 North Avenue n Oceanside CA 92056 n 760.945.0230 n www.interfacedisplays.com
Data Sheet
ds_ECPU_
17100-xx.pdf
Page 1 of 1
Jan-14-13

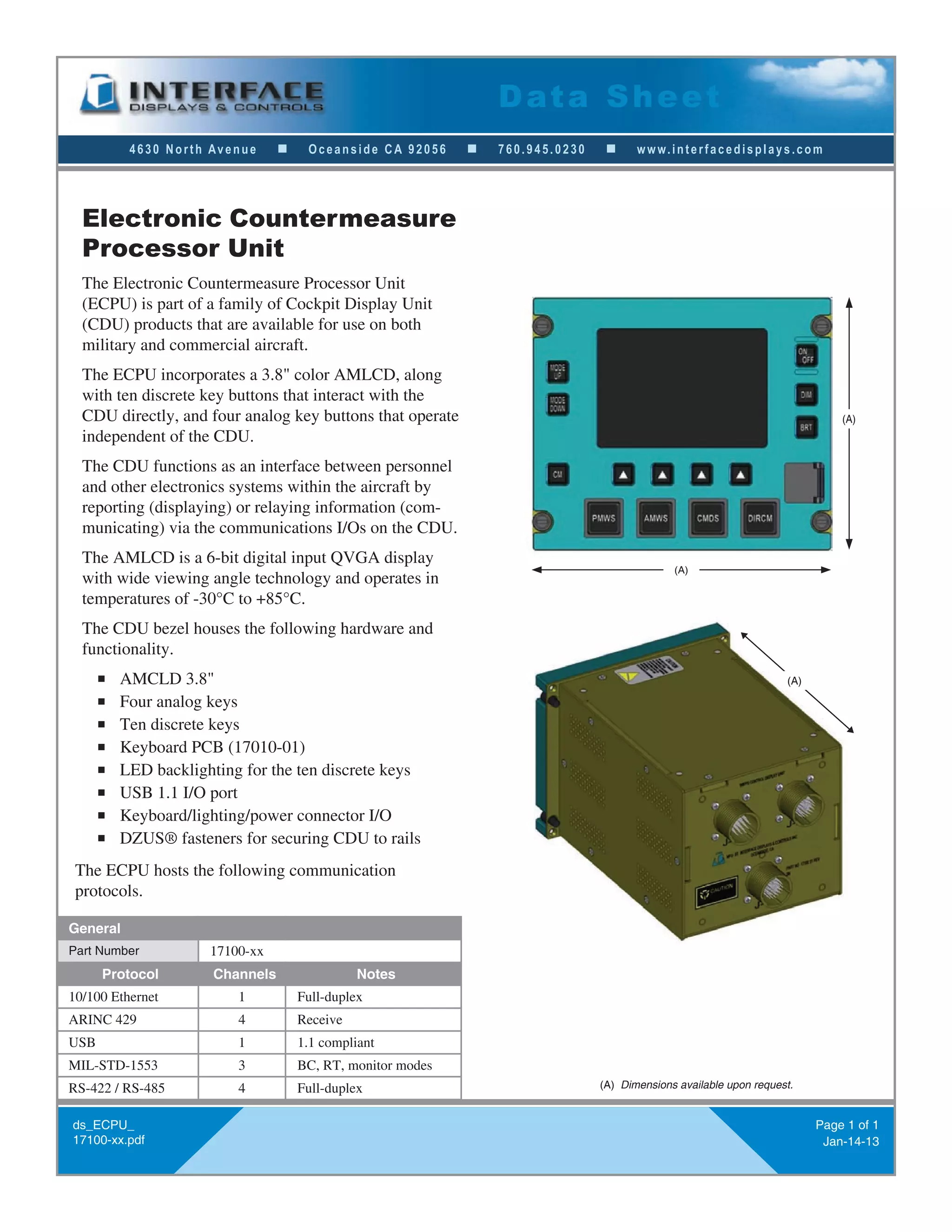

The Electronic Countermeasure Processor Unit
(ECPU) is part of a family of Cockpit Display Unit
(CDU) products that are available for use on both
military and commercial aircraft.
The ECPU incorporates a 3.8" color AMLCD, along
with ten discrete key buttons that interact with the
CDU directly, and four analog key buttons that operate
independent of the CDU.
The CDU functions as an interface between personnel
and other electronics systems within the aircraft by
reporting (displaying) or relaying information (com-
municating) via the communications I/Os on the CDU.
The AMLCD is a 6-bit digital input QVGA display
with wide viewing angle technology and operates in
temperatures of -30°C to +85°C.
The CDU bezel houses the following hardware and
functionality.
n AMCLD 3.8"
n Four analog keys
n Ten discrete keys
n Keyboard PCB (17010-01)
n LED backlighting for the ten discrete keys
n USB 1.1 I/O port
n Keyboard/lighting/power connector I/O
n DZUS® fasteners for securing CDU to rails
The ECPU hosts the following communication
protocols.
Electronic Countermeasure
Processor Unit
General
Part Number 17100-xx
Protocol Channels Notes
10/100 Ethernet 1 Full-duplex
ARINC 429 4 Receive
USB 1 1.1 compliant
MIL-STD-1553 3 BC, RT, monitor modes
RS-422 / RS-485 4 Full-duplex
(A)
(A)
(A)
(A) Dimensions available upon request.
