Power Tools
Beveller
TruTool TKF 1100 /
TKF 1101
For bevel lenght
up to
11 mm
No refinishing work
11 mm weld edge preparation in one
step
01
The choice is yours
03
Carriers
Carriers for bevel angles of 30°,
37,5° or 45°
05
Rotating motor handle
Adjustable motor handle provides
optimal operating comfort
06
The right setting
No extra tool required to adjust the
bevel height and sheet thickness
02
Machine Tools/Power Tools
Laser Technology/Electronics
The choice is yours
The right cutting tool for any
application 04
37,5° or 45°
Zero sparks
High processing reliability and
no emissions

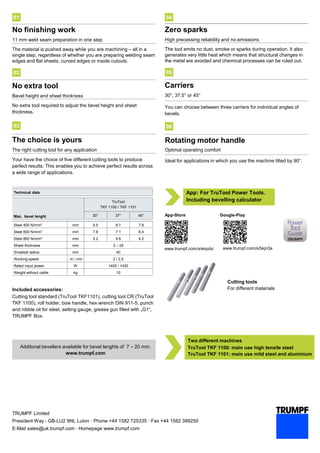

No finishing work
11 mm weld seam preparation in one step
The material is pushed away while you are machining ‒ all in a
single step, regardless of whether you are preparing welding seam
edges and flat sheets, curved edges or inside cutouts.
01
02
03 06
05
No extra tool
Bevel height and sheet thickness
No extra tool required to adjust the bevel height and sheet
thickness.
The choice is yours
The right cutting tool for any application
04
Rotating motor handle
Optimal operating comfort
Zero sparks
High precessing reliability and no emissions
The tool emits no dust, smoke or sparks during operation. It also
generates very little heat which means that structural changes in
the metal are avoided and chemical processes can be ruled out.
Carriers
30°, 37.5° or 45°
You can choose between three carriers for individual angles of
bevels.
The right cutting tool for any application
Your have the choice of five different cutting tools to produce
perfect results. This enables you to achieve perfect results across
a wide range of applications.
Technical data
Max. bevel lenght
TruTool
TKF 1100 / TKF 1101
30° 37° 45°
Steel 400 N/mm2 mm 9.5 8.7 7.8
Steel 600 N/mm2 mm 7.8 7.1 6.4
Steel 800 N/mm2 mm 5.2 4.8 4.2
Sheet thickness mm 3 – 25
Smallest radius mm 40
Working speed m / min 2 / 2,5
Rated input power W 1400 / 1430
Weight without cable kg 10
www.trumpf.com/s/elqvbc www.trumpf.com/s/bkjn3a
Google-PlayApp-Store
App: For TruTool Power Tools.
Including bevelling calculator
Included accessories:
Cutting tool standard (TruTool TKF1101), cutting tool CR (TruTool
TKF 1100), roll holder, bow handle, hex wrench DIN 911-5, punch
Optimal operating comfort
Ideal for applications in which you use the machine tilted by 90°.
Cutting tools
For different materials
TRUMPF Limited
President Way - GB-LU2 9NL Luton · Phone +44 1582 725335 · Fax +44 1582 399250
E-Mail sales@uk.trumpf.com · Homepage www.trumpf.com
TKF 1100), roll holder, bow handle, hex wrench DIN 911-5, punch
and nibble oil for steel, setting gauge, grease gun filled with „G1“,
TRUMPF Box.
Additonal bevellers available for bevel lenghts of 7 – 20 mm.
www.trumpf.com
Two different machines
TruTool TKF 1100: main use high tensile steel
TruTool TKF 1101: main use mild steel and aluminium
