1. From Eclipse to Document
management
A case study for JWT & EasySOA
Eclipse DemoCamp Juno – June 13th, 2012
1

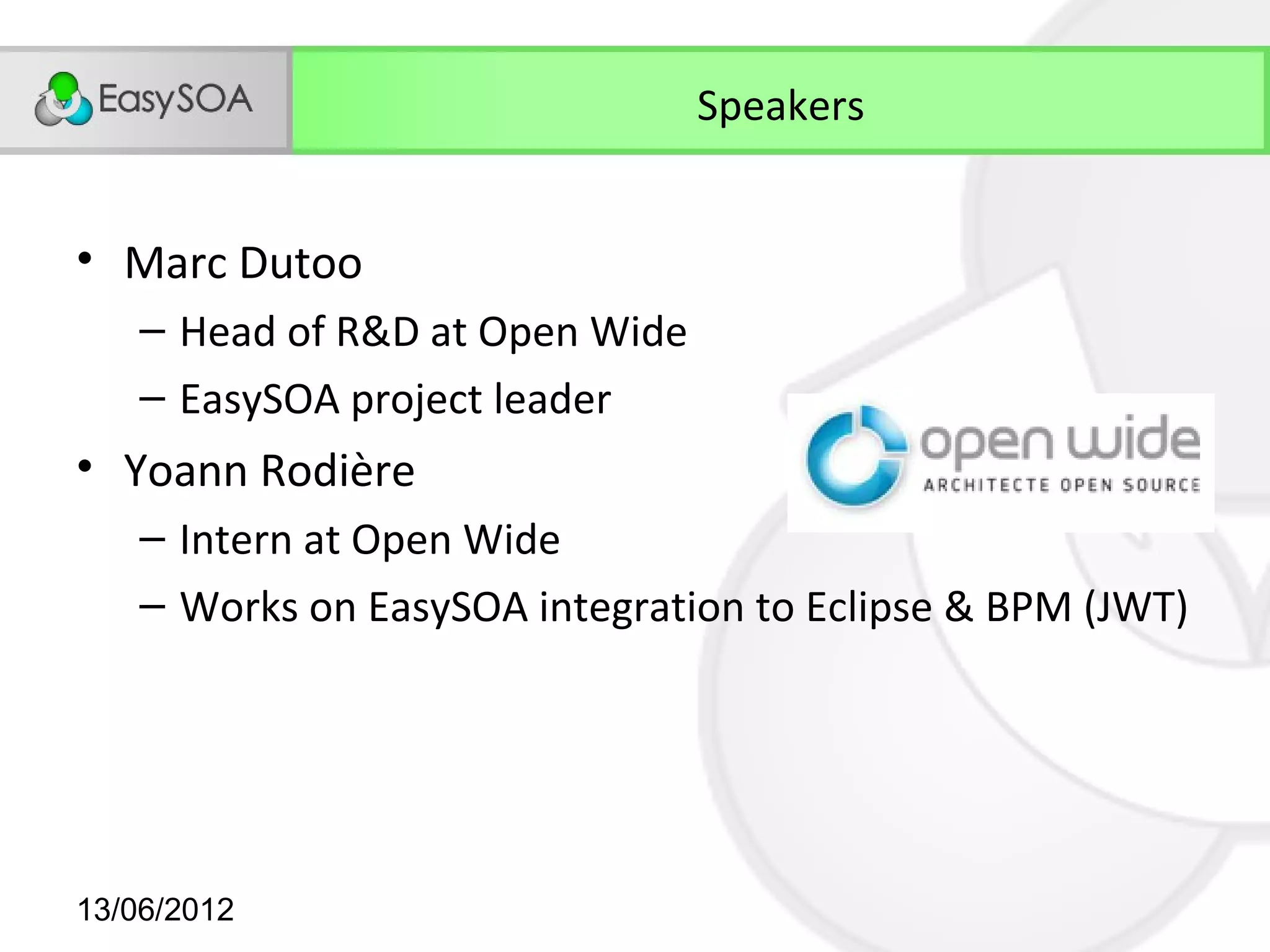

2. Speakers
• Marc Dutoo
– Head of R&D at Open Wide
– EasySOA project leader
• Yoann Rodière
– Intern at Open Wide
– Works on EasySOA integration to Eclipse & BPM (JWT)
13/06/2012

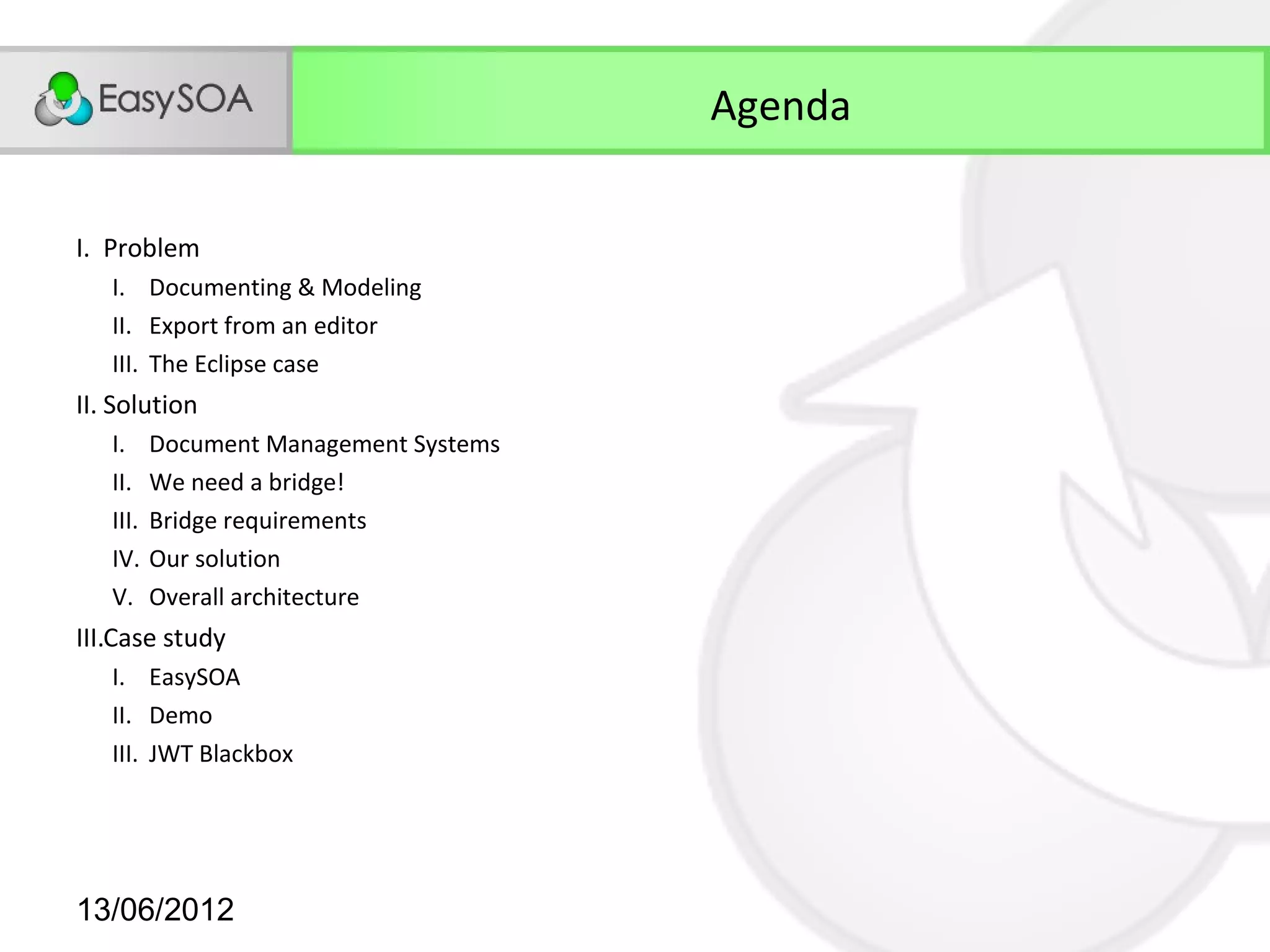

3. Agenda
I. Problem
I. Documenting & Modeling
II. Export from an editor
III. The Eclipse case
II. Solution
I. Document Management Systems
II. We need a bridge!
III. Bridge requirements
IV. Our solution
V. Overall architecture
III.Case study
I. EasySOA
II. Demo
III. JWT Blackbox
13/06/2012

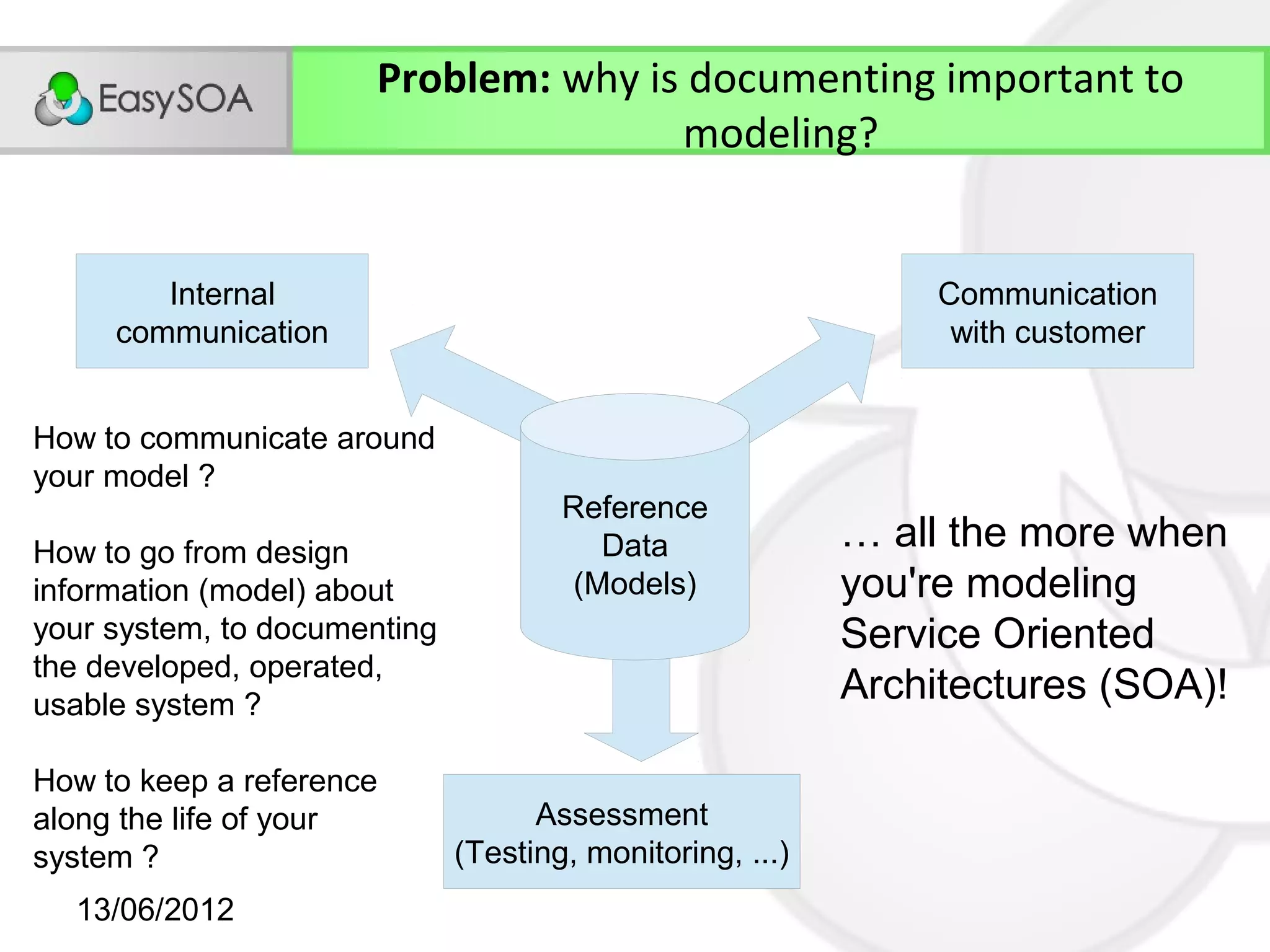

4. Problem: why is documenting important to
modeling?
Internal Communication
communication with customer
How to communicate around
your model ?
Reference
How to go from design Data … all the more when
information (model) about (Models) you're modeling
your system, to documenting Service Oriented
the developed, operated,
usable system ?
Architectures (SOA)!
How to keep a reference
along the life of your Assessment
system ? (Testing, monitoring, ...)
13/06/2012

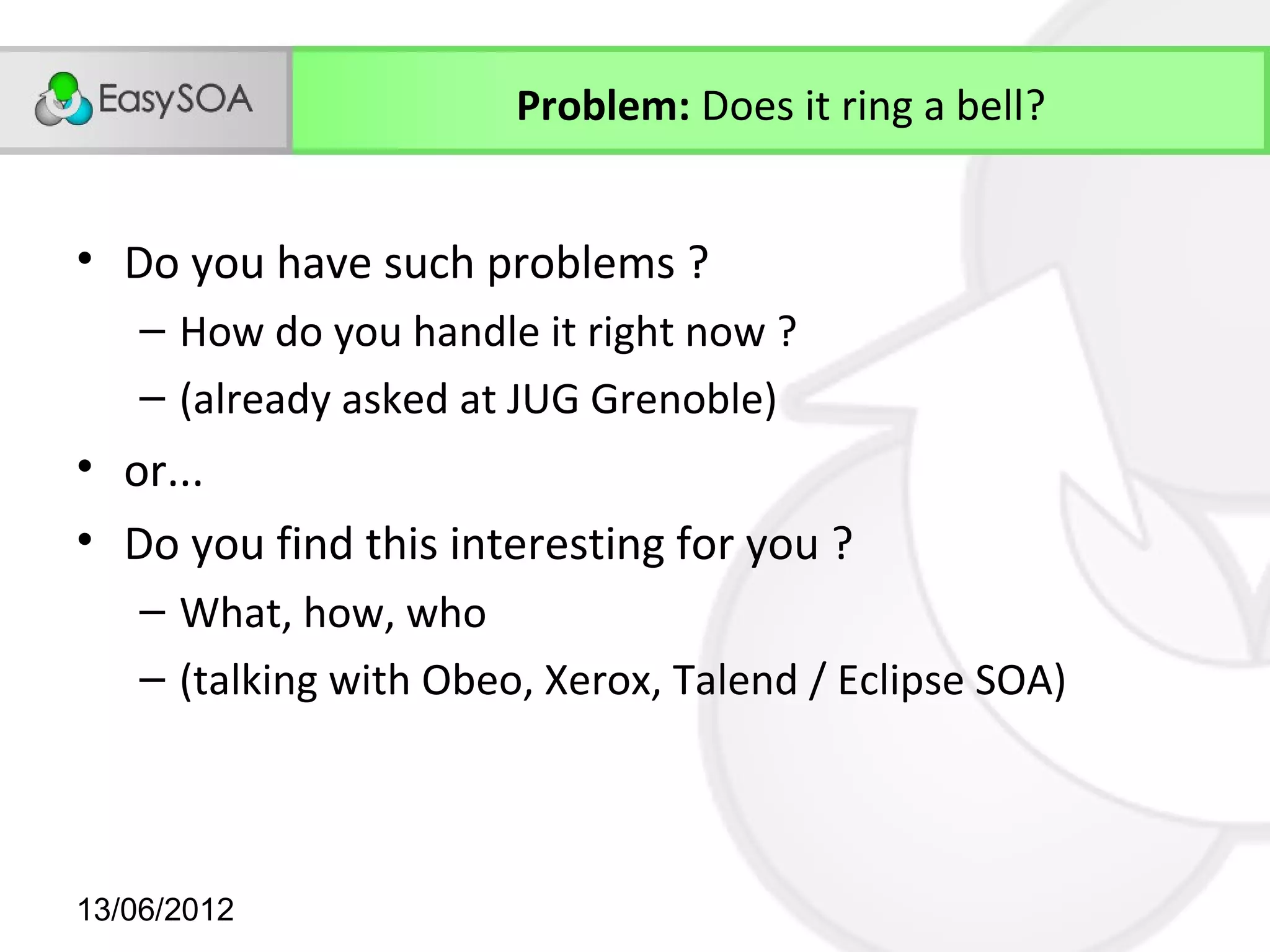

5. Problem: Does it ring a bell?
• Do you have such problems ?
– How do you handle it right now ?
– (already asked at JUG Grenoble)
• or...
• Do you find this interesting for you ?
– What, how, who
– (talking with Obeo, Xerox, Talend / Eclipse SOA)
13/06/2012

6. Problem: what to export?
• The simplest: editor files, image files
– For archive, for reference, for description
• More advanced: a refined, componentized model
extracted from the editor model
– Example: an SOA “System” entity
• with references to “Systems” it depends on, actors involved,
target business requirements...
• Each of them may carry
– attached documents (editor files, image files, text documents)
– meta-data (commercial name, current endpoints, source
location, ...)
• Browsing a tree of Systems allows for easier, business-focused
13/06/2012access to data

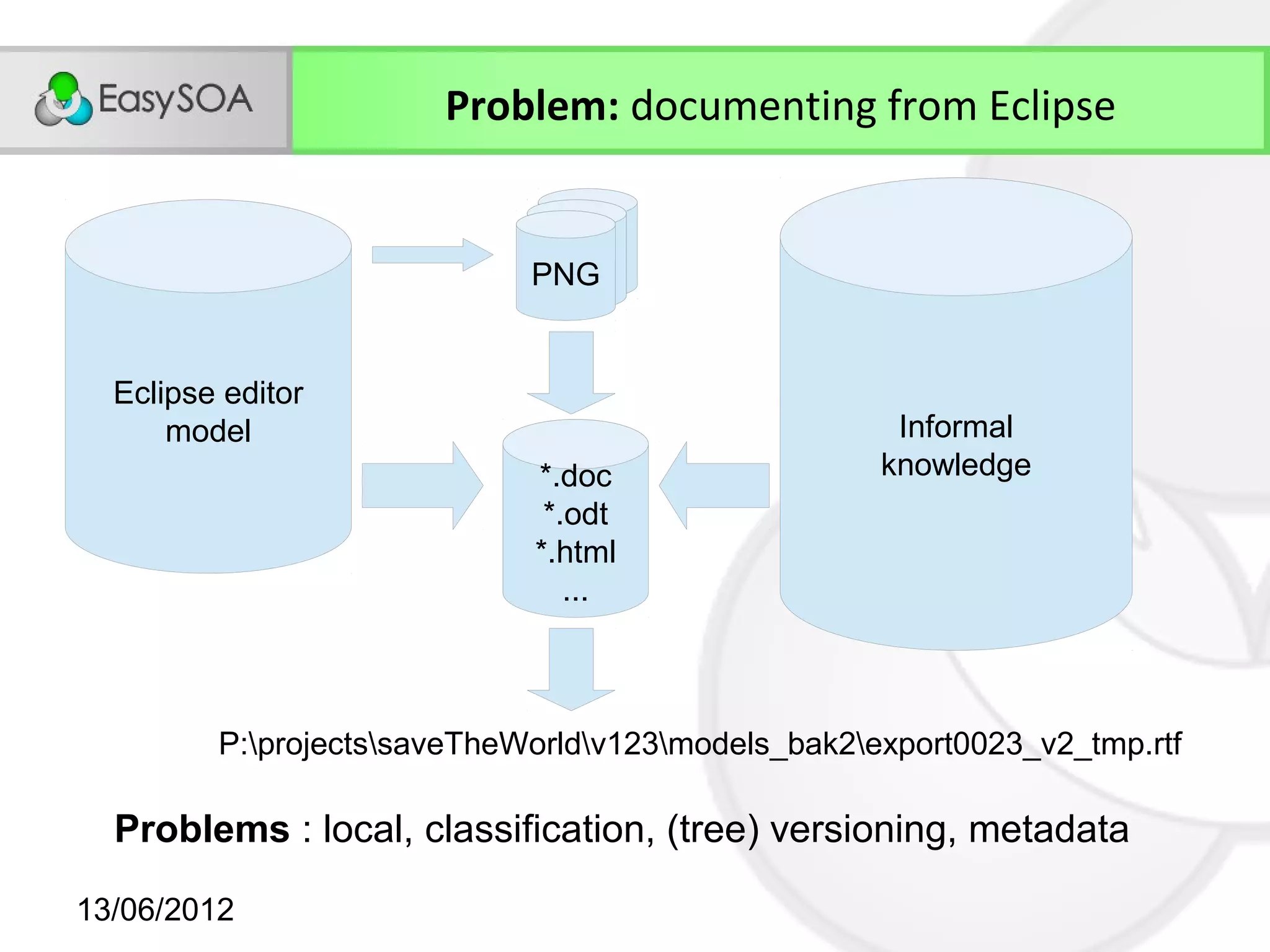

7. Problem: documenting from Eclipse
PNG
PNG
PNG
Eclipse editor
model Informal
*.doc knowledge
*.odt
*.html
...
P:projectssaveTheWorldv123models_bak2export0023_v2_tmp.rtf
Problems : local, classification, (tree) versioning, metadata
13/06/2012

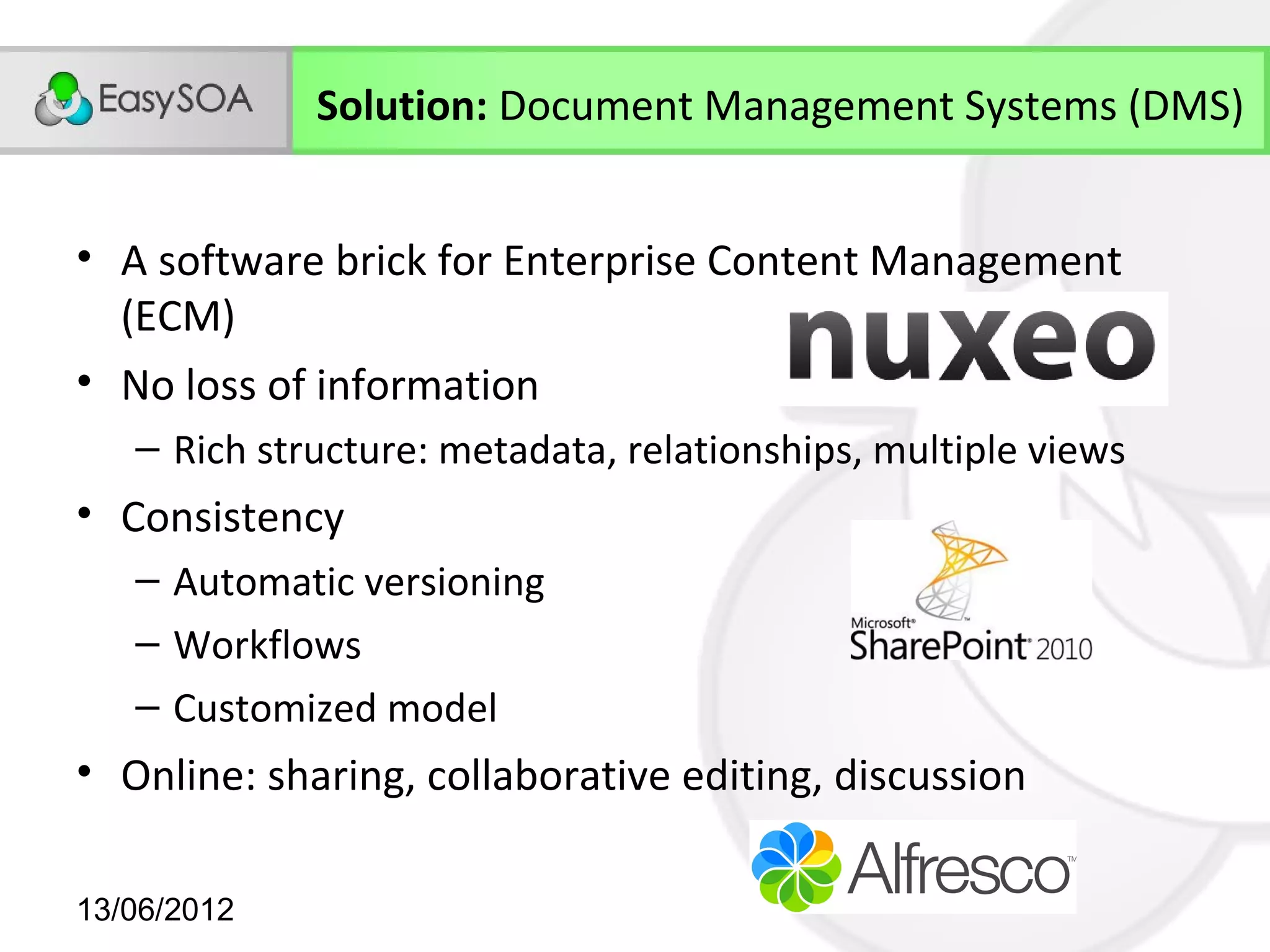

8. Solution: Document Management Systems (DMS)
• A software brick for Enterprise Content Management
(ECM)
• No loss of information
– Rich structure: metadata, relationships, multiple views
• Consistency
– Automatic versioning
– Workflows
– Customized model
• Online: sharing, collaborative editing, discussion
13/06/2012

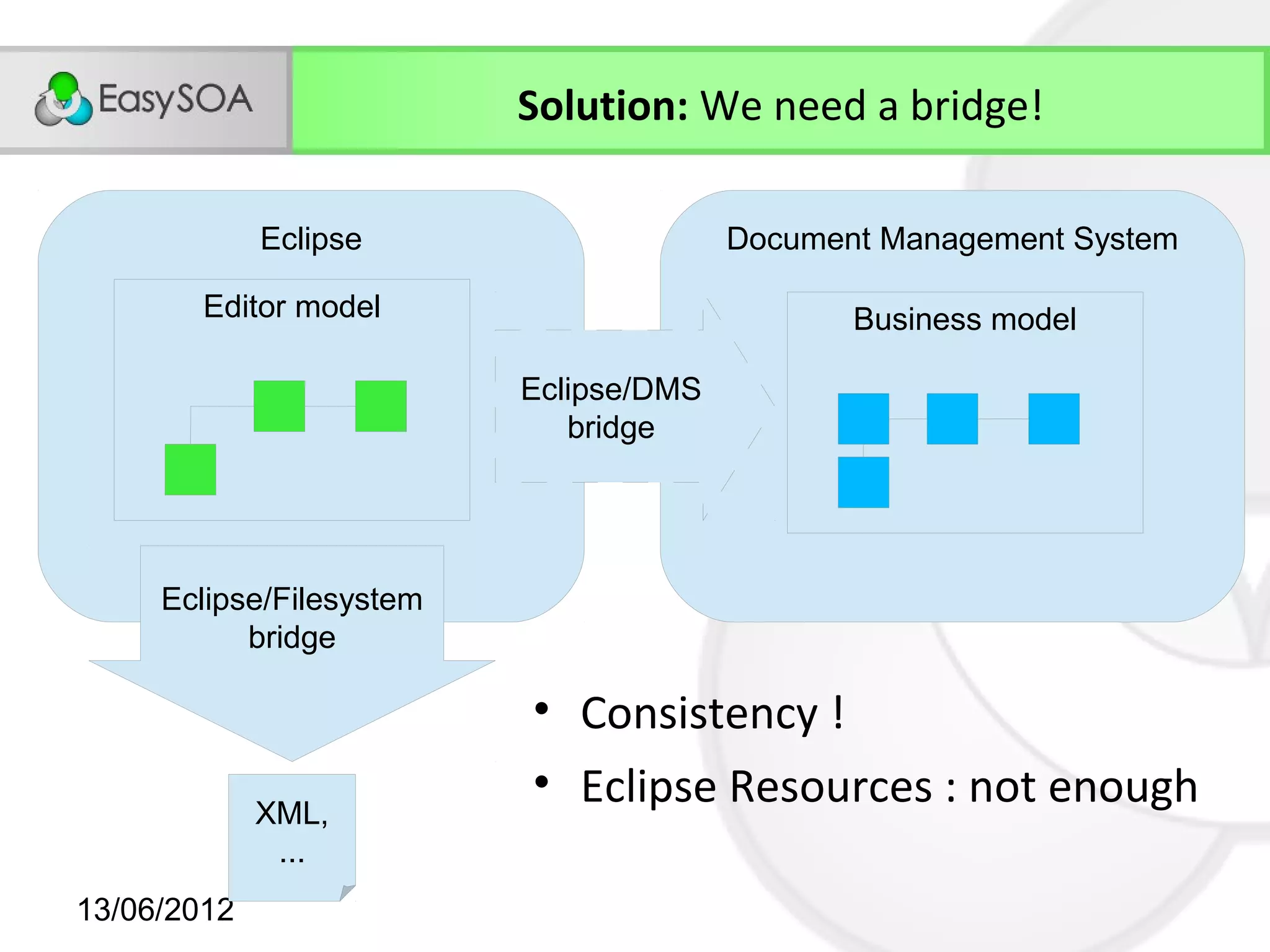

9. Solution: We need a bridge!
Eclipse Document Management System
Editor model Business model
Eclipse/DMS
bridge
Eclipse/Filesystem
bridge
• Consistency !
• Eclipse Resources : not enough
XML,
...
13/06/2012

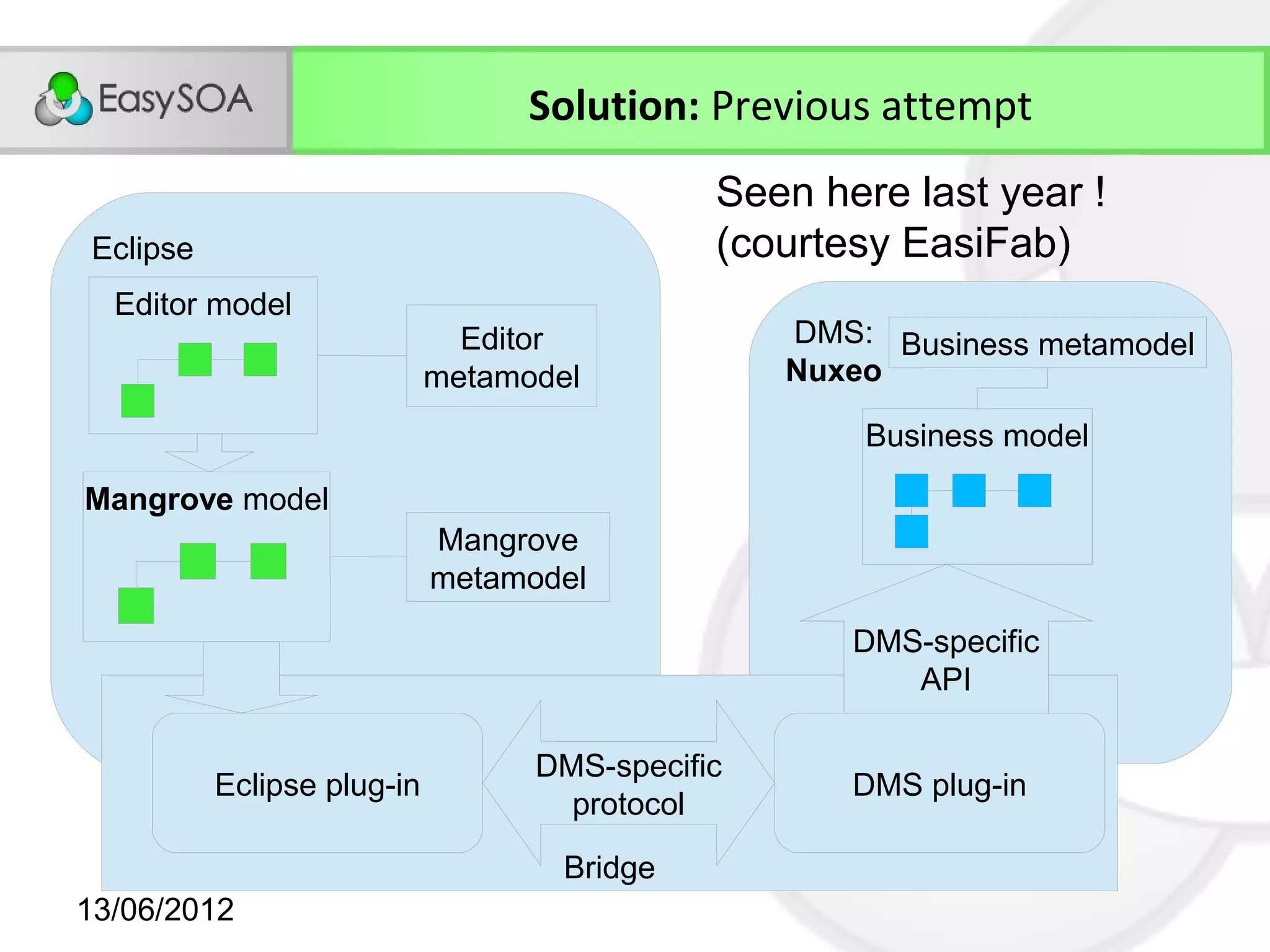

10. Solution: Previous attempt
Seen here last year !
Eclipse (courtesy EasiFab)
Editor model
Editor DMS: Business metamodel
metamodel Nuxeo
Business model
Mangrove model
Mangrove
metamodel
DMS-specific
API
DMS-specific
Eclipse plug-in DMS plug-in
protocol
Bridge
13/06/2012

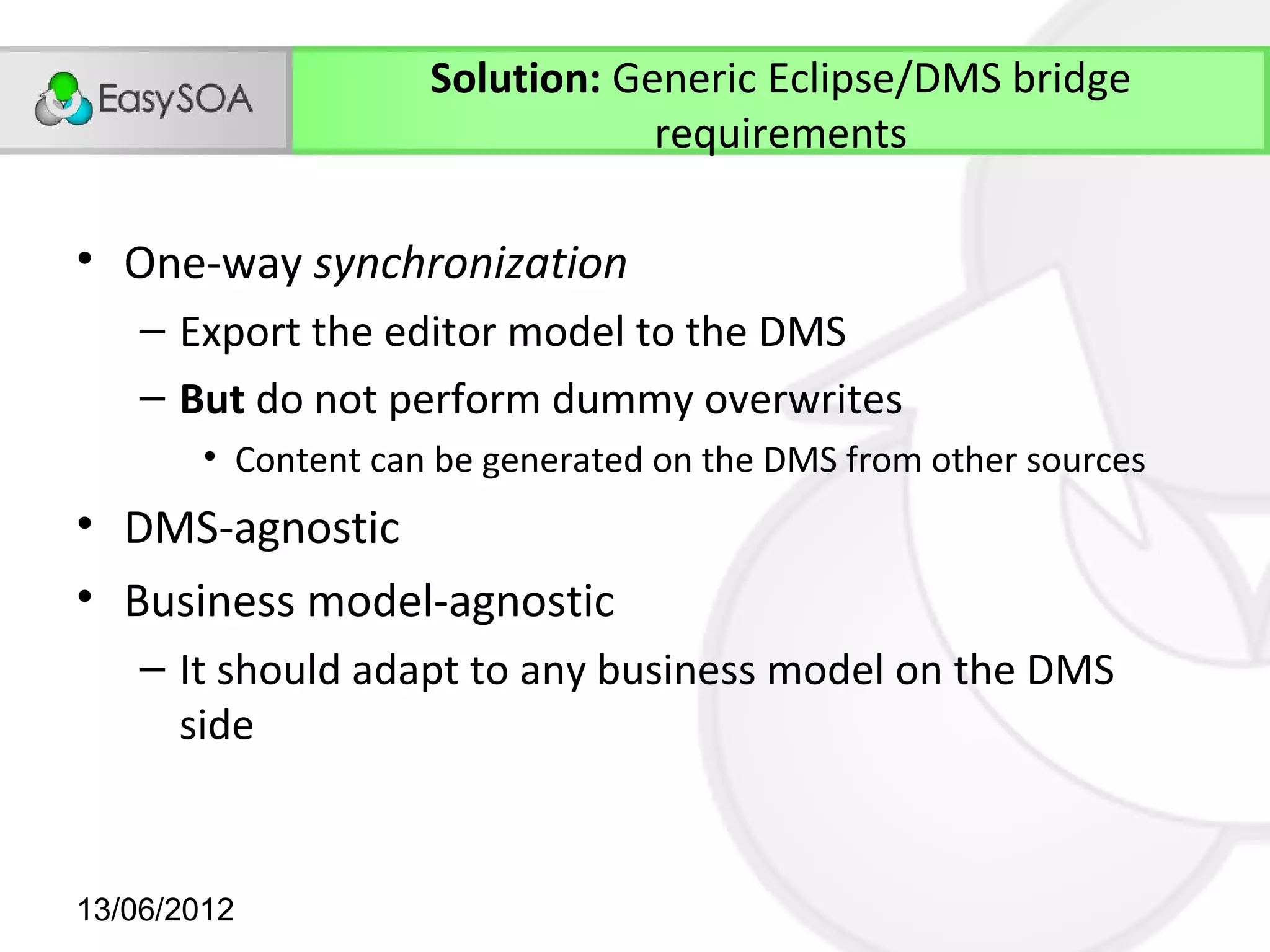

11. Solution: Generic Eclipse/DMS bridge
requirements
• One-way synchronization
– Export the editor model to the DMS
– But do not perform dummy overwrites
• Content can be generated on the DMS from other sources
• DMS-agnostic
• Business model-agnostic
– It should adapt to any business model on the DMS
side
13/06/2012

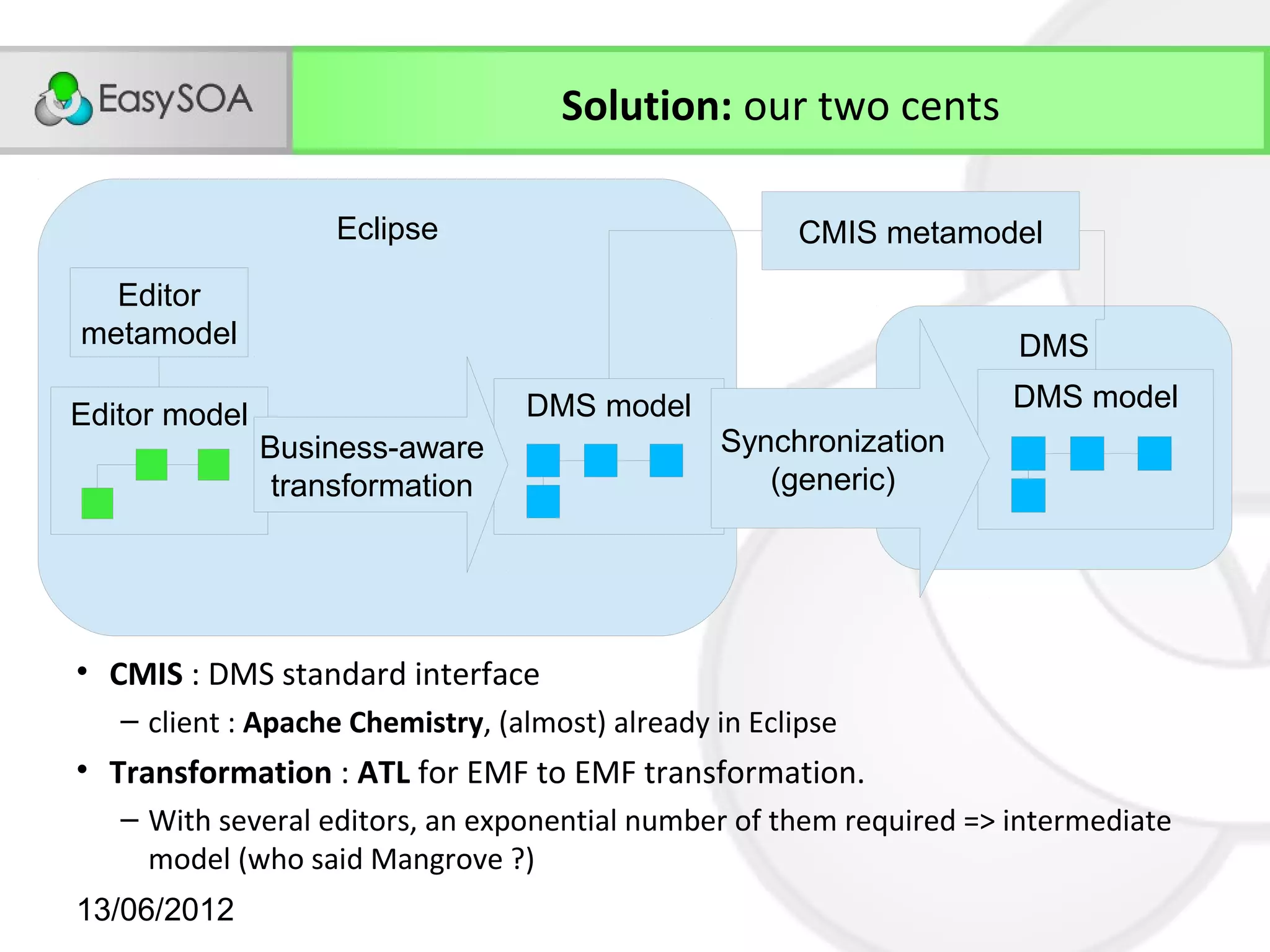

12. Solution: our two cents
Eclipse CMIS metamodel
Editor
metamodel DMS
DMS model DMS model
Editor model
Business-aware Synchronization
transformation (generic)
• CMIS : DMS standard interface
– client : Apache Chemistry, (almost) already in Eclipse
• Transformation : ATL for EMF to EMF transformation.
– With several editors, an exponential number of them required => intermediate
model (who said Mangrove ?)
13/06/2012

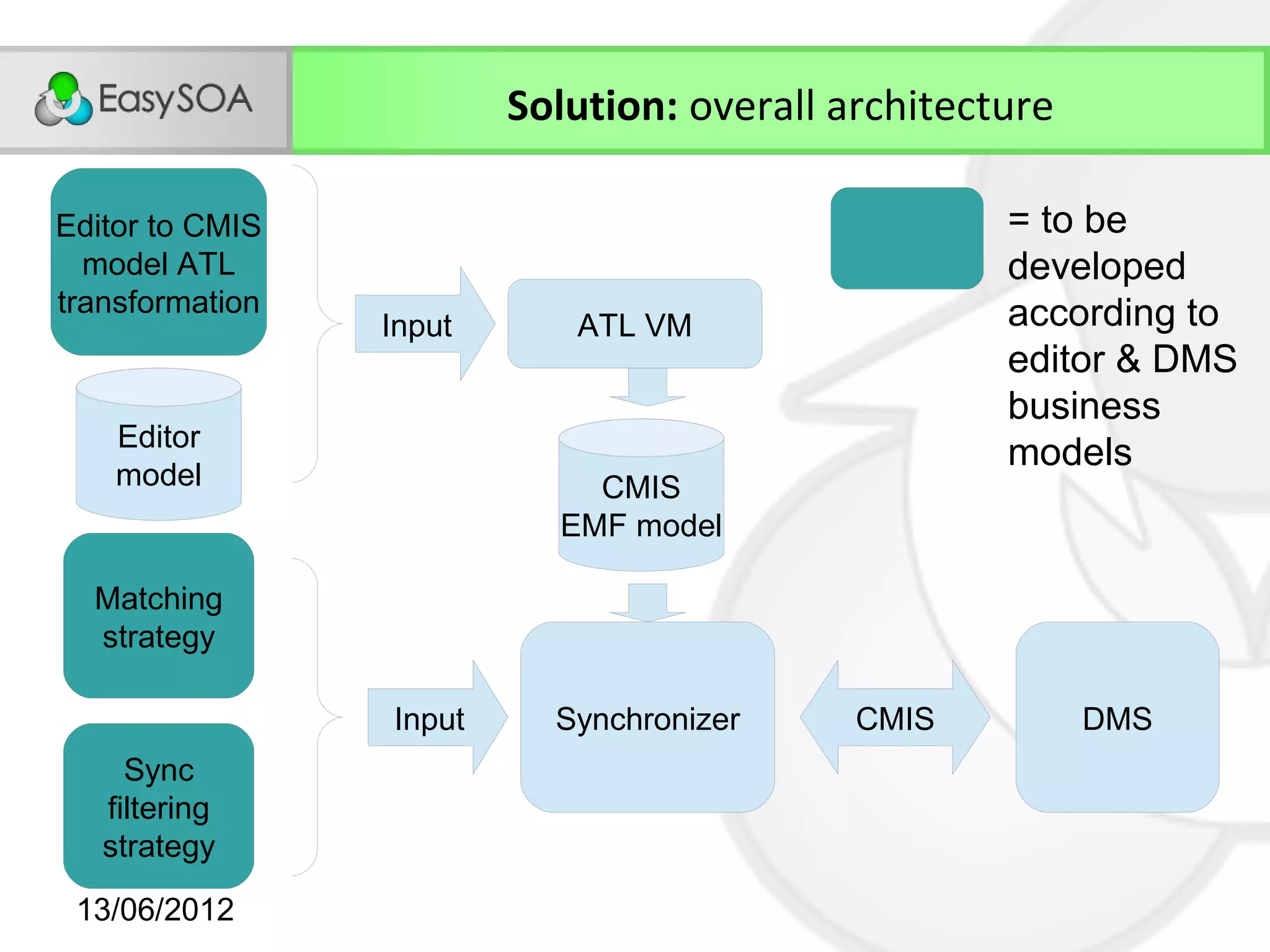

13. Solution: overall architecture
Editor to CMIS = to be
model ATL developed
transformation according to
Input ATL VM
editor & DMS
business
Editor
models
model CMIS
EMF model
Matching
strategy
Input Synchronizer CMIS DMS
Sync
filtering
strategy
13/06/2012

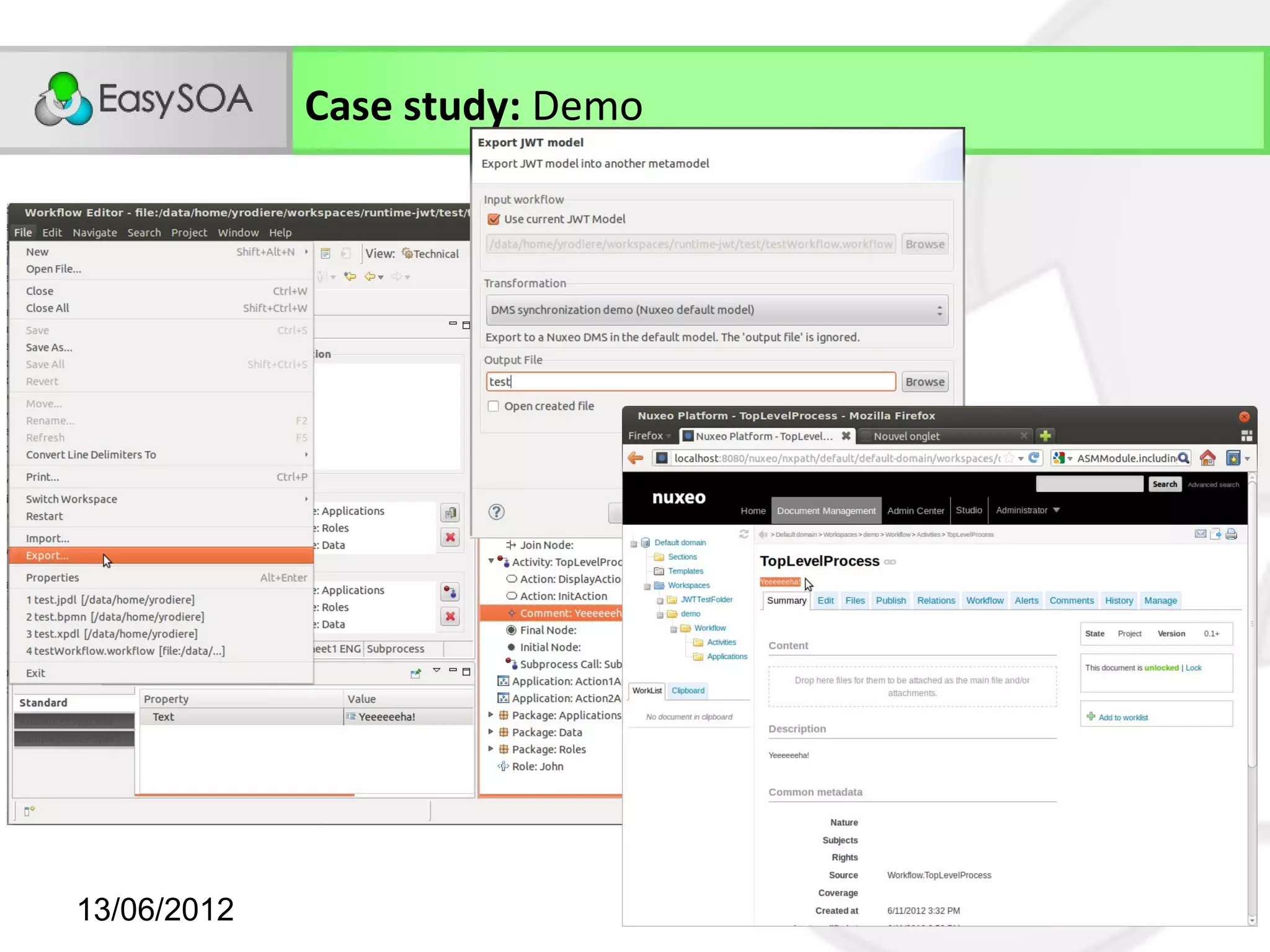

14. Case study: Demo
13/06/2012

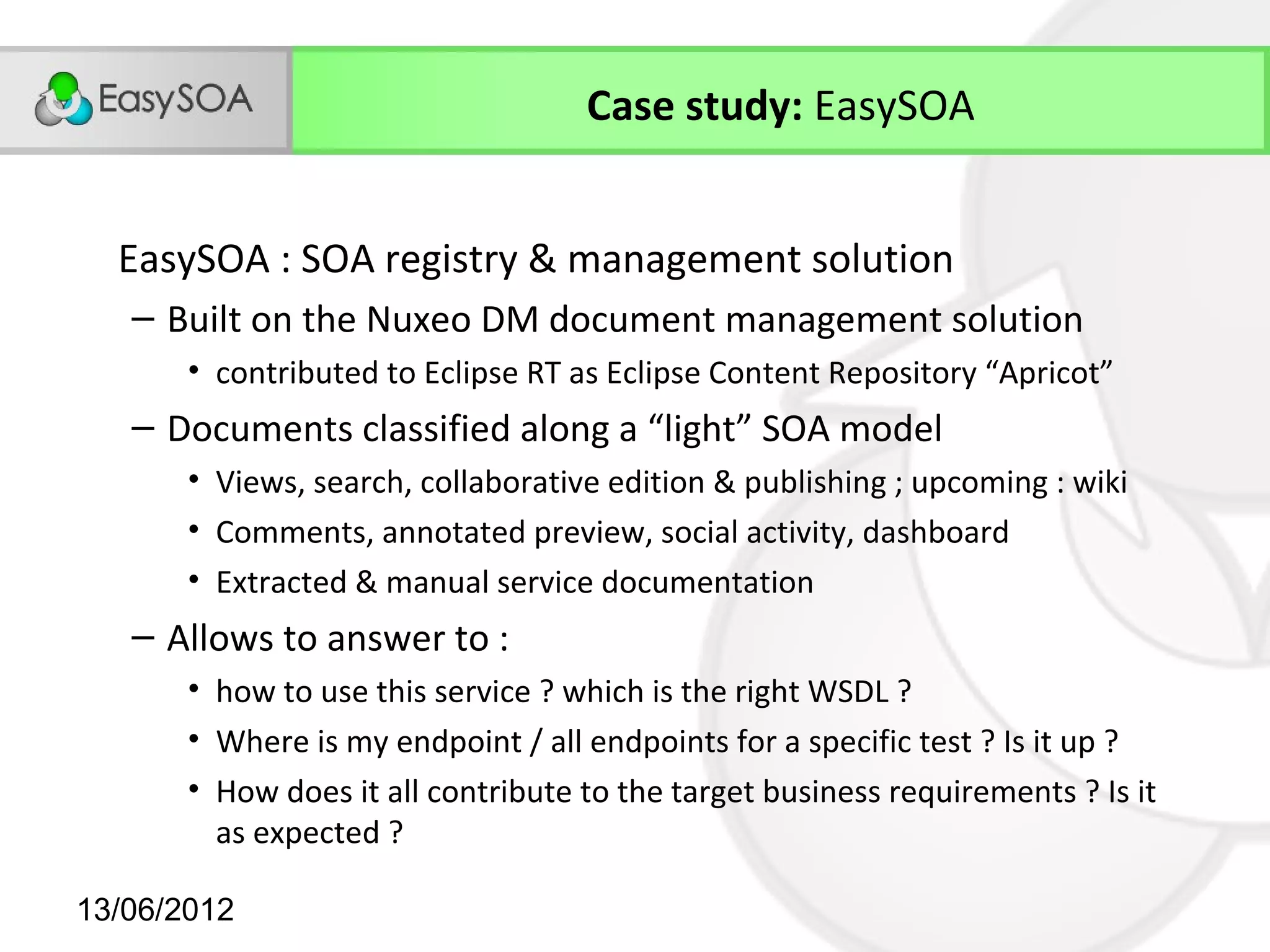

15. Case study: EasySOA
EasySOA : SOA registry & management solution
– Built on the Nuxeo DM document management solution
• contributed to Eclipse RT as Eclipse Content Repository “Apricot”
– Documents classified along a “light” SOA model
• Views, search, collaborative edition & publishing ; upcoming : wiki
• Comments, annotated preview, social activity, dashboard
• Extracted & manual service documentation
– Allows to answer to :
• how to use this service ? which is the right WSDL ?
• Where is my endpoint / all endpoints for a specific test ? Is it up ?
• How does it all contribute to the target business requirements ? Is it
as expected ?
13/06/2012

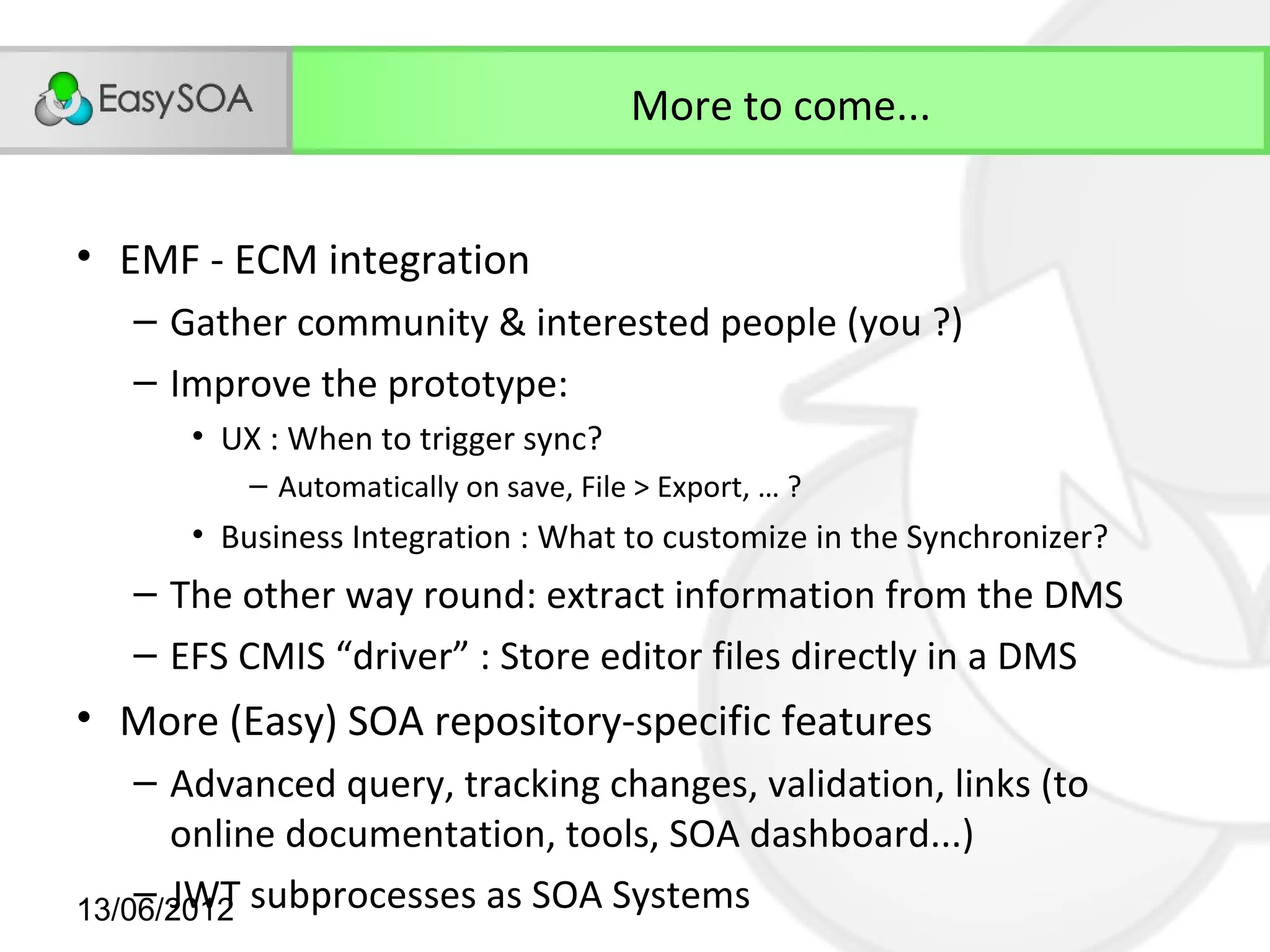

16. More to come...
• EMF - ECM integration
– Gather community & interested people (you ?)
– Improve the prototype:
• UX : When to trigger sync?
– Automatically on save, File > Export, … ?
• Business Integration : What to customize in the Synchronizer?
– The other way round: extract information from the DMS
– EFS CMIS “driver” : Store editor files directly in a DMS
• More (Easy) SOA repository-specific features
– Advanced query, tracking changes, validation, links (to
online documentation, tools, SOA dashboard...)
– JWT
13/06/2012 subprocesses as SOA Systems

17. What about you, now?
www.easysoa.org
github.com/easysoa
easysoa-dev@googlegroups.com
13/06/2012
