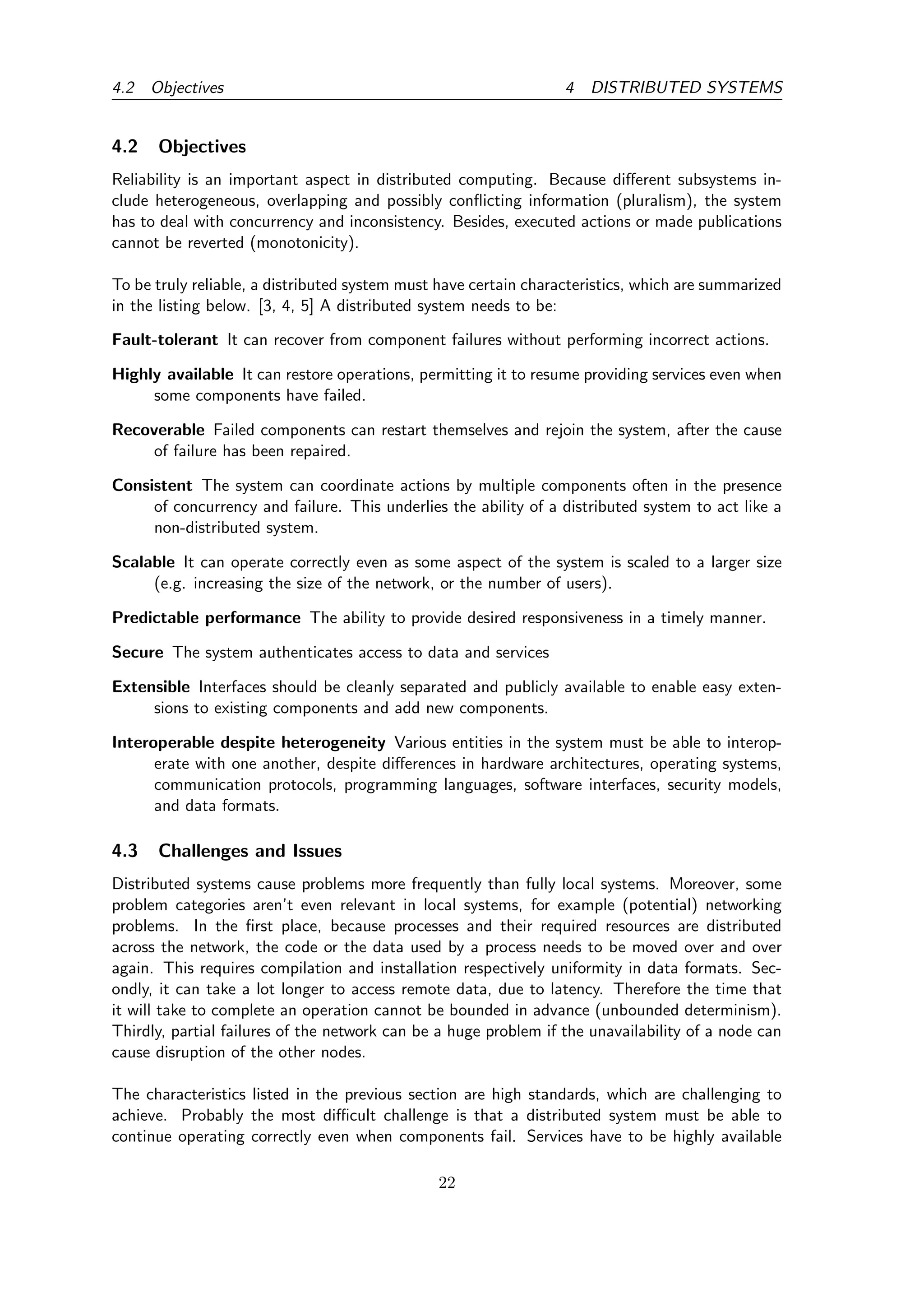

![4.2 Objectives 4 DISTRIBUTED SYSTEMS
4.2 Objectives
Reliability is an important aspect in distributed computing. Because different subsystems in-
clude heterogeneous, overlapping and possibly conflicting information (pluralism), the system
has to deal with concurrency and inconsistency. Besides, executed actions or made publications
cannot be reverted (monotonicity).
To be truly reliable, a distributed system must have certain characteristics, which are summarized
in the listing below. [3, 4, 5] A distributed system needs to be:
Fault-tolerant It can recover from component failures without performing incorrect actions.
Highly available It can restore operations, permitting it to resume providing services even when
some components have failed.
Recoverable Failed components can restart themselves and rejoin the system, after the cause
of failure has been repaired.
Consistent The system can coordinate actions by multiple components often in the presence
of concurrency and failure. This underlies the ability of a distributed system to act like a
non-distributed system.
Scalable It can operate correctly even as some aspect of the system is scaled to a larger size
(e.g. increasing the size of the network, or the number of users).
Predictable performance The ability to provide desired responsiveness in a timely manner.
Secure The system authenticates access to data and services
Extensible Interfaces should be cleanly separated and publicly available to enable easy exten-
sions to existing components and add new components.
Interoperable despite heterogeneity Various entities in the system must be able to interop-
erate with one another, despite differences in hardware architectures, operating systems,
communication protocols, programming languages, software interfaces, security models,
and data formats.
4.3 Challenges and Issues
Distributed systems cause problems more frequently than fully local systems. Moreover, some
problem categories aren’t even relevant in local systems, for example (potential) networking
problems. In the first place, because processes and their required resources are distributed
across the network, the code or the data used by a process needs to be moved over and over
again. This requires compilation and installation respectively uniformity in data formats. Sec-
ondly, it can take a lot longer to access remote data, due to latency. Therefore the time that
it will take to complete an operation cannot be bounded in advance (unbounded determinism).
Thirdly, partial failures of the network can be a huge problem if the unavailability of a node can
cause disruption of the other nodes.
The characteristics listed in the previous section are high standards, which are challenging to
achieve. Probably the most difficult challenge is that a distributed system must be able to
continue operating correctly even when components fail. Services have to be highly available
22](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-23-320.jpg)

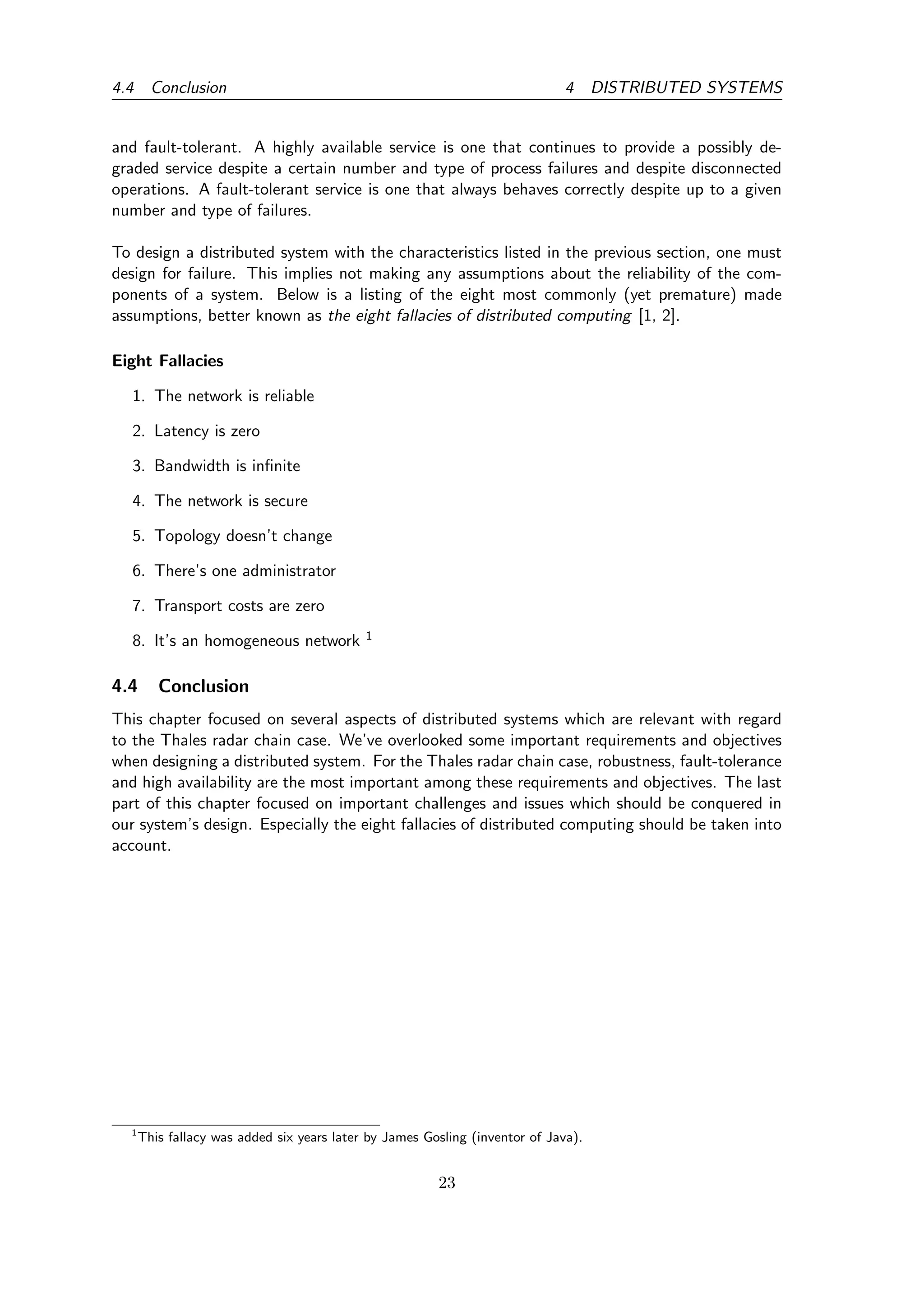

![4.4 Conclusion 4 DISTRIBUTED SYSTEMS
and fault-tolerant. A highly available service is one that continues to provide a possibly de-
graded service despite a certain number and type of process failures and despite disconnected
operations. A fault-tolerant service is one that always behaves correctly despite up to a given
number and type of failures.
To design a distributed system with the characteristics listed in the previous section, one must
design for failure. This implies not making any assumptions about the reliability of the com-
ponents of a system. Below is a listing of the eight most commonly (yet premature) made
assumptions, better known as the eight fallacies of distributed computing [1, 2].
Eight Fallacies
1. The network is reliable
2. Latency is zero
3. Bandwidth is infinite
4. The network is secure
5. Topology doesn’t change
6. There’s one administrator
7. Transport costs are zero
8. It’s an homogeneous network 1
4.4 Conclusion
This chapter focused on several aspects of distributed systems which are relevant with regard
to the Thales radar chain case. We’ve overlooked some important requirements and objectives
when designing a distributed system. For the Thales radar chain case, robustness, fault-tolerance
and high availability are the most important among these requirements and objectives. The last
part of this chapter focused on important challenges and issues which should be conquered in
our system’s design. Especially the eight fallacies of distributed computing should be taken into
account.
1
This fallacy was added six years later by James Gosling (inventor of Java).
23](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-24-320.jpg)

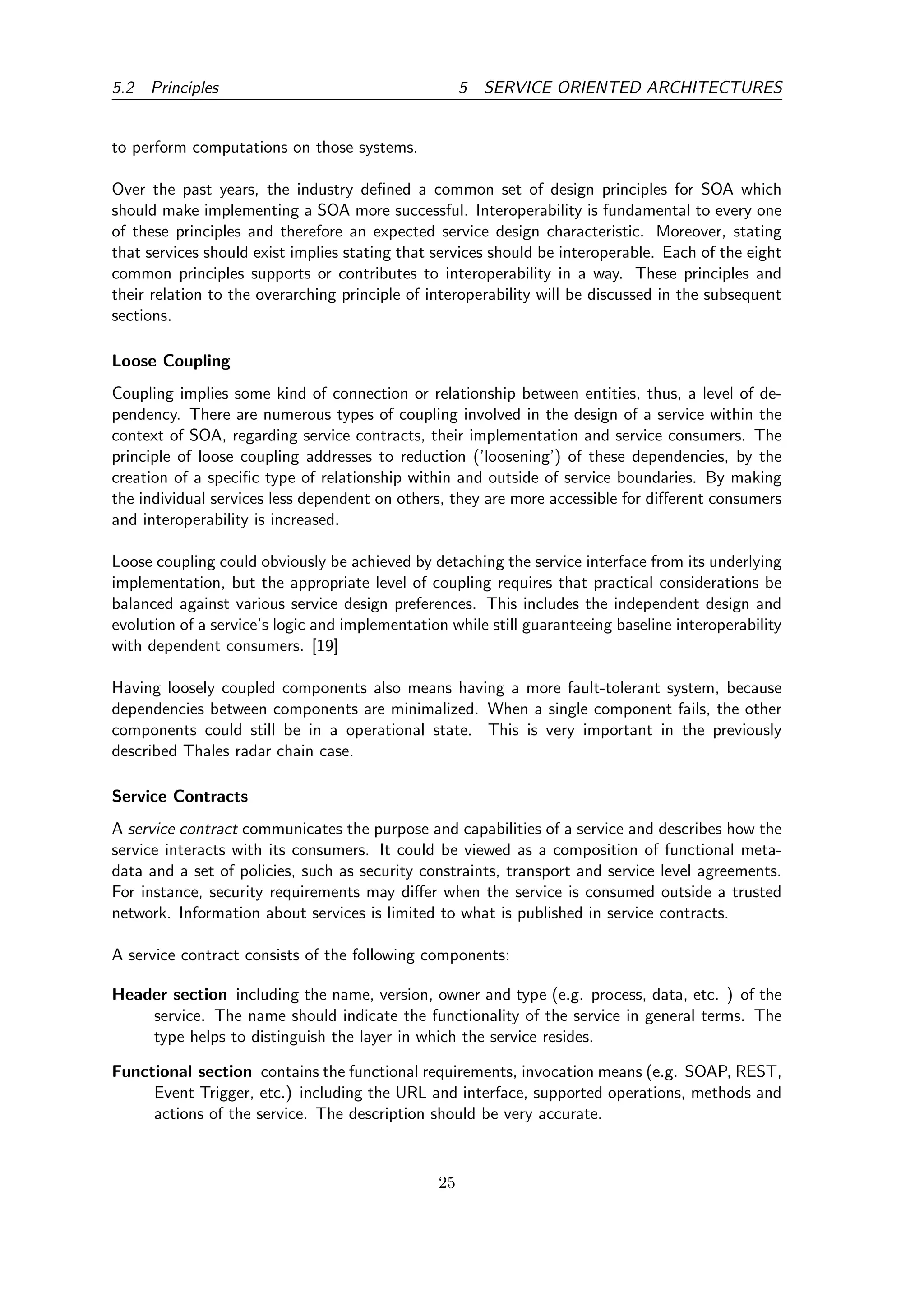

![5.2 Principles 5 SERVICE ORIENTED ARCHITECTURES
to perform computations on those systems.
Over the past years, the industry defined a common set of design principles for SOA which
should make implementing a SOA more successful. Interoperability is fundamental to every one
of these principles and therefore an expected service design characteristic. Moreover, stating
that services should exist implies stating that services should be interoperable. Each of the eight
common principles supports or contributes to interoperability in a way. These principles and
their relation to the overarching principle of interoperability will be discussed in the subsequent
sections.
Loose Coupling
Coupling implies some kind of connection or relationship between entities, thus, a level of de-
pendency. There are numerous types of coupling involved in the design of a service within the
context of SOA, regarding service contracts, their implementation and service consumers. The
principle of loose coupling addresses to reduction (’loosening’) of these dependencies, by the
creation of a specific type of relationship within and outside of service boundaries. By making
the individual services less dependent on others, they are more accessible for different consumers
and interoperability is increased.
Loose coupling could obviously be achieved by detaching the service interface from its underlying
implementation, but the appropriate level of coupling requires that practical considerations be
balanced against various service design preferences. This includes the independent design and
evolution of a service’s logic and implementation while still guaranteeing baseline interoperability
with dependent consumers. [19]
Having loosely coupled components also means having a more fault-tolerant system, because
dependencies between components are minimalized. When a single component fails, the other
components could still be in a operational state. This is very important in the previously
described Thales radar chain case.
Service Contracts
A service contract communicates the purpose and capabilities of a service and describes how the
service interacts with its consumers. It could be viewed as a composition of functional meta-
data and a set of policies, such as security constraints, transport and service level agreements.
For instance, security requirements may differ when the service is consumed outside a trusted
network. Information about services is limited to what is published in service contracts.
A service contract consists of the following components:
Header section including the name, version, owner and type (e.g. process, data, etc. ) of the
service. The name should indicate the functionality of the service in general terms. The
type helps to distinguish the layer in which the service resides.
Functional section contains the functional requirements, invocation means (e.g. SOAP, REST,
Event Trigger, etc.) including the URL and interface, supported operations, methods and
actions of the service. The description should be very accurate.
25](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-26-320.jpg)

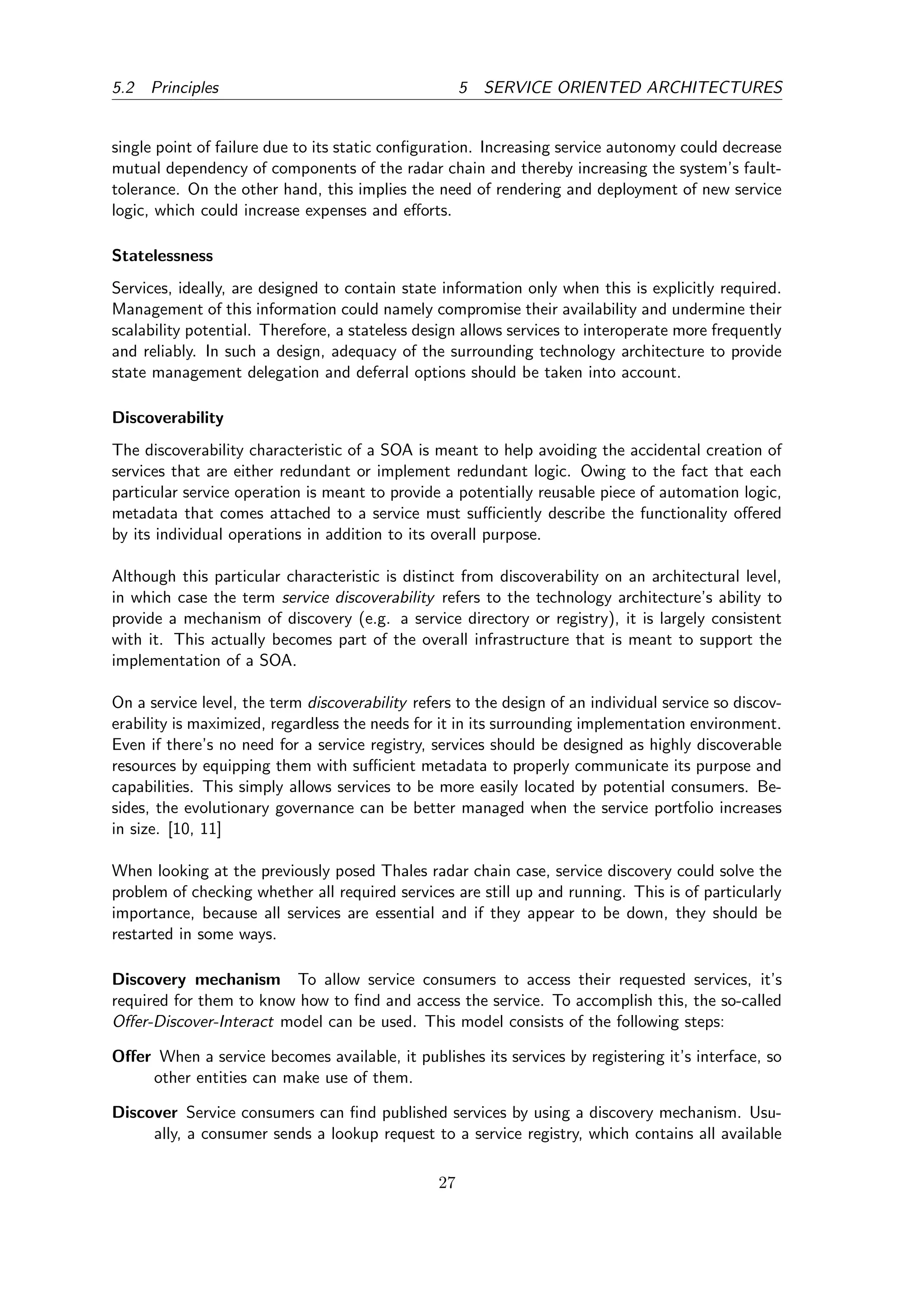

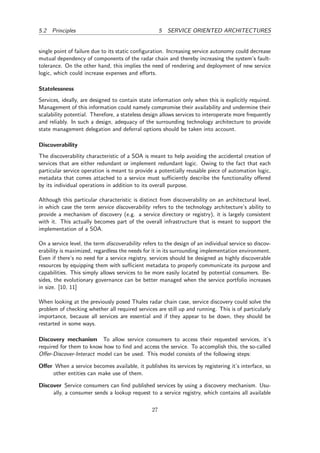

![5.2 Principles 5 SERVICE ORIENTED ARCHITECTURES
single point of failure due to its static configuration. Increasing service autonomy could decrease
mutual dependency of components of the radar chain and thereby increasing the system’s fault-
tolerance. On the other hand, this implies the need of rendering and deployment of new service
logic, which could increase expenses and efforts.
Statelessness
Services, ideally, are designed to contain state information only when this is explicitly required.
Management of this information could namely compromise their availability and undermine their
scalability potential. Therefore, a stateless design allows services to interoperate more frequently
and reliably. In such a design, adequacy of the surrounding technology architecture to provide
state management delegation and deferral options should be taken into account.
Discoverability
The discoverability characteristic of a SOA is meant to help avoiding the accidental creation of
services that are either redundant or implement redundant logic. Owing to the fact that each
particular service operation is meant to provide a potentially reusable piece of automation logic,
metadata that comes attached to a service must sufficiently describe the functionality offered
by its individual operations in addition to its overall purpose.
Although this particular characteristic is distinct from discoverability on an architectural level,
in which case the term service discoverability refers to the technology architecture’s ability to
provide a mechanism of discovery (e.g. a service directory or registry), it is largely consistent
with it. This actually becomes part of the overall infrastructure that is meant to support the
implementation of a SOA.
On a service level, the term discoverability refers to the design of an individual service so discov-
erability is maximized, regardless the needs for it in its surrounding implementation environment.
Even if there’s no need for a service registry, services should be designed as highly discoverable
resources by equipping them with sufficient metadata to properly communicate its purpose and
capabilities. This simply allows services to be more easily located by potential consumers. Be-
sides, the evolutionary governance can be better managed when the service portfolio increases
in size. [10, 11]
When looking at the previously posed Thales radar chain case, service discovery could solve the
problem of checking whether all required services are still up and running. This is of particularly
importance, because all services are essential and if they appear to be down, they should be
restarted in some ways.
Discovery mechanism To allow service consumers to access their requested services, it’s
required for them to know how to find and access the service. To accomplish this, the so-called
Offer-Discover-Interact model can be used. This model consists of the following steps:
Offer When a service becomes available, it publishes its services by registering it’s interface, so
other entities can make use of them.
Discover Service consumers can find published services by using a discovery mechanism. Usu-
ally, a consumer sends a lookup request to a service registry, which contains all available
27](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-28-320.jpg)

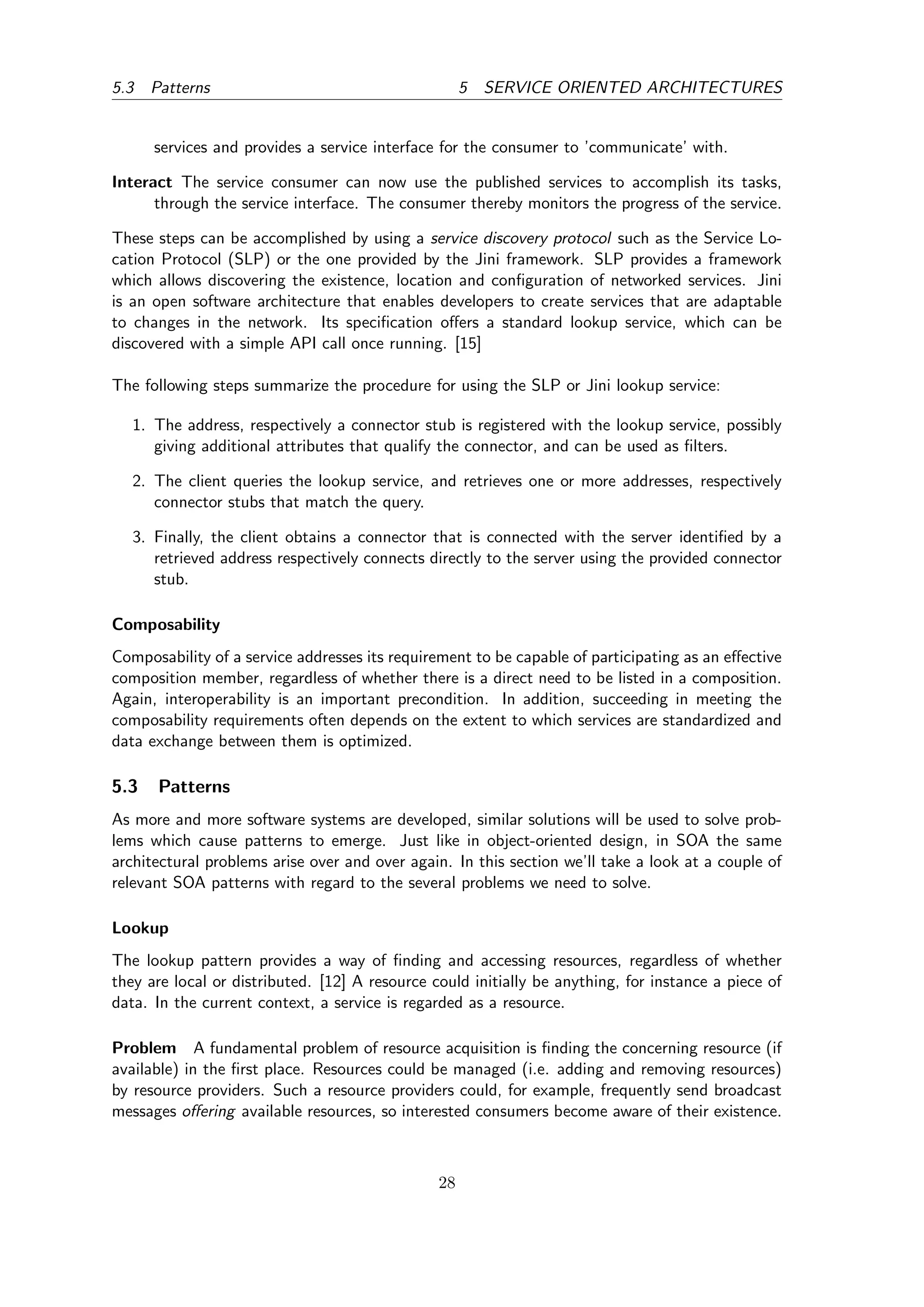

![5.3 Patterns 5 SERVICE ORIENTED ARCHITECTURES
services and provides a service interface for the consumer to ’communicate’ with.
Interact The service consumer can now use the published services to accomplish its tasks,
through the service interface. The consumer thereby monitors the progress of the service.
These steps can be accomplished by using a service discovery protocol such as the Service Lo-
cation Protocol (SLP) or the one provided by the Jini framework. SLP provides a framework
which allows discovering the existence, location and configuration of networked services. Jini
is an open software architecture that enables developers to create services that are adaptable
to changes in the network. Its specification offers a standard lookup service, which can be
discovered with a simple API call once running. [15]
The following steps summarize the procedure for using the SLP or Jini lookup service:
1. The address, respectively a connector stub is registered with the lookup service, possibly
giving additional attributes that qualify the connector, and can be used as filters.
2. The client queries the lookup service, and retrieves one or more addresses, respectively
connector stubs that match the query.
3. Finally, the client obtains a connector that is connected with the server identified by a
retrieved address respectively connects directly to the server using the provided connector
stub.
Composability
Composability of a service addresses its requirement to be capable of participating as an effective
composition member, regardless of whether there is a direct need to be listed in a composition.
Again, interoperability is an important precondition. In addition, succeeding in meeting the
composability requirements often depends on the extent to which services are standardized and
data exchange between them is optimized.
5.3 Patterns
As more and more software systems are developed, similar solutions will be used to solve prob-
lems which cause patterns to emerge. Just like in object-oriented design, in SOA the same
architectural problems arise over and over again. In this section we’ll take a look at a couple of
relevant SOA patterns with regard to the several problems we need to solve.
Lookup
The lookup pattern provides a way of finding and accessing resources, regardless of whether
they are local or distributed. [12] A resource could initially be anything, for instance a piece of
data. In the current context, a service is regarded as a resource.
Problem A fundamental problem of resource acquisition is finding the concerning resource (if
available) in the first place. Resources could be managed (i.e. adding and removing resources)
by resource providers. Such a resource providers could, for example, frequently send broadcast
messages offering available resources, so interested consumers become aware of their existence.
28](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-29-320.jpg)

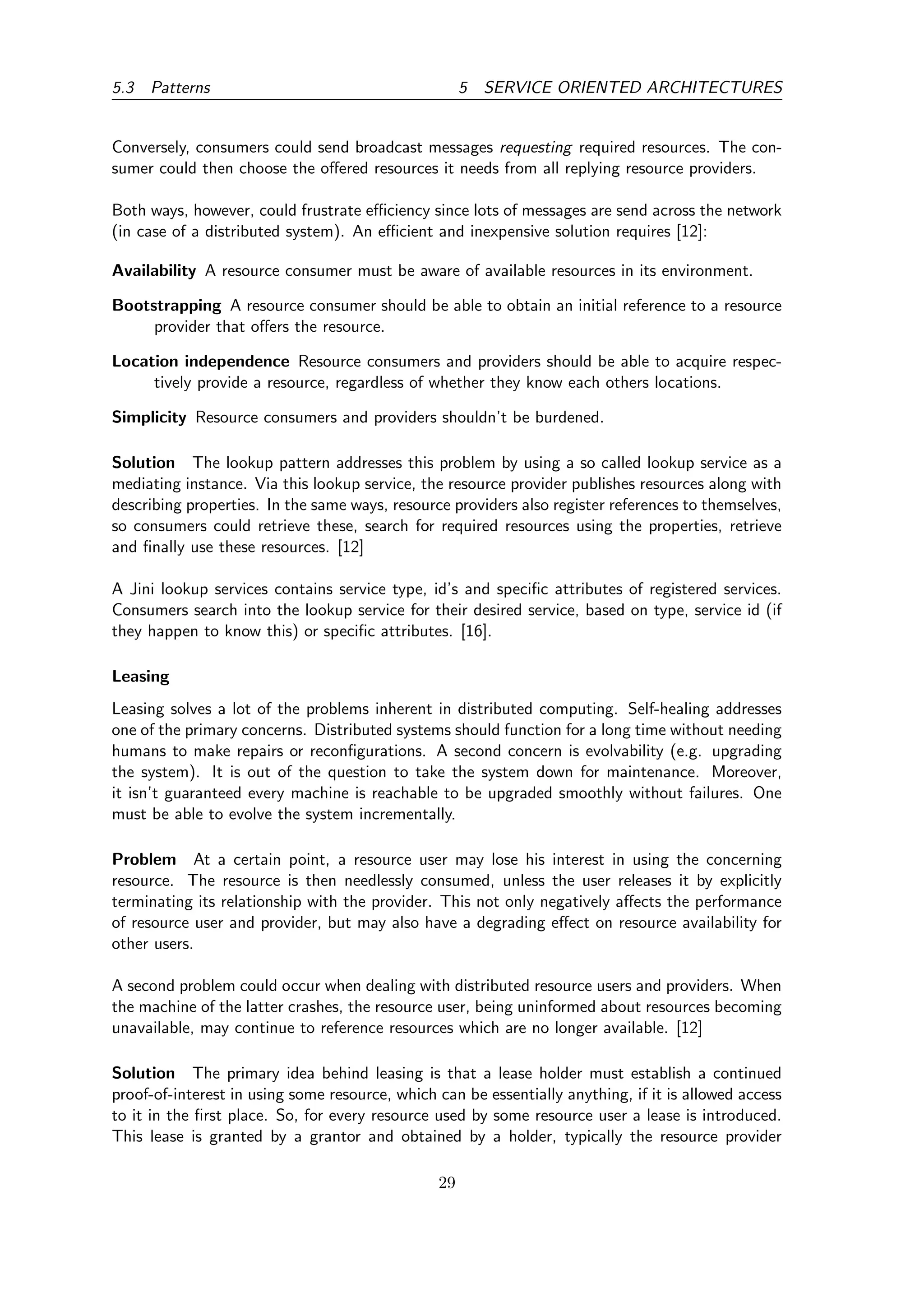

![5.3 Patterns 5 SERVICE ORIENTED ARCHITECTURES
Conversely, consumers could send broadcast messages requesting required resources. The con-
sumer could then choose the offered resources it needs from all replying resource providers.
Both ways, however, could frustrate efficiency since lots of messages are send across the network
(in case of a distributed system). An efficient and inexpensive solution requires [12]:
Availability A resource consumer must be aware of available resources in its environment.
Bootstrapping A resource consumer should be able to obtain an initial reference to a resource
provider that offers the resource.
Location independence Resource consumers and providers should be able to acquire respec-
tively provide a resource, regardless of whether they know each others locations.
Simplicity Resource consumers and providers shouldn’t be burdened.
Solution The lookup pattern addresses this problem by using a so called lookup service as a
mediating instance. Via this lookup service, the resource provider publishes resources along with
describing properties. In the same ways, resource providers also register references to themselves,
so consumers could retrieve these, search for required resources using the properties, retrieve
and finally use these resources. [12]
A Jini lookup services contains service type, id’s and specific attributes of registered services.
Consumers search into the lookup service for their desired service, based on type, service id (if
they happen to know this) or specific attributes. [16].
Leasing
Leasing solves a lot of the problems inherent in distributed computing. Self-healing addresses
one of the primary concerns. Distributed systems should function for a long time without needing
humans to make repairs or reconfigurations. A second concern is evolvability (e.g. upgrading
the system). It is out of the question to take the system down for maintenance. Moreover,
it isn’t guaranteed every machine is reachable to be upgraded smoothly without failures. One
must be able to evolve the system incrementally.
Problem At a certain point, a resource user may lose his interest in using the concerning
resource. The resource is then needlessly consumed, unless the user releases it by explicitly
terminating its relationship with the provider. This not only negatively affects the performance
of resource user and provider, but may also have a degrading effect on resource availability for
other users.
A second problem could occur when dealing with distributed resource users and providers. When
the machine of the latter crashes, the resource user, being uninformed about resources becoming
unavailable, may continue to reference resources which are no longer available. [12]
Solution The primary idea behind leasing is that a lease holder must establish a continued
proof-of-interest in using some resource, which can be essentially anything, if it is allowed access
to it in the first place. So, for every resource used by some resource user a lease is introduced.
This lease is granted by a grantor and obtained by a holder, typically the resource provider
29](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-30-320.jpg)

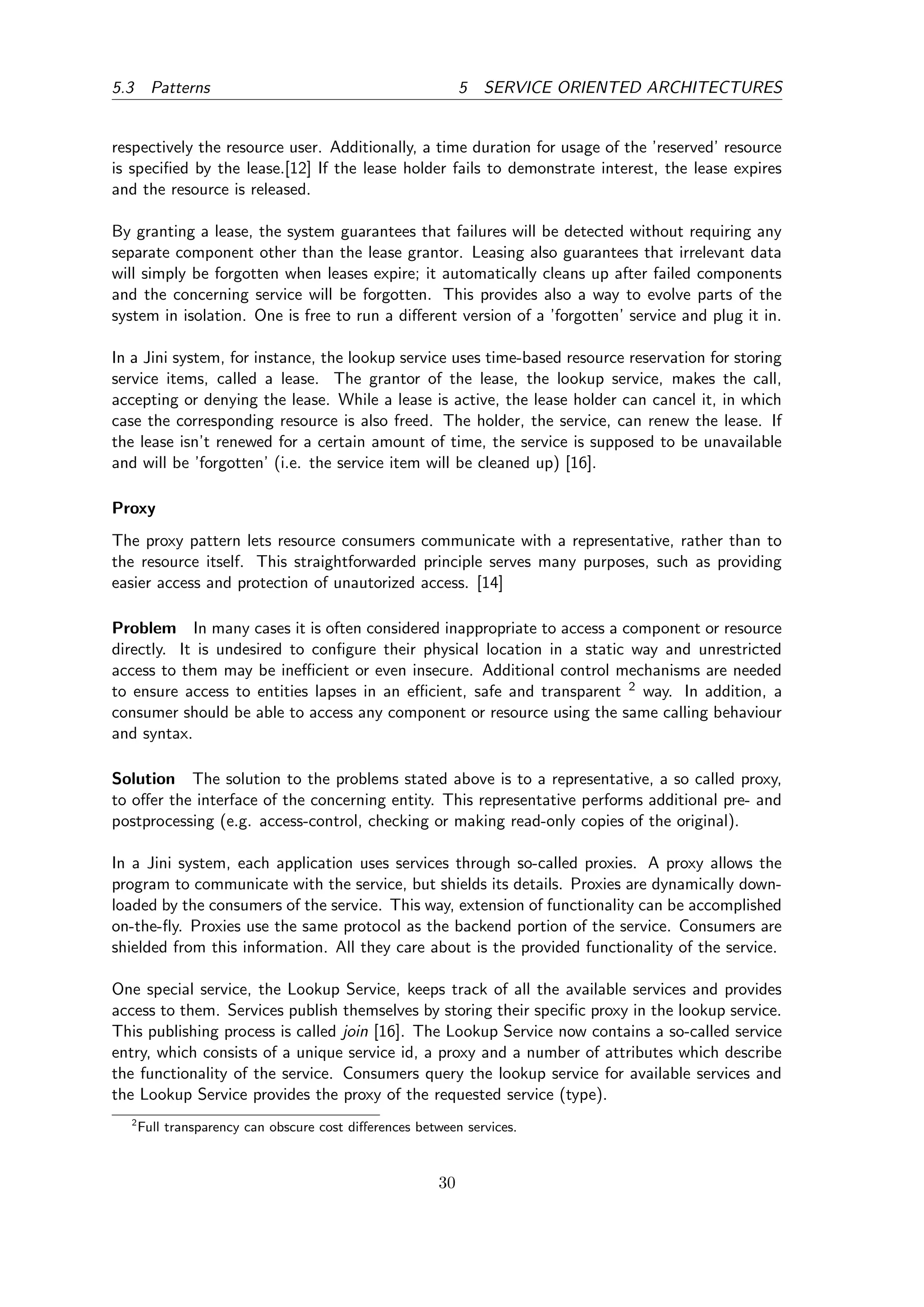

![5.3 Patterns 5 SERVICE ORIENTED ARCHITECTURES
respectively the resource user. Additionally, a time duration for usage of the ’reserved’ resource
is specified by the lease.[12] If the lease holder fails to demonstrate interest, the lease expires
and the resource is released.
By granting a lease, the system guarantees that failures will be detected without requiring any
separate component other than the lease grantor. Leasing also guarantees that irrelevant data
will simply be forgotten when leases expire; it automatically cleans up after failed components
and the concerning service will be forgotten. This provides also a way to evolve parts of the
system in isolation. One is free to run a different version of a ’forgotten’ service and plug it in.
In a Jini system, for instance, the lookup service uses time-based resource reservation for storing
service items, called a lease. The grantor of the lease, the lookup service, makes the call,
accepting or denying the lease. While a lease is active, the lease holder can cancel it, in which
case the corresponding resource is also freed. The holder, the service, can renew the lease. If
the lease isn’t renewed for a certain amount of time, the service is supposed to be unavailable
and will be ’forgotten’ (i.e. the service item will be cleaned up) [16].
Proxy
The proxy pattern lets resource consumers communicate with a representative, rather than to
the resource itself. This straightforwarded principle serves many purposes, such as providing
easier access and protection of unautorized access. [14]
Problem In many cases it is often considered inappropriate to access a component or resource
directly. It is undesired to configure their physical location in a static way and unrestricted
access to them may be inefficient or even insecure. Additional control mechanisms are needed
to ensure access to entities lapses in an efficient, safe and transparent 2 way. In addition, a
consumer should be able to access any component or resource using the same calling behaviour
and syntax.
Solution The solution to the problems stated above is to a representative, a so called proxy,
to offer the interface of the concerning entity. This representative performs additional pre- and
postprocessing (e.g. access-control, checking or making read-only copies of the original).
In a Jini system, each application uses services through so-called proxies. A proxy allows the
program to communicate with the service, but shields its details. Proxies are dynamically down-
loaded by the consumers of the service. This way, extension of functionality can be accomplished
on-the-fly. Proxies use the same protocol as the backend portion of the service. Consumers are
shielded from this information. All they care about is the provided functionality of the service.
One special service, the Lookup Service, keeps track of all the available services and provides
access to them. Services publish themselves by storing their specific proxy in the lookup service.
This publishing process is called join [16]. The Lookup Service now contains a so-called service
entry, which consists of a unique service id, a proxy and a number of attributes which describe
the functionality of the service. Consumers query the lookup service for available services and
the Lookup Service provides the proxy of the requested service (type).
2
Full transparency can obscure cost differences between services.
30](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-31-320.jpg)

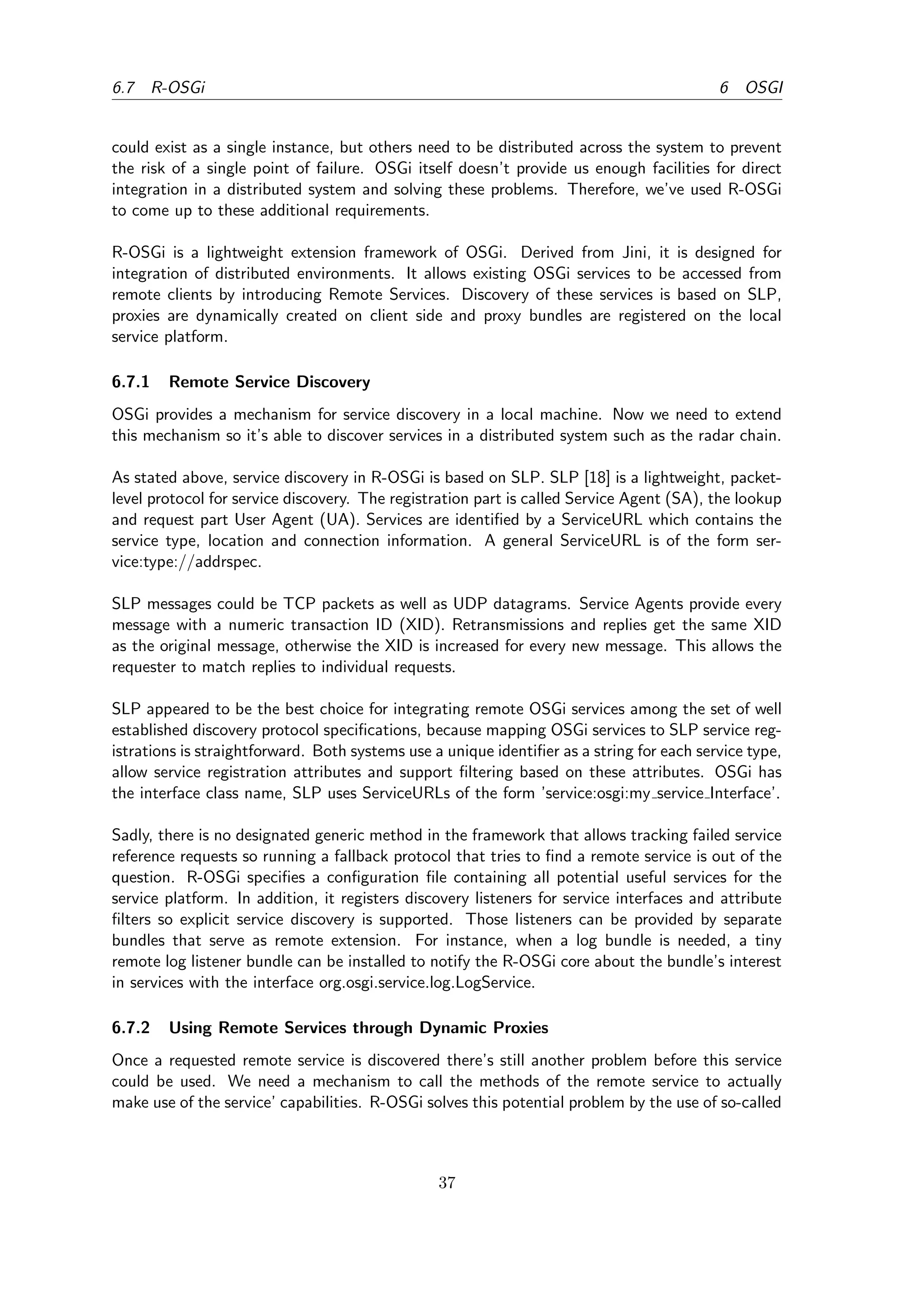

![6.7 R-OSGi 6 OSGI
could exist as a single instance, but others need to be distributed across the system to prevent
the risk of a single point of failure. OSGi itself doesn’t provide us enough facilities for direct
integration in a distributed system and solving these problems. Therefore, we’ve used R-OSGi
to come up to these additional requirements.
R-OSGi is a lightweight extension framework of OSGi. Derived from Jini, it is designed for
integration of distributed environments. It allows existing OSGi services to be accessed from
remote clients by introducing Remote Services. Discovery of these services is based on SLP,
proxies are dynamically created on client side and proxy bundles are registered on the local
service platform.
6.7.1 Remote Service Discovery
OSGi provides a mechanism for service discovery in a local machine. Now we need to extend
this mechanism so it’s able to discover services in a distributed system such as the radar chain.
As stated above, service discovery in R-OSGi is based on SLP. SLP [18] is a lightweight, packet-
level protocol for service discovery. The registration part is called Service Agent (SA), the lookup
and request part User Agent (UA). Services are identified by a ServiceURL which contains the
service type, location and connection information. A general ServiceURL is of the form ser-
vice:type://addrspec.
SLP messages could be TCP packets as well as UDP datagrams. Service Agents provide every
message with a numeric transaction ID (XID). Retransmissions and replies get the same XID
as the original message, otherwise the XID is increased for every new message. This allows the
requester to match replies to individual requests.
SLP appeared to be the best choice for integrating remote OSGi services among the set of well
established discovery protocol specifications, because mapping OSGi services to SLP service reg-
istrations is straightforward. Both systems use a unique identifier as a string for each service type,
allow service registration attributes and support filtering based on these attributes. OSGi has
the interface class name, SLP uses ServiceURLs of the form ’service:osgi:my service Interface’.
Sadly, there is no designated generic method in the framework that allows tracking failed service
reference requests so running a fallback protocol that tries to find a remote service is out of the
question. R-OSGi specifies a configuration file containing all potential useful services for the
service platform. In addition, it registers discovery listeners for service interfaces and attribute
filters so explicit service discovery is supported. Those listeners can be provided by separate
bundles that serve as remote extension. For instance, when a log bundle is needed, a tiny
remote log listener bundle can be installed to notify the R-OSGi core about the bundle’s interest
in services with the interface org.osgi.service.log.LogService.
6.7.2 Using Remote Services through Dynamic Proxies
Once a requested remote service is discovered there’s still another problem before this service
could be used. We need a mechanism to call the methods of the remote service to actually
make use of the service’ capabilities. R-OSGi solves this potential problem by the use of so-called
37](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-38-320.jpg)

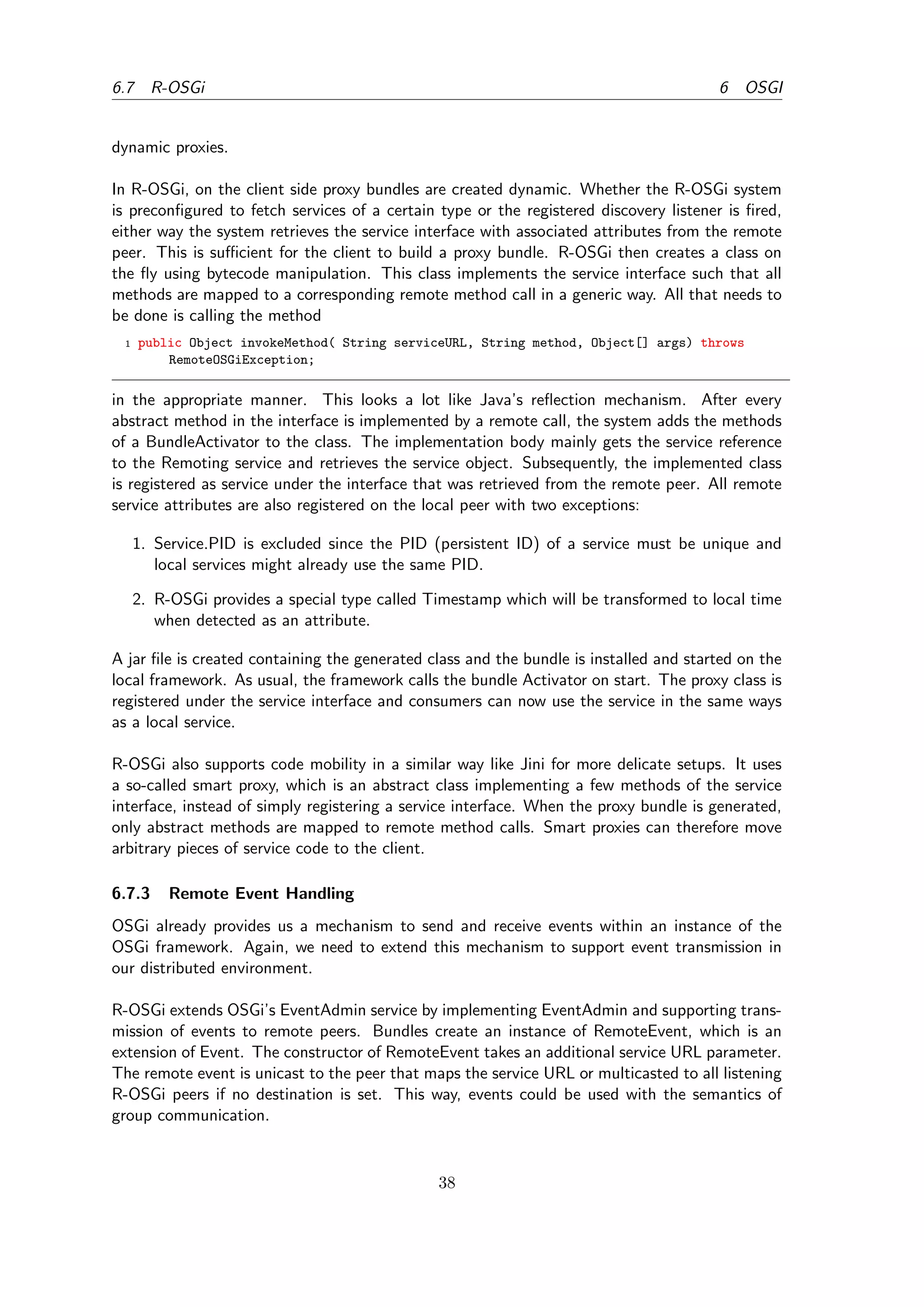

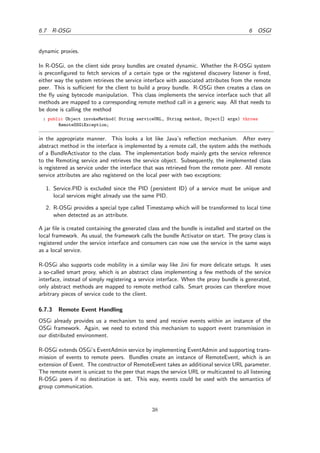

![6.7 R-OSGi 6 OSGI
dynamic proxies.
In R-OSGi, on the client side proxy bundles are created dynamic. Whether the R-OSGi system
is preconfigured to fetch services of a certain type or the registered discovery listener is fired,
either way the system retrieves the service interface with associated attributes from the remote
peer. This is sufficient for the client to build a proxy bundle. R-OSGi then creates a class on
the fly using bytecode manipulation. This class implements the service interface such that all
methods are mapped to a corresponding remote method call in a generic way. All that needs to
be done is calling the method
1 public Object invokeMethod( String serviceURL, String method, Object[] args) throws
RemoteOSGiException;
in the appropriate manner. This looks a lot like Java’s reflection mechanism. After every
abstract method in the interface is implemented by a remote call, the system adds the methods
of a BundleActivator to the class. The implementation body mainly gets the service reference
to the Remoting service and retrieves the service object. Subsequently, the implemented class
is registered as service under the interface that was retrieved from the remote peer. All remote
service attributes are also registered on the local peer with two exceptions:
1. Service.PID is excluded since the PID (persistent ID) of a service must be unique and
local services might already use the same PID.
2. R-OSGi provides a special type called Timestamp which will be transformed to local time
when detected as an attribute.
A jar file is created containing the generated class and the bundle is installed and started on the
local framework. As usual, the framework calls the bundle Activator on start. The proxy class is
registered under the service interface and consumers can now use the service in the same ways
as a local service.
R-OSGi also supports code mobility in a similar way like Jini for more delicate setups. It uses
a so-called smart proxy, which is an abstract class implementing a few methods of the service
interface, instead of simply registering a service interface. When the proxy bundle is generated,
only abstract methods are mapped to remote method calls. Smart proxies can therefore move
arbitrary pieces of service code to the client.
6.7.3 Remote Event Handling
OSGi already provides us a mechanism to send and receive events within an instance of the
OSGi framework. Again, we need to extend this mechanism to support event transmission in
our distributed environment.
R-OSGi extends OSGi’s EventAdmin service by implementing EventAdmin and supporting trans-
mission of events to remote peers. Bundles create an instance of RemoteEvent, which is an
extension of Event. The constructor of RemoteEvent takes an additional service URL parameter.
The remote event is unicast to the peer that maps the service URL or multicasted to all listening
R-OSGi peers if no destination is set. This way, events could be used with the semantics of
group communication.
38](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-39-320.jpg)
![REFERENCES REFERENCES

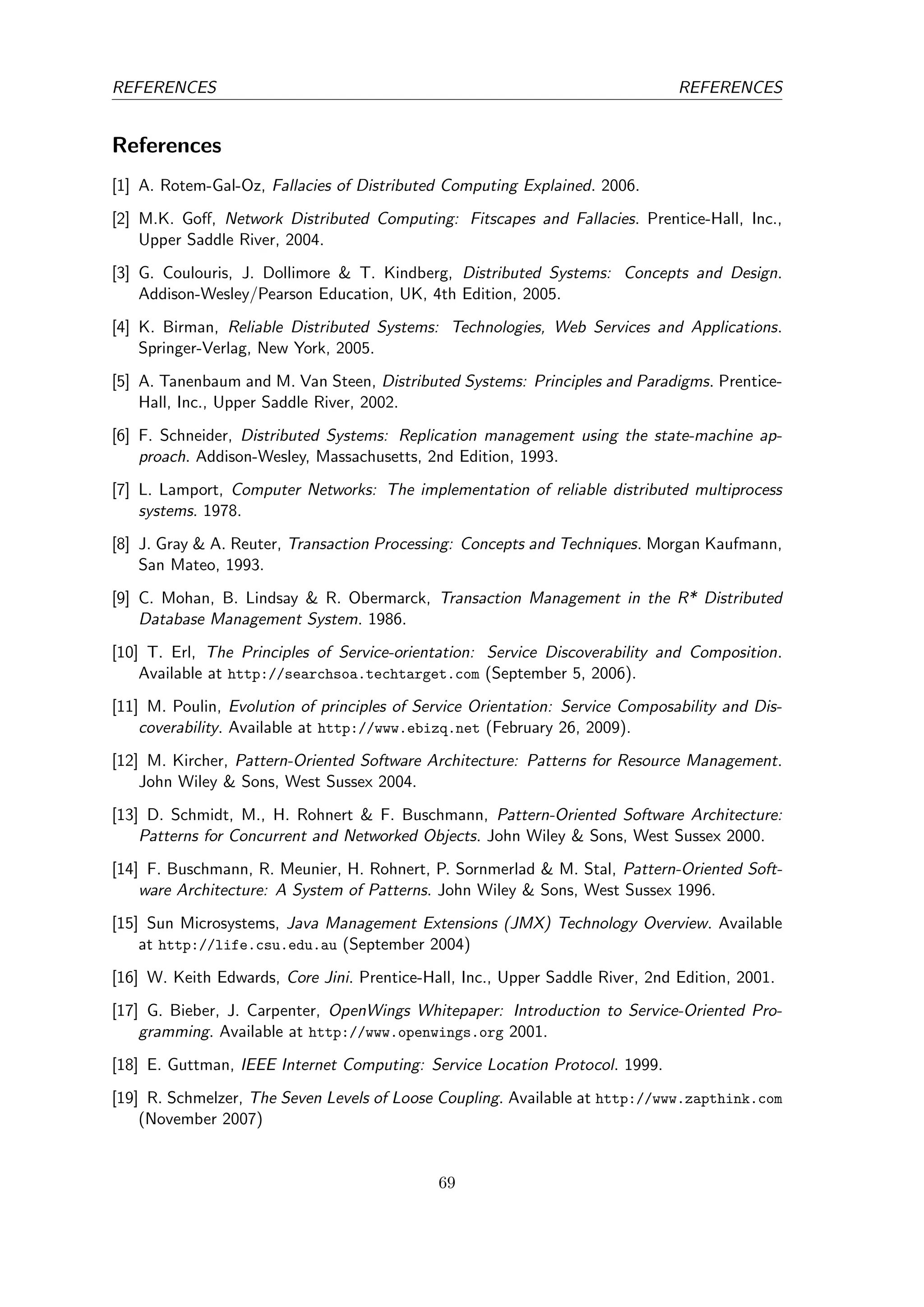

References
[1] A. Rotem-Gal-Oz, Fallacies of Distributed Computing Explained. 2006.
[2] M.K. Goff, Network Distributed Computing: Fitscapes and Fallacies. Prentice-Hall, Inc.,
Upper Saddle River, 2004.
[3] G. Coulouris, J. Dollimore & T. Kindberg, Distributed Systems: Concepts and Design.
Addison-Wesley/Pearson Education, UK, 4th Edition, 2005.
[4] K. Birman, Reliable Distributed Systems: Technologies, Web Services and Applications.
Springer-Verlag, New York, 2005.
[5] A. Tanenbaum and M. Van Steen, Distributed Systems: Principles and Paradigms. Prentice-
Hall, Inc., Upper Saddle River, 2002.
[6] F. Schneider, Distributed Systems: Replication management using the state-machine ap-
proach. Addison-Wesley, Massachusetts, 2nd Edition, 1993.
[7] L. Lamport, Computer Networks: The implementation of reliable distributed multiprocess
systems. 1978.
[8] J. Gray & A. Reuter, Transaction Processing: Concepts and Techniques. Morgan Kaufmann,
San Mateo, 1993.
[9] C. Mohan, B. Lindsay & R. Obermarck, Transaction Management in the R* Distributed
Database Management System. 1986.
[10] T. Erl, The Principles of Service-orientation: Service Discoverability and Composition.
Available at http://searchsoa.techtarget.com (September 5, 2006).
[11] M. Poulin, Evolution of principles of Service Orientation: Service Composability and Dis-
coverability. Available at http://www.ebizq.net (February 26, 2009).
[12] M. Kircher, Pattern-Oriented Software Architecture: Patterns for Resource Management.
John Wiley & Sons, West Sussex 2004.
[13] D. Schmidt, M., H. Rohnert & F. Buschmann, Pattern-Oriented Software Architecture:
Patterns for Concurrent and Networked Objects. John Wiley & Sons, West Sussex 2000.
[14] F. Buschmann, R. Meunier, H. Rohnert, P. Sornmerlad & M. Stal, Pattern-Oriented Soft-
ware Architecture: A System of Patterns. John Wiley & Sons, West Sussex 1996.
[15] Sun Microsystems, Java Management Extensions (JMX) Technology Overview. Available
at http://life.csu.edu.au (September 2004)
[16] W. Keith Edwards, Core Jini. Prentice-Hall, Inc., Upper Saddle River, 2nd Edition, 2001.
[17] G. Bieber, J. Carpenter, OpenWings Whitepaper: Introduction to Service-Oriented Pro-
gramming. Available at http://www.openwings.org 2001.
[18] E. Guttman, IEEE Internet Computing: Service Location Protocol. 1999.
[19] R. Schmelzer, The Seven Levels of Loose Coupling. Available at http://www.zapthink.com
(November 2007)
69](https://image.slidesharecdn.com/thesis-091222042816-phpapp01/85/Dynamic-System-Configuration-using-SOA-70-320.jpg)
Uploaded byJeroen Rosenberg
Dynamic System Configuration using SOA
This thesis explores the dynamic configuration of distributed systems at Thales, focusing on the processing of radar signals. It addresses the limitations of static mapping of software to hardware components, which can render the system inoperative during failures, and proposes a solution using Service-Oriented Architecture (SOA) principles to enhance fault tolerance and system functionality. The implementation utilizes an SOA-based OSGI framework, allowing for dynamic reconfiguration and improved system resilience in distributed environments.
Dynamic System Configuration using SOA

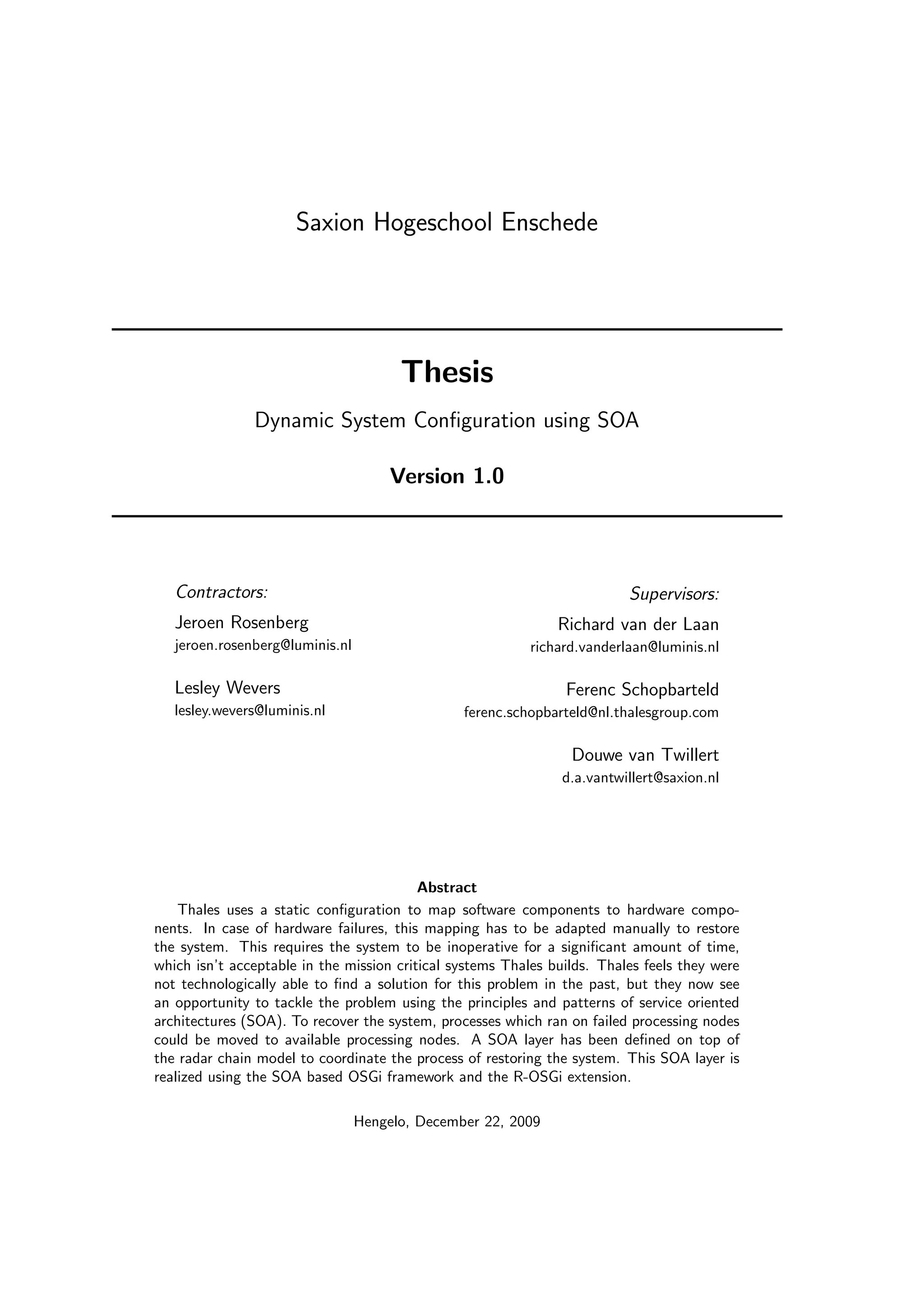

- 1. Saxion Hogeschool Enschede Thesis Dynamic System Configuration using SOA Version 1.0 Contractors: Supervisors: Jeroen Rosenberg Richard van der Laan jeroen.rosenberg@luminis.nl richard.vanderlaan@luminis.nl Lesley Wevers Ferenc Schopbarteld lesley.wevers@luminis.nl ferenc.schopbarteld@nl.thalesgroup.com Douwe van Twillert d.a.vantwillert@saxion.nl Abstract Thales uses a static configuration to map software components to hardware compo- nents. In case of hardware failures, this mapping has to be adapted manually to restore the system. This requires the system to be inoperative for a significant amount of time, which isn’t acceptable in the mission critical systems Thales builds. Thales feels they were not technologically able to find a solution for this problem in the past, but they now see an opportunity to tackle the problem using the principles and patterns of service oriented architectures (SOA). To recover the system, processes which ran on failed processing nodes could be moved to available processing nodes. A SOA layer has been defined on top of the radar chain model to coordinate the process of restoring the system. This SOA layer is realized using the SOA based OSGi framework and the R-OSGi extension. Hengelo, December 22, 2009
- 2. Change log Version Date Modifications 0.1 2009-02-09 Initial version 0.2 2009-03-13 Distributed Systems, SOA characteristics 0.3 2009-04-17 Case Study Radar Chain Case, SOA principles and patterns 0.4 2009-05-08 Introduction, Systematic Approach chapter 0.5 2009-05-25 Background, Assignment, Problem Analysis, Solution, Design and Implementation 1.0 2009-06-01 Summary, Conclusion, Retrospective 1

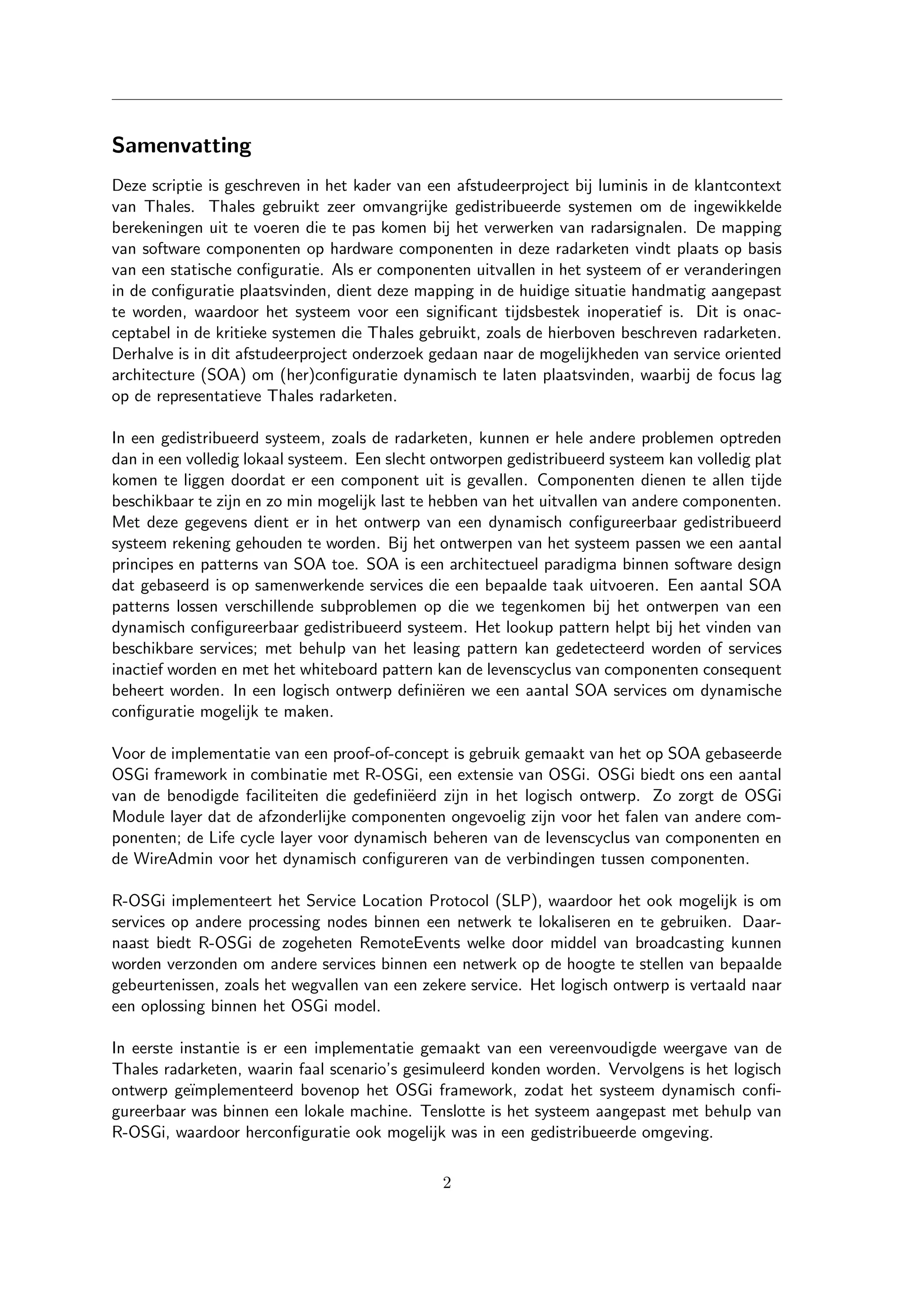

- 3. Samenvatting Deze scriptie isgeschreven in het kader van een afstudeerproject bij luminis in de klantcontext van Thales. Thales gebruikt zeer omvangrijke gedistribueerde systemen om de ingewikkelde berekeningen uit te voeren die te pas komen bij het verwerken van radarsignalen. De mapping van software componenten op hardware componenten in deze radarketen vindt plaats op basis van een statische configuratie. Als er componenten uitvallen in het systeem of er veranderingen in de configuratie plaatsvinden, dient deze mapping in de huidige situatie handmatig aangepast te worden, waardoor het systeem voor een significant tijdsbestek inoperatief is. Dit is onac- ceptabel in de kritieke systemen die Thales gebruikt, zoals de hierboven beschreven radarketen. Derhalve is in dit afstudeerproject onderzoek gedaan naar de mogelijkheden van service oriented architecture (SOA) om (her)configuratie dynamisch te laten plaatsvinden, waarbij de focus lag op de representatieve Thales radarketen. In een gedistribueerd systeem, zoals de radarketen, kunnen er hele andere problemen optreden dan in een volledig lokaal systeem. Een slecht ontworpen gedistribueerd systeem kan volledig plat komen te liggen doordat er een component uit is gevallen. Componenten dienen te allen tijde beschikbaar te zijn en zo min mogelijk last te hebben van het uitvallen van andere componenten. Met deze gegevens dient er in het ontwerp van een dynamisch configureerbaar gedistribueerd systeem rekening gehouden te worden. Bij het ontwerpen van het systeem passen we een aantal principes en patterns van SOA toe. SOA is een architectueel paradigma binnen software design dat gebaseerd is op samenwerkende services die een bepaalde taak uitvoeren. Een aantal SOA patterns lossen verschillende subproblemen op die we tegenkomen bij het ontwerpen van een dynamisch configureerbaar gedistribueerd systeem. Het lookup pattern helpt bij het vinden van beschikbare services; met behulp van het leasing pattern kan gedetecteerd worden of services inactief worden en met het whiteboard pattern kan de levenscyclus van componenten consequent beheert worden. In een logisch ontwerp defini¨ren we een aantal SOA services om dynamische e configuratie mogelijk te maken. Voor de implementatie van een proof-of-concept is gebruik gemaakt van het op SOA gebaseerde OSGi framework in combinatie met R-OSGi, een extensie van OSGi. OSGi biedt ons een aantal van de benodigde faciliteiten die gedefini¨erd zijn in het logisch ontwerp. Zo zorgt de OSGi e Module layer dat de afzonderlijke componenten ongevoelig zijn voor het falen van andere com- ponenten; de Life cycle layer voor dynamisch beheren van de levenscyclus van componenten en de WireAdmin voor het dynamisch configureren van de verbindingen tussen componenten. R-OSGi implementeert het Service Location Protocol (SLP), waardoor het ook mogelijk is om services op andere processing nodes binnen een netwerk te lokaliseren en te gebruiken. Daar- naast biedt R-OSGi de zogeheten RemoteEvents welke door middel van broadcasting kunnen worden verzonden om andere services binnen een netwerk op de hoogte te stellen van bepaalde gebeurtenissen, zoals het wegvallen van een zekere service. Het logisch ontwerp is vertaald naar een oplossing binnen het OSGi model. In eerste instantie is er een implementatie gemaakt van een vereenvoudigde weergave van de Thales radarketen, waarin faal scenario’s gesimuleerd konden worden. Vervolgens is het logisch ontwerp ge¨ ımplementeerd bovenop het OSGi framework, zodat het systeem dynamisch confi- gureerbaar was binnen een lokale machine. Tenslotte is het systeem aangepast met behulp van R-OSGi, waardoor herconfiguratie ook mogelijk was in een gedistribueerde omgeving. 2

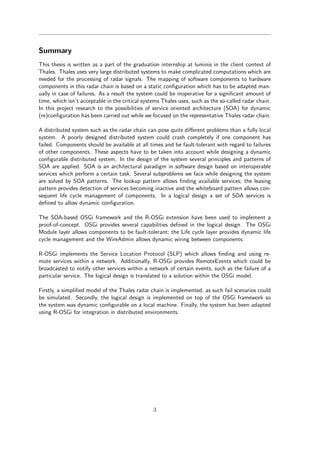

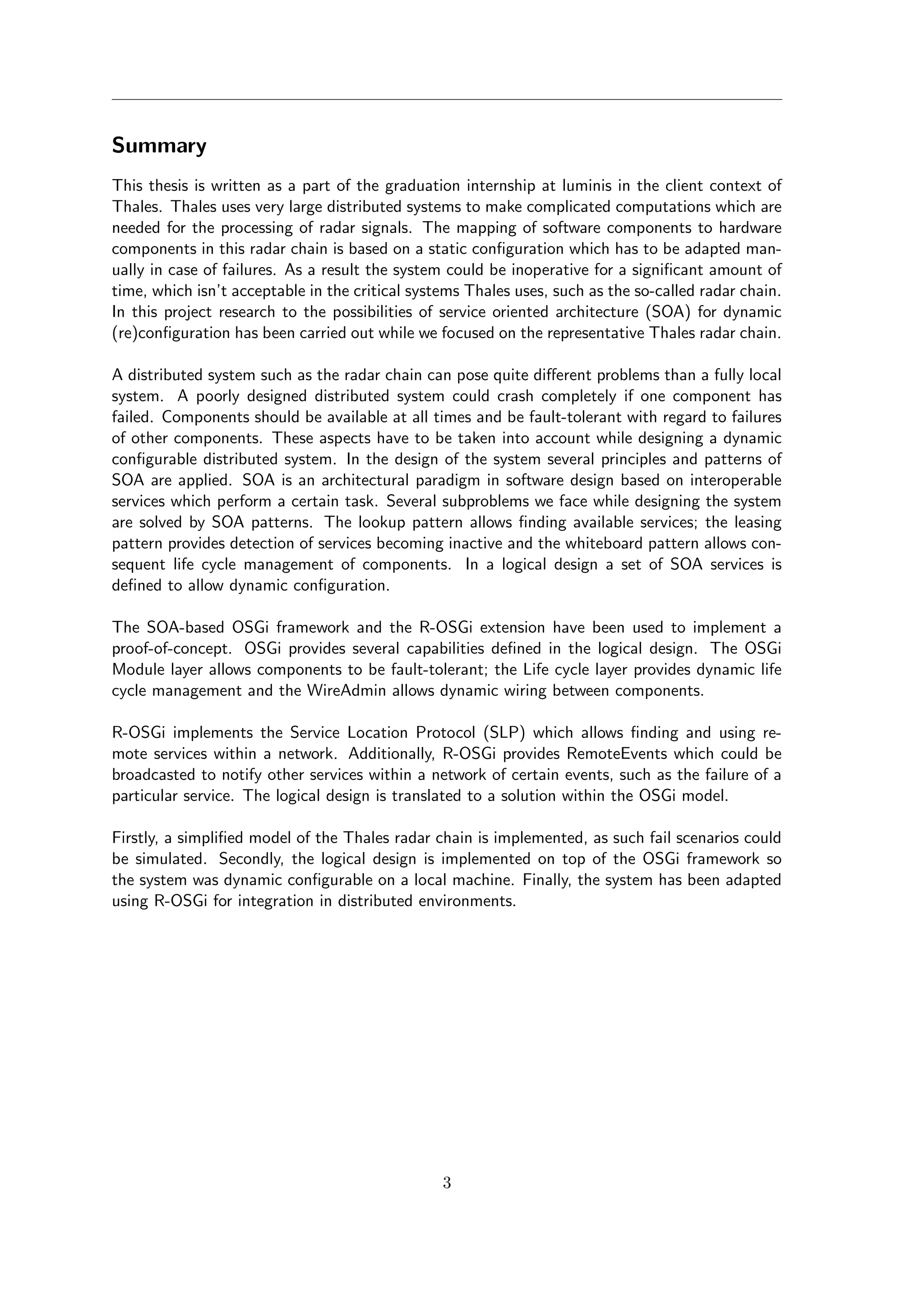

- 4. Summary This thesis iswritten as a part of the graduation internship at luminis in the client context of Thales. Thales uses very large distributed systems to make complicated computations which are needed for the processing of radar signals. The mapping of software components to hardware components in this radar chain is based on a static configuration which has to be adapted man- ually in case of failures. As a result the system could be inoperative for a significant amount of time, which isn’t acceptable in the critical systems Thales uses, such as the so-called radar chain. In this project research to the possibilities of service oriented architecture (SOA) for dynamic (re)configuration has been carried out while we focused on the representative Thales radar chain. A distributed system such as the radar chain can pose quite different problems than a fully local system. A poorly designed distributed system could crash completely if one component has failed. Components should be available at all times and be fault-tolerant with regard to failures of other components. These aspects have to be taken into account while designing a dynamic configurable distributed system. In the design of the system several principles and patterns of SOA are applied. SOA is an architectural paradigm in software design based on interoperable services which perform a certain task. Several subproblems we face while designing the system are solved by SOA patterns. The lookup pattern allows finding available services; the leasing pattern provides detection of services becoming inactive and the whiteboard pattern allows con- sequent life cycle management of components. In a logical design a set of SOA services is defined to allow dynamic configuration. The SOA-based OSGi framework and the R-OSGi extension have been used to implement a proof-of-concept. OSGi provides several capabilities defined in the logical design. The OSGi Module layer allows components to be fault-tolerant; the Life cycle layer provides dynamic life cycle management and the WireAdmin allows dynamic wiring between components. R-OSGi implements the Service Location Protocol (SLP) which allows finding and using re- mote services within a network. Additionally, R-OSGi provides RemoteEvents which could be broadcasted to notify other services within a network of certain events, such as the failure of a particular service. The logical design is translated to a solution within the OSGi model. Firstly, a simplified model of the Thales radar chain is implemented, as such fail scenarios could be simulated. Secondly, the logical design is implemented on top of the OSGi framework so the system was dynamic configurable on a local machine. Finally, the system has been adapted using R-OSGi for integration in distributed environments. 3

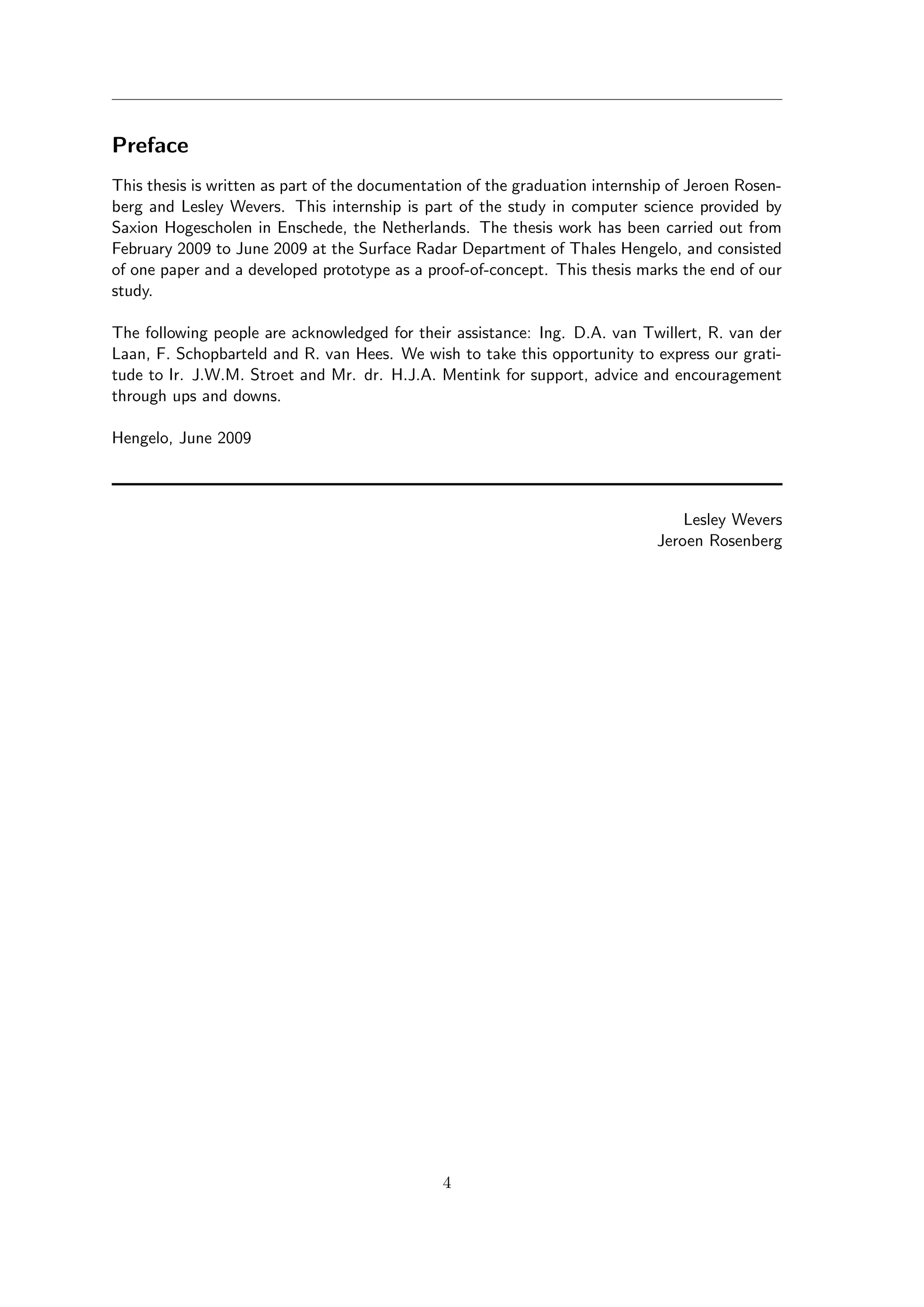

- 5. Preface This thesis iswritten as part of the documentation of the graduation internship of Jeroen Rosen- berg and Lesley Wevers. This internship is part of the study in computer science provided by Saxion Hogescholen in Enschede, the Netherlands. The thesis work has been carried out from February 2009 to June 2009 at the Surface Radar Department of Thales Hengelo, and consisted of one paper and a developed prototype as a proof-of-concept. This thesis marks the end of our study. The following people are acknowledged for their assistance: Ing. D.A. van Twillert, R. van der Laan, F. Schopbarteld and R. van Hees. We wish to take this opportunity to express our grati- tude to Ir. J.W.M. Stroet and Mr. dr. H.J.A. Mentink for support, advice and encouragement through ups and downs. Hengelo, June 2009 Lesley Wevers Jeroen Rosenberg 4

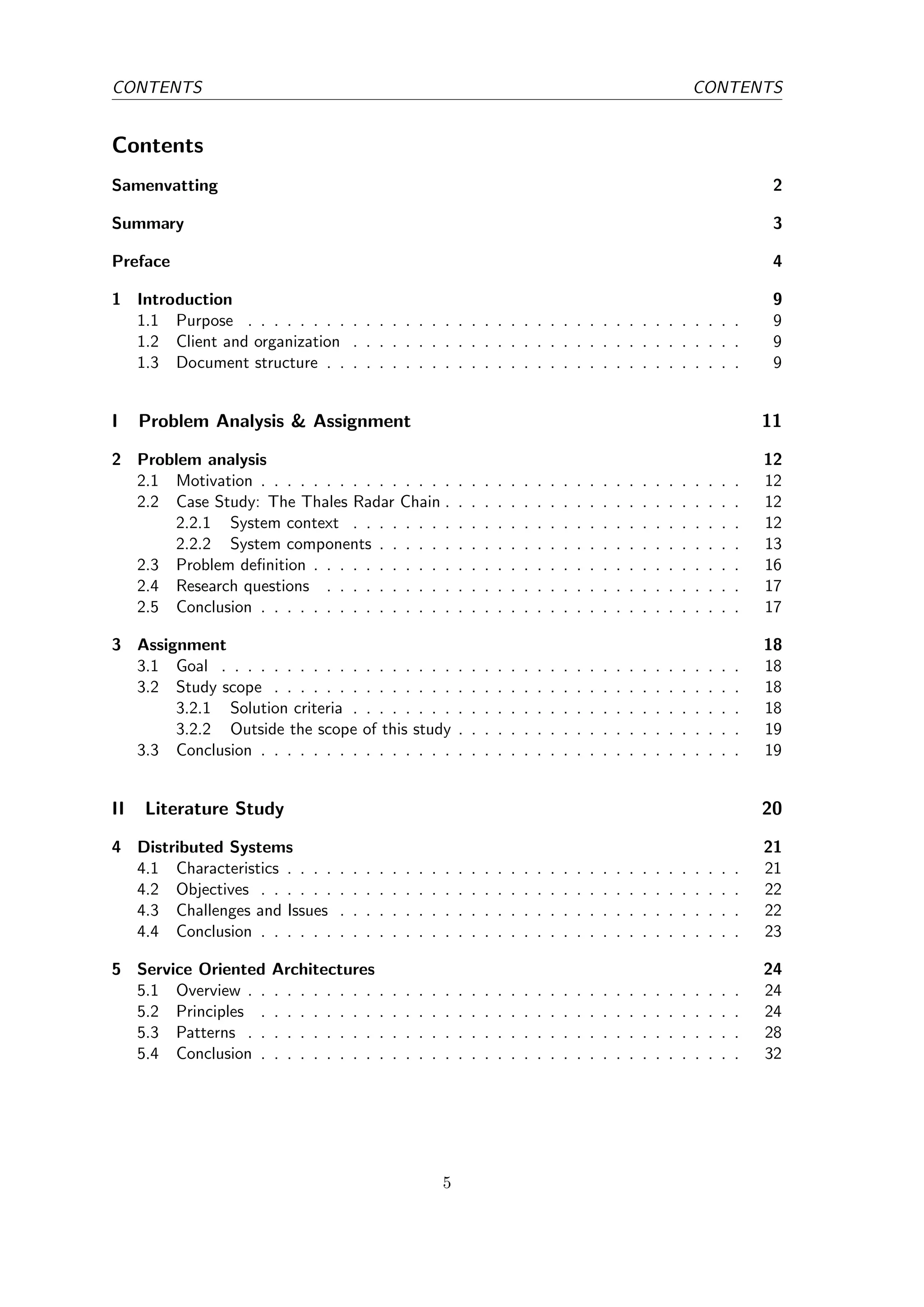

- 6. CONTENTS CONTENTS Contents Samenvatting 2 Summary 3 Preface 4 1 Introduction 9 1.1 Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.2 Client and organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.3 Document structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 I Problem Analysis & Assignment 11 2 Problem analysis 12 2.1 Motivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2.2 Case Study: The Thales Radar Chain . . . . . . . . . . . . . . . . . . . . . . . 12 2.2.1 System context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2.2.2 System components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.3 Problem definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.4 Research questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.5 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3 Assignment 18 3.1 Goal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.2 Study scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.2.1 Solution criteria . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3.2.2 Outside the scope of this study . . . . . . . . . . . . . . . . . . . . . . 19 3.3 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 II Literature Study 20 4 Distributed Systems 21 4.1 Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 4.2 Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 4.3 Challenges and Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 4.4 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 5 Service Oriented Architectures 24 5.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 5.2 Principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 5.3 Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 5.4 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 5

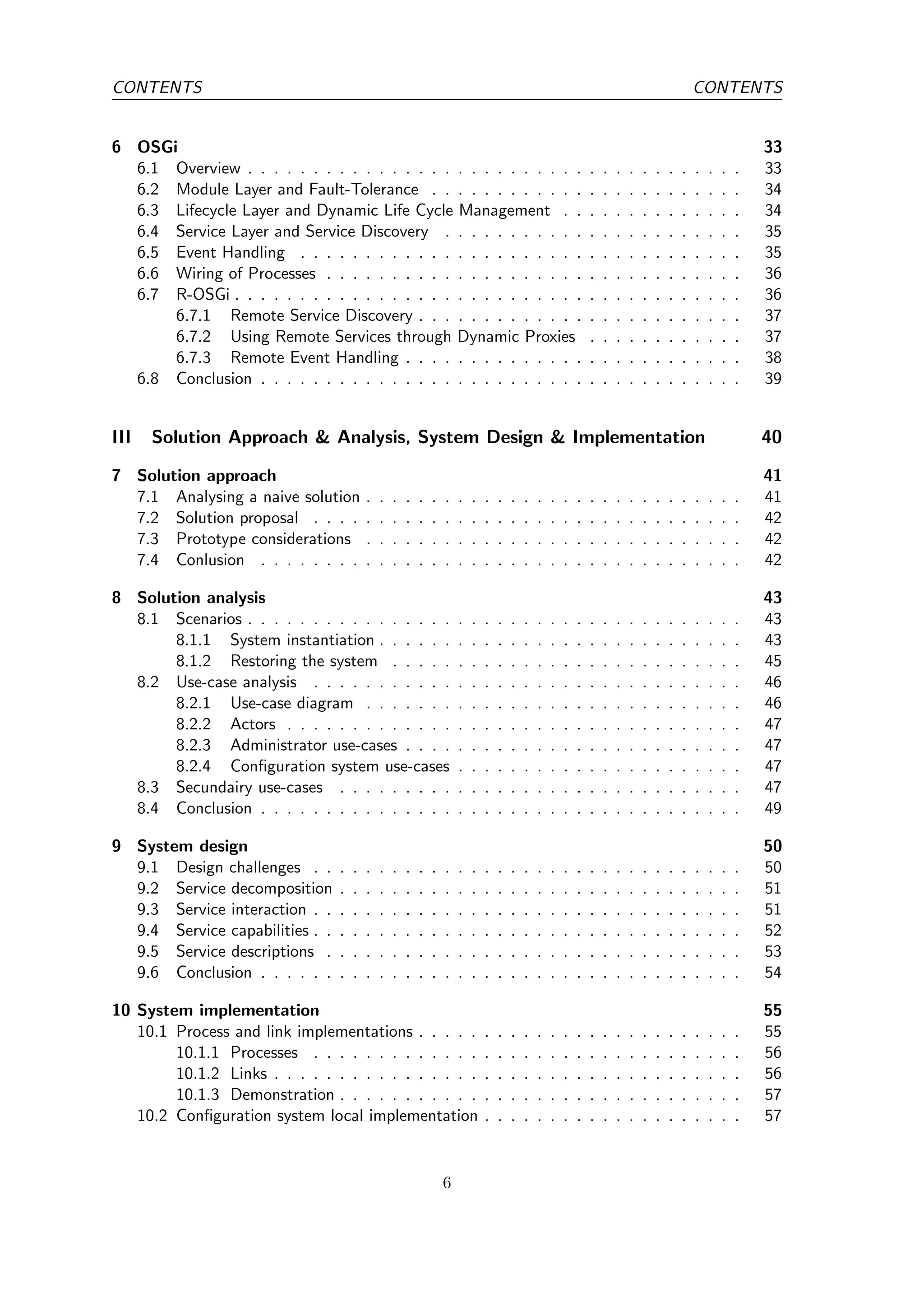

- 7. CONTENTS CONTENTS 6 OSGi 33 6.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 6.2 Module Layer and Fault-Tolerance . . . . . . . . . . . . . . . . . . . . . . . . 34 6.3 Lifecycle Layer and Dynamic Life Cycle Management . . . . . . . . . . . . . . 34 6.4 Service Layer and Service Discovery . . . . . . . . . . . . . . . . . . . . . . . 35 6.5 Event Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 6.6 Wiring of Processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 6.7 R-OSGi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 6.7.1 Remote Service Discovery . . . . . . . . . . . . . . . . . . . . . . . . . 37 6.7.2 Using Remote Services through Dynamic Proxies . . . . . . . . . . . . 37 6.7.3 Remote Event Handling . . . . . . . . . . . . . . . . . . . . . . . . . . 38 6.8 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 III Solution Approach & Analysis, System Design & Implementation 40 7 Solution approach 41 7.1 Analysing a naive solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 7.2 Solution proposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 7.3 Prototype considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 7.4 Conlusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 8 Solution analysis 43 8.1 Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 8.1.1 System instantiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 8.1.2 Restoring the system . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 8.2 Use-case analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 8.2.1 Use-case diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 8.2.2 Actors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 8.2.3 Administrator use-cases . . . . . . . . . . . . . . . . . . . . . . . . . . 47 8.2.4 Configuration system use-cases . . . . . . . . . . . . . . . . . . . . . . 47 8.3 Secundairy use-cases . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 8.4 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 9 System design 50 9.1 Design challenges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 9.2 Service decomposition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 9.3 Service interaction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 9.4 Service capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 9.5 Service descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 9.6 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 10 System implementation 55 10.1 Process and link implementations . . . . . . . . . . . . . . . . . . . . . . . . . 55 10.1.1 Processes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 10.1.2 Links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 10.1.3 Demonstration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 10.2 Configuration system local implementation . . . . . . . . . . . . . . . . . . . . 57 6

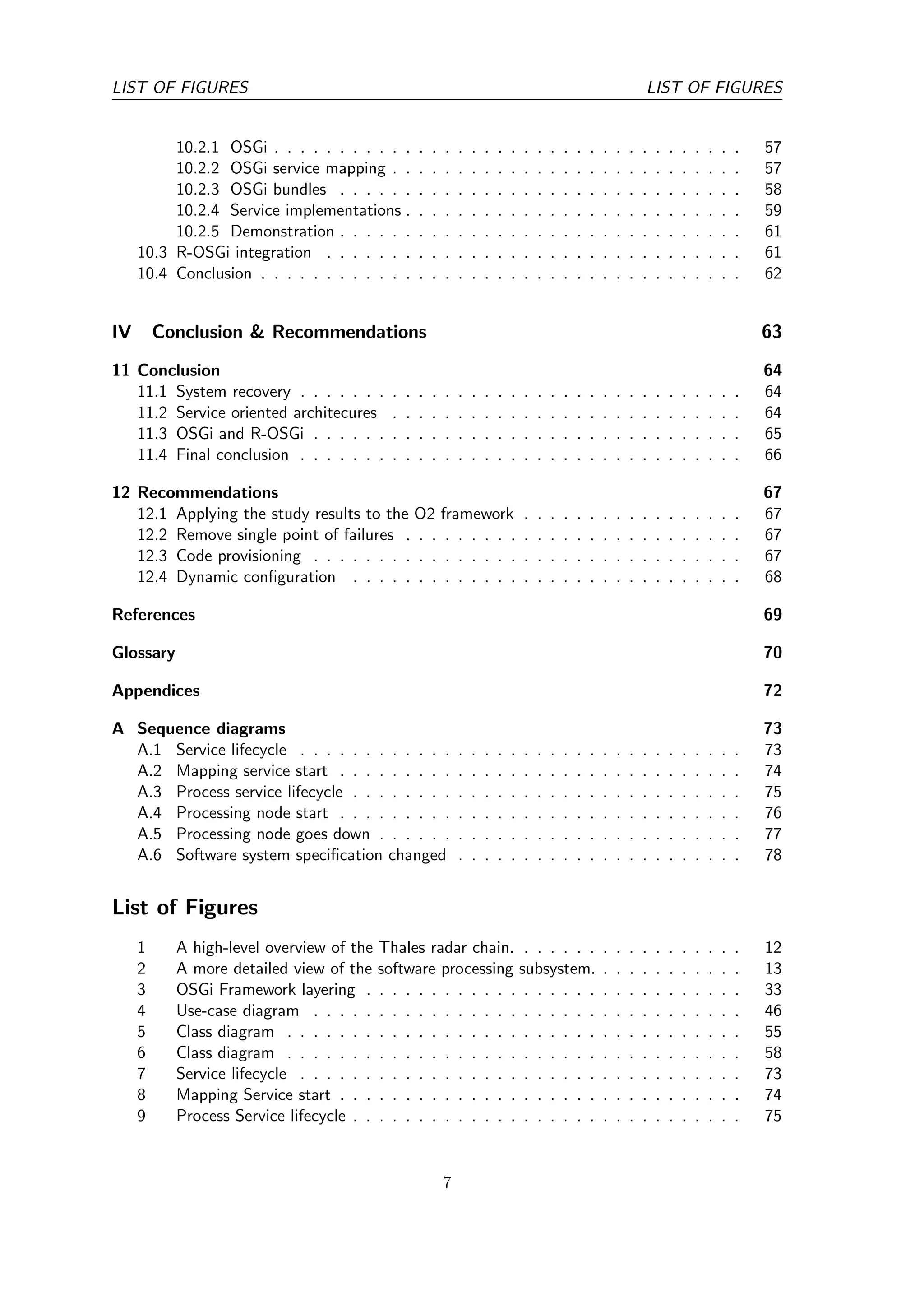

- 8. LIST OF FIGURES LIST OF FIGURES 10.2.1 OSGi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 10.2.2 OSGi service mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 10.2.3 OSGi bundles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 10.2.4 Service implementations . . . . . . . . . . . . . . . . . . . . . . . . . . 59 10.2.5 Demonstration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 10.3 R-OSGi integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 10.4 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 IV Conclusion & Recommendations 63 11 Conclusion 64 11.1 System recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 11.2 Service oriented architecures . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 11.3 OSGi and R-OSGi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 11.4 Final conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 12 Recommendations 67 12.1 Applying the study results to the O2 framework . . . . . . . . . . . . . . . . . 67 12.2 Remove single point of failures . . . . . . . . . . . . . . . . . . . . . . . . . . 67 12.3 Code provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 12.4 Dynamic configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 References 69 Glossary 70 Appendices 72 A Sequence diagrams 73 A.1 Service lifecycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 A.2 Mapping service start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 A.3 Process service lifecycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 A.4 Processing node start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 A.5 Processing node goes down . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 A.6 Software system specification changed . . . . . . . . . . . . . . . . . . . . . . 78 List of Figures 1 A high-level overview of the Thales radar chain. . . . . . . . . . . . . . . . . . 12 2 A more detailed view of the software processing subsystem. . . . . . . . . . . . 13 3 OSGi Framework layering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4 Use-case diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 5 Class diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 6 Class diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 7 Service lifecycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 8 Mapping Service start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 9 Process Service lifecycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 7

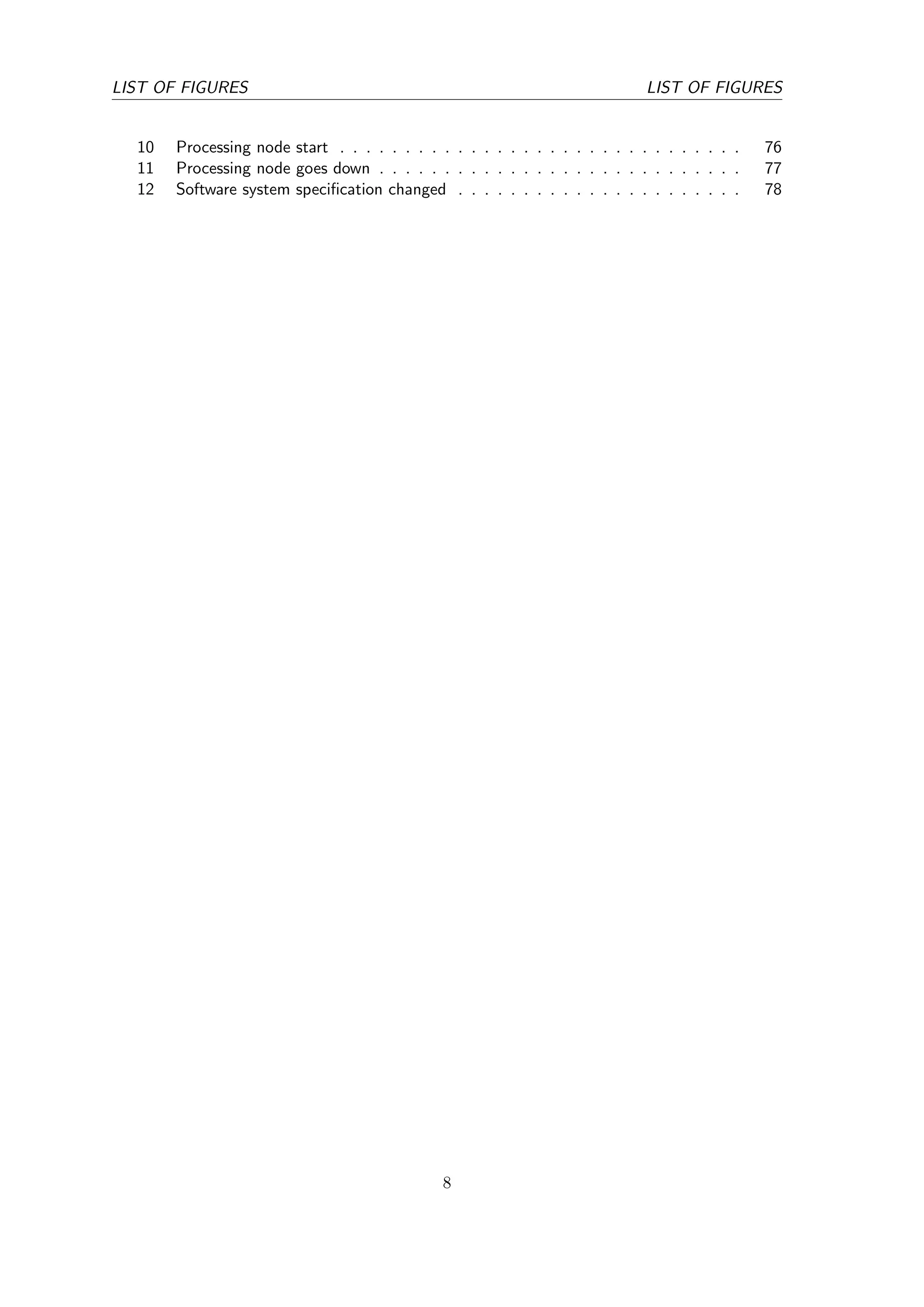

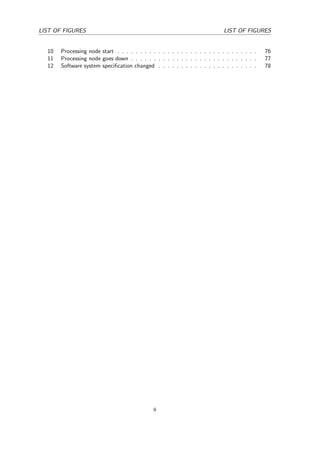

- 9. LIST OF FIGURES LIST OF FIGURES 10 Processing node start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 11 Processing node goes down . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 12 Software system specification changed . . . . . . . . . . . . . . . . . . . . . . 78 8

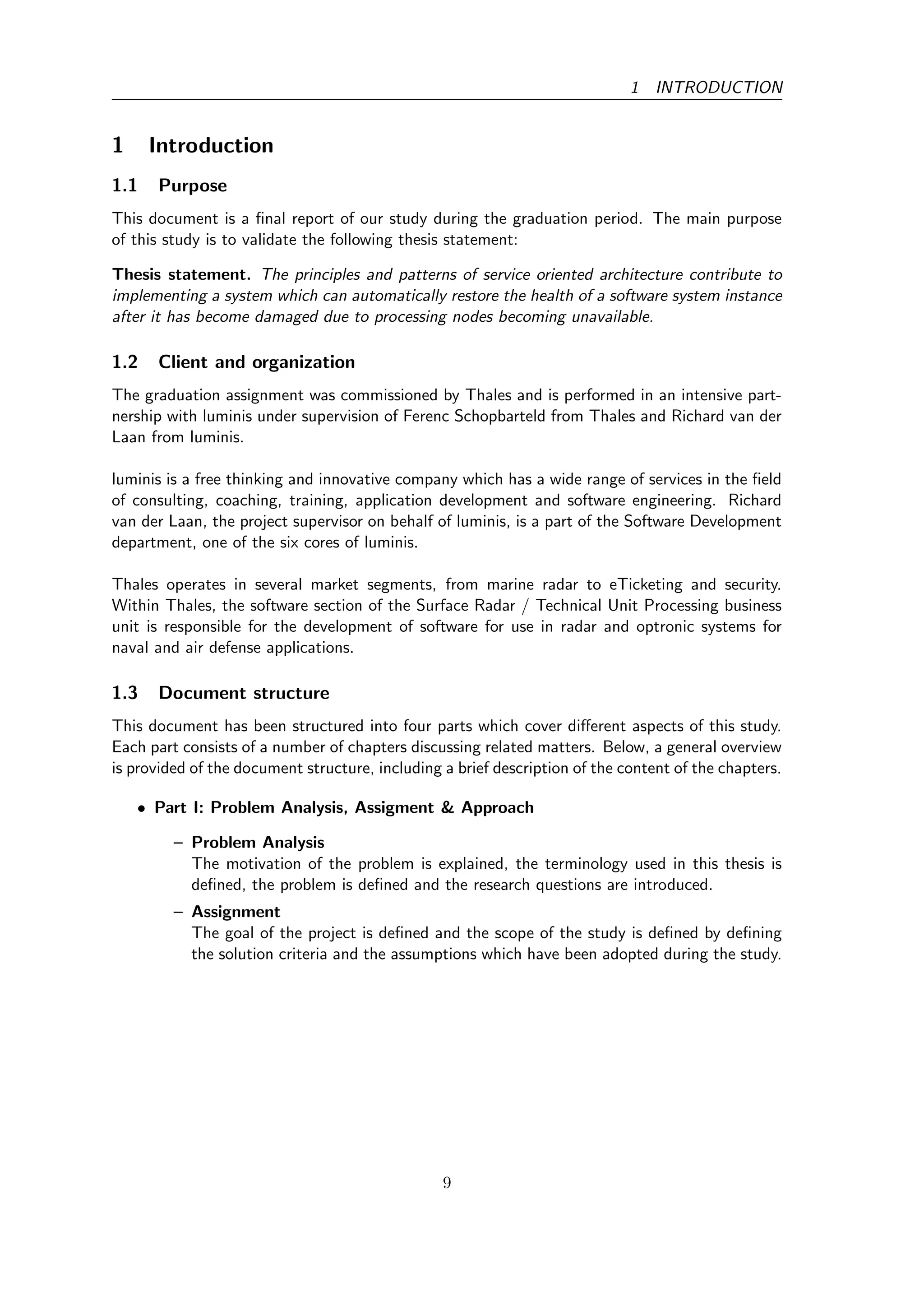

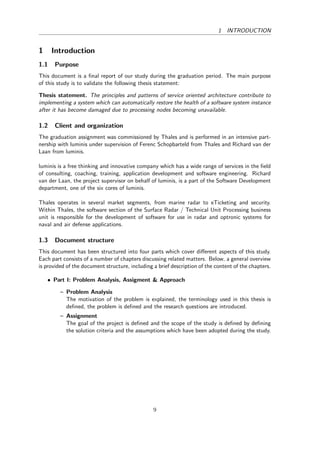

- 10. 1 INTRODUCTION 1 Introduction 1.1 Purpose This document is a final report of our study during the graduation period. The main purpose of this study is to validate the following thesis statement: Thesis statement. The principles and patterns of service oriented architecture contribute to implementing a system which can automatically restore the health of a software system instance after it has become damaged due to processing nodes becoming unavailable. 1.2 Client and organization The graduation assignment was commissioned by Thales and is performed in an intensive part- nership with luminis under supervision of Ferenc Schopbarteld from Thales and Richard van der Laan from luminis. luminis is a free thinking and innovative company which has a wide range of services in the field of consulting, coaching, training, application development and software engineering. Richard van der Laan, the project supervisor on behalf of luminis, is a part of the Software Development department, one of the six cores of luminis. Thales operates in several market segments, from marine radar to eTicketing and security. Within Thales, the software section of the Surface Radar / Technical Unit Processing business unit is responsible for the development of software for use in radar and optronic systems for naval and air defense applications. 1.3 Document structure This document has been structured into four parts which cover different aspects of this study. Each part consists of a number of chapters discussing related matters. Below, a general overview is provided of the document structure, including a brief description of the content of the chapters. • Part I: Problem Analysis, Assigment & Approach – Problem Analysis The motivation of the problem is explained, the terminology used in this thesis is defined, the problem is defined and the research questions are introduced. – Assignment The goal of the project is defined and the scope of the study is defined by defining the solution criteria and the assumptions which have been adopted during the study. 9

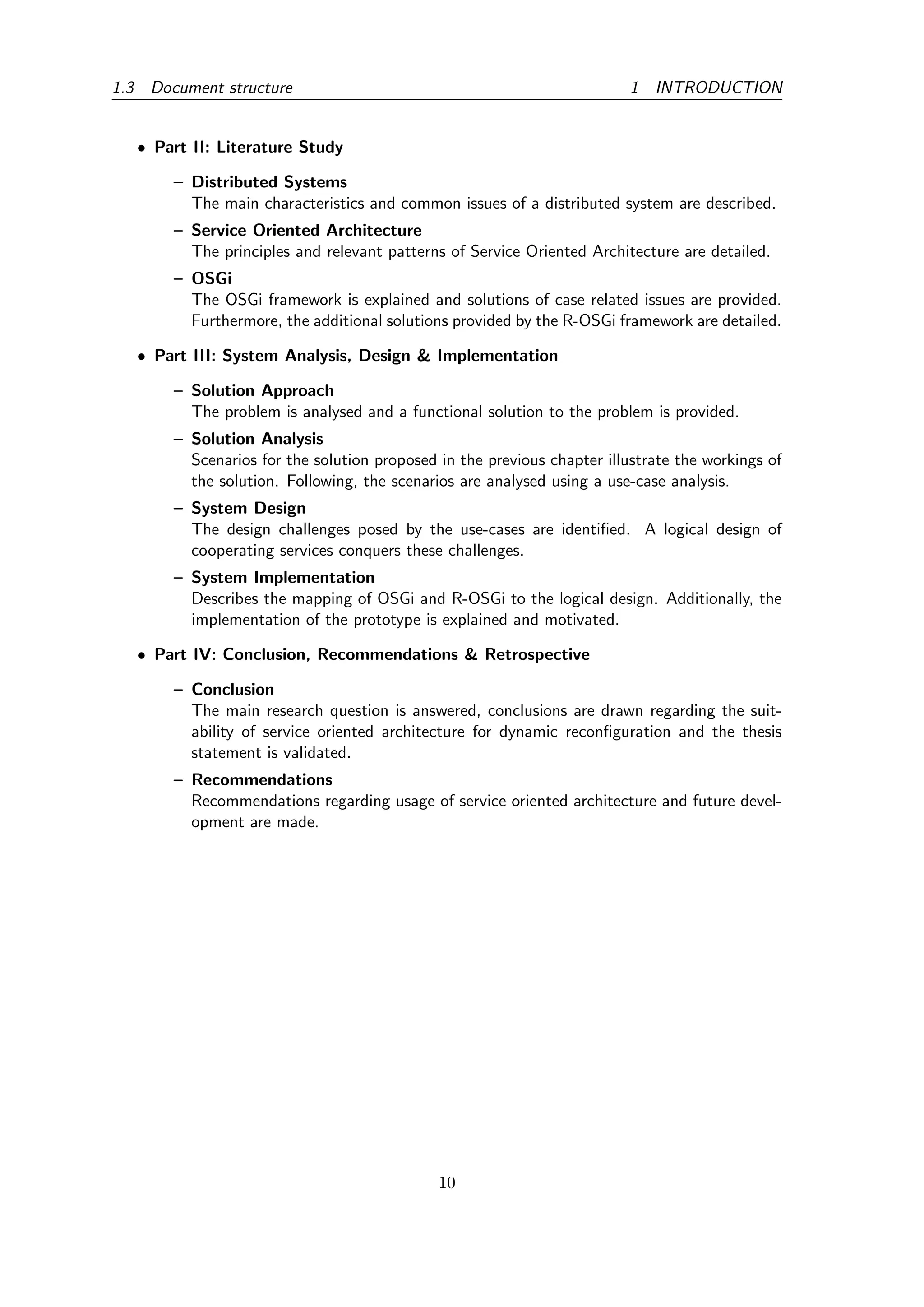

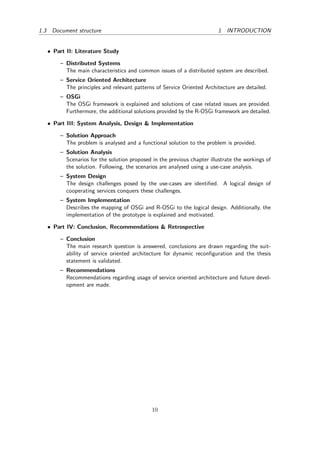

- 11. 1.3 Document structure 1 INTRODUCTION • Part II: Literature Study – Distributed Systems The main characteristics and common issues of a distributed system are described. – Service Oriented Architecture The principles and relevant patterns of Service Oriented Architecture are detailed. – OSGi The OSGi framework is explained and solutions of case related issues are provided. Furthermore, the additional solutions provided by the R-OSGi framework are detailed. • Part III: System Analysis, Design & Implementation – Solution Approach The problem is analysed and a functional solution to the problem is provided. – Solution Analysis Scenarios for the solution proposed in the previous chapter illustrate the workings of the solution. Following, the scenarios are analysed using a use-case analysis. – System Design The design challenges posed by the use-cases are identified. A logical design of cooperating services conquers these challenges. – System Implementation Describes the mapping of OSGi and R-OSGi to the logical design. Additionally, the implementation of the prototype is explained and motivated. • Part IV: Conclusion, Recommendations & Retrospective – Conclusion The main research question is answered, conclusions are drawn regarding the suit- ability of service oriented architecture for dynamic reconfiguration and the thesis statement is validated. – Recommendations Recommendations regarding usage of service oriented architecture and future devel- opment are made. 10

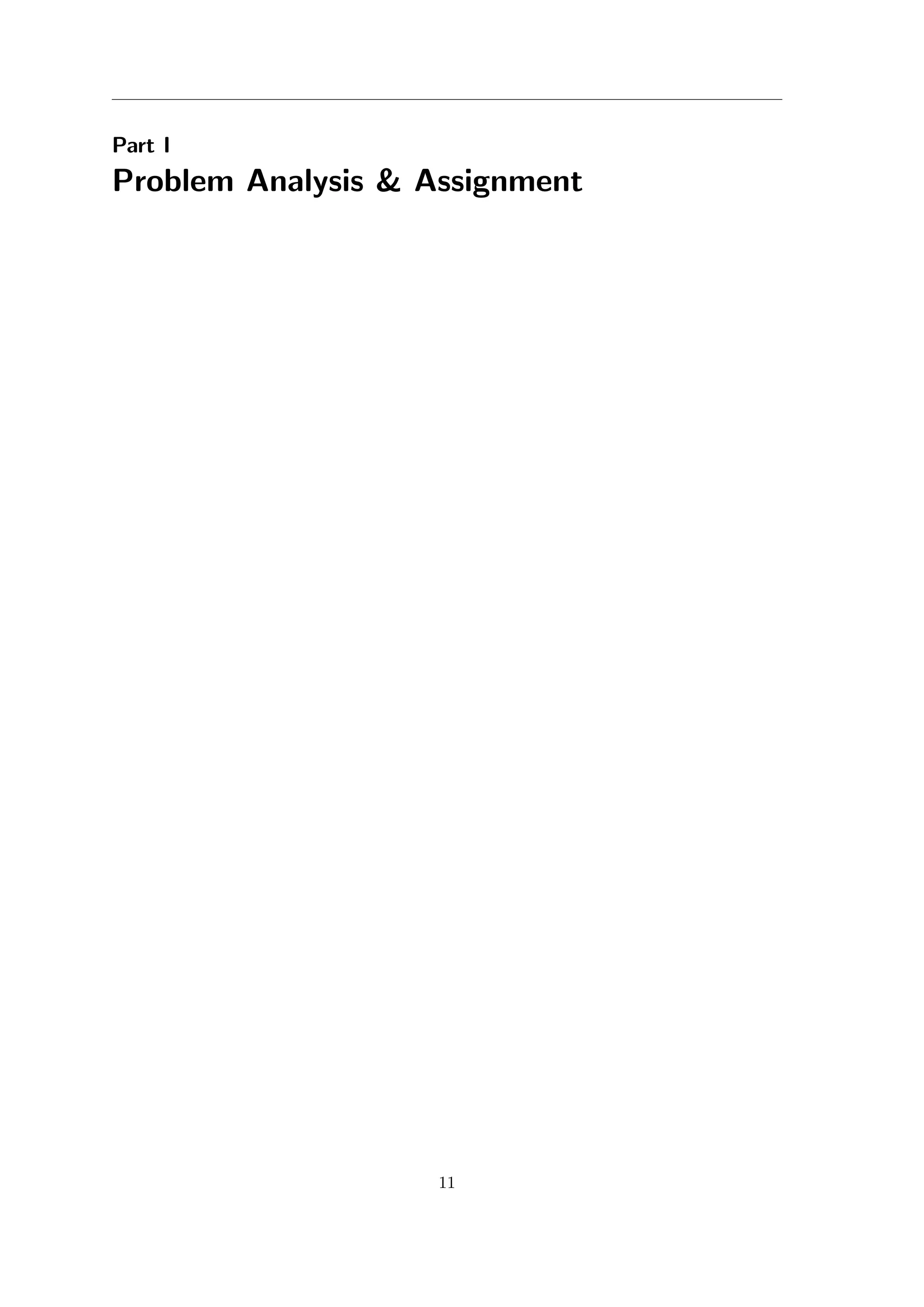

- 12. Part I Problem Analysis& Assignment 11

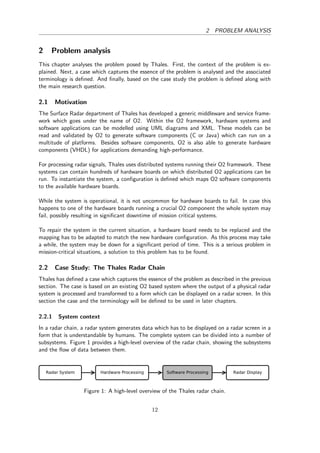

- 13. 2 PROBLEM ANALYSIS 2 Problem analysis This chapter analyses the problem posed by Thales. First, the context of the problem is ex- plained. Next, a case which captures the essence of the problem is analysed and the associated terminology is defined. And finally, based on the case study the problem is defined along with the main research question. 2.1 Motivation The Surface Radar department of Thales has developed a generic middleware and service frame- work which goes under the name of O2. Within the O2 framework, hardware systems and software applications can be modelled using UML diagrams and XML. These models can be read and validated by O2 to generate software components (C or Java) which can run on a multitude of platforms. Besides software components, O2 is also able to generate hardware components (VHDL) for applications demanding high-performance. For processing radar signals, Thales uses distributed systems running their O2 framework. These systems can contain hundreds of hardware boards on which distributed O2 applications can be run. To instantiate the system, a configuration is defined which maps O2 software components to the available hardware boards. While the system is operational, it is not uncommon for hardware boards to fail. In case this happens to one of the hardware boards running a crucial O2 component the whole system may fail, possibly resulting in significant downtime of mission critical systems. To repair the system in the current situation, a hardware board needs to be replaced and the mapping has to be adapted to match the new hardware configuration. As this process may take a while, the system may be down for a significant period of time. This is a serious problem in mission-critical situations, a solution to this problem has to be found. 2.2 Case Study: The Thales Radar Chain Thales has defined a case which captures the essence of the problem as described in the previous section. The case is based on an existing O2 based system where the output of a physical radar system is processed and transformed to a form which can be displayed on a radar screen. In this section the case and the terminology will be defined to be used in later chapters. 2.2.1 System context In a radar chain, a radar system generates data which has to be displayed on a radar screen in a form that is understandable by humans. The complete system can be divided into a number of subsystems. Figure 1 provides a high-level overview of the radar chain, showing the subsystems and the flow of data between them. Figure 1: A high-level overview of the Thales radar chain. 12

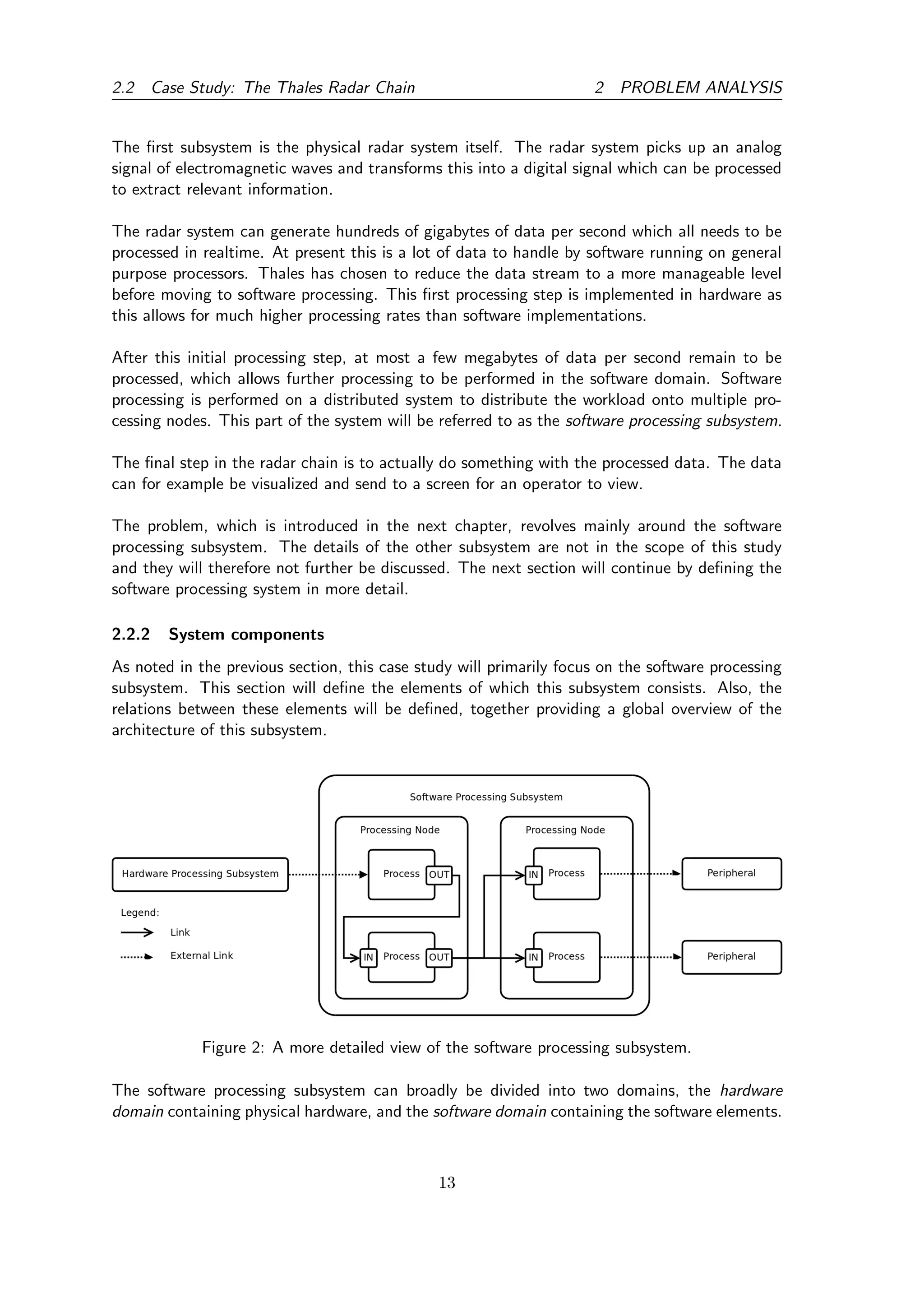

- 14. 2.2 Case Study: The Thales Radar Chain 2 PROBLEM ANALYSIS The first subsystem is the physical radar system itself. The radar system picks up an analog signal of electromagnetic waves and transforms this into a digital signal which can be processed to extract relevant information. The radar system can generate hundreds of gigabytes of data per second which all needs to be processed in realtime. At present this is a lot of data to handle by software running on general purpose processors. Thales has chosen to reduce the data stream to a more manageable level before moving to software processing. This first processing step is implemented in hardware as this allows for much higher processing rates than software implementations. After this initial processing step, at most a few megabytes of data per second remain to be processed, which allows further processing to be performed in the software domain. Software processing is performed on a distributed system to distribute the workload onto multiple pro- cessing nodes. This part of the system will be referred to as the software processing subsystem. The final step in the radar chain is to actually do something with the processed data. The data can for example be visualized and send to a screen for an operator to view. The problem, which is introduced in the next chapter, revolves mainly around the software processing subsystem. The details of the other subsystem are not in the scope of this study and they will therefore not further be discussed. The next section will continue by defining the software processing system in more detail. 2.2.2 System components As noted in the previous section, this case study will primarily focus on the software processing subsystem. This section will define the elements of which this subsystem consists. Also, the relations between these elements will be defined, together providing a global overview of the architecture of this subsystem. Figure 2: A more detailed view of the software processing subsystem. The software processing subsystem can broadly be divided into two domains, the hardware domain containing physical hardware, and the software domain containing the software elements. 13

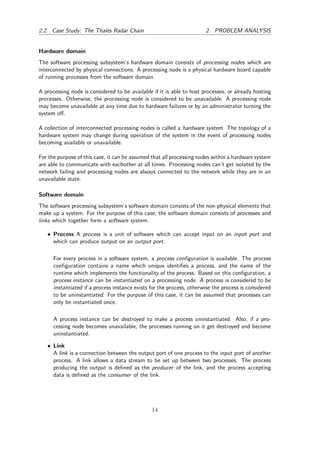

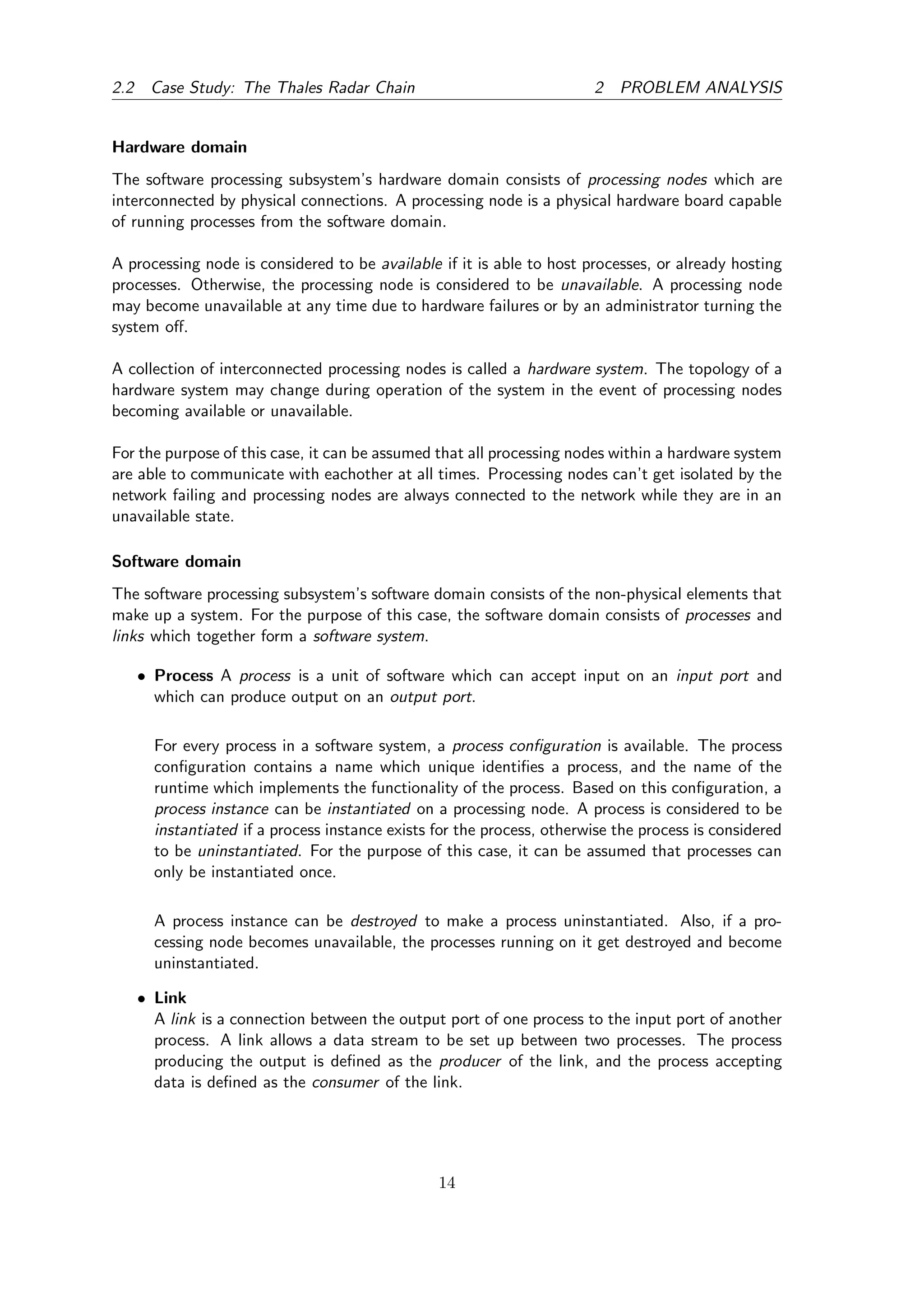

- 15. 2.2 Case Study: The Thales Radar Chain 2 PROBLEM ANALYSIS Hardware domain The software processing subsystem’s hardware domain consists of processing nodes which are interconnected by physical connections. A processing node is a physical hardware board capable of running processes from the software domain. A processing node is considered to be available if it is able to host processes, or already hosting processes. Otherwise, the processing node is considered to be unavailable. A processing node may become unavailable at any time due to hardware failures or by an administrator turning the system off. A collection of interconnected processing nodes is called a hardware system. The topology of a hardware system may change during operation of the system in the event of processing nodes becoming available or unavailable. For the purpose of this case, it can be assumed that all processing nodes within a hardware system are able to communicate with eachother at all times. Processing nodes can’t get isolated by the network failing and processing nodes are always connected to the network while they are in an unavailable state. Software domain The software processing subsystem’s software domain consists of the non-physical elements that make up a system. For the purpose of this case, the software domain consists of processes and links which together form a software system. • Process A process is a unit of software which can accept input on an input port and which can produce output on an output port. For every process in a software system, a process configuration is available. The process configuration contains a name which unique identifies a process, and the name of the runtime which implements the functionality of the process. Based on this configuration, a process instance can be instantiated on a processing node. A process is considered to be instantiated if a process instance exists for the process, otherwise the process is considered to be uninstantiated. For the purpose of this case, it can be assumed that processes can only be instantiated once. A process instance can be destroyed to make a process uninstantiated. Also, if a pro- cessing node becomes unavailable, the processes running on it get destroyed and become uninstantiated. • Link A link is a connection between the output port of one process to the input port of another process. A link allows a data stream to be set up between two processes. The process producing the output is defined as the producer of the link, and the process accepting data is defined as the consumer of the link. 14

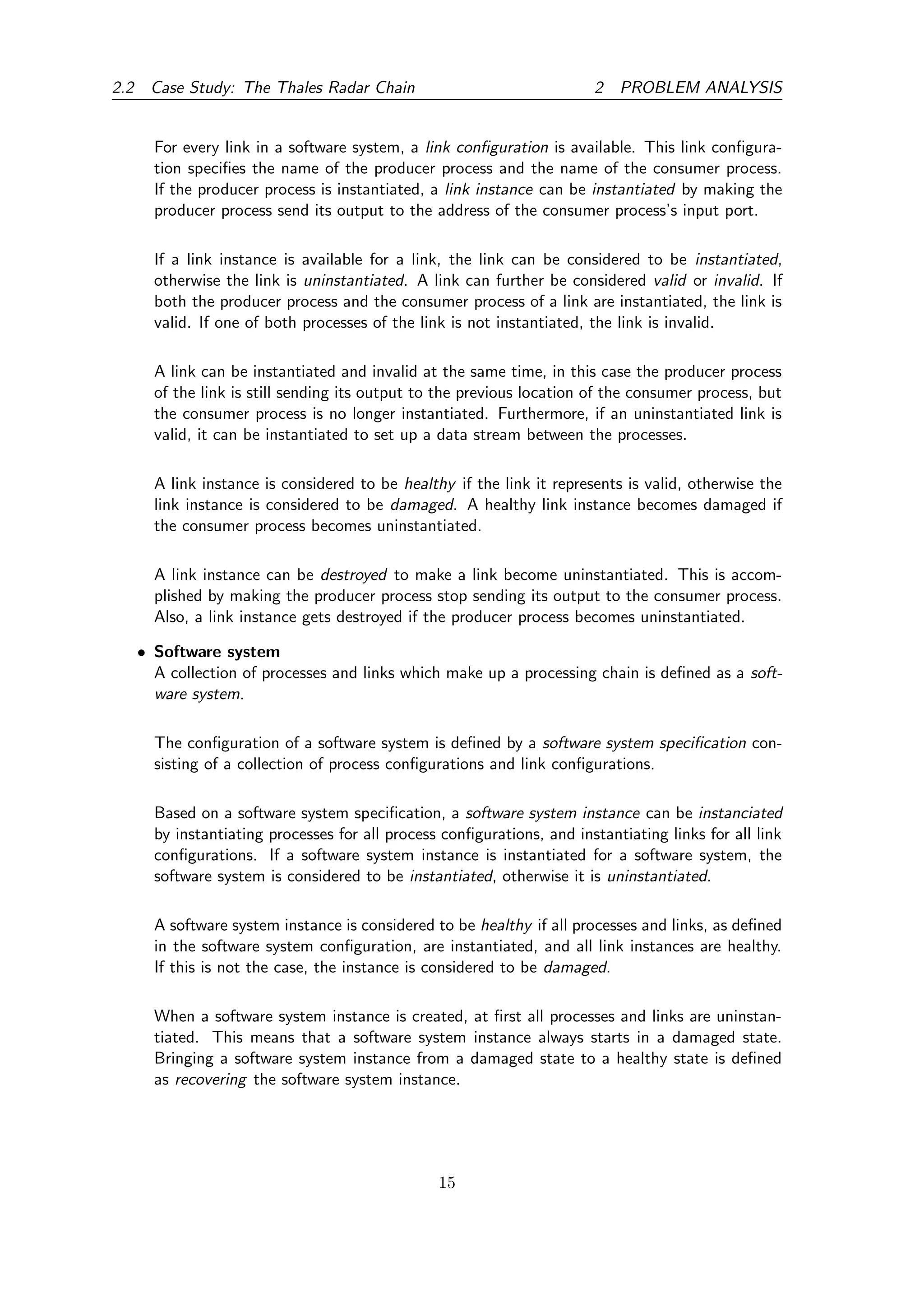

- 16. 2.2 Case Study: The Thales Radar Chain 2 PROBLEM ANALYSIS For every link in a software system, a link configuration is available. This link configura- tion specifies the name of the producer process and the name of the consumer process. If the producer process is instantiated, a link instance can be instantiated by making the producer process send its output to the address of the consumer process’s input port. If a link instance is available for a link, the link can be considered to be instantiated, otherwise the link is uninstantiated. A link can further be considered valid or invalid. If both the producer process and the consumer process of a link are instantiated, the link is valid. If one of both processes of the link is not instantiated, the link is invalid. A link can be instantiated and invalid at the same time, in this case the producer process of the link is still sending its output to the previous location of the consumer process, but the consumer process is no longer instantiated. Furthermore, if an uninstantiated link is valid, it can be instantiated to set up a data stream between the processes. A link instance is considered to be healthy if the link it represents is valid, otherwise the link instance is considered to be damaged. A healthy link instance becomes damaged if the consumer process becomes uninstantiated. A link instance can be destroyed to make a link become uninstantiated. This is accom- plished by making the producer process stop sending its output to the consumer process. Also, a link instance gets destroyed if the producer process becomes uninstantiated. • Software system A collection of processes and links which make up a processing chain is defined as a soft- ware system. The configuration of a software system is defined by a software system specification con- sisting of a collection of process configurations and link configurations. Based on a software system specification, a software system instance can be instanciated by instantiating processes for all process configurations, and instantiating links for all link configurations. If a software system instance is instantiated for a software system, the software system is considered to be instantiated, otherwise it is uninstantiated. A software system instance is considered to be healthy if all processes and links, as defined in the software system configuration, are instantiated, and all link instances are healthy. If this is not the case, the instance is considered to be damaged. When a software system instance is created, at first all processes and links are uninstan- tiated. This means that a software system instance always starts in a damaged state. Bringing a software system instance from a damaged state to a healthy state is defined as recovering the software system instance. 15

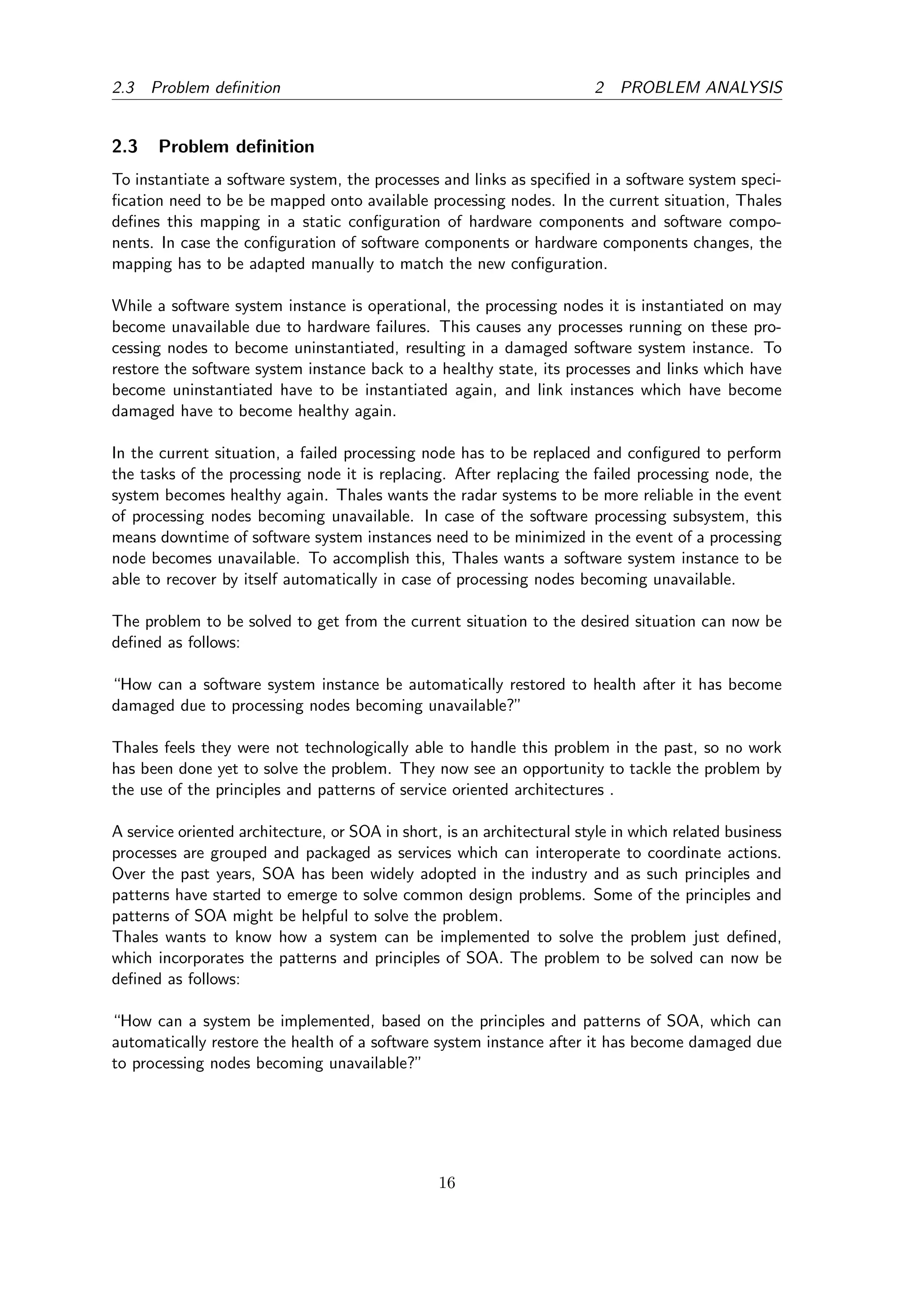

- 17. 2.3 Problem definition 2 PROBLEM ANALYSIS 2.3 Problem definition To instantiate a software system, the processes and links as specified in a software system speci- fication need to be be mapped onto available processing nodes. In the current situation, Thales defines this mapping in a static configuration of hardware components and software compo- nents. In case the configuration of software components or hardware components changes, the mapping has to be adapted manually to match the new configuration. While a software system instance is operational, the processing nodes it is instantiated on may become unavailable due to hardware failures. This causes any processes running on these pro- cessing nodes to become uninstantiated, resulting in a damaged software system instance. To restore the software system instance back to a healthy state, its processes and links which have become uninstantiated have to be instantiated again, and link instances which have become damaged have to become healthy again. In the current situation, a failed processing node has to be replaced and configured to perform the tasks of the processing node it is replacing. After replacing the failed processing node, the system becomes healthy again. Thales wants the radar systems to be more reliable in the event of processing nodes becoming unavailable. In case of the software processing subsystem, this means downtime of software system instances need to be minimized in the event of a processing node becomes unavailable. To accomplish this, Thales wants a software system instance to be able to recover by itself automatically in case of processing nodes becoming unavailable. The problem to be solved to get from the current situation to the desired situation can now be defined as follows: “How can a software system instance be automatically restored to health after it has become damaged due to processing nodes becoming unavailable?” Thales feels they were not technologically able to handle this problem in the past, so no work has been done yet to solve the problem. They now see an opportunity to tackle the problem by the use of the principles and patterns of service oriented architectures . A service oriented architecture, or SOA in short, is an architectural style in which related business processes are grouped and packaged as services which can interoperate to coordinate actions. Over the past years, SOA has been widely adopted in the industry and as such principles and patterns have started to emerge to solve common design problems. Some of the principles and patterns of SOA might be helpful to solve the problem. Thales wants to know how a system can be implemented to solve the problem just defined, which incorporates the patterns and principles of SOA. The problem to be solved can now be defined as follows: “How can a system be implemented, based on the principles and patterns of SOA, which can automatically restore the health of a software system instance after it has become damaged due to processing nodes becoming unavailable?” 16

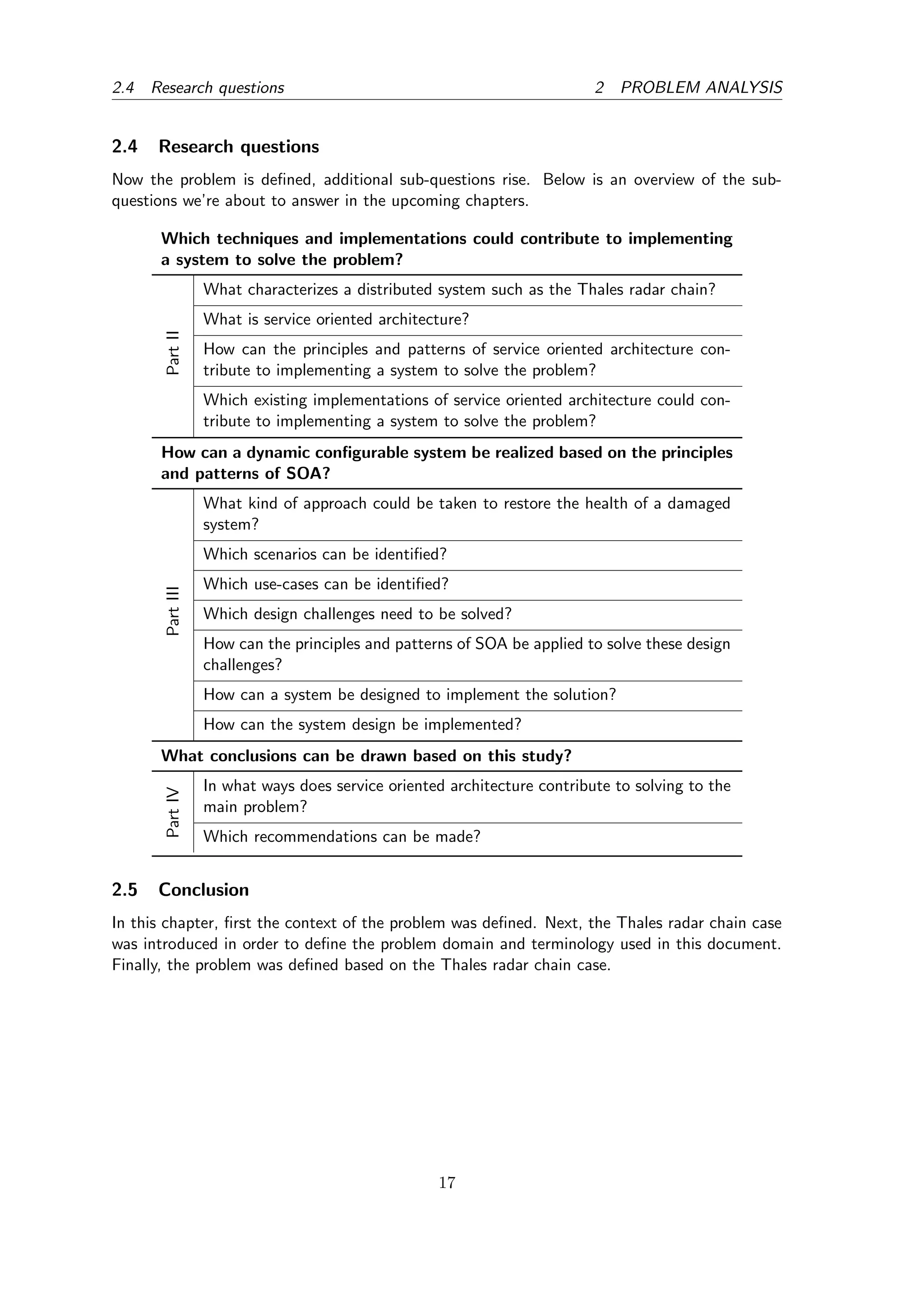

- 18. 2.4 Research questions 2 PROBLEM ANALYSIS 2.4 Research questions Now the problem is defined, additional sub-questions rise. Below is an overview of the sub- questions we’re about to answer in the upcoming chapters. Which techniques and implementations could contribute to implementing a system to solve the problem? What characterizes a distributed system such as the Thales radar chain? What is service oriented architecture? Part II How can the principles and patterns of service oriented architecture con- tribute to implementing a system to solve the problem? Which existing implementations of service oriented architecture could con- tribute to implementing a system to solve the problem? How can a dynamic configurable system be realized based on the principles and patterns of SOA? What kind of approach could be taken to restore the health of a damaged system? Which scenarios can be identified? Which use-cases can be identified? Part III Which design challenges need to be solved? How can the principles and patterns of SOA be applied to solve these design challenges? How can a system be designed to implement the solution? How can the system design be implemented? What conclusions can be drawn based on this study? In what ways does service oriented architecture contribute to solving to the Part IV main problem? Which recommendations can be made? 2.5 Conclusion In this chapter, first the context of the problem was defined. Next, the Thales radar chain case was introduced in order to define the problem domain and terminology used in this document. Finally, the problem was defined based on the Thales radar chain case. 17

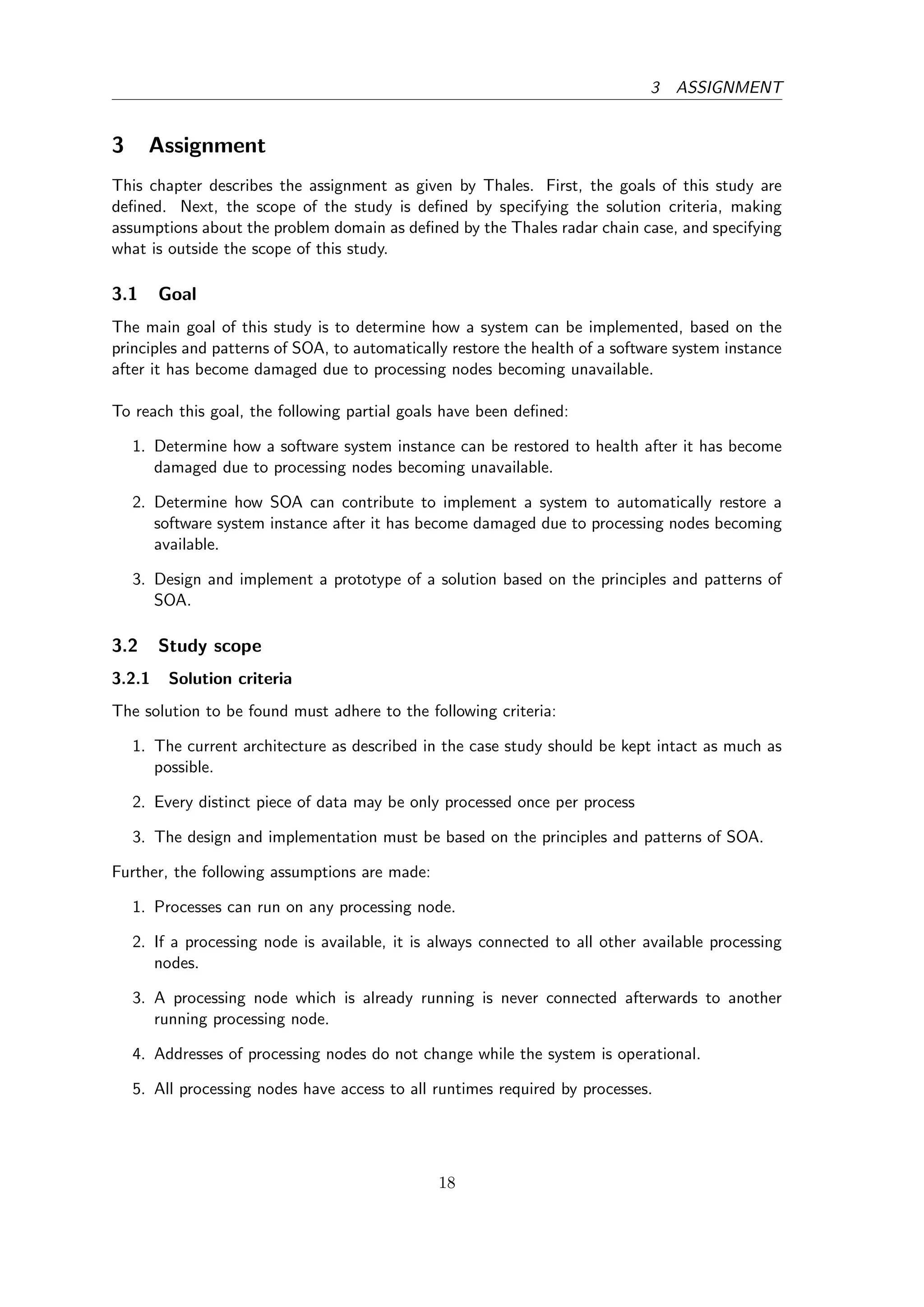

- 19. 3 ASSIGNMENT 3 Assignment This chapter describes the assignment as given by Thales. First, the goals of this study are defined. Next, the scope of the study is defined by specifying the solution criteria, making assumptions about the problem domain as defined by the Thales radar chain case, and specifying what is outside the scope of this study. 3.1 Goal The main goal of this study is to determine how a system can be implemented, based on the principles and patterns of SOA, to automatically restore the health of a software system instance after it has become damaged due to processing nodes becoming unavailable. To reach this goal, the following partial goals have been defined: 1. Determine how a software system instance can be restored to health after it has become damaged due to processing nodes becoming unavailable. 2. Determine how SOA can contribute to implement a system to automatically restore a software system instance after it has become damaged due to processing nodes becoming available. 3. Design and implement a prototype of a solution based on the principles and patterns of SOA. 3.2 Study scope 3.2.1 Solution criteria The solution to be found must adhere to the following criteria: 1. The current architecture as described in the case study should be kept intact as much as possible. 2. Every distinct piece of data may be only processed once per process 3. The design and implementation must be based on the principles and patterns of SOA. Further, the following assumptions are made: 1. Processes can run on any processing node. 2. If a processing node is available, it is always connected to all other available processing nodes. 3. A processing node which is already running is never connected afterwards to another running processing node. 4. Addresses of processing nodes do not change while the system is operational. 5. All processing nodes have access to all runtimes required by processes. 18

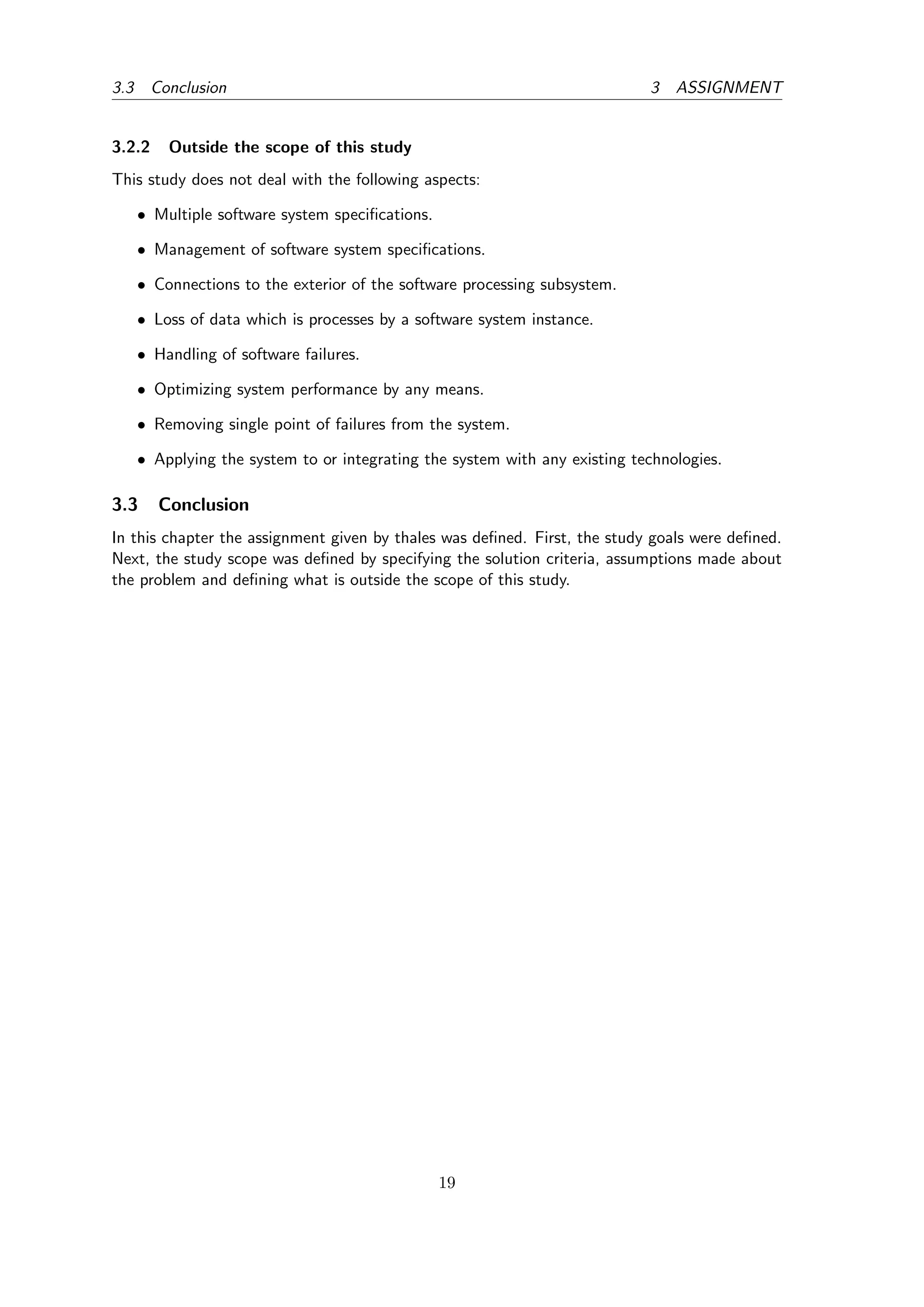

- 20. 3.3 Conclusion 3 ASSIGNMENT 3.2.2 Outside the scope of this study This study does not deal with the following aspects: • Multiple software system specifications. • Management of software system specifications. • Connections to the exterior of the software processing subsystem. • Loss of data which is processes by a software system instance. • Handling of software failures. • Optimizing system performance by any means. • Removing single point of failures from the system. • Applying the system to or integrating the system with any existing technologies. 3.3 Conclusion In this chapter the assignment given by thales was defined. First, the study goals were defined. Next, the study scope was defined by specifying the solution criteria, assumptions made about the problem and defining what is outside the scope of this study. 19

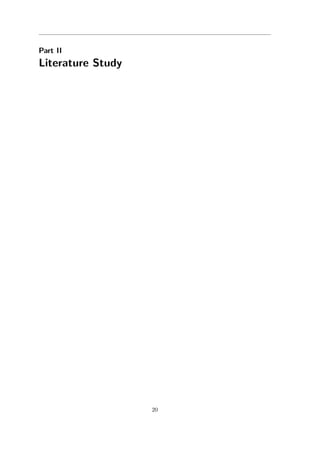

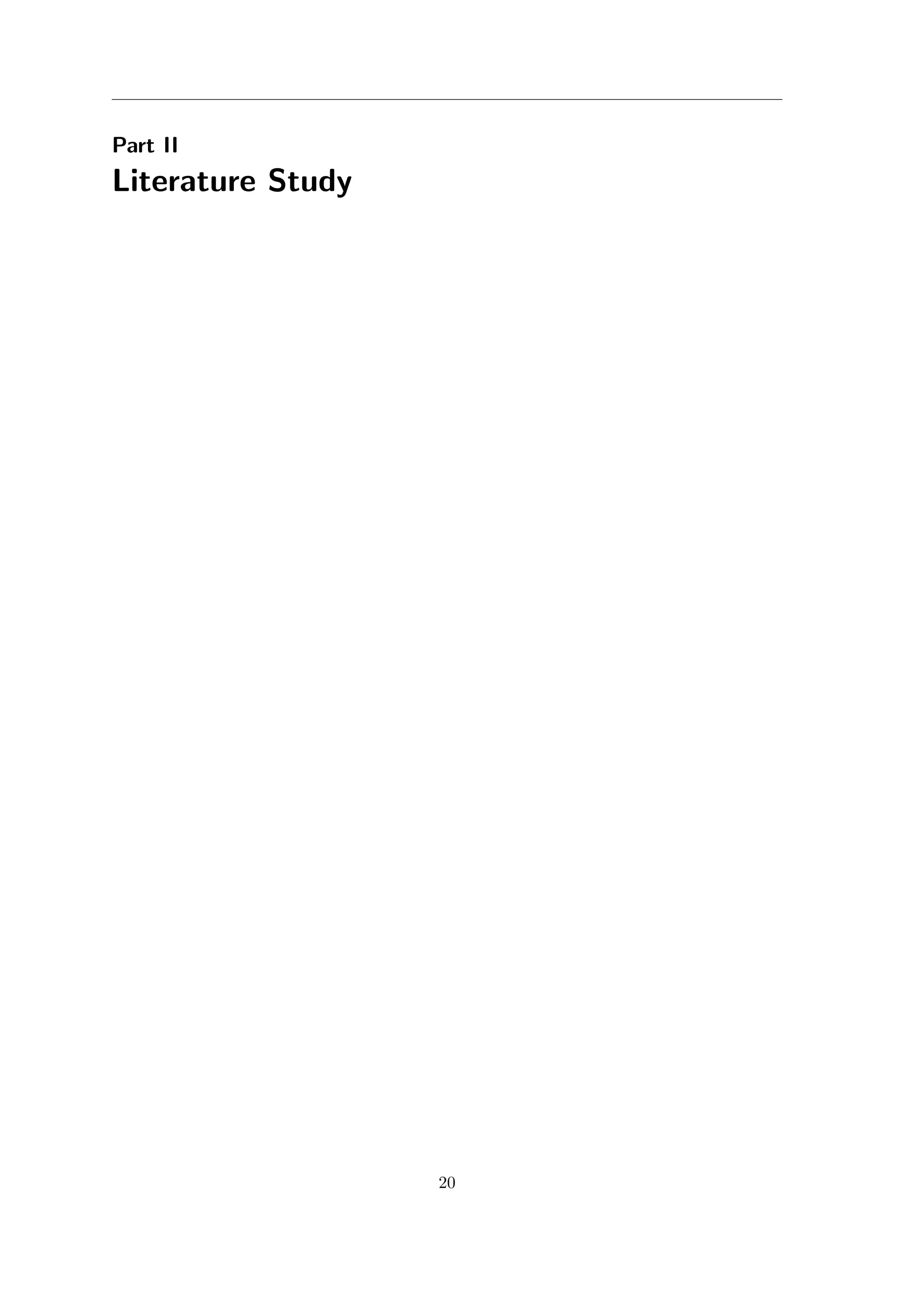

- 21.

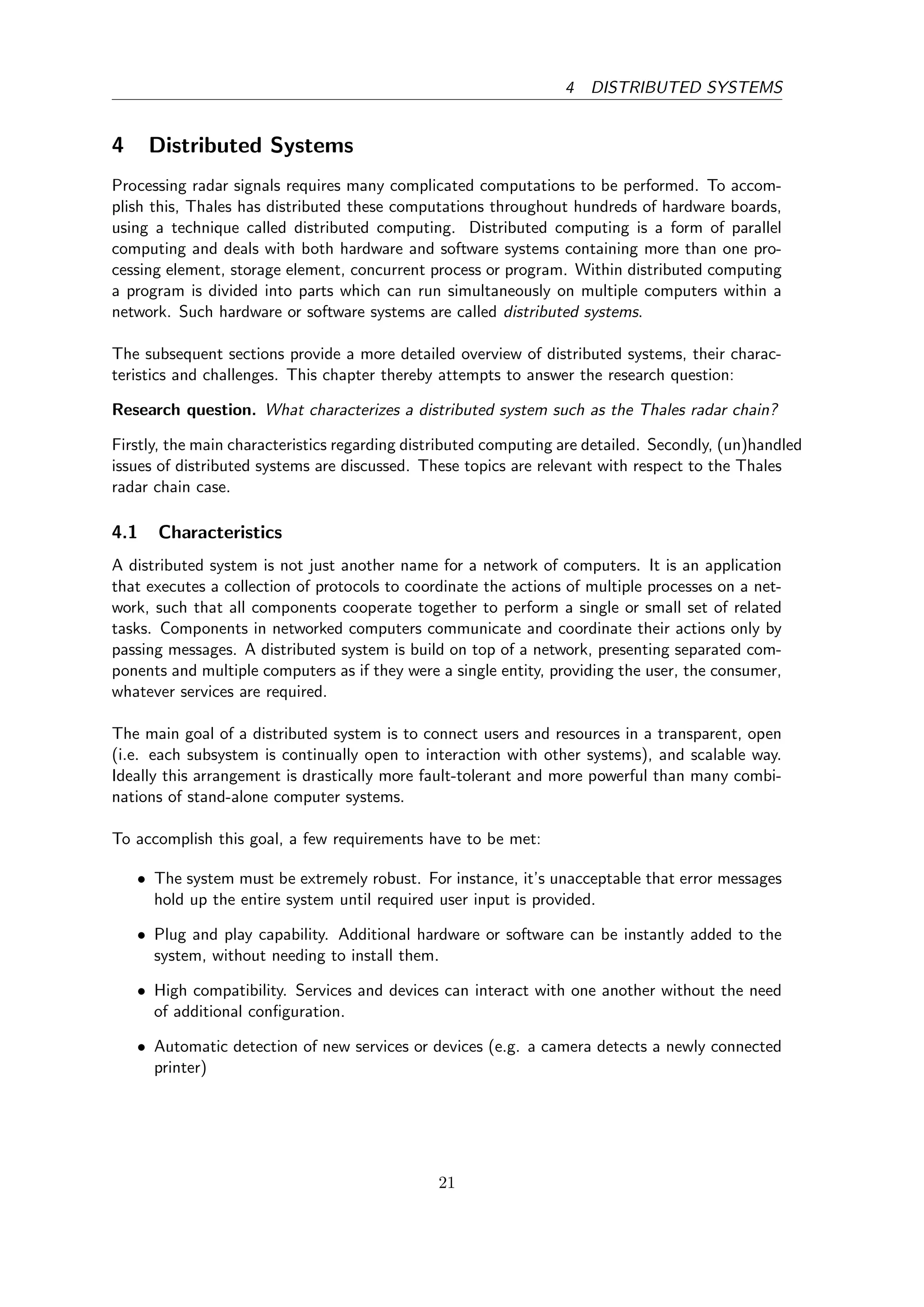

- 22. 4 DISTRIBUTED SYSTEMS 4 Distributed Systems Processing radar signals requires many complicated computations to be performed. To accom- plish this, Thales has distributed these computations throughout hundreds of hardware boards, using a technique called distributed computing. Distributed computing is a form of parallel computing and deals with both hardware and software systems containing more than one pro- cessing element, storage element, concurrent process or program. Within distributed computing a program is divided into parts which can run simultaneously on multiple computers within a network. Such hardware or software systems are called distributed systems. The subsequent sections provide a more detailed overview of distributed systems, their charac- teristics and challenges. This chapter thereby attempts to answer the research question: Research question. What characterizes a distributed system such as the Thales radar chain? Firstly, the main characteristics regarding distributed computing are detailed. Secondly, (un)handled issues of distributed systems are discussed. These topics are relevant with respect to the Thales radar chain case. 4.1 Characteristics A distributed system is not just another name for a network of computers. It is an application that executes a collection of protocols to coordinate the actions of multiple processes on a net- work, such that all components cooperate together to perform a single or small set of related tasks. Components in networked computers communicate and coordinate their actions only by passing messages. A distributed system is build on top of a network, presenting separated com- ponents and multiple computers as if they were a single entity, providing the user, the consumer, whatever services are required. The main goal of a distributed system is to connect users and resources in a transparent, open (i.e. each subsystem is continually open to interaction with other systems), and scalable way. Ideally this arrangement is drastically more fault-tolerant and more powerful than many combi- nations of stand-alone computer systems. To accomplish this goal, a few requirements have to be met: • The system must be extremely robust. For instance, it’s unacceptable that error messages hold up the entire system until required user input is provided. • Plug and play capability. Additional hardware or software can be instantly added to the system, without needing to install them. • High compatibility. Services and devices can interact with one another without the need of additional configuration. • Automatic detection of new services or devices (e.g. a camera detects a newly connected printer) 21
- 23. 4.2 Objectives 4 DISTRIBUTED SYSTEMS 4.2 Objectives Reliability is an important aspect in distributed computing. Because different subsystems in- clude heterogeneous, overlapping and possibly conflicting information (pluralism), the system has to deal with concurrency and inconsistency. Besides, executed actions or made publications cannot be reverted (monotonicity). To be truly reliable, a distributed system must have certain characteristics, which are summarized in the listing below. [3, 4, 5] A distributed system needs to be: Fault-tolerant It can recover from component failures without performing incorrect actions. Highly available It can restore operations, permitting it to resume providing services even when some components have failed. Recoverable Failed components can restart themselves and rejoin the system, after the cause of failure has been repaired. Consistent The system can coordinate actions by multiple components often in the presence of concurrency and failure. This underlies the ability of a distributed system to act like a non-distributed system. Scalable It can operate correctly even as some aspect of the system is scaled to a larger size (e.g. increasing the size of the network, or the number of users). Predictable performance The ability to provide desired responsiveness in a timely manner. Secure The system authenticates access to data and services Extensible Interfaces should be cleanly separated and publicly available to enable easy exten- sions to existing components and add new components. Interoperable despite heterogeneity Various entities in the system must be able to interop- erate with one another, despite differences in hardware architectures, operating systems, communication protocols, programming languages, software interfaces, security models, and data formats. 4.3 Challenges and Issues Distributed systems cause problems more frequently than fully local systems. Moreover, some problem categories aren’t even relevant in local systems, for example (potential) networking problems. In the first place, because processes and their required resources are distributed across the network, the code or the data used by a process needs to be moved over and over again. This requires compilation and installation respectively uniformity in data formats. Sec- ondly, it can take a lot longer to access remote data, due to latency. Therefore the time that it will take to complete an operation cannot be bounded in advance (unbounded determinism). Thirdly, partial failures of the network can be a huge problem if the unavailability of a node can cause disruption of the other nodes. The characteristics listed in the previous section are high standards, which are challenging to achieve. Probably the most difficult challenge is that a distributed system must be able to continue operating correctly even when components fail. Services have to be highly available 22
- 24. 4.4 Conclusion 4 DISTRIBUTED SYSTEMS and fault-tolerant. A highly available service is one that continues to provide a possibly de- graded service despite a certain number and type of process failures and despite disconnected operations. A fault-tolerant service is one that always behaves correctly despite up to a given number and type of failures. To design a distributed system with the characteristics listed in the previous section, one must design for failure. This implies not making any assumptions about the reliability of the com- ponents of a system. Below is a listing of the eight most commonly (yet premature) made assumptions, better known as the eight fallacies of distributed computing [1, 2]. Eight Fallacies 1. The network is reliable 2. Latency is zero 3. Bandwidth is infinite 4. The network is secure 5. Topology doesn’t change 6. There’s one administrator 7. Transport costs are zero 8. It’s an homogeneous network 1 4.4 Conclusion This chapter focused on several aspects of distributed systems which are relevant with regard to the Thales radar chain case. We’ve overlooked some important requirements and objectives when designing a distributed system. For the Thales radar chain case, robustness, fault-tolerance and high availability are the most important among these requirements and objectives. The last part of this chapter focused on important challenges and issues which should be conquered in our system’s design. Especially the eight fallacies of distributed computing should be taken into account. 1 This fallacy was added six years later by James Gosling (inventor of Java). 23

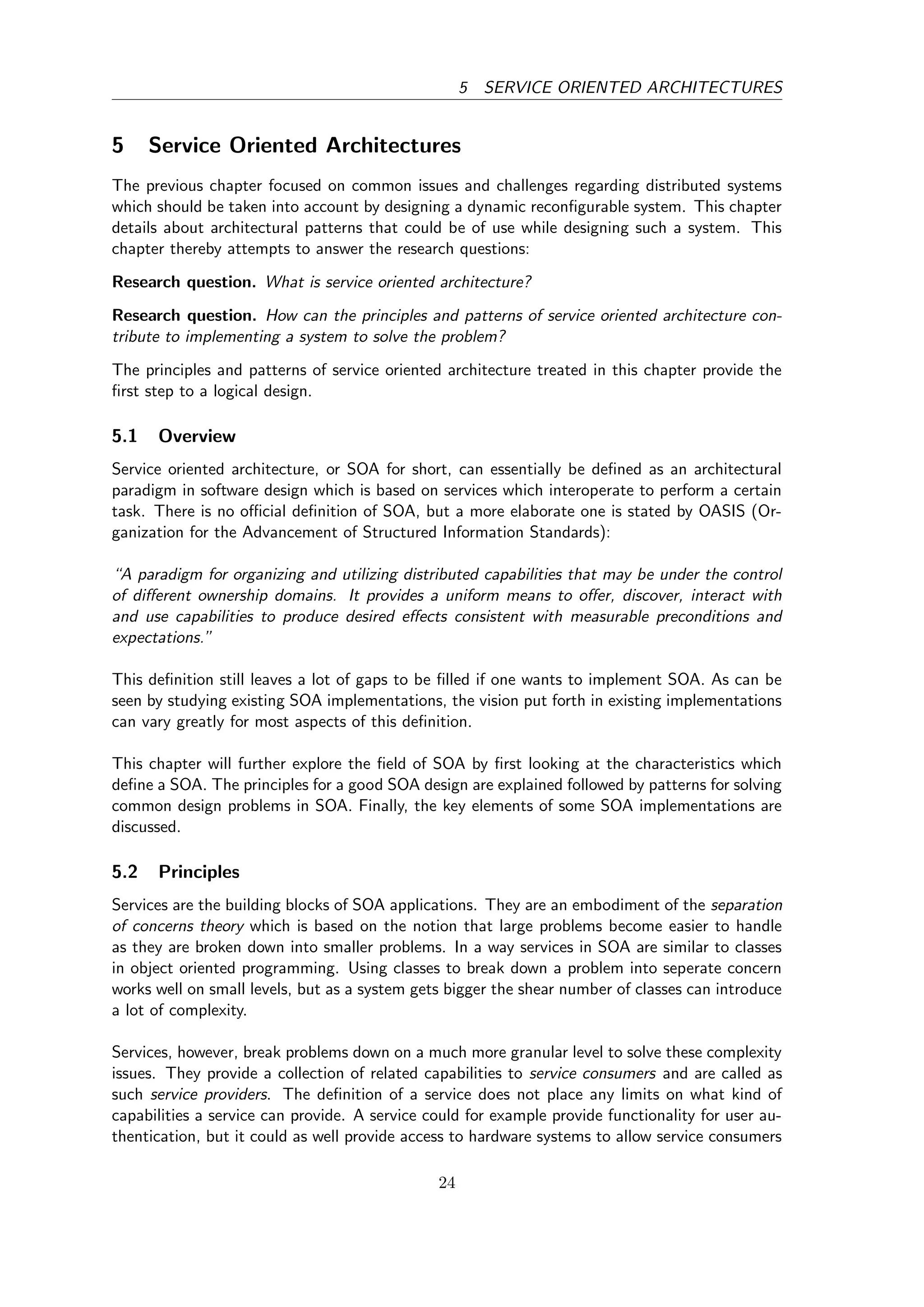

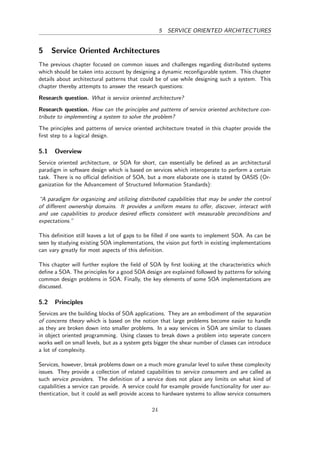

- 25. 5 SERVICE ORIENTED ARCHITECTURES 5 Service Oriented Architectures The previous chapter focused on common issues and challenges regarding distributed systems which should be taken into account by designing a dynamic reconfigurable system. This chapter details about architectural patterns that could be of use while designing such a system. This chapter thereby attempts to answer the research questions: Research question. What is service oriented architecture? Research question. How can the principles and patterns of service oriented architecture con- tribute to implementing a system to solve the problem? The principles and patterns of service oriented architecture treated in this chapter provide the first step to a logical design. 5.1 Overview Service oriented architecture, or SOA for short, can essentially be defined as an architectural paradigm in software design which is based on services which interoperate to perform a certain task. There is no official definition of SOA, but a more elaborate one is stated by OASIS (Or- ganization for the Advancement of Structured Information Standards): “A paradigm for organizing and utilizing distributed capabilities that may be under the control of different ownership domains. It provides a uniform means to offer, discover, interact with and use capabilities to produce desired effects consistent with measurable preconditions and expectations.” This definition still leaves a lot of gaps to be filled if one wants to implement SOA. As can be seen by studying existing SOA implementations, the vision put forth in existing implementations can vary greatly for most aspects of this definition. This chapter will further explore the field of SOA by first looking at the characteristics which define a SOA. The principles for a good SOA design are explained followed by patterns for solving common design problems in SOA. Finally, the key elements of some SOA implementations are discussed. 5.2 Principles Services are the building blocks of SOA applications. They are an embodiment of the separation of concerns theory which is based on the notion that large problems become easier to handle as they are broken down into smaller problems. In a way services in SOA are similar to classes in object oriented programming. Using classes to break down a problem into seperate concern works well on small levels, but as a system gets bigger the shear number of classes can introduce a lot of complexity. Services, however, break problems down on a much more granular level to solve these complexity issues. They provide a collection of related capabilities to service consumers and are called as such service providers. The definition of a service does not place any limits on what kind of capabilities a service can provide. A service could for example provide functionality for user au- thentication, but it could as well provide access to hardware systems to allow service consumers 24
- 26. 5.2 Principles 5 SERVICE ORIENTED ARCHITECTURES to perform computations on those systems. Over the past years, the industry defined a common set of design principles for SOA which should make implementing a SOA more successful. Interoperability is fundamental to every one of these principles and therefore an expected service design characteristic. Moreover, stating that services should exist implies stating that services should be interoperable. Each of the eight common principles supports or contributes to interoperability in a way. These principles and their relation to the overarching principle of interoperability will be discussed in the subsequent sections. Loose Coupling Coupling implies some kind of connection or relationship between entities, thus, a level of de- pendency. There are numerous types of coupling involved in the design of a service within the context of SOA, regarding service contracts, their implementation and service consumers. The principle of loose coupling addresses to reduction (’loosening’) of these dependencies, by the creation of a specific type of relationship within and outside of service boundaries. By making the individual services less dependent on others, they are more accessible for different consumers and interoperability is increased. Loose coupling could obviously be achieved by detaching the service interface from its underlying implementation, but the appropriate level of coupling requires that practical considerations be balanced against various service design preferences. This includes the independent design and evolution of a service’s logic and implementation while still guaranteeing baseline interoperability with dependent consumers. [19] Having loosely coupled components also means having a more fault-tolerant system, because dependencies between components are minimalized. When a single component fails, the other components could still be in a operational state. This is very important in the previously described Thales radar chain case. Service Contracts A service contract communicates the purpose and capabilities of a service and describes how the service interacts with its consumers. It could be viewed as a composition of functional meta- data and a set of policies, such as security constraints, transport and service level agreements. For instance, security requirements may differ when the service is consumed outside a trusted network. Information about services is limited to what is published in service contracts. A service contract consists of the following components: Header section including the name, version, owner and type (e.g. process, data, etc. ) of the service. The name should indicate the functionality of the service in general terms. The type helps to distinguish the layer in which the service resides. Functional section contains the functional requirements, invocation means (e.g. SOAP, REST, Event Trigger, etc.) including the URL and interface, supported operations, methods and actions of the service. The description should be very accurate. 25

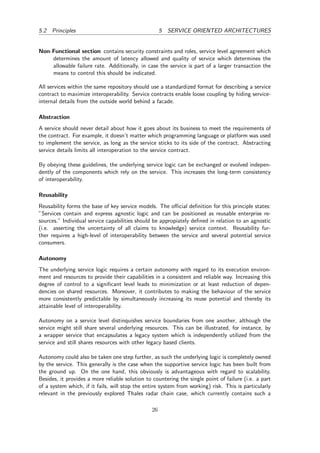

- 27. 5.2 Principles 5 SERVICE ORIENTED ARCHITECTURES Non-Functional section contains security constraints and roles, service level agreement which determines the amount of latency allowed and quality of service which determines the allowable failure rate. Additionally, in case the service is part of a larger transaction the means to control this should be indicated. All services within the same repository should use a standardized format for describing a service contract to maximize interoperability. Service contracts enable loose coupling by hiding service- internal details from the outside world behind a facade. Abstraction A service should never detail about how it goes about its business to meet the requirements of the contract. For example, it doesn’t matter which programming language or platform was used to implement the service, as long as the service sticks to its side of the contract. Abstracting service details limits all interoperation to the service contract. By obeying these guidelines, the underlying service logic can be exchanged or evolved indepen- dently of the components which rely on the service. This increases the long-term consistency of interoperability. Reusability Reusability forms the base of key service models. The official definition for this principle states: ”Services contain and express agnostic logic and can be positioned as reusable enterprise re- sources.” Individual service capabilities should be appropiately defined in relation to an agnostic (i.e. asserting the uncertainty of all claims to knowledge) service context. Reusability fur- ther requires a high-level of interoperability between the service and several potential service consumers. Autonomy The underlying service logic requires a certain autonomy with regard to its execution environ- ment and resources to provide their capabilities in a consistent and reliable way. Increasing this degree of control to a significant level leads to minimization or at least reduction of depen- dencies on shared resources. Moreover, it contributes to making the behaviour of the service more consistently predictable by simultaneously increasing its reuse potential and thereby its attainable level of interoperability. Autonomy on a service level distinquishes service boundaries from one another, although the service might still share several underlying resources. This can be illustrated, for instance, by a wrapper service that encapsulates a legacy system which is independently utilized from the service and still shares resources with other legacy based clients. Autonomy could also be taken one step further, as such the underlying logic is completely owned by the service. This generally is the case when the supportive service logic has been built from the ground up. On the one hand, this obviously is advantageous with regard to scalability. Besides, it provides a more reliable solution to countering the single point of failure (i.e. a part of a system which, if it fails, will stop the entire system from working) risk. This is particularly relevant in the previously explored Thales radar chain case, which currently contains such a 26
- 28. 5.2 Principles 5 SERVICE ORIENTED ARCHITECTURES single point of failure due to its static configuration. Increasing service autonomy could decrease mutual dependency of components of the radar chain and thereby increasing the system’s fault- tolerance. On the other hand, this implies the need of rendering and deployment of new service logic, which could increase expenses and efforts. Statelessness Services, ideally, are designed to contain state information only when this is explicitly required. Management of this information could namely compromise their availability and undermine their scalability potential. Therefore, a stateless design allows services to interoperate more frequently and reliably. In such a design, adequacy of the surrounding technology architecture to provide state management delegation and deferral options should be taken into account. Discoverability The discoverability characteristic of a SOA is meant to help avoiding the accidental creation of services that are either redundant or implement redundant logic. Owing to the fact that each particular service operation is meant to provide a potentially reusable piece of automation logic, metadata that comes attached to a service must sufficiently describe the functionality offered by its individual operations in addition to its overall purpose. Although this particular characteristic is distinct from discoverability on an architectural level, in which case the term service discoverability refers to the technology architecture’s ability to provide a mechanism of discovery (e.g. a service directory or registry), it is largely consistent with it. This actually becomes part of the overall infrastructure that is meant to support the implementation of a SOA. On a service level, the term discoverability refers to the design of an individual service so discov- erability is maximized, regardless the needs for it in its surrounding implementation environment. Even if there’s no need for a service registry, services should be designed as highly discoverable resources by equipping them with sufficient metadata to properly communicate its purpose and capabilities. This simply allows services to be more easily located by potential consumers. Be- sides, the evolutionary governance can be better managed when the service portfolio increases in size. [10, 11] When looking at the previously posed Thales radar chain case, service discovery could solve the problem of checking whether all required services are still up and running. This is of particularly importance, because all services are essential and if they appear to be down, they should be restarted in some ways. Discovery mechanism To allow service consumers to access their requested services, it’s required for them to know how to find and access the service. To accomplish this, the so-called Offer-Discover-Interact model can be used. This model consists of the following steps: Offer When a service becomes available, it publishes its services by registering it’s interface, so other entities can make use of them. Discover Service consumers can find published services by using a discovery mechanism. Usu- ally, a consumer sends a lookup request to a service registry, which contains all available 27
- 29. 5.3 Patterns 5 SERVICE ORIENTED ARCHITECTURES services and provides a service interface for the consumer to ’communicate’ with. Interact The service consumer can now use the published services to accomplish its tasks, through the service interface. The consumer thereby monitors the progress of the service. These steps can be accomplished by using a service discovery protocol such as the Service Lo- cation Protocol (SLP) or the one provided by the Jini framework. SLP provides a framework which allows discovering the existence, location and configuration of networked services. Jini is an open software architecture that enables developers to create services that are adaptable to changes in the network. Its specification offers a standard lookup service, which can be discovered with a simple API call once running. [15] The following steps summarize the procedure for using the SLP or Jini lookup service: 1. The address, respectively a connector stub is registered with the lookup service, possibly giving additional attributes that qualify the connector, and can be used as filters. 2. The client queries the lookup service, and retrieves one or more addresses, respectively connector stubs that match the query. 3. Finally, the client obtains a connector that is connected with the server identified by a retrieved address respectively connects directly to the server using the provided connector stub. Composability Composability of a service addresses its requirement to be capable of participating as an effective composition member, regardless of whether there is a direct need to be listed in a composition. Again, interoperability is an important precondition. In addition, succeeding in meeting the composability requirements often depends on the extent to which services are standardized and data exchange between them is optimized. 5.3 Patterns As more and more software systems are developed, similar solutions will be used to solve prob- lems which cause patterns to emerge. Just like in object-oriented design, in SOA the same architectural problems arise over and over again. In this section we’ll take a look at a couple of relevant SOA patterns with regard to the several problems we need to solve. Lookup The lookup pattern provides a way of finding and accessing resources, regardless of whether they are local or distributed. [12] A resource could initially be anything, for instance a piece of data. In the current context, a service is regarded as a resource. Problem A fundamental problem of resource acquisition is finding the concerning resource (if available) in the first place. Resources could be managed (i.e. adding and removing resources) by resource providers. Such a resource providers could, for example, frequently send broadcast messages offering available resources, so interested consumers become aware of their existence. 28
- 30. 5.3 Patterns 5 SERVICE ORIENTED ARCHITECTURES Conversely, consumers could send broadcast messages requesting required resources. The con- sumer could then choose the offered resources it needs from all replying resource providers. Both ways, however, could frustrate efficiency since lots of messages are send across the network (in case of a distributed system). An efficient and inexpensive solution requires [12]: Availability A resource consumer must be aware of available resources in its environment. Bootstrapping A resource consumer should be able to obtain an initial reference to a resource provider that offers the resource. Location independence Resource consumers and providers should be able to acquire respec- tively provide a resource, regardless of whether they know each others locations. Simplicity Resource consumers and providers shouldn’t be burdened. Solution The lookup pattern addresses this problem by using a so called lookup service as a mediating instance. Via this lookup service, the resource provider publishes resources along with describing properties. In the same ways, resource providers also register references to themselves, so consumers could retrieve these, search for required resources using the properties, retrieve and finally use these resources. [12] A Jini lookup services contains service type, id’s and specific attributes of registered services. Consumers search into the lookup service for their desired service, based on type, service id (if they happen to know this) or specific attributes. [16]. Leasing Leasing solves a lot of the problems inherent in distributed computing. Self-healing addresses one of the primary concerns. Distributed systems should function for a long time without needing humans to make repairs or reconfigurations. A second concern is evolvability (e.g. upgrading the system). It is out of the question to take the system down for maintenance. Moreover, it isn’t guaranteed every machine is reachable to be upgraded smoothly without failures. One must be able to evolve the system incrementally. Problem At a certain point, a resource user may lose his interest in using the concerning resource. The resource is then needlessly consumed, unless the user releases it by explicitly terminating its relationship with the provider. This not only negatively affects the performance of resource user and provider, but may also have a degrading effect on resource availability for other users. A second problem could occur when dealing with distributed resource users and providers. When the machine of the latter crashes, the resource user, being uninformed about resources becoming unavailable, may continue to reference resources which are no longer available. [12] Solution The primary idea behind leasing is that a lease holder must establish a continued proof-of-interest in using some resource, which can be essentially anything, if it is allowed access to it in the first place. So, for every resource used by some resource user a lease is introduced. This lease is granted by a grantor and obtained by a holder, typically the resource provider 29
- 31. 5.3 Patterns 5 SERVICE ORIENTED ARCHITECTURES respectively the resource user. Additionally, a time duration for usage of the ’reserved’ resource is specified by the lease.[12] If the lease holder fails to demonstrate interest, the lease expires and the resource is released. By granting a lease, the system guarantees that failures will be detected without requiring any separate component other than the lease grantor. Leasing also guarantees that irrelevant data will simply be forgotten when leases expire; it automatically cleans up after failed components and the concerning service will be forgotten. This provides also a way to evolve parts of the system in isolation. One is free to run a different version of a ’forgotten’ service and plug it in. In a Jini system, for instance, the lookup service uses time-based resource reservation for storing service items, called a lease. The grantor of the lease, the lookup service, makes the call, accepting or denying the lease. While a lease is active, the lease holder can cancel it, in which case the corresponding resource is also freed. The holder, the service, can renew the lease. If the lease isn’t renewed for a certain amount of time, the service is supposed to be unavailable and will be ’forgotten’ (i.e. the service item will be cleaned up) [16]. Proxy The proxy pattern lets resource consumers communicate with a representative, rather than to the resource itself. This straightforwarded principle serves many purposes, such as providing easier access and protection of unautorized access. [14] Problem In many cases it is often considered inappropriate to access a component or resource directly. It is undesired to configure their physical location in a static way and unrestricted access to them may be inefficient or even insecure. Additional control mechanisms are needed to ensure access to entities lapses in an efficient, safe and transparent 2 way. In addition, a consumer should be able to access any component or resource using the same calling behaviour and syntax. Solution The solution to the problems stated above is to a representative, a so called proxy, to offer the interface of the concerning entity. This representative performs additional pre- and postprocessing (e.g. access-control, checking or making read-only copies of the original). In a Jini system, each application uses services through so-called proxies. A proxy allows the program to communicate with the service, but shields its details. Proxies are dynamically down- loaded by the consumers of the service. This way, extension of functionality can be accomplished on-the-fly. Proxies use the same protocol as the backend portion of the service. Consumers are shielded from this information. All they care about is the provided functionality of the service. One special service, the Lookup Service, keeps track of all the available services and provides access to them. Services publish themselves by storing their specific proxy in the lookup service. This publishing process is called join [16]. The Lookup Service now contains a so-called service entry, which consists of a unique service id, a proxy and a number of attributes which describe the functionality of the service. Consumers query the lookup service for available services and the Lookup Service provides the proxy of the requested service (type). 2 Full transparency can obscure cost differences between services. 30

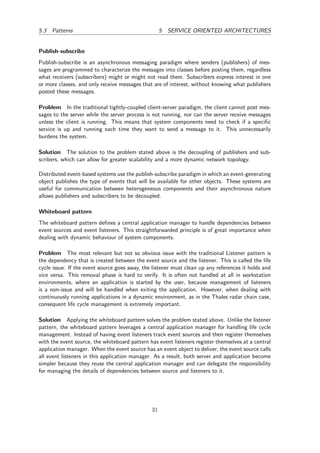

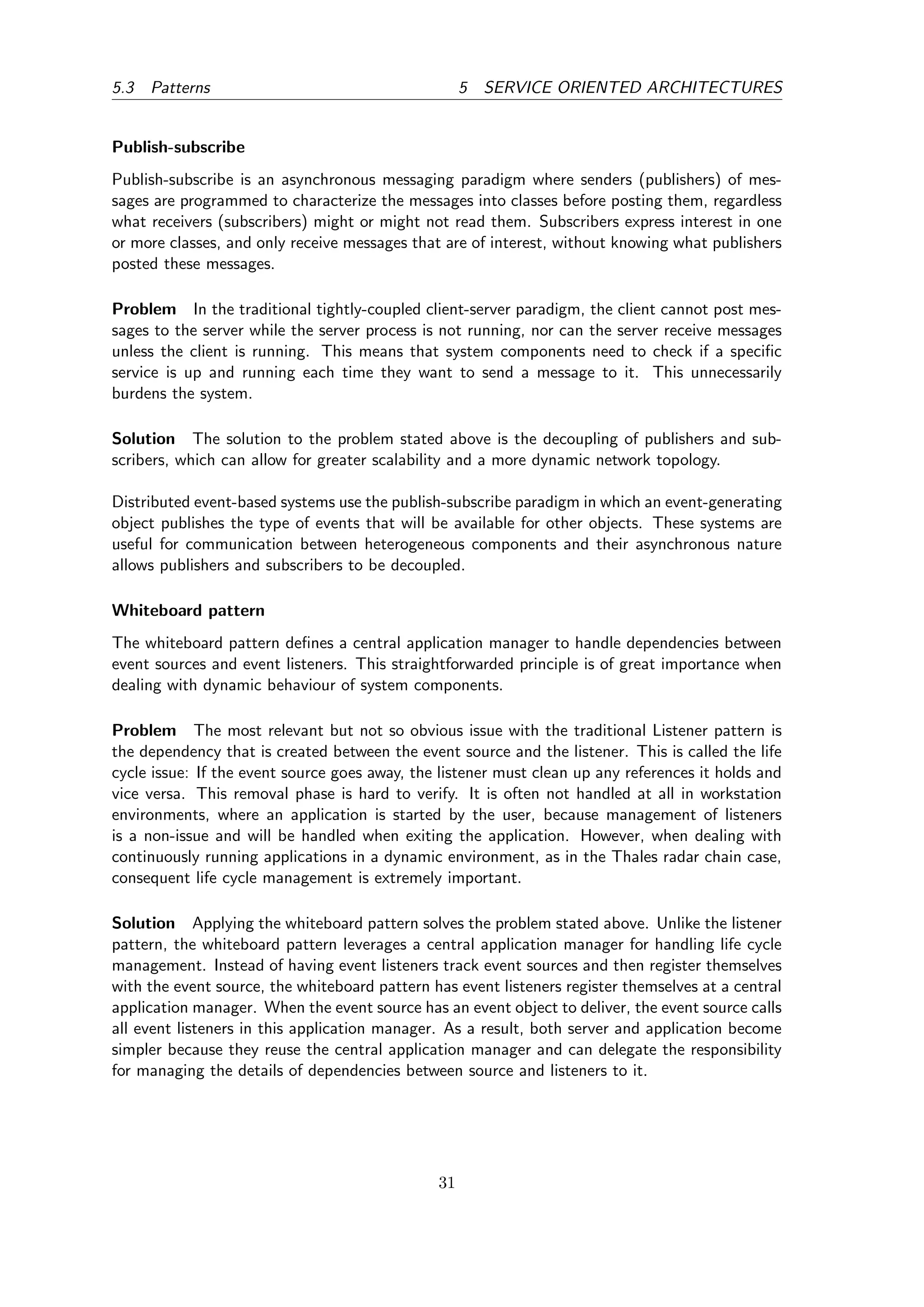

- 32. 5.3 Patterns 5 SERVICE ORIENTED ARCHITECTURES Publish-subscribe Publish-subscribe is an asynchronous messaging paradigm where senders (publishers) of mes- sages are programmed to characterize the messages into classes before posting them, regardless what receivers (subscribers) might or might not read them. Subscribers express interest in one or more classes, and only receive messages that are of interest, without knowing what publishers posted these messages. Problem In the traditional tightly-coupled client-server paradigm, the client cannot post mes- sages to the server while the server process is not running, nor can the server receive messages unless the client is running. This means that system components need to check if a specific service is up and running each time they want to send a message to it. This unnecessarily burdens the system. Solution The solution to the problem stated above is the decoupling of publishers and sub- scribers, which can allow for greater scalability and a more dynamic network topology. Distributed event-based systems use the publish-subscribe paradigm in which an event-generating object publishes the type of events that will be available for other objects. These systems are useful for communication between heterogeneous components and their asynchronous nature allows publishers and subscribers to be decoupled. Whiteboard pattern The whiteboard pattern defines a central application manager to handle dependencies between event sources and event listeners. This straightforwarded principle is of great importance when dealing with dynamic behaviour of system components. Problem The most relevant but not so obvious issue with the traditional Listener pattern is the dependency that is created between the event source and the listener. This is called the life cycle issue: If the event source goes away, the listener must clean up any references it holds and vice versa. This removal phase is hard to verify. It is often not handled at all in workstation environments, where an application is started by the user, because management of listeners is a non-issue and will be handled when exiting the application. However, when dealing with continuously running applications in a dynamic environment, as in the Thales radar chain case, consequent life cycle management is extremely important. Solution Applying the whiteboard pattern solves the problem stated above. Unlike the listener pattern, the whiteboard pattern leverages a central application manager for handling life cycle management. Instead of having event listeners track event sources and then register themselves with the event source, the whiteboard pattern has event listeners register themselves at a central application manager. When the event source has an event object to deliver, the event source calls all event listeners in this application manager. As a result, both server and application become simpler because they reuse the central application manager and can delegate the responsibility for managing the details of dependencies between source and listeners to it. 31

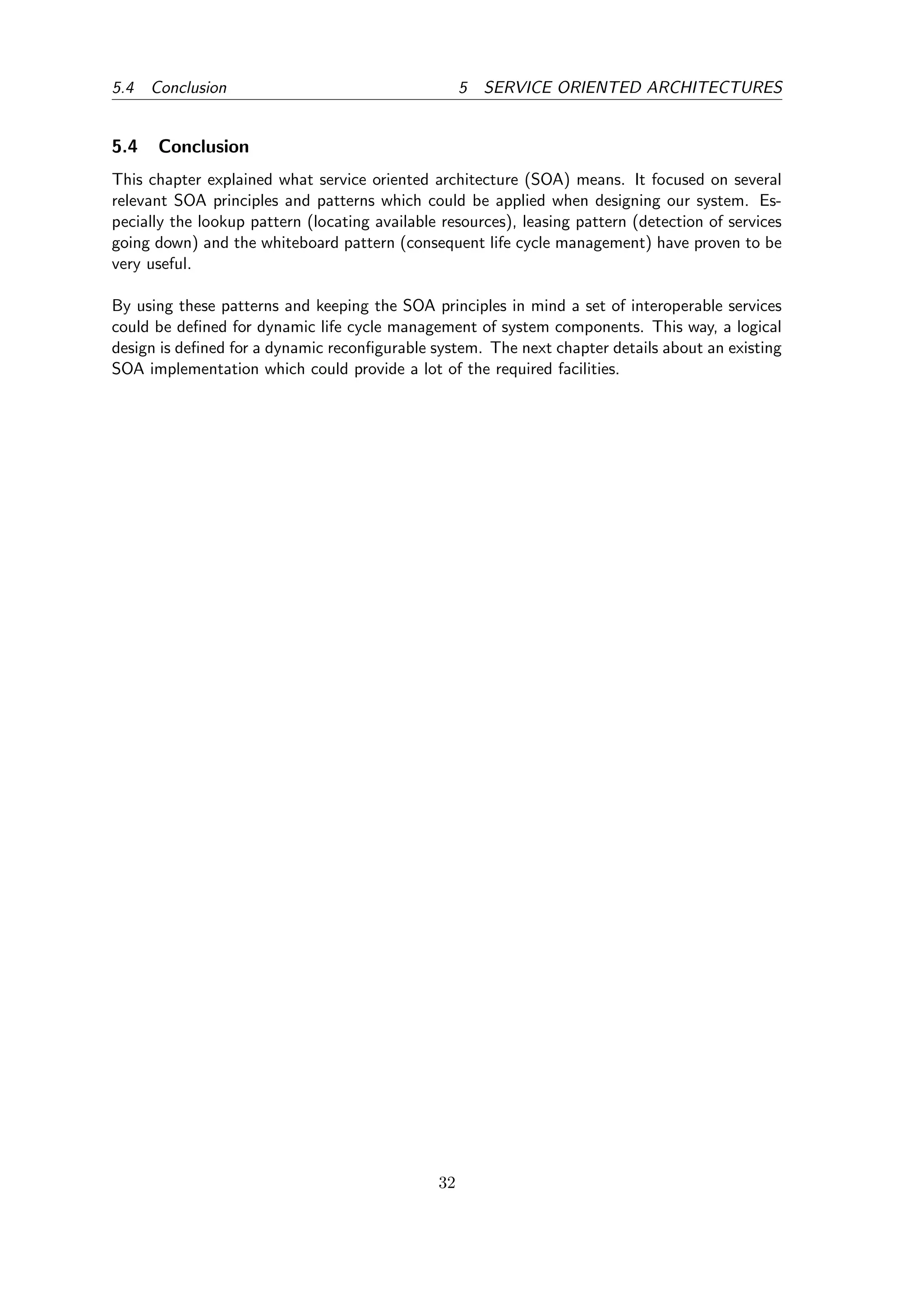

- 33. 5.4 Conclusion 5 SERVICE ORIENTED ARCHITECTURES 5.4 Conclusion This chapter explained what service oriented architecture (SOA) means. It focused on several relevant SOA principles and patterns which could be applied when designing our system. Es- pecially the lookup pattern (locating available resources), leasing pattern (detection of services going down) and the whiteboard pattern (consequent life cycle management) have proven to be very useful. By using these patterns and keeping the SOA principles in mind a set of interoperable services could be defined for dynamic life cycle management of system components. This way, a logical design is defined for a dynamic reconfigurable system. The next chapter details about an existing SOA implementation which could provide a lot of the required facilities. 32

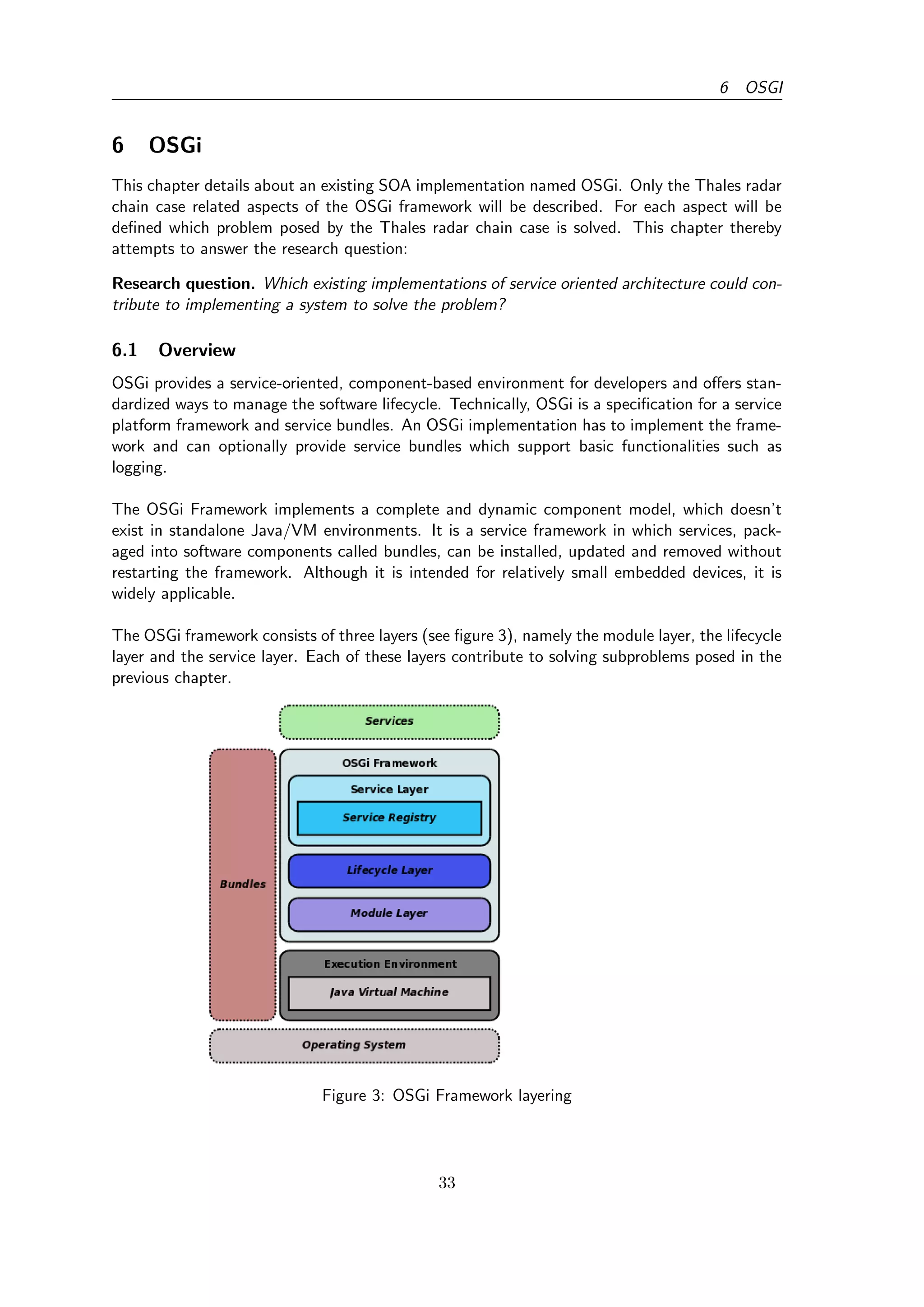

- 34. 6 OSGI 6 OSGi This chapter details about an existing SOA implementation named OSGi. Only the Thales radar chain case related aspects of the OSGi framework will be described. For each aspect will be defined which problem posed by the Thales radar chain case is solved. This chapter thereby attempts to answer the research question: Research question. Which existing implementations of service oriented architecture could con- tribute to implementing a system to solve the problem? 6.1 Overview OSGi provides a service-oriented, component-based environment for developers and offers stan- dardized ways to manage the software lifecycle. Technically, OSGi is a specification for a service platform framework and service bundles. An OSGi implementation has to implement the frame- work and can optionally provide service bundles which support basic functionalities such as logging. The OSGi Framework implements a complete and dynamic component model, which doesn’t exist in standalone Java/VM environments. It is a service framework in which services, pack- aged into software components called bundles, can be installed, updated and removed without restarting the framework. Although it is intended for relatively small embedded devices, it is widely applicable. The OSGi framework consists of three layers (see figure 3), namely the module layer, the lifecycle layer and the service layer. Each of these layers contribute to solving subproblems posed in the previous chapter. Figure 3: OSGi Framework layering 33

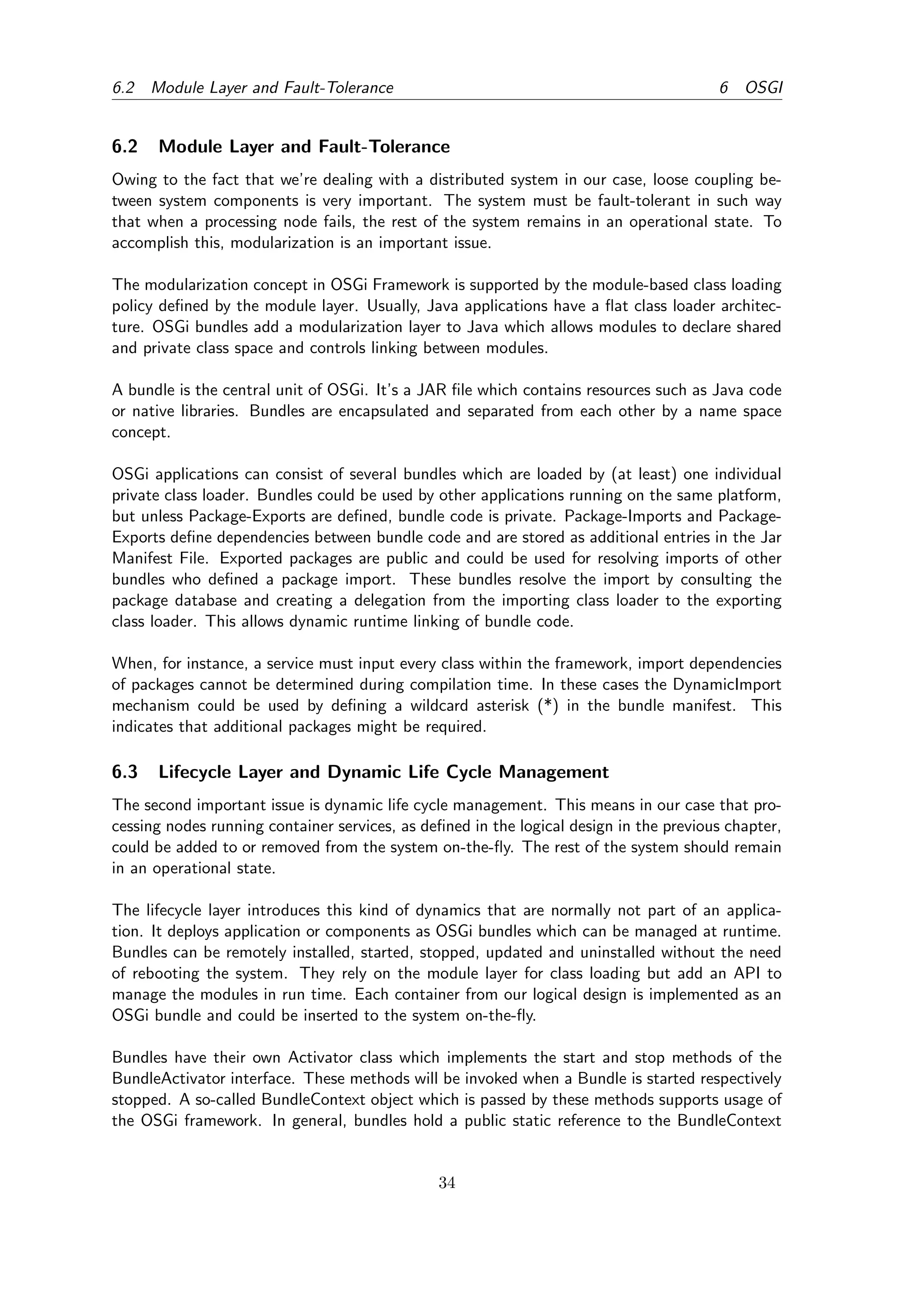

- 35. 6.2 Module Layer and Fault-Tolerance 6 OSGI 6.2 Module Layer and Fault-Tolerance Owing to the fact that we’re dealing with a distributed system in our case, loose coupling be- tween system components is very important. The system must be fault-tolerant in such way that when a processing node fails, the rest of the system remains in an operational state. To accomplish this, modularization is an important issue. The modularization concept in OSGi Framework is supported by the module-based class loading policy defined by the module layer. Usually, Java applications have a flat class loader architec- ture. OSGi bundles add a modularization layer to Java which allows modules to declare shared and private class space and controls linking between modules. A bundle is the central unit of OSGi. It’s a JAR file which contains resources such as Java code or native libraries. Bundles are encapsulated and separated from each other by a name space concept. OSGi applications can consist of several bundles which are loaded by (at least) one individual private class loader. Bundles could be used by other applications running on the same platform, but unless Package-Exports are defined, bundle code is private. Package-Imports and Package- Exports define dependencies between bundle code and are stored as additional entries in the Jar Manifest File. Exported packages are public and could be used for resolving imports of other bundles who defined a package import. These bundles resolve the import by consulting the package database and creating a delegation from the importing class loader to the exporting class loader. This allows dynamic runtime linking of bundle code. When, for instance, a service must input every class within the framework, import dependencies of packages cannot be determined during compilation time. In these cases the DynamicImport mechanism could be used by defining a wildcard asterisk (*) in the bundle manifest. This indicates that additional packages might be required. 6.3 Lifecycle Layer and Dynamic Life Cycle Management The second important issue is dynamic life cycle management. This means in our case that pro- cessing nodes running container services, as defined in the logical design in the previous chapter, could be added to or removed from the system on-the-fly. The rest of the system should remain in an operational state. The lifecycle layer introduces this kind of dynamics that are normally not part of an applica- tion. It deploys application or components as OSGi bundles which can be managed at runtime. Bundles can be remotely installed, started, stopped, updated and uninstalled without the need of rebooting the system. They rely on the module layer for class loading but add an API to manage the modules in run time. Each container from our logical design is implemented as an OSGi bundle and could be inserted to the system on-the-fly. Bundles have their own Activator class which implements the start and stop methods of the BundleActivator interface. These methods will be invoked when a Bundle is started respectively stopped. A so-called BundleContext object which is passed by these methods supports usage of the OSGi framework. In general, bundles hold a public static reference to the BundleContext 34

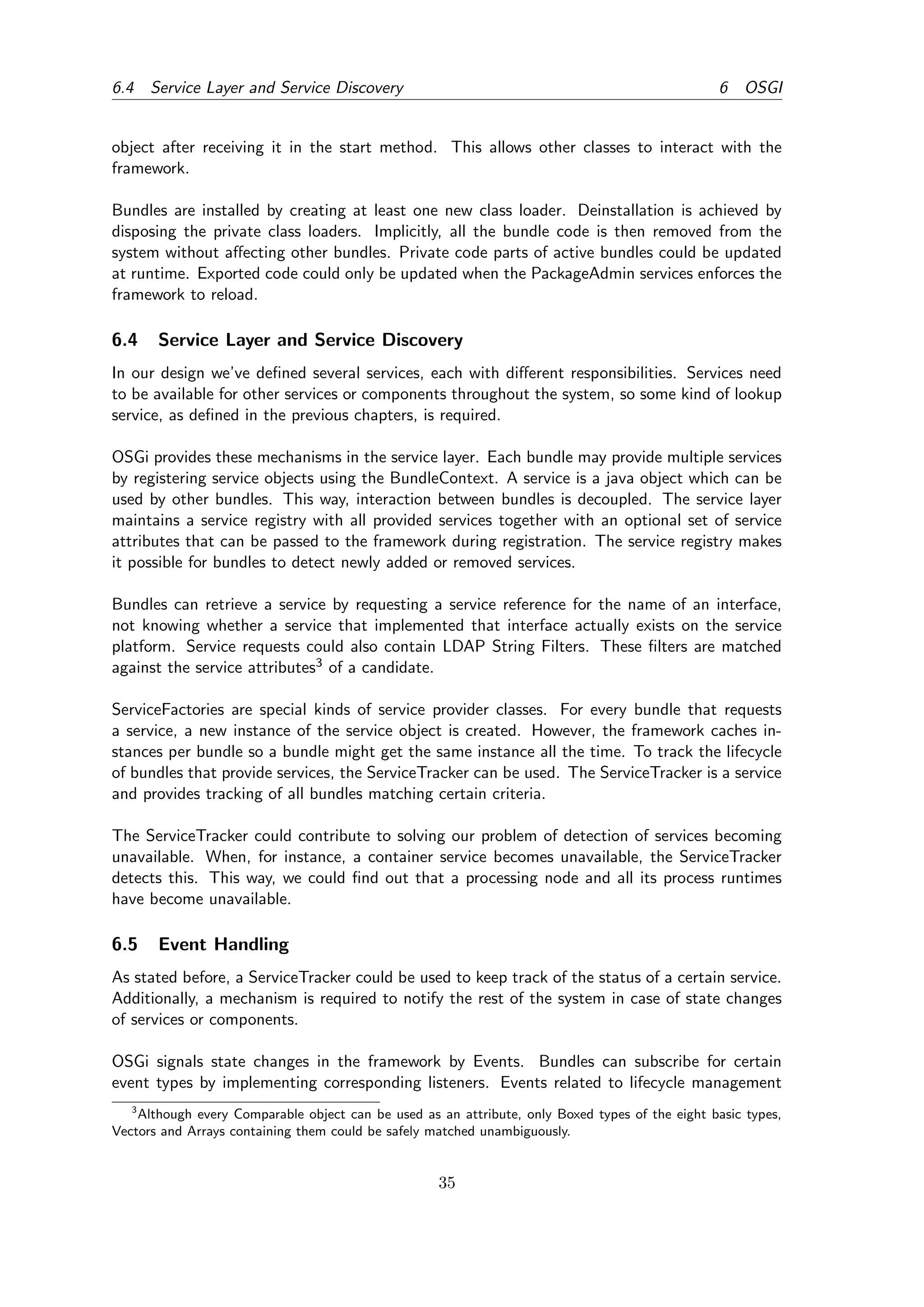

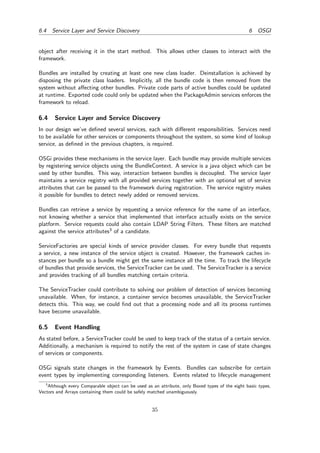

- 36. 6.4 Service Layer and Service Discovery 6 OSGI object after receiving it in the start method. This allows other classes to interact with the framework. Bundles are installed by creating at least one new class loader. Deinstallation is achieved by disposing the private class loaders. Implicitly, all the bundle code is then removed from the system without affecting other bundles. Private code parts of active bundles could be updated at runtime. Exported code could only be updated when the PackageAdmin services enforces the framework to reload. 6.4 Service Layer and Service Discovery In our design we’ve defined several services, each with different responsibilities. Services need to be available for other services or components throughout the system, so some kind of lookup service, as defined in the previous chapters, is required. OSGi provides these mechanisms in the service layer. Each bundle may provide multiple services by registering service objects using the BundleContext. A service is a java object which can be used by other bundles. This way, interaction between bundles is decoupled. The service layer maintains a service registry with all provided services together with an optional set of service attributes that can be passed to the framework during registration. The service registry makes it possible for bundles to detect newly added or removed services. Bundles can retrieve a service by requesting a service reference for the name of an interface, not knowing whether a service that implemented that interface actually exists on the service platform. Service requests could also contain LDAP String Filters. These filters are matched against the service attributes3 of a candidate. ServiceFactories are special kinds of service provider classes. For every bundle that requests a service, a new instance of the service object is created. However, the framework caches in- stances per bundle so a bundle might get the same instance all the time. To track the lifecycle of bundles that provide services, the ServiceTracker can be used. The ServiceTracker is a service and provides tracking of all bundles matching certain criteria. The ServiceTracker could contribute to solving our problem of detection of services becoming unavailable. When, for instance, a container service becomes unavailable, the ServiceTracker detects this. This way, we could find out that a processing node and all its process runtimes have become unavailable. 6.5 Event Handling As stated before, a ServiceTracker could be used to keep track of the status of a certain service. Additionally, a mechanism is required to notify the rest of the system in case of state changes of services or components. OSGi signals state changes in the framework by Events. Bundles can subscribe for certain event types by implementing corresponding listeners. Events related to lifecycle management 3 Although every Comparable object can be used as an attribute, only Boxed types of the eight basic types, Vectors and Arrays containing them could be safely matched unambiguously. 35

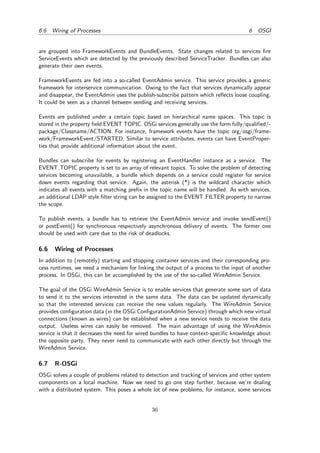

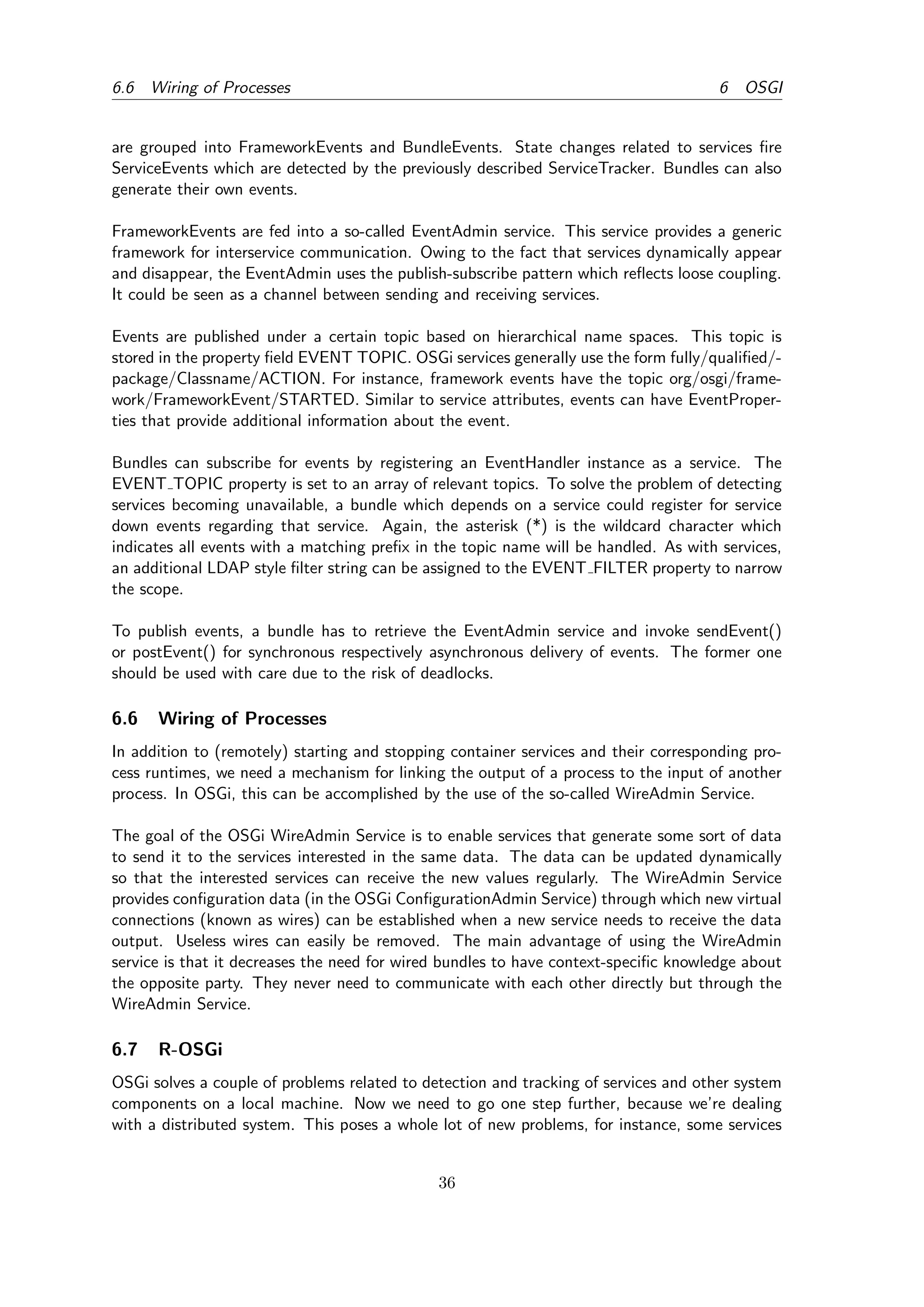

- 37. 6.6 Wiring of Processes 6 OSGI are grouped into FrameworkEvents and BundleEvents. State changes related to services fire ServiceEvents which are detected by the previously described ServiceTracker. Bundles can also generate their own events. FrameworkEvents are fed into a so-called EventAdmin service. This service provides a generic framework for interservice communication. Owing to the fact that services dynamically appear and disappear, the EventAdmin uses the publish-subscribe pattern which reflects loose coupling. It could be seen as a channel between sending and receiving services. Events are published under a certain topic based on hierarchical name spaces. This topic is stored in the property field EVENT TOPIC. OSGi services generally use the form fully/qualified/- package/Classname/ACTION. For instance, framework events have the topic org/osgi/frame- work/FrameworkEvent/STARTED. Similar to service attributes, events can have EventProper- ties that provide additional information about the event. Bundles can subscribe for events by registering an EventHandler instance as a service. The EVENT TOPIC property is set to an array of relevant topics. To solve the problem of detecting services becoming unavailable, a bundle which depends on a service could register for service down events regarding that service. Again, the asterisk (*) is the wildcard character which indicates all events with a matching prefix in the topic name will be handled. As with services, an additional LDAP style filter string can be assigned to the EVENT FILTER property to narrow the scope. To publish events, a bundle has to retrieve the EventAdmin service and invoke sendEvent() or postEvent() for synchronous respectively asynchronous delivery of events. The former one should be used with care due to the risk of deadlocks. 6.6 Wiring of Processes In addition to (remotely) starting and stopping container services and their corresponding pro- cess runtimes, we need a mechanism for linking the output of a process to the input of another process. In OSGi, this can be accomplished by the use of the so-called WireAdmin Service. The goal of the OSGi WireAdmin Service is to enable services that generate some sort of data to send it to the services interested in the same data. The data can be updated dynamically so that the interested services can receive the new values regularly. The WireAdmin Service provides configuration data (in the OSGi ConfigurationAdmin Service) through which new virtual connections (known as wires) can be established when a new service needs to receive the data output. Useless wires can easily be removed. The main advantage of using the WireAdmin service is that it decreases the need for wired bundles to have context-specific knowledge about the opposite party. They never need to communicate with each other directly but through the WireAdmin Service. 6.7 R-OSGi OSGi solves a couple of problems related to detection and tracking of services and other system components on a local machine. Now we need to go one step further, because we’re dealing with a distributed system. This poses a whole lot of new problems, for instance, some services 36
- 38. 6.7 R-OSGi 6 OSGI could exist as a single instance, but others need to be distributed across the system to prevent the risk of a single point of failure. OSGi itself doesn’t provide us enough facilities for direct integration in a distributed system and solving these problems. Therefore, we’ve used R-OSGi to come up to these additional requirements. R-OSGi is a lightweight extension framework of OSGi. Derived from Jini, it is designed for integration of distributed environments. It allows existing OSGi services to be accessed from remote clients by introducing Remote Services. Discovery of these services is based on SLP, proxies are dynamically created on client side and proxy bundles are registered on the local service platform. 6.7.1 Remote Service Discovery OSGi provides a mechanism for service discovery in a local machine. Now we need to extend this mechanism so it’s able to discover services in a distributed system such as the radar chain. As stated above, service discovery in R-OSGi is based on SLP. SLP [18] is a lightweight, packet- level protocol for service discovery. The registration part is called Service Agent (SA), the lookup and request part User Agent (UA). Services are identified by a ServiceURL which contains the service type, location and connection information. A general ServiceURL is of the form ser- vice:type://addrspec. SLP messages could be TCP packets as well as UDP datagrams. Service Agents provide every message with a numeric transaction ID (XID). Retransmissions and replies get the same XID as the original message, otherwise the XID is increased for every new message. This allows the requester to match replies to individual requests. SLP appeared to be the best choice for integrating remote OSGi services among the set of well established discovery protocol specifications, because mapping OSGi services to SLP service reg- istrations is straightforward. Both systems use a unique identifier as a string for each service type, allow service registration attributes and support filtering based on these attributes. OSGi has the interface class name, SLP uses ServiceURLs of the form ’service:osgi:my service Interface’. Sadly, there is no designated generic method in the framework that allows tracking failed service reference requests so running a fallback protocol that tries to find a remote service is out of the question. R-OSGi specifies a configuration file containing all potential useful services for the service platform. In addition, it registers discovery listeners for service interfaces and attribute filters so explicit service discovery is supported. Those listeners can be provided by separate bundles that serve as remote extension. For instance, when a log bundle is needed, a tiny remote log listener bundle can be installed to notify the R-OSGi core about the bundle’s interest in services with the interface org.osgi.service.log.LogService. 6.7.2 Using Remote Services through Dynamic Proxies Once a requested remote service is discovered there’s still another problem before this service could be used. We need a mechanism to call the methods of the remote service to actually make use of the service’ capabilities. R-OSGi solves this potential problem by the use of so-called 37
- 39. 6.7 R-OSGi 6 OSGI dynamic proxies. In R-OSGi, on the client side proxy bundles are created dynamic. Whether the R-OSGi system is preconfigured to fetch services of a certain type or the registered discovery listener is fired, either way the system retrieves the service interface with associated attributes from the remote peer. This is sufficient for the client to build a proxy bundle. R-OSGi then creates a class on the fly using bytecode manipulation. This class implements the service interface such that all methods are mapped to a corresponding remote method call in a generic way. All that needs to be done is calling the method 1 public Object invokeMethod( String serviceURL, String method, Object[] args) throws RemoteOSGiException; in the appropriate manner. This looks a lot like Java’s reflection mechanism. After every abstract method in the interface is implemented by a remote call, the system adds the methods of a BundleActivator to the class. The implementation body mainly gets the service reference to the Remoting service and retrieves the service object. Subsequently, the implemented class is registered as service under the interface that was retrieved from the remote peer. All remote service attributes are also registered on the local peer with two exceptions: 1. Service.PID is excluded since the PID (persistent ID) of a service must be unique and local services might already use the same PID. 2. R-OSGi provides a special type called Timestamp which will be transformed to local time when detected as an attribute. A jar file is created containing the generated class and the bundle is installed and started on the local framework. As usual, the framework calls the bundle Activator on start. The proxy class is registered under the service interface and consumers can now use the service in the same ways as a local service. R-OSGi also supports code mobility in a similar way like Jini for more delicate setups. It uses a so-called smart proxy, which is an abstract class implementing a few methods of the service interface, instead of simply registering a service interface. When the proxy bundle is generated, only abstract methods are mapped to remote method calls. Smart proxies can therefore move arbitrary pieces of service code to the client. 6.7.3 Remote Event Handling OSGi already provides us a mechanism to send and receive events within an instance of the OSGi framework. Again, we need to extend this mechanism to support event transmission in our distributed environment. R-OSGi extends OSGi’s EventAdmin service by implementing EventAdmin and supporting trans- mission of events to remote peers. Bundles create an instance of RemoteEvent, which is an extension of Event. The constructor of RemoteEvent takes an additional service URL parameter. The remote event is unicast to the peer that maps the service URL or multicasted to all listening R-OSGi peers if no destination is set. This way, events could be used with the semantics of group communication. 38

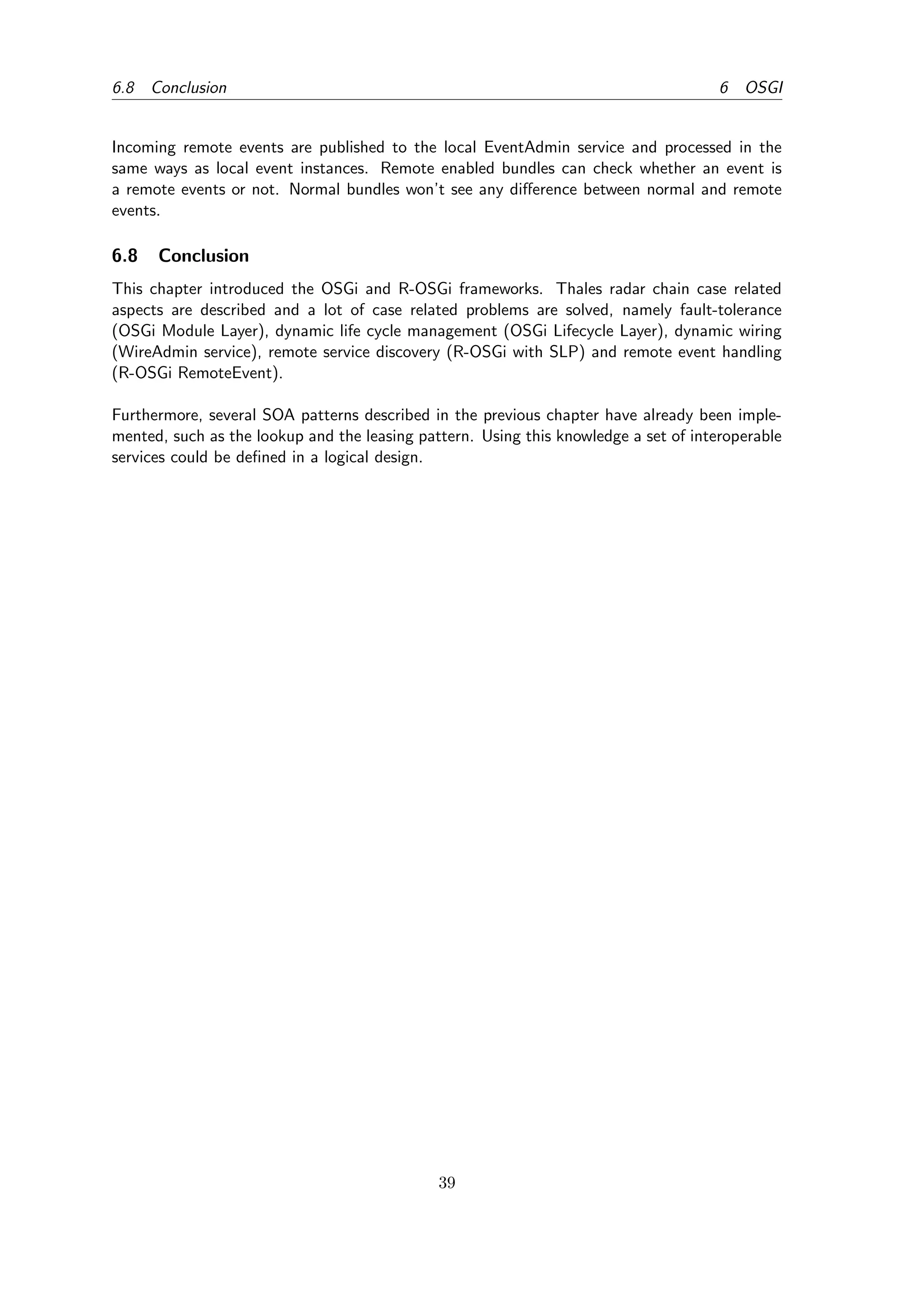

- 40. 6.8 Conclusion 6 OSGI Incoming remote events are published to the local EventAdmin service and processed in the same ways as local event instances. Remote enabled bundles can check whether an event is a remote events or not. Normal bundles won’t see any difference between normal and remote events. 6.8 Conclusion This chapter introduced the OSGi and R-OSGi frameworks. Thales radar chain case related aspects are described and a lot of case related problems are solved, namely fault-tolerance (OSGi Module Layer), dynamic life cycle management (OSGi Lifecycle Layer), dynamic wiring (WireAdmin service), remote service discovery (R-OSGi with SLP) and remote event handling (R-OSGi RemoteEvent). Furthermore, several SOA patterns described in the previous chapter have already been imple- mented, such as the lookup and the leasing pattern. Using this knowledge a set of interoperable services could be defined in a logical design. 39

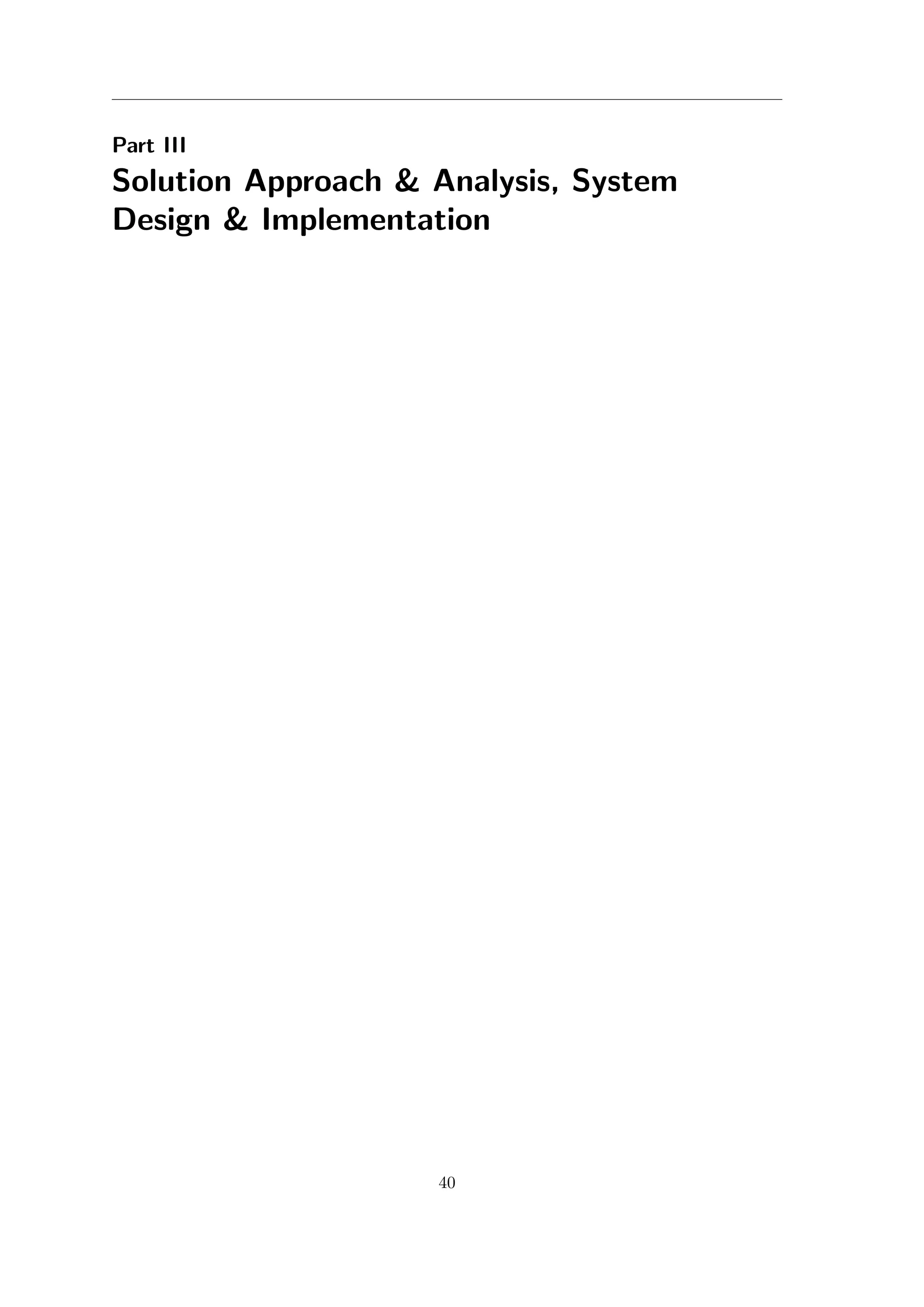

- 41. Part III Solution Approach& Analysis, System Design & Implementation 40

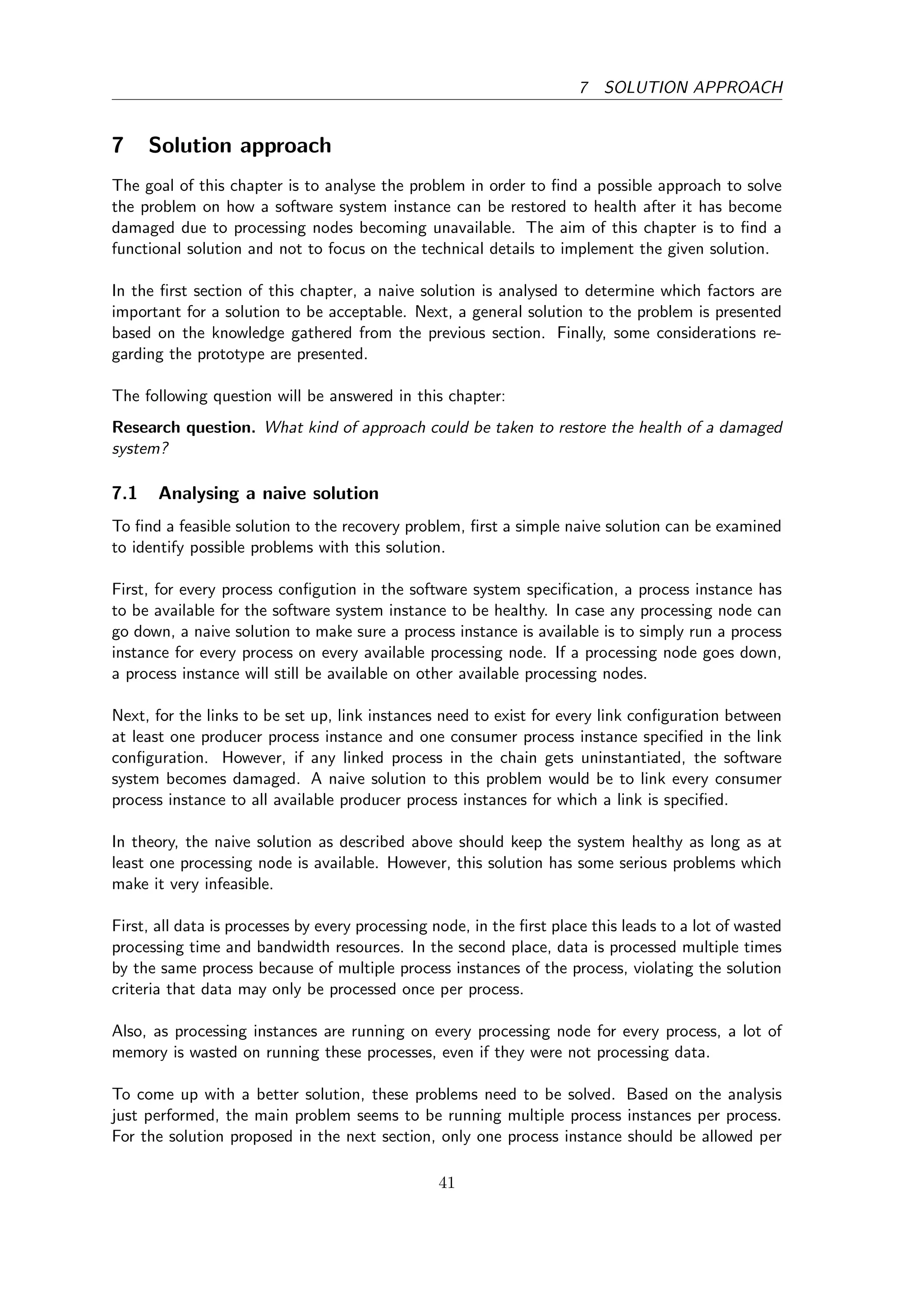

- 42. 7 SOLUTION APPROACH 7 Solution approach The goal of this chapter is to analyse the problem in order to find a possible approach to solve the problem on how a software system instance can be restored to health after it has become damaged due to processing nodes becoming unavailable. The aim of this chapter is to find a functional solution and not to focus on the technical details to implement the given solution. In the first section of this chapter, a naive solution is analysed to determine which factors are important for a solution to be acceptable. Next, a general solution to the problem is presented based on the knowledge gathered from the previous section. Finally, some considerations re- garding the prototype are presented. The following question will be answered in this chapter: Research question. What kind of approach could be taken to restore the health of a damaged system? 7.1 Analysing a naive solution To find a feasible solution to the recovery problem, first a simple naive solution can be examined to identify possible problems with this solution. First, for every process configution in the software system specification, a process instance has to be available for the software system instance to be healthy. In case any processing node can go down, a naive solution to make sure a process instance is available is to simply run a process instance for every process on every available processing node. If a processing node goes down, a process instance will still be available on other available processing nodes. Next, for the links to be set up, link instances need to exist for every link configuration between at least one producer process instance and one consumer process instance specified in the link configuration. However, if any linked process in the chain gets uninstantiated, the software system becomes damaged. A naive solution to this problem would be to link every consumer process instance to all available producer process instances for which a link is specified. In theory, the naive solution as described above should keep the system healthy as long as at least one processing node is available. However, this solution has some serious problems which make it very infeasible. First, all data is processes by every processing node, in the first place this leads to a lot of wasted processing time and bandwidth resources. In the second place, data is processed multiple times by the same process because of multiple process instances of the process, violating the solution criteria that data may only be processed once per process. Also, as processing instances are running on every processing node for every process, a lot of memory is wasted on running these processes, even if they were not processing data. To come up with a better solution, these problems need to be solved. Based on the analysis just performed, the main problem seems to be running multiple process instances per process. For the solution proposed in the next section, only one process instance should be allowed per 41

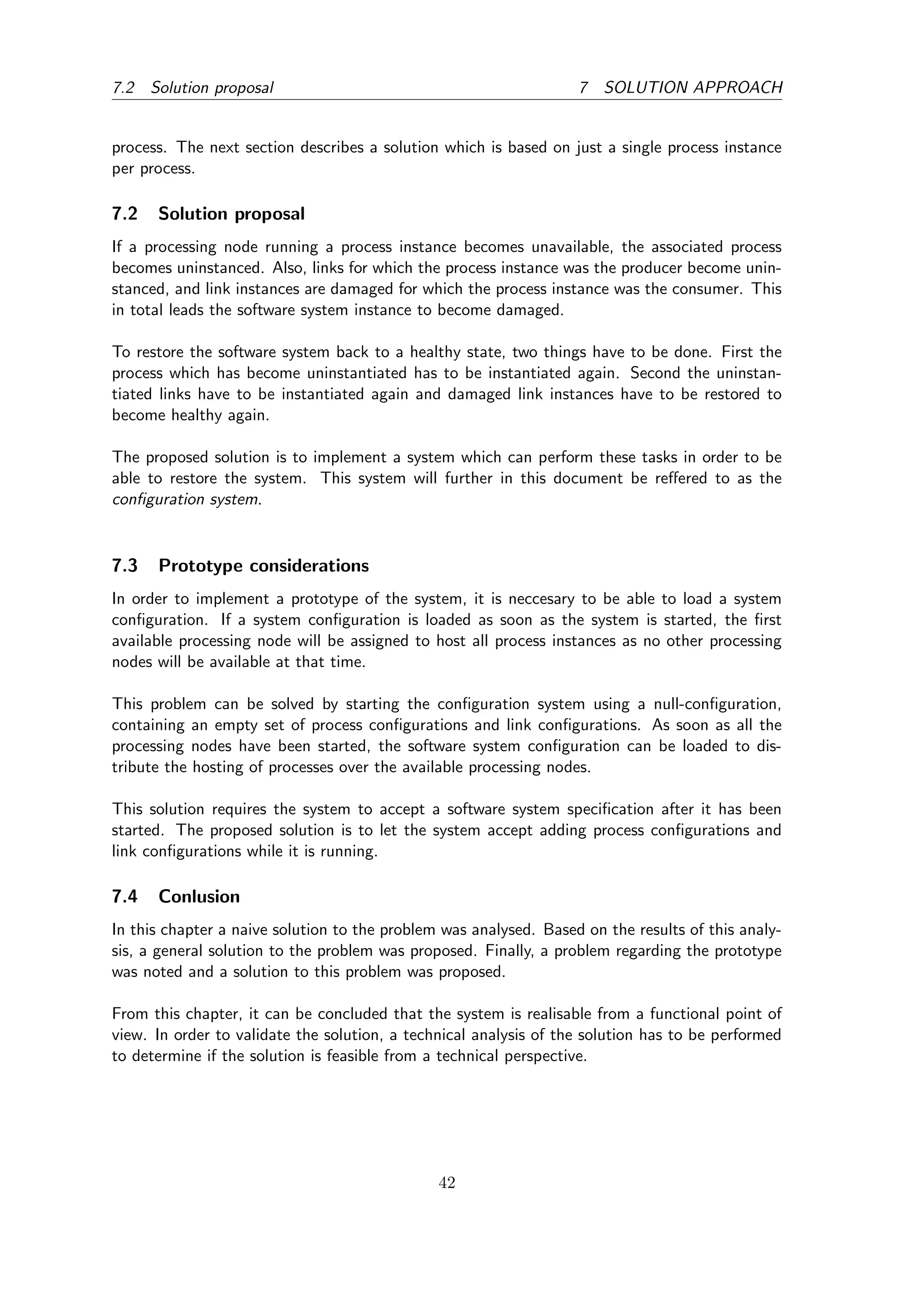

- 43. 7.2 Solution proposal 7 SOLUTION APPROACH process. The next section describes a solution which is based on just a single process instance per process. 7.2 Solution proposal If a processing node running a process instance becomes unavailable, the associated process becomes uninstanced. Also, links for which the process instance was the producer become unin- stanced, and link instances are damaged for which the process instance was the consumer. This in total leads the software system instance to become damaged. To restore the software system back to a healthy state, two things have to be done. First the process which has become uninstantiated has to be instantiated again. Second the uninstan- tiated links have to be instantiated again and damaged link instances have to be restored to become healthy again. The proposed solution is to implement a system which can perform these tasks in order to be able to restore the system. This system will further in this document be reffered to as the configuration system. 7.3 Prototype considerations In order to implement a prototype of the system, it is neccesary to be able to load a system configuration. If a system configuration is loaded as soon as the system is started, the first available processing node will be assigned to host all process instances as no other processing nodes will be available at that time. This problem can be solved by starting the configuration system using a null-configuration, containing an empty set of process configurations and link configurations. As soon as all the processing nodes have been started, the software system configuration can be loaded to dis- tribute the hosting of processes over the available processing nodes. This solution requires the system to accept a software system specification after it has been started. The proposed solution is to let the system accept adding process configurations and link configurations while it is running. 7.4 Conlusion In this chapter a naive solution to the problem was analysed. Based on the results of this analy- sis, a general solution to the problem was proposed. Finally, a problem regarding the prototype was noted and a solution to this problem was proposed. From this chapter, it can be concluded that the system is realisable from a functional point of view. In order to validate the solution, a technical analysis of the solution has to be performed to determine if the solution is feasible from a technical perspective. 42
- 44. 8 SOLUTION ANALYSIS 8 Solution analysis In the previous chapter a general solution to the problem was defined. In this chapter the solution is further analysed by defining solution scenarios. Finally, a use-case analysis provides a detailed overview of the use-cases and processes within the system. The following questions will be answered in this chapter: Research question. Which scenarios can be identified? Research question. Which use-cases can be identified? 8.1 Scenarios The following sections describe some typical scenario’s the system has to deal with. The hardware system used in these scenario’s consists of three processing nodes which are la- belled by A, B and C. Further in this section, the following conventions are used for denoting configurations and in- stances of software components: • i(x) denotes an instance of x, e.g: i(p1 ) denotes an instance of p1 • c(x) denotes a configuration of x. The software system specification constists of the following configurations: 1. Process configurations c(p1 ), c(p2 ) and c(p3 ) 2. A link configuration c(l1 ), linking i(p1 ) to i(p2 ) 3. A link configuration c(l2 ), linking i(p2 ) to i(p3 ) 8.1.1 System instantiation The following scenario illustrates the starting of a hardware system, followed by the starting of the configuration system, and finally the instantiation of the software system instance s. 1. The configuration system is started (a) The configuration system instantiates a null-configurated software system instance 2. Processing nodes A, B and C become available (a) The configuration system detects A, B and C are available 3. The administrator adds c(p1 ) to the software system specification (a) The configuration system finds that p1 is uninstantiated (b) The configuration system finds a processing node on which to instantiate p1 (c) The configuration system requests A to instantiate p1 (d) Processing node A instantiates i(p1 ) 43

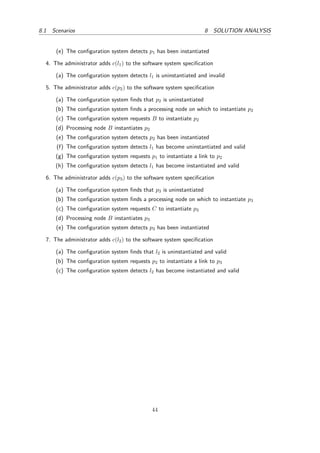

- 45. 8.1 Scenarios 8 SOLUTION ANALYSIS (e) The configuration system detects p1 has been instantiated 4. The administrator adds c(l1 ) to the software system specification (a) The configuration system detects l1 is uninstantiated and invalid 5. The administrator adds c(p2 ) to the software system specification (a) The configuration system finds that p2 is uninstantiated (b) The configuration system finds a processing node on which to instantiate p2 (c) The configuration system requests B to instantiate p2 (d) Processing node B instantiates p2 (e) The configuration system detects p2 has been instantiated (f) The configuration system detects l1 has become uninstantiated and valid (g) The configuration system requests p1 to instantiate a link to p2 (h) The configuration system detects l1 has become instantiated and valid 6. The administrator adds c(p3 ) to the software system specification (a) The configuration system finds that p3 is uninstantiated (b) The configuration system finds a processing node on which to instantiate p3 (c) The configuration system requests C to instantiate p3 (d) Processing node B instantiates p3 (e) The configuration system detects p3 has been instantiated 7. The administrator adds c(l2 ) to the software system specification (a) The configuration system finds that l2 is uninstantiated and valid (b) The configuration system requests p2 to instantiate a link to p3 (c) The configuration system detects l2 has become instantiated and valid 44

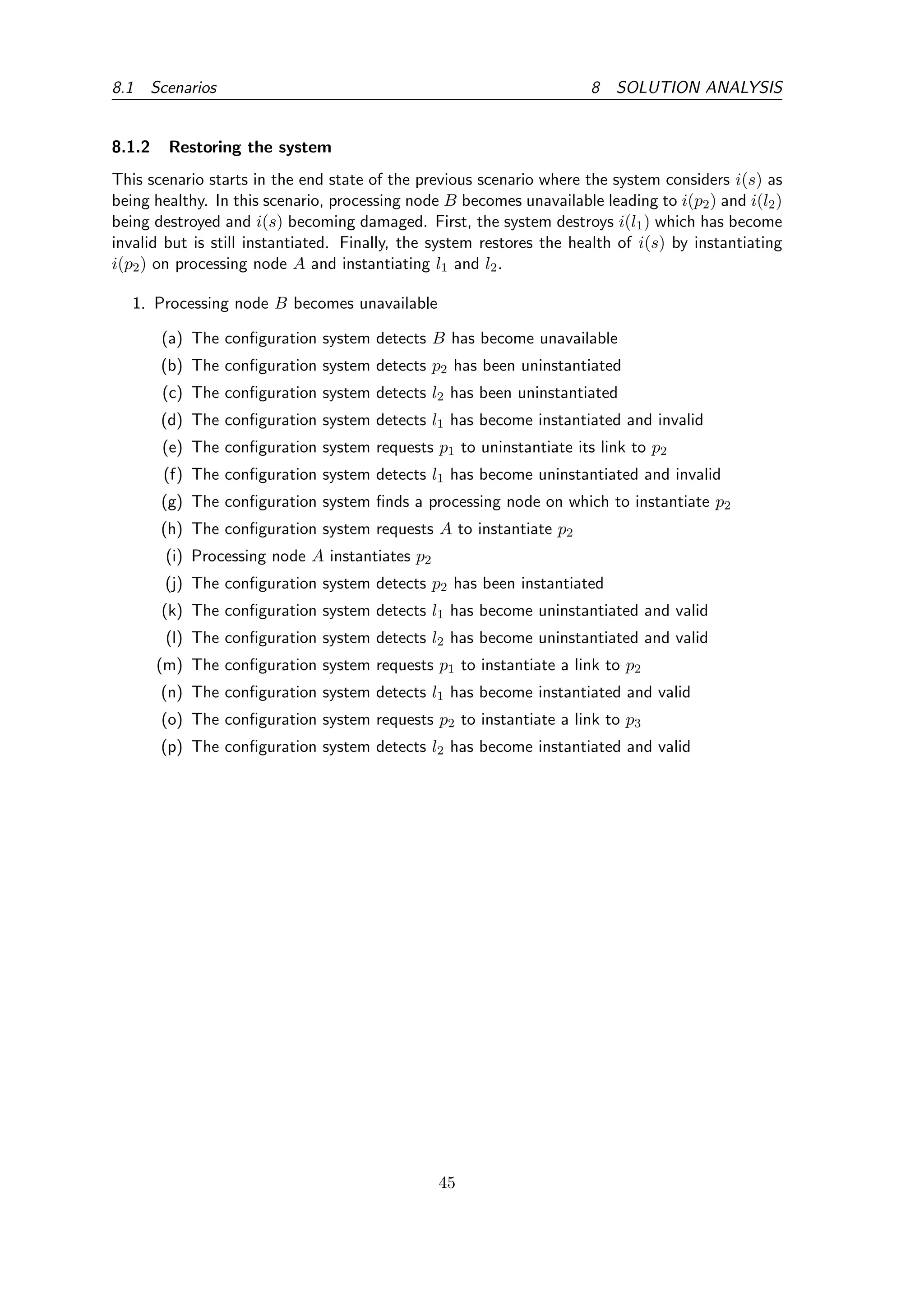

- 46. 8.1 Scenarios 8 SOLUTION ANALYSIS 8.1.2 Restoring the system This scenario starts in the end state of the previous scenario where the system considers i(s) as being healthy. In this scenario, processing node B becomes unavailable leading to i(p2 ) and i(l2 ) being destroyed and i(s) becoming damaged. First, the system destroys i(l1 ) which has become invalid but is still instantiated. Finally, the system restores the health of i(s) by instantiating i(p2 ) on processing node A and instantiating l1 and l2 . 1. Processing node B becomes unavailable (a) The configuration system detects B has become unavailable (b) The configuration system detects p2 has been uninstantiated (c) The configuration system detects l2 has been uninstantiated (d) The configuration system detects l1 has become instantiated and invalid (e) The configuration system requests p1 to uninstantiate its link to p2 (f) The configuration system detects l1 has become uninstantiated and invalid (g) The configuration system finds a processing node on which to instantiate p2 (h) The configuration system requests A to instantiate p2 (i) Processing node A instantiates p2 (j) The configuration system detects p2 has been instantiated (k) The configuration system detects l1 has become uninstantiated and valid (l) The configuration system detects l2 has become uninstantiated and valid (m) The configuration system requests p1 to instantiate a link to p2 (n) The configuration system detects l1 has become instantiated and valid (o) The configuration system requests p2 to instantiate a link to p3 (p) The configuration system detects l2 has become instantiated and valid 45

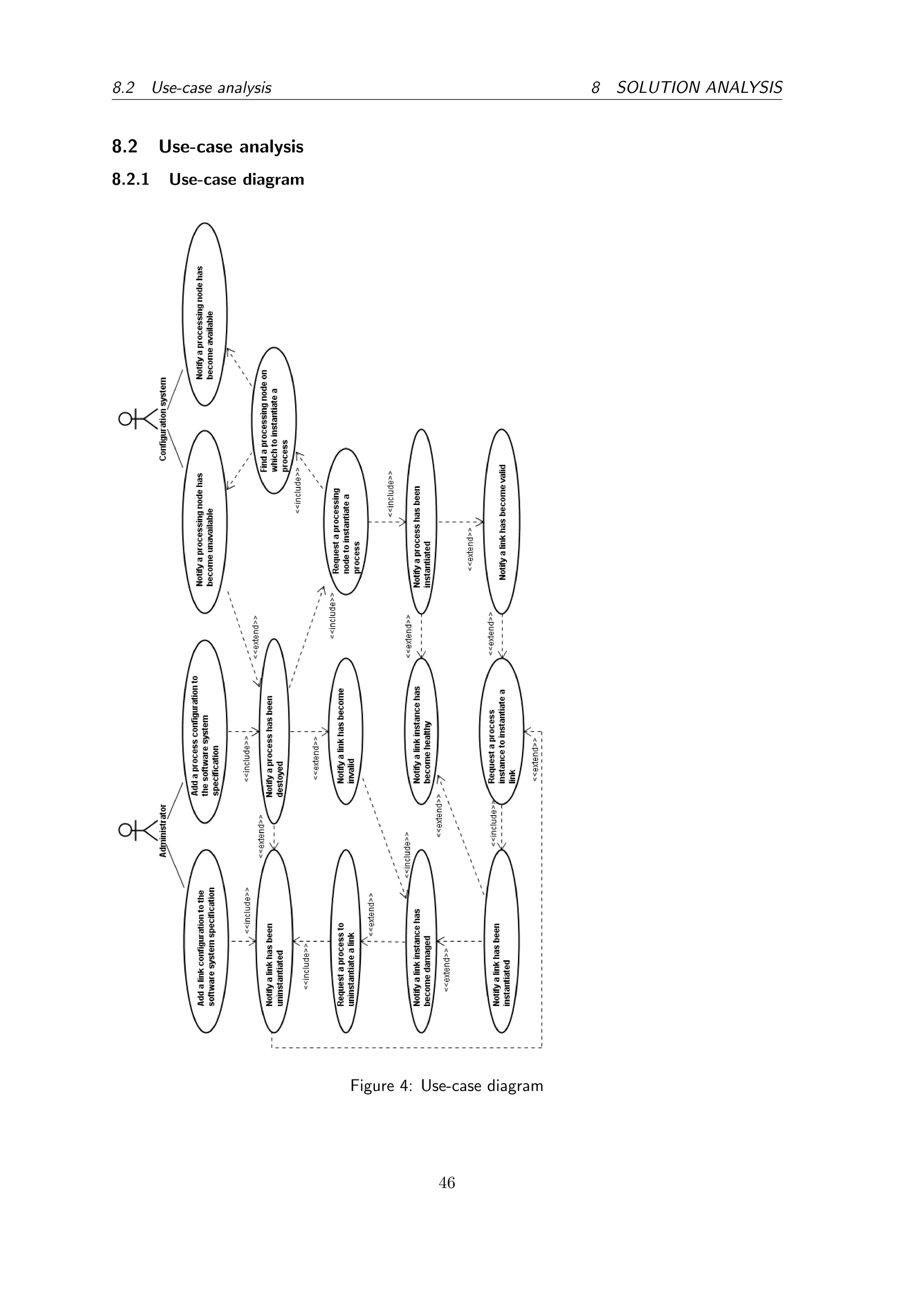

- 47. 8.2 Use-case analysis 8 SOLUTION ANALYSIS 8.2 Use-case analysis 8.2.1 Use-case diagram Figure 4: Use-case diagram 46

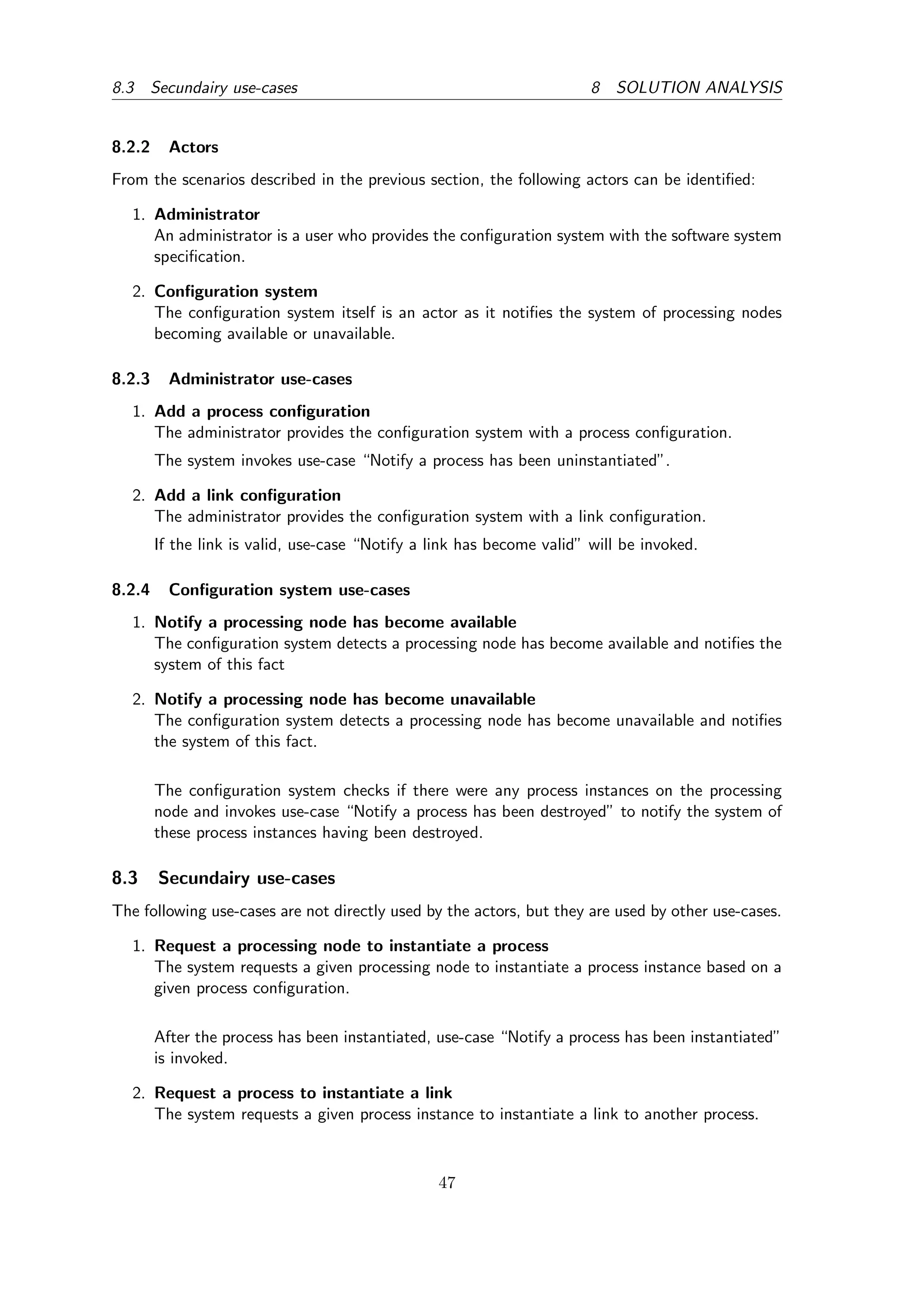

- 48. 8.3 Secundairy use-cases 8 SOLUTION ANALYSIS 8.2.2 Actors From the scenarios described in the previous section, the following actors can be identified: 1. Administrator An administrator is a user who provides the configuration system with the software system specification. 2. Configuration system The configuration system itself is an actor as it notifies the system of processing nodes becoming available or unavailable. 8.2.3 Administrator use-cases 1. Add a process configuration The administrator provides the configuration system with a process configuration. The system invokes use-case “Notify a process has been uninstantiated”. 2. Add a link configuration The administrator provides the configuration system with a link configuration. If the link is valid, use-case “Notify a link has become valid” will be invoked. 8.2.4 Configuration system use-cases 1. Notify a processing node has become available The configuration system detects a processing node has become available and notifies the system of this fact 2. Notify a processing node has become unavailable The configuration system detects a processing node has become unavailable and notifies the system of this fact. The configuration system checks if there were any process instances on the processing node and invokes use-case “Notify a process has been destroyed” to notify the system of these process instances having been destroyed. 8.3 Secundairy use-cases The following use-cases are not directly used by the actors, but they are used by other use-cases. 1. Request a processing node to instantiate a process The system requests a given processing node to instantiate a process instance based on a given process configuration. After the process has been instantiated, use-case “Notify a process has been instantiated” is invoked. 2. Request a process to instantiate a link The system requests a given process instance to instantiate a link to another process. 47

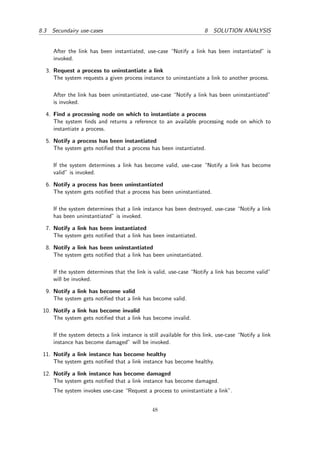

- 49. 8.3 Secundairy use-cases 8 SOLUTION ANALYSIS After the link has been instantiated, use-case “Notify a link has been instantiated” is invoked. 3. Request a process to uninstantiate a link The system requests a given process instance to uninstantiate a link to another process. After the link has been uninstantiated, use-case “Notify a link has been uninstantiated” is invoked. 4. Find a processing node on which to instantiate a process The system finds and returns a reference to an available processing node on which to instantiate a process. 5. Notify a process has been instantiated The system gets notified that a process has been instantiated. If the system determines a link has become valid, use-case “Notify a link has become valid” is invoked. 6. Notify a process has been uninstantiated The system gets notified that a process has been uninstantiated. If the system determines that a link instance has been destroyed, use-case “Notify a link has been uninstantiated” is invoked. 7. Notify a link has been instantiated The system gets notified that a link has been instantiated. 8. Notify a link has been uninstantiated The system gets notified that a link has been uninstantiated. If the system determines that the link is valid, use-case “Notify a link has become valid” will be invoked. 9. Notify a link has become valid The system gets notified that a link has become valid. 10. Notify a link has become invalid The system gets notified that a link has become invalid. If the system detects a link instance is still available for this link, use-case “Notify a link instance has become damaged” will be invoked. 11. Notify a link instance has become healthy The system gets notified that a link instance has become healthy. 12. Notify a link instance has become damaged The system gets notified that a link instance has become damaged. The system invokes use-case “Request a process to uninstantiate a link”. 48

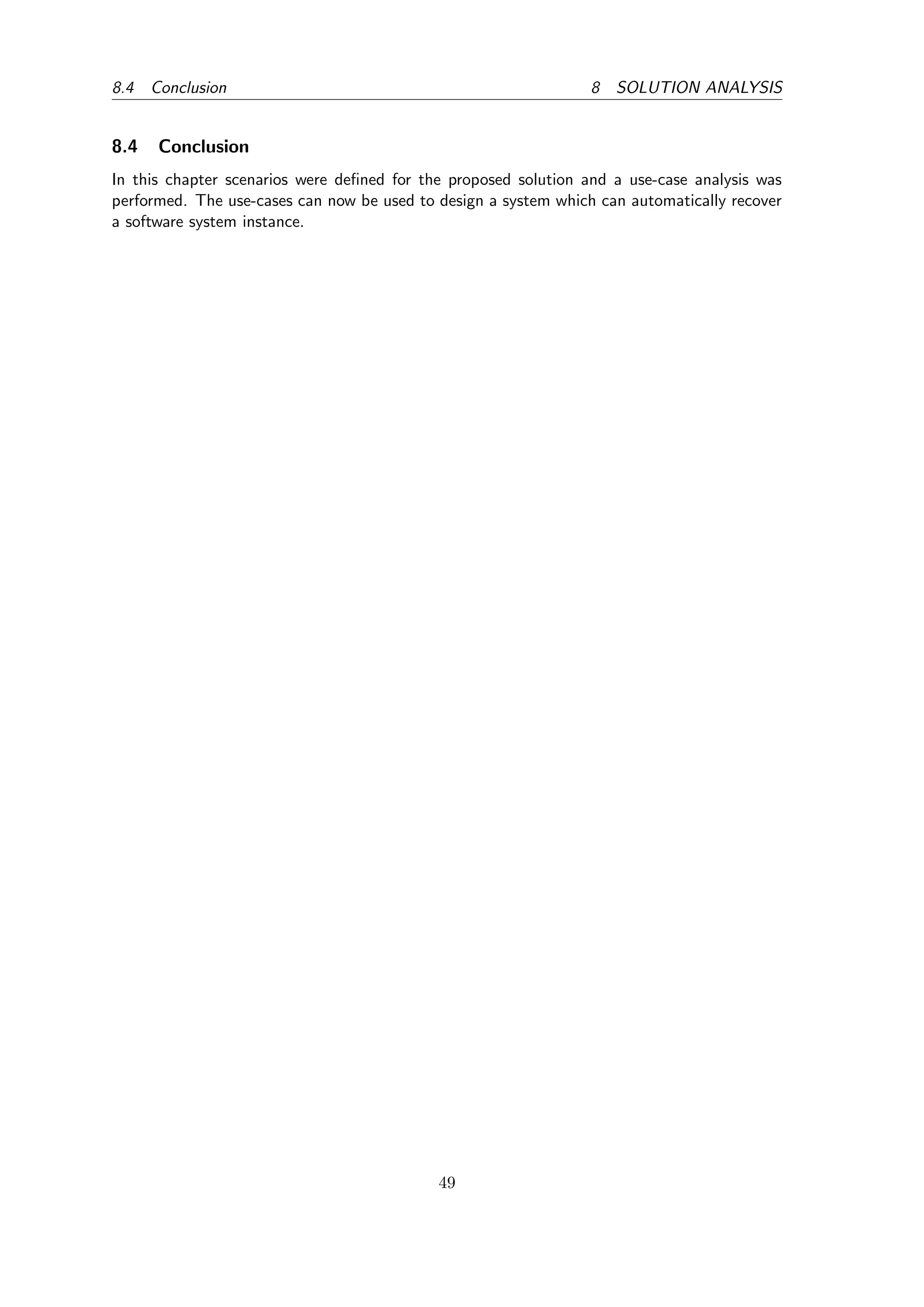

- 50. 8.4 Conclusion 8 SOLUTION ANALYSIS 8.4 Conclusion In this chapter scenarios were defined for the proposed solution and a use-case analysis was performed. The use-cases can now be used to design a system which can automatically recover a software system instance. 49

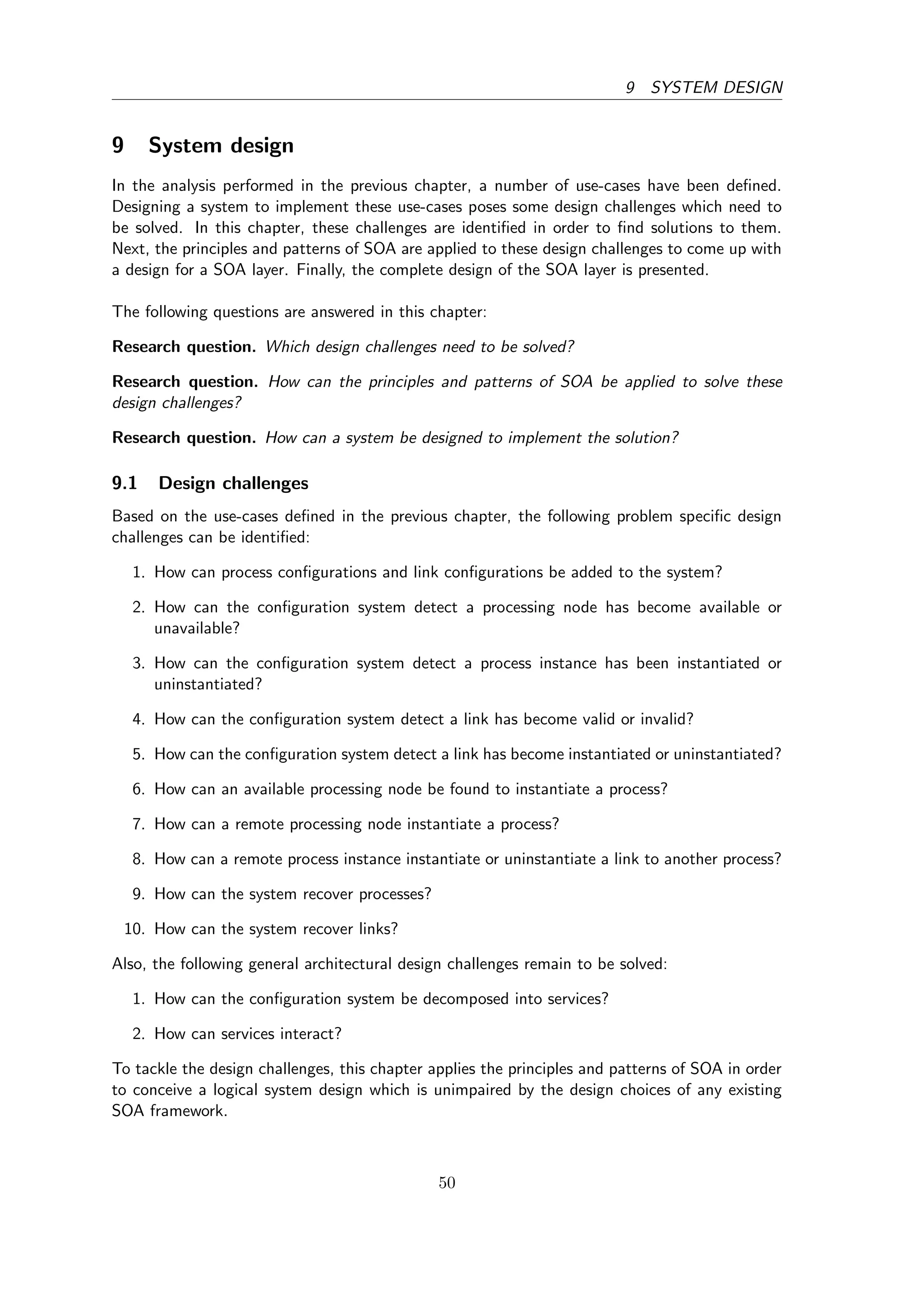

- 51. 9 SYSTEM DESIGN 9 System design In the analysis performed in the previous chapter, a number of use-cases have been defined. Designing a system to implement these use-cases poses some design challenges which need to be solved. In this chapter, these challenges are identified in order to find solutions to them. Next, the principles and patterns of SOA are applied to these design challenges to come up with a design for a SOA layer. Finally, the complete design of the SOA layer is presented. The following questions are answered in this chapter: Research question. Which design challenges need to be solved? Research question. How can the principles and patterns of SOA be applied to solve these design challenges? Research question. How can a system be designed to implement the solution? 9.1 Design challenges Based on the use-cases defined in the previous chapter, the following problem specific design challenges can be identified: 1. How can process configurations and link configurations be added to the system? 2. How can the configuration system detect a processing node has become available or unavailable? 3. How can the configuration system detect a process instance has been instantiated or uninstantiated? 4. How can the configuration system detect a link has become valid or invalid? 5. How can the configuration system detect a link has become instantiated or uninstantiated? 6. How can an available processing node be found to instantiate a process? 7. How can a remote processing node instantiate a process? 8. How can a remote process instance instantiate or uninstantiate a link to another process? 9. How can the system recover processes? 10. How can the system recover links? Also, the following general architectural design challenges remain to be solved: 1. How can the configuration system be decomposed into services? 2. How can services interact? To tackle the design challenges, this chapter applies the principles and patterns of SOA in order to conceive a logical system design which is unimpaired by the design choices of any existing SOA framework. 50

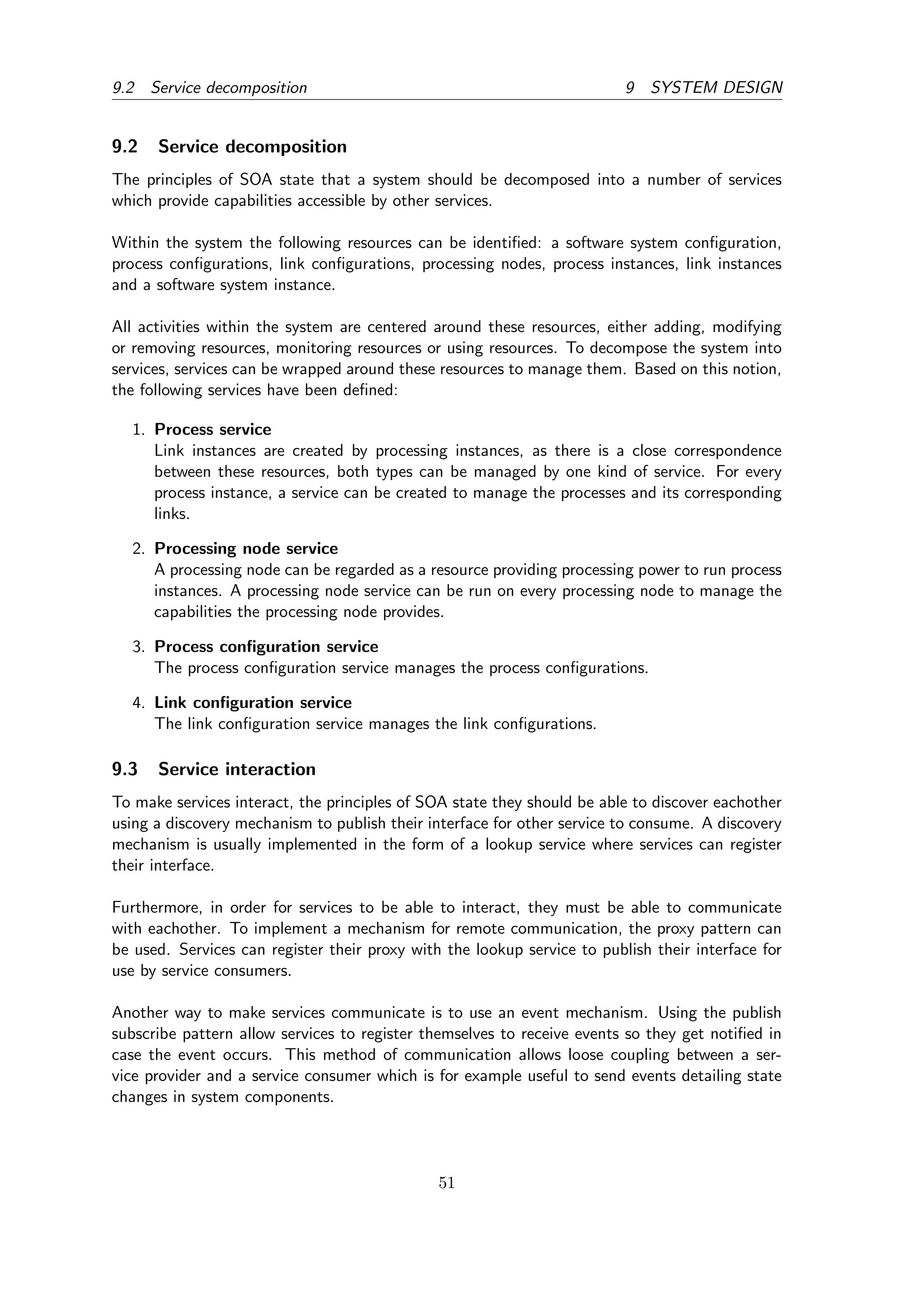

- 52. 9.2 Service decomposition 9 SYSTEM DESIGN 9.2 Service decomposition The principles of SOA state that a system should be decomposed into a number of services which provide capabilities accessible by other services. Within the system the following resources can be identified: a software system configuration, process configurations, link configurations, processing nodes, process instances, link instances and a software system instance. All activities within the system are centered around these resources, either adding, modifying or removing resources, monitoring resources or using resources. To decompose the system into services, services can be wrapped around these resources to manage them. Based on this notion, the following services have been defined: 1. Process service Link instances are created by processing instances, as there is a close correspondence between these resources, both types can be managed by one kind of service. For every process instance, a service can be created to manage the processes and its corresponding links. 2. Processing node service A processing node can be regarded as a resource providing processing power to run process instances. A processing node service can be run on every processing node to manage the capabilities the processing node provides. 3. Process configuration service The process configuration service manages the process configurations. 4. Link configuration service The link configuration service manages the link configurations. 9.3 Service interaction To make services interact, the principles of SOA state they should be able to discover eachother using a discovery mechanism to publish their interface for other service to consume. A discovery mechanism is usually implemented in the form of a lookup service where services can register their interface. Furthermore, in order for services to be able to interact, they must be able to communicate with eachother. To implement a mechanism for remote communication, the proxy pattern can be used. Services can register their proxy with the lookup service to publish their interface for use by service consumers. Another way to make services communicate is to use an event mechanism. Using the publish subscribe pattern allow services to register themselves to receive events so they get notified in case the event occurs. This method of communication allows loose coupling between a ser- vice provider and a service consumer which is for example useful to send events detailing state changes in system components. 51

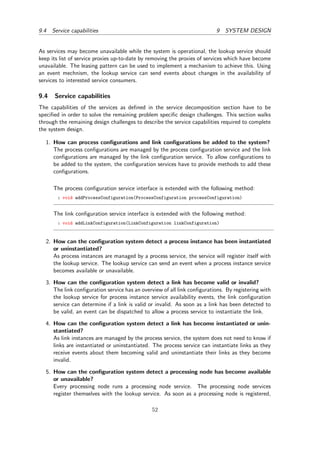

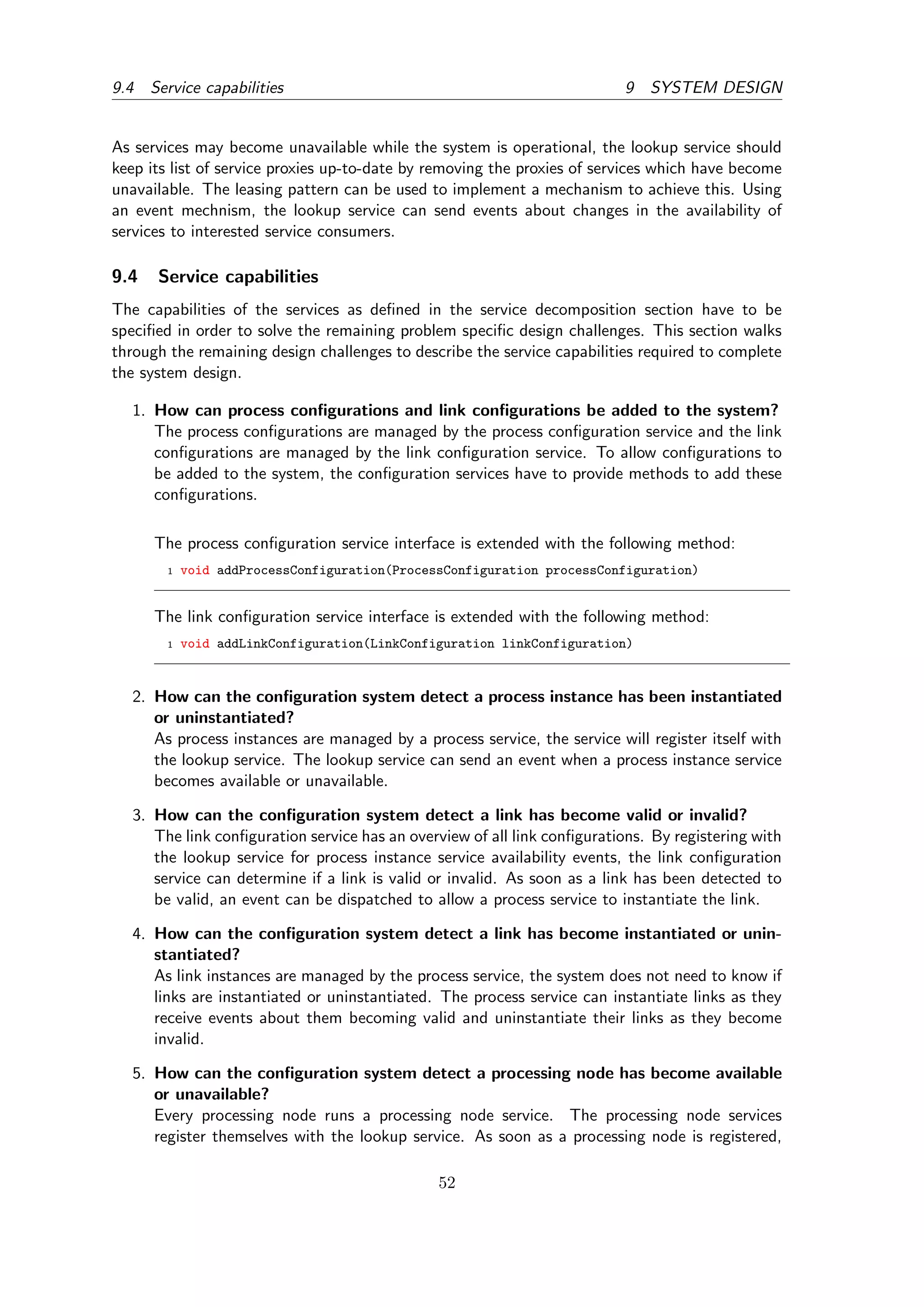

- 53. 9.4 Service capabilities 9 SYSTEM DESIGN As services may become unavailable while the system is operational, the lookup service should keep its list of service proxies up-to-date by removing the proxies of services which have become unavailable. The leasing pattern can be used to implement a mechanism to achieve this. Using an event mechnism, the lookup service can send events about changes in the availability of services to interested service consumers. 9.4 Service capabilities The capabilities of the services as defined in the service decomposition section have to be specified in order to solve the remaining problem specific design challenges. This section walks through the remaining design challenges to describe the service capabilities required to complete the system design. 1. How can process configurations and link configurations be added to the system? The process configurations are managed by the process configuration service and the link configurations are managed by the link configuration service. To allow configurations to be added to the system, the configuration services have to provide methods to add these configurations. The process configuration service interface is extended with the following method: 1 void addProcessConfiguration(ProcessConfiguration processConfiguration) The link configuration service interface is extended with the following method: 1 void addLinkConfiguration(LinkConfiguration linkConfiguration) 2. How can the configuration system detect a process instance has been instantiated or uninstantiated? As process instances are managed by a process service, the service will register itself with the lookup service. The lookup service can send an event when a process instance service becomes available or unavailable. 3. How can the configuration system detect a link has become valid or invalid? The link configuration service has an overview of all link configurations. By registering with the lookup service for process instance service availability events, the link configuration service can determine if a link is valid or invalid. As soon as a link has been detected to be valid, an event can be dispatched to allow a process service to instantiate the link. 4. How can the configuration system detect a link has become instantiated or unin- stantiated? As link instances are managed by the process service, the system does not need to know if links are instantiated or uninstantiated. The process service can instantiate links as they receive events about them becoming valid and uninstantiate their links as they become invalid. 5. How can the configuration system detect a processing node has become available or unavailable? Every processing node runs a processing node service. The processing node services register themselves with the lookup service. As soon as a processing node is registered, 52

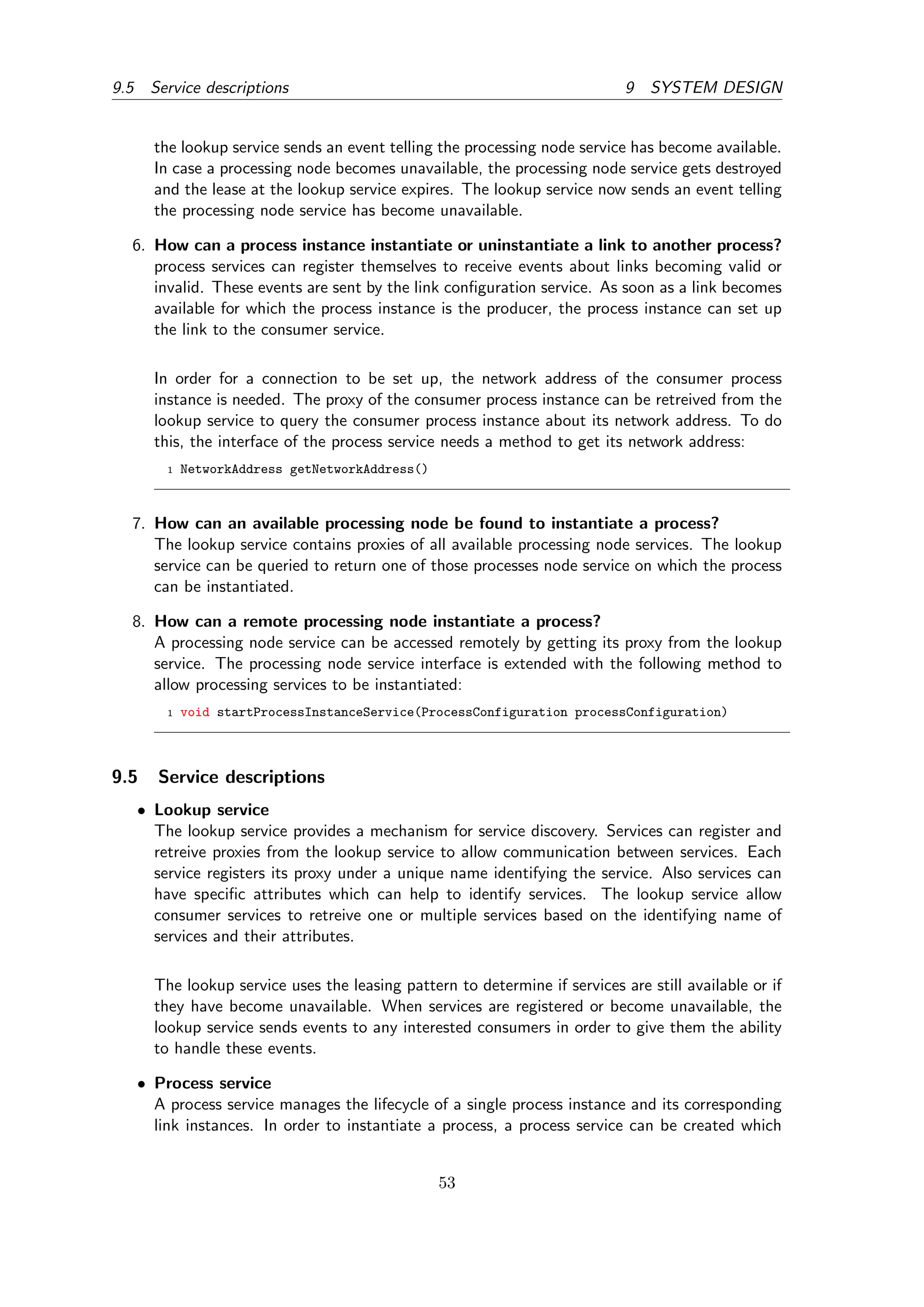

- 54. 9.5 Service descriptions 9 SYSTEM DESIGN the lookup service sends an event telling the processing node service has become available. In case a processing node becomes unavailable, the processing node service gets destroyed and the lease at the lookup service expires. The lookup service now sends an event telling the processing node service has become unavailable. 6. How can a process instance instantiate or uninstantiate a link to another process? process services can register themselves to receive events about links becoming valid or invalid. These events are sent by the link configuration service. As soon as a link becomes available for which the process instance is the producer, the process instance can set up the link to the consumer service. In order for a connection to be set up, the network address of the consumer process instance is needed. The proxy of the consumer process instance can be retreived from the lookup service to query the consumer process instance about its network address. To do this, the interface of the process service needs a method to get its network address: 1 NetworkAddress getNetworkAddress() 7. How can an available processing node be found to instantiate a process? The lookup service contains proxies of all available processing node services. The lookup service can be queried to return one of those processes node service on which the process can be instantiated. 8. How can a remote processing node instantiate a process? A processing node service can be accessed remotely by getting its proxy from the lookup service. The processing node service interface is extended with the following method to allow processing services to be instantiated: 1 void startProcessInstanceService(ProcessConfiguration processConfiguration) 9.5 Service descriptions • Lookup service The lookup service provides a mechanism for service discovery. Services can register and retreive proxies from the lookup service to allow communication between services. Each service registers its proxy under a unique name identifying the service. Also services can have specific attributes which can help to identify services. The lookup service allow consumer services to retreive one or multiple services based on the identifying name of services and their attributes. The lookup service uses the leasing pattern to determine if services are still available or if they have become unavailable. When services are registered or become unavailable, the lookup service sends events to any interested consumers in order to give them the ability to handle these events. • Process service A process service manages the lifecycle of a single process instance and its corresponding link instances. In order to instantiate a process, a process service can be created which 53

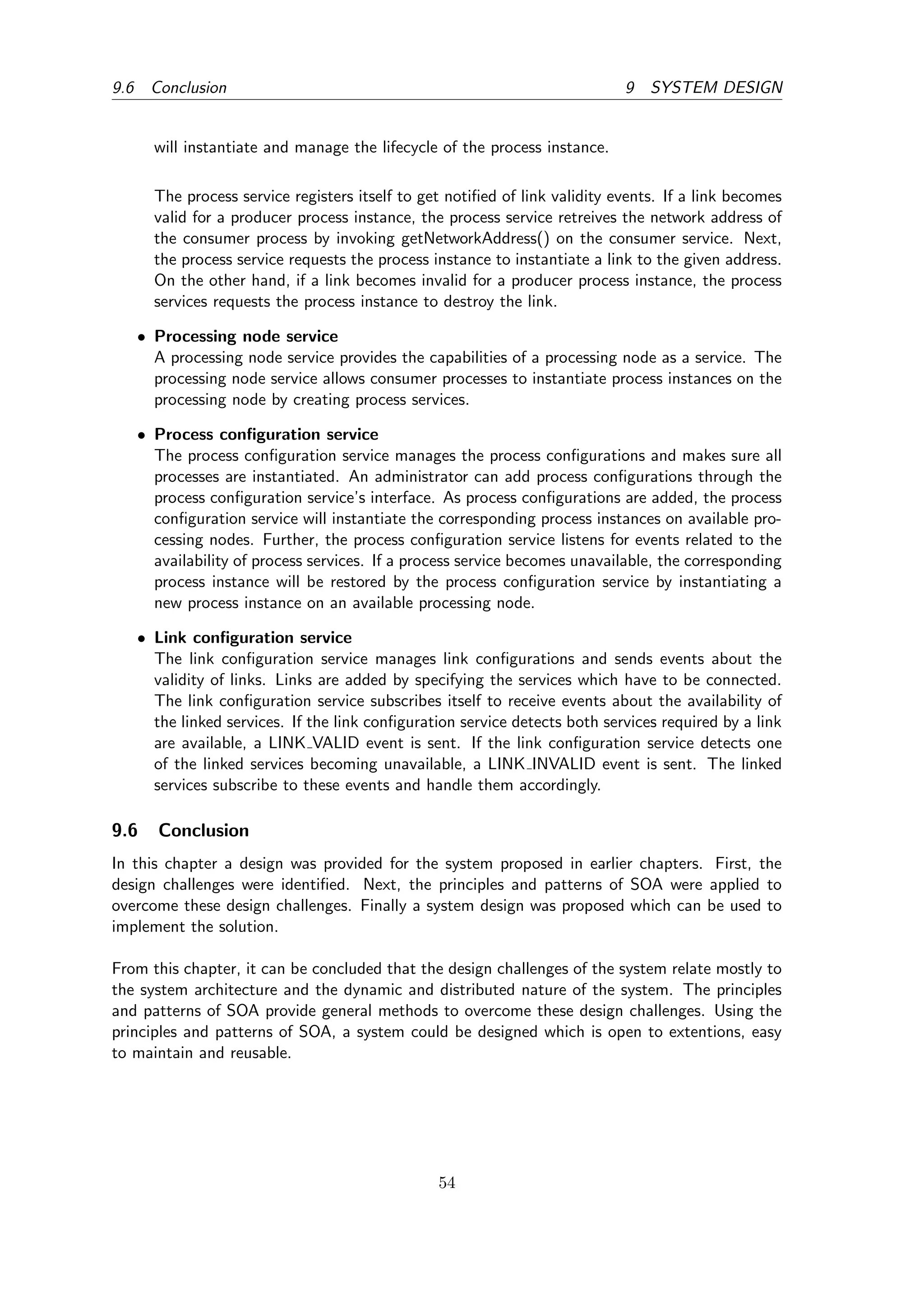

- 55. 9.6 Conclusion 9 SYSTEM DESIGN will instantiate and manage the lifecycle of the process instance. The process service registers itself to get notified of link validity events. If a link becomes valid for a producer process instance, the process service retreives the network address of the consumer process by invoking getNetworkAddress() on the consumer service. Next, the process service requests the process instance to instantiate a link to the given address. On the other hand, if a link becomes invalid for a producer process instance, the process services requests the process instance to destroy the link. • Processing node service A processing node service provides the capabilities of a processing node as a service. The processing node service allows consumer processes to instantiate process instances on the processing node by creating process services. • Process configuration service The process configuration service manages the process configurations and makes sure all processes are instantiated. An administrator can add process configurations through the process configuration service’s interface. As process configurations are added, the process configuration service will instantiate the corresponding process instances on available pro- cessing nodes. Further, the process configuration service listens for events related to the availability of process services. If a process service becomes unavailable, the corresponding process instance will be restored by the process configuration service by instantiating a new process instance on an available processing node. • Link configuration service The link configuration service manages link configurations and sends events about the validity of links. Links are added by specifying the services which have to be connected. The link configuration service subscribes itself to receive events about the availability of the linked services. If the link configuration service detects both services required by a link are available, a LINK VALID event is sent. If the link configuration service detects one of the linked services becoming unavailable, a LINK INVALID event is sent. The linked services subscribe to these events and handle them accordingly. 9.6 Conclusion In this chapter a design was provided for the system proposed in earlier chapters. First, the design challenges were identified. Next, the principles and patterns of SOA were applied to overcome these design challenges. Finally a system design was proposed which can be used to implement the solution. From this chapter, it can be concluded that the design challenges of the system relate mostly to the system architecture and the dynamic and distributed nature of the system. The principles and patterns of SOA provide general methods to overcome these design challenges. Using the principles and patterns of SOA, a system could be designed which is open to extentions, easy to maintain and reusable. 54

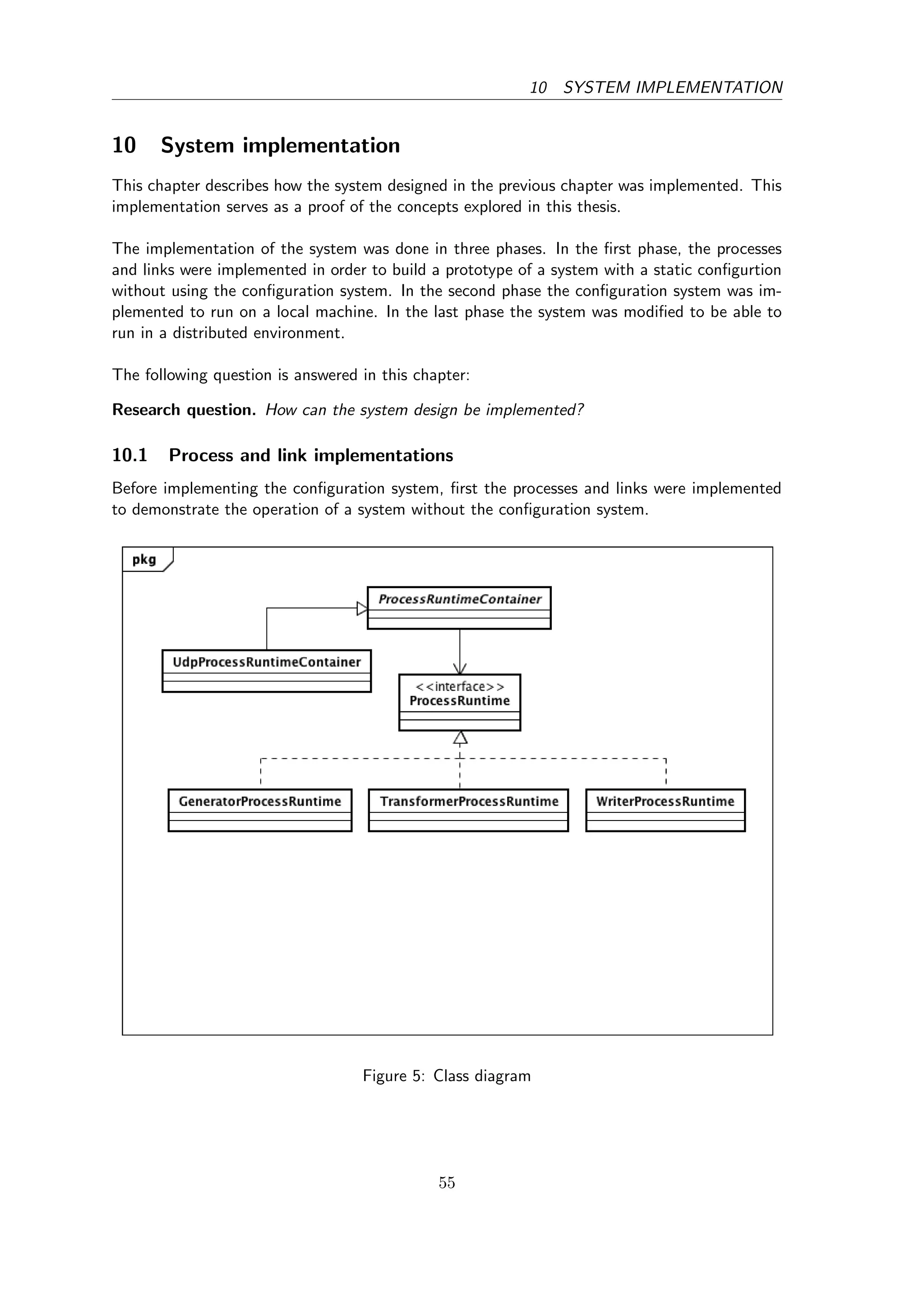

- 56. 10 SYSTEM IMPLEMENTATION 10 System implementation This chapter describes how the system designed in the previous chapter was implemented. This implementation serves as a proof of the concepts explored in this thesis. The implementation of the system was done in three phases. In the first phase, the processes and links were implemented in order to build a prototype of a system with a static configurtion without using the configuration system. In the second phase the configuration system was im- plemented to run on a local machine. In the last phase the system was modified to be able to run in a distributed environment. The following question is answered in this chapter: Research question. How can the system design be implemented? 10.1 Process and link implementations Before implementing the configuration system, first the processes and links were implemented to demonstrate the operation of a system without the configuration system. Figure 5: Class diagram 55

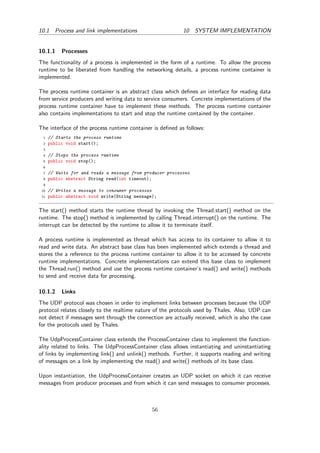

- 57. 10.1 Process and link implementations 10 SYSTEM IMPLEMENTATION 10.1.1 Processes The functionality of a process is implemented in the form of a runtime. To allow the process runtime to be liberated from handling the networking details, a process runtime container is implemented. The process runtime container is an abstract class which defines an interface for reading data from service producers and writing data to service consumers. Concrete implementations of the process runtime container have to implement these methods. The process runtime container also contains implementations to start and stop the runtime contained by the container. The interface of the process runtime container is defined as follows: 1 // Starts the process runtime 2 public void start(); 3 4 // Stops the process runtime 5 public void stop(); 6 7 // Waits for and reads a message from producer processes 8 public abstract String read(int timeout); 9 10 // Writes a message to consumer processes 11 public abstract void write(String message); The start() method starts the runtime thread by invoking the Thread.start() method on the runtime. The stop() method is implemented by calling Thread.interrupt() on the runtime. The interrupt can be detected by the runtime to allow it to terminate itself. A process runtime is implemented as thread which has access to its container to allow it to read and write data. An abstract base class has been implemented which extends a thread and stores the a reference to the process runtime container to allow it to be accessed by concrete runtime implementations. Concrete implementations can extend this base class to implement the Thread.run() method and use the process runtime container’s read() and write() methods to send and receive data for processing. 10.1.2 Links The UDP protocol was chosen in order to implement links between processes because the UDP protocol relates closely to the realtime nature of the protocols used by Thales. Also, UDP can not detect if messages sent through the connection are actually received, which is also the case for the protocols used by Thales. The UdpProcessContainer class extends the ProcessContainer class to implement the function- ality related to links. The UdpProcessContainer class allows instantiating and uninstantiating of links by implementing link() and unlink() methods. Further, it supports reading and writing of messages on a link by implementing the read() and write() methods of its base class. Upon instantiation, the UdpProcessContainer creates an UDP socket on which it can receive messages from producer processes and from which it can send messages to consumer processes. 56

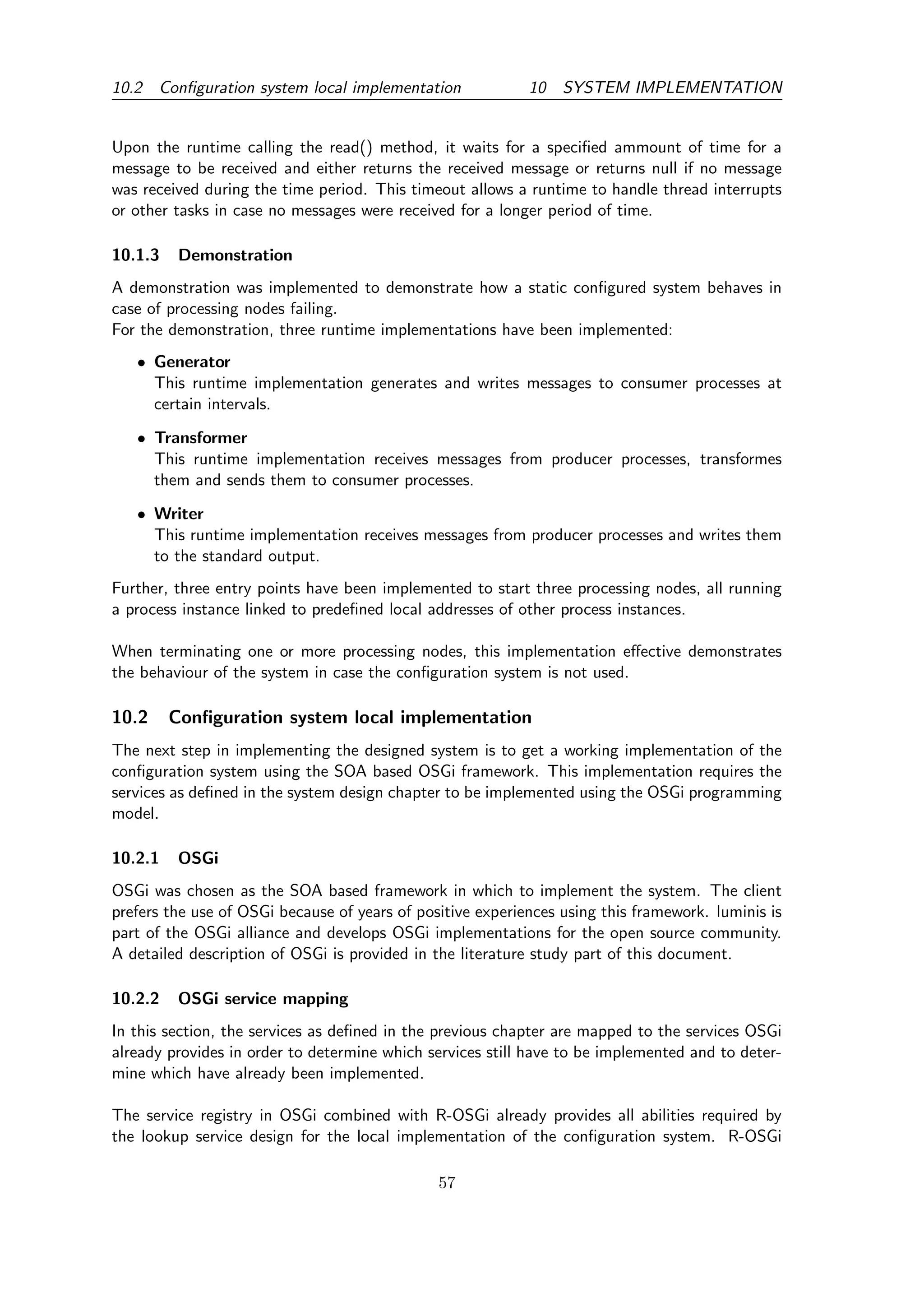

- 58. 10.2 Configuration system local implementation 10 SYSTEM IMPLEMENTATION Upon the runtime calling the read() method, it waits for a specified ammount of time for a message to be received and either returns the received message or returns null if no message was received during the time period. This timeout allows a runtime to handle thread interrupts or other tasks in case no messages were received for a longer period of time. 10.1.3 Demonstration A demonstration was implemented to demonstrate how a static configured system behaves in case of processing nodes failing. For the demonstration, three runtime implementations have been implemented: • Generator This runtime implementation generates and writes messages to consumer processes at certain intervals. • Transformer This runtime implementation receives messages from producer processes, transformes them and sends them to consumer processes. • Writer This runtime implementation receives messages from producer processes and writes them to the standard output. Further, three entry points have been implemented to start three processing nodes, all running a process instance linked to predefined local addresses of other process instances. When terminating one or more processing nodes, this implementation effective demonstrates the behaviour of the system in case the configuration system is not used. 10.2 Configuration system local implementation The next step in implementing the designed system is to get a working implementation of the configuration system using the SOA based OSGi framework. This implementation requires the services as defined in the system design chapter to be implemented using the OSGi programming model. 10.2.1 OSGi OSGi was chosen as the SOA based framework in which to implement the system. The client prefers the use of OSGi because of years of positive experiences using this framework. luminis is part of the OSGi alliance and develops OSGi implementations for the open source community. A detailed description of OSGi is provided in the literature study part of this document. 10.2.2 OSGi service mapping In this section, the services as defined in the previous chapter are mapped to the services OSGi already provides in order to determine which services still have to be implemented and to deter- mine which have already been implemented. The service registry in OSGi combined with R-OSGi already provides all abilities required by the lookup service design for the local implementation of the configuration system. R-OSGi 57

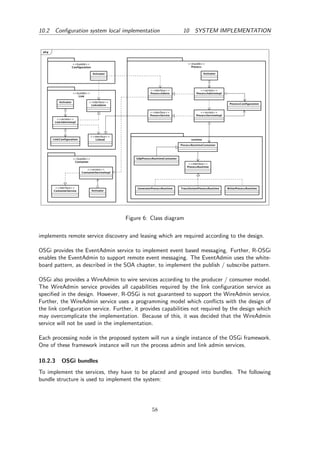

- 59. 10.2 Configuration system local implementation 10 SYSTEM IMPLEMENTATION Figure 6: Class diagram implements remote service discovery and leasing which are required according to the design. OSGi provides the EventAdmin service to implement event based messaging. Further, R-OSGi enables the EventAdmin to support remote event messaging. The EventAdmin uses the white- board pattern, as described in the SOA chapter, to implement the publish / subscribe pattern. OSGi also provides a WireAdmin to wire services according to the producer / consumer model. The WireAdmin service provides all capabilities required by the link configuration service as specified in the design. However, R-OSGi is not guaranteed to support the WireAdmin service. Further, the WireAdmin service uses a programming model which conflicts with the design of the link configuration service. Further, it provides capabilities not required by the design which may overcomplicate the implementation. Because of this, it was decided that the WireAdmin service will not be used in the implementation. Each processing node in the proposed system will run a single instance of the OSGi framework. One of these framework instance will run the process admin and link admin services. 10.2.3 OSGi bundles To implement the services, they have to be placed and grouped into bundles. The following bundle structure is used to implement the system: 58

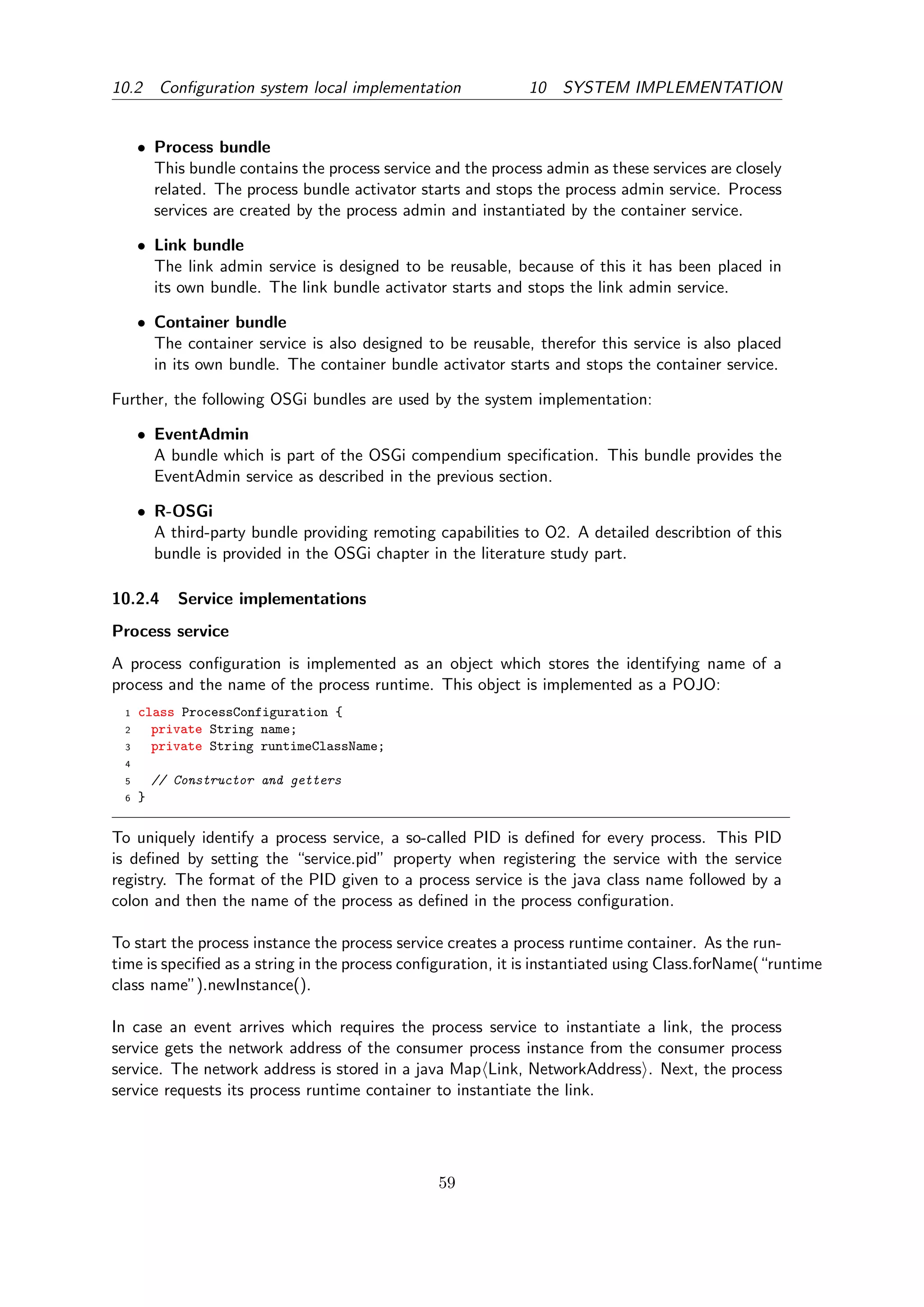

- 60. 10.2 Configuration system local implementation 10 SYSTEM IMPLEMENTATION • Process bundle This bundle contains the process service and the process admin as these services are closely related. The process bundle activator starts and stops the process admin service. Process services are created by the process admin and instantiated by the container service. • Link bundle The link admin service is designed to be reusable, because of this it has been placed in its own bundle. The link bundle activator starts and stops the link admin service. • Container bundle The container service is also designed to be reusable, therefor this service is also placed in its own bundle. The container bundle activator starts and stops the container service. Further, the following OSGi bundles are used by the system implementation: • EventAdmin A bundle which is part of the OSGi compendium specification. This bundle provides the EventAdmin service as described in the previous section. • R-OSGi A third-party bundle providing remoting capabilities to O2. A detailed describtion of this bundle is provided in the OSGi chapter in the literature study part. 10.2.4 Service implementations Process service A process configuration is implemented as an object which stores the identifying name of a process and the name of the process runtime. This object is implemented as a POJO: 1 class ProcessConfiguration { 2 private String name; 3 private String runtimeClassName; 4 5 // Constructor and getters 6 } To uniquely identify a process service, a so-called PID is defined for every process. This PID is defined by setting the “service.pid” property when registering the service with the service registry. The format of the PID given to a process service is the java class name followed by a colon and then the name of the process as defined in the process configuration. To start the process instance the process service creates a process runtime container. As the run- time is specified as a string in the process configuration, it is instantiated using Class.forName(“runtime class name”).newInstance(). In case an event arrives which requires the process service to instantiate a link, the process service gets the network address of the consumer process instance from the consumer process service. The network address is stored in a java Map Link, NetworkAddress . Next, the process service requests its process runtime container to instantiate the link. 59

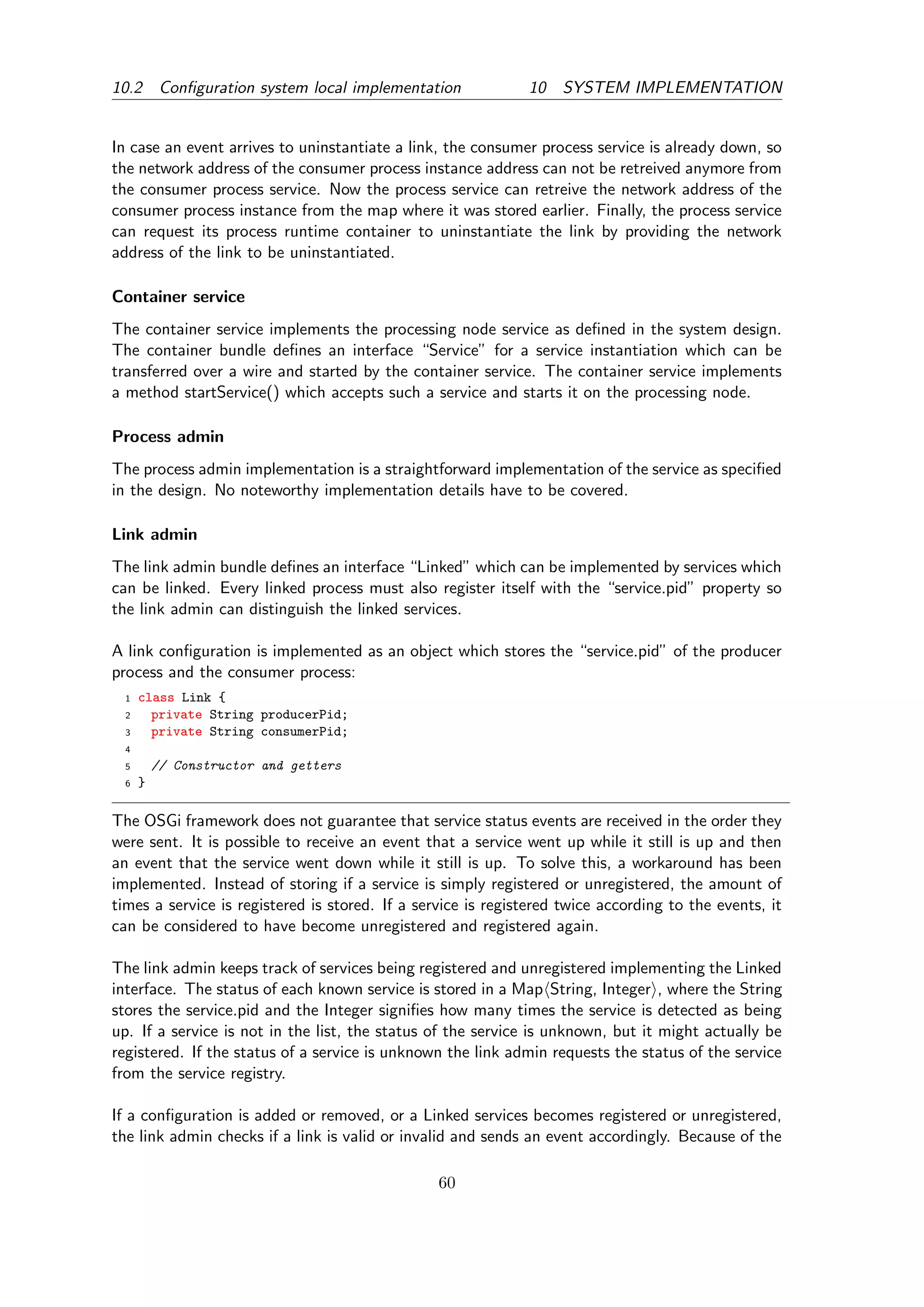

- 61. 10.2 Configuration system local implementation 10 SYSTEM IMPLEMENTATION In case an event arrives to uninstantiate a link, the consumer process service is already down, so the network address of the consumer process instance address can not be retreived anymore from the consumer process service. Now the process service can retreive the network address of the consumer process instance from the map where it was stored earlier. Finally, the process service can request its process runtime container to uninstantiate the link by providing the network address of the link to be uninstantiated. Container service The container service implements the processing node service as defined in the system design. The container bundle defines an interface “Service” for a service instantiation which can be transferred over a wire and started by the container service. The container service implements a method startService() which accepts such a service and starts it on the processing node. Process admin The process admin implementation is a straightforward implementation of the service as specified in the design. No noteworthy implementation details have to be covered. Link admin The link admin bundle defines an interface “Linked” which can be implemented by services which can be linked. Every linked process must also register itself with the “service.pid” property so the link admin can distinguish the linked services. A link configuration is implemented as an object which stores the “service.pid” of the producer process and the consumer process: 1 class Link { 2 private String producerPid; 3 private String consumerPid; 4 5 // Constructor and getters 6 } The OSGi framework does not guarantee that service status events are received in the order they were sent. It is possible to receive an event that a service went up while it still is up and then an event that the service went down while it still is up. To solve this, a workaround has been implemented. Instead of storing if a service is simply registered or unregistered, the amount of times a service is registered is stored. If a service is registered twice according to the events, it can be considered to have become unregistered and registered again. The link admin keeps track of services being registered and unregistered implementing the Linked interface. The status of each known service is stored in a Map String, Integer , where the String stores the service.pid and the Integer signifies how many times the service is detected as being up. If a service is not in the list, the status of the service is unknown, but it might actually be registered. If the status of a service is unknown the link admin requests the status of the service from the service registry. If a configuration is added or removed, or a Linked services becomes registered or unregistered, the link admin checks if a link is valid or invalid and sends an event accordingly. Because of the 60

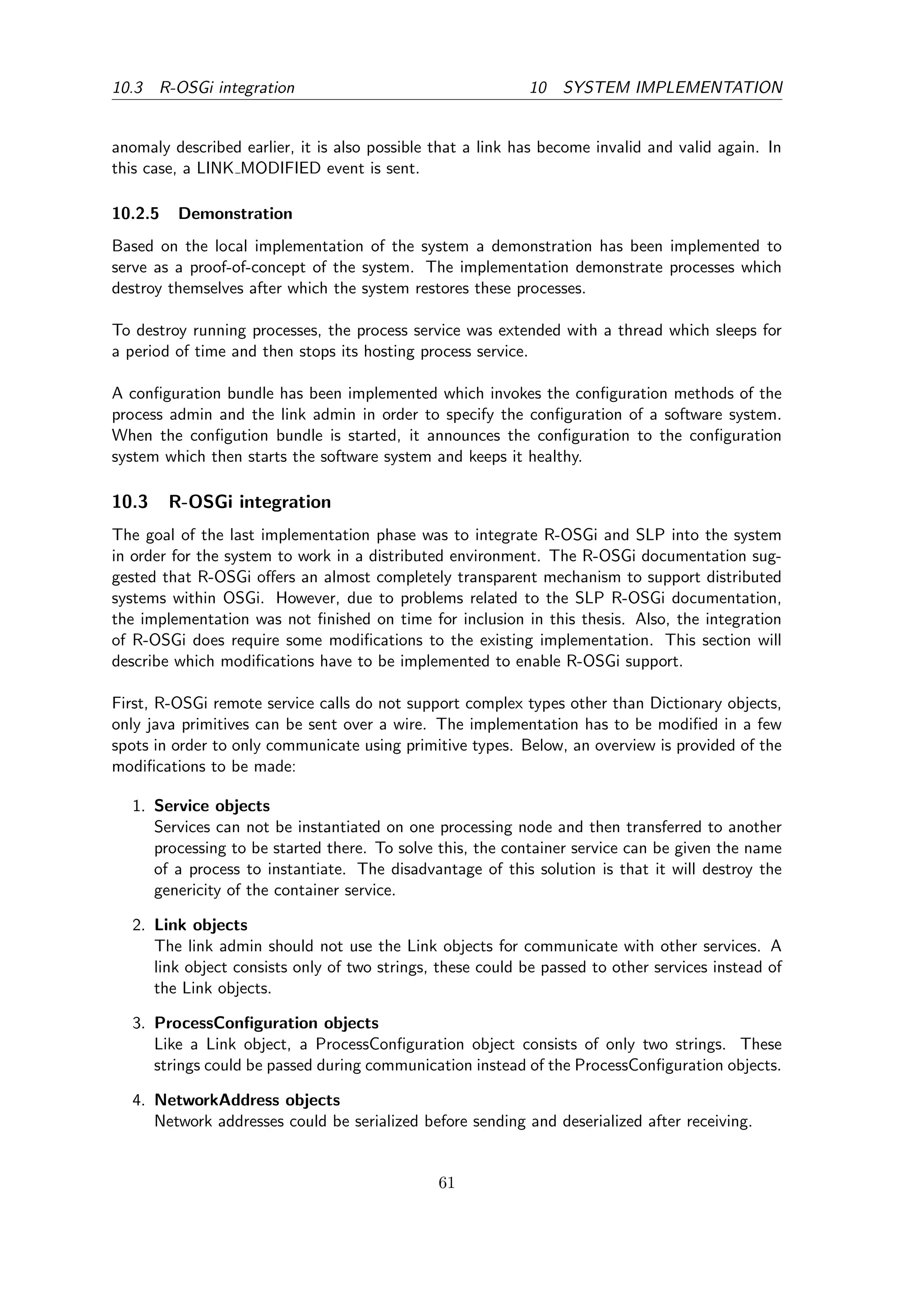

- 62. 10.3 R-OSGi integration 10 SYSTEM IMPLEMENTATION anomaly described earlier, it is also possible that a link has become invalid and valid again. In this case, a LINK MODIFIED event is sent. 10.2.5 Demonstration Based on the local implementation of the system a demonstration has been implemented to serve as a proof-of-concept of the system. The implementation demonstrate processes which destroy themselves after which the system restores these processes. To destroy running processes, the process service was extended with a thread which sleeps for a period of time and then stops its hosting process service. A configuration bundle has been implemented which invokes the configuration methods of the process admin and the link admin in order to specify the configuration of a software system. When the configution bundle is started, it announces the configuration to the configuration system which then starts the software system and keeps it healthy. 10.3 R-OSGi integration The goal of the last implementation phase was to integrate R-OSGi and SLP into the system in order for the system to work in a distributed environment. The R-OSGi documentation sug- gested that R-OSGi offers an almost completely transparent mechanism to support distributed systems within OSGi. However, due to problems related to the SLP R-OSGi documentation, the implementation was not finished on time for inclusion in this thesis. Also, the integration of R-OSGi does require some modifications to the existing implementation. This section will describe which modifications have to be implemented to enable R-OSGi support. First, R-OSGi remote service calls do not support complex types other than Dictionary objects, only java primitives can be sent over a wire. The implementation has to be modified in a few spots in order to only communicate using primitive types. Below, an overview is provided of the modifications to be made: 1. Service objects Services can not be instantiated on one processing node and then transferred to another processing to be started there. To solve this, the container service can be given the name of a process to instantiate. The disadvantage of this solution is that it will destroy the genericity of the container service. 2. Link objects The link admin should not use the Link objects for communicate with other services. A link object consists only of two strings, these could be passed to other services instead of the Link objects. 3. ProcessConfiguration objects Like a Link object, a ProcessConfiguration object consists of only two strings. These strings could be passed during communication instead of the ProcessConfiguration objects. 4. NetworkAddress objects Network addresses could be serialized before sending and deserialized after receiving. 61

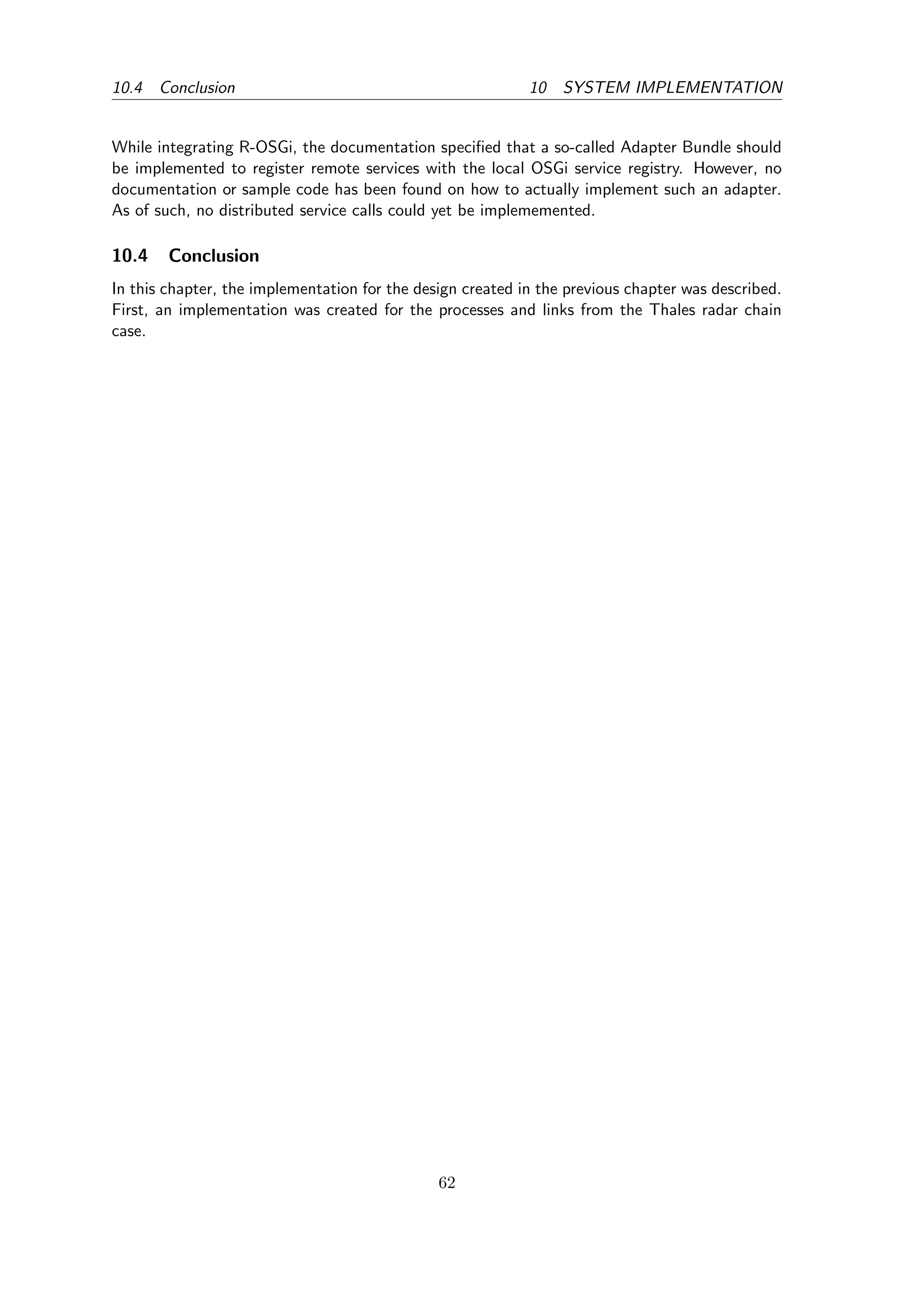

- 63. 10.4 Conclusion 10 SYSTEM IMPLEMENTATION While integrating R-OSGi, the documentation specified that a so-called Adapter Bundle should be implemented to register remote services with the local OSGi service registry. However, no documentation or sample code has been found on how to actually implement such an adapter. As of such, no distributed service calls could yet be implememented. 10.4 Conclusion In this chapter, the implementation for the design created in the previous chapter was described. First, an implementation was created for the processes and links from the Thales radar chain case. 62

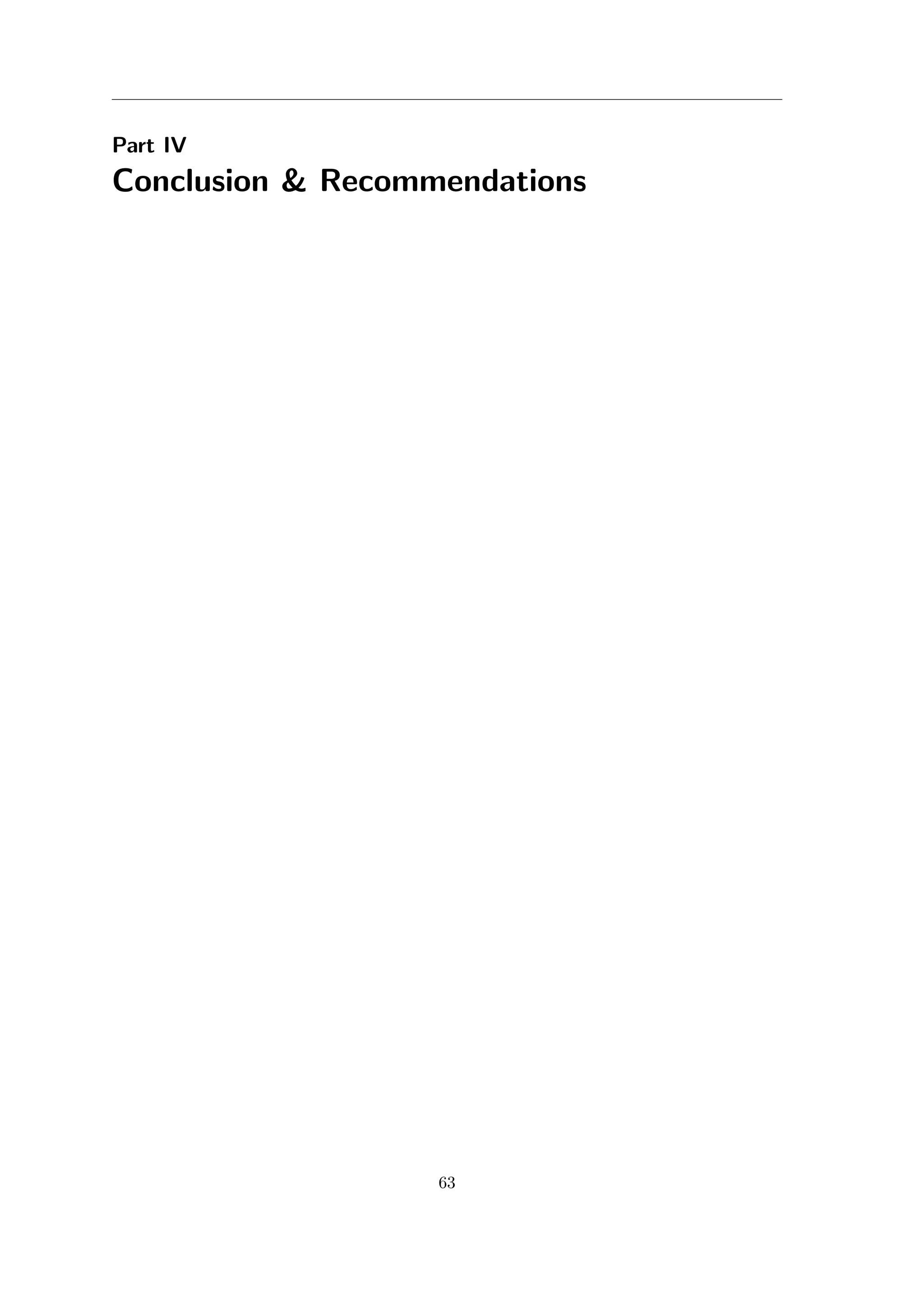

- 64. Part IV Conclusion &Recommendations 63

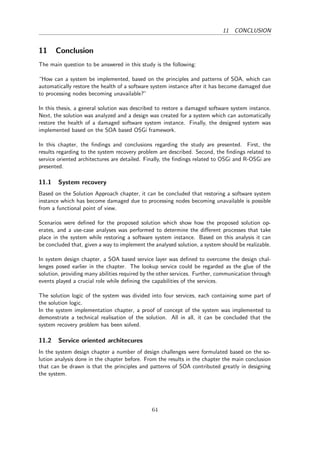

- 65. 11 CONCLUSION 11 Conclusion The main question to be answered in this study is the following: “How can a system be implemented, based on the principles and patterns of SOA, which can automatically restore the health of a software system instance after it has become damaged due to processing nodes becoming unavailable?” In this thesis, a general solution was described to restore a damaged software system instance. Next, the solution was analyzed and a design was created for a system which can automatically restore the health of a damaged software system instance. Finally, the designed system was implemented based on the SOA based OSGi framework. In this chapter, the findings and conclusions regarding the study are presented. First, the results regarding to the system recovery problem are described. Second, the findings related to service oriented architectures are detailed. Finally, the findings related to OSGi and R-OSGi are presented. 11.1 System recovery Based on the Solution Approach chapter, it can be concluded that restoring a software system instance which has become damaged due to processing nodes becoming unavailable is possible from a functional point of view. Scenarios were defined for the proposed solution which show how the proposed solution op- erates, and a use-case analyses was performed to determine the different processes that take place in the system while restoring a software system instance. Based on this analysis it can be concluded that, given a way to implement the analysed solution, a system should be realizable. In system design chapter, a SOA based service layer was defined to overcome the design chal- lenges posed earlier in the chapter. The lookup service could be regarded as the glue of the solution, providing many abilities required by the other services. Further, communication through events played a crucial role while defining the capabilities of the services. The solution logic of the system was divided into four services, each containing some part of the solution logic. In the system implementation chapter, a proof of concept of the system was implemented to demonstrate a technical realisation of the solution. All in all, it can be concluded that the system recovery problem has been solved. 11.2 Service oriented architecures In the system design chapter a number of design challenges were formulated based on the so- lution analysis done in the chapter before. From the results in the chapter the main conclusion that can be drawn is that the principles and patterns of SOA contributed greatly in designing the system. 64

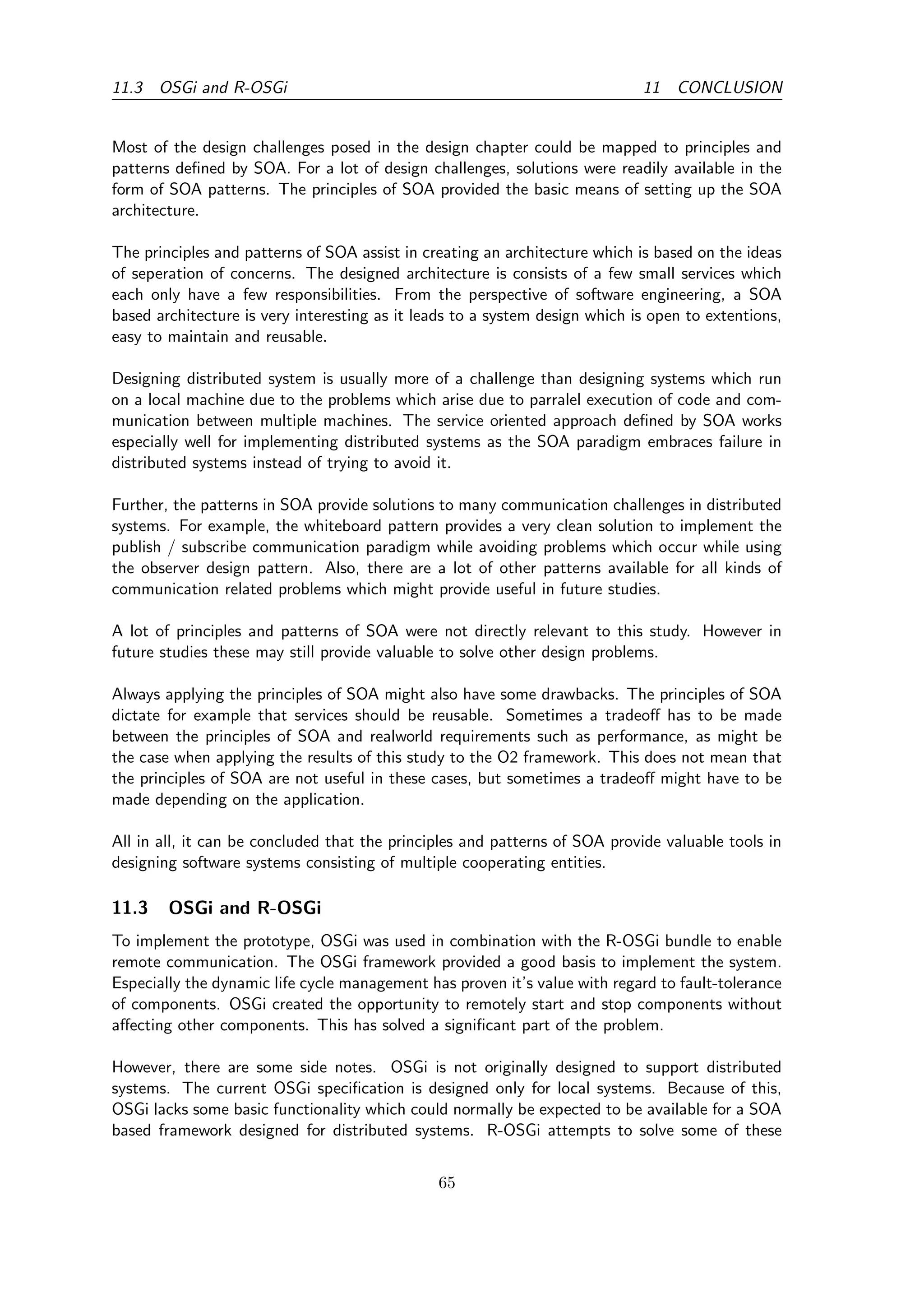

- 66. 11.3 OSGi and R-OSGi 11 CONCLUSION Most of the design challenges posed in the design chapter could be mapped to principles and patterns defined by SOA. For a lot of design challenges, solutions were readily available in the form of SOA patterns. The principles of SOA provided the basic means of setting up the SOA architecture. The principles and patterns of SOA assist in creating an architecture which is based on the ideas of seperation of concerns. The designed architecture is consists of a few small services which each only have a few responsibilities. From the perspective of software engineering, a SOA based architecture is very interesting as it leads to a system design which is open to extentions, easy to maintain and reusable. Designing distributed system is usually more of a challenge than designing systems which run on a local machine due to the problems which arise due to parralel execution of code and com- munication between multiple machines. The service oriented approach defined by SOA works especially well for implementing distributed systems as the SOA paradigm embraces failure in distributed systems instead of trying to avoid it. Further, the patterns in SOA provide solutions to many communication challenges in distributed systems. For example, the whiteboard pattern provides a very clean solution to implement the publish / subscribe communication paradigm while avoiding problems which occur while using the observer design pattern. Also, there are a lot of other patterns available for all kinds of communication related problems which might provide useful in future studies. A lot of principles and patterns of SOA were not directly relevant to this study. However in future studies these may still provide valuable to solve other design problems. Always applying the principles of SOA might also have some drawbacks. The principles of SOA dictate for example that services should be reusable. Sometimes a tradeoff has to be made between the principles of SOA and realworld requirements such as performance, as might be the case when applying the results of this study to the O2 framework. This does not mean that the principles of SOA are not useful in these cases, but sometimes a tradeoff might have to be made depending on the application. All in all, it can be concluded that the principles and patterns of SOA provide valuable tools in designing software systems consisting of multiple cooperating entities. 11.3 OSGi and R-OSGi To implement the prototype, OSGi was used in combination with the R-OSGi bundle to enable remote communication. The OSGi framework provided a good basis to implement the system. Especially the dynamic life cycle management has proven it’s value with regard to fault-tolerance of components. OSGi created the opportunity to remotely start and stop components without affecting other components. This has solved a significant part of the problem. However, there are some side notes. OSGi is not originally designed to support distributed systems. The current OSGi specification is designed only for local systems. Because of this, OSGi lacks some basic functionality which could normally be expected to be available for a SOA based framework designed for distributed systems. R-OSGi attempts to solve some of these 65

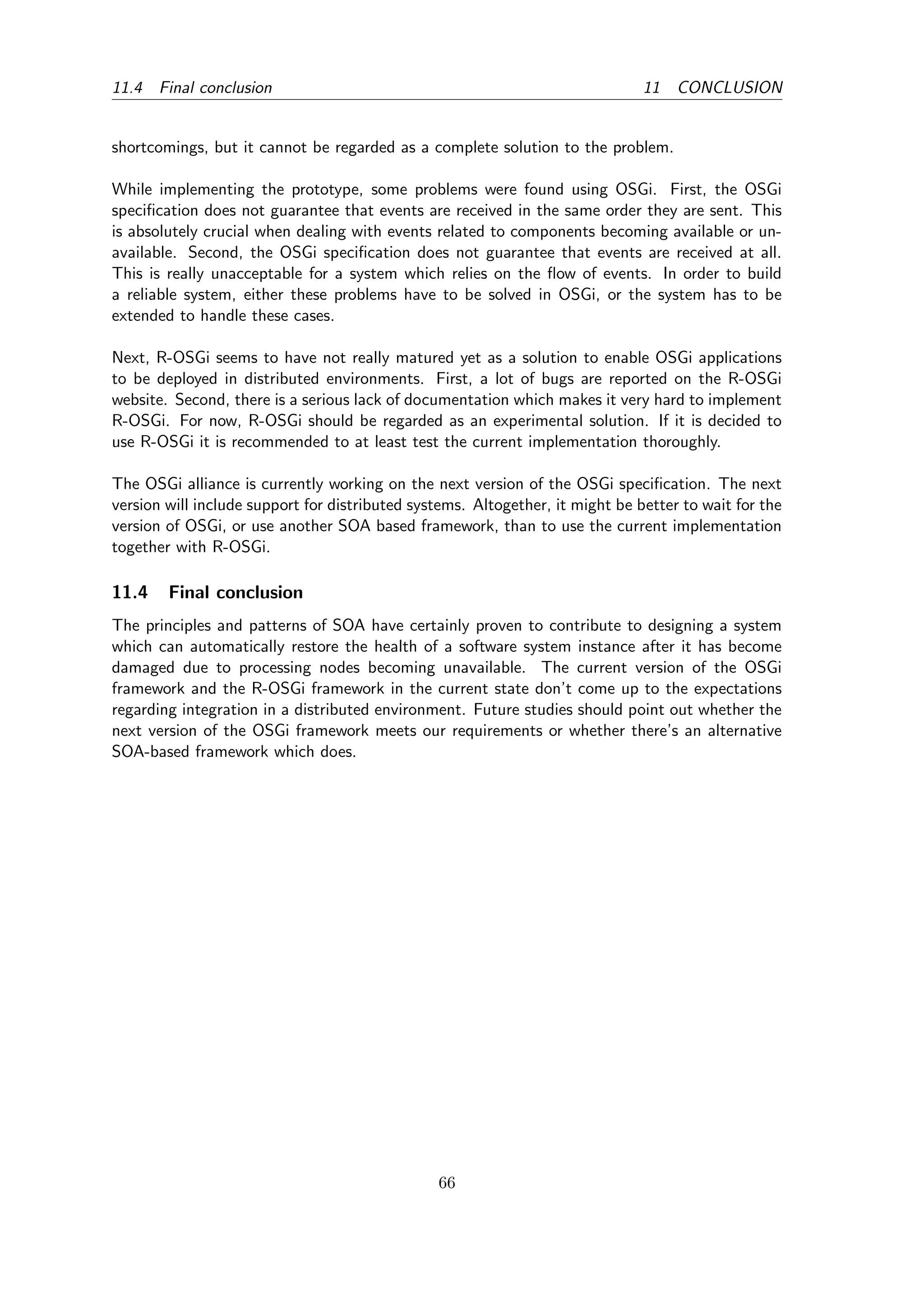

- 67. 11.4 Final conclusion 11 CONCLUSION shortcomings, but it cannot be regarded as a complete solution to the problem. While implementing the prototype, some problems were found using OSGi. First, the OSGi specification does not guarantee that events are received in the same order they are sent. This is absolutely crucial when dealing with events related to components becoming available or un- available. Second, the OSGi specification does not guarantee that events are received at all. This is really unacceptable for a system which relies on the flow of events. In order to build a reliable system, either these problems have to be solved in OSGi, or the system has to be extended to handle these cases. Next, R-OSGi seems to have not really matured yet as a solution to enable OSGi applications to be deployed in distributed environments. First, a lot of bugs are reported on the R-OSGi website. Second, there is a serious lack of documentation which makes it very hard to implement R-OSGi. For now, R-OSGi should be regarded as an experimental solution. If it is decided to use R-OSGi it is recommended to at least test the current implementation thoroughly. The OSGi alliance is currently working on the next version of the OSGi specification. The next version will include support for distributed systems. Altogether, it might be better to wait for the version of OSGi, or use another SOA based framework, than to use the current implementation together with R-OSGi. 11.4 Final conclusion The principles and patterns of SOA have certainly proven to contribute to designing a system which can automatically restore the health of a software system instance after it has become damaged due to processing nodes becoming unavailable. The current version of the OSGi framework and the R-OSGi framework in the current state don’t come up to the expectations regarding integration in a distributed environment. Future studies should point out whether the next version of the OSGi framework meets our requirements or whether there’s an alternative SOA-based framework which does. 66

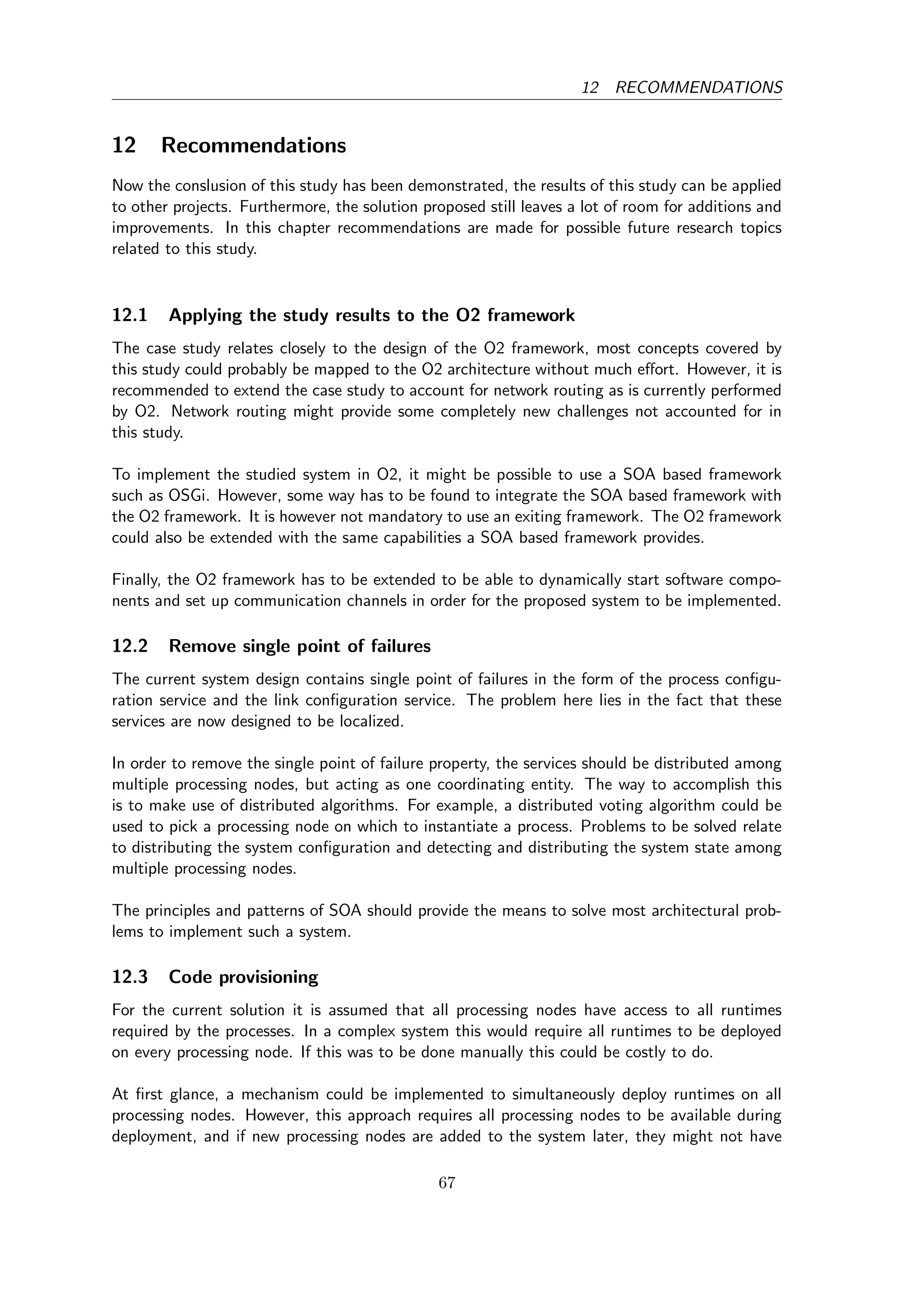

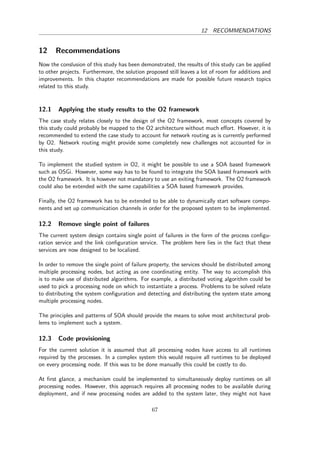

- 68. 12 RECOMMENDATIONS 12 Recommendations Now the conslusion of this study has been demonstrated, the results of this study can be applied to other projects. Furthermore, the solution proposed still leaves a lot of room for additions and improvements. In this chapter recommendations are made for possible future research topics related to this study. 12.1 Applying the study results to the O2 framework The case study relates closely to the design of the O2 framework, most concepts covered by this study could probably be mapped to the O2 architecture without much effort. However, it is recommended to extend the case study to account for network routing as is currently performed by O2. Network routing might provide some completely new challenges not accounted for in this study. To implement the studied system in O2, it might be possible to use a SOA based framework such as OSGi. However, some way has to be found to integrate the SOA based framework with the O2 framework. It is however not mandatory to use an exiting framework. The O2 framework could also be extended with the same capabilities a SOA based framework provides. Finally, the O2 framework has to be extended to be able to dynamically start software compo- nents and set up communication channels in order for the proposed system to be implemented. 12.2 Remove single point of failures The current system design contains single point of failures in the form of the process configu- ration service and the link configuration service. The problem here lies in the fact that these services are now designed to be localized. In order to remove the single point of failure property, the services should be distributed among multiple processing nodes, but acting as one coordinating entity. The way to accomplish this is to make use of distributed algorithms. For example, a distributed voting algorithm could be used to pick a processing node on which to instantiate a process. Problems to be solved relate to distributing the system configuration and detecting and distributing the system state among multiple processing nodes. The principles and patterns of SOA should provide the means to solve most architectural prob- lems to implement such a system. 12.3 Code provisioning For the current solution it is assumed that all processing nodes have access to all runtimes required by the processes. In a complex system this would require all runtimes to be deployed on every processing node. If this was to be done manually this could be costly to do. At first glance, a mechanism could be implemented to simultaneously deploy runtimes on all processing nodes. However, this approach requires all processing nodes to be available during deployment, and if new processing nodes are added to the system later, they might not have 67

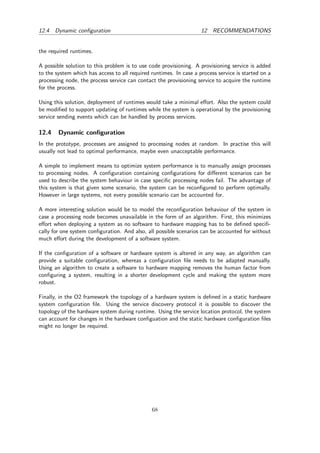

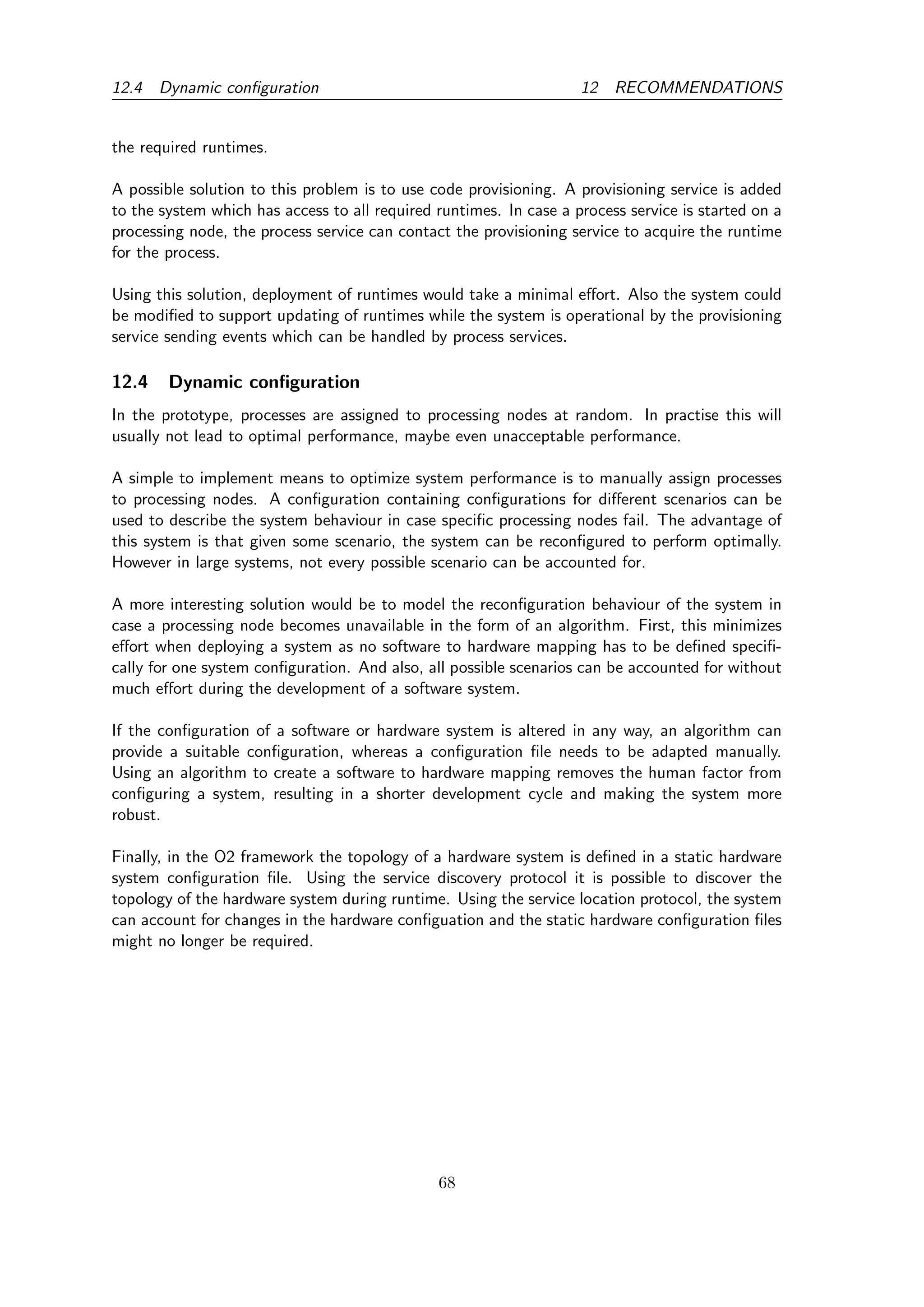

- 69. 12.4 Dynamic configuration 12 RECOMMENDATIONS the required runtimes. A possible solution to this problem is to use code provisioning. A provisioning service is added to the system which has access to all required runtimes. In case a process service is started on a processing node, the process service can contact the provisioning service to acquire the runtime for the process. Using this solution, deployment of runtimes would take a minimal effort. Also the system could be modified to support updating of runtimes while the system is operational by the provisioning service sending events which can be handled by process services. 12.4 Dynamic configuration In the prototype, processes are assigned to processing nodes at random. In practise this will usually not lead to optimal performance, maybe even unacceptable performance. A simple to implement means to optimize system performance is to manually assign processes to processing nodes. A configuration containing configurations for different scenarios can be used to describe the system behaviour in case specific processing nodes fail. The advantage of this system is that given some scenario, the system can be reconfigured to perform optimally. However in large systems, not every possible scenario can be accounted for. A more interesting solution would be to model the reconfiguration behaviour of the system in case a processing node becomes unavailable in the form of an algorithm. First, this minimizes effort when deploying a system as no software to hardware mapping has to be defined specifi- cally for one system configuration. And also, all possible scenarios can be accounted for without much effort during the development of a software system. If the configuration of a software or hardware system is altered in any way, an algorithm can provide a suitable configuration, whereas a configuration file needs to be adapted manually. Using an algorithm to create a software to hardware mapping removes the human factor from configuring a system, resulting in a shorter development cycle and making the system more robust. Finally, in the O2 framework the topology of a hardware system is defined in a static hardware system configuration file. Using the service discovery protocol it is possible to discover the topology of the hardware system during runtime. Using the service location protocol, the system can account for changes in the hardware configuation and the static hardware configuration files might no longer be required. 68
- 70. REFERENCES REFERENCES References [1] A. Rotem-Gal-Oz, Fallacies of Distributed Computing Explained. 2006. [2] M.K. Goff, Network Distributed Computing: Fitscapes and Fallacies. Prentice-Hall, Inc., Upper Saddle River, 2004. [3] G. Coulouris, J. Dollimore & T. Kindberg, Distributed Systems: Concepts and Design. Addison-Wesley/Pearson Education, UK, 4th Edition, 2005. [4] K. Birman, Reliable Distributed Systems: Technologies, Web Services and Applications. Springer-Verlag, New York, 2005. [5] A. Tanenbaum and M. Van Steen, Distributed Systems: Principles and Paradigms. Prentice- Hall, Inc., Upper Saddle River, 2002. [6] F. Schneider, Distributed Systems: Replication management using the state-machine ap- proach. Addison-Wesley, Massachusetts, 2nd Edition, 1993. [7] L. Lamport, Computer Networks: The implementation of reliable distributed multiprocess systems. 1978. [8] J. Gray & A. Reuter, Transaction Processing: Concepts and Techniques. Morgan Kaufmann, San Mateo, 1993. [9] C. Mohan, B. Lindsay & R. Obermarck, Transaction Management in the R* Distributed Database Management System. 1986. [10] T. Erl, The Principles of Service-orientation: Service Discoverability and Composition. Available at http://searchsoa.techtarget.com (September 5, 2006). [11] M. Poulin, Evolution of principles of Service Orientation: Service Composability and Dis- coverability. Available at http://www.ebizq.net (February 26, 2009). [12] M. Kircher, Pattern-Oriented Software Architecture: Patterns for Resource Management. John Wiley & Sons, West Sussex 2004. [13] D. Schmidt, M., H. Rohnert & F. Buschmann, Pattern-Oriented Software Architecture: Patterns for Concurrent and Networked Objects. John Wiley & Sons, West Sussex 2000. [14] F. Buschmann, R. Meunier, H. Rohnert, P. Sornmerlad & M. Stal, Pattern-Oriented Soft- ware Architecture: A System of Patterns. John Wiley & Sons, West Sussex 1996. [15] Sun Microsystems, Java Management Extensions (JMX) Technology Overview. Available at http://life.csu.edu.au (September 2004) [16] W. Keith Edwards, Core Jini. Prentice-Hall, Inc., Upper Saddle River, 2nd Edition, 2001. [17] G. Bieber, J. Carpenter, OpenWings Whitepaper: Introduction to Service-Oriented Pro- gramming. Available at http://www.openwings.org 2001. [18] E. Guttman, IEEE Internet Computing: Service Location Protocol. 1999. [19] R. Schmelzer, The Seven Levels of Loose Coupling. Available at http://www.zapthink.com (November 2007) 69

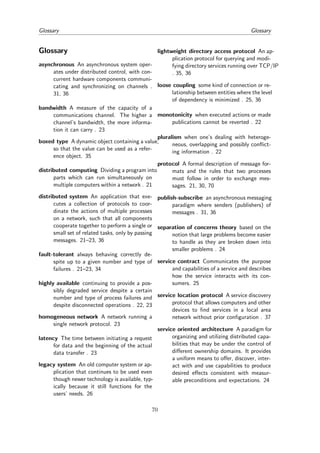

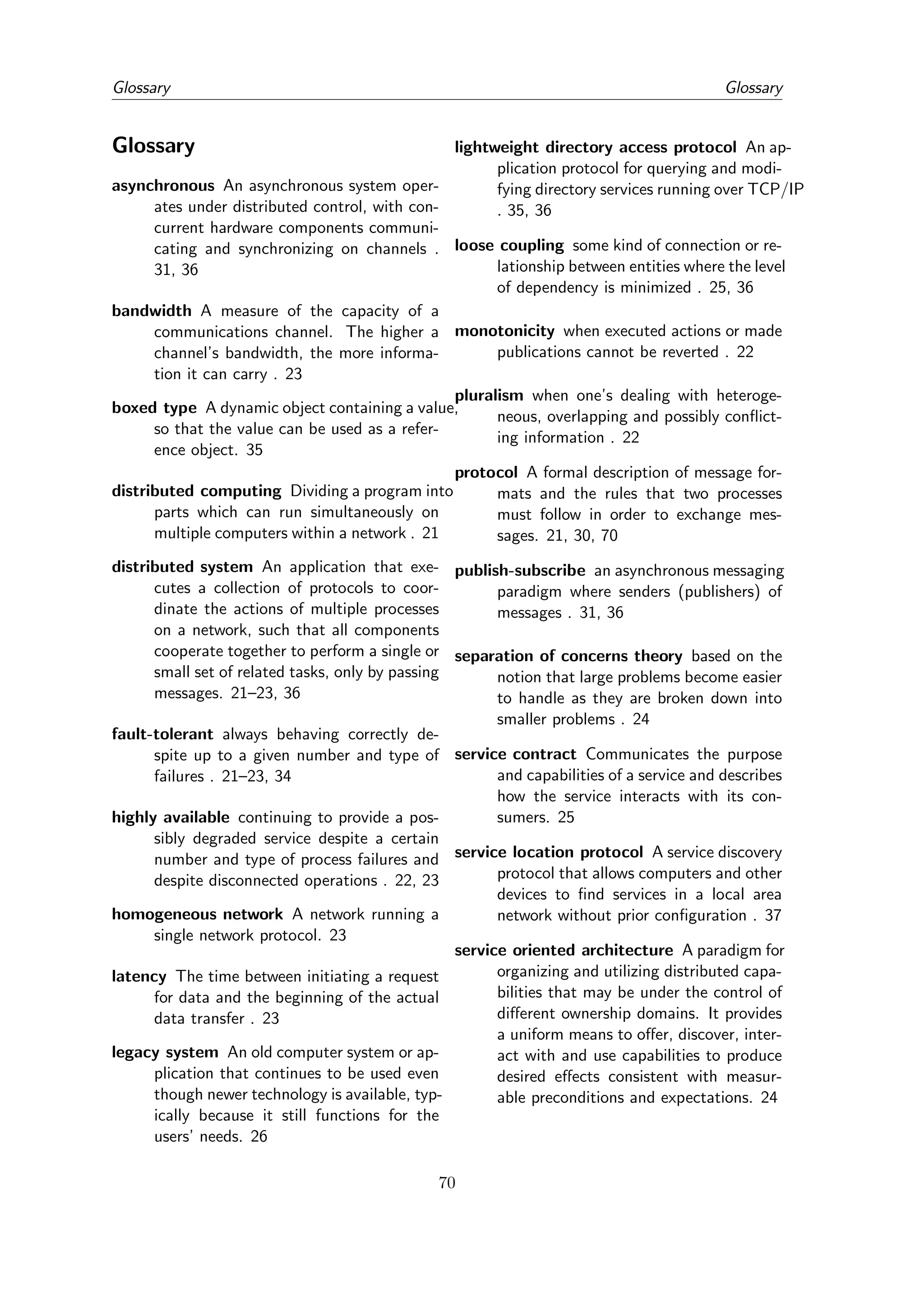

- 71. Glossary Glossary Glossary lightweight directory access protocol An ap- plication protocol for querying and modi- asynchronous An asynchronous system oper- fying directory services running over TCP/IP ates under distributed control, with con- . 35, 36 current hardware components communi- cating and synchronizing on channels . loose coupling some kind of connection or re- 31, 36 lationship between entities where the level of dependency is minimized . 25, 36 bandwidth A measure of the capacity of a communications channel. The higher a monotonicity when executed actions or made channel’s bandwidth, the more informa- publications cannot be reverted . 22 tion it can carry . 23 pluralism when one’s dealing with heteroge- boxed type A dynamic object containing a value, neous, overlapping and possibly conflict- so that the value can be used as a refer- ing information . 22 ence object. 35 protocol A formal description of message for- distributed computing Dividing a program into mats and the rules that two processes parts which can run simultaneously on must follow in order to exchange mes- multiple computers within a network . 21 sages. 21, 30, 70 distributed system An application that exe- publish-subscribe an asynchronous messaging cutes a collection of protocols to coor- paradigm where senders (publishers) of dinate the actions of multiple processes messages . 31, 36 on a network, such that all components cooperate together to perform a single or separation of concerns theory based on the small set of related tasks, only by passing notion that large problems become easier messages. 21–23, 36 to handle as they are broken down into smaller problems . 24 fault-tolerant always behaving correctly de- spite up to a given number and type of service contract Communicates the purpose failures . 21–23, 34 and capabilities of a service and describes how the service interacts with its con- highly available continuing to provide a pos- sumers. 25 sibly degraded service despite a certain number and type of process failures and service location protocol A service discovery despite disconnected operations . 22, 23 protocol that allows computers and other devices to find services in a local area homogeneous network A network running a network without prior configuration . 37 single network protocol. 23 service oriented architecture A paradigm for latency The time between initiating a request organizing and utilizing distributed capa- for data and the beginning of the actual bilities that may be under the control of data transfer . 23 different ownership domains. It provides a uniform means to offer, discover, inter- legacy system An old computer system or ap- act with and use capabilities to produce plication that continues to be used even desired effects consistent with measur- though newer technology is available, typ- able preconditions and expectations. 24 ically because it still functions for the users’ needs. 26 70

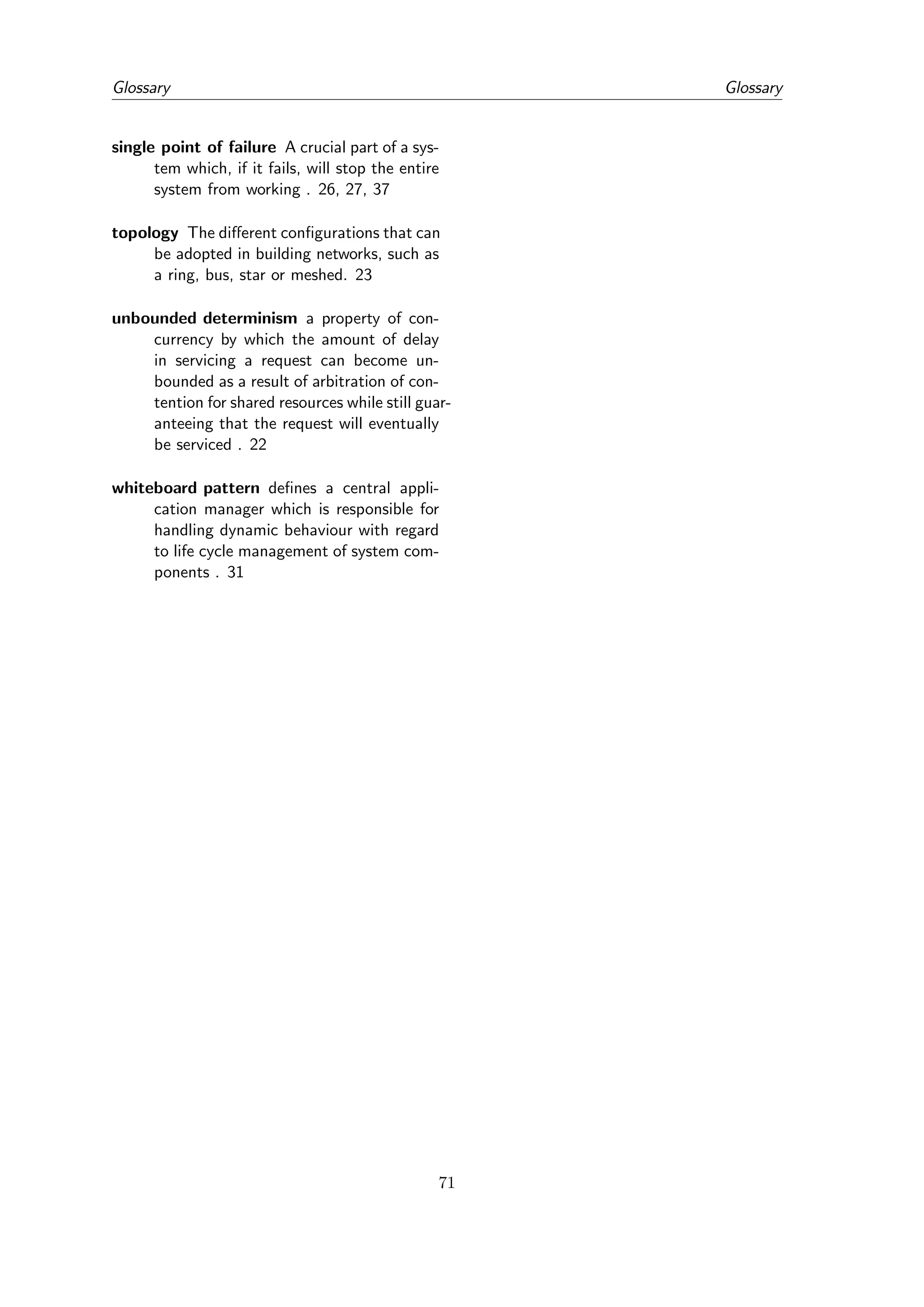

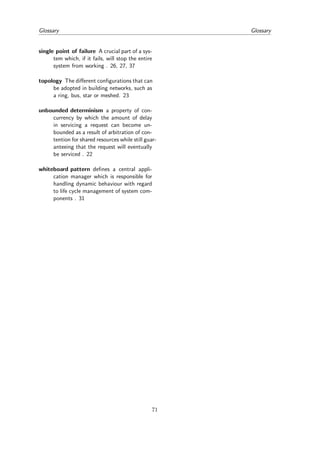

- 72. Glossary Glossary single point of failure A crucial part of a sys- tem which, if it fails, will stop the entire system from working . 26, 27, 37 topology The different configurations that can be adopted in building networks, such as a ring, bus, star or meshed. 23 unbounded determinism a property of con- currency by which the amount of delay in servicing a request can become un- bounded as a result of arbitration of con- tention for shared resources while still guar- anteeing that the request will eventually be serviced . 22 whiteboard pattern defines a central appli- cation manager which is responsible for handling dynamic behaviour with regard to life cycle management of system com- ponents . 31 71

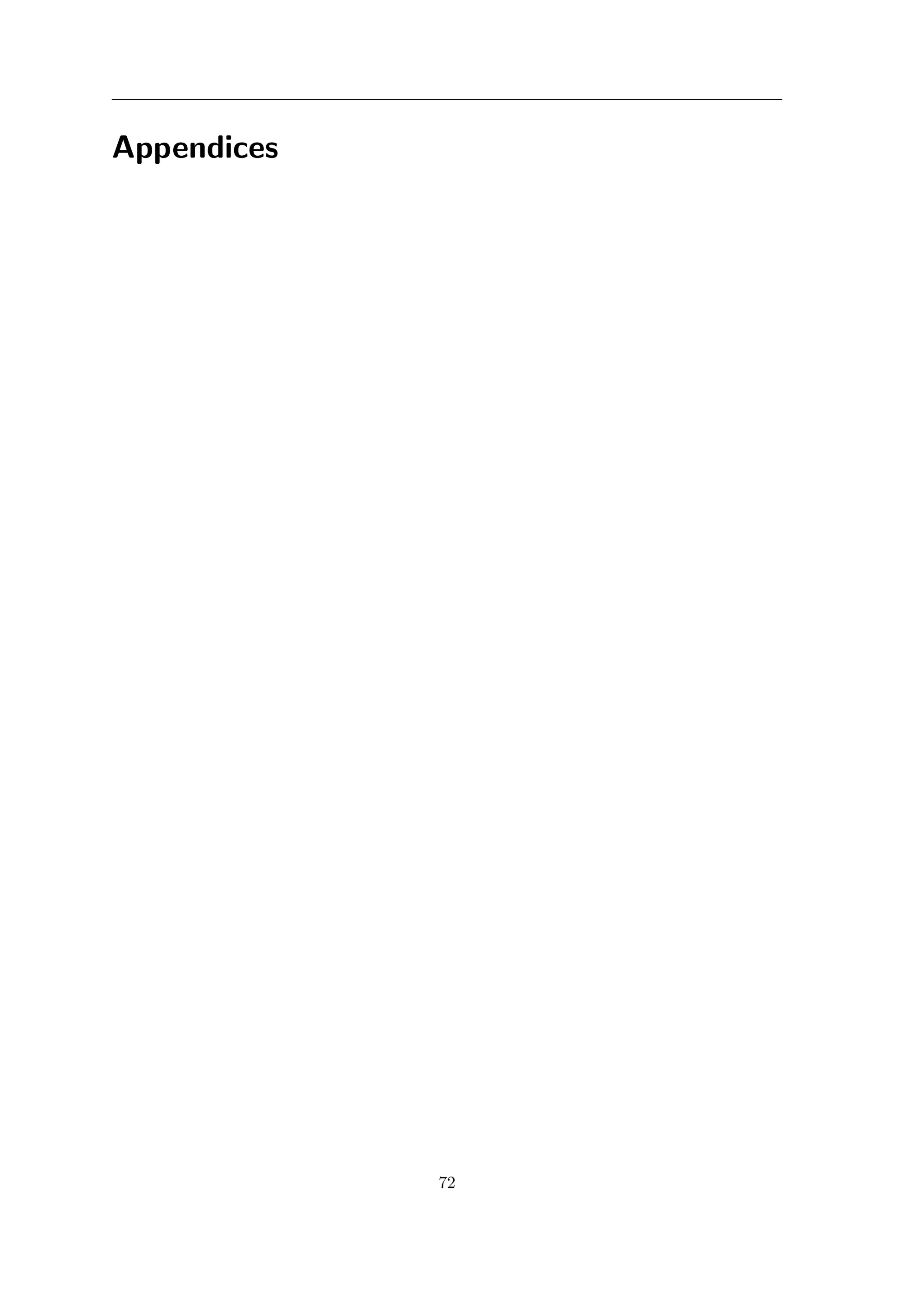

- 73. Appendices 72

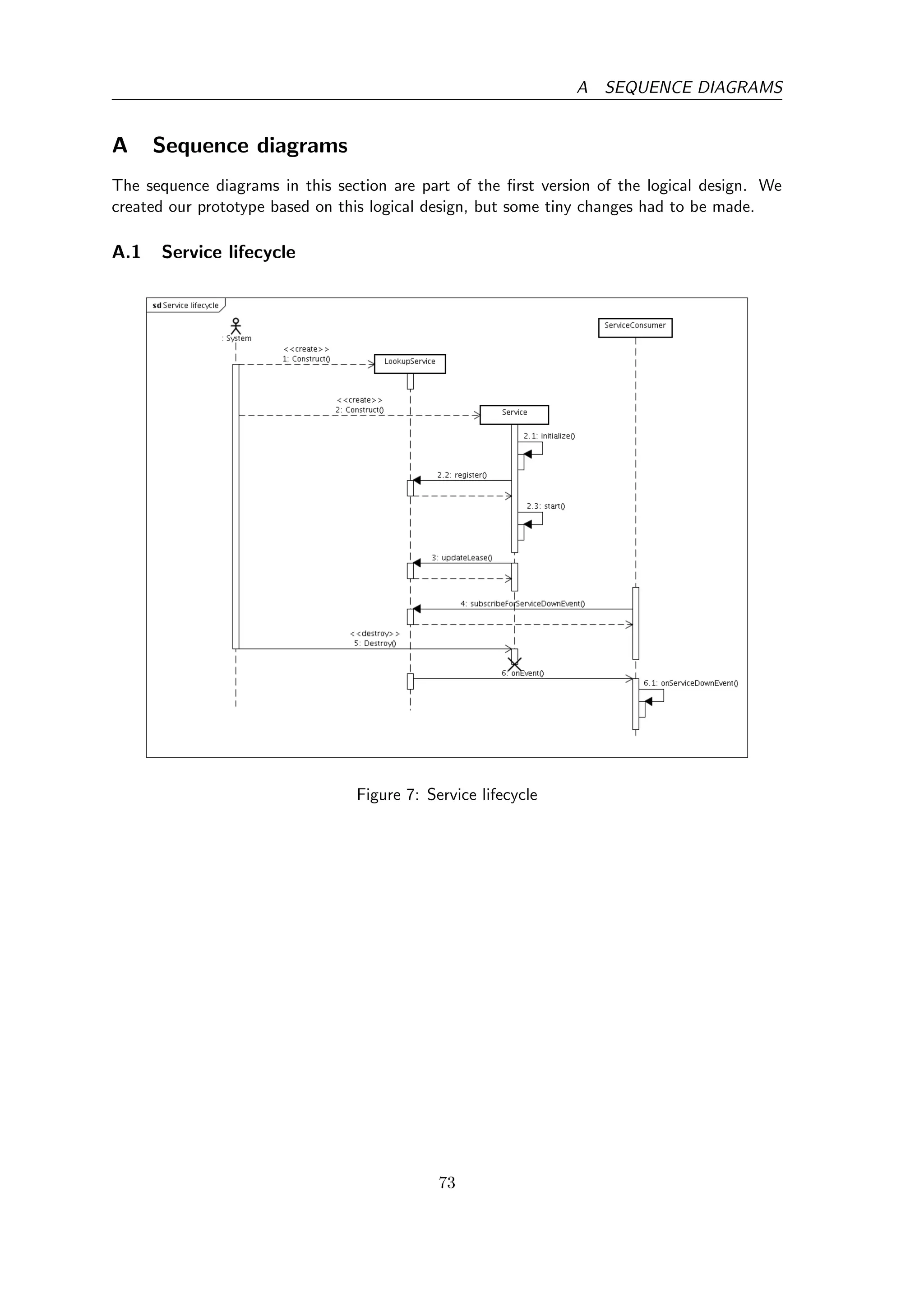

- 74. A SEQUENCE DIAGRAMS A Sequence diagrams The sequence diagrams in this section are part of the first version of the logical design. We created our prototype based on this logical design, but some tiny changes had to be made. A.1 Service lifecycle Figure 7: Service lifecycle 73

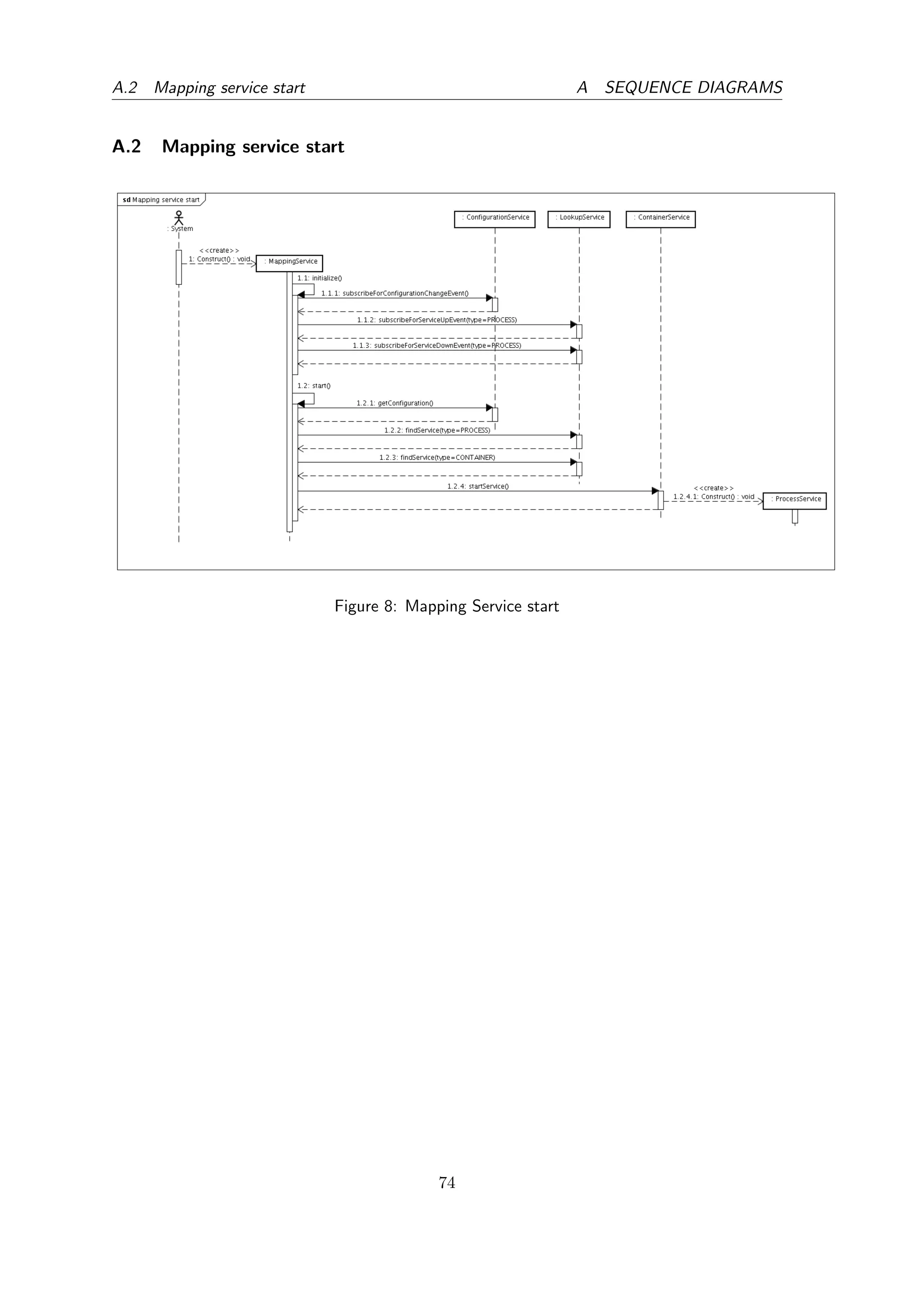

- 75. A.2 Mapping service start A SEQUENCE DIAGRAMS A.2 Mapping service start Figure 8: Mapping Service start 74

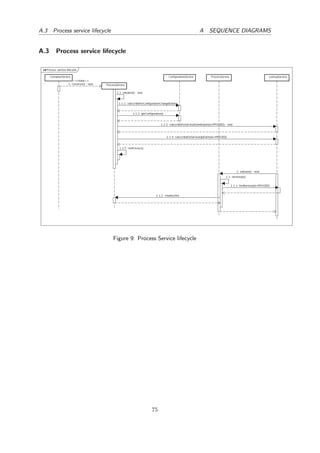

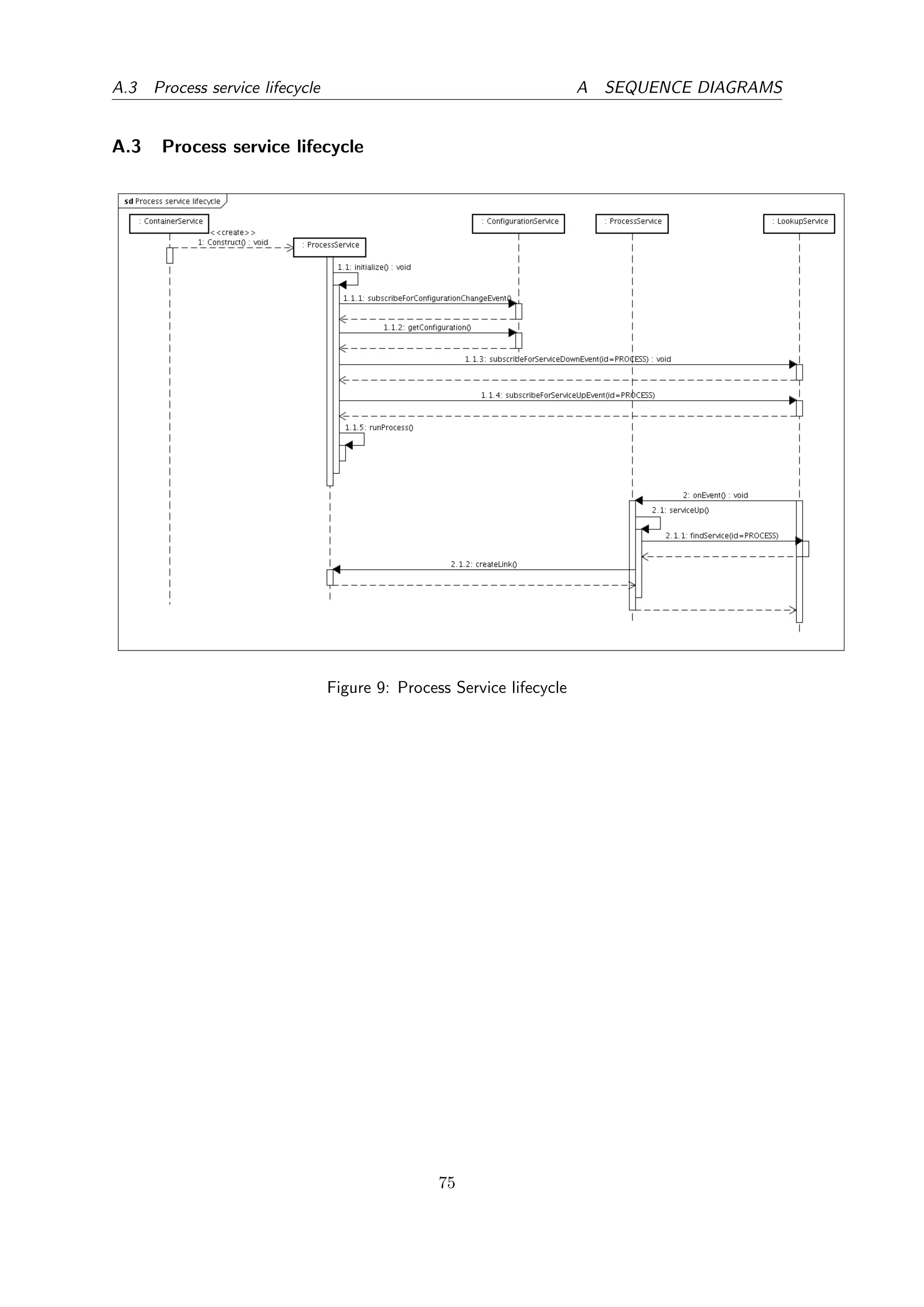

- 76. A.3 Process service lifecycle A SEQUENCE DIAGRAMS A.3 Process service lifecycle Figure 9: Process Service lifecycle 75

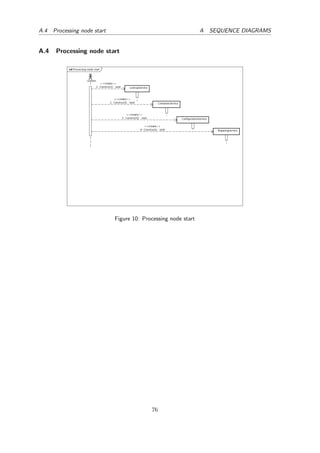

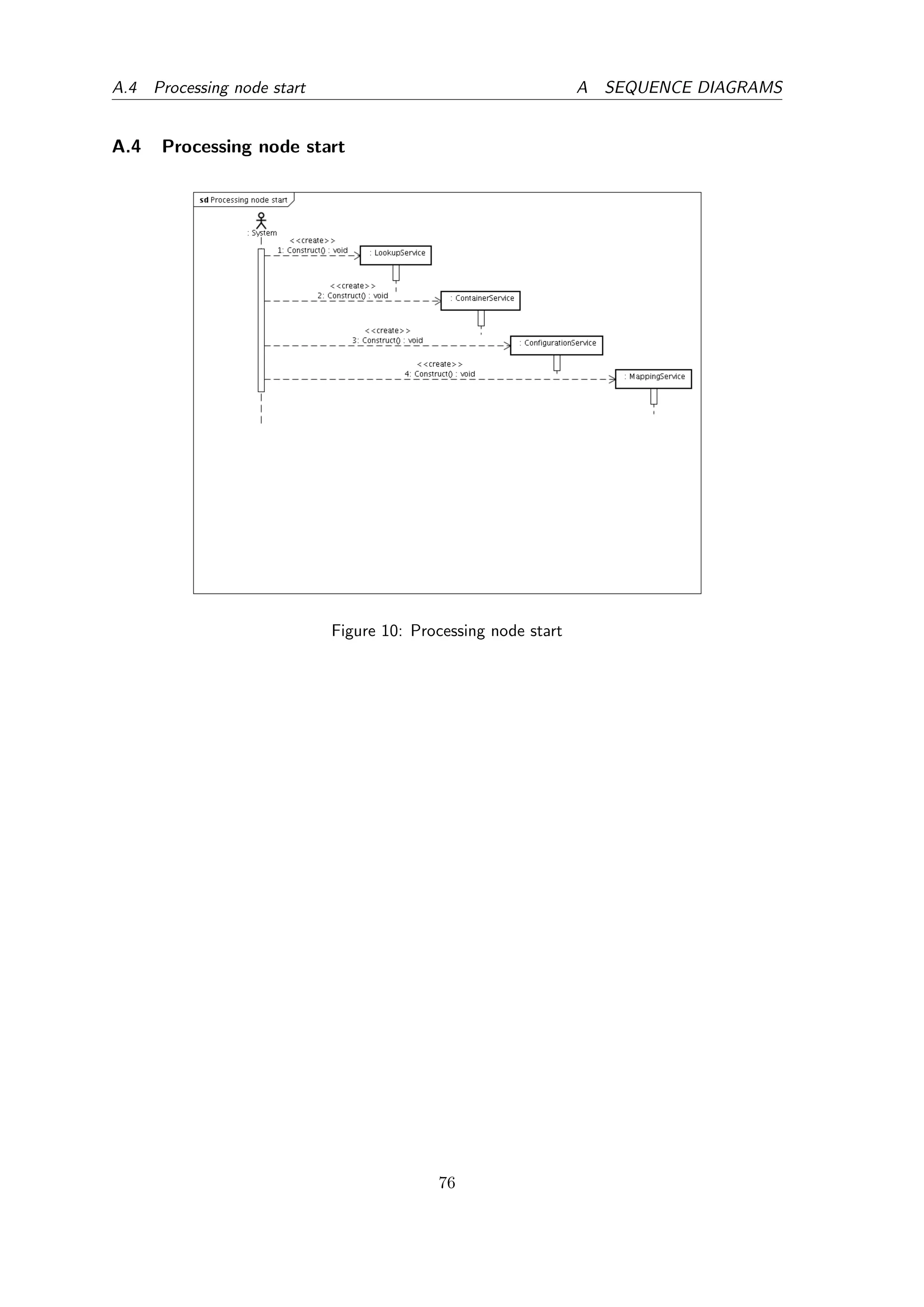

- 77. A.4 Processing node start A SEQUENCE DIAGRAMS A.4 Processing node start Figure 10: Processing node start 76

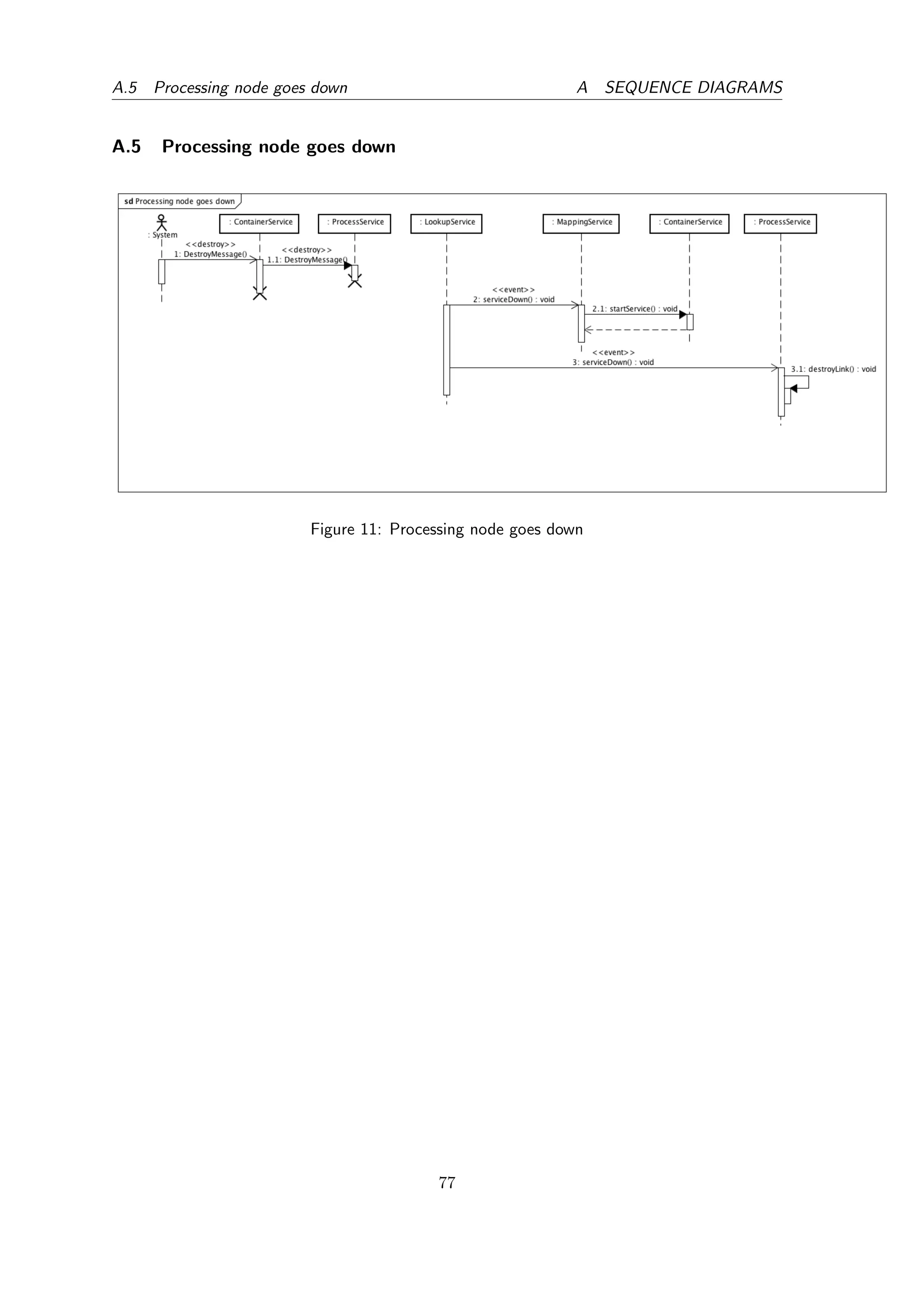

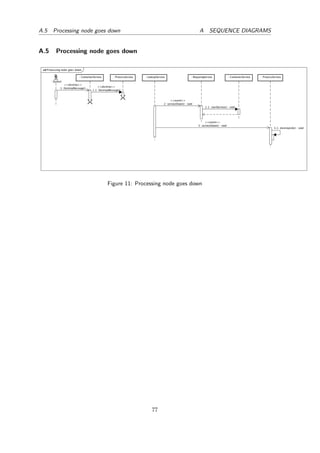

- 78. A.5 Processing node goes down A SEQUENCE DIAGRAMS A.5 Processing node goes down Figure 11: Processing node goes down 77

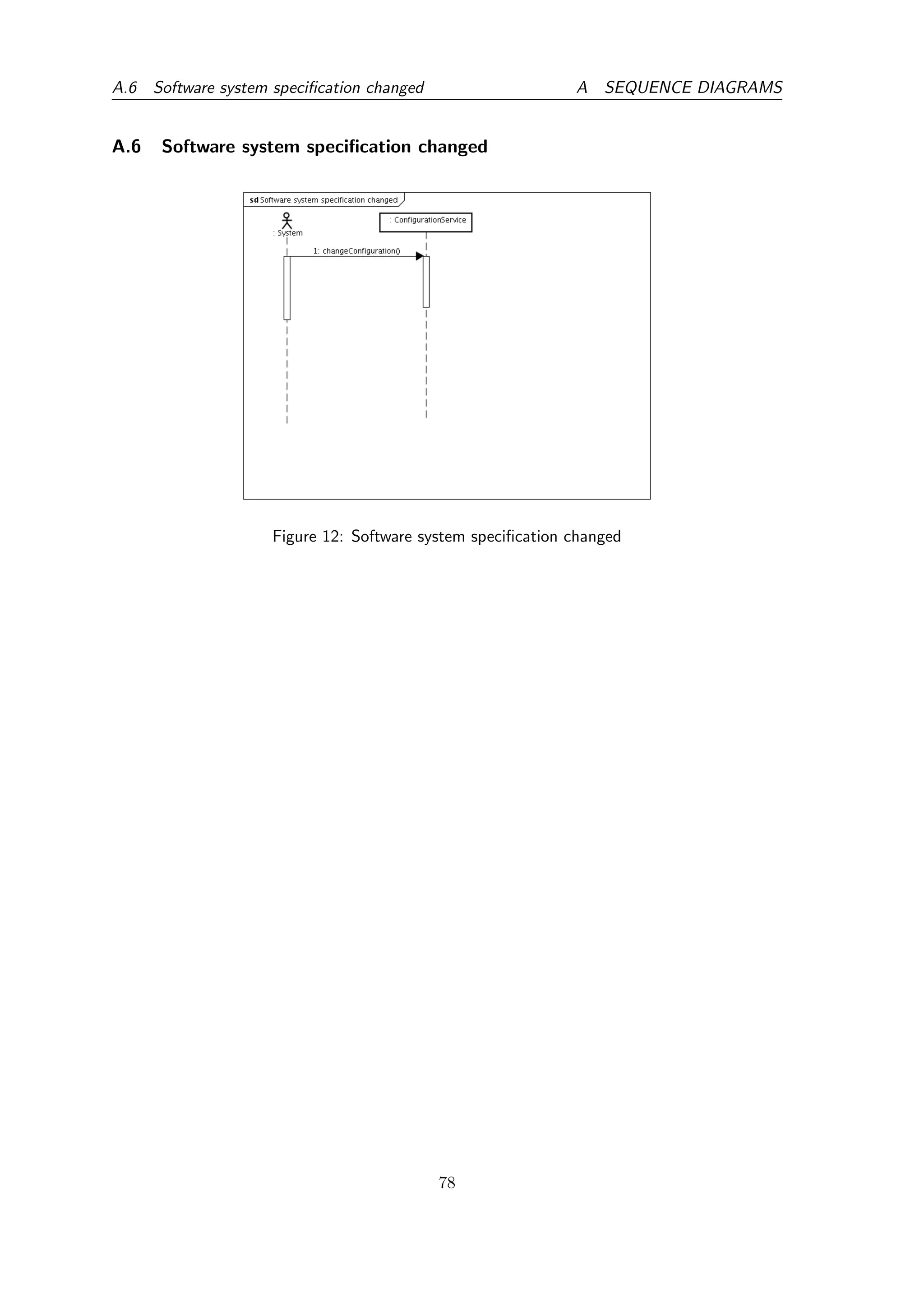

- 79. A.6 Software system specification changed A SEQUENCE DIAGRAMS A.6 Software system specification changed Figure 12: Software system specification changed 78
