The document describes a multiphase flowmeter called the Multiphase Flowmeter DIP. It can accurately measure gas, oil, and water flow rates as well as gas volume fraction and water cut. The flowmeter has benefits like being a non-intrusive, clamp on device that provides online, high accuracy measurements without restricting flow properties. It lowers costs and improves safety by eliminating the need for sampling, separators, and constant staff presence. The flowmeter allows control of well conditions and optimization of production rates for stable well operation.

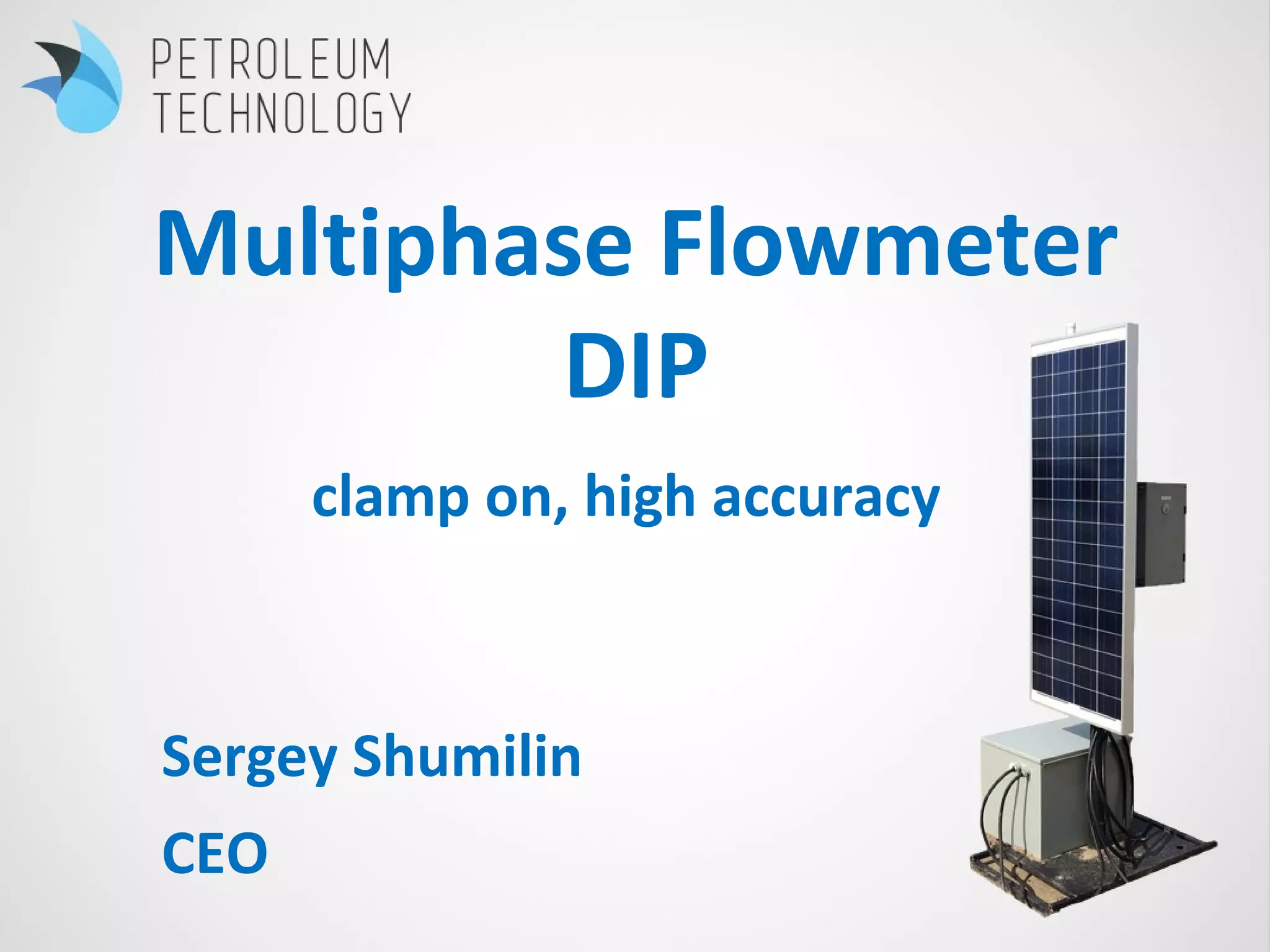

1. Multiphase Flowmeter
DIP
Sergey Shumilin
CEO
clamp on, high accuracy

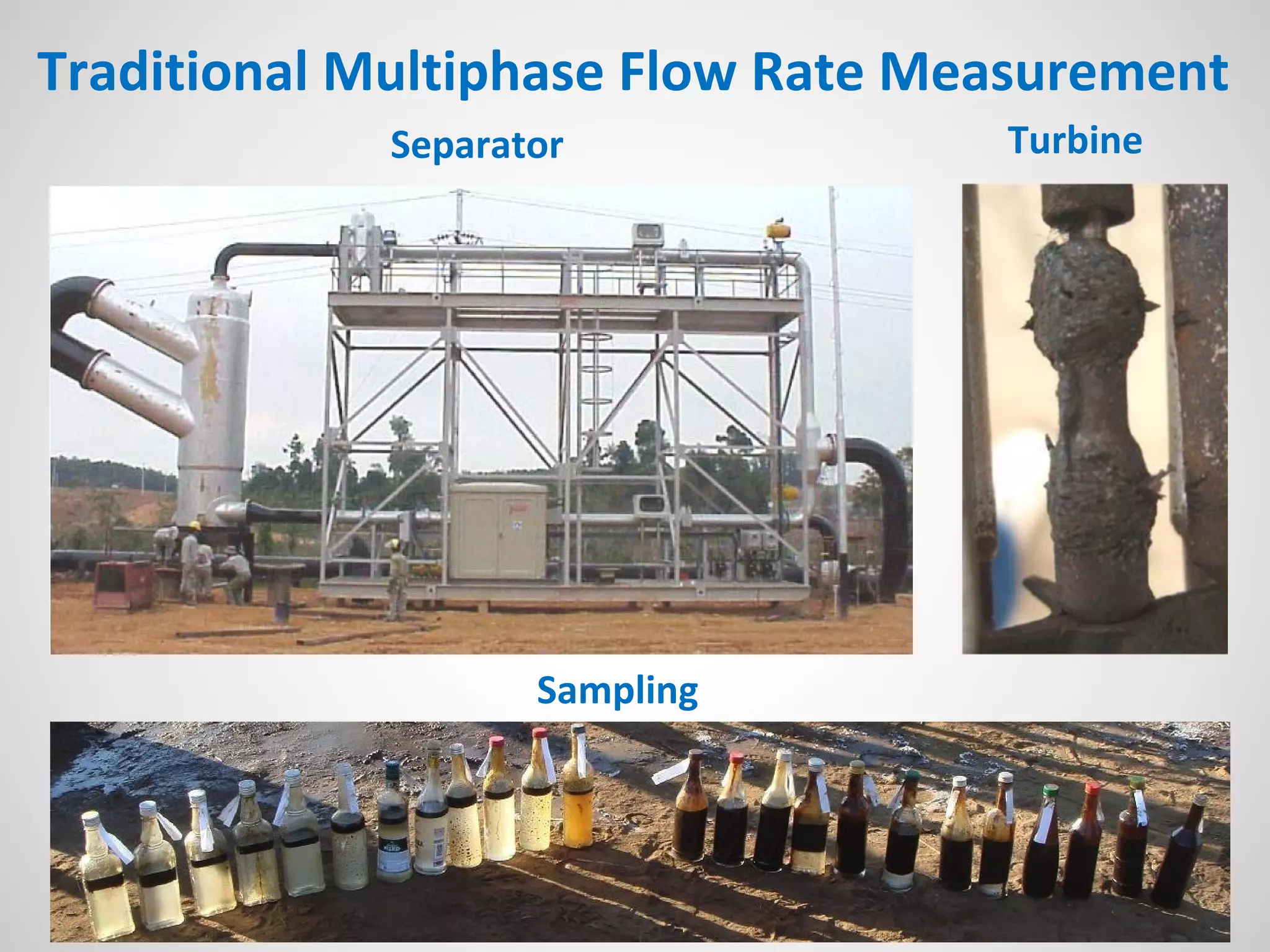

3. Traditional Multiphase Flow Rate Measurement
Turbine
Sampling
Separator

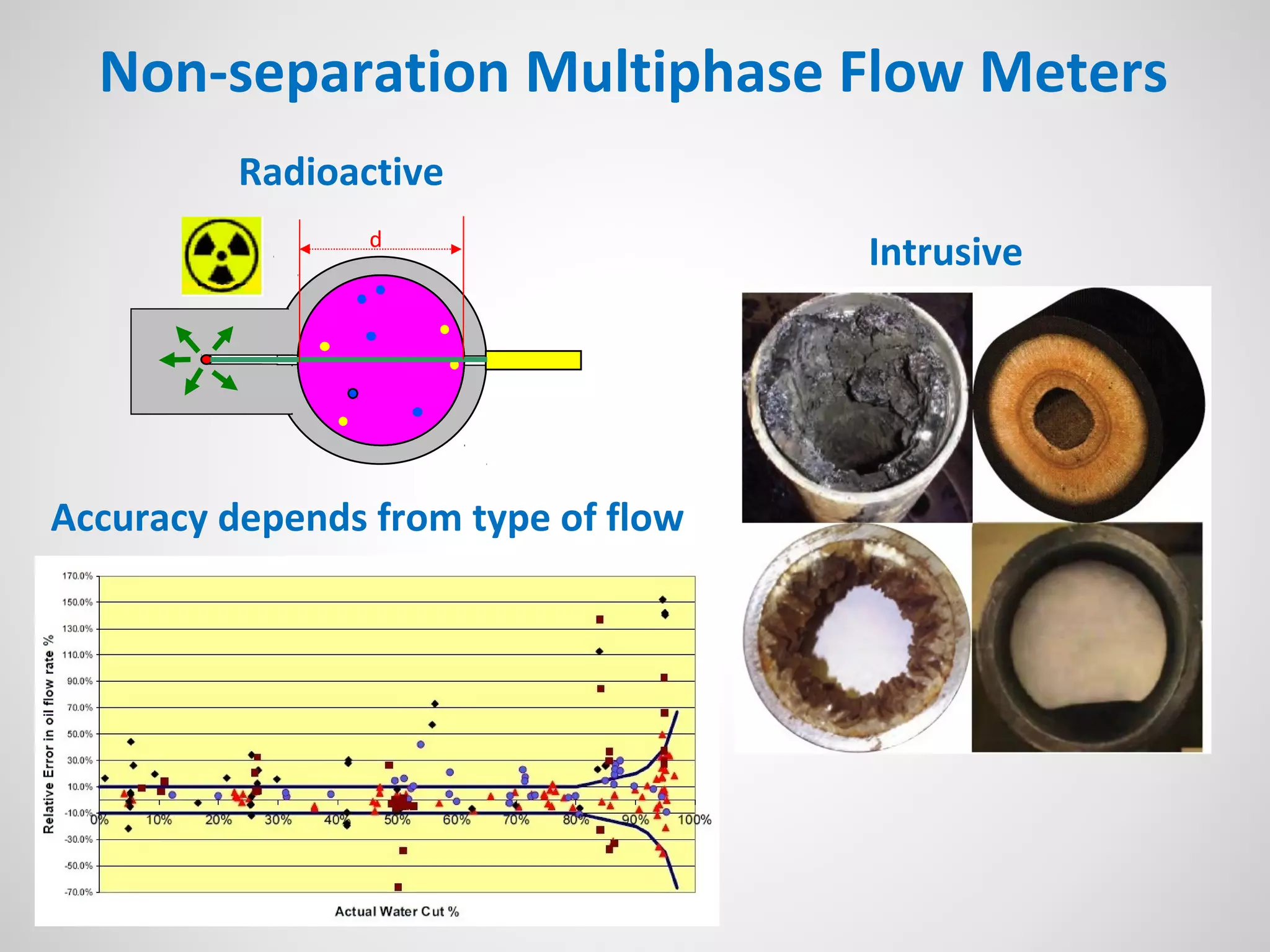

4. Non-separation Multiphase Flow Meters
d
Radioactive
Intrusive
Accuracy depends from type of flow

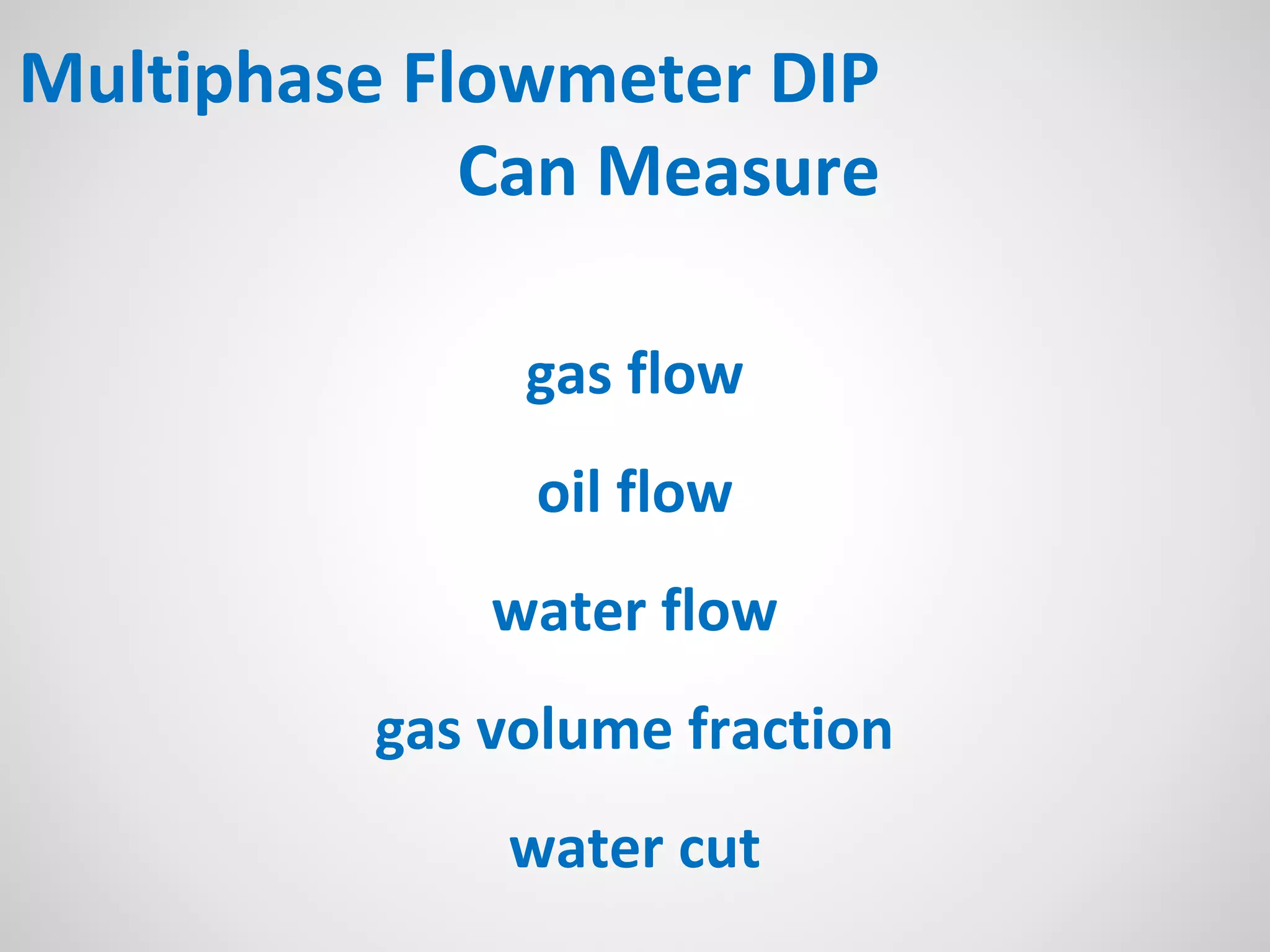

6. Multiphase Flowmeter DIP
Can Measure
gas flow
oil flow
water flow
gas volume fraction
water cut

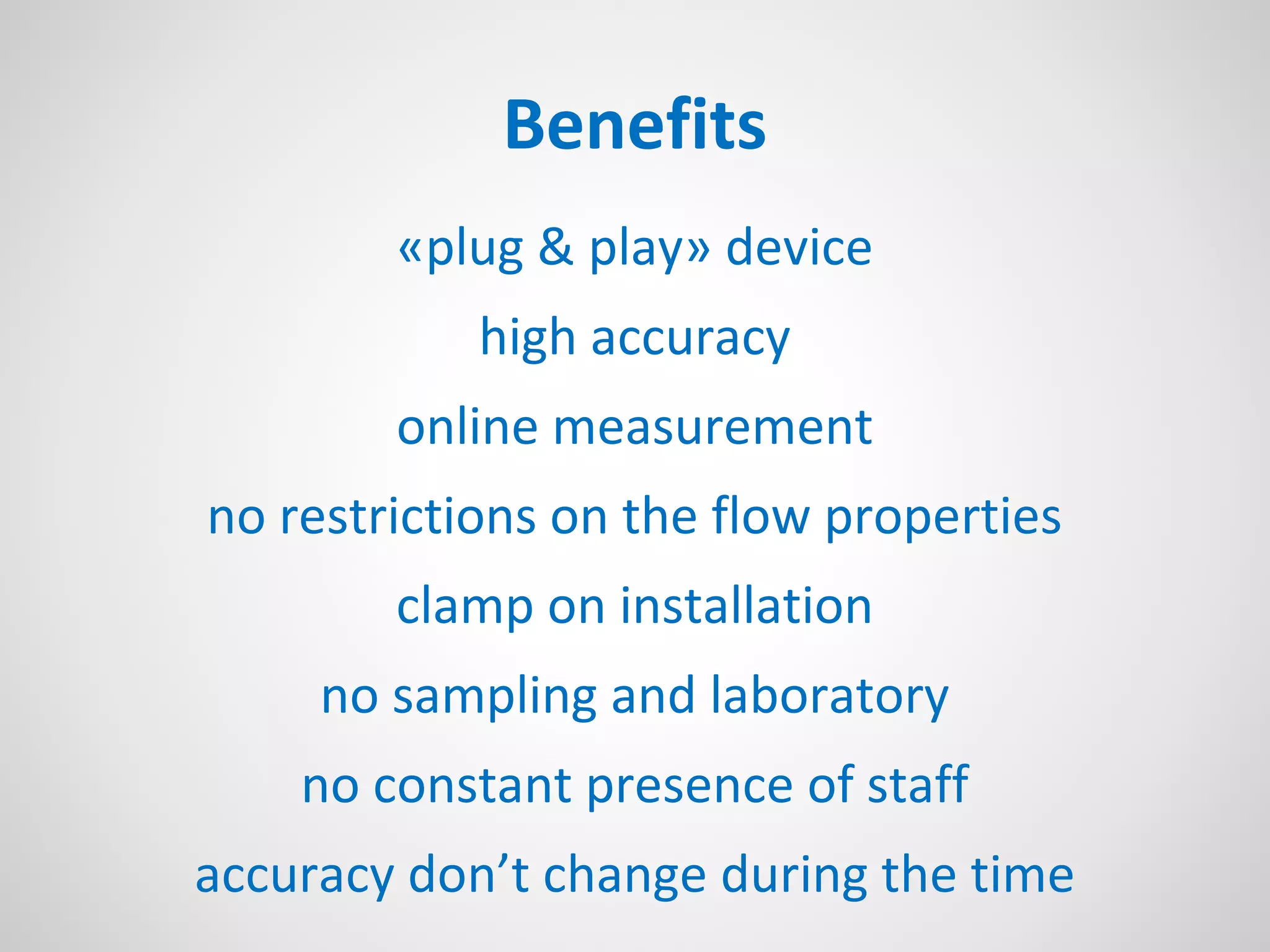

7. Benefits
«plug & play» device
high accuracy
online measurement
no restrictions on the flow properties
clamp on installation
no sampling and laboratory
no constant presence of staff
accuracy don’t change during the time

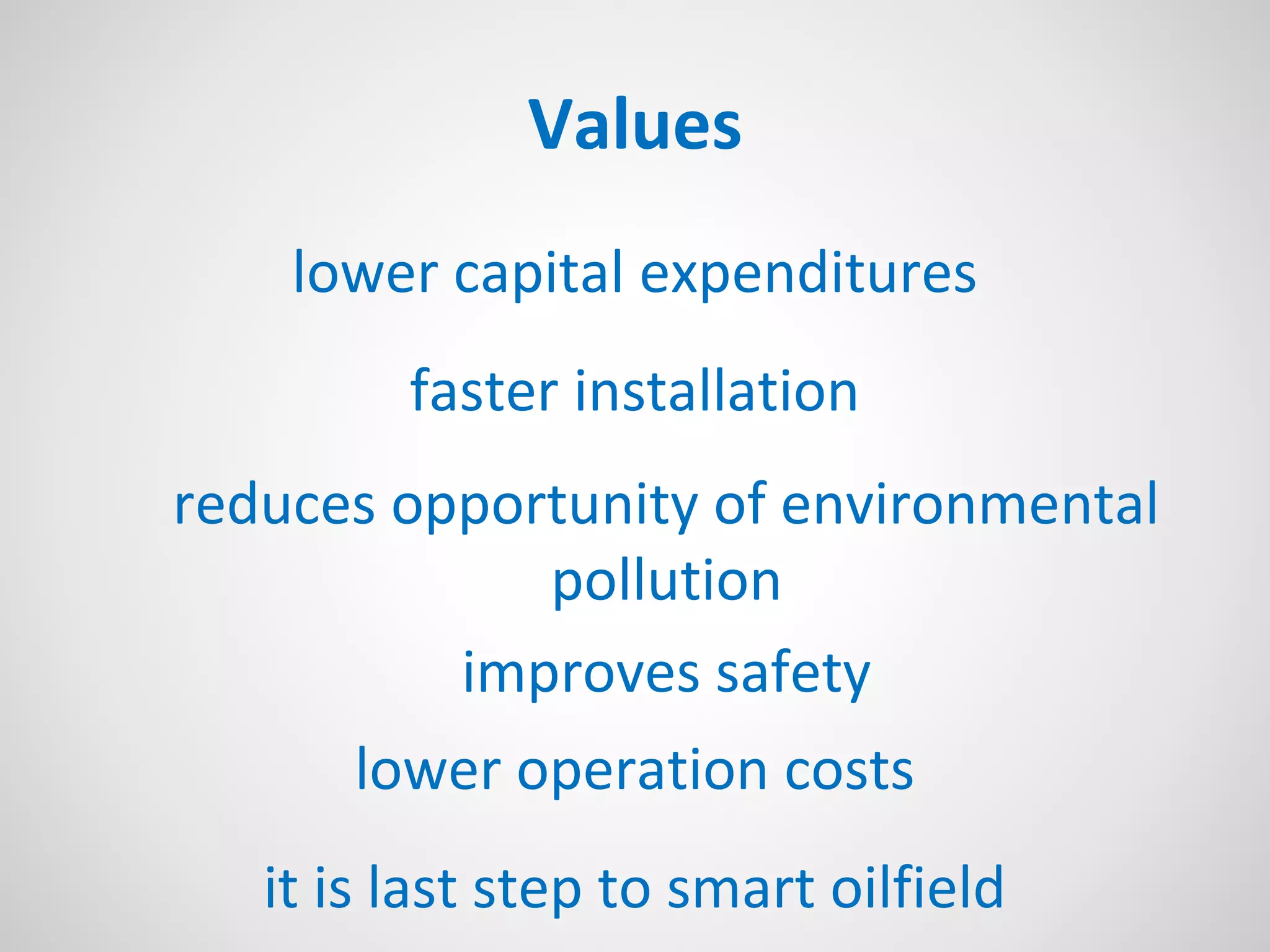

8. Values
lower capital expenditures
faster installation
reduces opportunity of environmental
pollution
improves safety
lower operation costs
it is last step to smart oilfield

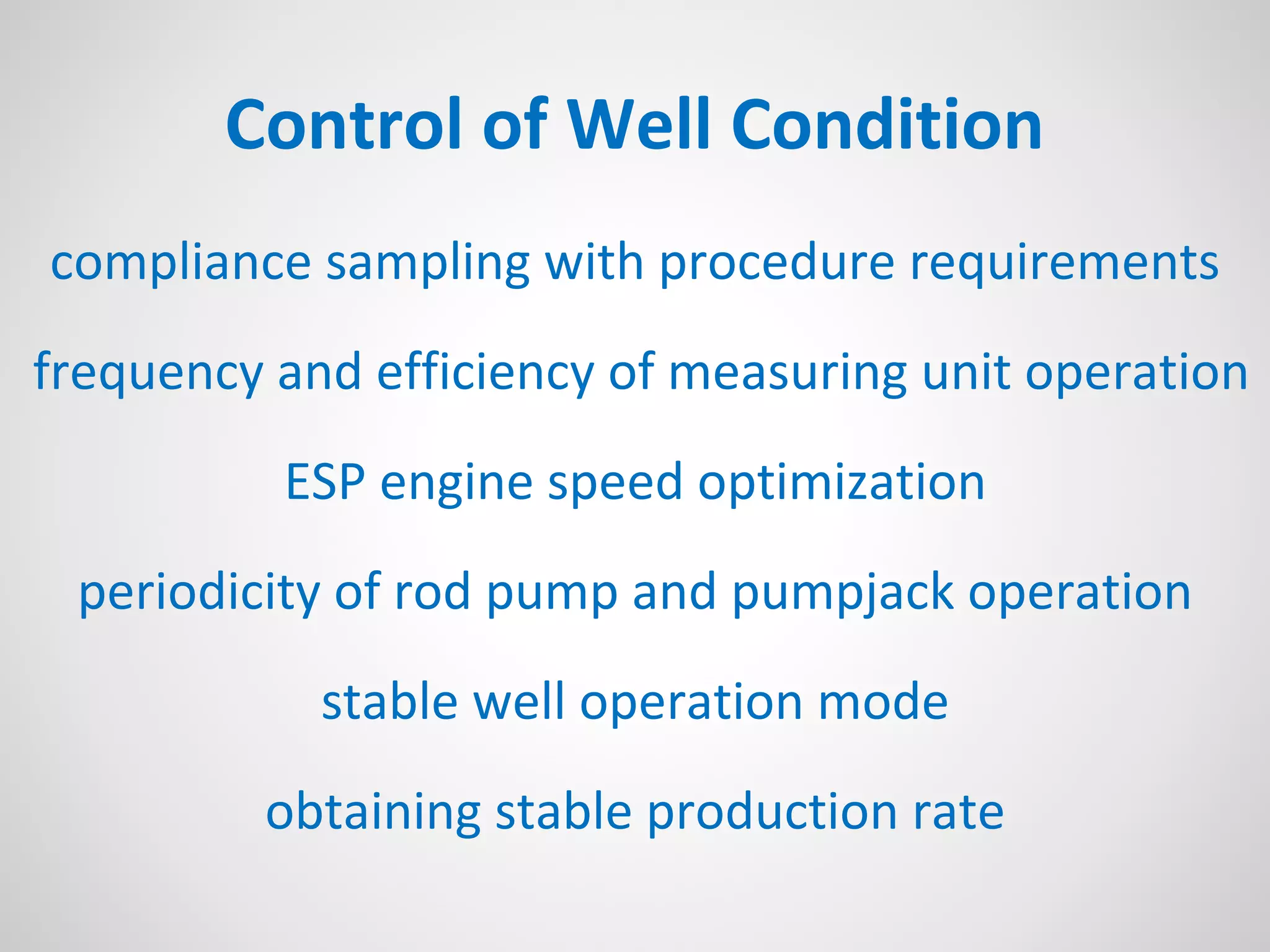

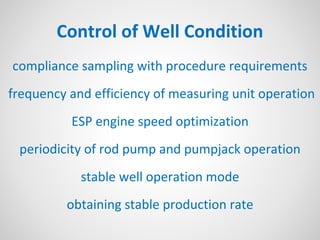

9. Control of Well Condition
compliance sampling with procedure requirements
frequency and efficiency of measuring unit operation
ESP engine speed optimization
periodicity of rod pump and pumpjack operation
stable well operation mode
obtaining stable production rate

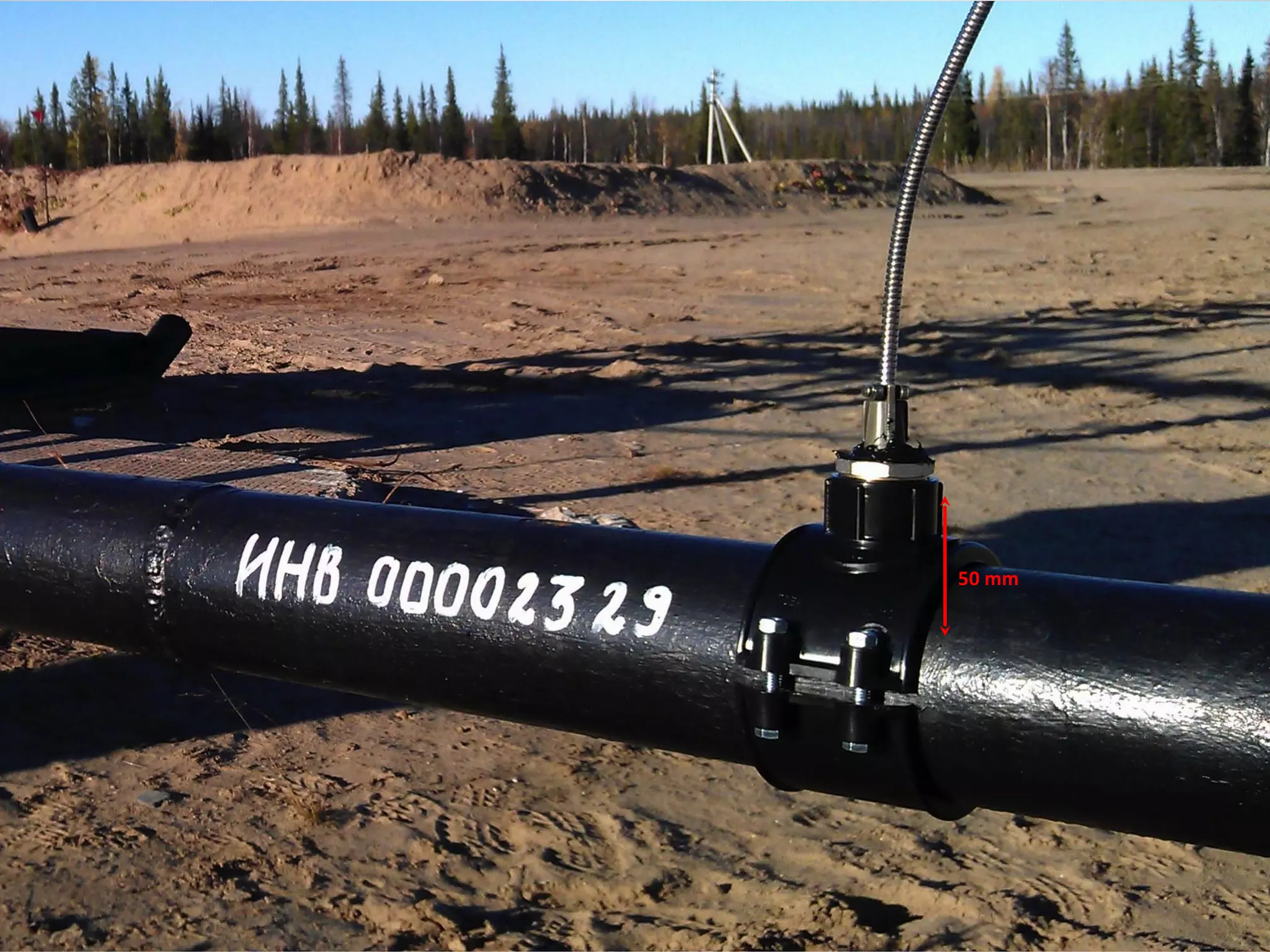

10. 50 mm

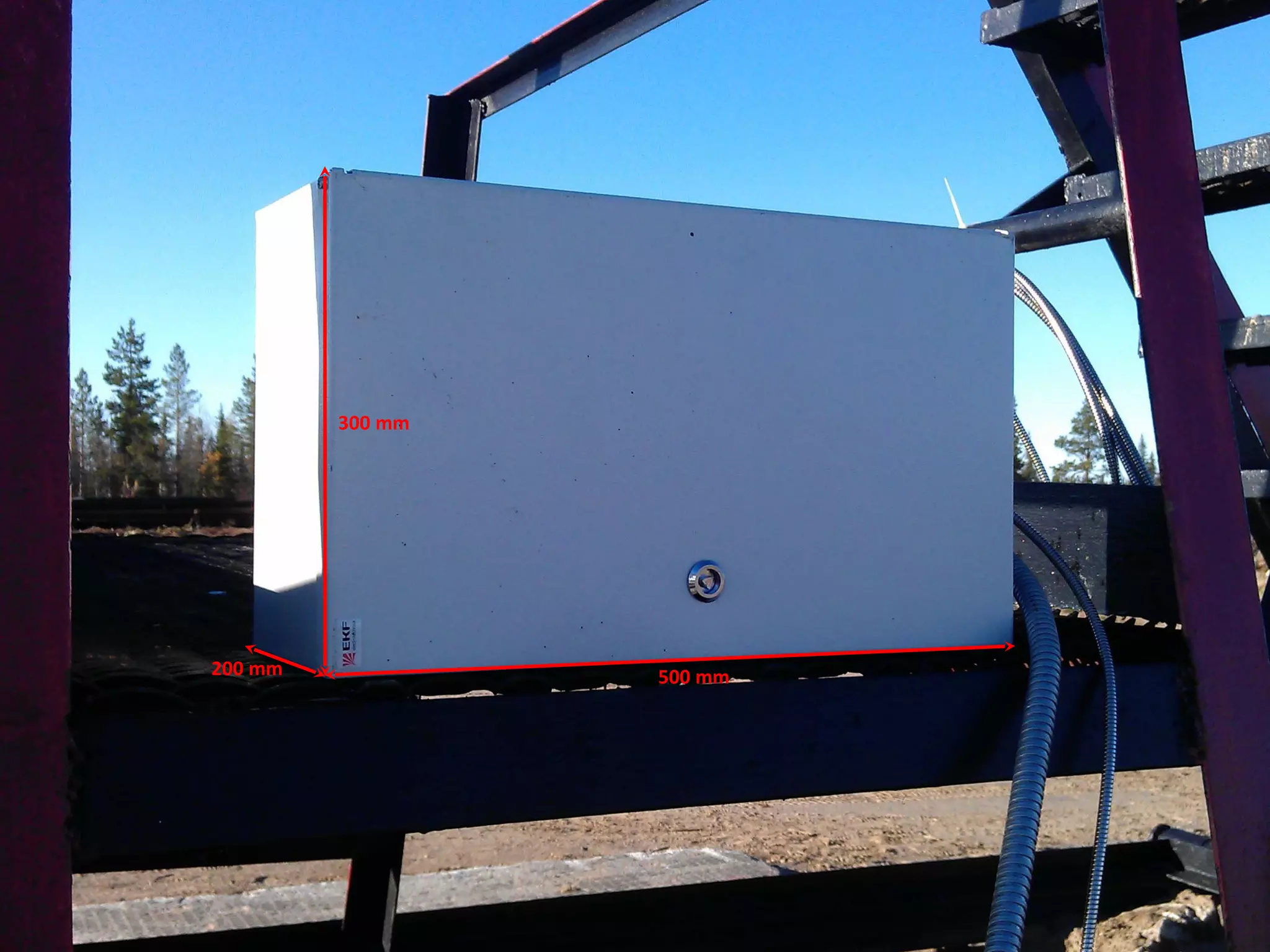

11. 300 mm
200 mm 500 mm

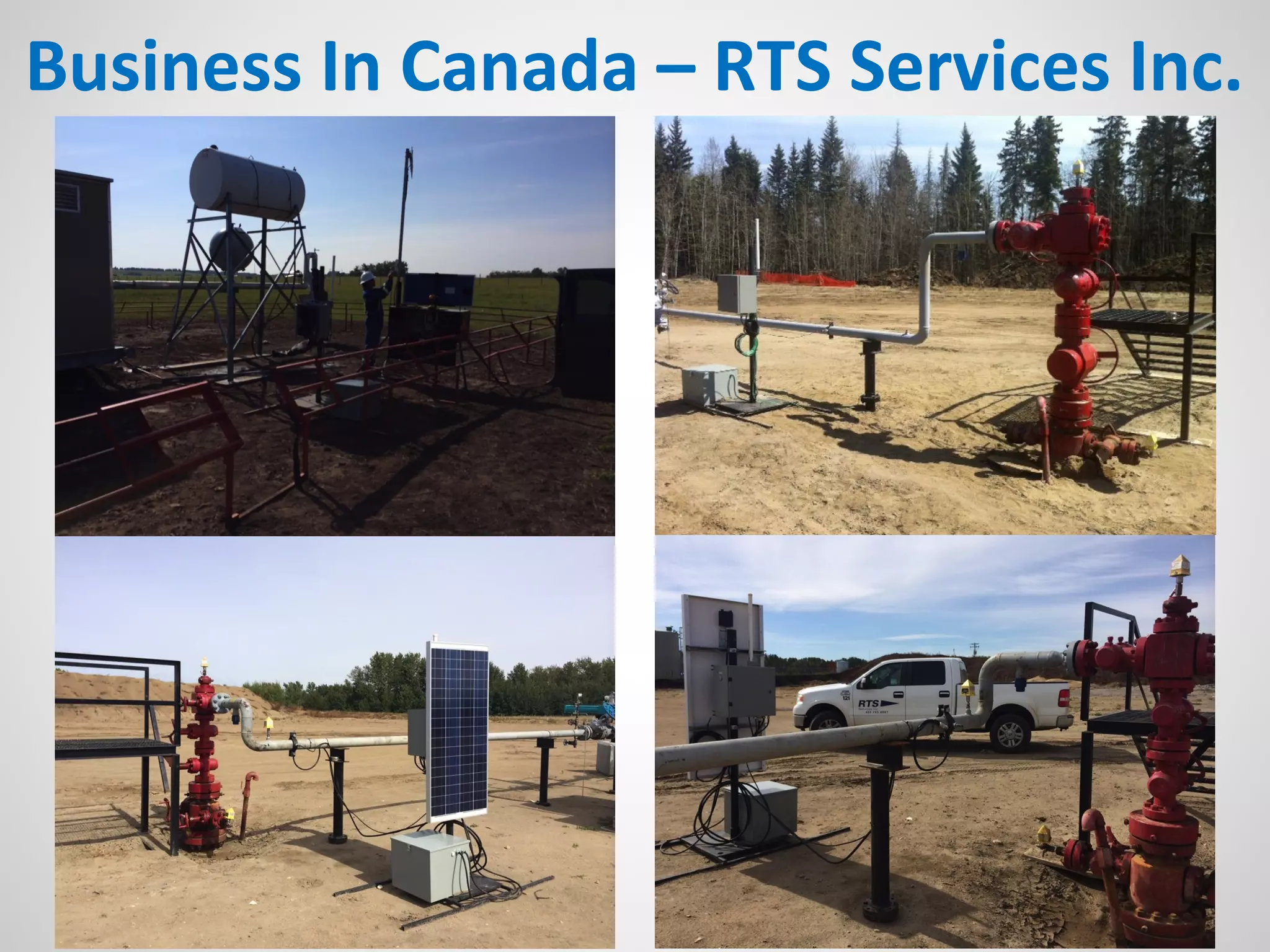

12. Business In Canada – RTS Services Inc.

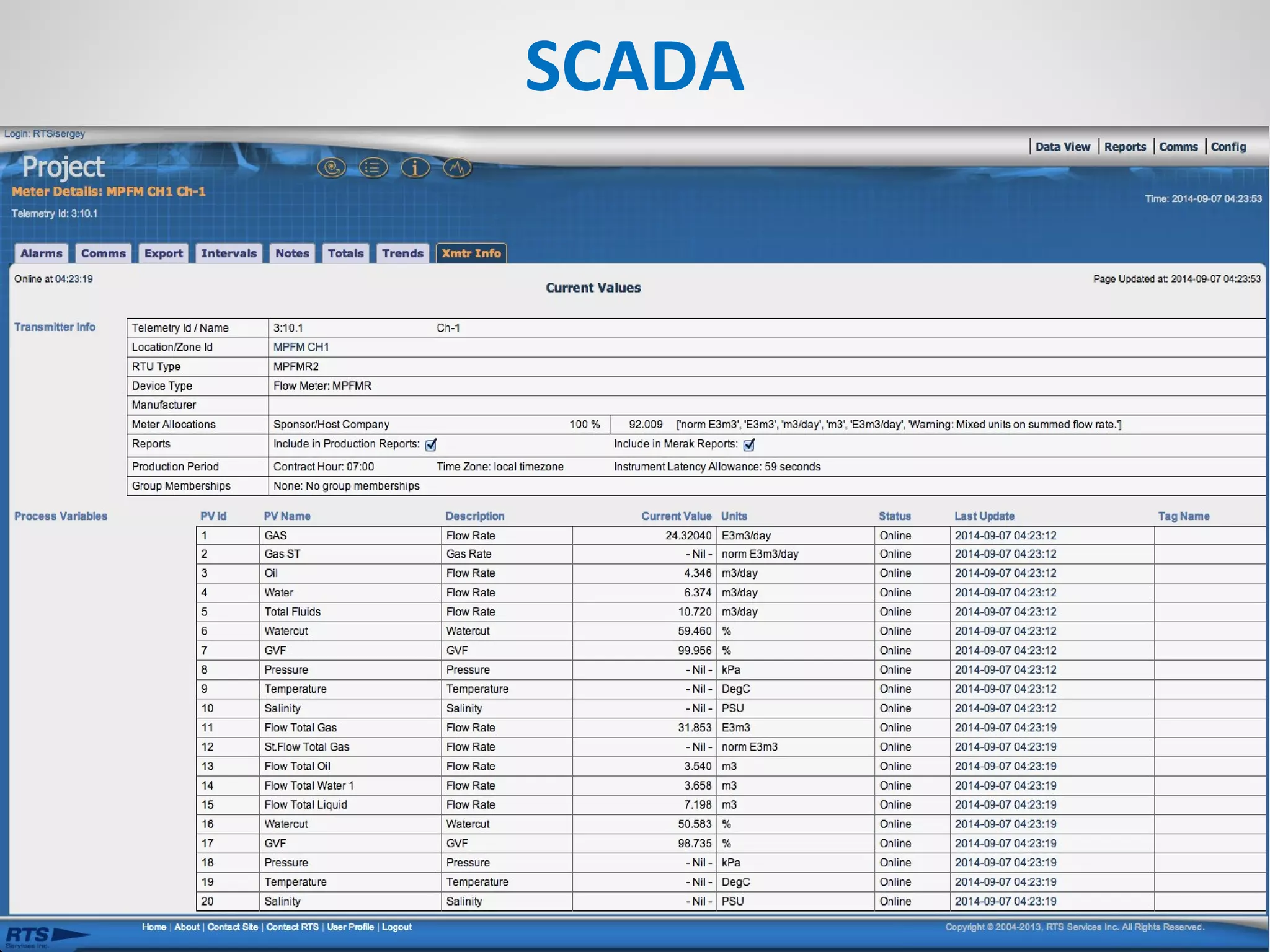

13. SCADA

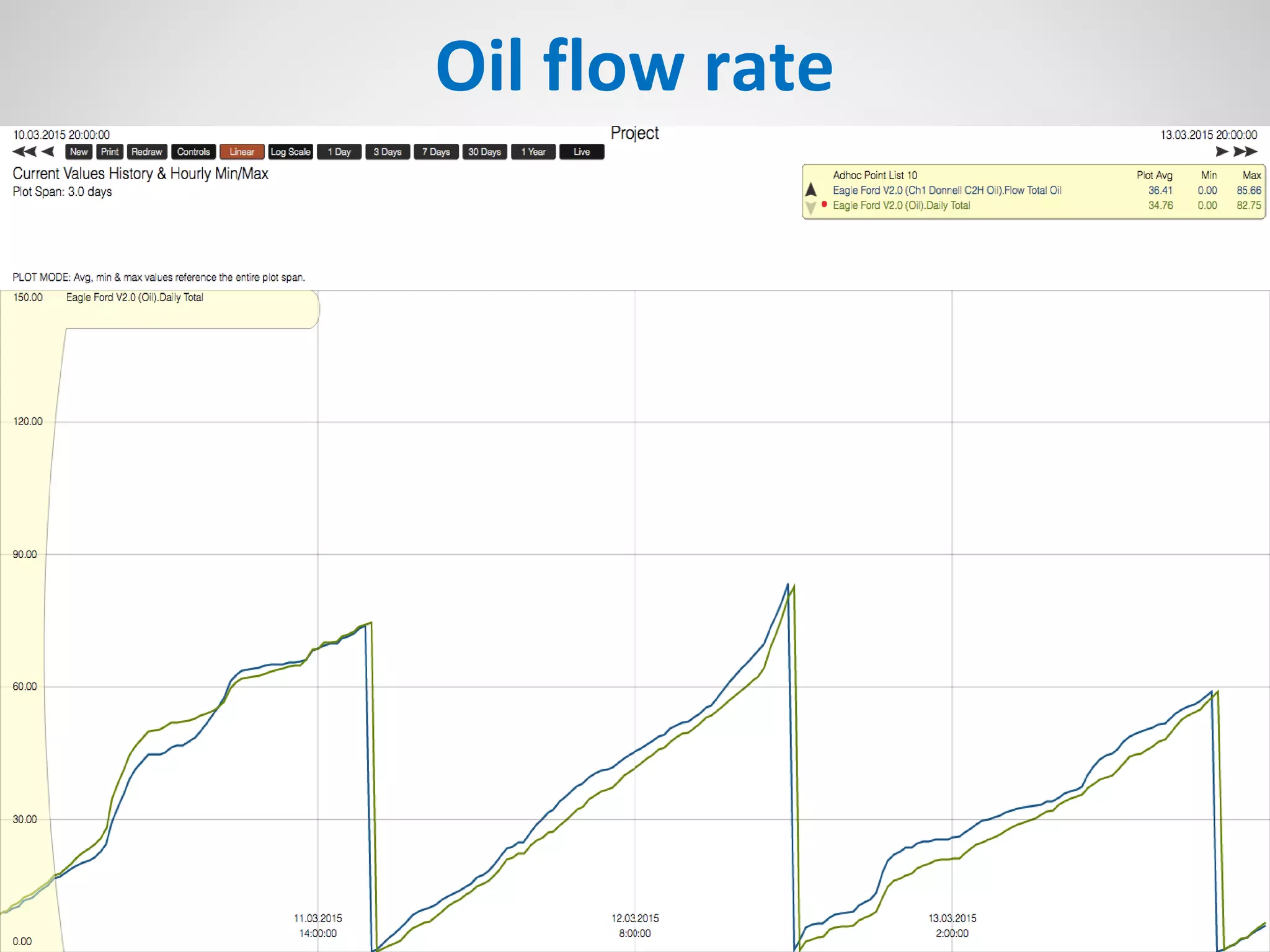

14. Oil flow rate

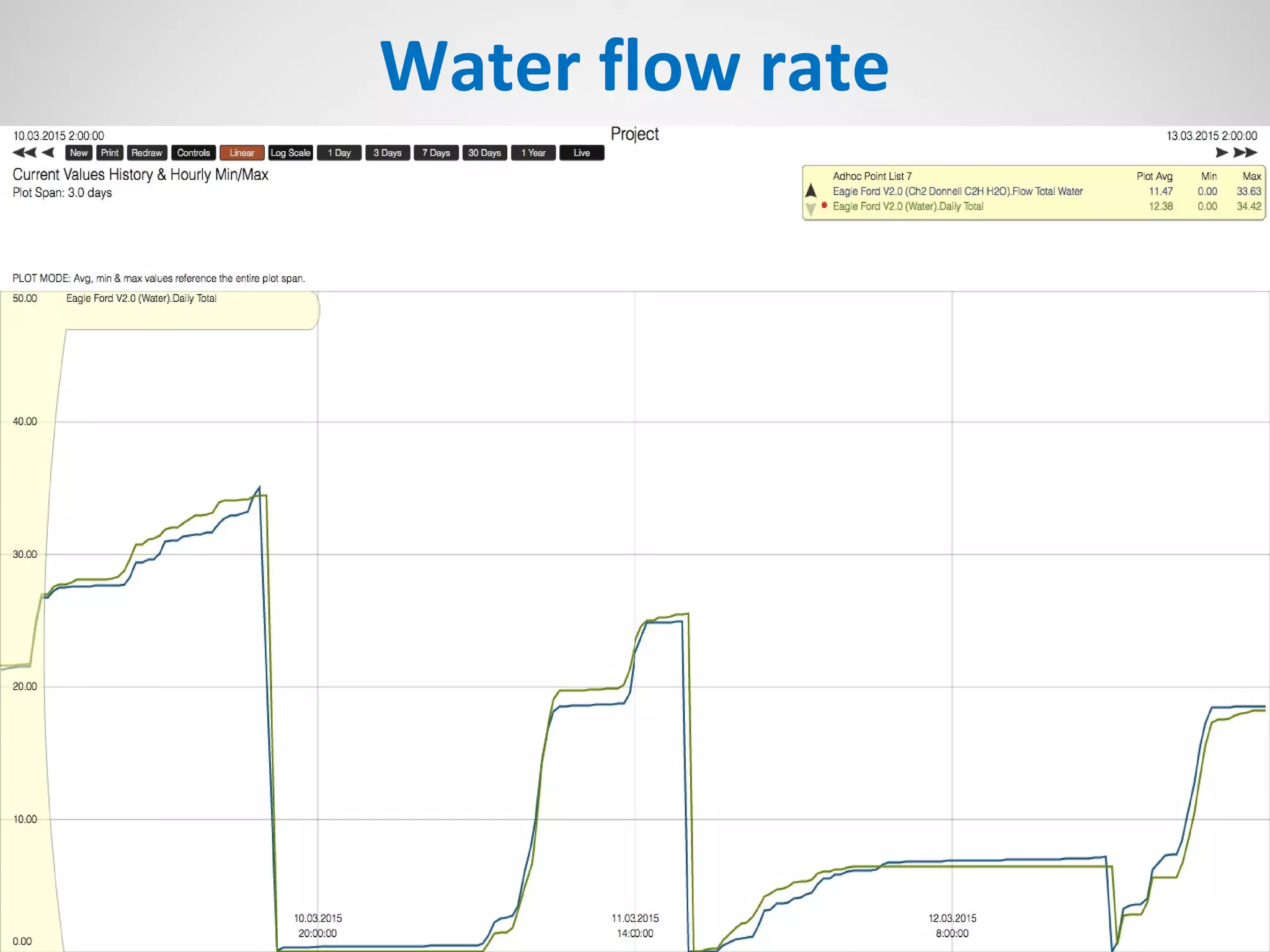

15. Water flow rate

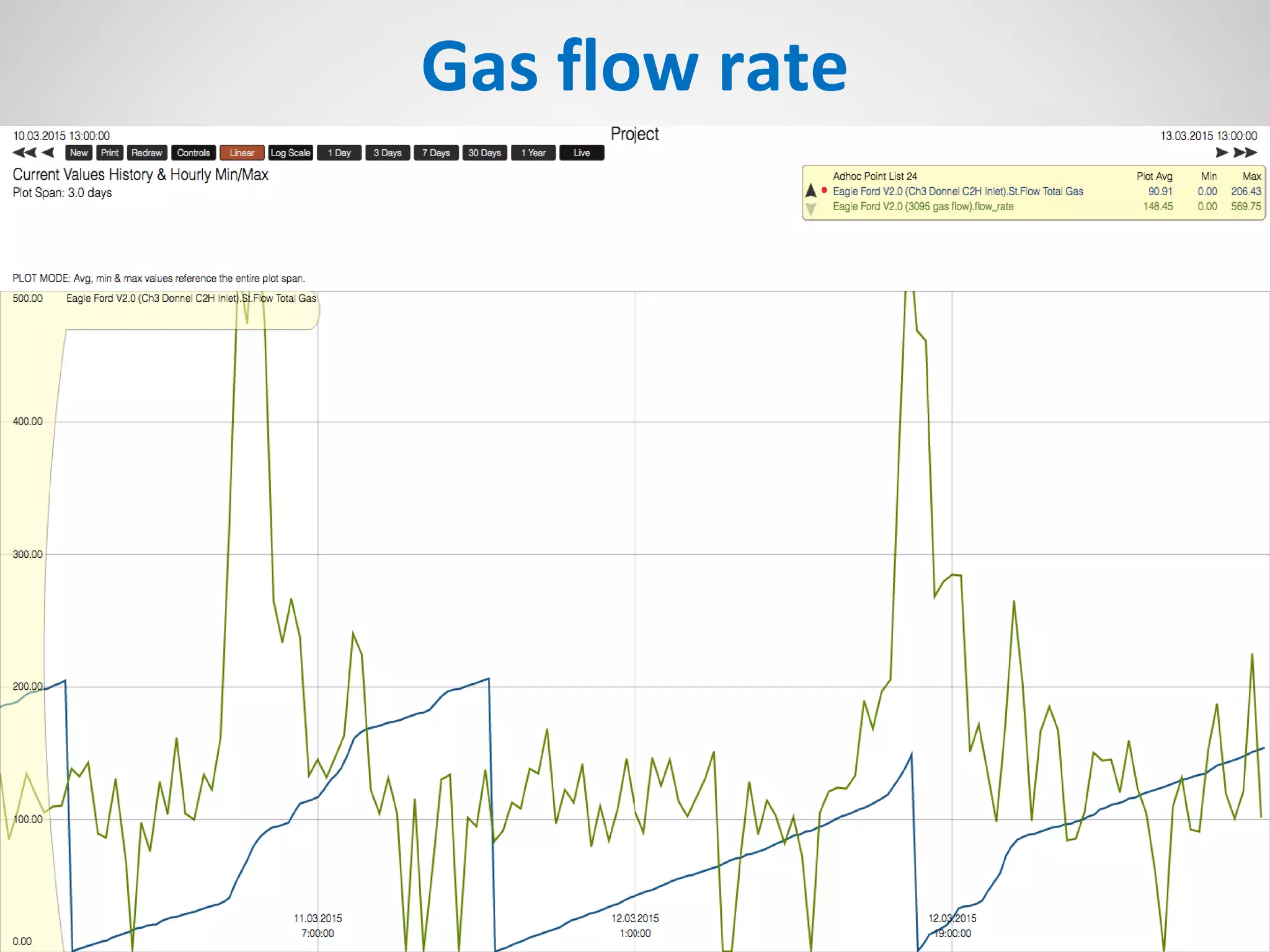

16. Gas flow rate

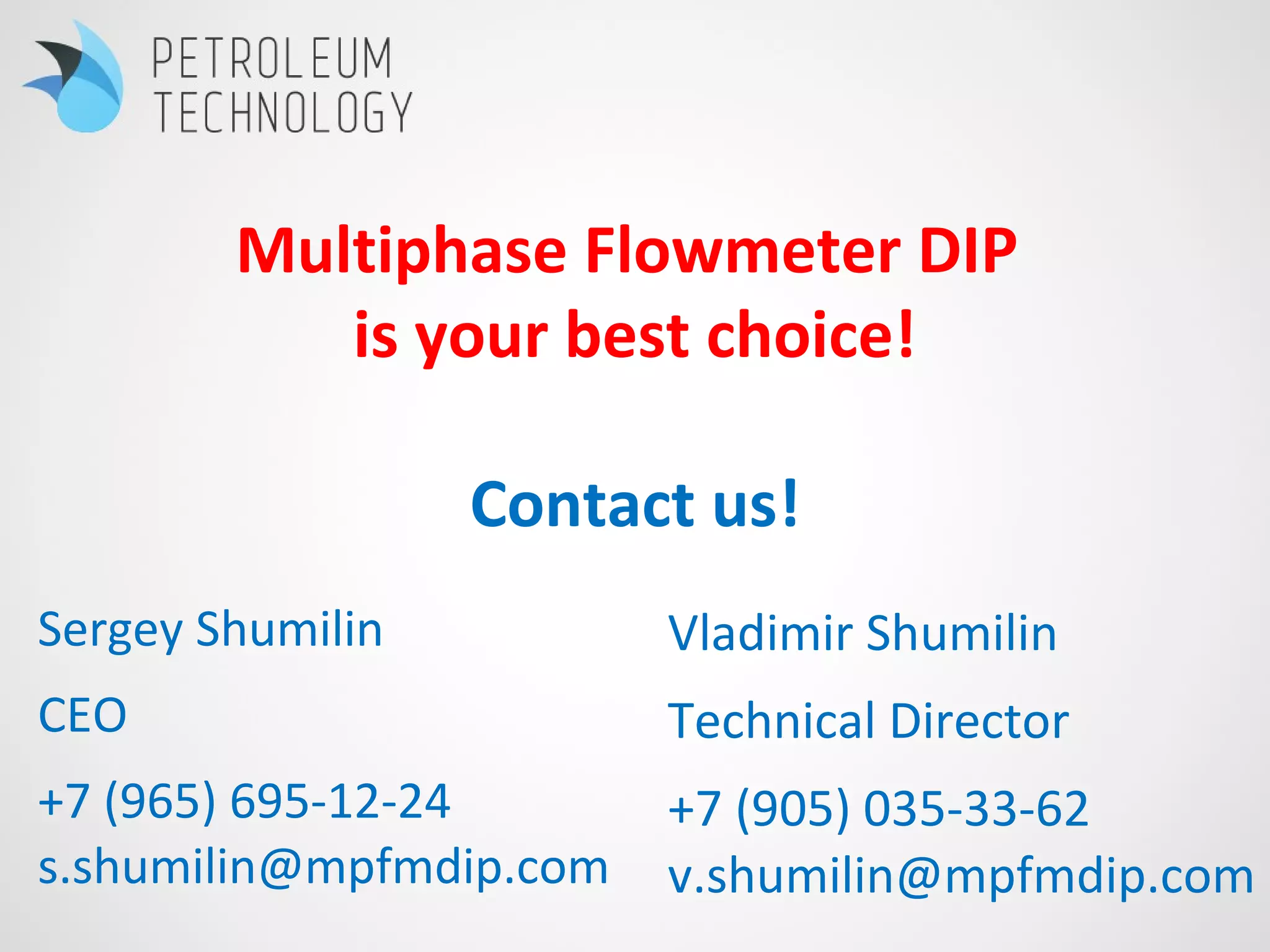

17. Sergey Shumilin
CEO
+7 (965) 695-12-24
s.shumilin@mpfmdip.com
Vladimir Shumilin
Technical Director
+7 (905) 035-33-62
v.shumilin@mpfmdip.com
Multiphase Flowmeter DIP
is your best choice!
Contact us!
