Digital Telemetry receiver is a key element in the modern-day engineering world,
which excels at full flexibility and versatility that support satcom systems, and critical
applications. This system is based on an advanced design that allows the use of
resources of field programmable gate arrays (FPGA) and software-defined radios
(SDR) in the processing of signals. These systems are telemetry receivers, waveform
processors, and signal processors which can work together very well as they are also
very versatile and high-performance designs in the aerospace, defence, automotive,
and manufacturing industries.
The core of the Digital Telemetry Receiver design is flexibility. This versatility
does not represent just a feature but a fundamental aspect that ensures that they can
be deployed in a multitude of environments with complex telemetry demands.
Whether navigating data from thousands of miles away through satellites or getting
critical info from right down on ground level, digital telemetry receivers always
provide good and reliable data and results.
Digital Telemetry Receiver

2. Page 2 of 7
What is the Digital Telemetry Receiver?
The telemetry receiver is the high-performance electronic hardware instrument
required for data transmission and interpretation in SD and flight environments e.g.
in satellite and ground station applications. Its task is to ensure data integrity and
adaptability through the seamless functionality of the system and provide an
integrated solution for data acquisition systems and analysis.
As core elements of telemetry receiver design, FPGA-based signal processing, and
software-defined radio (SDR) technology are employed for digital telemetry
reception, waveform processing, and signal analysis.
The indigenous and FPGA-based design assists in seamless configuration to
incorporate new modulation schemes and remains compatible with the evolving
telemetry standards and requirements. The telemetry receiver represents a high-level
solution for real-time data acquisition, processing, and analysis in mission-critical
tasks.
What are the key components of a Digilogic’s digital telemetry
receiver?
The Digilogic digital telemetry receiver has FPGA-based signal processing units,
radio transmission software, signal processors as well as Automatic Gain Controller
(AGC) modules. These devices support the configurable use options for single and
dual formats and the waveform for (AM, FM, PM, BPSK, QPSK, SOQPSK) with
standard data. This data can be transferred by star data rate range 40 Mbps down to
100 kbps. Also, there is AM tracking, diversity combining, equalization, PCM-FM &
SOQPSK-TG demodulation, bit and frame synchronization, LDPC and CC
decoding as well as TMoIP according to MIL-STD-188-220B.

3. Page 3 of 7
In addition, digital telemetry receivers made by Digilogic Systems have a striker
that is inbuilt as a performance test generator without the need for external sources.
These are the components that enable the design which include the provision of the
inputs of the down-converted IF signal, Bit sync output, and Data & Clock signals
of the properties that can be analysed with external systems through the rear-side
connectors. It is the FPGA-based systems that lie at the core of these devices and
that enable them to achieve customization for any new modulation scheme with ease
thus making them suitable for the changing demands of telemetry reception and
reception and processing.
What functionalities does a Digilogic’s digital telemetry
receiver support?
Digilogic Systems receivers support the following functionalities: Automatic Gain
Control, AM Tracking, Diversity Combining, Equalization, Demodulation of many
waveforms, Bit Synchronization, Frame Synchronization, LDPC and Convolutional
coding, and Telemetry over IP. Digilogic’s digital telemetry receiver delivers high
performance driven by its abundance of features that cater to the standing needs of
satellite and flight test ground station applications. Conventionally, it allows for
various types of configurations such as single and duplicate and formats like AM,
FM, PM, BPSK, QPSK, and SOQPSK with wide data rates from 40 Mbps to 100
kbps.

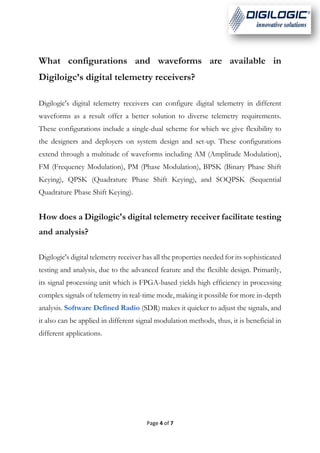

4. Page 4 of 7
What configurations and waveforms are available in
Digiloigc’s digital telemetry receivers?
Digilogic's digital telemetry receivers can configure digital telemetry in different
waveforms as a result offer a better solution to diverse telemetry requirements.
These configurations include a single-dual scheme for which we give flexibility to
the designers and deployers on system design and set-up. These configurations
extend through a multitude of waveforms including AM (Amplitude Modulation),
FM (Frequency Modulation), PM (Phase Modulation), BPSK (Binary Phase Shift
Keying), QPSK (Quadrature Phase Shift Keying), and SOQPSK (Sequential
Quadrature Phase Shift Keying).
How does a Digilogic's digital telemetry receiver facilitate testing
and analysis?
Digilogic's digital telemetry receiver has all the properties needed for its sophisticated
testing and analysis, due to the advanced feature and the flexible design. Primarily,
its signal processing unit which is FPGA-based yields high efficiency in processing
complex signals of telemetry in real-time mode, making it possible for more in-depth
analysis. Software Defined Radio (SDR) makes it quicker to adjust the signals, and
it also can be applied in different signal modulation methods, thus, it is beneficial in
different applications.

5. Page 5 of 7
Product Features:
 Dual Channel RF (S-band) and IF Receiver
 Data rates up to 40 Mbps
 Eye pattern diagram
 Spectrum Display
 I/Q constellation diagram
 Trellis Detection for improved performance
 Diversity Combiner and Equalizer
 Convolutional and LDPC Decoding
 Decryption, Frame Synchronization
 AFC, AM Demodulation for Tracking
 Telemetry over IP (TMoIP ) Support
 Supports display over Ethernet
 Customizable for various other modulation schemes and data rates
Applications of Digilogic’s Digital Telemetry Receiver:
Telemetry Tracking and Reception: The Digilogic’s Digital Telemetry
Receiver, is an excellent choice for tracking, and receiving telemetry data from
various sources. These sources include aerospace, defence, automotive vehicles, and
manufacturing industries.
Aircraft and UAVs Flight Testing: As far as telemetry is concerned, the
telemetry receiving antenna is one of the primary tools utilized in the aviation sector
and autonomous aircraft. This data represents the crucial flight attributes of altitude,
speed, engine parameters, and readings from sensors that give engineers and
operators the ability to evaluate and predict aircraft performance and safety.

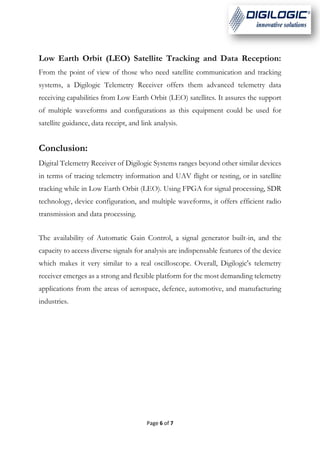

6. Page 6 of 7
Low Earth Orbit (LEO) Satellite Tracking and Data Reception:
From the point of view of those who need satellite communication and tracking
systems, a Digilogic Telemetry Receiver offers them advanced telemetry data
receiving capabilities from Low Earth Orbit (LEO) satellites. It assures the support
of multiple waveforms and configurations as this equipment could be used for
satellite guidance, data receipt, and link analysis.
Conclusion:
Digital Telemetry Receiver of Digilogic Systems ranges beyond other similar devices
in terms of tracing telemetry information and UAV flight or testing, or in satellite
tracking while in Low Earth Orbit (LEO). Using FPGA for signal processing, SDR
technology, device configuration, and multiple waveforms, it offers efficient radio
transmission and data processing.
The availability of Automatic Gain Control, a signal generator built-in, and the
capacity to access diverse signals for analysis are indispensable features of the device
which makes it very similar to a real oscilloscope. Overall, Digilogic's telemetry
receiver emerges as a strong and flexible platform for the most demanding telemetry
applications from the areas of aerospace, defence, automotive, and manufacturing
industries.

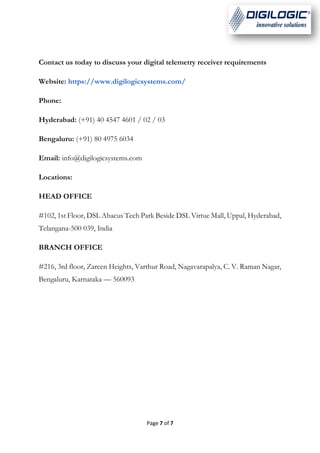

7. Page 7 of 7
