This document provides an overview of SoftwareAG webMethods, a middleware and integration platform. It includes 15 components such as Integration Server, Adapters, Universal Messaging, Trading Networks, API Management, and Business Process Management. The latest release is webMethods 10.7 from October 2020. It features new admin dashboards, monitoring capabilities, security enhancements, and an upgraded design environment. In summary, webMethods is an integration platform that includes middleware, messaging, API management, and BPM tools to connect diverse applications and ensure secure data exchange.

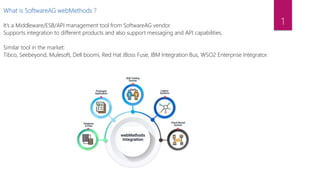

1. What is SoftwareAG webMethods ?
It’s a Middleware/ESB/API management tool from SoftwareAG vendor.
Supports integration to different products and also support messaging and API capabilities.
Similar tool in the market:
Tibco, Seebeyond, Mulesoft, Dell boomi, Red Hat JBoss Fuse, IBM Integration Bus, WSO2 Enterprise Integrator.
1

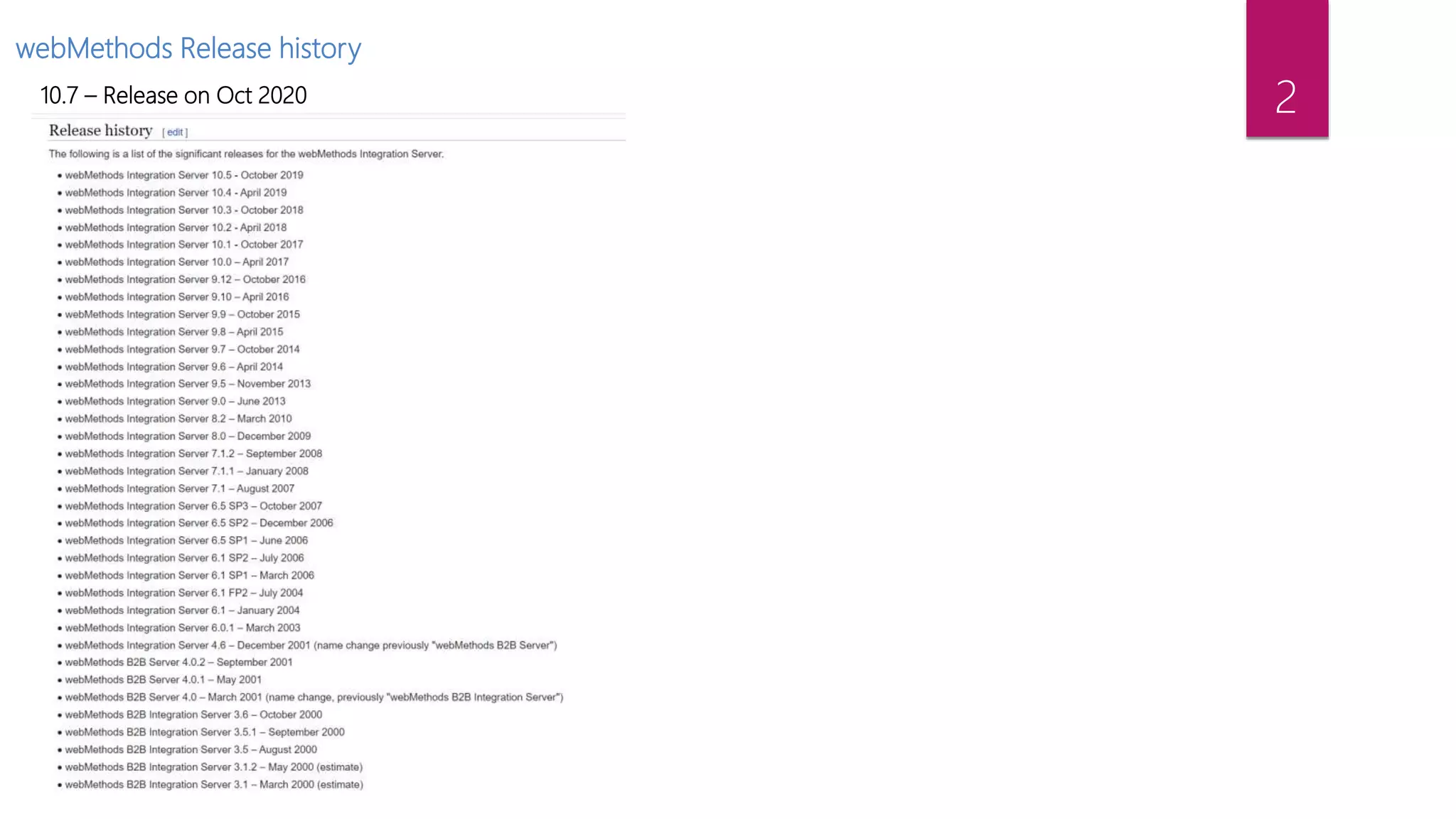

2. webMethods Release history
10.7 – Release on Oct 2020 2

3. Different webMethods components
 Integration Server
 Adapters
 Universal Messaging
 Trading Networks
 My webMethods Server
 Command Central
 Business process Management (BPM)
 Active Transfer
 Centrasite
 API Management
3

4. webMethods Integration Server
 is one of the core application servers in the webMethods platform. It is a Java-based, multiplatform
integration server. It supports the integration of diverse services, such as mapping data between formats and
communication between systems.
 An integration server may also be known as the core of webMethods Enterprise Service Bus
 You can integrate any technology from any vendor: ERP systems, databases, mainframes and legacy apps.
platforms, Web services, JMS messaging systems and packaged apps.
Protocols/Standards
 HTTP/HTTPS
 FTP/FTPS
 webServices/SOAP & REST
 JMS
 JSON
 XML
 LDAP
 SMTP
 OAuth
Protocols/Standards
 EDI/Flatfiles
 XSLT
 EDIINT
 RosettaNet
 SAP
 AS400
 MQ
 Kafka
4

5. webMethods Integration Server - Screenshot
5

6. webMethods Adapters
Integrates existing applications, such as Database, SAP, MQ, AS400, Kafka, Hbase without coding.
Adapter components runs in Integration Server.
6

7. webMethods Deployer
webMethods Deployer is a tool you use to deploy user-created assets that reside on source webMethods
runtimes or repositories to target webMethods runtime components (runtimes).
For example, you might want to deploy assets you have developed on servers in a development environment
(the source) to servers in a test or production environment (the target).
7

8. Universal Messaging
Universal Messaging is a Message Orientated Middleware product that guarantees message delivery
across public, private and wireless infrastructures.
Universal Messaging is the most powerful, scalable platform for the webMethods Integration Platform.
Enterprise Manager
Enterprise Manager to create, modify, and monitor topics and queues.
8

9. webMethods Trading Networks
A trading network is a group of organizations that have agreed to exchange business documents. Participants
might include strategic partners, buyers, suppliers, and marketplaces (for example, Ariba Network), and are
referred to as trading partners.
Business documents typically include purchase orders, order statuses, purchase order acknowledgements,
invoices, and other domain-specific business documents.
9

10. My WebMethods Server (MWS)
My webMethods is a Web-based, monitoring and administration user interface for managing your
components.
10

11. Command Central
Software AG Command Central is a tool that enables you to manage your Software AG products remotely from
one location.
Command Central offers a browser-based user interface. We can configure different webMethods components
monitor the application/logs. We can manage the application administration (start/stop)
Features
 View webMethods product
installations, fixes, version
 Perform start/stop/restart of the
applications.
 Monitor the health of
product installations
11

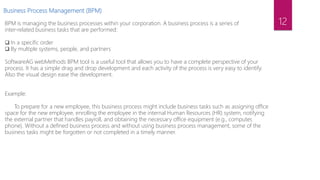

12. Business Process Management (BPM)
BPM is managing the business processes within your corporation. A business process is a series of
inter‐related business tasks that are performed:
 In a specific order
 By multiple systems, people, and partners
SoftwareAG webMethods BPM tool is a useful tool that allows you to have a complete perspective of your
process. It has a simple drag and drop development and each activity of the process is very easy to identify.
Also the visual design ease the development.
Example:
To prepare for a new employee, this business process might include business tasks such as assigning office
space for the new employee, enrolling the employee in the internal Human Resources (HR) system, notifying
the external partner that handles payroll, and obtaining the necessary office equipment (e.g., computer,
phone). Without a defined business process and without using business process management, some of the
business tasks might be forgotten or not completed in a timely manner.
12

13. Active Transfer
Managed file transfer (MFT) is a process that ensures protected internal and external data transfers in a
centralized system for Business-to-Business (B2B), Application-toApplication (A2A), cloud-based, or ad hoc
environments
webMethods ActiveTransfer is an integrated MFT solution that brings together B2B, application support, and
MFT in a service-oriented platform.
webMethods ActiveTransfer provides you with a single point of control for all file transfer activity, both inside
and outside the extended enterprise.
ActiveTransfer enables organizations to exchange information securely over the Internet using a variety of
communication protocols.
13

14. Centrasite
CentraSite is an enterprise API catalog and SOA registry / repository and can provide a central, platform-
independent application for defining, describing and storing assets.
It can help to catalog all services, APIs, business process and related assets, such as XML scheme and business
rules.
14

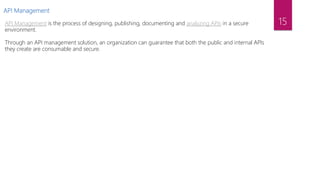

15. API Management
API Management is the process of designing, publishing, documenting and analyzing APIs in a secure
environment.
Through an API management solution, an organization can guarantee that both the public and internal APIs
they create are consumable and secure.
15

16. webMethods 10.7 Highlights
 Newer Admin UI and monitoring dashboards in the Integration Server
 Built in dashboard for visibility and troubleshooting
 Service, API, Document monitoring
 OpenAPI v3.0 provider
 REST Based Admin API and CLI for Automation
 Security enhancement – SFTP, TLS 1.3, OAUTH 2.0 for Email ports, SSL for MQTT
 Updated Adapters
 No need of Update Manager for fix installation.
 Pre-upgrade analyser for IS
 Upgrade assessment and readiness guide for planning.
 SAG Designer enhanced with Eclipse 4.15
16
