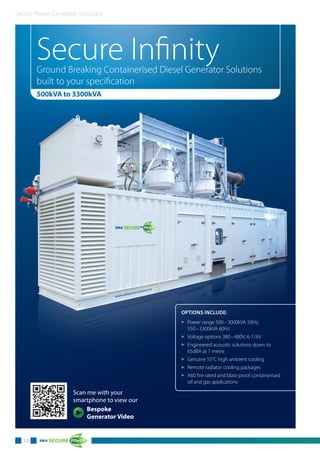

10 Secure∞
500 – 3300kVA
11 Case Studies
12 Bespoke Generator Projects
14 Generator Refurbishment
15 Generator Exchange
16-17 Control Systems
18-21 Marine and Oil & Gas Solutions

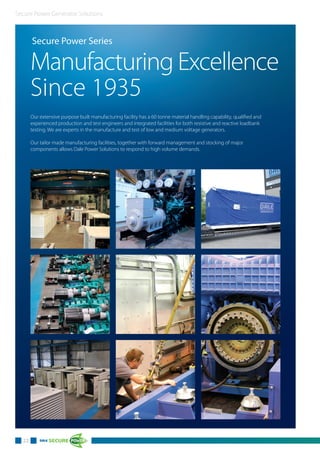

22 Manufacturing Excellence
23 Dale Demand Response
24 Total Power Solutions
25 Worldwide Service & Support
26 Corporate & Social Responsibility
27 Settings New Standard
28 Dale Power Solutions Overview

www.dalepowersolutions.com 01
Generator solutions for everyone
The Secure Power Series features standard open and canopied
Secure Power diesel generators, the premium, super silent
Secure+
Power containerised generator for high specification
applications such as for generator rental markets and the
fully configurable Secure∞
Power projects for all industrial
applications demanding a variety of features. Whether you
require a standard cost effective generator or synchronising
capabilities for power station applications the Secure Power
Series is the solution for you.
User-friendly design
Built with the end user in mind, The Secure Power Series can be
controlled and monitored externally, offering improved health
and safety benefits.
Design with service and maintenance in mind
The Secure Power Series has been designed to allow efficient
servicing, including dual side door access and coupled with
longer periods between oil changes, equates to a higher level
of service and usability.
Outstanding efficiency
Using modern, fuel efficient diesel engines, the Secure Power
Series offers low fuel consumption and reduced exhaust
emissions combined with high power output.
Exceptional noise protection
Dale Power Solutions provides superior heavy-duty low noise
generators for sensitive areas where low noise is of paramount
importance.
High ambient cooling
The Secure+
models are available with a high ambient cooling
option for operation in extreme temperature environments.
Modern control systems expertly installed
Dale Power Solutions control panel design and manufacturing,
combined with Dale’s software expertise, ensures that a new,
bespoke control system exactly matches your requirements.
The Dale Secure
Power Series
Unmatched company pedigree
Dale Power Solutions gives you the confidence of excellence in
design, manufacturing and testing products built up since 1935.
Worldwide warranty and support
Dale’s superb Secure Power Series of generator solutions is
backed by our global warranty and service support giving you
total peace of mind.
Access to the finest components
Dale’s ability to design and build world-class products is aided
by a worldwide supply chain for all major components.
Reliable Secure Power solutions for every
application
From concept and design, right the way through to
manufacture and installation, delivering turnkey power
solutions, covering all aspects of our customer’s precise
power requirements.
The Secure Power Series sets the benchmark for the most
comprehensive range of standard and specially designed
diesel generator and gas turbine solutions.

02
Standby Power
(kVA)
8.25
11
16.5
22
27.5
33
38
44
55
66
90
110
150
175
200
220
250
275
300
330
350
400
440
500
550
700
875
1015
1110
1415
1660
1660
2095
2260
3000
Standby Power
(kVA)
770
1035
1155
1285
1595
1940
1820
2545
Secure Canopied Range
Secure Canopied Range
Secure Open Range
Secure Open Range
Secure+ Containerised Range
Secure+ Containerised Range
Prime Power
(kVA)
7.5
10
15
20
25
30
35
40
50
60
82
100
136
158
182
200
227
250
275
300
320
360
400
450
500
640
800
910
1000
1260
1390
1540
1890
2035
2750
Prime Power
(kVA)
695
930
1035
1160
1400
1715
1615
2300
50Hz
Generator Product Matrix
At a glance
60Hz

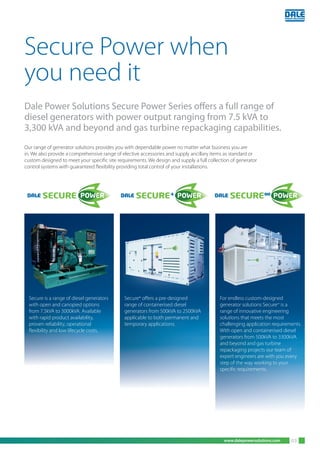

Our range of generator solutions provides you with dependable power no matter what business you are
in. We also provide a comprehensive range of elective accessories and supply ancillary items as standard or
custom designed to meet your specific site requirements. We design and supply a full collection of generator
control systems with guaranteed flexibility providing total control of your installations.
Secure Power when
you need it
Dale Power Solutions Secure Power Series offers a full range of
diesel generators with power output ranging from 7.5 kVA to
3,300 kVA and beyond and gas turbine repackaging capabilities.
Secure+
offers a pre-designed
range of containerised diesel
generators from 500kVA to 2500kVA
applicable to both permanent and
temporary applications.
For endless custom-designed
generator solutions Secure∞
is a
range of innovative engineering
solutions that meets the most
challenging application requirements.
With open and containerised diesel
and beyond and gas turbine
repackaging projects our team of
expert engineers are with you every
step of the way working to your
specific requirements.
Secure+
offers a pre-designed
range of containerised diesel
Secure is a range of diesel generators
with open and canopied options
from 7.5kVA to 3000kVA. Available
with rapid product availability,
proven reliability, operational
flexibility and low lifecycle costs.

04

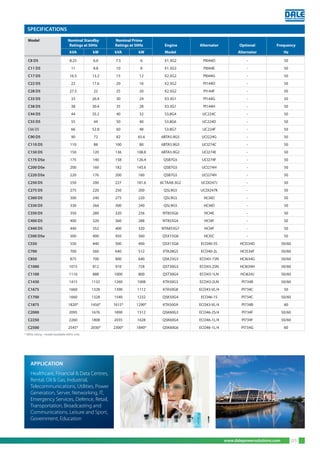

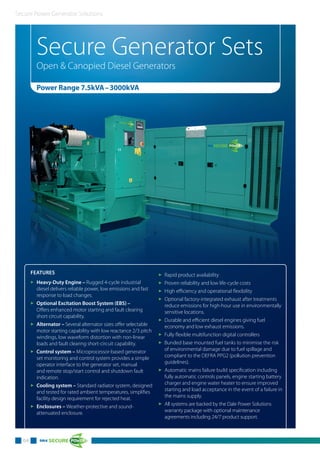

Secure Generator Sets
Open & Canopied Diesel Generators
Power Range 7.5kVA–3000kVA
FEATURES
3 Heavy-Duty Engine – Rugged 4-cycle industrial
diesel delivers reliable power, low emissions and fast
response to load changes.
3 Optional Excitation Boost System (EBS) –
Offers enhanced motor starting and fault clearing
short circuit capability.
3 Alternator – Several alternator sizes offer selectable
motor starting capability with low reactance 2/3 pitch
windings, low waveform distortion with non-linear
loads and fault clearing short-circuit capability.
3 Control system – Microprocessor-based generator
set monitoring and control system provides a simple
operator interface to the generator set, manual
and remote stop/start control and shutdown fault
indication.
3 Cooling system – Standard radiator system, designed
and tested for rated ambient temperatures, simplifies
facility design requirement for rejected heat.
3 Enclosures – Weather-protective and sound-
attenuated enclosure.
3 Rapid product availability
3 Proven reliability and low life-cycle costs
3 High efficiency and operational flexibility
3 Optional factory-integrated exhaust after treatments
reduce emissions for high-hour use in environmentally
sensitive locations.
3 Durable and efficient diesel engines giving fuel
economy and low exhaust emissions.
3 Fully flexible multifunction digital controllers
3 Bunded base mounted fuel tanks to minimise the risk
of environmental damage due to fuel spillage and
compliant to the DEFRA PPG2 (pollution prevention
guidelines).
3 Automatic mains failure build specification including
fully automatic controls panels, engine starting battery
charger and engine water heater to ensure improved
starting and load acceptance in the event of a failure in
the mains supply.
3 All systems are backed by the Dale Power Solutions
warranty package with optional maintenance
agreements including 24/7 product support.

APPLICATION
Healthcare, Financial & Data Centres,
Rental, Oil & Gas, Industrial,
Telecommunications, Utilities, Power
Generation, Server, Networking, IT,
Emergency Services, Defence, Retail,
Transportation, Broadcasting and
Communications, Leisure and Sport,
Government, Education
* 60Hz rating - model available 60Hz only
Model Nominal Standby Nominal Prime
Ratings at 50Hz Ratings at 50Hz Engine Alternator Optional Frequency
kVA kW kVA kW Model Alternator Hz
C8 D5 8.25 6.6 7.5 6 X1.3G2 PI044D - 50
C11 D5 11 8.8 10 8 X1.3G3 PI044E - 50
C17 D5 16.5 13.2 15 12 X2.5G2 PI044G - 50
C22 D5 22 17.6 20 16 X2.5G2 PI144D - 50
C28 D5 27.5 22 25 20 X2.5G2 PI144F - 50
C33 D5 33 26.4 30 24 X3.3G1 PI144G - 50
C38 D5 38 30.4 35 28 X3.3G1 PI144H - 50
C44 D5 44 35.2 40 32 S3.8G4 UC224C - 50
C55 D5 55 44 50 40 S3.8G6 UC224D - 50
C66 D5 66 52.8 60 48 S3.8G7 UC224F - 50
C90 D5 90 72 82 65.6 6BTA5.9G5 UCI224G - 50
C110 D5 110 88 100 80 6BTA5.9G5 UCI274C - 50
C150 D5 150 120 136 108.8 6BTA5.9G2 UCI274E - 50
C175 D5e 175 140 158 126.4 QSB7G5 UCI274F - 50
C200 D5e 200 160 182 145.6 QSB7G5 UCI274H - 50
C220 D5e 220 176 200 160 QSB7G5 UCI274H - 50
C250 D5 250 200 227 181.6 6CTAA8.3G2 UCDI247J - 50
C275 D5 275 220 250 200 QSL9G5 UCDI247K - 50
C300 D5 300 240 275 220 QSL9G5 HCI4D - 50
C330 D5 330 264 300 240 QSL9G5 HCI4D - 50
C350 D5 350 280 320 256 NT855G6 HCI4E - 50
C400 D5 400 320 360 288 NT855G4 HCI4F - 50
C440 D5 440 352 400 320 NTA855G7 HCI4F - 50
C500 D5e 500 400 450 360 QSX15G8 HCI5C - 50
C550 550 440 500 400 QSX15G8 ECO40-3S HCI534D 50/60
C700 700 560 640 512 VTA28G5 ECO40-2L HCI534F 50/60
C850 875 700 800 640 QSK23G3 ECO43-1SN HCI634G 50/60
C1000 1015 812 910 728 QST30G3 ECO43-2SN HCI634H 50/60
C1100 1110 888 1000 800 QST30G4 ECO43-1LN HCI634J 50/60
C1430 1415 1132 1260 1008 KTA50G3 ECO43-2LN PI734B 50/60
C1675 1660 1328 1390 1112 KTA50G8 ECO43-VL/4 PI734C 50
C1700 1660 1328 1540 1232 QSK50G4 ECO46-1S PI734C 50/60
C1875 1820* 1456* 1615* 1290* KTA50G9 ECO43-VL/4 PI734B 60
C2000 2095 1676 1890 1512 QSK60G3 ECO46-2S/4 PI734F 50/60
C2250 2260 1808 2035 1628 QSK60G4 ECO46-1L/4 PI734F 50/60
C2500 2545* 2036* 2300* 1840* QSK60G6 ECO46-1L/4 PI734G 60
SPECIFICATIONS

06
Secure+
Containerised Diesel GeneratorsContainerised Diesel Generators
FEATURES
3 Fully bunded, CSC plated 20ft or 40ft ISO high cube container
3 Multifunction digital controller incorporating engine and
alternator protections with LCD metering display
3 Corner fixings to ISO1161 designed to provide a four point lift
3 Walk round design and weather protected
3 Single compartment design for engine driven radiators
3 Dual compartment design for high ambient remote radiators
3 Removable acoustic chevron louvres with bird grilles and
internal baffles
3 Double/single folio access doors on each side of the container
to provide outstanding access for maintenance
3 External lockable access door to generator control panel
and circuit breaker mounted recessed on the outside of the
container complete with stainless steel door hinges & locks,
control panel viewing window with weather-proof seal,
access to DC isolator switch, engine static battery charge,
alternator AVR and engine governor controller
3 Recessed external fuel fill point cabinet
3 Radiators designed for cooling in high ambient temperatures
or confined spaces
3 Internally mounted & insulated box type exhaust silencer
3 24 hour capacity bunded fuel tank
3 Container shot blasted and finish painted white RAL1013
3 Dual frequency, switchable 50/60Hz
3 Available in Silent, Critical, Super Silent enclosures

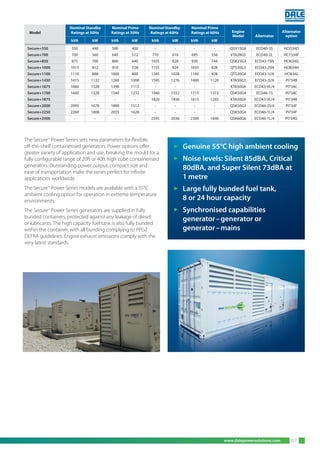

500kVA to 2500kVA

The Secure+
Power Series sets new parameters for flexible,
off-the-shelf containerised generators. Power options offer
greater variety of application and use, breaking the mould for a
fully configurable range of 20ft or 40ft high cube containerised
generators. Outstanding power output, compact size and
ease of transportation make the series perfect for infinite
applications worldwide.
The Secure+
Power Series models are available with a 55°C
ambient cooling option for operation in extreme temperature
environments.
The Secure+
Power Series generators are supplied in fully
bunded containers, protected against any leakage of diesel
or lubricants. The high capacity fuel tank is also fully bunded
within the container, with all bunding complying to PPG2
DEFRA guidelines. Engine exhaust emissions comply with the
very latest standards.
3 Genuine 55°C high ambient cooling
3 Noise levels: Silent 85dBA, Critical
80dBA, and Super Silent 73dBA at
1 metre
3 Large fully bunded fuel tank,
8 or 24 hour capacity
3 Synchronised capabilities
generator–generator or
generator–mains
Nominal Standby Nominal Prime Nominal Standby Nominal Prime
Engine AlternatorModel Ratings at 50Hz Ratings at 50Hz Ratings at 60Hz Ratings at 60Hz
Model Alternator option
kVA kW kVA kW kVA kW kVA kW
Secure+550 550 440 500 400 - - - - QSX15G8 ECO40-3S HCI534D
Secure+700 700 560 640 512 770 616 695 556 VTA28G5 ECO40-2L HC1534F
Secure+850 875 700 800 640 1035 828 930 744 QSK23G3 ECO43-1SN HCI634G
Secure+1000 1015 812 910 728 1155 924 1035 828 QTS30G3 ECO43-2SN HCI634H
Secure+1100 1110 888 1000 800 1285 1028 1160 928 QTS30G4 ECO43-1LN HCI634J
Secure+1430 1415 1132 1260 1008 1595 1276 1400 1120 KTA50G3 ECO43-2LN PI734B
Secure+1675 1660 1328 1390 1112 - - - - KTA50G8 ECO43-VL/4 PI734C
Secure+1700 1660 1328 1540 1232 1940 1552 1715 1372 QSK50G4 ECO46-1S PI734C
Secure+1875 - - - - 1820 1456 1615 1292 KTA50G9 ECO43-VL/4 PI734B
Secure+2000 2095 1676 1890 1512 - - - - QSK50G3 ECO46-2S/4 PI734F
Secure+2250 2260 1808 2035 1628 - - - - QSK50G4 ECO46-1L/4 PI734F
Secure+2500 - - - - 2545 2036 2300 1840 QSK60G6 ECO46-1L/4 PI734G

Key Features
08
Double access doors for ease of
maintenance
Stainless steel door furniture Removable acoustic double chevron
louvres with bird grilles and internal
baffles
Inverter start variable speed cooling
fans in the radiator and engine
compartments. Temperature/ load
controlled to minimise noise emissions
8 or 24 hour capacity double skinned
fuel tank to comply with the most
stringent environmental legislation
External control panel access Engine governor controller located in
the main control panel with external
access
Double rated busbar connections
with external access and microswitch
protection shroud

Triple Racor fuel water separator
filters for online filter change without
generator shutdown
Container fully bunded for retention
of oil, fuel and water with a steel
durbar floor
Low noise dual skinned box type
exhaust silencers and exhaust lagging
Recessed, external emergency stop
buttons
Optional Powerlock connectors
provide fast and easy connectivity
Dual external fill point from both sides
of the container providing constant
access for refill and replenishment
including level gauges, leakage
protection and alarm warning
Push fit fuel connectors for external
fuel tank use
Tough, resilient double insulated
alternator winding protection for
harsh environments

10
Secure InfinityGround Breaking Containerised Diesel Generator Solutions
built to your specification
500kVA to 3300kVA
OPTIONS INCLUDE:
3 Power range 500–3000kVA 50Hz,
550–3300kVA 60Hz
3 Voltage options 380–480V, 6-11kV
3 Engineered acoustic solutions down to
65dBA at 1 metre
3 Genuine 55°C high ambient cooling
3 Remote radiator cooling packages
3 A60 fire rated and blast-proof containerised
oil and gas applications
Scan me with your
smartphone to view our
Bespoke
Generator Video

Case Studies

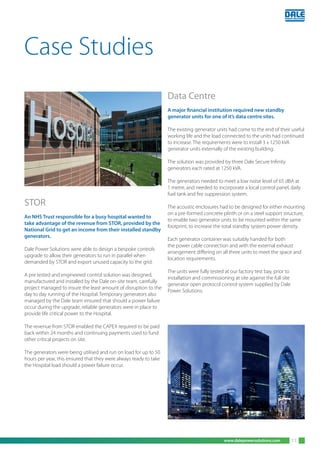

STOR
An NHS Trust responsible for a busy hospital wanted to
take advantage of the revenue from STOR, provided by the
National Grid to get an income from their installed standby
generators.
Dale Power Solutions were able to design a bespoke controls
upgrade to allow their generators to run in parallel when
demanded by STOR and export unused capacity to the grid.
A pre tested and engineered control solution was designed,
manufactured and installed by the Dale on-site team, carefully
project managed to insure the least amount of disruption to the
day to day running of the Hospital. Temporary generators also
managed by the Dale team ensured that should a power failure
occur during the upgrade, reliable generators were in place to
provide life critical power to the Hospital.
The revenue from STOR enabled the CAPEX required to be paid
back within 24 months and continuing payments used to fund
other critical projects on site.
The generators were being utilised and run on load for up to 50
hours per year, this ensured that they were always ready to take
the Hospital load should a power failure occur.
Data Centre
A major financial institution required new standby
generator units for one of it’s data centre sites.
The existing generator units had come to the end of their useful
working life and the load connected to the units had continued
to increase. The requirements were to install 3 x 1250 kVA
generator units externally of the existing building.
The solution was provided by three Dale Secure Infinity
generators each rated at 1250 kVA.
The generators needed to meet a low noise level of 65 dBA at
1 metre, and needed to incorporate a local control panel, daily
fuel tank and fire suppression system.
The acoustic enclosures had to be designed for either mounting
on a pre-formed concrete plinth or on a steel support structure,
to enable two generator units to be mounted within the same
footprint, to increase the total standby system power density.
Each generator container was suitably handed for both
the power cable connection and with the external exhaust
arrangement differing on all three units to meet the space and
location requirements.
The units were fully tested at our factory test bay, prior to
installation and commissioning at site against the full site
generator open protocol control system supplied by Dale
Power Solutions.

12
Bespoke generator projects
for every application
Tailored products to meet your exact specification.
Trusted for the most demanding applications
Dale’s bespoke generator packages are built for the most
demanding of applications including both onshore and
offshore, marine, oil & gas and healthcare applications.
Design excellence since 1935
Our qualified engineers draw on years of experience in
meeting and exceeding customers’expectations.
Global capability from design to
commissioning
Dale has vast, global experience in design, project
management, testing, installation and commissioning.
Meeting the highest standards
Our products comply with the highest international
specifications, including ISO 9001, and global health and safety
and environmental requirements.
Purpose-built manufacturing facility
Dale’s purpose-built manufacturing facility has 60-tonne
material handling capability for even the largest project
requirements.

Expert project management,
installation and commissioning
Your system is in expert hands. Project managers work with
you to plan, control and co-ordinate everything from order
placement, design and manufacture to installation. Our
engineers join you on site to install and commission your
equipment.
Reliable Secure Power solutions for every
application
From concept and design, right the way through to
manufacture and installation, delivering turnkey power
solutions, covering all aspects of our customer’s precise
power requirements
Upgrade and refurbishment
3 Dale provides engineered solutions to upgrade and refurbish
your existing standby generator systems to meet your
immediate and future operating requirements.
Plant room design and installation
3 Standby generator units selected and designed to meet your
specific plant room and operational requirements
3 Tailored generating set fuel supply systems integrated with
the daily service fuel and bulk fuel tanks.
3 Ventilation system including essential noise attenuation, duct
work and fans to meet the most demanding environmental
constraints.
3 Engine exhaust silencers integrated with building flue
systems, including emission optimised solutions.
Open and containerised diesel generator and gas turbine
repackaging projects from Dale Power Solutions provide
the complete professional secure power solution.

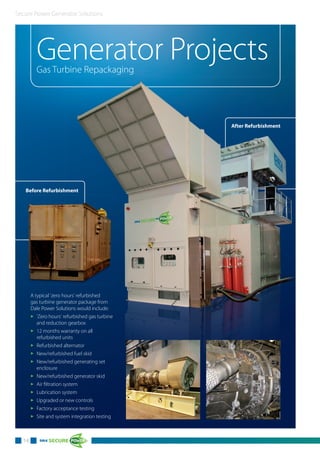

Generator ProjectsGas Turbine Repackaging
Before Refurbishment
14
hment
A typical 'zero hours' refurbished
gas turbine generator package from
Dale Power Solutions would include:
3 'Zero hours' refurbished gas turbine
and reduction gearbox
3 12 months warranty on all
refurbished units
3 Refurbished alternator
3 New/refurbished fuel skid
3 New/refurbished generating set
enclosure
3 New/refurbished generator skid
3 Air filtration system
3 Lubrication system
3 Upgraded or new controls
3 Factory acceptance testing
3 Site and system integration testing
After Refurbishment

www.dalepowersolutions.com
Zero hours and exchange
Gas Turbine Generators
A zero hour gas turbine generator will offer the same features
and specifications as a new manufactured turbine with up to
40% cost saving on a brand new gas turbine.**
Shortened lead times mean that your site can be operational
in less time when compared to a typical new machine. Dale
Power Solutions factory 2 is a purpose built packaging and
refurbishment facility with over 60 tonne lifting capacity and
gas turbine generator testing capability. ** Cost saving based on typical like for like machines.
Improved capacity & environmental compliance
An upgraded and refurbished gas turbine generator provided
by Dale offers increased capacity and complies with the latest
environmental standards.
Faster generator power availability
Our refurbished gas turbine generators offer a shorter
operational lead time compared to‘new’machines.
Fuel systems
3 Fuel system upgrades including conversion from gas only
fuel systems to dual fuel with both gas and liquid.
3 These can be incorporated onto the existing skid or a
replacement skid can be engineered into the existing housing.
Packaging
3 The gas turbine generator acoustic housing can be
refurbished, replaced or upgraded.
3 Lower noise levels for residential areas.
3 Paint system upgrade for severe environments.
3 ATEX approved.
3 All generator skid components can be either repaired or
replaced with new parts.
Cost saving against‘as new’product
An overhauled‘zero hours’gas turbine generator offers the same
features and specification as new but with a 40% cost saving.
TYPICAL ZERO HOURS REFURBISHED GAS TURBINES: NOMINAL CONTINUOUS RATINGS AT ISO CONDITIONS
Nominal Power kW 1200 3500 4600 5600 9500 10700
Heat Rate kJ/kWh 14795 12916 122266 11427 11296 11092
Fuel Input kW 4948 12611 15673 17998 29655 32922
Efficiency % 24.33 27.87 29.35 31.50 31.87 32.46
Exhaust Gas Flow kg/s 6.54 18.99 19.08 21.77 40.16 41.77
Exhaust Gas Temp. °C 5.06 443 509 511 465 487
In house control panel design and manufacturing capabilities
together with software engineers mean that all Dale Power
Solutions control systems are matched exactly to the gas turbine.
Our upgrades will meet your need to increase capacity and
to comply with the latest environment standard. Site visits are
made before a cost effective and future proof solution is offered.
New controls
3 Dale design and manufacture bespoke control systems
specifically designed for gas turbines.
3 Upgrade of relay logic controls.
3 Our team of software engineers are able to engineer PLC
based replacement or new controls.
3 PLC control options include Mitsubishi, Siemens, Allen
Bradley and metso platforms.
Up to 20 MW Units
3 New control systems
3 Control system upgrades
3 Fuel system upgrades
– Dual fuel
– Fuel conversions
– DLE
3 Acoustic packaging
3 Air filtration
3 Remote coolers
Gas turbines expertise
All units can be configured as required. We also have exchange
power turbines, accessory and reduction gearboxes, as well as
ancillary package parts such as fuel controls, pumps, motors
and PLC control cards.
15

Secure Generator
Control Systems
16
FEATURES INCLUDE:
3 Key start – for basic and off prime power requirements
3 Auto/ remote start – for standby and emergency
power applications
3 Generator synchronisation capabilities – for load sharing
with other generators
3 Mains synchronisation – used for precise load requirements
and/or export of the national grid mains supply
3 Fuel transfer systems – for managing the critical fuel
supply to generators
3 Remote monitoring – users can monitor multiple systems,
alarms, fault signals and fuel systems from a single PC.
Connected PCs display continuously updated information
from the generator or system controller about each generators
operating condition. Input values and operational parameters
can be easily viewed. Valuable information such as generator
usage data, alarm history and predictive maintenance
reminders are easily accessible.

Guaranteed control
As the specialist for all products and systems, Dale Power
Solutions guarantees the long term functionality and safe
operation of the system, providing services, spare parts,
troubleshooting and product updates.
Dale control systems
Our control systems are designed and manufactured
incorporating the latest intelligent microprocessor generator
controllers and optional Dale programmable logic controllers
(PLC) system to meet more complex operational functions.
All design is in-house by our electrical and software design
team.
Core competencies
3 Design and engineering
3 Manufacturing and procurement
3 Programming
3 Site integration testing and commissioning
3 Support and troubleshooting
3 Service and maintenance support
Dale Power Solutions understand that control systems are
essential to the efficient operation of our generator sets.
Our control systems are designed to be flexible enough to
handle the variable demands required for applications such as
data centres, hospitals and in support of vital utilities such as
gas, water and power.
Dale Power Solutions range of diesel powered generator sets
have been developed with our user in mind. Our generator
control systems are easy to use and deliver unrivalled
functionality. If it’s a simple manual start control module or a
complex controller with an advanced PLC functionality, Dale
Power Solutions have the right tools and engineering expertise
to design the perfect system for your diesel generator.
Complete support
Whether a new installation or a retrofit, Dale Power Solutions
has the dedicated professionals with proficiency in power
engineering to make even the most challenging operating
systems simple.
Total control at your fingertips
Bespoke integrated power management systems are built and
tested to your exact specification at our purpose built facility.
Flexible control
Dale Power Solutions generator control systems are modular
and can be easily scaled up to suit various applications.

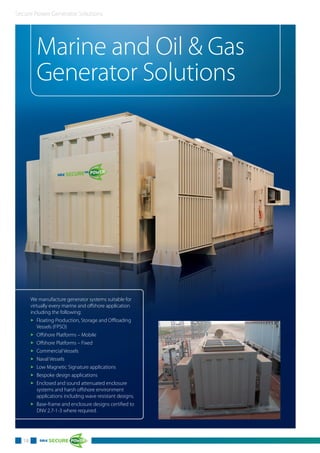

Marine and Oil & Gas
Generator Solutions
18
We manufacture generator systems suitable for
virtually every marine and offshore application
including the following:
3 Floating Production, Storage and Offloading
Vessels (FPSO)
3 Offshore Platforms – Mobile
3 Offshore Platforms – Fixed
3 Commercial Vessels
3 Naval Vessels
3 Low Magnetic Signature applications
3 Bespoke design applications
3 Enclosed and sound attenuated enclosure
systems and harsh offshore environment
applications including wave resistant designs.
3 Base-frame and enclosure designs certified to
DNV 2.7-1-3 where required.

Providing power to marine vessels and naval operators, Dale
Power Solutions diesel generators and integrated control
systems play a pivotal role in providing reliable operations
and safety to these operators. We are focused on providing
auxiliary and emergency power solutions to the commercial
marine industry and naval customers, where dependability
is of vital importance. We provide suitable generator systems
for virtually every application.
All of our power solutions are designed to
meet the relevant requirements of:
3 Client specifications and design engineering practise
specifications
3 Site conditions and environment
3 Emissions legislations onshore and marine
3 Area classification including rig-safe and zone specifications
3 Marine classification societies applicable rules and standards
3 Special features including: fire detection, water fog and
gaseous fire suppression, electrical switchgear, expanded
control, power manage-specific application requirements
Dale Power Solutions has in-house engineering capability in
order to provide you with a generator configuration to best
suit your specific application and budget.
Dale Power Solutions combines over 78 years of power generation
experience with a commitment to high quality generator solutions
making it the ultimate safe and reliable choice for demanding
Marine and Oil & Gas applications, worldwide.

20
CO2
fire and gas system Access to controller from outside of
the container
Local control panel MTU diesel engine – V20
Lube oil centrifuge ASME flanged cooling pipework
connections
Fire and gas system claxon Gas detection

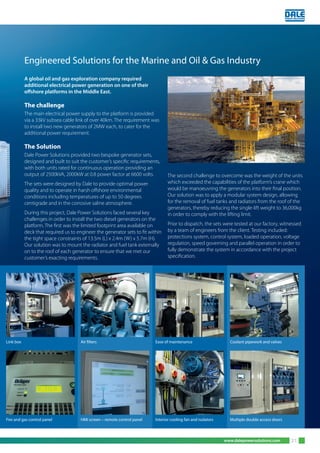

A global oil and gas exploration company required
additional electrical power generation on one of their
offshore platforms in the Middle East.
The challenge
The main electrical power supply to the platform is provided
via a 33kV subsea cable link of over 40km. The requirement was
to install two new generators of 2MW each, to cater for the
additional power requirement.
The Solution
Dale Power Solutions provided two bespoke generator sets,
designed and built to suit the customer’s specific requirements,
with both units rated for continuous operation providing an
output of 2500kVA, 2000kW at 0.8 power factor at 6600 volts.
The sets were designed by Dale to provide optimal power
quality and to operate in harsh offshore environmental
conditions including temperatures of up to 50 degrees
centigrade and in the corrosive saline atmosphere.
During this project, Dale Power Solutions faced several key
challenges in order to install the two diesel generators on the
platform. The first was the limited footprint area available on
deck that required us to engineer the generator sets to fit within
the tight space constraints of 13.5m (L) x 2.4m (W) x 5.7m (H).
Our solution was to mount the radiator and fuel tank externally
on to the roof of each generator to ensure that we met our
customer’s exacting requirements.
The second challenge to overcome was the weight of the units
which exceeded the capabilities of the platform’s crane which
would be manoeuvring the generators into their final position.
Our solution was to apply a modular system design, allowing
for the removal of fuel tanks and radiators from the roof of the
generators, thereby reducing the single-lift weight to 36,000kg
in order to comply with the lifting limit.
Prior to dispatch, the sets were tested at our factory, witnessed
by a team of engineers from the client. Testing included:
protections system, control system, loaded operation, voltage
regulation, speed governing and parallel operation in order to
fully demonstrate the system in accordance with the project
specification.
Engineered Solutions for the Marine and Oil & Gas Industry
Coolant pipework and valvesEase of maintenanceAir filtersLink box
Multiple double access doorsInterior cooling fan and isolatorsHMI screen – remote control panelFire and gas control panel

22
Secure Power Series
Manufacturing Excellence
Since 1935
Our extensive purpose built manufacturing facility has a 60 tonne material handling capability, qualified and
experienced production and test engineers and integrated facilities for both resistive and reactive loadbank
testing. We are experts in the manufacture and test of low and medium voltage generators.
Our tailor made manufacturing facilities, together with forward management and stocking of major
components allows Dale Power Solutions to respond to high volume demands.

3 Generate Revenues
3 Improve Grid Reliability
3 Help the Environment
Make money from
your generator
Dale Demand Response
Generating income from your diesel generator
Dale Power Solutions Short Term Operating Reserve (STOR) programme creates
revenue from your standby generating capacity.
With Dale Power Solutions STOR programme, you provide the National Grid access
to your standby generators, and get money in return. In fact, you’ll get paid twice -
one regular amount for being on standby, and then extra revenue whenever your
electricity is needed.
How does STOR work?
Dale Power Solutions communicates directly with your diesel generator or electrical
consuming equipment, enabling the National Grid to start standby generators and
turn down your electrical consumption at short notice and for short periods across the
UK. This helps to keep the UK’s power supply stable in times of stress.
When the electrical demand spikes, the national grid finds it much easier to manage
these through calling upon a small scale local supply instead of bringing in a major
power station. A consistent payment is made to you for having your power generating
capacity available to the national grid. The implementing payments are made when
your generator is called upon to help with this electrical demand.
How will STOR benefit me?
3 Enjoy a new revenue stream utilising an existing asset
3 Earn more money and reduce your maintenance costs
3 Guarantee your generator will work when you need it and earn revenue
when you don’t
3 Eliminate the need for expensive and time consuming load bank testing
3 Improve your green credentials
3 No costs, no obligation, no risk
3 Multiple payments for multiple generators
Get started now by reducing your energy usage and you could receive your first
payment within a few weeks.
Don’t have a generator yet?
Speak to a member of our generator sales team to talk about your power
requirements & start earning money +44 (0)1723 583511.
Maintenance
costs down
£££££ Earn
Making energy
more affordable
Energy Performance
Partnership
Identifying the right
strategy for you
Helping you use
less energy
Reducing the cost of
your energy
Low cost maintenance
and peace of mind
23

24
The Total Secure
Power Solution
Since 1935, Dale Power Solutions has been providing customers
around the world with technical excellence in providing
technologically advanced product solutions, expertly project
managed and supported by tailored service packages.
UPS and generator together
– true‘no break’solution
Our total secure power solution
integrates UPS and generator together
where the UPS supports critical loads without
interruption until the generator kicks in.
With our“no-break”power solution we can ensure your
business continuity without costly downtime.
Remote monitoring
– users can monitor
multiple systems, alarms,
fault signals and fuel
systems from a single
PC or mobile device.

Worldwide Service
& Support
Gas turbine servicing
Gas turbine technology is a continuous process for
industries demanding high availability. Dale Power
Solutions can supply fully trained field service engineers
and technicians who have many years of hands on
experience to look after all aspects of the operation and
maintenance of a wide range of turbine power and gas
engine generators.
The installation and operation of data collection
equipment enables preventative maintenance
procedures to be applied.
Our services include:
3 Start-up and commissioning
3 Customised maintenance inspection programmes
3 Monthly, quarterly, semi-annual or annual
inspections
3 Relay logic and PLC control systems
3 Compressor and power generation packages
3 Work on all associated on skid equipment
3 25 years’experience of gas turbine packaging
3 Independent inspections of most types of gas
turbines and ancillary equipment
3 Vibration surveys
3 Boroscope inspections
3 Laser alignment and equipment balancing
3 Remote monitoring and trending
3 Fuel control system upgrades
3 Strip down inspection reports
Local support worldwide –
setting the benchmark in
customer support
25
Diesel generator servicing
Regardless of the number, manufacture and location of
your generators you can rely on Dale Power Solutions to
provide peace of mind and ensure your generator will be
available when required.
3 Planned preventative maintenance – minor and
major scheduled maintenance inspections
3 Predictive maintenance – ensuring normal operation
with oil sampling helping to reduce quantities of waste
3 Fleet management – multi-site, multi-set
management of your fleet of generators anywhere
3 Waste disposal – providing environmentally ethical
and compliant disposal and recycling services
3 Exhaust treatment equipment – helps reduce emissions
3 OFTEC qualified fuel tank inspections – all of our
engineers are qualified to inspect and recommend
replacement where required
3 Assistance with environmental awareness – we
support your business in meeting its environmental
obligations
3 Coolant cleaning and recycling – to keep your
equipment running smoothly
3 Radiator cleaning and refurbishment – increase the
efficiency of your equipment without complete
replacement
3 Fuel management including sampling and polishing
– ensuring maximum efficiency of your equipment
3 Control system management – ensuring your
equipment meets the latest technology
3 System enhancements and upgrades – prolonging
the life of your equipment

Dale Power Solutions
Corporate & Social
Responsibility
Environment
We recognise the importance of understanding the impact of our activities on the
environment and we are developing an Environmental Programme to demonstrate
and benchmark our commitment. Our company is accredited to ISO 14001 and we
are continually looking at ways to improve our efficiency across our sites. We promote
energy and water efficiency, waste reduction, and reduction of potentially dangerous,
volatile or environmentally damaging chemicals. We also have an ongoing commitment
to reducing our carbon footprint.
Health & Safety
We shall provide, and strive to maintain, a clean, healthy and safe working environment.
Providing a workplace where our employees feel safe is not only a legal obligation,
but a fundamental factor in building their engagement with the company. Through
management intervention, awareness campaigns and a culture that encourages
employees to raise concerns about the workplace safety, we aim to reduce the
frequency of accidents.
Our SHE Team promotes and develops cooperation between all employees
to ensure health and safety management is embedded into management
and business processes. This is supported by our Health & Safety Policy.
Community
We are committed to making a sustainable positive impact on the
communities in which we operate. We aim to make a distinctive
contribution to equality and social development through the establishment
of effective partnerships and programmes that make best use of the energies
and skills of our employees. We support our employees in fundraising for charities and
voluntary work, recognising both the benefit to the community and to the employees
themselves.
Dale Power Solutions believes that maintaining and improving the longevity of our
technical excellence can only be achieved by a successful apprenticeship programme.
Dale is therefore committed to the annual recruitment and development of apprentices
and graduates to meet the future needs of the business. In doing so Dale will work
with our local community, schools and colleges to promote and encourage students to
undertake an apprenticeship.
Operating in a responsible and sustainable manner is important to Dale Power Solutions. Whilst we run our
business in line with the expectations of our stakeholders, we also see corporate responsibility as a discipline that
helps us to manage risks and maximise on the opportunities presented to us in a changing world.
We take our corporate responsibility seriously across the Company as an employer, manufacturer, investor and
a consumer. We are committed to understanding, monitoring and managing our social, environmental and
economic impact to enable us to contribute to society’s wider goal of sustainable development. We aim to
demonstrate these responsibilities through our actions and within our corporate policies.
26

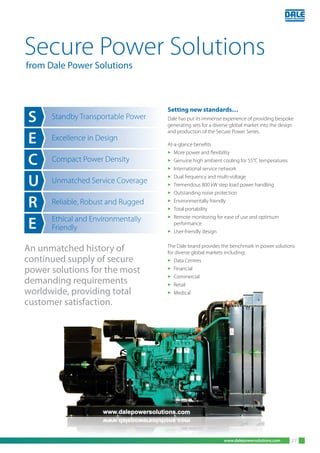

Setting new standards…
Dale has put its immense experience of providing bespoke
generating sets for a diverse global market into the design
and production of the Secure Power Series.
At-a-glance benefits
3 More power and flexibility
3 Genuine high ambient cooling for 55°C temperatures
3 International service network
3 Dual frequency and multi-voltage
3 Tremendous 800 kW step load power handling
3 Outstanding noise protection
3 Environmentally friendly
3 Total portability
3 Remote monitoring for ease of use and optimum
performance
3 User-friendly design
The Dale brand provides the benchmark in power solutions
for diverse global markets including:
3 Data Centres
3 Financial
3 Commercial
3 Retail
3 Medical
S
E
C
U
R
E
Standby Transportable Power
Excellence in Design
Compact Power Density
Unmatched Service Coverage
Reliable, Robust and Rugged
Ethical and Environmentally
Friendly
Secure Power Solutions
from Dale Power Solutions
An unmatched history of
continued supply of secure
power solutions for the most
demanding requirements
worldwide, providing total
customer satisfaction.
27

Dale Power Solutions –
Delivering secure back-up power
across the globe
28
Established since 1935, Dale Power Solutions has become a
global leader in bringing technology and engineering together
to create innovative solutions, protecting critical power supplies
for customers through our standby power systems.
With an annual turnover in excess of £30million, it is through
Dale Power Solutions commitment to excellence, combined
with our mission to deliver outstanding client service has
earned Dale Power Solutions its prestigious reputation it enjoys
today as one of the world’s most trusted providers of standby
power solutions.
Dale Power Solutions provides a comprehensive and bespoke
design capability service to our customers, taking initial concepts
through design, project management, manufacturing, installation
and commissioning processes, followed by complete
maintenance and servicing on a worldwide basis to more than
8,000 generators and UPS systems.
Our professional structure, financial strength and the necessary
quality assurance, health and safety, and product accreditations
meet the demands of the world’s most discerning clients. These
accreditations include:
Proud of our pedigree…
proud to be your partner.
Supplier No.: 061134

Dale Power Solutions Ltd.
Generator solutions
for everyone
Dale Power Solutions Ltd reserves the right to make changes in specification without notice or liability.
All information is subject to Dale Power Solutions Ltd own data & is considered accurate at time of publishing.

Your power in safe hands
MIDDLE EAST BRANCH
Tel: +971 4 364 1228
HEAD OFFICE, FACTORY 1,
SCARBOROUGH
Salter Road
Eastfield Industrial Estate
Scarborough
North Yorkshire
YO11 3DU
Tel : + 44 (0) 1723 583511
producedbyadversetmediasolutionslimitedwww.adverset.co.uk
Dale Power Solutions Ltd
FACTORY 2, FILEY
Tel : + 44 (0) 1723 583511
SCOTLAND BRANCH
Tel: + 44 (0) 1224 270 391
UK SOUTHERN BRANCH
Tel: +44 (0) 1442 255197

Diesel Generator Solutions Brochure

More Related Content

Similar to Diesel Generator Solutions Brochure

Recently uploaded

Diesel Generator Solutions Brochure
