Development principles in test automation!
- 1. Development principles in testautomation! David Baak david.baak@polteq.com

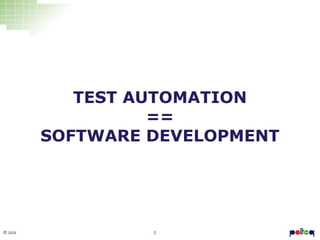

- 2. 2© 2016 TEST AUTOMATION == SOFTWAREDEVELOPMENT
- 3.

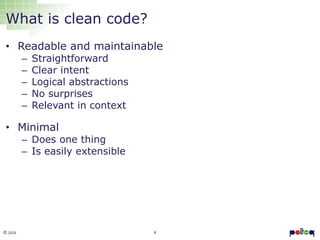

- 4. 4© 2016 What isclean code? • Readable and maintainable – Straightforward – Clear intent – Logical abstractions – No surprises – Relevant in context • Minimal – Does one thing – Is easily extensible

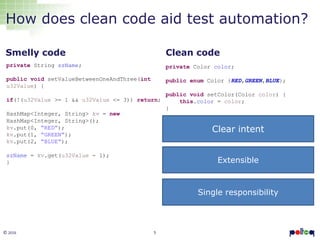

- 5. 5© 2016 How doesclean code aid test automation? Smelly code private String szName; public void setValueBetweenOneAndThree(int u32Value) { if(!(u32Value >= 1 && u32Value <= 3)) return; HashMap<Integer, String> kv = new HashMap<Integer, String>(); kv.put(0, “RED”); kv.put(1, “GREEN”); kv.put(2, “BLUE”); szName = kv.get(u32Value - 1); } Clean code private Color color; public enum Color {RED,GREEN,BLUE}; public void setColor(Color color) { this.color = color; } Clear intent Extensible Single responsibility

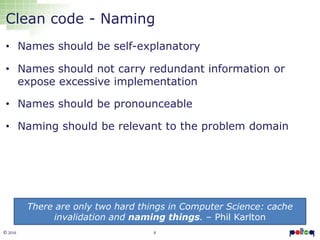

- 6. 6© 2016 Clean code- Naming • Names should be self-explanatory • Names should not carry redundant information or expose excessive implementation • Names should be pronounceable • Naming should be relevant to the problem domain There are only two hard things in Computer Science: cache invalidation and naming things. – Phil Karlton

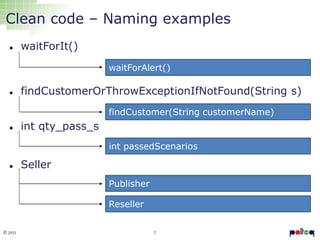

- 7. 7© 2015 Clean code– Naming examples waitForIt() findCustomerOrThrowExceptionIfNotFound(String s) int qty_pass_s Seller waitForAlert() int passedScenarios findCustomer(String customerName) Publisher Reseller
- 8. 8© 2016 Clean code- SOLID Single responsibility Every module or class should have responsibility over a single part of the functionality provided by the software, and that responsibility should be entirely encapsulated by the class.

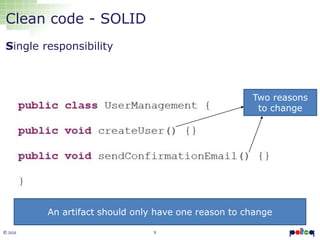

- 9. 9© 2016 Clean code- SOLID Single responsibility An artifact should only have one reason to change Two reasons to change

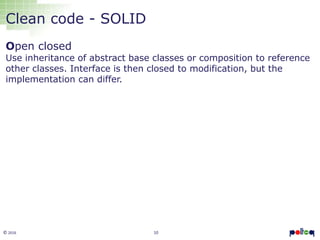

- 10. 10© 2016 Clean code- SOLID Open closed Use inheritance of abstract base classes or composition to reference other classes. Interface is then closed to modification, but the implementation can differ.

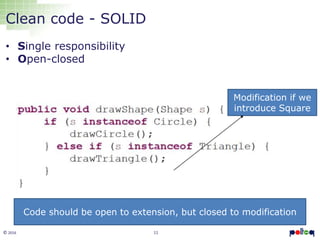

- 11. 11© 2016 Clean code- SOLID • Single responsibility • Open-closed Code should be open to extension, but closed to modification Modification if we introduce Square

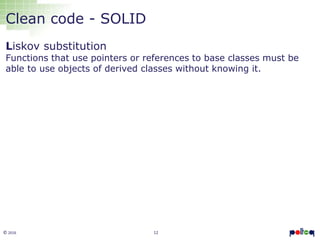

- 12. 12© 2016 Clean code- SOLID Liskov substitution Functions that use pointers or references to base classes must be able to use objects of derived classes without knowing it.

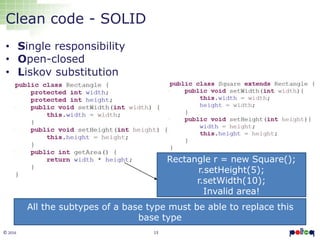

- 13. 13© 2016 Clean code- SOLID • Single responsibility • Open-closed • Liskov substitution All the subtypes of a base type must be able to replace this base type Rectangle r = new Square(); r.setHeight(5); r.setWidth(10); Invalid area!
- 14. 14© 2016 Clean code- SOLID Interface segration Split interfaces which are very large into smaller and more specific ones, so that clients will only have to know about the methods that are of interest to them.

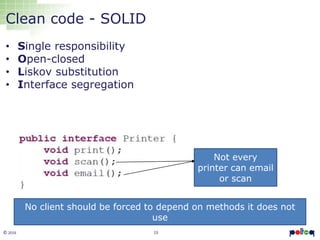

- 15. 15© 2016 Clean code- SOLID • Single responsibility • Open-closed • Liskov substitution • Interface segregation No client should be forced to depend on methods it does not use Not every printer can email or scan

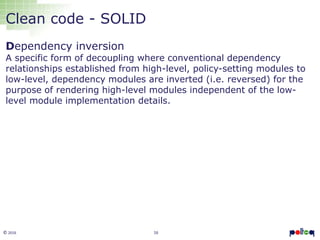

- 16. 16© 2016 Clean code- SOLID Dependency inversion A specific form of decoupling where conventional dependency relationships established from high-level, policy-setting modules to low-level, dependency modules are inverted (i.e. reversed) for the purpose of rendering high-level modules independent of the low- level module implementation details.

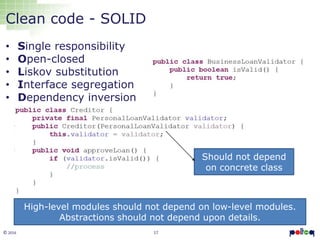

- 17. 17© 2016 Clean code- SOLID • Single responsibility • Open-closed • Liskov substitution • Interface segregation • Dependency inversion High-level modules should not depend on low-level modules. Abstractions should not depend upon details. Should not depend on concrete class

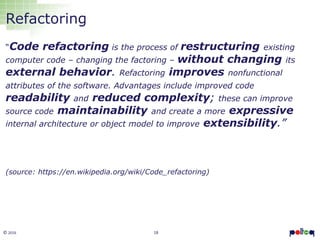

- 18. 18© 2016 Refactoring “Code refactoringis the process of restructuring existing computer code – changing the factoring – without changing its external behavior. Refactoring improves nonfunctional attributes of the software. Advantages include improved code readability and reduced complexity; these can improve source code maintainability and create a more expressive internal architecture or object model to improve extensibility.” (source: https://en.wikipedia.org/wiki/Code_refactoring)
- 19. 19© 2016 Refactoring -Automation code example Original String bookName = "The Hobbit"; WebElement bookTableRow = driver.findElement (By.xpath("//tbody[@class='grid']/tr/td/div[ contains(text(), '"+bookName +"')]")) .findElement(By.xpath("../..")); bookTableRow.findElement(By.xpath("td[contai ns(@class,'btn')]/div/button[text()= 'Details']")).click(); Refactored String bookName = "The Hobbit"; openBookDetails(bookName); void openBookDetails(String bookName) { … } Extract method

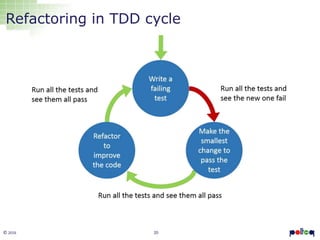

- 20. 20© 2016 Refactoring inTDD cycle
- 21.

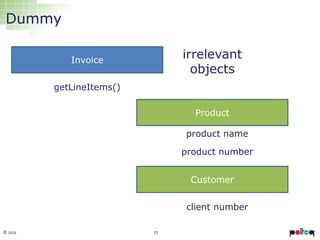

- 22. 22© 2016 Dummy Customer Product Invoice irrelevant objects product name clientnumber product number getLineItems()

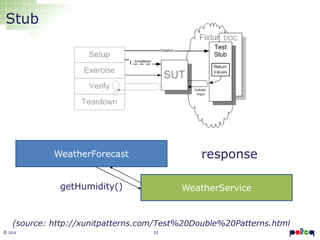

- 23. 23© 2016 Stub WeatherService WeatherForecast response (source:http://xunitpatterns.com/Test%20Double%20Patterns.html getHumidity()

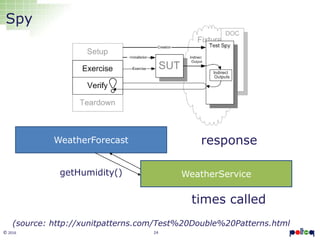

- 24. 24© 2016 Spy WeatherService WeatherForecast response timescalled (source: http://xunitpatterns.com/Test%20Double%20Patterns.html getHumidity()

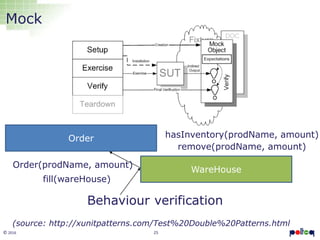

- 25. 25© 2016 Mock WareHouse Behaviour verification (source:http://xunitpatterns.com/Test%20Double%20Patterns.html Order Order(prodName, amount) remove(prodName, amount) hasInventory(prodName, amount) fill(wareHouse)
- 26.

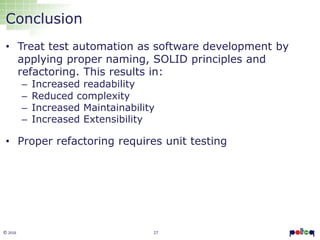

- 27. 27© 2016 Conclusion • Treattest automation as software development by applying proper naming, SOLID principles and refactoring. This results in: – Increased readability – Reduced complexity – Increased Maintainability – Increased Extensibility • Proper refactoring requires unit testing
Editor's Notes

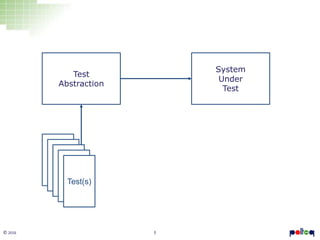

- #4 Clarify what I mean with test abstraction and that we strive towards clean code in the test abstraction layer
- #6 What is your first impression? Naming? Clarity? Clean code example does the same thing as the smelly code!
- #9 Explain God classes, bloaters (methods) as signs of violating SRP. Single responsibility states that every class should only have one reason to change.
- #10 Explain God classes, bloaters (methods) as signs of violating SRP. Single responsibility states that every class should only have one reason to change.
- #11 Explain God classes, bloaters (methods) as signs of violating SRP. Single responsibility states that every class should only have one reason to change.
- #12 11
- #13 Explain God classes, bloaters (methods) as signs of violating SRP. Single responsibility states that every class should only have one reason to change.
- #14 Make sure your inheritance is justified. Remove inheritance. Make an abstract class Shape with abstract method getArea(); Implement it in both.
- #15 Explain God classes, bloaters (methods) as signs of violating SRP. Single responsibility states that every class should only have one reason to change.
- #17 Explain God classes, bloaters (methods) as signs of violating SRP. Single responsibility states that every class should only have one reason to change.
- #18 Make an interface LoanValidator
- #21 20
- #22 Dummy objects are passed around, never used. Used to fill parameter lists. Fake objects have working implementations, take shortcut e.g InMemoryTestDatabase Stubs provide canned answers to calls made during the test Spies are stubs that also record some information based e.g an email service that records how many messages it has sent. Mocks are pre-programmed with expectations which form a specification of the calls they are expected to receive. They can throw an exception if they receive a call they don't expect and are checked during verification to ensure they got all the calls they were expecting.
- #23 22
- #24 23
- #25 24
- #26 25
- #27 26
