1. Designing A Timebound Download URL
Runcy Oommen | 23-Mar-2024

2. | Our Time-bound Agenda |
• Design characteristics and use-cases
• High level architecture overview
• Step-by-step walkthrough of steps (AWS services)
• Q&A, Discussions

3. Software Engineering Leader with 2
decades of industry exp; primarily in
systems, cloud, security, networking
Special interest in serverless, containers
and cloud-native offerings. Firm believer
of a multi-hybrid cloud future
Career
Community
Organizer of GDG Cloud and Cloud Native
meetup groups in Bangalore
Former co-organizer of AWS UG Bangalore
Multiple hackathon wins in cloud/security topics
Recognized by Google as a community influencer
runcyoommen
https://runcy.me

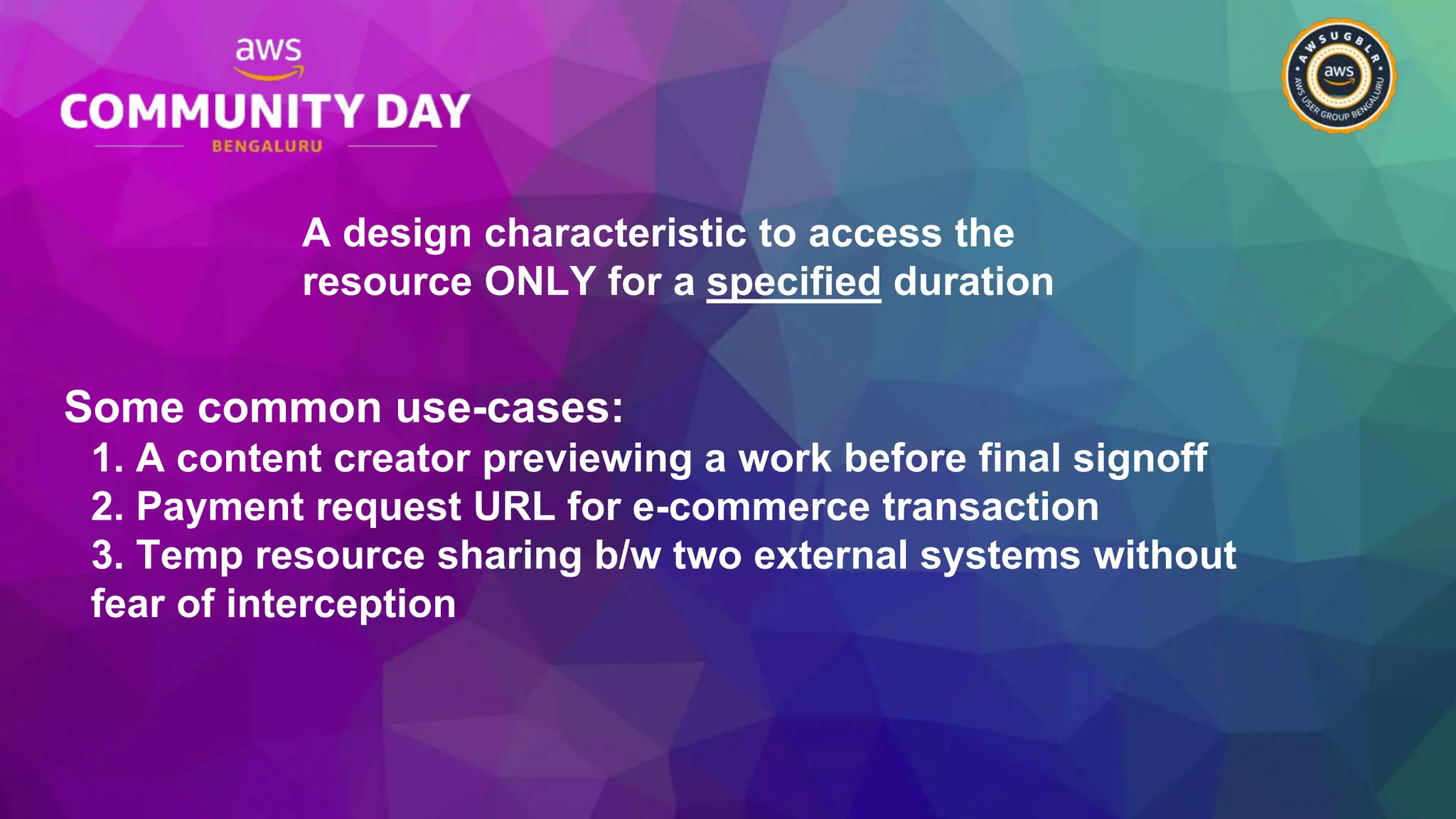

4. A design characteristic to access the
resource ONLY for a specified duration
Some common use-cases:
1. A content creator previewing a work before final signoff
2. Payment request URL for e-commerce transaction
3. Temp resource sharing b/w two external systems without
fear of interception

5. Easter egg: "Spot the stopwatch"

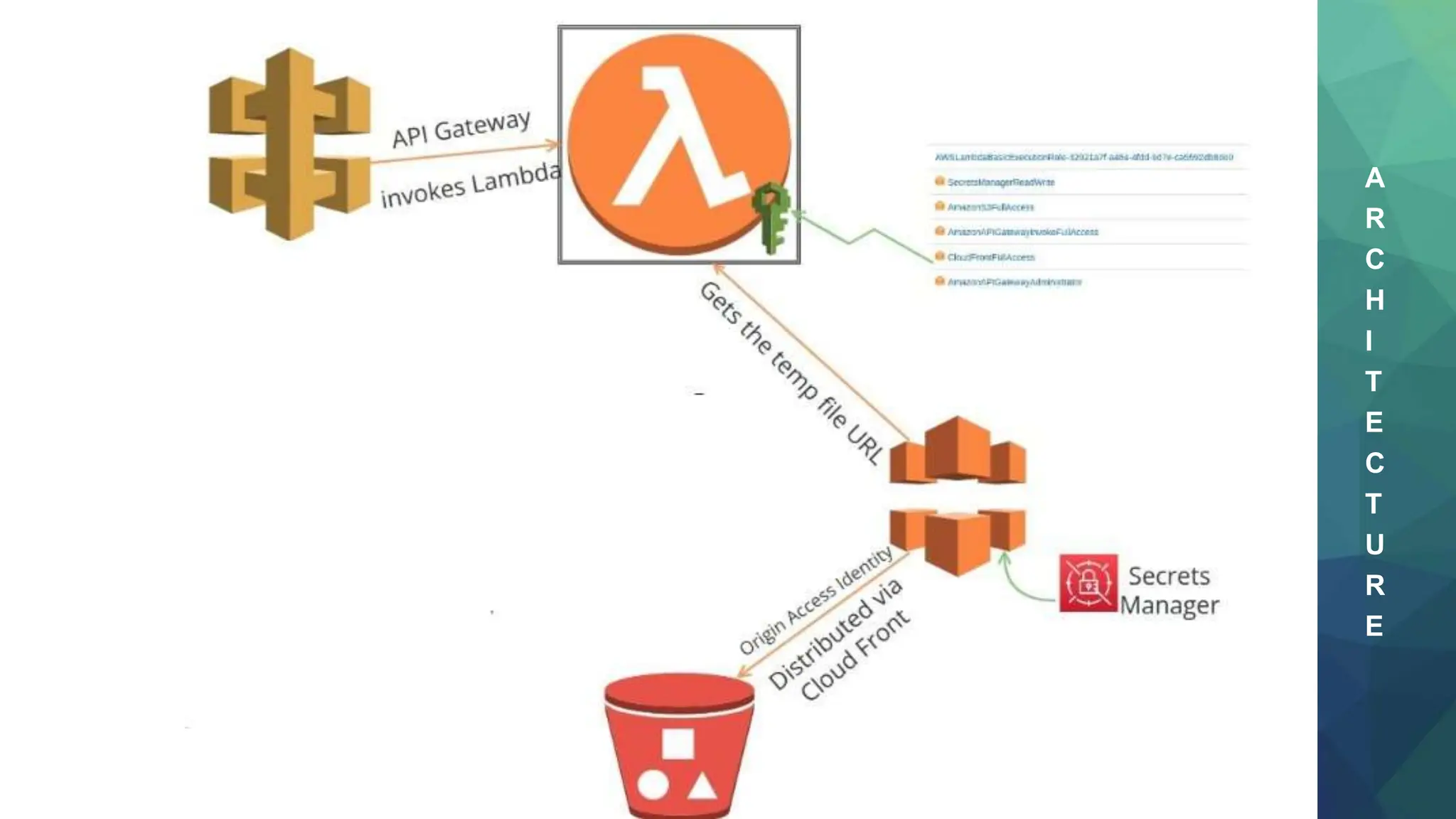

6. A
R
C
H
I
T
E
C
T
U
R
E

7. LET'S BEGIN

8. S3 Bucket Configuration
Central place for object storage

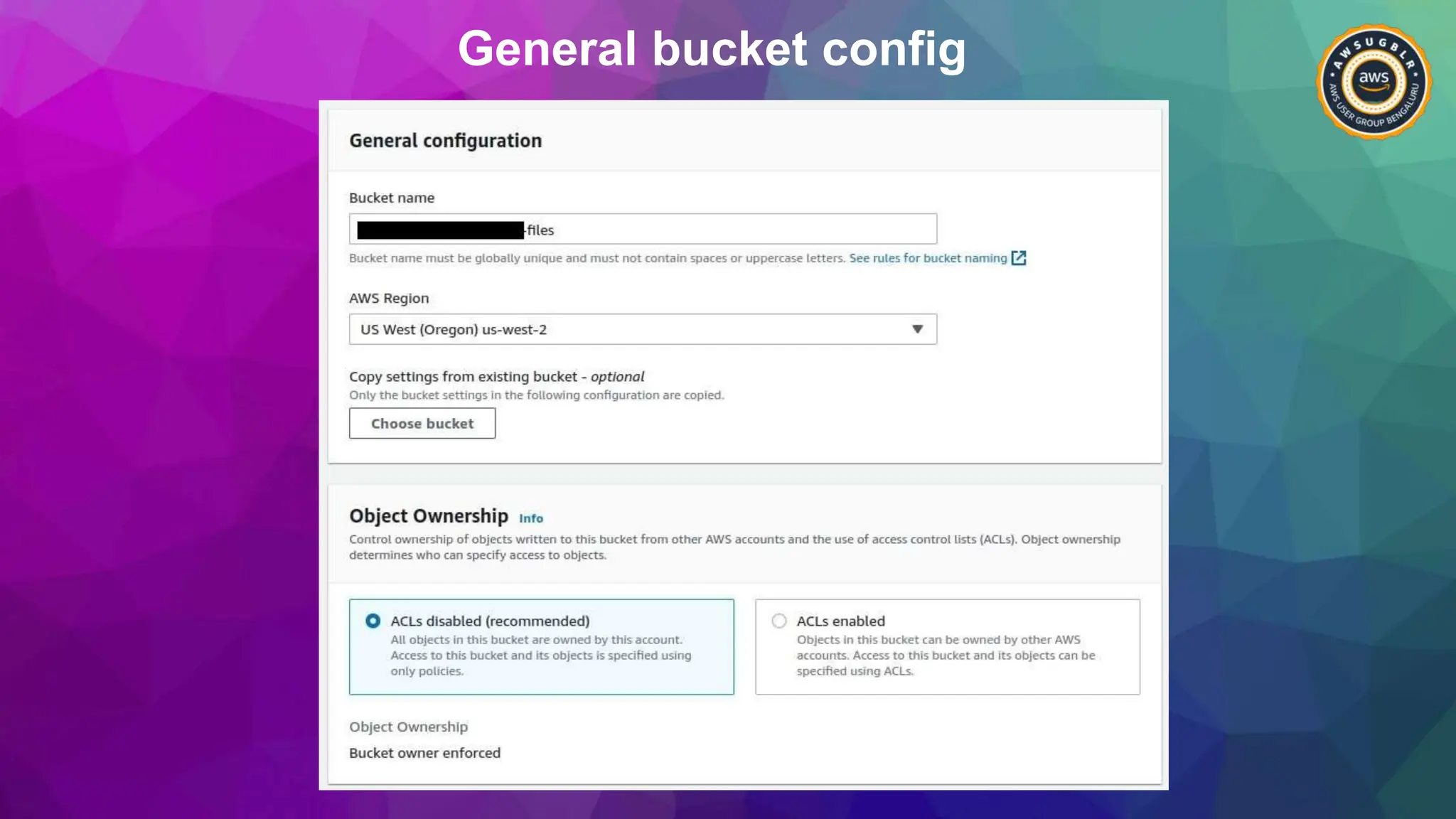

9. General bucket config

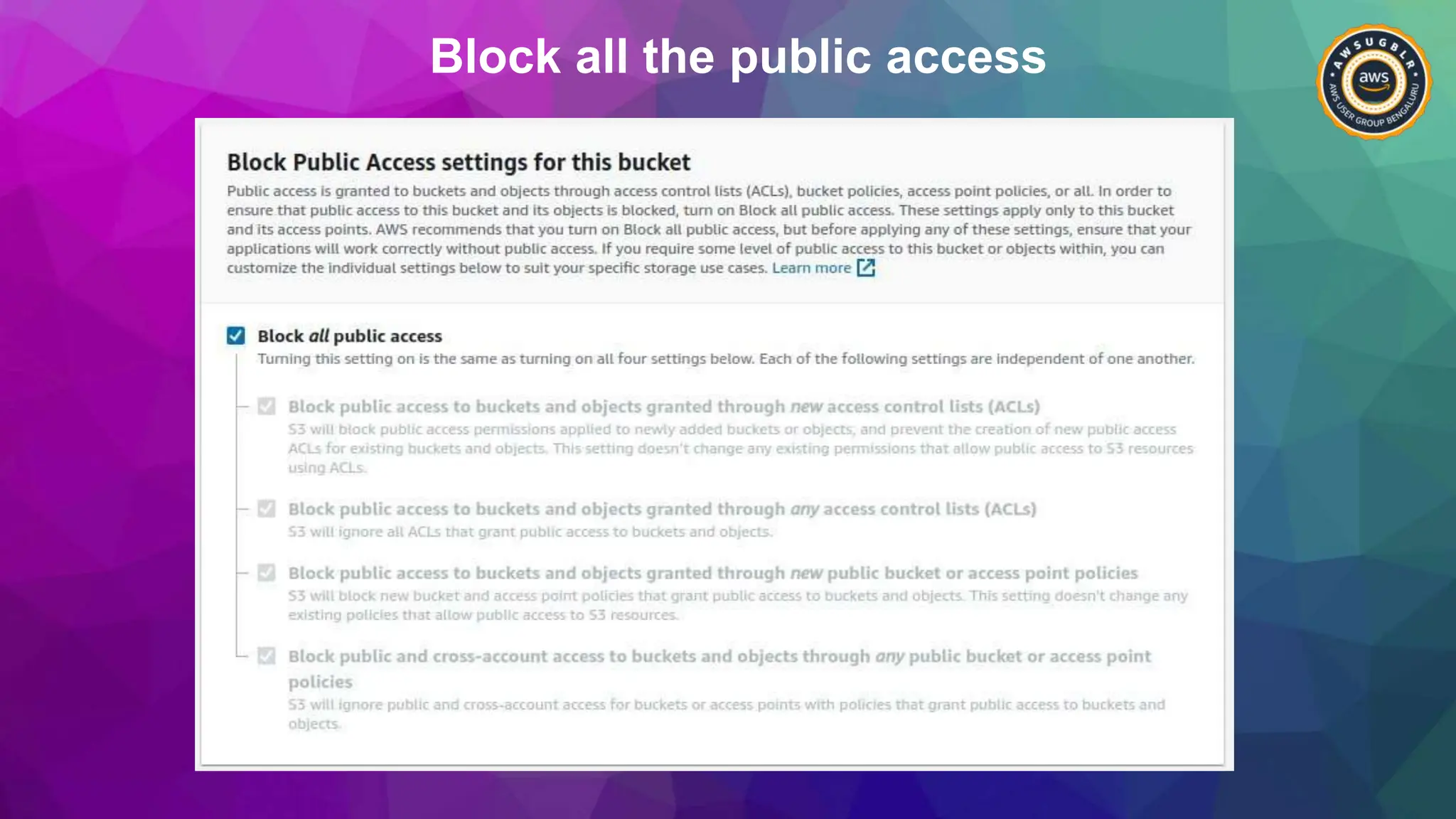

10. Block all the public access

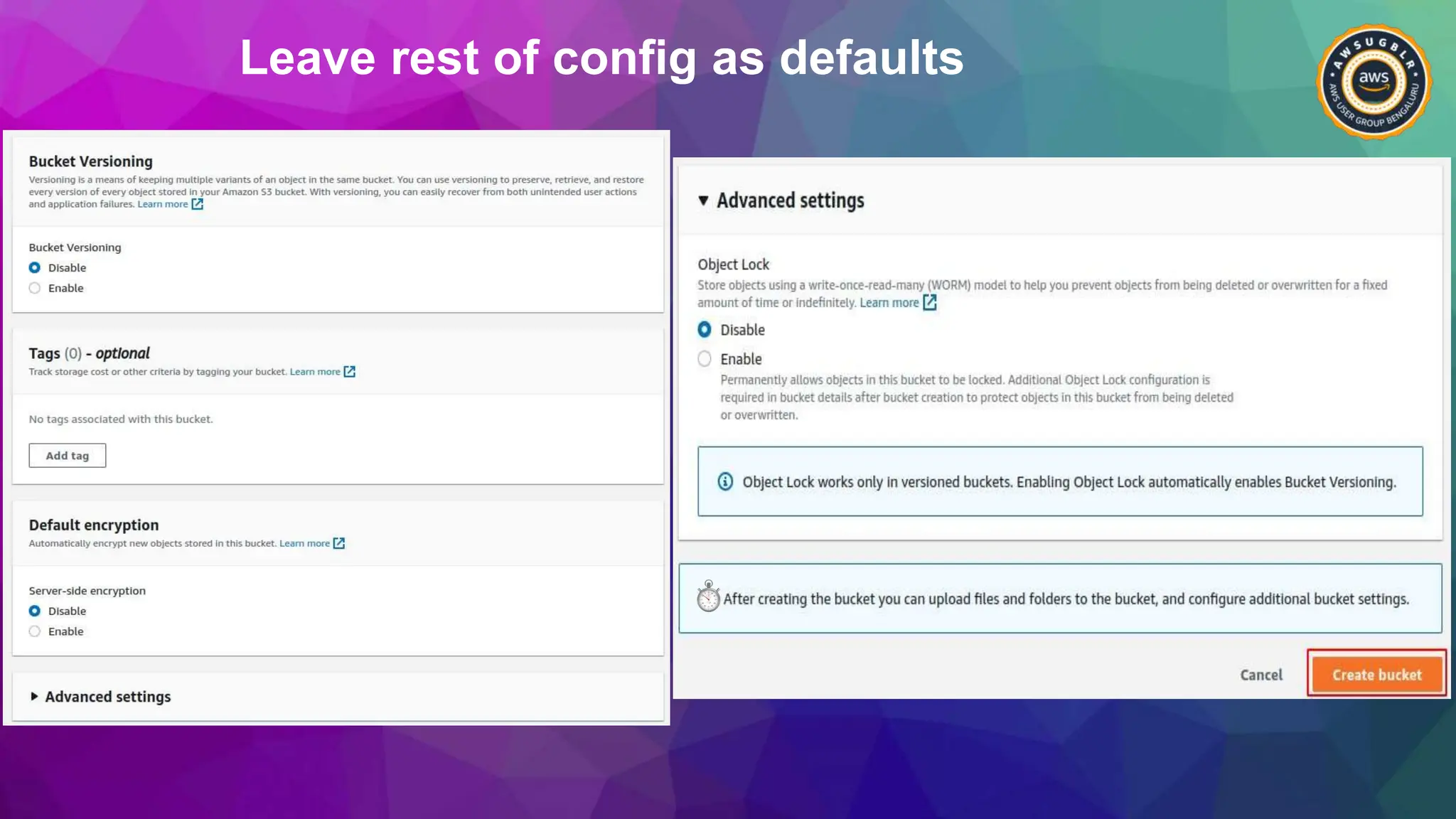

11. Leave rest of config as defaults

12. IAM specific role creation
Policies for the serverless function

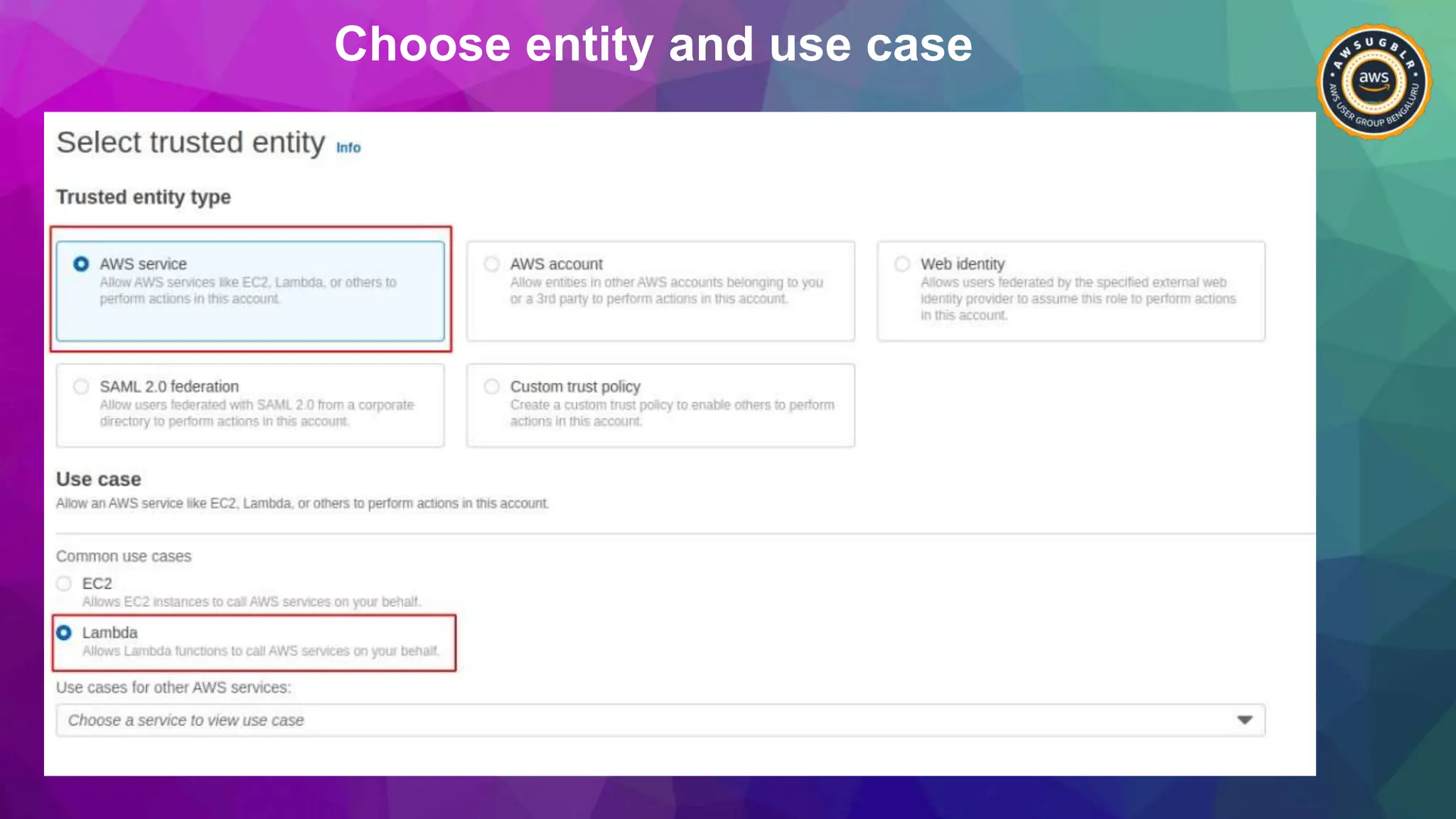

13. Choose entity and use case

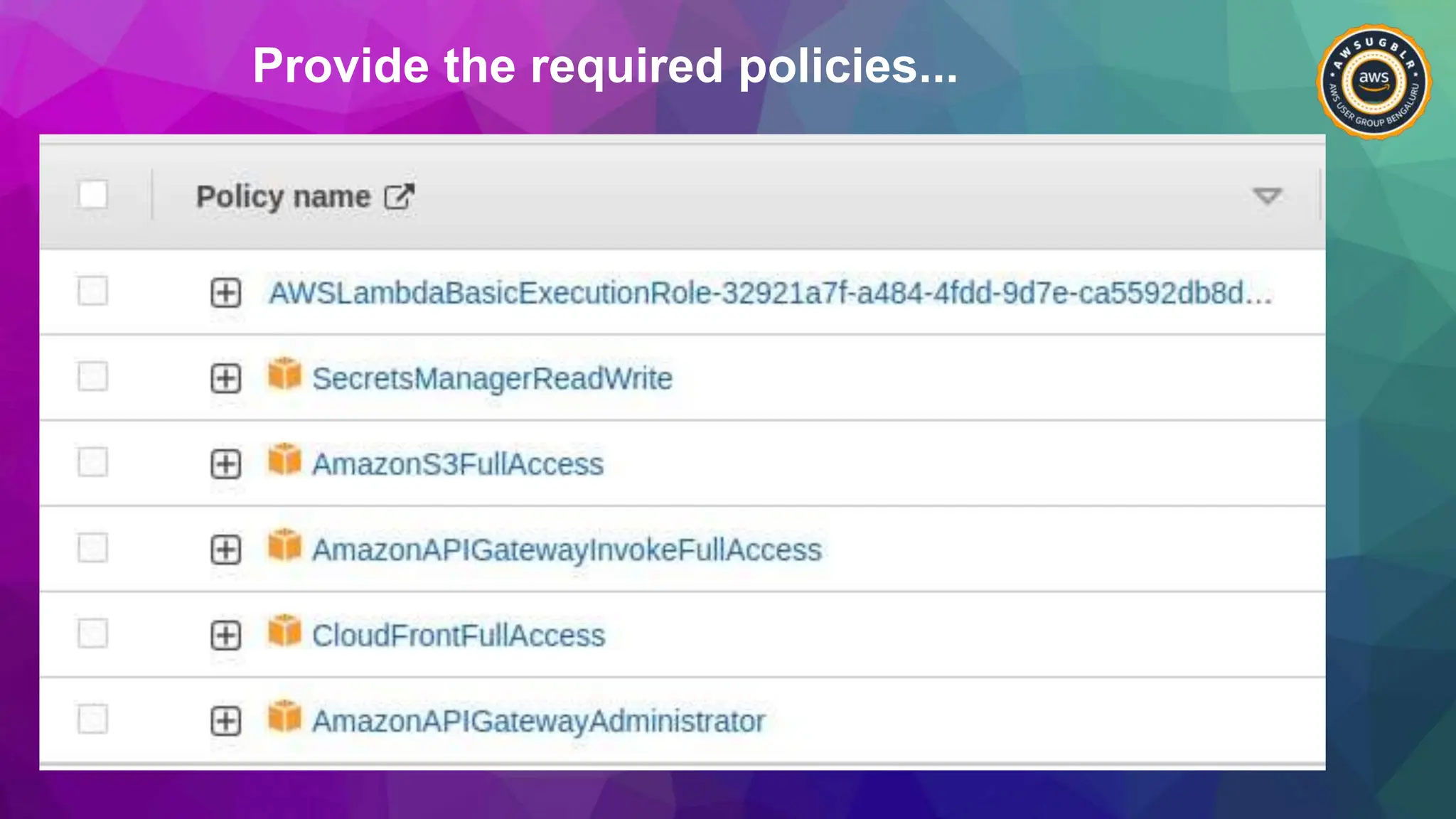

14. Provide the required policies...

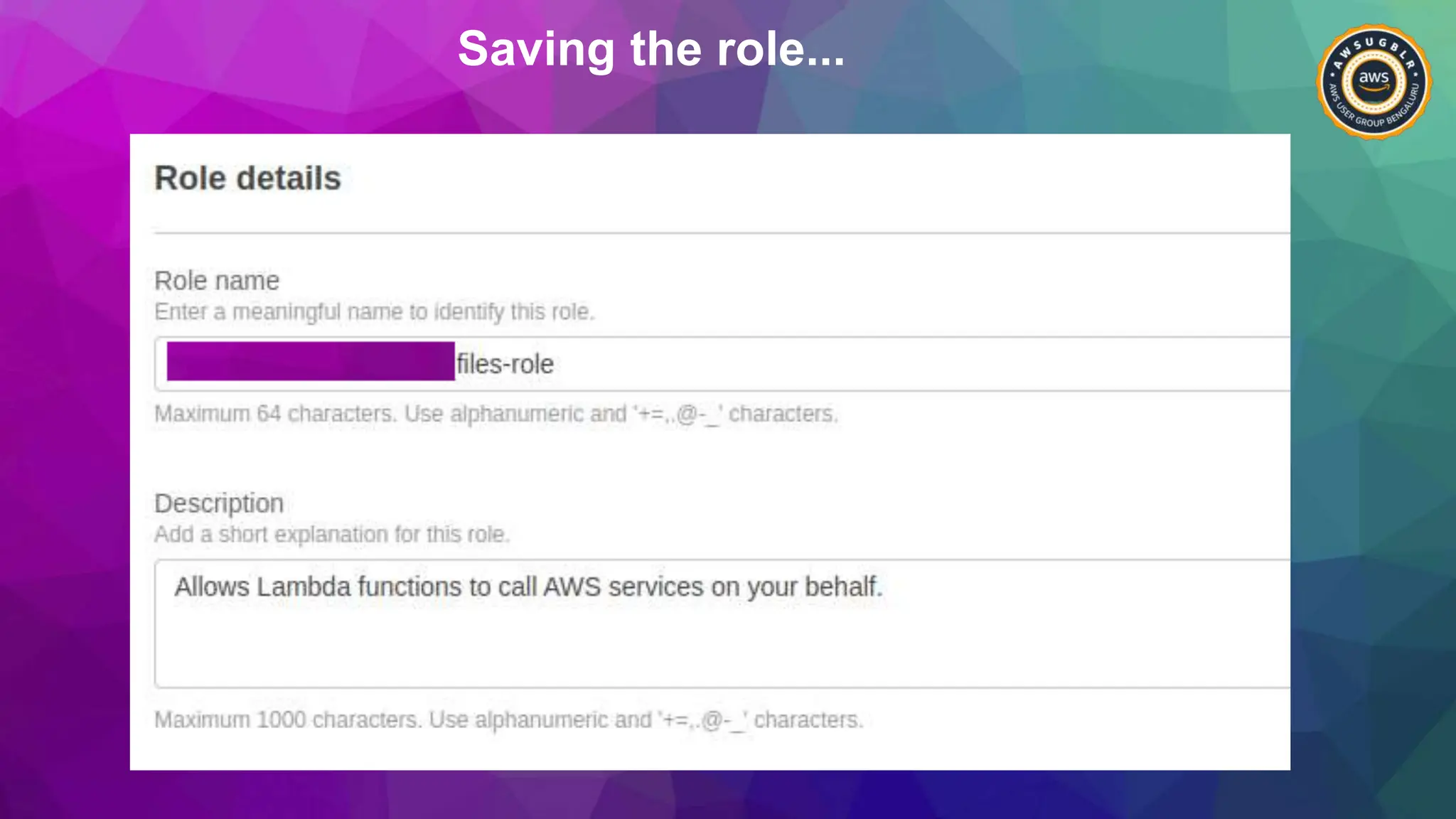

15. Saving the role...

17. Key creation and Secrets Manager

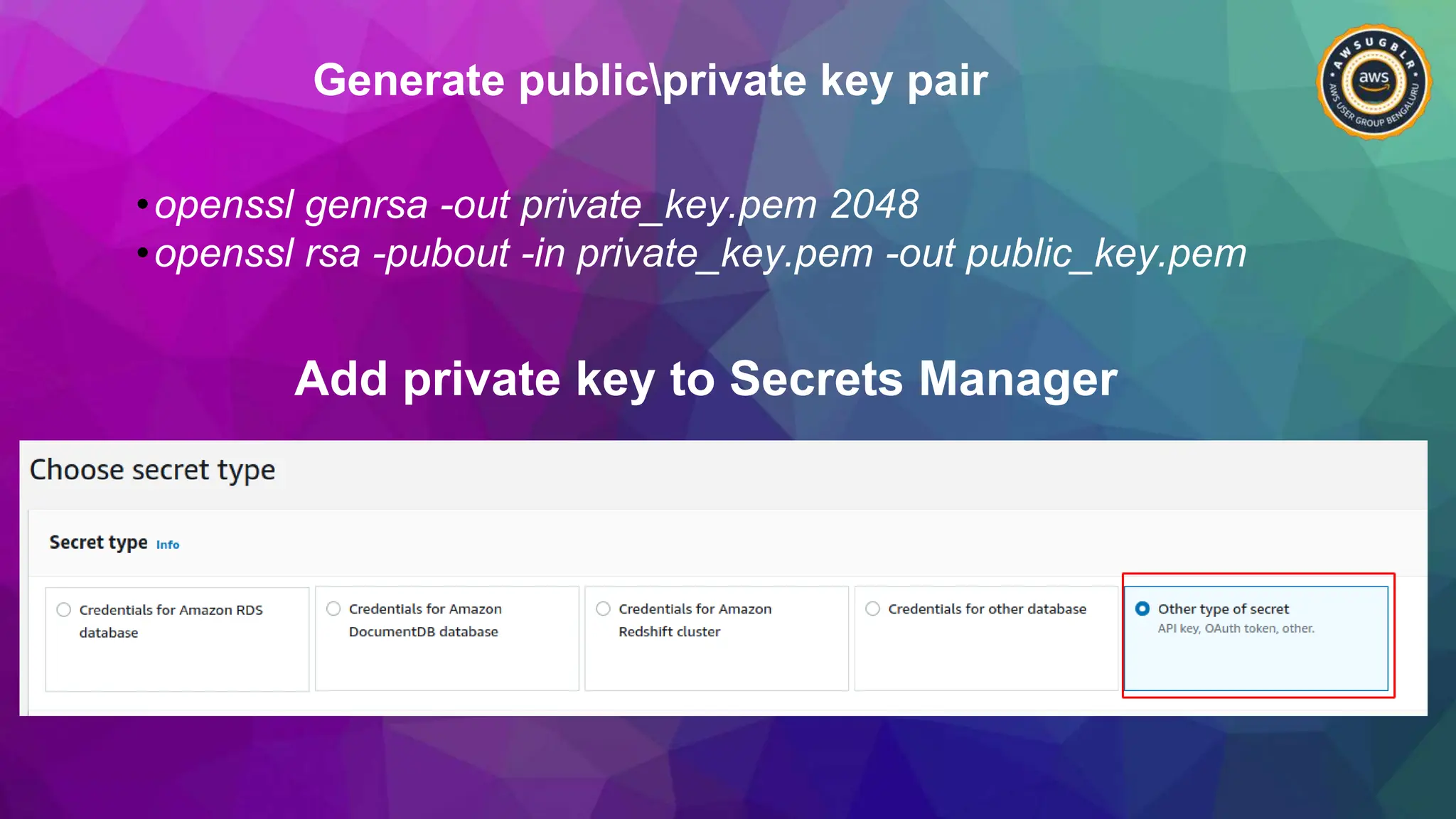

18. Generate publicprivate key pair
•openssl genrsa -out private_key.pem 2048
•openssl rsa -pubout -in private_key.pem -out public_key.pem
Add private key to Secrets Manager

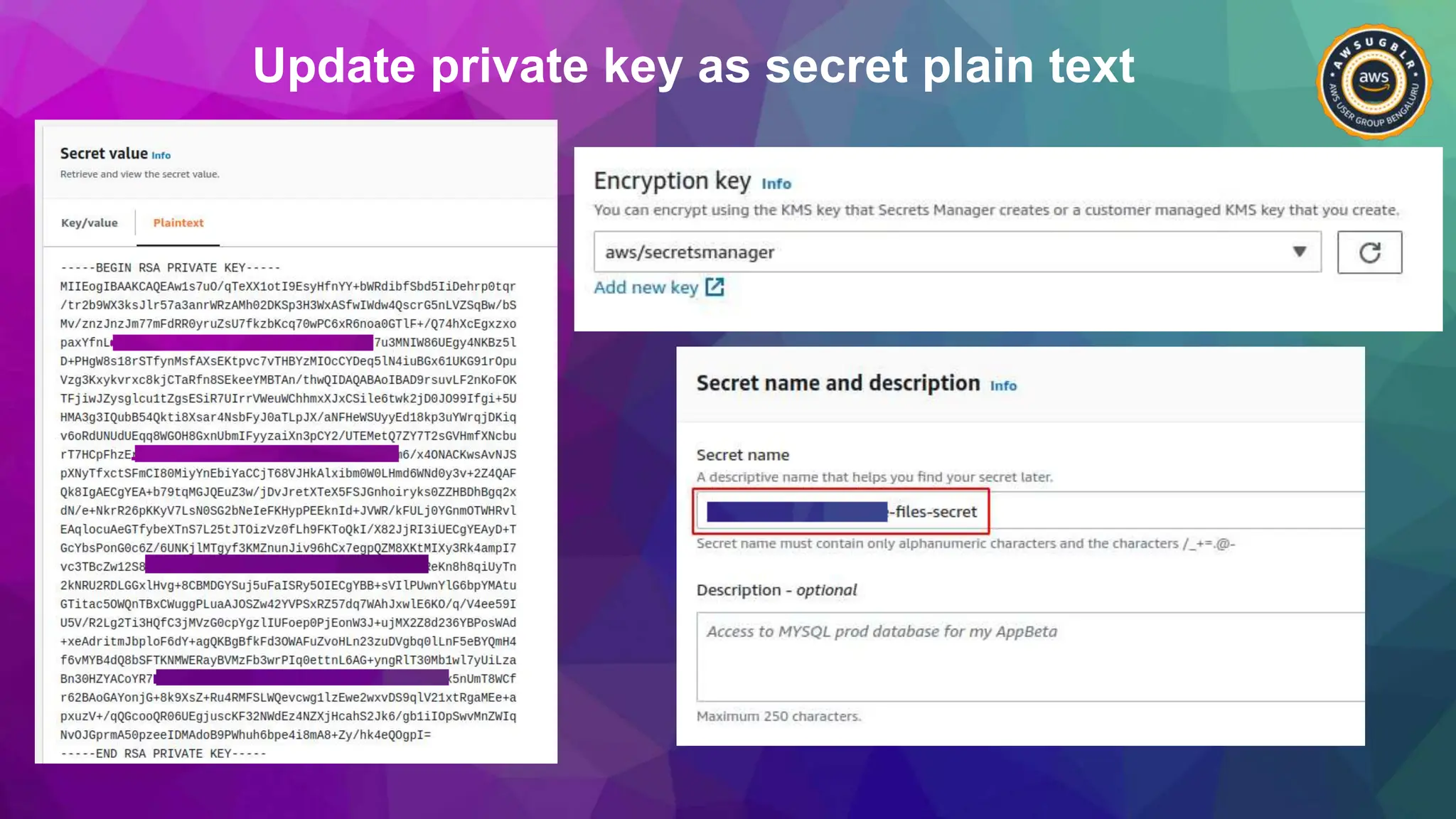

19. Update private key as secret plain text

20. AWS Lambda Deployment
Serverless functionality

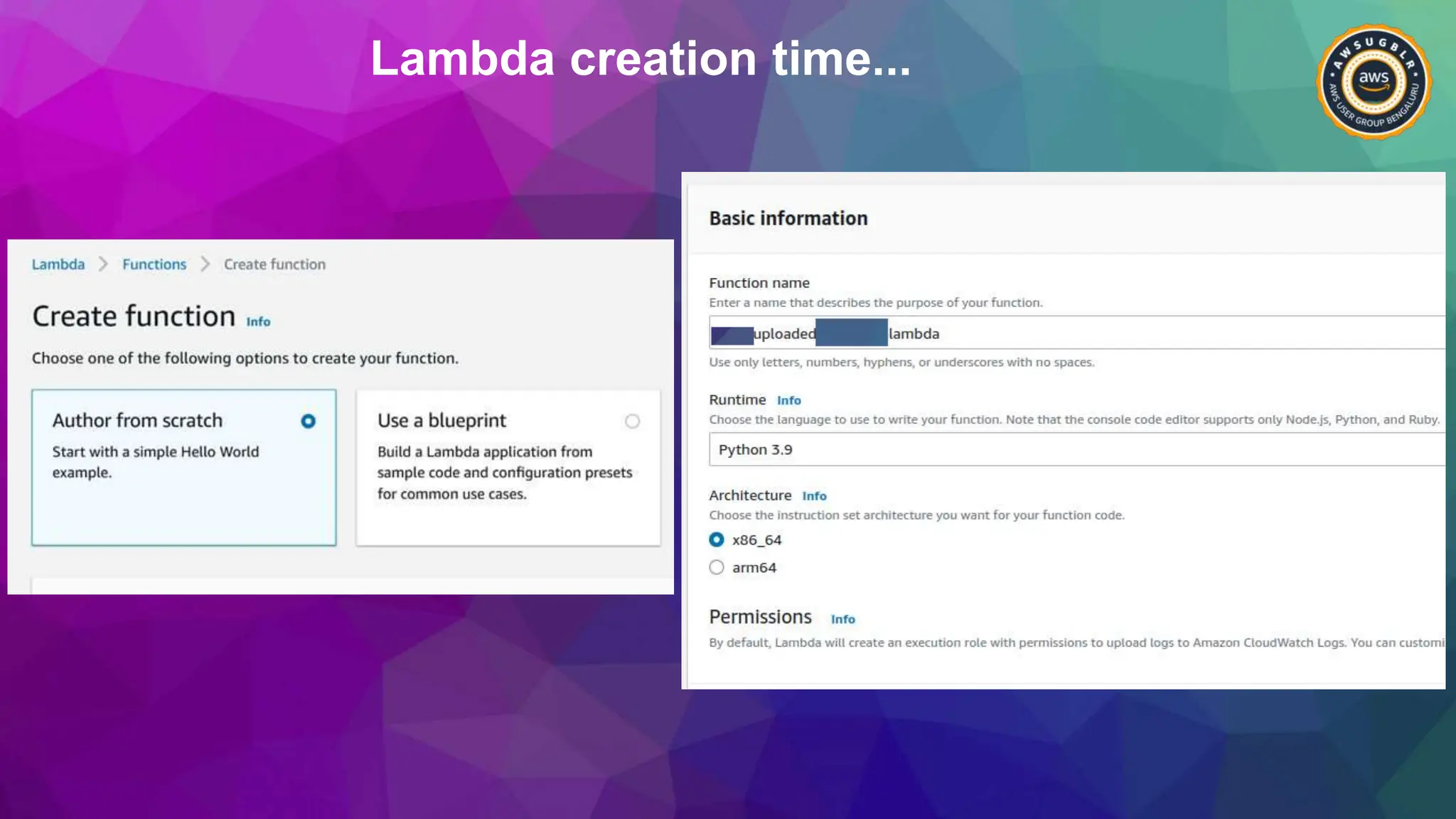

21. Lambda creation time...

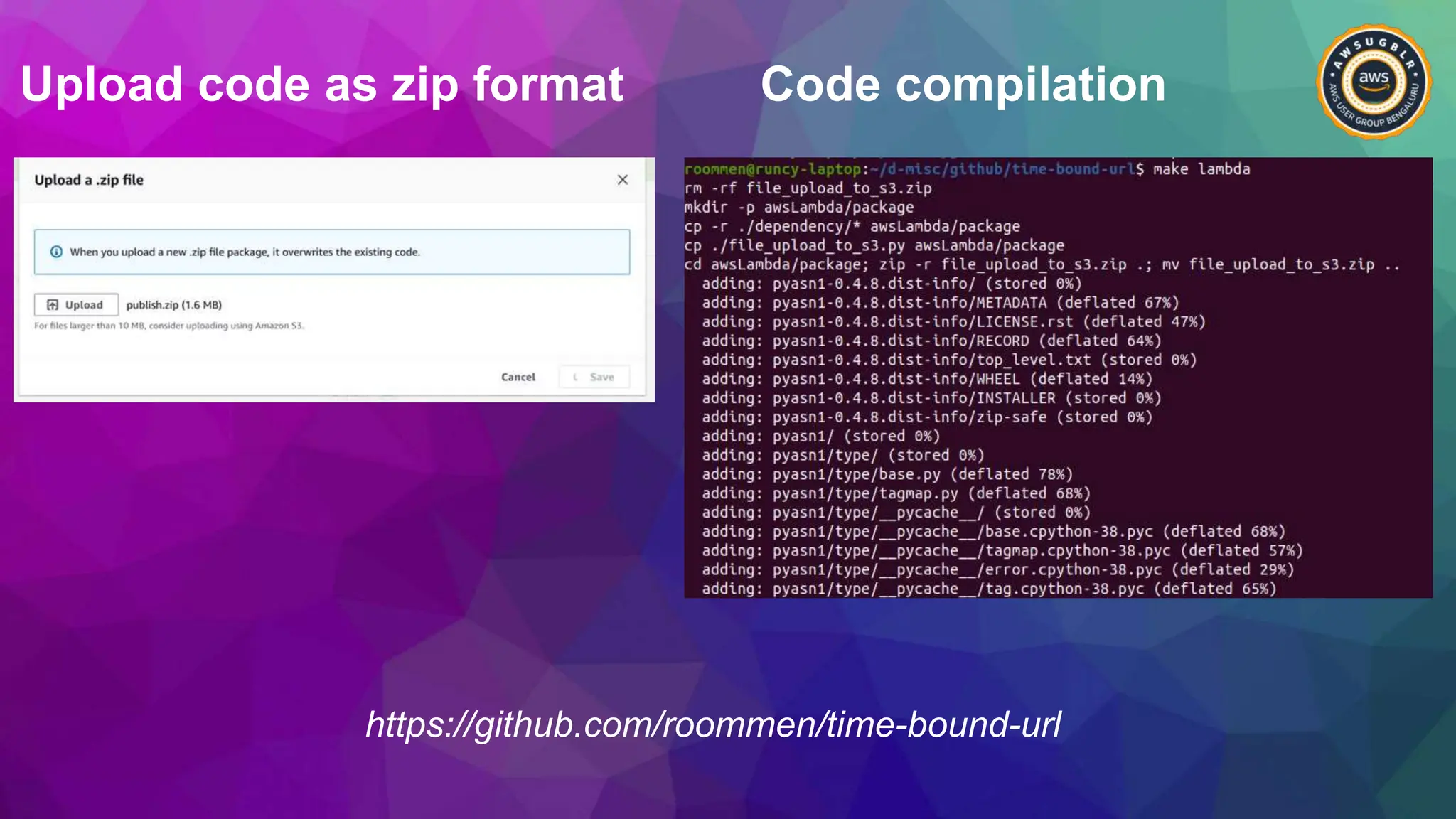

23. Upload code as zip format
https://github.com/roommen/time-bound-url
Code compilation

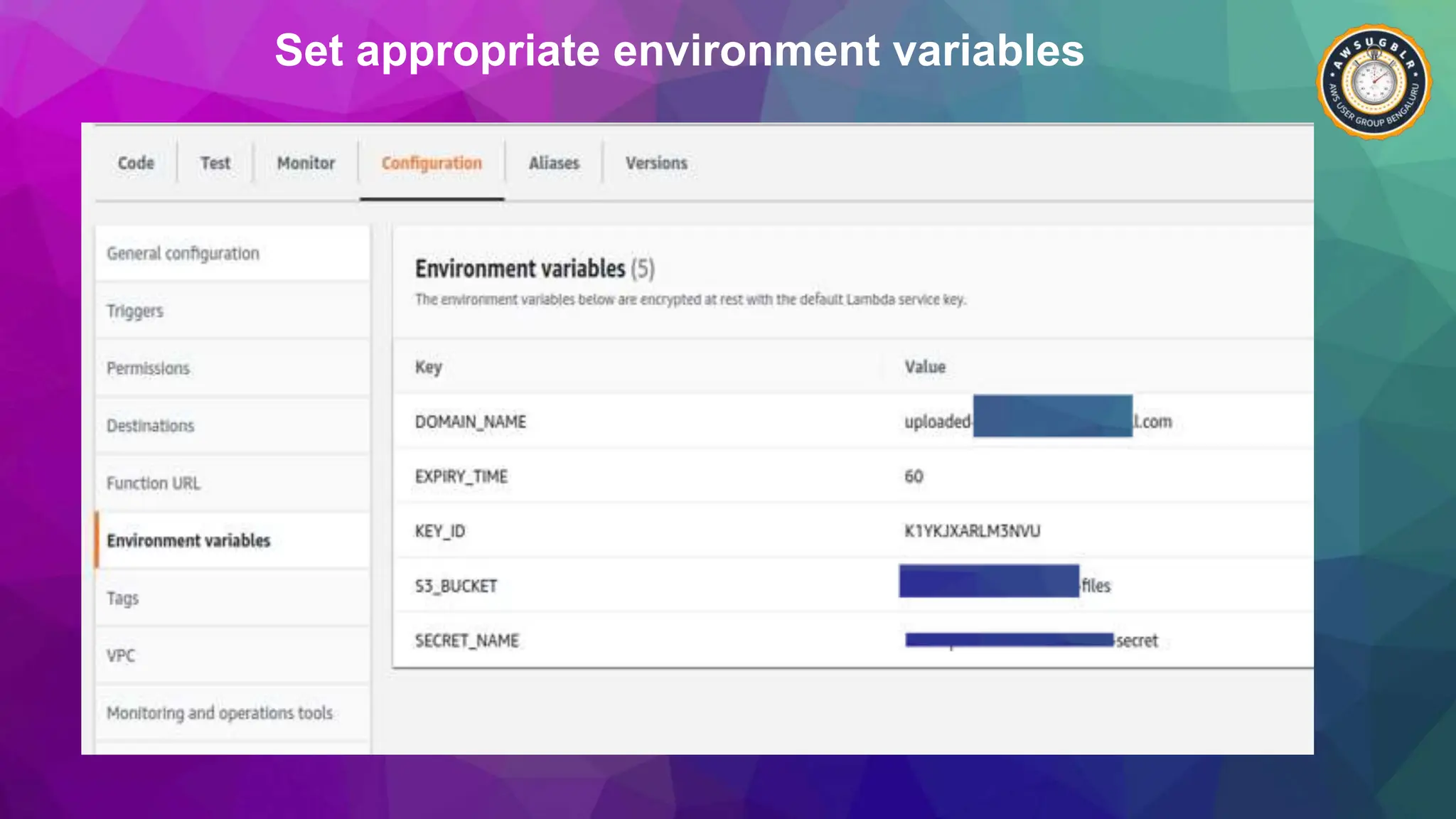

24. Set appropriate environment variables

26. API Gateway Setup
Entry point of URL generation

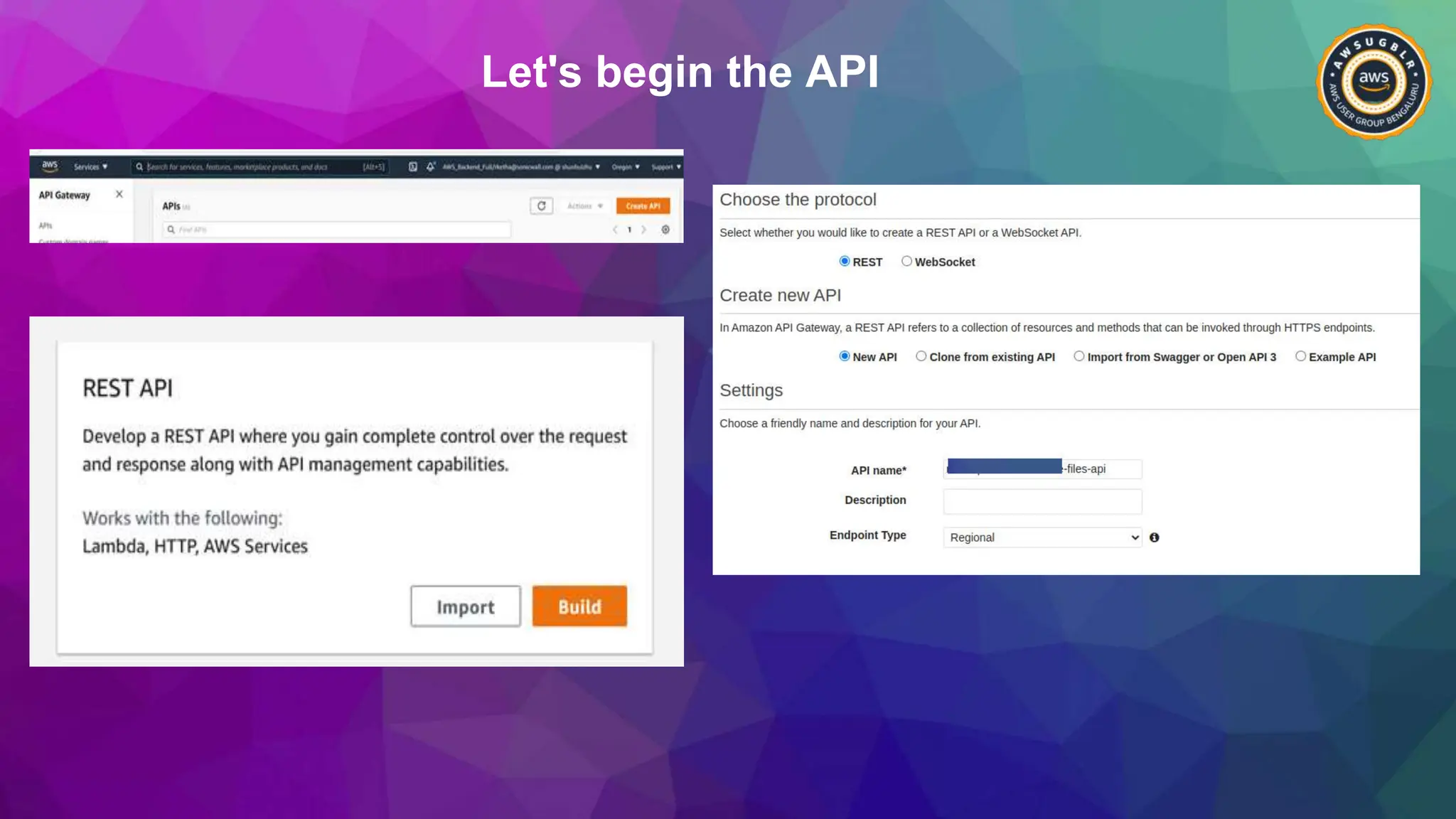

27. Let's begin the API

28. Create a new resource

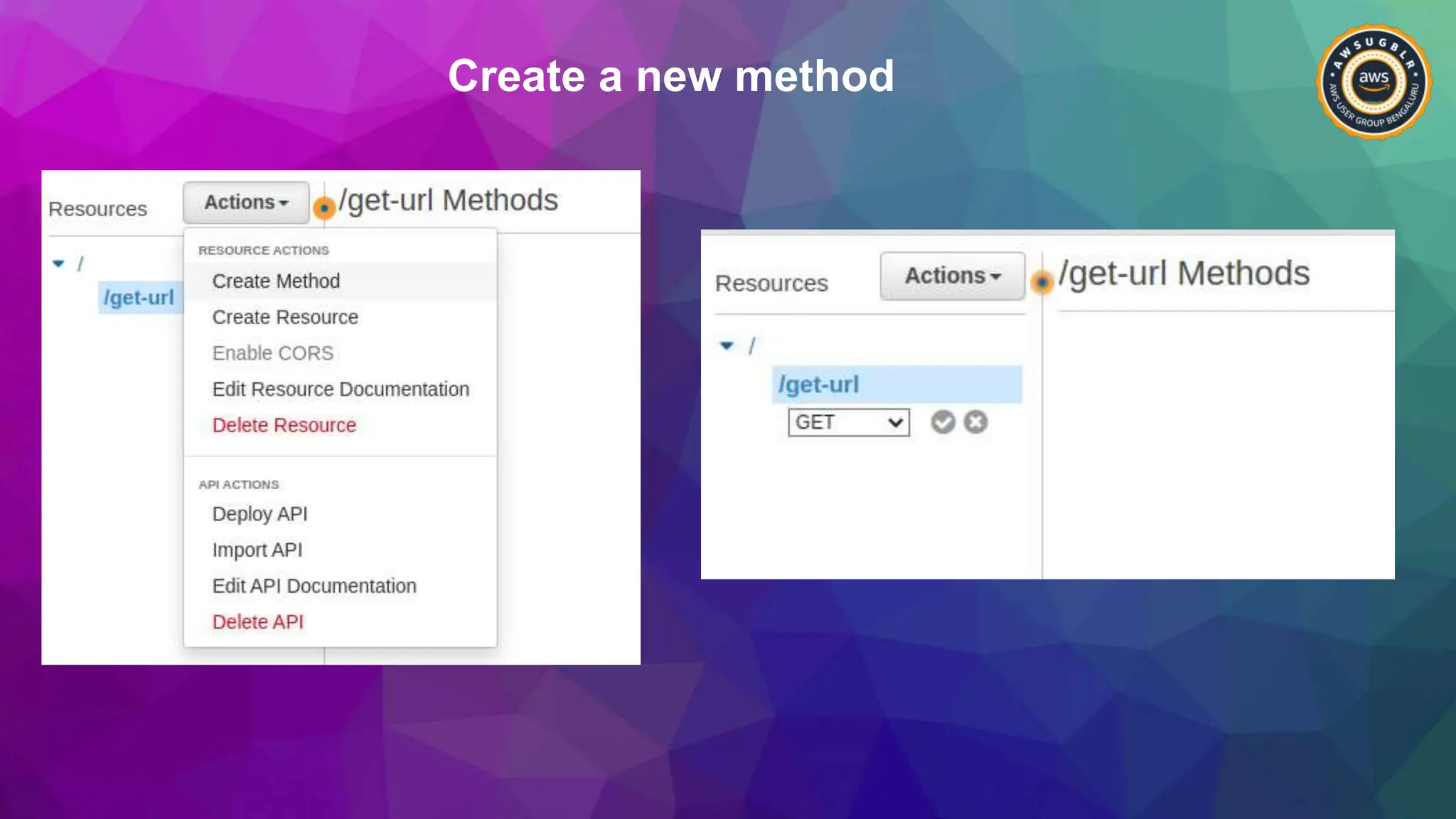

29. Create a new method

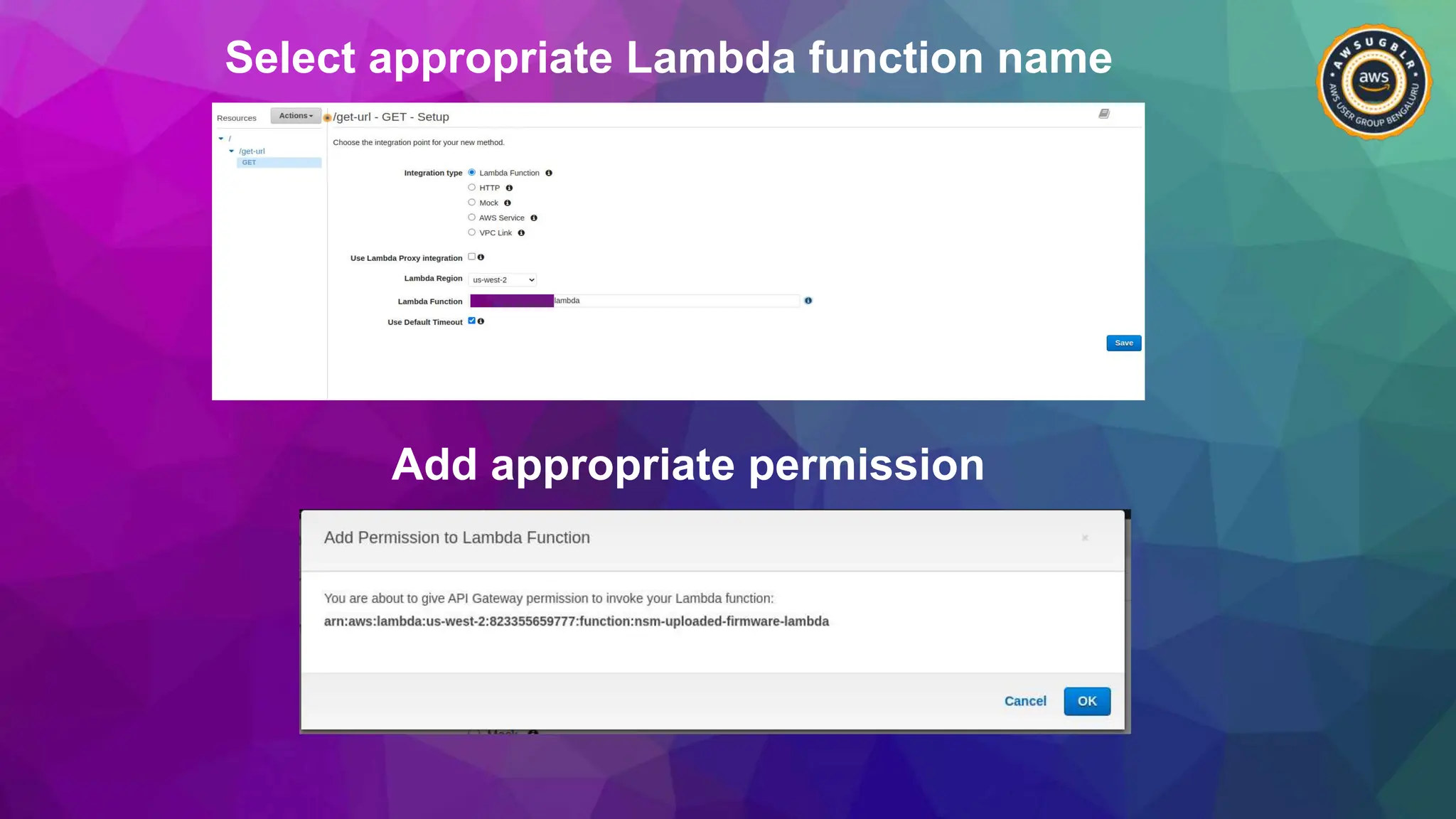

30. Select appropriate Lambda function name
Add appropriate permission

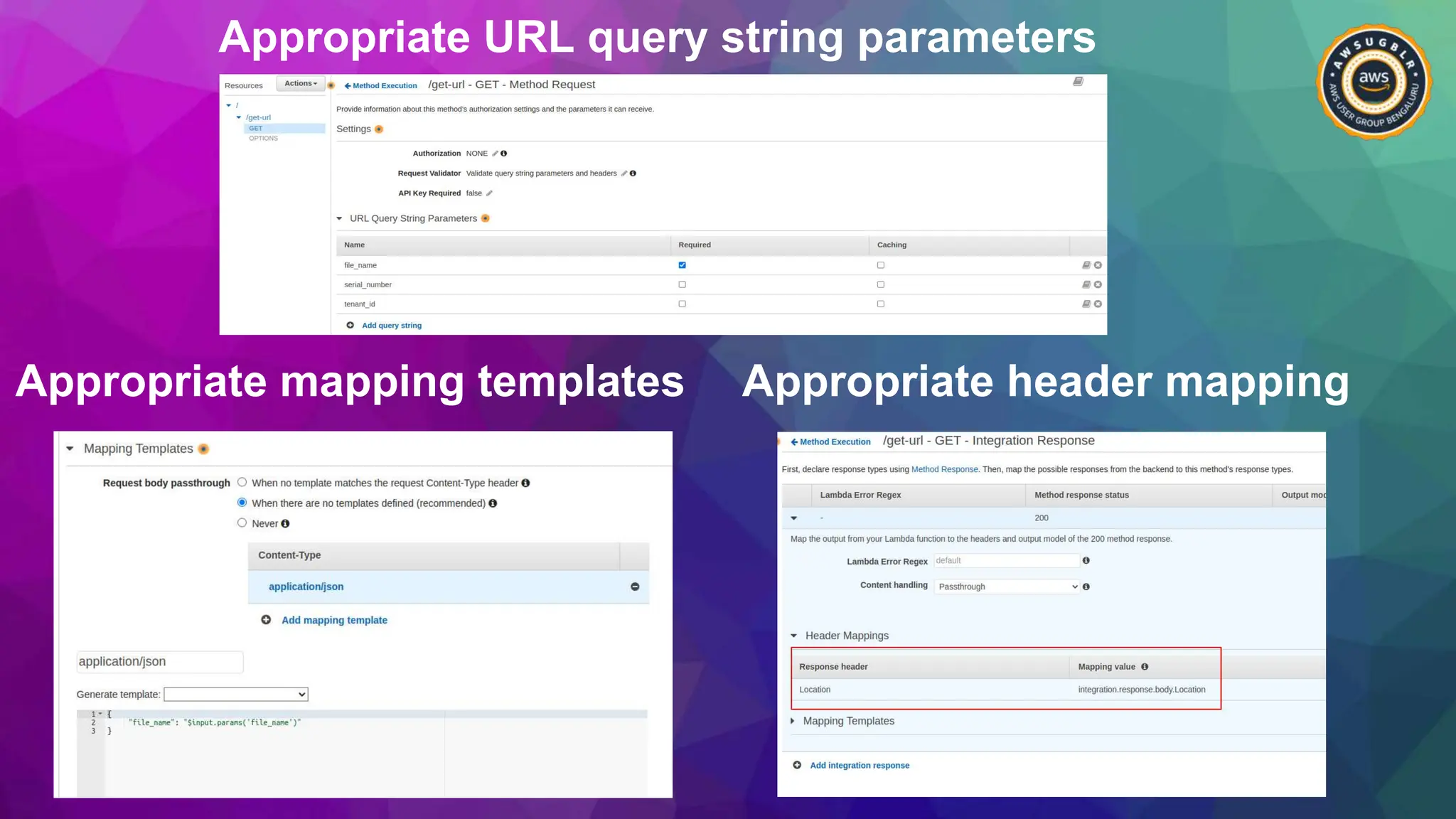

31. Appropriate URL query string parameters
Appropriate mapping templates Appropriate header mapping

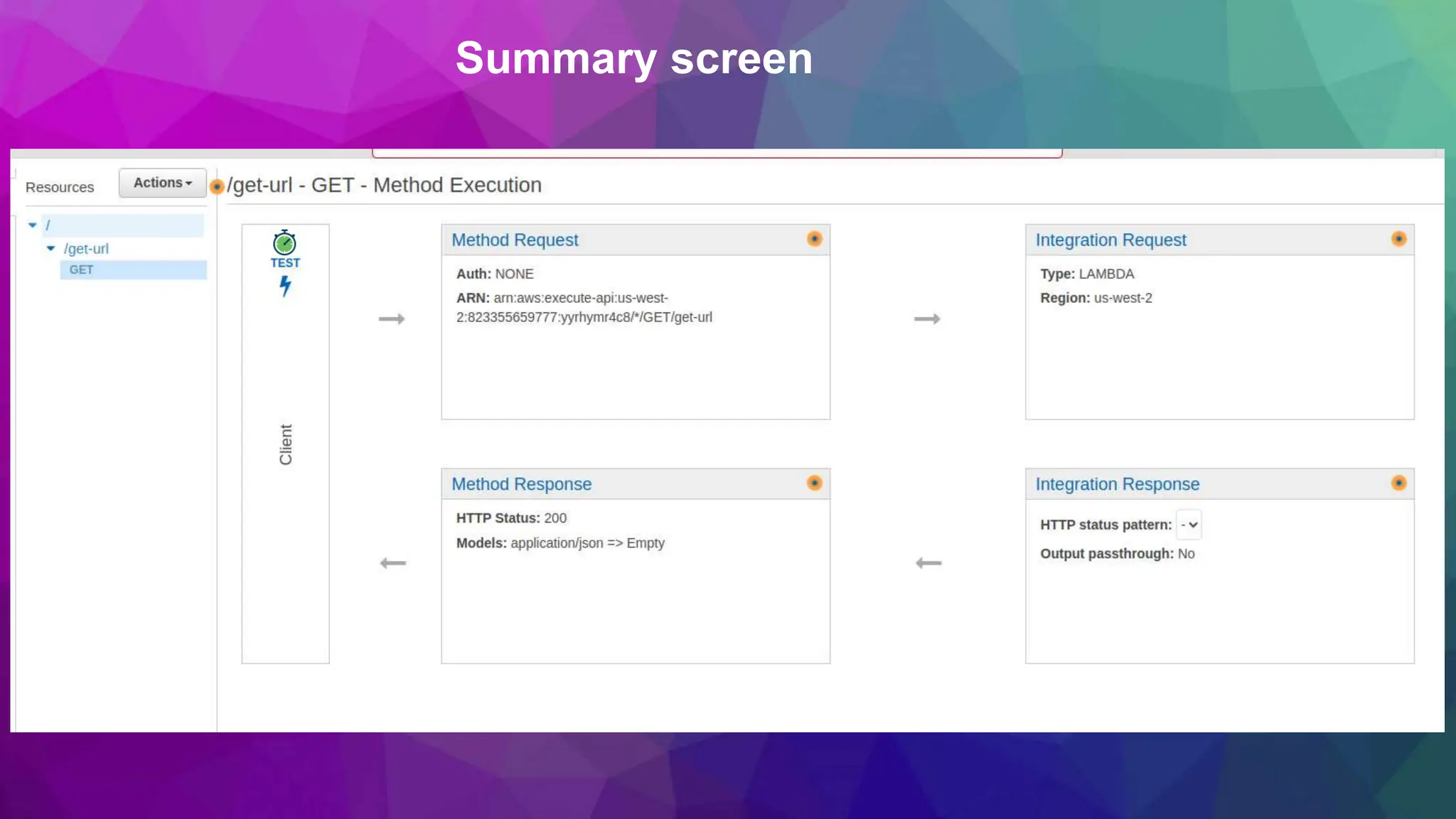

32. Summary screen

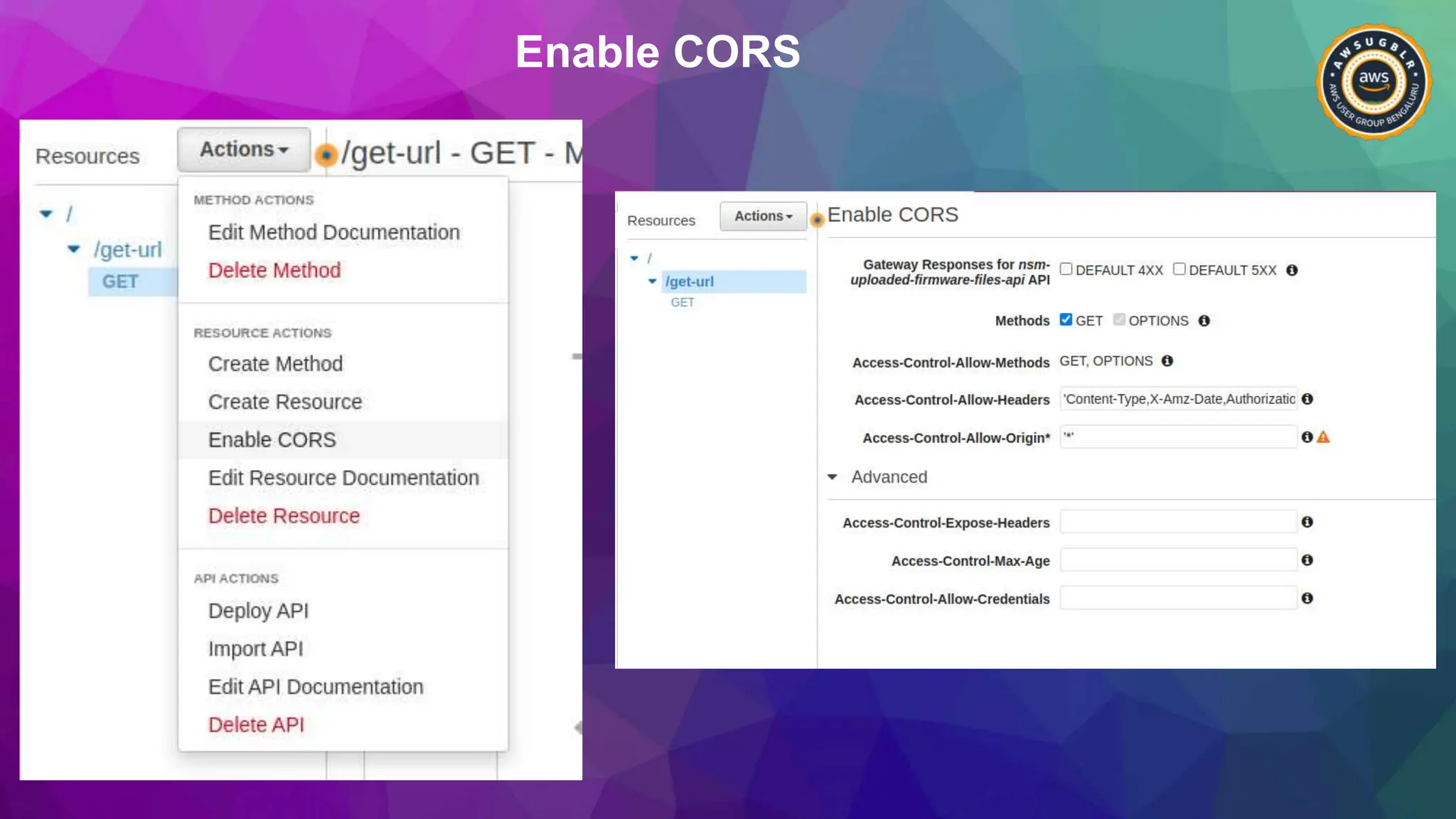

33. Enable CORS

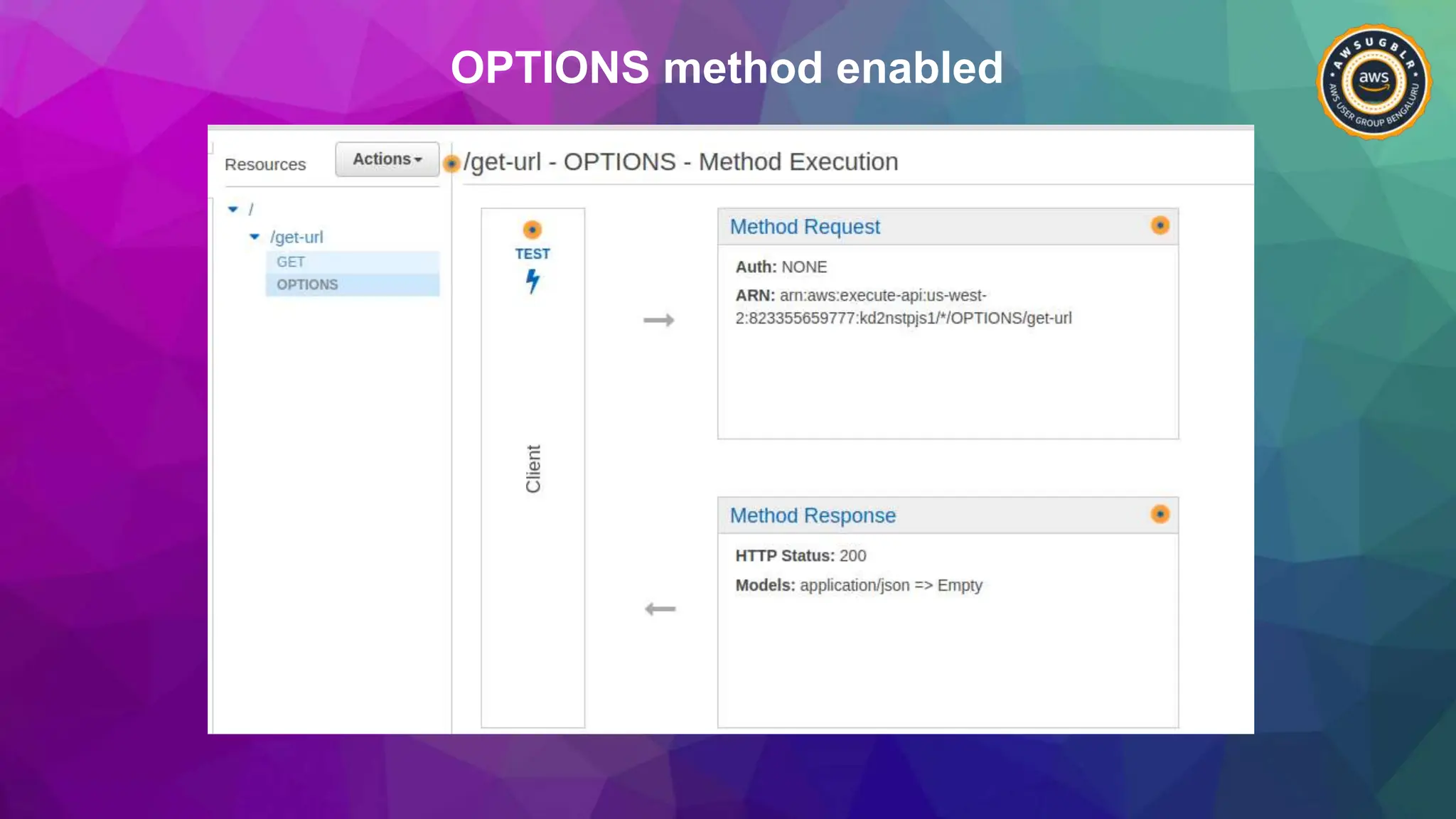

34. OPTIONS method enabled

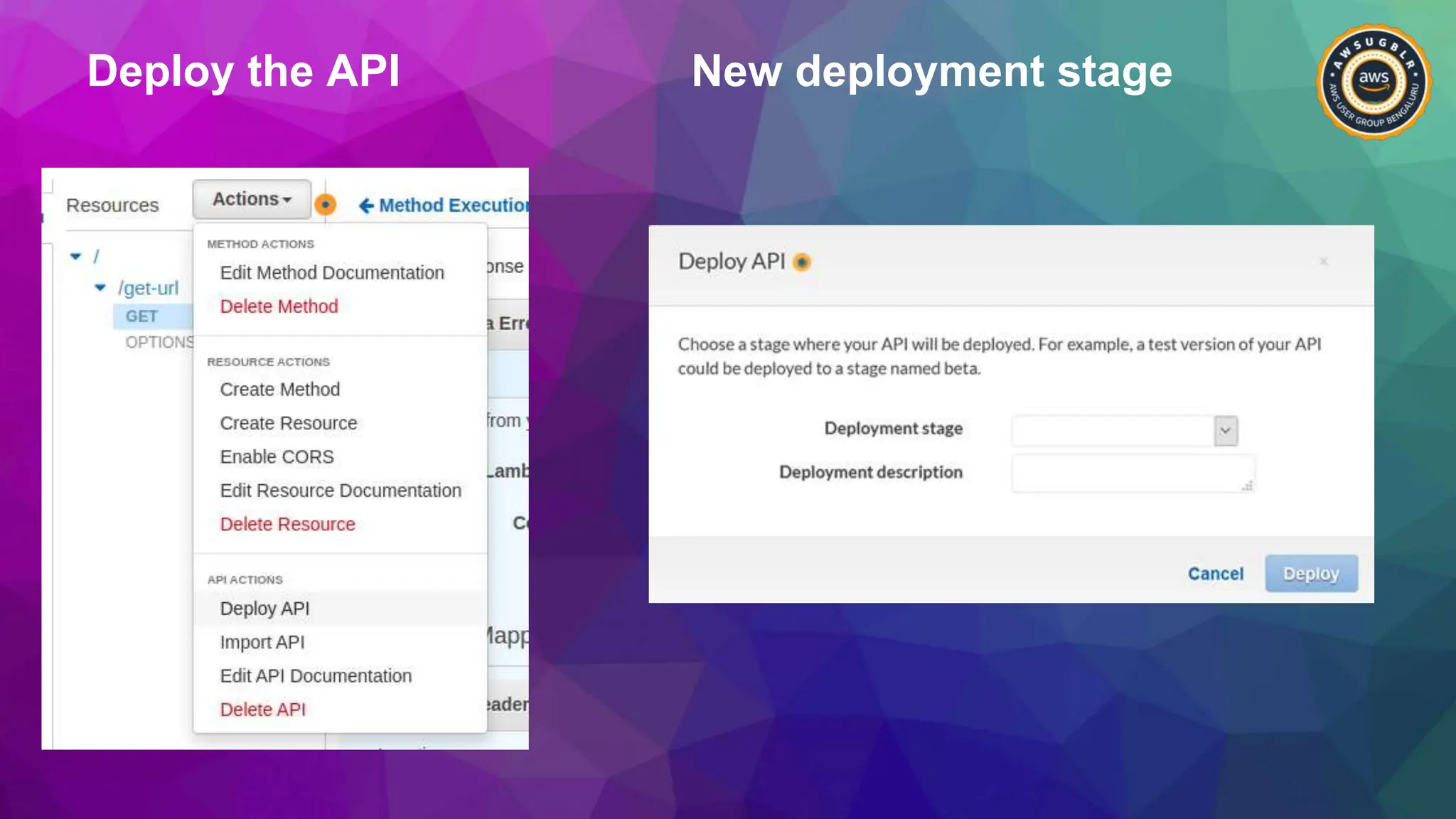

35. Deploy the API New deployment stage

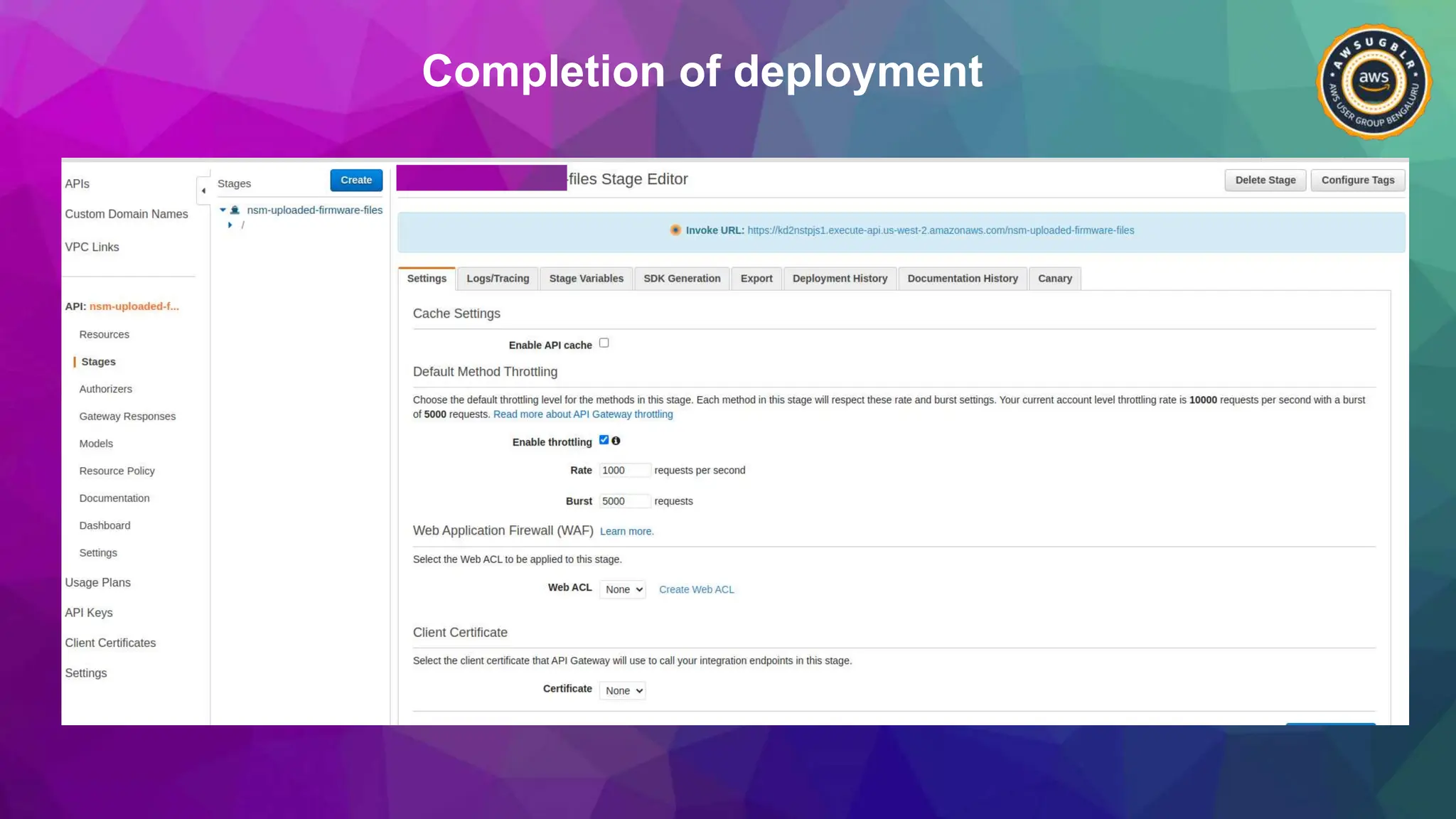

36. Completion of deployment

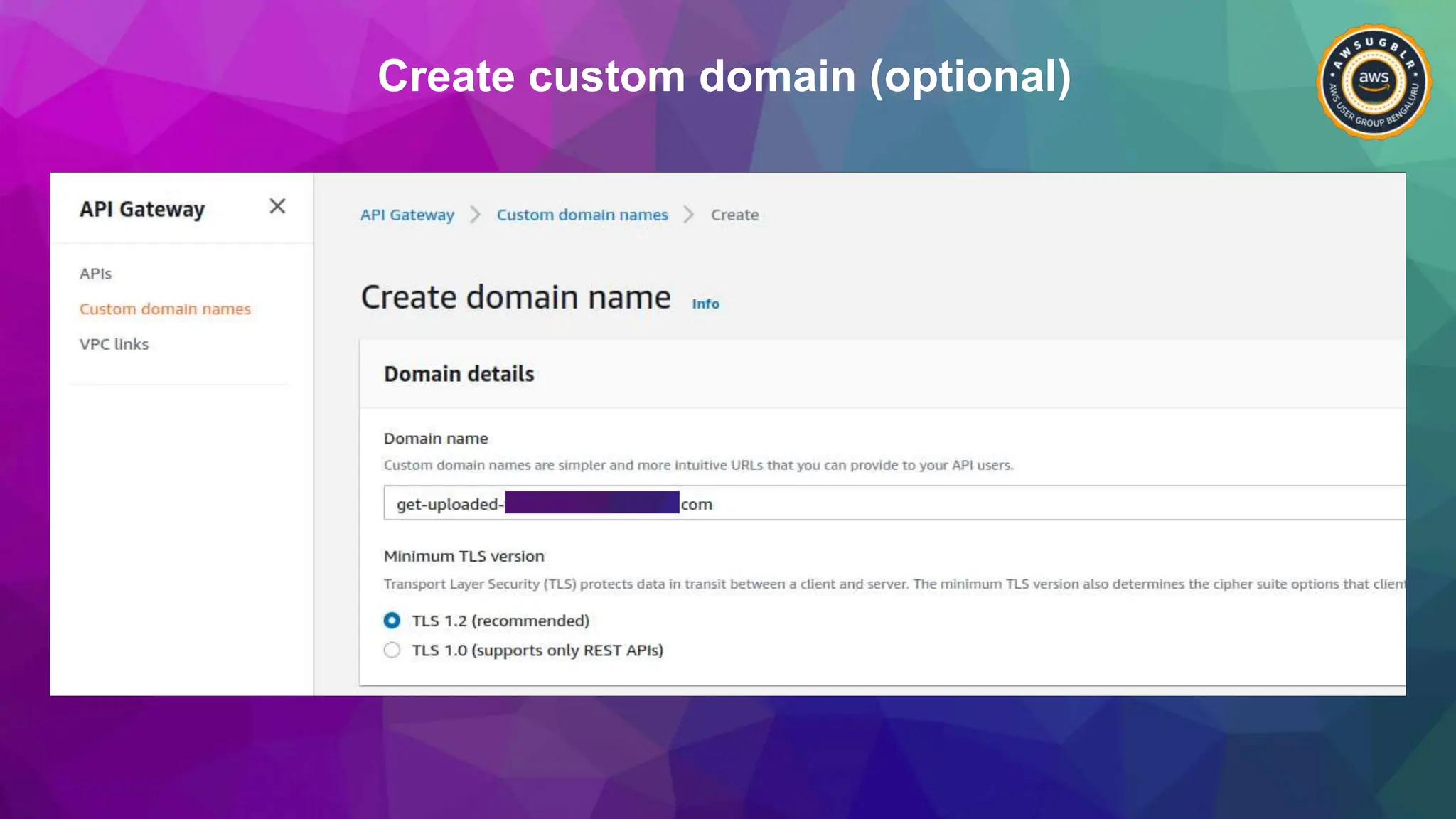

37. Create custom domain (optional)

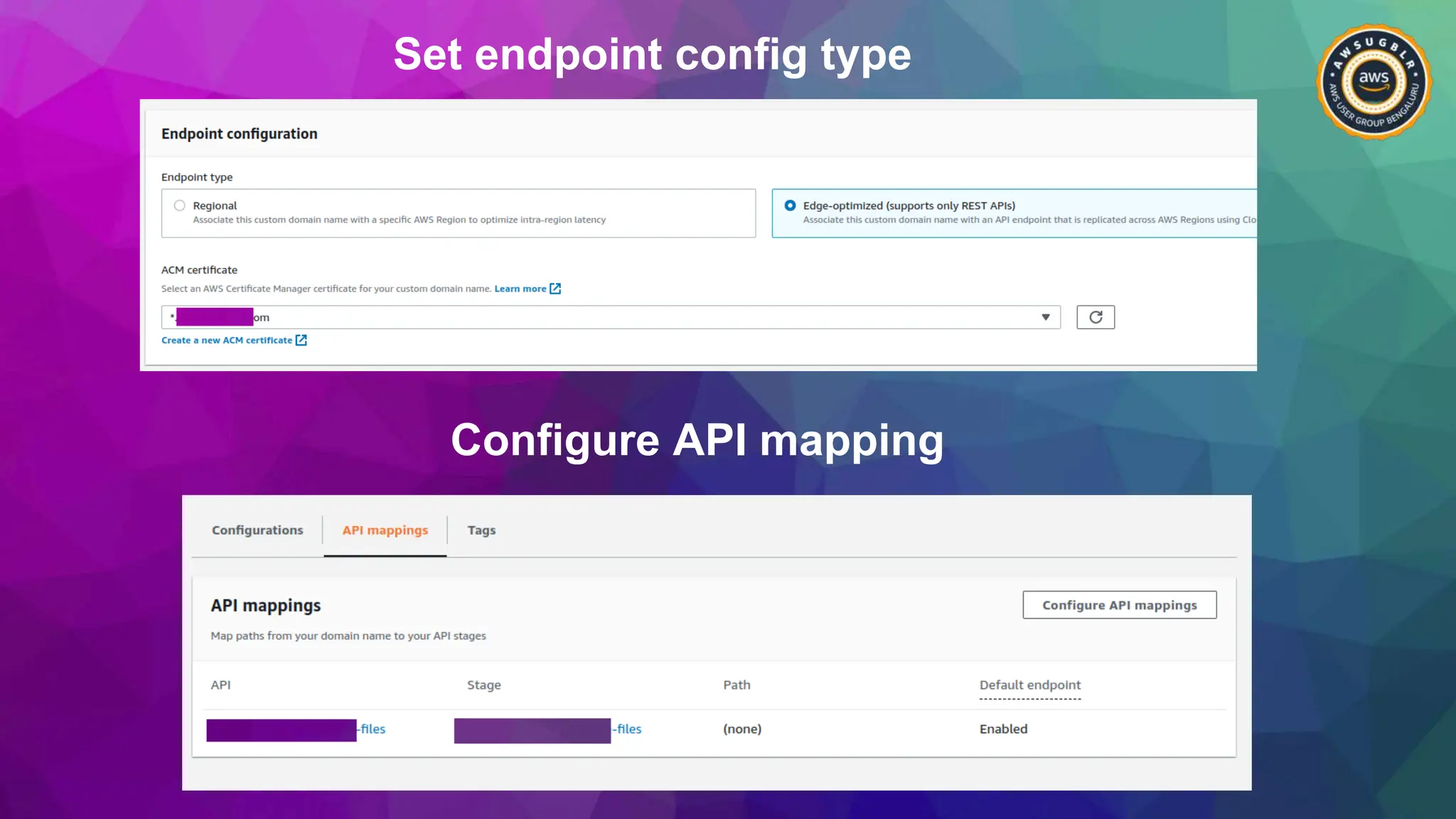

38. Set endpoint config type
Configure API mapping

40. CloudFront Configuration
Distribute it via CDN

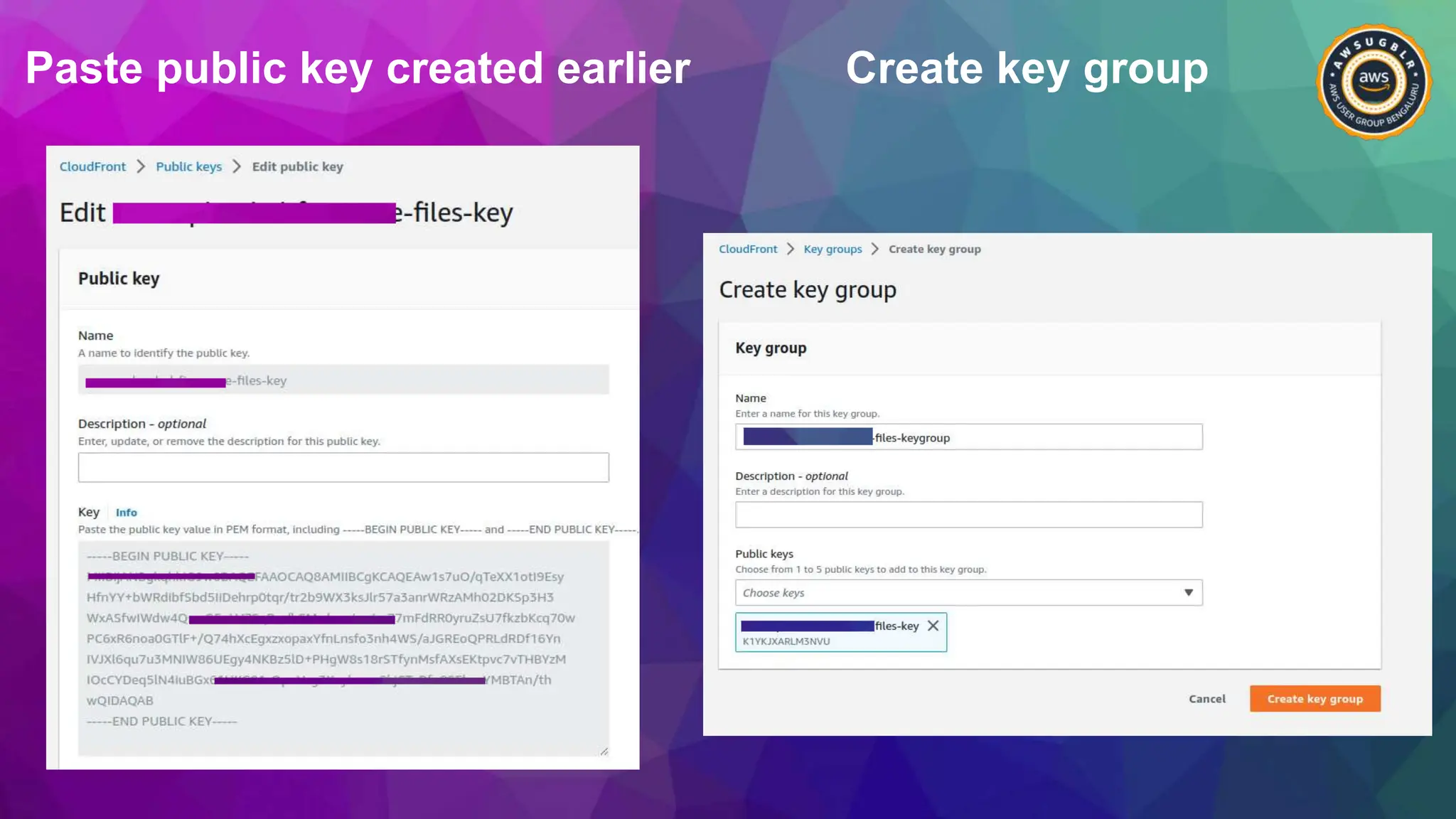

41. Paste public key created earlier Create key group

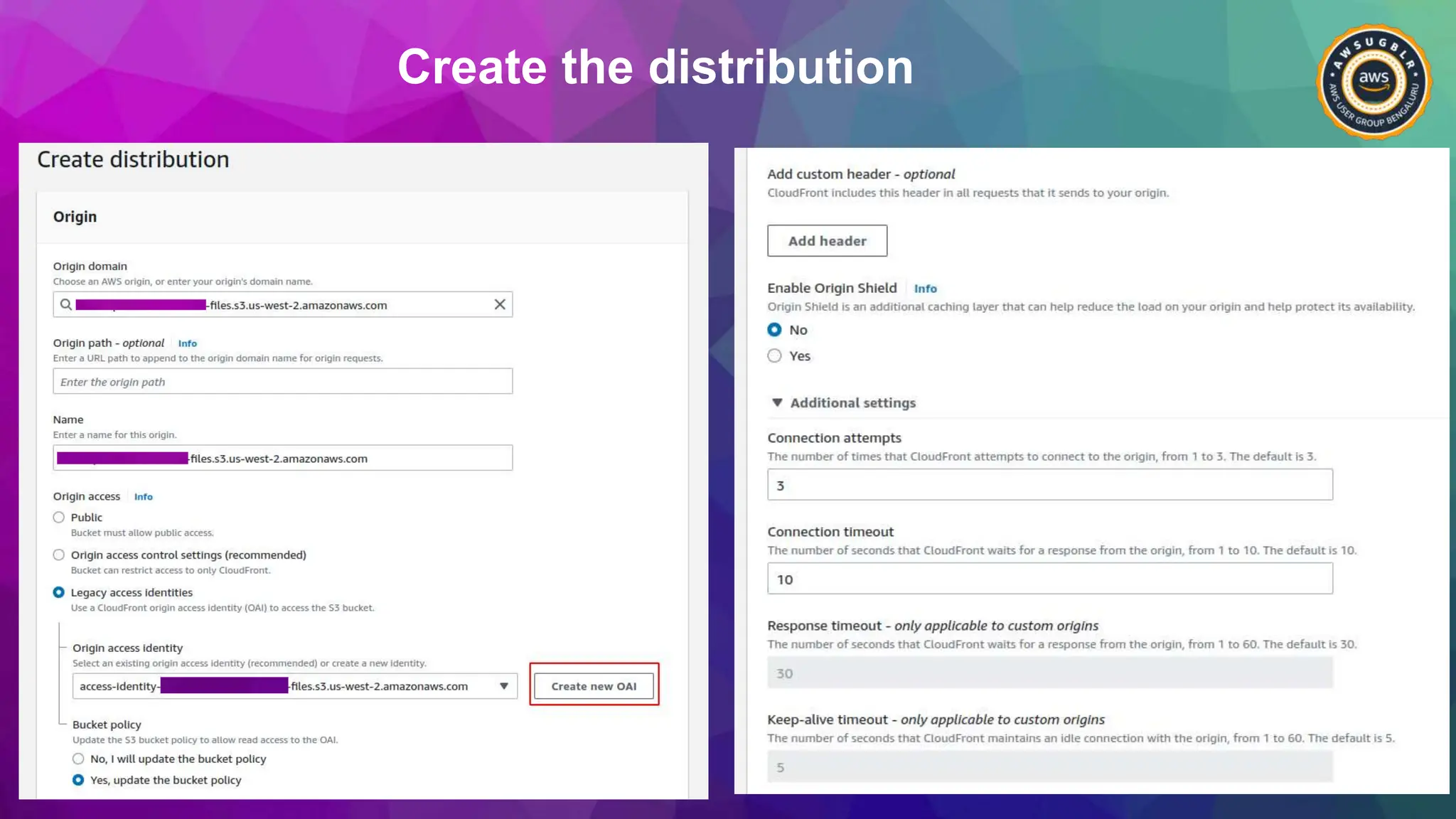

42. Create the distribution

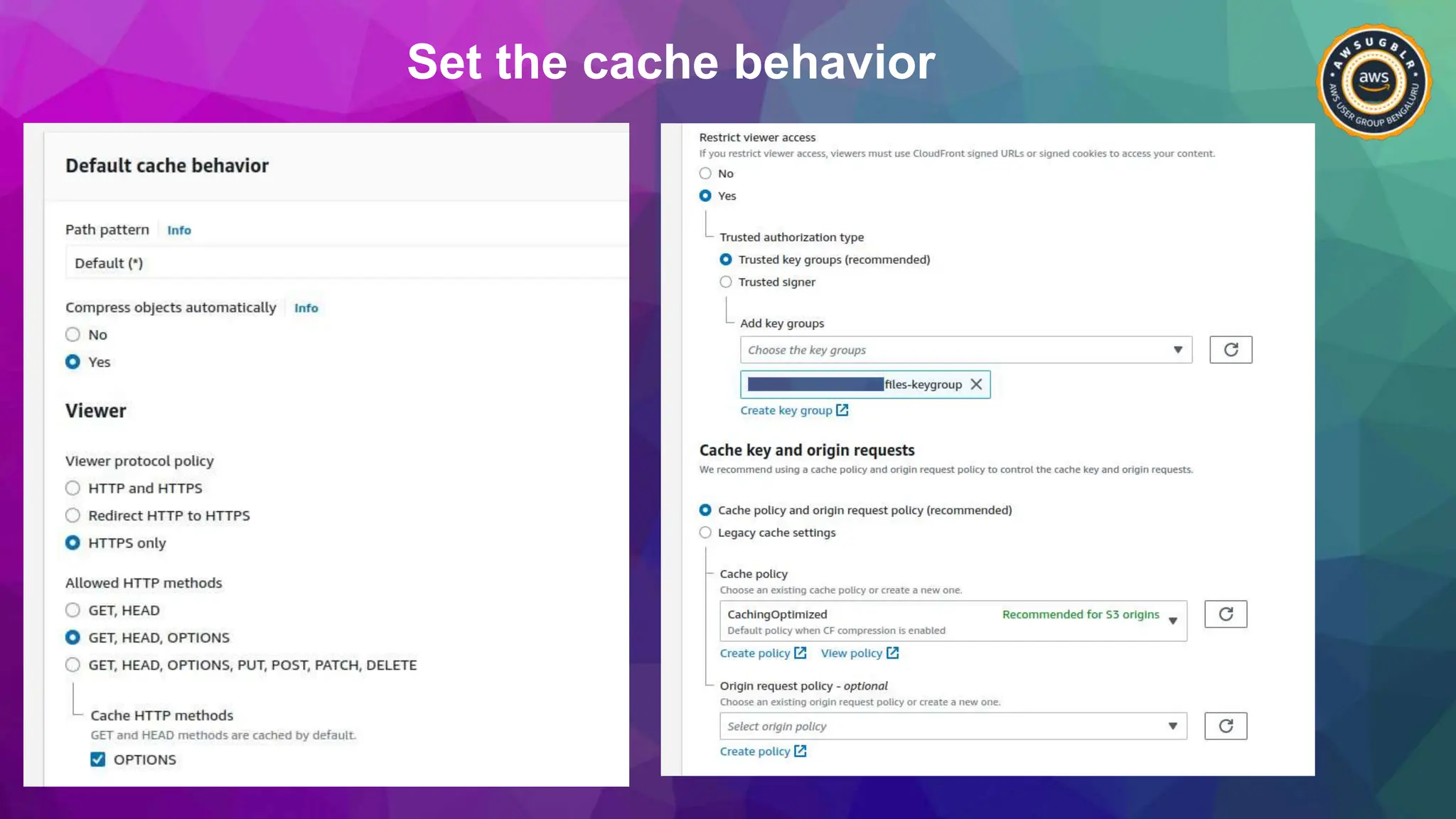

43. Set the cache behavior

44. YAYY!!!
