Solidyne manufactures audio consoles and has been in business for over 40 years. They offer a full line of analog and digital consoles ranging from 6 to 56 channels. Their flagship 2300 series consoles are fully modular, allowing for flexible configuration and future expansion. Key features include VCA control, conductive ceramic faders lasting 20 years, built-in telephone hybrids, digital I/O, and audio over IP capabilities. Solidyne consoles are designed for reliability using professional grade components.

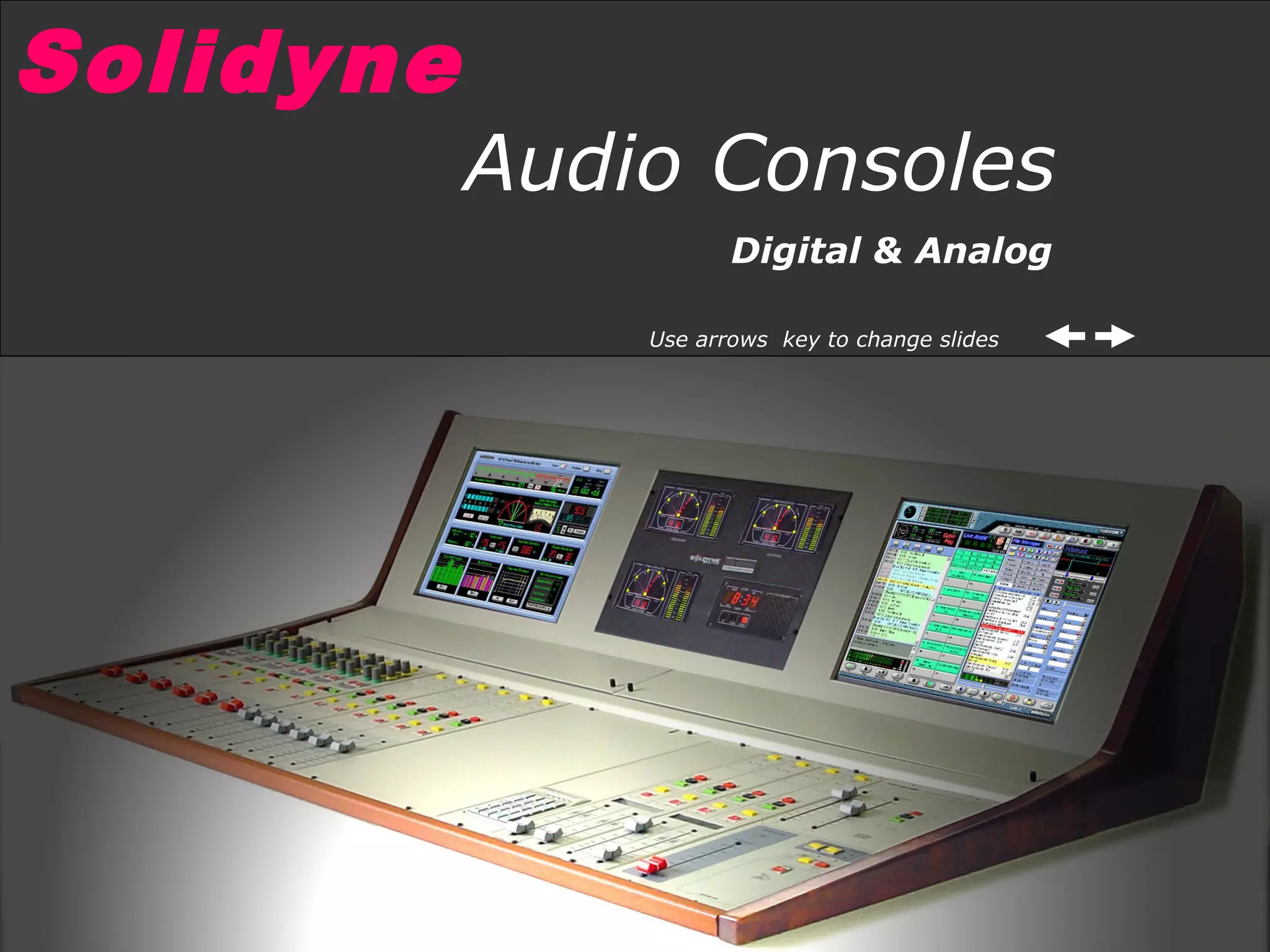

1. Audio Consoles
Digital & Analog
Use arrows key to change slides
Solidyne

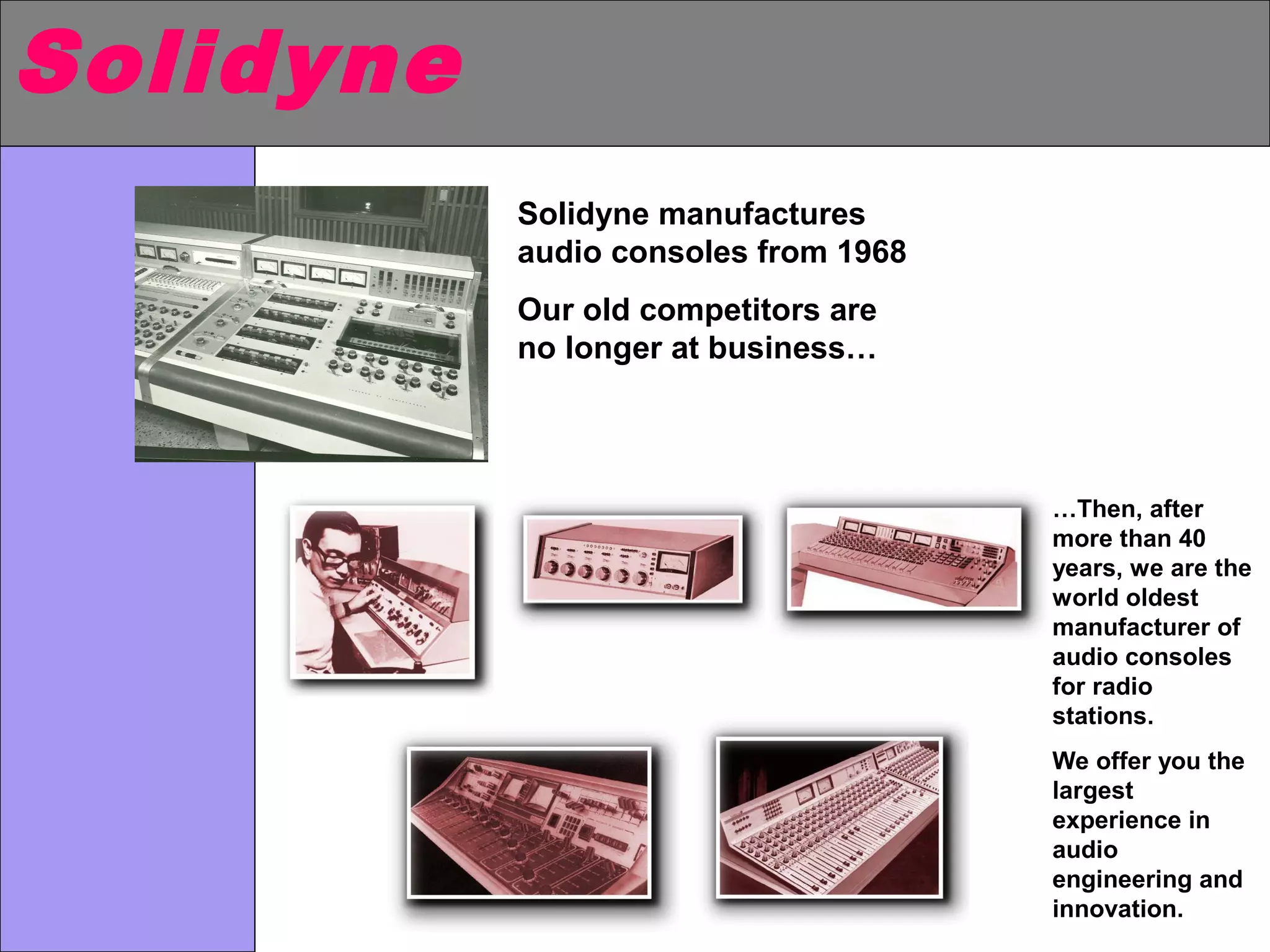

2. Solidyne
Solidyne manufactures
audio consoles from 1968
Our old competitors are
no longer at business…
…Then, after
more than 40
years, we are the
world oldest
manufacturer of
audio consoles
for radio
stations.
We offer you the
largest
experience in
audio
engineering and
innovation.

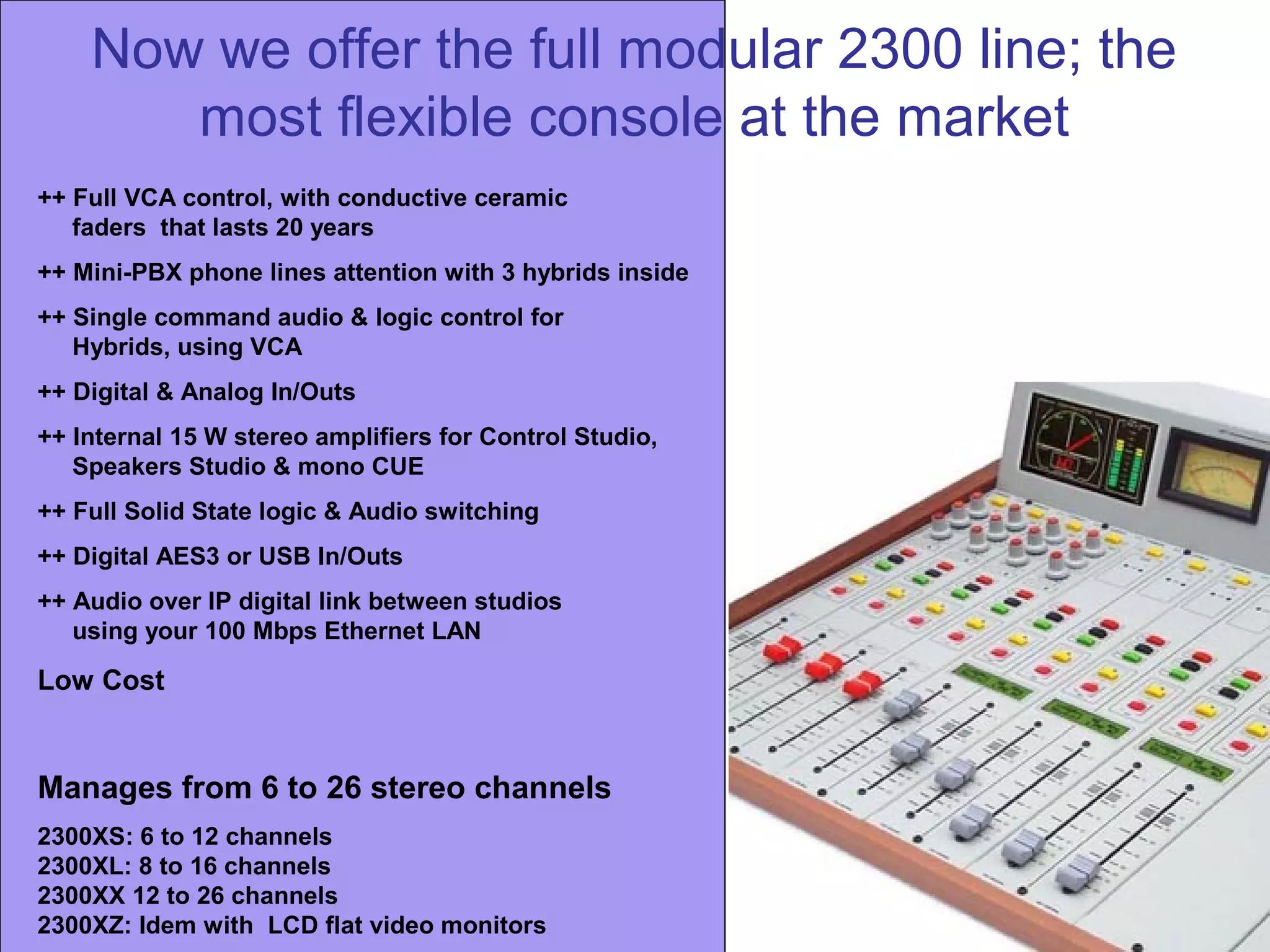

3. Now we offer the full modular 2300 line; the
most flexible console at the market
++ Full VCA control, with conductive ceramic
faders that lasts 20 years
++ Mini-PBX phone lines attention with 3 hybrids inside
++ Single command audio & logic control for
Hybrids, using VCA
++ Digital & Analog In/Outs
++ Internal 15 W stereo amplifiers for Control Studio,
Speakers Studio & mono CUE
++ Full Solid State logic & Audio switching
++ Digital AES3 or USB In/Outs
++ Audio over IP digital link between studios
using your 100 Mbps Ethernet LAN
Low Cost
Manages from 6 to 26 stereo channels
2300XS: 6 to 12 channels
2300XL: 8 to 16 channels
2300XX 12 to 26 channels
2300XZ: Idem with LCD flat video monitors

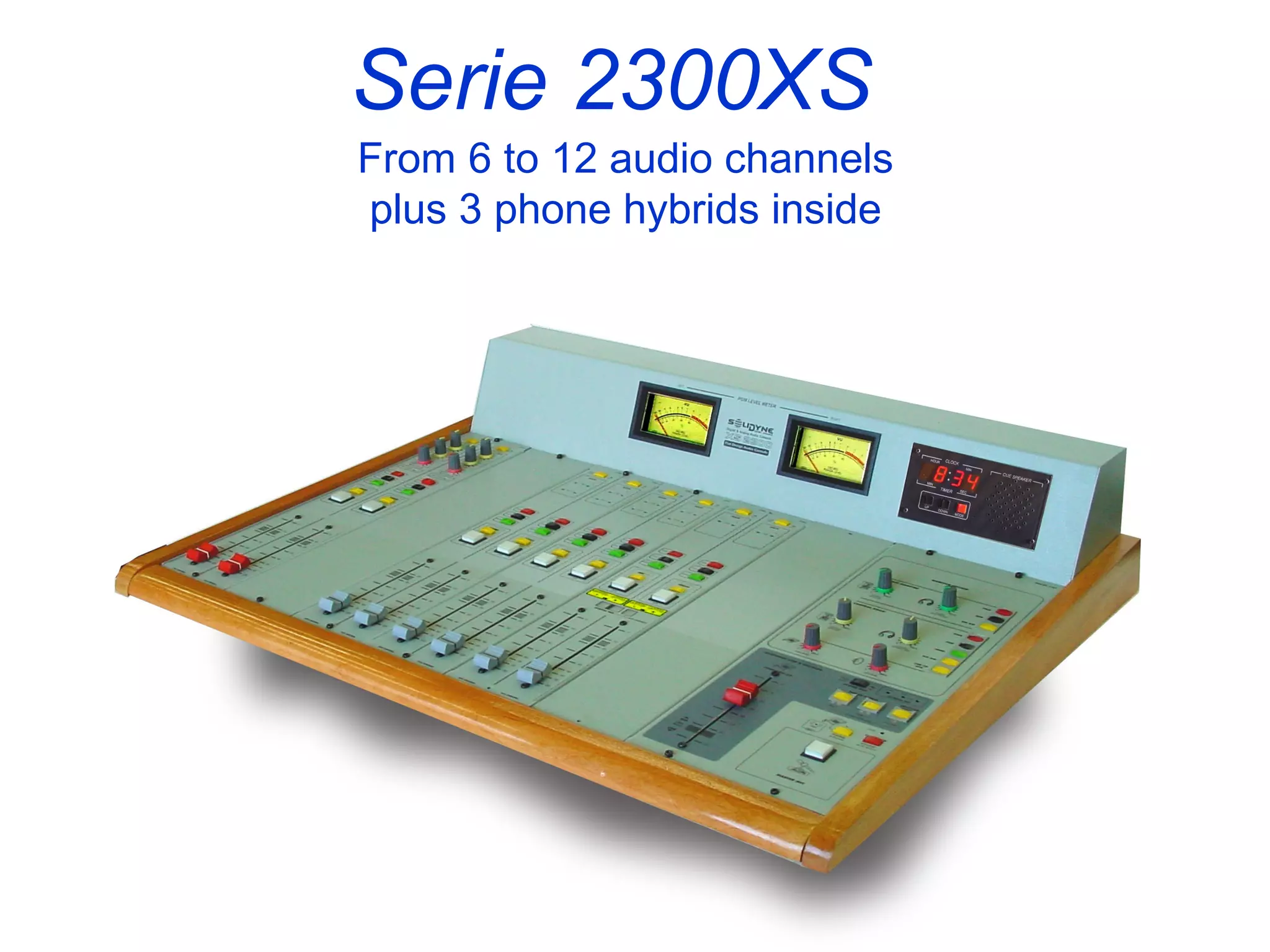

4. Serie 2300XS
From 6 to 12 audio channels
plus 3 phone hybrids inside

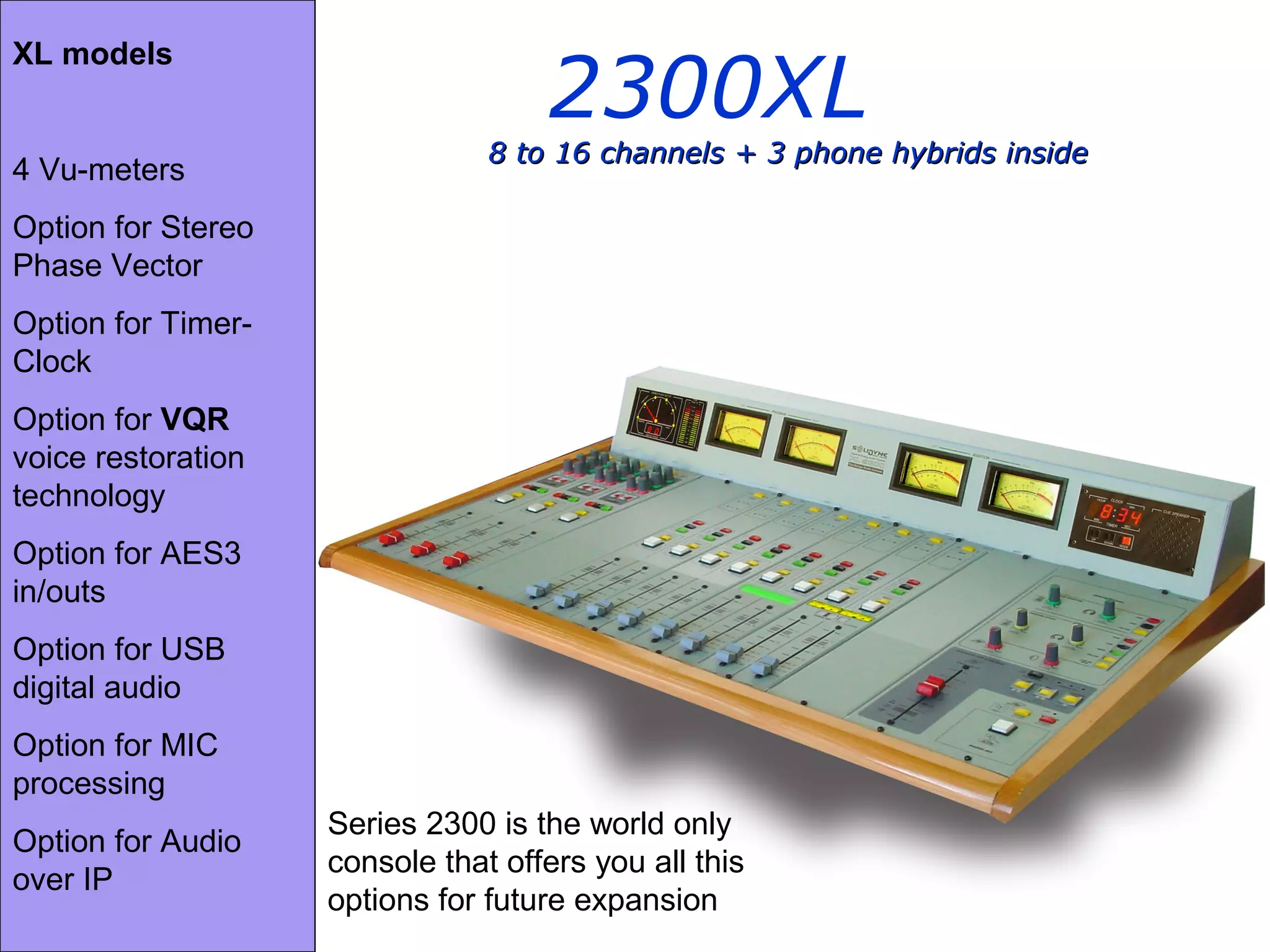

5. 2300XL
8 to 16 channels + 3 phone hybrids inside8 to 16 channels + 3 phone hybrids inside
XL models
4 Vu-meters
Option for Stereo
Phase Vector
Option for Timer-
Clock
Option for VQR
voice restoration
technology
Option for AES3
in/outs
Option for USB
digital audio
Option for MIC
processing
Option for Audio
over IP
Series 2300 is the world only
console that offers you all this
options for future expansion

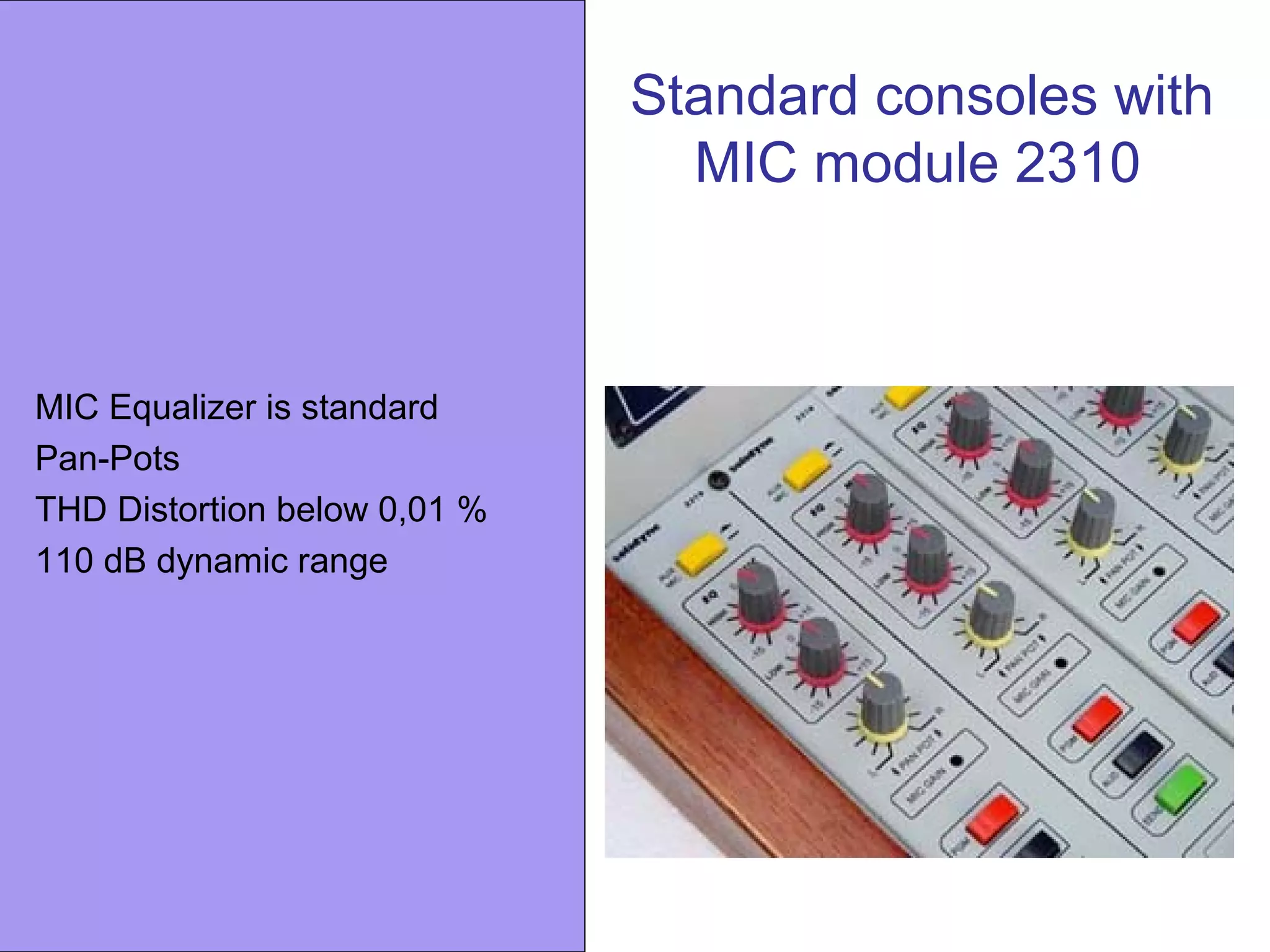

6. Standard consoles with
MIC module 2310
MIC Equalizer is standard
Pan-Pots
THD Distortion below 0,01 %
110 dB dynamic range

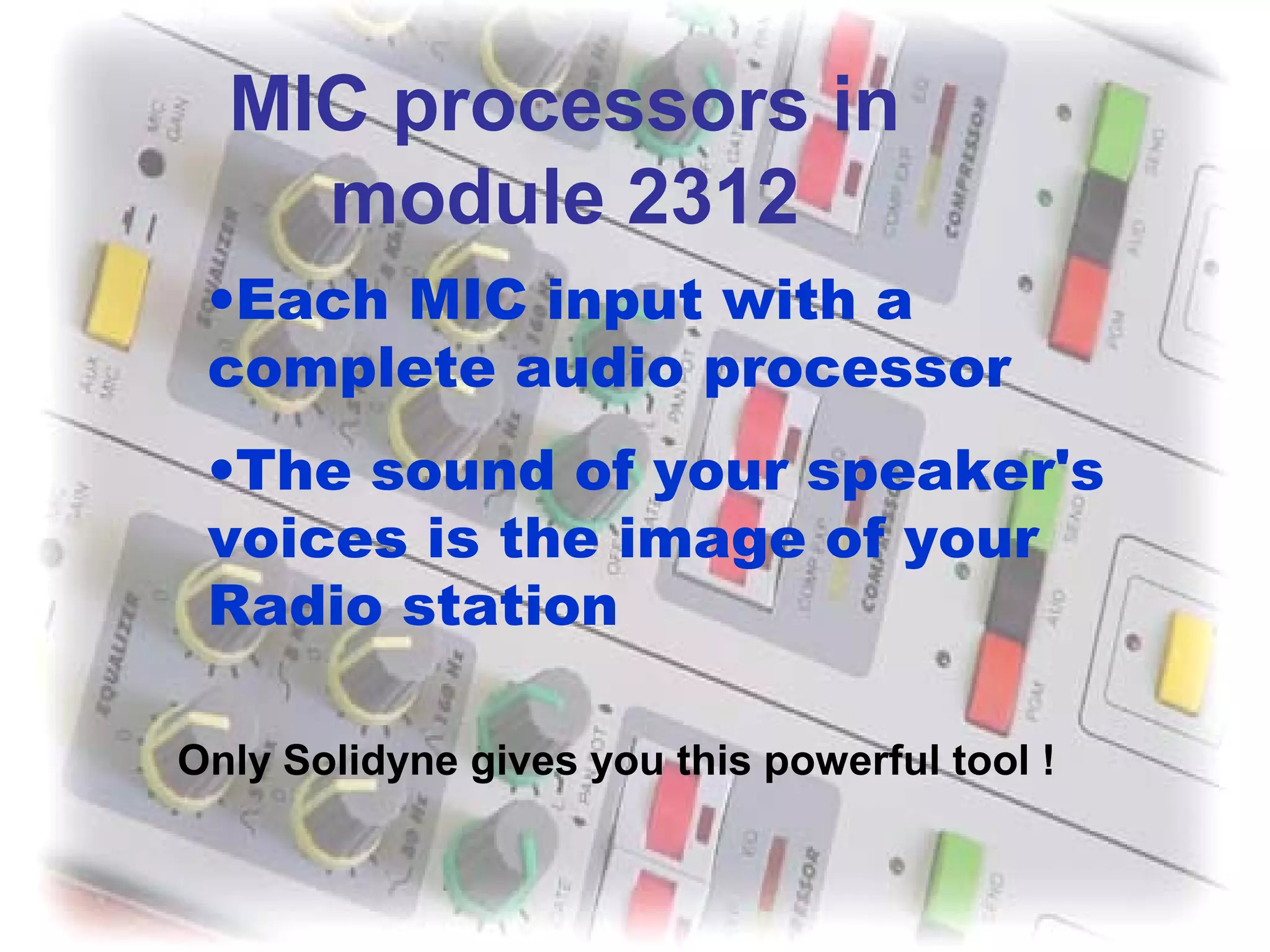

7. MIC processors in
module 2312
•Each MIC input with a
complete audio processor
•The sound of your speaker's
voices is the image of your
Radio station
Only Solidyne gives you this powerful tool !

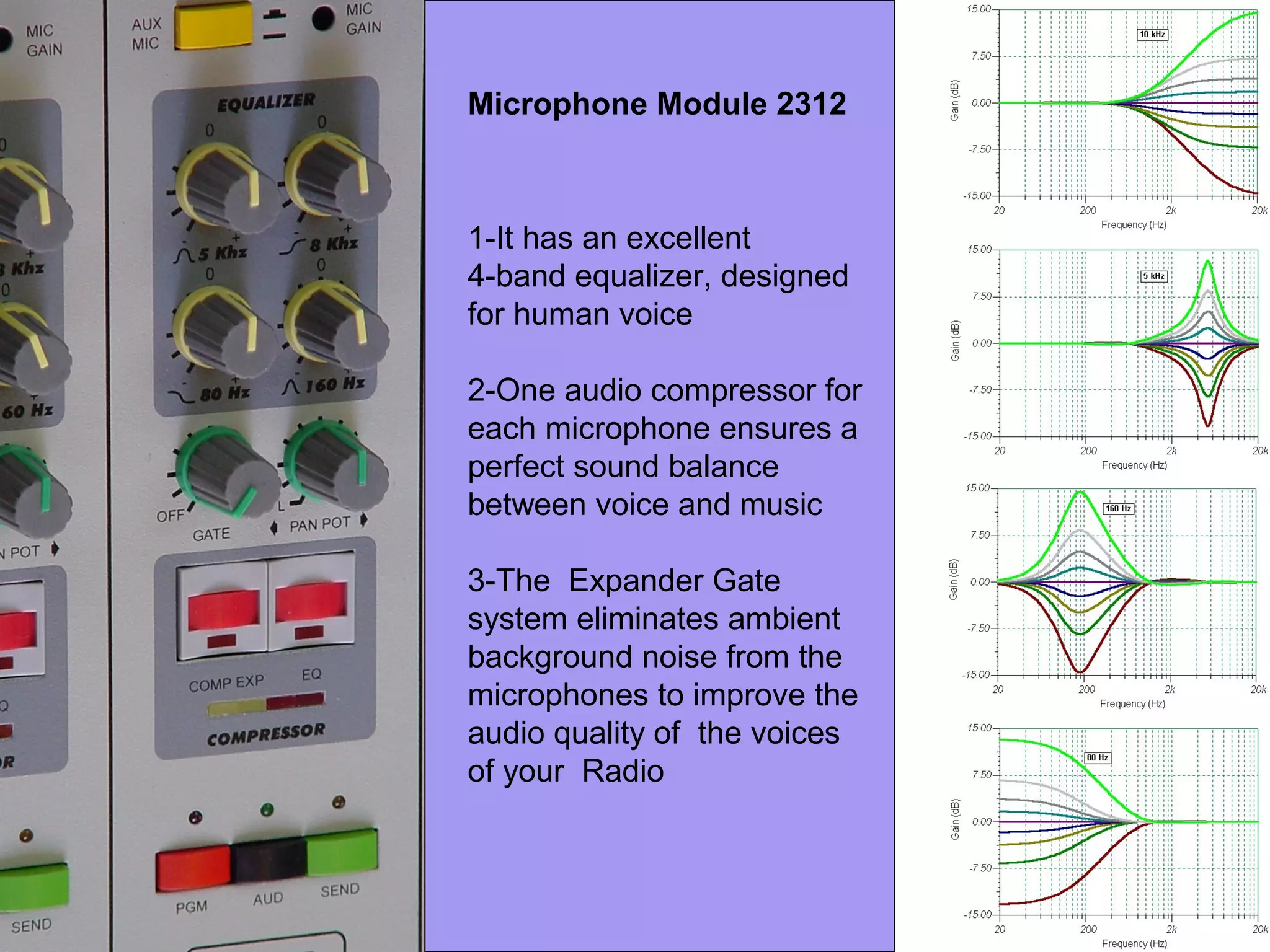

8. Microphone Module 2312
1-It has an excellent
4-band equalizer, designed
for human voice
2-One audio compressor for
each microphone ensures a
perfect sound balance
between voice and music
3-The Expander Gate
system eliminates ambient
background noise from the
microphones to improve the
audio quality of the voices
of your Radio

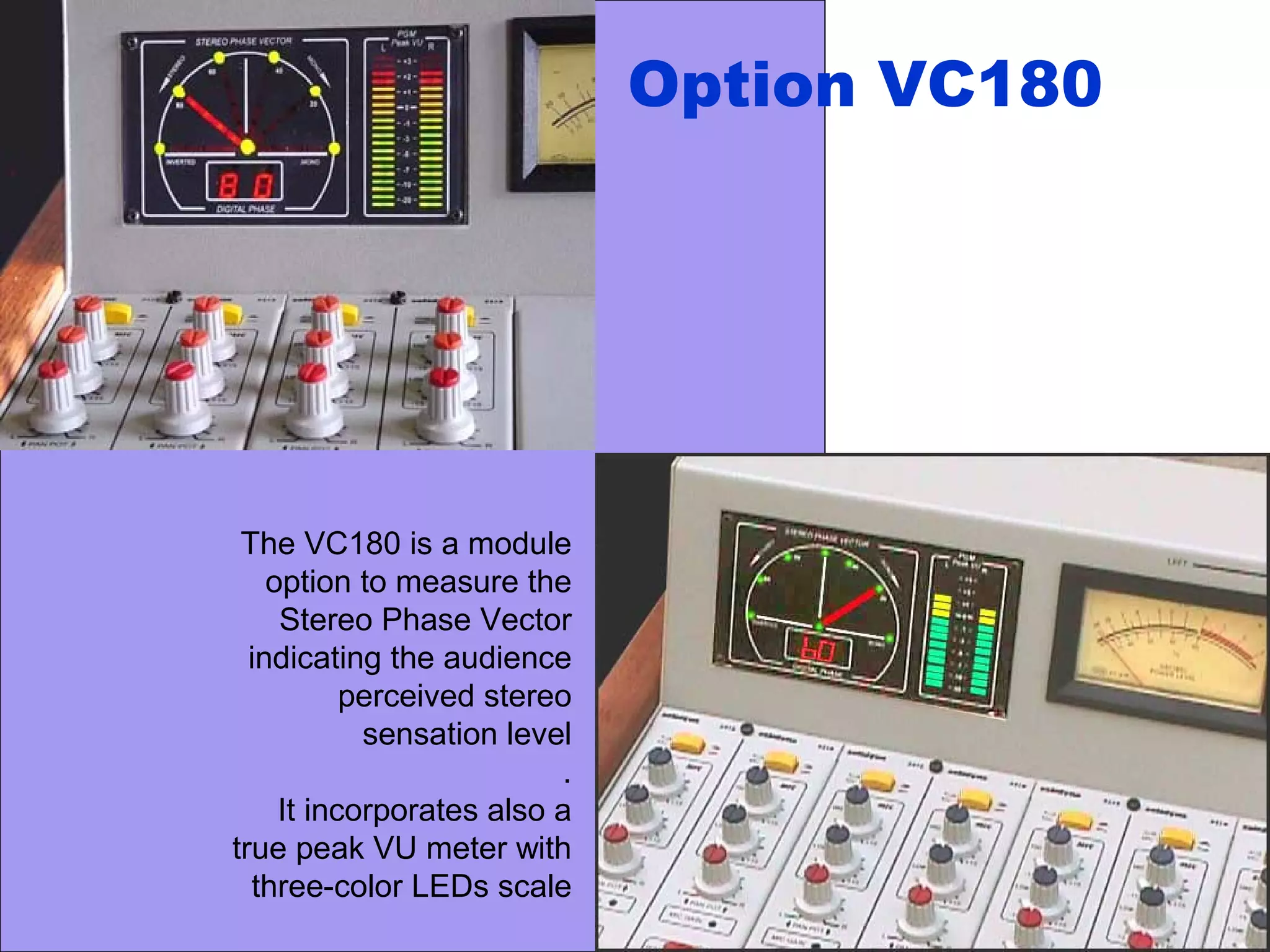

9. The VC180 is a module
option to measure the
Stereo Phase Vector
indicating the audience
perceived stereo
sensation level
.
It incorporates also a
true peak VU meter with
three-color LEDs scale
Option VC180

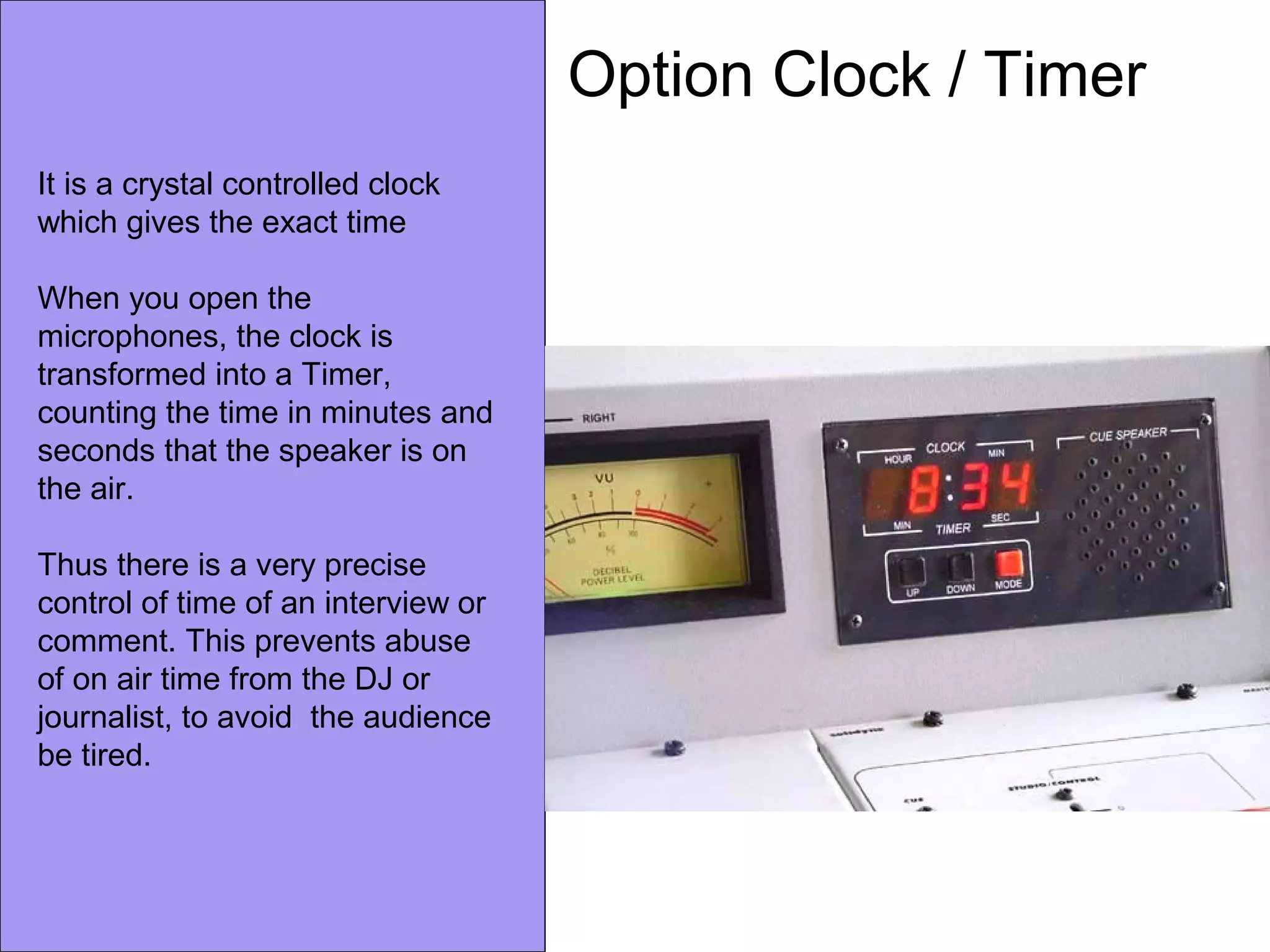

10. Option Clock / Timer
It is a crystal controlled clock
which gives the exact time
When you open the
microphones, the clock is
transformed into a Timer,
counting the time in minutes and
seconds that the speaker is on
the air.
Thus there is a very precise
control of time of an interview or
comment. This prevents abuse
of on air time from the DJ or
journalist, to avoid the audience
be tired.

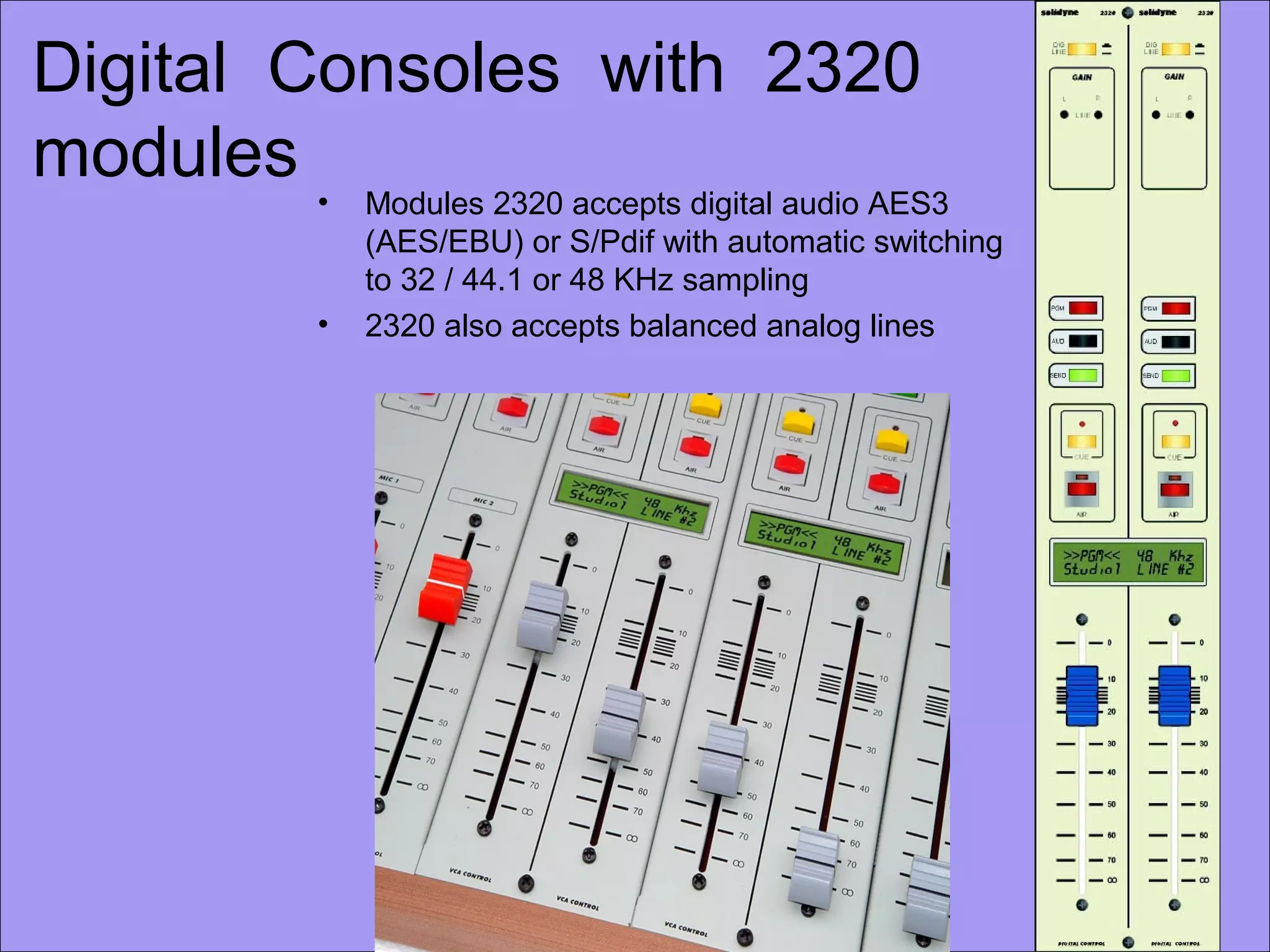

11. Digital Consoles with 2320
modules
• Modules 2320 accepts digital audio AES3
(AES/EBU) or S/Pdif with automatic switching
to 32 / 44.1 or 48 KHz sampling
• 2320 also accepts balanced analog lines

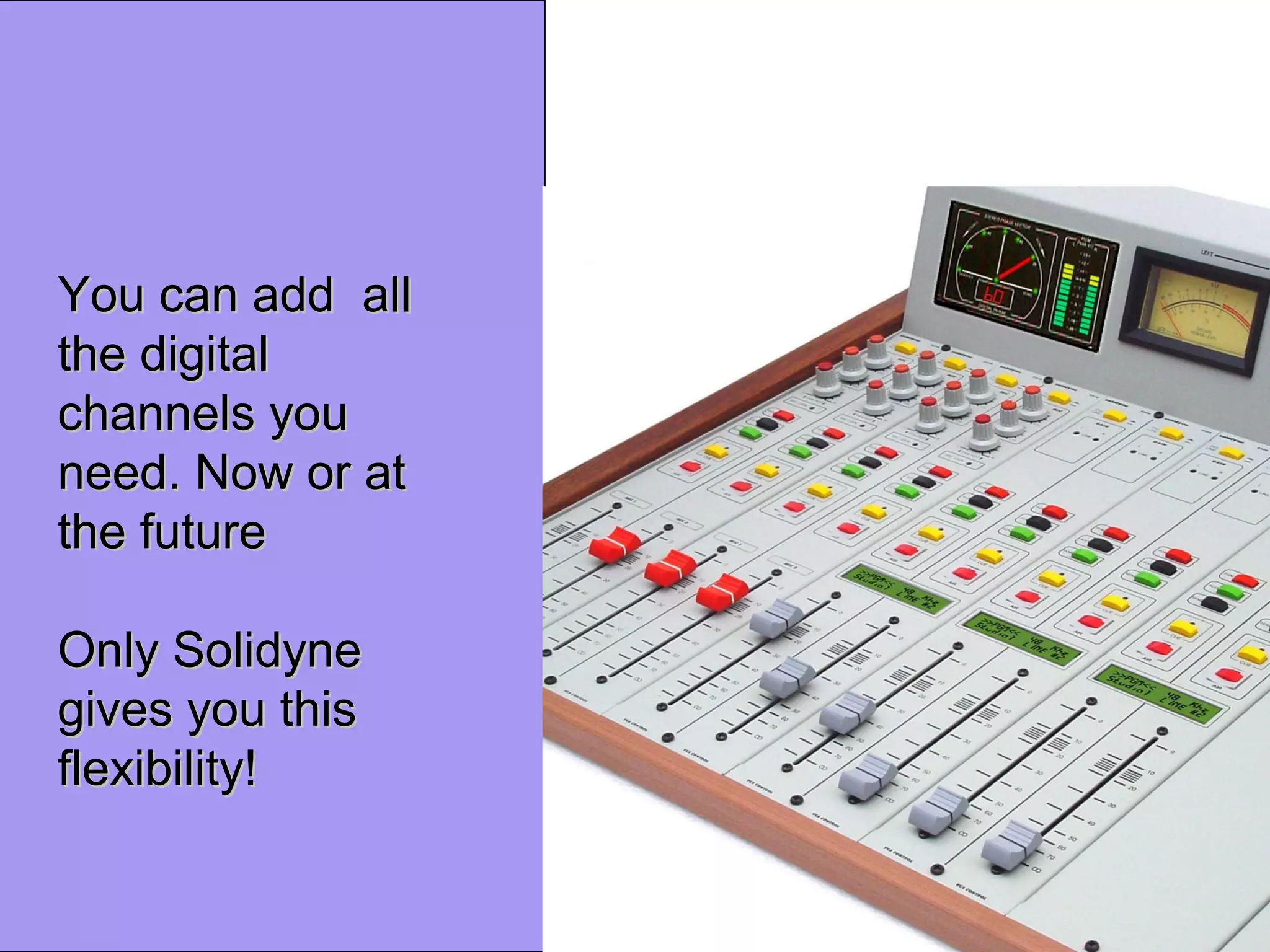

12. You can add allYou can add all
the digitalthe digital
channels youchannels you
need. Now or atneed. Now or at
the futurethe future
Only SolidyneOnly Solidyne
gives you thisgives you this
flexibility!flexibility!

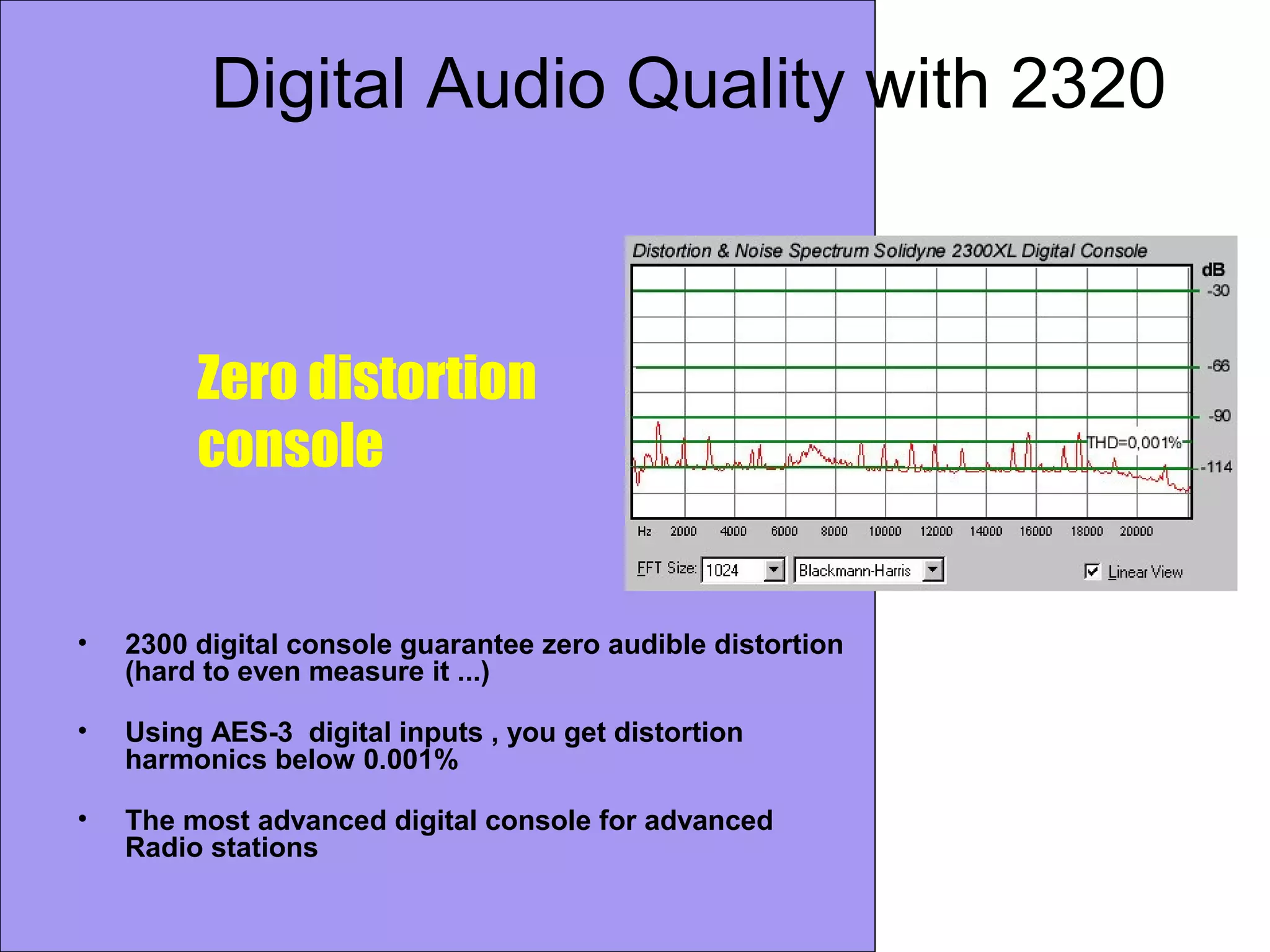

13. Digital Audio Quality with 2320
• 2300 digital console guarantee zero audible distortion
(hard to even measure it ...)
• Using AES-3 digital inputs , you get distortion
harmonics below 0.001%
• The most advanced digital console for advanced
Radio stations
Zero distortion
console

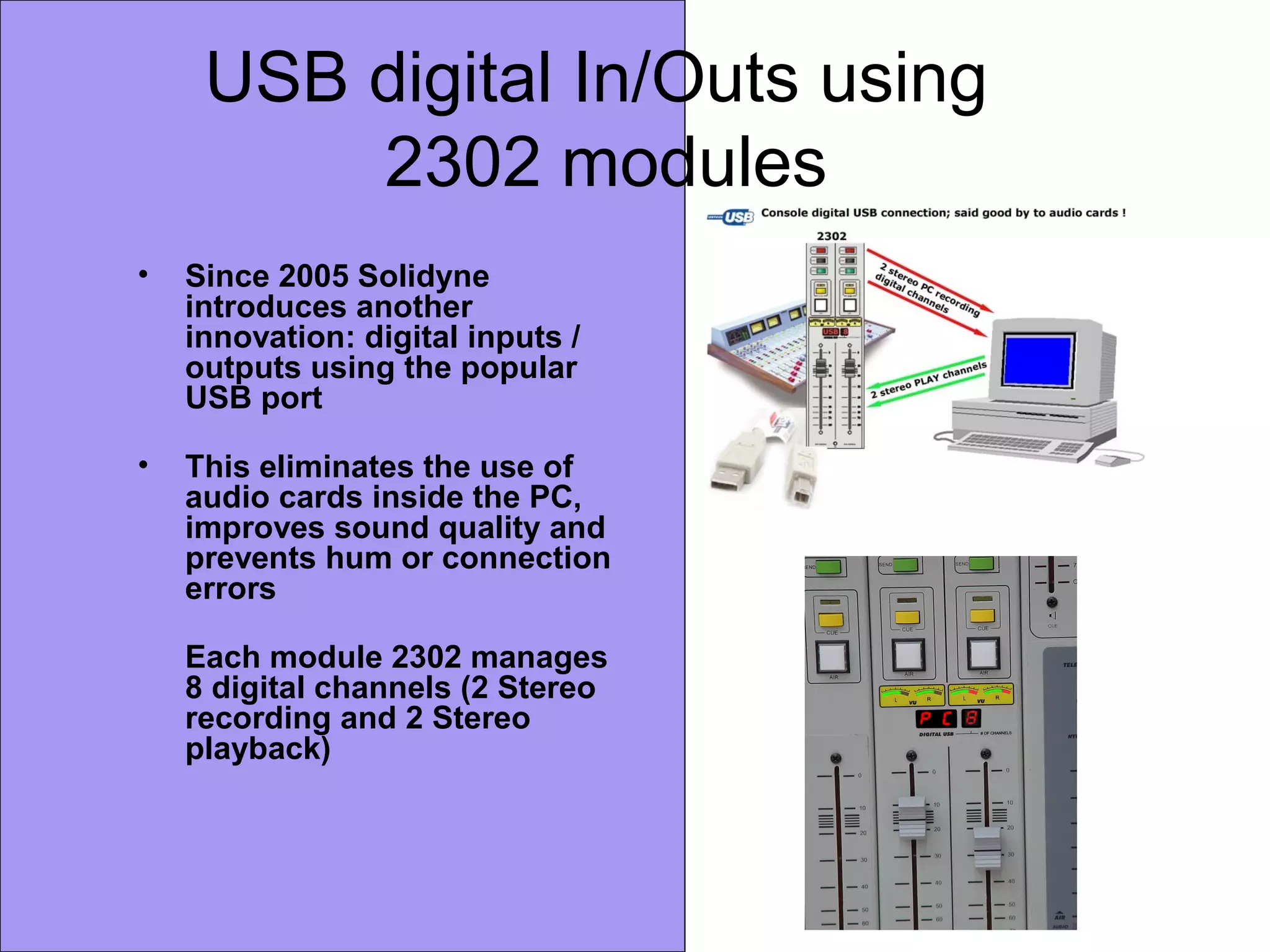

14. USB digital In/Outs using
2302 modules
• Since 2005 Solidyne
introduces another
innovation: digital inputs /
outputs using the popular
USB port
• This eliminates the use of
audio cards inside the PC,
improves sound quality and
prevents hum or connection
errors
Each module 2302 manages
8 digital channels (2 Stereo
recording and 2 Stereo
playback)

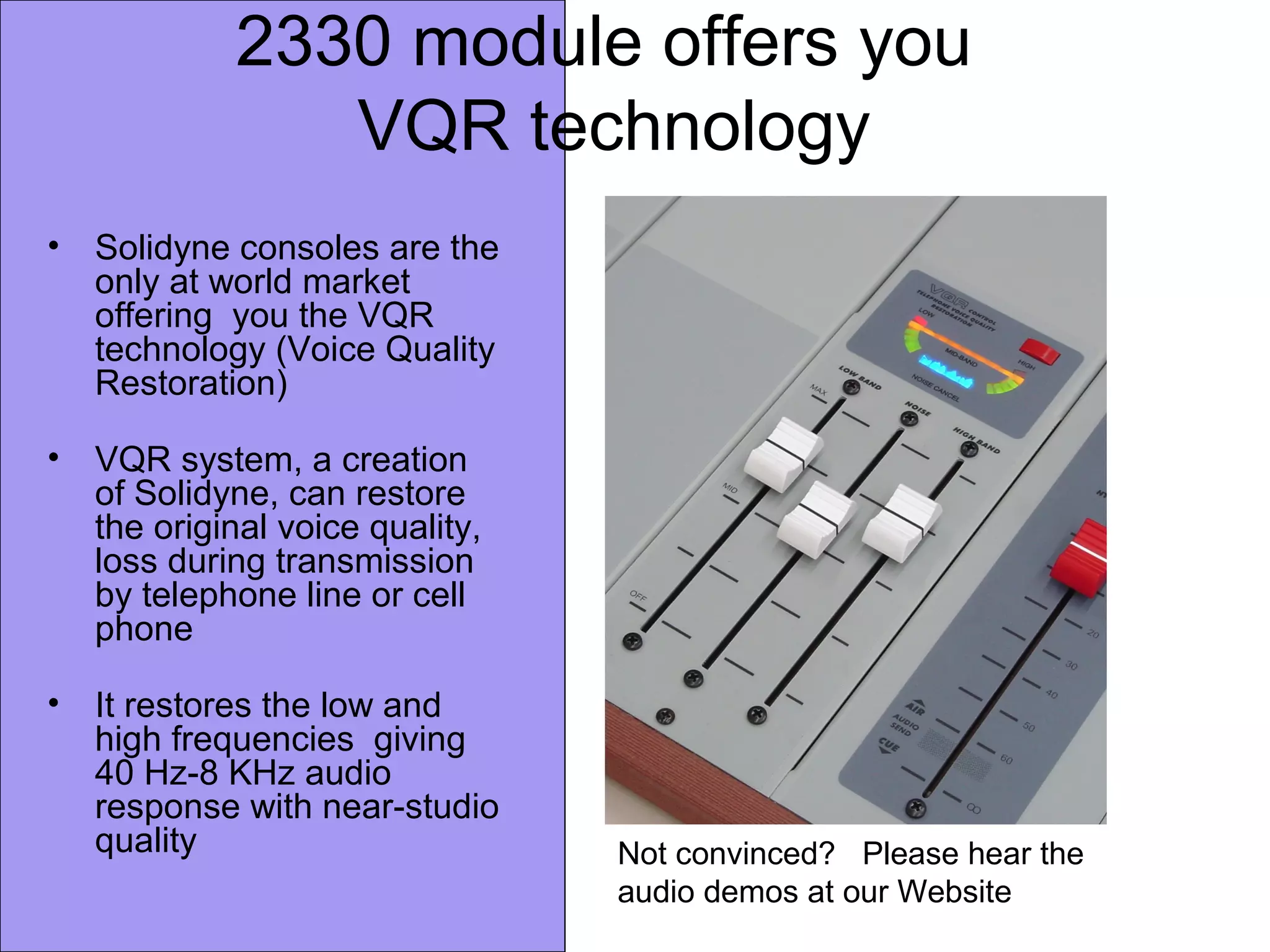

15. 2330 module offers you
VQR technology
• Solidyne consoles are the
only at world market
offering you the VQR
technology (Voice Quality
Restoration)
• VQR system, a creation
of Solidyne, can restore
the original voice quality,
loss during transmission
by telephone line or cell
phone
• It restores the low and
high frequencies giving
40 Hz-8 KHz audio
response with near-studio
quality Not convinced? Please hear the
audio demos at our Website

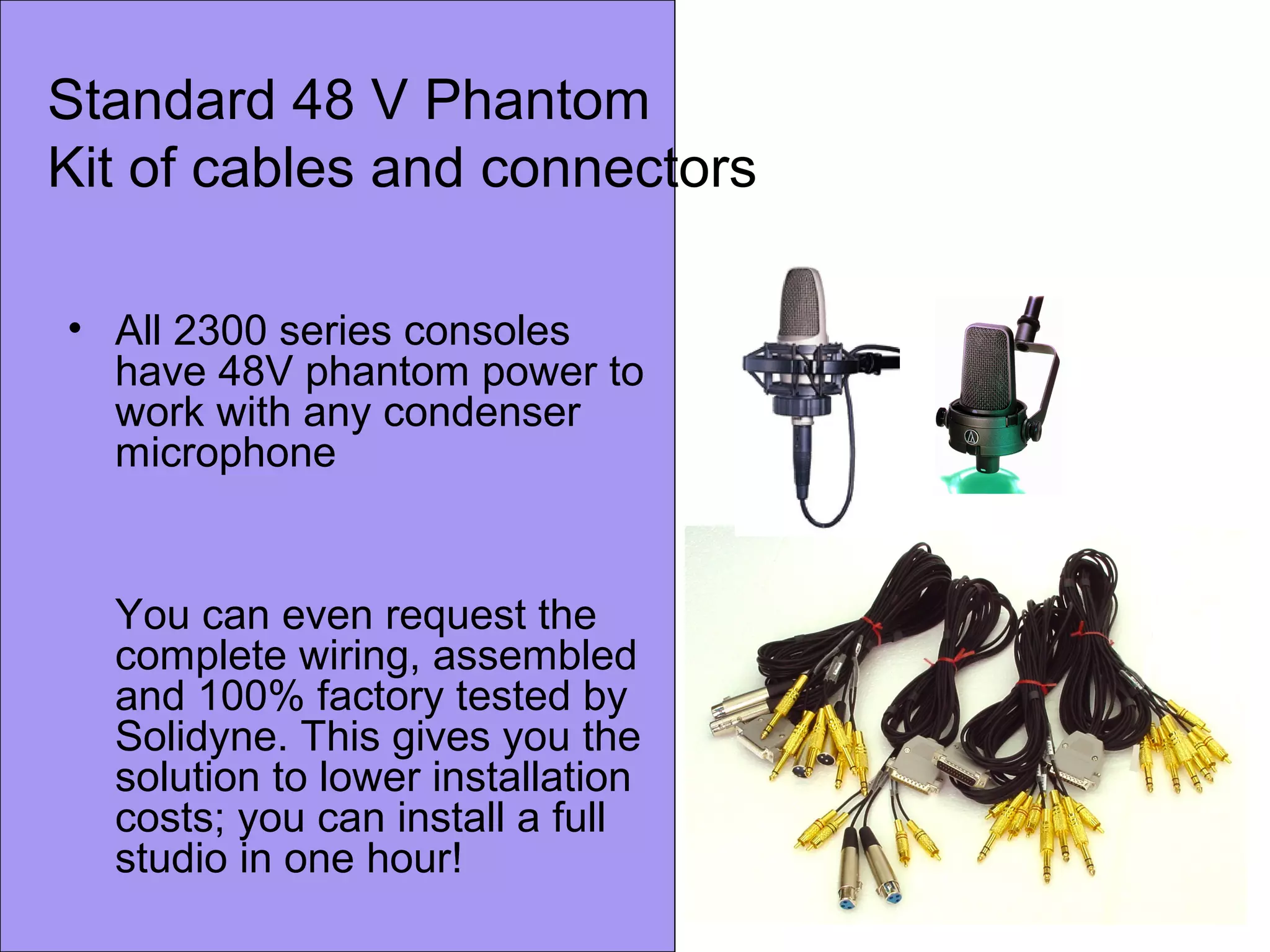

16. Standard 48 V Phantom
Kit of cables and connectors
• All 2300 series consoles
have 48V phantom power to
work with any condenser
microphone
You can even request the
complete wiring, assembled
and 100% factory tested by
Solidyne. This gives you the
solution to lower installation
costs; you can install a full
studio in one hour!

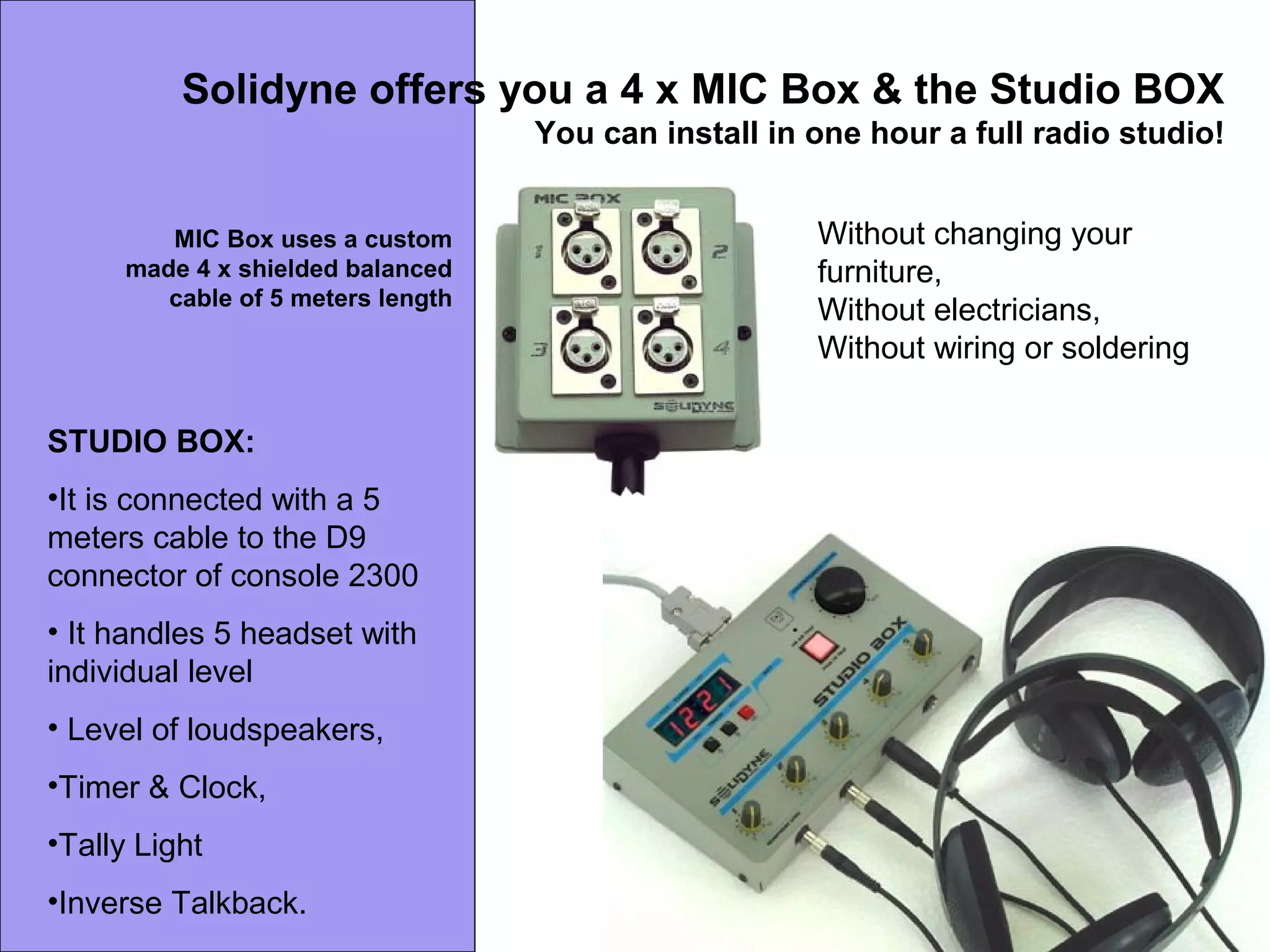

17. Solidyne offers you a 4 x MIC Box & the Studio BOX
You can install in one hour a full radio studio!
Without changing your
furniture,
Without electricians,
Without wiring or soldering
MIC Box uses a custom
made 4 x shielded balanced
cable of 5 meters length
STUDIO BOX:
•It is connected with a 5
meters cable to the D9
connector of console 2300
• It handles 5 headset with
individual level
• Level of loudspeakers,
•Timer & Clock,
•Tally Light
•Inverse Talkback.

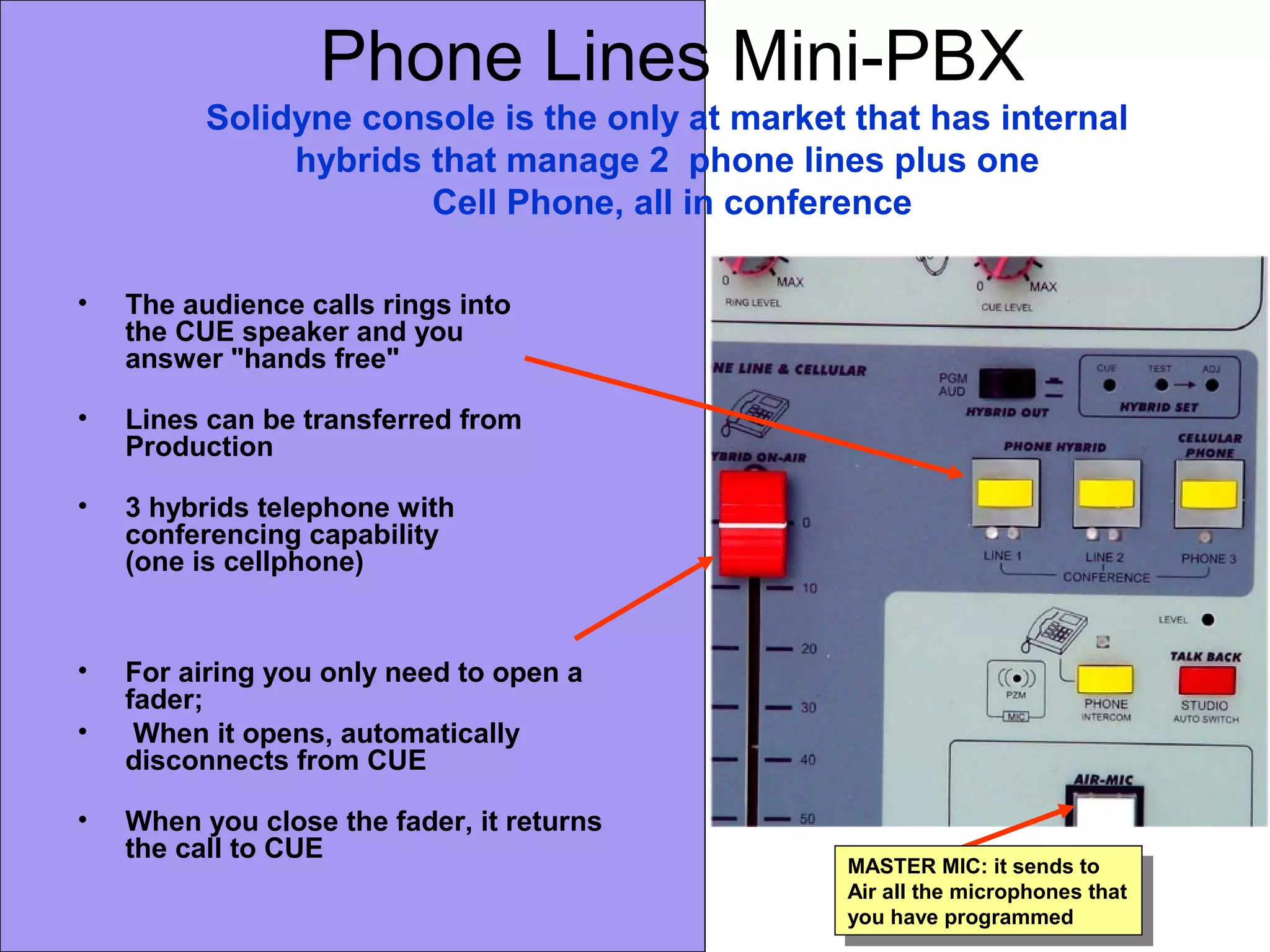

18. Phone Lines Mini-PBX
Solidyne console is the only at market that has internal
hybrids that manage 2 phone lines plus one
Cell Phone, all in conference
• The audience calls rings into
the CUE speaker and you
answer "hands free"
• Lines can be transferred from
Production
• 3 hybrids telephone with
conferencing capability
(one is cellphone)
• For airing you only need to open a
fader;
• When it opens, automatically
disconnects from CUE
• When you close the fader, it returns
the call to CUE
MASTER MIC: it sends to
Air all the microphones that
you have programmed
MASTER MIC: it sends to
Air all the microphones that
you have programmed

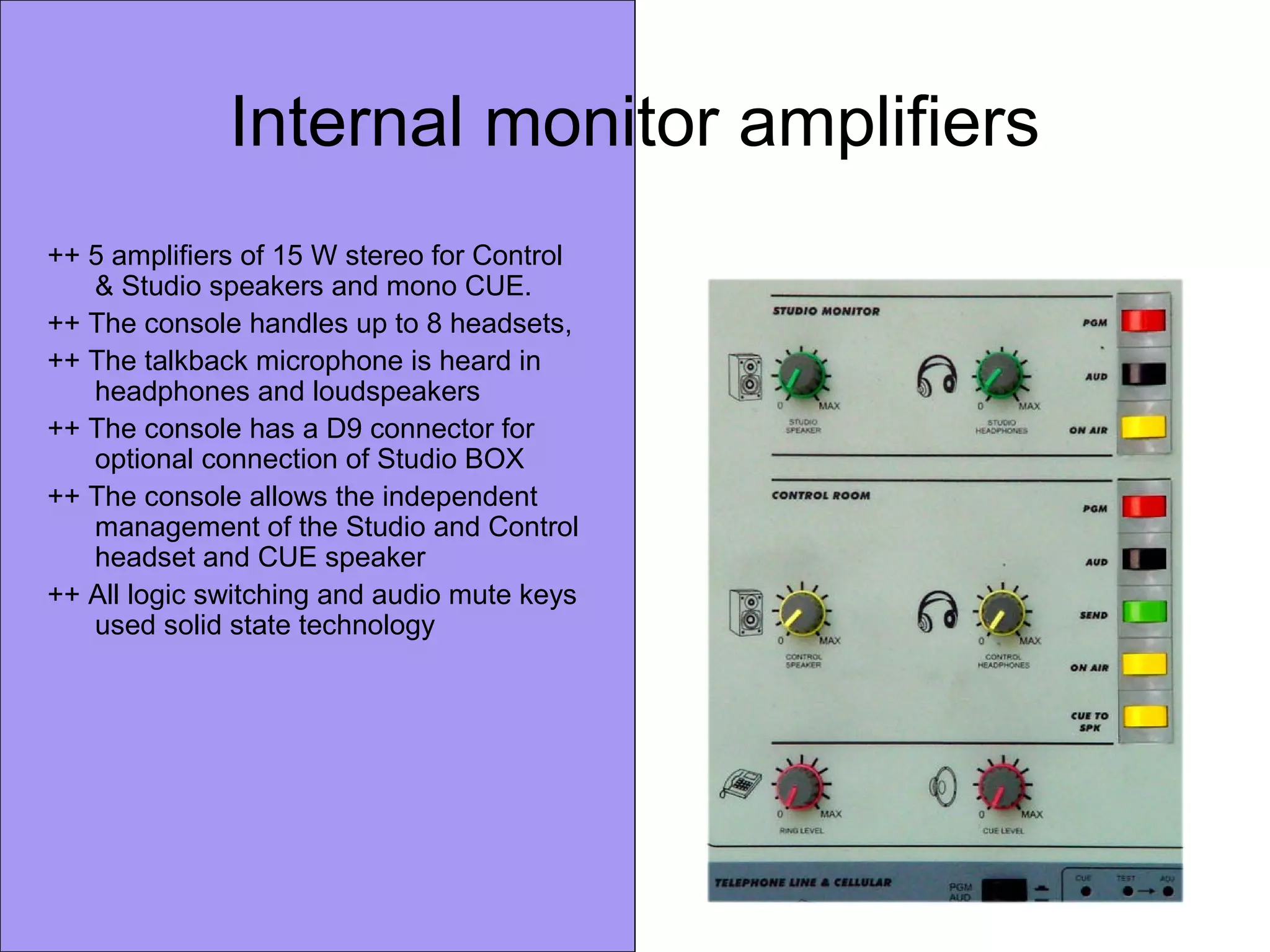

19. Internal monitor amplifiers
++ 5 amplifiers of 15 W stereo for Control
& Studio speakers and mono CUE.
++ The console handles up to 8 headsets,
++ The talkback microphone is heard in
headphones and loudspeakers
++ The console has a D9 connector for
optional connection of Studio BOX
++ The console allows the independent
management of the Studio and Control
headset and CUE speaker
++ All logic switching and audio mute keys
used solid state technology

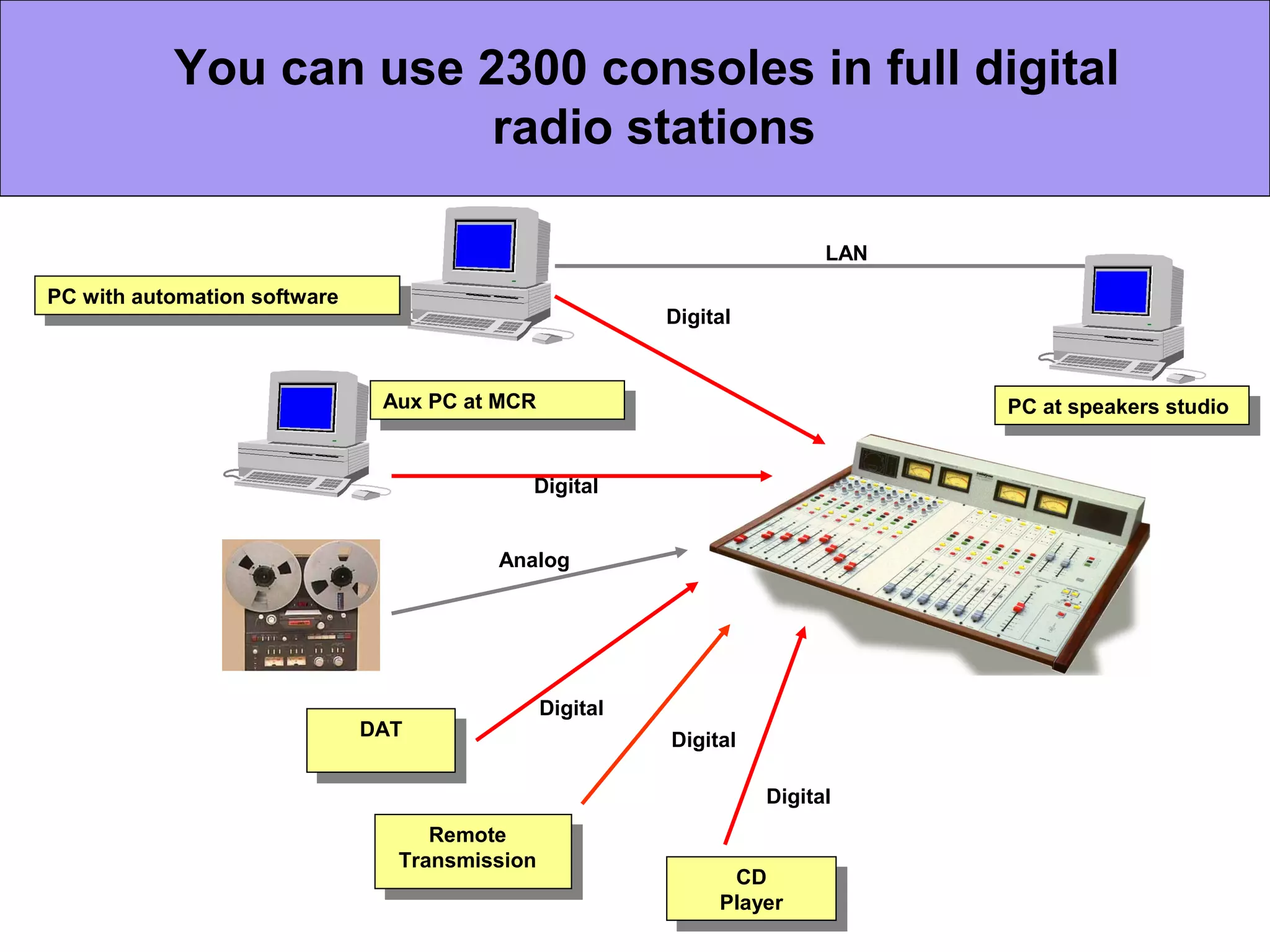

20. You can use 2300 consoles in full digital
radio stations
PC with automation software
PC with automation software
Aux PC at MCR
Aux PC at MCR
PC at speakers studio
PC at speakers studio
Digital
Digital
Digital
Analog
Digital
LAN
DAT
Remote
Transmission
CD
Player
Digital

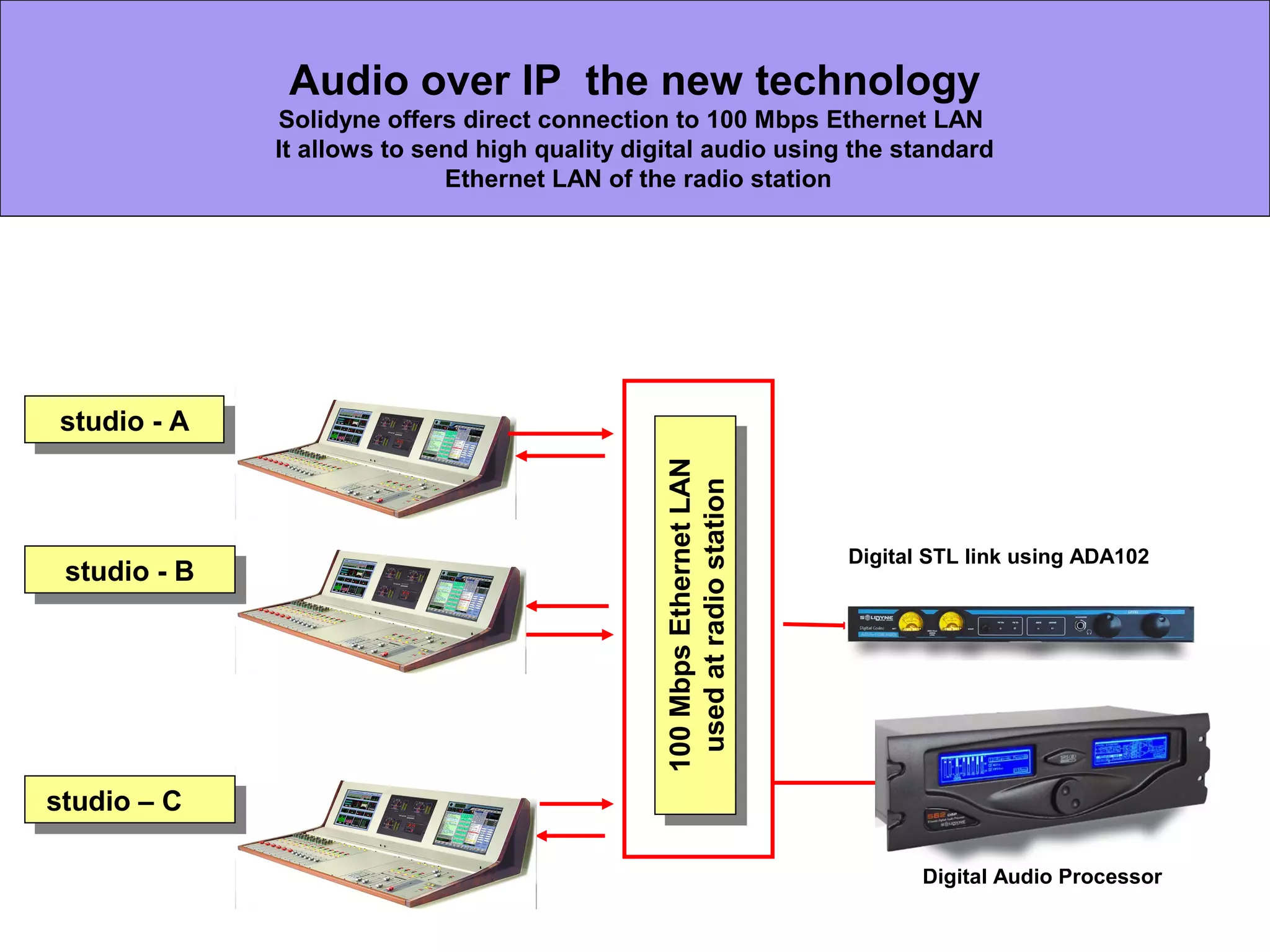

21. Audio over IP the new technology
Solidyne offers direct connection to 100 Mbps Ethernet LAN
It allows to send high quality digital audio using the standard
Ethernet LAN of the radio station
studio - Astudio - A
100MbpsEthernetLAN
usedatradiostation
100MbpsEthernetLAN
usedatradiostation
Digital Audio Processor
Digital STL link using ADA102
studio - Bstudio - B
studio – Cstudio – C

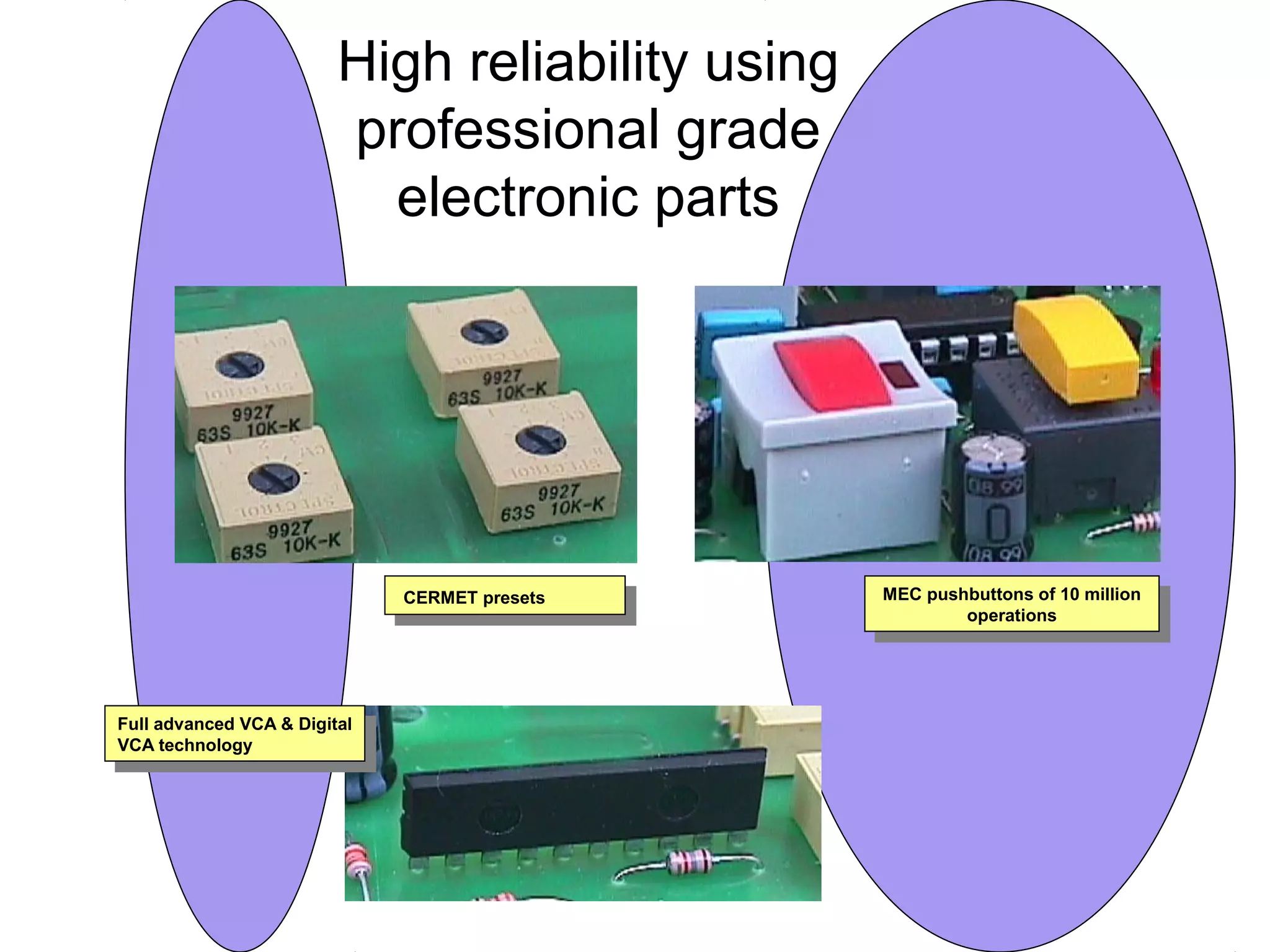

22. High reliability using
professional grade
electronic parts
CERMET presets
CERMET presets MEC pushbuttons of 10 million
operations
MEC pushbuttons of 10 million
operations
Full advanced VCA & Digital
VCA technology
Full advanced VCA & Digital
VCA technology

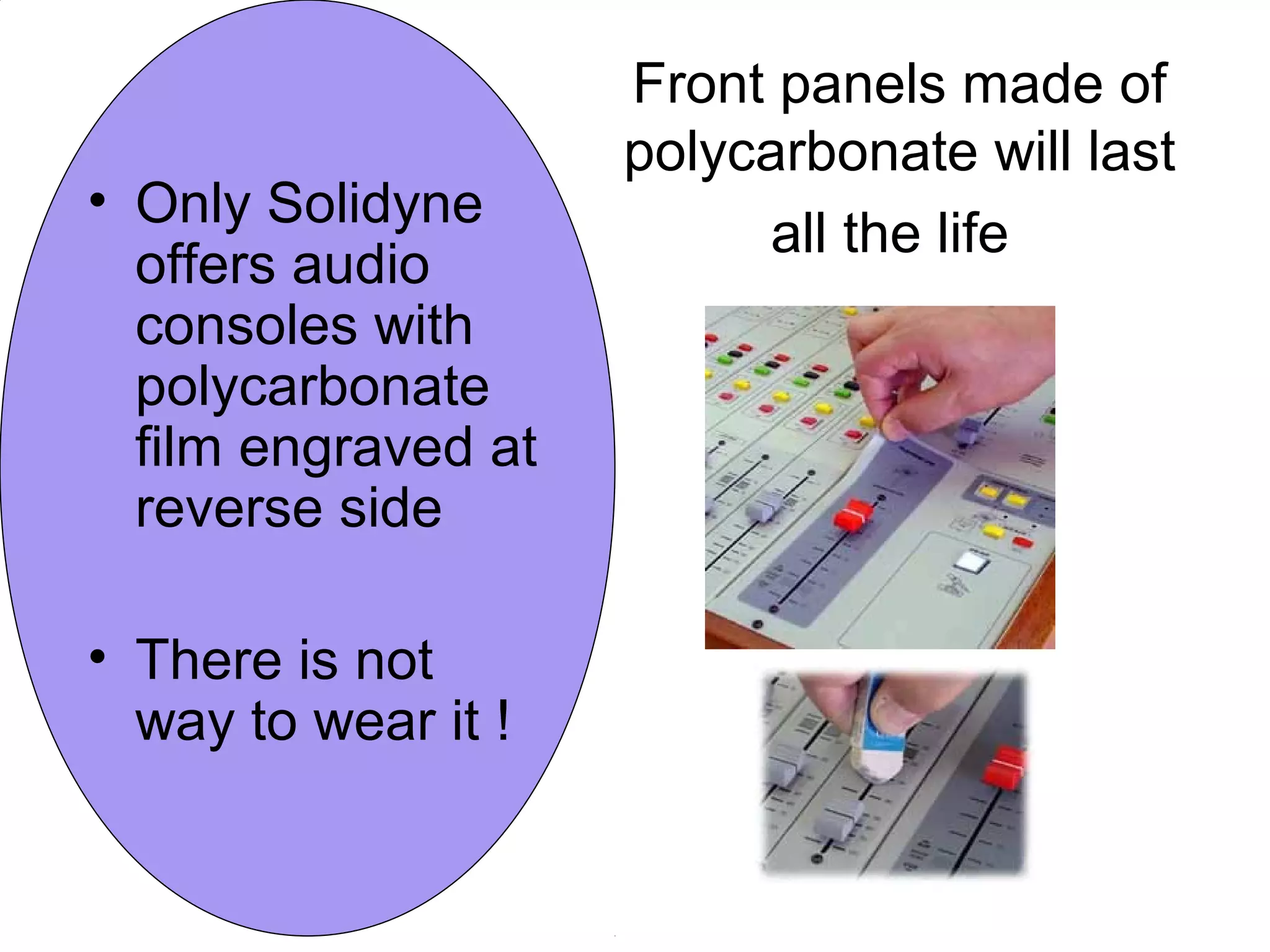

23. Front panels made of
polycarbonate will last
all the life
• Only Solidyne
offers audio
consoles with
polycarbonate
film engraved at
reverse side
• There is not
way to wear it !

24. Digital Consoles
model 2300 XZ

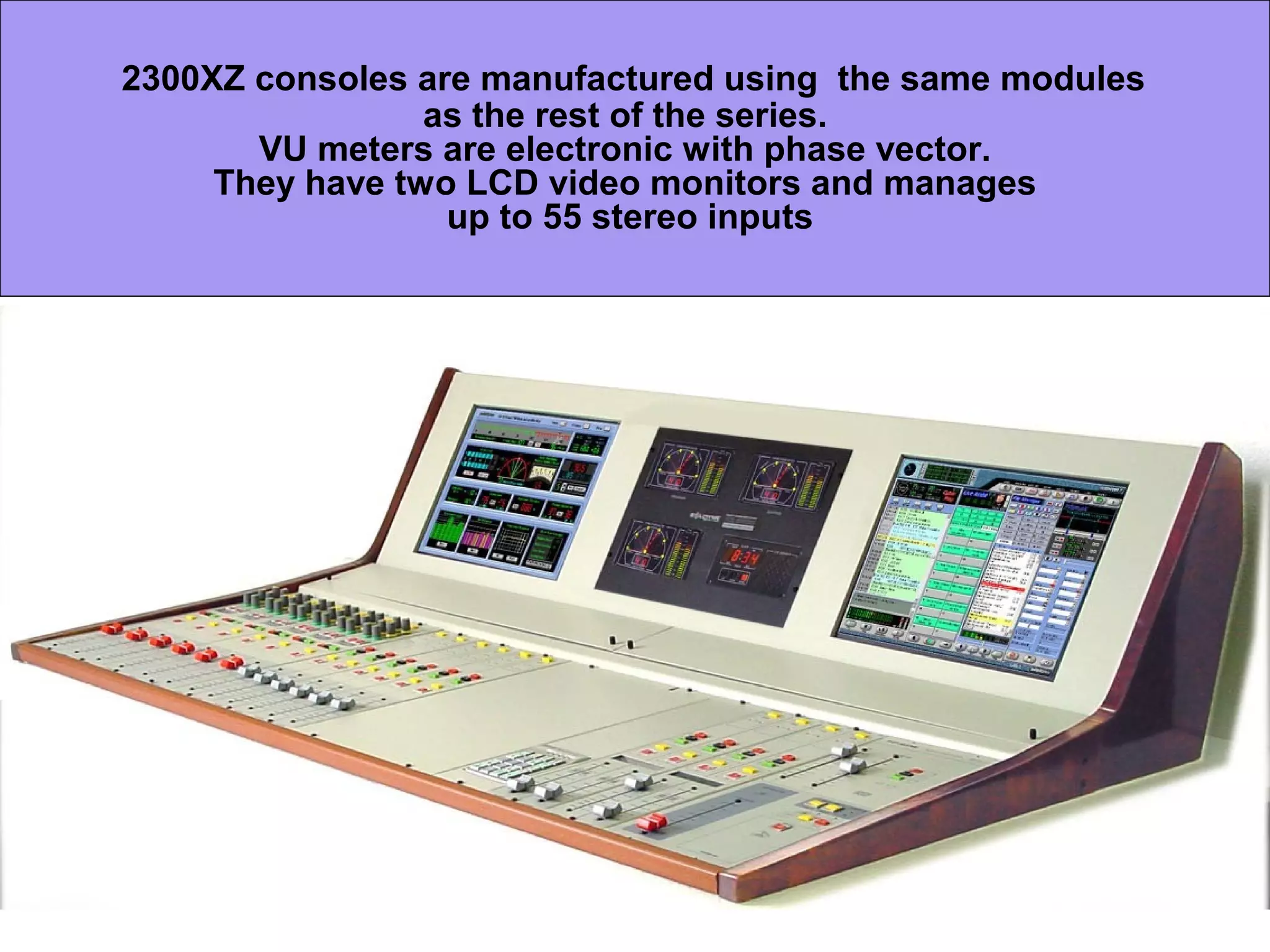

25. 2300XZ consoles are manufactured using the same modules
as the rest of the series.
VU meters are electronic with phase vector.
They have two LCD video monitors and manages
up to 55 stereo inputs

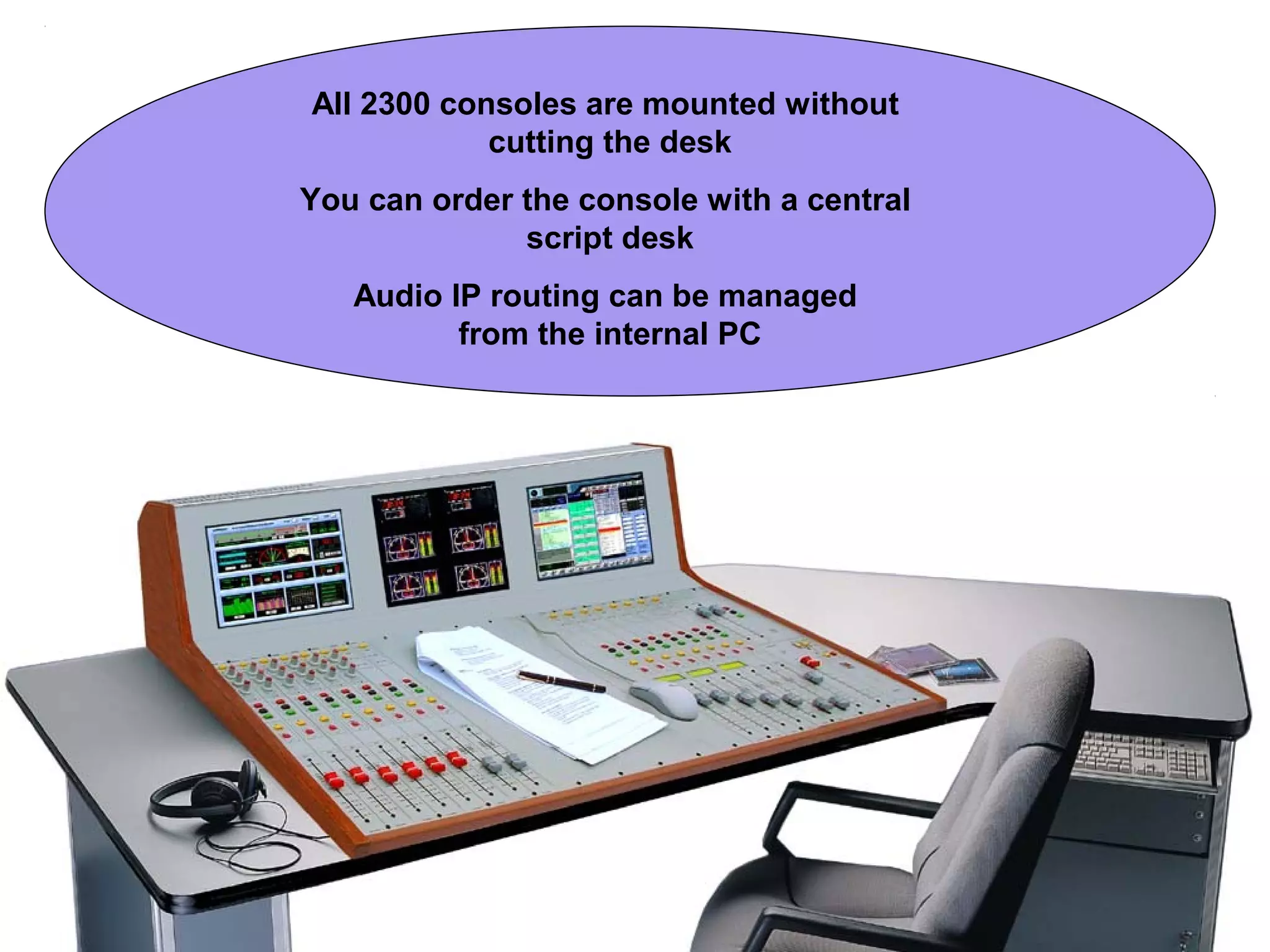

26. All 2300 consoles are mounted without
cutting the desk
You can order the console with a central
script desk
Audio IP routing can be managed
from the internal PC

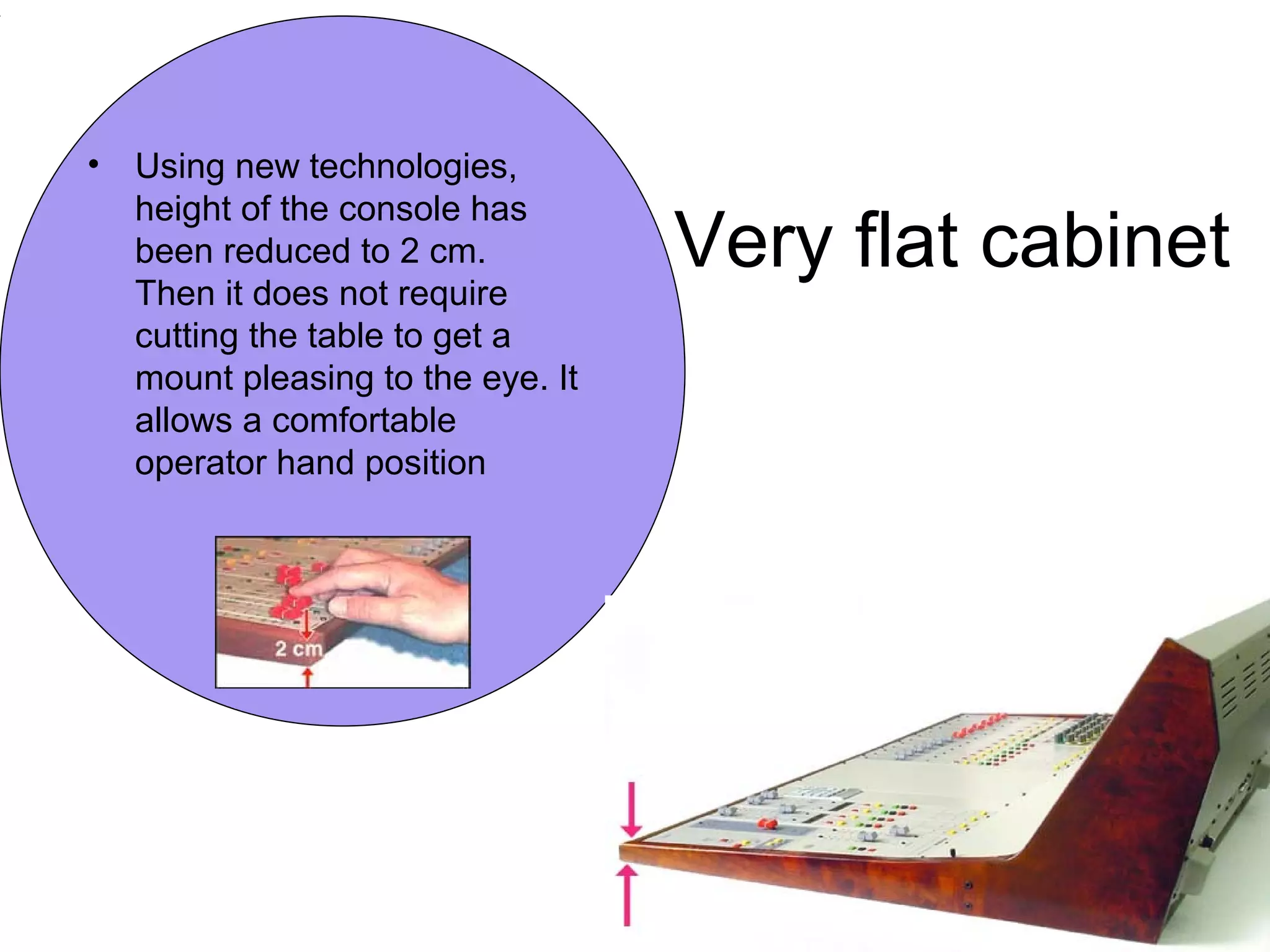

27. Very flat cabinet
• Using new technologies,
height of the console has
been reduced to 2 cm.
Then it does not require
cutting the table to get a
mount pleasing to the eye. It
allows a comfortable
operator hand position

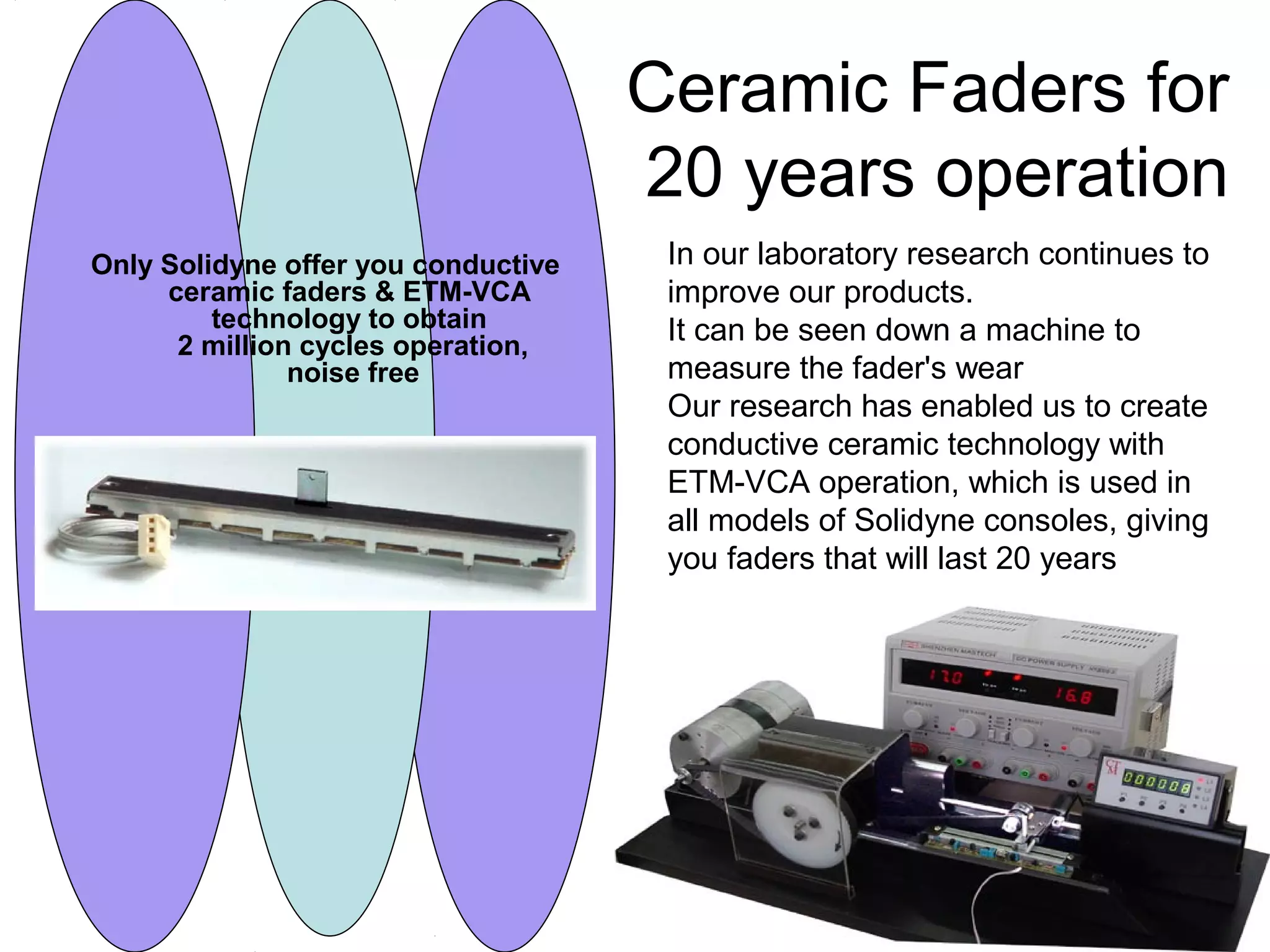

28. Ceramic Faders for
20 years operation
Only Solidyne offer you conductive
ceramic faders & ETM-VCA
technology to obtain
2 million cycles operation,
noise free
In our laboratory research continues to
improve our products.
It can be seen down a machine to
measure the fader's wear
Our research has enabled us to create
conductive ceramic technology with
ETM-VCA operation, which is used in
all models of Solidyne consoles, giving
you faders that will last 20 years

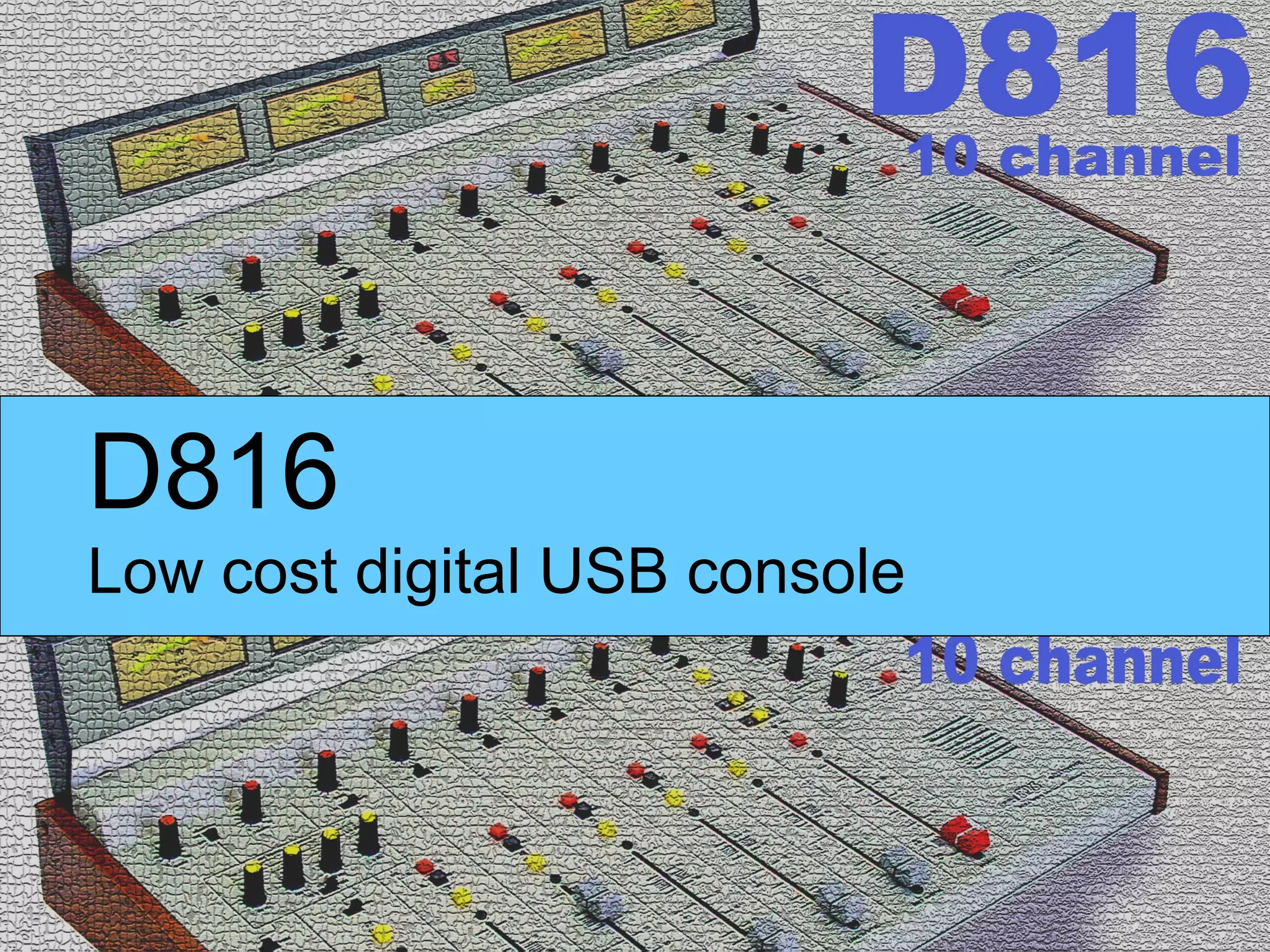

29. D816
Low cost digital USB console

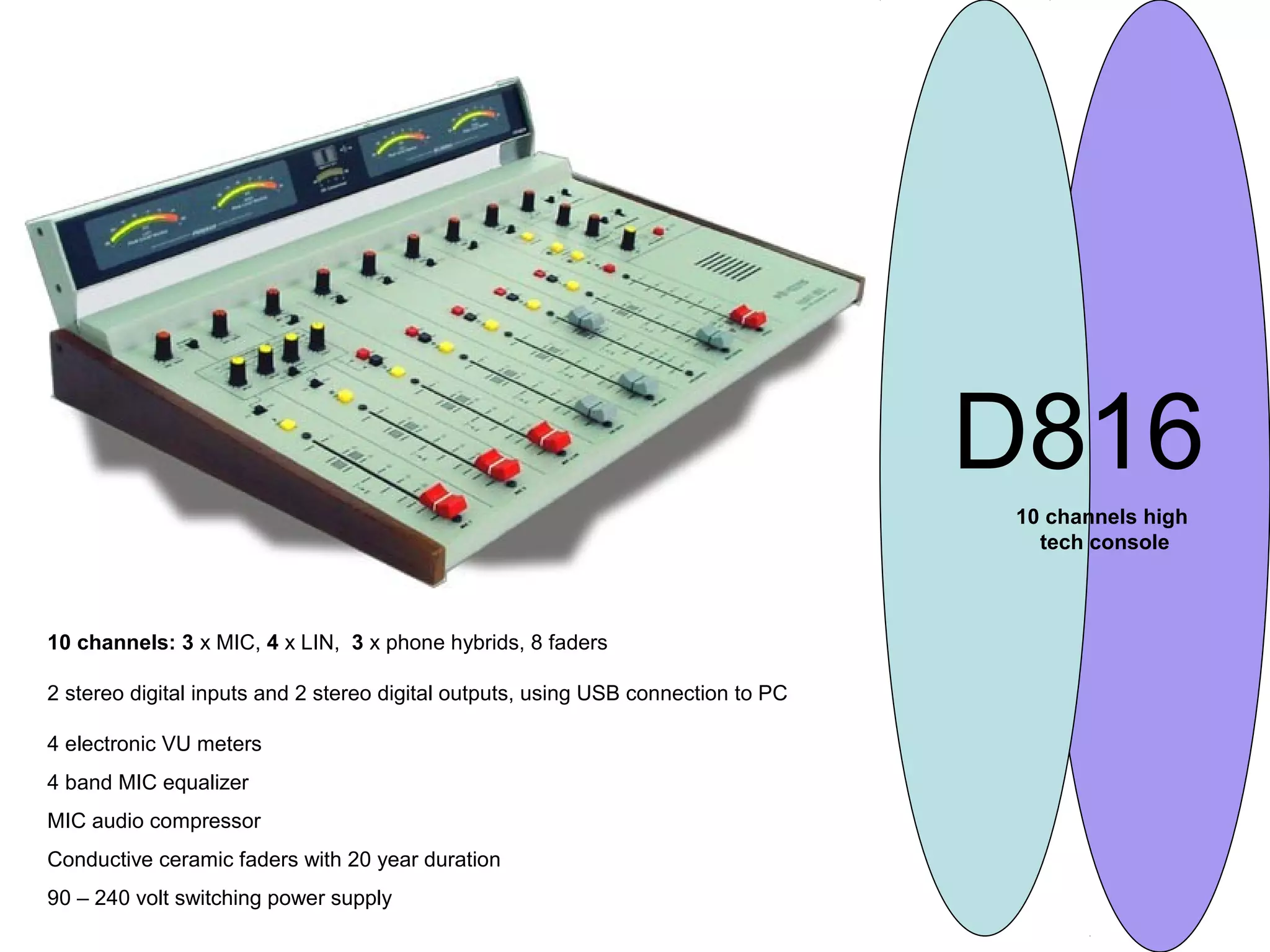

30. D816
10 channels high
tech console
10 channels: 3 x MIC, 4 x LIN, 3 x phone hybrids, 8 faders
2 stereo digital inputs and 2 stereo digital outputs, using USB connection to PC
4 electronic VU meters
4 band MIC equalizer
MIC audio compressor
Conductive ceramic faders with 20 year duration
90 – 240 volt switching power supply

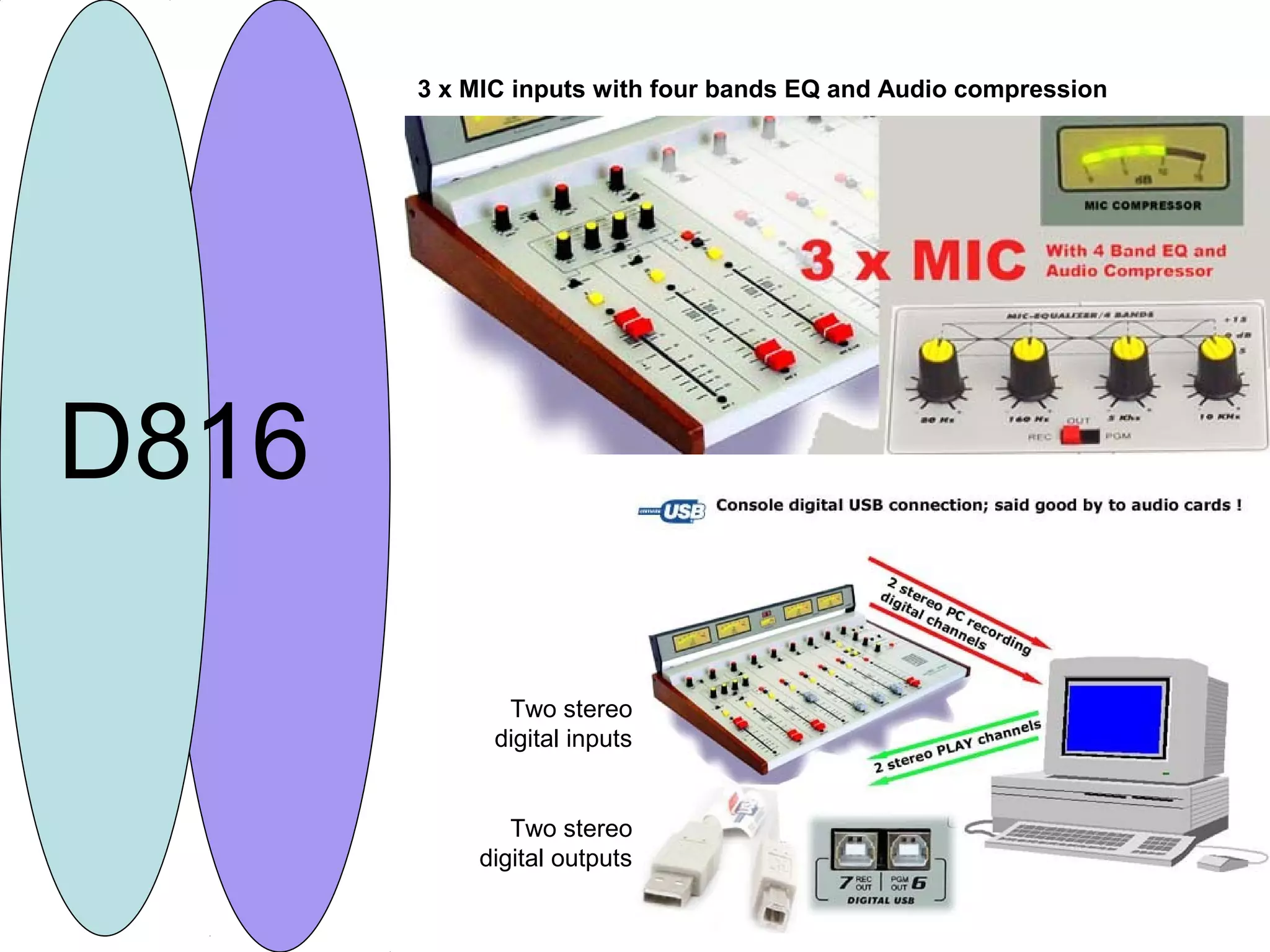

31. 3 x MIC inputs with four bands EQ and Audio compression
Two stereo
digital inputs
Two stereo
digital outputs
D816

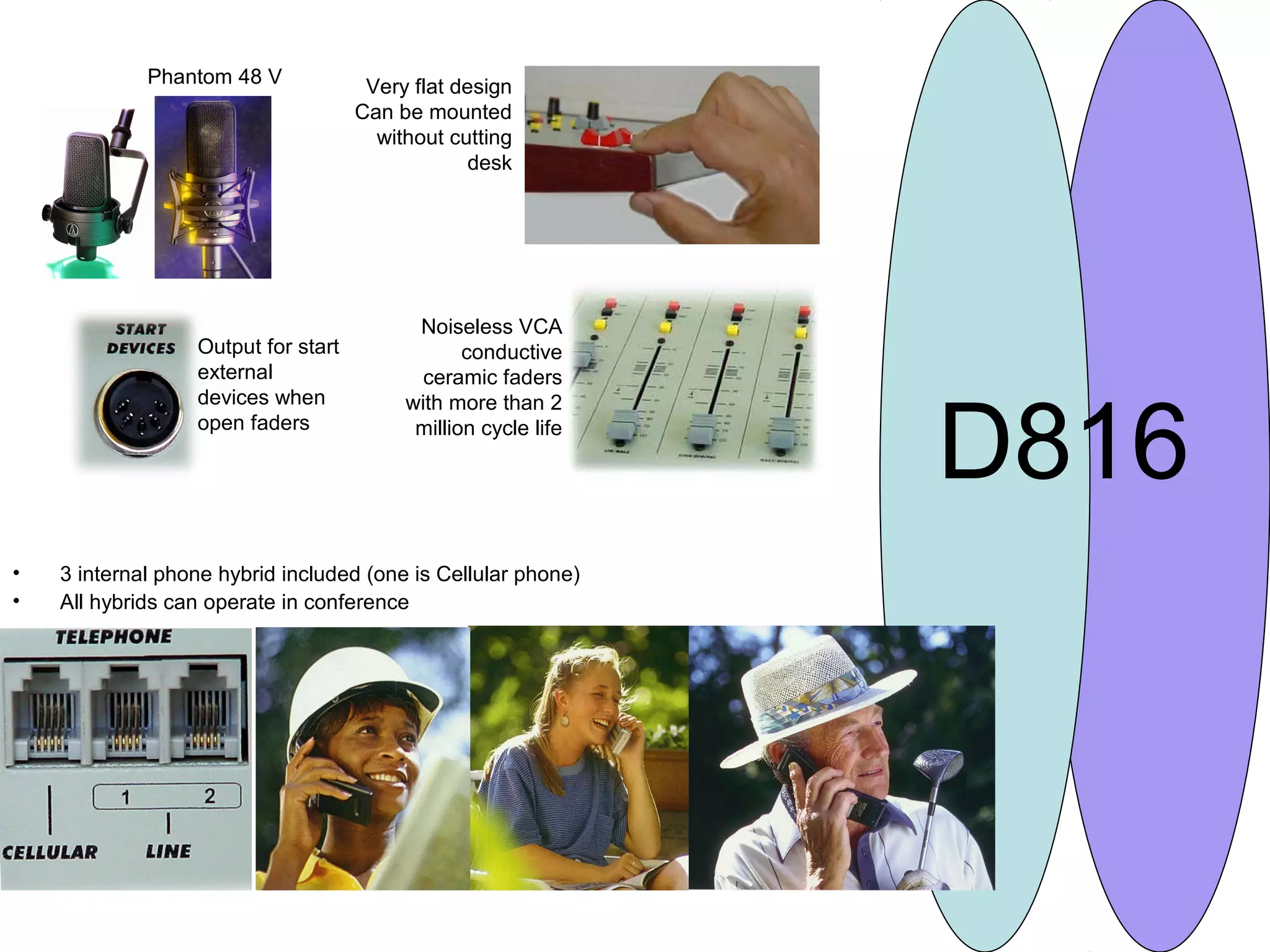

32. • 3 internal phone hybrid included (one is Cellular phone)
• All hybrids can operate in conference
D816
Phantom 48 V
Output for start
external
devices when
open faders
Very flat design
Can be mounted
without cutting
desk
Noiseless VCA
conductive
ceramic faders
with more than 2
million cycle life

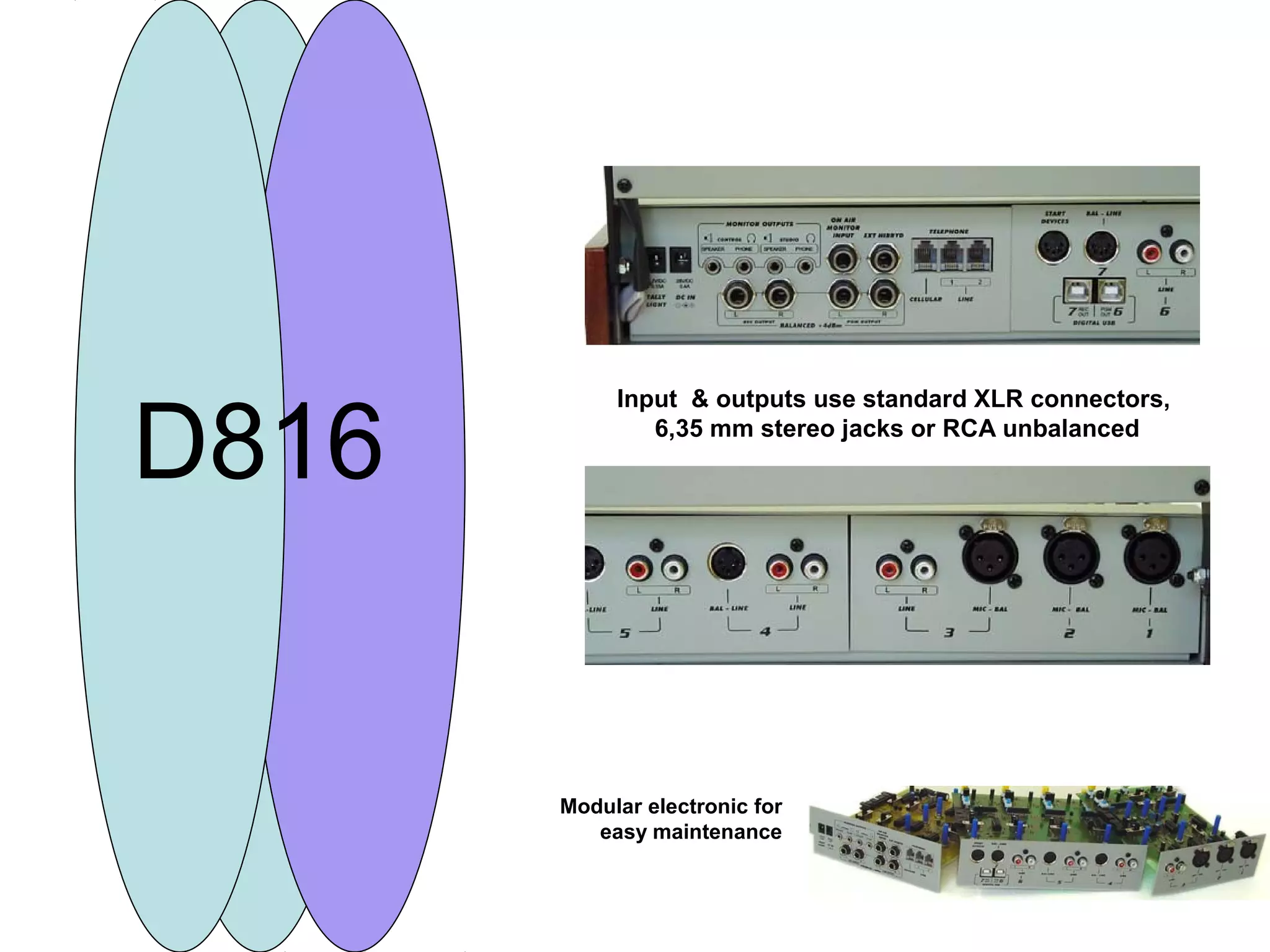

33. D816
Input & outputs use standard XLR connectors,
6,35 mm stereo jacks or RCA unbalanced
Modular electronic for
easy maintenance
D816

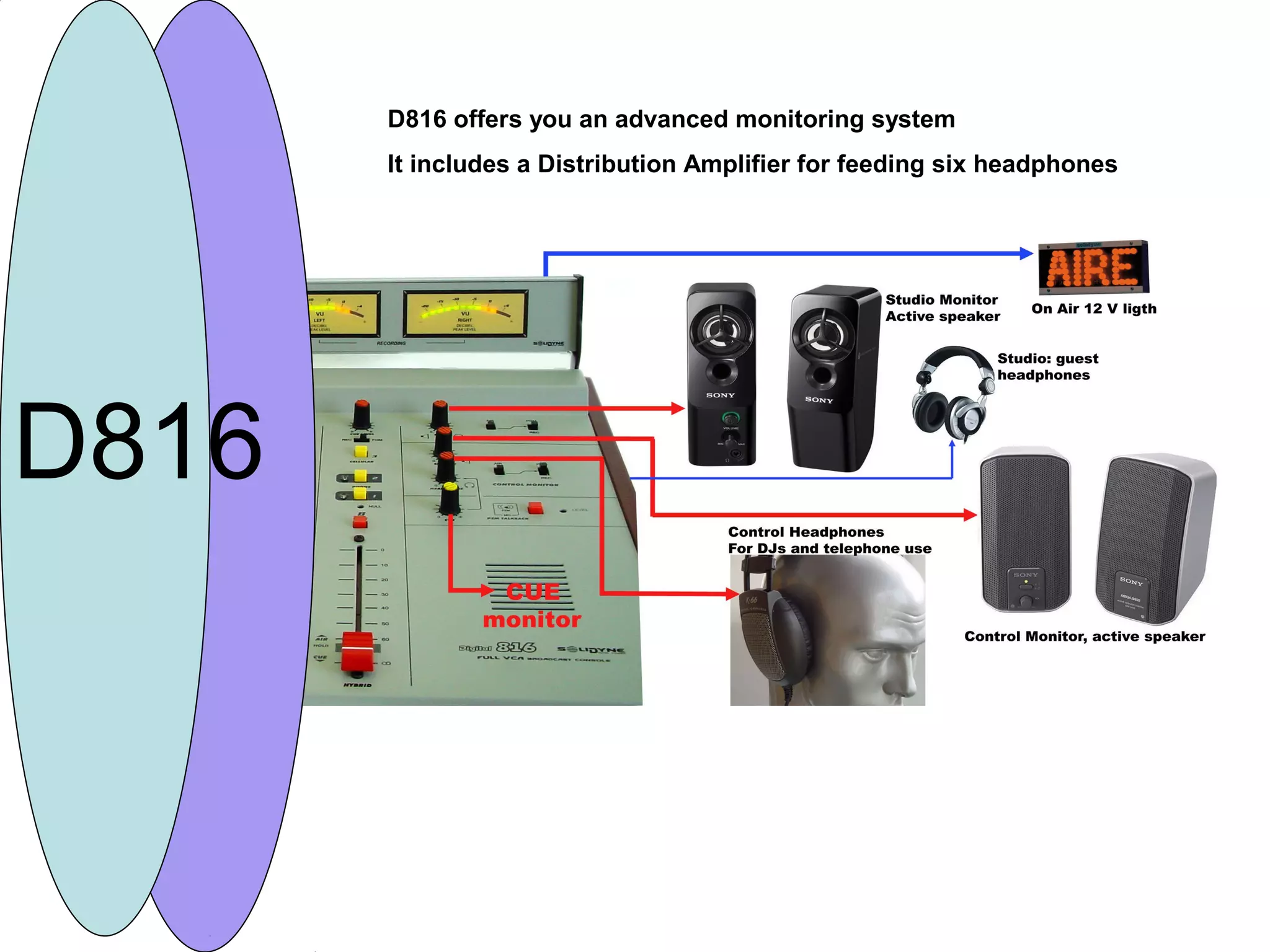

34. D816 offers you an advanced monitoring system
It includes a Distribution Amplifier for feeding six headphones
D816

35. Low Cost
professional
consoles for small
radio stations
S 500

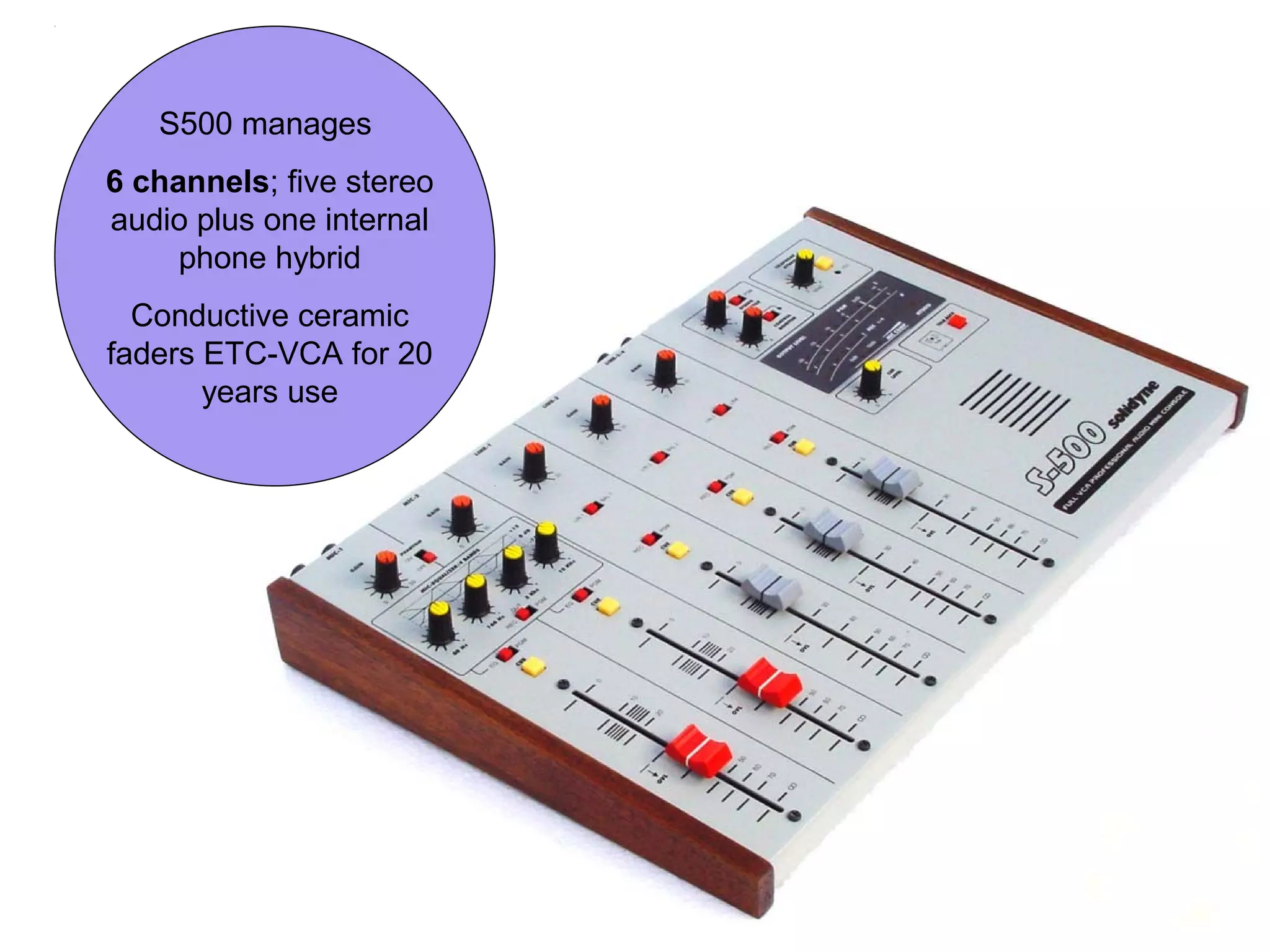

36. S500 manages
6 channels; five stereo
audio plus one internal
phone hybrid
Conductive ceramic
faders ETC-VCA for 20
years use

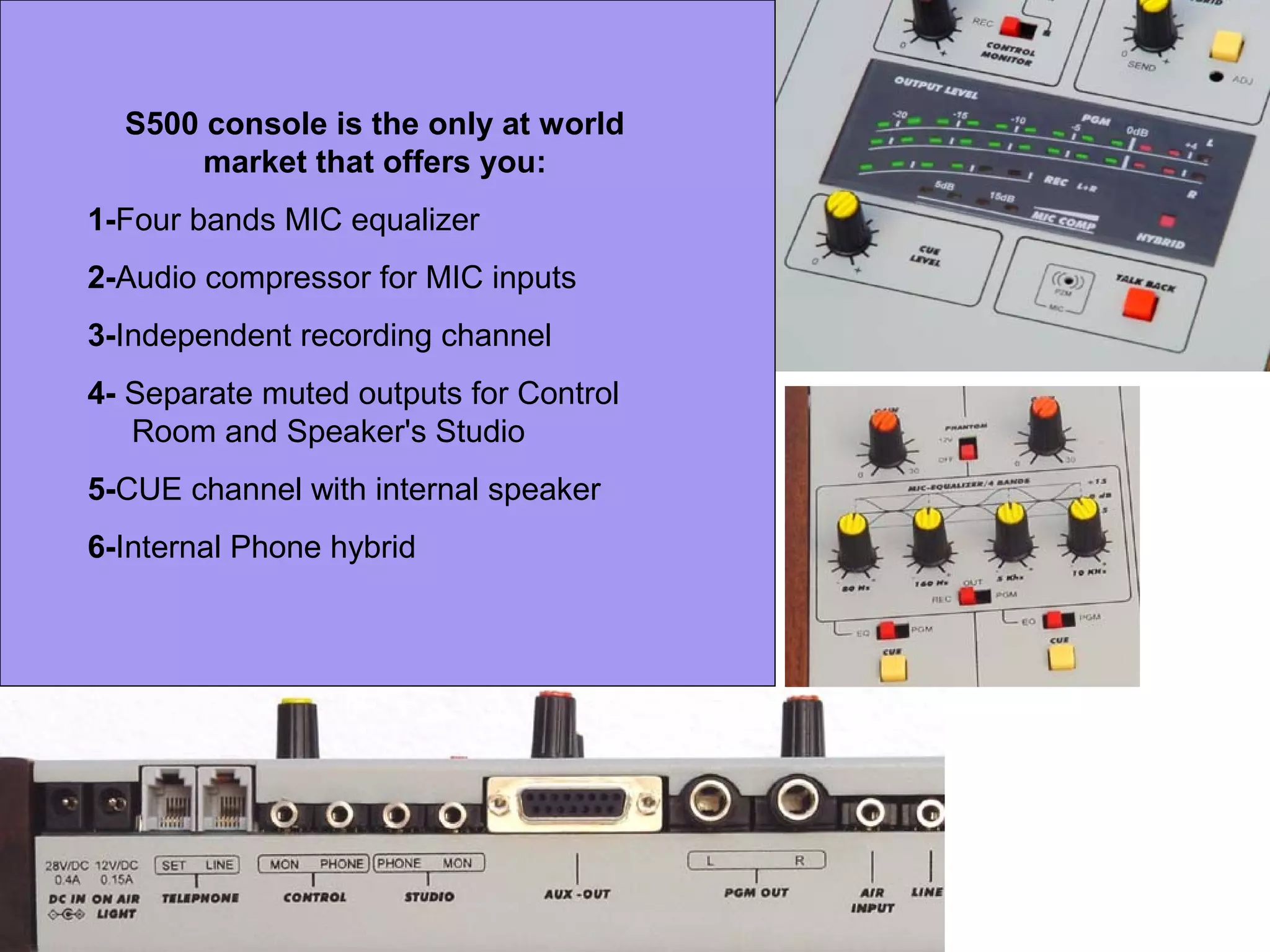

37. S500 console is the only at world
market that offers you:
1-Four bands MIC equalizer
2-Audio compressor for MIC inputs
3-Independent recording channel
4- Separate muted outputs for Control
Room and Speaker's Studio
5-CUE channel with internal speaker
6-Internal Phone hybrid

38. Console S500-6M
Analog console for
mobile use mono or stereo
Musical shows & concerts
Music bands

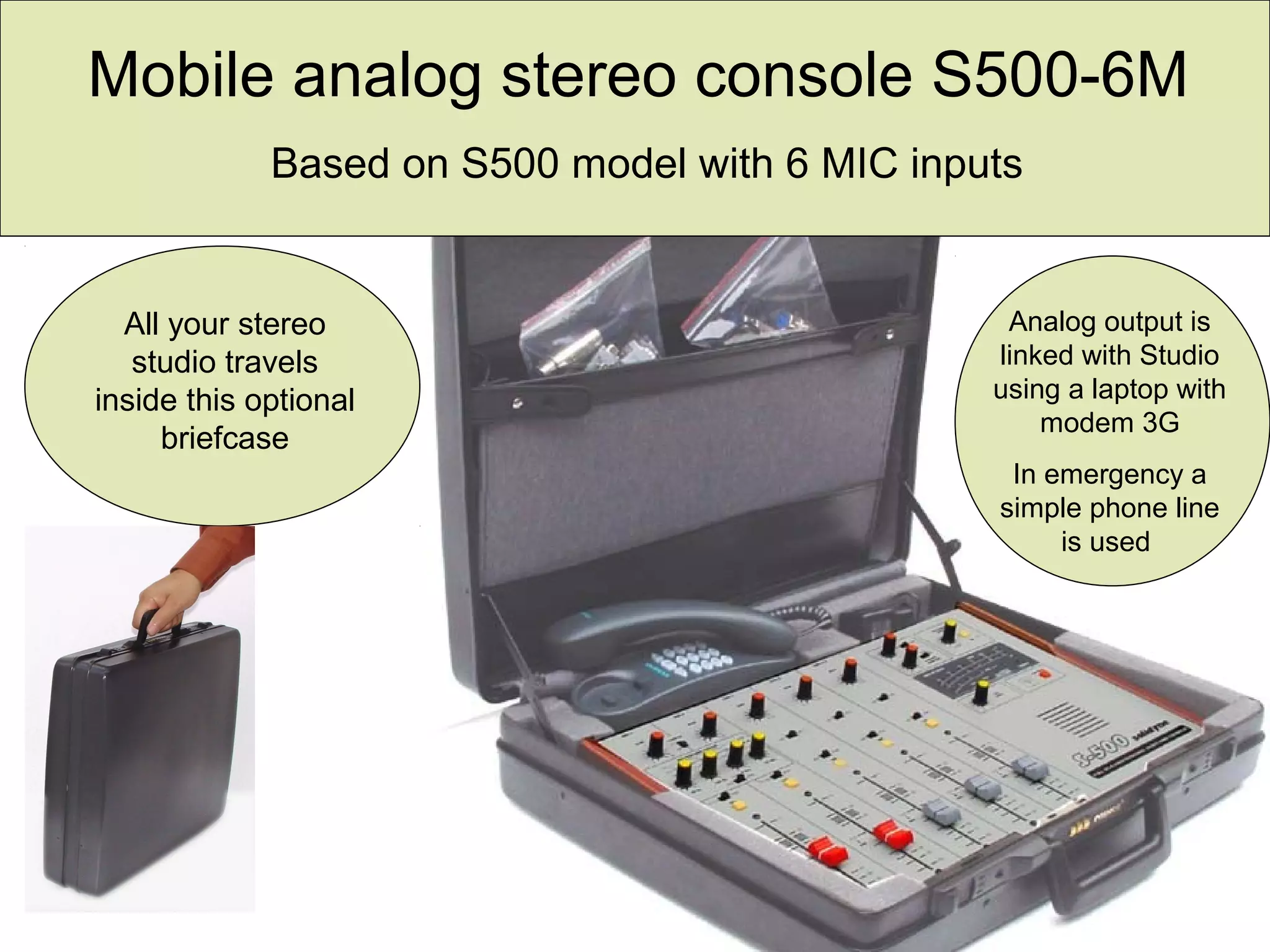

39. All your stereo
studio travels
inside this optional
briefcase
Mobile analog stereo console S500-6M
Based on S500 model with 6 MIC inputs
Analog output is
linked with Studio
using a laptop with
modem 3G
In emergency a
simple phone line
is used

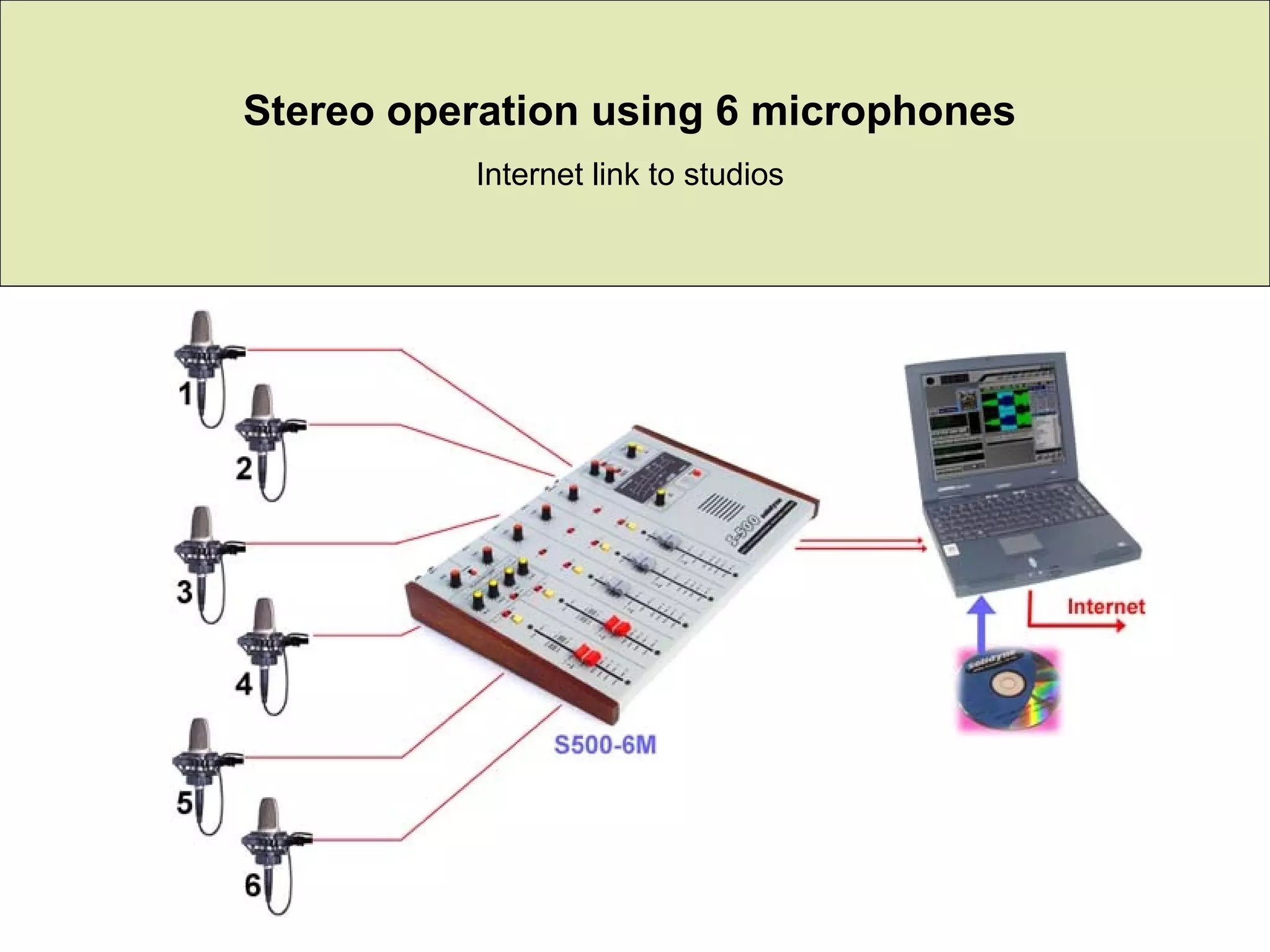

40. Stereo operation using 6 microphones
Internet link to studios

41. Mobile consoles for
sports and journalism
transmission

42. Codec-Mixer MB 2400
Codec + audio console for high quality digital stereo transmission
Audio over IP & Stereo Digital
• 10 audio channels with digital Ethernet output for streaming
• Internal MIC processor with peak audio compression for voice
• Wireless Bluetooth connection to Cell Phone
• 5 balanced MIC inputs with optional 48 V phantom supply
• 6 outputs for stereo headphones
• Internal computer for worldwide connection to Internet
• NI-Metal battery for 12 to 16 hours continuous transmission
• Light weight cabinet made of aeronautical aluminum alloy

43. Codec-Mixer MB 2400
MB2400 is a complete mobile studio
with digital audio quality
You can connect it to any Internet plug
in order to link with your studios using
audio streaming
6 headsets audio distribution amplifier
5 MIC with 48V phantom for mono or
stereo transmission

44. Codec-Mixer MB 2400
During sports transmissions MB2400 is able to manage a virtual network
with two Cell Phones in order to have a remote Journalist for
interview to the sport players

45. Codec-Mixer MB 2400
The studio link could be a Internet modem or a small 3G modem
Using flat rate offers from Mobile Phone companies, you will have inexpensive
digital transmissions

46. Codec-Mixer MB 2400
Your Journalist will be able to link studios using Bluetooth digital
microwave link to one Cell Phone (up to 10 meters)
At the Studios side, one Solidyne hybrid with VQR will restore the
voice sound quality
Please hear VQR audio demos at our WEBsite

47. Mini-Console MB 2100
High Tech at Low Cost

48. Miniature console MB2100 only weights 600 gr
Manages Four channels and has internal MIC equalizer and
audio compressor to get always the same transmission level.
This internal MIC processing gives you the best sound
of the market
Models “BL” has digital Bluetooth link to Cell Phone
… no more wires, please!

49. It uses the same technology
employed at NASA satellites to
save energy, based on MOS ICs
The rechargeable battery gives
16 hours of continuous use
The charger operates from 100 to 240 V.
You can plug it at any socket around the world
Please see it carefully…
Its your new “remote van”
It manages 4 MICs and
terrestrial phone line or
Cellular wired phone.
Models “BL” have
Bluetooth
connection to
cell phone

50. Easy to use Easy to transport
Automatic gain level Up to 4 headphones

51. MB2100 improves the audio quality of the VQR technology
You get near-studio sound quality trough a cell phone
VQR is the only voice quality system with zero delay
Phone audio
quality
Restored
Studio
Quality
Hybrid with VQR
New MB2100 models includes
DTMF keyboard
“BL” models includes wireless
Bluetooth digital link

52. • Thank you for your time…
