The document describes the waterproof audio system from MODO, which includes an in-tune AM/FM radio, CD/MP3 player, Bluetooth receiver, amplifiers, speakers, power supply, and accessories. The system allows wireless or wired control of the audio and contains waterproof components suitable for damp environments like showers. It provides options for different power amplifiers and speakers ranging from small in-wall models to subwoofers.

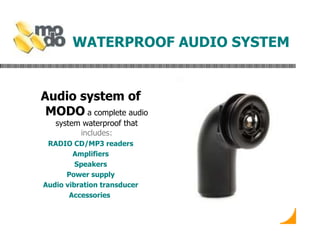

2. WATERPROOF AUDIO SYSTEM Audio system of MODO a complete audio system waterproof that includes: RADIO CD/MP3 readers Amplifiers Speakers Power supply Audio vibration transducer Accessories

3. Radio MP3/Cd readers waterproof In-tune AM/FM receiver, CD player, MP3 reader, graphic display with 7 levels of light, equalizer, clock. To activate the IN.TUNE functions you can use the front panel,but you can also control it by a wired remote keypad or infrared remote control. .1

4. Audio stereo receiver Blutoo Bluetooth® A2DP audio receiver module in IPX5 enclosure. Compatible devices must support Bluetooth® 2.0 A2DP profile. It’s designed for auto-pairing (pass code = 0000). .2 D10-Blutoo Bluetooth® A2DP stereo audio receiver with audio amplifier 2.1ch *10Wrms and power supply integrated. Available with Bluetooth tx /jack 3.5mm adapter .

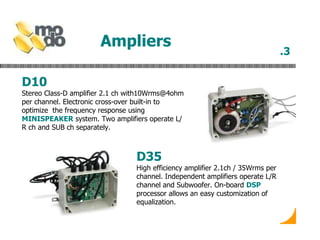

5. Ampliers D10 Stereo Class-D amplifier 2.1 ch with10Wrms@4ohm per channel. Electronic cross-over built-in to optimize the frequency response using MINISPEAKER system. Two amplifiers operate L/R ch and SUB ch separately. .3 D35 High efficiency amplifier 2.1ch / 35Wrms per channel. Independent amplifiers operate L/R channel and Subwoofer. On-board DSP processor allows an easy customization of equalization.

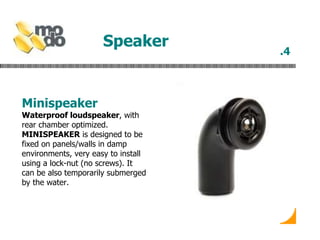

6. Speaker Minispeaker Waterproof loudspeaker , with rear chamber optimized. MINISPEAKER is designed to be fixed on panels/walls in damp environments, very easy to install using a lock-nut (no screws). It can be also temporarily submerged by the water. .4

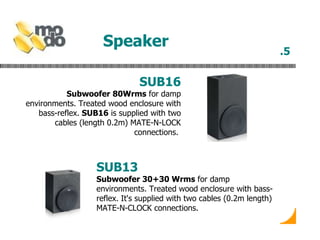

7. Speaker SUB16 Subwoofer 80Wrms for damp environments. Treated wood enclosure with bass-reflex. SUB16 is supplied with two cables (length 0.2m) MATE-N-LOCK connections. .5 SUB13 Subwoofer 30+30 Wrms for damp environments. Treated wood enclosure with bass-reflex. It's supplied with two cables (0.2m length) MATE-N-CLOCK connections.

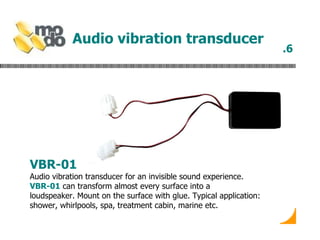

8. Audio vibration transducer VBR-01 Audio vibration transducer for an invisible sound experience. VBR-01 can transform almost every surface into a loudspeaker. Mount on the surface with glue. Typical application: shower, whirlpools, spa, treatment cabin, marine etc. .6

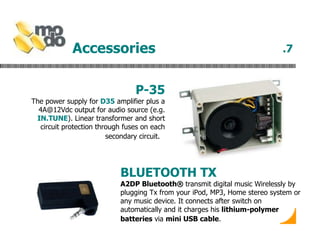

9. Accessories P-35 The power supply for D35 amplifier plus a 4A@12Vdc output for audio source (e.g. IN.TUNE ). Linear transformer and short circuit protection through fuses on each secondary circuit. .7 BLUETOOTH TX A2DP Bluetooth® transmit digital music Wirelessly by plugging Tx from your iPod, MP3, Home stereo system or any music device. It connects after switch on automatically and it charges his lithium-polymer batteries via mini USB cable .

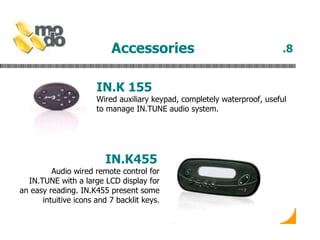

10. Accessories .8 IN.K 155 Wired auxiliary keypad, completely waterproof, useful to manage IN.TUNE audio system. IN.K455 Audio wired remote control for IN.TUNE with a large LCD display for an easy reading. IN.K455 present some intuitive icons and 7 backlit keys.

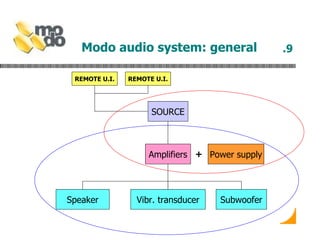

11. Modo audio system: general .9 REMOTE U.I. Power supply Amplifiers Subwoofer SOURCE Vibr. transducer Speaker + REMOTE U.I.

12. Source amplifer .10 D10 2.1ch D10 2.0ch Scheda integrata nel D35 MINSPEAKER VBR-01 SUB13 MINISPEAKER SUB13 Connected to a general, unspecific speaker IN.TUNE BLUTOO D10-BLUTOO D10 D35 MINISPEAKER

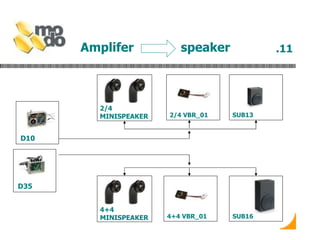

13. Amplifer speaker .11 SUB13 D10 D35 2/4 MINISPEAKER 4+4 MINISPEAKER 2/4 VBR_01 4+4 VBR_01 SUB16

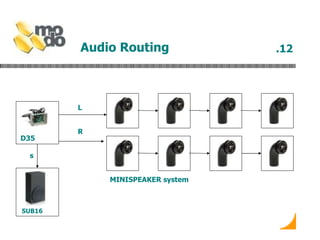

14. Audio Routing .12 SUB16 MINISPEAKER system L R s D35

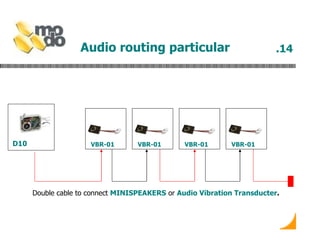

15. Audio routing particular .14 Double cable to connect MINISPEAKERS or Audio Vibration Transducter . D10 VBR-01 VBR-01 VBR-01 VBR-01

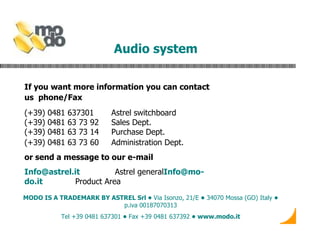

16. Audio system If you want more information you can contact us phone/Fax (+39) 0481 637301 Astrel switchboard (+39) 0481 63 73 92 Sales Dept. (+39) 0481 63 73 14 Purchase Dept. (+39) 0481 63 73 60 Administration Dept. or send a message to our e-mail [email_address] Astrel general [email_address] Product Area MODO IS A TRADEMARK BY ASTREL Srl • Via Isonzo, 21/E • 34070 Mossa (GO) Italy • p.iva 00187070313 Tel +39 0481 637301 • Fax +39 0481 637392 • www.modo.it
