The document discusses a cloud-based AI solution developed for vip.com to enhance their e-commerce operations through deep learning and rapid model iteration using Azure Batch AI and Kubernetes. The system is designed to adapt to different geographical locations and includes a comprehensive tagging system to personalize user experience, significantly improving efficiency and processing time. It highlights the collaboration between vip.com, Caicloud, and Microsoft to implement this scalable solution for global expansion.

3. https://www.flickr.com/photos/mwichary/3209181446

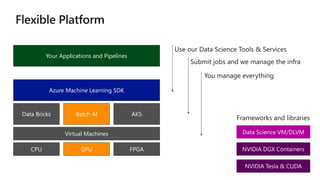

5. Virtual Machines
CPU GPU FPGA
Data Bricks Batch AI AKS
Azure Machine Learning SDK
Your Applications and Pipelines

7. https://www.flickr.com/photos/mwichary/4145891520

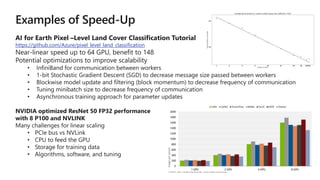

9. https://github.com/Azure/pixel_level_land_classification

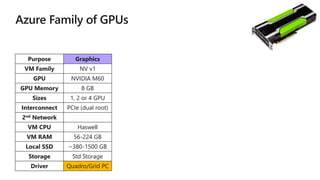

11. Purpose Graphics
VM Family NV v1
GPU NVIDIA M60
GPU Memory 8 GB
Sizes 1, 2 or 4 GPU
Interconnect PCIe (dual root)
2nd Network
VM CPU Haswell
VM RAM 56-224 GB
Local SSD ~380-1500 GB
Storage Std Storage
Driver Quadro/Grid PC

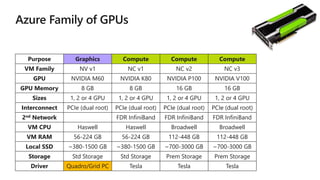

12. Purpose Graphics Compute Compute Compute
VM Family NV v1 NC v1 NC v2 NC v3
GPU NVIDIA M60 NVIDIA K80 NVIDIA P100 NVIDIA V100
GPU Memory 8 GB 8 GB 16 GB 16 GB
Sizes 1, 2 or 4 GPU 1, 2 or 4 GPU 1, 2 or 4 GPU 1, 2 or 4 GPU
Interconnect PCIe (dual root) PCIe (dual root) PCIe (dual root) PCIe (dual root)
2nd Network FDR InfiniBand FDR InfiniBand FDR InfiniBand
VM CPU Haswell Haswell Broadwell Broadwell
VM RAM 56-224 GB 56-224 GB 112-448 GB 112-448 GB
Local SSD ~380-1500 GB ~380-1500 GB ~700-3000 GB ~700-3000 GB
Storage Std Storage Std Storage Prem Storage Prem Storage
Driver Quadro/Grid PC Tesla Tesla Tesla

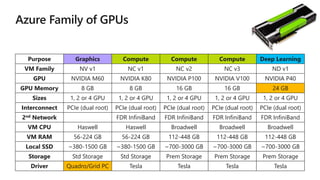

13. Purpose Graphics Compute Compute Compute Deep Learning
VM Family NV v1 NC v1 NC v2 NC v3 ND v1
GPU NVIDIA M60 NVIDIA K80 NVIDIA P100 NVIDIA V100 NVIDIA P40
GPU Memory 8 GB 8 GB 16 GB 16 GB 24 GB
Sizes 1, 2 or 4 GPU 1, 2 or 4 GPU 1, 2 or 4 GPU 1, 2 or 4 GPU 1, 2 or 4 GPU
Interconnect PCIe (dual root) PCIe (dual root) PCIe (dual root) PCIe (dual root) PCIe (dual root)
2nd Network FDR InfiniBand FDR InfiniBand FDR InfiniBand FDR InfiniBand
VM CPU Haswell Haswell Broadwell Broadwell Broadwell
VM RAM 56-224 GB 56-224 GB 112-448 GB 112-448 GB 112-448 GB
Local SSD ~380-1500 GB ~380-1500 GB ~700-3000 GB ~700-3000 GB ~700-3000 GB
Storage Std Storage Std Storage Prem Storage Prem Storage Prem Storage
Driver Quadro/Grid PC Tesla Tesla Tesla Tesla

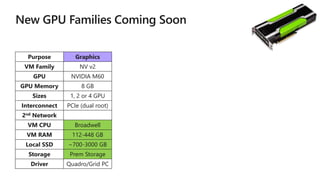

14. Purpose Graphics
VM Family NV v2
GPU NVIDIA M60
GPU Memory 8 GB
Sizes 1, 2 or 4 GPU
Interconnect PCIe (dual root)
2nd Network
VM CPU Broadwell
VM RAM 112-448 GB
Local SSD ~700-3000 GB
Storage Prem Storage
Driver Quadro/Grid PC

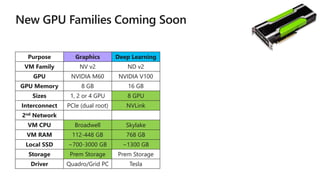

15. Purpose Graphics Deep Learning
VM Family NV v2 ND v2
GPU NVIDIA M60 NVIDIA V100
GPU Memory 8 GB 16 GB
Sizes 1, 2 or 4 GPU 8 GPU
Interconnect PCIe (dual root) NVLink
2nd Network
VM CPU Broadwell Skylake
VM RAM 112-448 GB 768 GB
Local SSD ~700-3000 GB ~1300 GB
Storage Prem Storage Prem Storage
Driver Quadro/Grid PC Tesla

17. https://www.flickr.com/photos/mwichary/4358127163

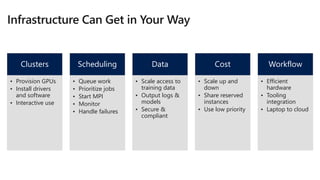

18. Clusters
• Provision GPUs
• Install drivers
and software
• Interactive use
Scheduling
• Queue work
• Prioritize jobs
• Start MPI
• Monitor
• Handle failures
Data
• Scale access to
training data
• Output logs &
models
• Secure &
compliant
Cost
• Scale up and
down
• Share reserved
instances
• Use low priority
Workflow
• Efficient
hardware
• Tooling
integration
• Laptop to cloud

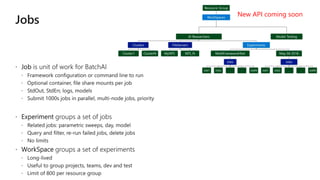

21. New API coming soon

23. https://github.com/Azure/BatchAI/tree/master/recipes

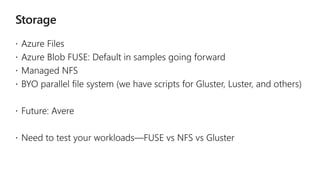

26.  Azure Blob FUSE: Default in samples going forward

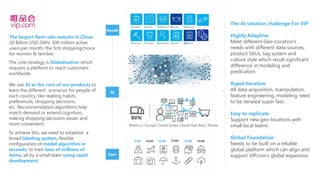

32. The AI solution challenge For VIP
Highly Adaptive
Meet different Geo-Location’s
needs with different data sources,
product SKUs, tag system and
culture style which result significant
difference in modeling and
predication.
Rapid Iteration
All data acquisition, manipulation,
feature engineering, modeling need
to be iterated super fast.
Easy to replicate
Support new geo-locations with
small local teams
Global Foundation
Needs to be built on a reliable
global platform which can align and
support VIP.com’s global expansion.
8:00 10:00 14:0012:00 16:00 18:00
AI
The largest flash-sale website in China
20 Billion USD GMV, 300 million active
users per month, the first shoppingchoice
for women & families
The core strategy is Globalization which
requires a platform to reach customers
worldwide.
We use AI as the core of our products to
learn the different scenarios for people of
each country, like reading habits,
preferences, shopping decisions,
etc. Recommendation algorithms help
match demand or extend cognition,
making shopping decisions easier and
more convenient. America / Europe / South Korea / South East Asia / Russia
To achieve this, we need to establish a
broad labeling system, flexible
configuration of model algorithm in
seconds, to train tens of millions of
items, all by a small team using rapid
development.

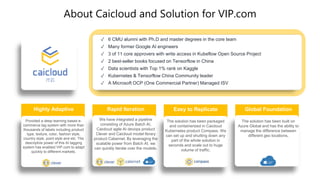

33. About Caicloud and Solution for VIP.com
Highly Adaptive
Provided a deep learning based e-
commerce tag system with more than
thousands of labels including product
type, texture, color, fashion style,
country style, point style and etc. The
descriptive power of this AI tagging
system has enabled VIP.com to adapt
quickly to different markets.
Rapid Iteration
We have integrated a pipeline
consisting of Azure Batch AI,
Caicloud agile AI devops product
Clever and Caicloud model library
product Cabernet. By leveraging the
scalable power from Batch AI, we
can quickly iterate over the models.
Easy to Replicate
The solution has been packaged
and containerized in Caicloud
Kubernetes product Compass. We
can set up and shutting down any
part of the whole solution in
seconds and scale out to huge
volume of traffic.
Global Foundation
The solution has been built on
Azure Global and has the ability to
manage the difference between
different geo locations.
✓ 6 CMU alumni with Ph.D and master degrees in the core team
✓ Many former Google AI engineers
✓ 3 of 11 core approvers with write access in Kubeflow Open Source Project
✓ 2 best-seller books focused on Tensorflow in China
✓ Data scientists with Top 1% rank on Kaggle
✓ Kubernetes & Tensorflow China Community leader
✓ A Microsoft OCP (One Commercial Partner) Managed ISV

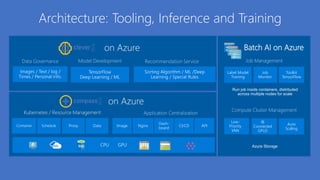

34. Architecture: Tooling, Inference and Training
Images / Text / log /
Times / Personal info.
Recommendation Service
Sorting Algorithm / ML /Deep
Learning / Special Rules
Data Governance Model Development
TensorFlow
Deep Learning / ML
Kubernetes / Resource Management
Container
Application Centralization
Schedule Proxy Data Image Nginx
Dash-
board
CI/CD
CPU GPU
API
Label Model
Training
Job
Monitor
Job Management
Toolkit
TensorFlow
Compute Cluster Management
Low-
Priority
VMs
IB
Connected
GPUS
Auto
Scaling
Azure Storage
Run job inside containers, distributed
across multiple nodes for scale
on Azure
on Azure
Batch AI on Azure

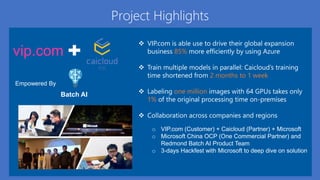

35.  VIP.com is able use to drive their global expansion
business 85% more efficiently by using Azure
 Train multiple models in parallel: Caicloud’s training
time shortened from 2 months to 1 week
 Labeling one million images with 64 GPUs takes only
1% of the original processing time on-premises
 Collaboration across companies and regions
Project Highlights
vip.com
Batch AI
o VIP.com (Customer) + Caicloud (Partner) + Microsoft
o Microsoft China OCP (One Commercial Partner) and
Redmond Batch AI Product Team
o 3-days Hackfest with Microsoft to deep dive on solution
Empowered By

37. https://www.flickr.com/photos/mwichary/4358122657

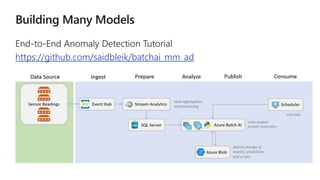

38. https://github.com/saidbleik/batchai_mm_ad

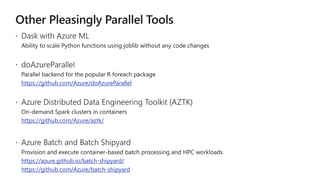

41. https://github.com/Azure/doAzureParallel
https://github.com/Azure/aztk/
https://azure.github.io/batch-shipyard/
https://github.com/Azure/batch-shipyard

42. https://www.flickr.com/photos/mwichary/4148855707

44. Virtual Machines
CPU GPU FPGA
Data Bricks Batch AI AKS
Azure Machine Learning SDK
Your Applications and Pipelines

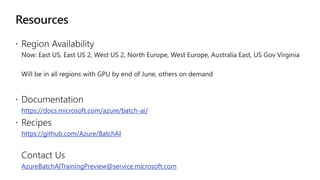

45. https://docs.microsoft.com/azure/batch-ai/
https://github.com/Azure/BatchAI
