This document discusses connection pooling in Java using c3p0. It defines what a database connection is and explains how connection pooling works to improve performance by maintaining a pool of ready-to-use connections rather than continuously opening and closing connections. The document introduces c3p0 as a connection pooler, describes how to configure and use c3p0, and outlines some of the benefits of connection pooling such as improved performance, easier diagnostics, and increased maintainability.

1. hSenid Lanka: Connection Pooling With c3p0

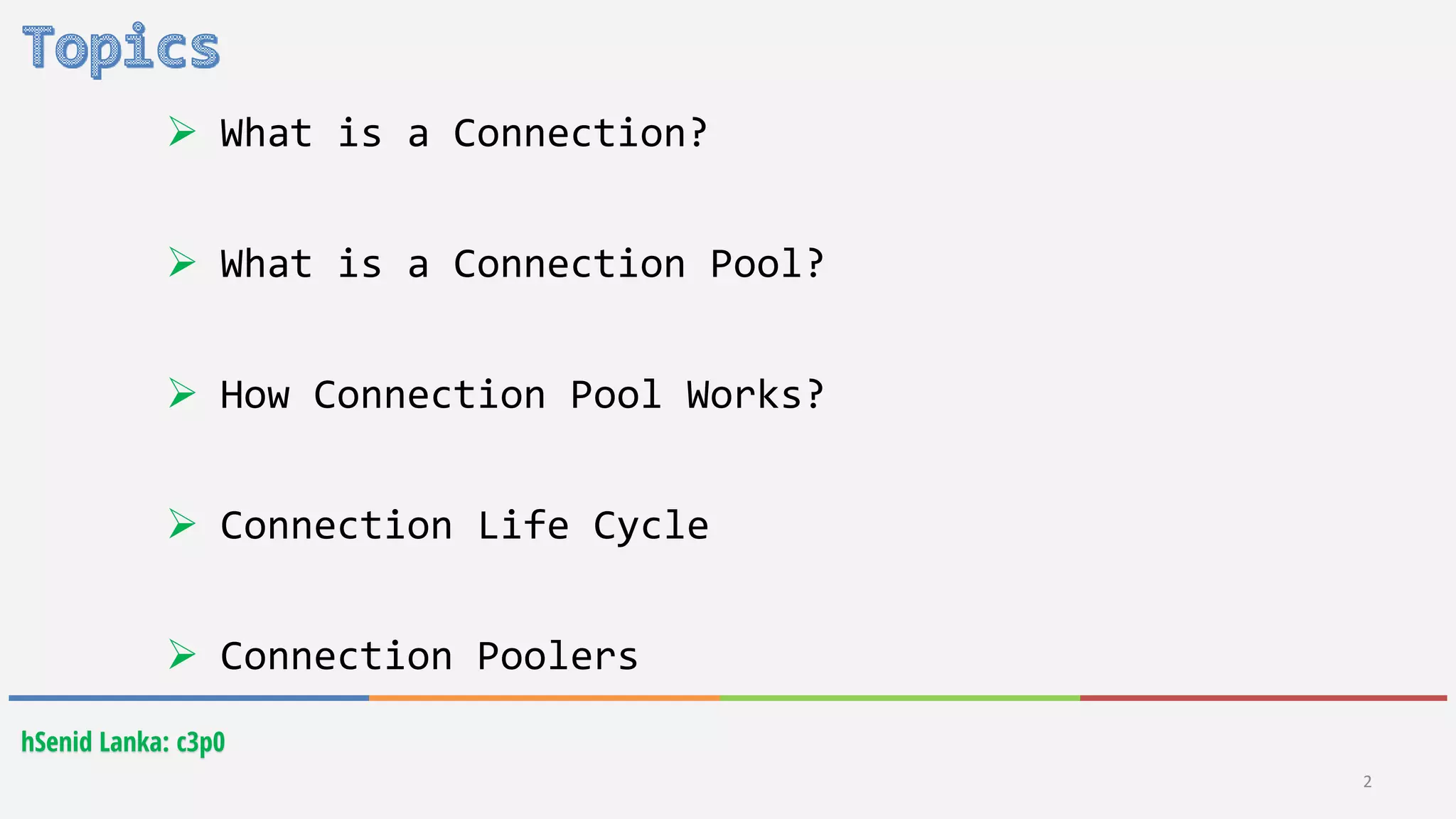

2. hSenid Lanka: c3p0
 What is a Connection?
 What is a Connection Pool?
 How Connection Pool Works?
 Connection Life Cycle
 Connection Poolers
2

3. hSenid Lanka: c3p0
3
 Introduction to c3p0
 Using c3p0
 Configuring c3p0
 Benefits of Connection Pooling

4. hSenid Lanka: c3p0
• In computer science, a database connection is the
means by which a database server and its client
software communicate with each other.
• The term is used whether or not the client and
the server are on different machines.
• Connections are built by supplying an underlying
driver or provider with a connection string.
4

5. hSenid Lanka: c3p0

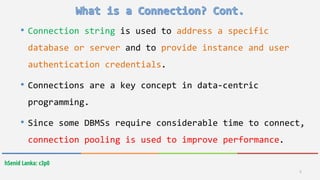

• Connection string is used to address a specific
database or server and to provide instance and user
authentication credentials.
• Connections are a key concept in data-centric
programming.
• Since some DBMSs require considerable time to connect,
connection pooling is used to improve performance.
5

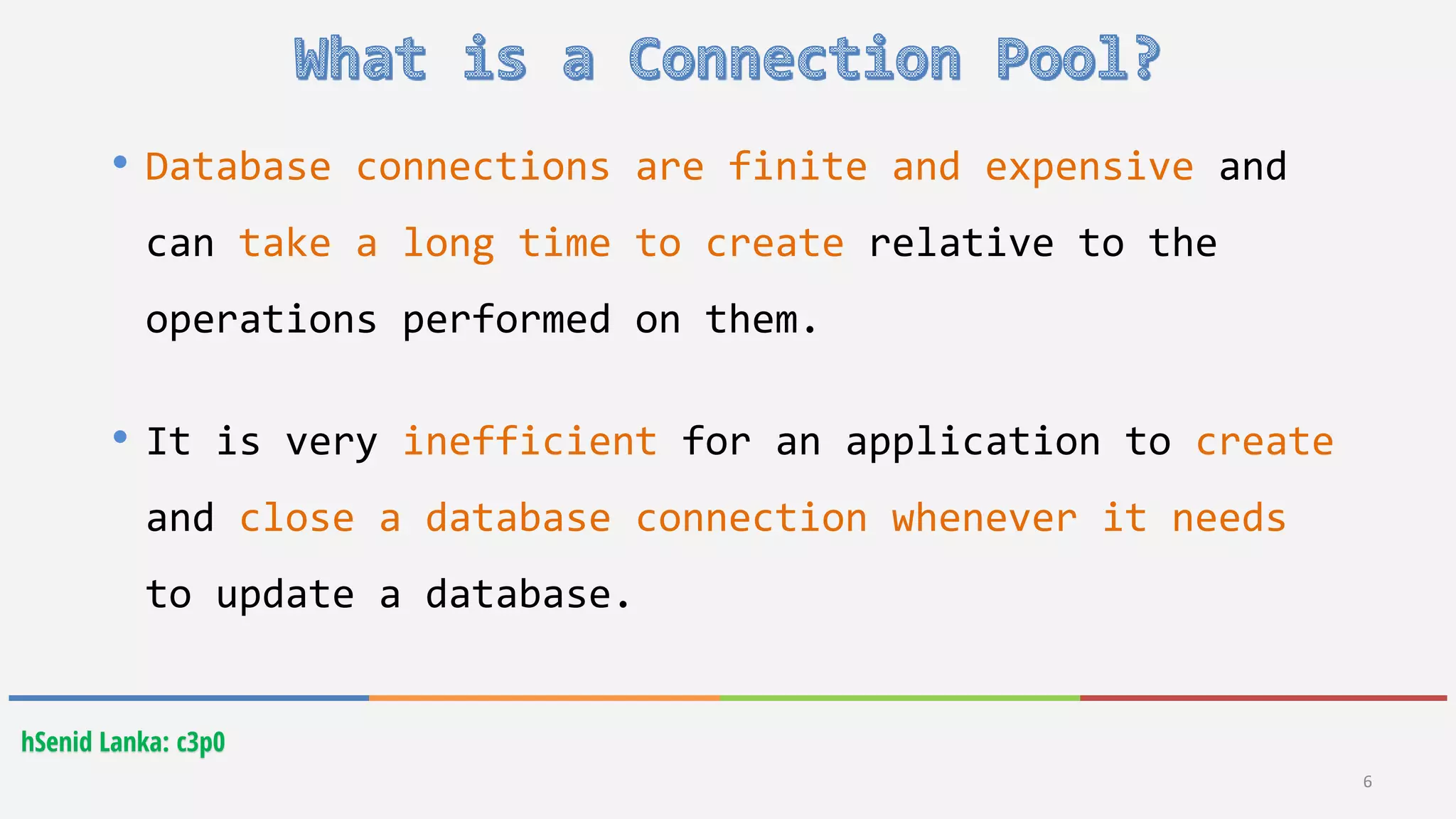

6. hSenid Lanka: c3p0

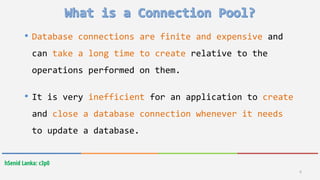

• Database connections are finite and expensive and
can take a long time to create relative to the
operations performed on them.
• It is very inefficient for an application to create
and close a database connection whenever it needs
to update a database.
6

7. hSenid Lanka: c3p0

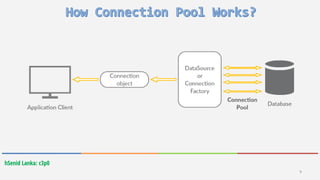

• The application server maintains a pool of ready to use
connections to a data store.
o Application client requests a connections using a data
source or a connection factory object.
o Connection is retrieved from the pool.
• Opening a connection only when needed, and closing it
as soon as the work is done, rather than holding a
connection open for the entire life of the
application.
7

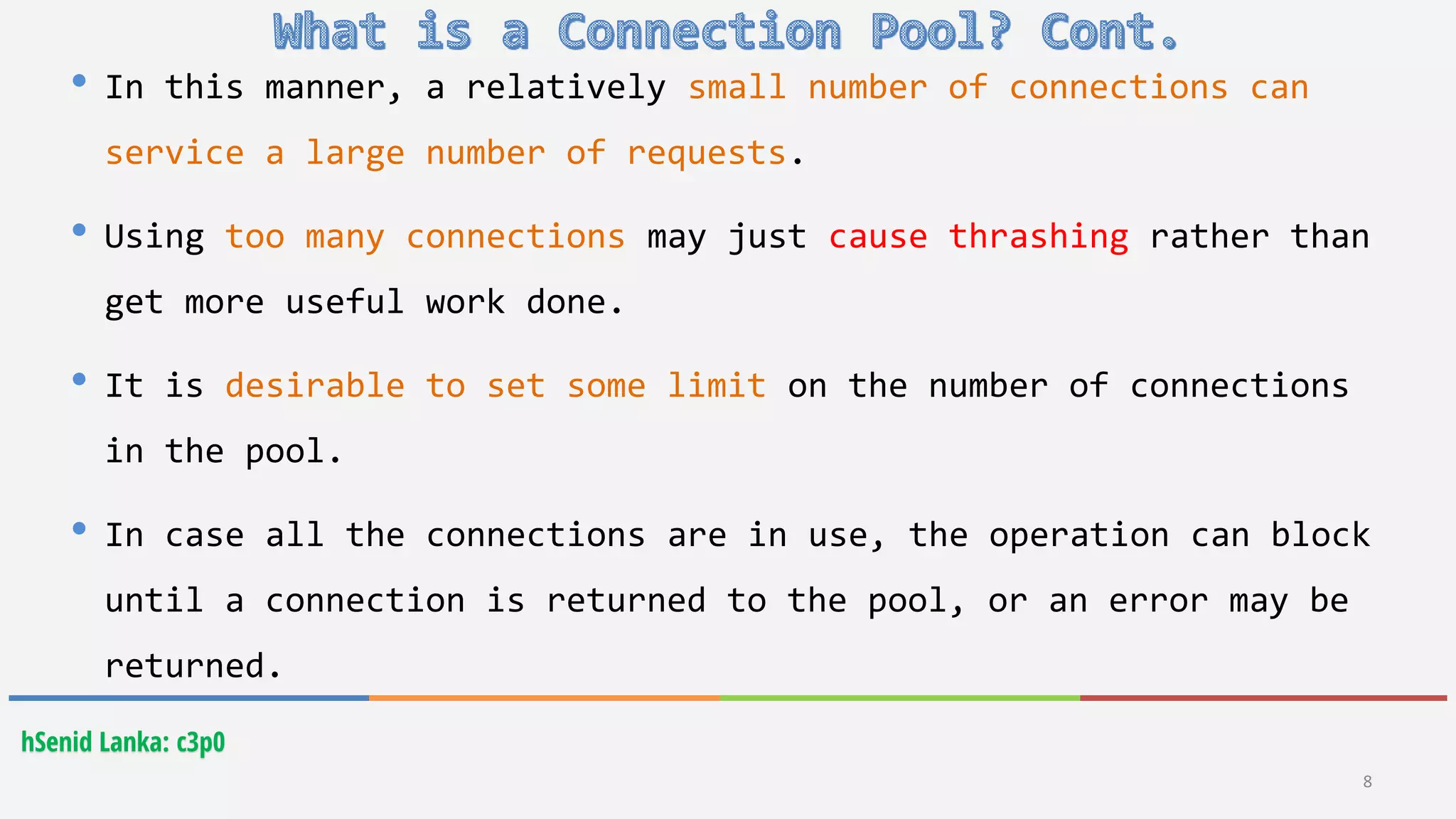

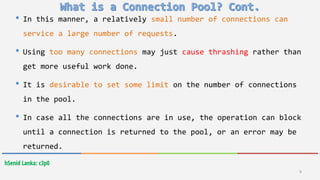

8. hSenid Lanka: c3p0
• In this manner, a relatively small number of connections can
service a large number of requests.
• Using too many connections may just cause thrashing rather than
get more useful work done.
• It is desirable to set some limit on the number of connections
in the pool.
• In case all the connections are in use, the operation can block
until a connection is returned to the pool, or an error may be
returned.
8

9. hSenid Lanka: c3p0
9

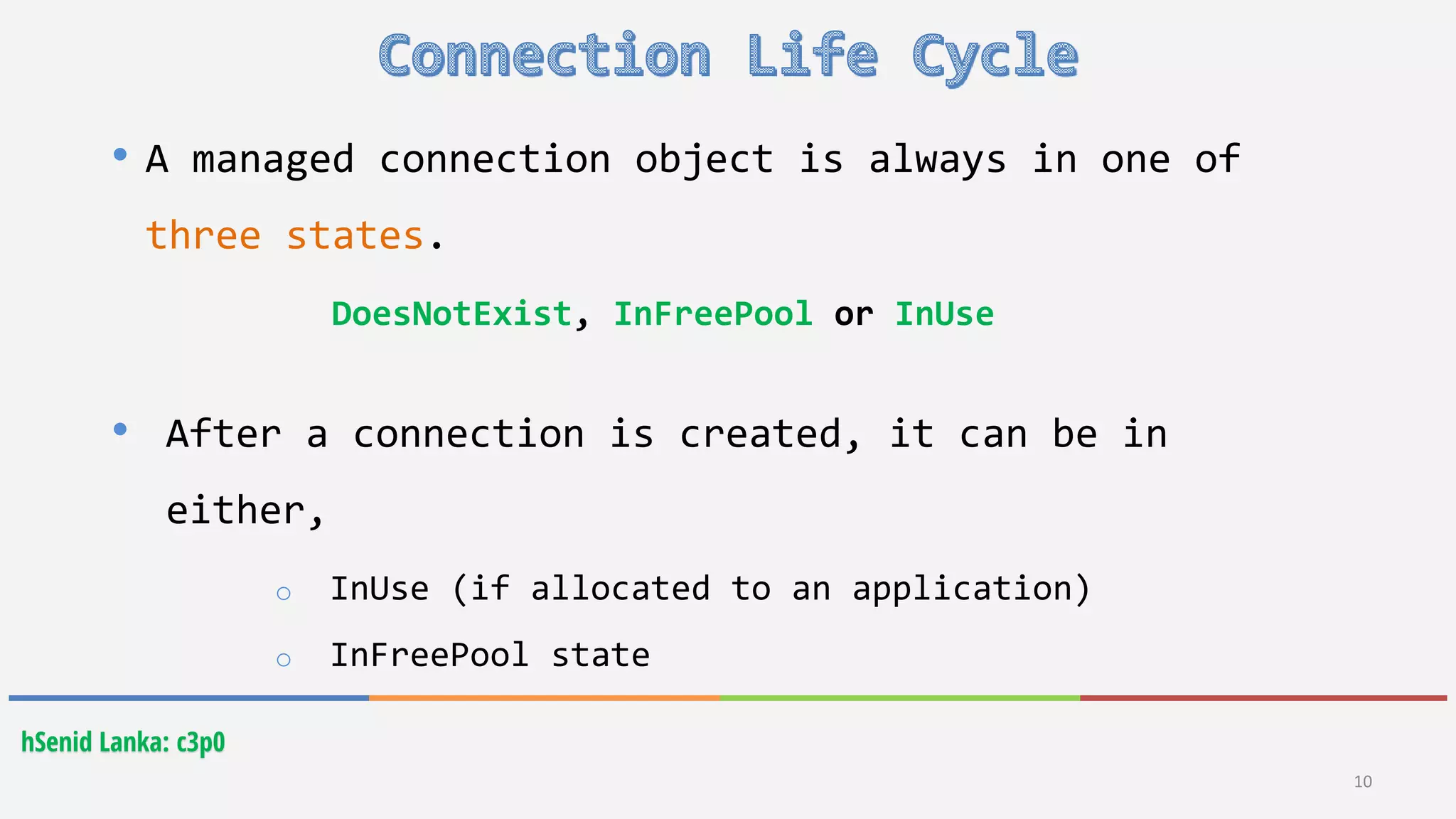

10. hSenid Lanka: c3p0
• A managed connection object is always in one of
three states.
DoesNotExist, InFreePool or InUse
• After a connection is created, it can be in
either,
o InUse (if allocated to an application)
o InFreePool state
10

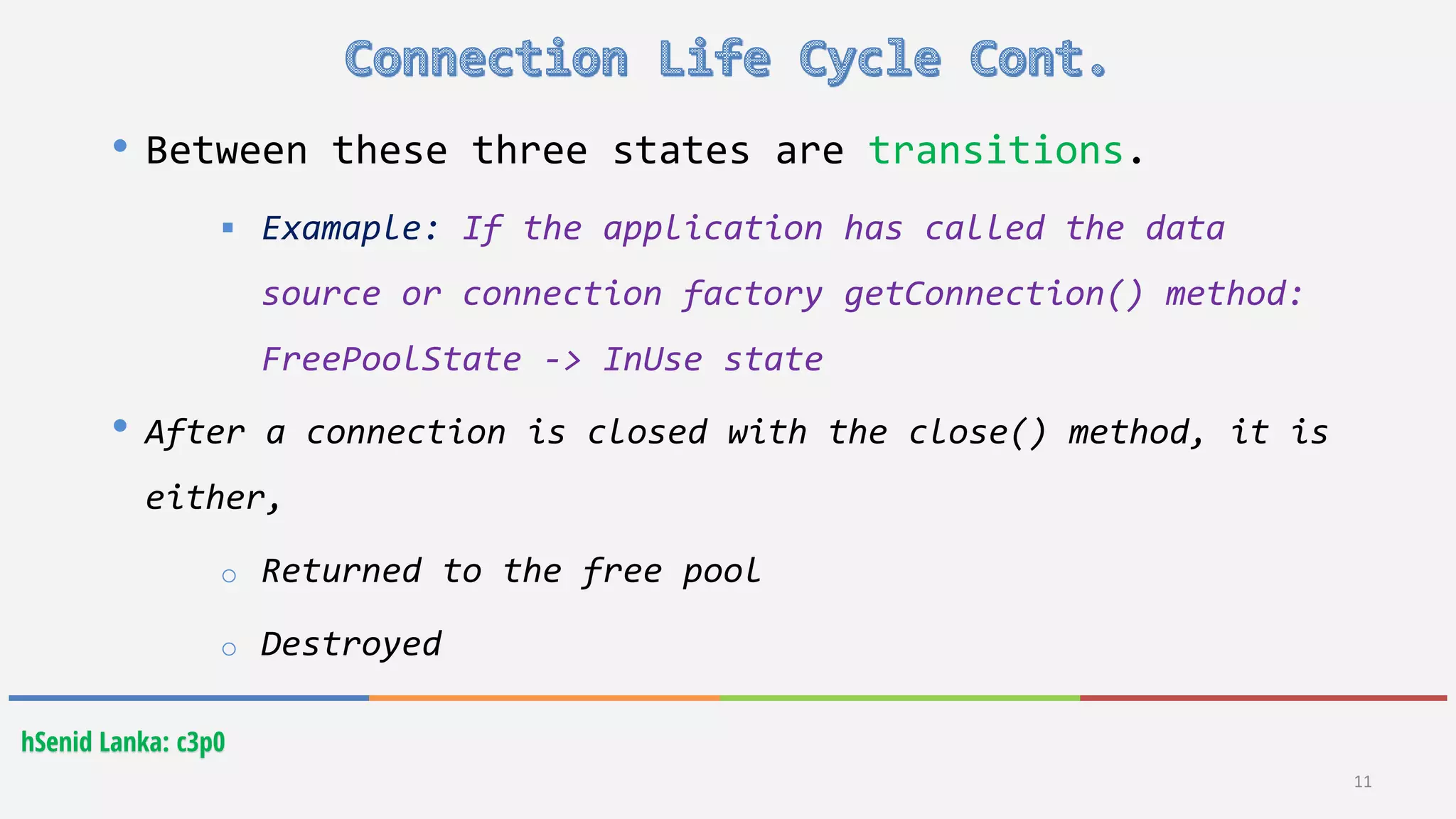

11. hSenid Lanka: c3p0
• Between these three states are transitions.
 Examaple: If the application has called the data
source or connection factory getConnection() method:
FreePoolState -> InUse state
• After a connection is closed with the close() method, it is
either,
o Returned to the free pool
o Destroyed
11

12. hSenid Lanka: c3p0

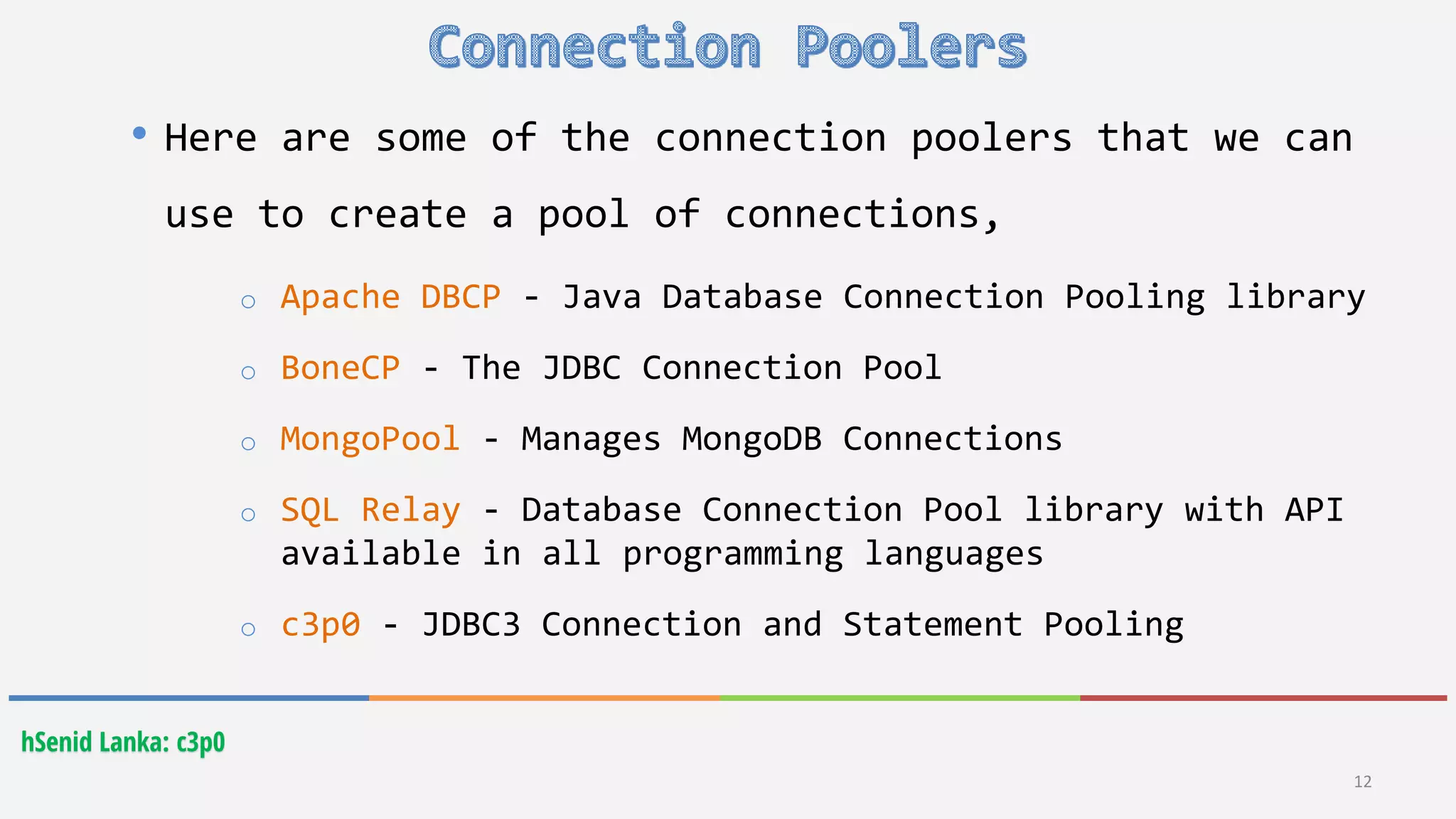

• Here are some of the connection poolers that we can
use to create a pool of connections,
o Apache DBCP - Java Database Connection Pooling library
o BoneCP - The JDBC Connection Pool
o MongoPool - Manages MongoDB Connections
o SQL Relay - Database Connection Pool library with API
available in all programming languages
o c3p0 - JDBC3 Connection and Statement Pooling
12

13. hSenid Lanka: c3p0
• c3p0 is an easy-to-use library for augmenting traditional
(DriverManager-based) JDBC drivers, including DataSources
that implement Connection and Statement Pooling.
• In particular, c3p0 provides several useful services:
• A class which adapt traditional DriverManager-based JDBC
drivers to the newer javax.sql.DataSource scheme for
acquiring database Connections.
• Transparent pooling of Connection and PreparedStatements
behind DataSources.
13

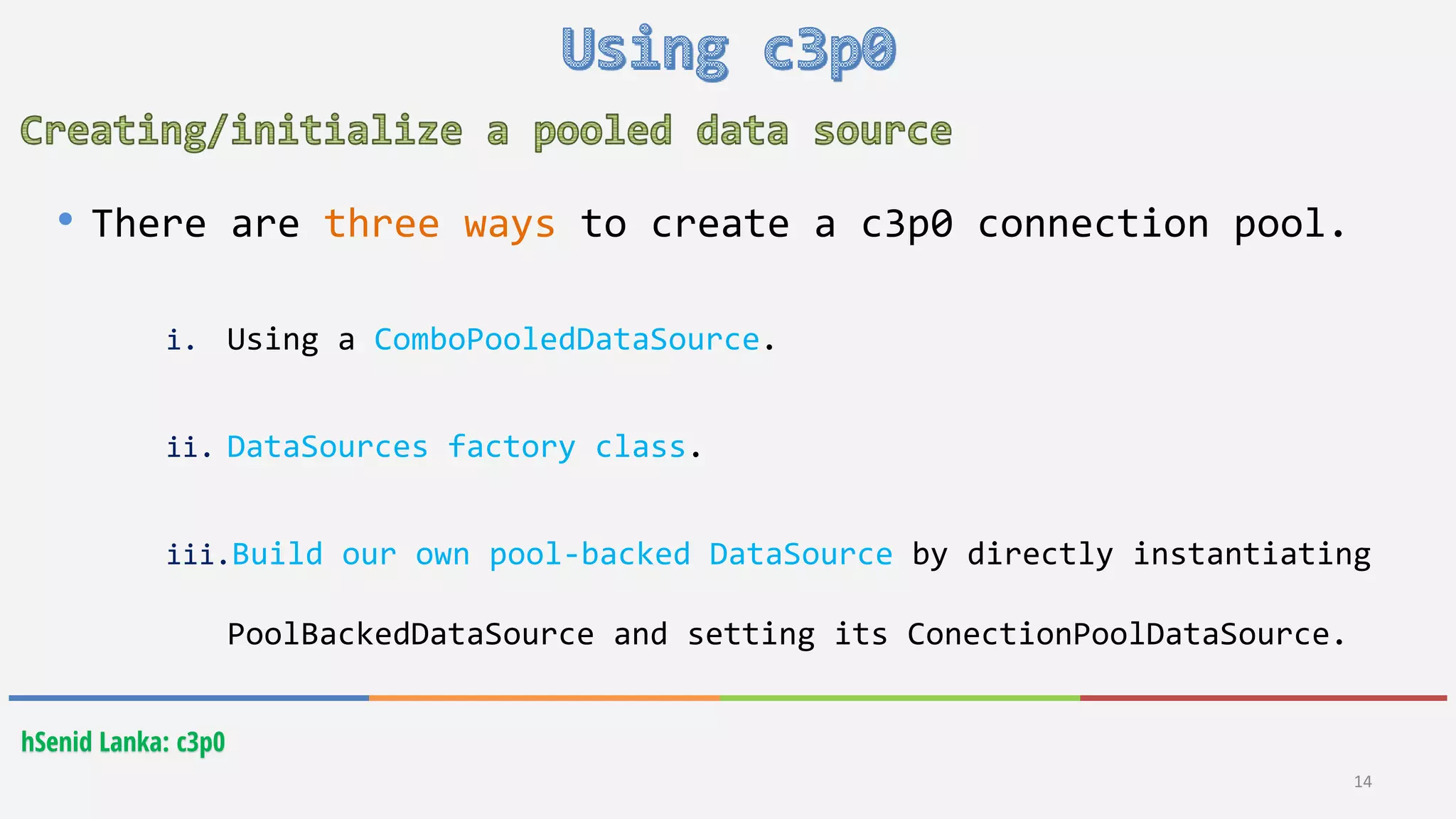

14. hSenid Lanka: c3p0
14
• There are three ways to create a c3p0 connection pool.
i. Using a ComboPooledDataSource.
ii. DataSources factory class.
iii.Build our own pool-backed DataSource by directly instantiating
PoolBackedDataSource and setting its ConectionPoolDataSource.

15. hSenid Lanka: c3p0
15

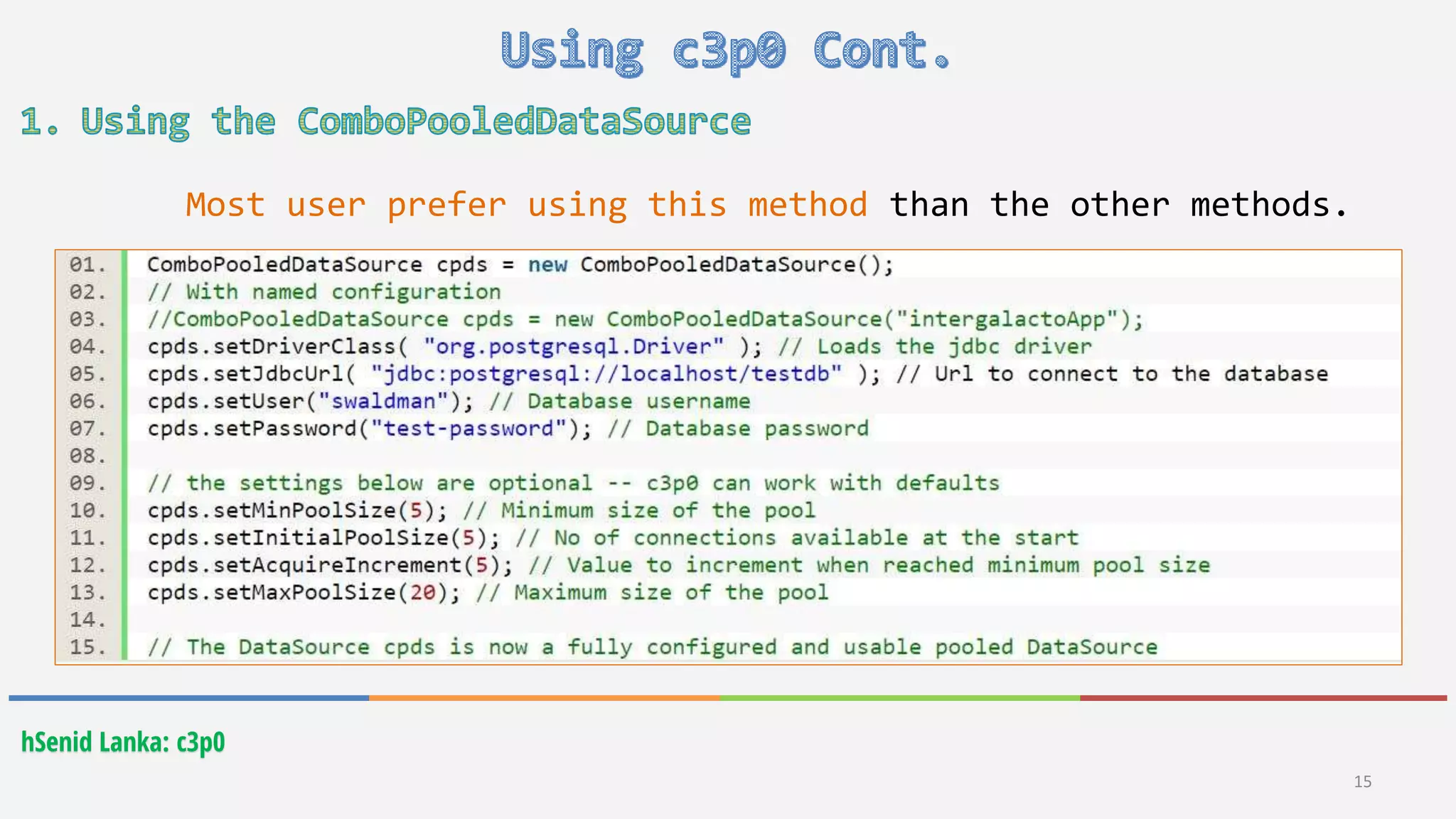

Most user prefer using this method than the other methods.

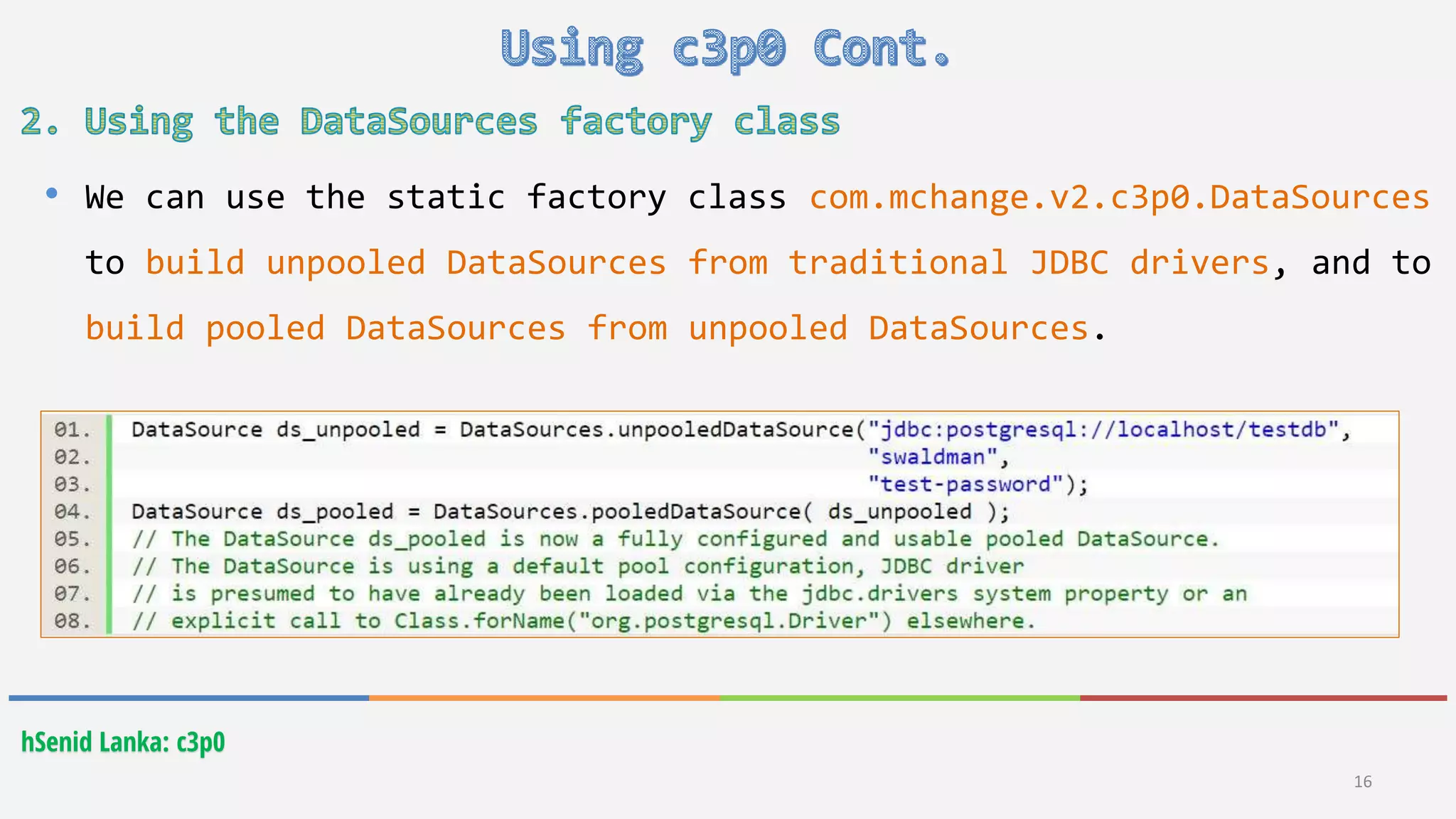

16. hSenid Lanka: c3p0
16
• We can use the static factory class com.mchange.v2.c3p0.DataSources
to build unpooled DataSources from traditional JDBC drivers, and to
build pooled DataSources from unpooled DataSources.

17. hSenid Lanka: c3p0
17

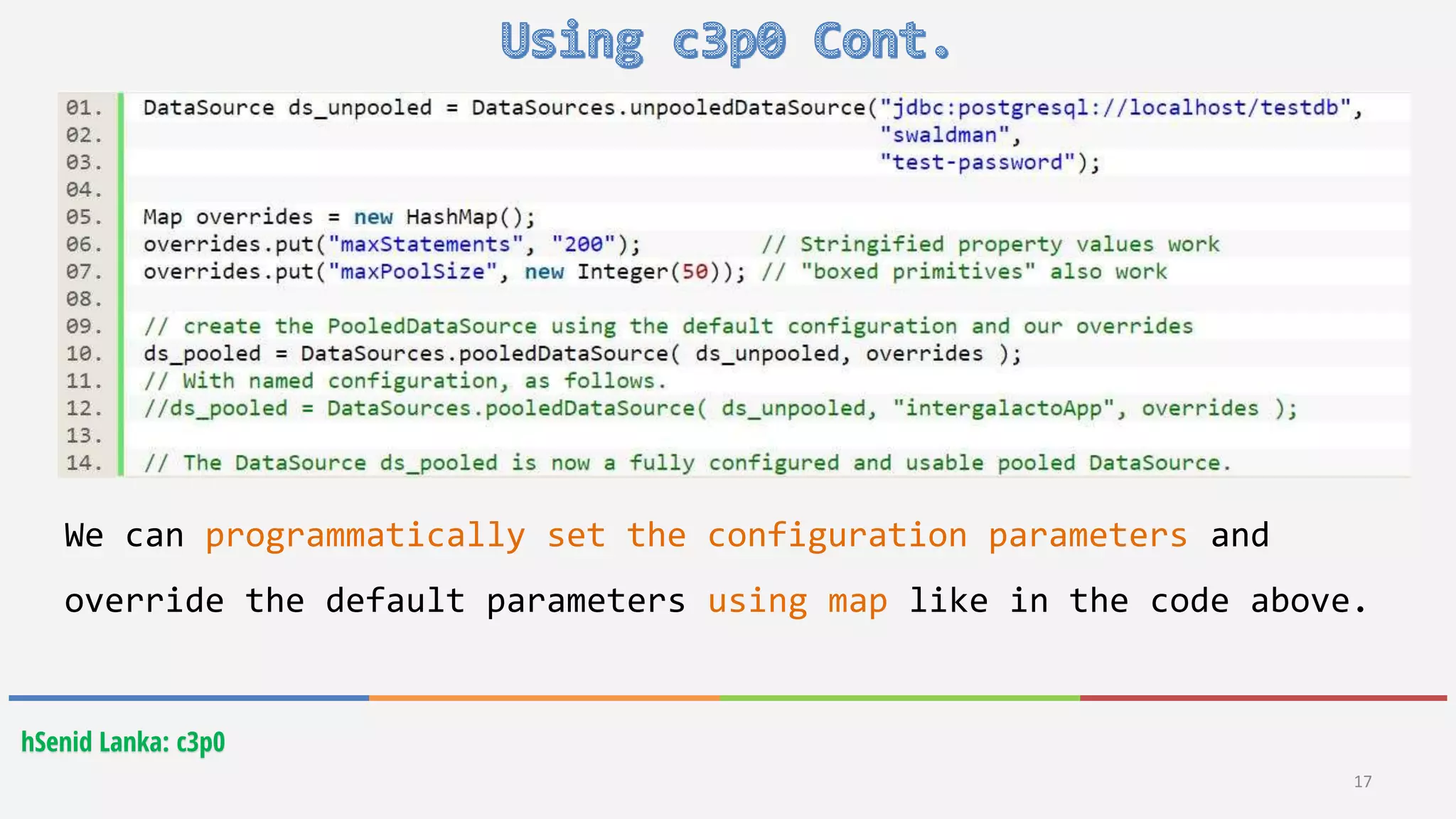

We can programmatically set the configuration parameters and
override the default parameters using map like in the code above.

18. hSenid Lanka: c3p0
18
• Here are some of the methods that we can use to query/get the
information of the current status of the data sources.
 public int getNumConnectionsDefaultUser()
 public int getNumIdleConnectionsDefaultUser()
 public int getNumBusyConnectionsDefaultUser()
 public int getNumConnections(String username, String password)
 public int getNumConnectionsAllUsers()
c3p0 maintains separate pools for Connections with
distinct authentications.

19. hSenid Lanka: c3p0
19
o Using destroy method

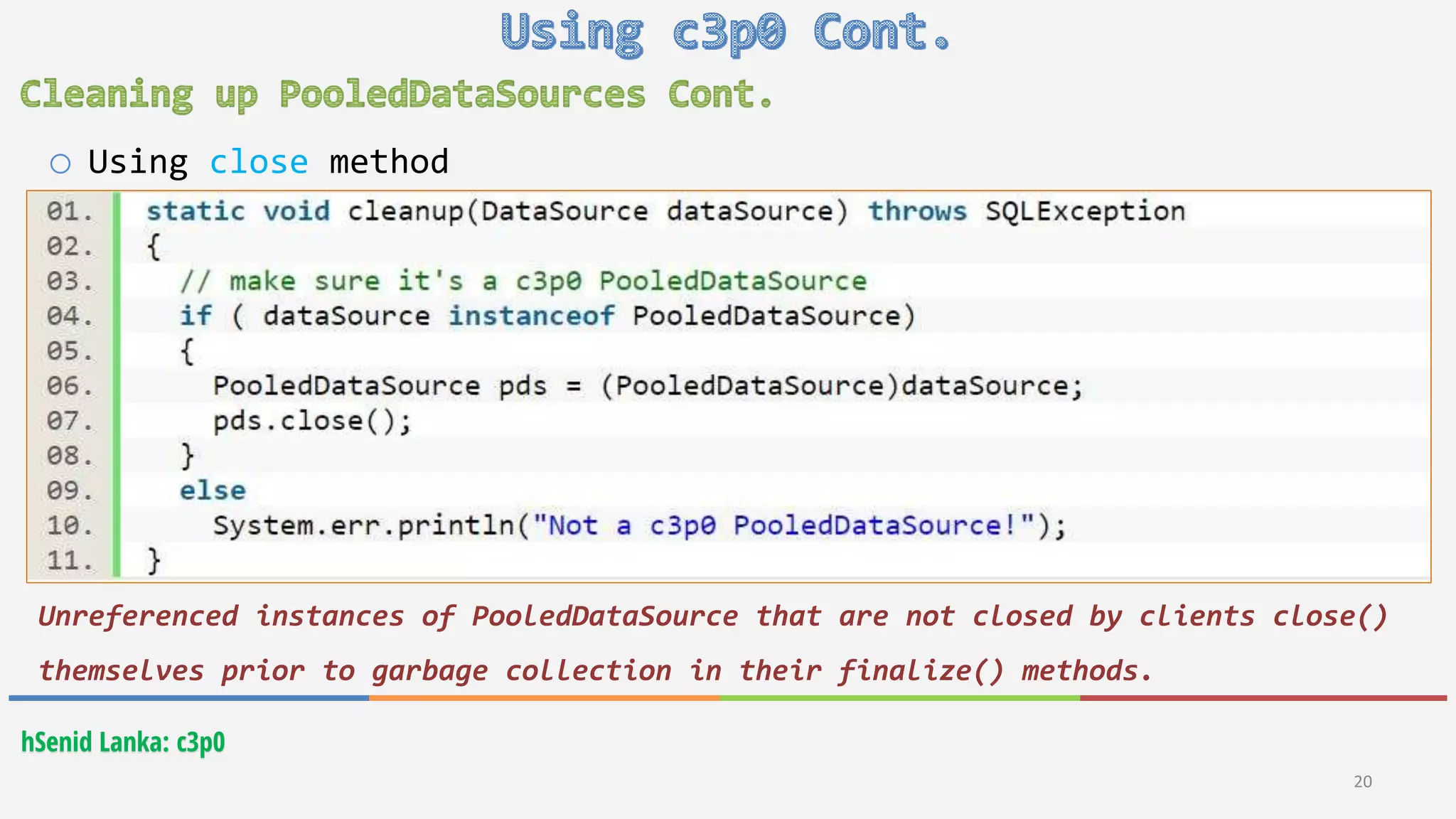

20. hSenid Lanka: c3p0
20
o Using close method
Unreferenced instances of PooledDataSource that are not closed by clients close()
themselves prior to garbage collection in their finalize() methods.

21. hSenid Lanka: c3p0
21

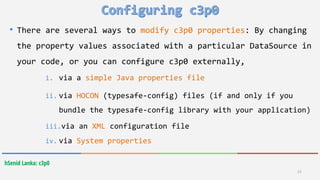

• There are several ways to modify c3p0 properties: By changing
the property values associated with a particular DataSource in
your code, or you can configure c3p0 externally,
i. via a simple Java properties file
ii. via HOCON (typesafe-config) files (if and only if you
bundle the typesafe-config library with your application)
iii.via an XML configuration file
iv. via System properties

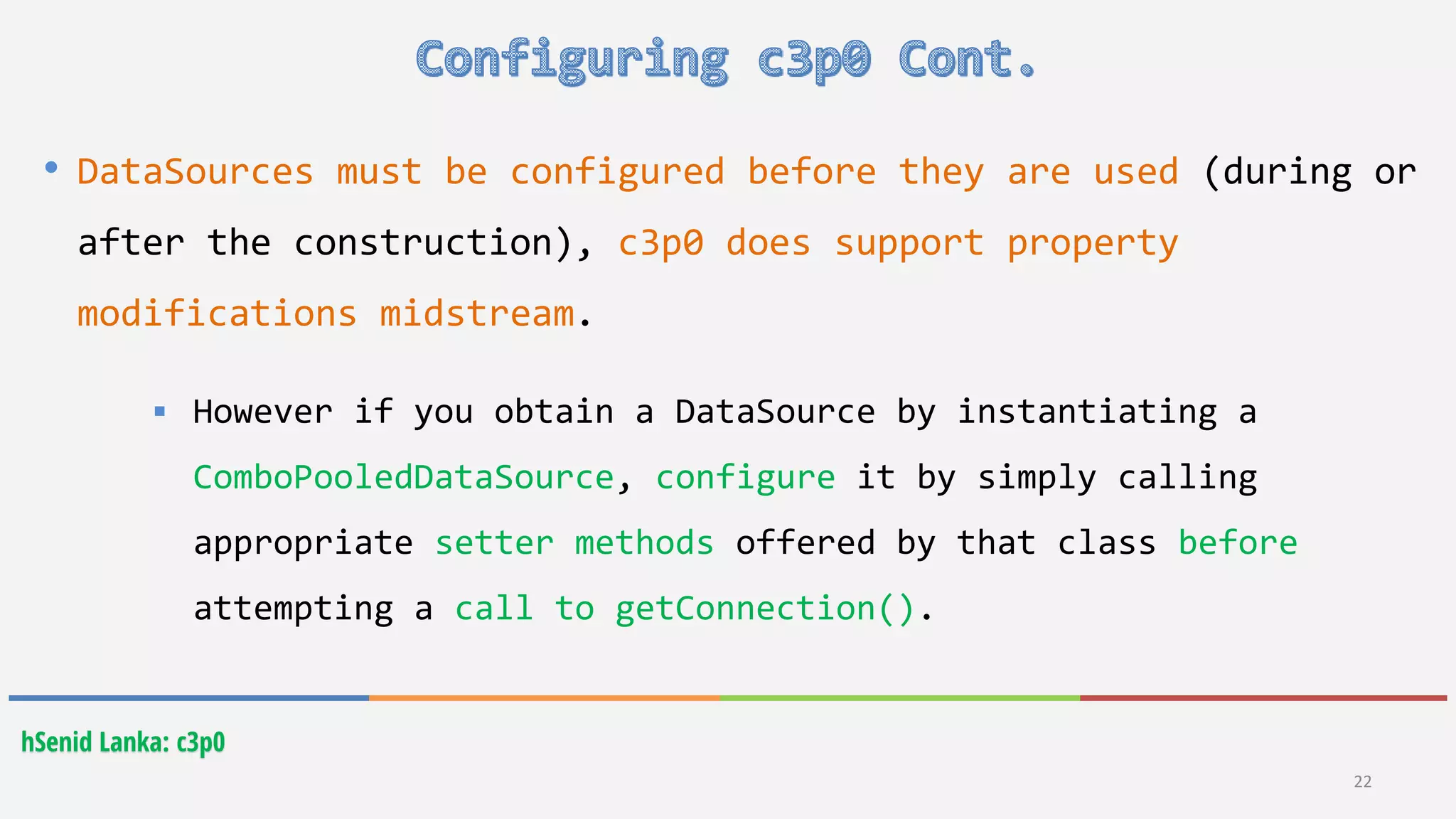

22. hSenid Lanka: c3p0
22
• DataSources must be configured before they are used (during or
after the construction), c3p0 does support property
modifications midstream.
 However if you obtain a DataSource by instantiating a
ComboPooledDataSource, configure it by simply calling
appropriate setter methods offered by that class before
attempting a call to getConnection().

23. hSenid Lanka: c3p0
23

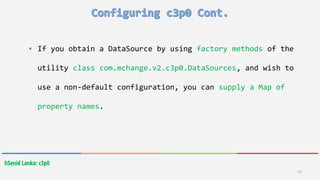

 If you obtain a DataSource by using factory methods of the
utility class com.mchange.v2.c3p0.DataSources, and wish to
use a non-default configuration, you can supply a Map of
property names.

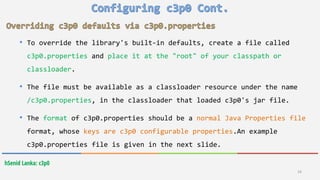

24. hSenid Lanka: c3p0
24
• To override the library's built-in defaults, create a file called
c3p0.properties and place it at the "root" of your classpath or
classloader.
• The file must be available as a classloader resource under the name
/c3p0.properties, in the classloader that loaded c3p0's jar file.

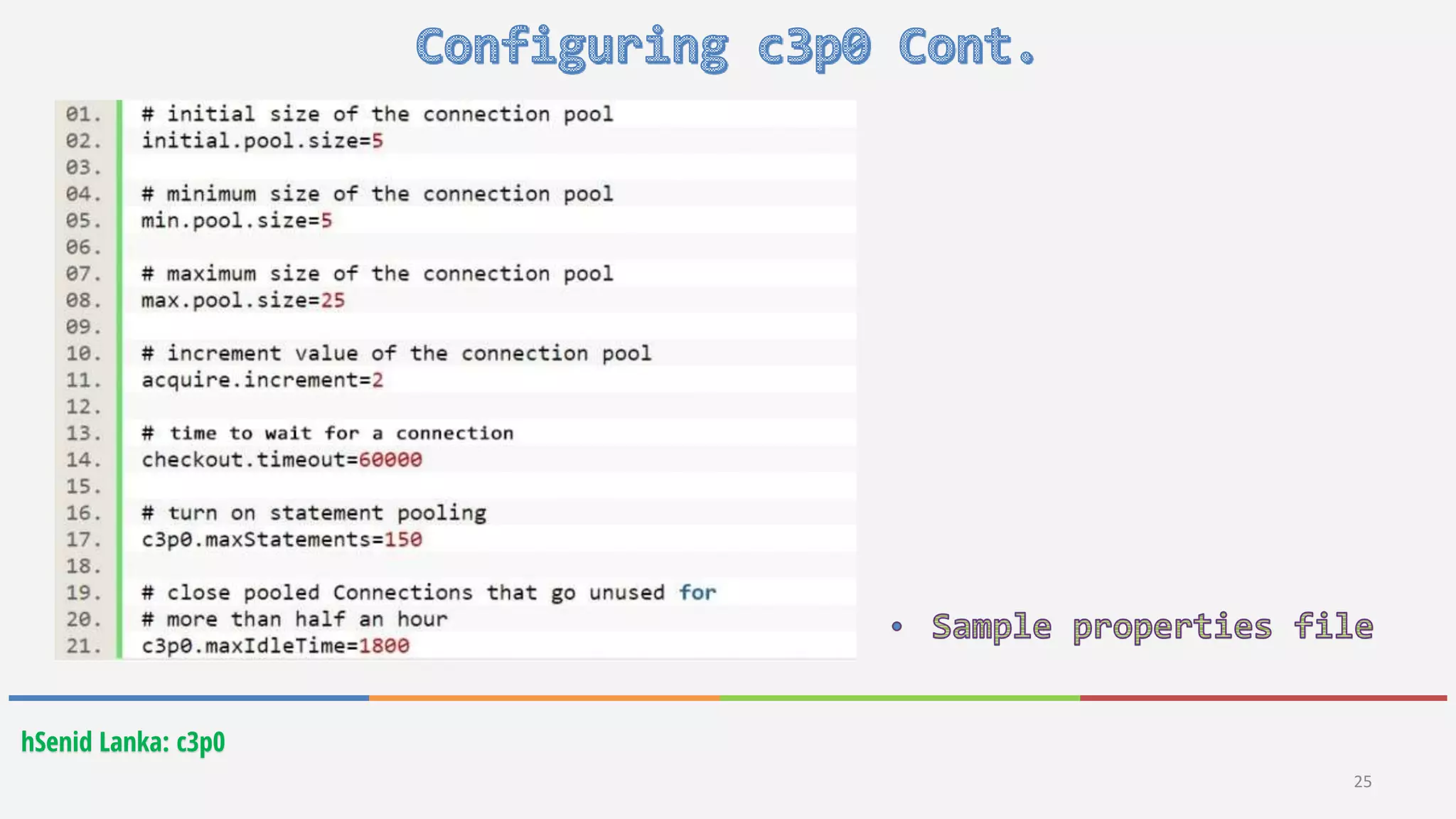

• The format of c3p0.properties should be a normal Java Properties file
format, whose keys are c3p0 configurable properties.An example
c3p0.properties file is given in the next slide.

25. hSenid Lanka: c3p0
25

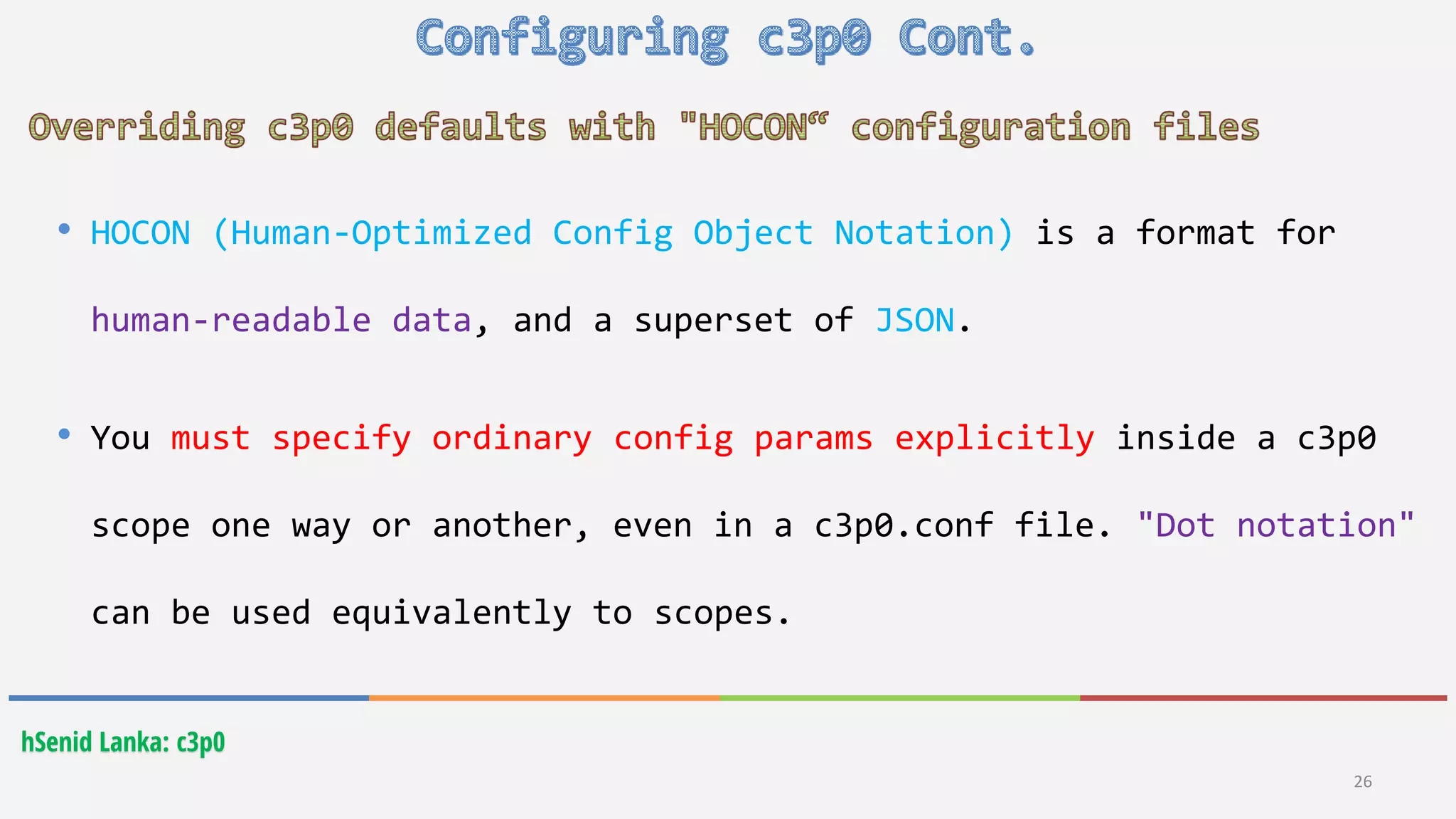

26. hSenid Lanka: c3p0
26

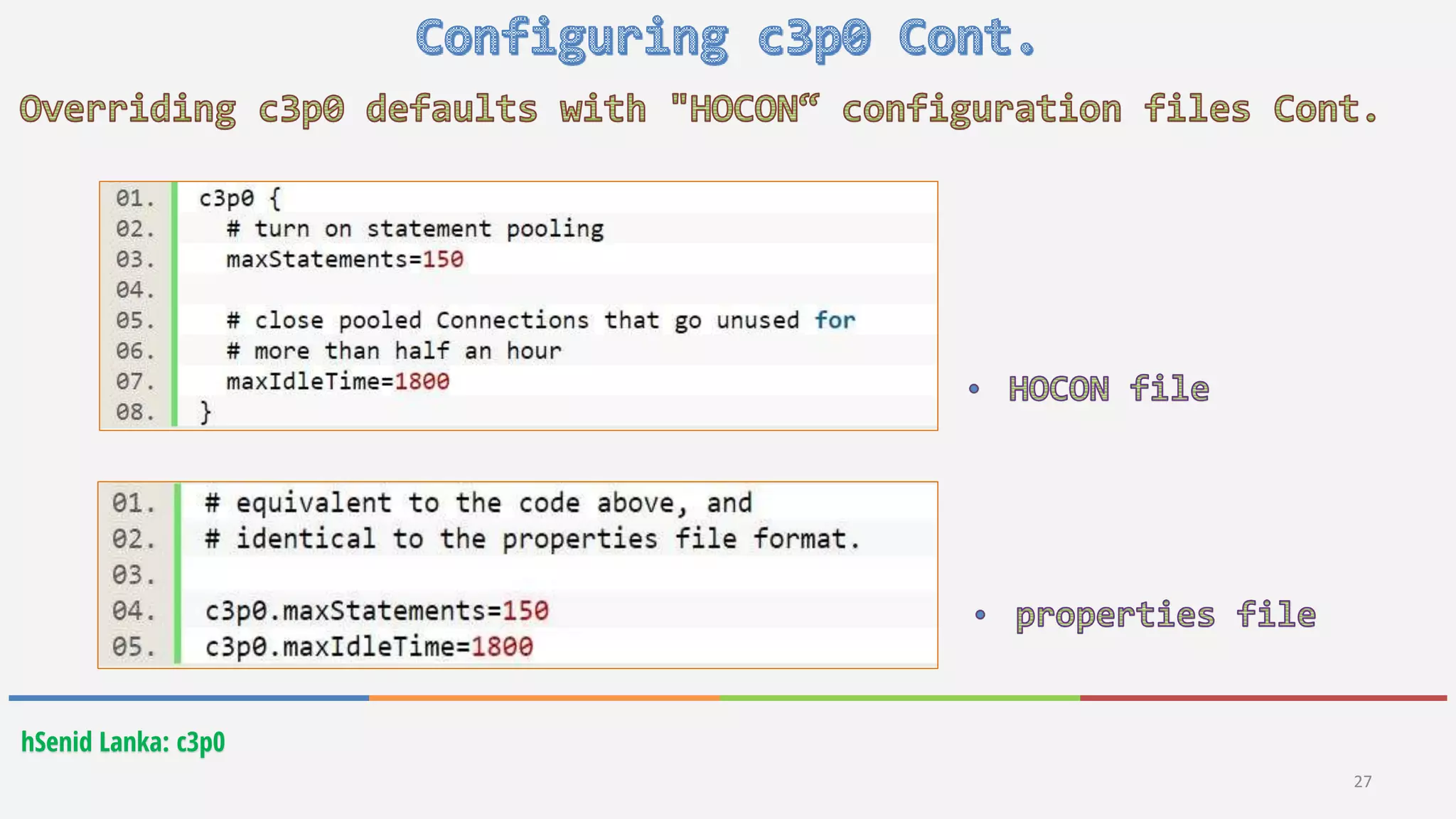

• HOCON (Human-Optimized Config Object Notation) is a format for
human-readable data, and a superset of JSON.
• You must specify ordinary config params explicitly inside a c3p0
scope one way or another, even in a c3p0.conf file. "Dot notation"
can be used equivalently to scopes.

27. hSenid Lanka: c3p0
27

28. hSenid Lanka: c3p0
28

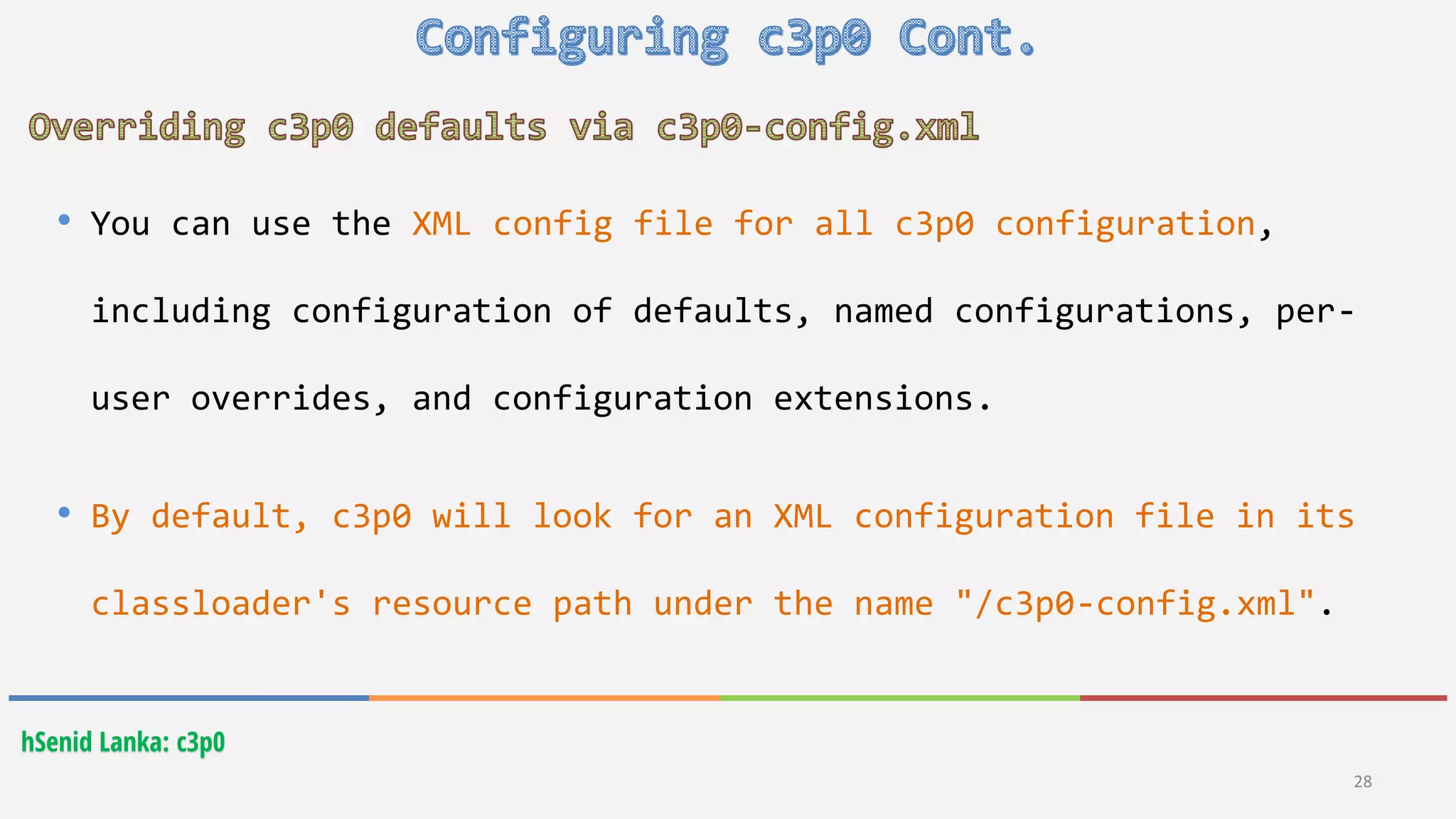

• You can use the XML config file for all c3p0 configuration,
including configuration of defaults, named configurations, per-
user overrides, and configuration extensions.
• By default, c3p0 will look for an XML configuration file in its
classloader's resource path under the name "/c3p0-config.xml".

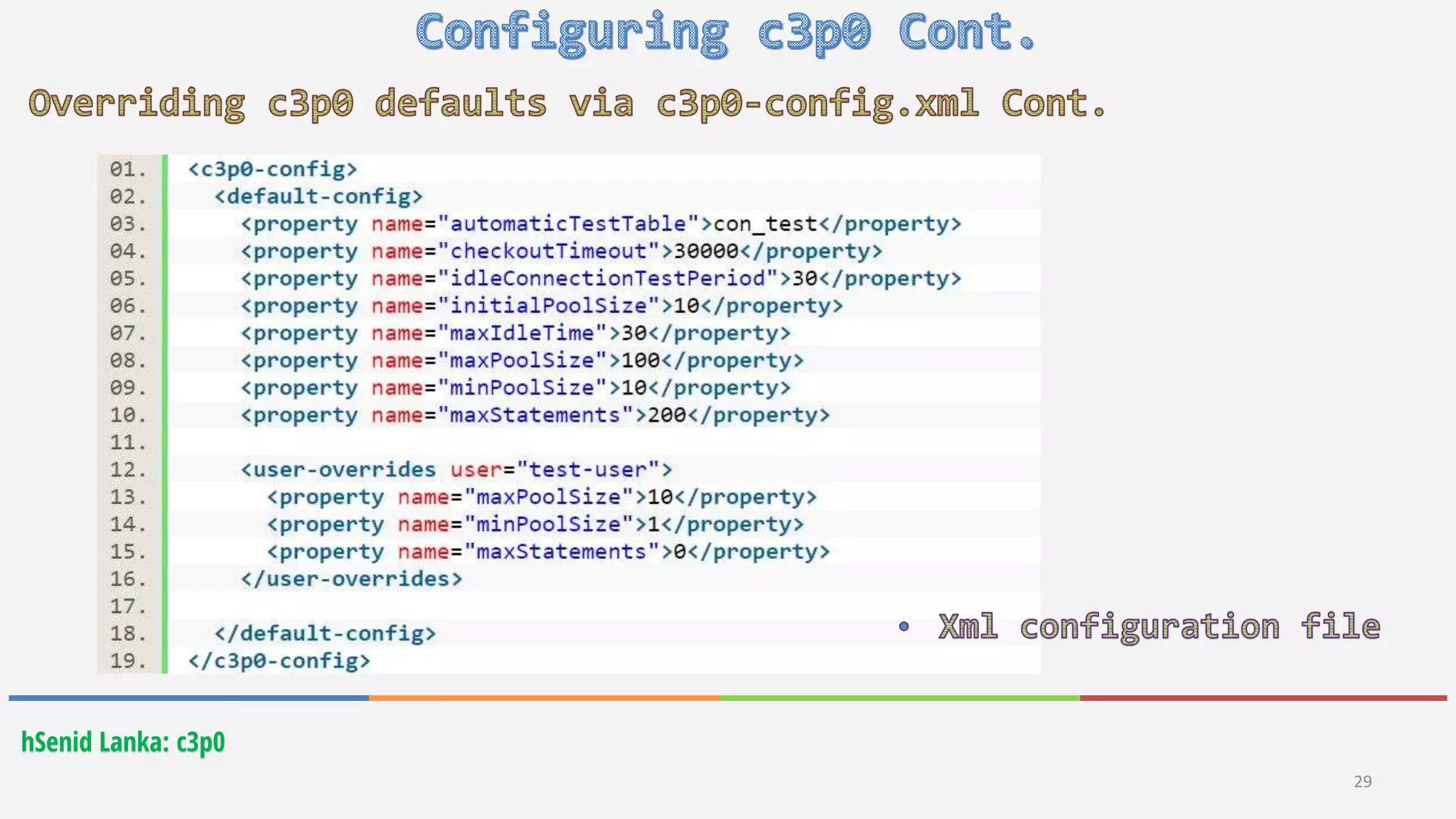

29. hSenid Lanka: c3p0
29

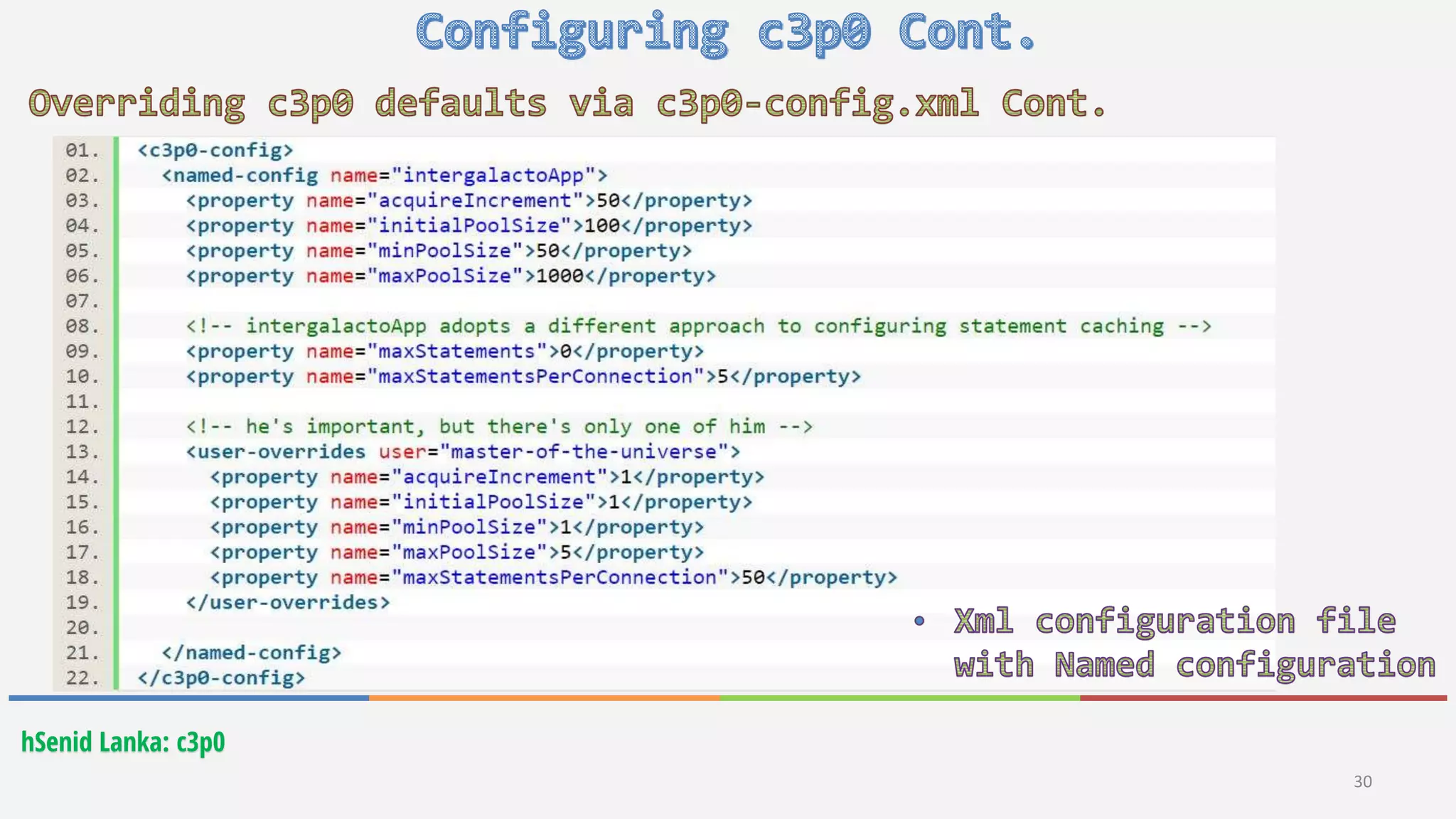

30. hSenid Lanka: c3p0
30

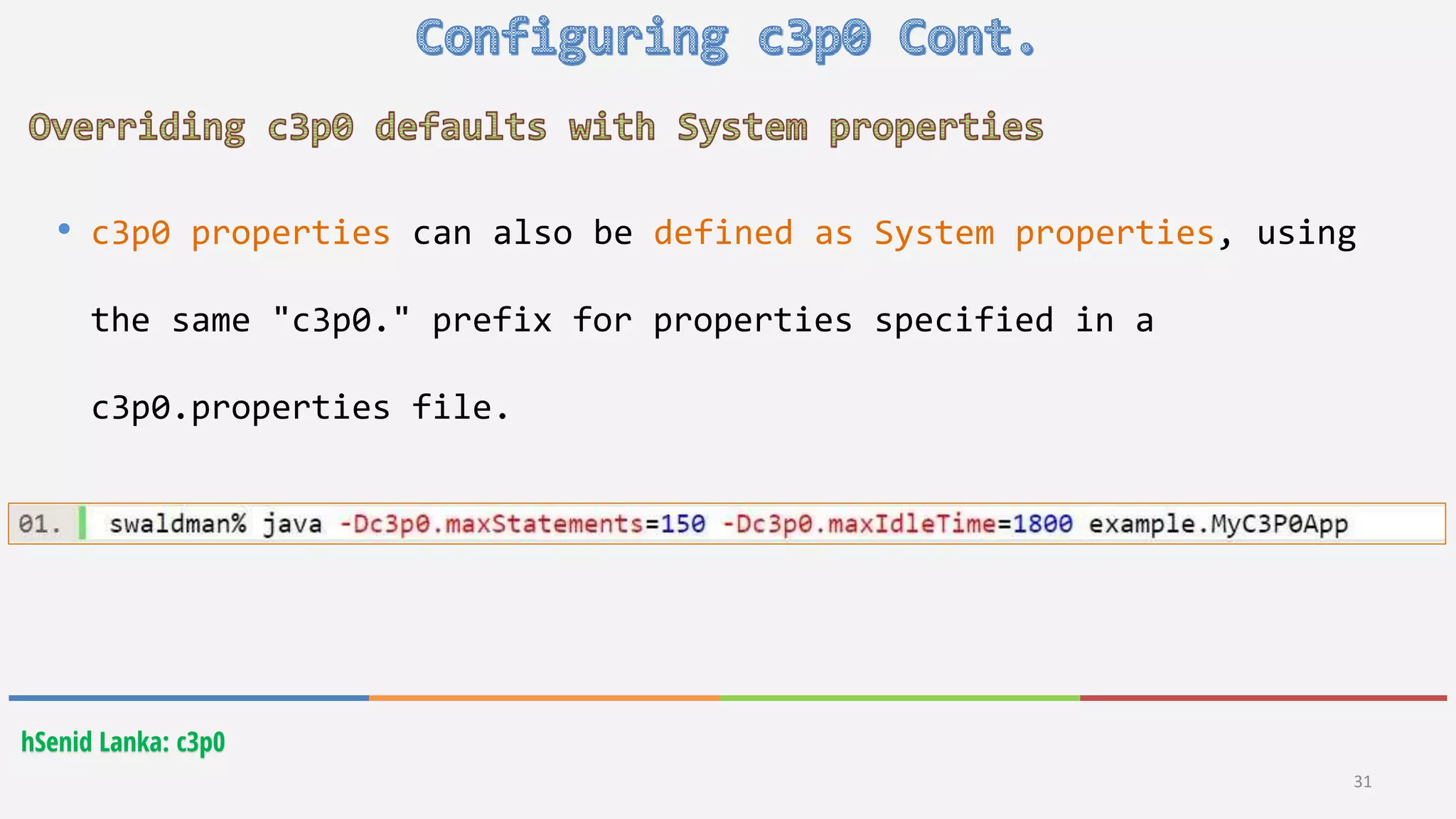

31. hSenid Lanka: c3p0
31

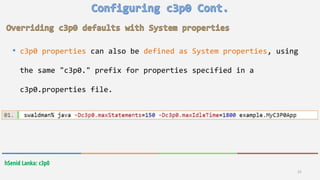

• c3p0 properties can also be defined as System properties, using
the same "c3p0." prefix for properties specified in a
c3p0.properties file.

32. hSenid Lanka: c3p0
32

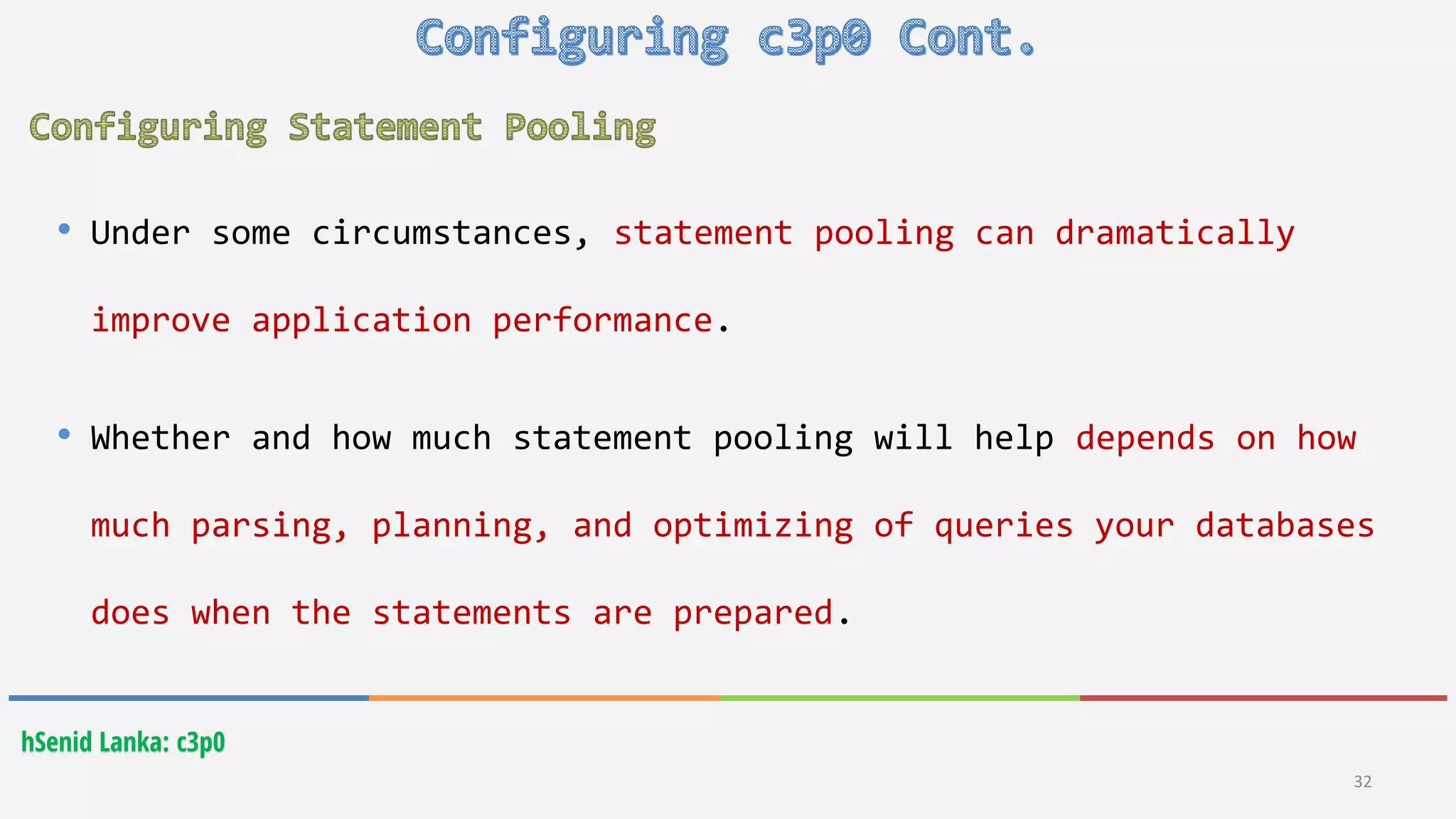

• Under some circumstances, statement pooling can dramatically
improve application performance.
• Whether and how much statement pooling will help depends on how
much parsing, planning, and optimizing of queries your databases
does when the statements are prepared.

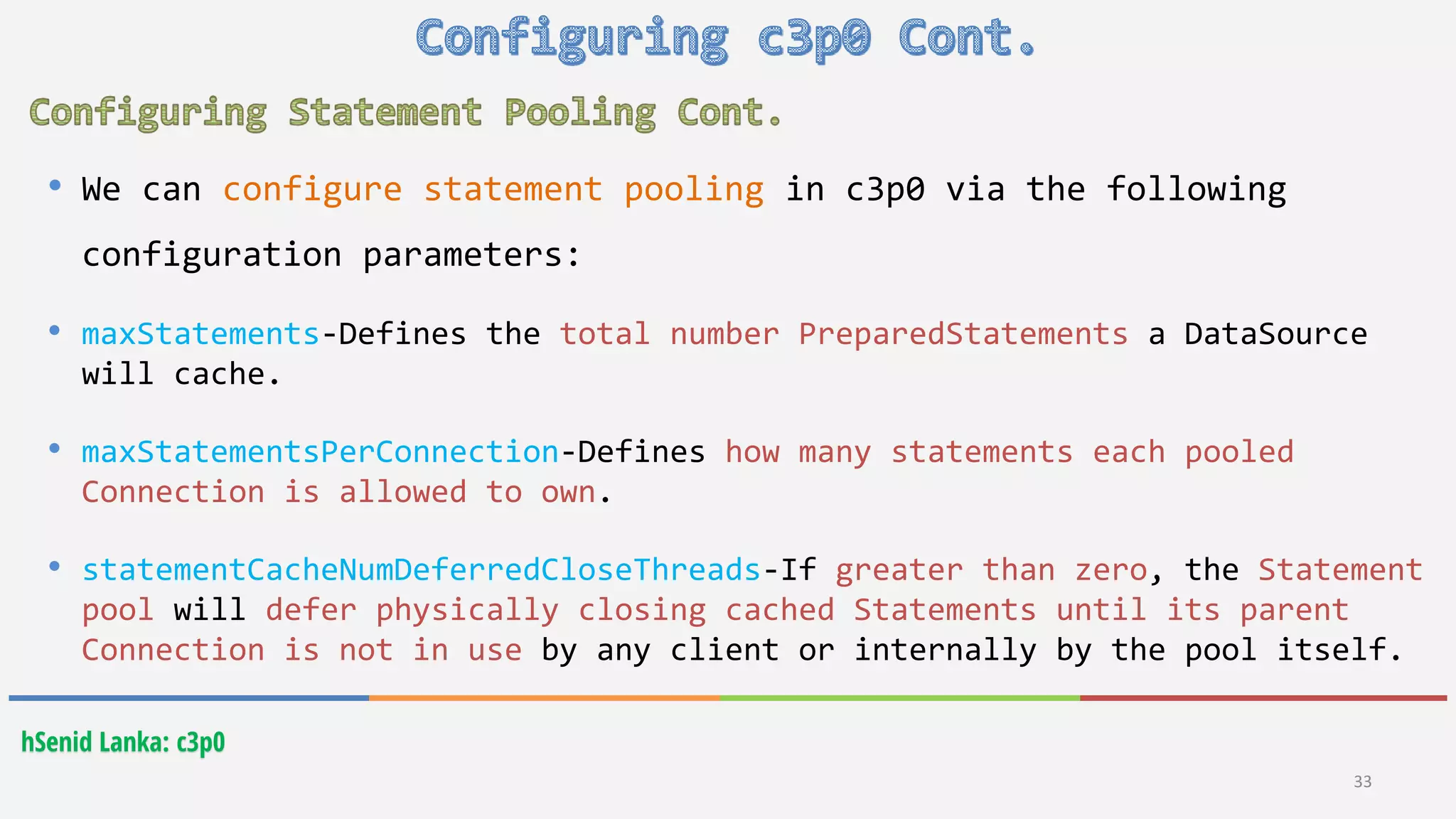

33. hSenid Lanka: c3p0
33
• We can configure statement pooling in c3p0 via the following
configuration parameters:
• maxStatements-Defines the total number PreparedStatements a DataSource
will cache.
• maxStatementsPerConnection-Defines how many statements each pooled
Connection is allowed to own.
• statementCacheNumDeferredCloseThreads-If greater than zero, the Statement
pool will defer physically closing cached Statements until its parent
Connection is not in use by any client or internally by the pool itself.

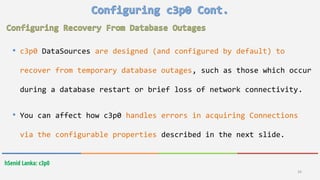

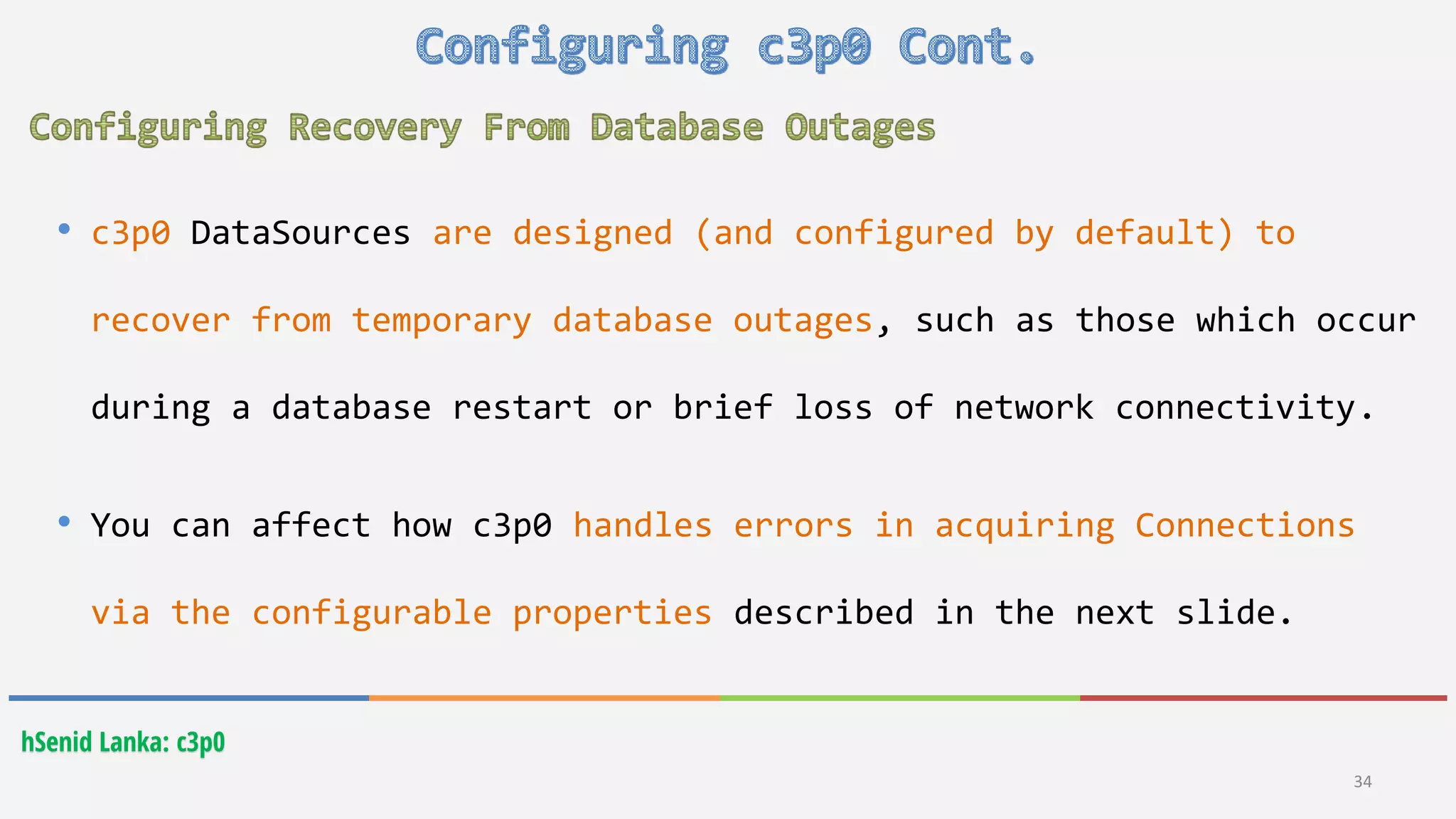

34. hSenid Lanka: c3p0
34
• c3p0 DataSources are designed (and configured by default) to
recover from temporary database outages, such as those which occur
during a database restart or brief loss of network connectivity.
• You can affect how c3p0 handles errors in acquiring Connections
via the configurable properties described in the next slide.

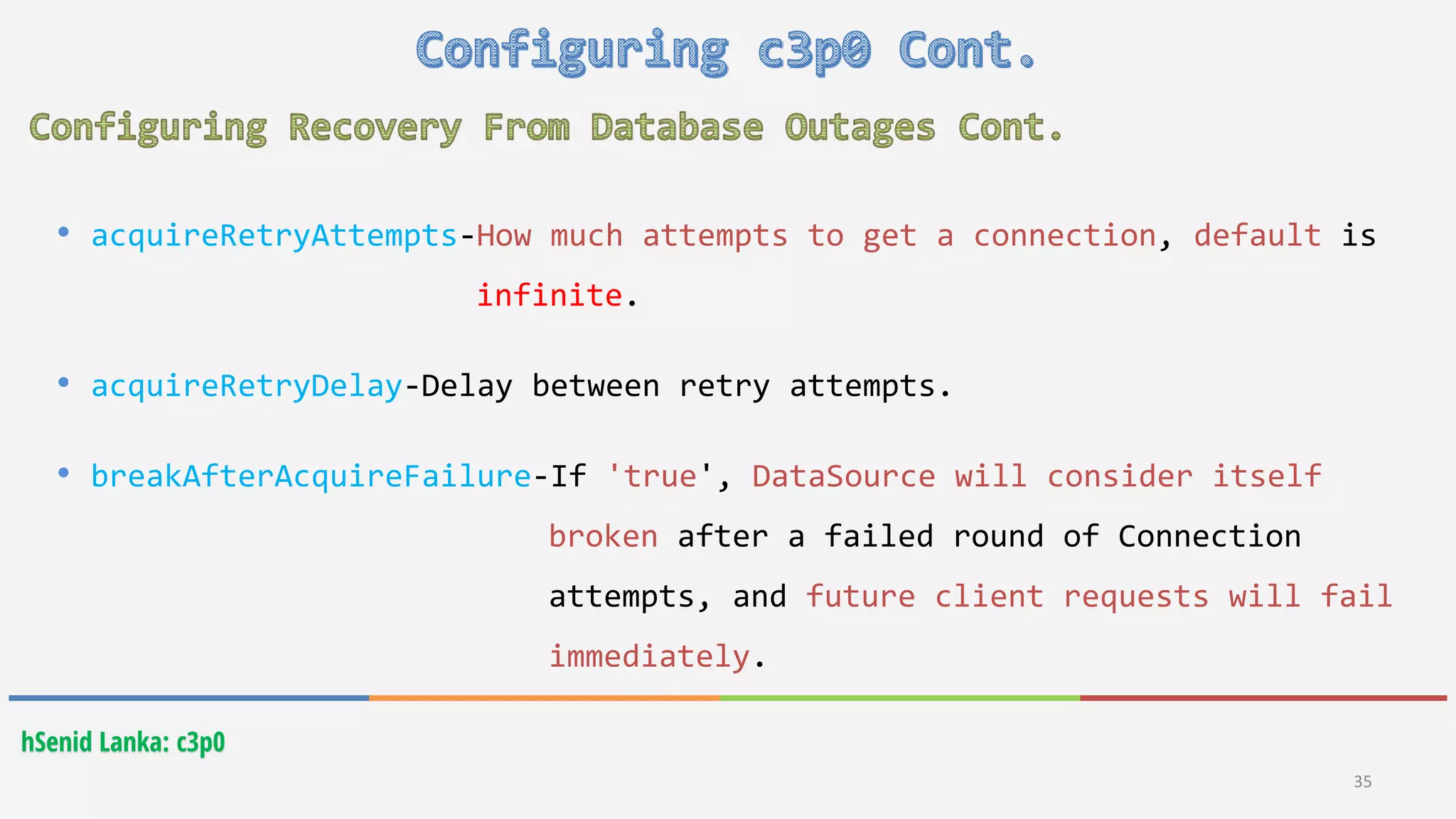

35. hSenid Lanka: c3p0
35
• acquireRetryAttempts-How much attempts to get a connection, default is
infinite.
• acquireRetryDelay-Delay between retry attempts.
• breakAfterAcquireFailure-If 'true', DataSource will consider itself
broken after a failed round of Connection
attempts, and future client requests will fail
immediately.

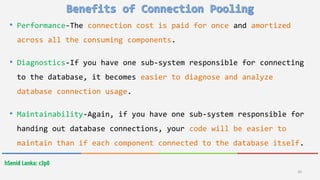

36. hSenid Lanka: c3p0
36
• Performance-The connection cost is paid for once and amortized
across all the consuming components.
• Diagnostics-If you have one sub-system responsible for connecting
to the database, it becomes easier to diagnose and analyze
database connection usage.
• Maintainability-Again, if you have one sub-system responsible for
handing out database connections, your code will be easier to
maintain than if each component connected to the database itself.

37. hSenid Lanka: Connection Pooling With c3p0
