This document contains data dictionary information for 4 database entities: Player, Activity Logs, Generated Result, and PCSO Result. It lists the field name, data type, length, and description for each field in the different entities, which store information like player profiles, activity logs, generated lottery results, and actual lottery results.

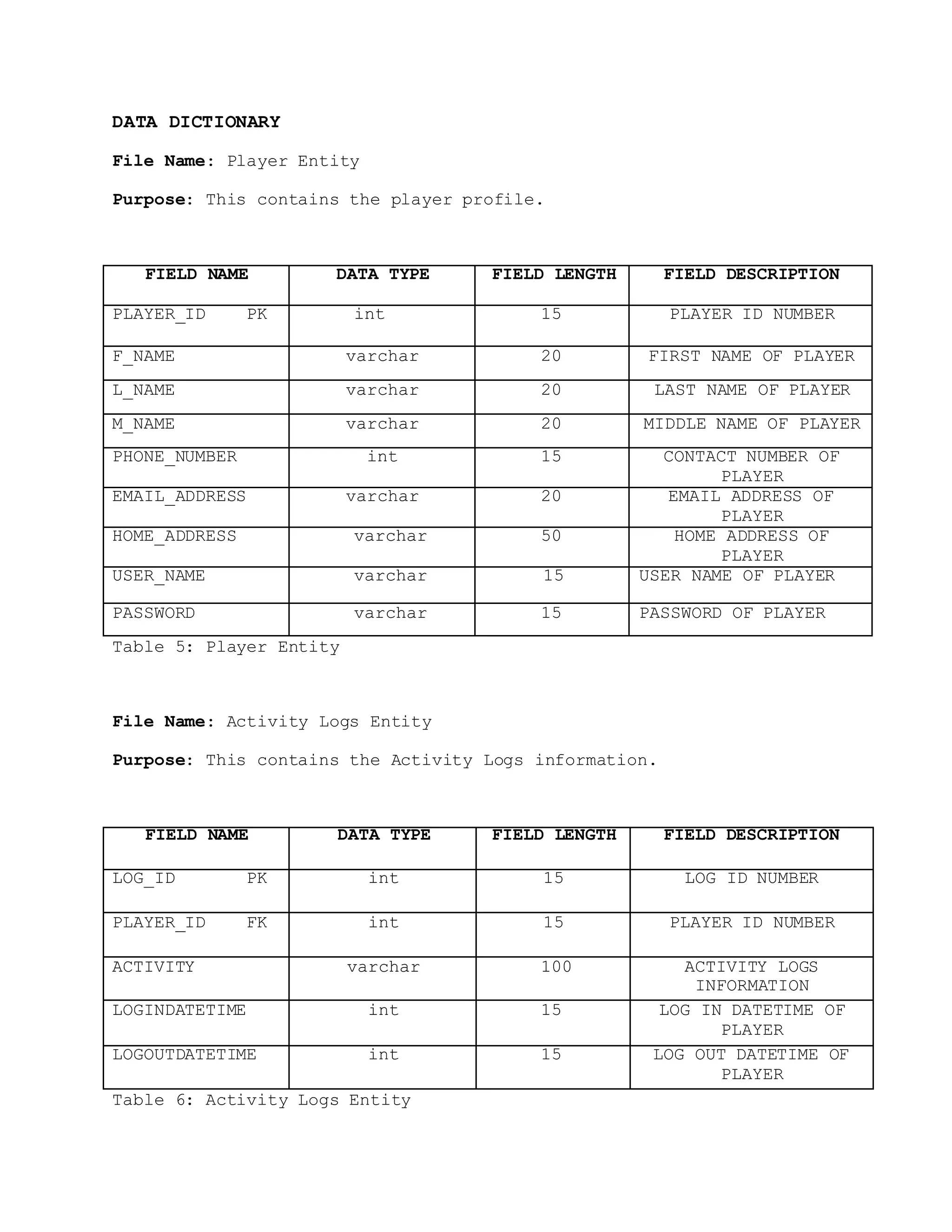

1. DATA DICTIONARY
File Name: Player Entity
Purpose: This contains the player profile.
FIELD NAME DATA TYPE FIELD LENGTH FIELD DESCRIPTION
PLAYER_ID PK int 15 PLAYER ID NUMBER
F_NAME varchar 20 FIRST NAME OF PLAYER
L_NAME varchar 20 LAST NAME OF PLAYER
M_NAME varchar 20 MIDDLE NAME OF PLAYER
PHONE_NUMBER int 15 CONTACT NUMBER OF
PLAYER
EMAIL_ADDRESS varchar 20 EMAIL ADDRESS OF
PLAYER
HOME_ADDRESS varchar 50 HOME ADDRESS OF
PLAYER
USER_NAME varchar 15 USER NAME OF PLAYER
PASSWORD varchar 15 PASSWORD OF PLAYER
Table 5: Player Entity
File Name: Activity Logs Entity
Purpose: This contains the Activity Logs information.
FIELD NAME DATA TYPE FIELD LENGTH FIELD DESCRIPTION
LOG_ID PK int 15 LOG ID NUMBER
PLAYER_ID FK int 15 PLAYER ID NUMBER
ACTIVITY varchar 100 ACTIVITY LOGS
INFORMATION
LOGINDATETIME int 15 LOG IN DATETIME OF
PLAYER
LOGOUTDATETIME int 15 LOG OUT DATETIME OF
PLAYER
Table 6: Activity Logs Entity

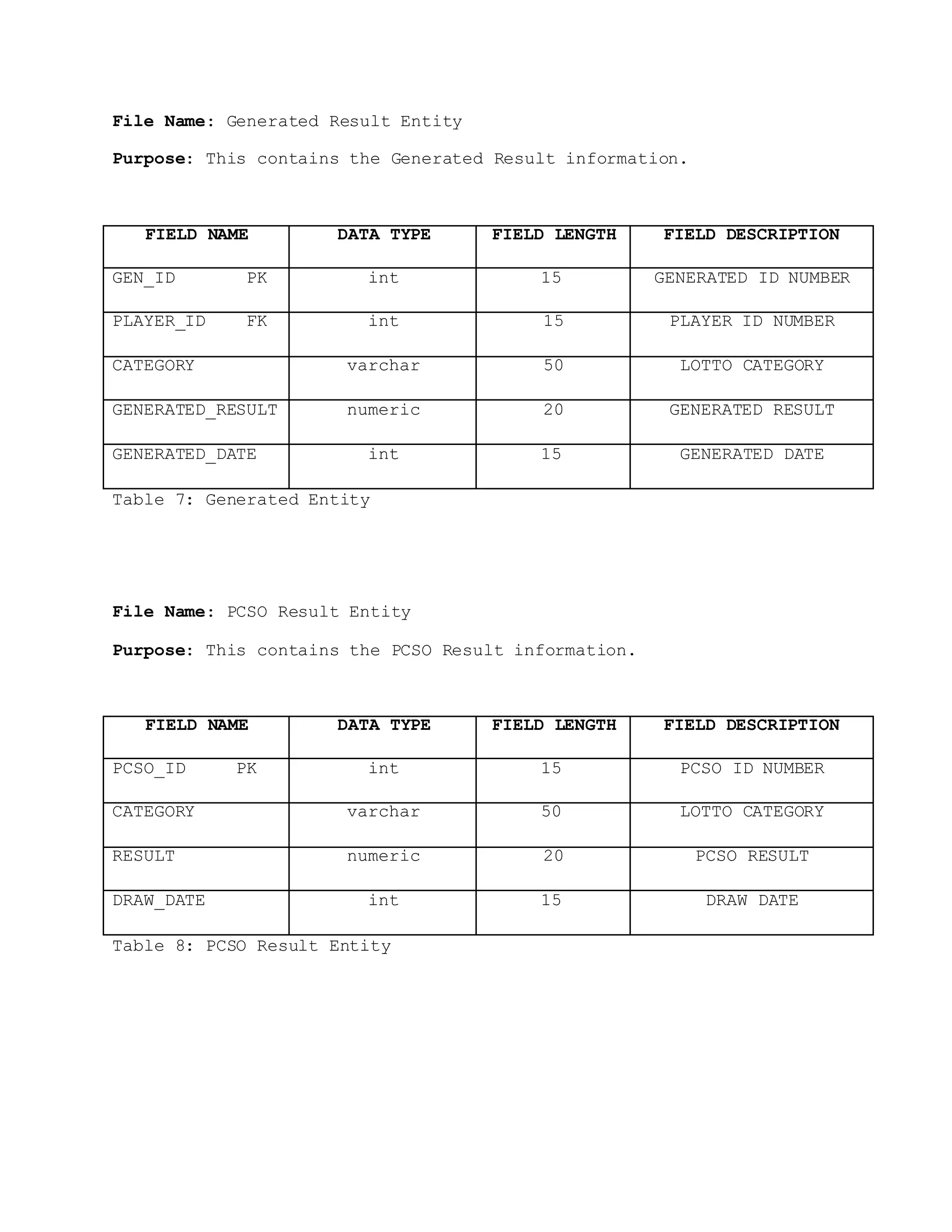

2. File Name: Generated Result Entity
Purpose: This contains the Generated Result information.
FIELD NAME DATA TYPE FIELD LENGTH FIELD DESCRIPTION
GEN_ID PK int 15 GENERATED ID NUMBER
PLAYER_ID FK int 15 PLAYER ID NUMBER
CATEGORY varchar 50 LOTTO CATEGORY
GENERATED_RESULT numeric 20 GENERATED RESULT
GENERATED_DATE int 15 GENERATED DATE
Table 7: Generated Entity
File Name: PCSO Result Entity
Purpose: This contains the PCSO Result information.
FIELD NAME DATA TYPE FIELD LENGTH FIELD DESCRIPTION
PCSO_ID PK int 15 PCSO ID NUMBER
CATEGORY varchar 50 LOTTO CATEGORY
RESULT numeric 20 PCSO RESULT
DRAW_DATE int 15 DRAW DATE
Table 8: PCSO Result Entity
