The document describes the Miracast Dongle (CX-V3S) produced by Shenzhen Sunchip Technology Co., Ltd. It allows casting from smartphones, tablets, and ultrabooks to HDTVs wirelessly via Miracast, DLNA, or AirPlay. It supports Android 4.2+, Windows 8.1 devices for Miracast and any Android or iOS 6/7 devices if they have DLNA. The dongle has an ARM Cortex A9 processor, 256MB RAM, built-in WiFi, and can be upgraded via OTA software updates while connected to the Internet. It is priced at $14 per unit for orders of 1000 pieces.

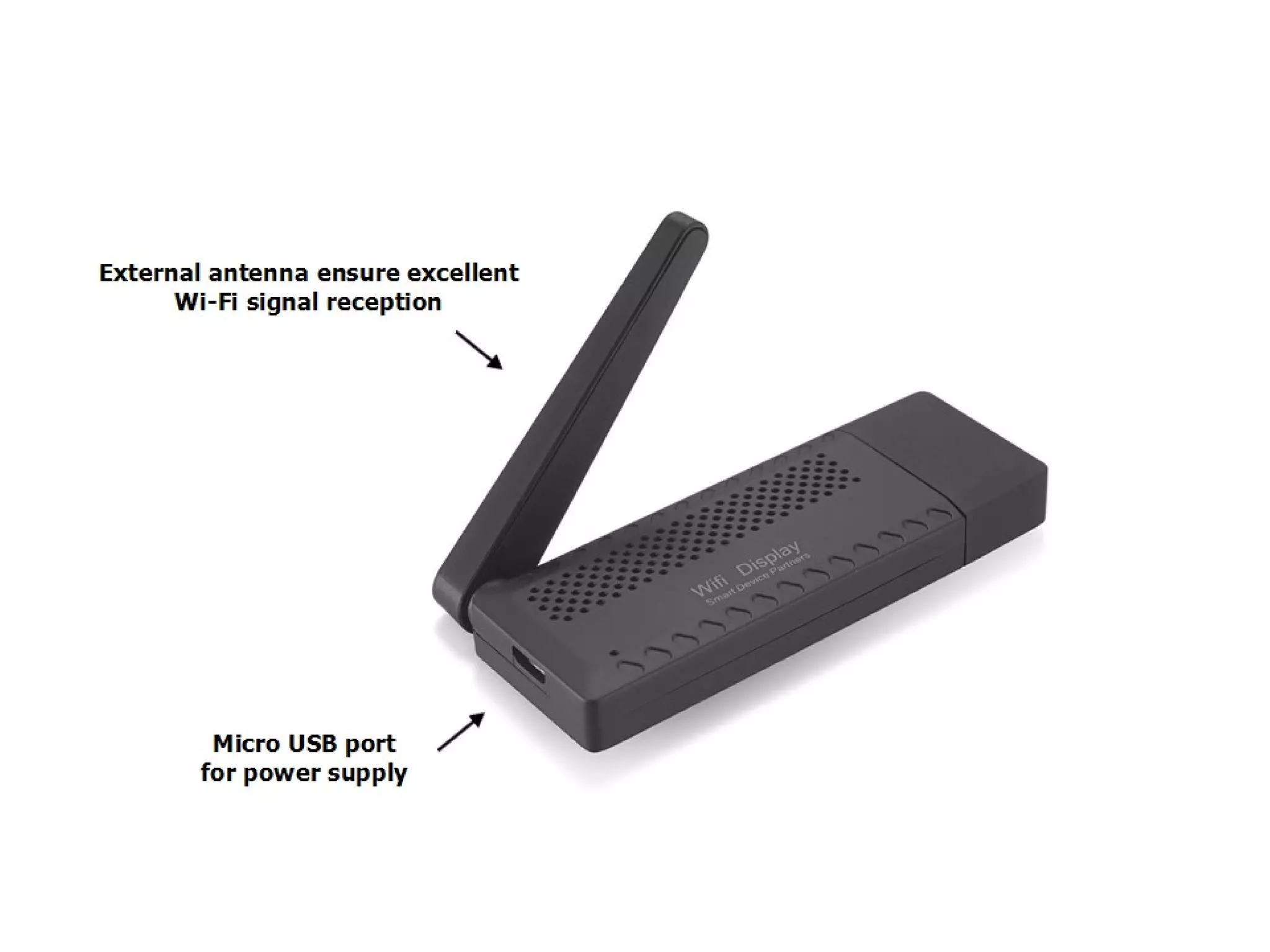

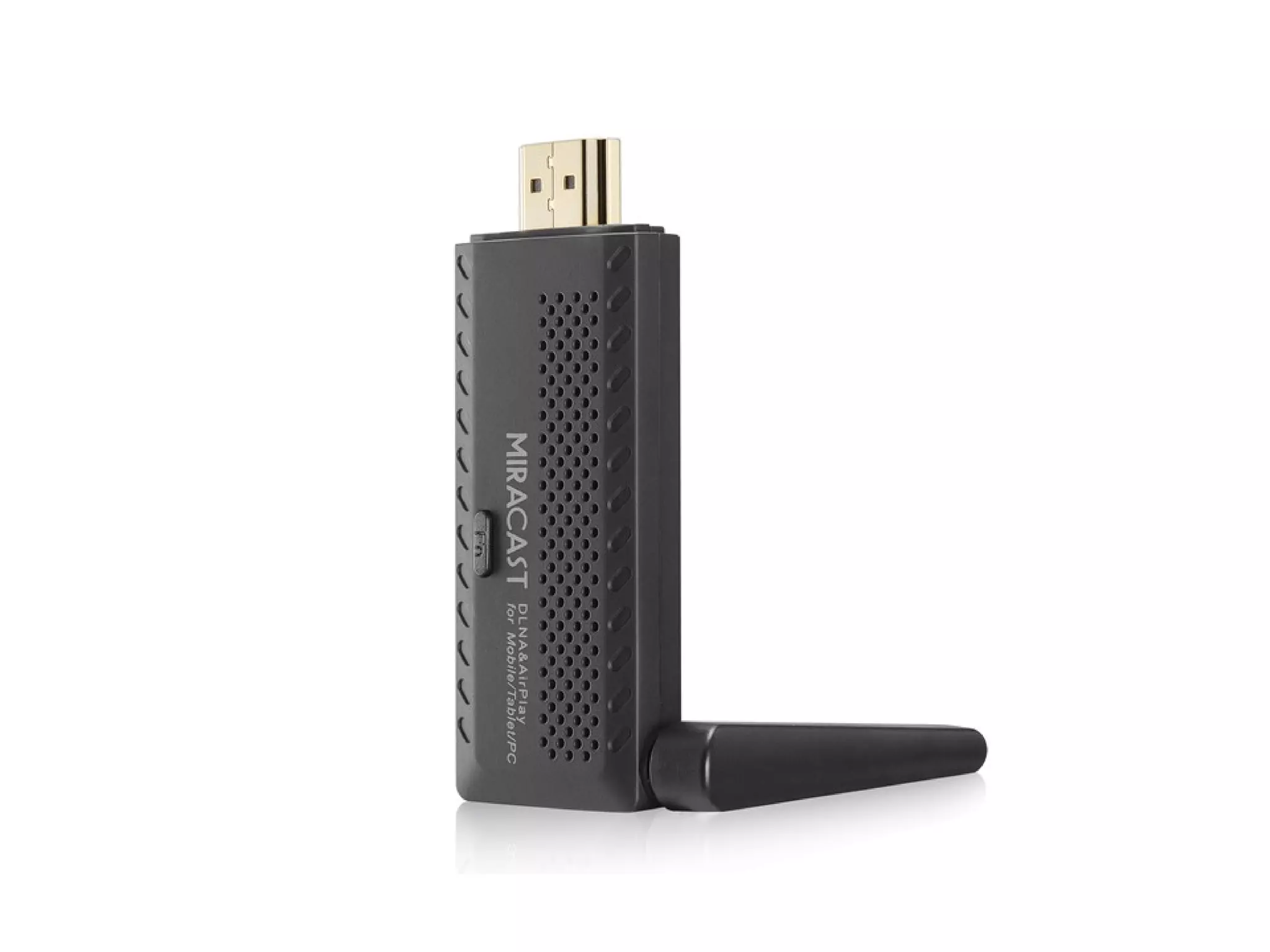

1. Miracast Dongle
(CX-V3S)
Presented by
Shenzhen Sunchip Technology Co., Ltd
www.sunchip-tech.com

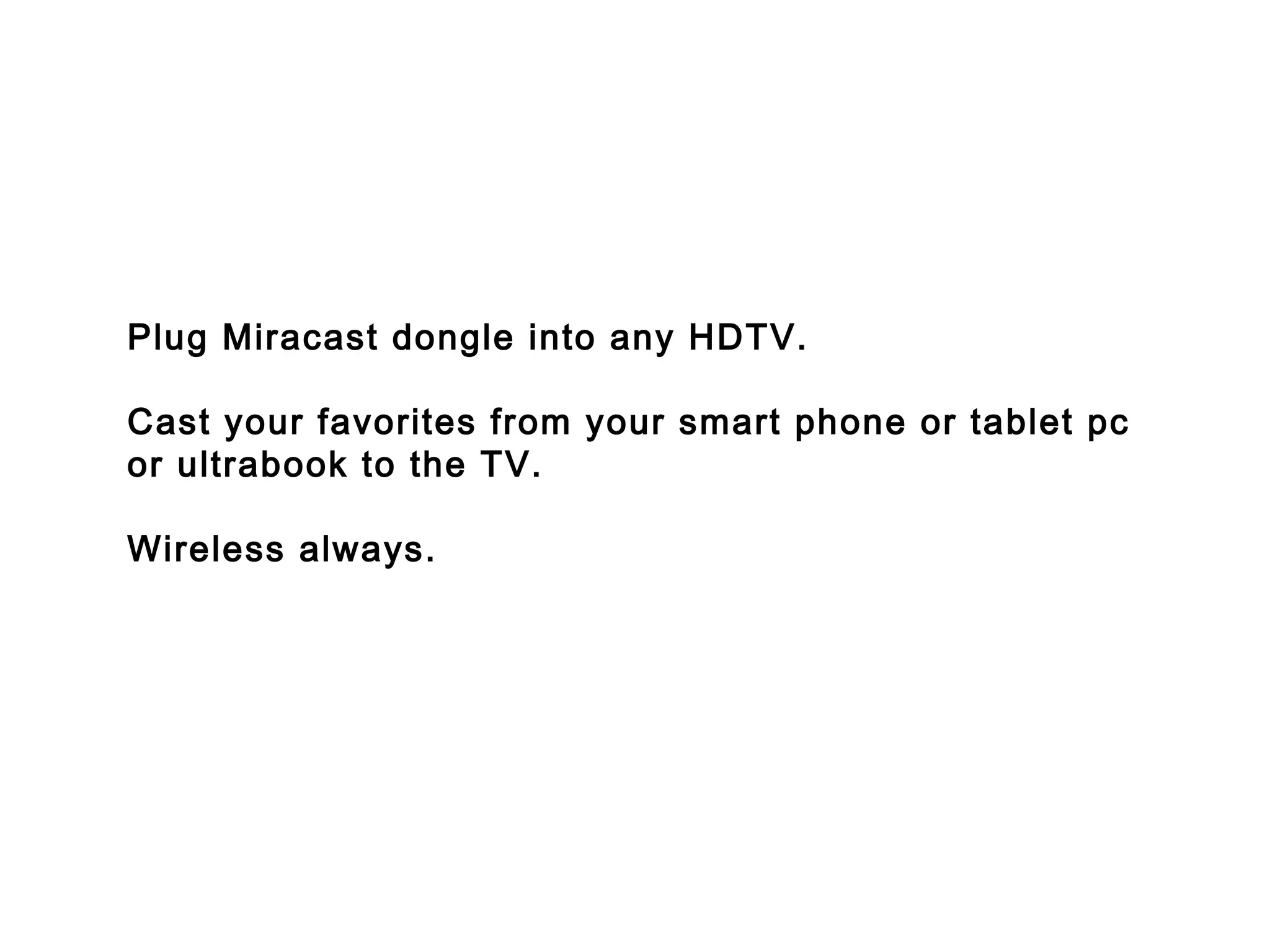

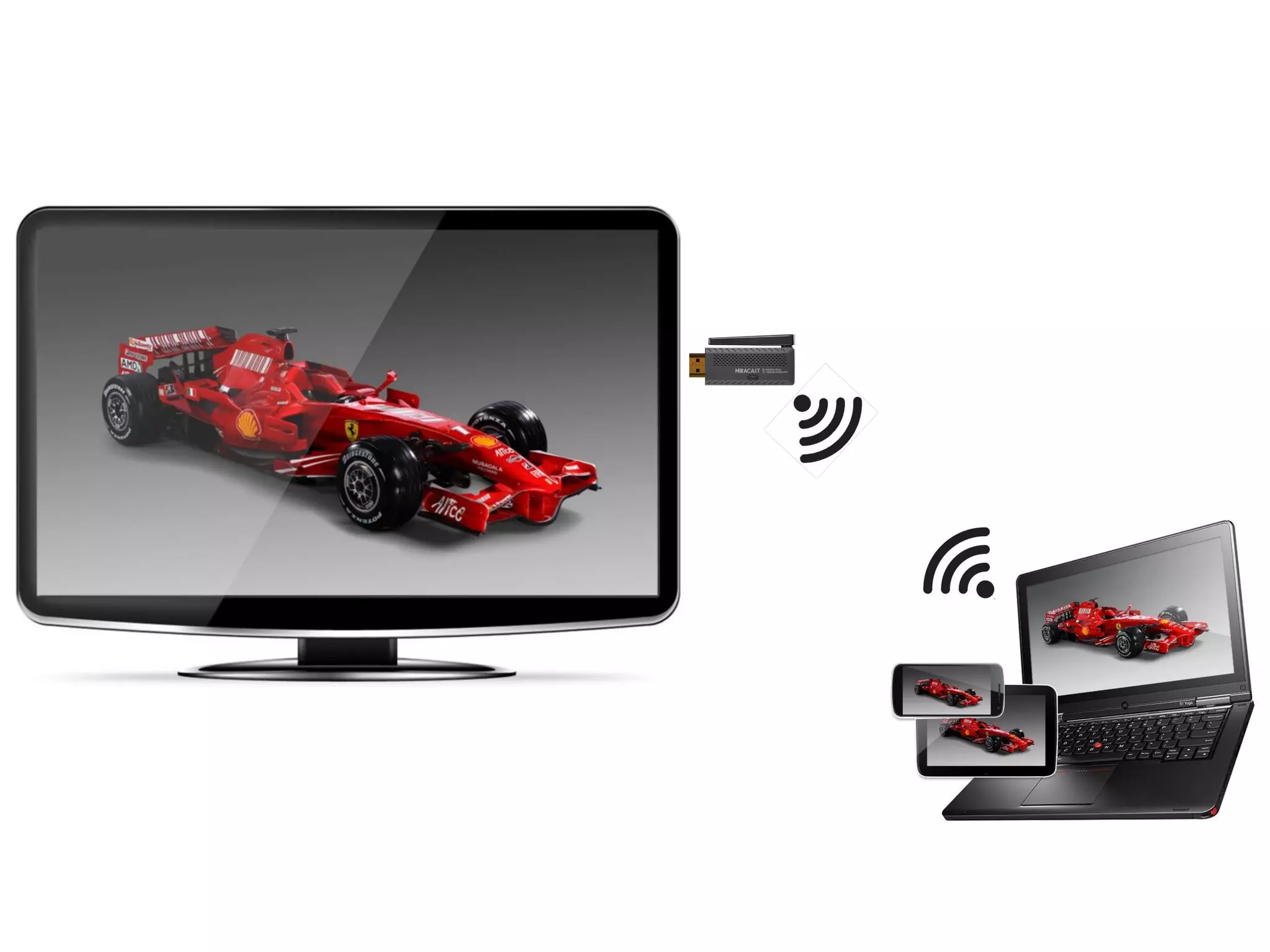

7. Plug Miracast dongle into any HDTV.
Cast your favorites from your smart phone or tablet pc
or ultrabook to the TV.
Wireless always.

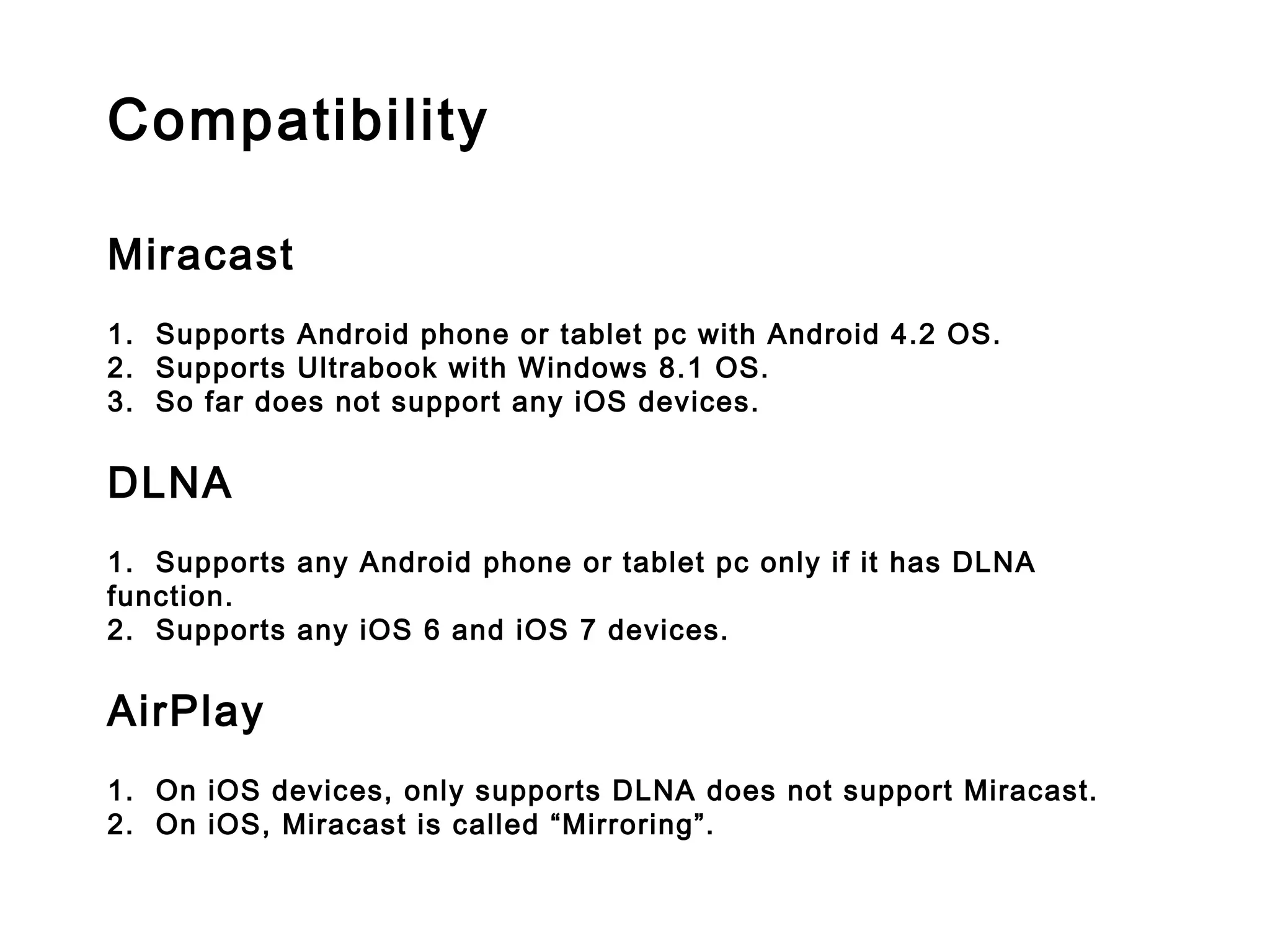

10. Compatibility
Miracast
1. Supports Android phone or tablet pc with Android 4.2 OS.
2. Supports Ultrabook with Windows 8.1 OS.
3. So far does not support any iOS devices.

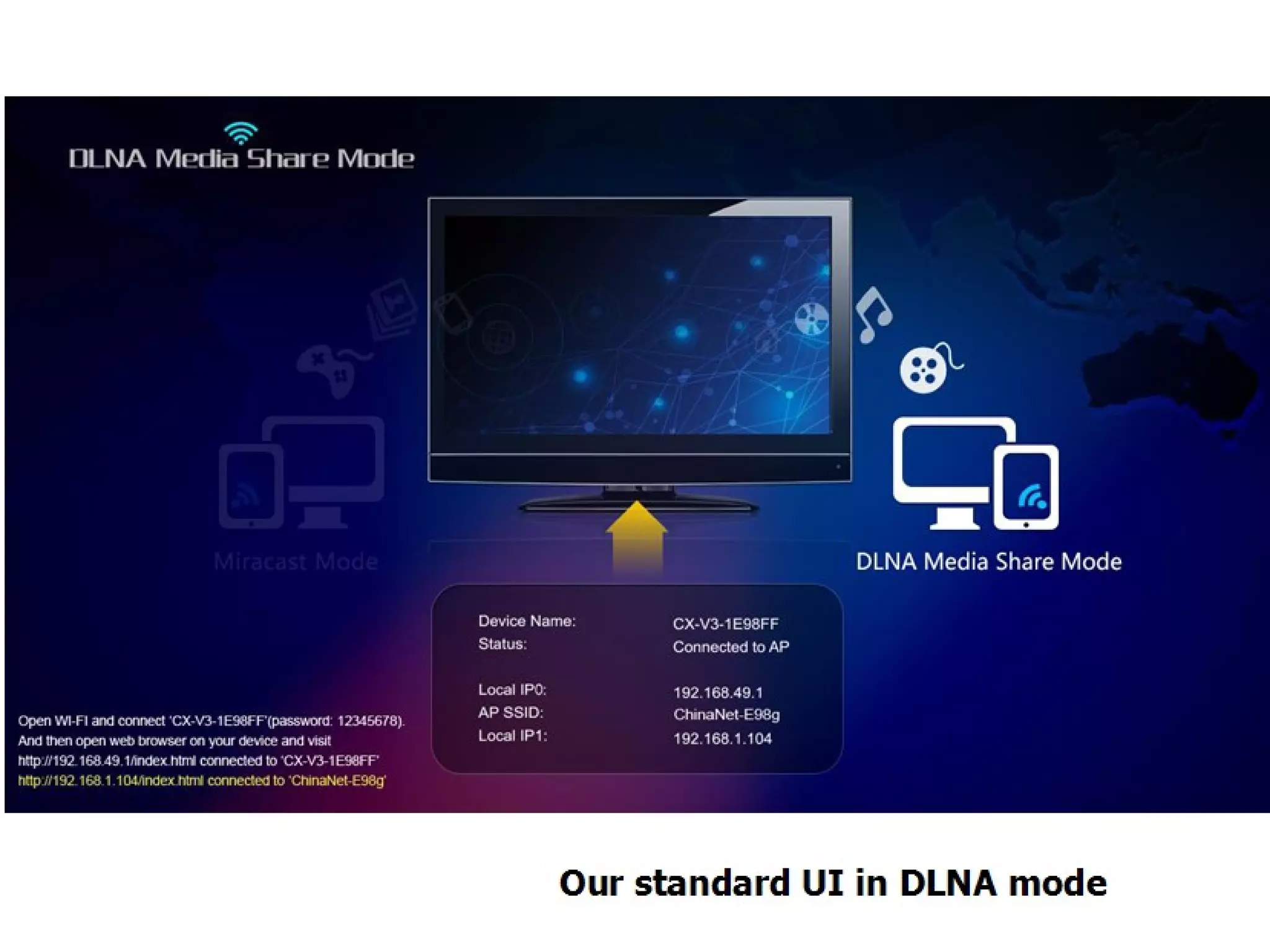

DLNA
1. Supports any Android phone or tablet pc only if it has DLNA
function.
2. Supports any iOS 6 and iOS 7 devices.
AirPlay
1. On iOS devices, only supports DLNA does not support Miracast.
2. On iOS, Miracast is called “Mirroring”.

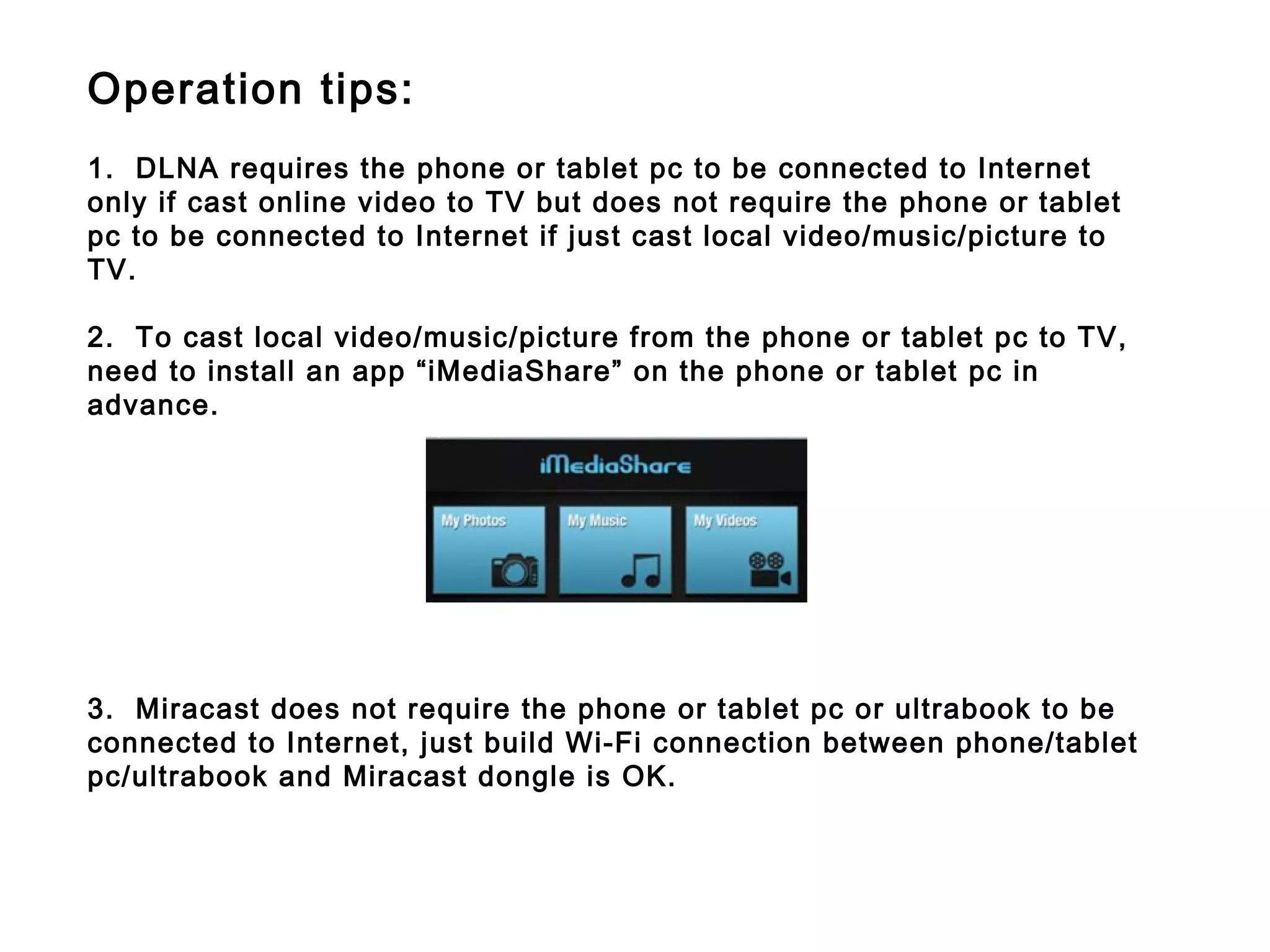

11. Operation tips:
1. DLNA requires the phone or tablet pc to be connected to Internet
only if cast online video to TV but does not require the phone or tablet
pc to be connected to Internet if just cast local video/music/picture to
TV.
2. To cast local video/music/picture from the phone or tablet pc to TV,
need to install an app “iMediaShare” on the phone or tablet pc in
advance.
3. Miracast does not require the phone or tablet pc or ultrabook to be
connected to Internet, just build Wi-Fi connection between phone/tablet
pc/ultrabook and Miracast dongle is OK.

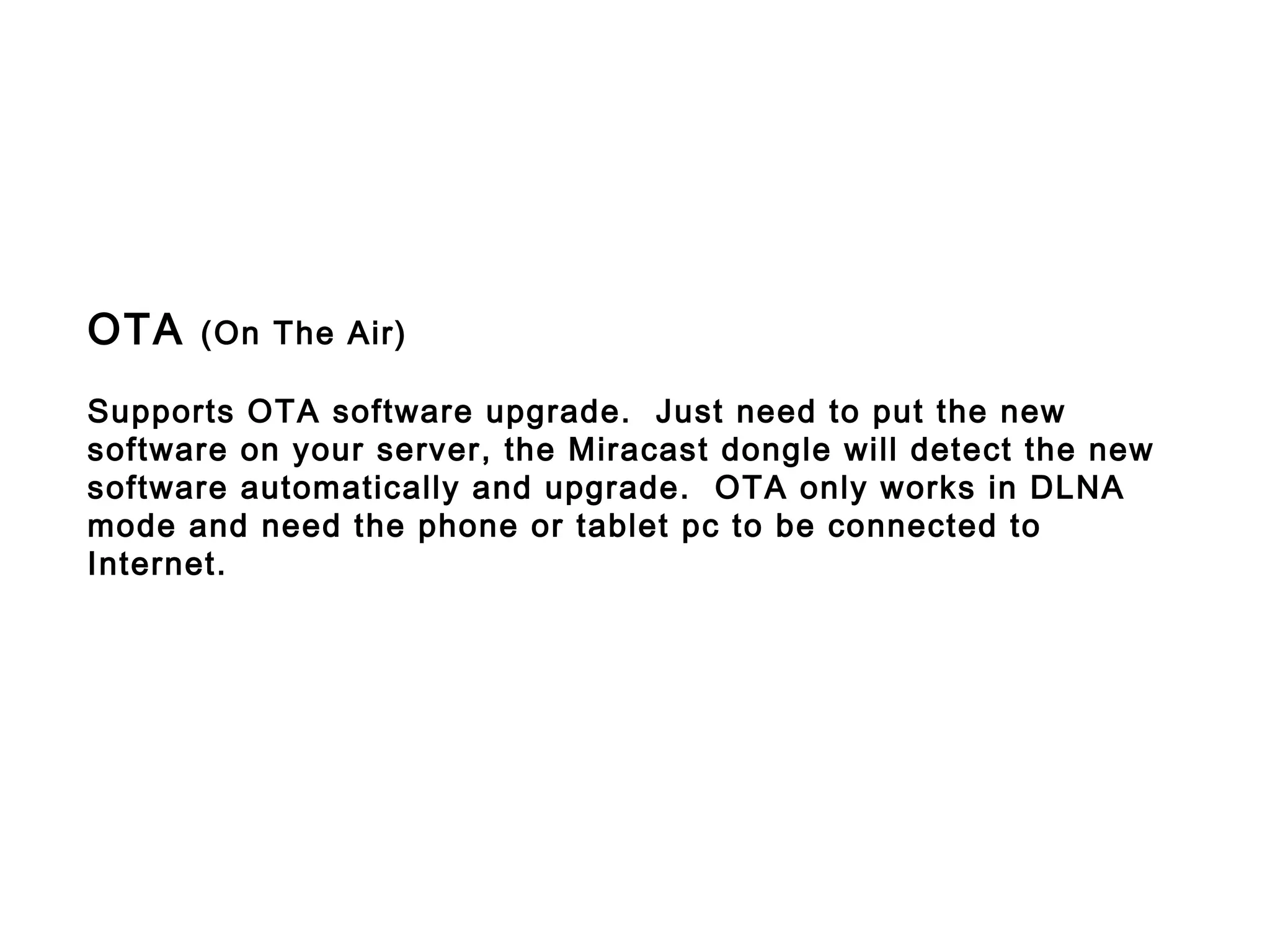

12. OTA (On The Air)
Supports OTA software upgrade. Just need to put the new
software on your server, the Miracast dongle will detect the new
software automatically and upgrade. OTA only works in DLNA
mode and need the phone or tablet pc to be connected to
Internet.

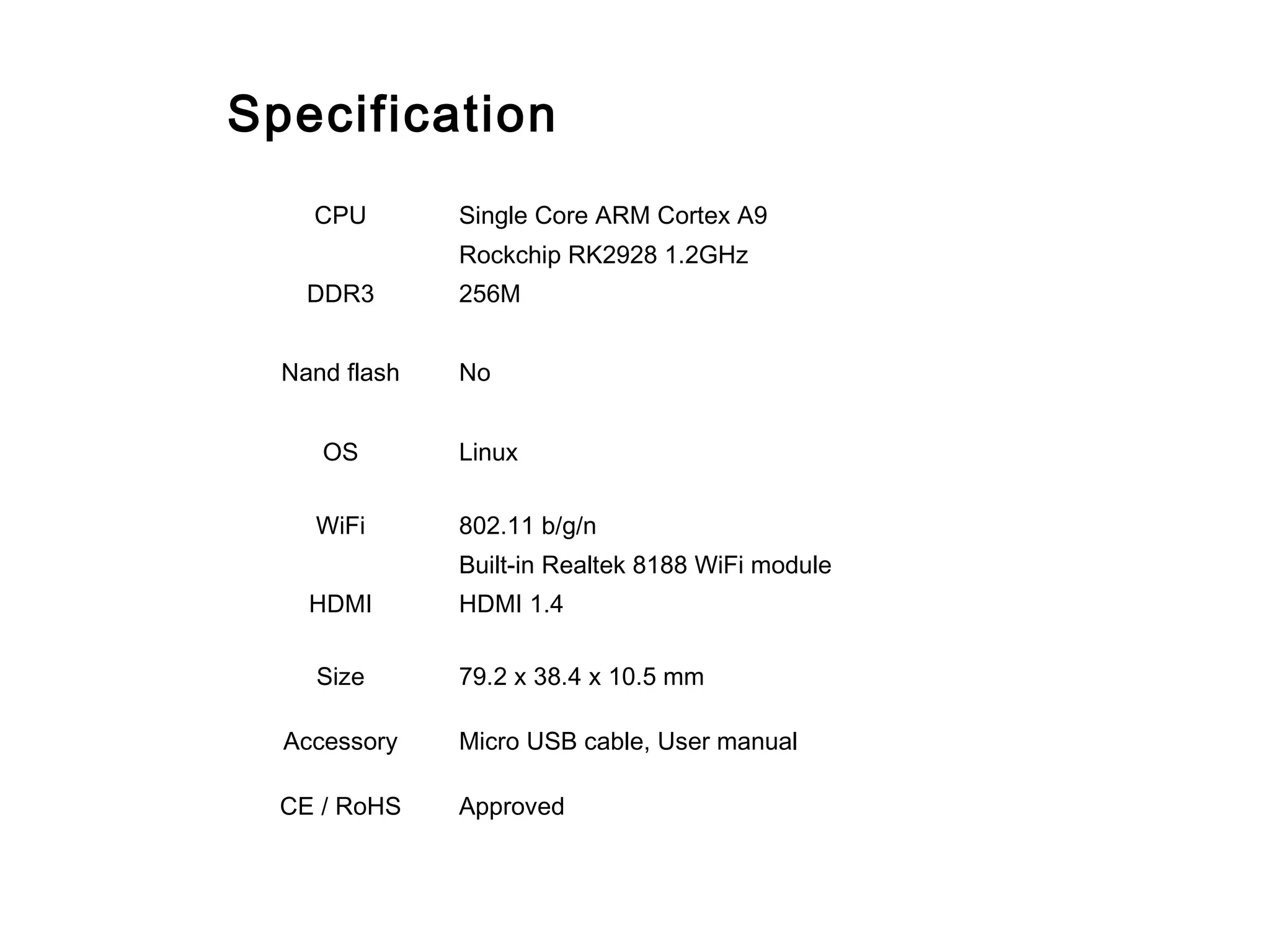

13. CPU Single Core ARM Cortex A9
Rockchip RK2928 1.2GHz
DDR3 256M
Nand flash No
OS Linux
WiFi 802.11 b/g/n
Built-in Realtek 8188 WiFi module

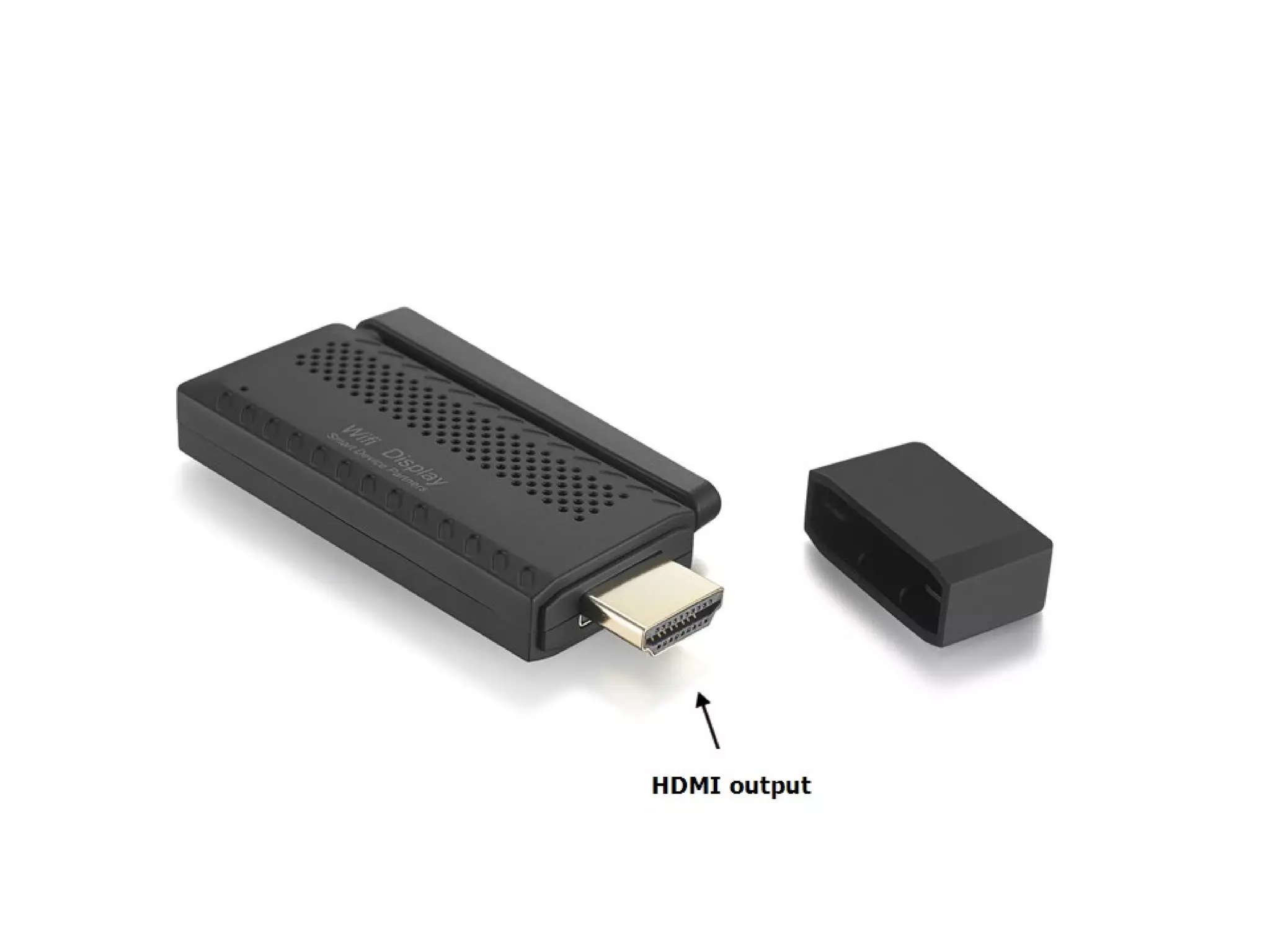

HDMI HDMI 1.4
Size 79.2 x 38.4 x 10.5 mm
Accessory Micro USB cable, User manual
CE / RoHS Approved
Specification

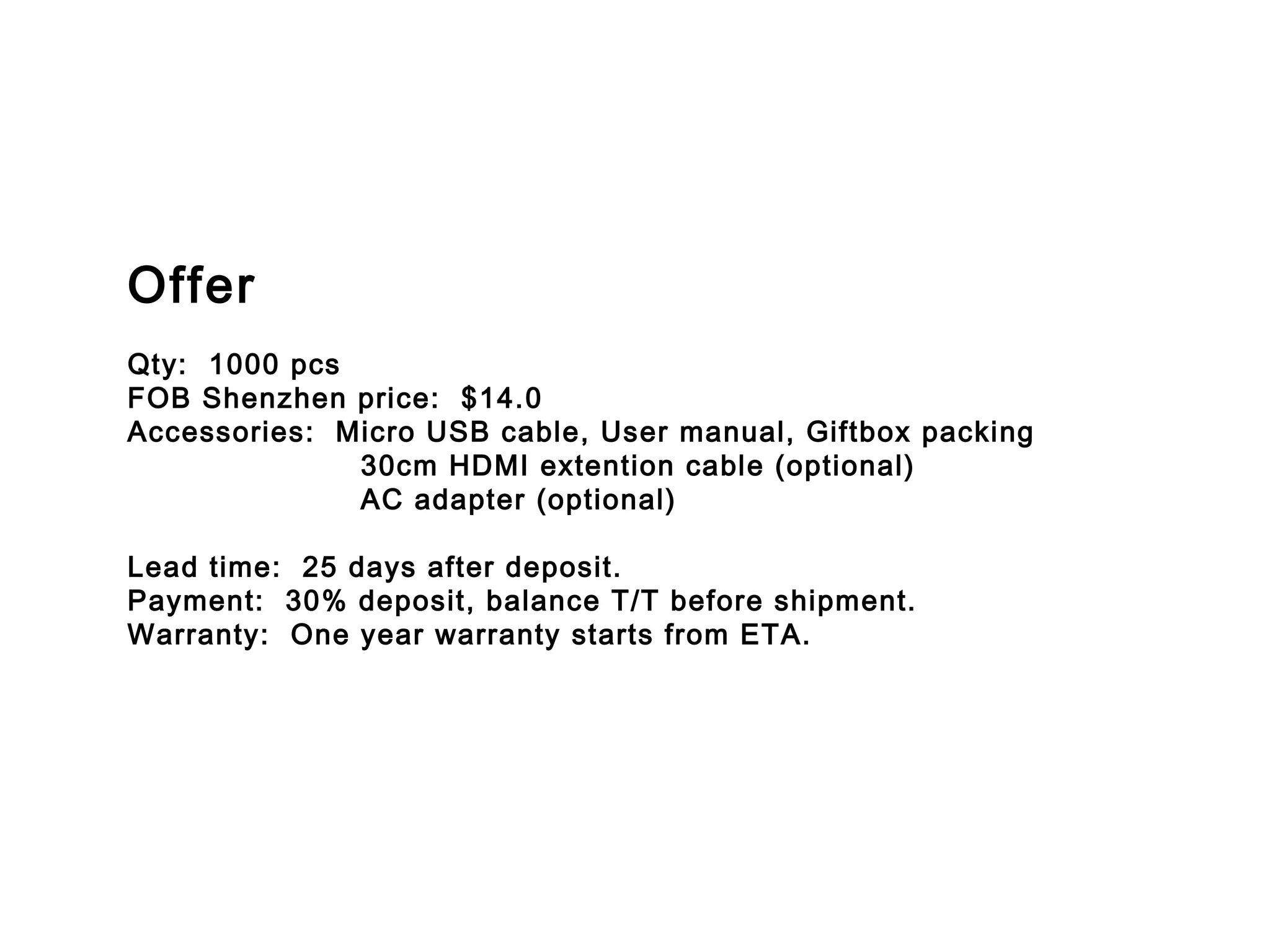

15. Offer
Qty: 1000 pcs
FOB Shenzhen price: $14.0

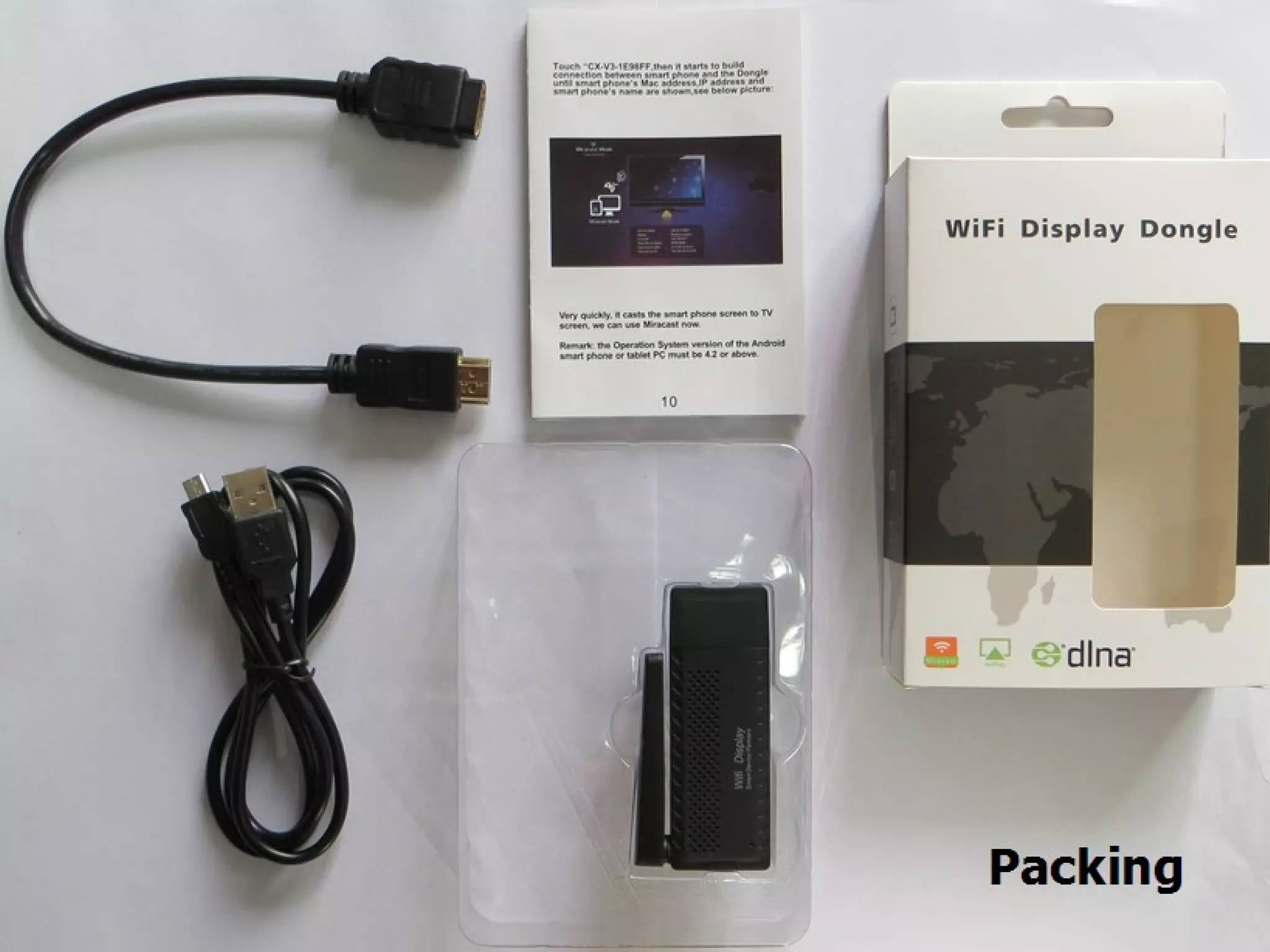

Accessories: Micro USB cable, User manual, Giftbox packing
30cm HDMI extention cable (optional)
AC adapter (optional)
Lead time: 25 days after deposit.
Payment: 30% deposit, balance T/T before shipment.
Warranty: One year warranty starts from ETA.

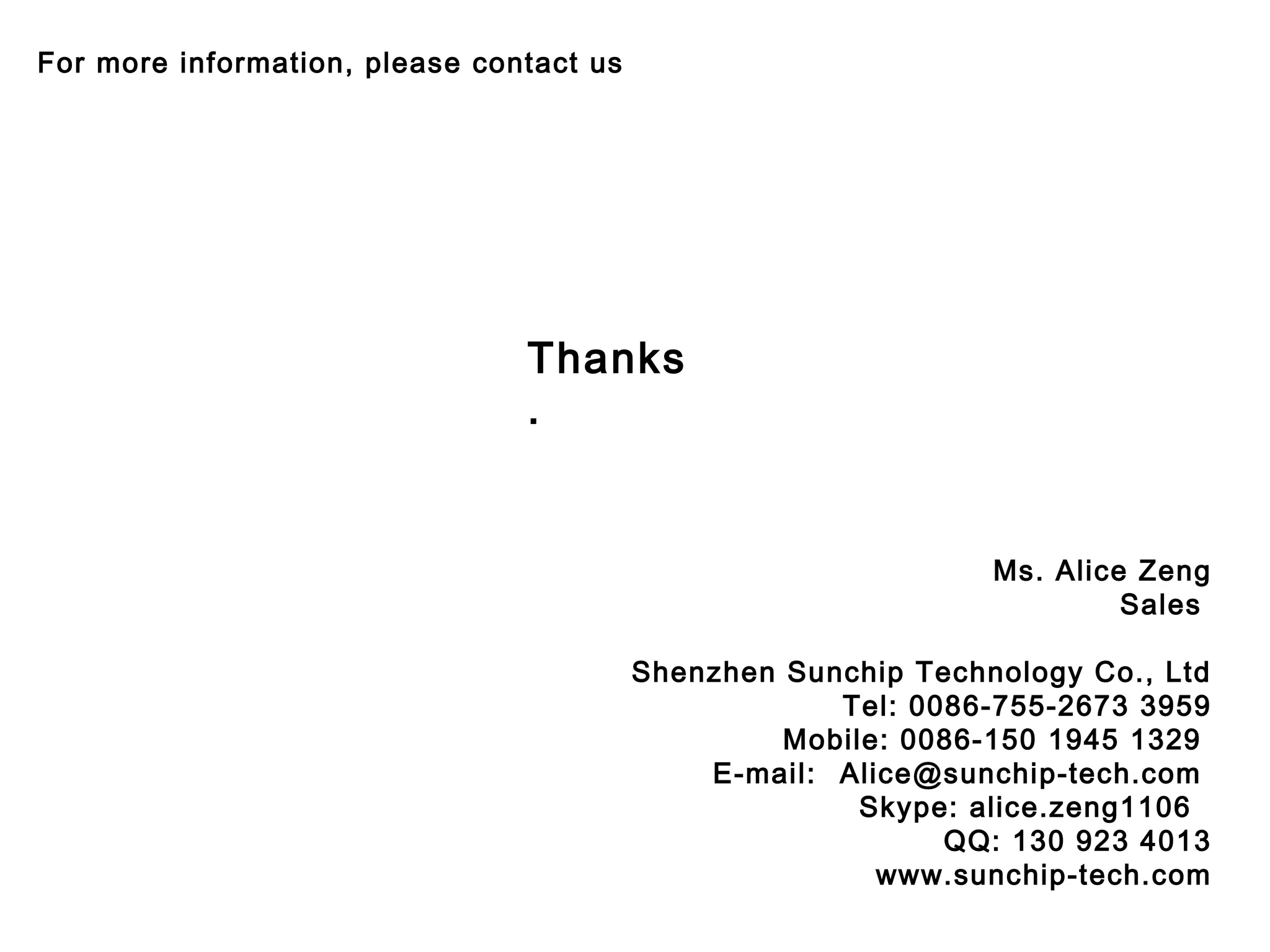

16. Ms. Alice Zeng
