This document describes an OR-PMP612H 12-port Category 6 mini patch panel with hinged mounting. It has a high density design that provides access to wire terminations while maximizing wall space. The panel is ETL verified to meet Category 6 component specifications and is universally wired to support both T568A and T568B installation standards.

1. Patch Panels
Part Number: OR-PMP612H
Description: Clarity6 12-port, Cat 6 mini patch, hinged mounting, 10" x 2.5"
Clarity6 12-Port Mini Patch Panel is component compliant to EIA/TIA Category 6 performance
requirements. Its high density design on hinged wall mounting provides access to wire terminations
while maximizing wall space in small or confined locations. The panel measures 10" x2.5". Jacks are
grouped in six-port modules. Part of the Clarity6 link and channel solution that provides significant
installed performance headroom
s Specifications
Performance Rating Category 6
Panel or Accessory Type Mod8 /110
Mod Jack Wiring Universal T568 A/ B
Number of Ports 12
Color Black with blue print
Width 2.5 in (63.5 mm)
Height 10 in (254 mm)
Cable Diameter Range 22-26 AWG
UL Listing No. E131600
UL Standard UL 1863
CUL Listing No. E131600
CUL Standard UL 1863
FCC Standard Part 68
s Labeling Options
LabelMo Part No. & Sheet Size 70400408, '8.5" x 11"
Label Size 3.74" x .392"
No. Labels/Sheet 26
No. Sheets/Bag 10
Brady Part No. LAT-43-7070.375 x 2.87 Label
Page 1 of 2
Date Printed: 8/3/2006

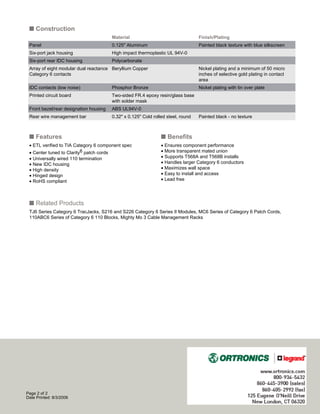

2. s Construction
Material Finish/Plating
Panel 0.125" Aluminum Painted black texture with blue silkscreen
Six-port jack housing High impact thermoplastic UL 94V-0
Six-port rear IDC housing Polycarbonate
Array of eight modular dual reactance Beryllium Copper Nickel plating and a minimum of 50 micro
Category 6 contacts inches of selective gold plating in contact
area
IDC contacts (low noise) Phosphor Bronze Nickel plating with tin over plate
Printed circuit board Two-sided FR.4 epoxy resin/glass base
with solder mask
Front bezel/rear designation housing ABS UL94V-0
Rear wire management bar 0.32" x 0.125" Cold rolled steel, round Painted black - no texture
s Features s Benefits
• ETL verified to TIA Category 6 component spec • Ensures component performance
• Center tuned to Clarity6 patch cords • More transparent mated union
• Universally wired 110 termination • Supports T568A and T568B installs
• New IDC housing • Handles larger Category 6 conductors
• High density • Maximizes wall space
• Hinged design • Easy to install and access
• RoHS compliant • Lead free
s Related Products
TJ6 Series Category 6 TracJacks, S216 and S226 Category 6 Series II Modules, MC6 Series of Category 6 Patch Cords,
110ABC6 Series of Category 6 110 Blocks, Mighty Mo 3 Cable Management Racks
Page 2 of 2
Date Printed: 8/3/2006
