1. Workstation
Part Number: OR-60900235
Description: Series II, 3-Phono Jacks/ RCA (110 IDC), 180°
Series II Module provides three RCA/Phono jacks with 110 termination
in a 45° angled one unit footprint. Series II is a family of front
removable snap-in modules that make moves, adds and changes easy
and time saving. The rugged high strength construction of Series II
makes it one of Ortronics most popular workstation choices
s Specifications
Category Performance/ Application RCA/Phono
Footprint Series II
Color Fog White
Number of Ports 3-port
Critical Size (No. Gangs) 1 unit
Labeling & Identification YES
Height .92" (23.37 mm)
Width 1.90" (48.26 mm)
Depth 1.03" (26.16 mm)
UL Listing No. E131600
UL Standard UL 1863
CUL Standard UL 1863
CUL Listing No. E131600
Product Type or Accessory Connector
Page 1 of 2
Date Printed: 2/9/2007

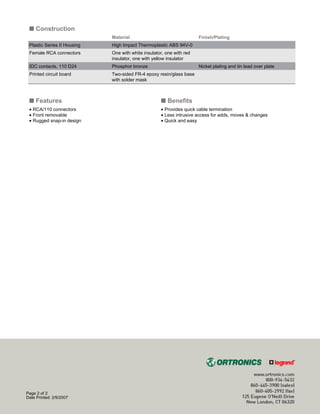

2. s Construction
Material Finish/Plating
Plastic Series II Housing High Impact Thermoplastic ABS 94V-0
Female RCA connectors One with white insulator, one with red
insulator, one with yellow insulator
IDC contacts, 110 D24 Phosphor bronze Nickel plating and tin lead over plate
Printed circuit board Two-sided FR-4 epoxy resin/glass base
with solder mask
s Features s Benefits
• RCA/110 connectors • Provides quick cable termination
• Front removable • Less intrusive access for adds, moves & changes
• Rugged snap-in design • Quick and easy
Page 2 of 2
Date Printed: 2/9/2007
