CSUN345-72M
- 1. PowerGuardSPECIALTY INSURANCE SERVICES TM energyfor today CSUN345-72M CSUN340-72M CSUN335-72M CSUN330-72M Mono Cell efficiency 345WHighest power output 10 years Material & workmanship warranty 25 years Linear power output warranty All information and data are subject to change without notice. www.csun-solar.com Powerguard insurance global coverage Within the first year, the output power shall not be less than 96.5% of the minimum output power in CSUN’s product datasheet, thereafter the loss of output power shall not exceed 0.68% per year, ending with 80.18% in the 25th year. CSUN Standard warranty China Sunergy (Nanjing) Co., Ltd. (NASDAQ: CSUN), established in 2004, is a hi-tech corporation with its core business in R&D, manufacturing, and sale of high efficiency silicon based solar cells and modules. As one of the leading PV enterprises in the world, CSUN has delivered more than 1GW solar products, to residential, commercial, utility and off-grid projects all around the world. Through strict selection of raw materials, stringent quality control and rigorous test in state of the art facilities in Nanjing and Shanghai, CSUN has always committed to higher efficiency, more stable and better cost performance products. World class mono efficiency Positive tolerance offer PID-free Unique structural design effectively decreases power loss during the course of usage Precise sorting of current distribution reduces power loss during module assembly Certified to withstand wind (2400 Pa) and snow load (5400 Pa) Certified for salt and ammonia corrosion resistance Excellent performance under low light conditions Good temperature coefficient enables higher output in high temperature regions Version 7/2013-ENG 20.6% CSUN345-72M

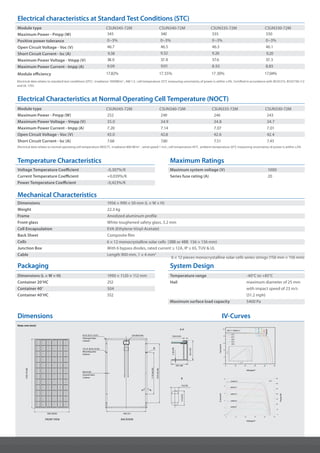

- 2. 50(1.97) Electrical characteristics atStandard Test Conditions (STC) Electrical Characteristics at Normal Operating Cell Temperature (NOCT) Mechanical Characteristics Temperature Characteristics Packaging Maximum Ratings System Design Module type Maximum Power - Pmpp (W) Positive power tolerance Open Circuit Voltage - Voc (V) Short Circuit Current - Isc (A) Maximum Power Voltage - Vmpp (V) Maximum Power Current - Impp (A) Module efficiency Module type Maximum Power - Pmpp (W) Maximum Power Voltage - Vmpp (V) Maximum Power Current - Impp (A) Open Circuit Voltage - Voc (V) Short Circuit Current - Isc (A) Dimensions Weight Frame Front glass Cell Encapsulation Back Sheet Cells Junction Box Cable Voltage Temperature Coefficient Current Temperature Coefficient Power Temperature Coefficient Dimensions (L × W × H) Container 20‘HC Container 40‘ Container 40‘HC Electrical data relates to standard test conditions (STC) : irradiance 1000W/m2 ; AM 1.5 ; cell temperature 25°C measuring uncertainty of power is within ±3%. Certified in accordance with IEC61215, IEC61730-1/2 and UL 1703 Electrical data relates to normal operating cell temperature (NOCT): irradiance 800 W/m2 ; wind speed 1 m/s ; cell temperature 45°C ambient temperature 20°C measuring uncertainty of power is within ±3% 345 0~3% 46.7 9.38 38.0 9.09 17.82% 252 35.0 7.20 43.0 7.68 1956 × 990 × 50 mm (L × W × H) 22.3 kg Anodized aluminum profile White toughened safety glass, 3.2 mm EVA (Ethylene-Vinyl-Acetate) Composite film 6 × 12 pieces monocrystalline solar cells series strings (156 mm × 156 mm) With 6 bypass diodes, rated current ≥ 12A, IP ≥ 65, TUV & UL Length 900 mm, 1 × 4 mm2 -0,307%/K +0,039%/K -0,423%/K 1990 × 1120 × 112 mm 252 504 552 340 46.5 9.32 37.8 9.01 17.55% 249 34.9 7.14 42.8 7.60 Maximum system voltage (V) Series fuse rating (A) Temperature range Hail Maximum surface load capacity 1000 20 -40°C to +85°C maximum diameter of 25 mm with impact speed of 23 m/s (51.2 mph) 5400 Pa Dimensions IV-Curves Note: mm (inch) Front view backview A A B 1956(76.98) 990 (38.96) 940 (37) 1176(46.28) 1676(65.96) Ø 6 (0.24) 14 x 9 (0.55 x 0.35) 8 x 8 (0.31 x 0.31) Junction box 10.8 (0.43) 9 (0.35) 14(0.55) 35(1.38) 2(0.078) Current/ACurrent/A Power/W Voltage/V Voltage/V A-A B Ground holes 2 places Mounting slots 8 places Drainage holes 4 places 335 0~3% 46.3 9.26 37.6 8.93 17.30% 0~3% CSUN345-72M CSUN340-72M CSUN335-72M CSUN330-72M CSUN345-72M CSUN340-72M CSUN335-72M CSUN330-72M 246 34.8 7.07 42.6 7.51 330 0~3% 46.1 9.20 37.3 8.85 17.04% 243 34.7 7.01 42.4 7.43 345W 366.8W 323.1W 301.2W 279.3W 6 × 12 monocrystalline solar cells (3BB or 4BB 156 × 156 mm)
