1. Cryptocurrency

2. Who am I?
• Miguel Duarte
• Robotics & AI PhD Student @ ISCTE-IUL
• Geek, Hacker, Maker
• Sci-fi, Tech and Robotics enthusiast
• IEEE, NodecopterLX, GDG, IT

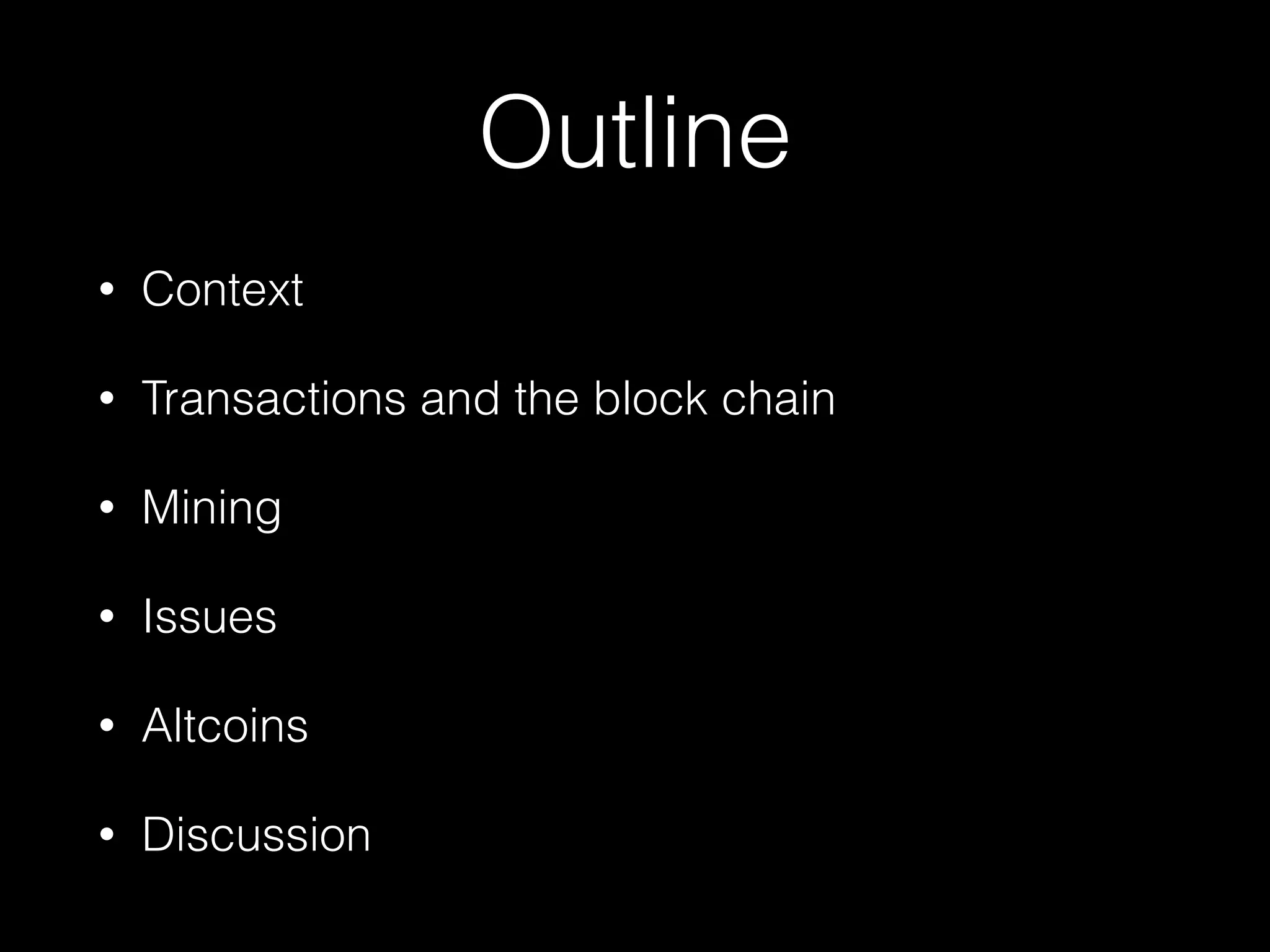

3. Outline
• Context
• Transactions and the block chain
• Mining
• Issues
• Altcoins
• Discussion

4. What is a cryptocurrency?
Digital currency that uses cryptography for
security. Cryptocurrencies are generally
anonymous and not issued by any central
authority.

5. Why does it matter?
• Transactions are irreversible, fast, and have low
fees
• Universal (within the internet)
• Decentralised, no trust necessary
• The supply of coins is regulated by software and
the agreement of users of the system and cannot
be manipulated by any government, bank,
organization or individual

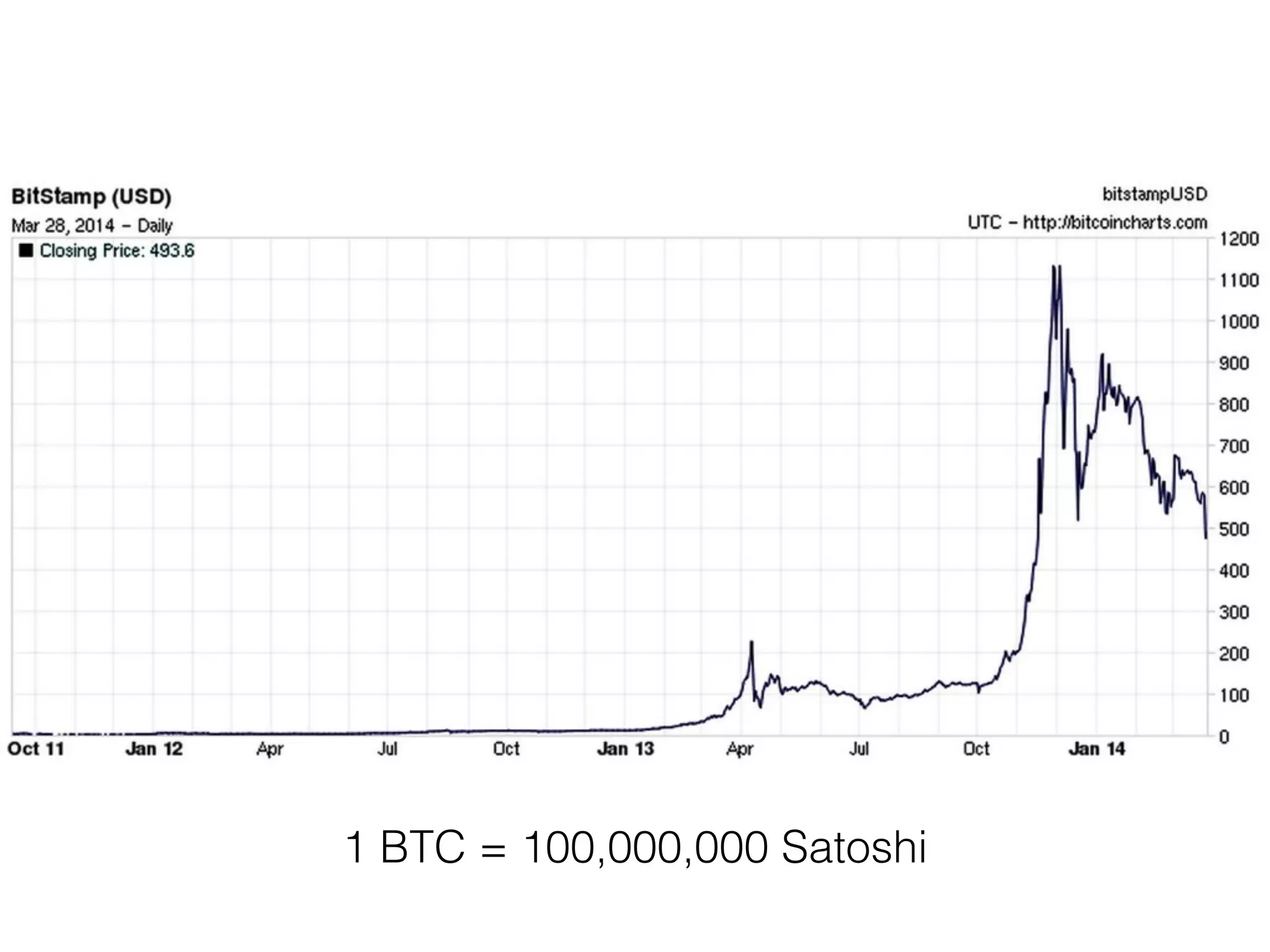

8. 1 BTC = 100,000,000 Satoshi

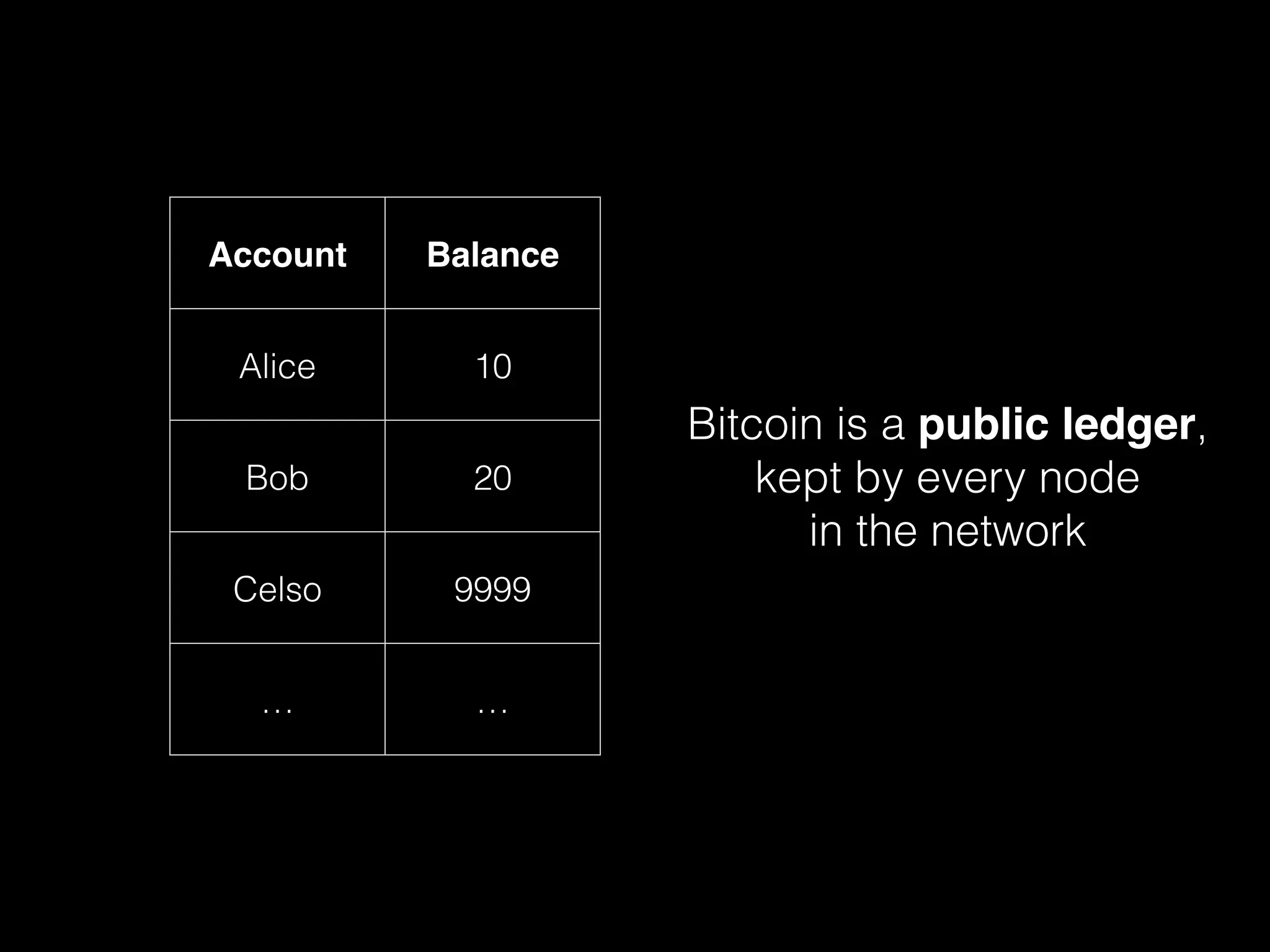

9. Account Balance
Alice 10
Bob 20
Celso 9999
… …
Bitcoin is a public ledger,
kept by every node
in the network

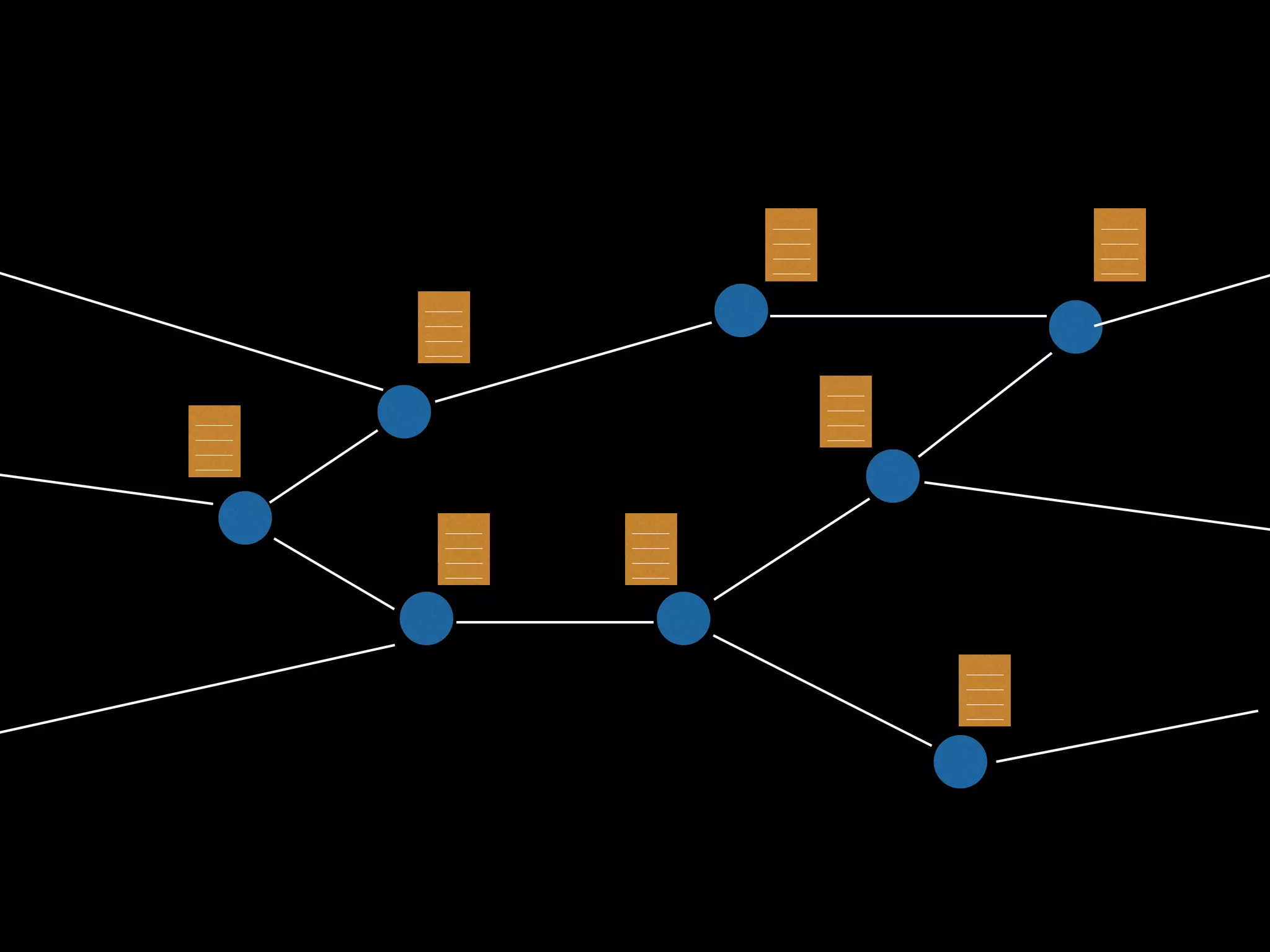

10. ______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______
______

11. Addresses
• 27-34 alphanumeric characters
• Generated via public-key cryptography
• Any user can generate multiple addresses
31uEbMgunupShBVTewXjtqbBv5MndwfXhb

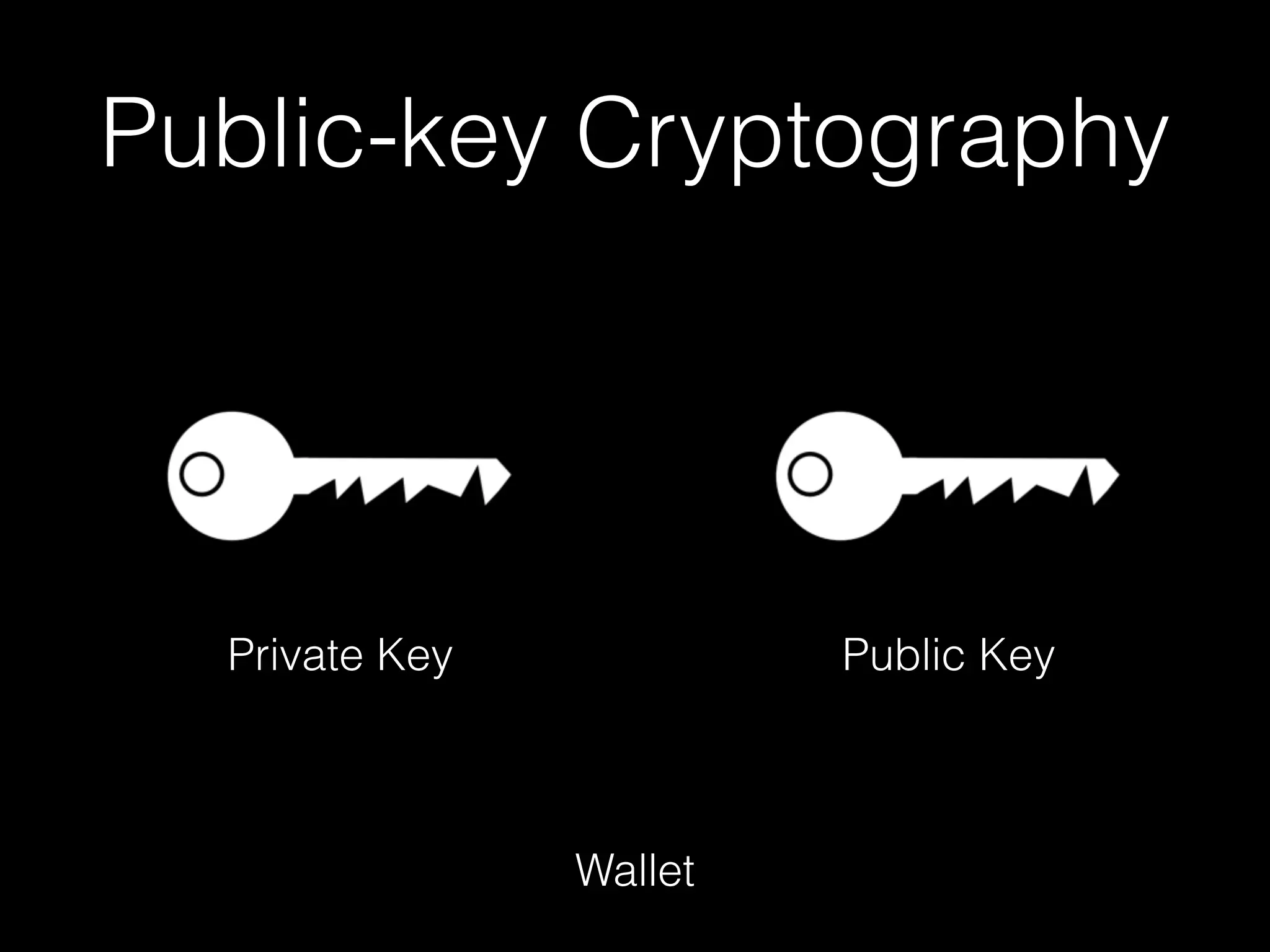

12. Private Key Public Key
Public-key Cryptography
Wallet

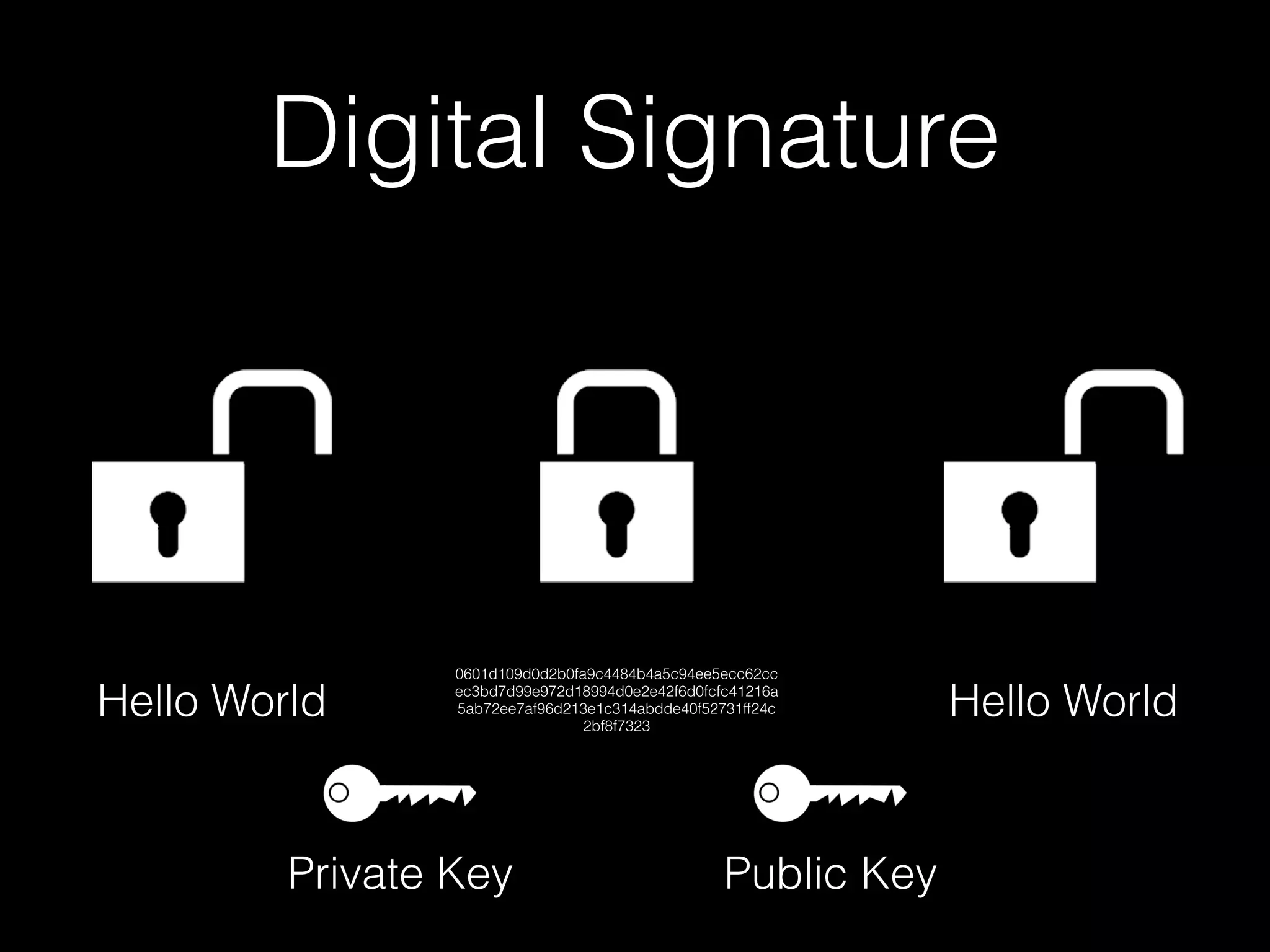

13. Digital Signature
Hello World
0601d109d0d2b0fa9c4484b4a5c94ee5ecc62cc
ec3bd7d99e972d18994d0e2e42f6d0fcfc41216a
5ab72ee7af96d213e1c314abdde40f52731ff24c
2bf8f7323
Hello World
Private Key Public Key

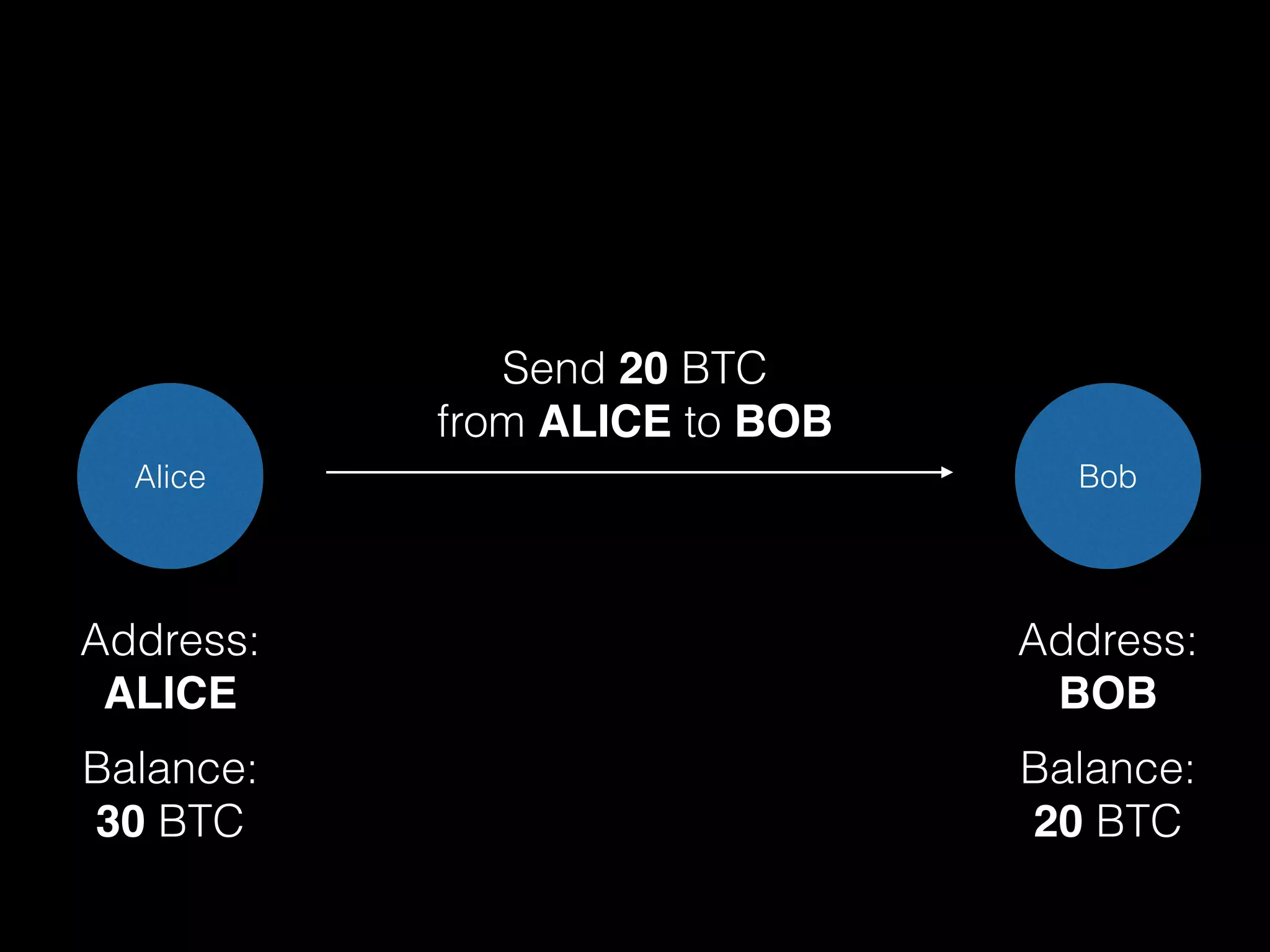

14. Alice Bob
Send 20 BTC
from ALICE to BOB
Address:
ALICE
Address:
BOB
Balance:
30 BTC
Balance:
20 BTC

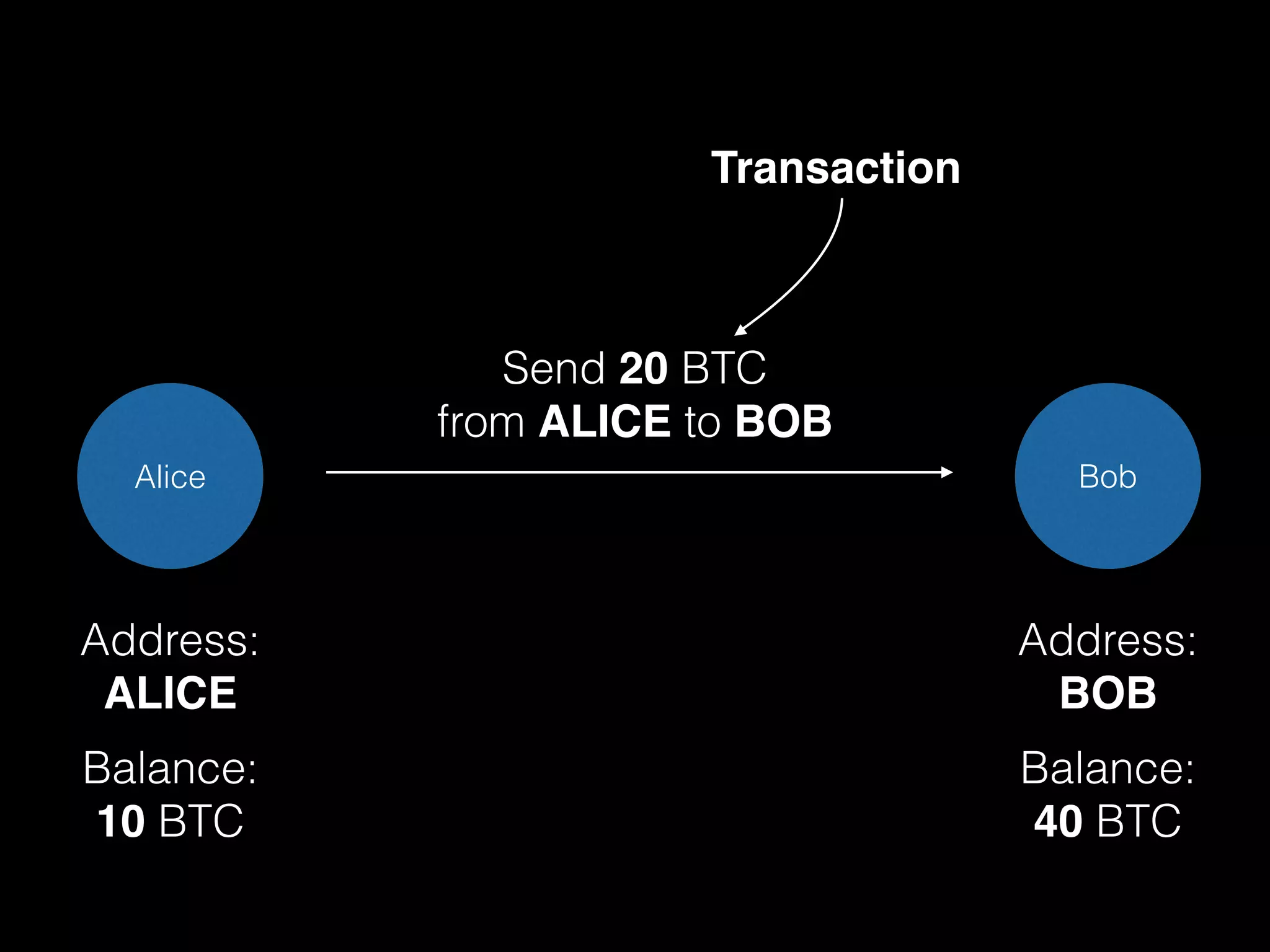

15. Alice Bob
Send 20 BTC
from ALICE to BOB
Address:
ALICE
Address:
BOB
Balance:
10 BTC
Balance:
40 BTC
Transaction

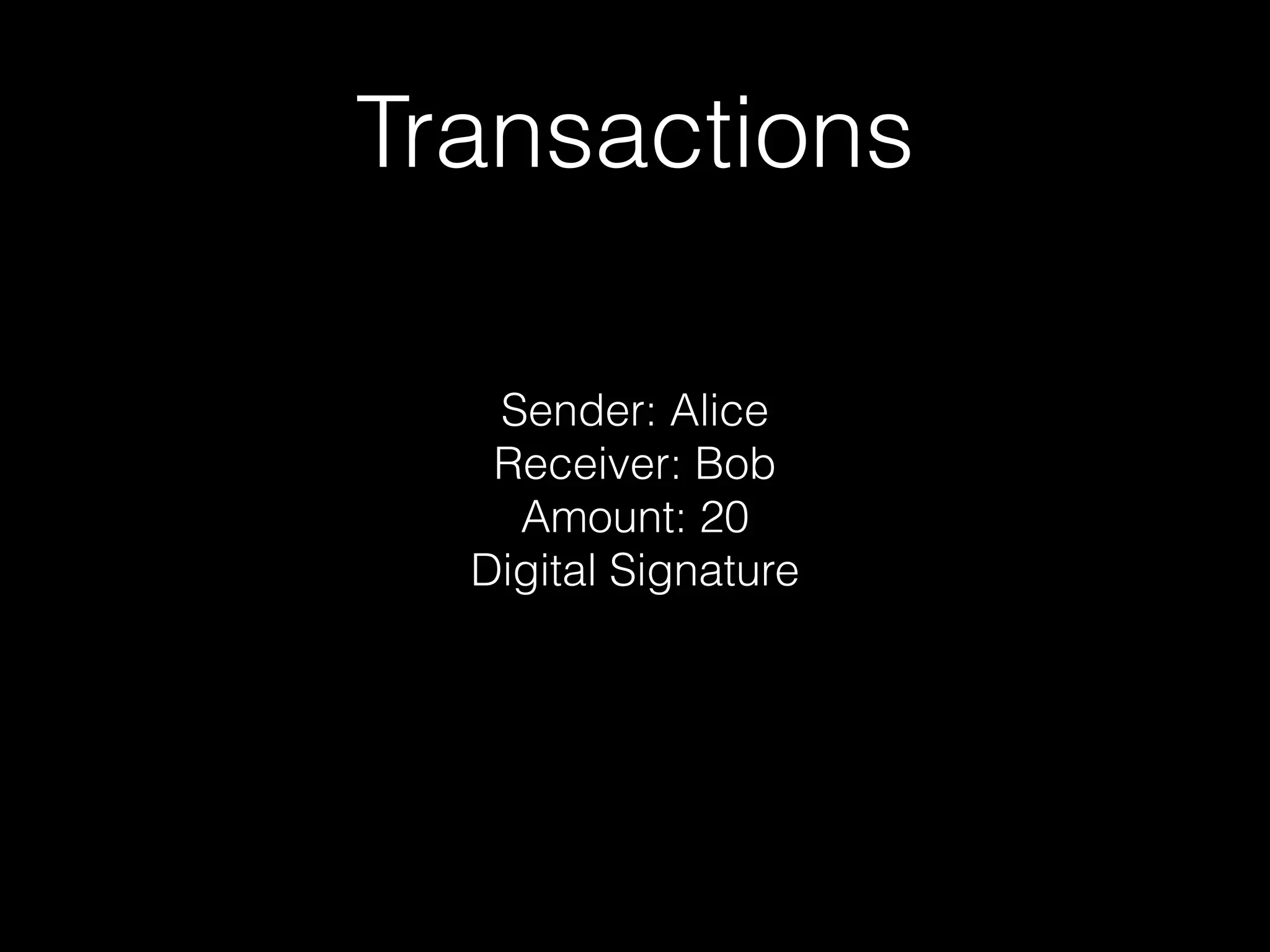

16. Transactions
Sender: Alice
Receiver: Bob
Amount: 20
Digital Signature

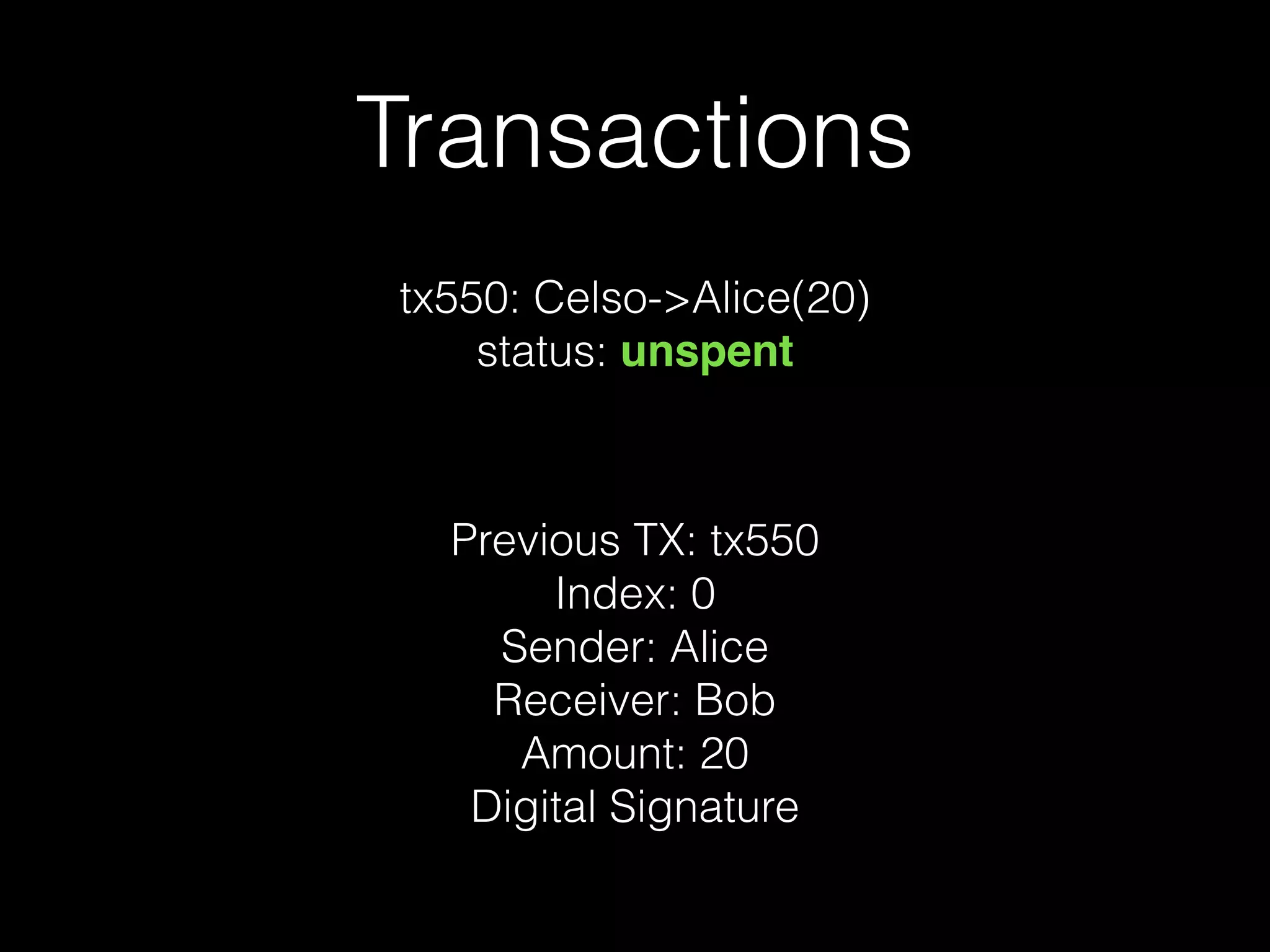

17. Transactions
Previous TX: tx550
Index: 0
Sender: Alice
Receiver: Bob
Amount: 20
Digital Signature
tx550: Celso->Alice(20)
status: unspent

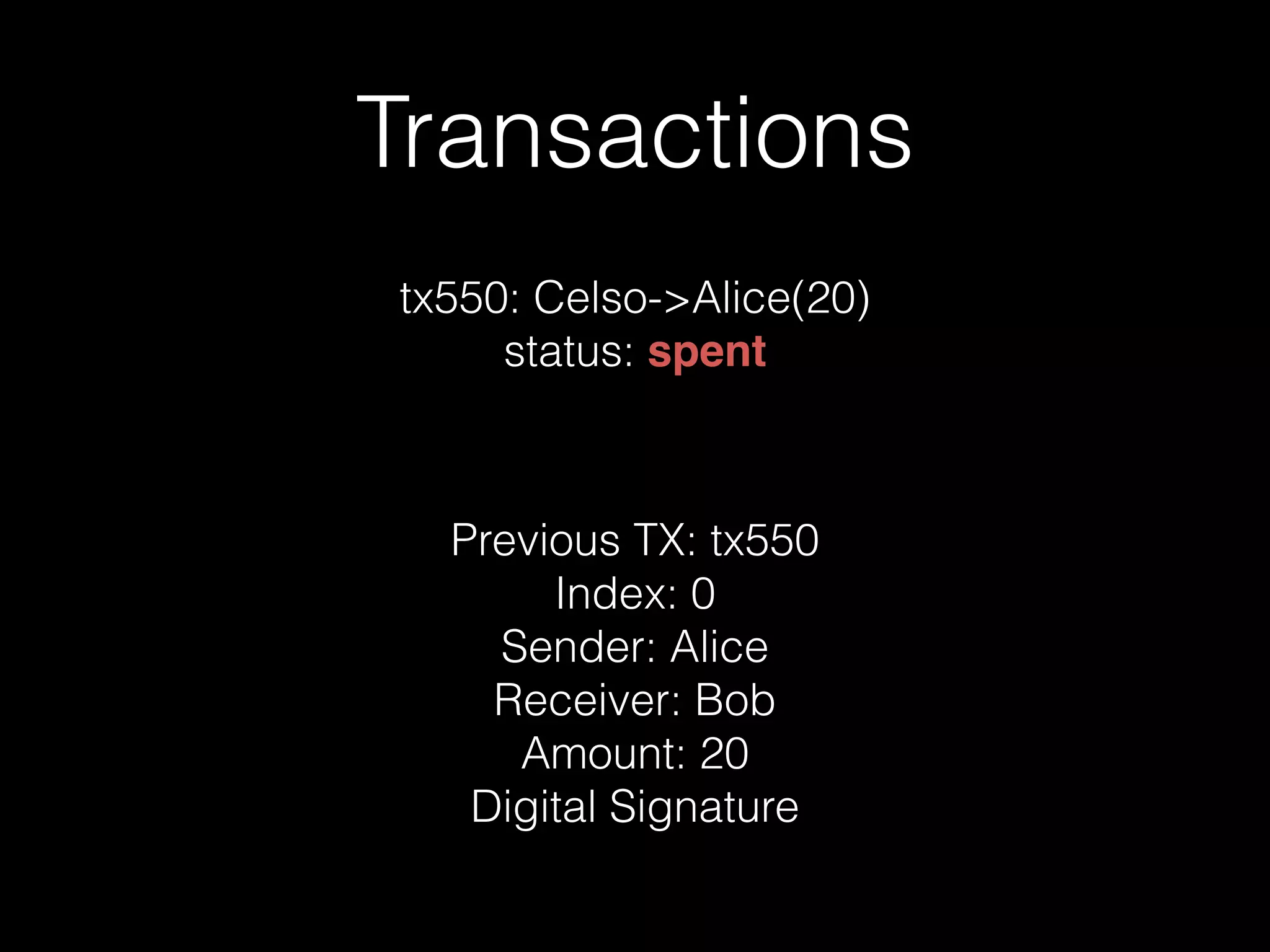

18. Transactions
Previous TX: tx550
Index: 0
Sender: Alice
Receiver: Bob
Amount: 20
Digital Signature
tx550: Celso->Alice(20)
status: spent

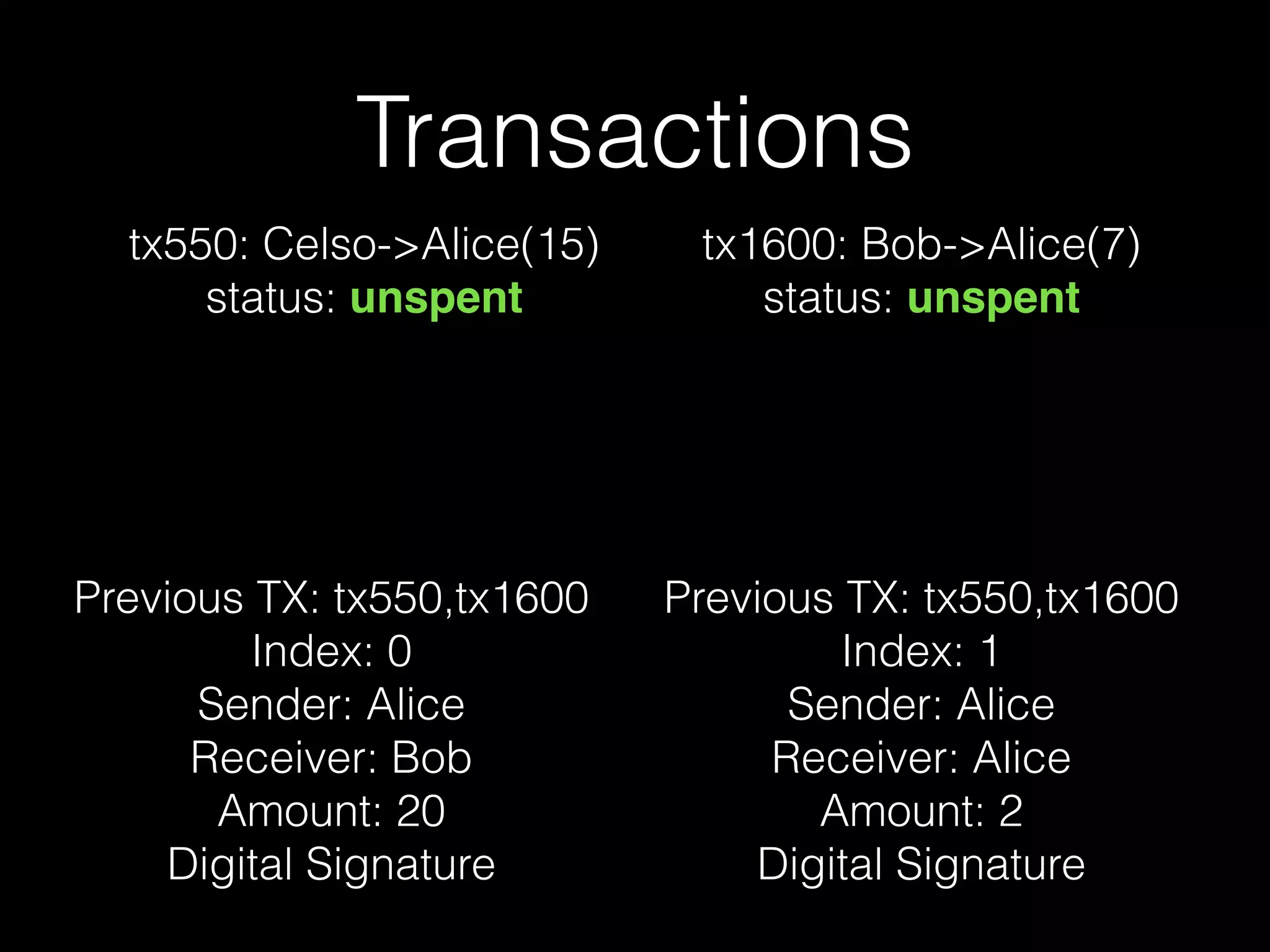

19. Transactions
Previous TX: tx550,tx1600
Index: 0
Sender: Alice
Receiver: Bob
Amount: 20
Digital Signature
Previous TX: tx550,tx1600
Index: 1
Sender: Alice
Receiver: Alice
Amount: 2
Digital Signature
tx550: Celso->Alice(15)
status: unspent
tx1600: Bob->Alice(7)
status: unspent

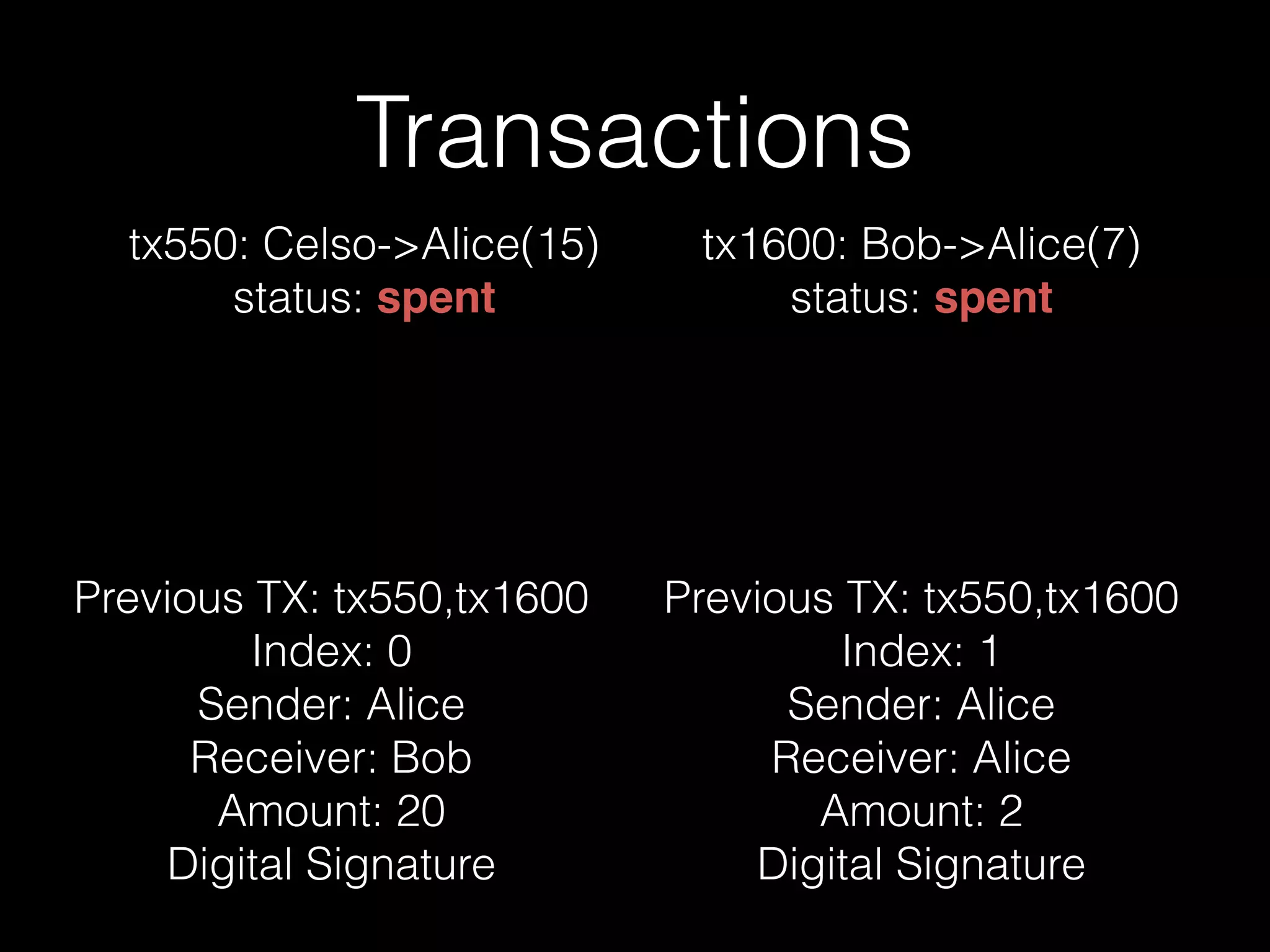

20. Transactions
Previous TX: tx550,tx1600
Index: 0
Sender: Alice
Receiver: Bob
Amount: 20
Digital Signature
Previous TX: tx550,tx1600
Index: 1
Sender: Alice
Receiver: Alice
Amount: 2
Digital Signature
tx550: Celso->Alice(15)
status: spent
tx1600: Bob->Alice(7)
status: spent

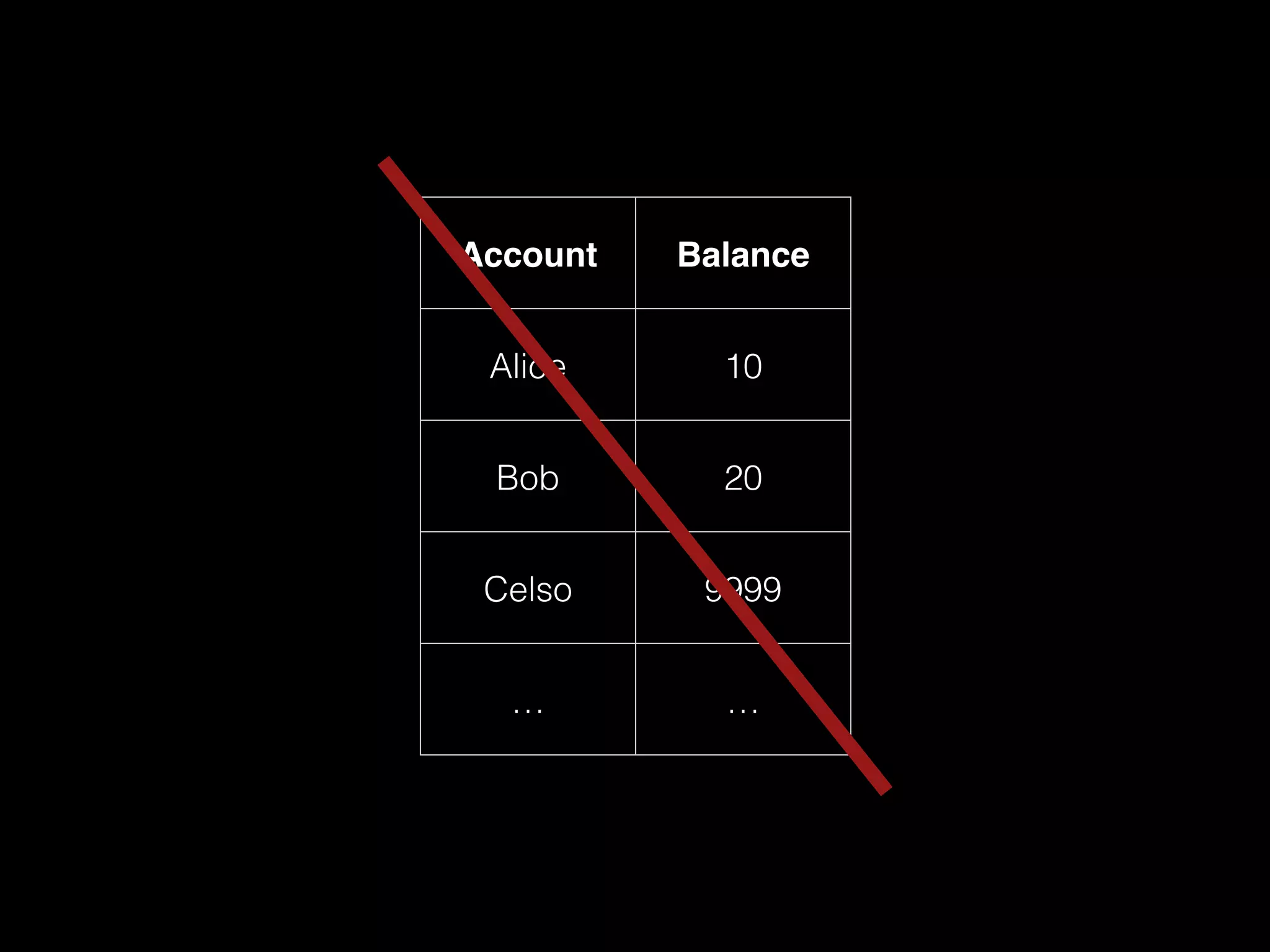

21. Account Balance
Alice 10
Bob 20
Celso 9999
… …

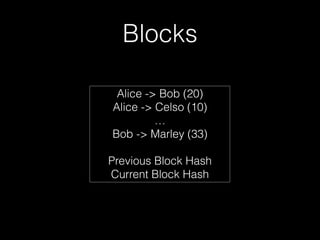

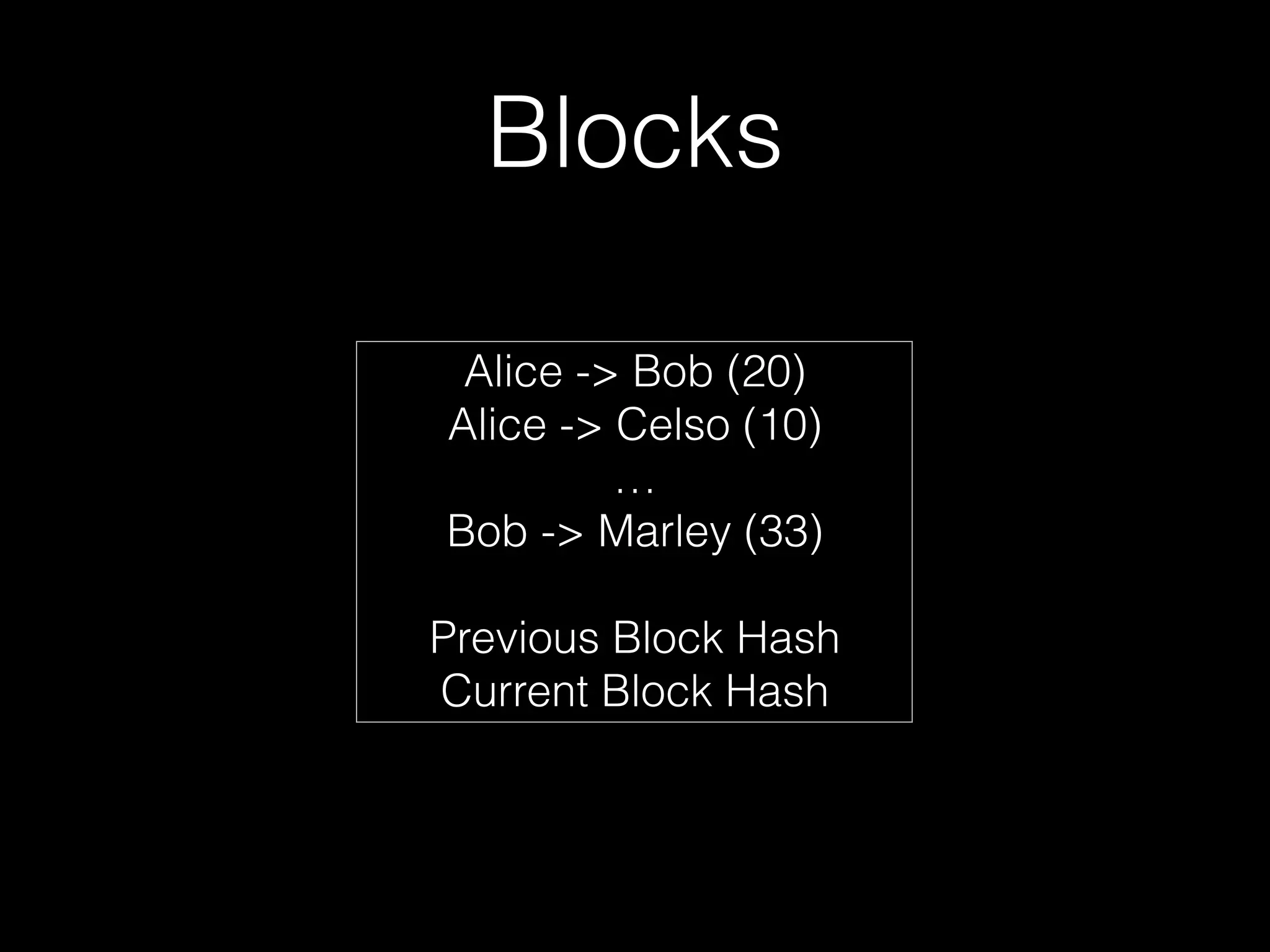

22. Blocks
Alice -> Bob (20)
Alice -> Celso (10)
…
Bob -> Marley (33)
!
Previous Block Hash
Current Block Hash

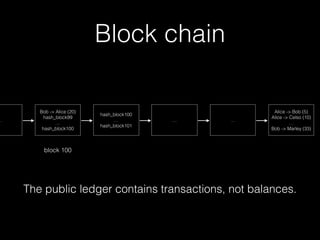

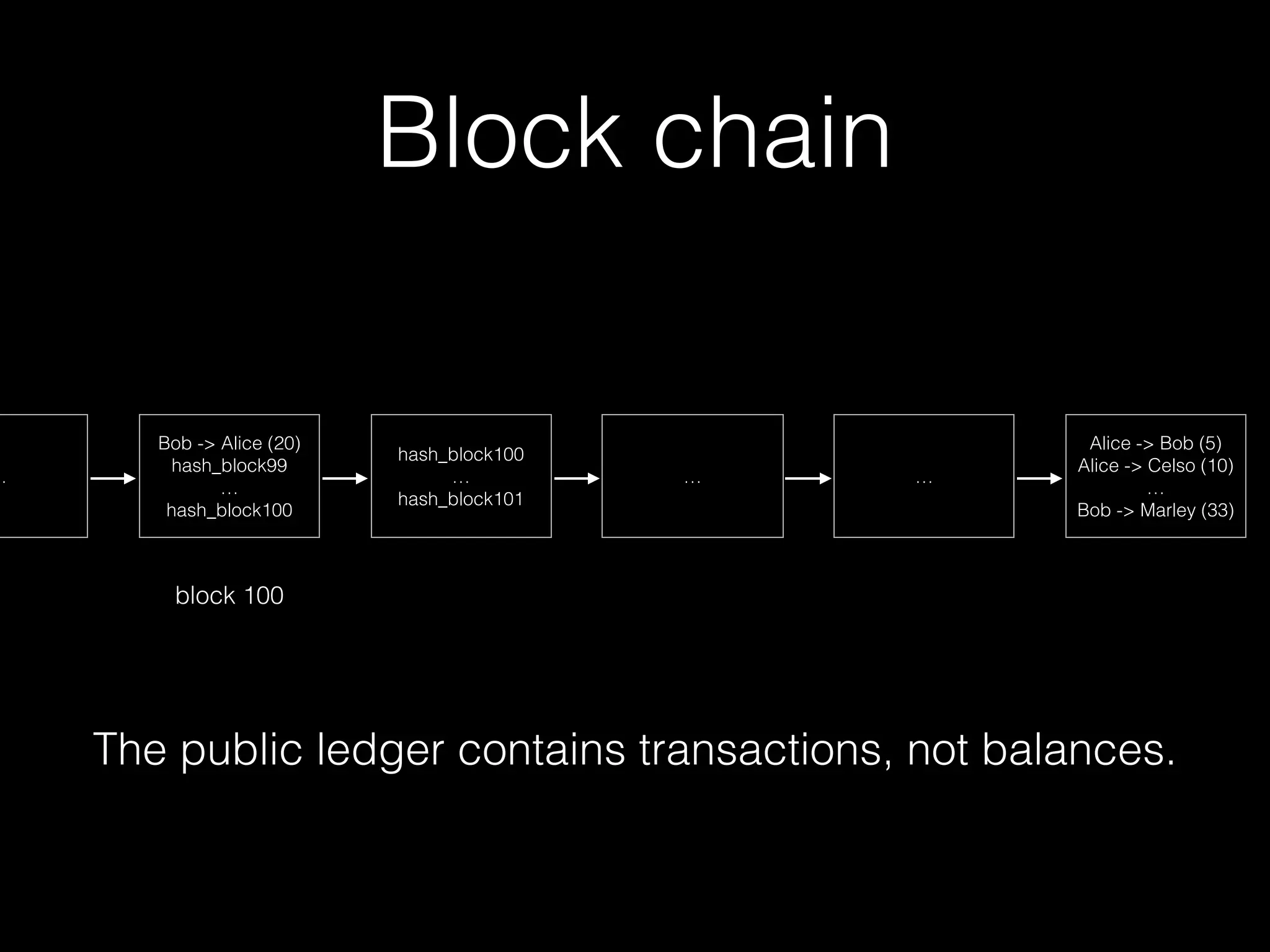

23. Block chain
Alice -> Bob (5)
Alice -> Celso (10)
…
Bob -> Marley (33)
……
hash_block100
…
hash_block101
Bob -> Alice (20)
hash_block99
…
hash_block100
…
The public ledger contains transactions, not balances.
block 100

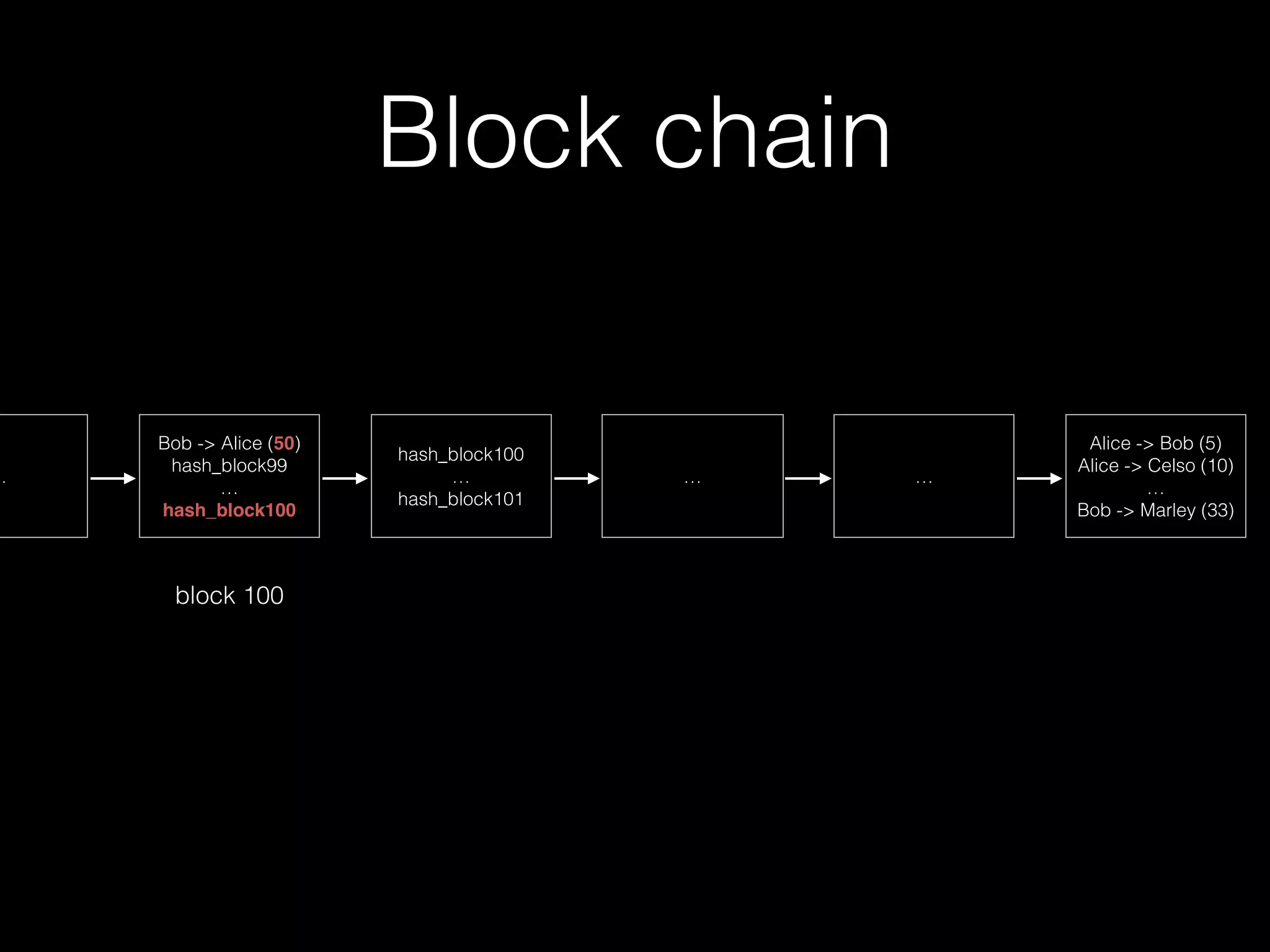

24. Block chain
Alice -> Bob (5)
Alice -> Celso (10)
…
Bob -> Marley (33)
……
hash_block100
…
hash_block101
Bob -> Alice (50)
hash_block99
…
hash_block100
…
block 100

25. Block chain
Alice -> Bob (5)
Alice -> Celso (10)
…
Bob -> Marley (33)
……
hash_block100
…
hash_block101
Bob -> Alice (50)
hash_block99
…
hash_block100
…
block 100

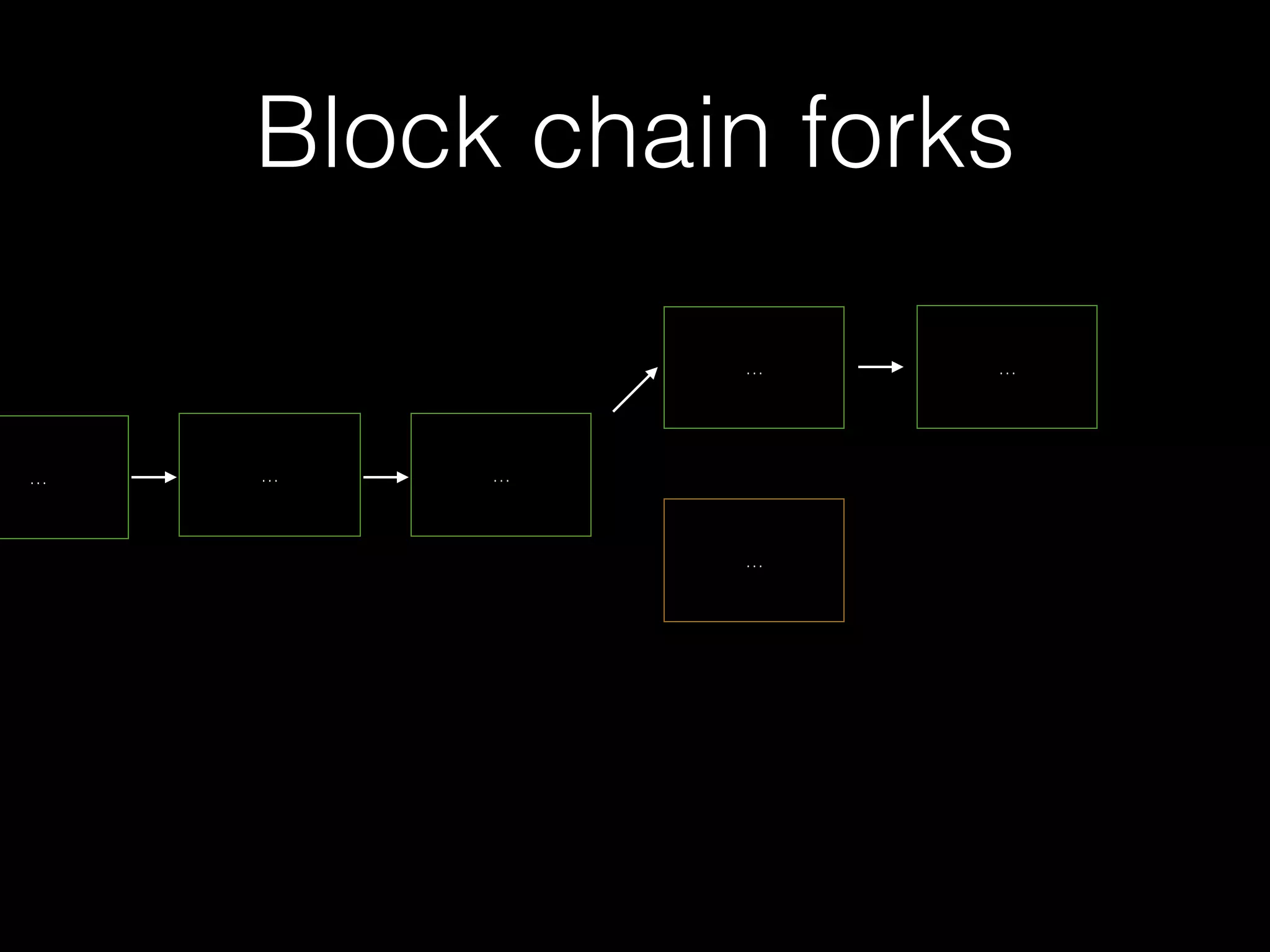

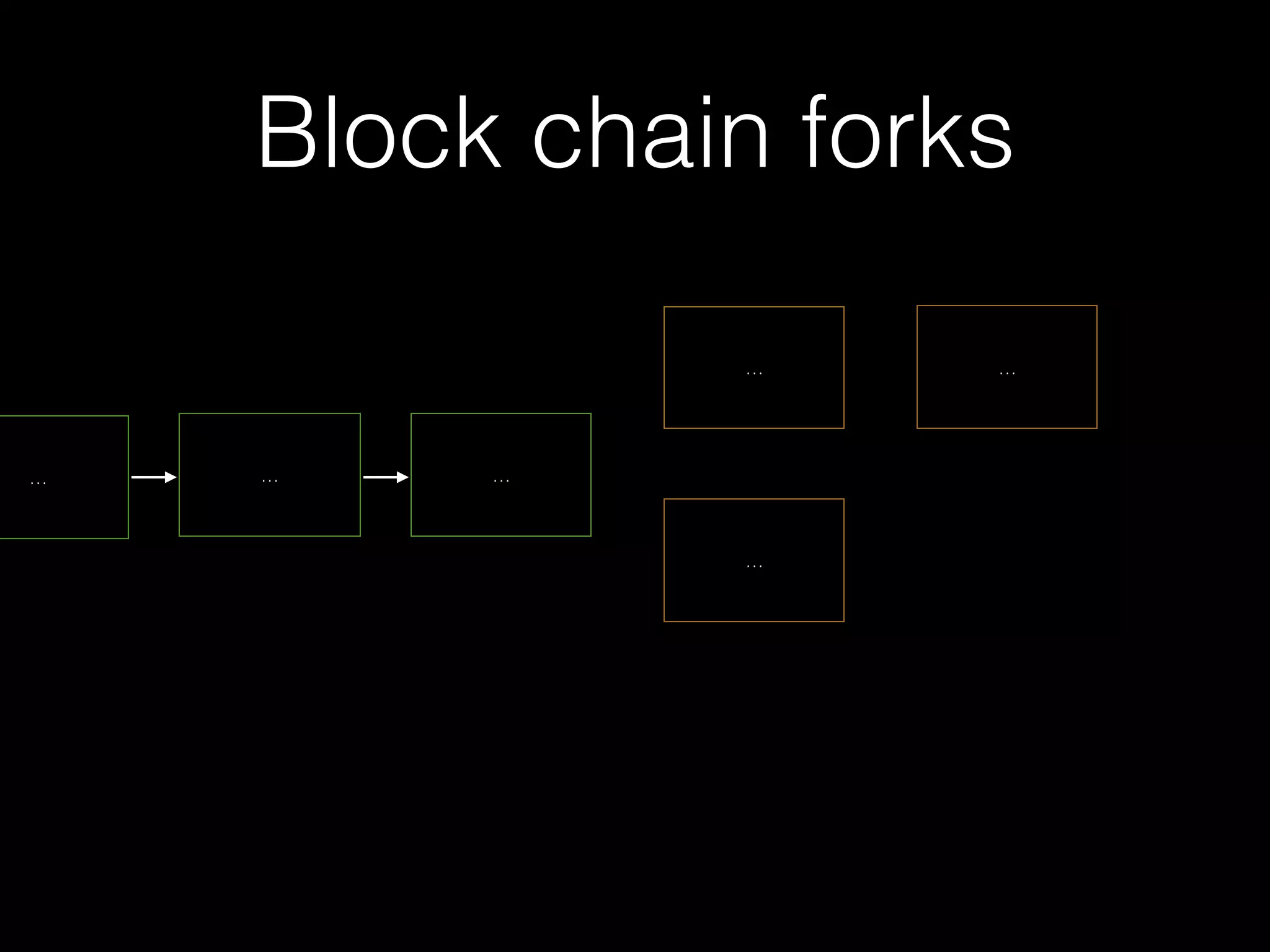

26. Block chain forks
………
…
… …

27. Block chain forks
………
…
… …

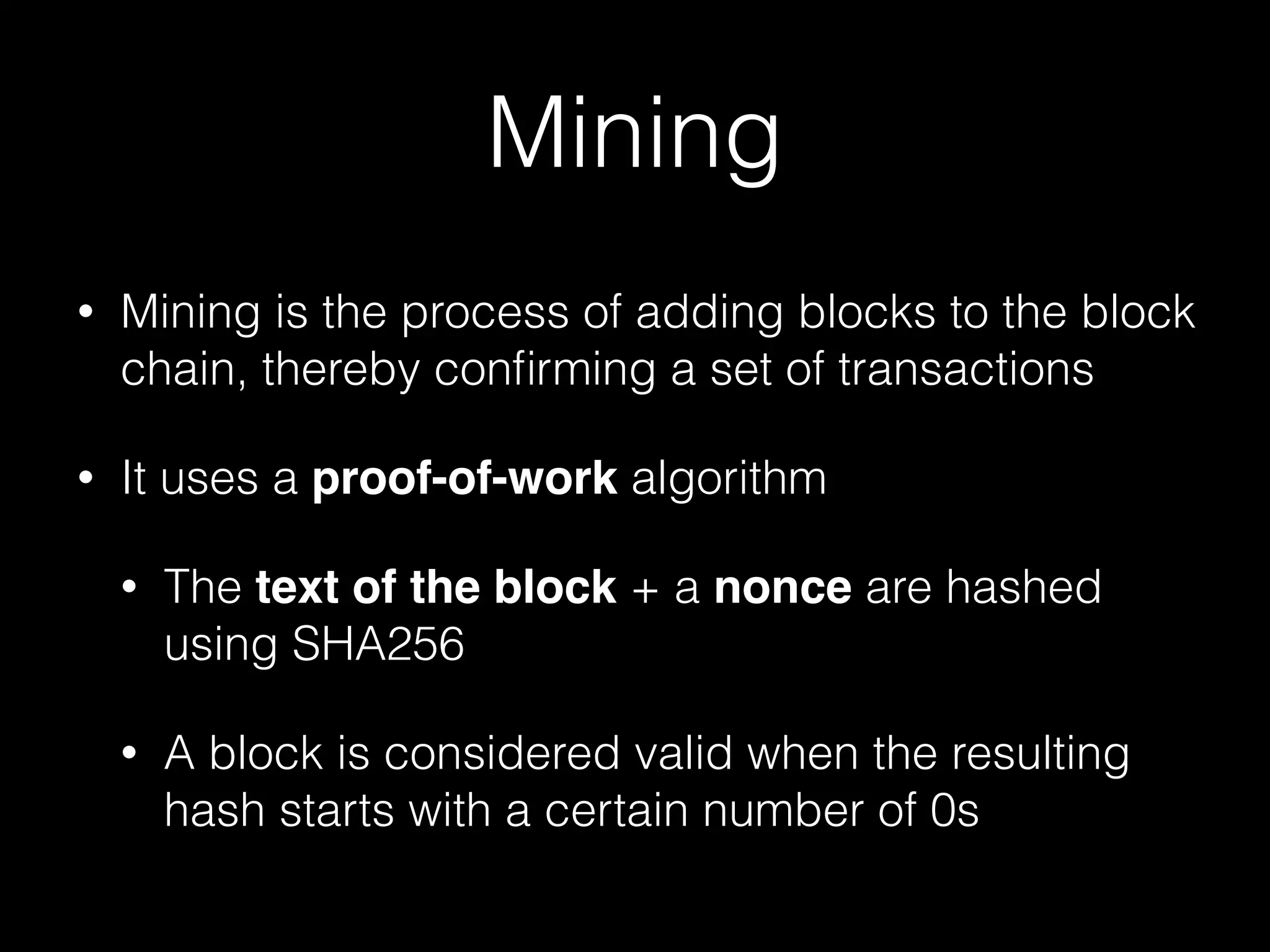

28. Mining
• Mining is the process of adding blocks to the block
chain, thereby confirming a set of transactions
• It uses a proof-of-work algorithm
• The text of the block + a nonce are hashed
using SHA256
• A block is considered valid when the resulting
hash starts with a certain number of 0s

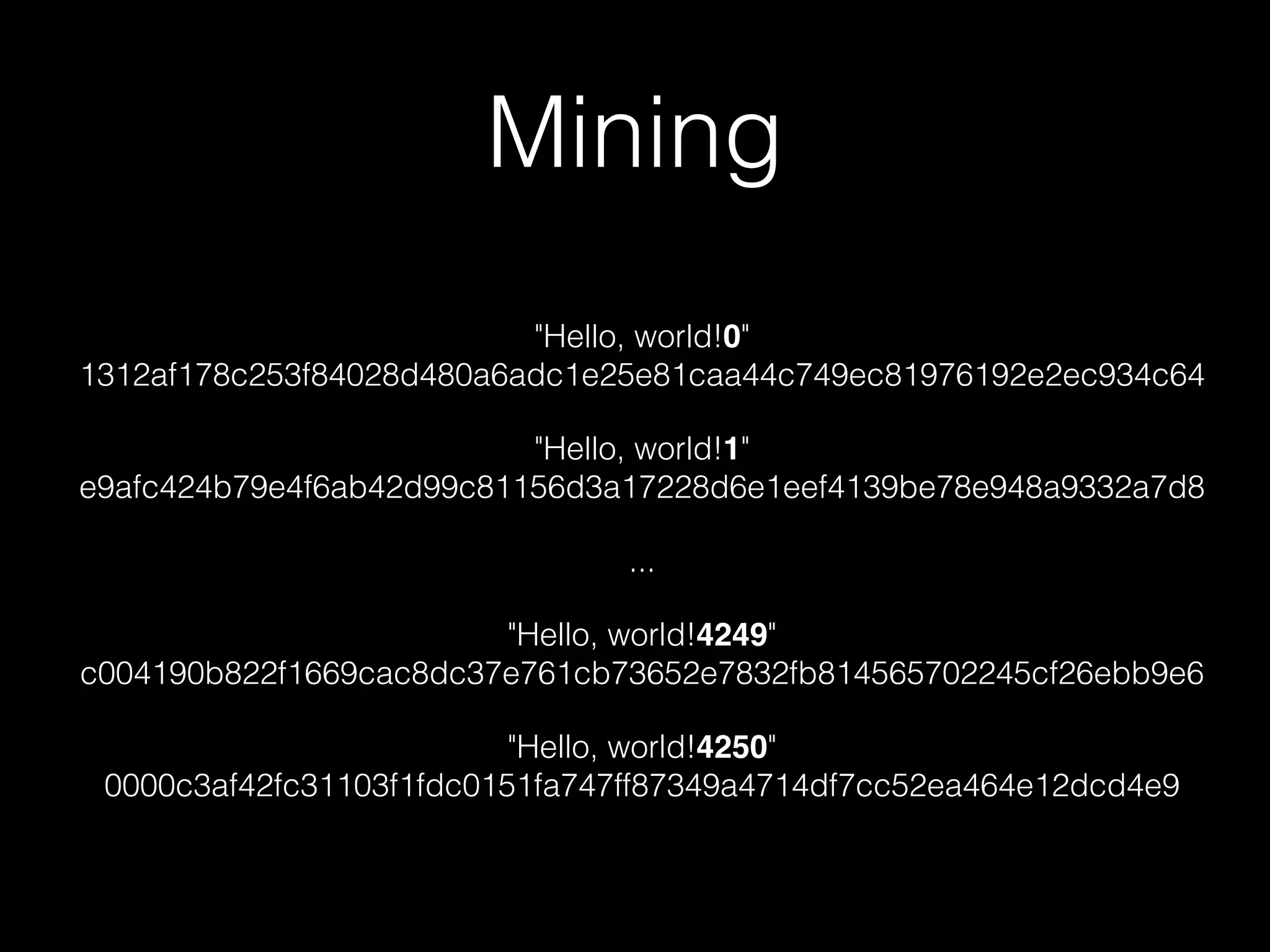

29. Mining
"Hello, world!0"
1312af178c253f84028d480a6adc1e25e81caa44c749ec81976192e2ec934c64
"Hello, world!1"
e9afc424b79e4f6ab42d99c81156d3a17228d6e1eef4139be78e948a9332a7d8
...
"Hello, world!4249"
c004190b822f1669cac8dc37e761cb73652e7832fb814565702245cf26ebb9e6
"Hello, world!4250"
0000c3af42fc31103f1fdc0151fa747ff87349a4714df7cc52ea464e12dcd4e9

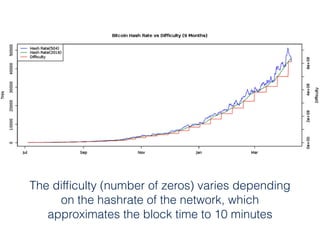

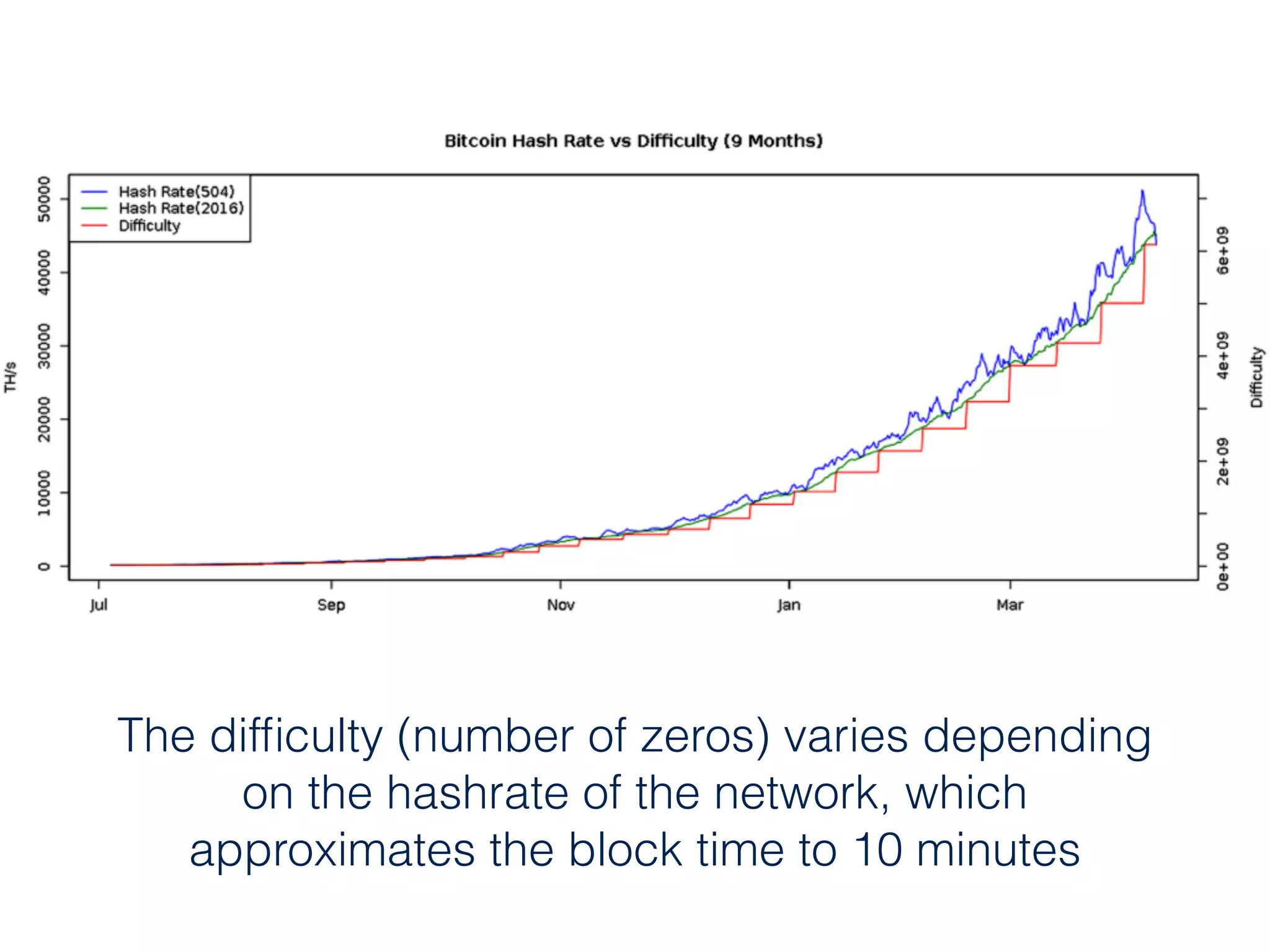

30. The difficulty (number of zeros) varies depending
on the hashrate of the network, which
approximates the block time to 10 minutes

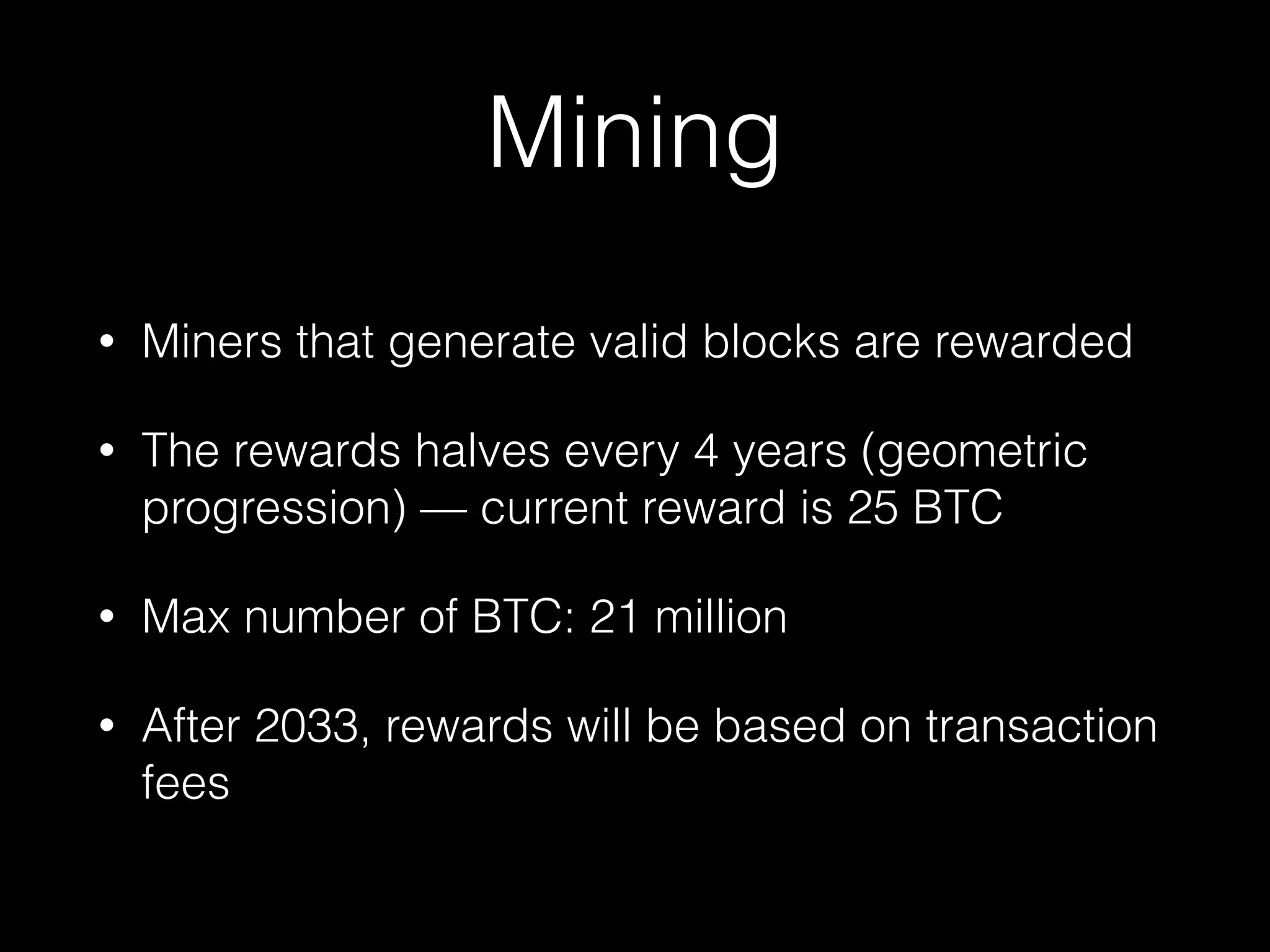

31. Mining
• Miners that generate valid blocks are rewarded
• The rewards halves every 4 years (geometric
progression) — current reward is 25 BTC
• Max number of BTC: 21 million
• After 2033, rewards will be based on transaction
fees

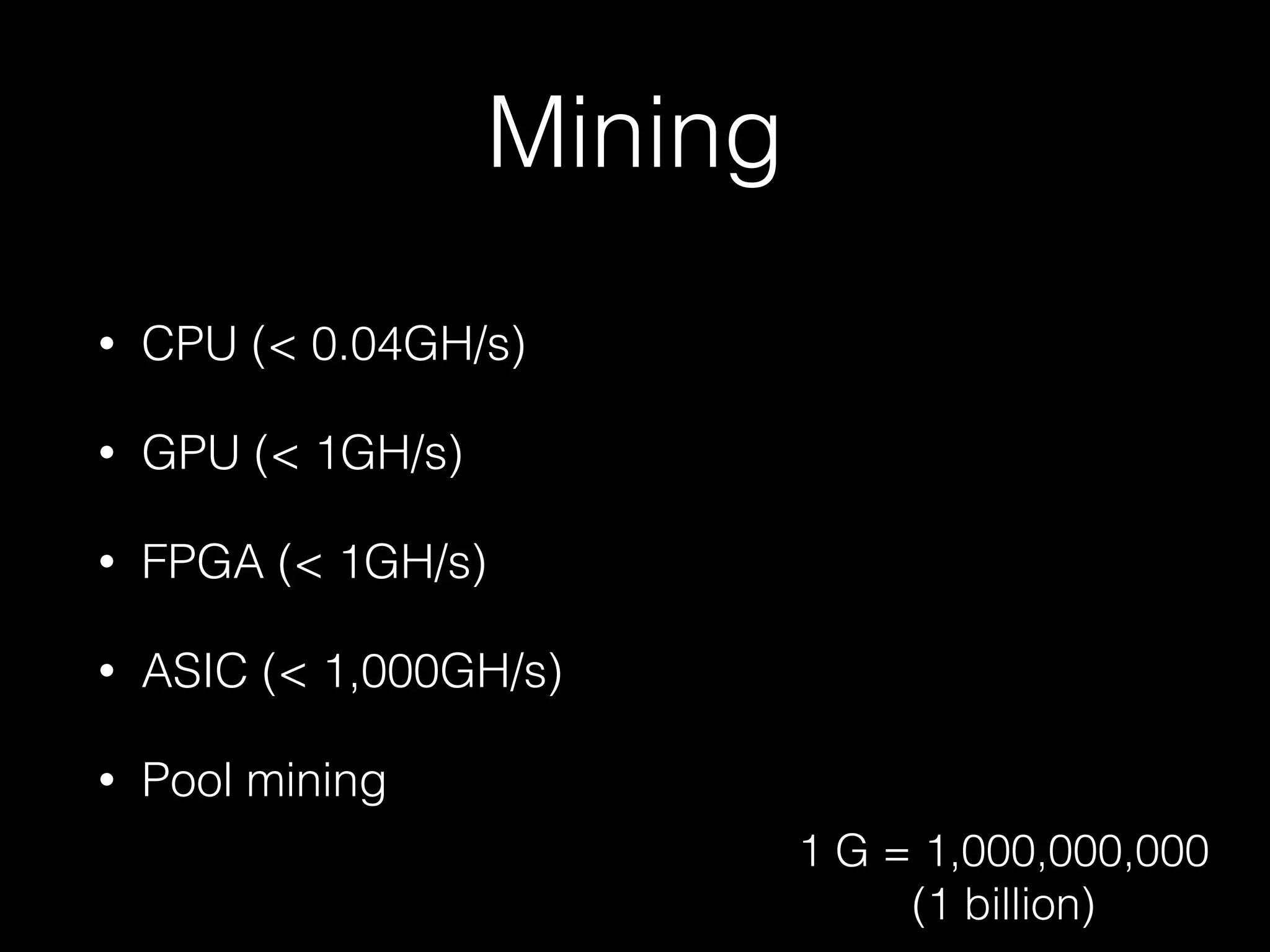

32. Mining
• CPU (< 0.04GH/s)
• GPU (< 1GH/s)
• FPGA (< 1GH/s)
• ASIC (< 1,000GH/s)
• Pool mining
1 G = 1,000,000,000
(1 billion)

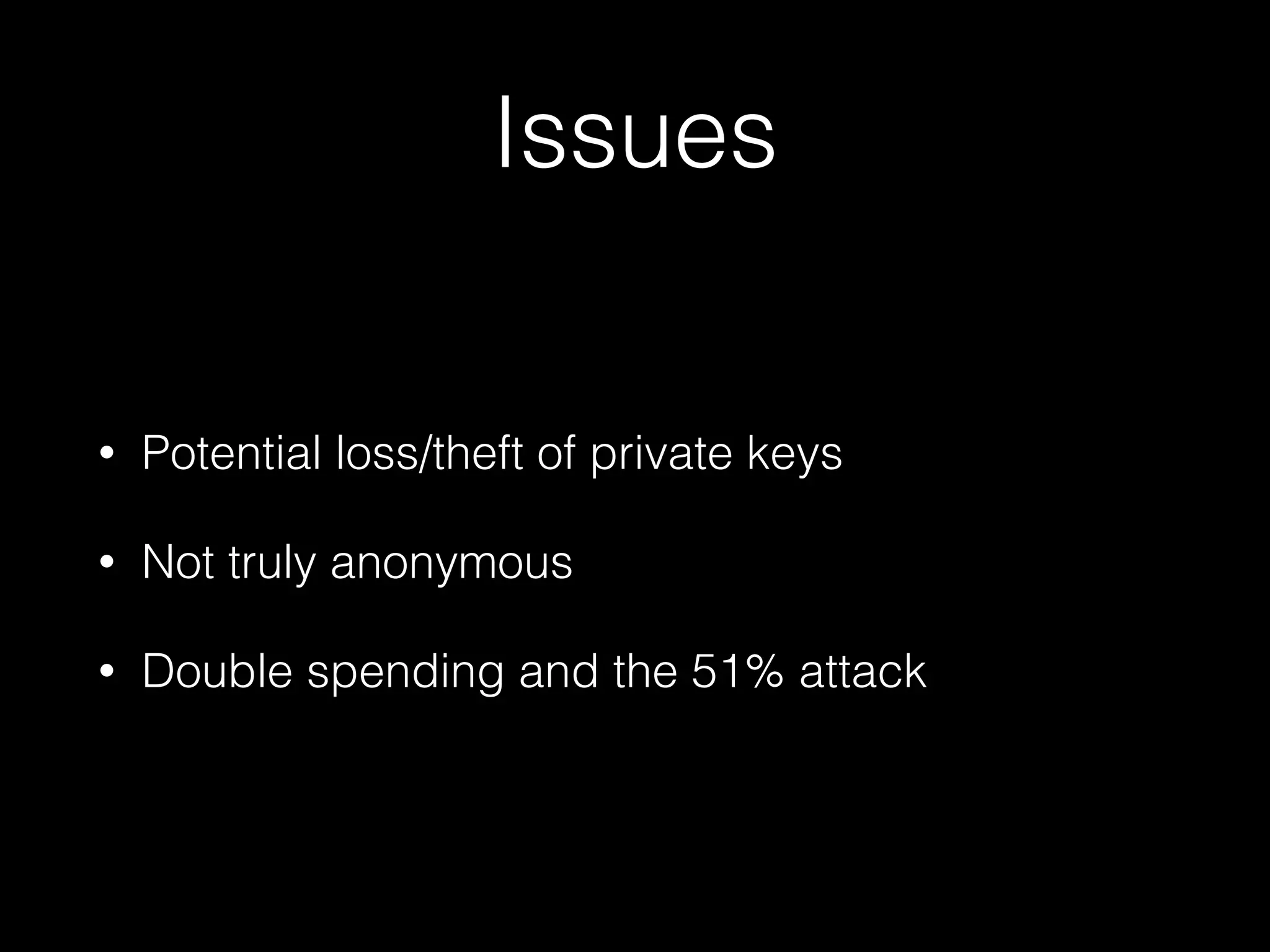

34. Issues
• Potential loss/theft of private keys
• Not truly anonymous
• Double spending and the 51% attack

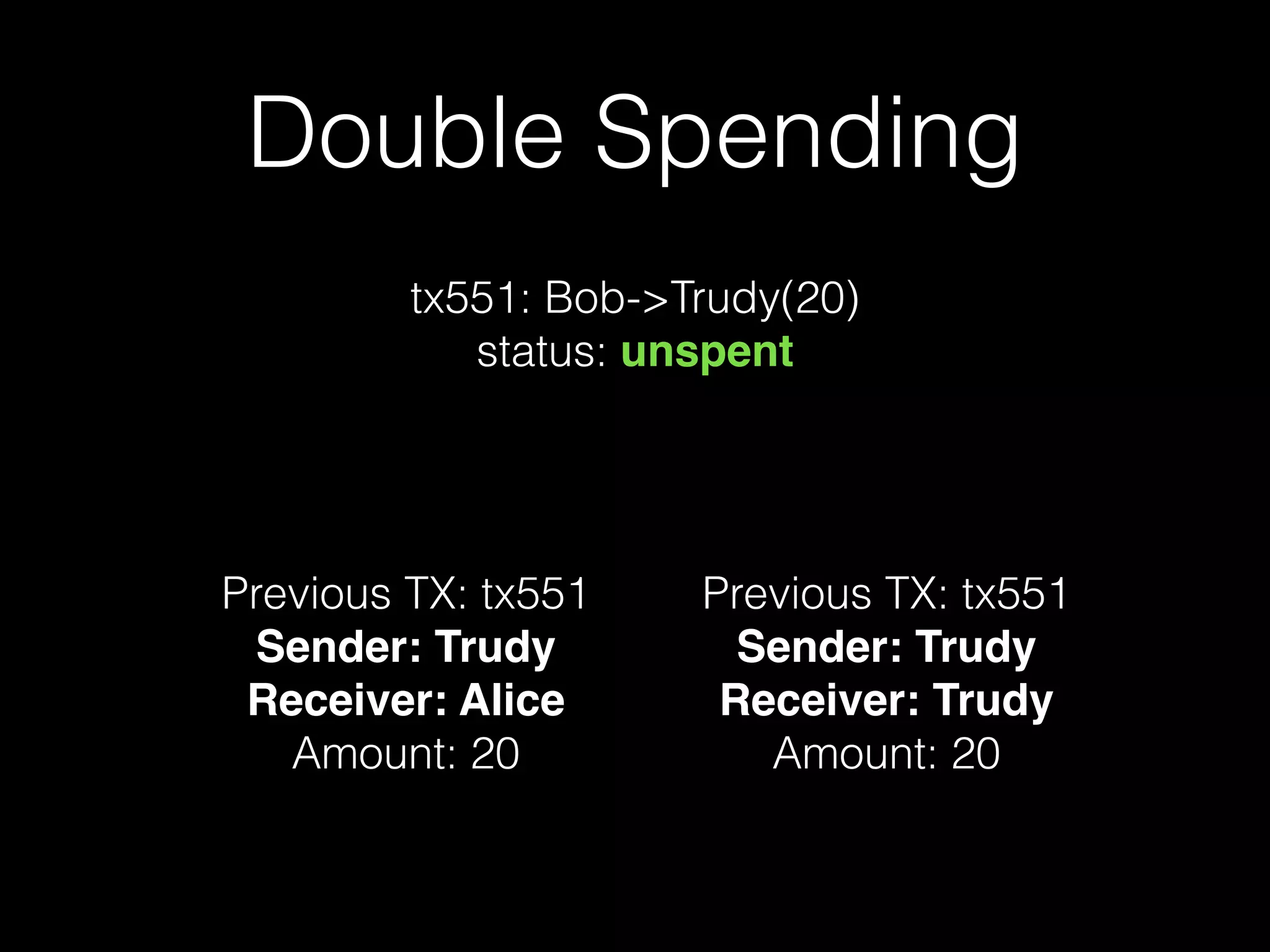

35. Double Spending
Previous TX: tx551
Sender: Trudy!
Receiver: Alice!
Amount: 20
tx551: Bob->Trudy(20)
status: unspent
Previous TX: tx551
Sender: Trudy!
Receiver: Trudy!
Amount: 20

38. Altcoins

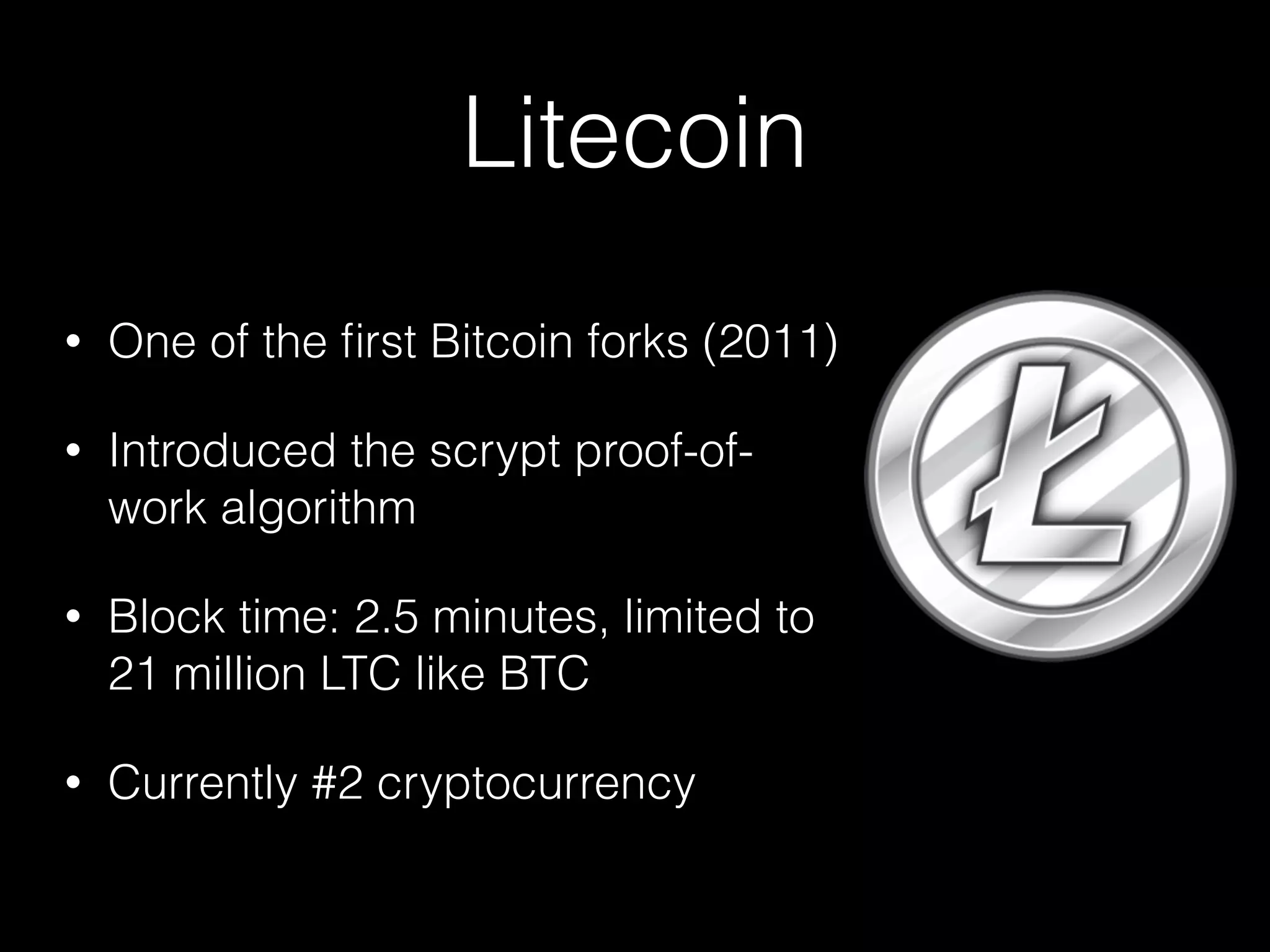

39. Litecoin
• One of the first Bitcoin forks (2011)
• Introduced the scrypt proof-of-
work algorithm
• Block time: 2.5 minutes, limited to
21 million LTC like BTC
• Currently #2 cryptocurrency

40. Dogecoin
• A fork of Litecoin
• Made as a joke, features the famous
Doge meme with the friendly Shiba Inu
• No coin limit (100 billion until 2014 + 5
billion per year afterwards)
• much fast (1 minute block time)
• Amazing community that loves to tip and
fund charities (/r/dogecoin)

41. $30k
$55k
$30k
Ɖ30M
$30k

44. ping @miguelduarte42
10k giveaway
