Slide deck from the SharePoint Saturday Stockholm 2014 session on creating sustainable solutions using SharePoint 2013. The event took place on 25th of January 2014 in Stockholm.

1. Creating sustainable solutions with
SharePoint 2013
#SPSSTHLM01
Yuri Burger
January 25th, 2014
SharePoint Saturday
Stockholm

2. Gold
SharePint
Bronze
Raffle

3. About me
Yuri Burger
00010010010
00111000001

4. Reach out
@yuriburger
yurib@delta-n.nl
http://yuriburger.net

5. Todo

6. > Sustainable Solutions?
> Developer Considerations
>
>
>
Solution Type
Solution Architecture
Solution Lifecycle
> Questions

7. Sustainable solutions?

8. Sustainable Solutions?
> Maximize product revenue
> Business-driven
> Sustainable, not durable

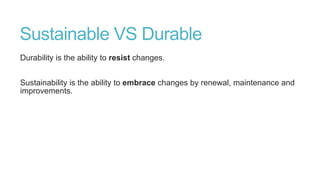

9. Sustainable VS Durable
Durability is the ability to resist changes.
Sustainability is the ability to embrace changes by renewal, maintenance and
improvements.

10. Developer considerations

11. • Cloud
• Mobile
• Responsive
Solution Lifecycle
• Full Trust
• Sandbox
• App
Solution Architecture
Solution Type
Solution Chart
•
•
•
•
•
Feedback
Quality
Delivery
Collaboration
Change

12. Solution Type

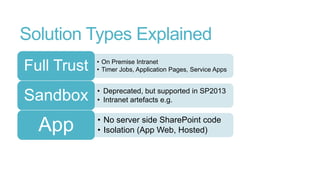

13. Solution Types Explained
Full Trust
• On Premise Intranet
• Timer Jobs, Application Pages, Service Apps
Sandbox
• Deprecated, but supported in SP2013
• Intranet artefacts e.g.
App
• No server side SharePoint code
• Isolation (App Web, Hosted)

14. Solution Type Roadmap
2007
2010
2013
201x

15. Full Trust Solutions
> Solution Framework was introduced in WSS v3 (and MOSS 2007)
> Designed for on premise (Intranet) deployments
> Not intended for hosted and/ or multi tenant scenarios
>Today: potentially block a customer from moving to the cloud

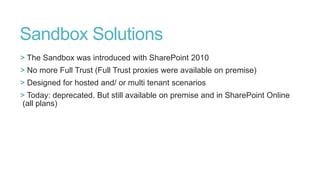

16. Sandbox Solutions
> The Sandbox was introduced with SharePoint 2010
> No more Full Trust (Full Trust proxies were available on premise)
> Designed for hosted and/ or multi tenant scenarios
> Today: deprecated. But still available on premise and in SharePoint Online
(all plans)

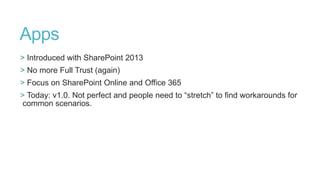

17. Apps
> Introduced with SharePoint 2013
> No more Full Trust (again)
> Focus on SharePoint Online and Office 365
> Today: v1.0. Not perfect and people need to “stretch” to find workarounds for
common scenarios.

18. App deployment options
SharePoint
Hosted
Provider
Hosted
Auto
Hosted
• Client side code (HTML, CSS, JavaScript)
• SharePoint Workflow (via JSOM)
• Data stored in SharePoint Lists and Libraries or
through REST
• Windows Azure / IIS + ASP.Net / other
• Client Object Model, REST
• Data stored in SQL Azure / other
• SharePoint Online + Windows Azure (Lite)
• Client Object Model, REST
• Data stored in SQL Azure

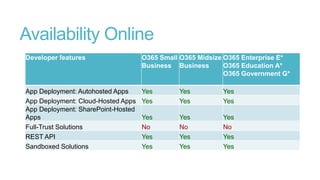

19. Availability Online
Developer features
O365 Small O365 Midsize O365 Enterprise E*
Business Business
O365 Education A*
O365 Government G*
App Deployment: Autohosted Apps
App Deployment: Cloud-Hosted Apps
App Deployment: SharePoint-Hosted
Apps
Full-Trust Solutions
REST API
Sandboxed Solutions
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
Yes
Yes
No
Yes
Yes

20. What
To
Build?

21. Solution Type questions
> Do we target SharePoint Online?
> Compatible with the App Model?
> Do we need anonymous/ list access?
> Do we just deploy artifacts?

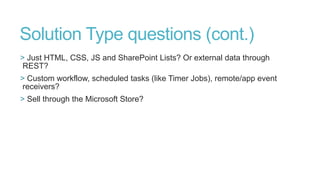

22. Solution Type questions (cont.)
> Just HTML, CSS, JS and SharePoint Lists? Or external data through
REST?
> Custom workflow, scheduled tasks (like Timer Jobs), remote/app event
receivers?
> Sell through the Microsoft Store?

23. Solution Type Diagram

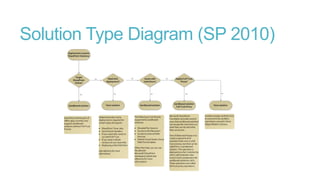

24. Solution Type Diagram (SP 2010)

25. Solution Architecture

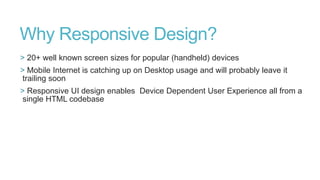

27. Why Responsive Design?
> 20+ well known screen sizes for popular (handheld) devices
> Mobile Internet is catching up on Desktop usage and will probably leave it
trailing soon
> Responsive UI design enables Device Dependent User Experience all from a
single HTML codebase

28. > Offer a Responsive Web (HTML)
Framework
> Based on a grid system (usually)
with columns and rows
> CSS for positioning
> Prebaked CSS classes and media
queries for common scenarios
> Documentation and examples

29. 1200px grid
“standard” 1280px in landscape
“standard” 320px in portrait

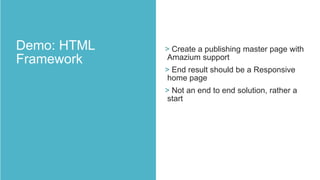

30. > Create a publishing master page with
Amazium support
> End result should be a Responsive
home page
> Not an end to end solution, rather a
start

31. 1. Create a copy of oslo.html master
page
2. Add the Amazium framework to
your solution
3. Add a reference to Amazium CSS
4. Fix what is broken by the Amazium
CSS reset

32. Demo Amazium

33. Why Dynamic HTML?
> HTML and application logic decoupled
> Rich and responsive user interfaces
> Maintainable Code

34. > Declarative bindings
> Dependency tracking
> Support and promote the use of
design patterns (MV* style
programming)

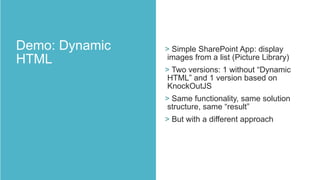

35. > Simple SharePoint App: display
images from a list (Picture Library)
> Two versions: 1 without “Dynamic
HTML” and 1 version based on
KnockOutJS
> Same functionality, same solution
structure, same “result”
> But with a different approach

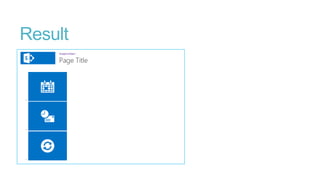

36. Result

37. Image List

38. REST for retrieving list data

39. 1. Add KnockOut JS to your solution
(Install-Package KnockOutJS)
2. Add script reference to KnockOut
to your page
3. Setup HTML structure (your View)
4. Create your View Model
5. Apply KnockOut binding

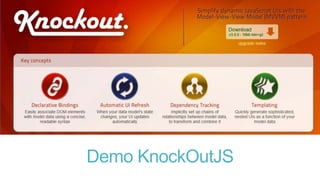

40. Demo KnockOutJS

41. Source: http://en.wikipedia.org/wiki/Application_lifecycle_management
Solution Lifecycle Management

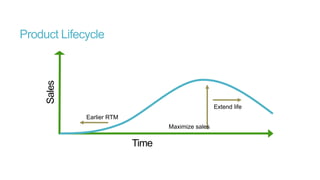

42. Sales
Product Lifecycle
Extend life
Earlier RTM
Maximize sales
Time

43. Application Lifecycle Management
Application Lifecycle Management (ALM) is a continuous process
of managing the life of an application through governance, development and
maintenance. ALM is the marriage of business
management to software engineering made possible by
tools that facilitate and integrate requirements
management, architecture, coding, testing, tracking, and release
management.

44. Modern Apps require a modern
Lifecycle

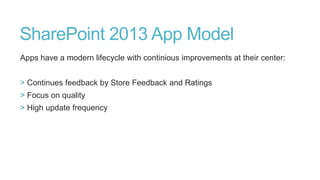

45. SharePoint 2013 App Model
Apps have a modern lifecycle with continious improvements at their center:
> Continues feedback by Store Feedback and Ratings
> Focus on quality
> High update frequency

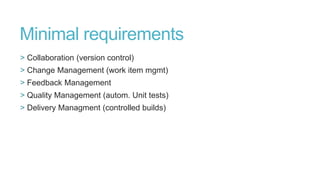

46. Minimal requirements
> Collaboration (version control)
> Change Management (work item mgmt)
> Feedback Management
> Quality Management (autom. Unit tests)
> Delivery Managment (controlled builds)

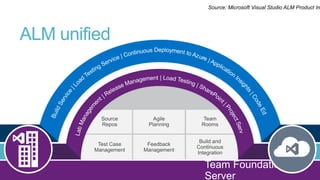

47. Source: Microsoft Visual Studio ALM Product In
ALM unified

48. Team Foundation Server
Visual Studio Online Basic and Pro
• Microsoft’s Cloud Offering voor TFS
• Free <= 5 users or paid subscription (Pro)
Team Foundation Server Express
• On Premise
• Free <= 5 users
Team Foundation Server
• On Premise of hosted (3rd party)
• Licensing: Server + CAL

49. Source: http://en.wikipedia.org/wiki/Application_lifecycle_management
Questions

50. Please rate this session...
