The document discusses continuous aluminum sun breakers and their specifications, including various models and their dimensions. It provides details on different types of blades and accessories associated with these sun breakers. The content seems to be geared towards architectural applications, particularly for the Universidad de San Sebastián.

1. Cortasoles continuos - SPF / Aluminio
Brise-Soleil fixe filant - SPF / Aluminium
Continuous Sun breakers - SPF / Aluminium

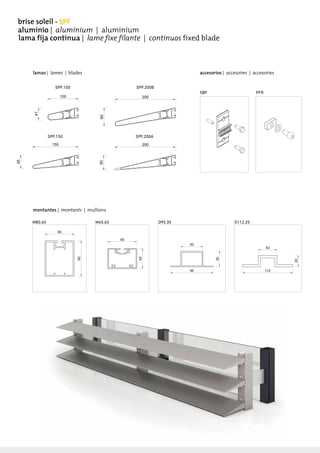

2. lama fija continua | lame fixe filante | continuos fixed blade
aluminio | aluminium | aluminium
brise soleil - SPF
lamas | lames | blades
montantes | montants | mullions
accesorios | accesoires | accesories
SPF.100
M80.65 M45.65 O95.35 O112.25
SPF.150 SPF.200A
SPF.200B
SBF PFR

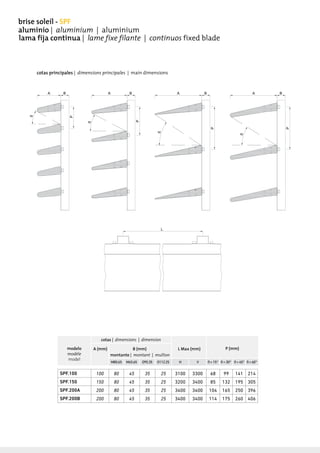

3. lama fija continua | lame fixe filante | continuos fixed blade
aluminio | aluminium | aluminium
brise soleil - SPF
cotas principales | dimensions principales | main dimensions
SPF.100 100 80 45 35 25 3100 3300 68 99 141 214
SPF.150 150 80 45 35 25 3200 3400 85 132 195 305
SPF.200A 200 80 45 35 25 3400 3400 104 165 250 396
SPF.200B 200 80 45 35 25 3400 3400 114 175 260 406
L Max (mm)A (mm) B (mm) P (mm)modelo
modèle
model
M80.65 M45.65 O95.35 O112.25 H V ß=15° ß=30° ß=45° ß=60°
cotas | dimensions | dimension
montante | montant | mullion

4. lama fija continua | lame fixe filante | continuos fixed blade
aluminio | aluminium | aluminium
brise soleil - SPF
M80.65 / M40.65
O95.35 / O112.25
PFR
SBF

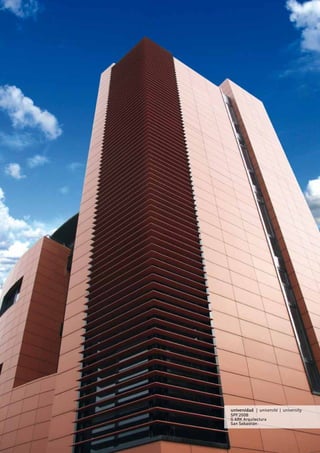

5. 121
universidad | université | university
SPF.200B
G ARK Arquitectura
San Sebastián
