1. Conhecendo e utilizando Beacons e a
Nearby API para Android
Marcelo Quinta
@mrquinta

2. Como implementar localização?

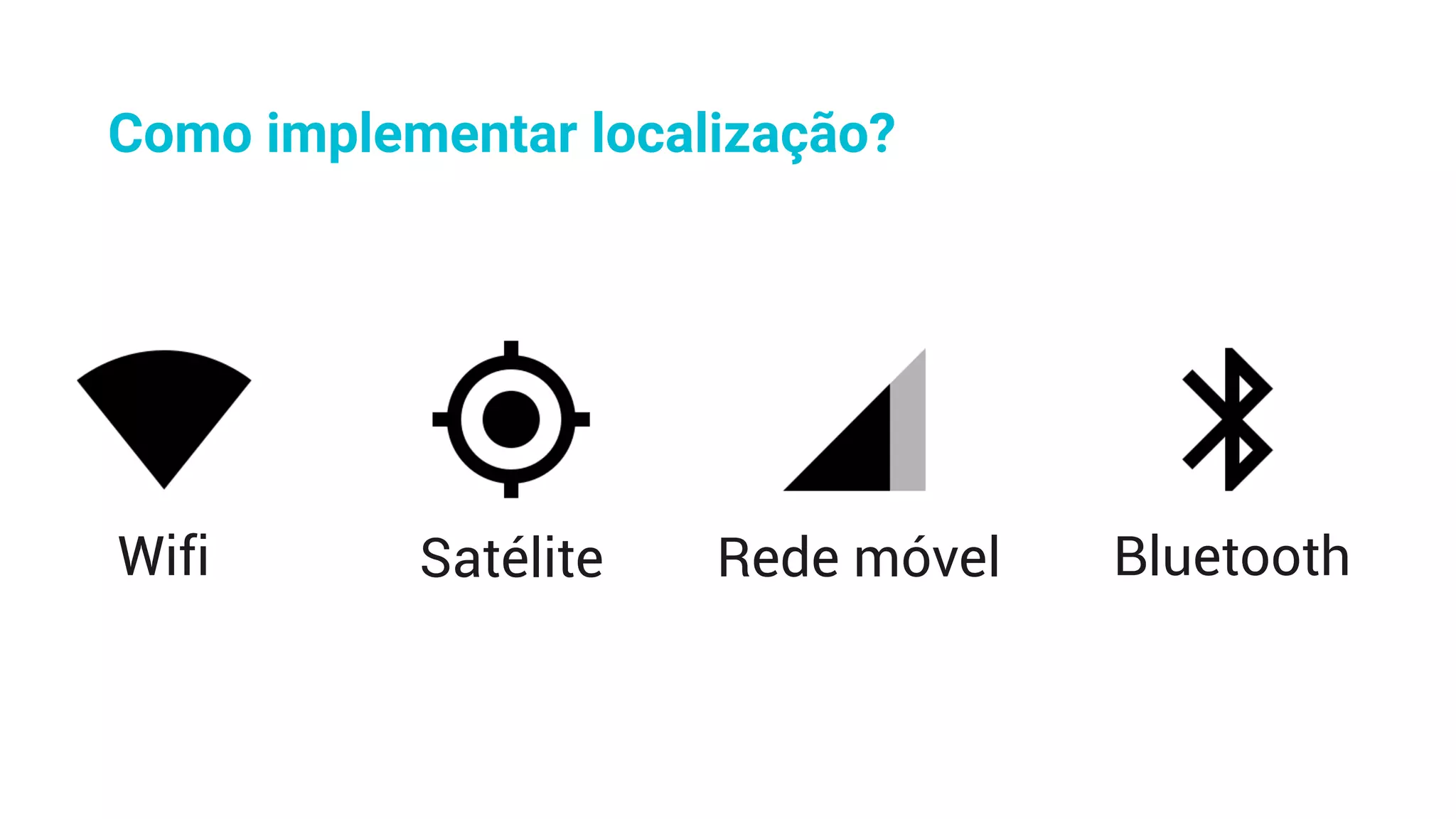

3. Como implementar localização?
Wifi Satélite Rede móvel Bluetooth

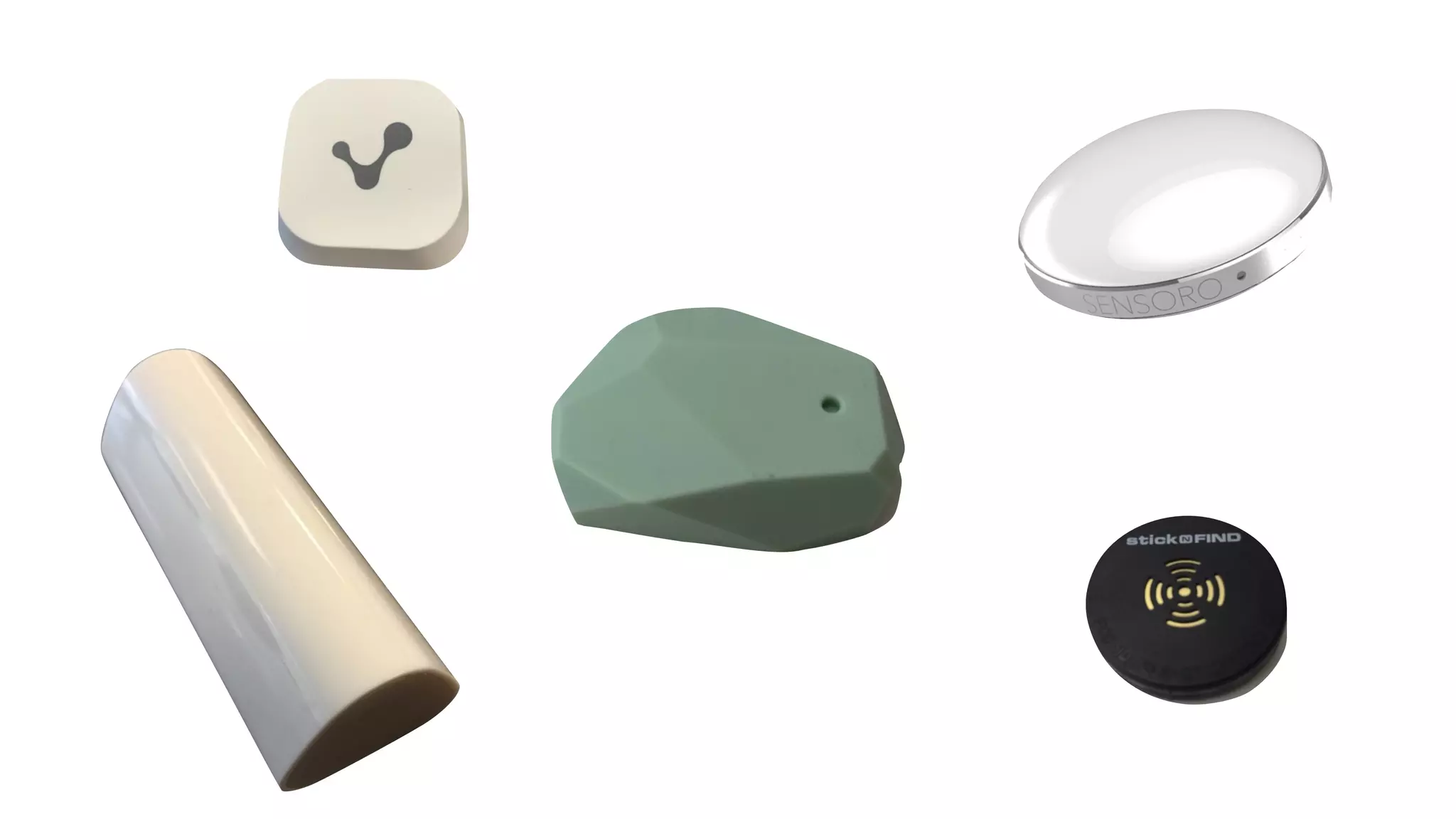

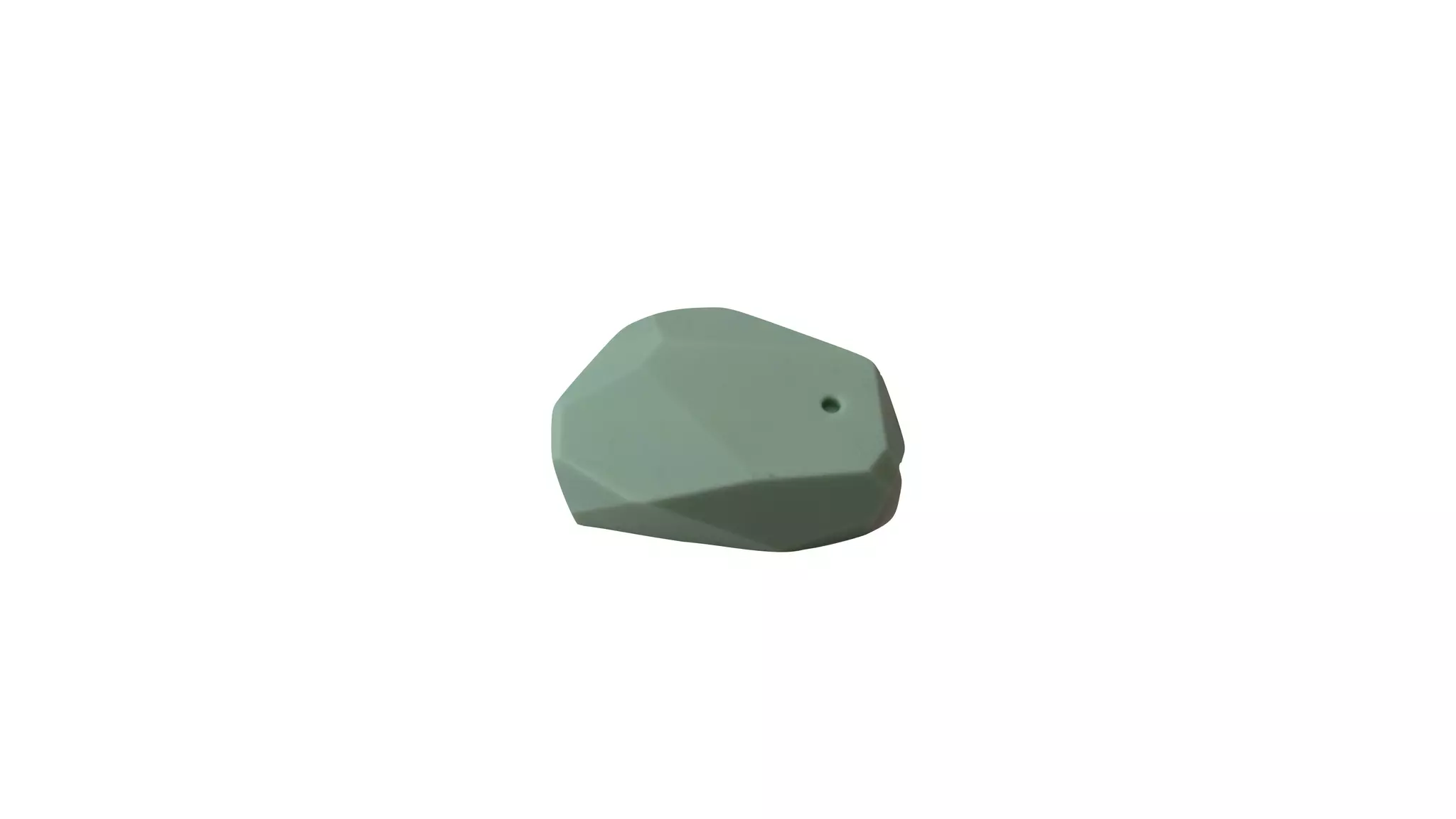

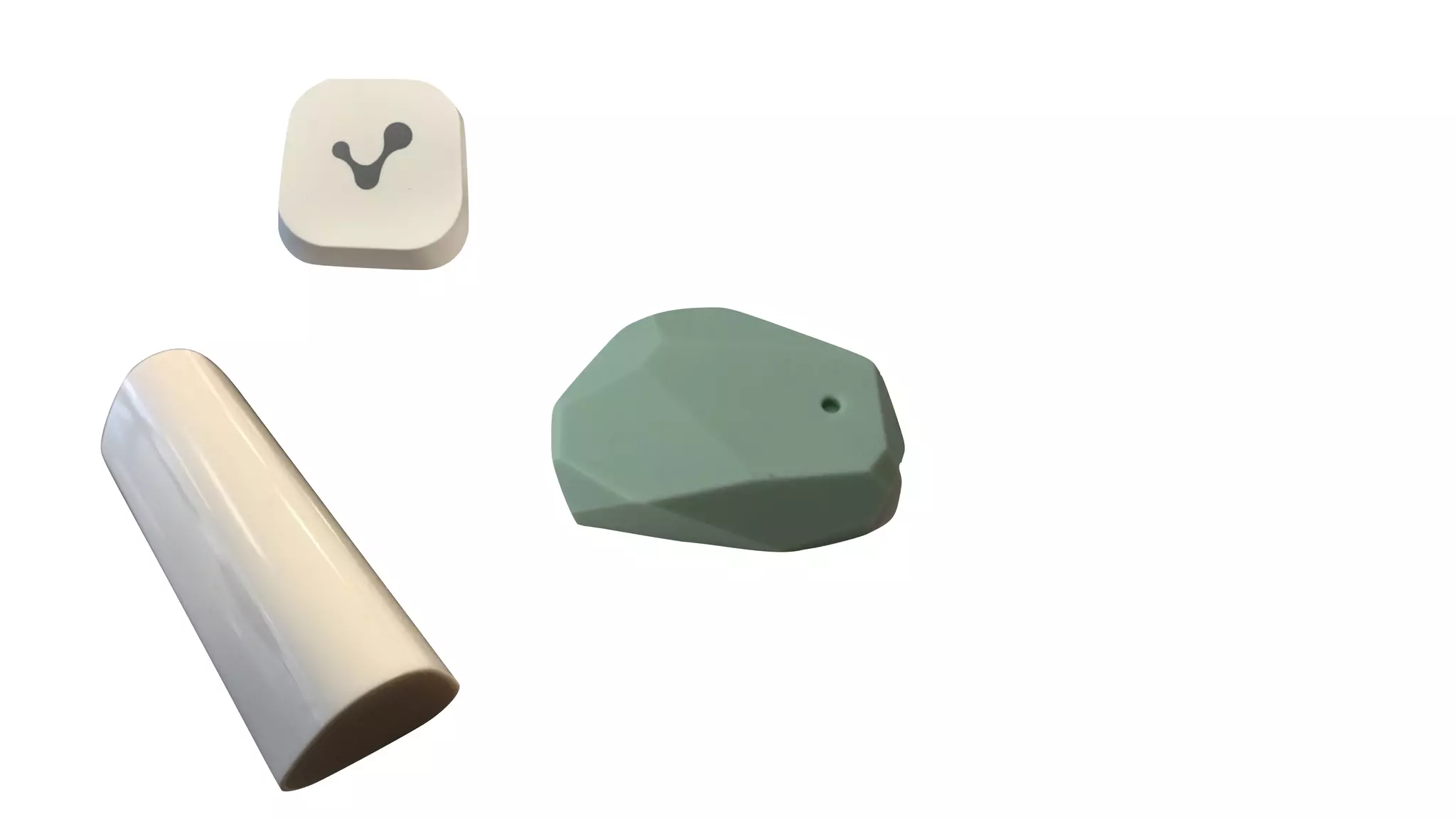

4. O que é um beacon BLE?

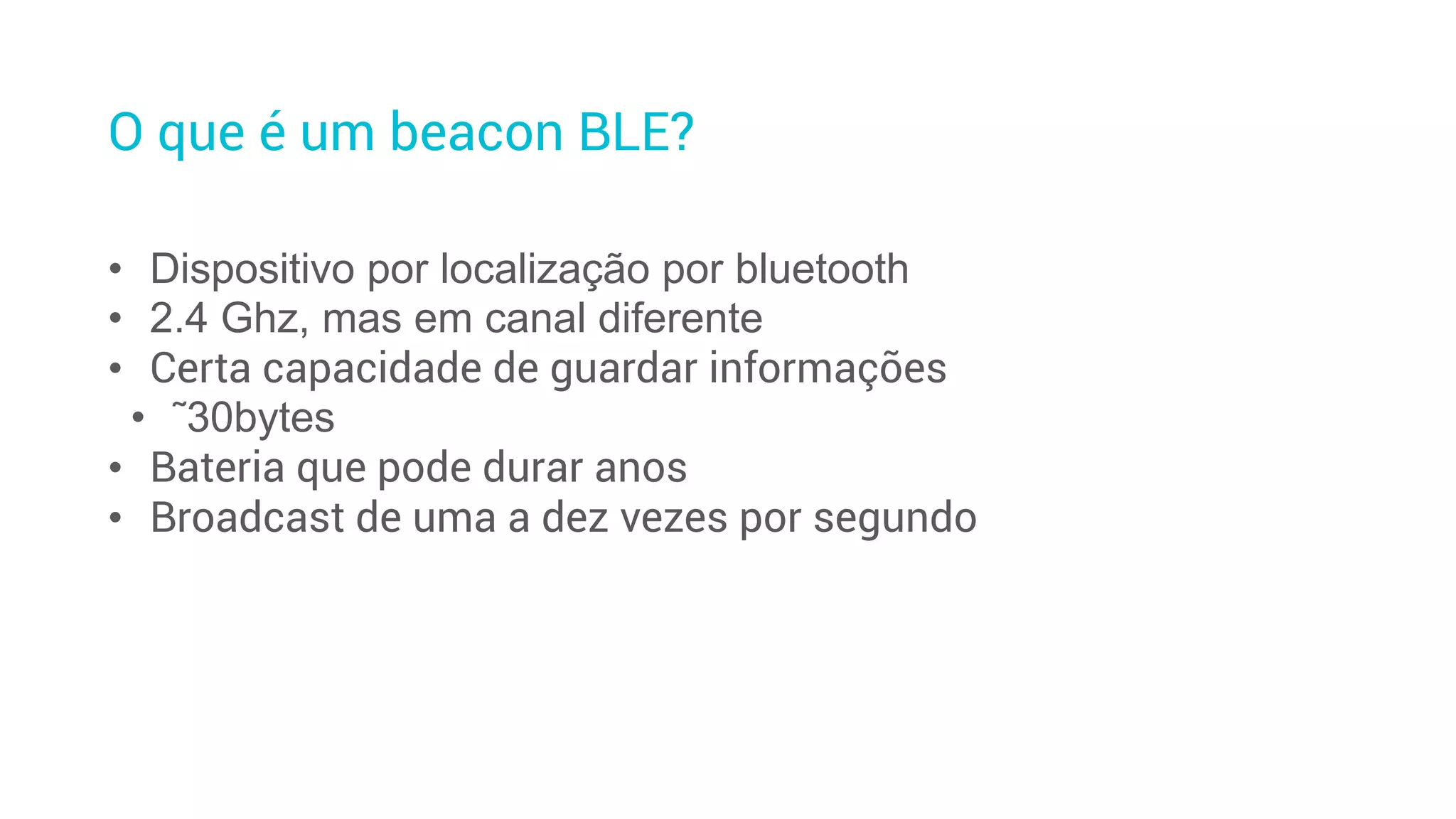

11. O que é um beacon BLE?
• Dispositivo por localização por bluetooth
• 2.4 Ghz, mas em canal diferente
• Certa capacidade de guardar informações
• ˜30bytes
• Bateria que pode durar anos
• Broadcast de uma a dez vezes por segundo

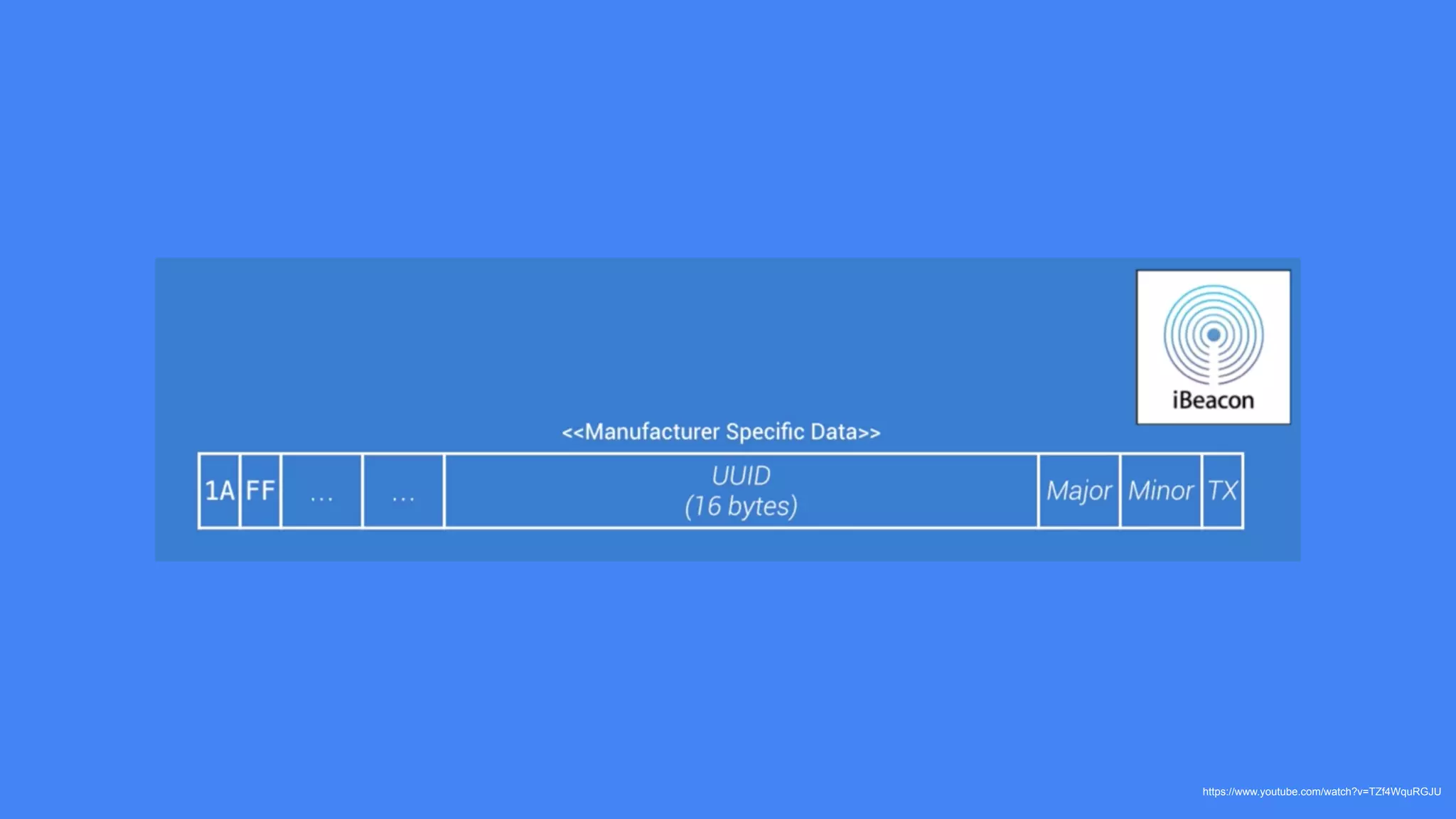

12. https://www.youtube.com/watch?v=TZf4WquRGJU

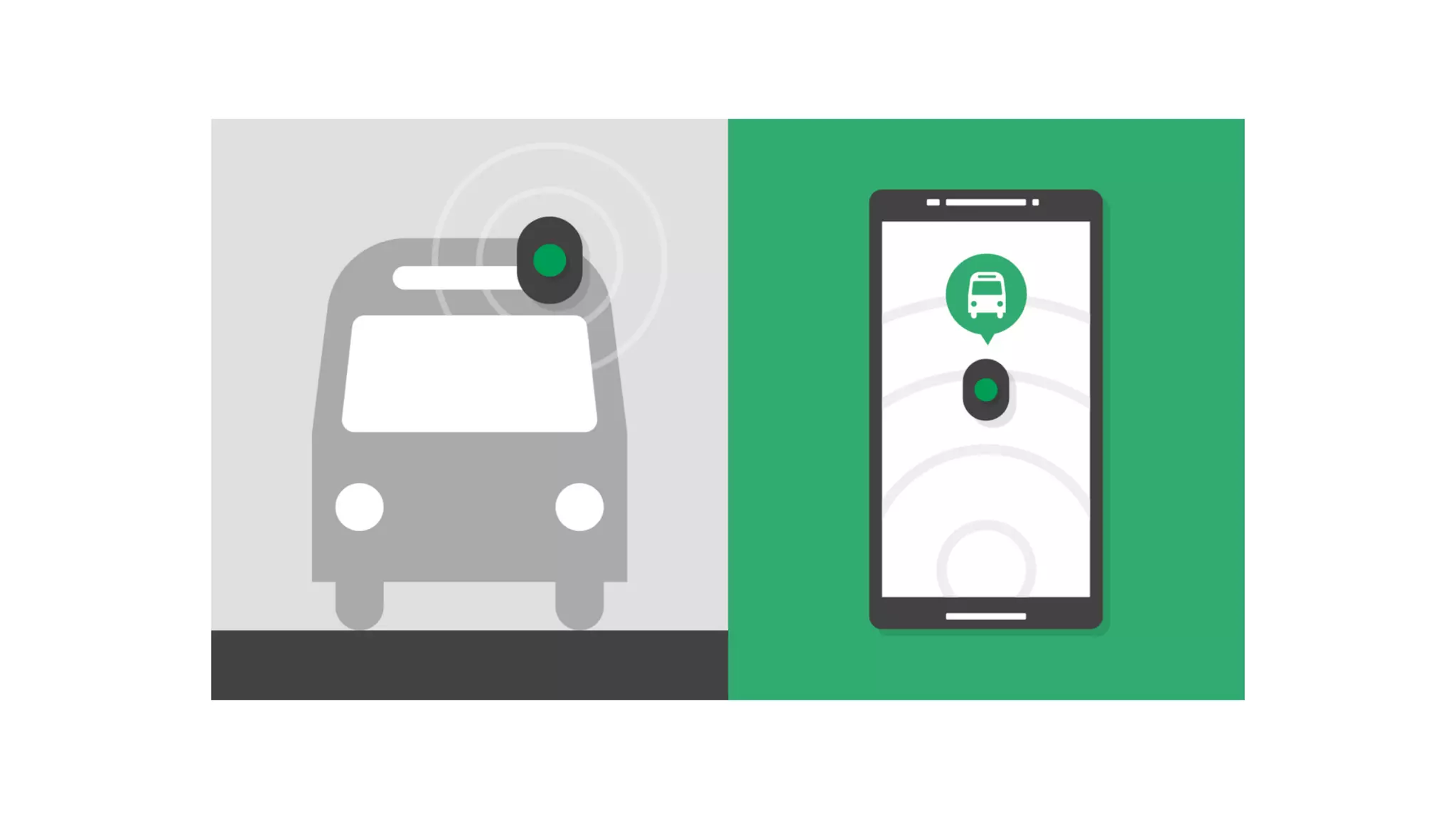

14. CONTEXTO

17. Qual é a parada?

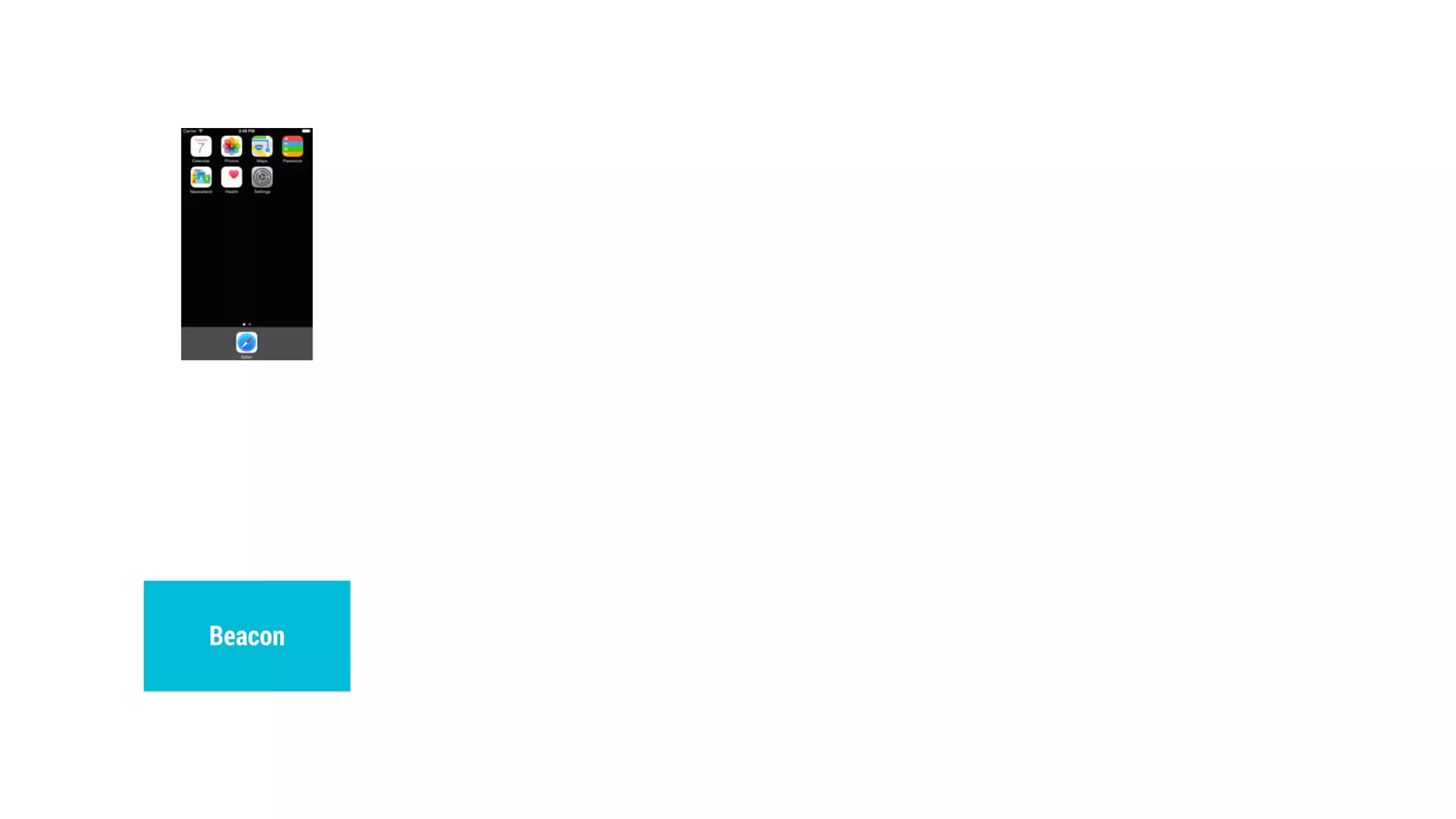

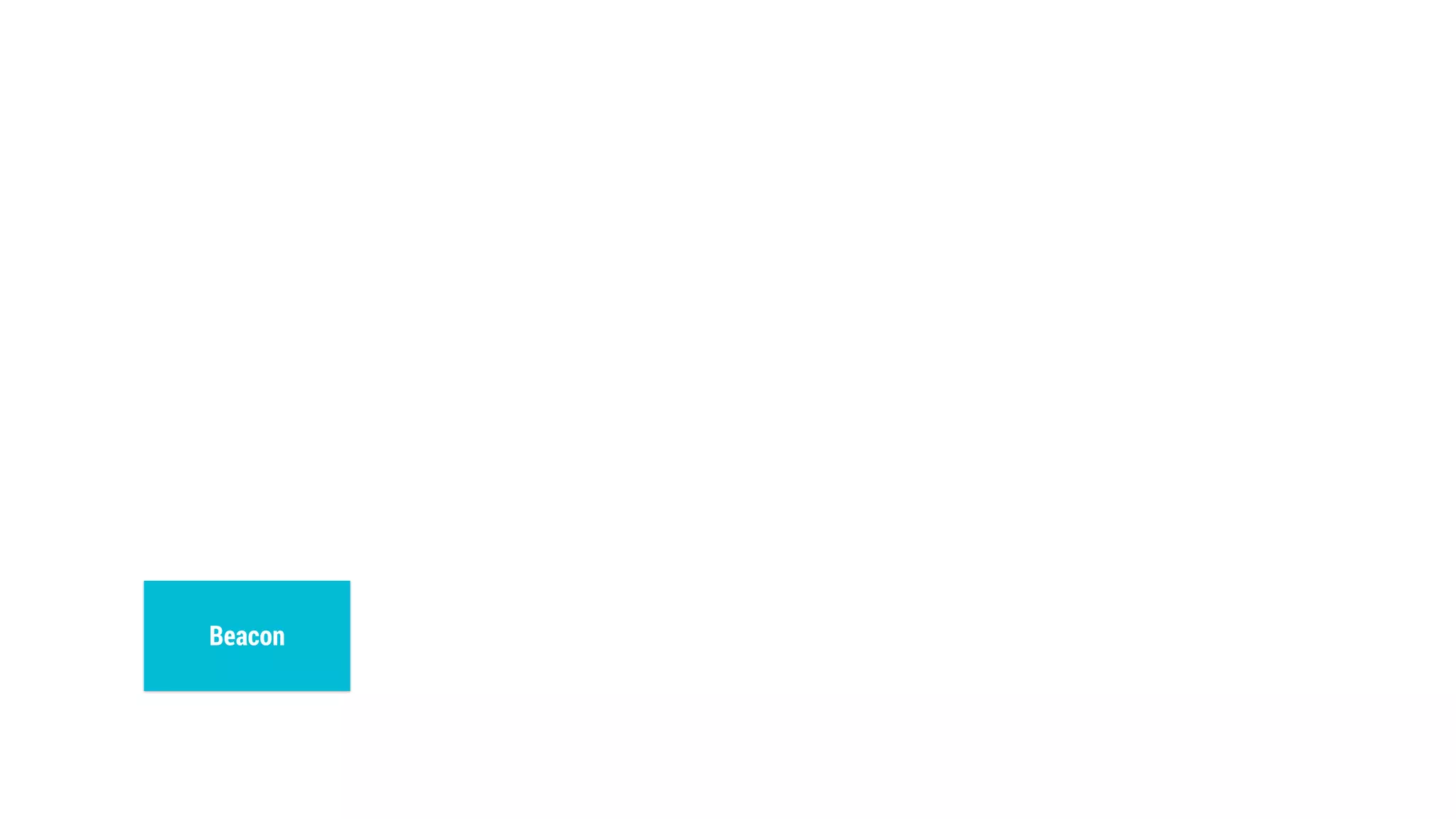

19. Beacon

20. Beacon

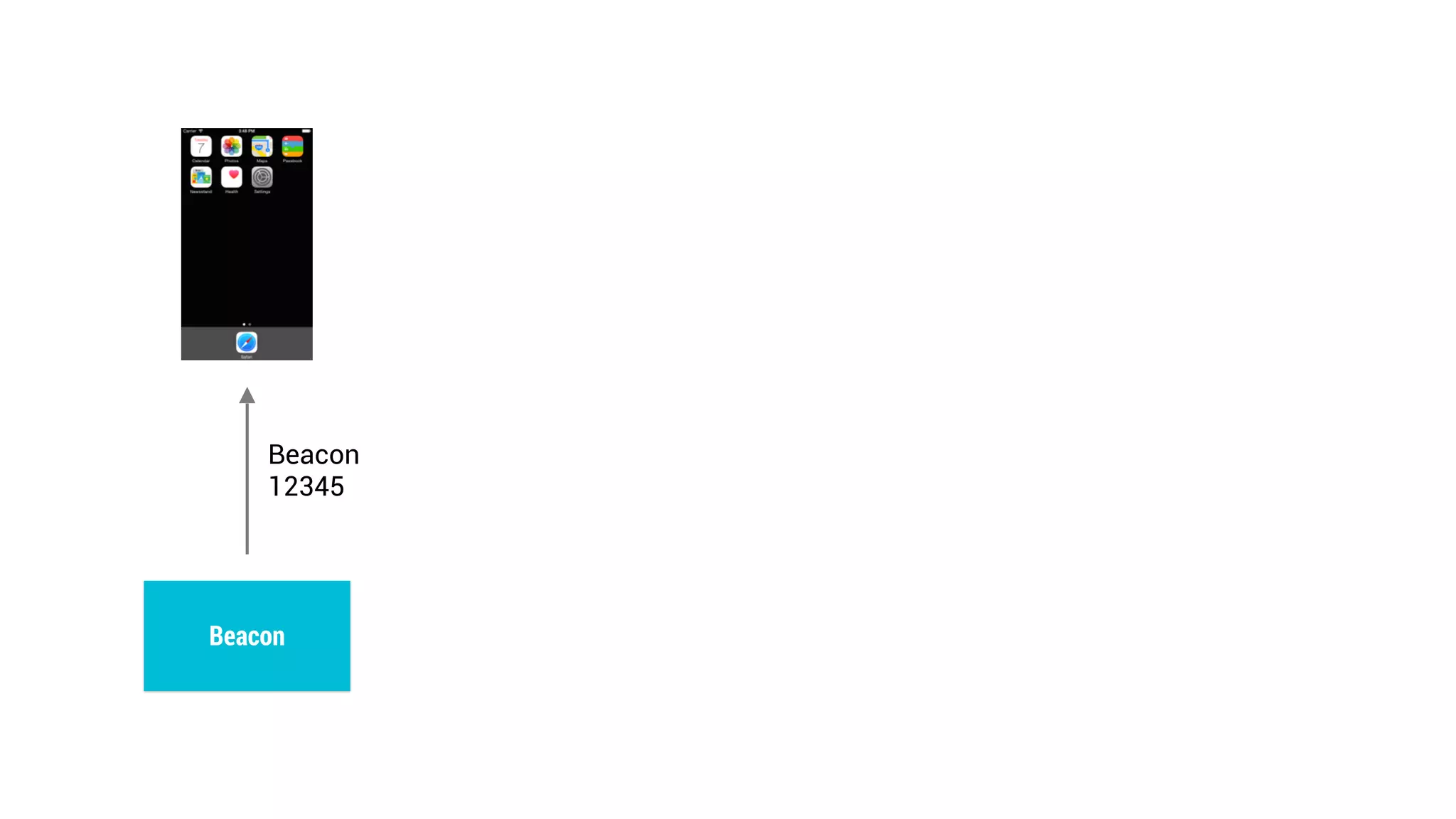

21. Beacon
12345
Beacon

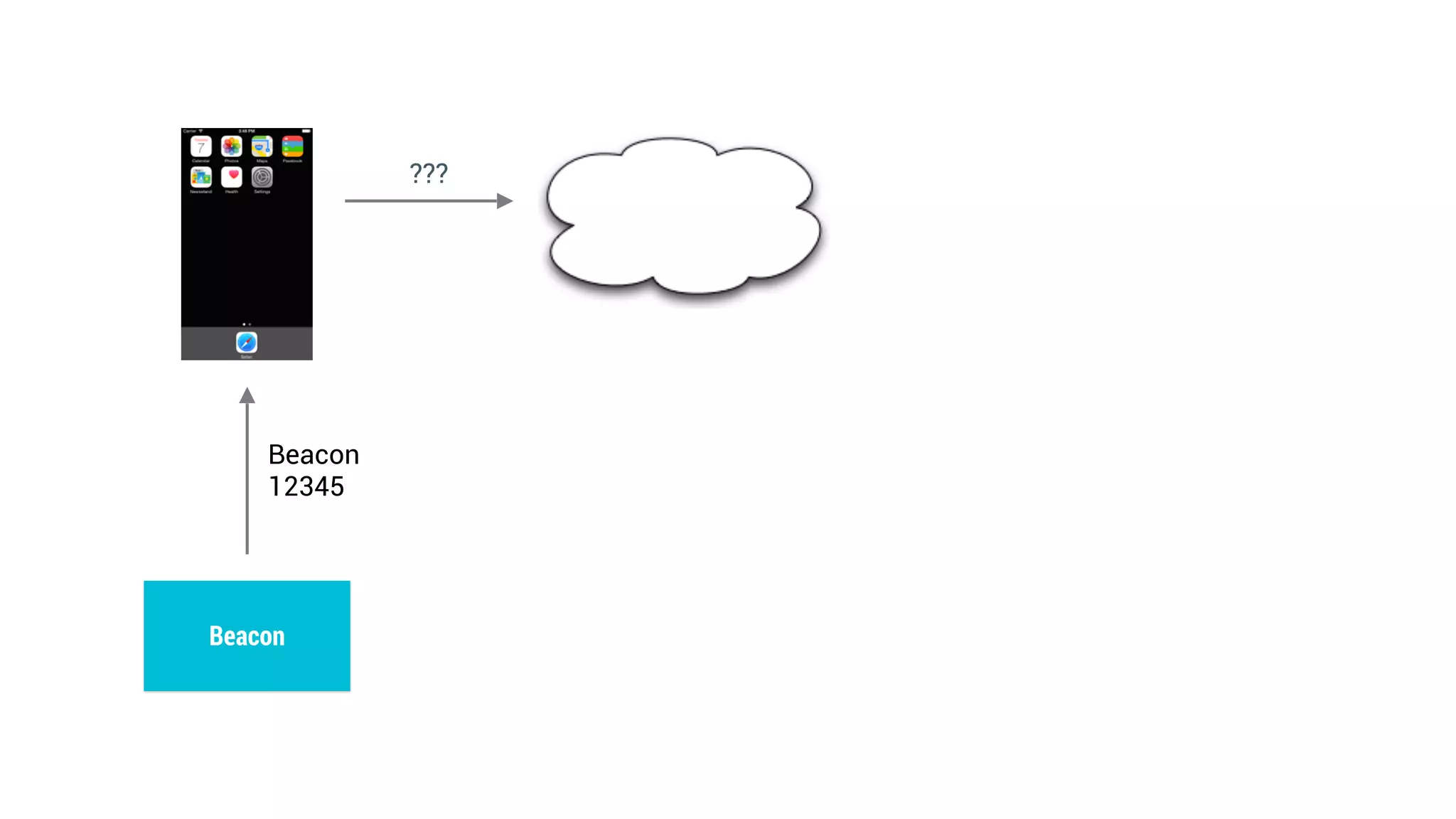

22. ???
Beacon
12345
Beacon

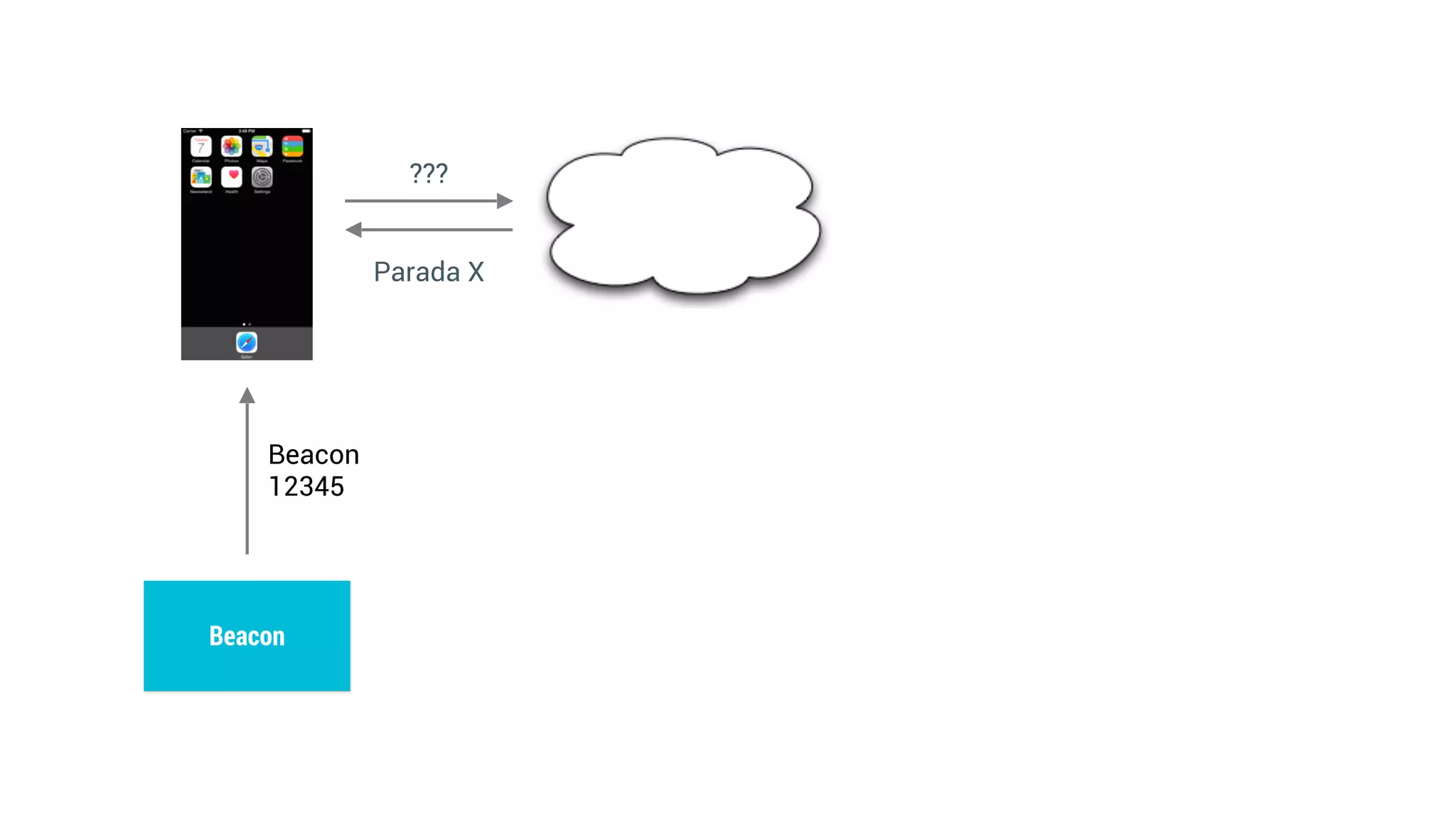

23. ???
Beacon
12345
Beacon
Parada X

25. https://github.com/google/eddystone
Eddystone

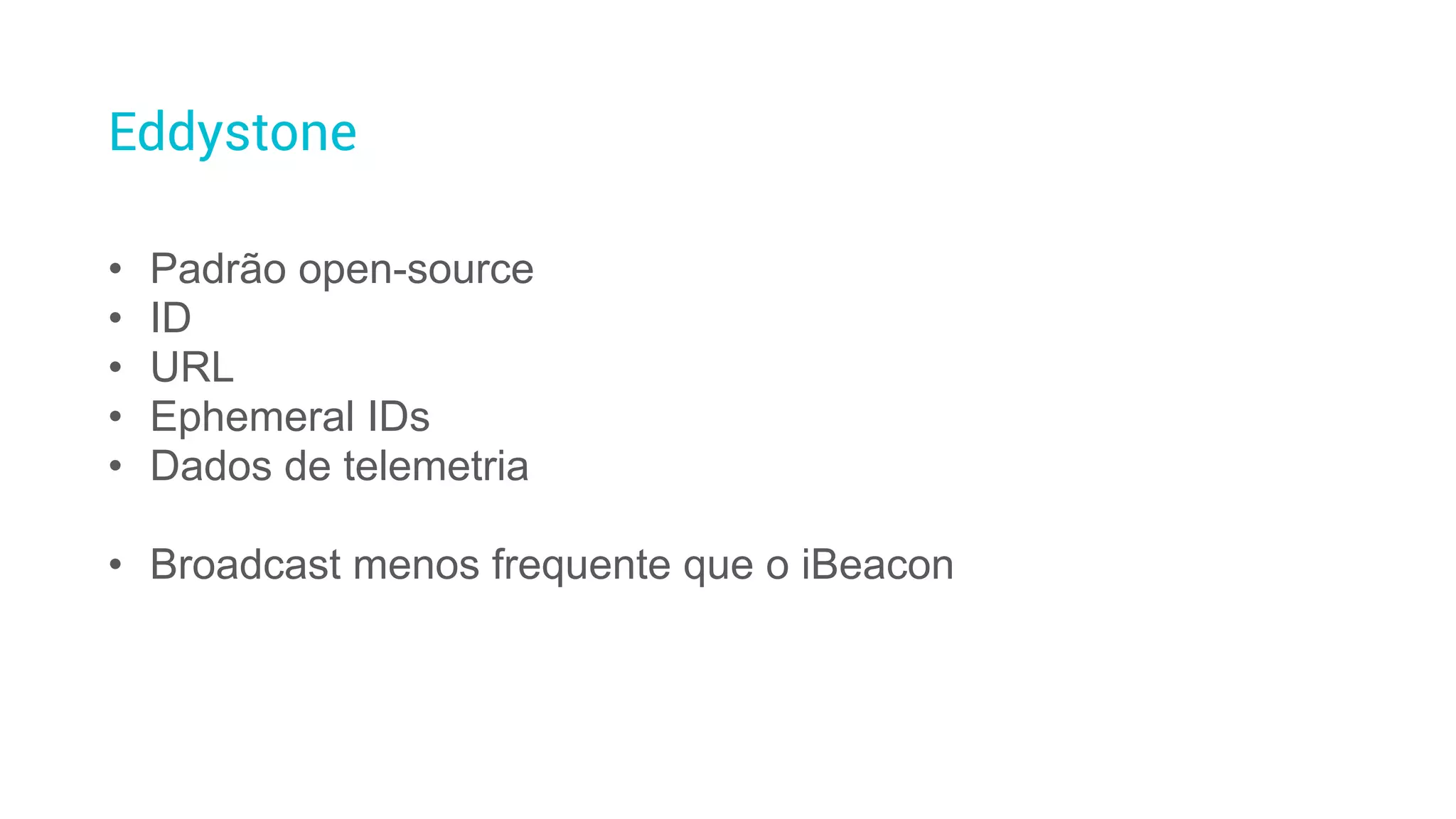

26. Eddystone
• Padrão open-source
• ID
• URL
• Ephemeral IDs
• Dados de telemetria
• Broadcast menos frequente que o iBeacon

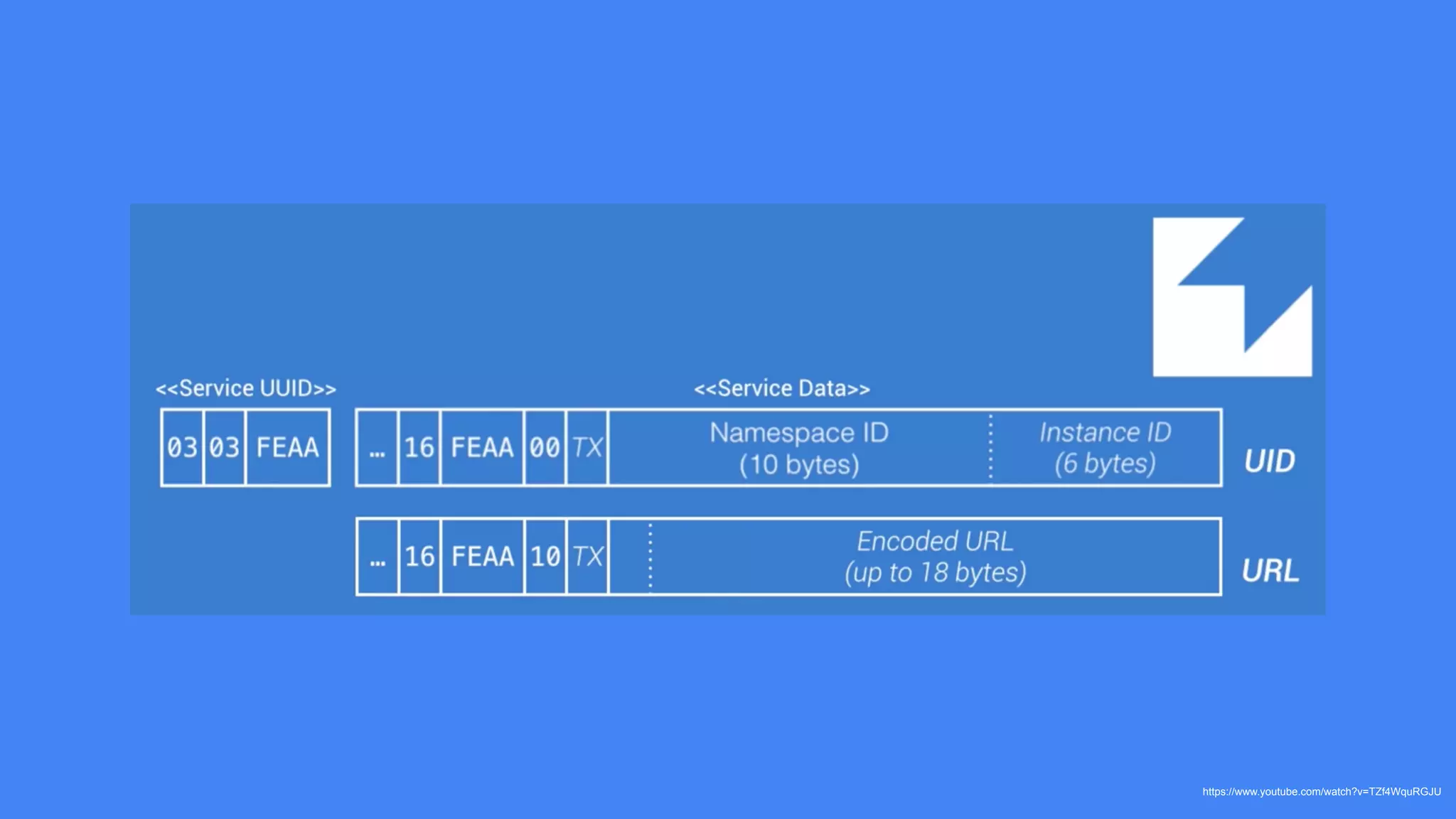

27. https://www.youtube.com/watch?v=TZf4WquRGJU

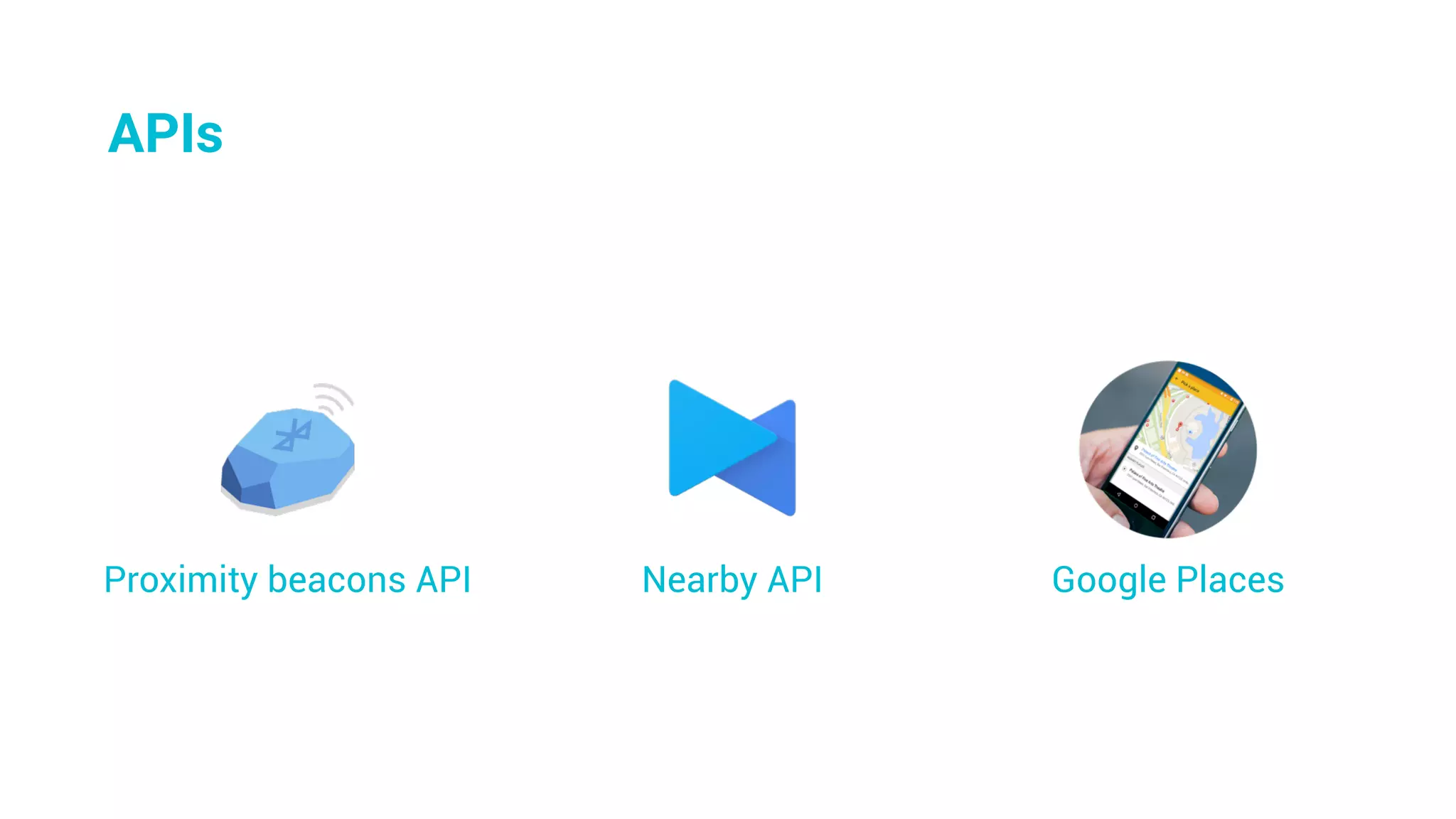

28. Google PlacesNearby APIProximity beacons API
APIs

29. Começando

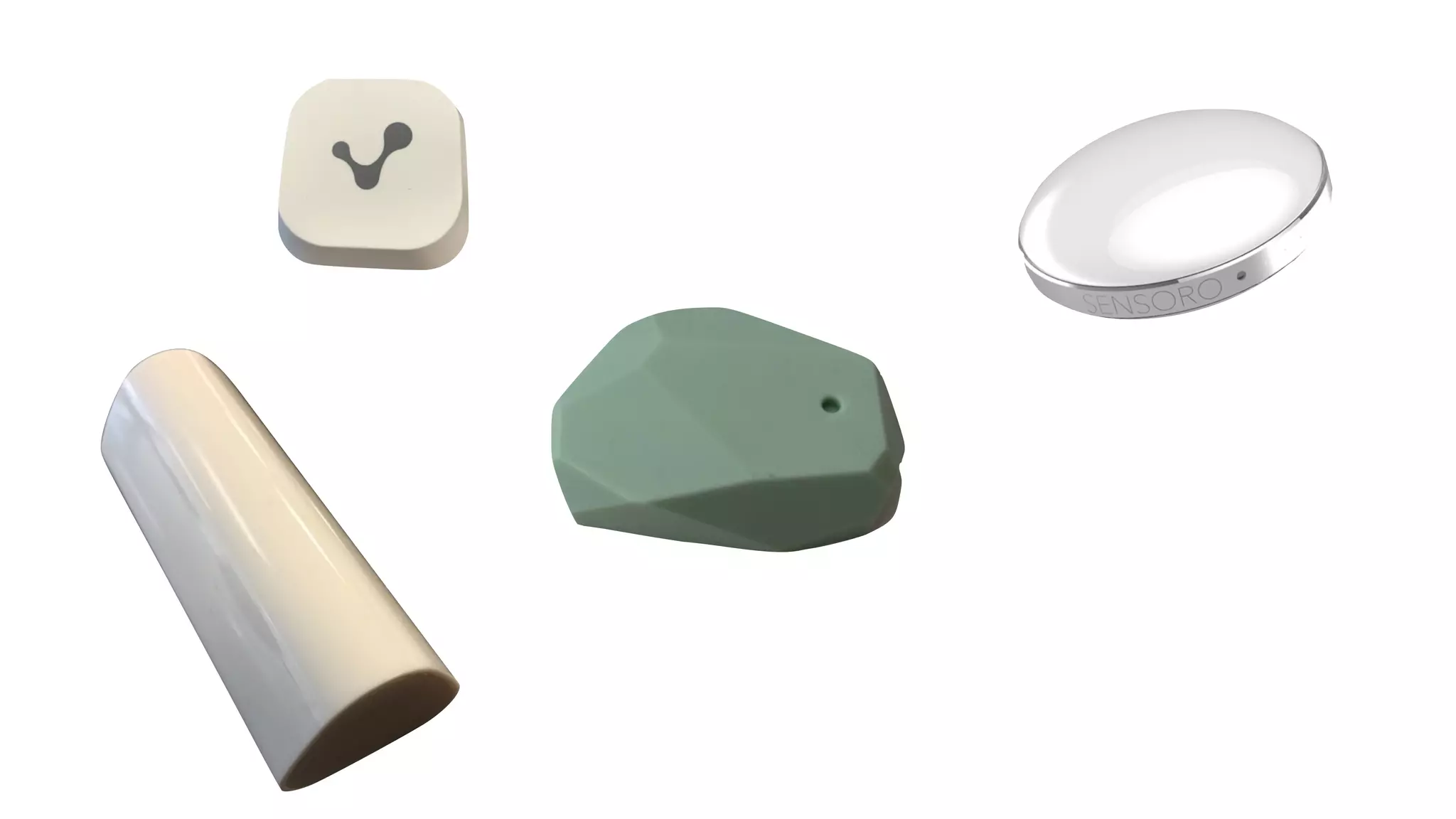

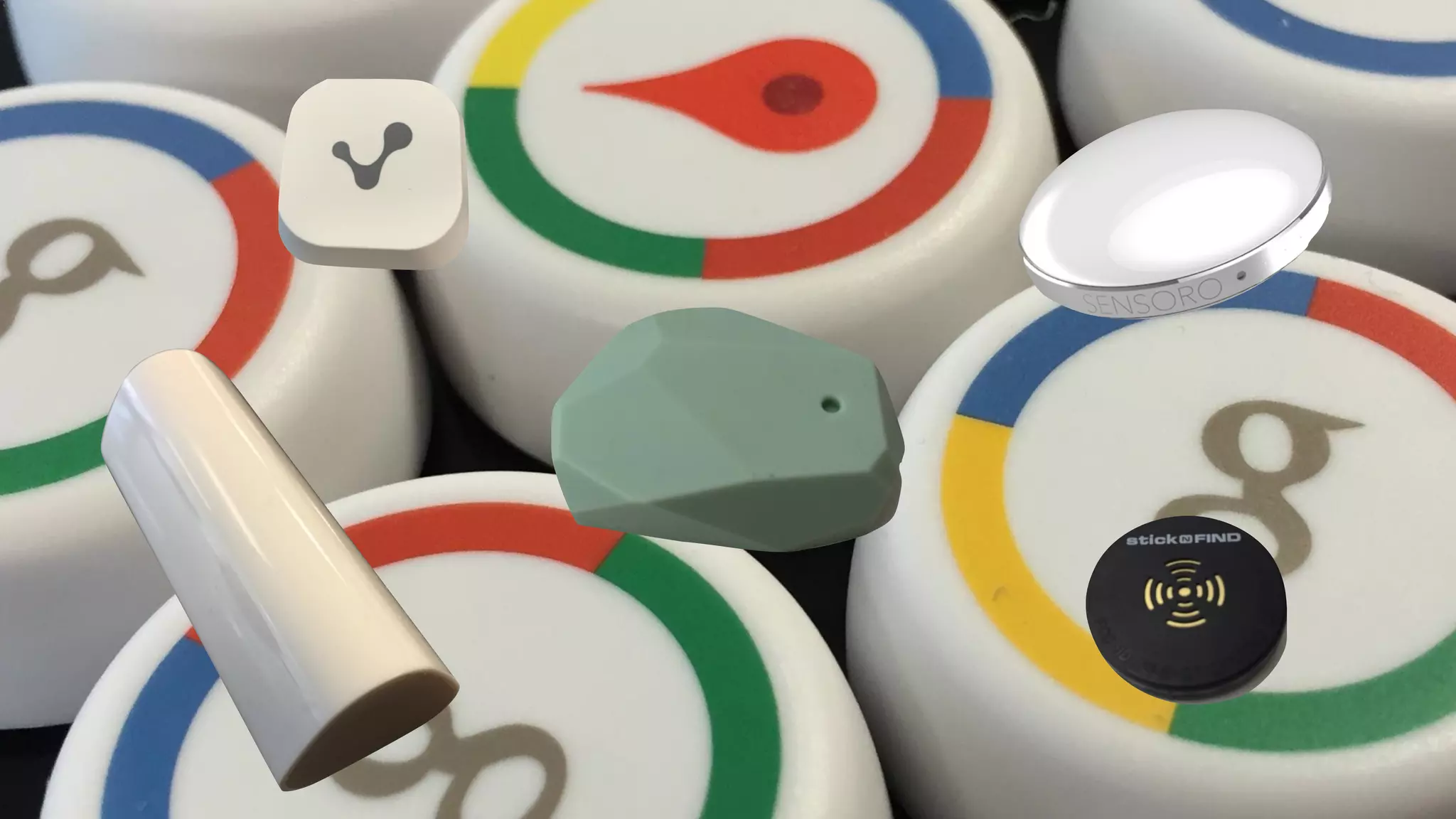

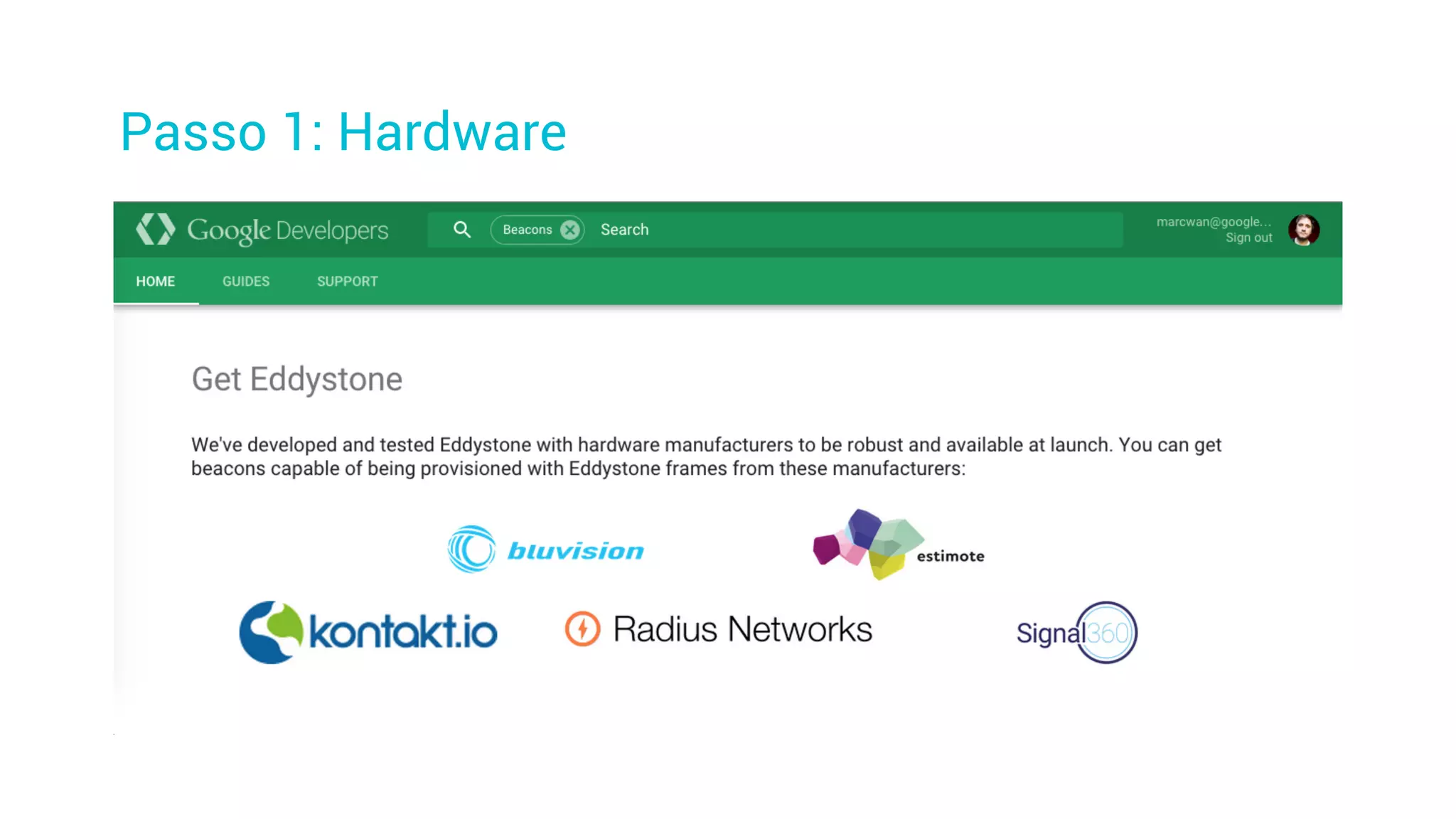

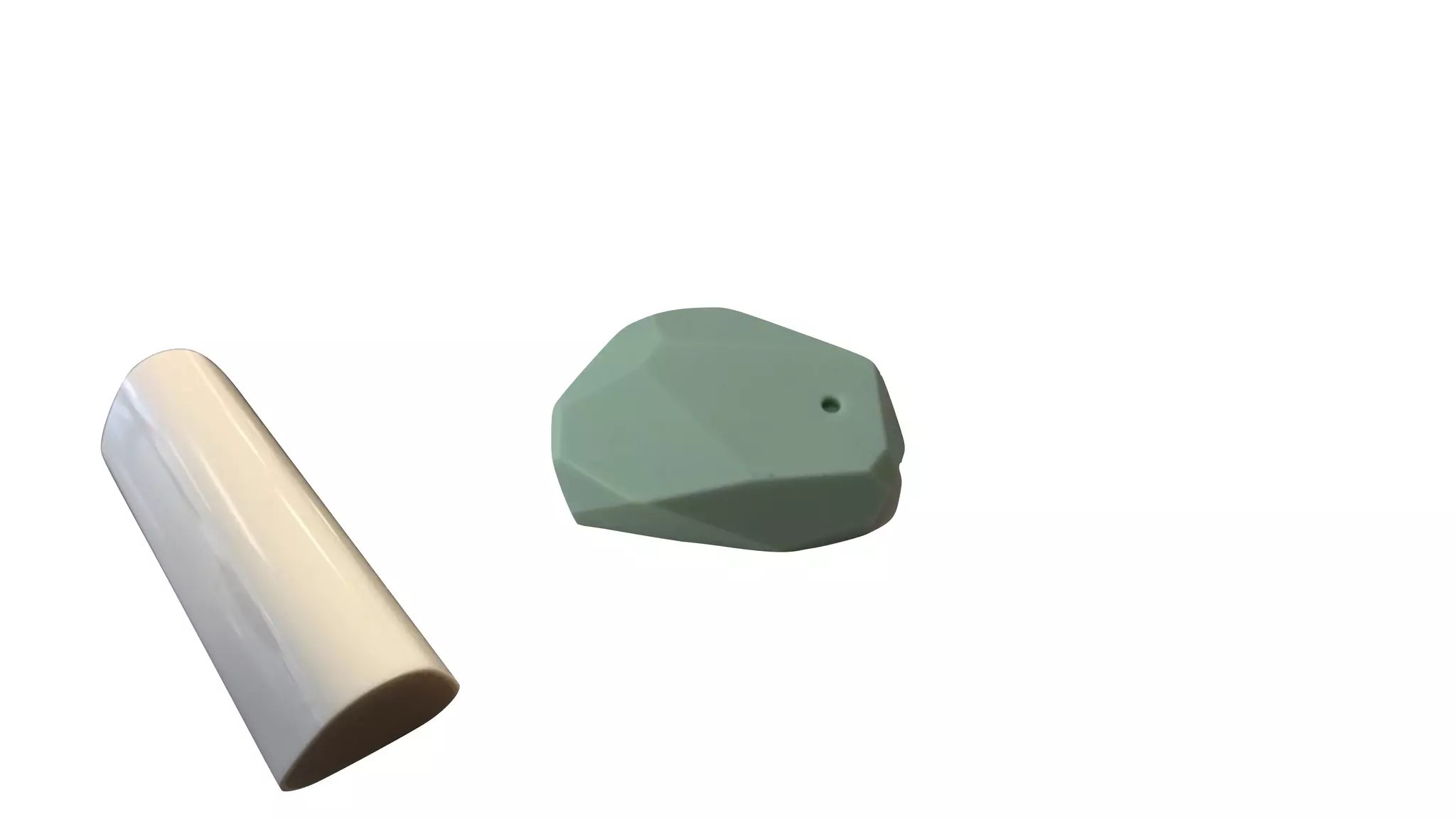

30. Passo 1: Hardware

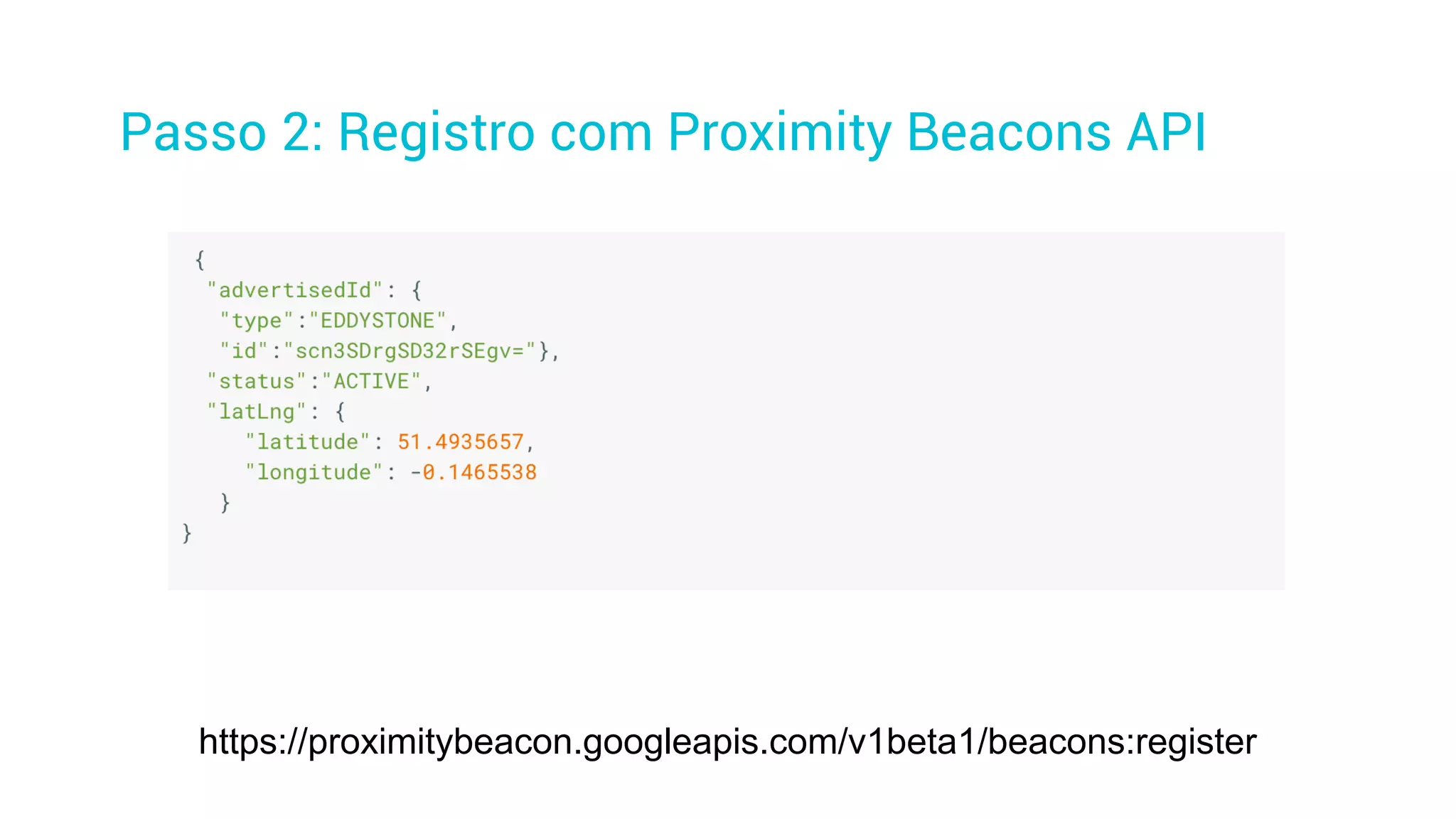

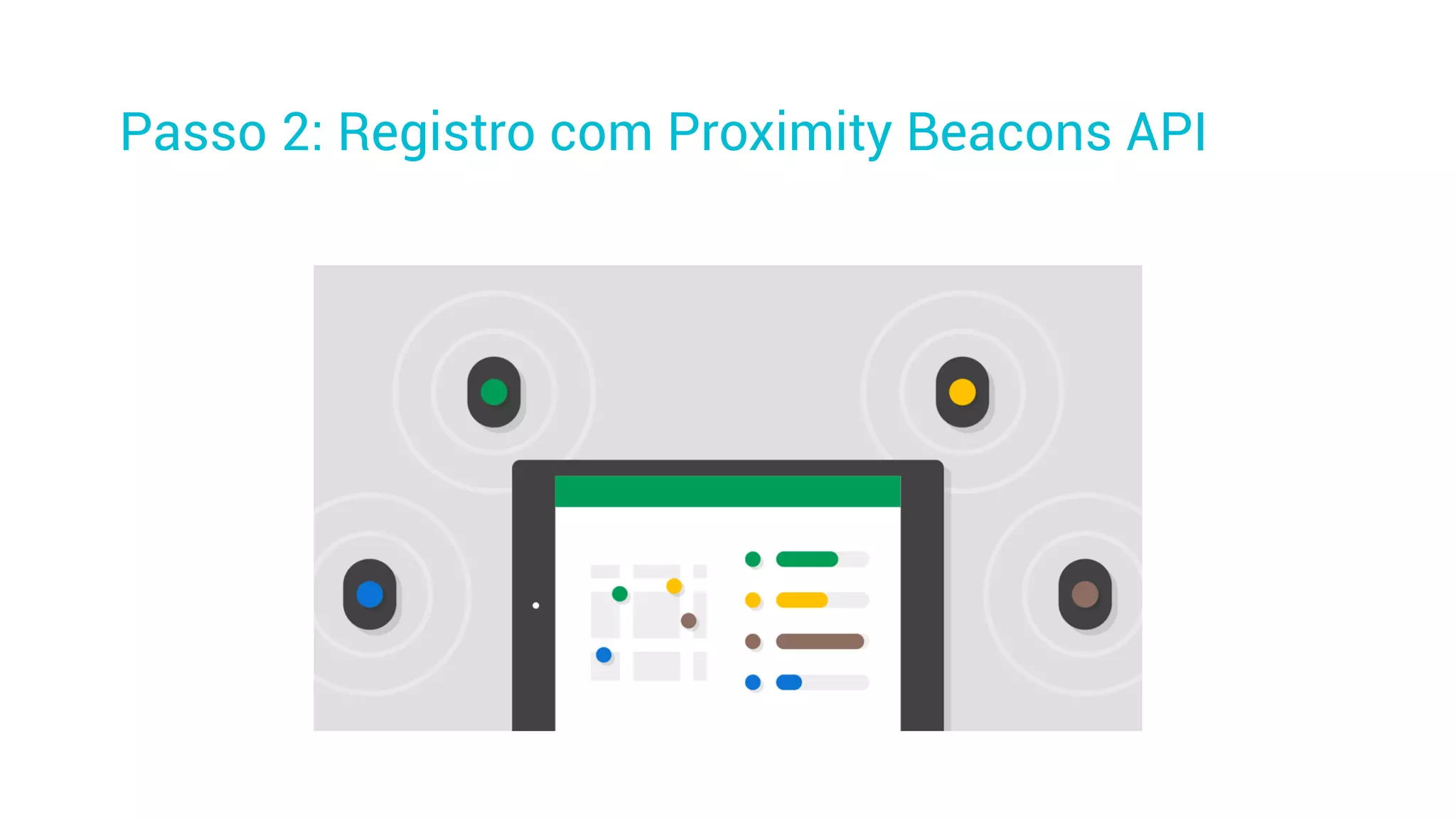

31. Passo 2: Registro com Proximity Beacons API

32. Passo 2: Registro com Proximity Beacons API
https://proximitybeacon.googleapis.com/v1beta1/beacons:register

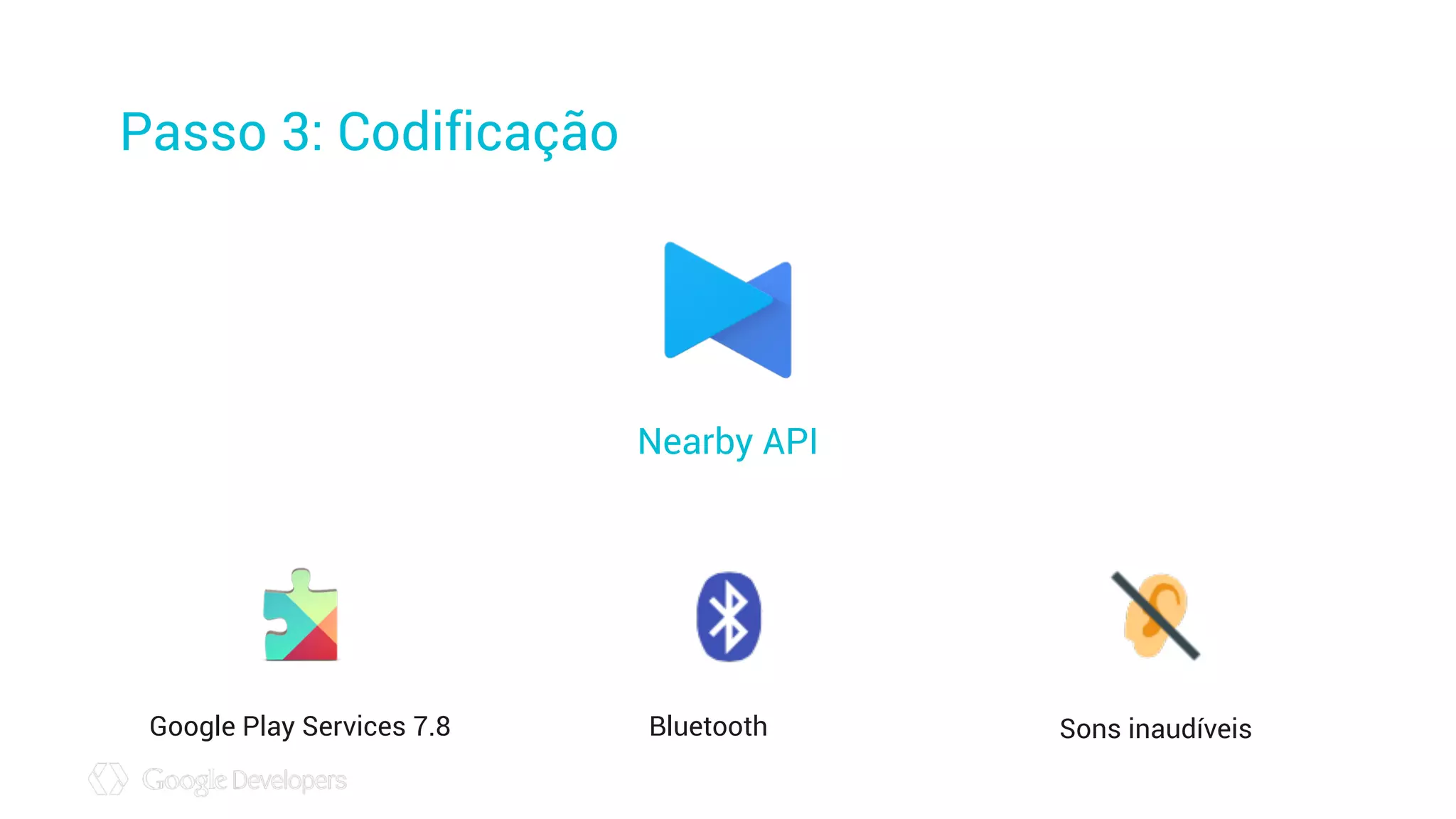

33. Passo 3: Codificação
Nearby API
Google Play Services 7.8 Bluetooth Sons inaudíveis

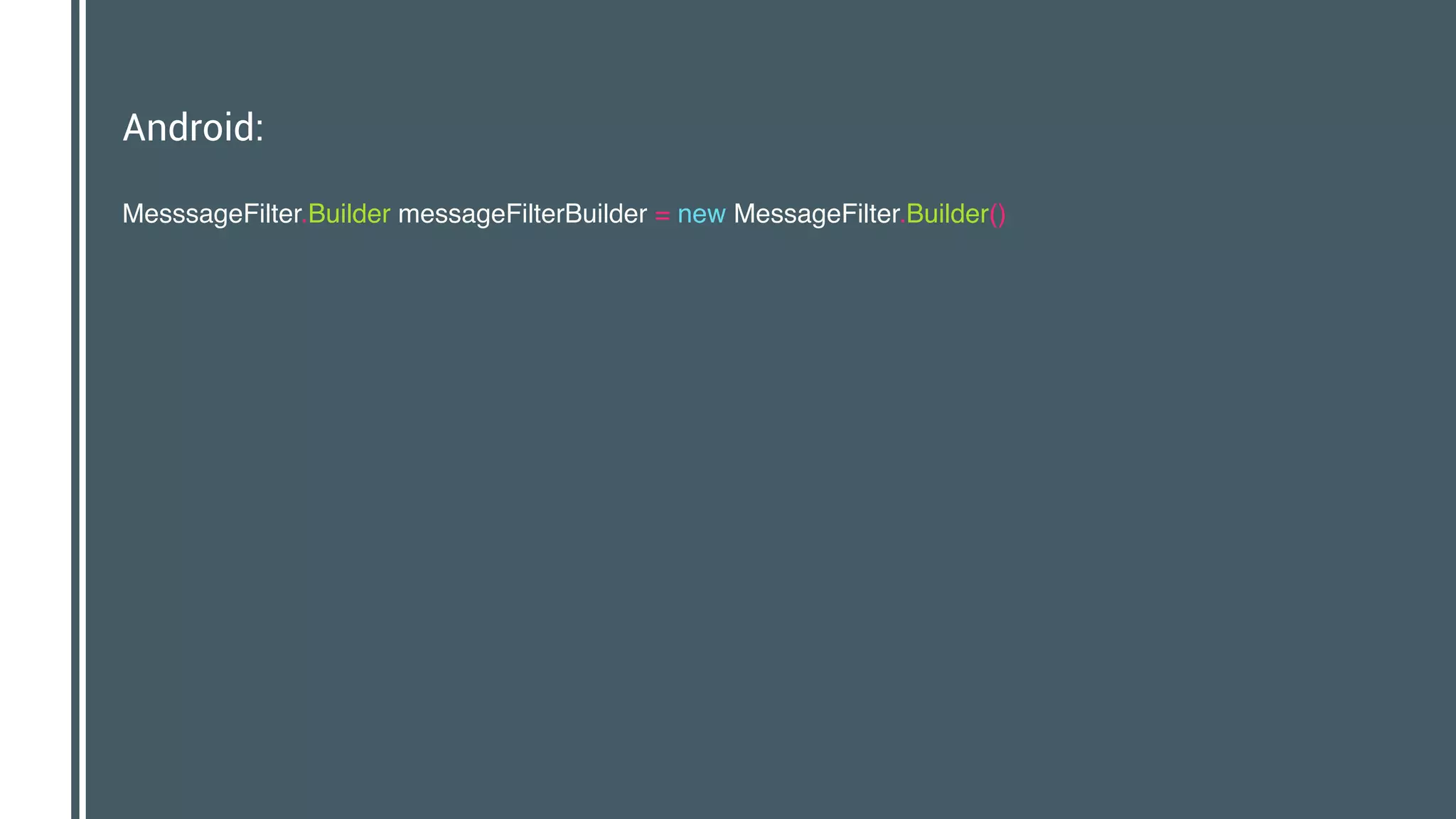

34. Android:
MesssageFilter.Builder messageFilterBuilder = new MessageFilter.Builder()

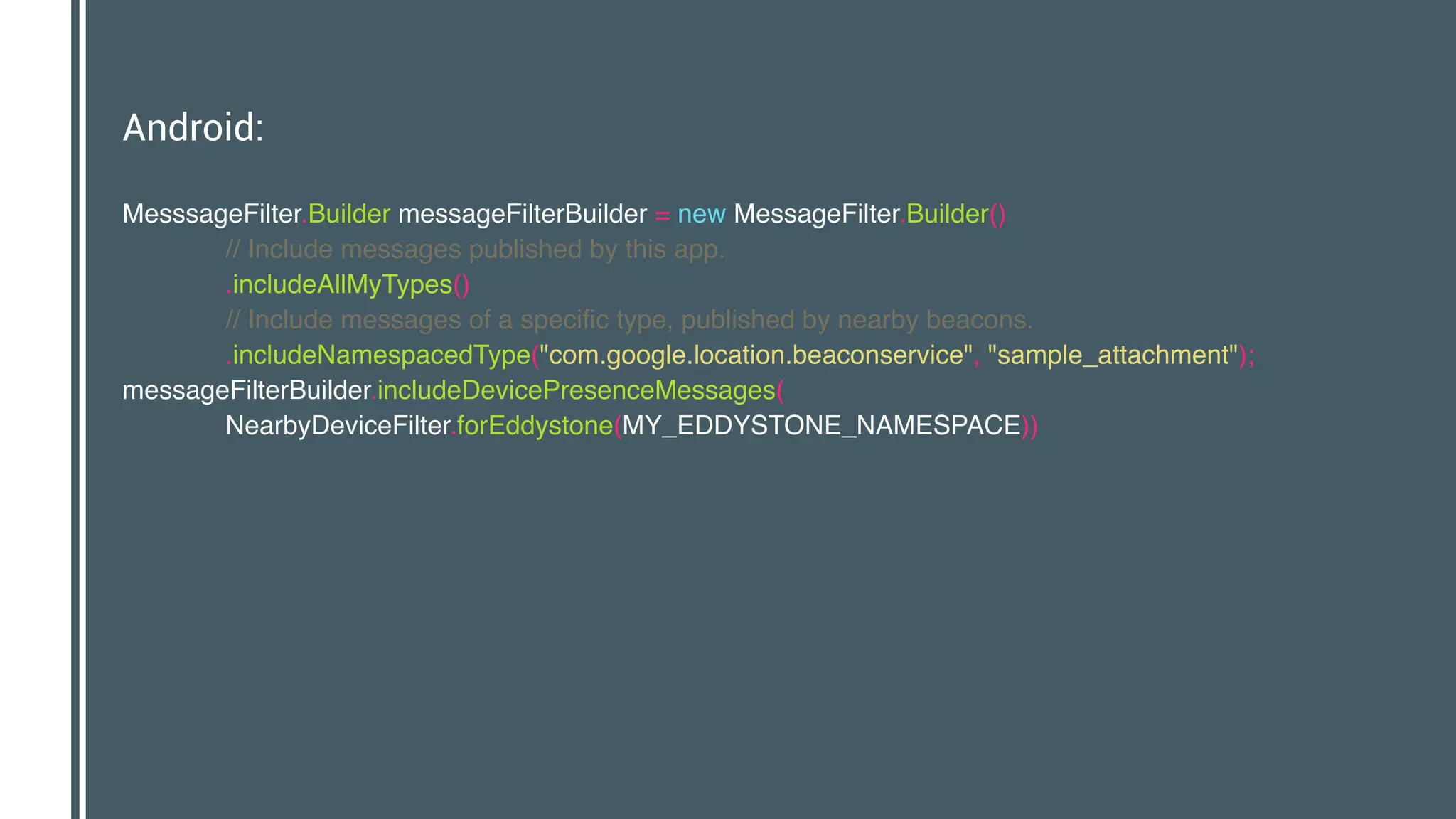

35. Android:
MesssageFilter.Builder messageFilterBuilder = new MessageFilter.Builder()
// Include messages published by this app.
.includeAllMyTypes()
// Include messages of a specific type, published by nearby beacons.
.includeNamespacedType("com.google.location.beaconservice", "sample_attachment");
messageFilterBuilder.includeDevicePresenceMessages(
NearbyDeviceFilter.forEddystone(MY_EDDYSTONE_NAMESPACE))

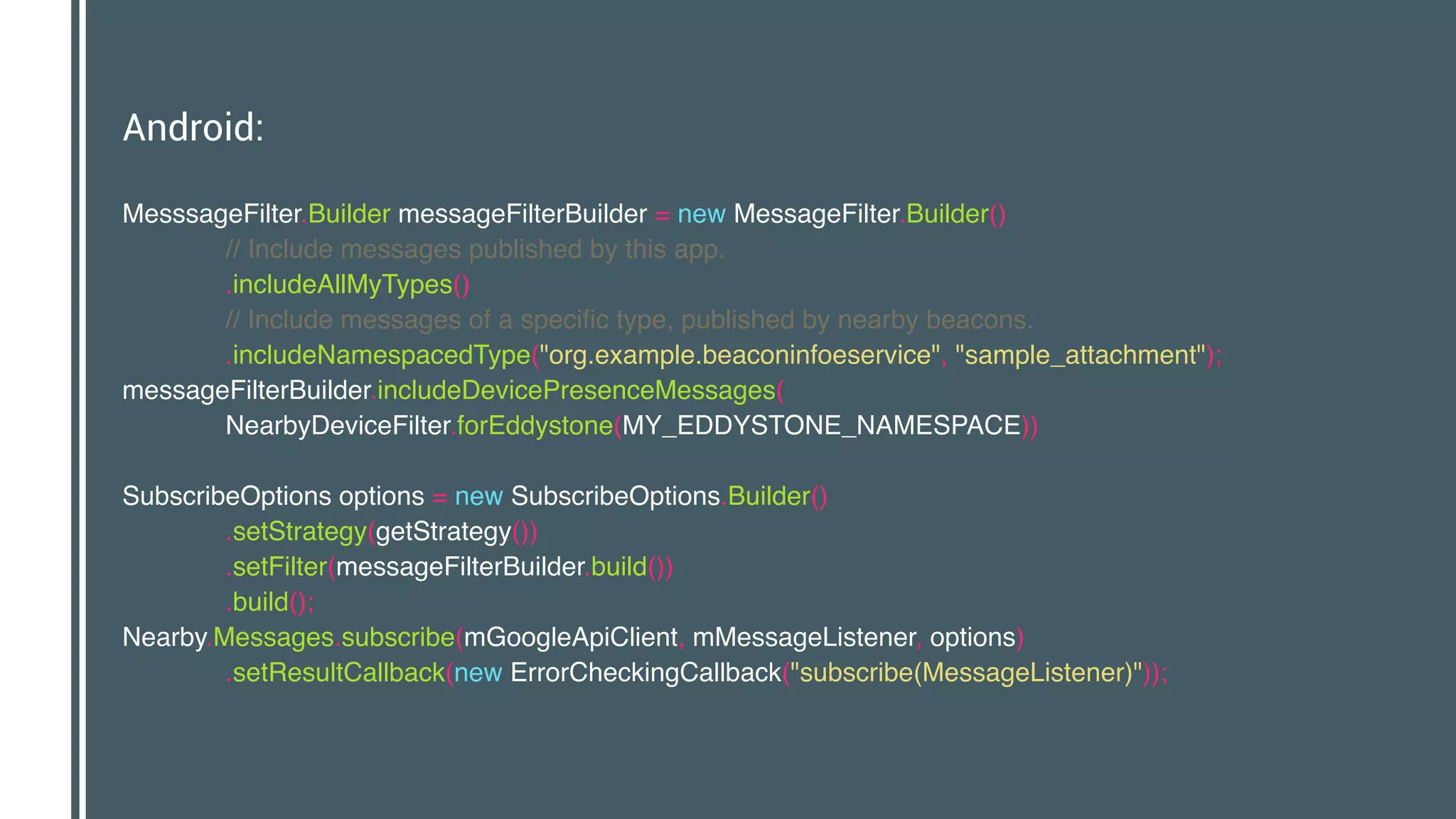

36. Android:
MesssageFilter.Builder messageFilterBuilder = new MessageFilter.Builder()
// Include messages published by this app.
.includeAllMyTypes()
// Include messages of a specific type, published by nearby beacons.
.includeNamespacedType("org.example.beaconinfoeservice", "sample_attachment");
messageFilterBuilder.includeDevicePresenceMessages(
NearbyDeviceFilter.forEddystone(MY_EDDYSTONE_NAMESPACE))
SubscribeOptions options = new SubscribeOptions.Builder()
.setStrategy(getStrategy())
.setFilter(messageFilterBuilder.build())
.build();
Nearby.Messages.subscribe(mGoogleApiClient, mMessageListener, options)
.setResultCallback(new ErrorCheckingCallback("subscribe(MessageListener)"));

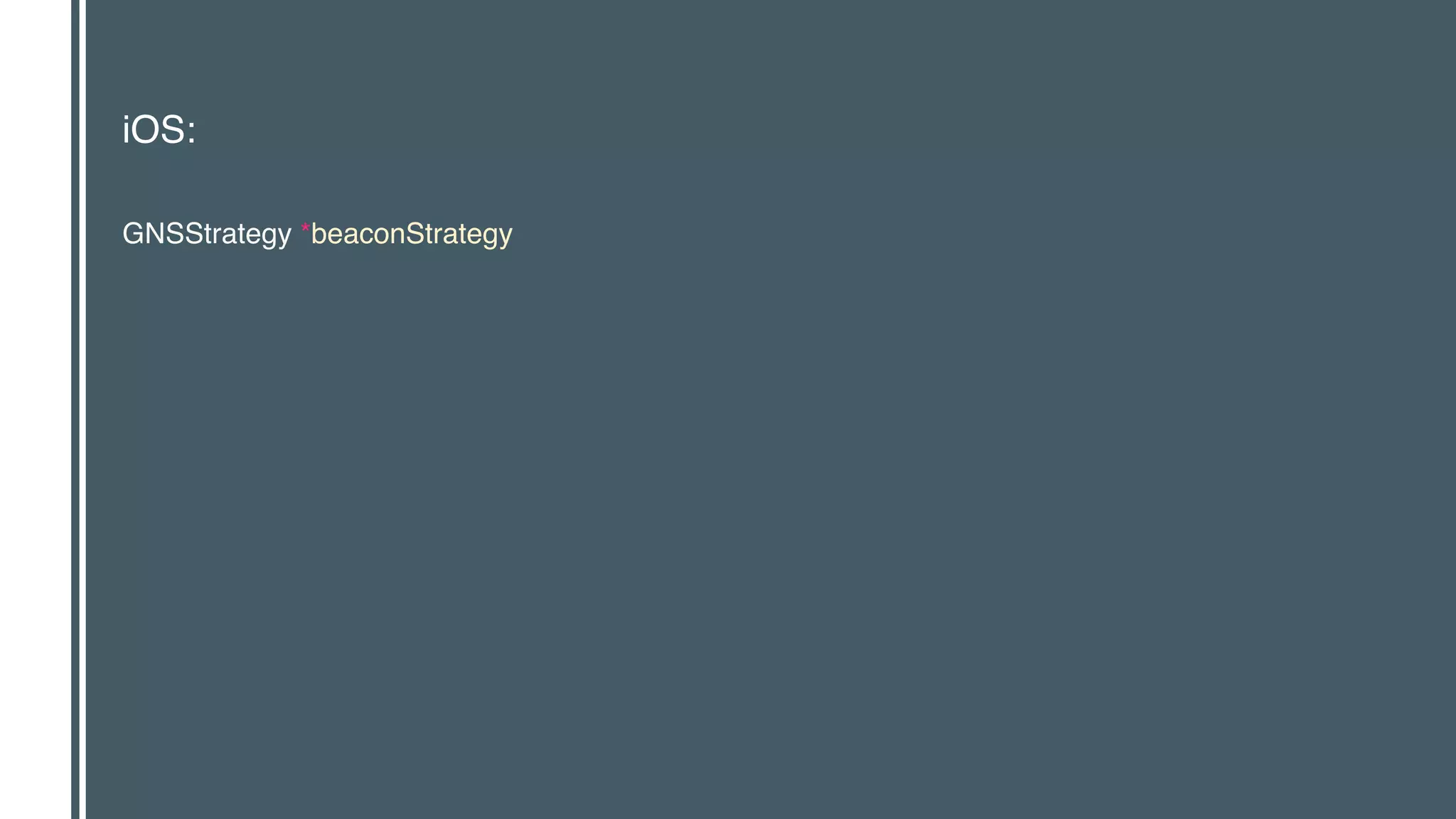

37. iOS:
GNSStrategy *beaconStrategy

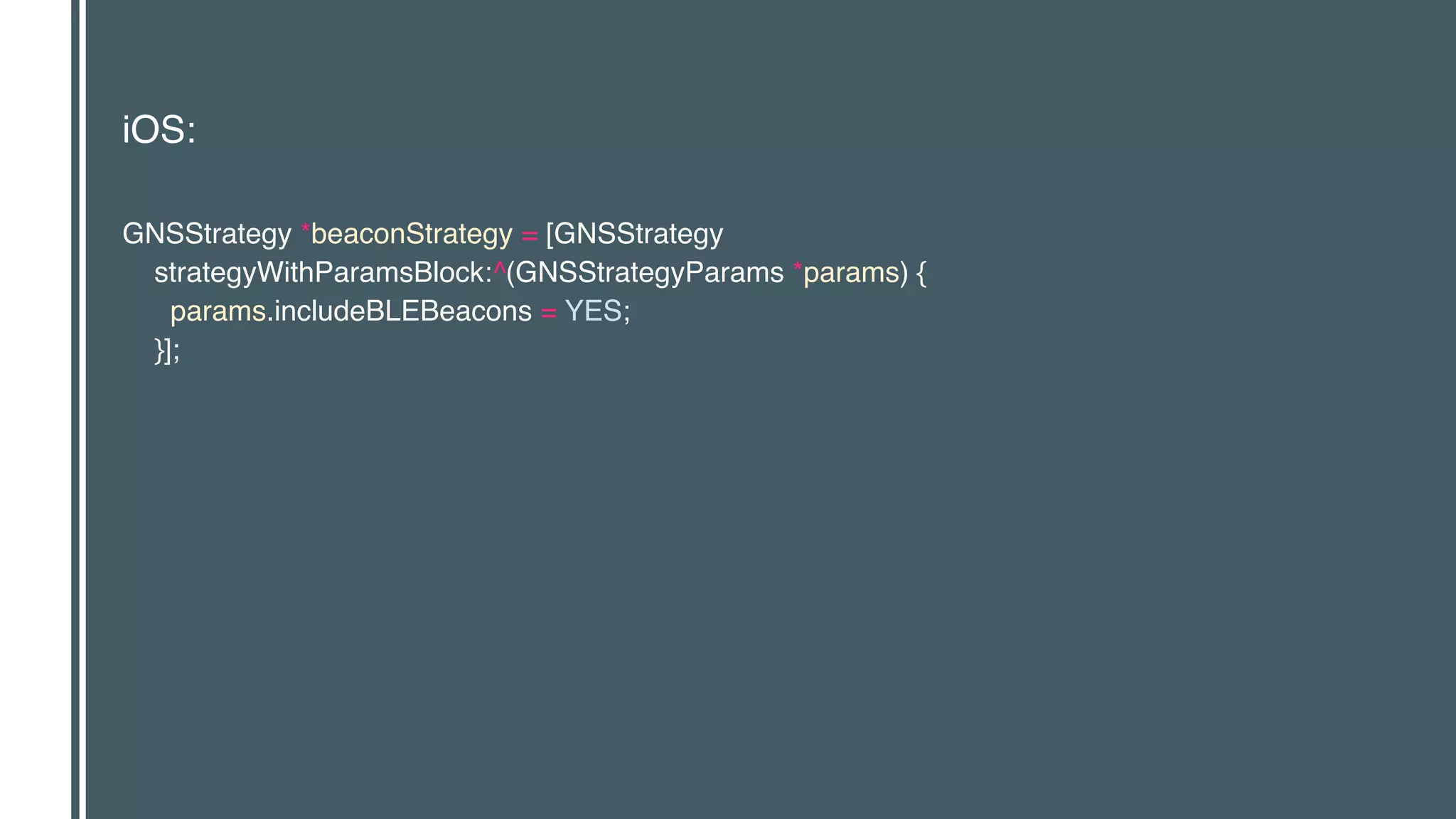

38. iOS:
GNSStrategy *beaconStrategy = [GNSStrategy
strategyWithParamsBlock:^(GNSStrategyParams *params) {
params.includeBLEBeacons = YES;
}];

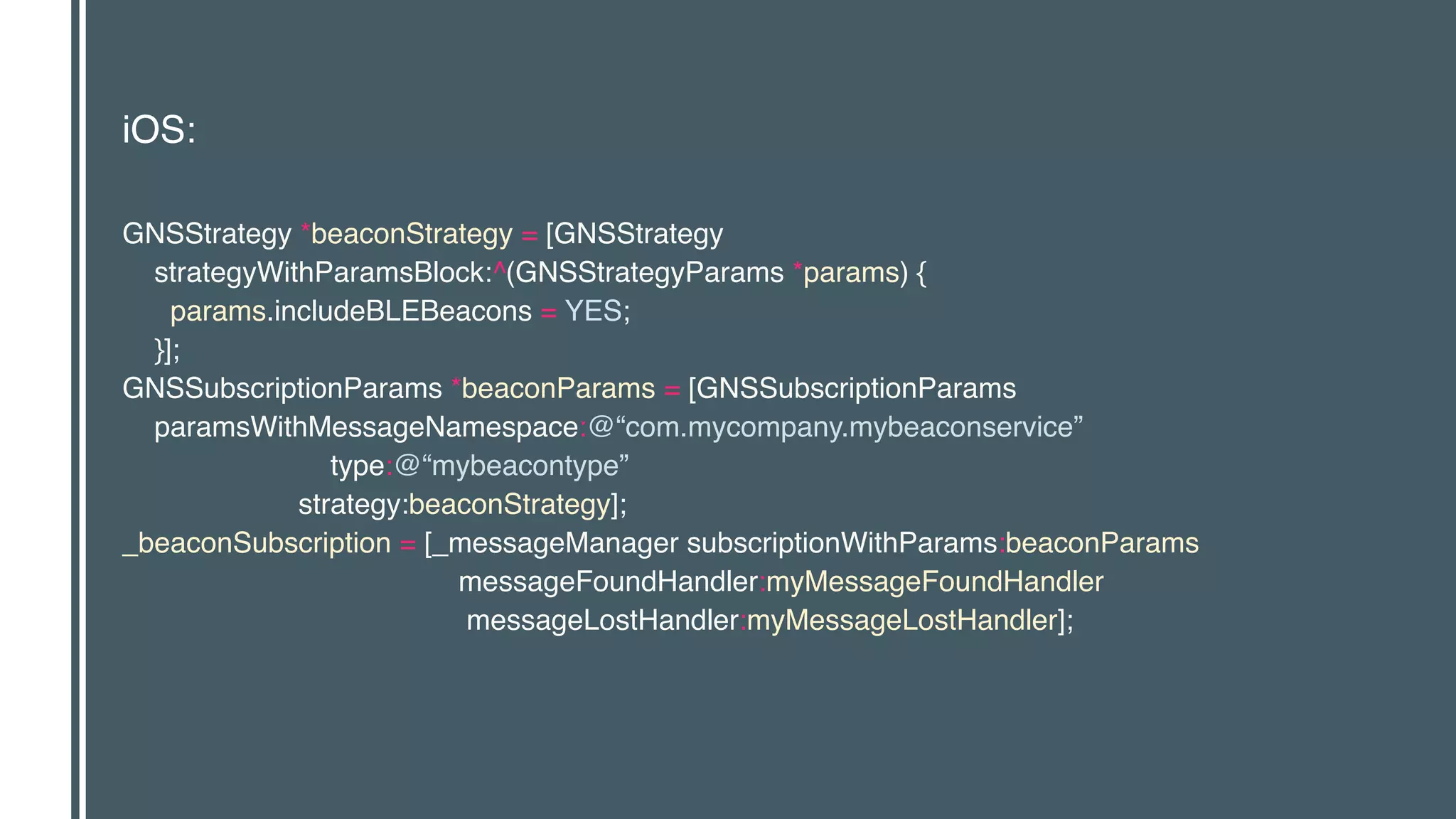

39. iOS:
GNSStrategy *beaconStrategy = [GNSStrategy
strategyWithParamsBlock:^(GNSStrategyParams *params) {
params.includeBLEBeacons = YES;
}];
GNSSubscriptionParams *beaconParams = [GNSSubscriptionParams
paramsWithMessageNamespace:@“com.mycompany.mybeaconservice”
type:@“mybeacontype”
strategy:beaconStrategy];
_beaconSubscription = [_messageManager subscriptionWithParams:beaconParams
messageFoundHandler:myMessageFoundHandler
messageLostHandler:myMessageLostHandler];

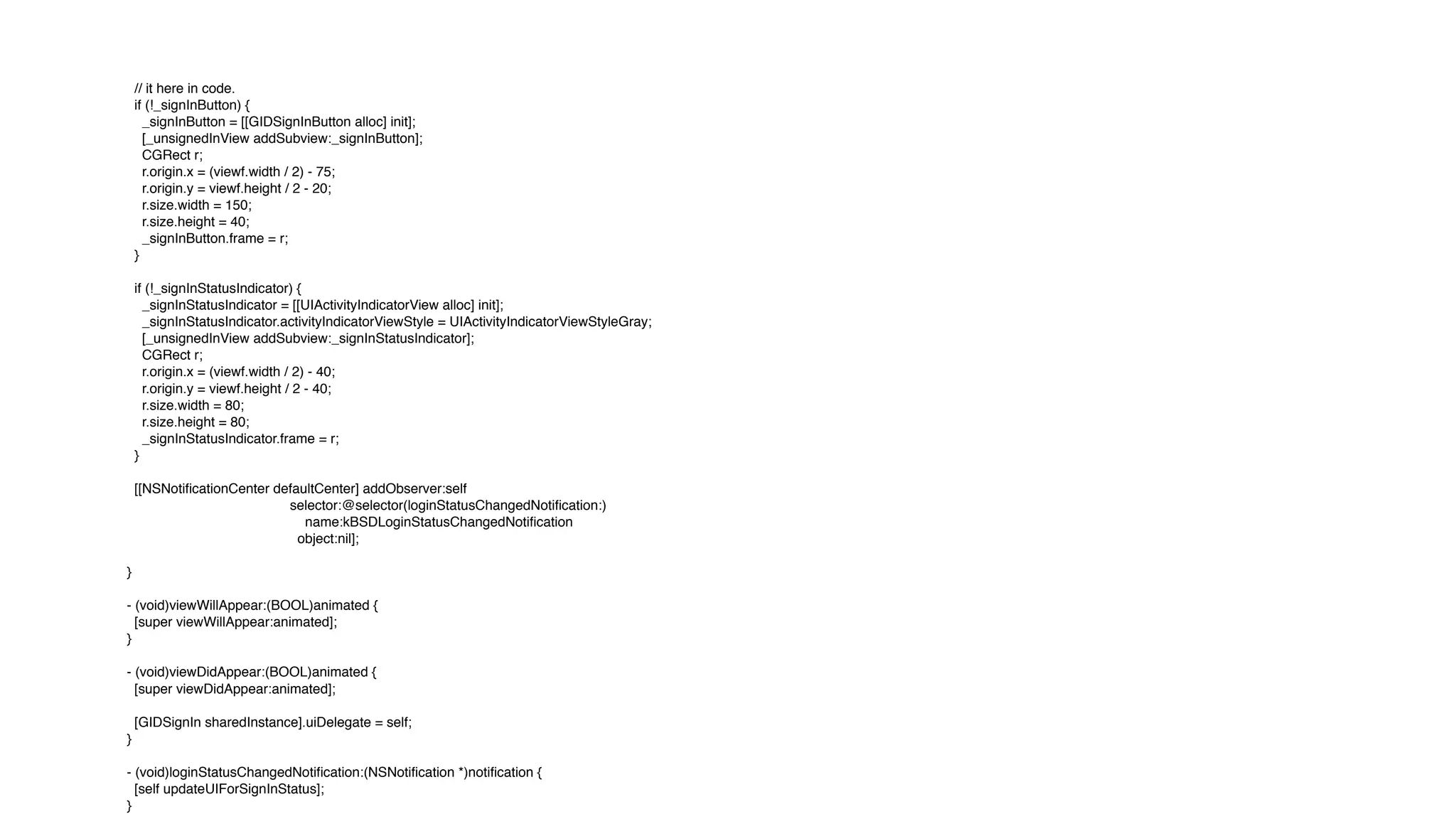

40. // it here in code.
if (!_signInButton) {
_signInButton = [[GIDSignInButton alloc] init];
[_unsignedInView addSubview:_signInButton];
CGRect r;
r.origin.x = (viewf.width / 2) - 75;
r.origin.y = viewf.height / 2 - 20;
r.size.width = 150;
r.size.height = 40;
_signInButton.frame = r;
}
if (!_signInStatusIndicator) {
_signInStatusIndicator = [[UIActivityIndicatorView alloc] init];
_signInStatusIndicator.activityIndicatorViewStyle = UIActivityIndicatorViewStyleGray;
[_unsignedInView addSubview:_signInStatusIndicator];
CGRect r;
r.origin.x = (viewf.width / 2) - 40;
r.origin.y = viewf.height / 2 - 40;
r.size.width = 80;
r.size.height = 80;
_signInStatusIndicator.frame = r;
}
[[NSNotificationCenter defaultCenter] addObserver:self
selector:@selector(loginStatusChangedNotification:)
name:kBSDLoginStatusChangedNotification
object:nil];
}
- (void)viewWillAppear:(BOOL)animated {
[super viewWillAppear:animated];
}
- (void)viewDidAppear:(BOOL)animated {
[super viewDidAppear:animated];
[GIDSignIn sharedInstance].uiDelegate = self;
}
- (void)loginStatusChangedNotification:(NSNotification *)notification {
[self updateUIForSignInStatus];
}

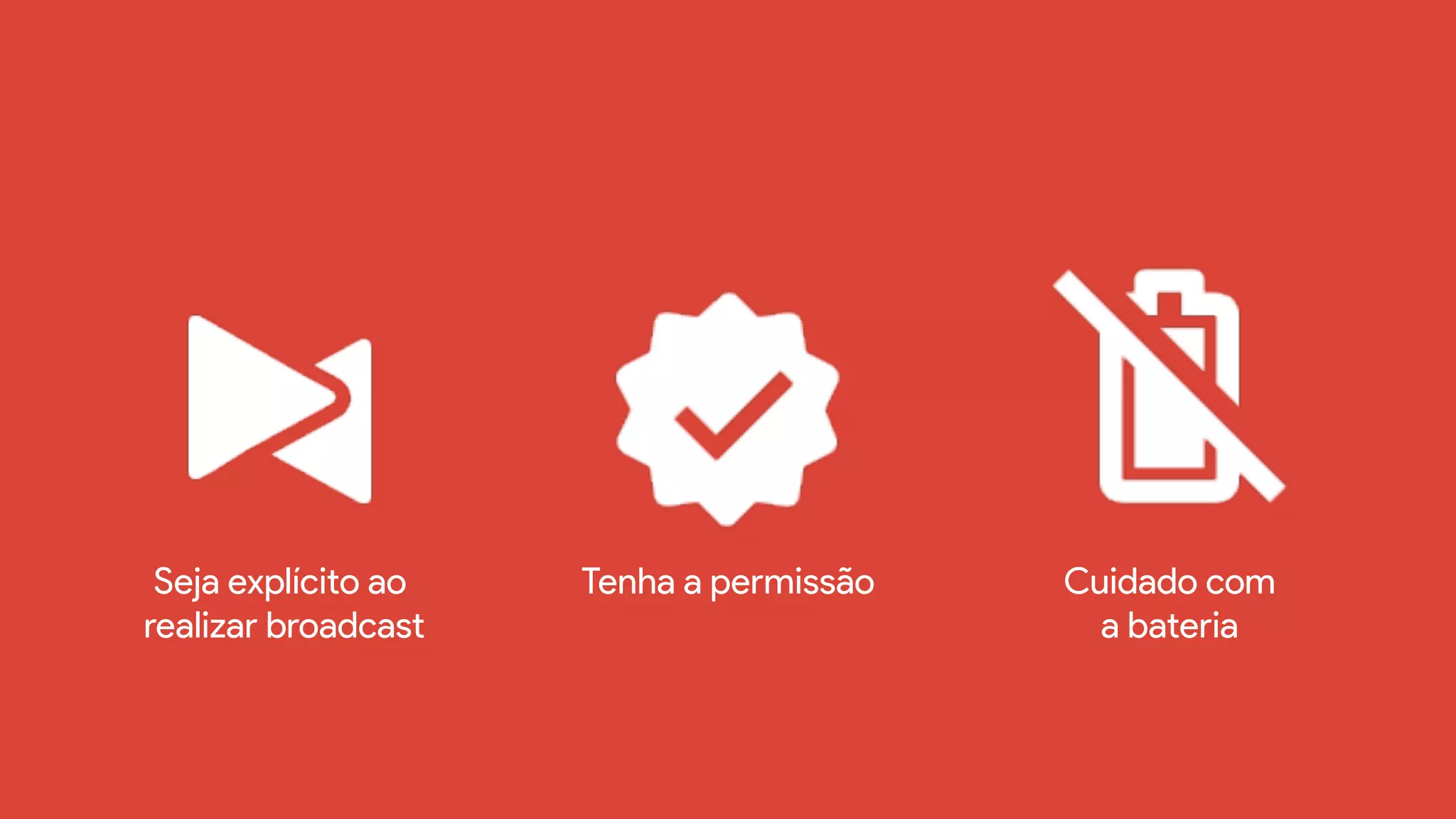

41. Seja explícito ao
realizar broadcast
Tenha a permissão Cuidado com
a bateria

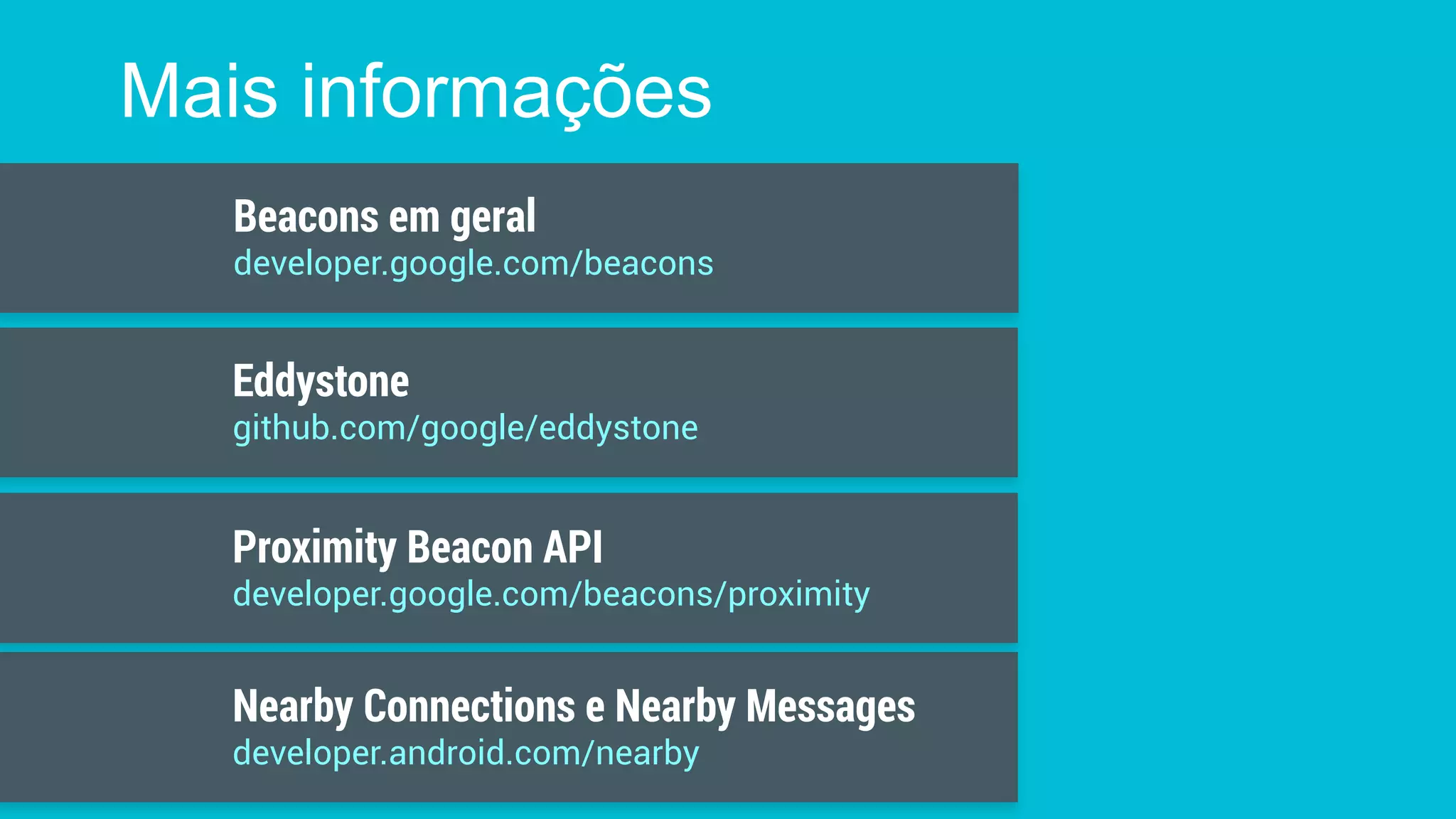

42. Mais informações
Nearby Connections e Nearby Messages
developer.android.com/nearby
Beacons em geral
developer.google.com/beacons
Proximity Beacon API
developer.google.com/beacons/proximity
Eddystone
github.com/google/eddystone

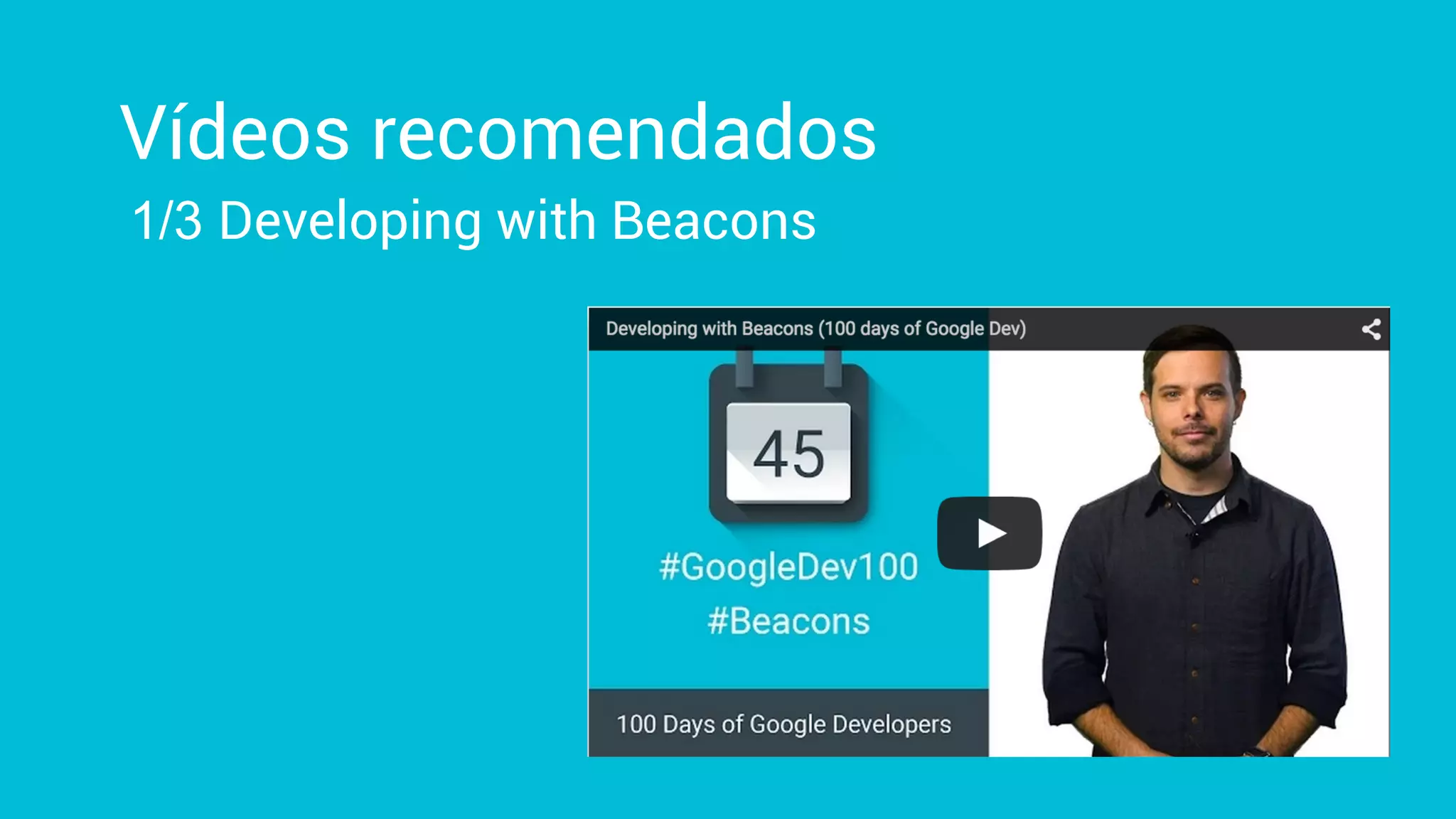

43. 1/3 Developing with Beacons
Vídeos recomendados

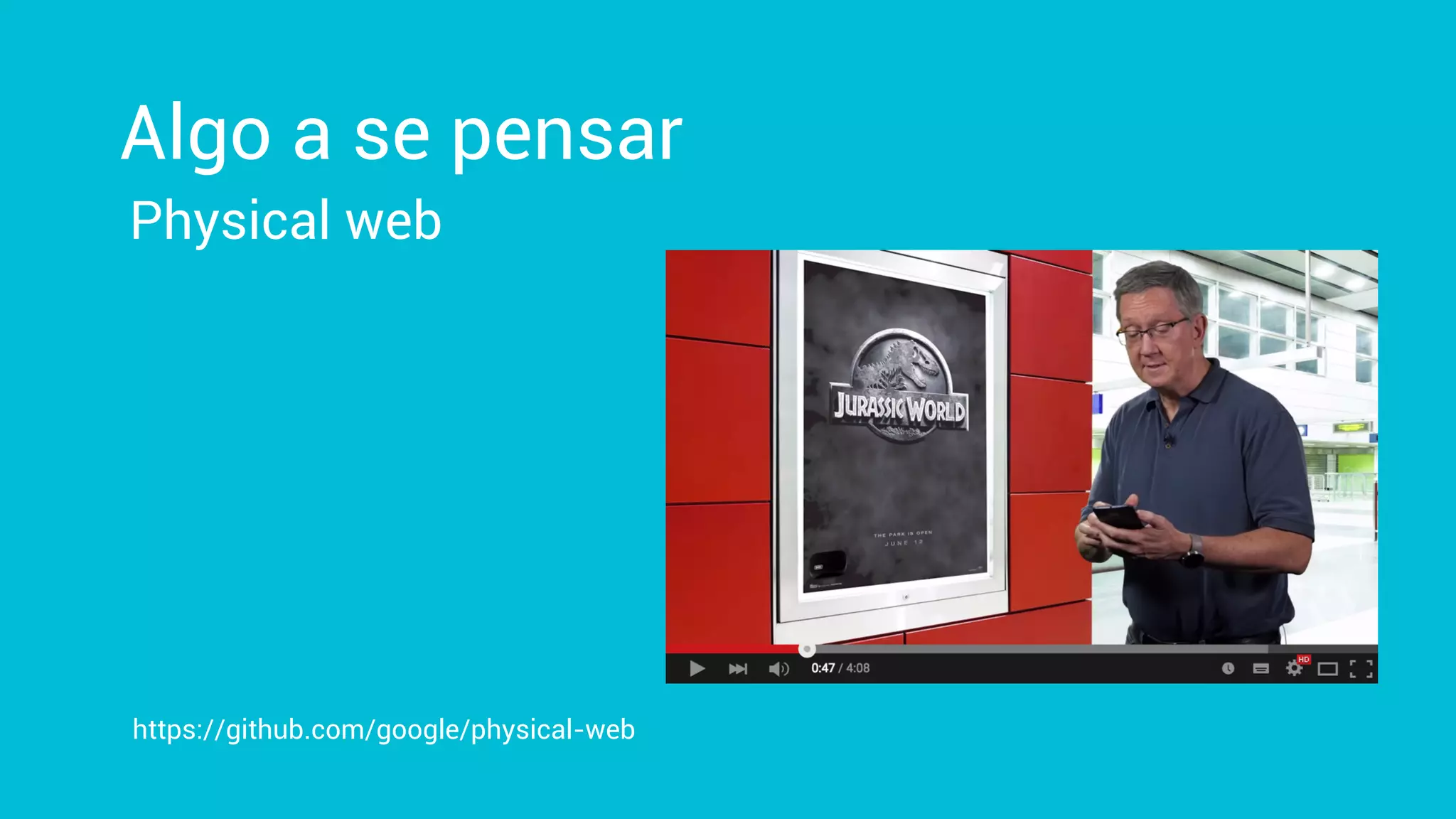

44. Physical web
Algo a se pensar
https://github.com/google/physical-web

45. Venha conversar com a galera no Buteco!
Google Developer Experts

46. Marcelo Quinta
@mrquinta
Obrigado
Essa palestra foi baseada em material disponibilizado pelo Google. Dê uma olhada no canal do Youtube deles: https://www.youtube.com/user/GoogleDevelopers
