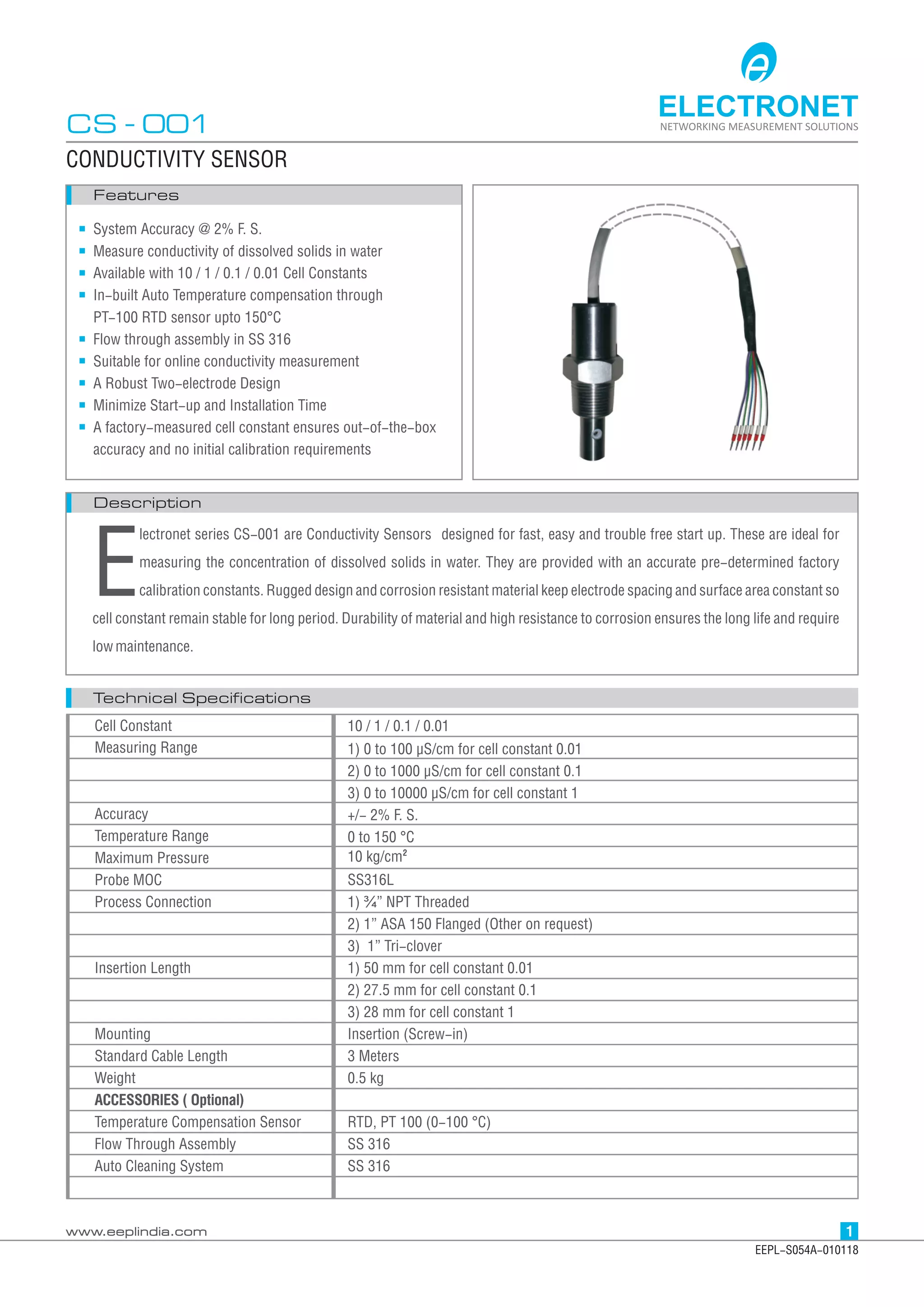

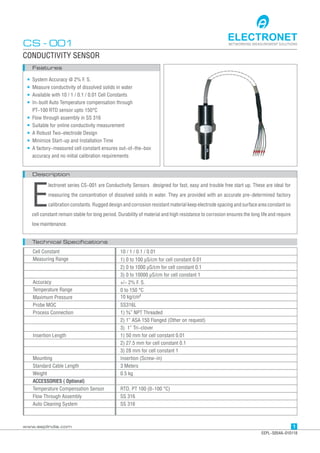

Electronet series CS-001 are Conductivity Sensors designed for fast, easy and trouble free start up. These are ideal for measuring the concentration of dissolved solids in water. They are provided with an accurate pre-determined factory calibration constants. Rugged design and corrosion resistant material keep electrode spacing and surface area constant so cell constant remain stable for long period. Durability of material and high resistance to corrosion ensures the long life and require low maintenance. More Info : http://www.eeplindia.com/conductivity-sensor-CS001.html

2. IntelliComponents, Inc.
710 Dacula Rd., Ste 4A-200,
Atlanta, GA 30019
ELECTRONET EQUIPMENTS PVT. LTD.
+91-20-26931476/2039 ho@eeplindia.com +91-20-26934122
Plot No. 8, (SEZ) Phase 1, Kesurdi MIDC,
Khandala, Dist.- Satara
Pin: 412 801, Maharashtra, India.
Factory Address:
Plot No. 84, 85, 86, Tiny Industrial Estate,
Kondhwa Budruk,
Pune-411 048, Maharashtra, India.
Registered Office: USA Office:
info@intellicomponentsinc.com(678)-720-3030
Dimensional Drawing
CONDUCTIVITY SENSOR CS - 001
Dimensional Table
Ordering Information
66 8025
?Due to our continuous product revisions, design specification and model numbers are subject to change without notice.
?Accuracy defined at Lab Conditions.
?For other requirement please consult factory.
Note :
Code ValueParameter
25A RTD
25X Other
Temperature
Compensation25
66M ¾” NPT Threaded
66N
66O
1" ASA 150 Flanged
1" Tri Clover
Process
Connection
66
66X Other
Code ValueParameter
80A 0.01
80B
80C
0.1
1
Cell Constant80
80D 10
A B C
Inch mm
0.01/cm
0.1/cm
1.59 40.39
0.687 17.45
1.0/cm 0.667 16.94
Inch Inchmm mm
1.98 50.34 4.52 114.8
1.11 28.15 3.65 92.71
1.13 28.70 3.67 93.22
Sensor
Configuration
Installation Drawing
C
A
B
¾” NPT (M)
1 RED
YELLOW (L)
2 WHITE
3
5
6 BLACK
BLUE (C)
GREEN (C)4
Teflon Insulated
Extension Wire
(Length 3 Mtr.)
Ø 6mm X 3.5mm
Ø 15.8mm ODØ 14mm OD
EEPL-S054A-010118
