The document provides specifications for various water dispensers and water purification systems produced by Zhejiang Lonsid Healthy Drinking Water Equipment Co.,Ltd. It includes over 30 models of water dispensers that provide hot and cold water, some with additional features like coffee/tea making, bottle filling, or water cooling. The models vary in size, power usage, water output capacities, and features. Technical details like dimensions, weight, and loading quantities are provided for each model.

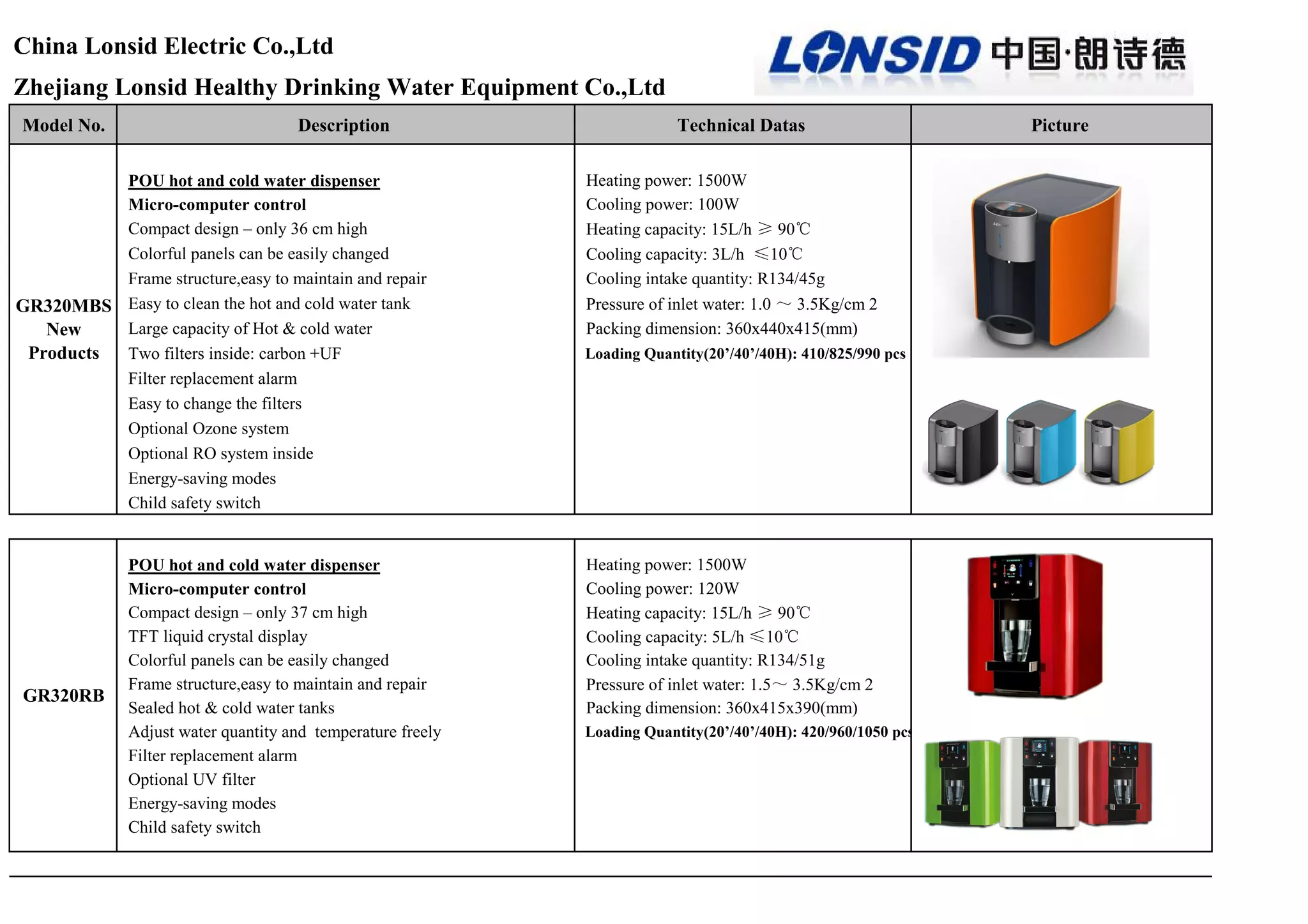

1. China Lonsid Electric Co.,Ltd
Zhejiang Lonsid Healthy Drinking Water Equipment Co.,Ltd
Model No. Description Technical Datas Picture
POU hot and cold water dispenser Heating power: 1500W
Micro-computer control Cooling power: 100W
Compact design – only 36 cm high Heating capacity: 15L/h ≥ 90℃
Colorful panels can be easily changed Cooling capacity: 3L/h ≤10℃
Frame structure,easy to maintain and repair Cooling intake quantity: R134/45g
GR320MBS Easy to clean the hot and cold water tank Pressure of inlet water: 1.0 ～ 3.5Kg/cm 2
New Large capacity of Hot & cold water Packing dimension: 360x440x415(mm)
Products Two filters inside: carbon +UF Loading Quantity(20’/40’/40H): 410/825/990 pcs
Filter replacement alarm
Easy to change the filters
Optional Ozone system
Optional RO system inside
Energy-saving modes
Child safety switch
POU hot and cold water dispenser Heating power: 1500W
Micro-computer control Cooling power: 120W
Compact design – only 37 cm high Heating capacity: 15L/h ≥ 90℃
TFT liquid crystal display Cooling capacity: 5L/h ≤10℃
Colorful panels can be easily changed Cooling intake quantity: R134/51g
Frame structure,easy to maintain and repair Pressure of inlet water: 1.5～ 3.5Kg/cm 2
GR320RB
Sealed hot & cold water tanks Packing dimension: 360x415x390(mm)
Adjust water quantity and temperature freely Loading Quantity(20’/40’/40H): 420/960/1050 pcs
Filter replacement alarm
Optional UV filter
Energy-saving modes
Child safety switch

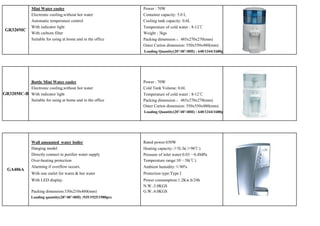

2. Mini Water cooler Power : 70W
Electronic cooling,without hot water Container capacity: 5.0 L
Automatic temperature control Cooling tank capacity: 0.6L
With indicator light Temperature of cold water : 8-12℃
GR320MC
With carborn filter Weight : 3kgs
Suitable for using at home and in the office Packing dimension ：485x270x270(mm)
Outer Carton dimension: 550x550x480(mm)
Loading Quantity(20’/40’/40H) : 640/1344/1680pcs
Bottle Mini Water cooler Power : 70W
Electronic cooling,without hot water Cold Tank Volume: 0.6L
GR320MC-B With indicator light Temperature of cold water : 8-12℃
Suitable for using at home and in the office Packing dimension ：485x270x270(mm)
Outer Carton dimension: 550x550x480(mm)
Loading Quantity(20’/40’/40H) : 640/1344/1680pcs
Wall amounted water boiler Rated power:650W
Hanging model Heating capacity:≥5L/h(≥90℃)
Directly connect to purifier water supply Pressure of inlet water:0.03～0.4MPa
Over-heating protection Temperature range:10～38(℃)
Alarming if overflow occurs. Ambient humidity:≤90%
GA406A
With one outlet for warm & hot water Protection type:Type I
With LED display. Power consumption:1.2Kw.h/24h
N.W.:3.0KGS
Packing dimension:330x210x460(mm) G.W.:4.0KGS
Loading quantity(20’/40’/40H) :935/1925/1980pcs

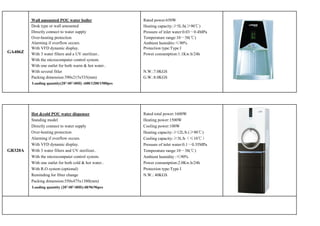

3. Wall amounted POU water boiler Rated power:650W
Desk type or wall amounted Heating capacity:≥5L/h(≥90℃)
Directly connect to water supply Pressure of inlet water:0.03～0.4MPa
Over-heating protection Temperature range:10～38(℃)
Alarming if overflow occurs. Ambient humidity:≤90%
With VFD dynamic display. Protection type:Type I
GA406Z With 3 water filters and a UV sterilizer.. Power consumption:1.1Kw.h/24h
With the microcomputer control system.
With one outlet for both warm & hot water..
With several fitler N.W.:7.0KGS
Packing dimension:390x215x535(mm) G.W.:8.0KGS
Loading quantity(20’/40’/40H) :600/1200/1500pcs
Hot &cold POU water dispenser Rated total power:1600W
Standing model Heating power:1500W
Directly connect to water supply Cooling power:100W
Over-heating protection Heating capacity:≥12L/h (≥90℃)
Alarming if overflow occurs. Cooling capacity:≥3L/h（≤10℃）
With VFD dynamic display. Pressure of inlet water:0.1～0.35MPa
GR320A With 3 water filters and UV sterilizer.. Temperature range:10～38(℃)
With the microcomputer control system. Ambient humidity :≤90%
With one outlet for both cold & hot water.. Power consumption:2.0Kw.h/24h
With R.O system (optional) Protection type:Type I
Reminding for filter change N.W.: 40KGS
Packing dimension:550x475x1380(mm)
Loading quantity (20’/40’/40H):48/96/96pcs

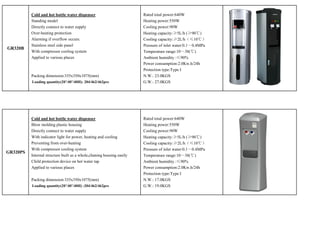

4. Cold and hot bottle water dispenser Rated total power:640W
Standing model Heating power:550W
Directly connect to water supply Cooling power:90W
Over-heating protection Heating capacity:≥5L/h (≥90℃)
Alarming if overflow occurs. Cooling capacity:≥2L/h（≤10℃）
Stainless steel side panel Pressure of inlet water:0.1～0.4MPa
GR320B
With compressor cooling system Temperature range:10～38(℃)
Applied to various places Ambient humidity :≤90%
Power consumption:2.0Kw.h/24h
Protection type:Type I
Packing dimension:335x350x1075(mm) N.W.: 23.0KGS
Loading quantity(20’/40’/40H): 204/462/462pcs G.W.: 27.0KGS
Cold and hot bottle water dispenser Rated total power:640W
Blow molding plastic housing Heating power:550W
Directly connect to water supply Cooling power:90W
With indicator light for power, heating and cooling Heating capacity:≥5L/h (≥90℃)
Preventing from over-heating Cooling capacity:≥2L/h（≤10℃）
With compressor cooling system Pressure of inlet water:0.1～0.4MPa
GR320PS
Internal structure built as a whole,chaning housing easily Temperature range:10～38(℃)
Child protection device on hot water tap Ambient humidity :≤90%
Applied to various places Power consumption:2.0Kw.h/24h
Protection type:Type I
Packing dimension:335x350x1075(mm) N.W.: 17.0KGS
Loading quantity(20’/40’/40H) :204/462/462pcs G.W.: 19.0KGS

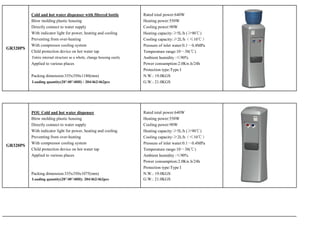

5. Cold and hot water dispenser with filtered bottle Rated total power:640W
Blow molding plastic housing Heating power:550W
Directly connect to water supply Cooling power:90W
With indicator light for power, heating and cooling Heating capacity:≥5L/h (≥90℃)
Preventing from over-heating Cooling capacity:≥2L/h（≤10℃）
With compressor cooling system Pressure of inlet water:0.1～0.4MPa
GR320PS
Child protection device on hot water tap Temperature range:10～38(℃)
Entire internal structure as a whole, change housing easily Ambient humidity :≤90%
Applied to various places Power consumption:2.0Kw.h/24h
Protection type:Type I
Packing dimension:335x350x1180(mm) N.W.: 19.0KGS
Loading quantity(20’/40’/40H) : 204/462/462pcs G.W.: 21.0KGS
POU Cold and hot water dispenser Rated total power:640W
Blow molding plastic housing Heating power:550W
Directly connect to water supply Cooling power:90W
With indicator light for power, heating and cooling Heating capacity:≥5L/h (≥90℃)
Preventing from over-heating Cooling capacity:≥2L/h（≤10℃）
With compressor cooling system Pressure of inlet water:0.1～0.4MPa
GR320PS
Child protection device on hot water tap Temperature range:10～38(℃)
Applied to various places Ambient humidity :≤90%
Power consumption:2.0Kw.h/24h
Protection type:Type I
Packing dimension:335x350x1075(mm) N.W.: 19.0KGS
Loading quantity(20’/40’/40H): 204/462/462pcs G.W.: 21.0KGS

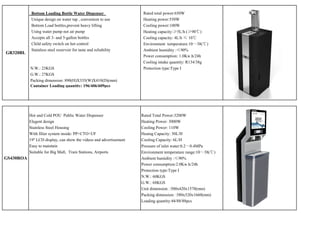

6. Bottom Loading Bottle Water Dispenser Rated total power:650W
Unique design on water tap , convenient to use Heating power:550W
Bottom Load bottles,prevent heavy lifting Cooling power:100W
Using water pump not air pump Heating capacity:≥5L/h (≥90℃)
Accepts all 3- and 5-gallon bottles Cooling capacity: 4L/h ≤ 10℃
Child safety switch on hot control Environment temperature:10～38(℃)
Stainless steel reservoir for taste and reliability Ambient humidity :≤90%
GR320BL
Power consumption: 1.0Kw.h/24h
Cooling intake quantity: R134/38g
N.W.: 23KGS Protection type:Type I
G.W.: 27KGS
Packing dimension: 890(H)X335(W)X410(D)(mm)
Cantainer Loading quantity: 196/406/609pcs
Hot and Cold POU Public Water Dispenser Rated Total Power:3200W
Elegent design Heating Power: 3000W
Stainless Steel Housing Cooling Power: 110W
With filter system inside: PP+CTO+UF Heaing Capacity: 30L/H
19'' LCD display, can show the videos and advertisement Cooling Capacity: 6L/H
Easy to maintain Pressure of inlet water:0.2～0.4MPa
Suitable for Big Mall, Train Stations, Airports Environment temperature range:10～38(℃)
GS430ROA Ambient humidity :≤90%
Power consumption:2.0Kw.h/24h
Protection type:Type I
N.W.: 60KGS
G.W.: 68KGS
Unit dimension: :500x420x1570(mm)
Packing dimension: :580x520x1660(mm)
Loading quantity:44/88/88pcs

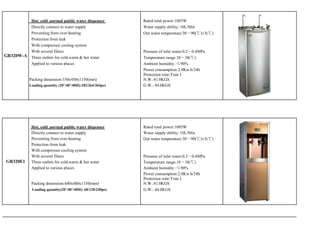

7. Hot, cold ,normal public water dispenser Rated total power:1005W
Directly connect to water supply Water supply ability: 10L/Min
Preventing from over-heating Out water temperature:30～90(℃)±3(℃)
Protection from leak
With compressor cooling system
With several filters Pressure of inlet water:0.2～0.4MPa
GR320W-A Three outlets for cold,warm & hot water Temperature range:10～38(℃)
Applied to various places Ambient humidity :≤90%
Power consumption:2.0Kw.h/24h
Protection type:Type I
Packing dimension:330x450x1150(mm) N.W.:41.0KGS
Loading quantity (20’/40’/40H):182/364/364pcs G.W.: 44.0KGS
Hot, cold ,normal public water dispenser Rated total power:1005W
Directly connect to water supply Water supply ability: 10L/Min
Preventing from over-heating Out water temperature:30～90(℃)±3(℃)
Protection from leak
With compressor cooling system
With several filters Pressure of inlet water:0.2～0.4MPa
GR320E1 Three outlets for cold,warm & hot water Temperature range:10～38(℃)
Applied to various places Ambient humidity :≤90%
Power consumption:2.0Kw.h/24h
Protection type:Type I
Packing dimension:440x480x1330(mm) N.W.:41.0KGS
Loading quantity(20’/40’/40H): 60/120/240pcs G.W.: 44.0KGS

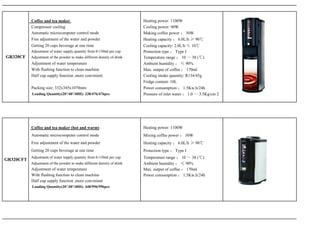

8. Coffee and tea maker Heating power: 1100W
Compressor cooling Cooling power: 90W
Automatic microcomputer control mode Making coffee power ： 30W
Free adjustment of the water and powder Heating capacity ： 6.0L/h ≥ 90℃
Getting 20 cups beverage at one time Cooling capacity: 2.0L/h ≤ 10℃
Adjustment of water supply quantity from 0-150ml per cup Protection type ： Type I
GR320CF Adjustment of the powder to make different density of drink Temperature range ： 10 ～ 38 (℃)
Adjustment of water temperature Ambient humidity ： ≤ 90%
With flushing function to clean machine Max. output of coffee ： 170ml
Half cup supply function ,more convinient Cooling intake quantity: R134/45g
Fridge content: 10L
Packing size: 332x345x1070mm Power consumption ： 1.5Kw.h/24h
Loading Quantity(20’/40’/40H): 238/476/476pcs Pressure of inlet water ： 1.0 ～ 3.5Kg/cm 2
Coffee and tea maker (hot and warm) Heating power: 1100W
Automatic microcomputer control mode Mixing coffee power ： 30W
Free adjustment of the water and powder Heating capacity ： 6.0L/h ≥ 90℃
Getting 20 cups beverage at one time Protection type ： Type I
Adjustment of water supply quantity from 0-150ml per cup Temperature range ： 10 ～ 38 (℃)
GR320CFT
Adjustment of the powder to make different density of drink Ambient humidity ： ≤ 90%
Adjustment of water temperature Max. output of coffee ： 170ml
With flushing function to clean machine Power consumption ： 1.5Kw.h/24h
Half cup supply function ,more convinient
Loading Quantity(20’/40’/40H): 448/996/996pcs

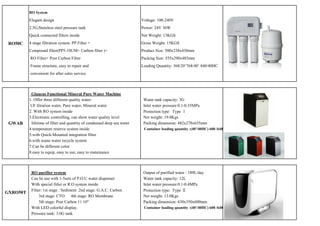

9. RO System
Elegant design Voltage: 100-240V
2.5G,Stainless steel pressure tank Power: 24V 36W
Quick connected filters inside Net Weight: 13KGS
RO50C 4 stage filtration system: PP Filter + Gross Weight: 15KGS
Compound filter(PP5-10UM+ Carbon filter )+ Product Size: 500x238x430mm
RO Filter+ Post Carbon Filter Packing Size: 555x290x485mm
Frame structure, easy to repair and Loading Quantity: 368/20’768/40’ 840/40HC
convenient for after sales service.
Glaucus Functional Mineral Pure Water Machine
1. Offer three different quality water: Water tank capacity: 3G
UF fitration water, Pure water, Mineral water Inlet water pressure:0.1-0.35MPa
2. With RO system inside Protection type: Type Ｉ
3.Electronic controlling, can show water quality level Net weight: 19.0Kgs
GWAB lifetime of filter and quantity of condensed deep sea water Packing dimension: 482x278x635mm
4.temperature reserve system inside Container loading quantity :(40'/40HC) 600 /648pcs
5.with Quick-Mounted integration filter
6.with waste water recycle system
7.Can be different color
8.easy to equip, easy to use, easy to matainance
RO purifier system Output of purified water : 189L/day
Can be use with 1-5sets of P.O.U water dispenser Water tank capacity: 12L
With special fitler or R.O system inside Inlet water pressure:0.1-0.4MPa
Filter: 1st stage : Sediment 2nd stage: G.A.C. Carbon Protection type: Type Ⅱ
GXRO50T
3rd stage: CTO 4th stage: RO Membrane Net weight: 13.0Kgs
5th stage: Post Carbon 11 10" Packing dimension: 430x350x600mm
With LED colorful display. Container loading quantity :(40'/40HC) 600 /648pcs
Pressure tank: 3.0G tank

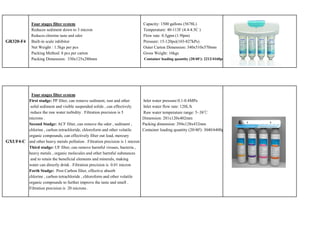

10. Four stages filter system Capacity: 1500 gallons (5678L)
Reduces sediment down to 3 micron Temperature: 40-113F (4.4-4.5C )
Reduces chiorine taste and odor Flow rate: 0.5gpm (1.9lpm)
GR320-F4 Built-in scale inhibitor Pressure: 15-120psi(103-827kPs)
Net Weight : 1.5kgs per pcs Outer Carton Dimension: 340x510x570mm
Packing Method: 8 pcs per carton Gross Weight: 16kgs
Packing Dimension: 330x125x280mm Container loading quantity (20/40'): 2212/4160pcs
Four stages filter system
First stadge: PP filter, can remove sediment, rust and other Inlet water pressure:0.1-0.4MPa
solid sediment and visible suspended solids , can effectively Inlet water flow rate: 120L/h
reduce the raw water turbidity . Filtration precision is 5 Raw water temperature range: 5~38℃
microns . Dimension: 281x120x402mm
Second Stadge: ACF filter, can remove the odor , sediment , Packing dimension: 294x128x432mm
chlorine , carbon tetrachloride, chloroform and other volatile Container loading quantity (20/40'): 3040/6400pcs
organic compounds, can effectively filter out lead, mercury
GXUF4-C and other heavy metals pollution . Filtration precision is 1 micron
Third stadge: UF filter, can remove harmful viruses, bacteria ,
heavy metals , organic molecules and other harmful substances
and to retain the beneficial elements and minerals, making
water can directly drink . Filtration precision is 0.01 micron
Forth Stadge: Post Carbon filter, effective absorb
chlorine , carbon tetrachloride , chloroform and other volatile
organic compounds to further improve the taste and smell .
Filtration precision is 20 microns .

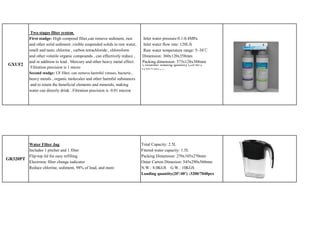

11. Two stages filter system
First stadge: High compond filter,can remove sediment, rust Inlet water pressure:0.1-0.4MPa
and other solid sediment ,visible suspended solids in raw water, Inlet water flow rate: 120L/h
smell and taste, chlorine , carbon tetrachloride , chloroform Raw water temperature range: 5~38℃
and other volatile organic compounds , can effectively reduce , Dimension: 360x120x358mm
and in addition to lead . Mercury and other heavy metal effect. Packing dimension: 373x128x388mm
GXUF2 Container loading quantity (20/40'):
Filtration precision is 1 micro
1620/3456pcs
Second stadge: UF filter, can remove harmful viruses, bacteria ,
heavy metals , organic molecules and other harmful substances
and to retain the beneficial elements and minerals, making
water can directly drink . Filtration precision is 0.01 micron
Water Filter Jug Total Capacity: 2.5L
Includes 1 pitcher and 1 filter Fitered water capacity: 1.5L
Flip-top lid for easy refilling Packing Dimension: 270x105x270mm
GR320PT
Electronic filter change indicator Outer Carton Dimesion: 545x290x560mm
Reduce chlorine, sediment, 98% of lead, and more N.W.: 8.0KGS G.W.: 10KGS
Loading quantity(20’/40’) :3200/7040pcs

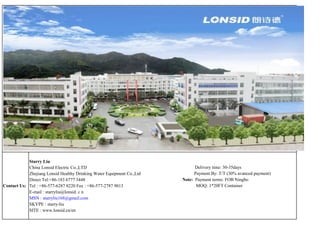

12. Starry Liu
China Lonsid Electric Co.,LTD Delivery time: 30-35days
Zhejiang Lonsid Healthy Drinking Water Equipment Co.,Ltd Payment By: T/T (30% avanced payment)
Direct Tel:+86-183 6777 3448 Note: Payment terms: FOB Ningbo
Contact Us: Tel : +86-577-6287 8220 Fax : +86-577-2787 9013 MOQ: 1*20FT Container
E-mail : starryliu@lonsid. c n
MSN : starryliu168@gmail.com
SKYPE : starry-liu
SITE : www.lonsid.cn/en
