Concrete block machine

my skype:evitalee55
whatsapp:0086 18637192252
my email: evita@hiimac.com
welcome to my website! www.hiimac.com
QUOTATION SHEET
TO: Tamiru Tesfaye Date: 5th
May,2014
(1)
标准配置
Standard Configuration
§ §
§
Batching machine Concrete mixer Belt conveyor
价格（美元）Price(USD): $47540.98
交货周期 Delivery Time: 15 days
名称 Name: Concrete Block Machine
型号 Model: QT6-15
Customer Requirements:
Capacity:10000 piece/8 hour
Function: hollow block and floor tile

my skype:evitalee55
whatsapp:0086 18637192252
§ § §

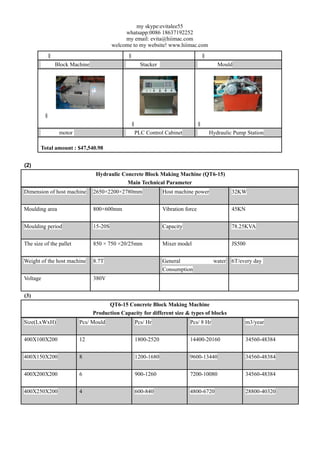

Block Machine Stacker Mould
§
§ §
motor PLC Control Cabinet Hydraulic Pump Station
Total amount : $47,540.98
(2)
Hydraulic Concrete Block Making Machine (QT6-15)
Main Technical Parameter
Dimension of host machine 2650×2200×2780mm Host machine power 32KW
Moulding area 800×600mm Vibration force 45KN
Moulding period 15-20S Capacity 78.25KVA
The size of the pallet 850 × 750 ×20/25mm Mixer model JS500
Weight of the host machine 8.7T General water
Consumption
6T/every day
Voltage 380V
(3)
QT6-15 Concrete Block Making Machine
Production Capacity for different size & types of blocks
Size(LxWxH) Pcs/ Mould Pcs/ Hr Pcs/ 8 Hr m3/year
400X100X200 12 1800-2520 14400-20160 34560-48384
400X150X200 8 1200-1680 9600-13440 34560-48384
400X200X200 6 900-1260 7200-10080 34560-48384
400X250X200 4 600-840 4800-6720 28800-40320

my skype:evitalee55
whatsapp:0086 18637192252
Paver:200X100X60 21 3150 25200
Paver:200X163X60 9 1350 10800
Theoretical workshop area : 200 m 2 , need about 6-8 workers .the office , curing area and stacking area to arrange
according your fact status
Raw Materials
Construction Garbage Crash Stone
Sand Additive
Cement Flyash

my skype:evitalee55
whatsapp:0086 18637192252
Characteristic and Features of Concrete Block Making Machine
1. Integrated oil line system
equipped with an international standard mode, this kind of concrete products machine has a long service life, superior
weather resistance and low consumption. In addition, a great number of components were imported to guarantee the
quality.
2. Vibration system
It comprises platform vibration and hydraulic vibration. The way of vibration can be replaced, if needed, according to
different product specifications. The hydraulic-driven vibration system is controlled by computer, which allows a
vertical and synchronous vibration, and makes possible to charge at low frequency, while shape at high frequency.
Moreover, it is able to reduce the fuel consumption by80%.Exceptional reliability allows its service time to exceed
regular vibration of motors.
3. Control system
Imported PLC control system with a human-machine interface, LCD, high intelligence control; and multiple operation
modes like failure self-diagnosing, remote control, all of those make it ease of operation. safe and reliable.
1) The production line uses automated computer control with mechatronics integration all way from automatically
mixing materials to stacking finished products.
2) The control system: PLC system, LCD, man-machine interface, remote control, fault self-diagnosing, a targeted
design of application software, all of which make the operation more intelligent.
3) The whole frame is designed by means of special wielding, which makes it solid and durable.
4) The vibration system: table and mould type of vibration, driven by hydraulic; vertical and synchronous vibration
controlled by computer.
5) Storage and distribution device: materials supply is controlled by computer to avoid being affected by external
causes and ensure the supply is evenly distributed and the error of finished products' intensity is extremely small.
6) Both secondary material distributing mechanism and combination-type secondary ones can be regrouped to meet the
production needs at will.
7) Material distributing mechanism: uses active compulsive arch-breaking and adjusting centrifugal feeding
technology; material distributing grids is installed to ensure the materials are evenly distributed and better prevent any
harm done to the thin-walled products.
8) Delivery system: computer-controlled frequency conversation technology adopted to make it work stable, reliable,
precise and efficient.
9) Stacking system: uses of emulated computer control system and hydraulic sensor technology allow the stacking to be
fast and reliable
Condition and terms
1,装运港 Port of Loading : Qingdao /Tianjin/Shanghai - China
2,交货日期 Date of Delivery: 15 days after receipt of prepayment
3,包装：产品在交付前应进行防锈、防潮处理。

my skype:evitalee55
whatsapp:0086 18637192252
Packing:The products will be processed to be rustproof and moisture proof before delivery.
4,质量保证：生产商给与 100%保证。设备离开工厂时需为全新。自调试结束之日起卖方保证机器质量 1
年，如果 1 年内任何零件（不含易损件）发现有质量缺陷，生产商须免费更换。1 年后，零件可以优惠
价得到更换。
Insurance:100% brand new when leaving factory. We guarantee quality of the machines for a period of one
year from the date of trial run finish, if any parts (exclude easily damageable parts) are found defective in
quality in the first year, we should replace free-of-cost. After one year, parts can be replaced on favorable
payment basis.
5,安装：按照买方要求，卖方将会派技术人员到买方安装调试设备，但是技术人员在国外的生活费和
交通费及一切费用均由买方负责，技术人员工资按每人每天 $60 USD 计算。
Installation:The Seller will send technical engineers to the Buyer’s site for installation and debugging
machines. Expenses abroad should be paid by the buyer, include air tickets, hotel, restaurant and $60USD
salary per day for each technical engineer.
6,付款方式：签订合同之后，30%通过 T/T 作为预付款，剩下的 70%，在验收后，装运前通过 T/T 付清。
Terms of Payment:After signed the contract, the buyer should pay the 30% of total amount in advance-T/T
and 70% of total amount should be paid before goods leave factory by T/T.
If you interested in our products, or have any questions about it, welcome to contact with us, our professional team
shall give you the best support
Have a nice day!
my skype:evitalee55
whatsapp:0086 18637192252
