Omaido Blair Andrew

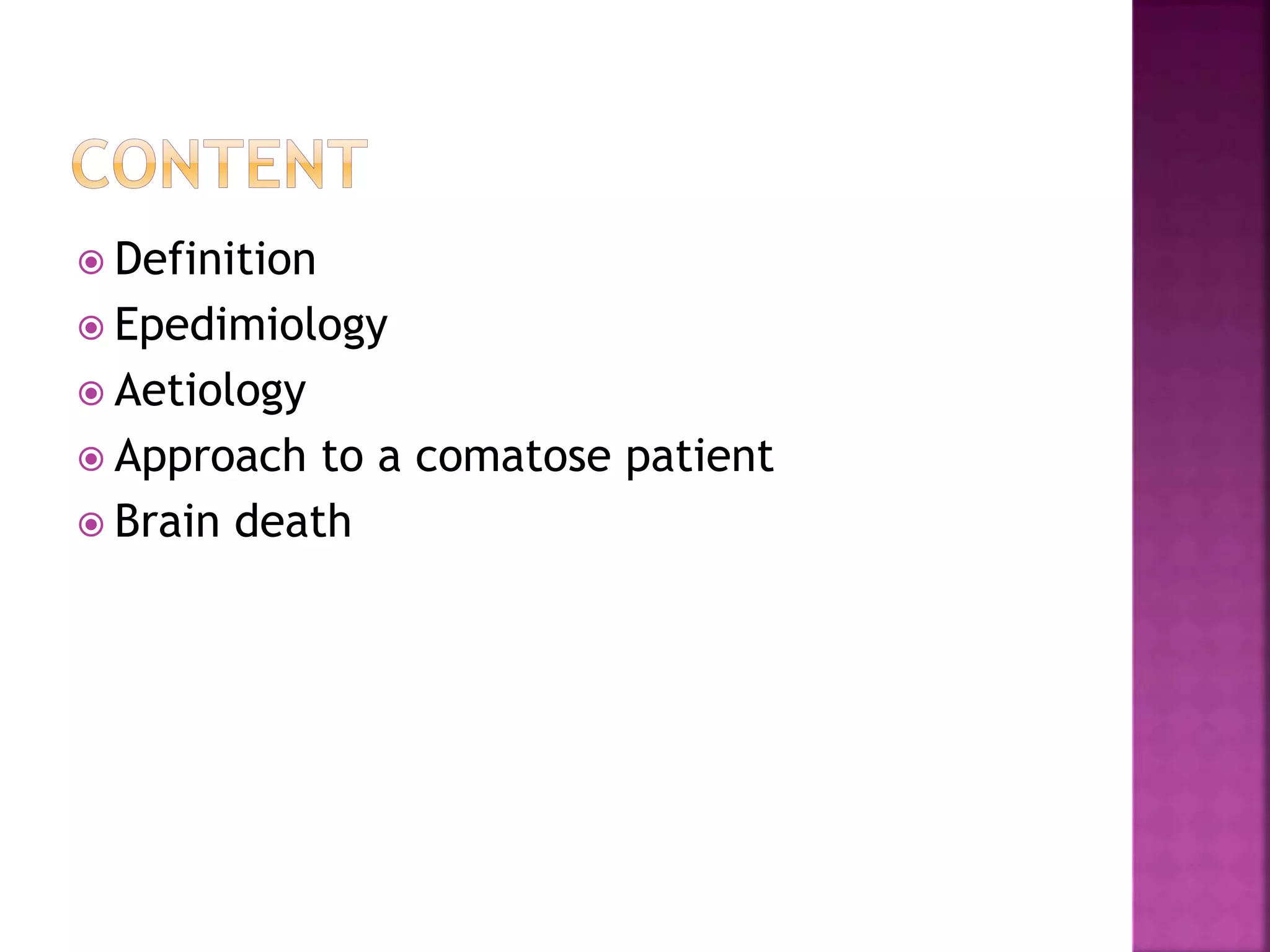

 Definition
 Epedimiology
 Aetiology
 Approach to a comatose patient
 Brain death
Coma is a deep sleeplike state from which the
patient cannot be aroused.
Its is the most severe form on the continuum
of reduced levels of alertness.
-Vegetative state(awake bt unresponsive from
coma)
-Stupor(transiently awakened by vigorous
stimuli)
-Drowsiness(light sleep)

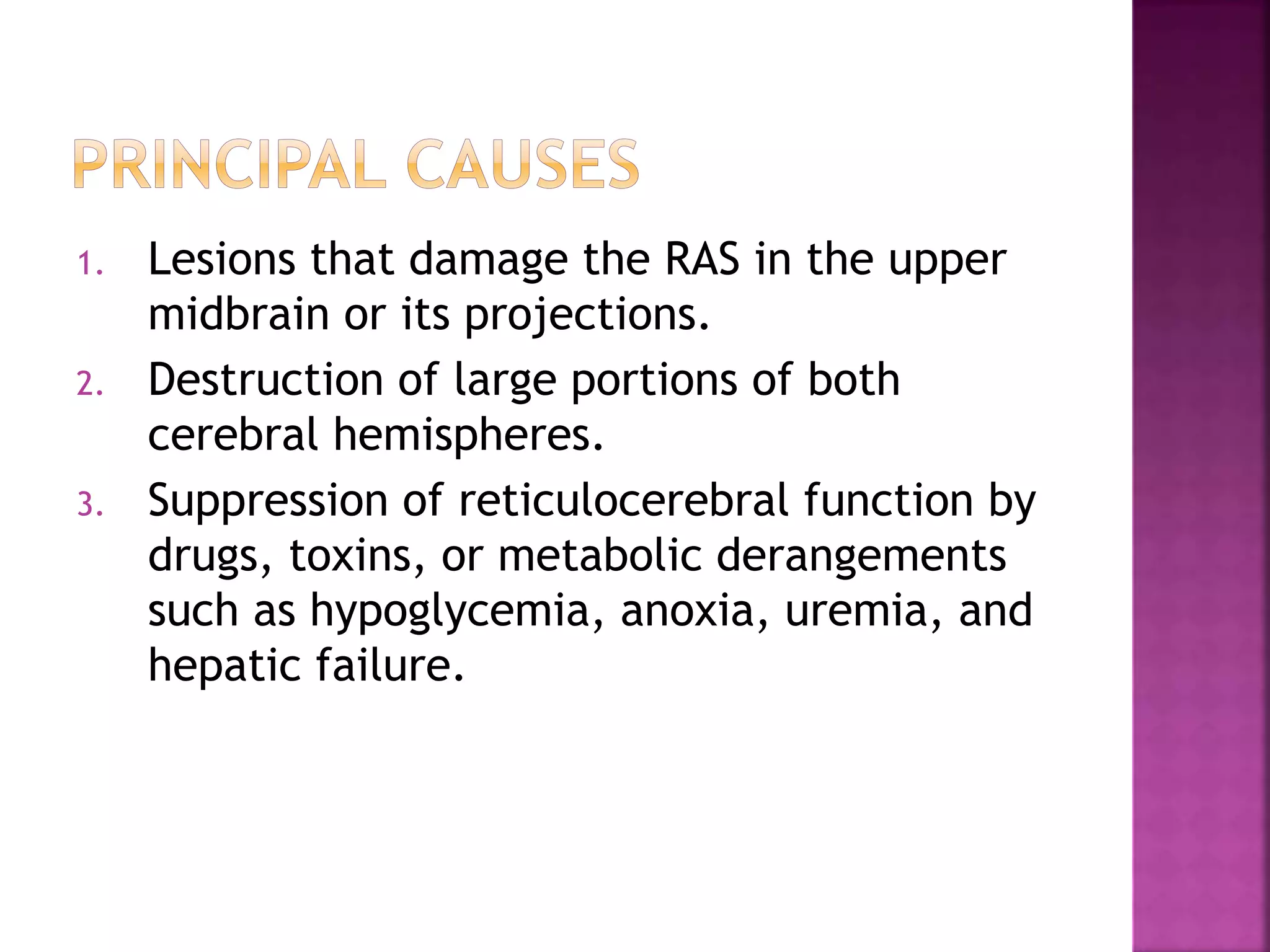

1. Lesions that damage the RAS in the upper
midbrain or its projections.
2. Destruction of large portions of both
cerebral hemispheres.
3. Suppression of reticulocerebral function by
drugs, toxins, or metabolic derangements
such as hypoglycemia, anoxia, uremia, and
hepatic failure.
Outline of causes of coma Body
A. Functional Lack of substrate Hypoglycaemia
 Hypoxia
 Hypotension
 Stroke
 Depression of function Hypothermia
 Drugs (including alcohol)
 Abnormal function Epilepsy
 Metabolic
 Diabetes mellitus
 Renal failure
 Hepatic failure
 Hypothyroidism
B. Structural Diffuse Meningitis
 Encephalitis
 Other infections (e.g. cerebral malaria)
 Subarachnoid haemorrhage
 Head injury
 Hypertensive encephalopathy
 Focal
Supratentorial lesions Cerebral haemorrhage
 Cerebral infarction with oedema
 Subdural haematoma
 Extradural haematoma
 Tumour
 Cerebral abscess
 Pituitary apoplexy
 Subtentorial lesions Cerebellar haemorrhage
 Pontine haemorrhage
 Brainstem infarction
 Tumour
 Cerebellar abscess
 Secondary effects of transtentorial herniation of brain due to cerebral mass lesions

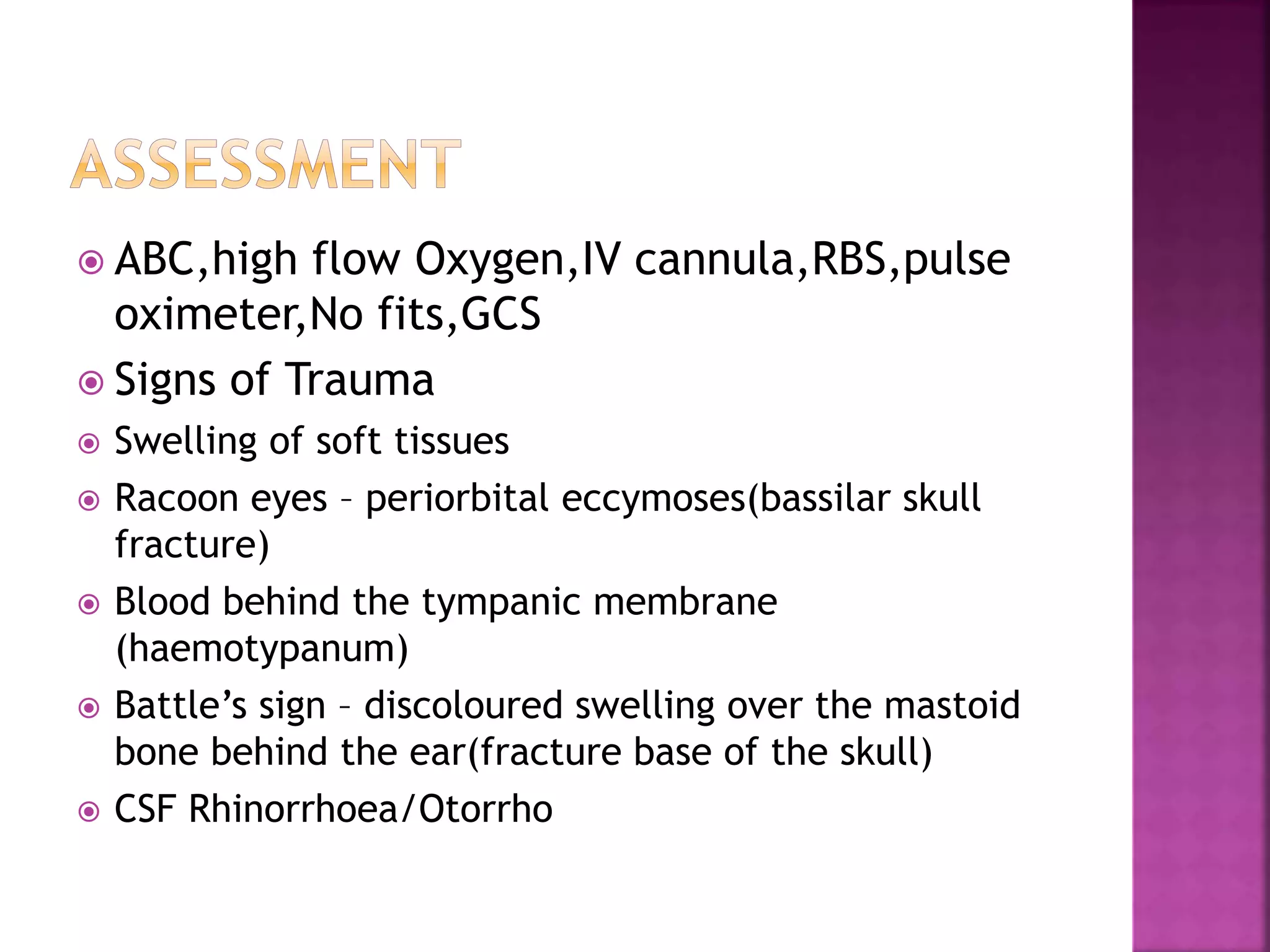

 ABC,high flow Oxygen,IV cannula,RBS,pulse
oximeter,No fits,GCS
 Signs of Trauma
 Swelling of soft tissues
 Racoon eyes – periorbital eccymoses(bassilar skull
fracture)
 Blood behind the tympanic membrane
(haemotypanum)
 Battle’s sign – discoloured swelling over the mastoid
bone behind the ear(fracture base of the skull)
 CSF Rhinorrhoea/Otorrho

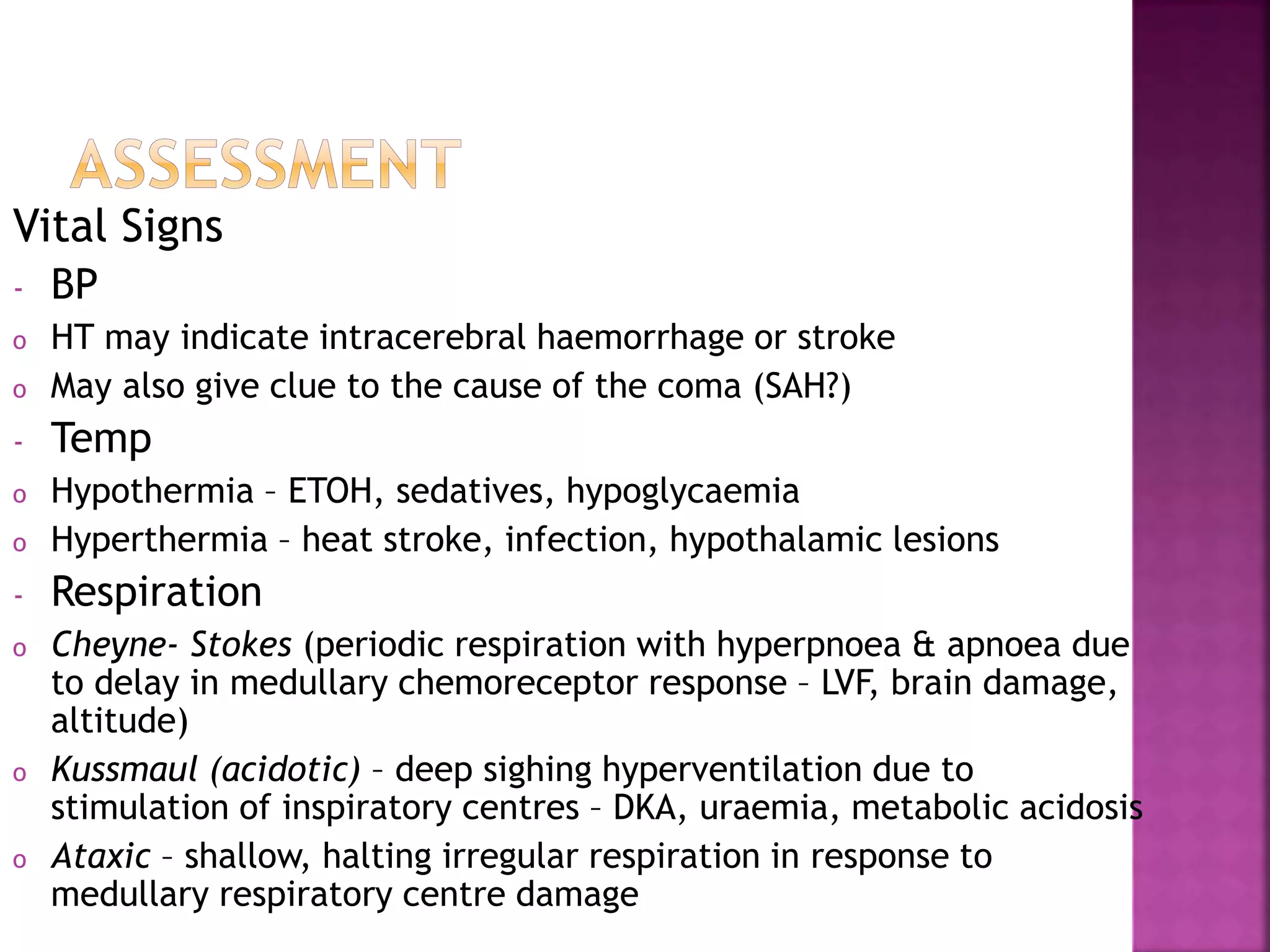

Vital Signs
- BP
o HT may indicate intracerebral haemorrhage or stroke
o May also give clue to the cause of the coma (SAH?)
- Temp
o Hypothermia – ETOH, sedatives, hypoglycaemia
o Hyperthermia – heat stroke, infection, hypothalamic lesions
- Respiration
o Cheyne- Stokes (periodic respiration with hyperpnoea & apnoea due
to delay in medullary chemoreceptor response – LVF, brain damage,
altitude)
o Kussmaul (acidotic) – deep sighing hyperventilation due to
stimulation of inspiratory centres – DKA, uraemia, metabolic acidosis
o Ataxic – shallow, halting irregular respiration in response to
medullary respiratory centre damage
Pupils
Normal
- 3-4mm in diameter, equal bilaterally
- Constrict briskly+ symmetrically to light
- Metabolic acidosis & CNS depressant drugs (not opiates)
Pin-point
- 1-1.5mm in diameter
- Opioid overdose
- Pontine lesions, organophosphate poisoning
Pupils
Fixed Dilated
- 7mm or more and fixed (not reactive to light
- Results from compression of CN III
- Common in herniation of the medial temporal lobe
- Fixed Mid-size
- 5mm in diameter & fixed
- Commonly from brainstem lesion at midbrain level
Anisocoria (Assymetrical)
- Less than 1mm difference in normal people (20% cases)
- Pupil that has reduced constriction – lesion affecting midbrain or
CNIII

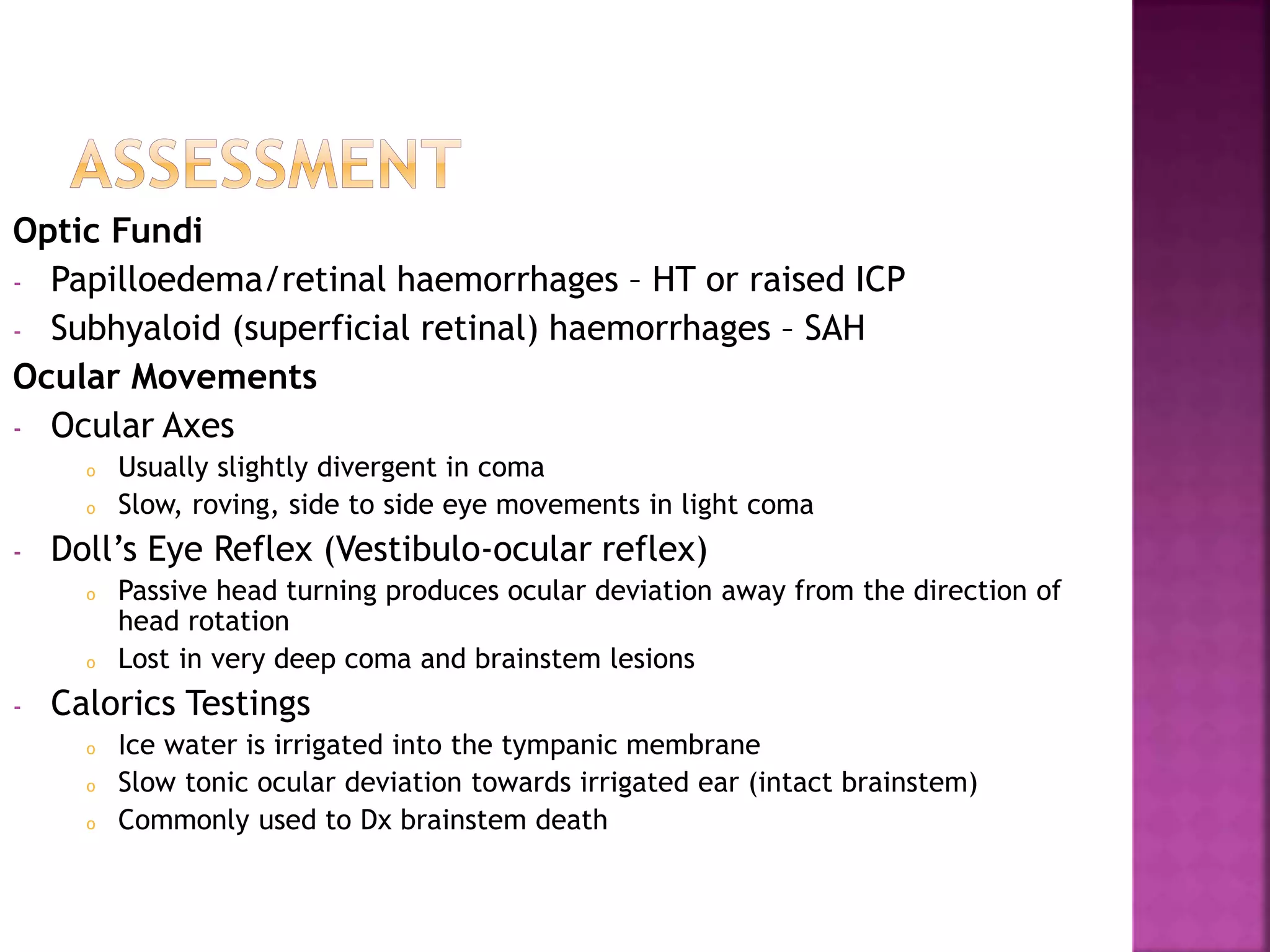

Optic Fundi
- Papilloedema/retinal haemorrhages – HT or raised ICP
- Subhyaloid (superficial retinal) haemorrhages – SAH
Ocular Movements
- Ocular Axes
o Usually slightly divergent in coma
o Slow, roving, side to side eye movements in light coma
- Doll’s Eye Reflex (Vestibulo-ocular reflex)
o Passive head turning produces ocular deviation away from the direction of
head rotation
o Lost in very deep coma and brainstem lesions
- Calorics Testings
o Ice water is irrigated into the tympanic membrane
o Slow tonic ocular deviation towards irrigated ear (intact brainstem)
o Commonly used to Dx brainstem death
 History
-Circumstances +Rapidity of devt of symptoms
-antencedent symptoms(confusion,weakness,
headache, fever, seizures, dizziness, double
vision, or vomiting
-Illicit drug use
-Chronic dz:liver,renal,lung,hiv,DM
 Physical Examination
-Evidence of trauma
-Fever:meningitis,malignant hyperthermia,heat
stroke,cerebral malaria
-Hypothermia:alcohol,sedatives,hypoglycaemia,
-tachypnoea:systemic acidosis,pneumonia
-HTN:hypertensive encephalopathy,cushing
response
-Hypotension: alcohol intoxication,internal
haemorrhage,sepsis
-Fundoscopy:icp,hypertensive encephalopathy
- Pattern of breathing:Cheyne-
Stokes,Kussmaul,Central Pontine Respiration

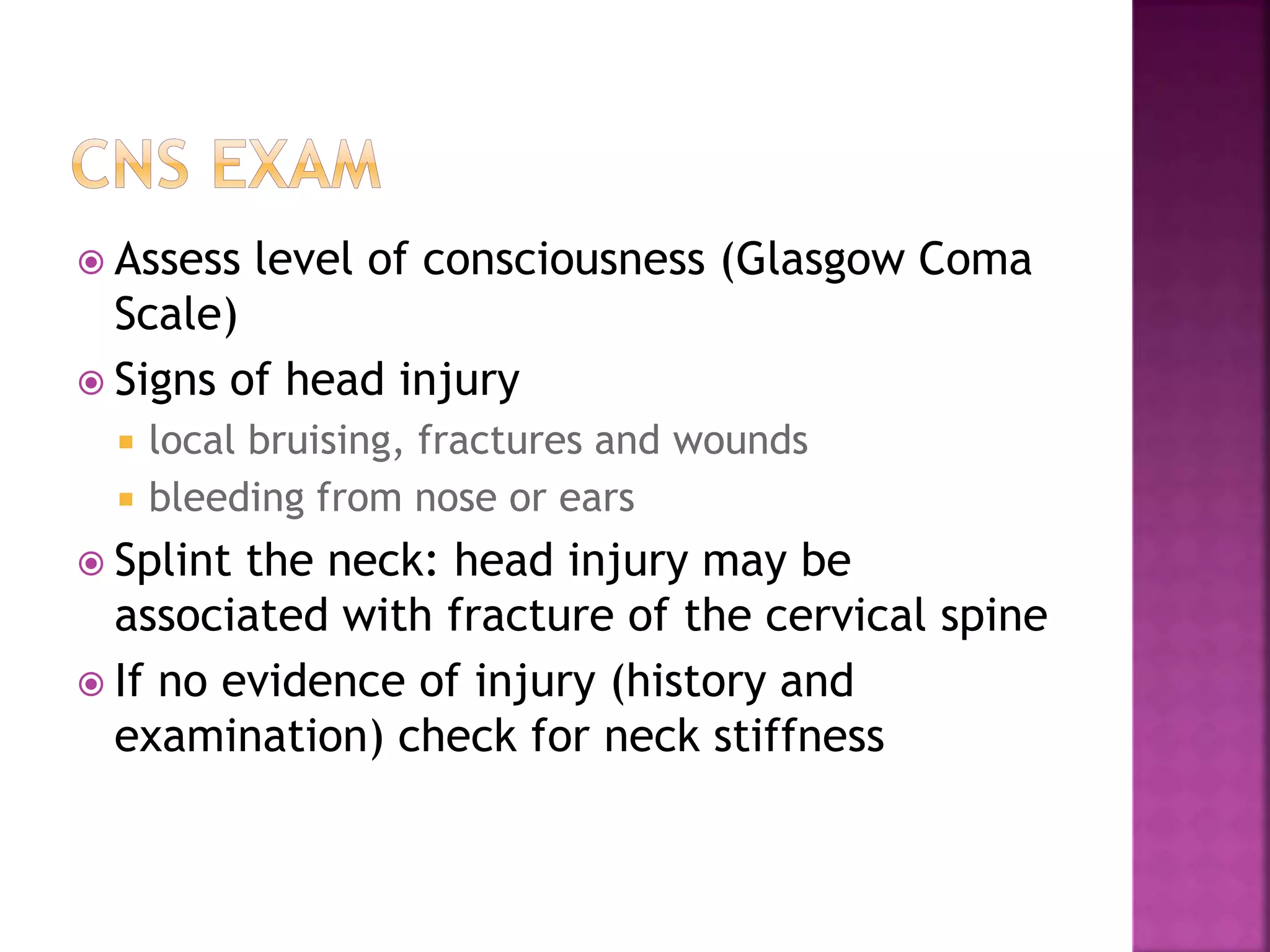

 Assess level of consciousness (Glasgow Coma
Scale)
 Signs of head injury
 local bruising, fractures and wounds
 bleeding from nose or ears
 Splint the neck: head injury may be
associated with fracture of the cervical spine
 If no evidence of injury (history and
examination) check for neck stiffness
 Check resting pupillary size, and pupillary
responses to light
 Ocular movements: spontaneous, following
and to 'doll's head' (if no voluntary response)
 Limbs: posture, tone and movement
 Reflexes and plantar responses
 Fundi
 RBS(always confirm hypoglycaemia by laboratory
measurement)
 Hb, Hct, WBC count, clotting
 Electrolytes and liver function tests
 Blood gases and pH
 CT head scan
 Chest X-ray
 X-ray of suspected fractures/bruised limbs
 Blood for cross-matching
 Drug screen ,Urinalysis
 LP
 Locked-in syndrome
 Psychogenic unresponsiveness
 Akinetic mutism
 prevention of further NS damage
So rapidly correct
hypoglycaemia,hypercapnia,hypotension,hyperthermia
,hypercalcaemia, and hypoxia
 Wernickes:IV Thiamine(400mg bd x 5days +glucose)
 Narcotic overdose:Naloxone
 Anti-cholinergic overdose: Physostigmine
 Hypoglycaemia:20-50g of 50% glucose
 This is a state of cessation of cerebral
function with preservation of cardiac activity
and maintenance of somatic function by
artificial means
Coma

Coma

  • 1.
  • 2.
     Definition  Epedimiology Aetiology  Approach to a comatose patient  Brain death
  • 3.
    Coma is adeep sleeplike state from which the patient cannot be aroused. Its is the most severe form on the continuum of reduced levels of alertness. -Vegetative state(awake bt unresponsive from coma) -Stupor(transiently awakened by vigorous stimuli) -Drowsiness(light sleep)
  • 4.
    1. Lesions thatdamage the RAS in the upper midbrain or its projections. 2. Destruction of large portions of both cerebral hemispheres. 3. Suppression of reticulocerebral function by drugs, toxins, or metabolic derangements such as hypoglycemia, anoxia, uremia, and hepatic failure.
  • 5.
    Outline of causesof coma Body A. Functional Lack of substrate Hypoglycaemia  Hypoxia  Hypotension  Stroke  Depression of function Hypothermia  Drugs (including alcohol)  Abnormal function Epilepsy  Metabolic  Diabetes mellitus  Renal failure  Hepatic failure  Hypothyroidism B. Structural Diffuse Meningitis  Encephalitis  Other infections (e.g. cerebral malaria)  Subarachnoid haemorrhage  Head injury  Hypertensive encephalopathy  Focal Supratentorial lesions Cerebral haemorrhage  Cerebral infarction with oedema  Subdural haematoma  Extradural haematoma  Tumour  Cerebral abscess  Pituitary apoplexy  Subtentorial lesions Cerebellar haemorrhage  Pontine haemorrhage  Brainstem infarction  Tumour  Cerebellar abscess  Secondary effects of transtentorial herniation of brain due to cerebral mass lesions
  • 6.
     ABC,high flowOxygen,IV cannula,RBS,pulse oximeter,No fits,GCS  Signs of Trauma  Swelling of soft tissues  Racoon eyes – periorbital eccymoses(bassilar skull fracture)  Blood behind the tympanic membrane (haemotypanum)  Battle’s sign – discoloured swelling over the mastoid bone behind the ear(fracture base of the skull)  CSF Rhinorrhoea/Otorrho
  • 8.
    Vital Signs - BP oHT may indicate intracerebral haemorrhage or stroke o May also give clue to the cause of the coma (SAH?) - Temp o Hypothermia – ETOH, sedatives, hypoglycaemia o Hyperthermia – heat stroke, infection, hypothalamic lesions - Respiration o Cheyne- Stokes (periodic respiration with hyperpnoea & apnoea due to delay in medullary chemoreceptor response – LVF, brain damage, altitude) o Kussmaul (acidotic) – deep sighing hyperventilation due to stimulation of inspiratory centres – DKA, uraemia, metabolic acidosis o Ataxic – shallow, halting irregular respiration in response to medullary respiratory centre damage
  • 9.
    Pupils Normal - 3-4mm indiameter, equal bilaterally - Constrict briskly+ symmetrically to light - Metabolic acidosis & CNS depressant drugs (not opiates) Pin-point - 1-1.5mm in diameter - Opioid overdose - Pontine lesions, organophosphate poisoning
  • 10.
    Pupils Fixed Dilated - 7mmor more and fixed (not reactive to light - Results from compression of CN III - Common in herniation of the medial temporal lobe - Fixed Mid-size - 5mm in diameter & fixed - Commonly from brainstem lesion at midbrain level Anisocoria (Assymetrical) - Less than 1mm difference in normal people (20% cases) - Pupil that has reduced constriction – lesion affecting midbrain or CNIII
  • 11.
    Optic Fundi - Papilloedema/retinalhaemorrhages – HT or raised ICP - Subhyaloid (superficial retinal) haemorrhages – SAH Ocular Movements - Ocular Axes o Usually slightly divergent in coma o Slow, roving, side to side eye movements in light coma - Doll’s Eye Reflex (Vestibulo-ocular reflex) o Passive head turning produces ocular deviation away from the direction of head rotation o Lost in very deep coma and brainstem lesions - Calorics Testings o Ice water is irrigated into the tympanic membrane o Slow tonic ocular deviation towards irrigated ear (intact brainstem) o Commonly used to Dx brainstem death
  • 12.
     History -Circumstances +Rapidityof devt of symptoms -antencedent symptoms(confusion,weakness, headache, fever, seizures, dizziness, double vision, or vomiting -Illicit drug use -Chronic dz:liver,renal,lung,hiv,DM
  • 13.
     Physical Examination -Evidenceof trauma -Fever:meningitis,malignant hyperthermia,heat stroke,cerebral malaria -Hypothermia:alcohol,sedatives,hypoglycaemia, -tachypnoea:systemic acidosis,pneumonia
  • 14.
    -HTN:hypertensive encephalopathy,cushing response -Hypotension: alcoholintoxication,internal haemorrhage,sepsis -Fundoscopy:icp,hypertensive encephalopathy - Pattern of breathing:Cheyne- Stokes,Kussmaul,Central Pontine Respiration
  • 15.
     Assess levelof consciousness (Glasgow Coma Scale)  Signs of head injury  local bruising, fractures and wounds  bleeding from nose or ears  Splint the neck: head injury may be associated with fracture of the cervical spine  If no evidence of injury (history and examination) check for neck stiffness
  • 16.
     Check restingpupillary size, and pupillary responses to light  Ocular movements: spontaneous, following and to 'doll's head' (if no voluntary response)  Limbs: posture, tone and movement  Reflexes and plantar responses  Fundi
  • 17.
     RBS(always confirmhypoglycaemia by laboratory measurement)  Hb, Hct, WBC count, clotting  Electrolytes and liver function tests  Blood gases and pH  CT head scan  Chest X-ray  X-ray of suspected fractures/bruised limbs  Blood for cross-matching  Drug screen ,Urinalysis  LP
  • 18.
     Locked-in syndrome Psychogenic unresponsiveness  Akinetic mutism
  • 19.
     prevention offurther NS damage So rapidly correct hypoglycaemia,hypercapnia,hypotension,hyperthermia ,hypercalcaemia, and hypoxia  Wernickes:IV Thiamine(400mg bd x 5days +glucose)  Narcotic overdose:Naloxone  Anti-cholinergic overdose: Physostigmine  Hypoglycaemia:20-50g of 50% glucose
  • 20.
     This isa state of cessation of cerebral function with preservation of cardiac activity and maintenance of somatic function by artificial means
