Codemotion 2013 Madrid - Modern OOP embedded development with .NET Micro Framework
1. Lorenzo Maiorfi
Modern OOP embedded development with
.NET Micro Framework
maiorfi@innovactive.it – www.innovactive.it www.tinyclr.it

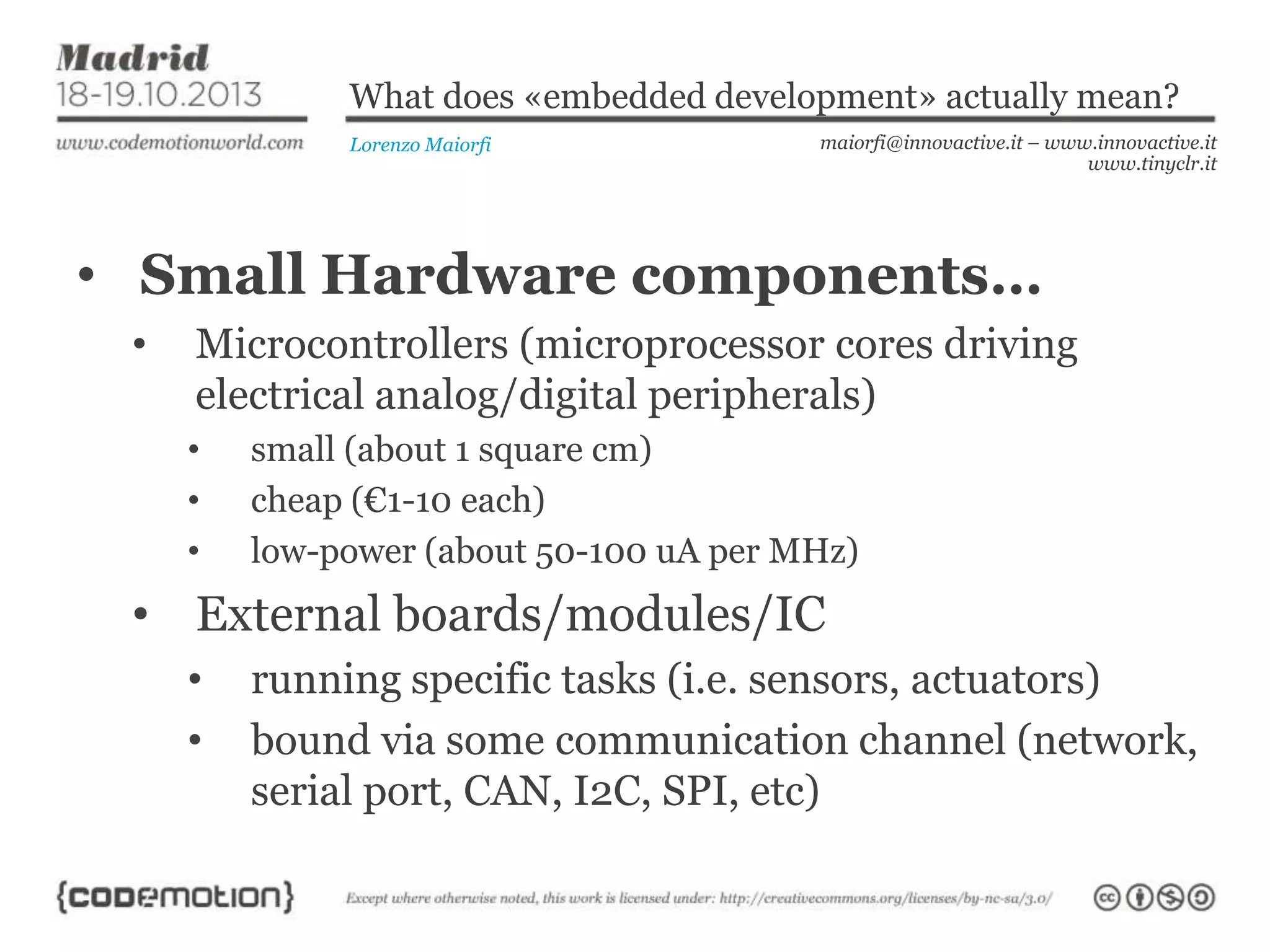

2. What does «embedded development» actually mean?
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
• Small Hardware components…
•
Microcontrollers (microprocessor cores driving
electrical analog/digital peripherals)
•
•
•
small (about 1 square cm)
cheap (€1-10 each)
low-power (about 50-100 uA per MHz)
• External boards/modules/IC
•
•
running specific tasks (i.e. sensors, actuators)
bound via some communication channel (network,
serial port, CAN, I2C, SPI, etc)

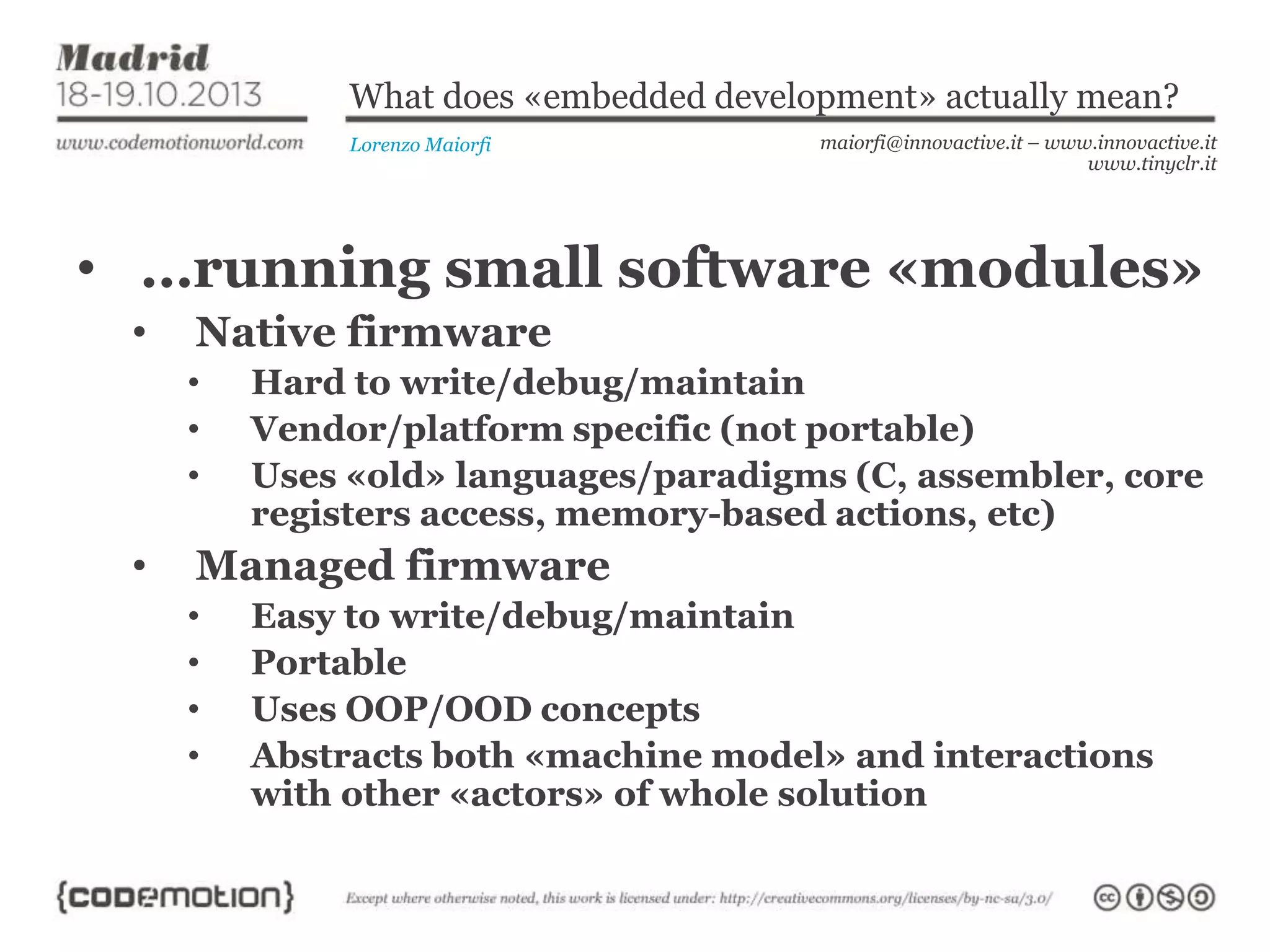

3. What does «embedded development» actually mean?
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
• …running small software «modules»
•
Native firmware
•
•
•
•
Hard to write/debug/maintain
Vendor/platform specific (not portable)
Uses «old» languages/paradigms (C, assembler, core
registers access, memory-based actions, etc)
Managed firmware
•
•
•
•
Easy to write/debug/maintain
Portable
Uses OOP/OOD concepts
Abstracts both «machine model» and interactions
with other «actors» of whole solution

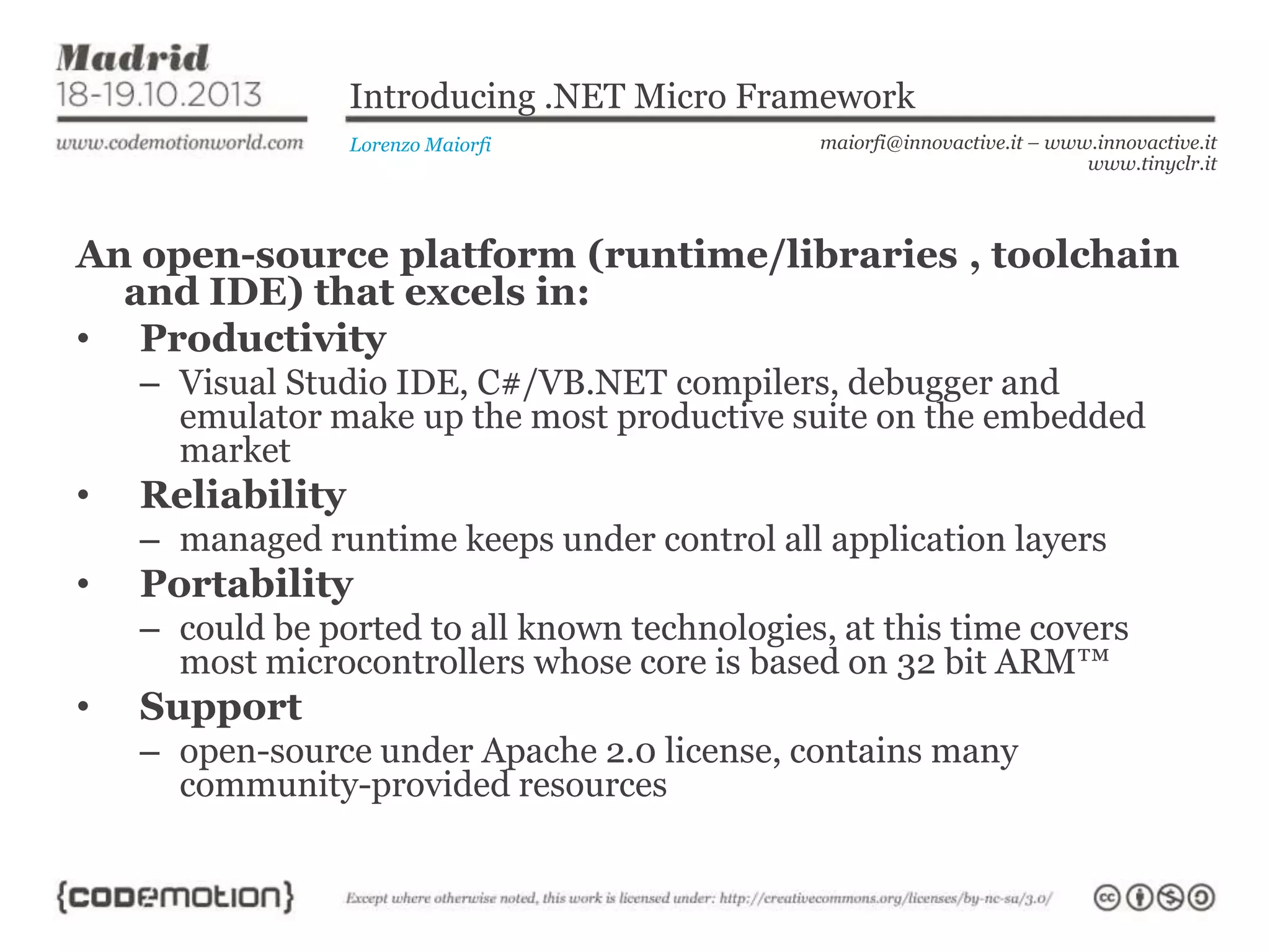

4. Introducing .NET Micro Framework
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
An open-source platform (runtime/libraries , toolchain
and IDE) that excels in:
• Productivity
– Visual Studio IDE, C#/VB.NET compilers, debugger and
emulator make up the most productive suite on the embedded
market
•
Reliability
– managed runtime keeps under control all application layers
•
Portability
– could be ported to all known technologies, at this time covers
most microcontrollers whose core is based on 32 bit ARM™
•
Support
– open-source under Apache 2.0 license, contains many
community-provided resources

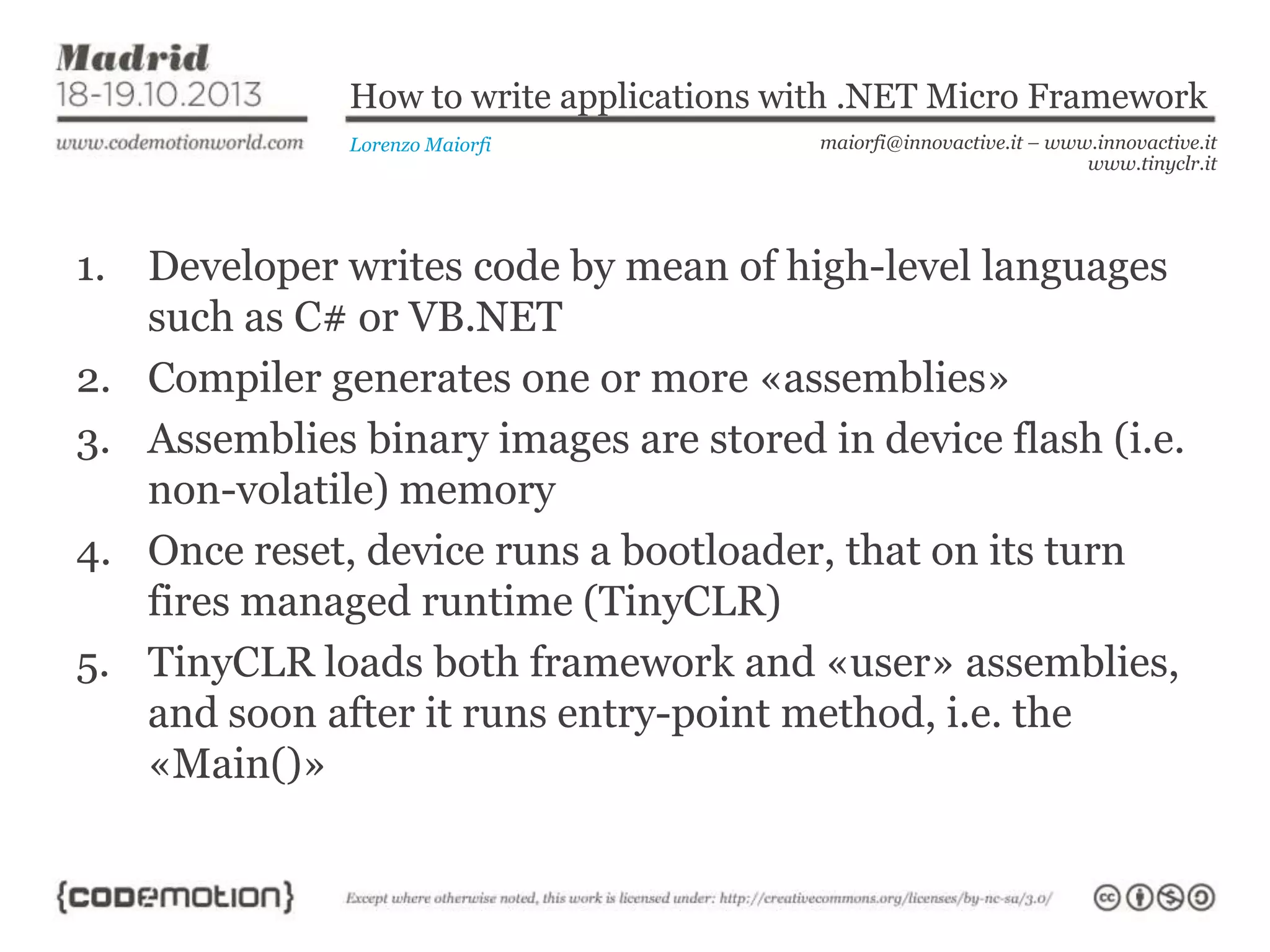

5. How to write applications with .NET Micro Framework
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
1. Developer writes code by mean of high-level languages
such as C# or VB.NET
2. Compiler generates one or more «assemblies»
3. Assemblies binary images are stored in device flash (i.e.
non-volatile) memory
4. Once reset, device runs a bootloader, that on its turn
fires managed runtime (TinyCLR)
5. TinyCLR loads both framework and «user» assemblies,
and soon after it runs entry-point method, i.e. the
«Main()»

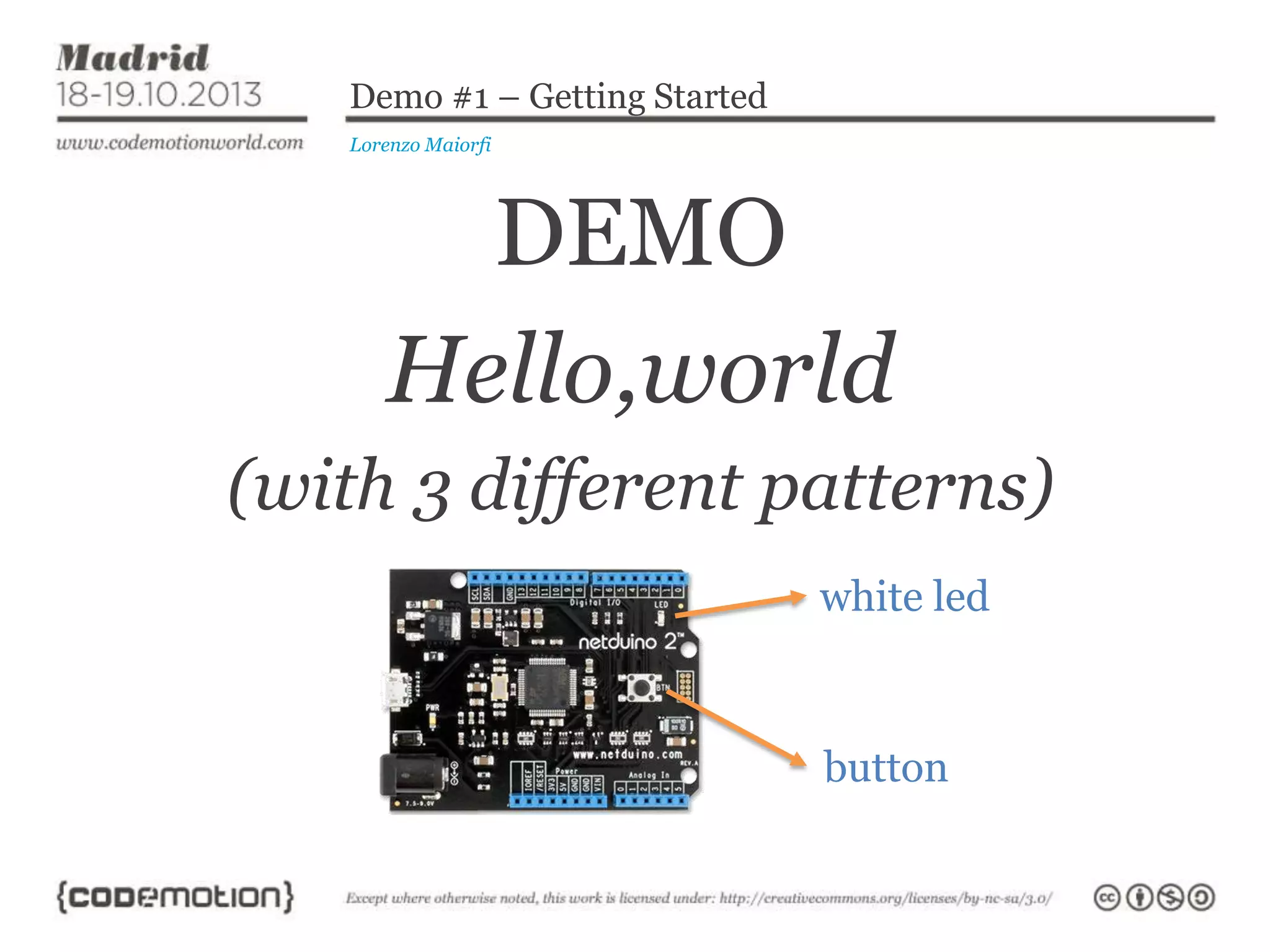

6. Demo #1 – Getting Started
Lorenzo Maiorfi
DEMO
Hello,world
(with 3 different patterns)
white led
button

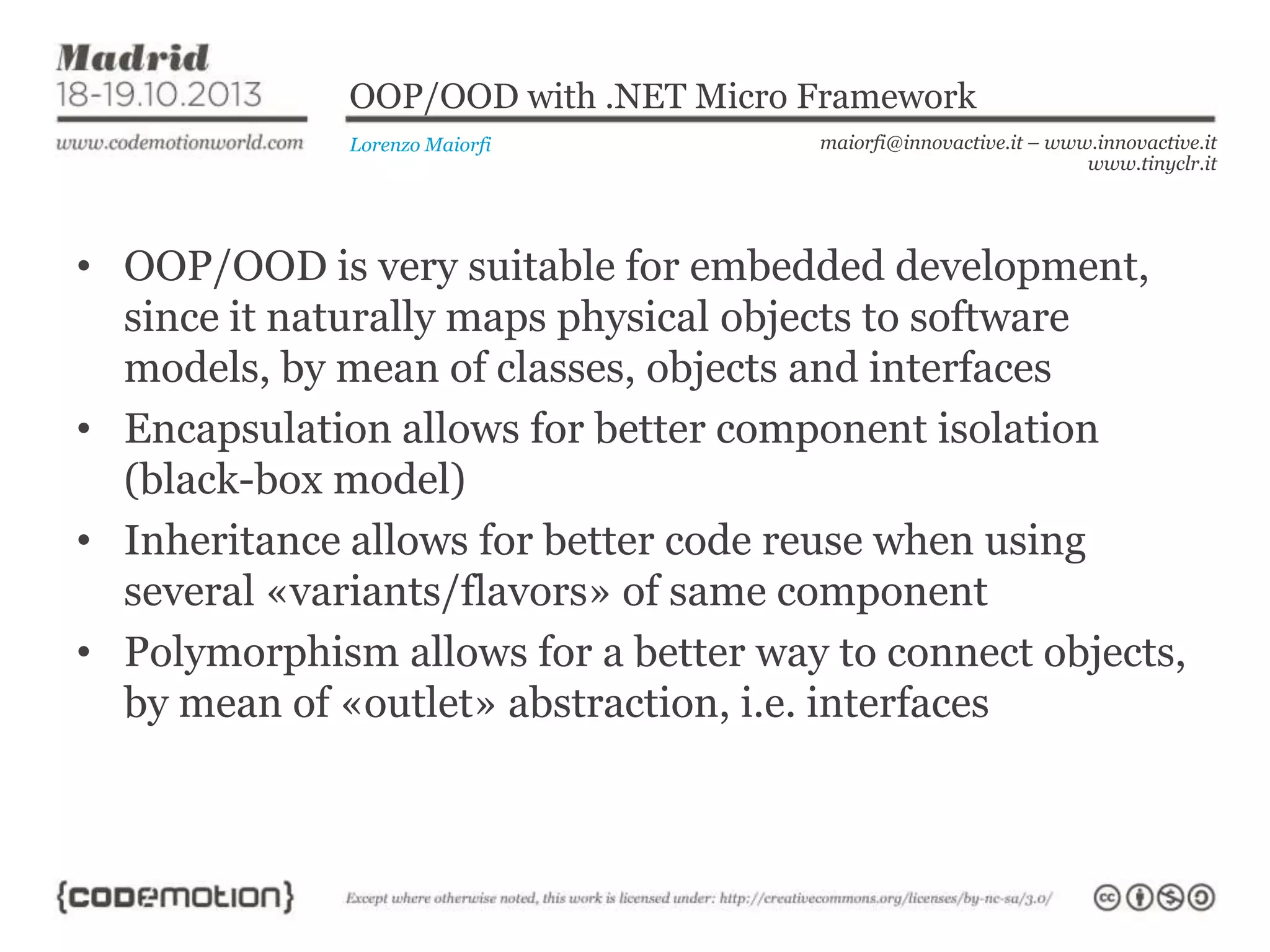

7. OOP/OOD with .NET Micro Framework
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
• OOP/OOD is very suitable for embedded development,
since it naturally maps physical objects to software
models, by mean of classes, objects and interfaces
• Encapsulation allows for better component isolation
(black-box model)
• Inheritance allows for better code reuse when using
several «variants/flavors» of same component
• Polymorphism allows for a better way to connect objects,
by mean of «outlet» abstraction, i.e. interfaces

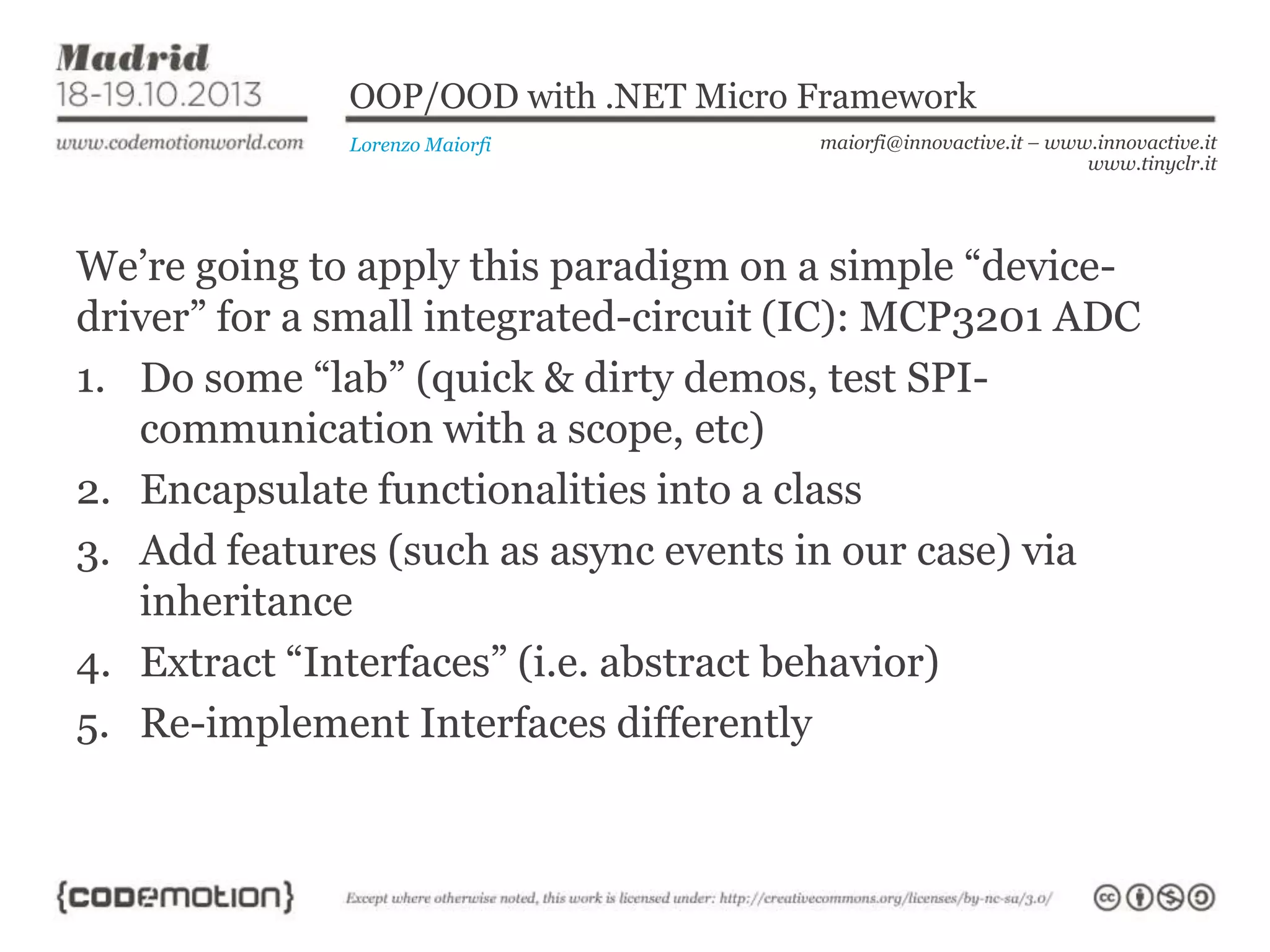

8. OOP/OOD with .NET Micro Framework
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
We’re going to apply this paradigm on a simple “devicedriver” for a small integrated-circuit (IC): MCP3201 ADC
1. Do some “lab” (quick & dirty demos, test SPIcommunication with a scope, etc)
2. Encapsulate functionalities into a class
3. Add features (such as async events in our case) via
inheritance
4. Extract “Interfaces” (i.e. abstract behavior)
5. Re-implement Interfaces differently

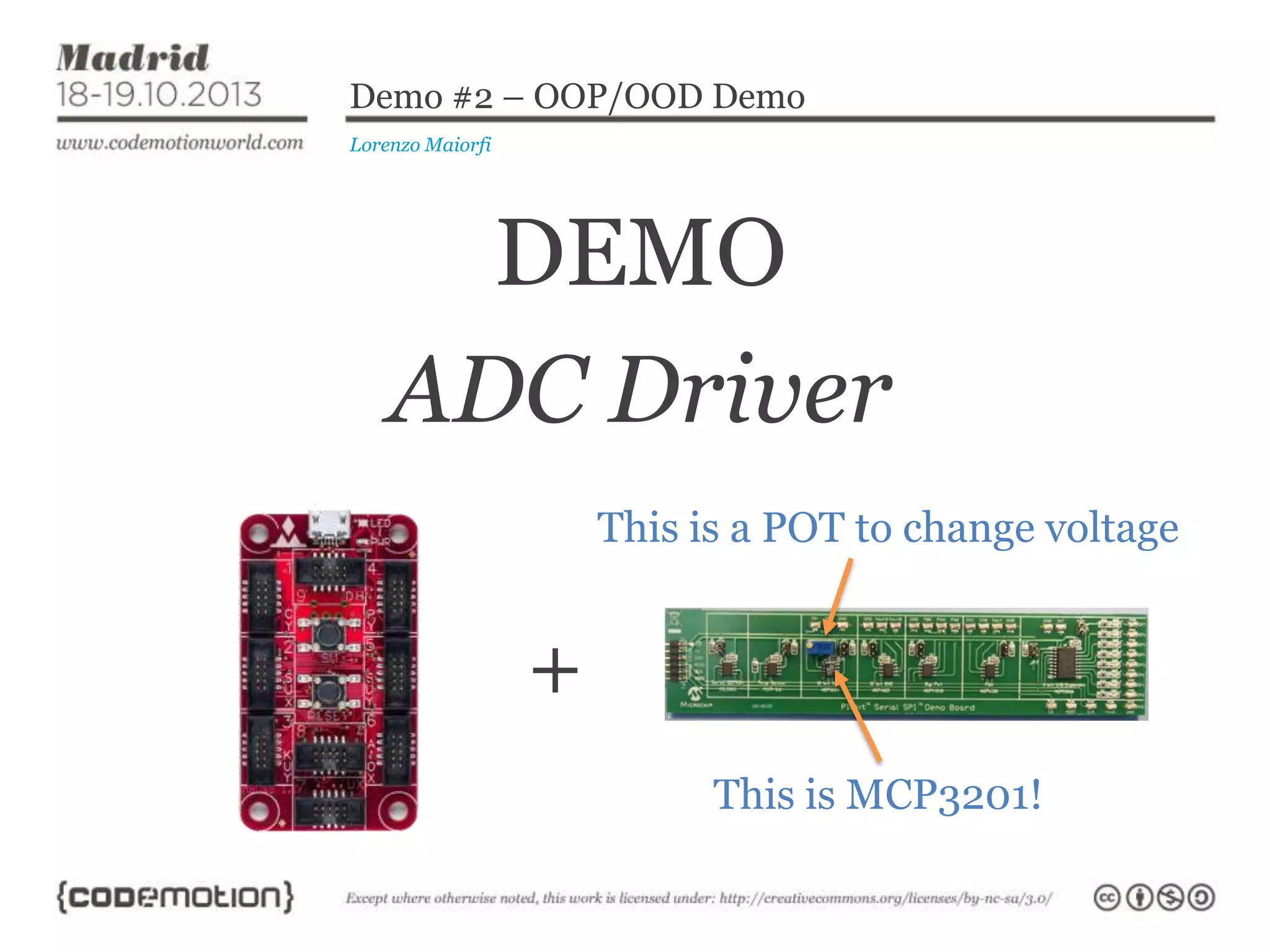

9. Demo #2 – OOP/OOD Demo
Lorenzo Maiorfi
DEMO
ADC Driver
This is a POT to change voltage
+
This is MCP3201!

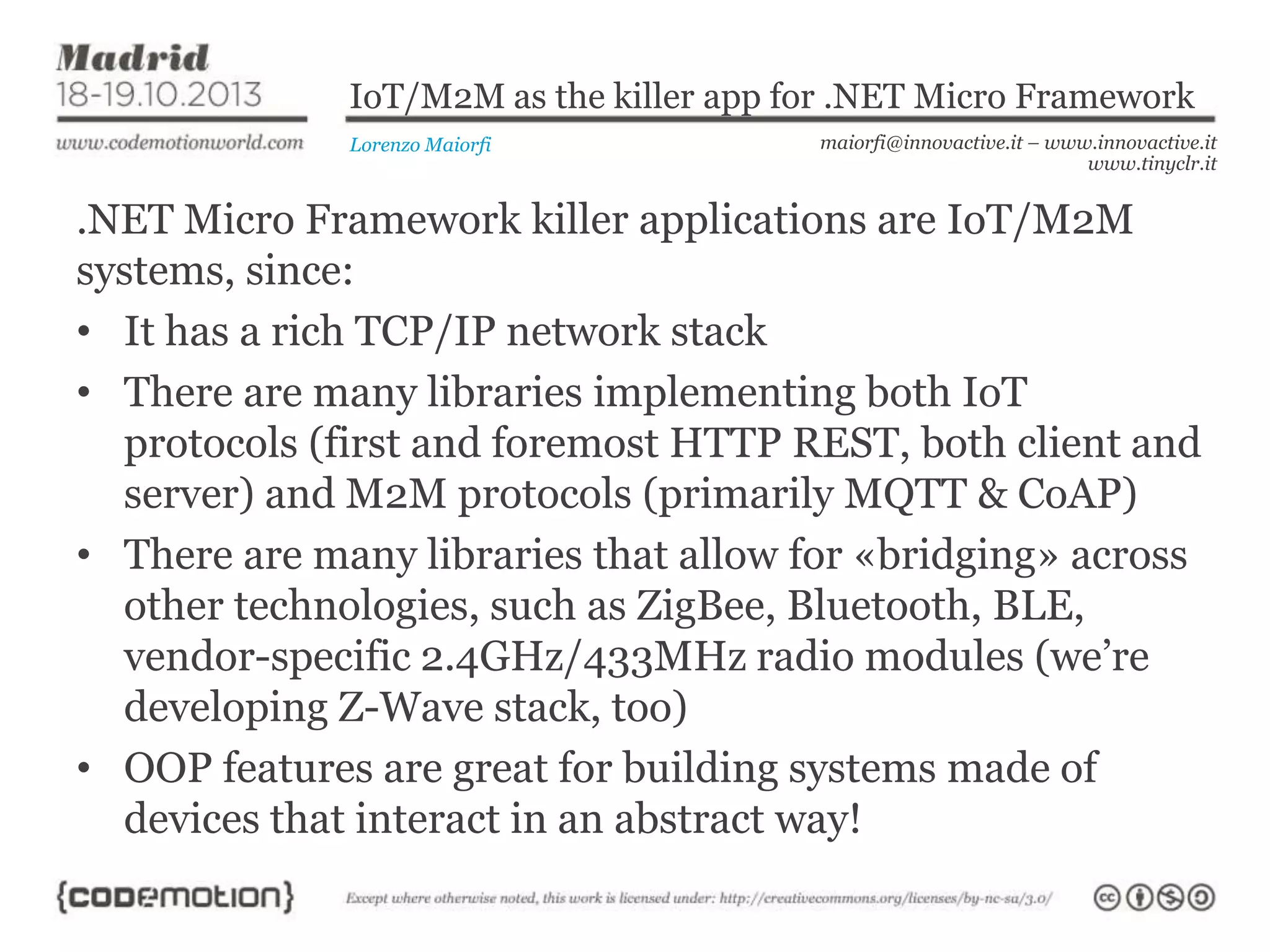

10. IoT/M2M as the killer app for .NET Micro Framework
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
.NET Micro Framework killer applications are IoT/M2M
systems, since:
• It has a rich TCP/IP network stack
• There are many libraries implementing both IoT
protocols (first and foremost HTTP REST, both client and
server) and M2M protocols (primarily MQTT & CoAP)
• There are many libraries that allow for «bridging» across
other technologies, such as ZigBee, Bluetooth, BLE,
vendor-specific 2.4GHz/433MHz radio modules (we’re
developing Z-Wave stack, too)
• OOP features are great for building systems made of
devices that interact in an abstract way!

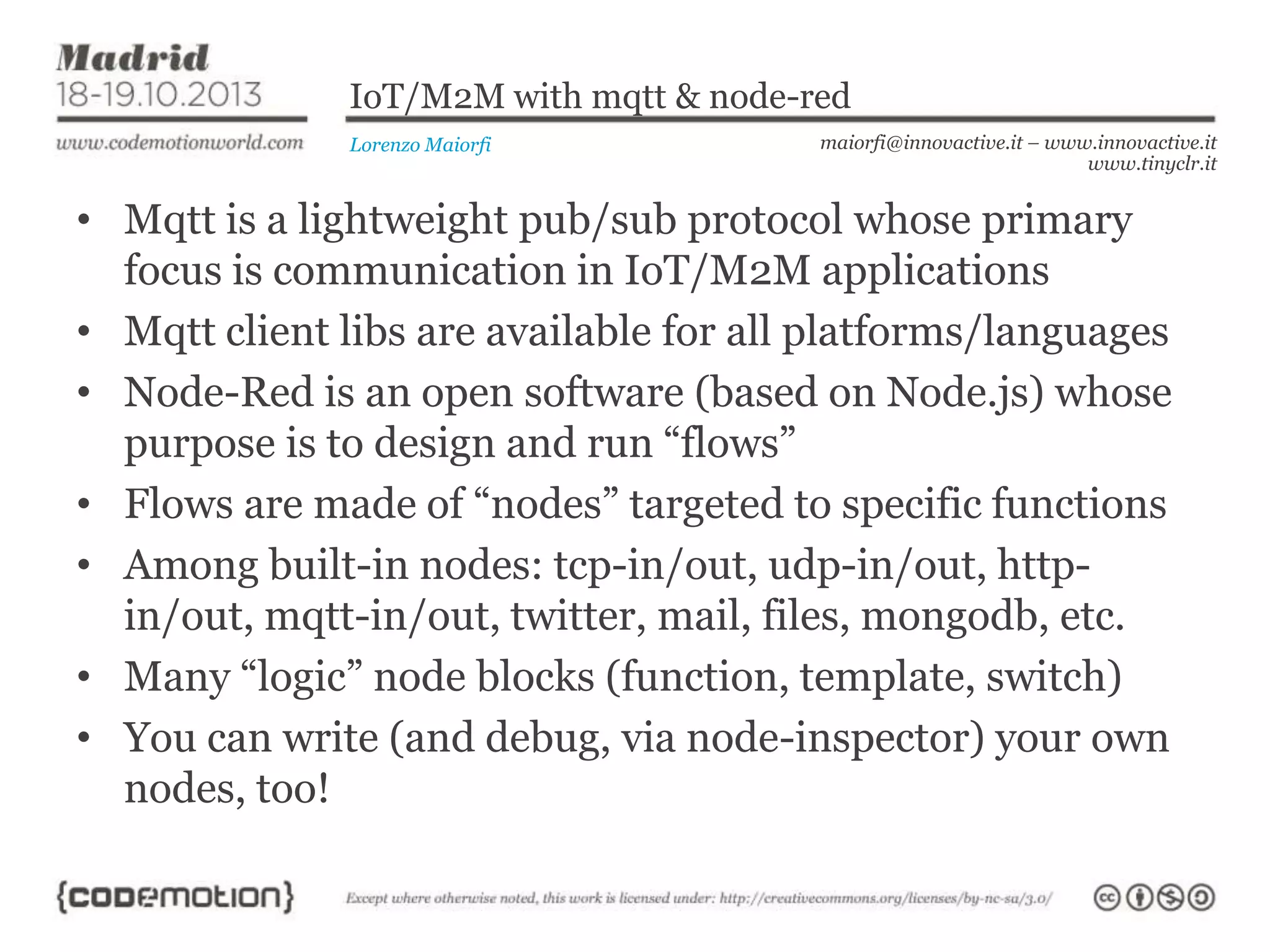

11. IoT/M2M with mqtt & node-red
Lorenzo Maiorfi
maiorfi@innovactive.it – www.innovactive.it
www.tinyclr.it
• Mqtt is a lightweight pub/sub protocol whose primary
focus is communication in IoT/M2M applications
• Mqtt client libs are available for all platforms/languages
• Node-Red is an open software (based on Node.js) whose
purpose is to design and run “flows”
• Flows are made of “nodes” targeted to specific functions
• Among built-in nodes: tcp-in/out, udp-in/out, httpin/out, mqtt-in/out, twitter, mail, files, mongodb, etc.
• Many “logic” node blocks (function, template, switch)
• You can write (and debug, via node-inspector) your own
nodes, too!

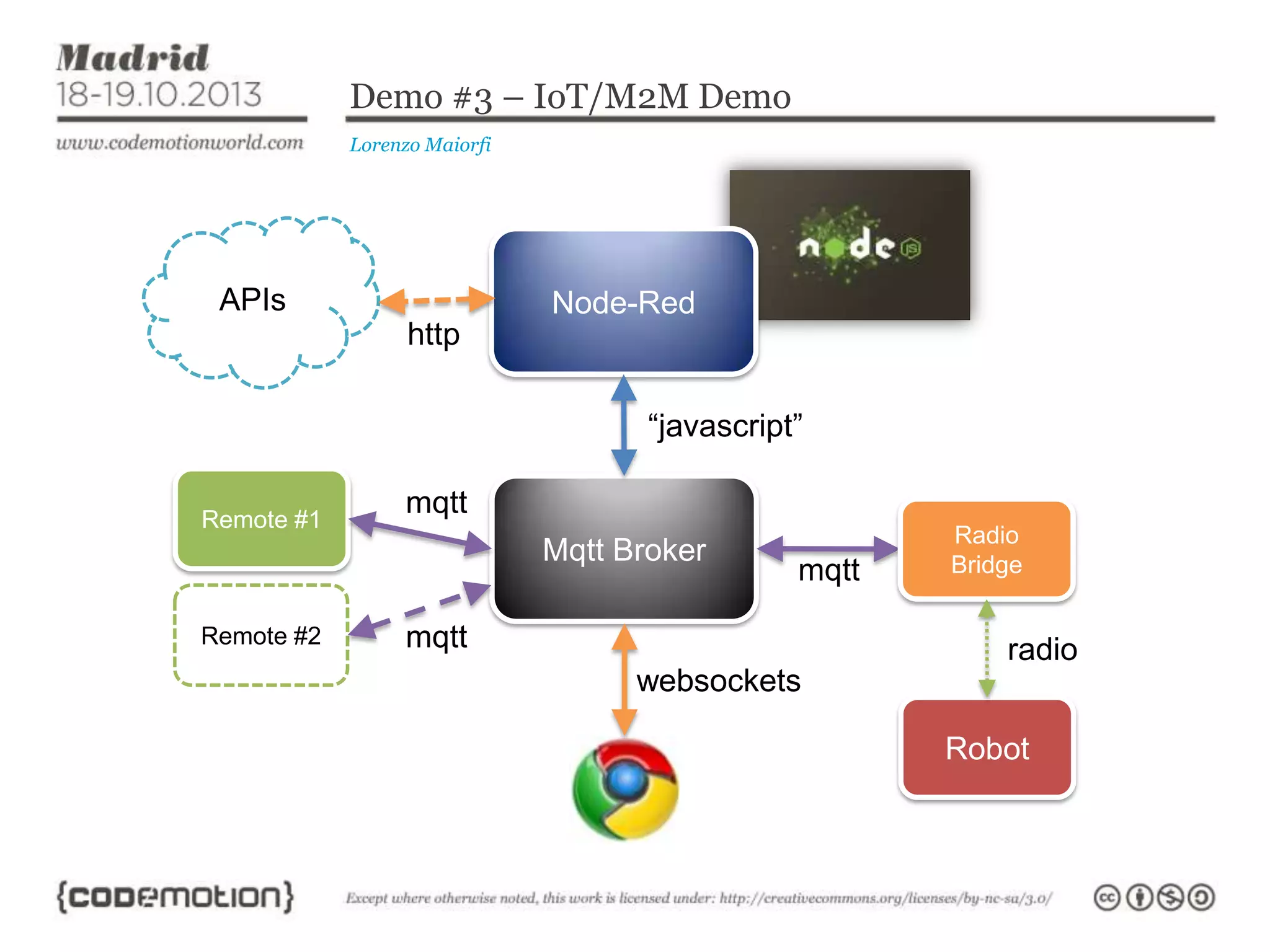

12. Demo #3 – IoT/M2M Demo
Lorenzo Maiorfi
APIs
Node-Red
http
“javascript”
Remote #1
mqtt
Mqtt Broker
Remote #2
mqtt
mqtt
Radio
Bridge
radio
websockets
Robot
