CODE GENERATION PHASE COMPILER DESIGN

1. Code Generation
How to produce intermediate or
target code

2. 2301373 Code Generation 2

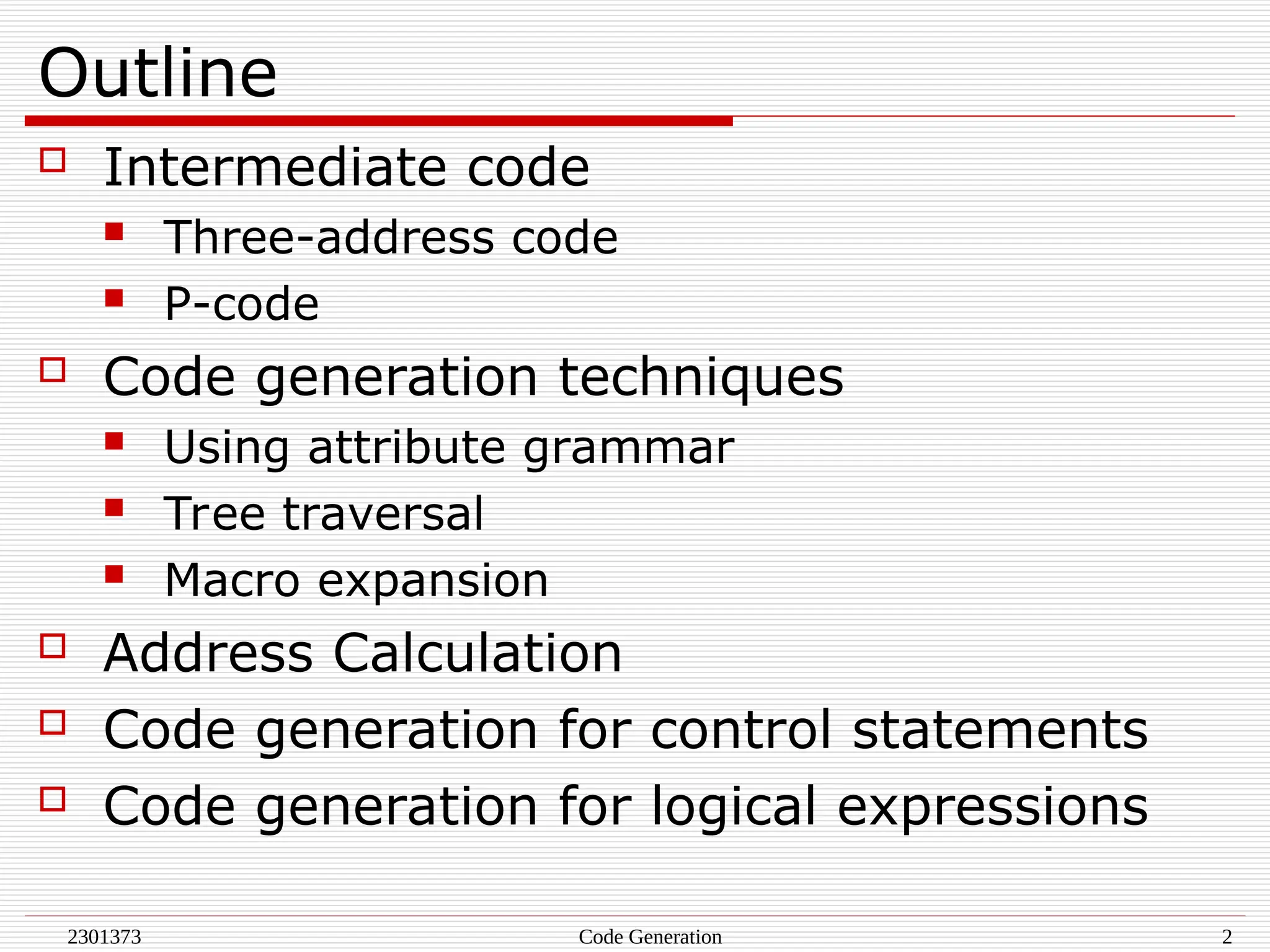

Outline
 Intermediate code
 Three-address code
 P-code
 Code generation techniques
 Using attribute grammar
 Tree traversal
 Macro expansion
 Address Calculation
 Code generation for control statements
 Code generation for logical expressions

3. 2301373 Code Generation 3
Intermediate Code
 Intermediate representation for programs
 Why intermediate code
 Reduce amount of work if optimization is
done for intermediate code
 Easy for retargeting compilers
 Forms of intermediate code
 Abstract syntax tree
 Linearization of abstract syntax tree

4. 2301373 Code Generation 4
Three-address code: Form of Instructions
 x = y op z
 x, y, and z are addresses of
 Variables (perhaps temporaries)
 Locations in programs
 y and z must be differed from x
 Operators can be:
 Arithmetic operators (3-address)
 Relational operators (3-address)
 Conditional operators (2-address)
 If_false … goto …
 Jump (1-address)
 Input/Output
 Halt
 Labels can be assigned to a location

5. 2301373 Code Generation 5
Example of 3-address Code
read (x);
if x>0 then
{ fact:=1;
repeat
{ fact:=fact*x;
x:=x-1;
}
until x==0;
write(fact);
}
read x
t1=x>0
if_false t1 goto L1
fact=1
label L2
t2=fact*x
fact=t2
t3=x-1
x=t3
t4=x==0
if_false t4 goto L2
write fact
label L1
halt

6. 2301373 Code Generation 6
P-Code
 Code for a hypothetical stack machine
 For Pascal compilers
 No variable name is required
 Instructions
 Load stack
 Arithmetic and relational operators
 Jumps
 Operations are performed on topmost
values on stack
 0-address or 1-address instructions

7. 2301373 Code Generation 7
P-code Instruction
 Load: push stack
 Load value
 Load address
 Load constant
 Store: save top of
stack in memory
 Destructive store
 Nondestructive store
 Arithmetic operations
 Add
 Subtract
 Multiply
 Compare
 Greater
 Less
 equal
 Label
 Jump
 Unconditional jump
 Conditional jump
 I/O
 Read
 write
 Stop

8. 2301373 Code Generation 8
Example of P-code
read (x);
if x>0 then
{ fact:=1;
repeat
{
fact:=fact*x;
x:=x-1;
}
until x==0;
write(fact);
}
loada x
read
loadv x
loadc 0
greater
jumpONfalse L1
loada fact
loadc 1
store
label L2
loada fact
loadv fact
loadv x
mult
store
loada x
loadv x
loadc 1
sub
store
loadv x
loadc 0
equ
jumpF L2
loadv fact
write
label L1
stop

9. 2301373 Code Generation 9
Code Generation Using Synthesizes Attributes
 An attribute is created for the sequence
of characters representing generated
code.
 An attribute grammar is written to
generate the intermediate/target code.
 The value of the attribute is passed from
child nodes upto their parent node to
construct a larger chunk of code

10. 2301373 Code Generation 10
Attribute Grammar for P-code
Grammar Rules
exp1 -> id = exp2
exp -> aexp
aexp1 ->aexp2 + f
actor
aexp -> factor
factor -> ( exp )
factor -> num
factor -> id
Semantic Rules
exp1.code =“loada” || id.strval +
+ exp2.code ++ ”stn”
exp.code = aexp.code
aexp1 .code = aexp2 .code ++ fac
tor.code ++ “add”
aexp.code = factor.code
factor.code = exp.code
factor.code = “loadc ” || num.strv
al
factor.code = “loadv ” || id.strval

11. 2301373 Code Generation 11
Generating P-Code:Example
exp
=
id
exp
exp
aexp
aexp factor
+
factor
( )
aexp
aexp factor
+
factor
num
id
num
loada x
loadv x
loadc 3
adi
stn
loadc 4
adi
loadc 4
loada x
loadv x
loadc 3
adi
stn
loadv x
loadc 3
adi
loadv x loadc 3
loadv x
loadv x
loadc 3
adi
loada x
loadv x
loadc 3
adi
stn
loada x
loadv x
loadc 3
adi
stn
loada x
loadv x
loadc 3
adi
stn
loadc 4
adi

12. 2301373 Code Generation 12

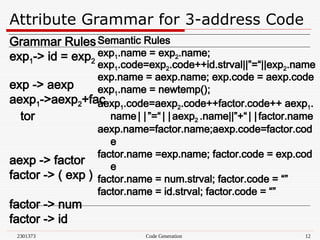

Attribute Grammar for 3-address Code
Grammar Rules
exp1-> id = exp2
exp -> aexp
aexp1->aexp2+fac
tor
aexp -> factor
factor -> ( exp )
factor -> num
factor -> id
Semantic Rules
exp1.name = exp2.name;
exp1.code=exp2.code++id.strval||”=“||exp2.name
exp.name = aexp.name; exp.code = aexp.code
exp1.name = newtemp();
aexp1.code=aexp2.code++factor.code++ aexp1.
name||”=“||aexp2 .name||”+“||factor.name
aexp.name=factor.name;aexp.code=factor.cod
e
factor.name =exp.name; factor.code = exp.cod
e
factor.name = num.strval; factor.code = “”
factor.name = id.strval; factor.code = “”

13. 2301373 Code Generation 13
Generating 3-address Code:Example
exp
=
id
exp
exp
aexp
aexp factor
+
factor
( )
aexp
aexp factor
+
factor
num
id
num
x
4
x
t1
t1=x+3
3
t1
t1=x+3
t1
t1=x+3
x=t1
t1
t1=x+3
x=t1
t1
t1=x+3
x=t1
t2
t1=x+3
x=t1
t2=t1+4
t2
t1=x+3
x=t1
t2=t1+4
4

14. 2301373 Code Generation 14
Practical Code Generation: Tree Traversal
procedure genCode (t:node)
{ if (t is not null) then
{ generate code to prepare for code of left child;
genCode(left child of t);
generate code to prepare for code of right child;
genCode(right child of t);
generate code to implement the action of t;
}
}

15. 2301373 Code Generation 15
Practical Code Generation for P-code
gencode(T:Tree)
{ if (T is not null)
{switch (T.type)
case plusnode:
{ gencode(T.lchild);
gencode(T.rchild);
emitCode(“add”); }
case asgnnode:
{ emitcode(“loada”,T.strval);
gencode(T.rchild);
emitcode(“stn”); }
case constnode:
{ emitcode(“loadc”,t.strval); }
case idnode:
{ emitcode(“loadv”,t.strval); }
default:
{ emitcode(“error”);
}
}
}

16. 2301373 Code Generation 16
Macaro Expansion
 From intermediate code to target code
 Example:
 3-address code:
x=y+n
 P code:
loada x
loadv y
loadc n
adi
sto

17. 2301373 Code Generation 17
Address Calculation
 Addressing operations
 Array references
 Record structure references

18. 2301373 Code Generation 18
Addressing Operations
3-address code
 address of x
 &x
 indirect address
(content pointed
by x)
 *x
P-code
 address of x
 loada x
 indirect load
 ind x
 (load *(top+ x))
 indexed address
 ixa x
 (load top*x+
(top-1))

19. 2301373 Code Generation 19
Array References
3-address code
 x=a[i]
t1=i*elesize(a)
t2=&a+t1
x=*t2
 a[i]=x
t1=i*elesize(a)
t2=&a+t1
*t2=x
P-code
 x=a[i]
loada x
loada a
loadv i
ixa elesize(a)
ind 0
sto
 a[i]=x
loada a
loadv i
ixa elesize(a)
loadv x
sto
Find offset
Find address
Find address
Find offset
Find address
Find address
Find content

20. 2301373 Code Generation 20
More Complex Array References
3-address code
 a[i+1]=a[j+2]+3
t1=j+2
t2=t1*elesize(a)
t3=&a+t2
t4=*t3
t5=t4+3
t6=i+1
t7=t6*elesize(a)
t8=&a+t7
*t8=t5
P code
 a[i+1]=a[j+2]+3
loada a
loadv i
loadc 1
adi
ixa elesize(a)
loada a
loadv j
loadc 2
adi
ixa elesize(a)
ind 0
loadc 3
adi
sto
t4=a[t1]
a[t6]=t5 t1=a[j+2]
t2=&a[i+1]
a[t6]=t5
t4=a[t1]
t2=&a[i+1]
t1=a[j+2]

21. 2301373 Code Generation 21
Structure References
typedef struct rec
{ int i; char c; int j; }
Entry;
Entry x;
3-address code
 Address of a field
t1=&x+offset(x,j)
 Content of a field
t1=&x+offset(x,j)
t2=*t1
P code
 Address of a field
loada x
loadc offset(x.j)
ixa 1
 Content of a field
loada x
ind offset(x.j)
x.i
x.j
x.c
base address of x
Offset of x.j
Offset of x.c

22. 2301373 Code Generation 22
Code Generation for Control Statements
 If Statements
 While Statements
 Logical Expressions

23. 2301373 Code Generation 23
Code Generation for If-Statements
IF ( E ) S1 ELSE S2
 3-address code
<code evaluating E
and assigning to t1>
if_false t1 goto L1
<code for S1>
goto L2
label L1
<code for S2>
label L2
 P code
<code evaluating E>
jumpF L1
<code for S1>
jump L2
label L1
<code for S2>
label L2

24. 2301373 Code Generation 24
Code Generation for While-Statements
WHILE ( E ) S
 3-address code
label L1
<code evaluating E
and assigning to t1>
if_false t1 goto L2
<code for S>
goto L1
label L2
 P code
label L1
<code evaluating E>
jumpF L2
<code for S>
jump L1
label L2

25. 2301373 Code Generation 25
Generating Labels
 Forward jump
 Label must be generated before
defining the label
 For intermediate code
 Generate label at the jump instruction
 Store the label until the actual
location is found
 For target code (assembly)
 Leave the destination address in the
jump instruction
 When the destination address is
found, go back and fill the address
(backpatching)
 Short jump or long jump?
 Leave space enough for long jump
 If only short jump is required, the
extra space is filled with nop.
label L1
<code for E>
jumpF L2
<code for S>
jump L1
label L2

26. 2301373 Code Generation 26
Code Generation for Logical Expressions
 Data types and operators
 Use Boolean data type and
operators if included in the
target/intermediate language
 Use integer 0/1 and bitwise
opeartors
 Short-circuit evaluation
 IF a AND b THEN S
 If a is false,
 the whole exp is false
 there is no need to evaluate b
 IF a OR b THEN S
 If a is true,
 the whole exp is true
 there is no need to evaluate b
 Intermediate code for
IF a AND b THEN S
<code for a>
if_false a goto L1
<code for b>
if_false b goto L1
<code for S>
Label L1
 Intermediate code for
IF a OR b THEN S
<code for a>
if_false a goto L1
goto L2
Label L1
<code for b>
if_false b goto L3
Label L2
<code for S>
Label L3
