A thermal power plant converts the heat energy from burning coal into electrical energy. Coal is burned in a boiler to produce steam, which spins turbines connected to generators. Thermal power plants account for over 75% of India's total power generation. Key components include the coal handling plant, boiler, turbine, condenser, and cooling system. The steam produced spins the turbine which is connected to the generator, producing electricity that is stepped up and transmitted via transformers.

1. Prepared and Presented by:
Prof. P. M. Mohan
Lecturer, Department of Electrical Engineering
MTech (Power System)
K.K. Wagh Polytechnic
Electrical Power Generation Topic
THERMAL POWER
PLANT

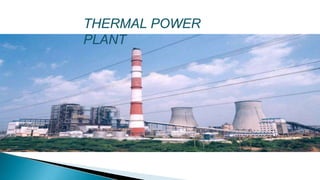

2. THERMAL POWER
PLANT

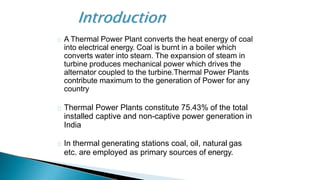

3. A Thermal Power Plant converts the heat energy of coal
into electrical energy. Coal is burnt in a boiler which
converts water into steam. The expansion of steam in
turbine produces mechanical power which drives the
alternator coupled to the turbine.Thermal Power Plants
contribute maximum to the generation of Power for any
country
Thermal Power Plants constitute 75.43% of the total
installed captive and non-captive power generation in
India
In thermal generating stations coal, oil, natural gas
etc. are employed as primary sources of energy.

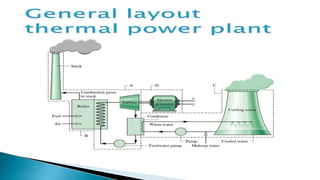

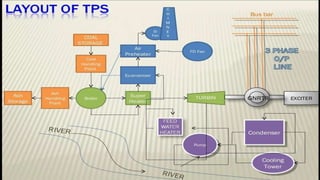

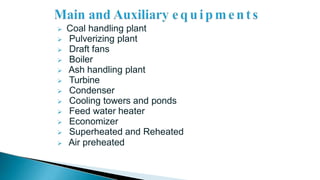

6.  Coal handling plant
 Pulverizing plant
 Draft fans
 Boiler
 Ash handling plant
 Turbine
 Condenser
 Cooling towers and ponds
 Feed water heater
 Economizer
 Superheated and Reheated
 Air preheated

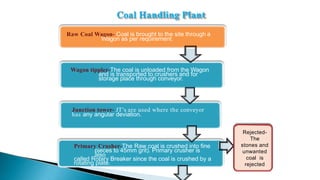

7. Raw Coal Wagon- Coal is brought to the site through a
Wagon as per requirement.
Wagon tippler-The coal is unloaded from the Wagon
and is transported to crushers and for
storage place through conveyor.
Junction tower- JT’s are used where the conveyor
has any angular deviation.
Primary Crusher-The Raw coal is crushed into fine
pieces to 45mm grit). Primary crusher is
also
called Rotary Breaker since the coal is crushed by a
rotating plate.
Rejected-
The
stones and
unwanted
coal is
rejected
Coal Handling Plant

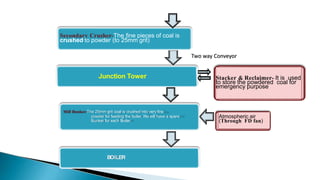

8. Stacker & Reclaimer- It is used
to store the powdered coal for
emergency purpose
Atmospheric air
(Through FD fan)
Junction Tower
Mill Bunker-The 25mm grit coal is crushed into very fine
powder for feeding the boiler. We will have a spare
Bunker for each Boiler.
BOILER
Secondary Crusher-The fine pieces of coal is
crushed to powder (to 25mm grit)
Two way Conveyor

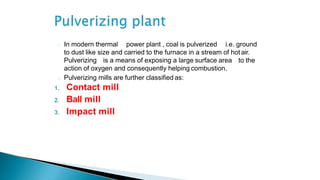

9. In modern thermal power plant , coal is pulverized i.e. ground
to dust like size and carried to the furnace in a stream of hot air.
Pulverizing is a means of exposing a large surface area to the
action of oxygen and consequently helping combustion.
Pulverizing mills are further classified as:
1. Contact mill
2. Ball mill
3. Impact mill

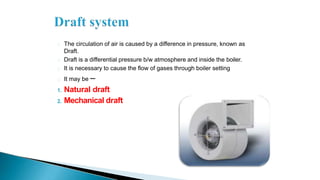

10. The circulation of air is caused by a difference in pressure, known as
Draft.
Draft is a differential pressure b/w atmosphere and inside the boiler.
It is necessary to cause the flow of gases through boiler setting
It may be –
1. Natural draft
2. Mechanical draft

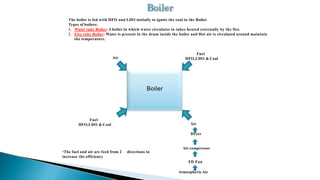

11. Air
Air
Fuel
HFO,LDO & Coal
Boiler
Fuel
HFO,LDO & Coal
Dryer
Air compressor
FD Fan
AtmosphericAir
The boiler is fed with HFO and LDO initially to ignite the coal in the Boiler.
Types of boilers:
1. Water tube Boiler: A boiler in which water circulates in tubes heated externally by the fire.
2. Fire tube Boiler: Water is present in the drum inside the boiler and Hot air is circulated around maintain
the temperature.
directions to
•The fuel and air are feed from 2
increase the efficiency

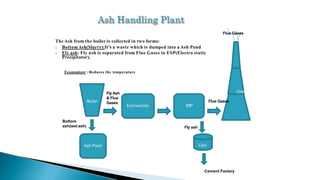

12. Fly Ash
& Flue
Gases
Economizer ESP
Bottom
ash(wet ash)
Ash Pond
Boiler
Cylo
Cement Factory
Chim
Fly ash
Flue Gases
Flue Gases
The Ash from the boiler is collected in two forms:
1. BottomAsh(Slurry):It’s a waste which is dumped into a Ash Pond
2. Fly ash: Fly ash is separated from Flue Gases in ESP(Electro static
Precipitator).
Economizer :Reduces the temperature

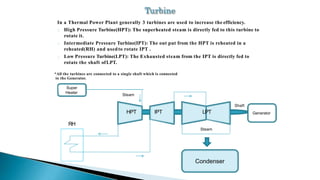

13. Condenser
HPT IPT LPT
RH
Generator
Steam
In a Thermal Power Plant generally 3 turbines are used to increase the efficiency.
High Pressure Turbine(HPT): The superheated steam is directly fed to this turbine to
rotate it.
Intermediate Pressure Turbine(IPT): The out put from the HPT is reheated in a
reheated(RH) and usedto rotate IPT .
Low Pressure Turbine(LPT): The Exhausted steam from the IPT is directly fed to
rotate the shaft ofLPT.
*All the turbines are connected to a single shaft which is connected
to the Generator.
Super
Heater
Steam
Shaft

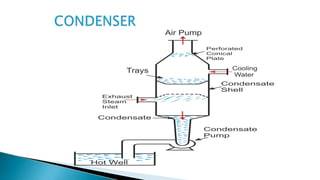

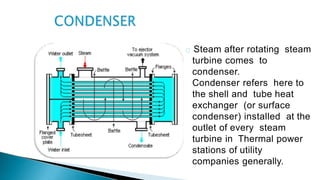

14. Steam after rotating steam
turbine comes to
condenser.
Condenser refers here to
the shell and tube heat
exchanger (or surface
condenser) installed at the
outlet of every steam
turbine in Thermal power
stations of utility
companies generally.

16. o A condenser needs huge quantity of water to condense the
steam .
o Typically a 2000MW plant needs about 1500MGallon
of water.
o Most plants use a closed cooling system where warm water coming
from condenser is cooled and reused
o Small plants use spray ponds and medium and large plants use
cooling towers.
o Cooling tower is a steel or concrete hyperbolic structure having a
reservoir at the base for storage of cooled water
o Height of the cooling tower may be 150 m or so and
diameter at the

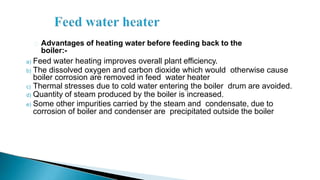

17. Advantages of heating water before feeding back to the
boiler:-
a) Feed water heating improves overall plant efficiency.
b) The dissolved oxygen and carbon dioxide which would otherwise cause
boiler corrosion are removed in feed water heater
c) Thermal stresses due to cold water entering the boiler drum are avoided.
d) Quantity of steam produced by the boiler is increased.
e) Some other impurities carried by the steam and condensate, due to
corrosion of boiler and condenser are precipitated outside the boiler

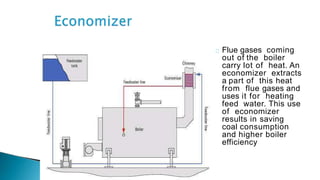

18. Flue gases coming
out of the boiler
carry lot of heat. An
economizer extracts
a part of this heat
from flue gases and
uses it for heating
feed water. This use
of economizer
results in saving
coal consumption
and higher boiler
efficiency

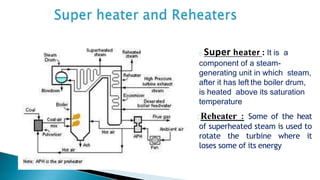

19. Super heater : It is a
component of a steam-
generating unit in which steam,
after it has left the boiler drum,
is heated above its saturation
temperature
Reheater : Some of the heat
of superheated steam is used to
rotate the turbine where it
loses some of its energy

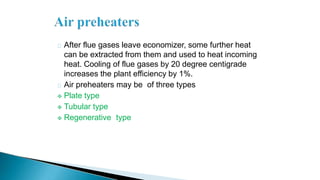

20. After flue gases leave economizer, some further heat
can be extracted from them and used to heat incoming
heat. Cooling of flue gases by 20 degree centigrade
increases the plant efficiency by 1%.
Air preheaters may be of three types
 Plate type
 Tubular type
 Regenerative type

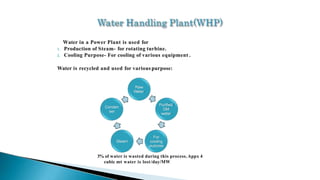

21. Water in a Power Plant is used for
1. Production of Steam- for rotating turbine.
2. Cooling Purpose- For cooling of various equipment .
Water is recycled and used for various purpose:
3% of water is wasted during this process. Appx 4
cubic mt water is lost/day/MW
Raw
Water
Purified
DM
water
For
cooling
purpose
Steam
Conden
ser

22. Reservoir
Water Clarification
DM Plant
(Demineralized Plant)
Chlorification
&
Filtration
Various Equipment
Cooling Water
Cooling Tower
CT
Auxiliary cooling
Water (ACW)
DMCWP
DMCWDemineralized
cooling Water
CT CWP CWP
Condenser
Boiler
Steam
water
Cool water
Hot water
Hot Well
Dearator
25D  35D
25D  20D
PHE
Various Equipment
D-Degrees
CWP-cooling water Pump
PHE-Pre heat Exchange
Water Cycle

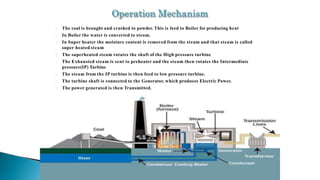

23. The coal is brought and crushed to powder. This is feed to Boiler for producing heat
In Boiler the water is converted to steam.
In Super heater the moisture content is removed from the steam and that steam is called
super heated steam
The superheated steam rotates the shaft of the High pressure turbine
The Exhausted steam is sent to preheater and the steam then rotates the Intermediate
pressure(IP) Turbine
The steam from the IP turbine is then feed to low pressure turbine.
The turbine shaft is connected to the Generator, which produces Electric Power.
The power generated is then Transmitted.

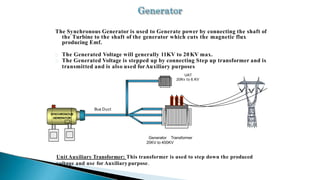

24. The Synchronous Generator is used to Generate power by connecting the shaft of
the Turbine to the shaft of the generator which cuts the magnetic flux
producing Emf.
The Generated Voltage will generally 11KV to 20KV max.
The Generated Voltage is stepped up by connecting Step up transformer and is
transmitted and is also used forAuxiliary purposes.
Bus Duct
SYNCHRONOUS
GENERATOR
UAT
20Kv to 6.KV
Generator Transformer
20KV to 400KV
Unit Auxiliary Transformer: This transformer is used to step down the produced
voltage and use for Auxiliary purpose.
