1. Blue Button® API: Creating
a Data-Driven Ecosystem
to Benefit Medicare Beneficiaries
Mark Scrimshire
February 21, 2017
The Power of Beneficiary-Directed Data
HIMSS 2017

2. • CMS Blue Button® Innovator
• Health Data and Cloud Technologist
• Co-Founder & CTO: Medyear
• Chief Instigator: HealthCa.mp
• Blogger: blog.ekivemark.com
• Twitter: @ekivemark
Introduction: Mark Scrimshire
2
NewWave: Stand #237

3. Total Users
VA, CMS, DoD3
A Brief History of Blue Button®
Blue Button
Unleashes
Personal
Data
®

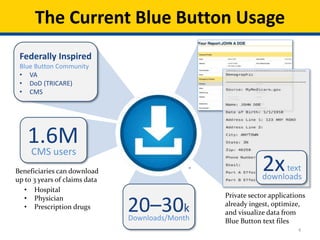

4. 1.6MCMS users
20–30k
Downloads/Month
2xtext
downloads
®
4
The Current Blue Button Usage
Private sector applications
already ingest, optimize,
and visualize data from
Blue Button text files
• Hospital
• Physician
• Prescription drugs
Federally Inspired
Blue Button Community
• VA
• DoD (TRICARE)
• CMS
Beneficiaries can download
up to 3 years of claims data

5. 5
• Health information is challenging to use in current PDF
or plain text format
• Beneficiary has to return to MyMedicare.gov to get at least six
months of data each time new information is available
• Apps like iBlueButton have entered the market to automate this
process by screen scraping and borrowing beneficiary user IDs
and passwords, weakening security
• Health care industry has moved to structured data formats
(BlueButton+ /CCDA)
• Enhanced Blue Button service can be a powerful tool to support
the drive to improve quality of care
• Interoperability is finally taking hold in health care
(HL7/FHIR)
Why Change Blue Button?

6. ®
6
Blue Button Vision
“Build a developer-friendly, standards-based
data API that enables beneficiaries
to connect their data to the
applications, services,
and research programs
they trust”

7. 7

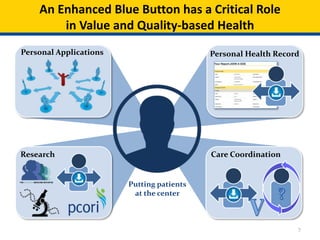

An Enhanced Blue Button has a Critical Role
in Value and Quality-based Health
Personal Applications Personal Health Record
Care Coordination
Putting patients
at the center
Research

8. 8

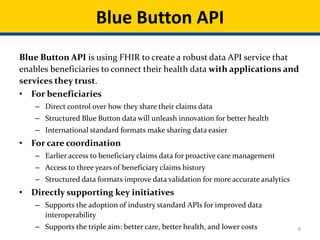

Blue Button API is using FHIR to create a robust data API service that
enables beneficiaries to connect their health data with applications and
services they trust.
• For beneficiaries
– Direct control over how they share their claims data
– Structured Blue Button data will unleash innovation for better health
– International standard formats make sharing data easier
• For care coordination
– Earlier access to beneficiary claims data for proactive care management
– Access to three years of beneficiary claims history
– Structured data formats improve data validation for more accurate analytics
• Directly supporting key initiatives
– Supports the adoption of industry standard APIs for improved data
interoperability
– Supports the triple aim: better care, better health, and lower costs
Blue Button API

9. 9
• Each beneficiary must register
with research app and authorize
app access to their data
• Beneficiary consent opens the
door for:
– No cost access to their claims
information
• Benefits to researchers:
– Avoid the Data Use Agreement
– No payment to CMS
– Refreshed Data
• Weekly—Part A / B
• Monthly—Part D
The Blue Button API Enables a New Era and
a New Route for Research Data Collection

10. 10

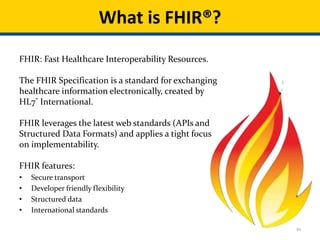

FHIR: Fast Healthcare Interoperability Resources.
The FHIR Specification is a standard for exchanging
healthcare information electronically, created by
HL7® International.
FHIR leverages the latest web standards (APIs and
Structured Data Formats) and applies a tight focus
on implementability.
FHIR features:
• Secure transport
• Developer friendly flexibility
• Structured data
• International standards
What is FHIR®?

11. 11
Why Blue Button on FHIR?
“I control who
I share my data with”
“I download my data”
Bi-directional

12. 12
OAuth 2.0: Trusted, Familiar, and Proven at Scale

13. 13

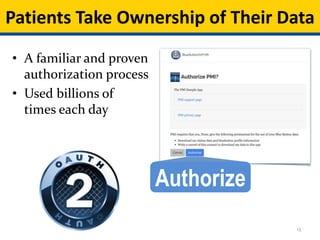

• A familiar and proven
authorization process
• Used billions of
times each day
Patients Take Ownership of Their Data
Authorize

14. 14
• FHIR extension to Chronic Condition
Warehouse (CCW)
• 38M Medicare beneficiaries
• Three years of Blue Button claims information
(6+ billion records)
• Jointly-developed FHIR
“ExplanationOfBenefit” resource
• Integration with MyMedicare.gov
• Future integration with CMS Simple
Login Service
• Built on CMS Cloud Services
Lighting the FHIR at CMS

15. 15

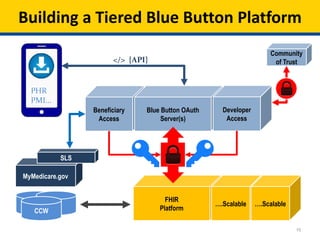

Building a Tiered Blue Button Platform
CCW
FHIR
Platform
….Scalable ….Scalable
Beneficiary
Access
Blue Button OAuth
Server(s)
Developer
Access
MyMedicare.gov
SLS
PHR
PMI…
Community
of Trust</> {API}

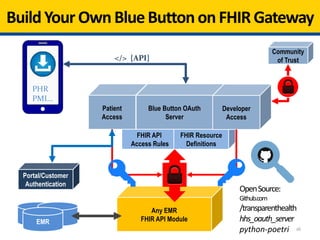

16. FHIR API
Access Rules
FHIR Resource
Definitions
16
BuildYourOwnBlueButtonon FHIRGateway
EMR
Any EMR
FHIR API Module
Patient
Access
Blue Button OAuth
Server
Developer
Access
Portal/Customer
Authentication
PHR
PMI…
Community
of Trust</> {API}
OpenSource:
Github.com
/transparenthealth
hhs_oauth_server
python-poetri

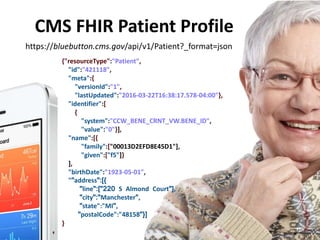

17. https://bluebutton.cms.gov/api/v1/Patient?_format=json
{"resourceType":"Patient",
"id":"421118",
"meta":{
"versionId":"1",
"lastUpdated":"2016-03-22T16:38:17.578-04:00"},
"identifier":[
{
"system":"CCW_BENE_CRNT_VW.BENE_ID",
"value":"0"}],
"name":[{
"family":["00013D2EFD8E45D1"],
"given":["f5"]}
],
"birthDate":"1923-05-01",
""address":[{
"line":["220 S Almond Court"],
"city":"Manchester",
"state":"MI",
"postalCode":"48158"}]
}
CMS FHIR Patient Profile
17

18. ®
18

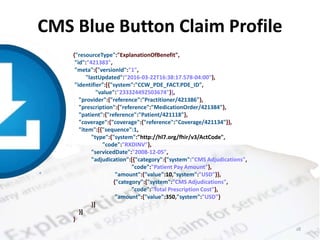

{"resourceType":"ExplanationOfBenefit",
"id":"421383",
"meta":{"versionId":"1",
"lastUpdated":"2016-03-22T16:38:17.578-04:00"},
"identifier":[{"system":"CCW_PDE_FACT.PDE_ID",
"value":"233324492503674"}],
"provider":{"reference":"Practitioner/421386"},
"prescription":{"reference":"MedicationOrder/421384"},
"patient":{"reference":"Patient/421118"},
"coverage":{"coverage":{"reference":"Coverage/421134"}},
"item":[{"sequence":1,
"type":{"system":"http://hl7.org/fhir/v3/ActCode",
"code":"RXDINV"},
"servicedDate":"2008-12-05",
"adjudication":[{"category":{"system":"CMS Adjudications",
"code":"Patient Pay Amount"},
"amount":{"value":10,"system":"USD"}},
{"category":{"system":"CMS Adjudications",
"code":"Total Prescription Cost"},
"amount":{"value":350,"system":"USD"}
}]
}]
}
CMS Blue Button Claim Profile

19. 19

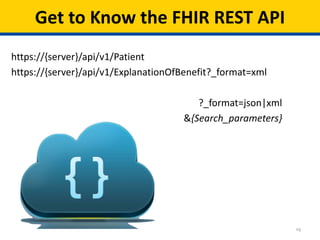

Get to Know the FHIR REST API
https://{server}/api/v1/Patient
https://{server}/api/v1/ExplanationOfBenefit?_format=xml
?_format=json|xml
&{Search_parameters}

20. 20

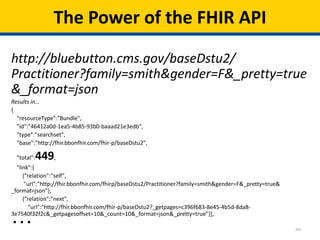

The Power of the FHIR API
http://bluebutton.cms.gov/baseDstu2/
Practitioner?family=smith&gender=F&_pretty=true
&_format=json
Results in…
{
"resourceType":"Bundle",
"id":"46412a0d-1ea5-4b85-93b0-baaad21e3edb",
"type":"searchset",
"base":"http://fhir.bbonfhir.com/fhir-p/baseDstu2",
"total":449,
"link":[
{"relation":"self",
"url":"http://fhir.bbonfhir.com/fhirp/baseDstu2/Practitioner?family=smith&gender=F&_pretty=true&
_format=json"},
{"relation":"next",
"url":"http://fhir.bbonfhir.com/fhir-p/baseDstu2?_getpages=c396f683-8e45-4b5d-8da8-
3e7540f32f2c&_getpagesoffset=10&_count=10&_format=json&_pretty=true"}],
…

21. 21

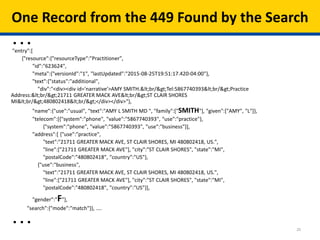

One Record from the 449 Found by the Search
"entry":[
{"resource":{"resourceType":"Practitioner",
"id":"623624",
"meta":{"versionId":"1", "lastUpdated":"2015-08-25T19:51:17.420-04:00"},
"text":{"status":"additional",
"div":"<div><div id='narrative'>AMY SMITH.&lt;br/&gt;Tel:5867740393&lt;br/&gt;Practice
Address:&lt;br/&gt;21711 GREATER MACK AVE&lt;br/&gt;ST CLAIR SHORES
MI&lt;br/&gt;480802418&lt;br/&gt;</div></div>"},
"name":{"use":"usual", "text":"AMY L SMITH MD ", "family":["SMITH"], "given":["AMY", "L"]},
"telecom":[{"system":"phone", "value":"5867740393", "use":"practice"},
{"system":"phone", "value":"5867740393", "use":"business"}],
"address":[ {"use":"practice",
"text":"21711 GREATER MACK AVE, ST CLAIR SHORES, MI 480802418, US.",
"line":["21711 GREATER MACK AVE"], "city":"ST CLAIR SHORES", "state":"MI",
"postalCode":"480802418", "country":"US"},
{"use":"business",
"text":"21711 GREATER MACK AVE, ST CLAIR SHORES, MI 480802418, US.",
"line":["21711 GREATER MACK AVE"], "city":"ST CLAIR SHORES", "state":"MI",
"postalCode":"480802418", "country":"US"}],
"gender":"F"},
"search":{"mode":"match"}}, ....
…
…

22. 22
• Building on industry and web standards
• Providing a blueprint for patient access to their data
• Designing solutions with the health care community
• Utilizing open source solutions
• Using FHIR positions CMS at the heart of
health interoperability
CMS Blue Button API: The Summary

23. 23
• Visit our web page and subscribe for updates:
http://go.cms.gov/bluebutton
• Learn more about FHIR: http://hl7-fhir.github.io
Learn More
subscribe

24. 24

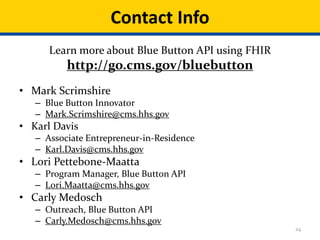

• Mark Scrimshire
– Blue Button Innovator
– Mark.Scrimshire@cms.hhs.gov
• Karl Davis
– Associate Entrepreneur-in-Residence
– Karl.Davis@cms.hhs.gov
• Lori Pettebone-Maatta
– Program Manager, Blue Button API
– Lori.Maatta@cms.hhs.gov
• Carly Medosch
– Outreach, Blue Button API
– Carly.Medosch@cms.hhs.gov
Contact Info
Learn more about Blue Button API using FHIR
http://go.cms.gov/bluebutton
