Cloud Performance: Guide to Tackling Cloud Latency [Cloud Connect - Chicago 2012]

Web Acceleration and Front End
Optimization
Cloud Connect 2012 Chicago

Hooman Beheshti
VP Technology, Strangeloop
hooman@strangeloopnetworks.com

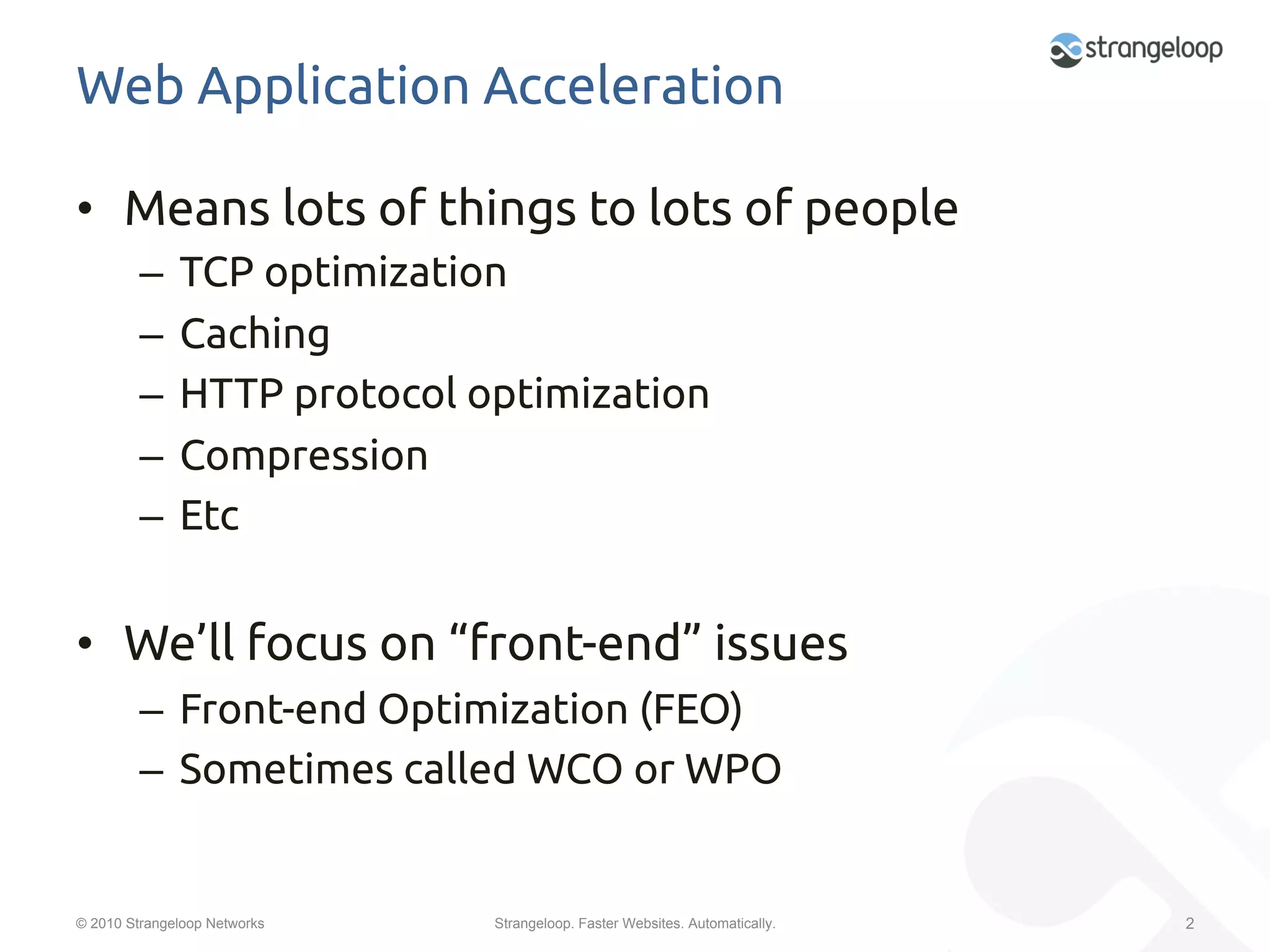

Web Application Acceleration

•  Means lots of things to lots of people
–  TCP optimization
–  Caching
–  HTTP protocol optimization
–  Compression
–  Etc

•  We’ll focus on “front-end” issues
–  Front-end Optimization (FEO)
–  Sometimes called WCO or WPO

© 2010 Strangeloop Networks Strangeloop. Faster Websites. Automatically. 2

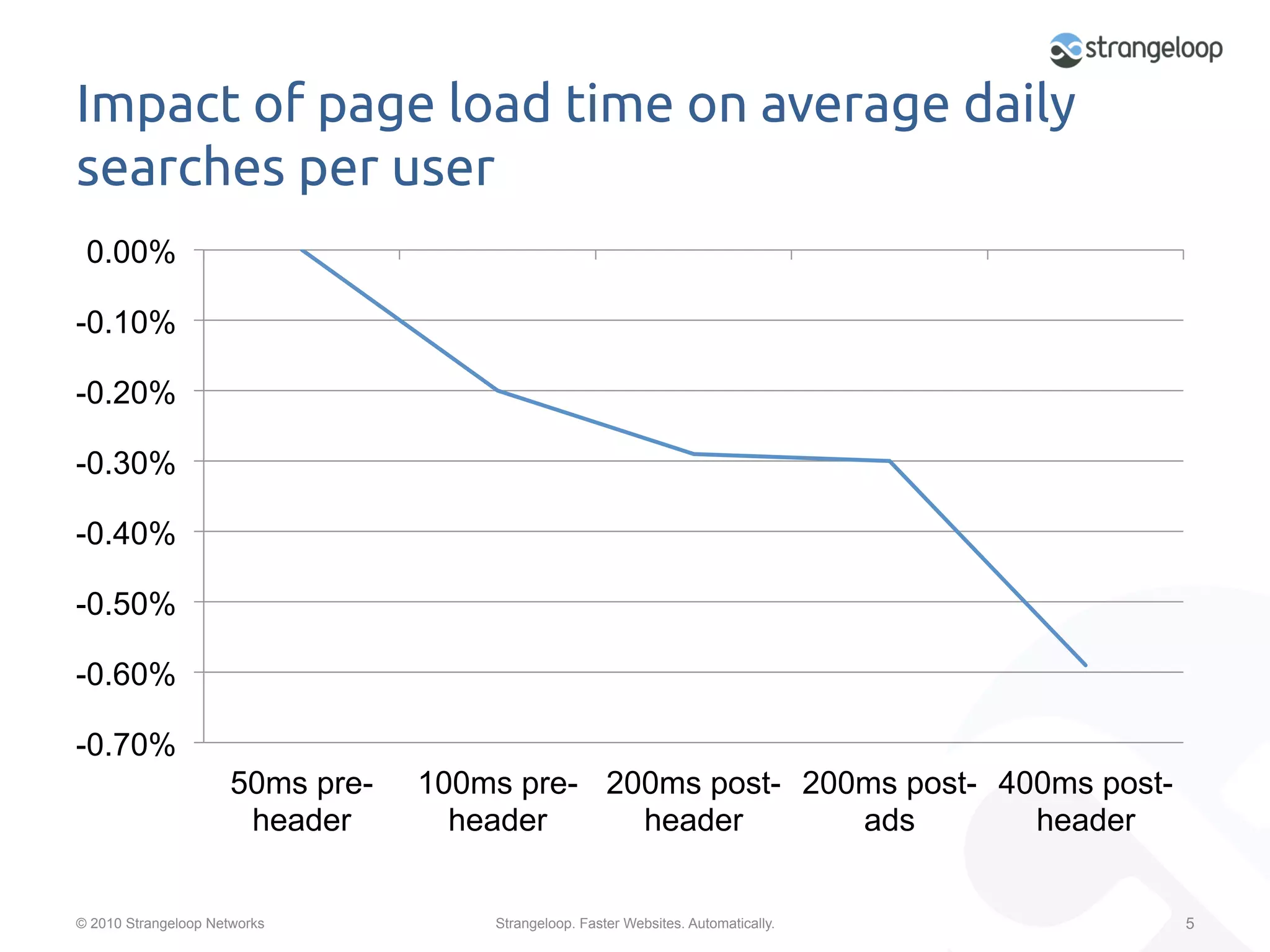

Better Performance = Better Business


Impact of page load time on average daily
searches per user
0.00%

-0.10%

-0.20%

-0.30%

-0.40%

-0.50%

-0.60%

-0.70%
50ms pre- 100ms pre- 200ms post- 200ms post- 400ms post-
header header header ads header

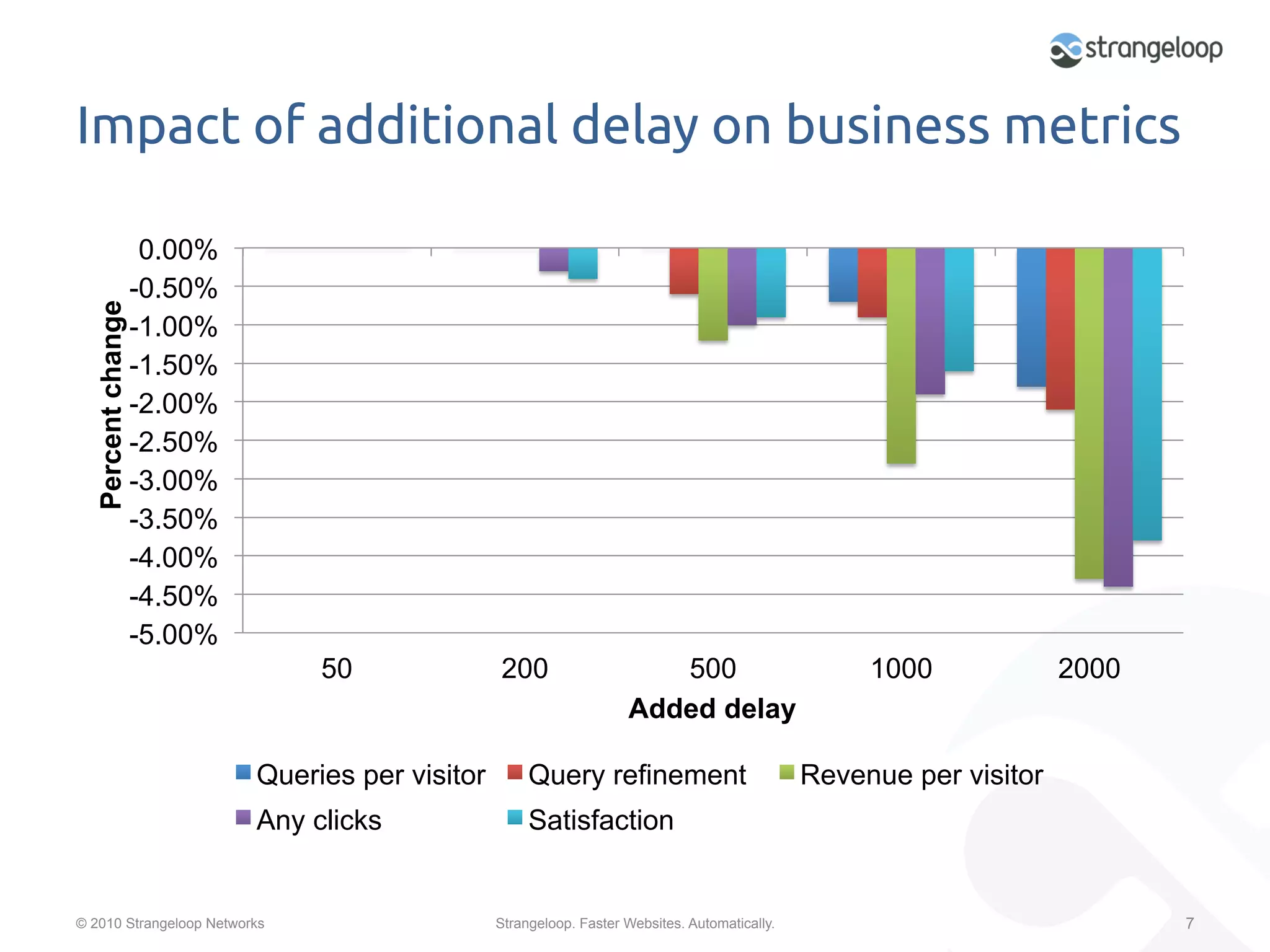

Impact of additional delay on business metrics

0.00%
-0.50%
Percent change

-1.00%
-1.50%
-2.00%
-2.50%
-3.00%
-3.50%
-4.00%
-4.50%
-5.00%
50 200 500 1000 2000
Added delay

Queries per visitor Query refinement Revenue per visitor
Any clicks Satisfaction

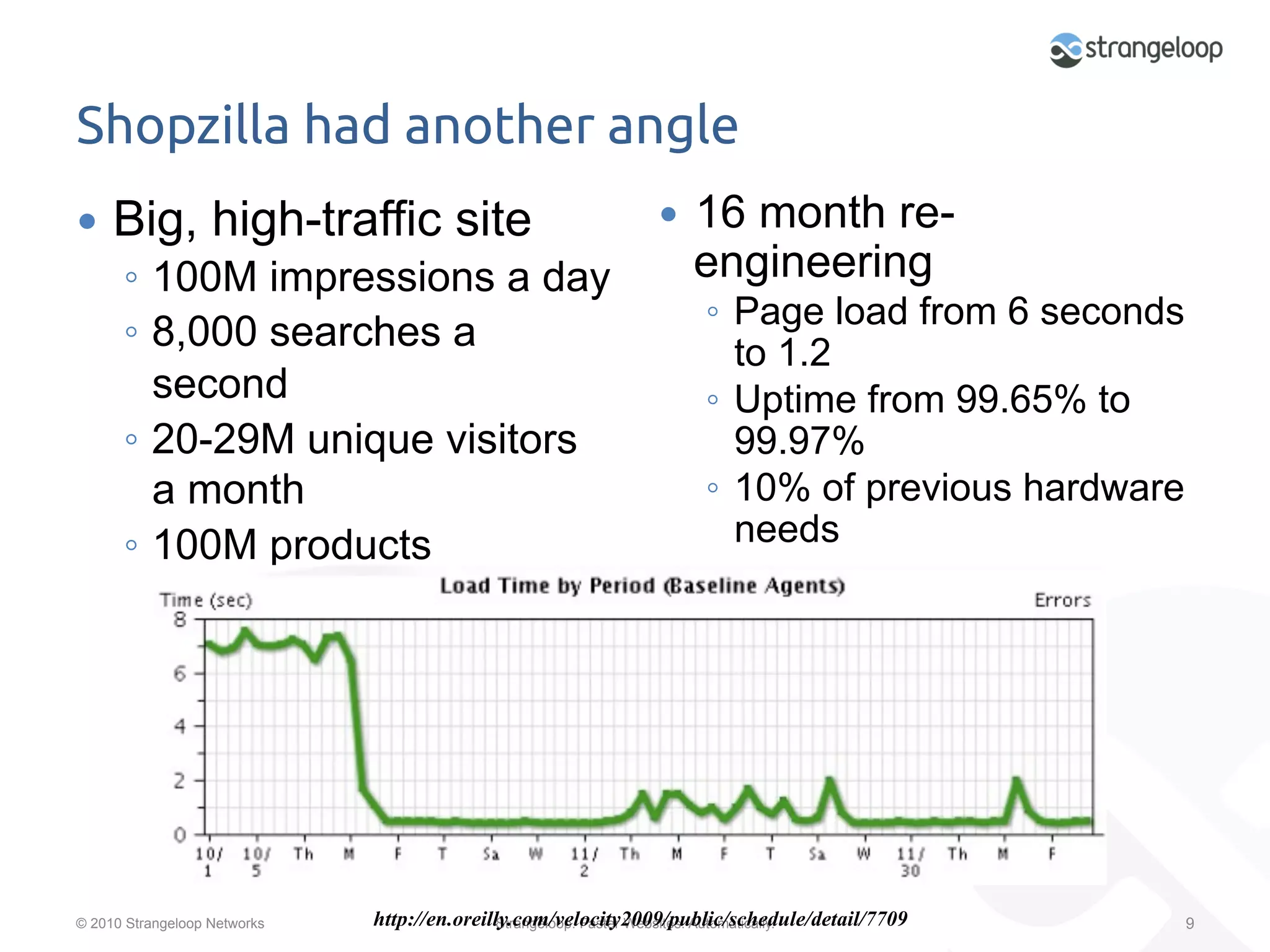

Shopzilla had another angle
—  Big, high-traffic site —  16 month re-
◦  100M impressions a day engineering
◦  Page load from 6 seconds
◦  8,000 searches a to 1.2
second ◦  Uptime from 99.65% to
◦  20-29M unique visitors 99.97%
a month ◦  10% of previous hardware
◦  100M products needs

© 2010 Strangeloop Networks http://en.oreilly.com/velocity2009/public/schedule/detail/7709
Strangeloop. Faster Websites. Automatically. 9

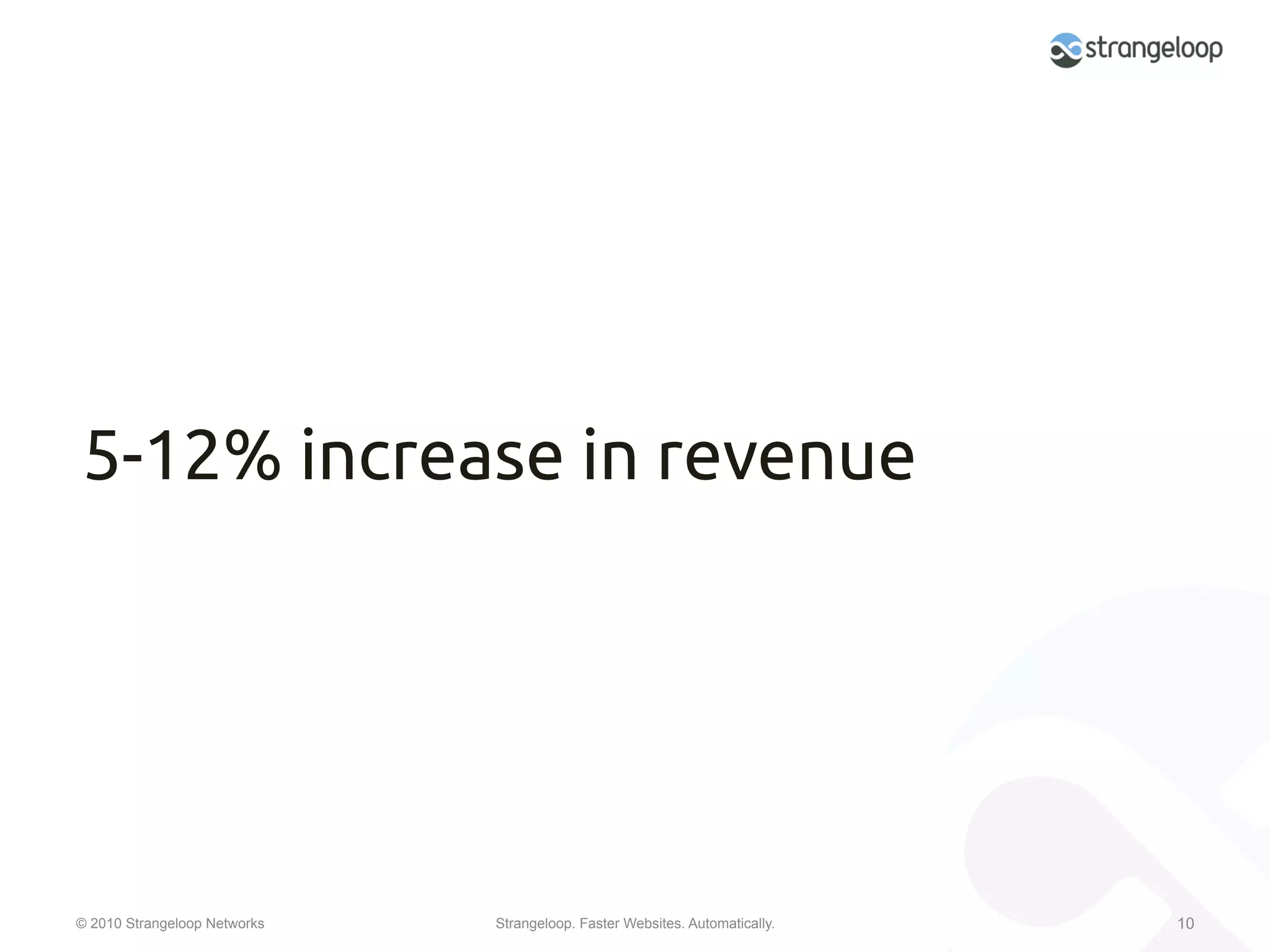

5-12% increase in revenue


Mobile Case Study

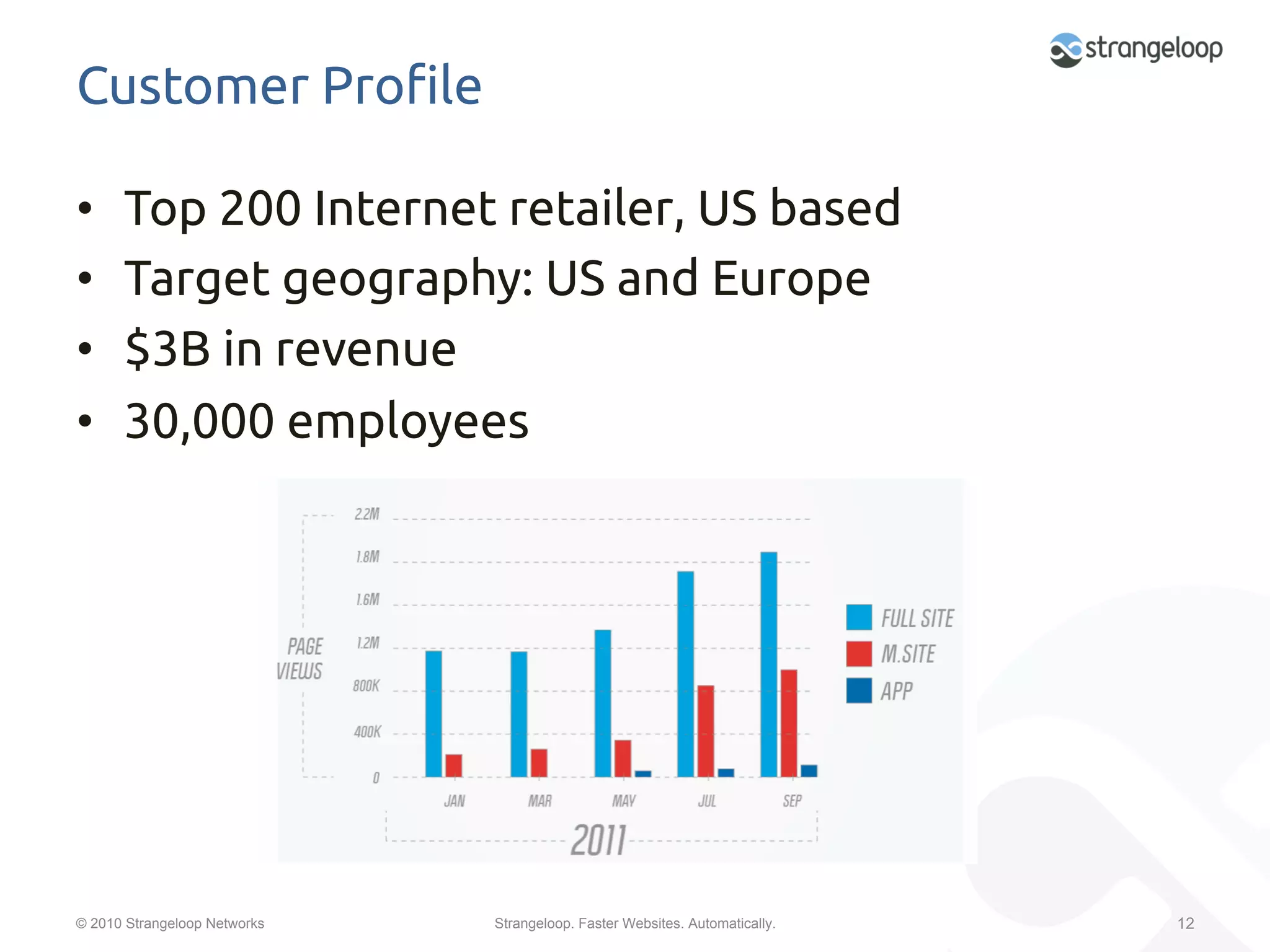

Customer Pro"le

•  Top 200 Internet retailer, US based
•  Target geography: US and Europe
•  $3B in revenue
•  30,000 employees

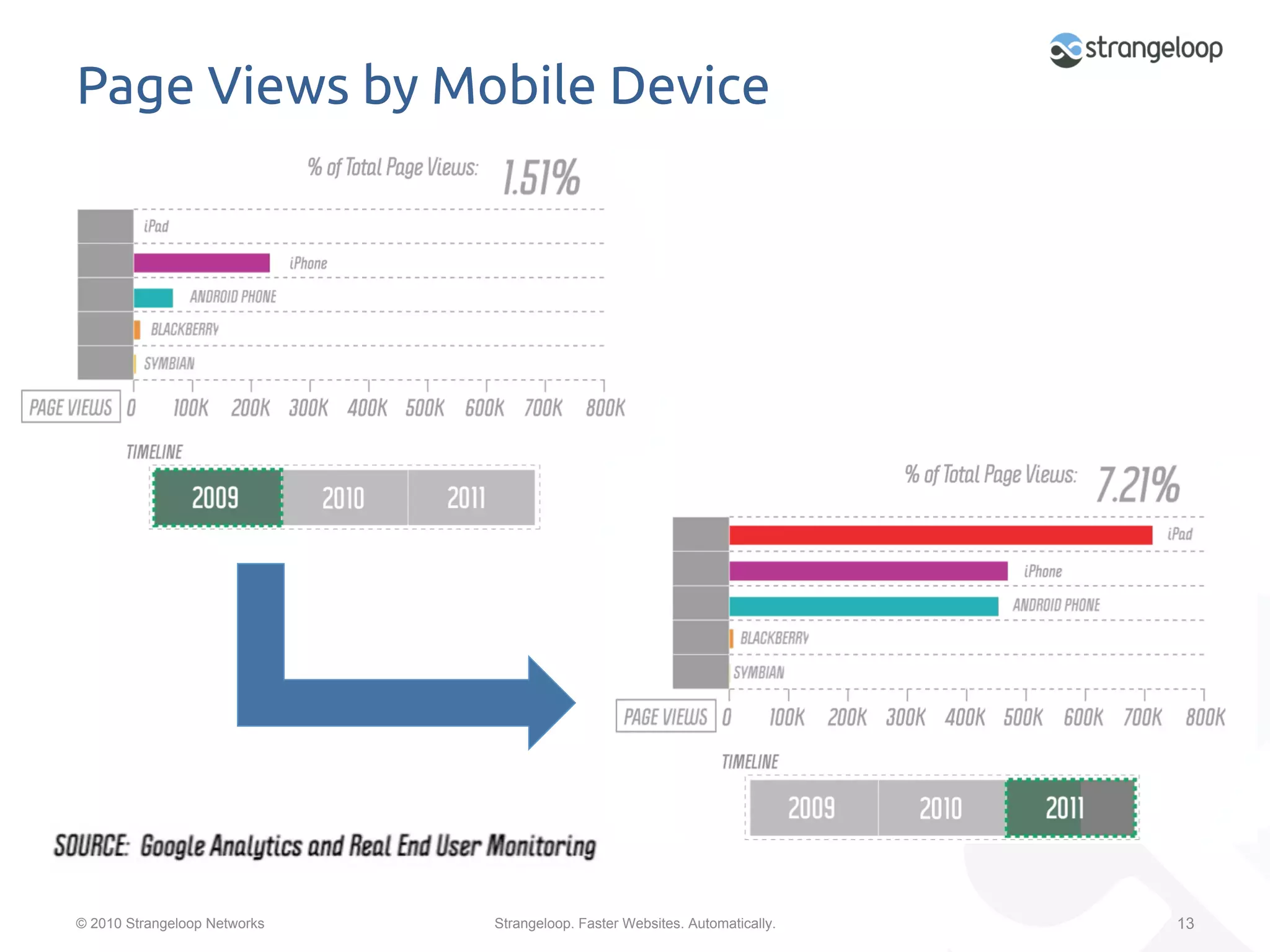

Page Views by Mobile Device

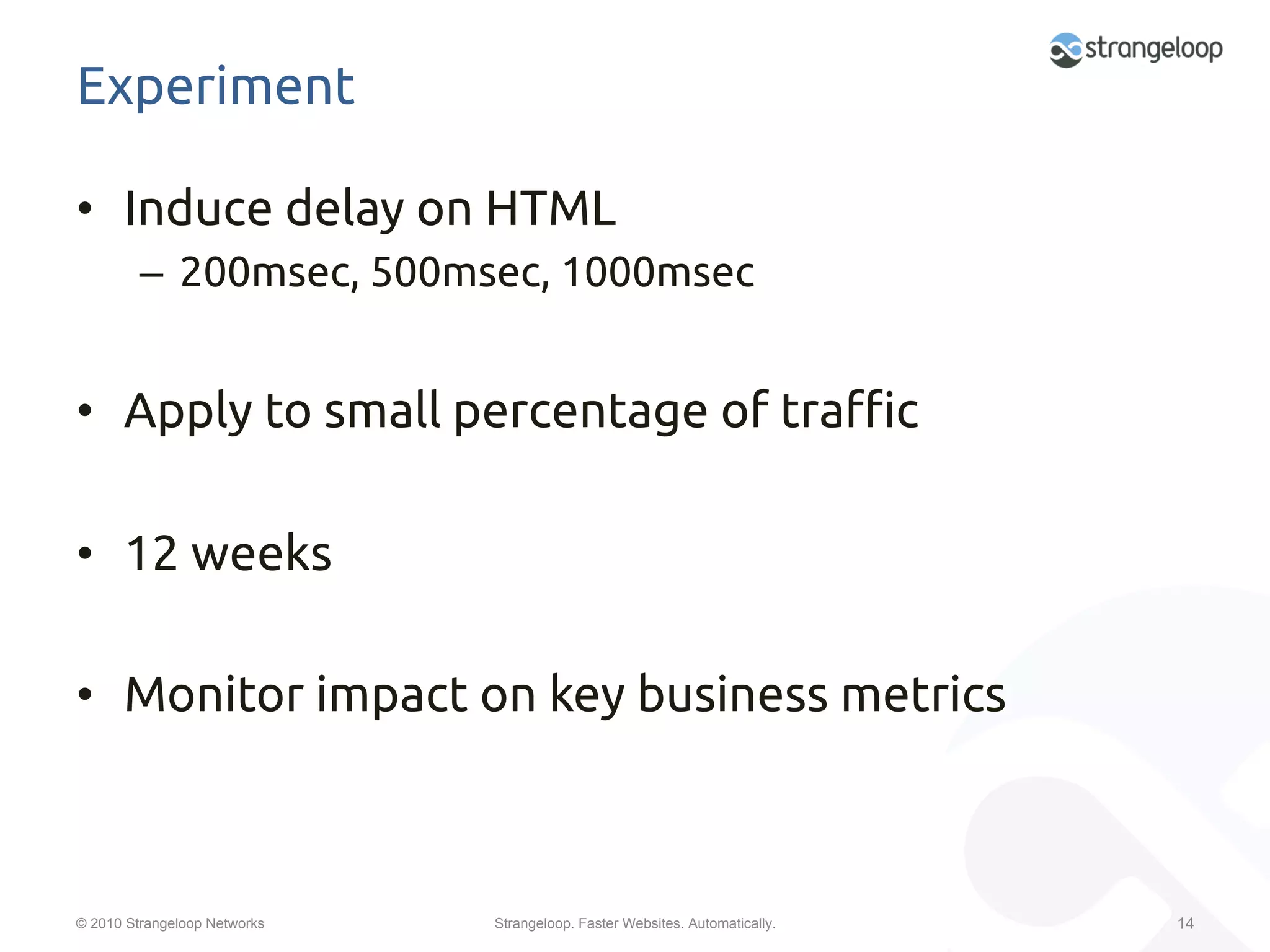

Experiment

•  Induce delay on HTML
–  200msec, 500msec, 1000msec

•  Apply to small percentage of tra#c

•  12 weeks

•  Monitor impact on key business metrics

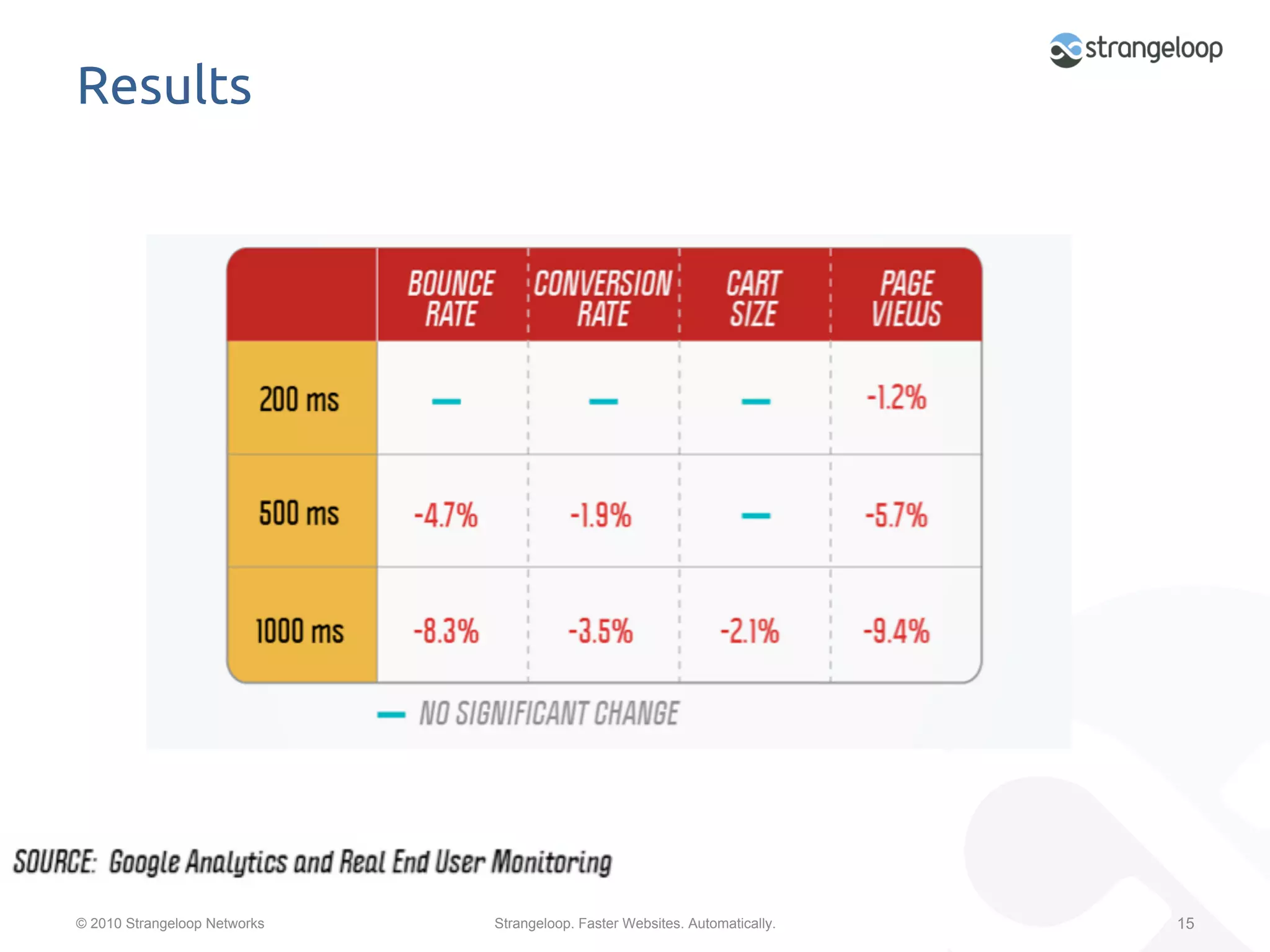

Results

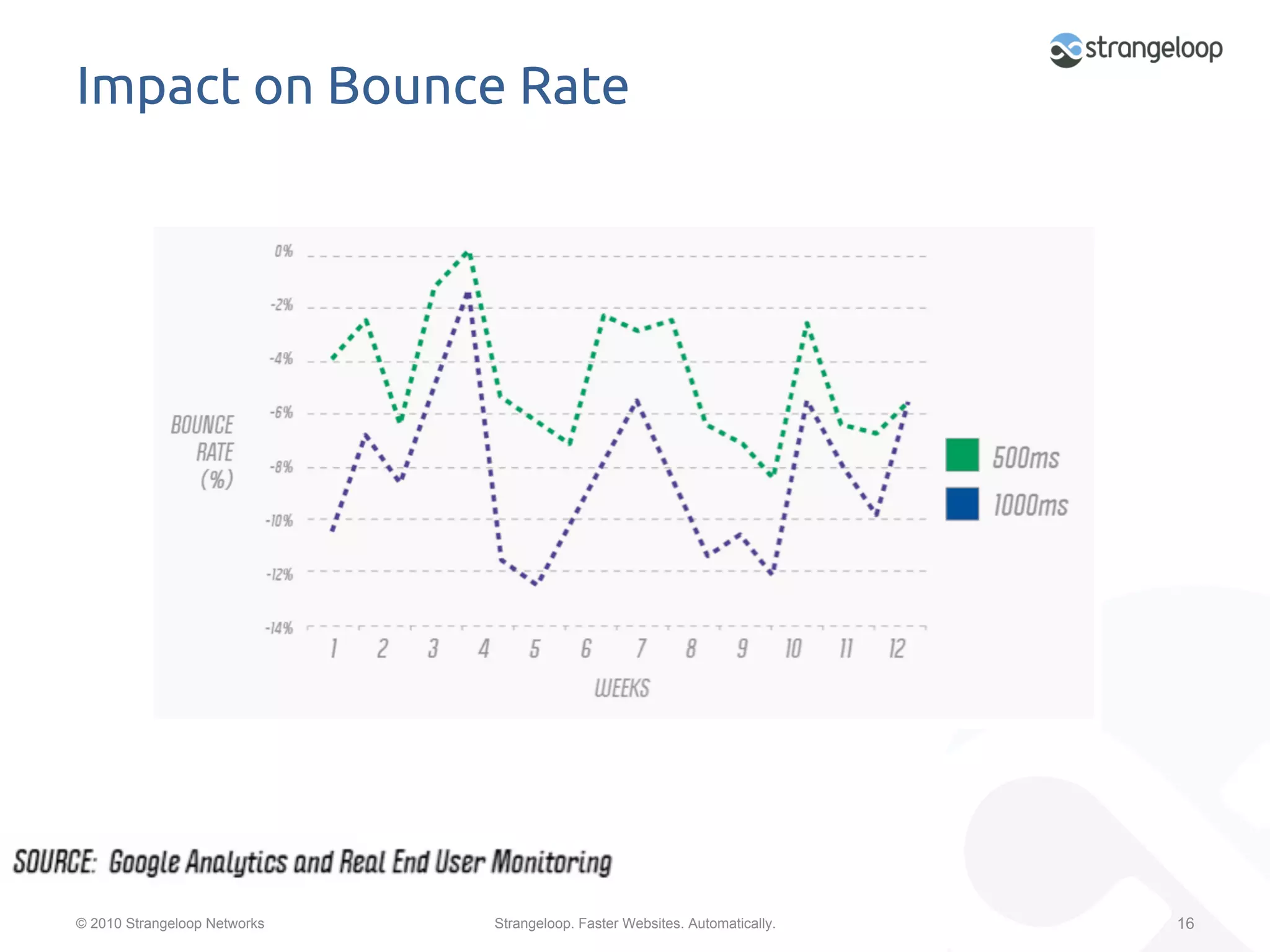

Impact on Bounce Rate

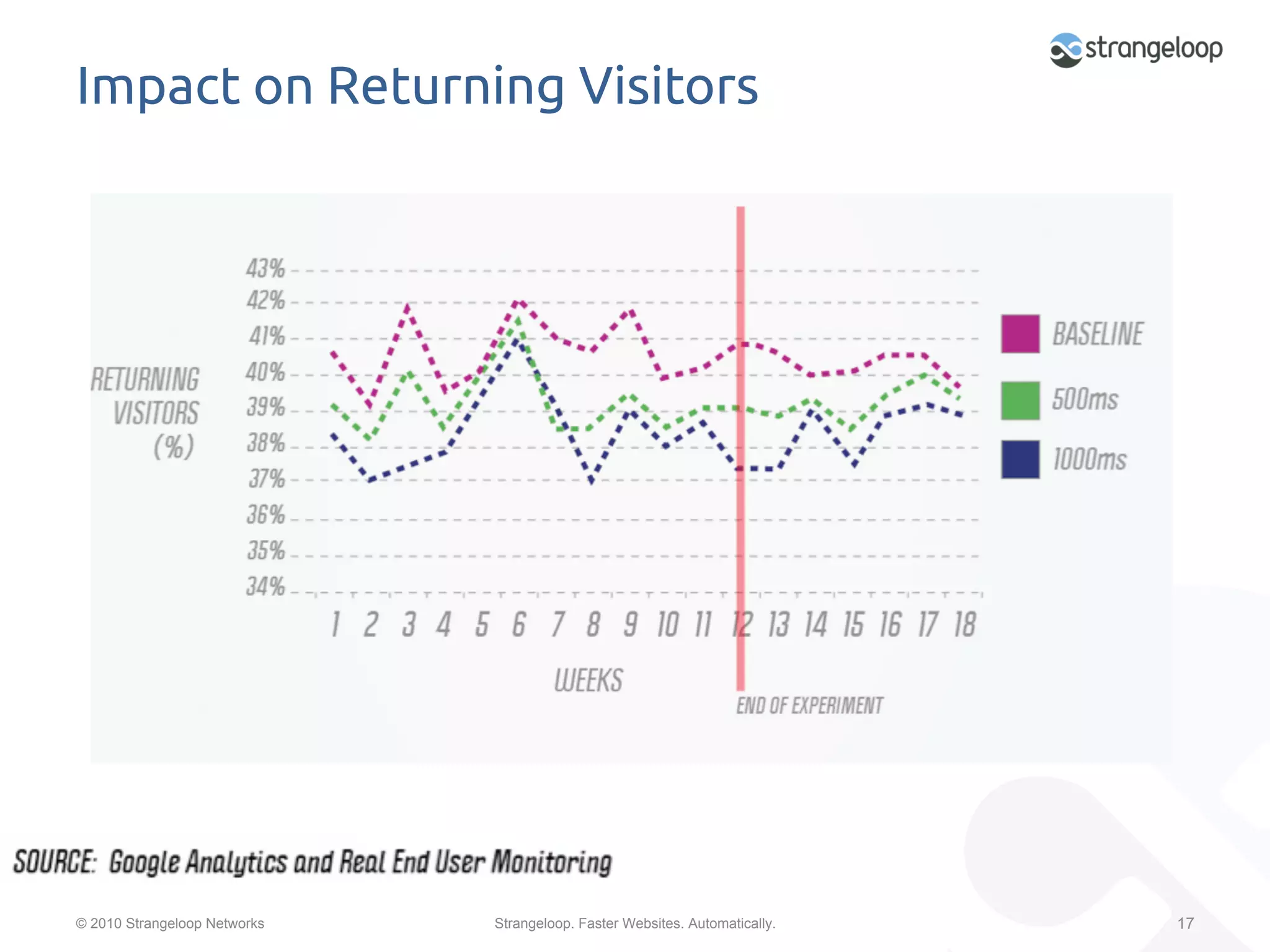

Impact on Returning Visitors

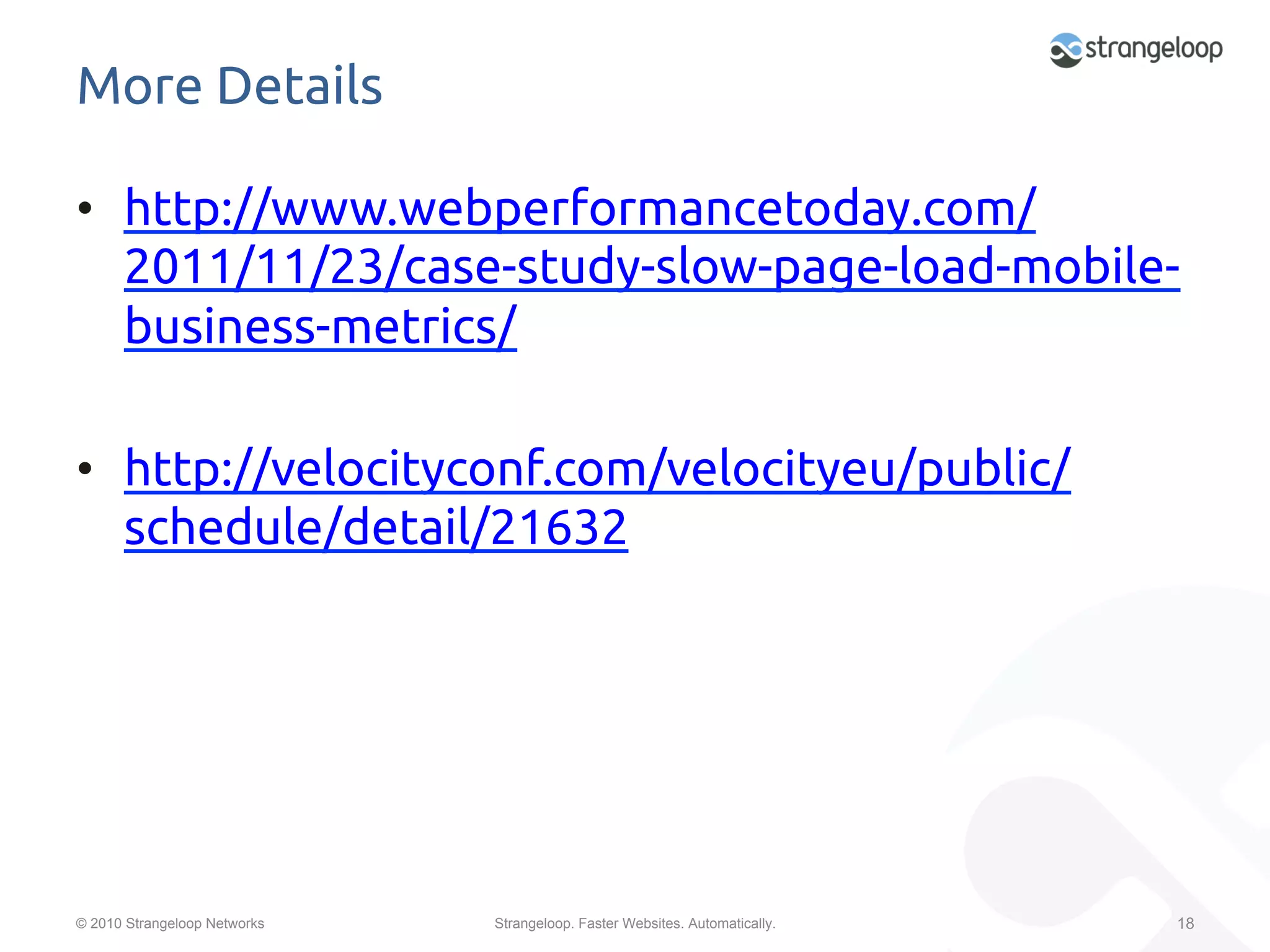

More Details

•  http://www.webperformancetoday.com/
2011/11/23/case-study-slow-page-load-mobile-
business-metrics/

•  http://velocityconf.com/velocityeu/public/
schedule/detail/21632

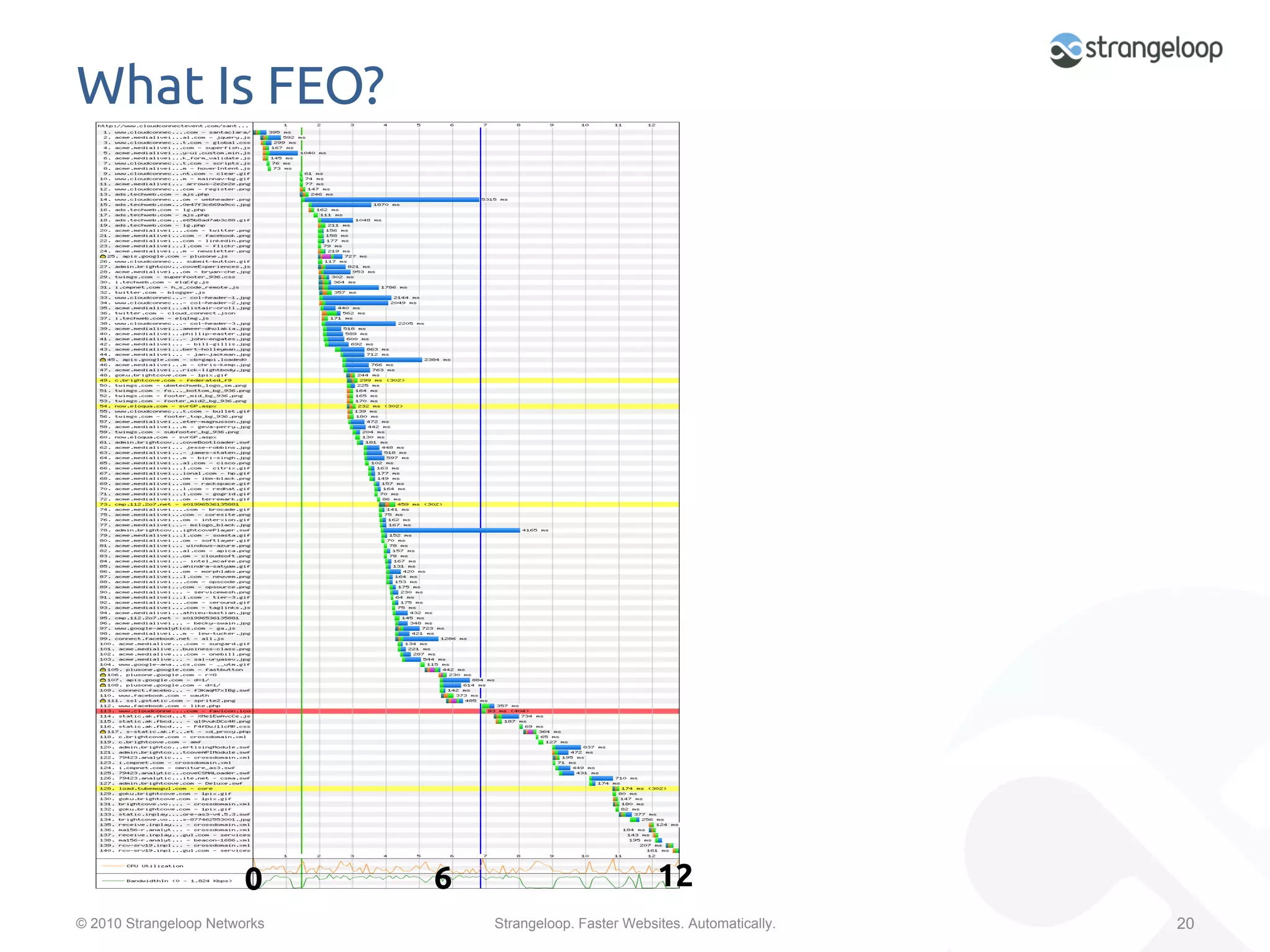

What Is FEO?


What Is FEO?

0
6
12

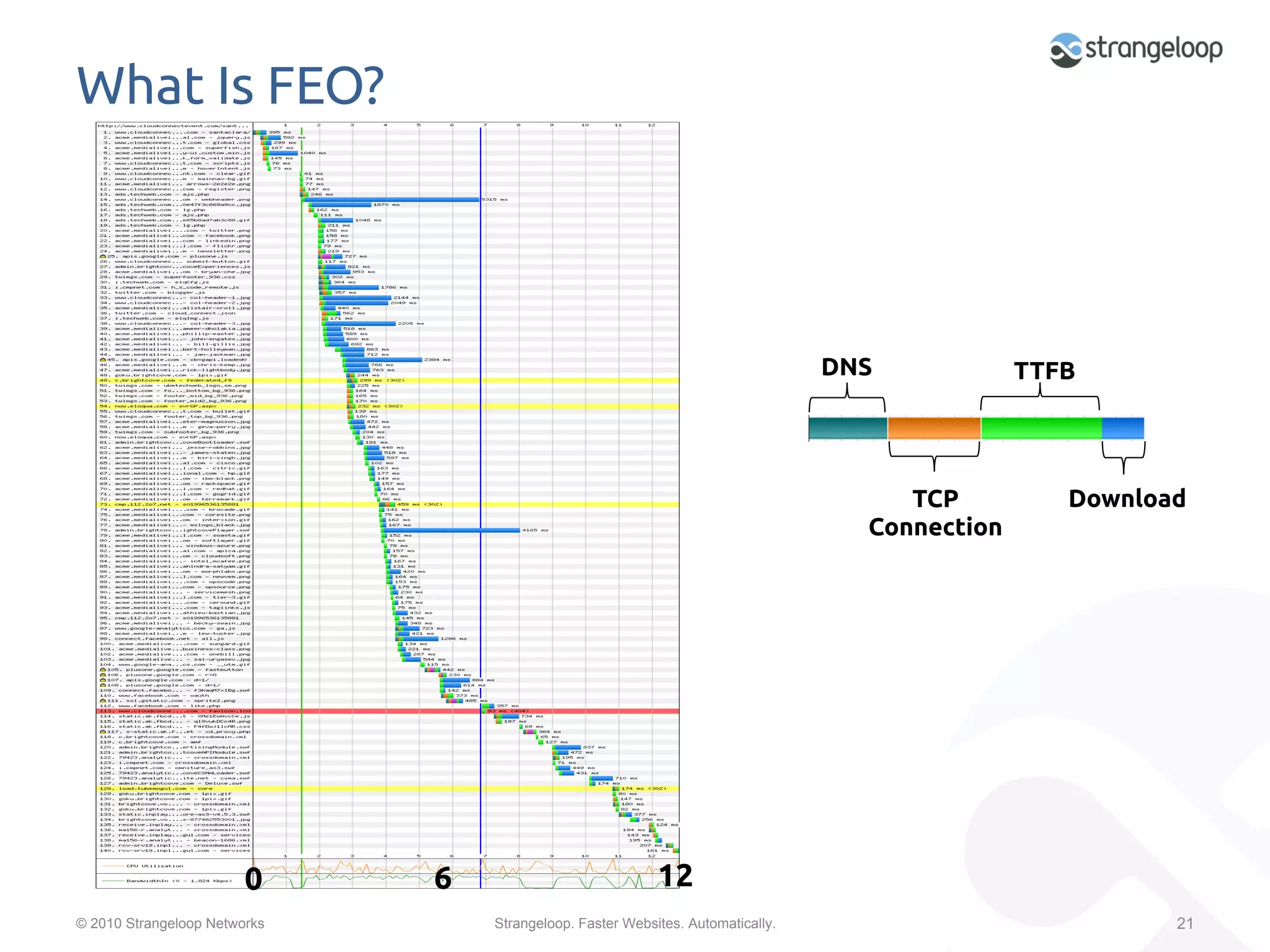

What Is FEO?

DNS
TTFB

TCP Download
Connection

0
6
12

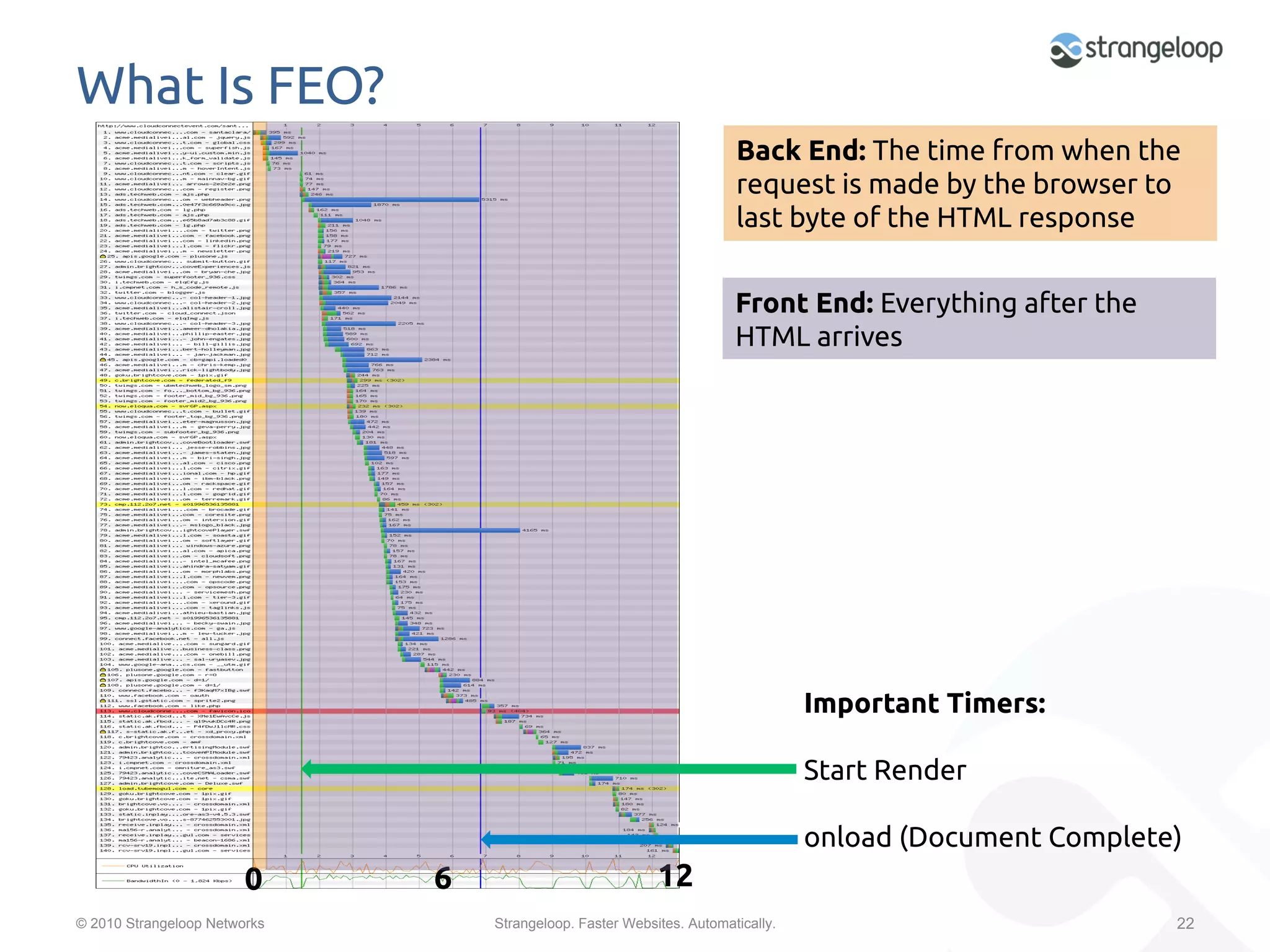

What Is FEO?
Back End: The time from when the
request is made by the browser to
last byte of the HTML response

Front End: Everything after the
HTML arrives

Important Timers:

Start Render

onload (Document Complete)
0
6
12

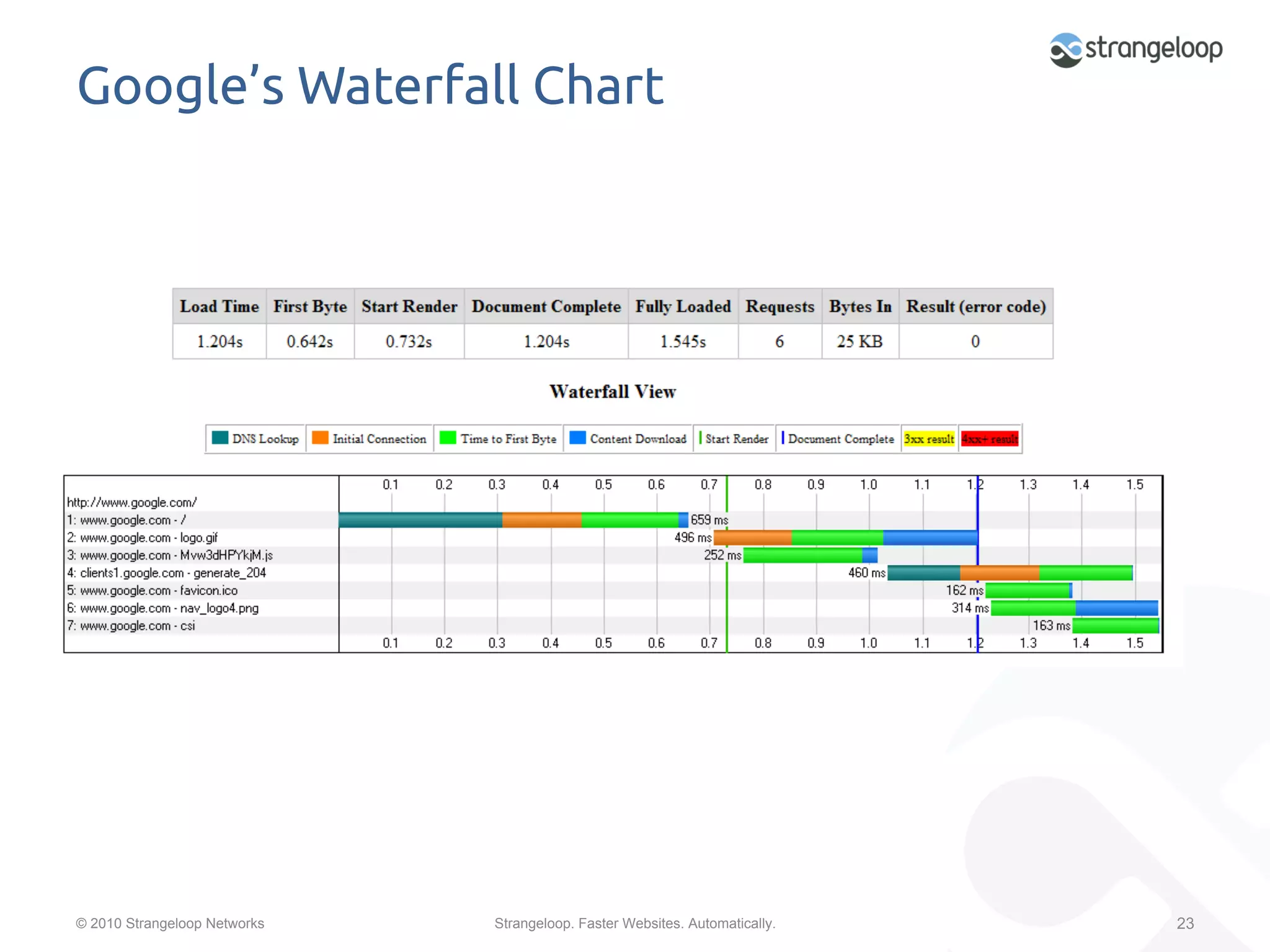

Google’s Waterfall Chart

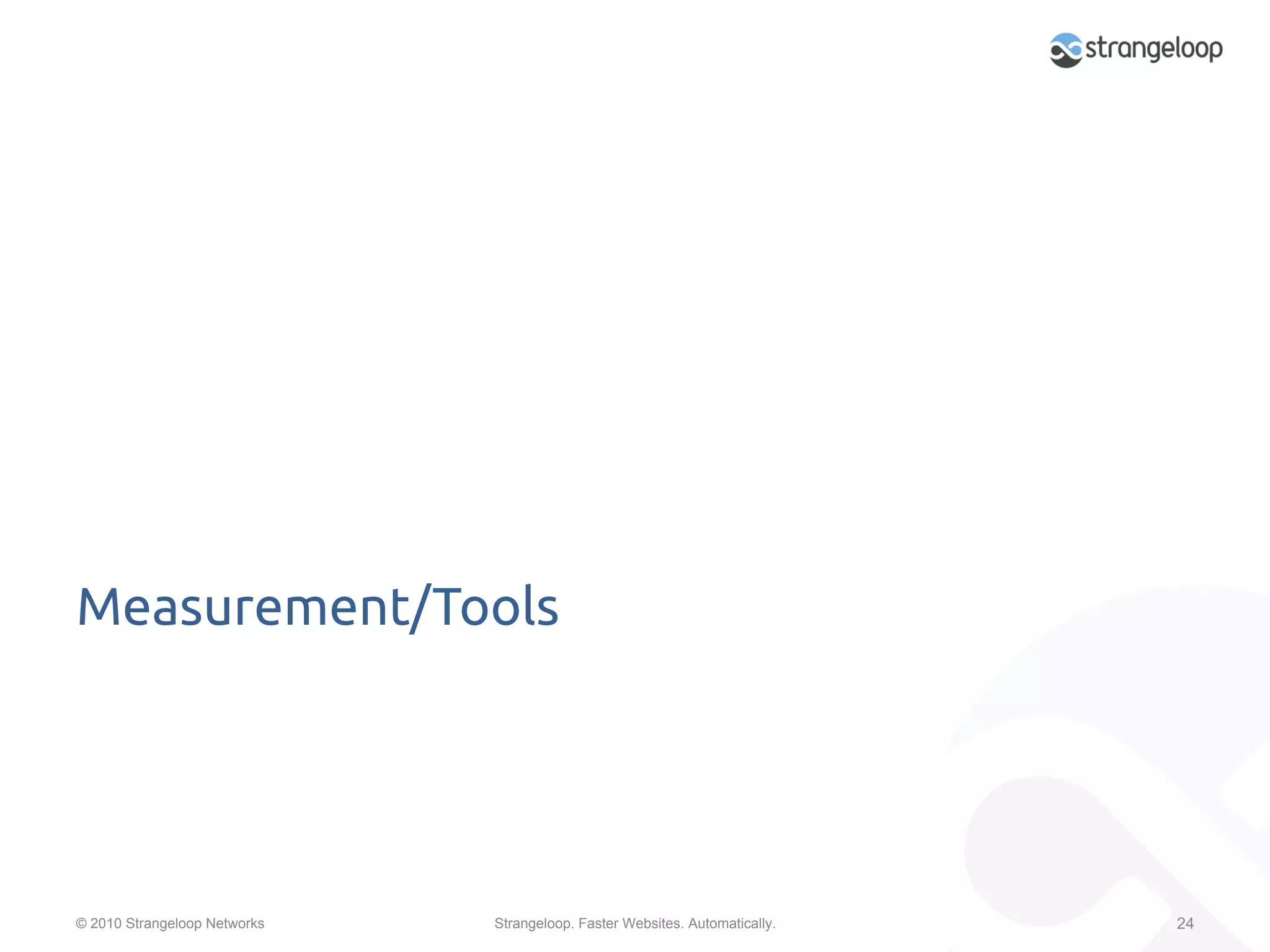

Measurement/Tools

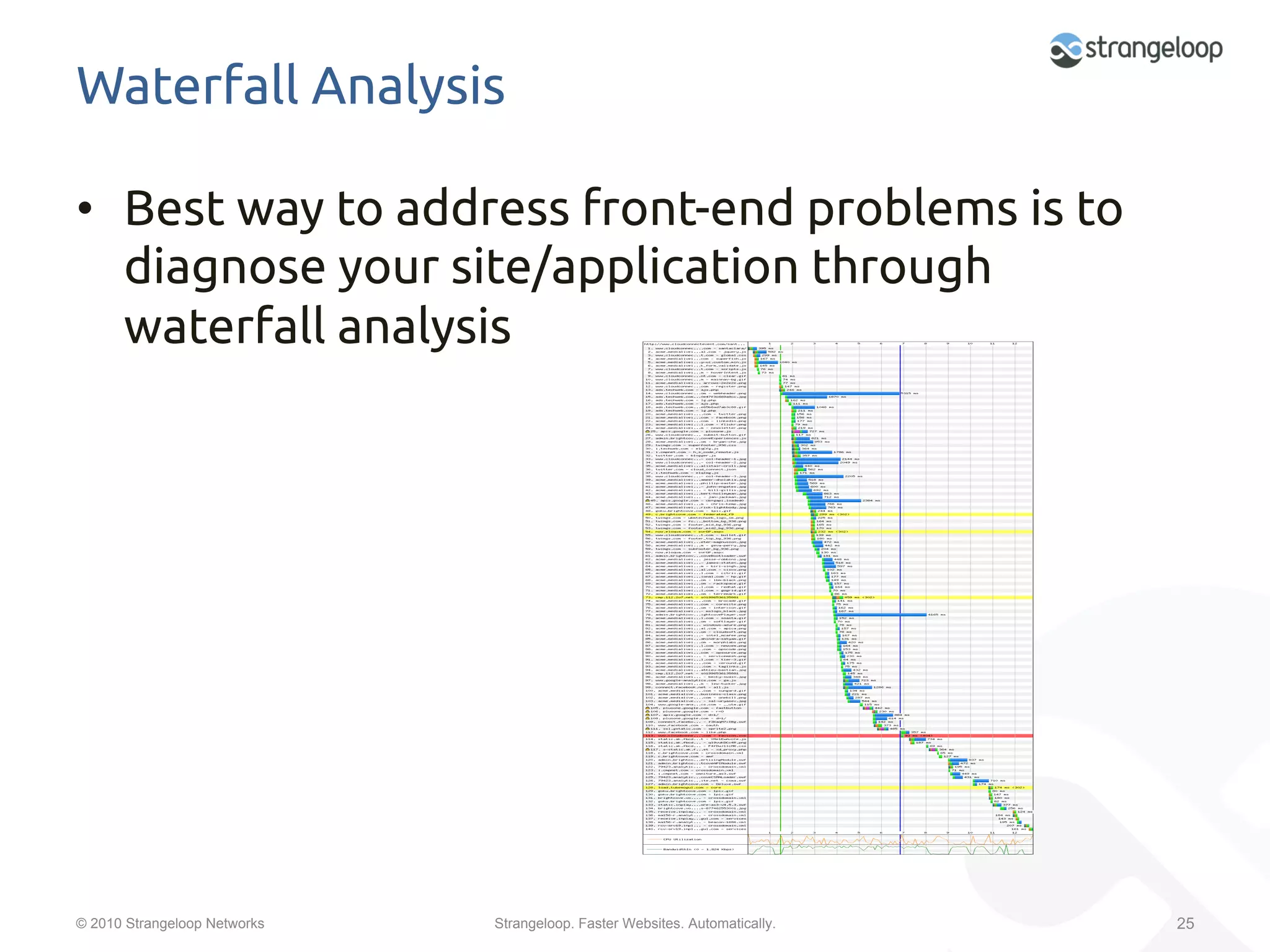

Waterfall Analysis

•  Best way to address front-end problems is to
diagnose your site/application through
waterfall analysis

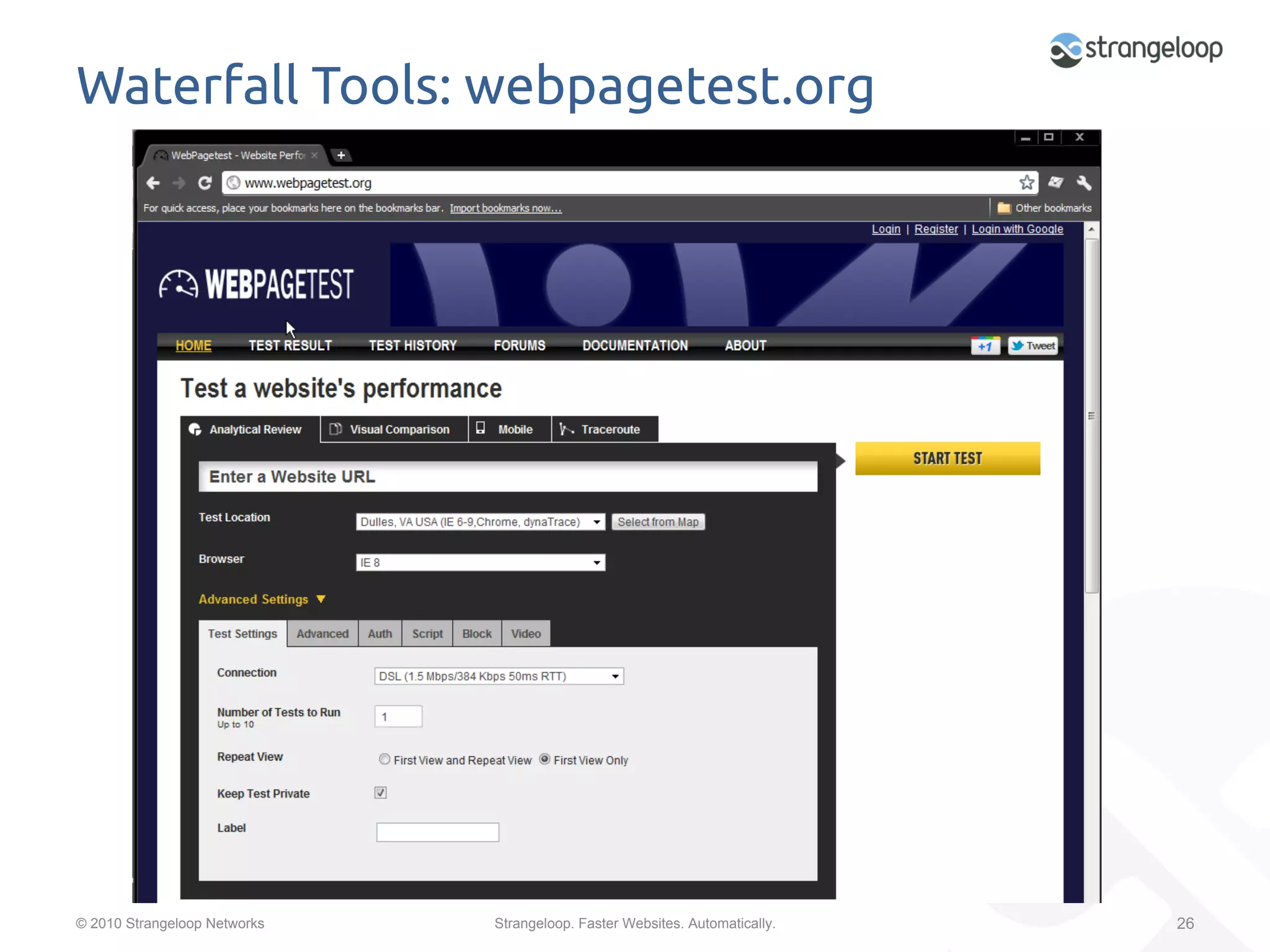

Waterfall Tools: webpagetest.org

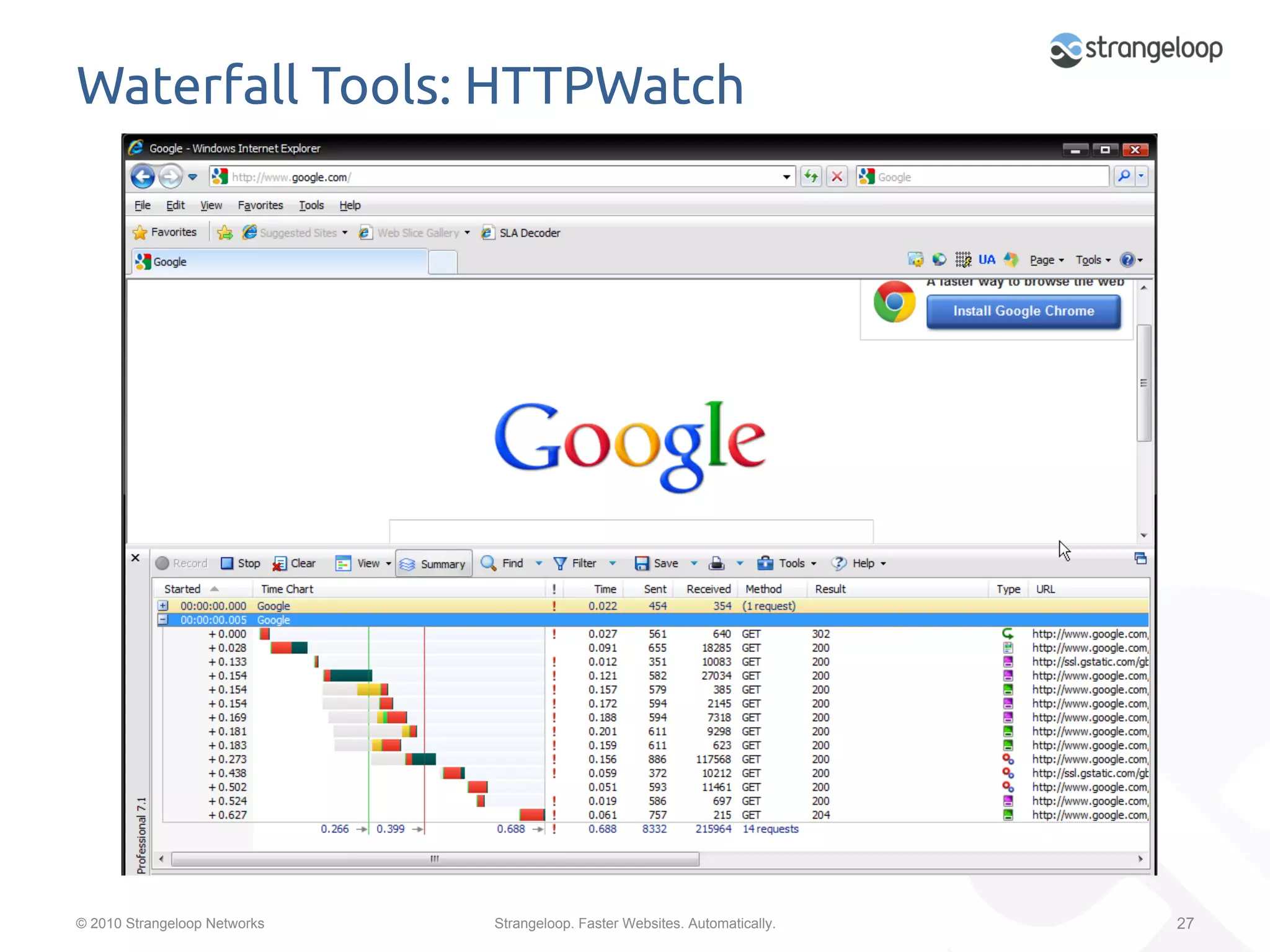

Waterfall Tools: HTTPWatch

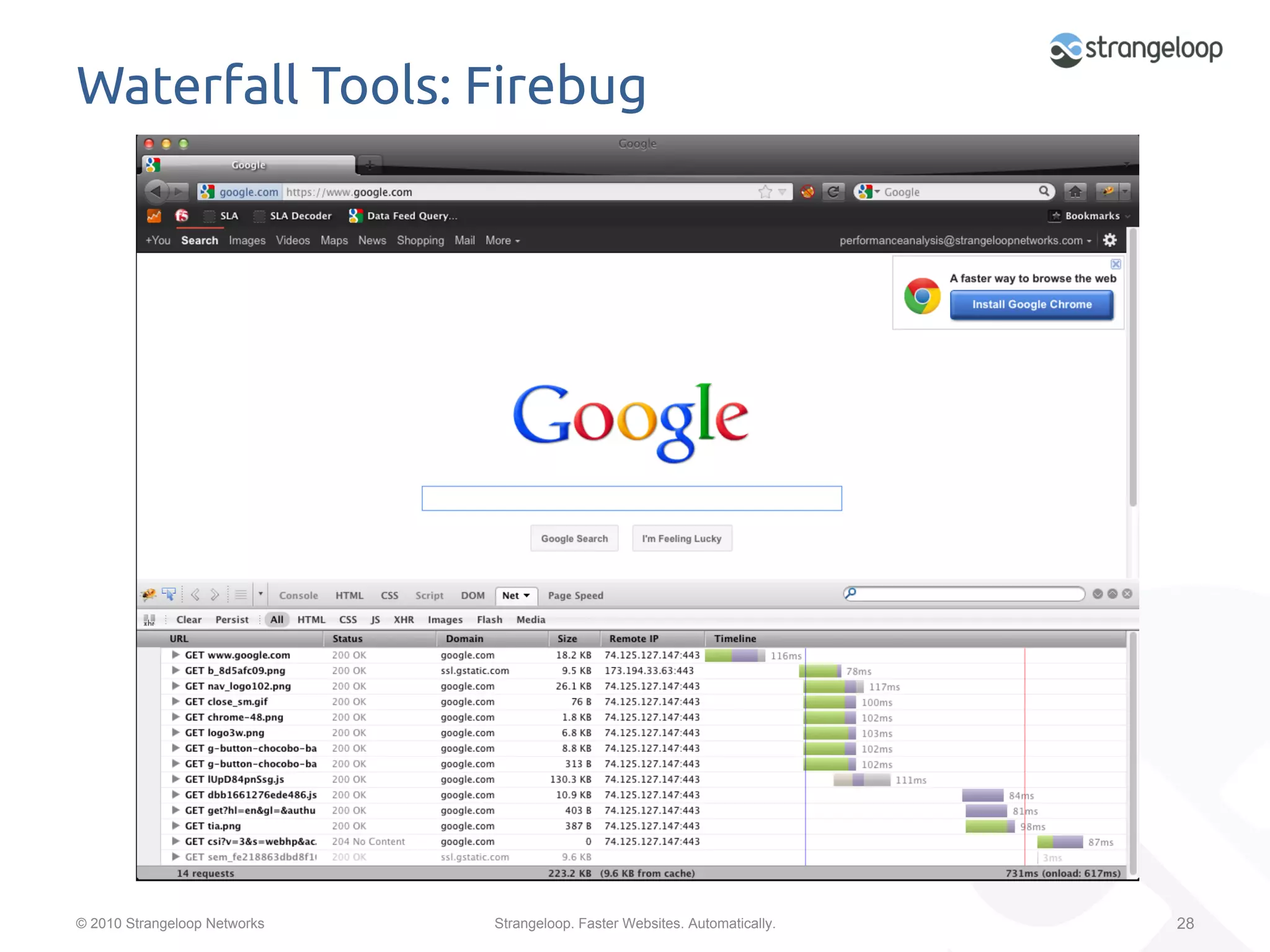

Waterfall Tools: Firebug

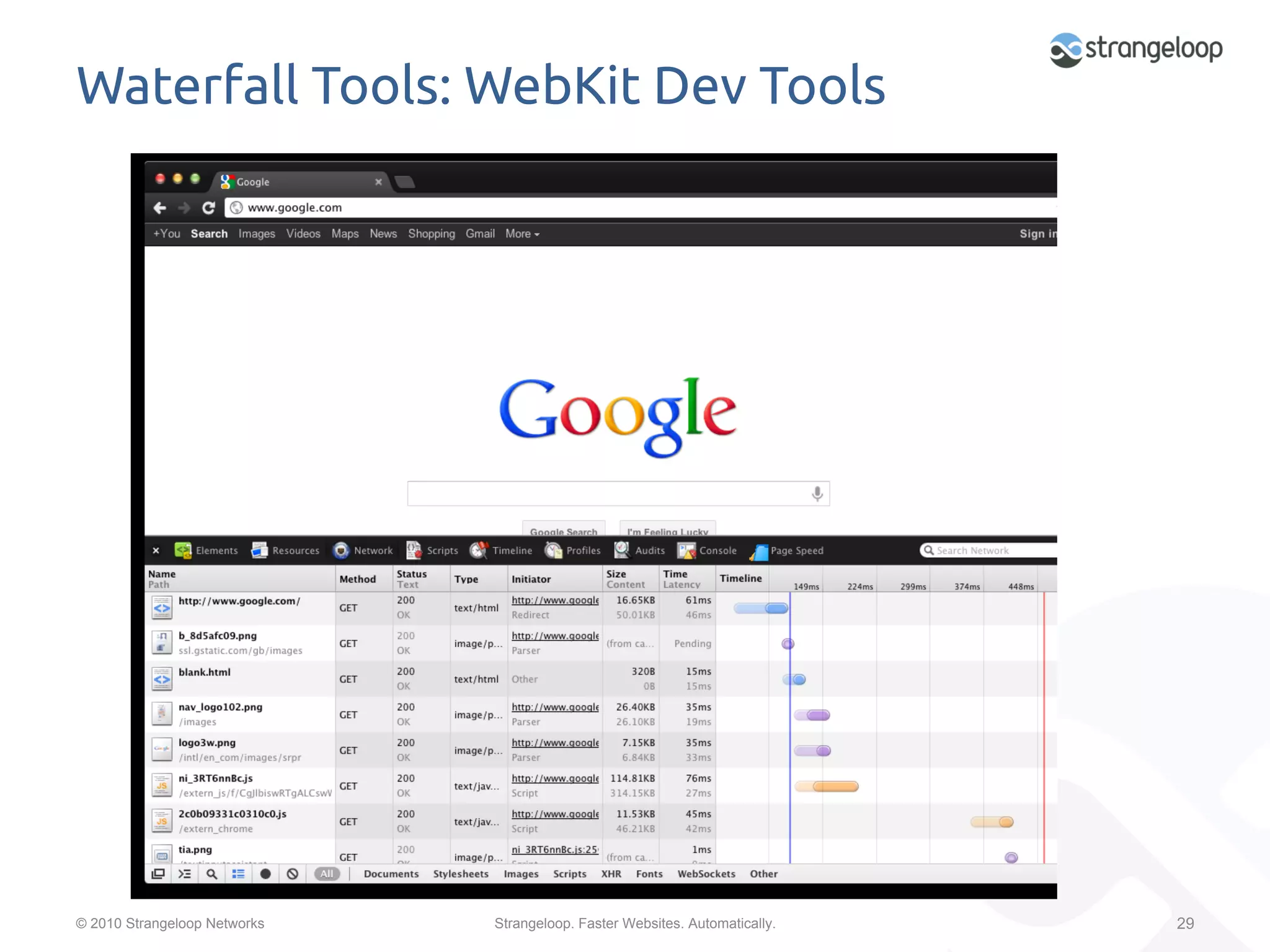

Waterfall Tools: WebKit Dev Tools

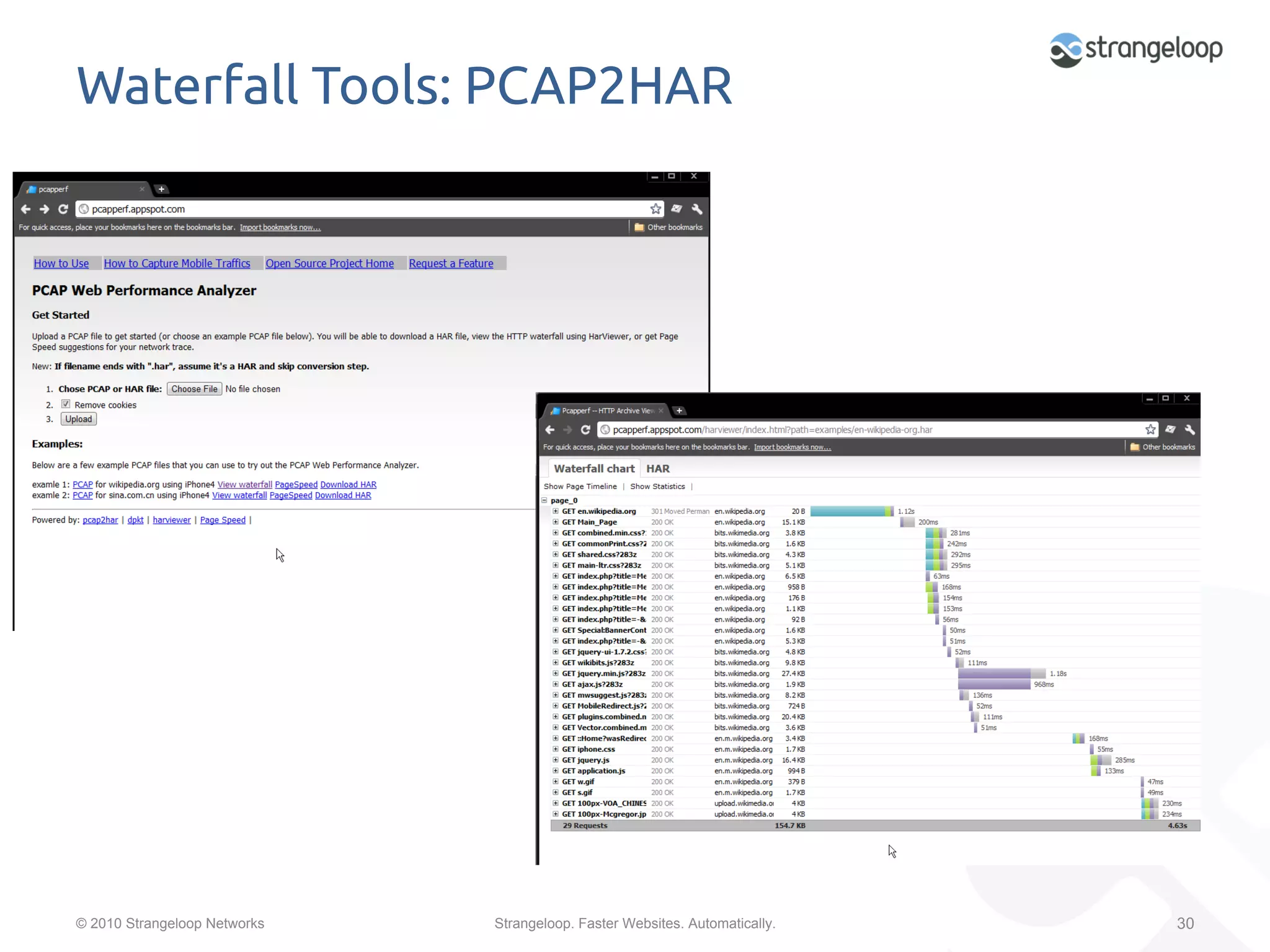

Waterfall Tools: PCAP2HAR

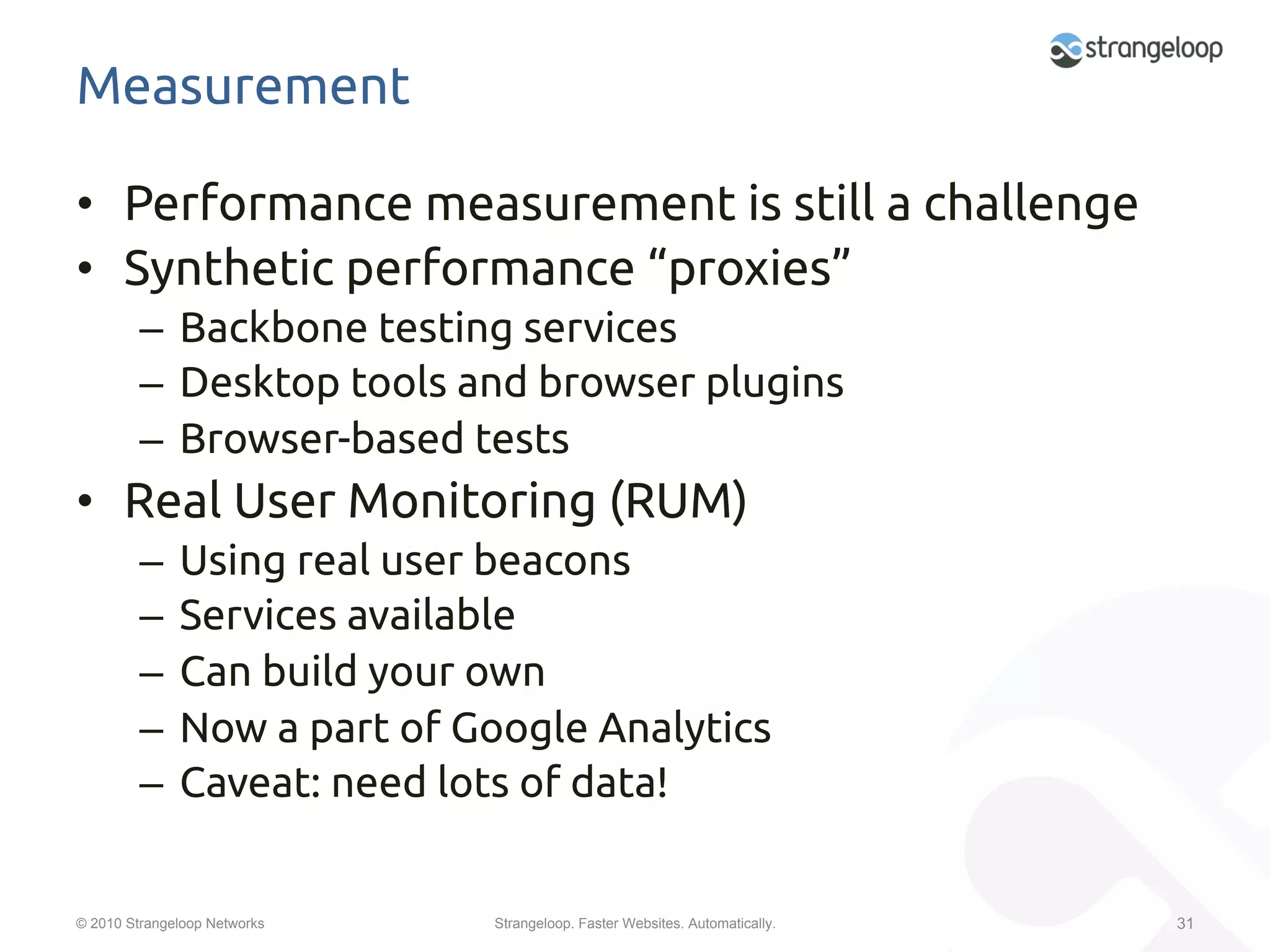

Measurement

•  Performance measurement is still a challenge
•  Synthetic performance “proxies”
–  Backbone testing services
–  Desktop tools and browser plugins
–  Browser-based tests
•  Real User Monitoring (RUM)
–  Using real user beacons
–  Services available
–  Can build your own
–  Now a part of Google Analytics
–  Caveat: need lots of data!


Front End Problems

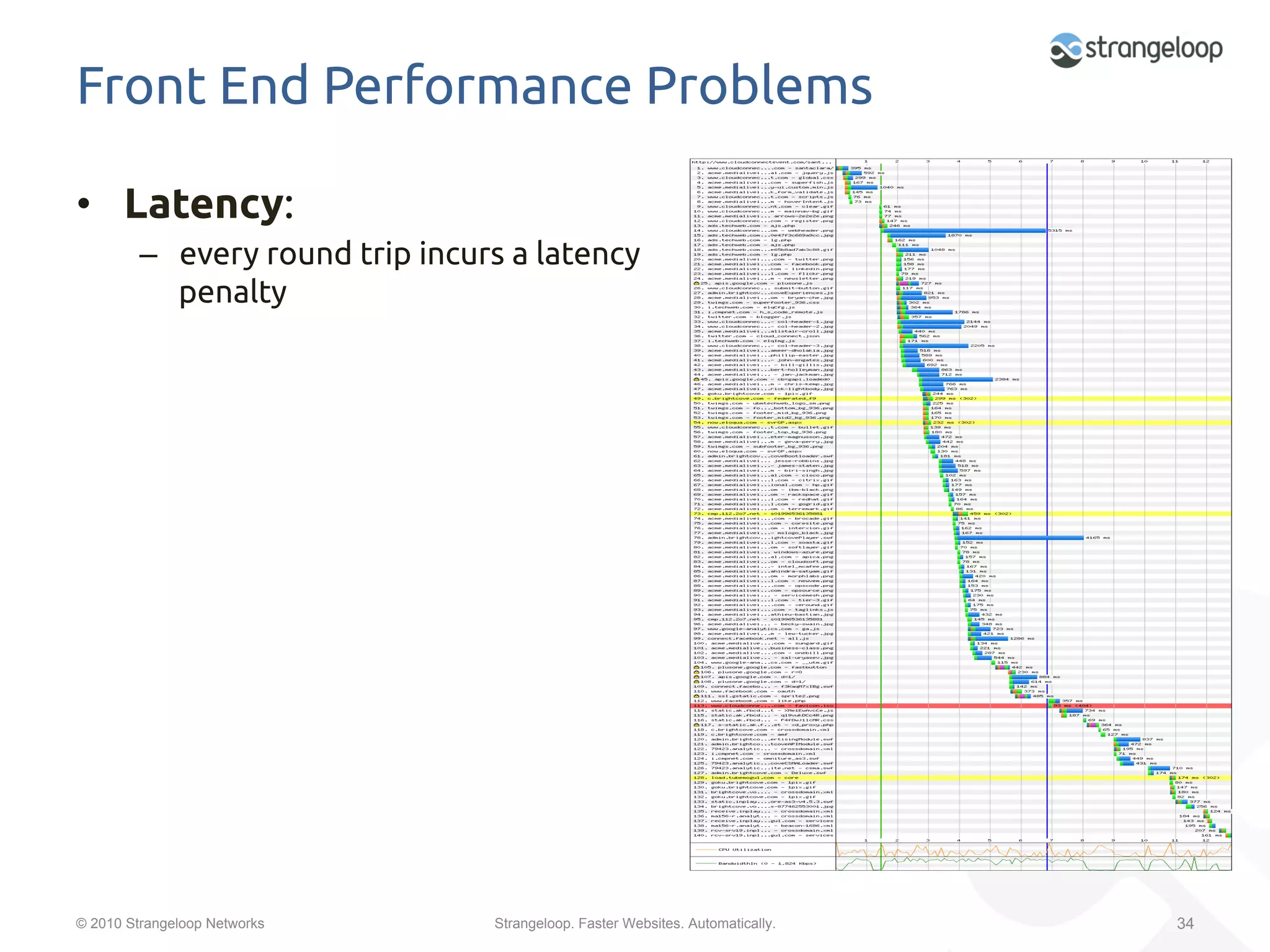

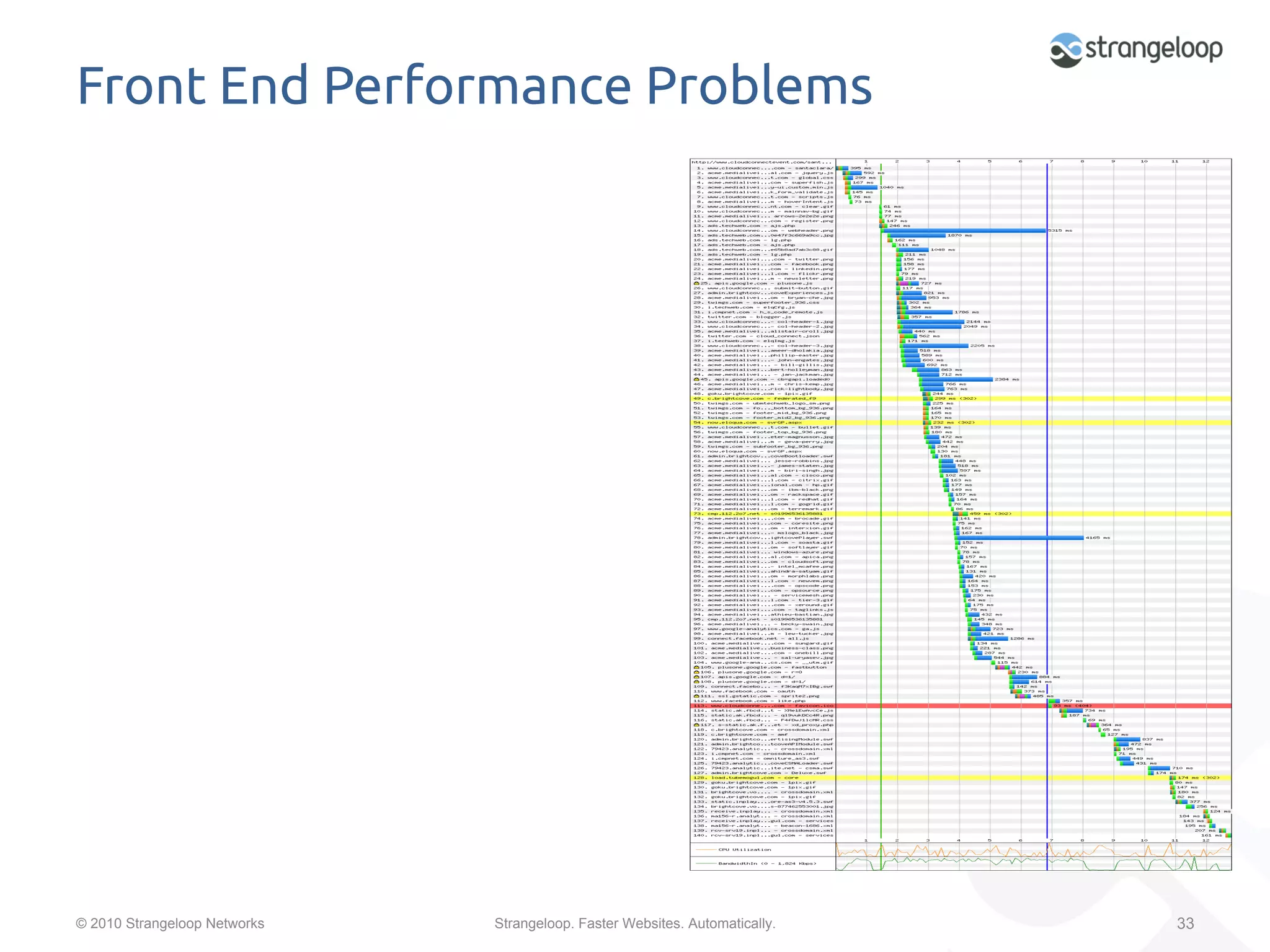

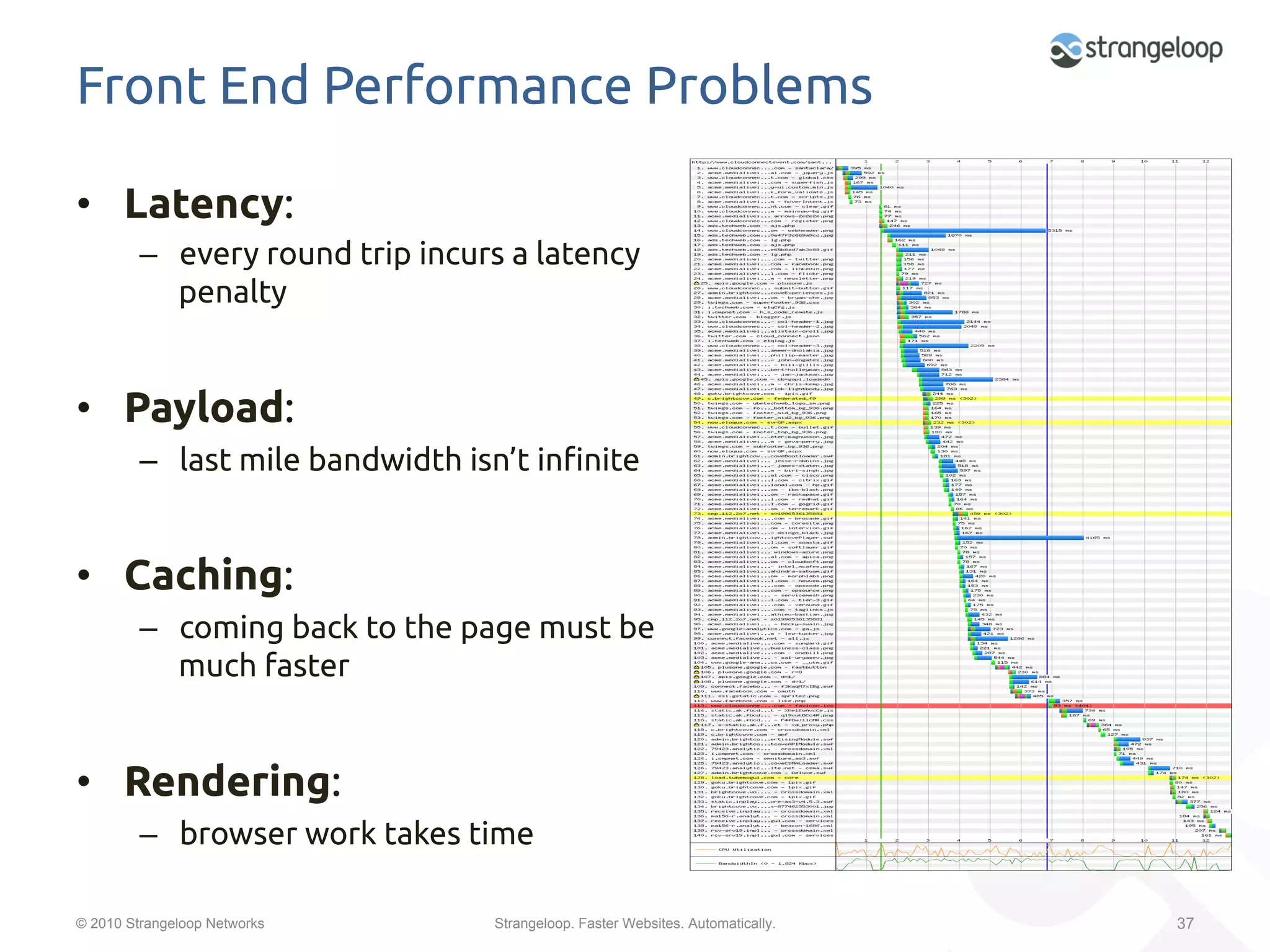

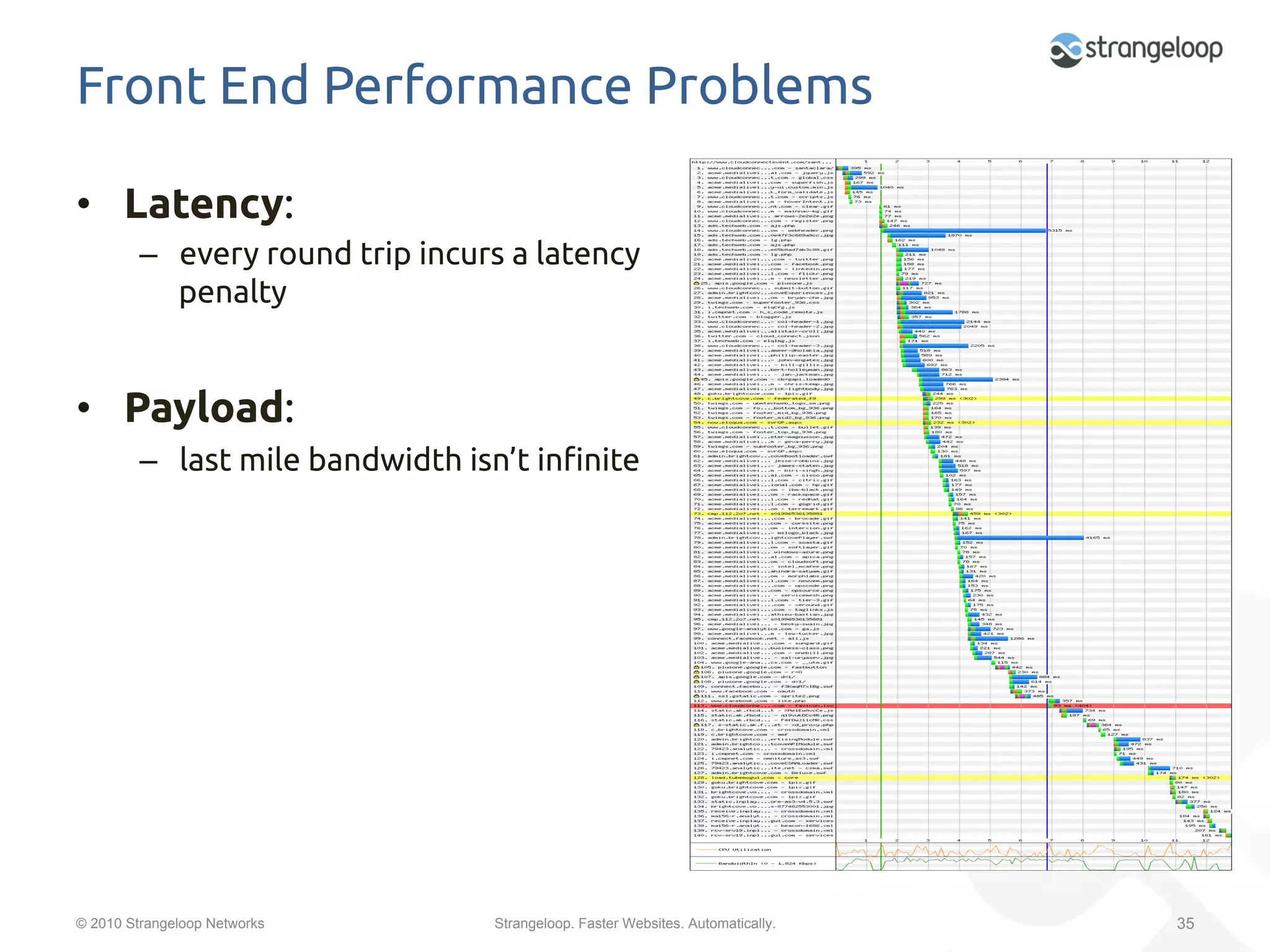

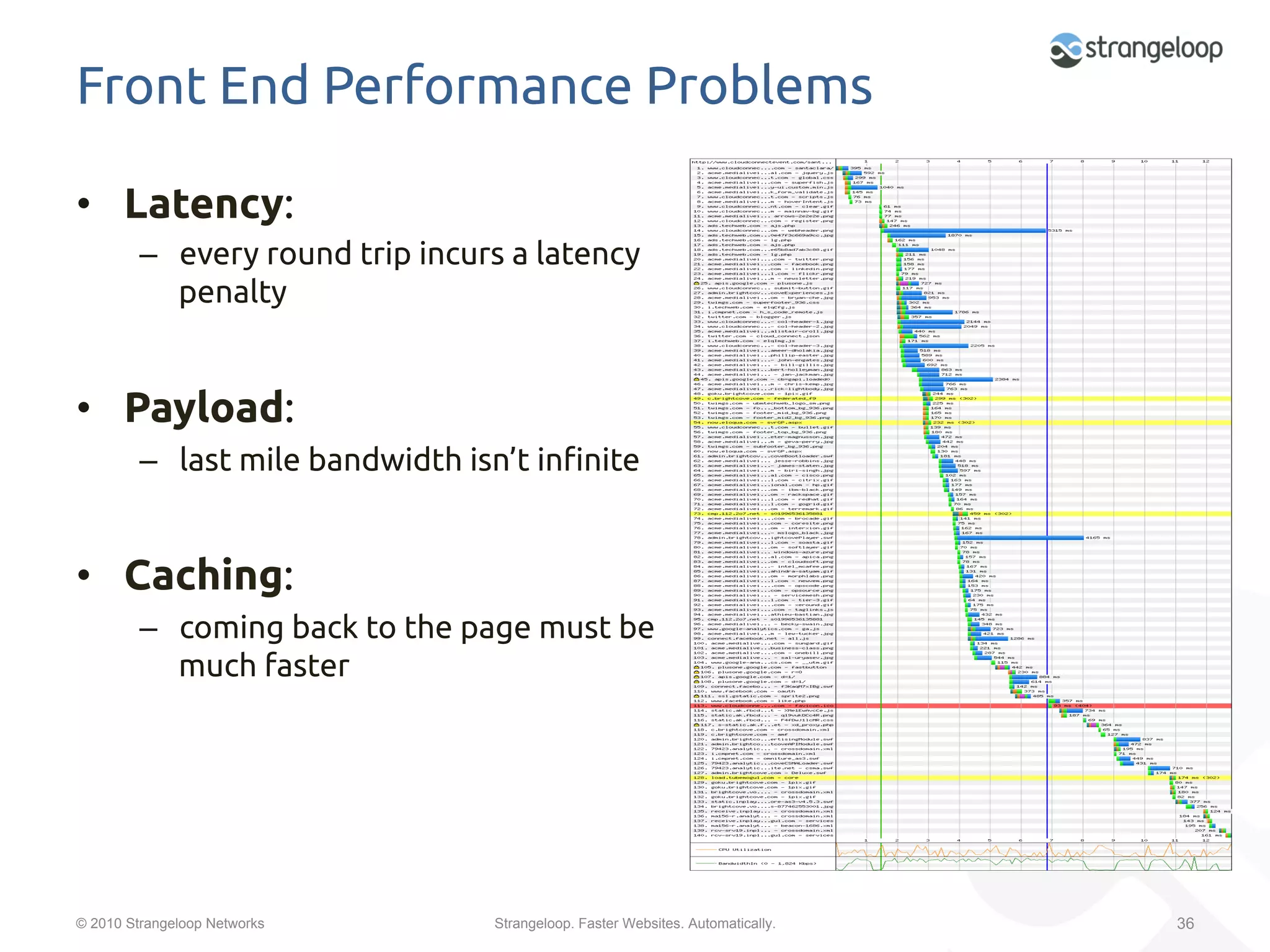

Front End Performance Problems



•  Latency:
–  every round trip incurs a latency
penalty



•  Latency:
penalty

•  Payload:
–  last mile bandwidth isn’t in"nite



•  Latency:
penalty

•  Payload:

•  Caching:
–  coming back to the page must be
much faster



•  Latency:
penalty

•  Payload:

•  Caching:
–  coming back to the page must be
much faster

•  Rendering:
–  browser work takes time

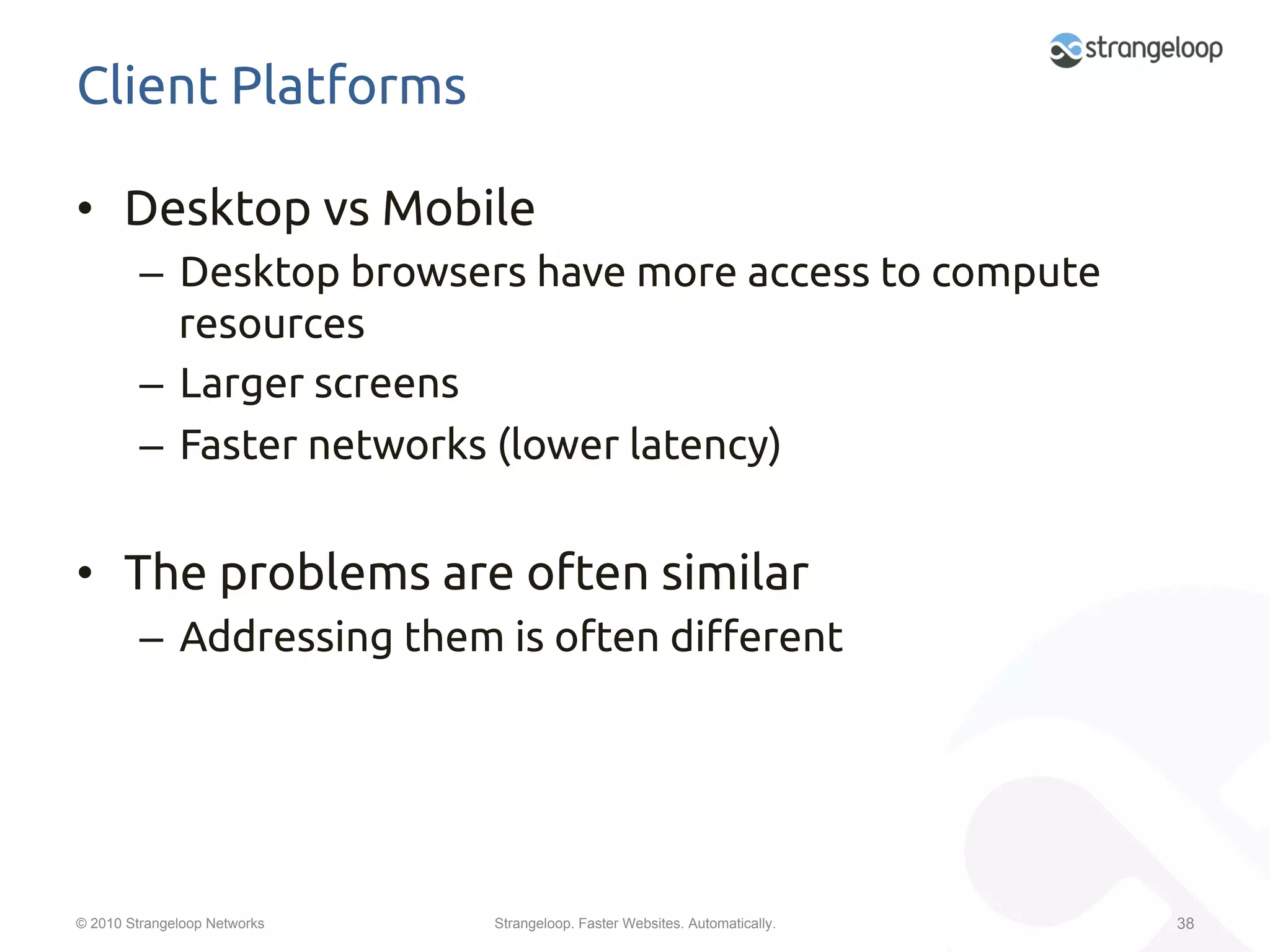

Client Platforms

•  Desktop vs Mobile
–  Desktop browsers have more access to compute
resources
–  Larger screens
–  Faster networks (lower latency)

•  The problems are often similar
–  Addressing them is often di$erent


Addressing Front End Problems

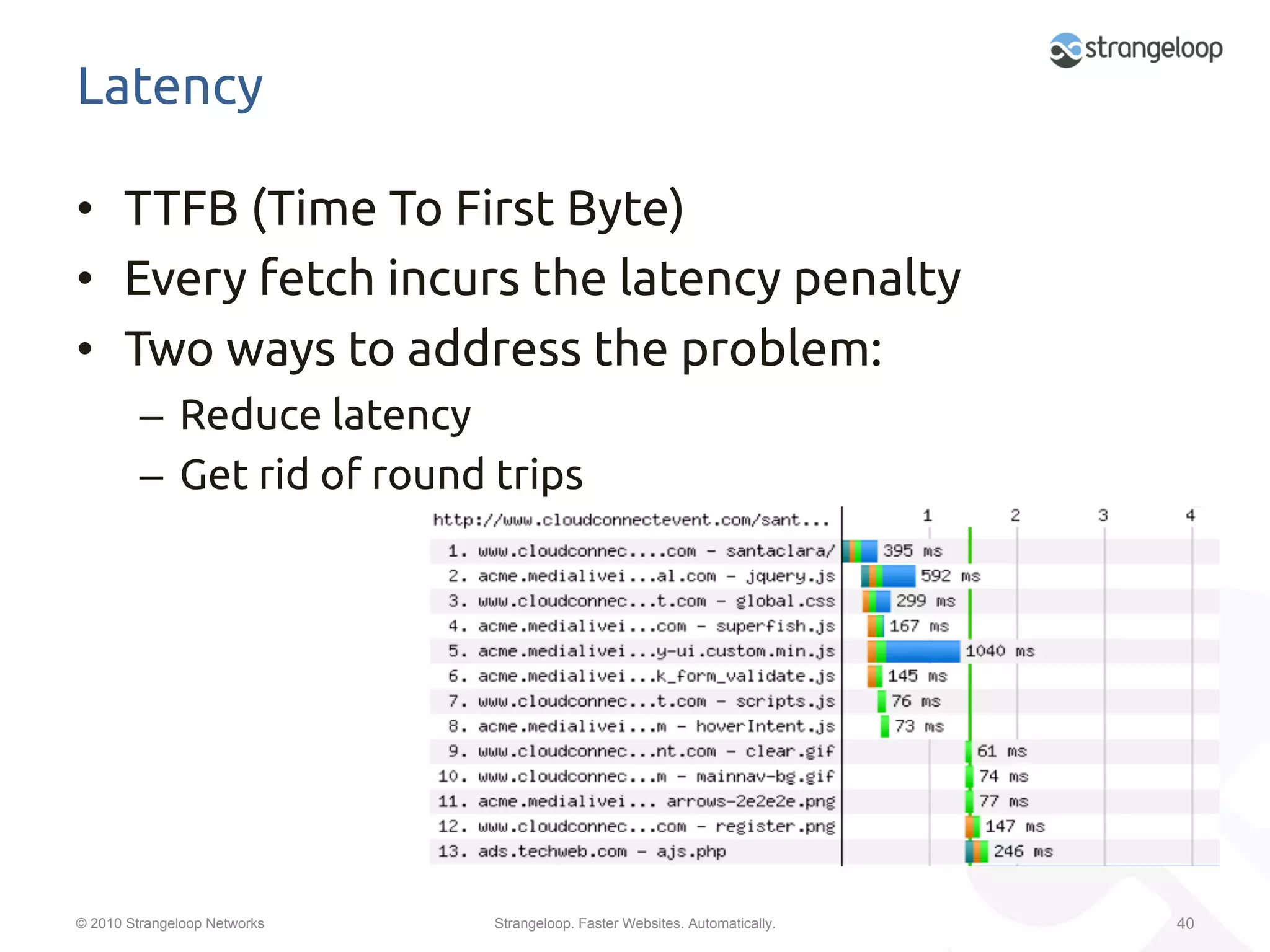

Latency

•  TTFB (Time To First Byte)
•  Every fetch incurs the latency penalty
•  Two ways to address the problem:
–  Reduce latency
–  Get rid of round trips

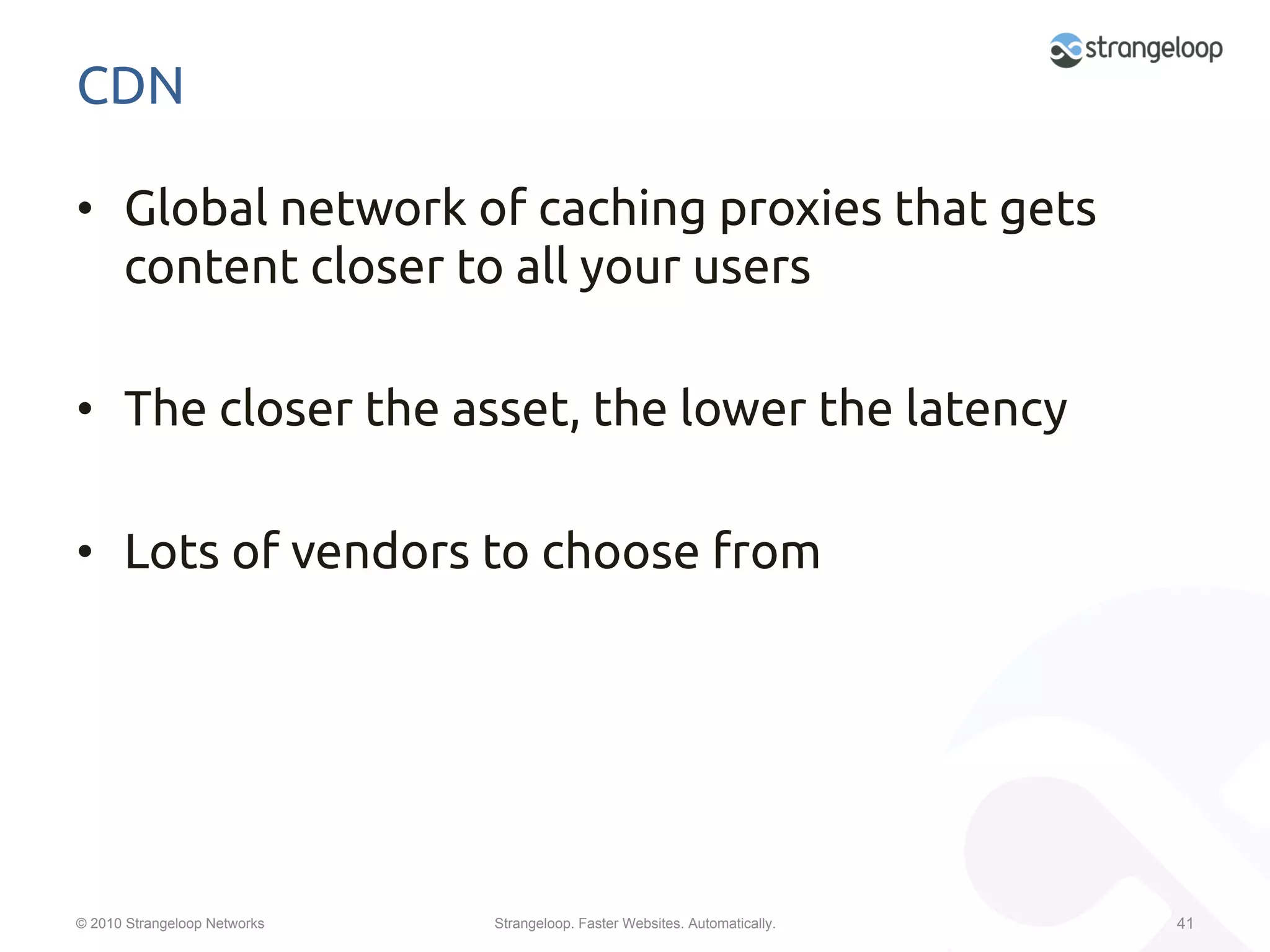

CDN

•  Global network of caching proxies that gets
content closer to all your users

•  The closer the asset, the lower the latency

•  Lots of vendors to choose from

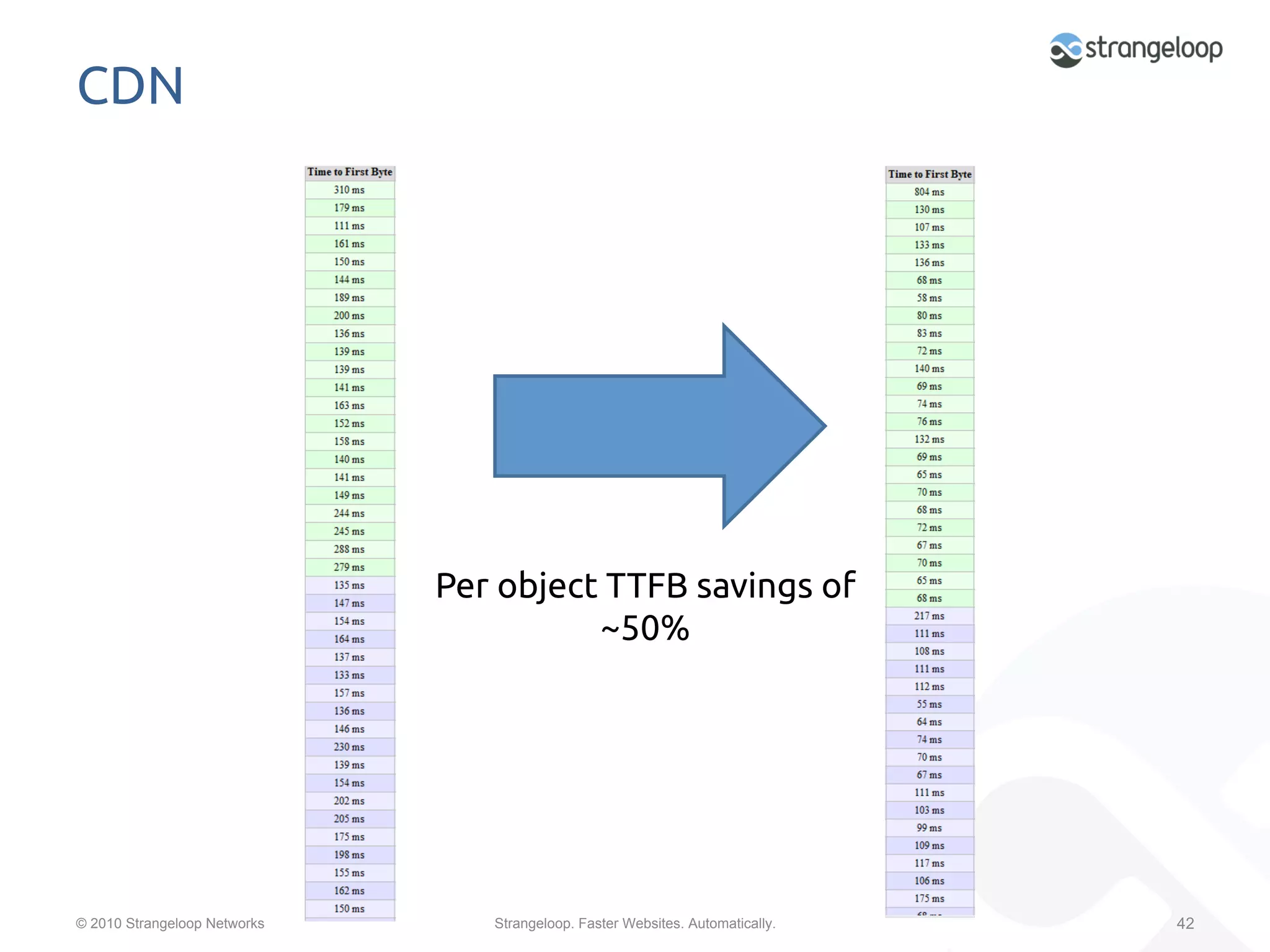

CDN

Per object TTFB savings of
~50%

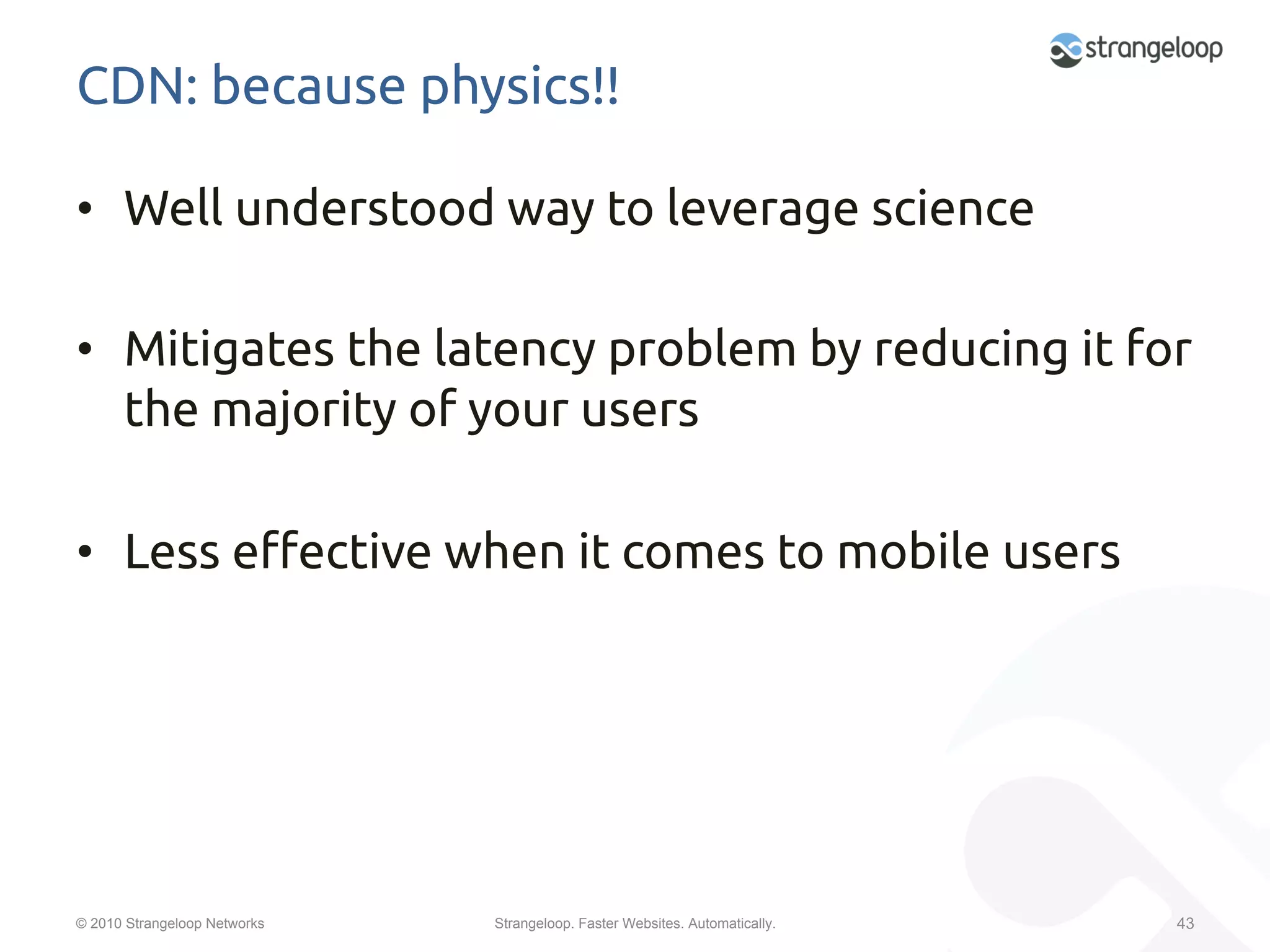

CDN: because physics!!

•  Well understood way to leverage science

•  Mitigates the latency problem by reducing it for
the majority of your users

•  Less e$ective when it comes to mobile users

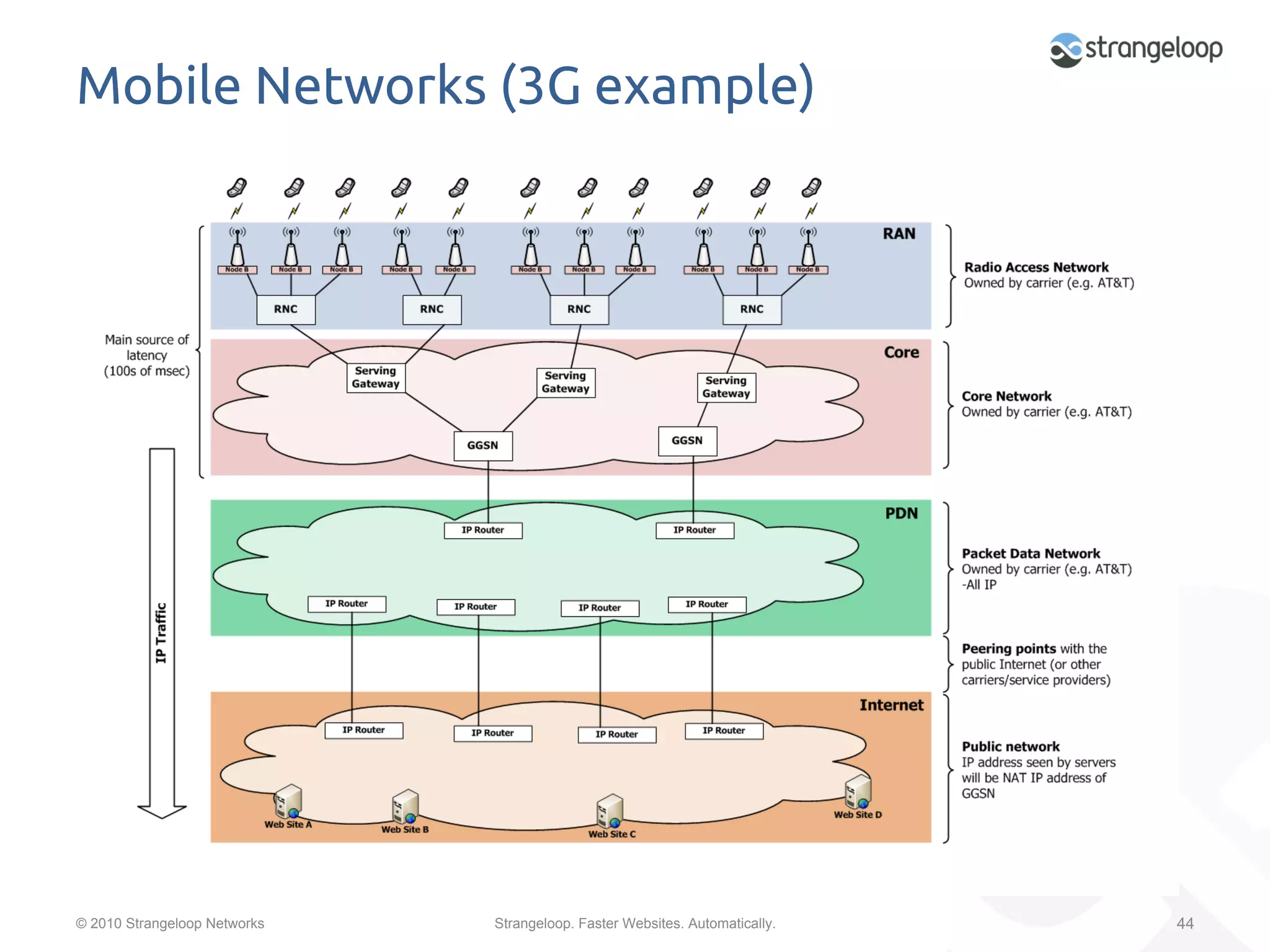

Mobile Networks (3G example)

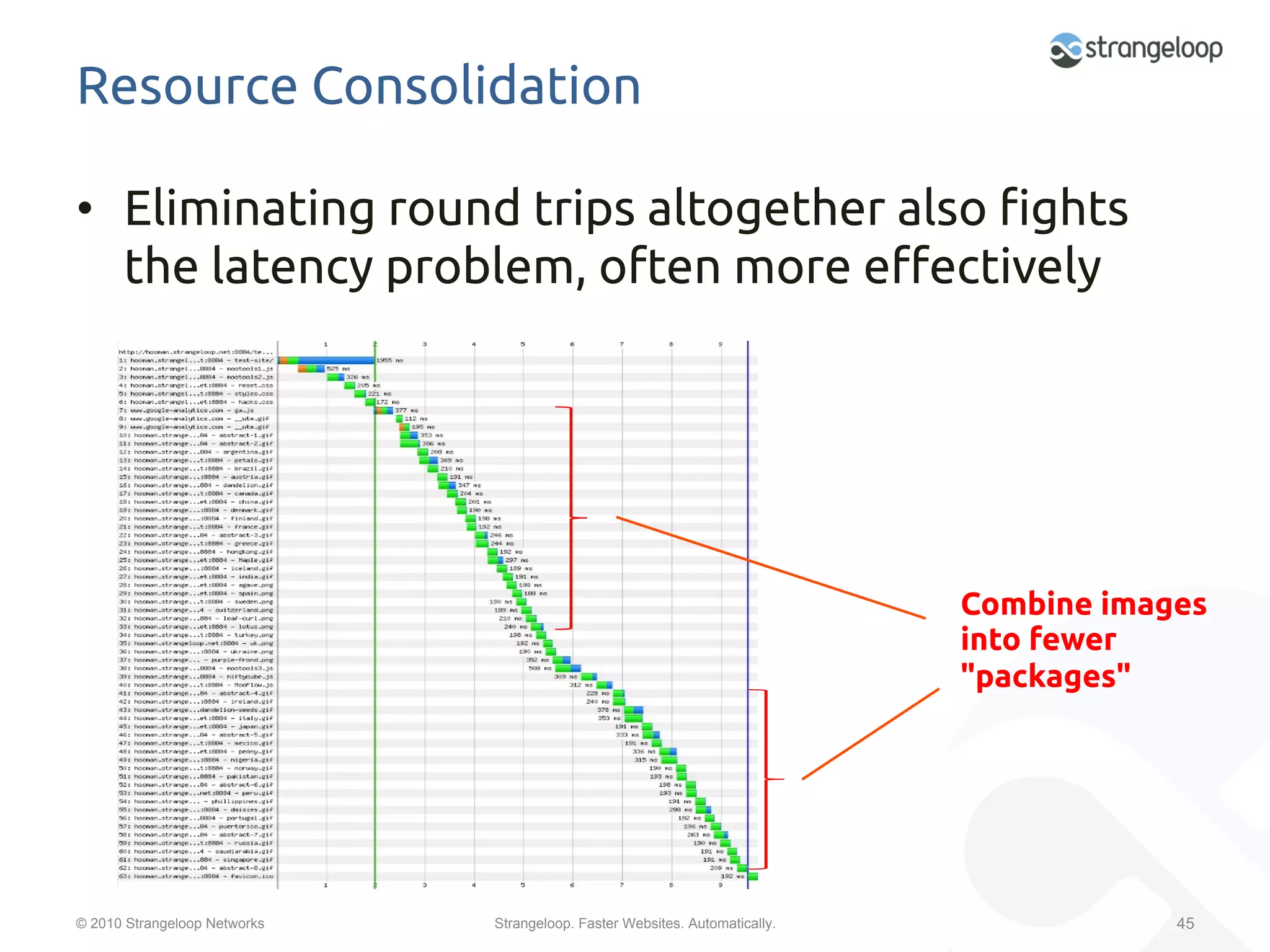

Resource Consolidation

•  Eliminating round trips altogether also "ghts
the latency problem, often more e$ectively

Combine images
into fewer
"packages"

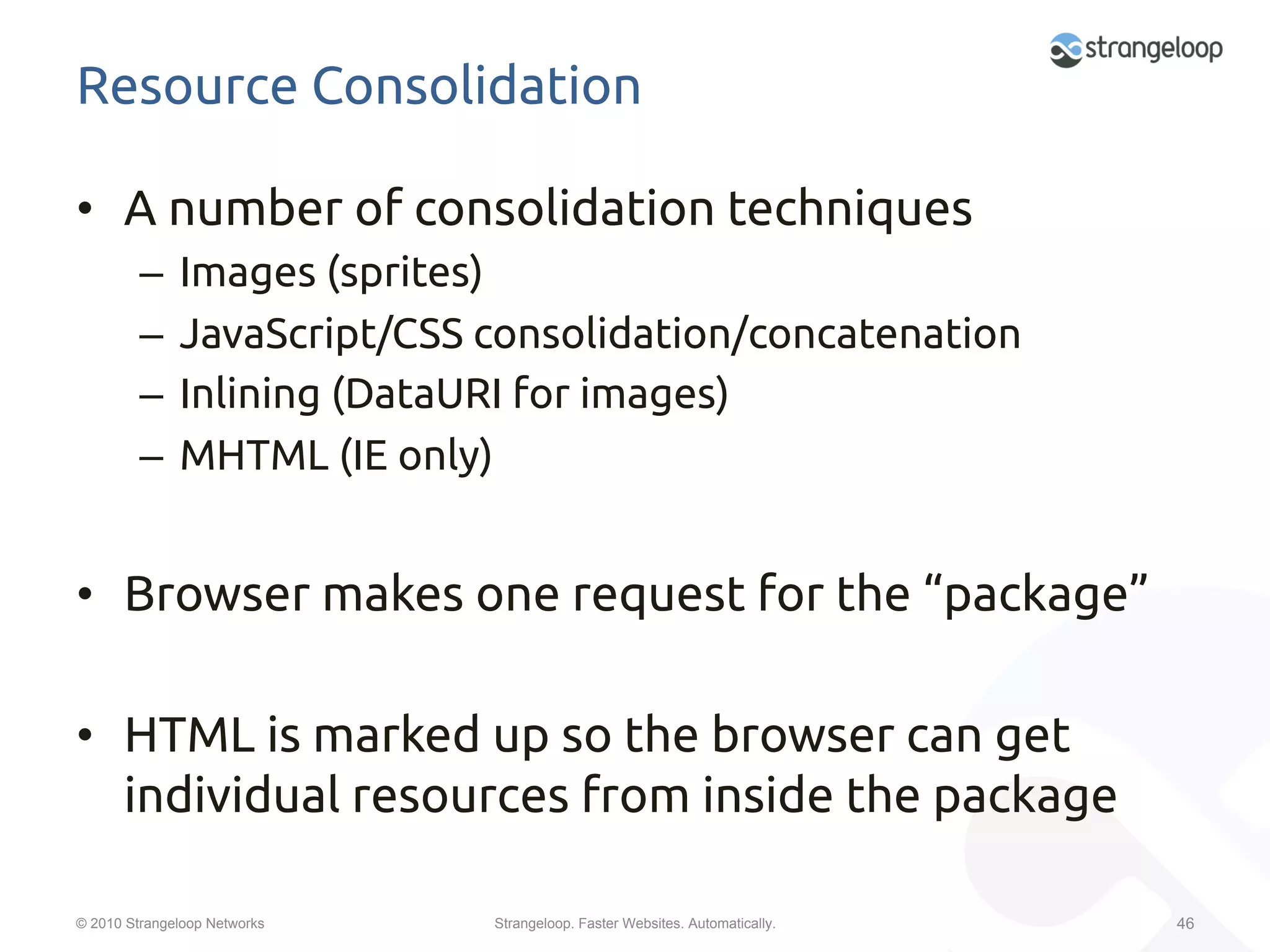

Resource Consolidation

•  A number of consolidation techniques
–  Images (sprites)
–  JavaScript/CSS consolidation/concatenation
–  Inlining (DataURI for images)
–  MHTML (IE only)

•  Browser makes one request for the “package”

•  HTML is marked up so the browser can get
individual resources from inside the package

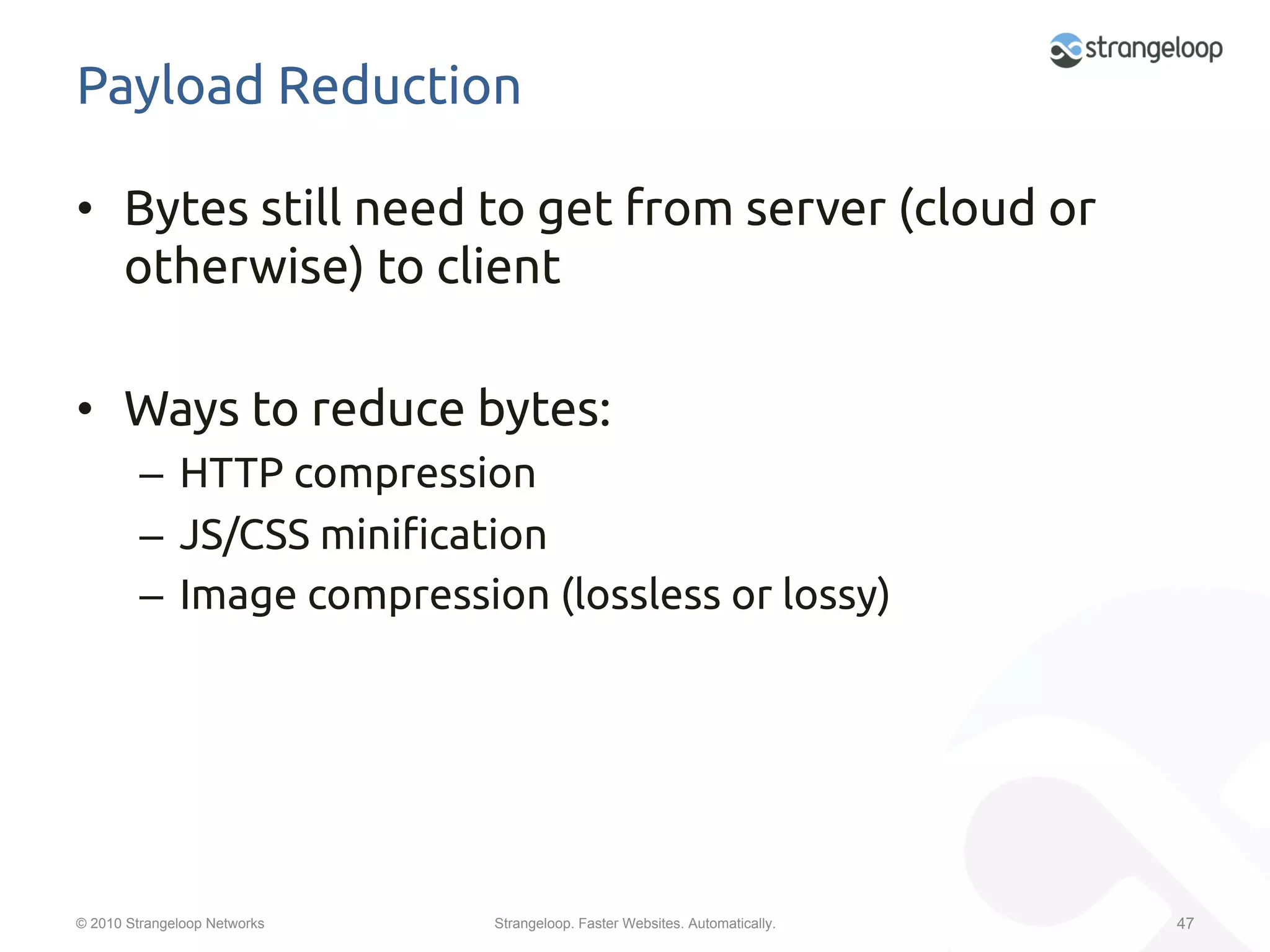

Payload Reduction

•  Bytes still need to get from server (cloud or
otherwise) to client

•  Ways to reduce bytes:
–  HTTP compression
–  JS/CSS mini"cation
–  Image compression (lossless or lossy)

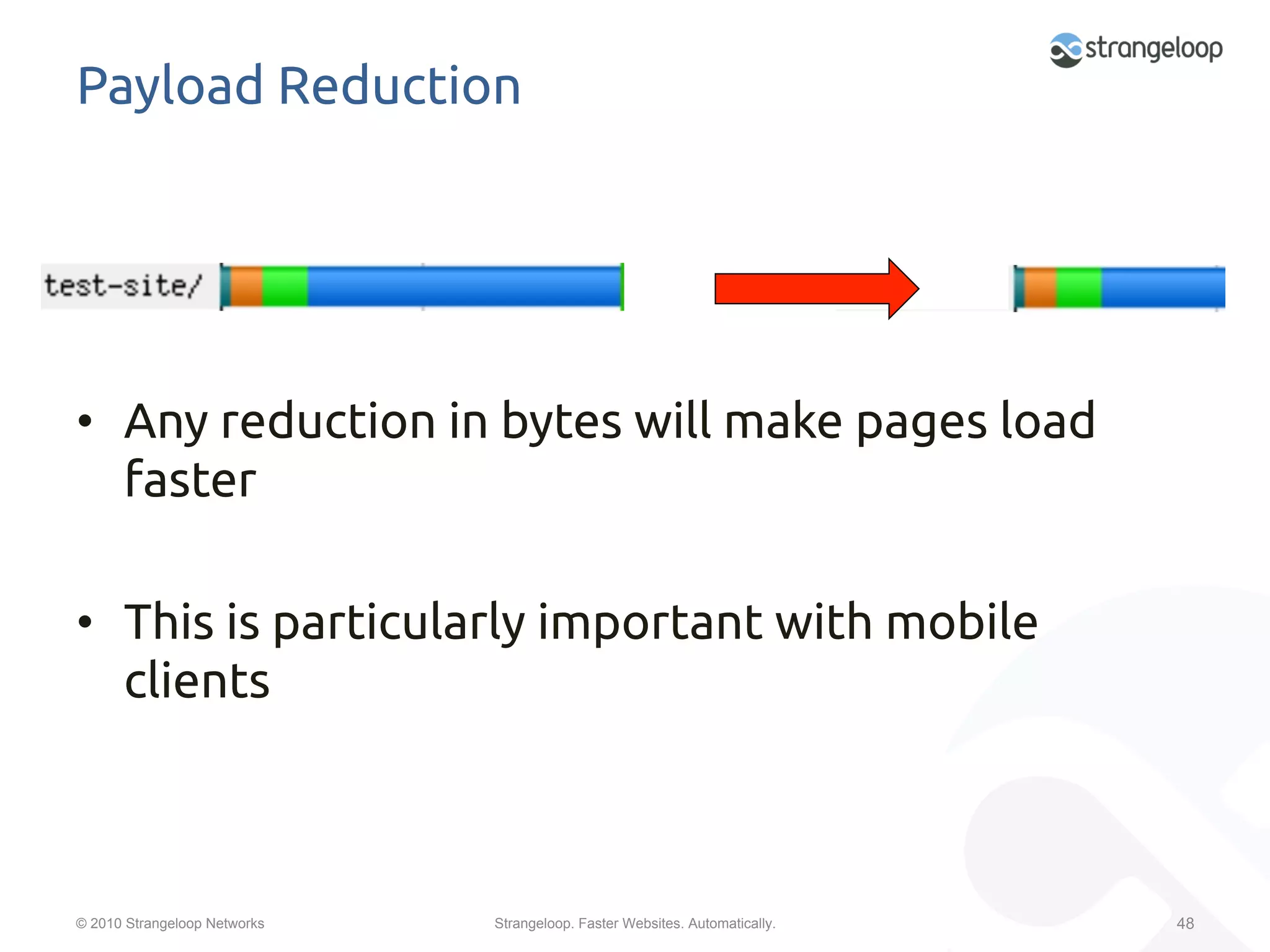

Payload Reduction

•  Any reduction in bytes will make pages load
faster

•  This is particularly important with mobile
clients

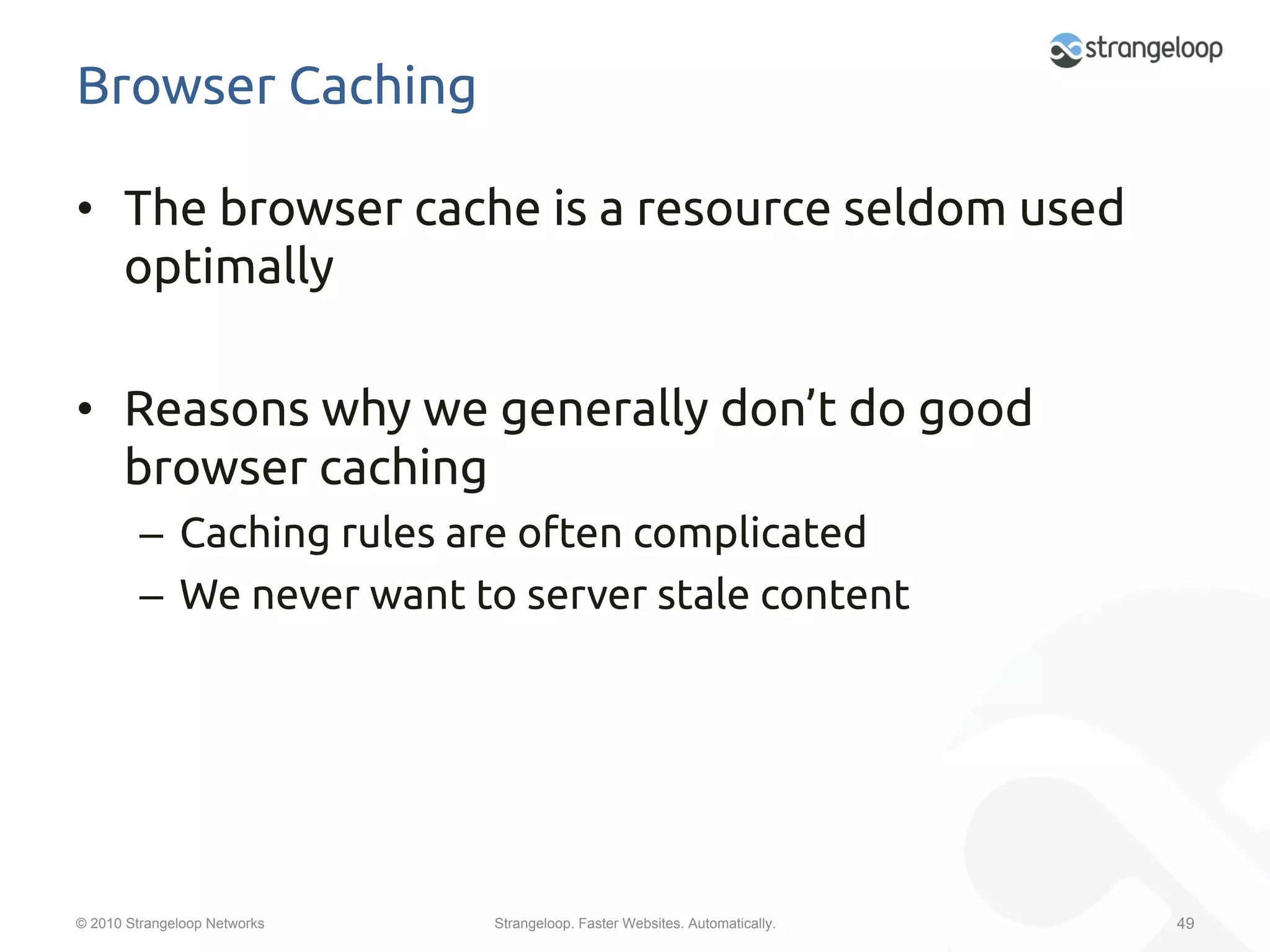

Browser Caching

•  The browser cache is a resource seldom used
optimally

•  Reasons why we generally don’t do good
browser caching
–  Caching rules are often complicated
–  We never want to server stale content

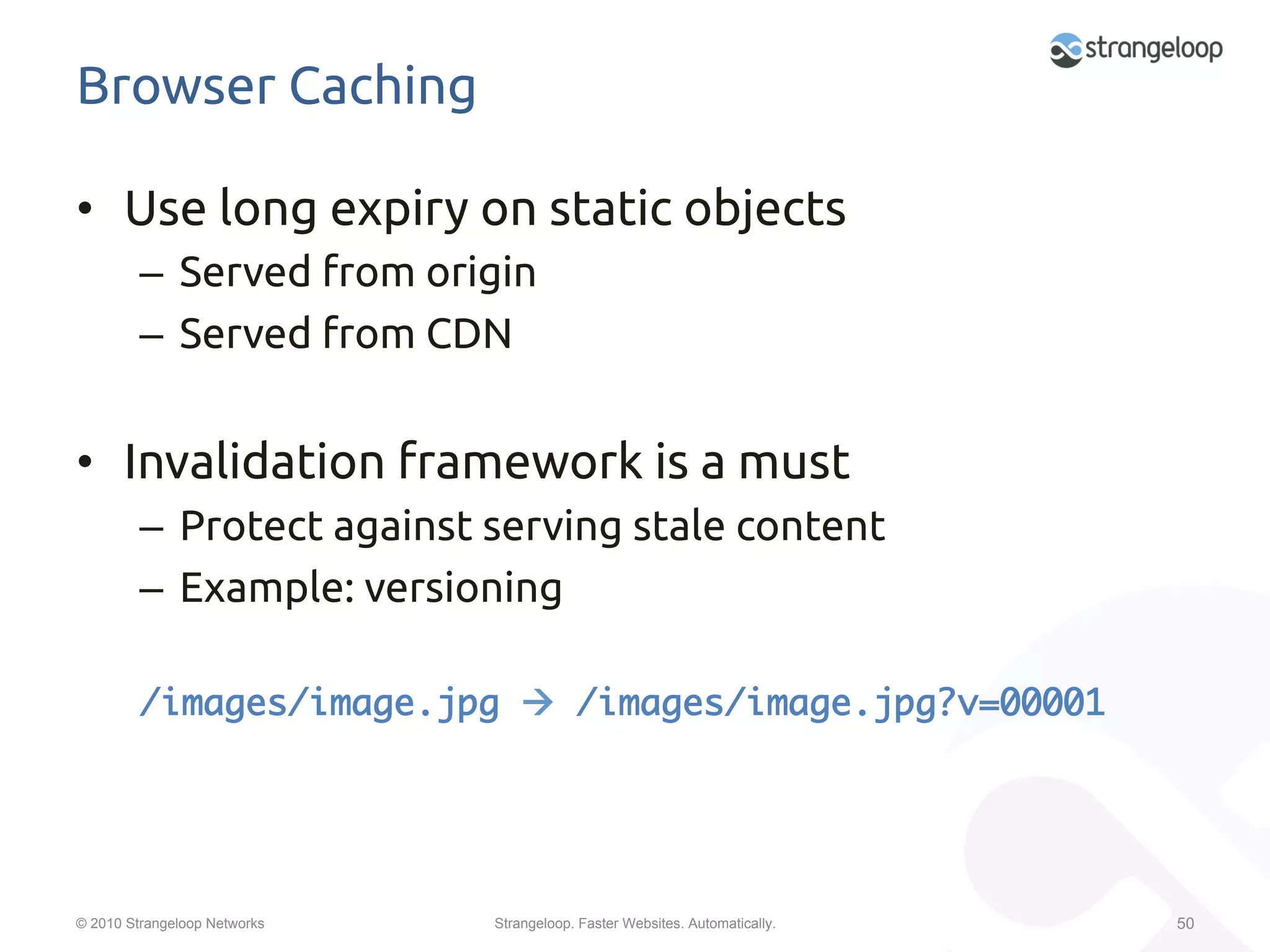

Browser Caching

•  Use long expiry on static objects
–  Served from origin
–  Served from CDN

•  Invalidation framework is a must
–  Protect against serving stale content
–  Example: versioning

/images/image.jpg à /images/image.jpg?v=00001

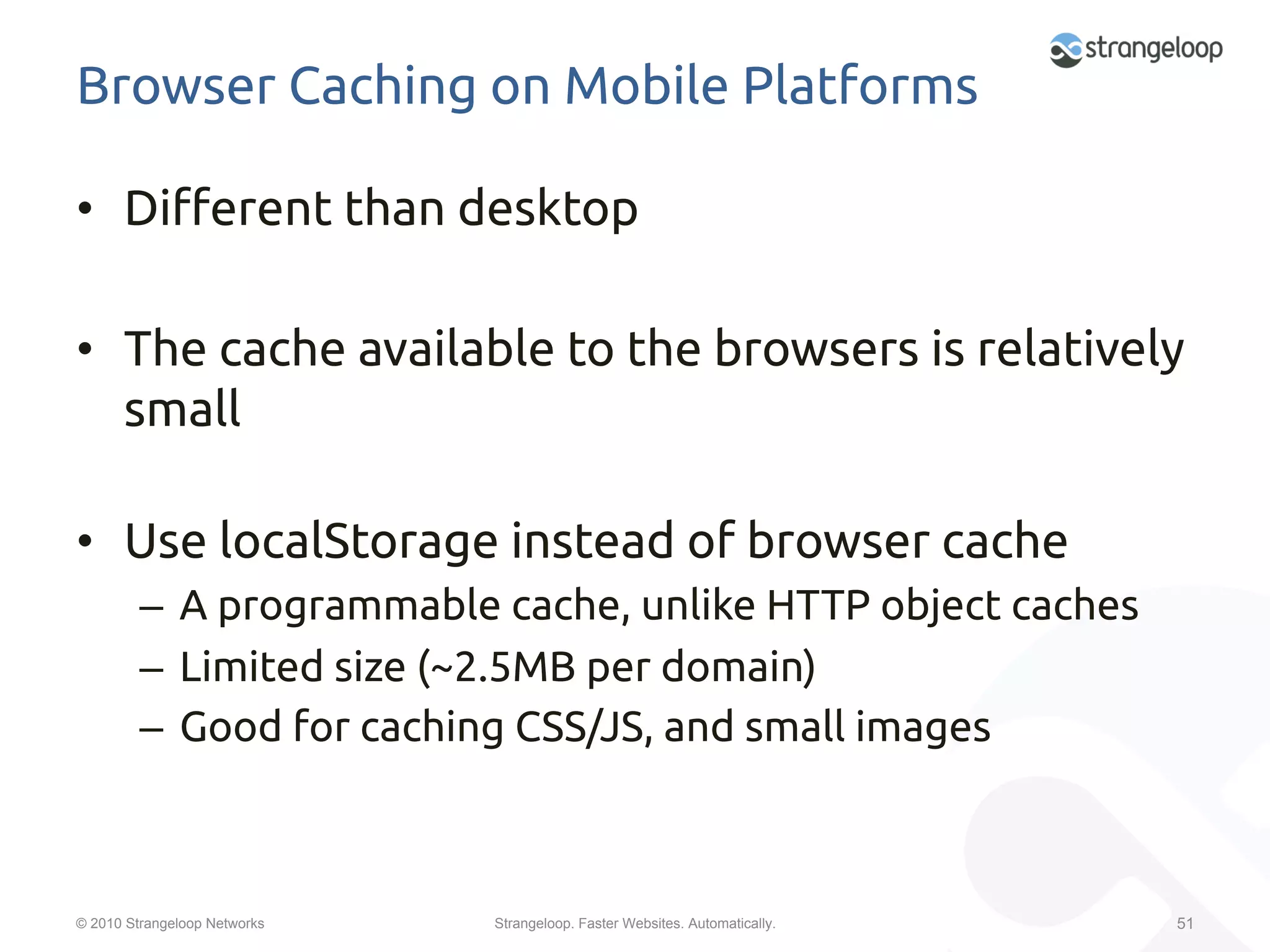

Browser Caching on Mobile Platforms

•  Di$erent than desktop

•  The cache available to the browsers is relatively
small

•  Use localStorage instead of browser cache
–  A programmable cache, unlike HTTP object caches
–  Limited size (~2.5MB per domain)
–  Good for caching CSS/JS, and small images

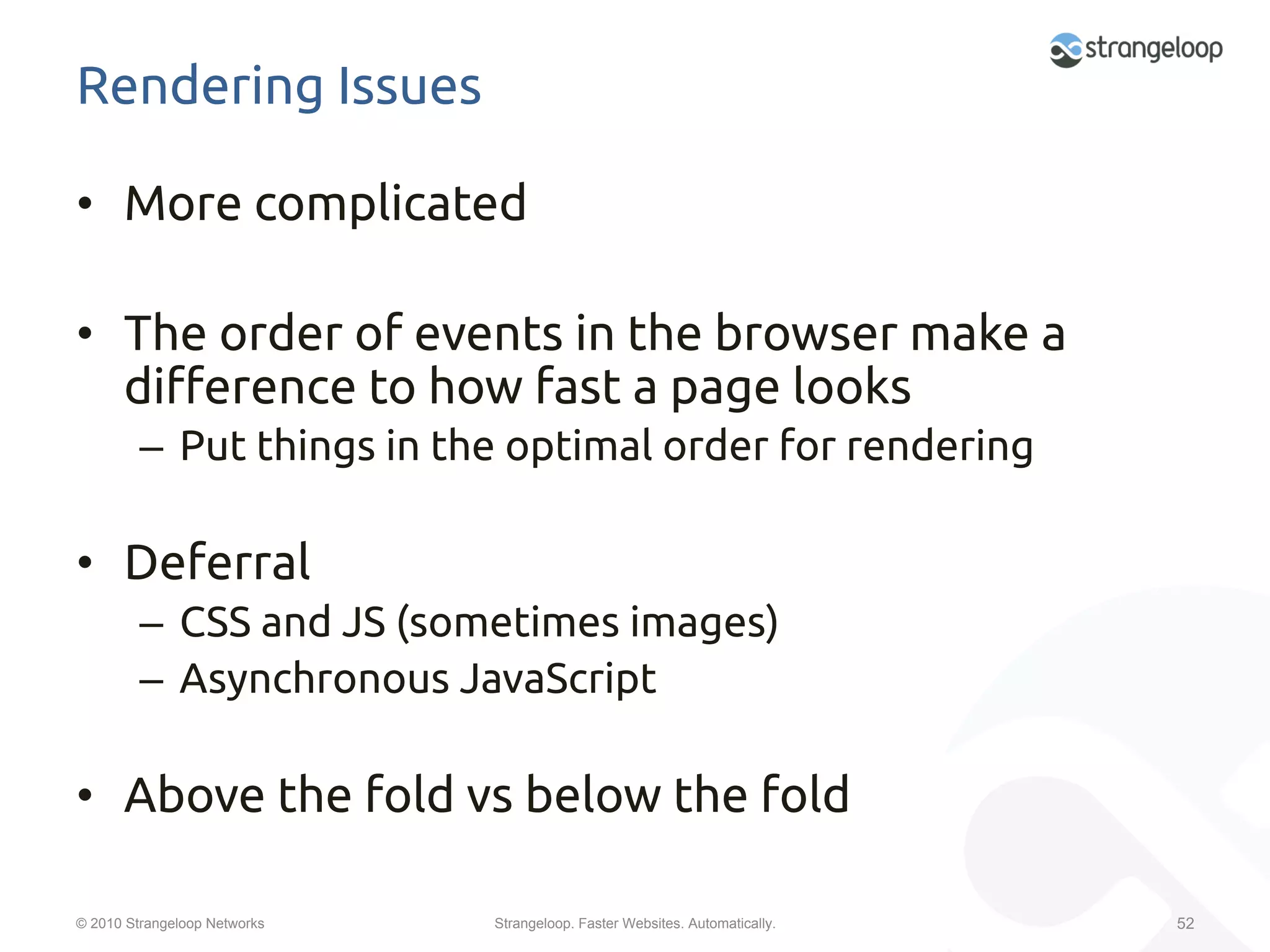

Rendering Issues

•  More complicated

•  The order of events in the browser make a
di$erence to how fast a page looks
–  Put things in the optimal order for rendering

•  Deferral
–  CSS and JS (sometimes images)
–  Asynchronous JavaScript

•  Above the fold vs below the fold

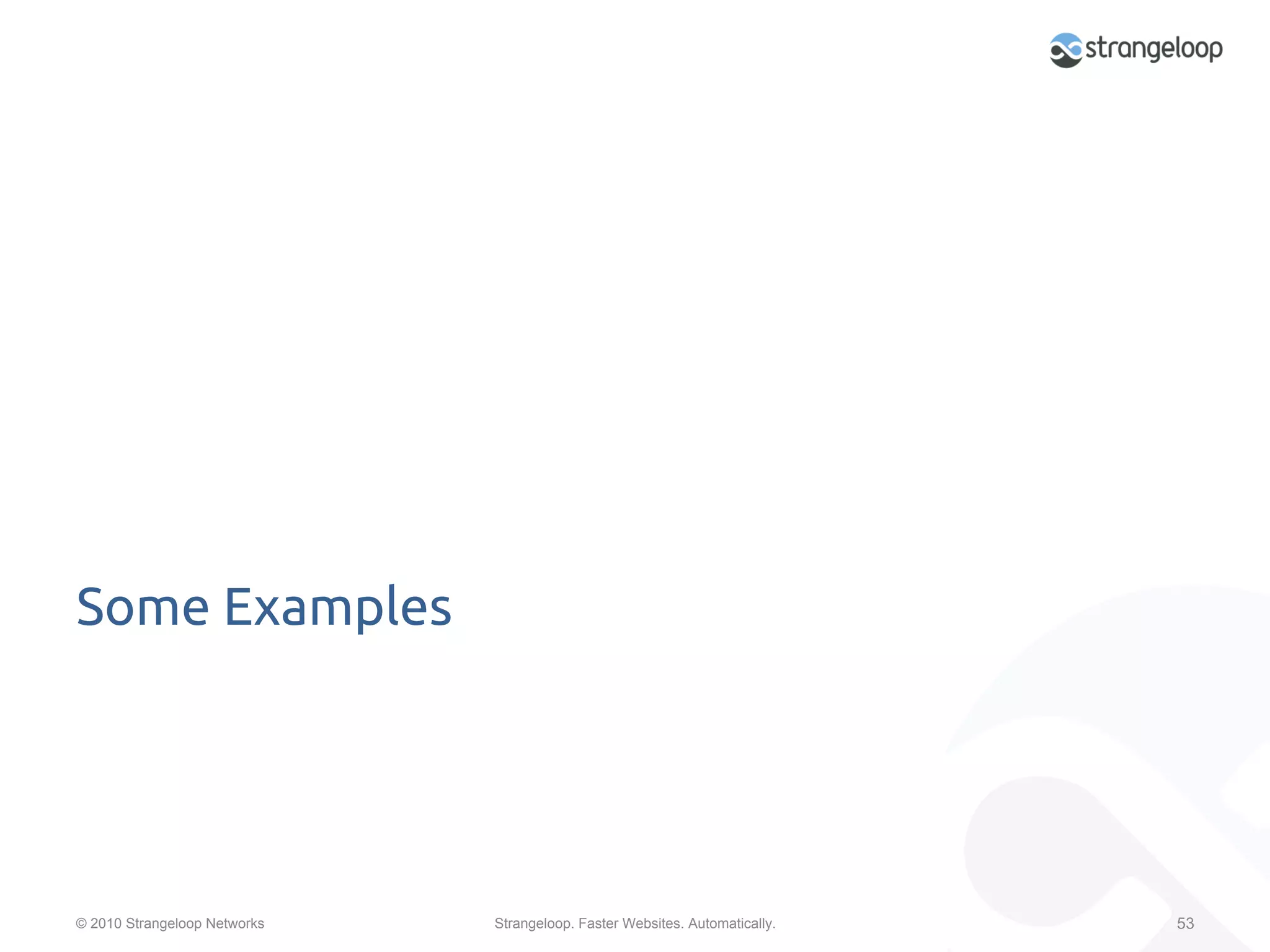

Some Examples

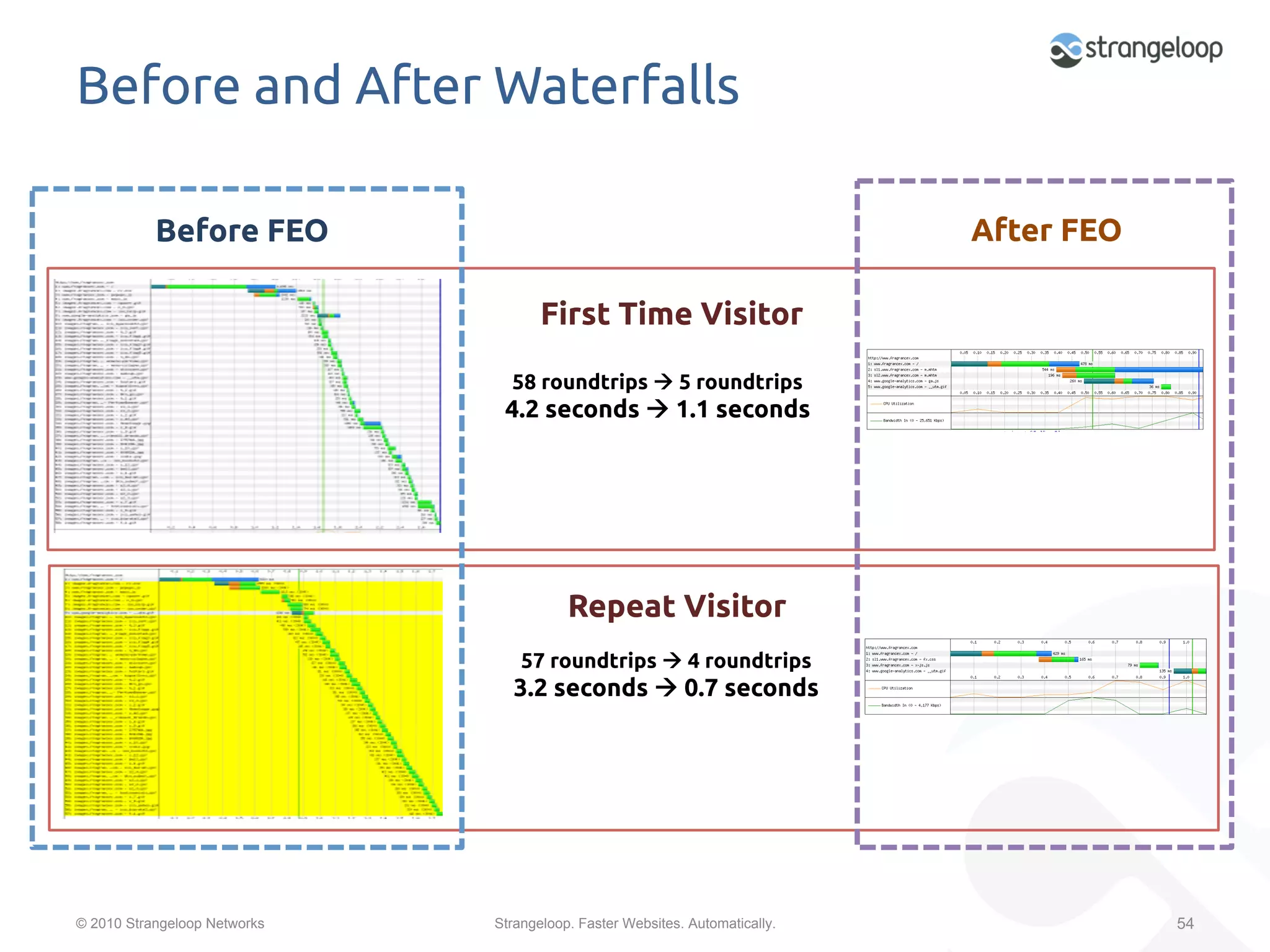

Before and After Waterfalls

Before FEO
After FEO

First Time Visitor

58 roundtrips à 5 roundtrips
4.2 seconds à 1.1 seconds

Repeat Visitor

57 roundtrips à 4 roundtrips
3.2 seconds à 0.7 seconds

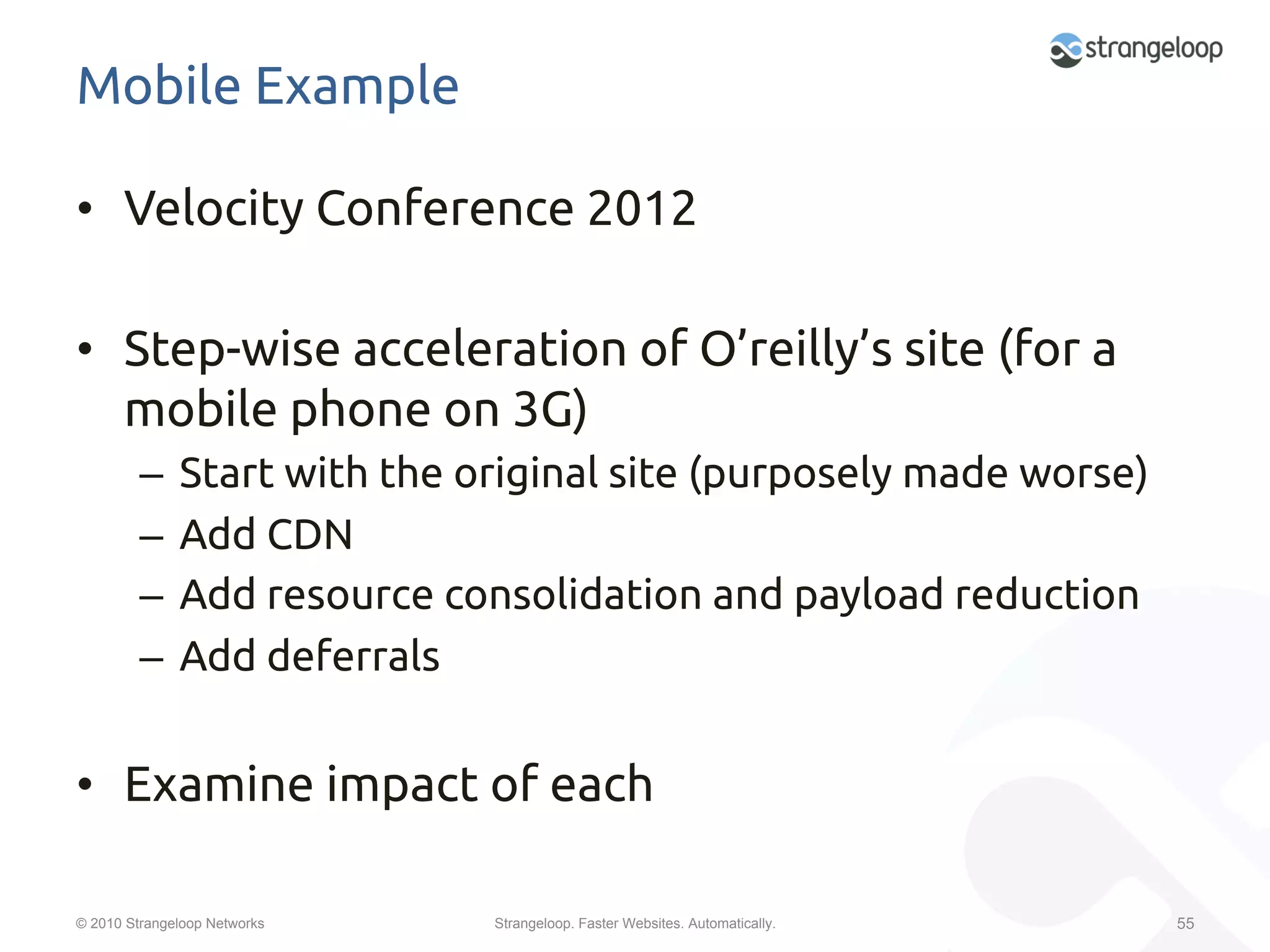

Mobile Example

•  Velocity Conference 2012

•  Step-wise acceleration of O’reilly’s site (for a
mobile phone on 3G)
–  Start with the original site (purposely made worse)
–  Add CDN
–  Add resource consolidation and payload reduction
–  Add deferrals

•  Examine impact of each

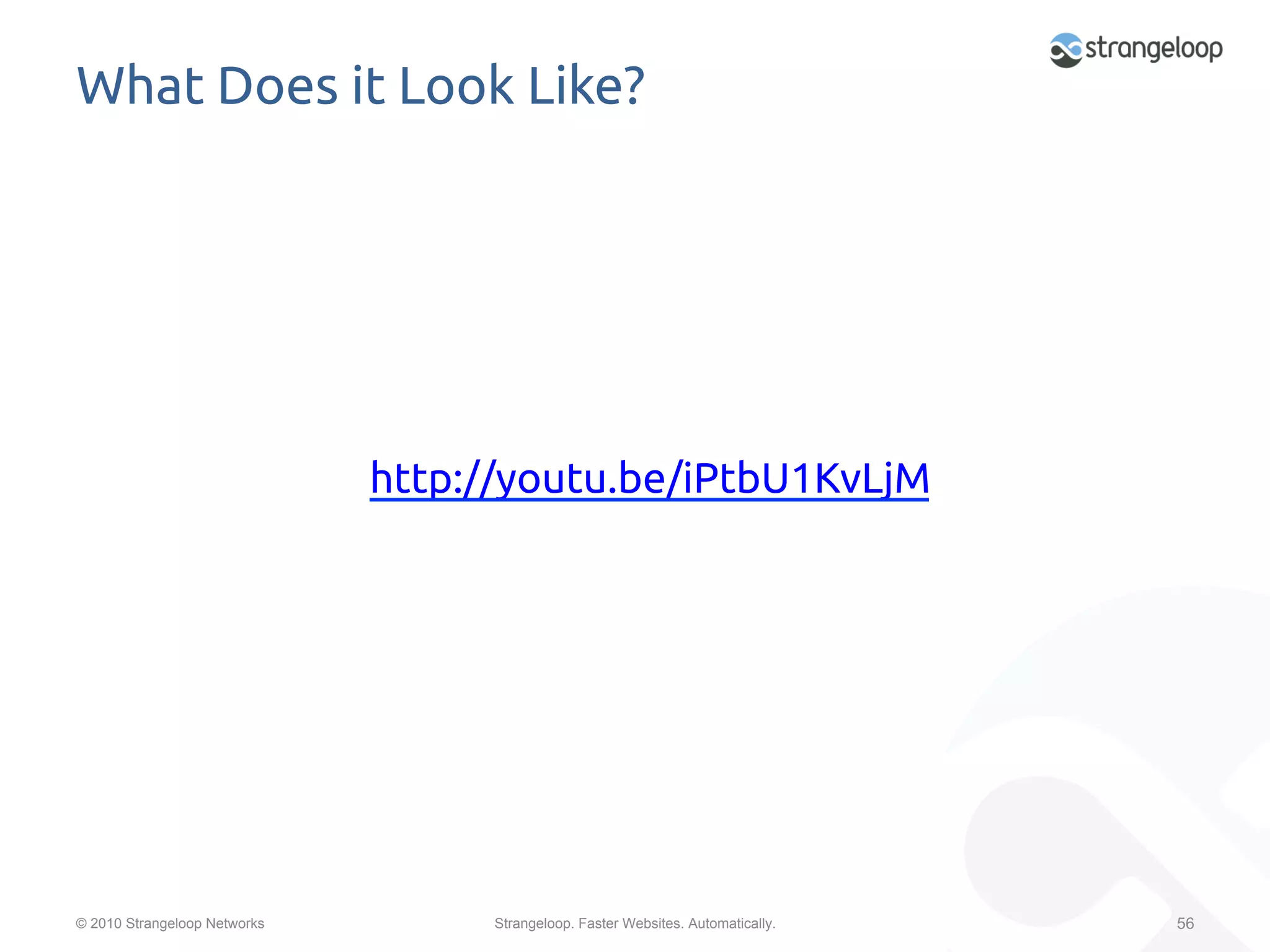

What Does it Look Like?

http://youtu.be/iPtbU1KvLjM

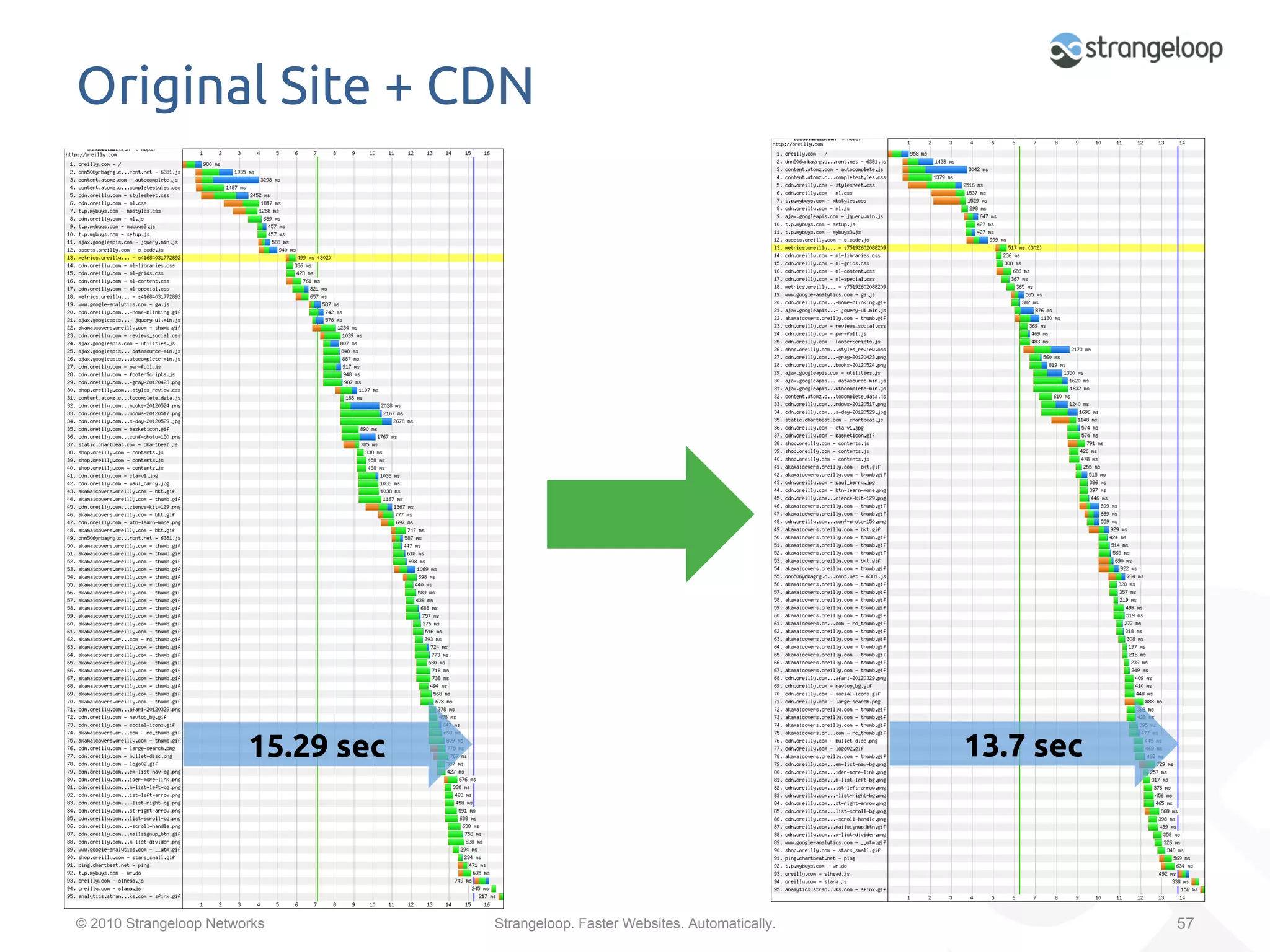

Original Site + CDN

15.29 sec
13.7 sec

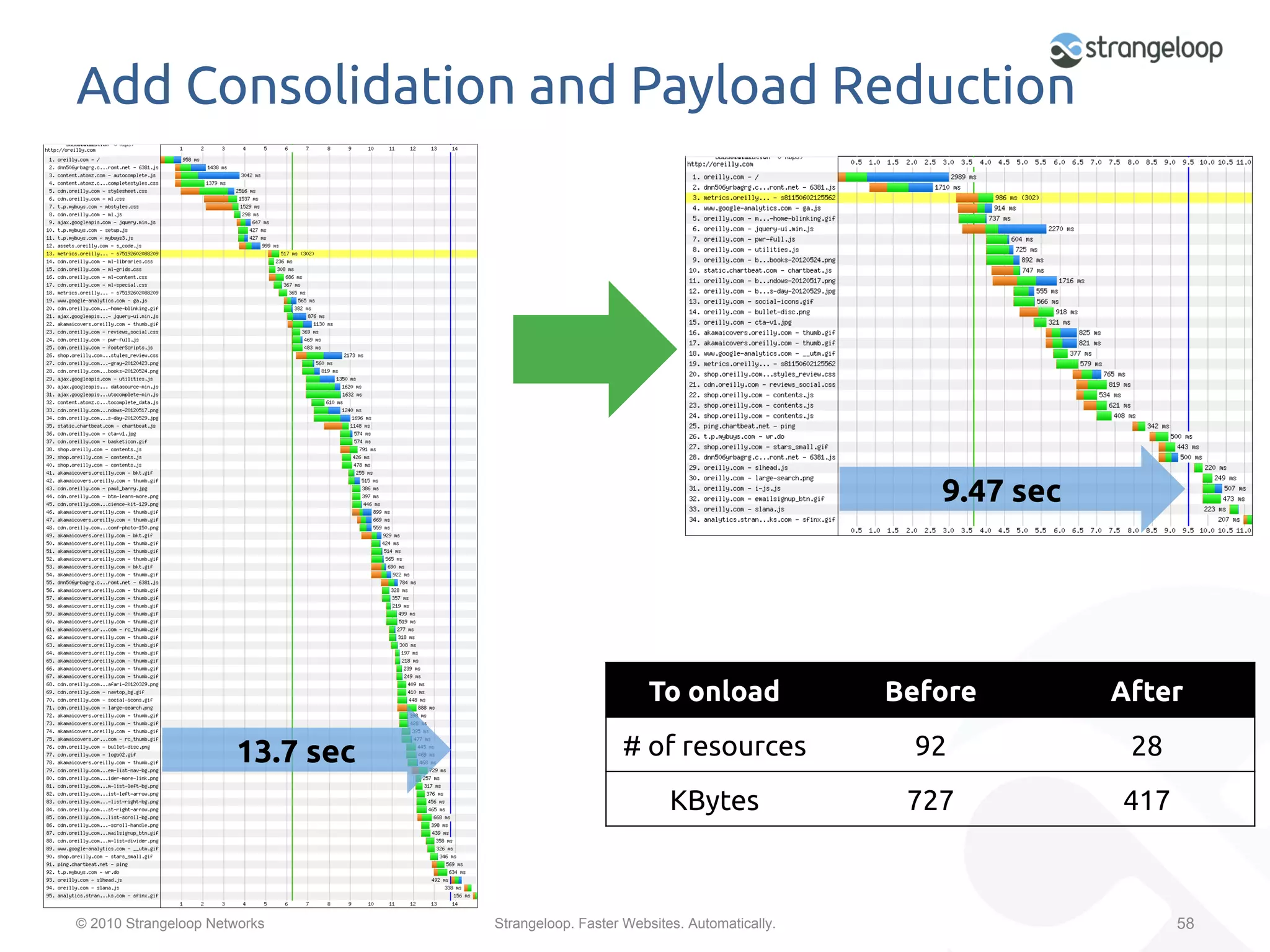

Add Consolidation and Payload Reduction

9.47 sec

To onload
Before
After

13.7 sec
# of resources
92
28
KBytes
727
417

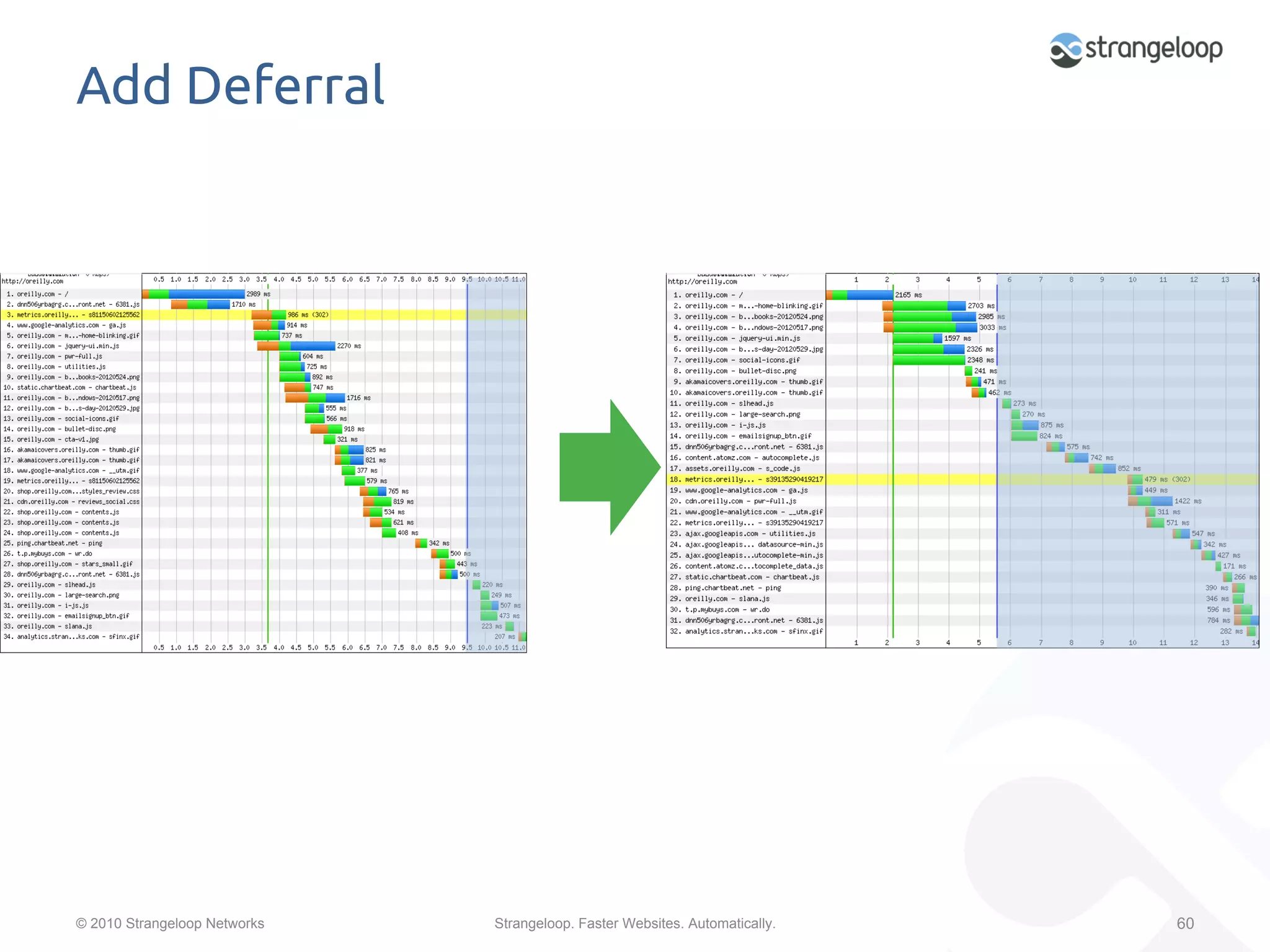

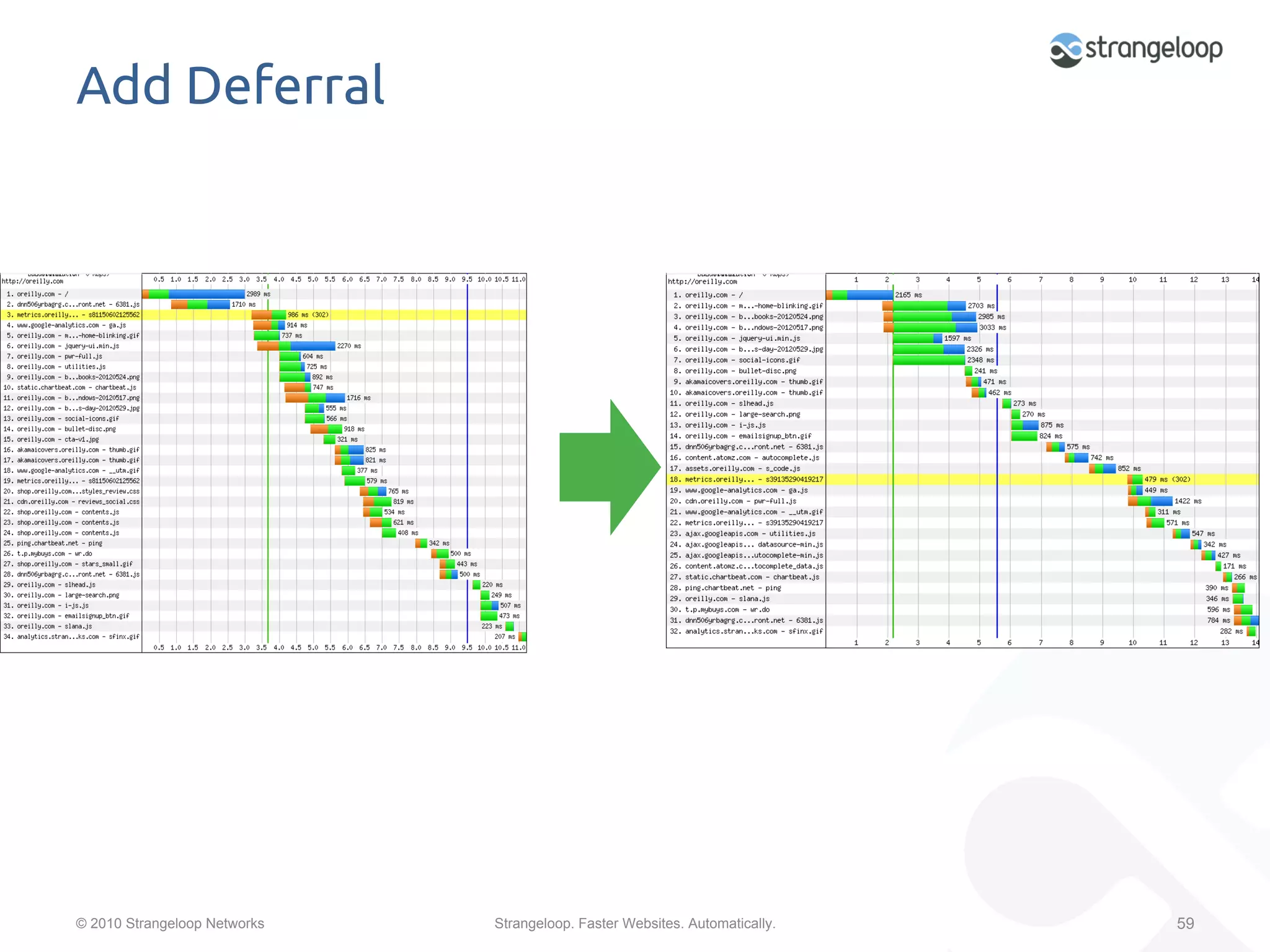

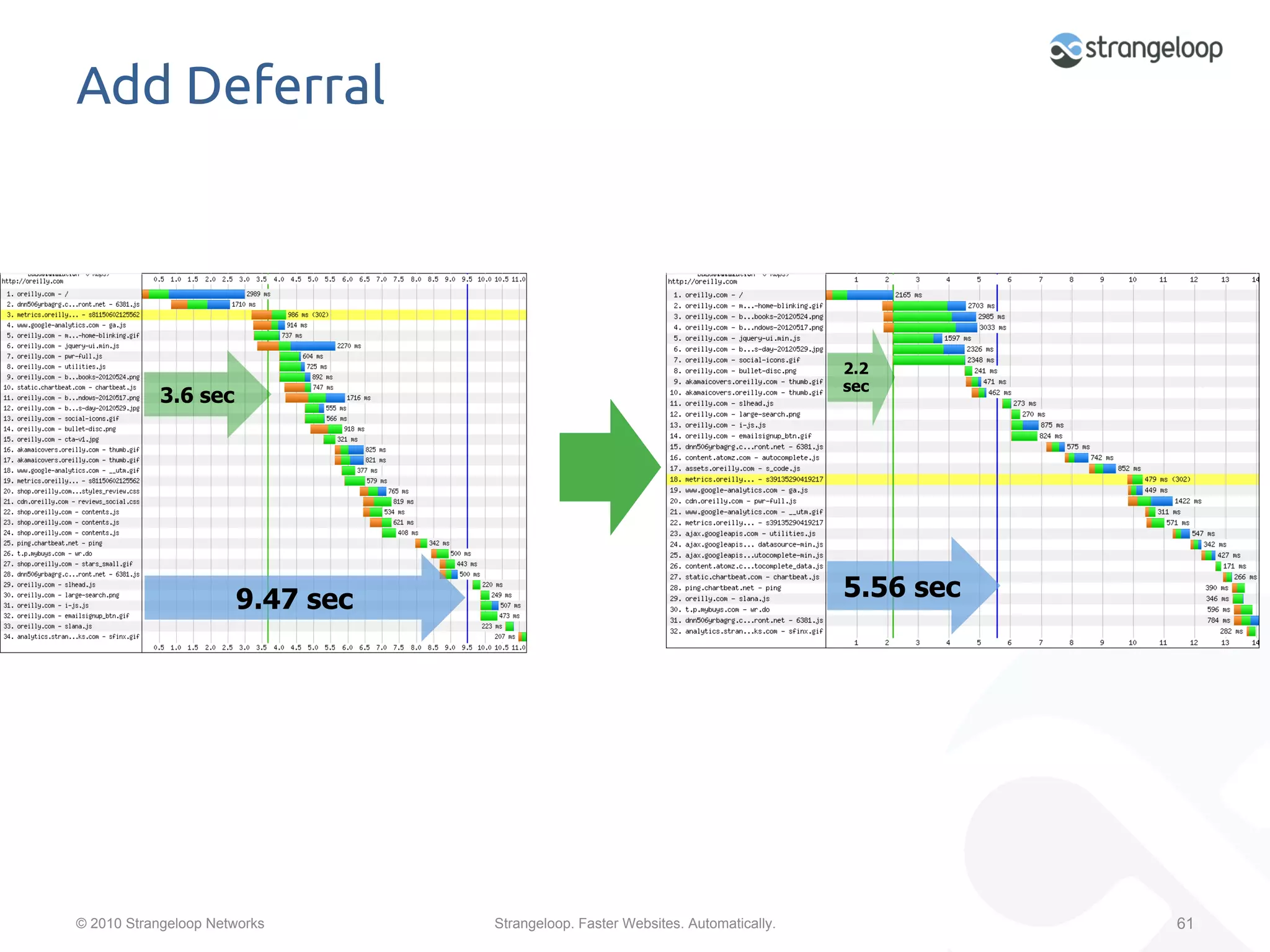

Add Deferral


Add Deferral

2.2
sec
3.6 sec

9.47 sec 5.56 sec

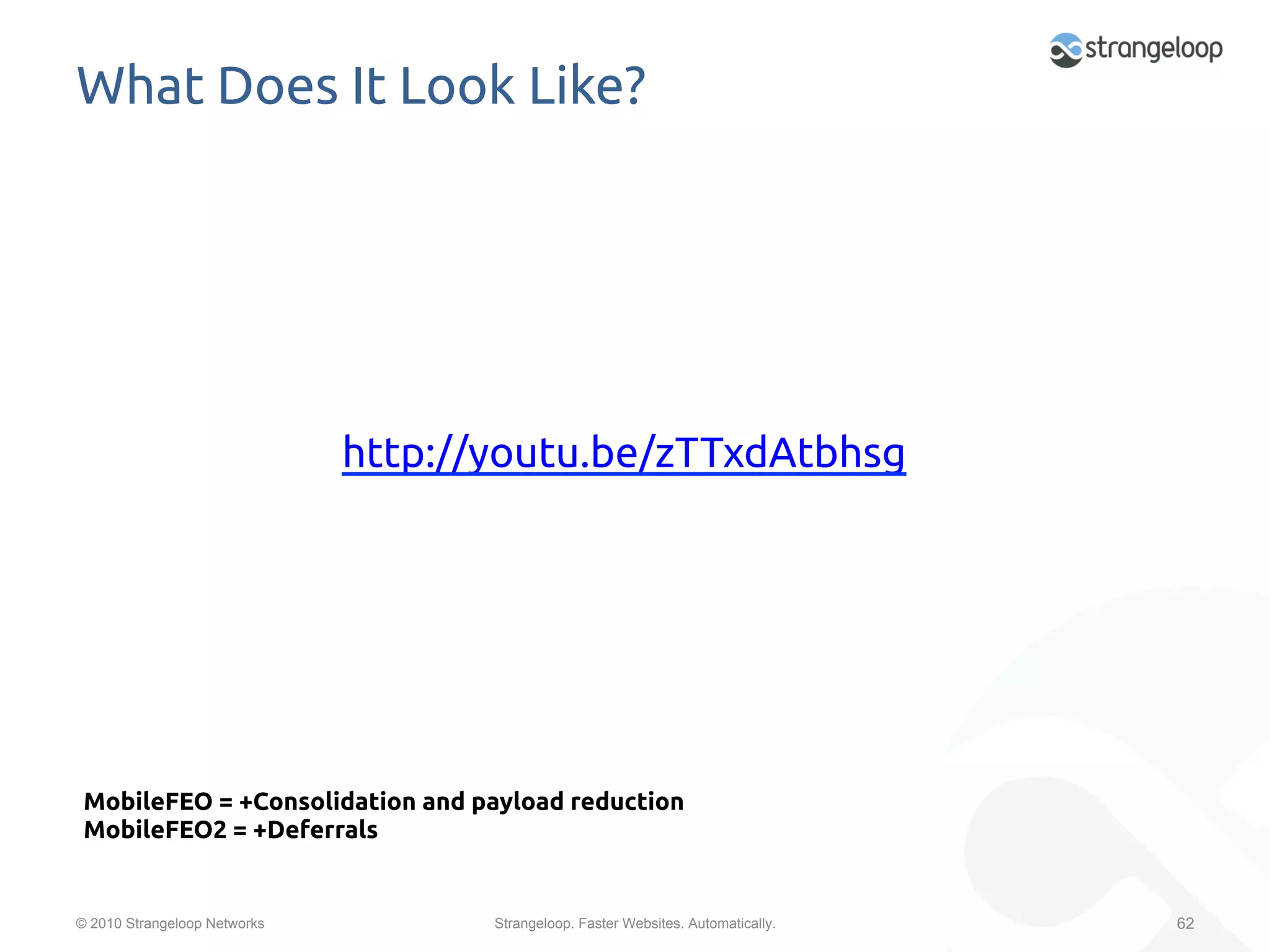

What Does It Look Like?

http://youtu.be/zTTxdAtbhsg

MobileFEO = +Consolidation and payload reduction
MobileFEO2 = +Deferrals

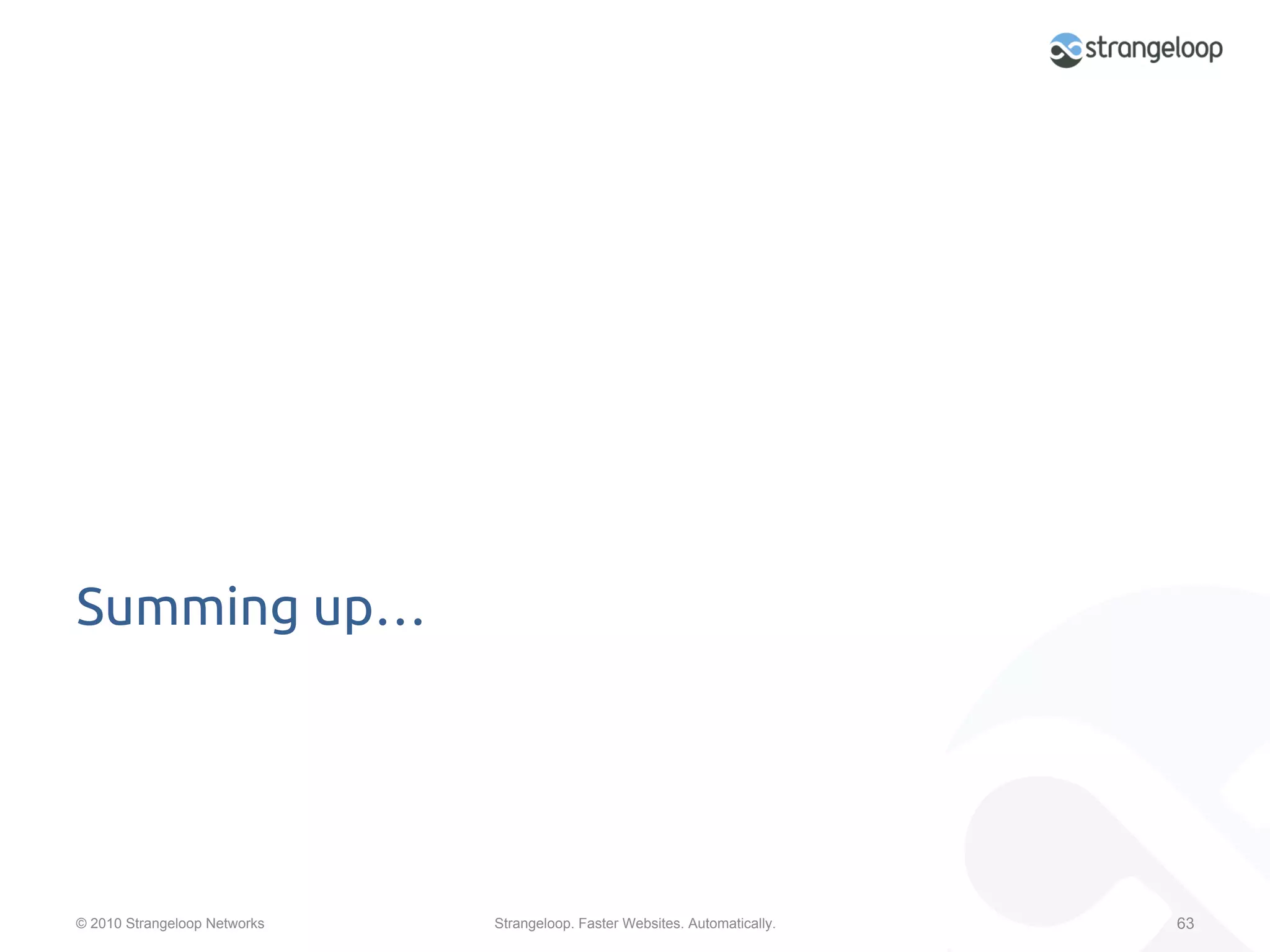

Summing up…

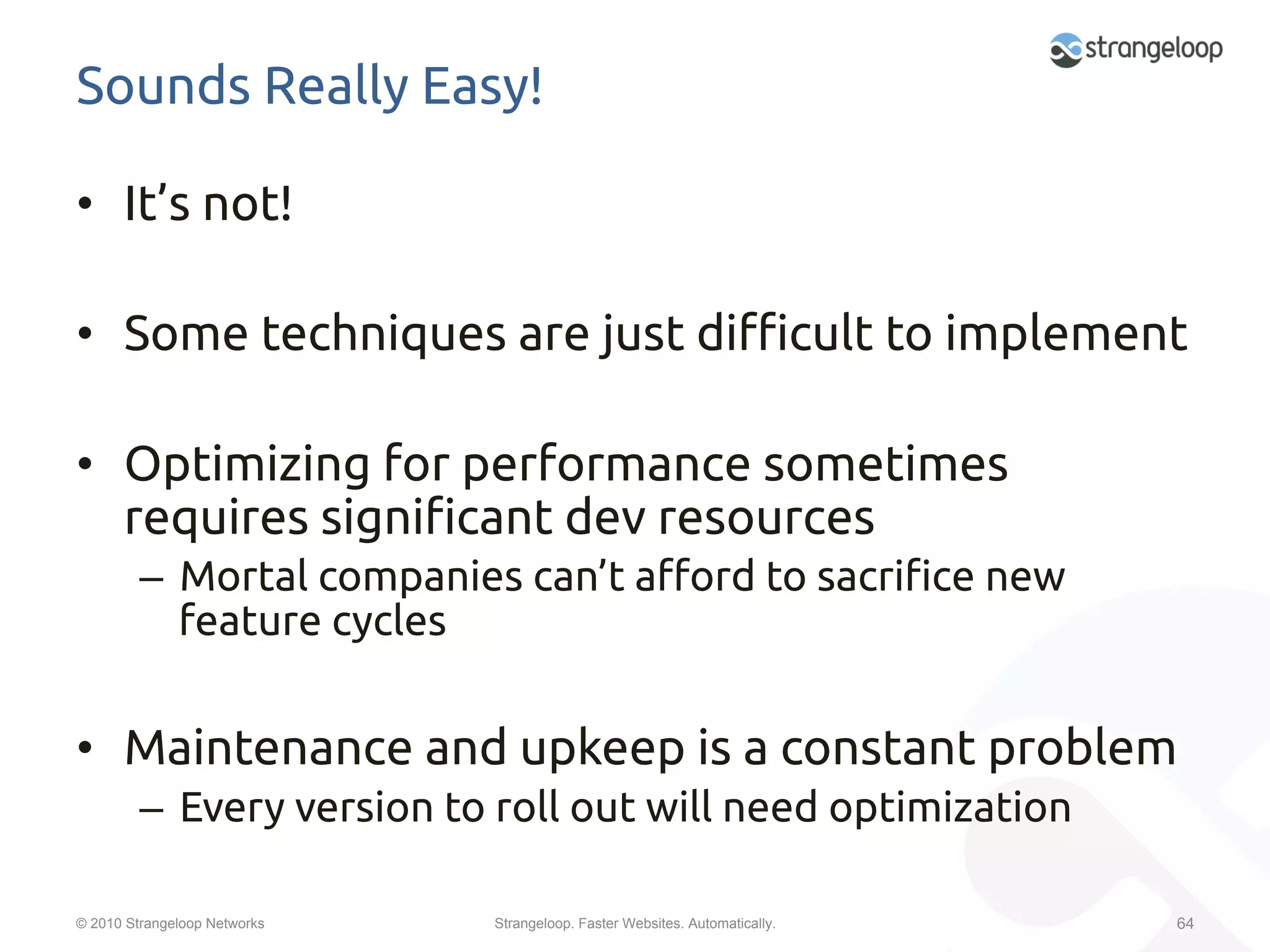

Sounds Really Easy!

•  It’s not!

•  Some techniques are just di#cult to implement

•  Optimizing for performance sometimes
requires signi"cant dev resources
–  Mortal companies can’t a$ord to sacri"ce new
feature cycles

•  Maintenance and upkeep is a constant problem
–  Every version to roll out will need optimization

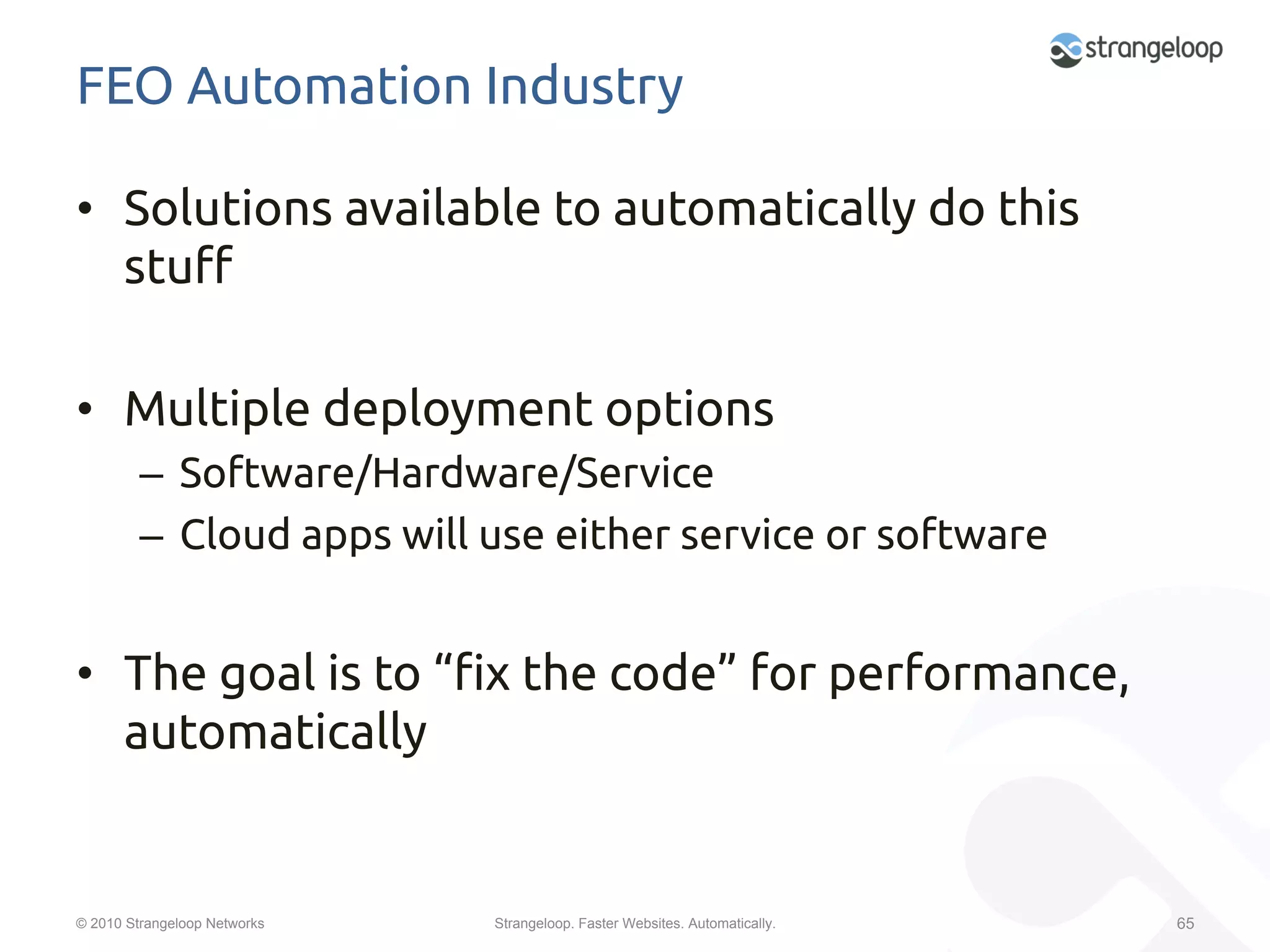

FEO Automation Industry

•  Solutions available to automatically do this
stu$

•  Multiple deployment options
–  Software/Hardware/Service
–  Cloud apps will use either service or software

•  The goal is to “"x the code” for performance,
automatically

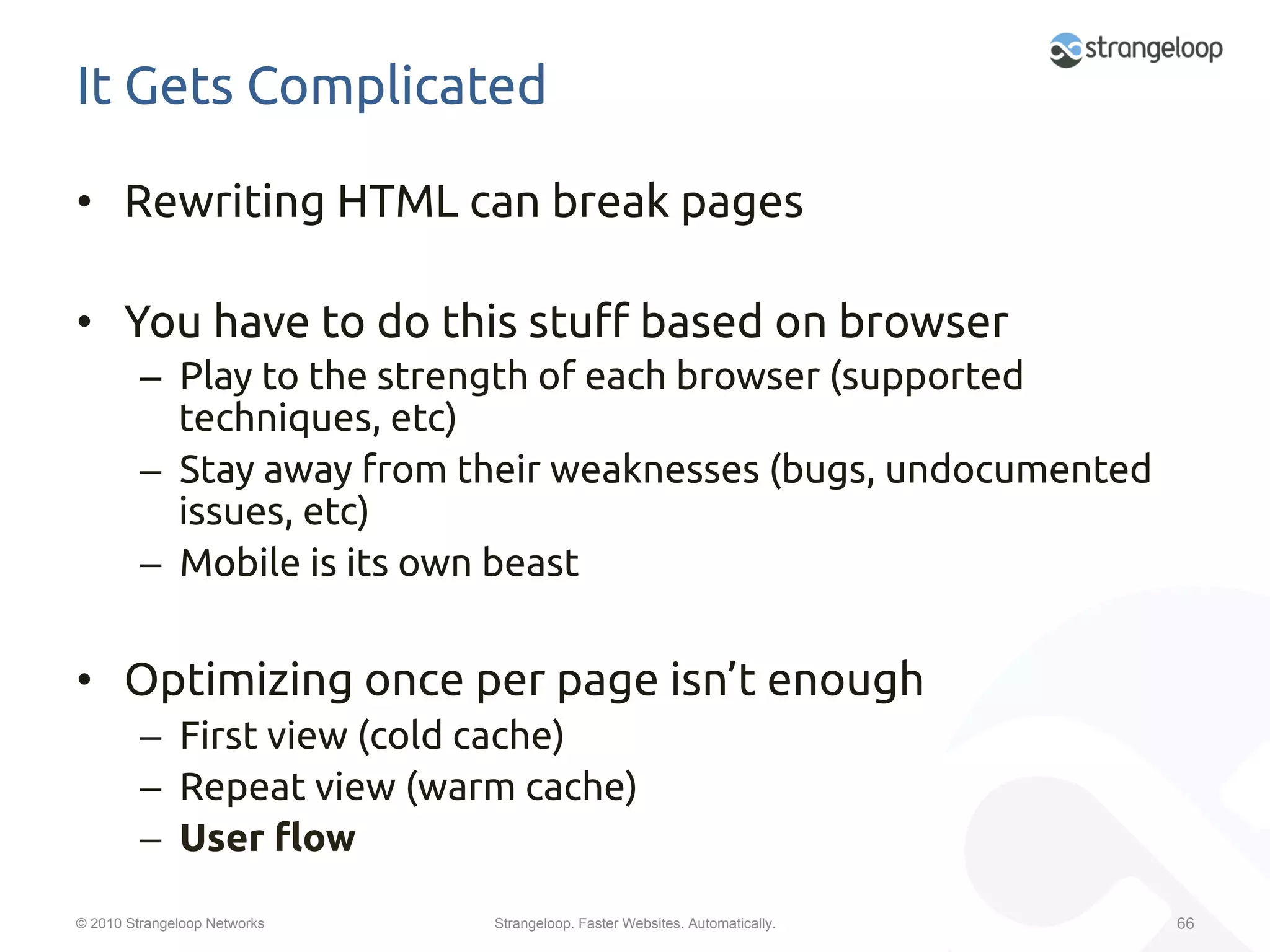

It Gets Complicated

•  Rewriting HTML can break pages

•  You have to do this stu$ based on browser
–  Play to the strength of each browser (supported
techniques, etc)
–  Stay away from their weaknesses (bugs, undocumented
issues, etc)
–  Mobile is its own beast

•  Optimizing once per page isn’t enough
–  First view (cold cache)
–  Repeat view (warm cache)
–  User "ow

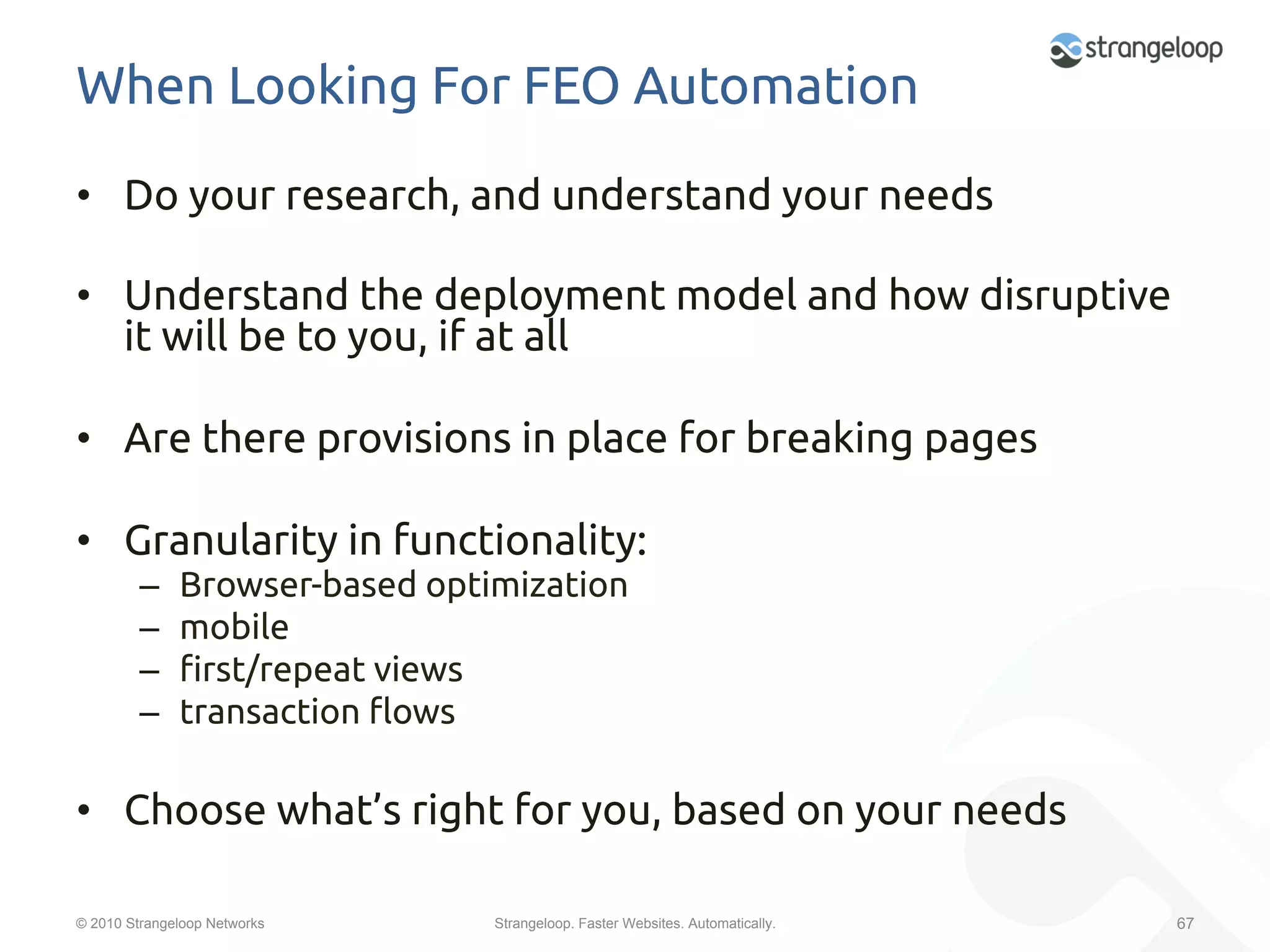

When Looking For FEO Automation
•  Do your research, and understand your needs

•  Understand the deployment model and how disruptive
it will be to you, if at all

•  Are there provisions in place for breaking pages

•  Granularity in functionality:
–  Browser-based optimization
–  mobile
–  "rst/repeat views
–  transaction %ows

•  Choose what’s right for you, based on your needs

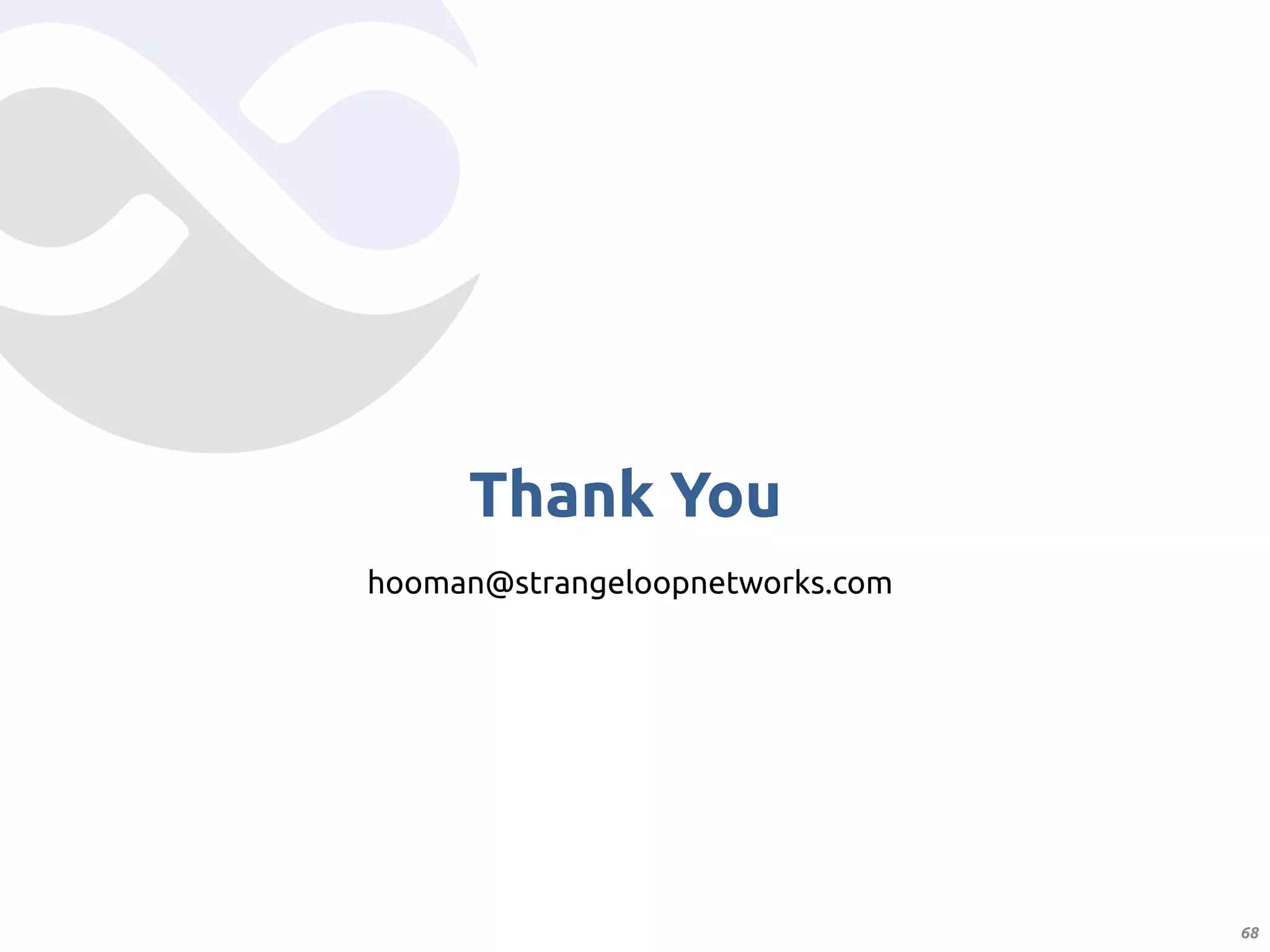

Thank You
hooman@strangeloopnetworks.com
