Clake is a build utility for Common Lisp similar to GNU make and Ruby's rake. It allows defining tasks and dependencies between files in a Clakefile. Clake executes tasks when their dependencies are out of date. It aims to leverage the power of UNIX tools while programming in Common Lisp. The clake library and command line interface allow loading Clakefiles and running tasks from the command line.

1. Clake: a GNU make-like build utility in Common Lisp
2015.8.26 Masayuki Takagi
Lisp Meet Up presented by Shibuya.lisp #31

2. © 2015 Masayuki Takagi
-2-

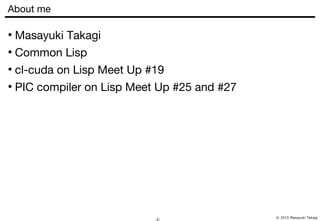

About me
●
Masayuki Takagi
●
Common Lisp
●
cl-cuda on Lisp Meet Up #19
●
PIC compiler on Lisp Meet Up #25 and #27

3. © 2015 Masayuki Takagi
-3-
What's clake?
Clake is a build utility in Common Lisp like:
●
GNU make
●
Ruby's rake
$ cat Makefile
CC = gcc
hello: hello.c
${CC} -o $@ $<
$ make hello
$ cat Rakefile
CC = “gcc”
file “hello” => “hello.c” do
sh “#{CC} -o hello hello.c”
end
$ rake hello
Makefile Rakefile

4. © 2015 Masayuki Takagi
-4-
Motivation
Web applications on shoulders of UNIX
Redis
UNIX / Linux
MySQL
AWS CLI
docker
etc.
git
Apache
Nginx

5. © 2015 Masayuki Takagi
-5-
Motivation
GNU make and Ruby's rake
●
Originally build utility
●
Another point of view,
shell command manager
task “compile” do
sh “gcc -o product
product.c”
end
task “test” do
sh “test product”
end
task “profile” do
sh “profile product”
end
task “deploy” do
sh “deploy product”
end
Rakefile

6. © 2015 Masayuki Takagi
-6-

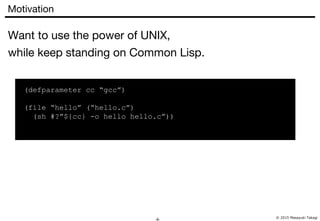

Motivation
Want to use the power of UNIX,
while keep standing on Common Lisp.
(defparameter cc “gcc”)
(file “hello” (“hello.c”)
(sh #?”${cc} -o hello hello.c”))

7. © 2015 Masayuki Takagi
-7-
How it started
●
Originally Rudolph Miller's GitHub repository
●
Fork and jack

8. © 2015 Masayuki Takagi
-8-

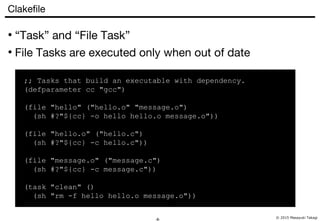

Clakefile
●
“Task” and “File Task”
●
File Tasks are executed only when out of date
;; Tasks that build an executable with dependency.
(defparameter cc "gcc")
(file "hello" ("hello.o" "message.o")
(sh #?"${cc} -o hello hello.o message.o"))
(file "hello.o" ("hello.c")
(sh #?"${cc} -c hello.c"))
(file "message.o" ("message.c")
(sh #?"${cc} -c message.c"))
(task "clean" ()
(sh "rm -f hello hello.o message.o"))

9. © 2015 Masayuki Takagi
-9-

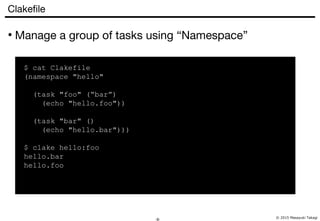

Clakefile
●
Manage a group of tasks using “Namespace”
$ cat Clakefile
(namespace "hello"
(task "foo" (“bar”)
(echo "hello.foo"))
(task "bar" ()
(echo "hello.bar")))
$ clake hello:foo
hello.bar
hello.foo

10. © 2015 Masayuki Takagi
-10-

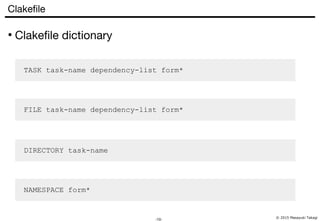

Clakefile
●
Clakefile dictionary
TASK task-name dependency-list form*
FILE task-name dependency-list form*
DIRECTORY task-name
NAMESPACE form*

11. © 2015 Masayuki Takagi
-11-
API
●
[Function] clake
CLAKE &key target pathname verbose
Loads a Clakefile specified with pathname to execute a task of name
target declared in the loaded Clakefile.
●
[Function] sh, echo
SH command &key echo
ECHO string
SH spawns a subprocess that runs the specified command given as a
string. ECHO writes the given string into the standard output
followed by a new line. Both are intended for UNIX terminology
convenience.

12. © 2015 Masayuki Takagi
-12-
Command Line Interface
●
Provided as a roswell script
●
Lisp / UNIX gap
SYNOPSIS
clake [ -f clakefile ] [ options ] ... [ targets ] ...
OPTIONS
-f FILE
Use FILE as a clakefile.
-h
Print usage.
-v
Verbose mode.
EXAMPLE
$ clake hello:foo hello:bar

13. © 2015 Masayuki Takagi
-13-
Lisp / UNIX gap
●
Common Lisp does not have the concept of current directory
●
uiop:getcwd, uiop:chdir
;; Where hello and hello.c should be located?
(file “hello” (“hello.c”)
(sh “gcc -o hello hello.c”))
●
*default-pathname-defaults* does not follow CL process' current
directory changed
“An implementation-dependent pathname, typically in the
working directory that was current when Common Lisp was
started up.”
●
How clake function should work? The command line interface would be
its main use case.

14. © 2015 Masayuki Takagi
-14-
clake-tools
●
A complementary program to provide some useful
goodies
SYNOPSIS
clake-tools COMMAND
COMMANDS
init Create an empty Clakefile with boilerplates
in current directory.
EXAMPLE
$ clake-tools init
$ ls
Clakefile

15. © 2015 Masayuki Takagi
-15-

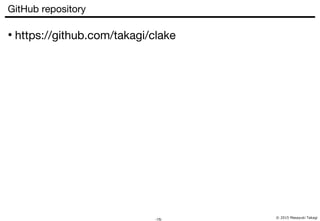

GitHub repository
●
https://github.com/takagi/clake

16. © 2015 Masayuki Takagi
-16-

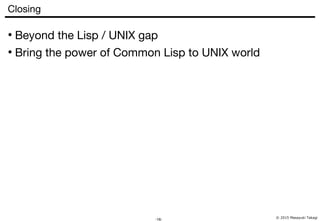

Closing
●
Beyond the Lisp / UNIX gap
●
Bring the power of Common Lisp to UNIX world
