INTRODUCCIÓ
Tot va comença a
l’any 1820 quan un
home que es deia
Hans C. Oersted va
demostrar que
existeix una relació
entre la electricitat i
el magnetisme.
Abans de començar va agafar una brúixola, un
cable i una pila. Desprès va agafar la brúixola i
la va posar de cara al nord. Però a al
connectar la brúixola, l’agulla va girar i no va
apuntar al nord. Desprès al desconnectar el
cable l’agulla va tornar a assenyalar al nord.
Desprès si els cables es posen en sentit
contrari l’agulla se'n tornava a anar i ja no
estava indicant al nord.

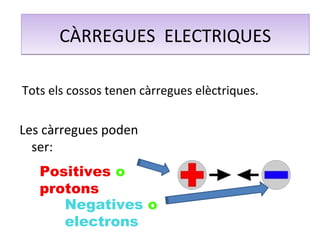

CÀRREGUES ELECTRIQUESCÀRREGUES ELECTRIQUES
Les càrregues poden
ser:
Tots els cossos tenen càrregues elèctriques.
Negatives o
electrons
Positives o
protons

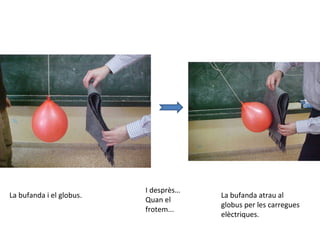

La bufanda i el globus.
I desprès…
Quan el
frotem...
La bufanda atrau al
globus per les carregues
elèctriques.

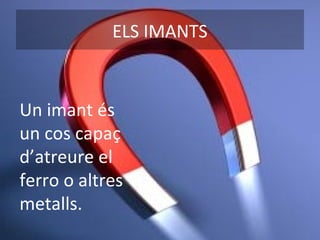

ELS IMANTS
Un imant és
un cos capaç
d’atreure el
ferro o altres
metalls.
N
S

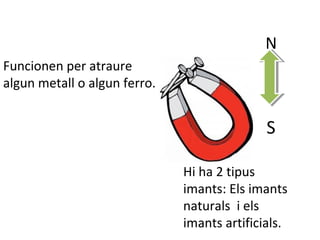

Funcionen per atraure
algun metall o algun ferro.
Hi ha 2 tipus
imants: Els imants
naturals i els
imants artificials.

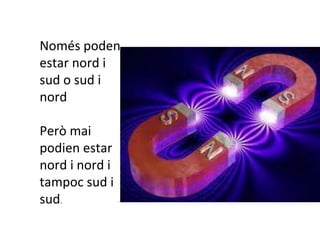

Només poden
estar nord i
sud o sud i
nord
Però mai
podien estar
nord i nord i
tampoc sud i
sud.
EL CORRENT ELÈCTRIC

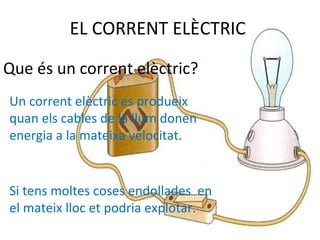

Que és un corrent elèctric?
Un corrent elèctric es produeix
quan els cables de la llum donen
energia a la mateixa velocitat.
Si tens moltes coses endollades en
el mateix lloc et podria explotar.
Els efectes
L’efecte es per a fer
electricitat i llum.

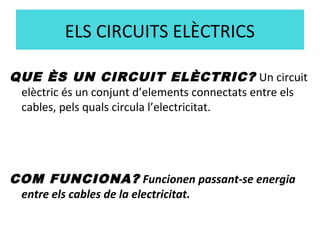

ELS CIRCUITS ELÈCTRICS
QUE ÈS UN CIRCUIT ELÈCTRIC? Un circuit
elèctric és un conjunt d’elements connectats entre els
cables, pels quals circula l’electricitat.
COM FUNCIONA? Funcionen passant-se energia
entre els cables de la electricitat.

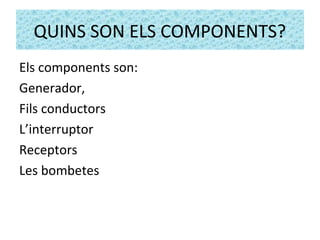

QUINS SON ELS COMPONENTS?
Els components son:
Generador,
Fils conductors
L’interruptor
Receptors
Les bombetes
Aquest és un circuit amb un ventilador. Aquest és un circuit amb sèrie.
Aquest és un circuit en paral·lel.

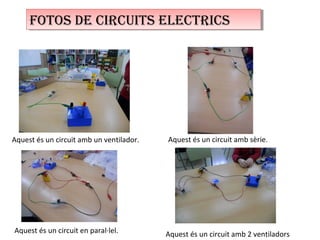

FOTOS DE CIRCUITS ELECTRICSFOTOS DE CIRCUITS ELECTRICS
Aquest és un circuit amb 2 ventiladors
