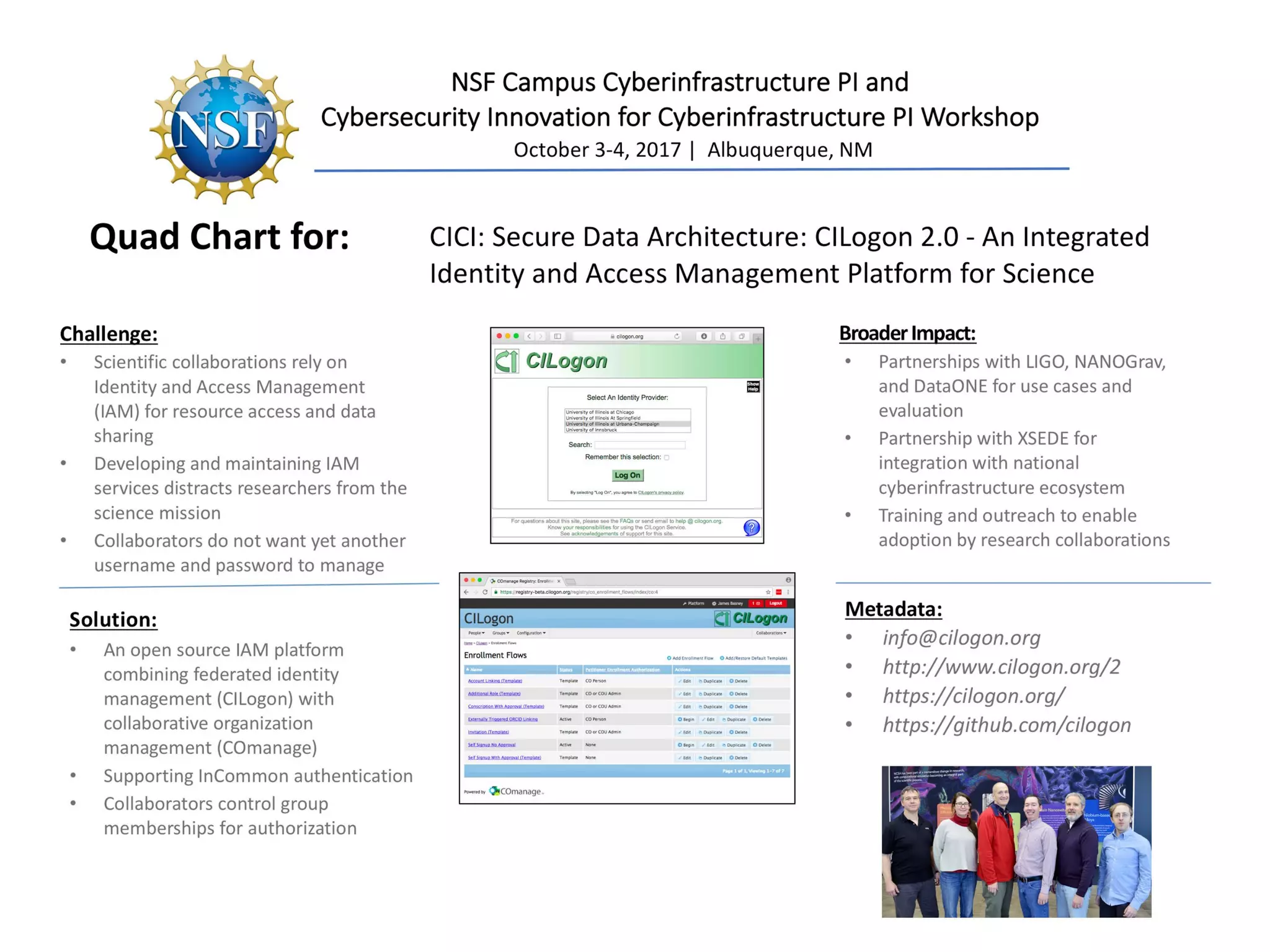

This document summarizes CILogon 2.0, a project to provide an integrated open source identity and access management platform for cyberinfrastructure. It is supported by a 3-year NSF grant and involves integrating CILogon federated identity management with COmanage collaborative organization management. The project team is working on improvements like OpenID Connect support, international interoperability via eduGAIN, and enabling access from campus identity providers that meet standards like InCommon Baseline Expectations. CILogon currently supports access to over 30 science applications and sites.

1. CILogon www.cilogon.org

2. Jim Basney
jbasney@ncsa.illinois.edu
CILogon 2.0
This material is based upon work supported by the National Science Foundation under grant number 1547268.
Any opinions, findings, and conclusions or recommendations expressed in this material are those of the authors
and do not necessarily reflect the views of the United States Government or any agency thereof.

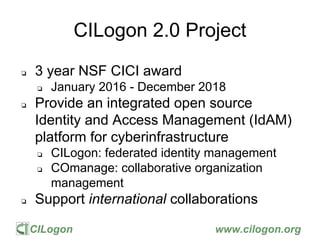

3. CILogon www.cilogon.org
CILogon 2.0 Project
❏ 3 year NSF CICI award
❏ January 2016 - December 2018
❏ Provide an integrated open source
Identity and Access Management (IdAM)
platform for cyberinfrastructure
❏ CILogon: federated identity management
❏ COmanage: collaborative organization
management
❏ Support international collaborations

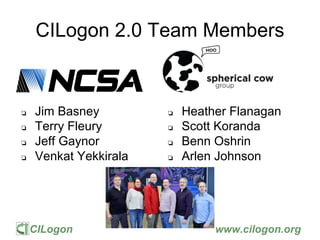

4. CILogon www.cilogon.org
CILogon 2.0 Team Members
❏ Jim Basney
❏ Terry Fleury
❏ Jeff Gaynor
❏ Venkat Yekkirala
❏ Heather Flanagan
❏ Scott Koranda
❏ Benn Oshrin
❏ Arlen Johnson

5. CILogon www.cilogon.org
Science Partners
❏ NANOGrav Physics
Frontiers Center
❏ Laser Interferometer
Gravitational-Wave
Observatory (LIGO)
❏ Data Observation Network
for Earth (DataONE)

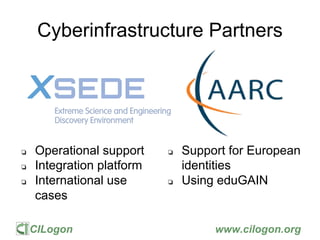

6. CILogon www.cilogon.org
Cyberinfrastructure Partners
❏ Operational support
❏ Integration platform
❏ International use
cases
❏ Support for European
identities
❏ Using eduGAIN

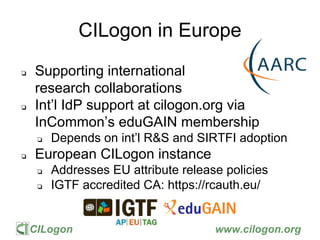

7. CILogon www.cilogon.org
CILogon in Europe
❏ Supporting international
research collaborations
❏ Int’l IdP support at cilogon.org via
InCommon’s eduGAIN membership
❏ Depends on int’l R&S and SIRTFI adoption
❏ European CILogon instance
❏ Addresses EU attribute release policies
❏ IGTF accredited CA: https://rcauth.eu/

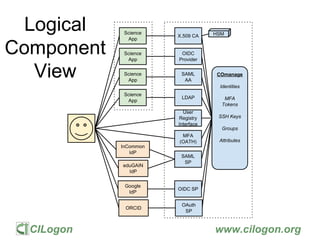

8. CILogon www.cilogon.org
SAML
SP
OIDC
Provider
X.509 CA HSM
OIDC SP
MFA
(OATH)
LDAP
COmanage
Identities
MFA
Tokens
SSH Keys
Groups
Attributes
SAML
AA
User
Registry
Interface
eduGAIN
IdP
Google
IdP
Science
App
OAuth
SP
ORCID
Science
App
Science
App
Science
App
InCommon
IdP
Logical
Component
View

9. CILogon www.cilogon.org
SAML to OpenID Connect
(OIDC) Proxy
❏ Supporting e-Science clients
❏ Review & approval by CILogon staff
❏ User consent based on requested scopes
❏ openid, profile, email
❏ org.cilogon.userinfo (eppn, affiliation)
❏ edu.uiuc.ncsa.myproxy.getcert
(to allow X.509 certificate issuance)
❏ VO attributes
www.cilogon.org/oidc

10. CILogon www.cilogon.org
CILogon User Consent

11. CILogon www.cilogon.org
Managing Virtual Organizations
❏ enrollment flows
❏ expiration policies
❏ delegated group
management
❏ attribute mapping
❏ application
registration
❏ plug-ins and
pipelines

12. CILogon www.cilogon.org
Bridging Campus and VO IAM
❏ CILogon passes campus/VO attributes to
the e-Science SP
❏ Always requiring user consent
❏ Attribute scopes approved per-client
❏ COmanage displays terms and conditions
during VO enrollment
❏ VO attribute release policy applied per client

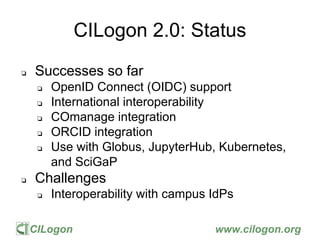

13. CILogon www.cilogon.org
CILogon 2.0: Status
❏ Successes so far
❏ OpenID Connect (OIDC) support
❏ International interoperability
❏ COmanage integration
❏ ORCID integration
❏ Use with Globus, JupyterHub, Kubernetes,
and SciGaP
❏ Challenges
❏ Interoperability with campus IdPs

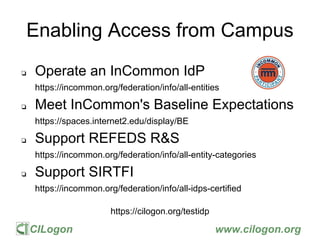

14. CILogon www.cilogon.org
Enabling Access from Campus
❏ Operate an InCommon IdP
https://incommon.org/federation/info/all-entities
❏ Meet InCommon's Baseline Expectations
https://spaces.internet2.edu/display/BE
❏ Support REFEDS R&S
https://incommon.org/federation/info/all-entity-categories
❏ Support SIRTFI
https://incommon.org/federation/info/all-idps-certified
https://cilogon.org/testidp

15. CILogon www.cilogon.org
ATLAS Connect
Brandeis
Clemson
CyberGIS
CERN
CMS Connect
DataONE
DOE KBase
Duke CI Connect
Fermilab
Globus
Indiana University
LIGO
LRZ
MIT
NANOGrav (Pilot)
Northwestern
Notre Dame
OOI
OSC OnDemand
OSG Connect
SciGaP
SeedMe
SWAMP
UNL
XSEDE
... and more
CILogon-enabled Sites

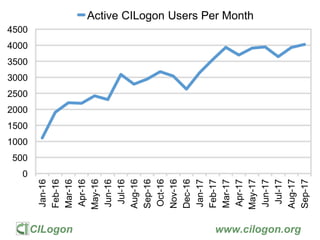

16. CILogon www.cilogon.org

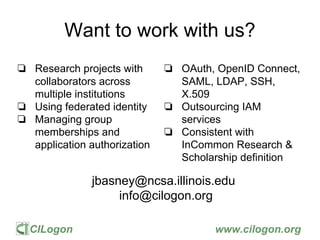

17. CILogon www.cilogon.org
Want to work with us?
❏ Research projects with
collaborators across
multiple institutions
❏ Using federated identity
❏ Managing group
memberships and
application authorization
❏ OAuth, OpenID Connect,
SAML, LDAP, SSH,
X.509
❏ Outsourcing IAM
services
❏ Consistent with
InCommon Research &
Scholarship definition
jbasney@ncsa.illinois.edu
info@cilogon.org
