This document describes ChemCo Systems' epoxy asphalt chip seal, which is a high-performance, liquid epoxy binder mixed with asphalt for use as a thin, durable wearing surface on roads subject to heavy traffic. It protects substrates like steel, concrete or asphalt. The epoxy asphalt chip seal has excellent adhesion, strength, flexibility and resistance to water and UV damage. Product testing has evaluated its curing properties, adhesion to various substrates, fatigue resistance and other properties. The document provides examples of its use in Halifax, Nova Scotia, where it was applied on bridge decks and sidewalks.

1. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

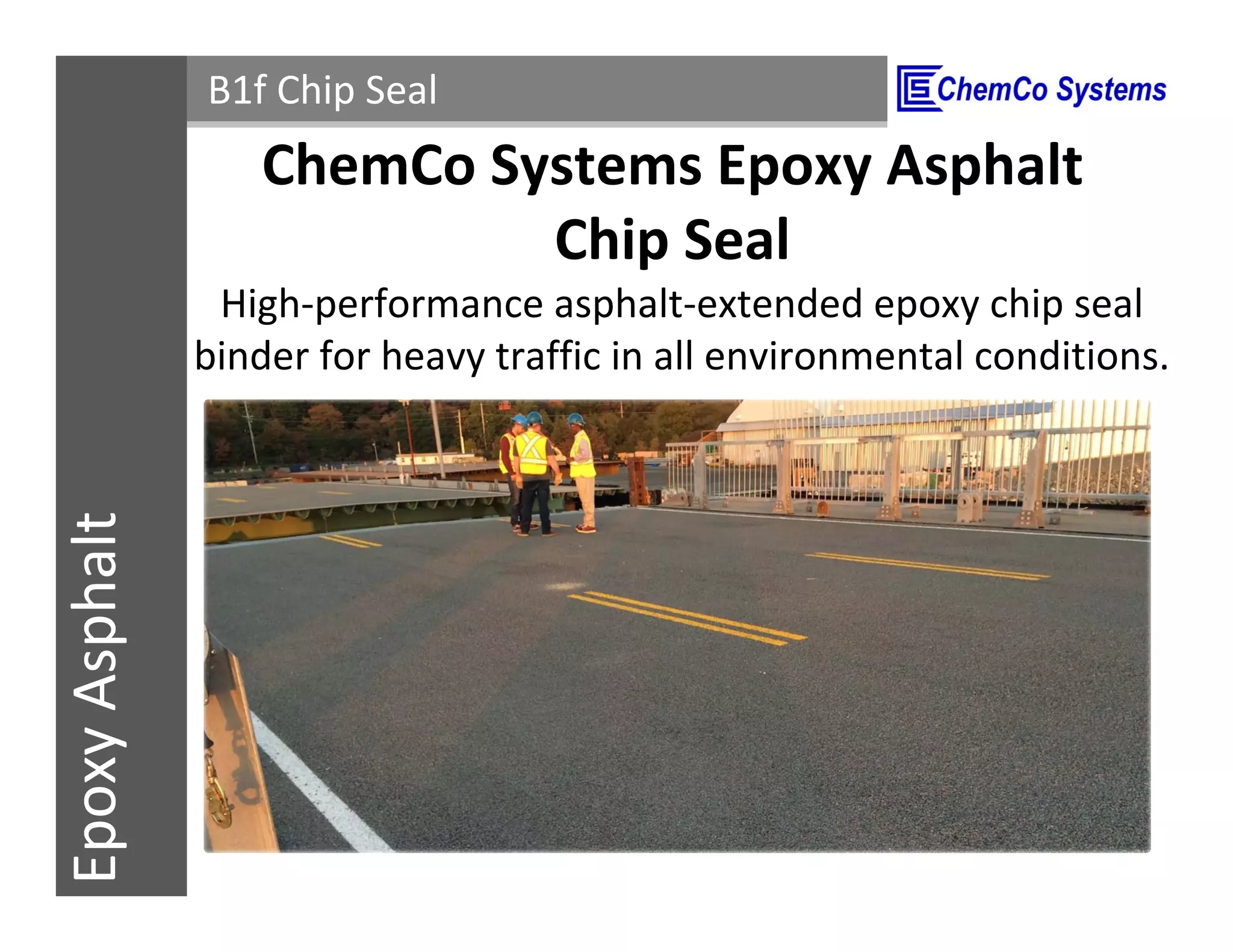

ChemCo Systems Epoxy Asphalt
Chip Seal
High-performance asphalt-extended epoxy chip seal
binder for heavy traffic in all environmental conditions.

2. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

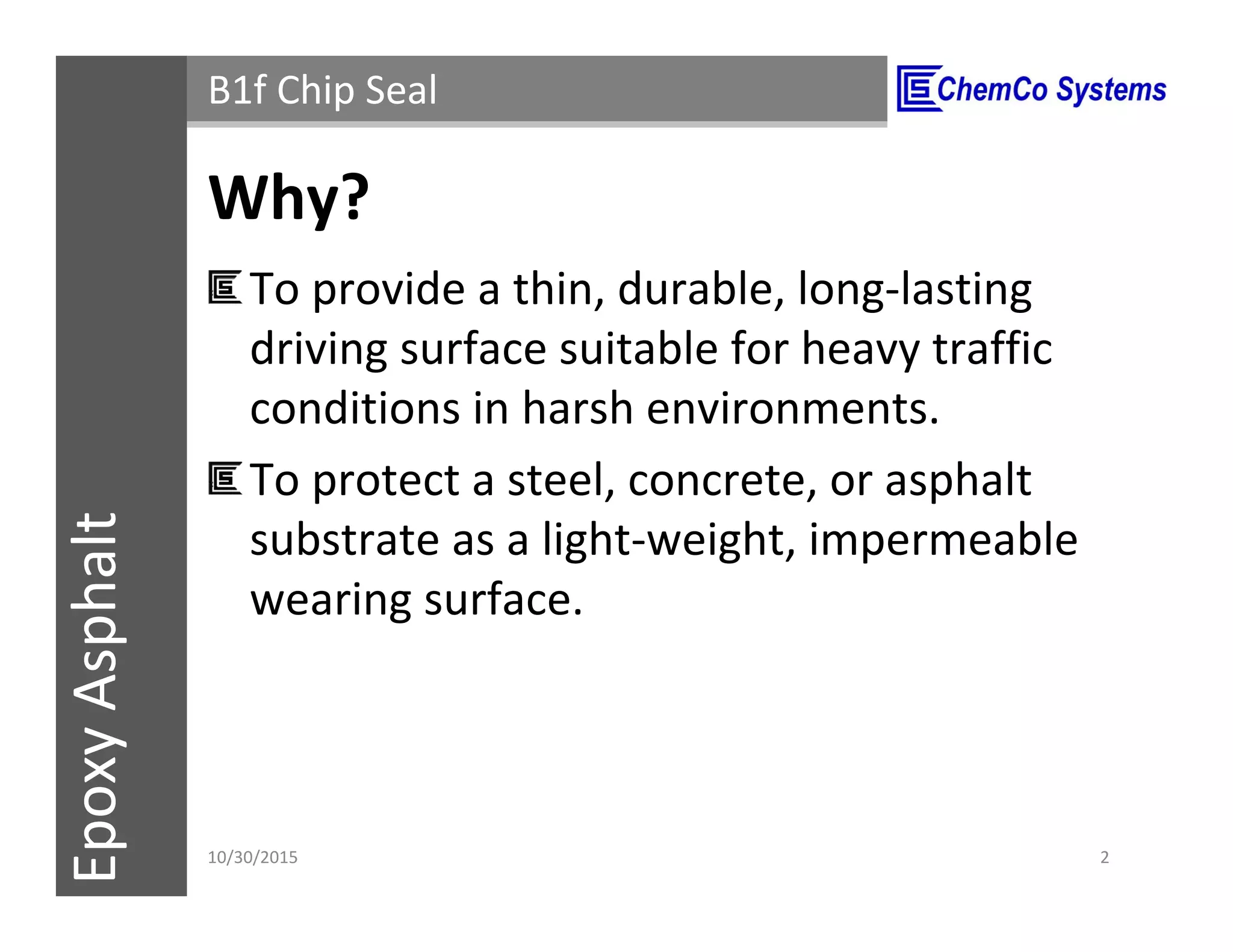

Why?
To provide a thin, durable, long-lasting
driving surface suitable for heavy traffic
conditions in harsh environments.
To protect a steel, concrete, or asphalt
substrate as a light-weight, impermeable
wearing surface.
11/3/2015 2

3. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

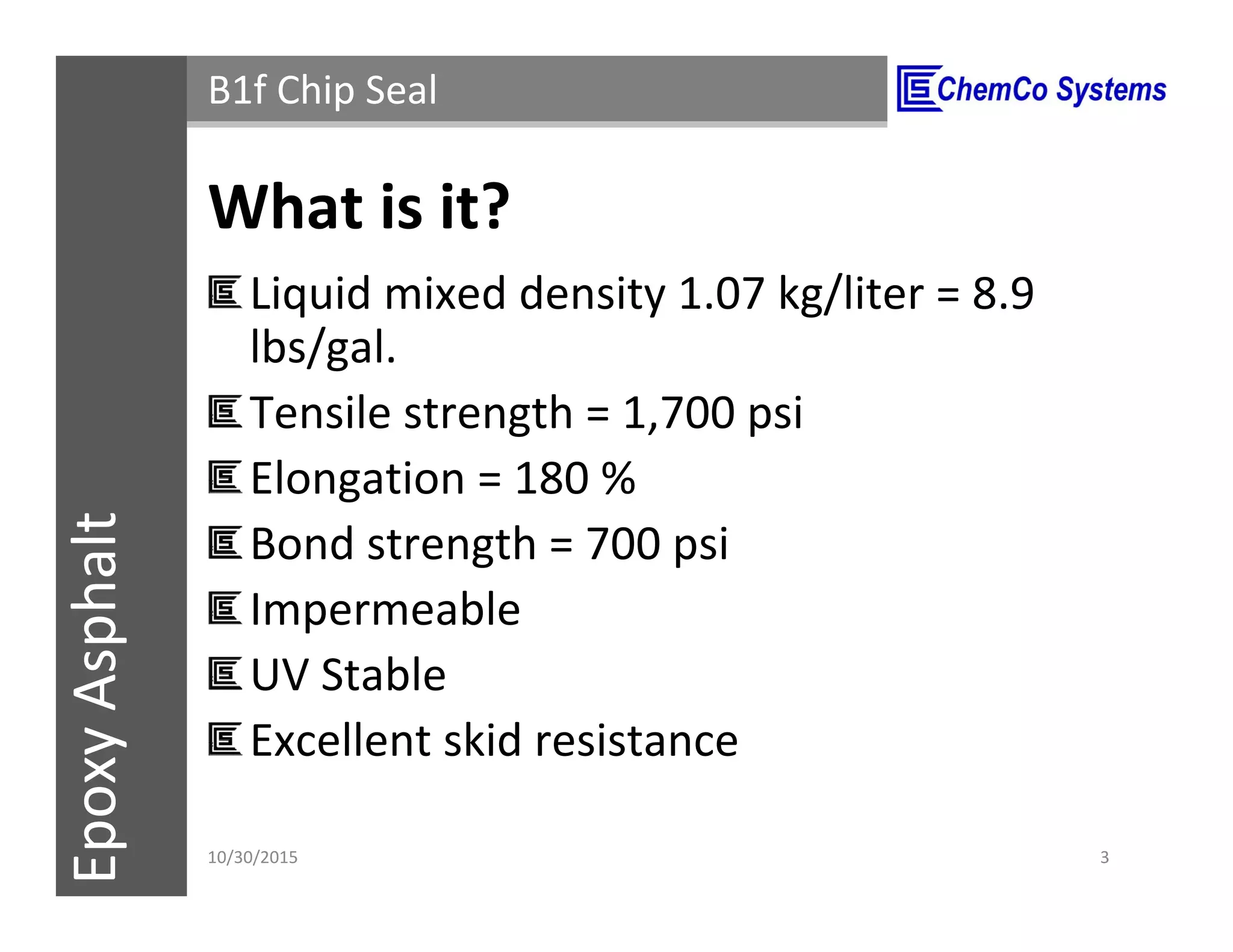

What is it?
Liquid mixed density 1.07 kg/liter = 8.9
lbs/gal.
Tensile strength = 1,700 psi
Elongation = 180 %
Cured bond strength = 700 psi
Impermeable
UV Stable
Excellent skid resistance
11/3/2015 3

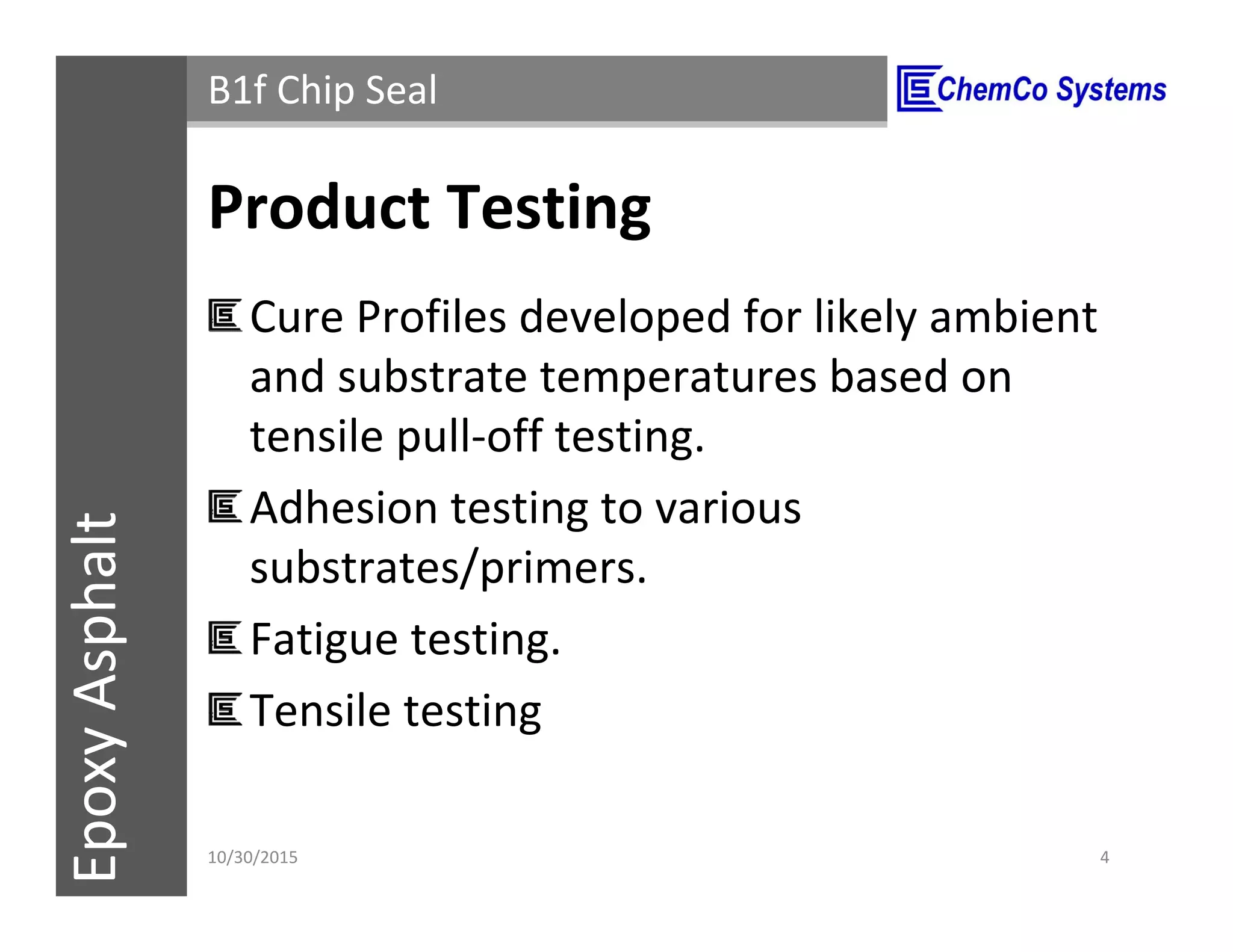

4. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

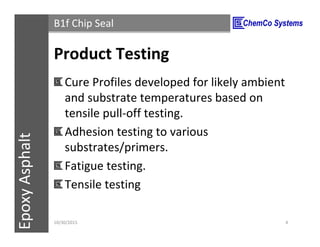

Product Testing
Cure Profiles developed for likely ambient
and substrate temperatures based on
tensile pull-off testing.
Adhesion testing to various
substrates/primers.
Fatigue testing.
Tensile testing
11/3/2015 4

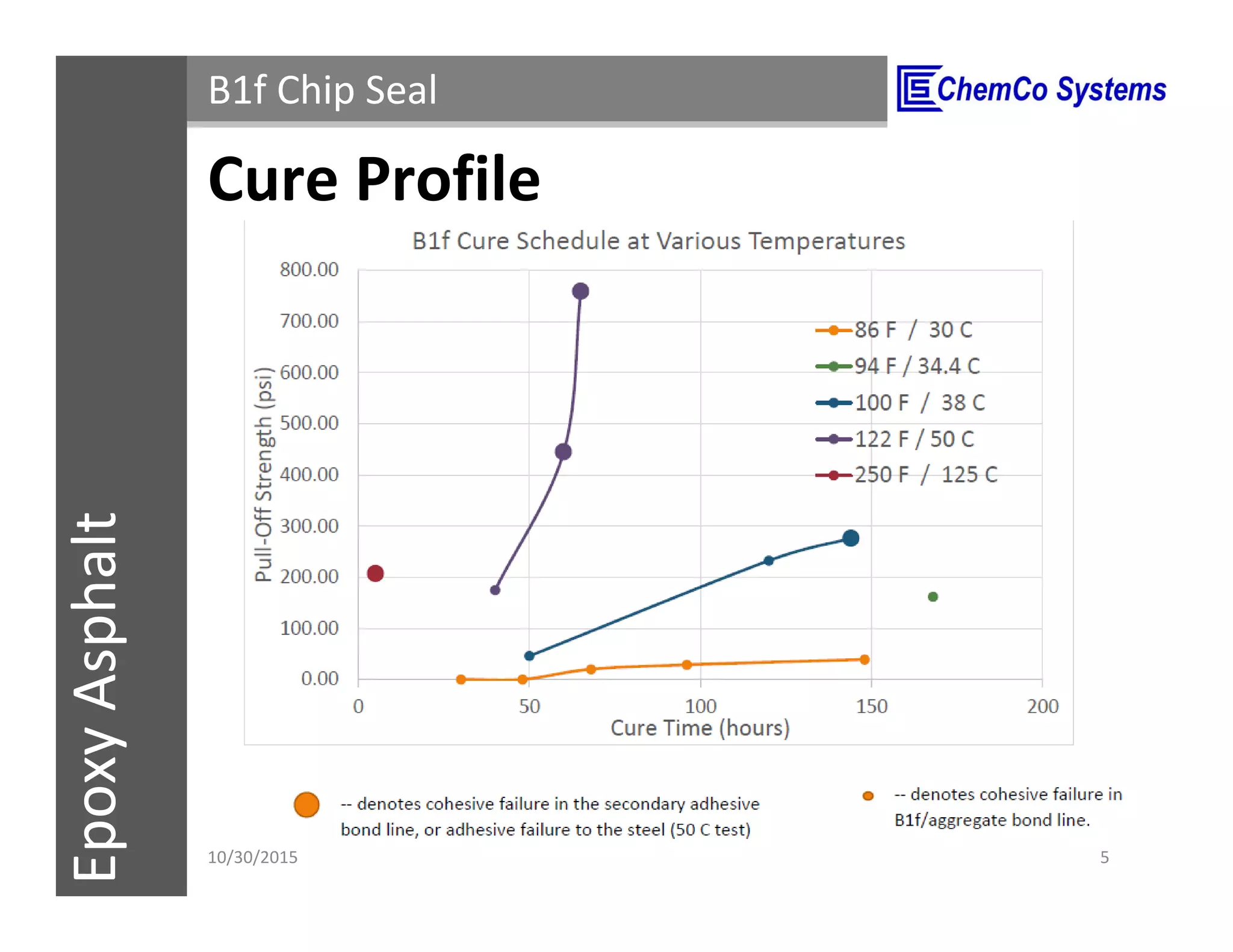

5. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal
Cure Profile
11/3/2015 5

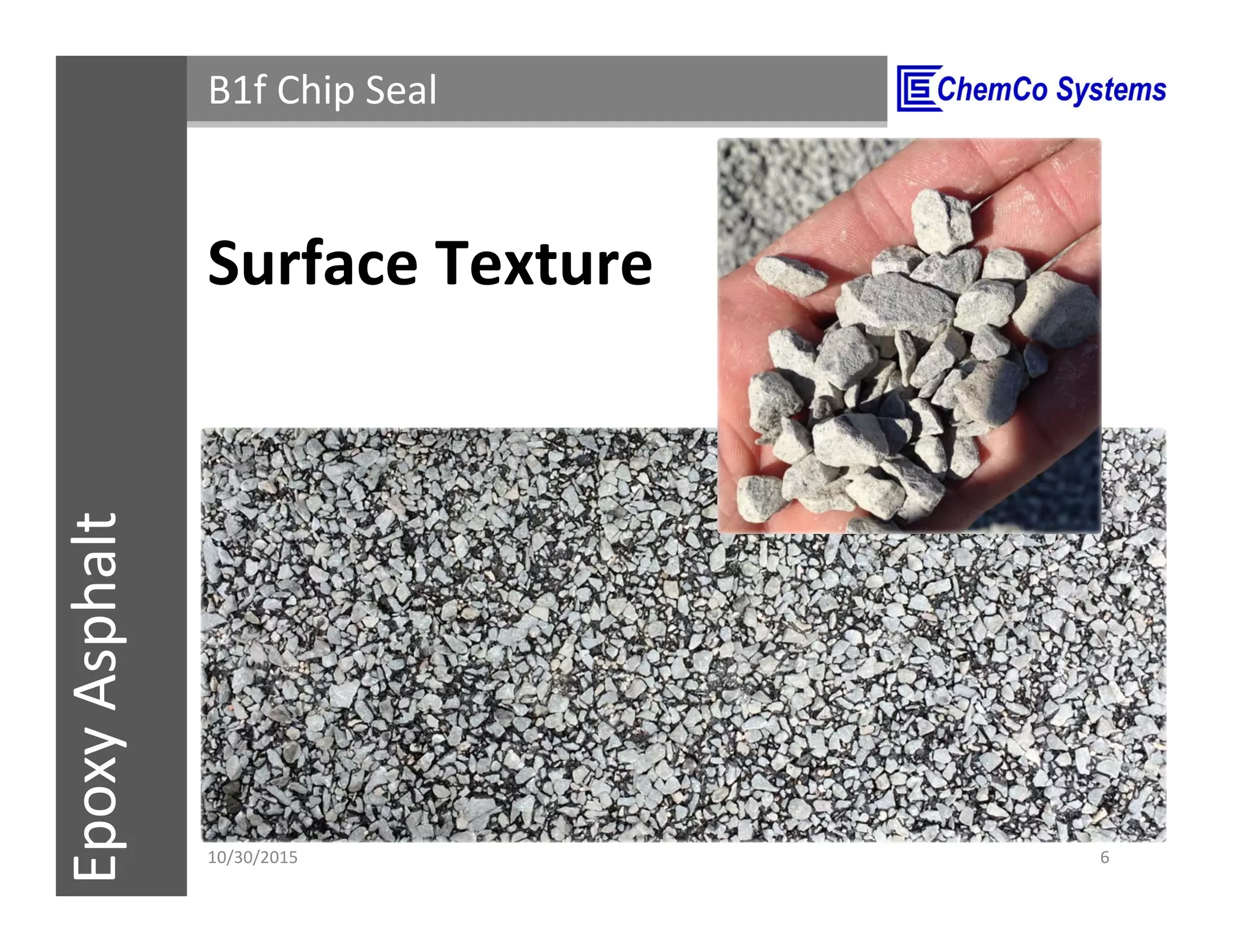

6. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

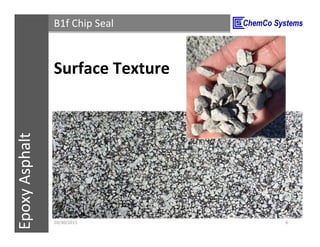

Surface Texture
11/3/2015 6

7. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

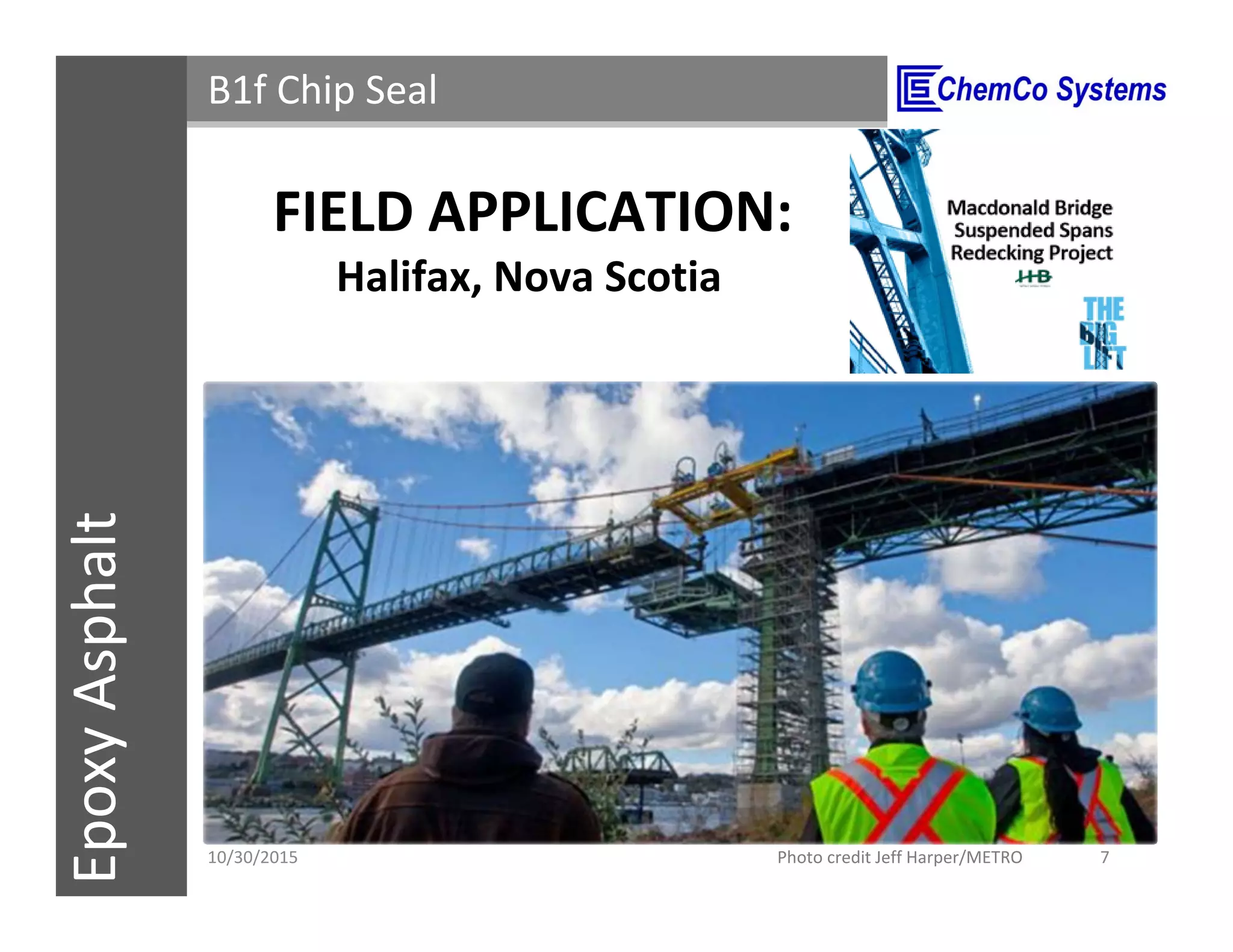

FIELD APPLICATION:
Halifax, Nova Scotia
11/3/2015 7Photo credit Jeff Harper/METRO

8. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

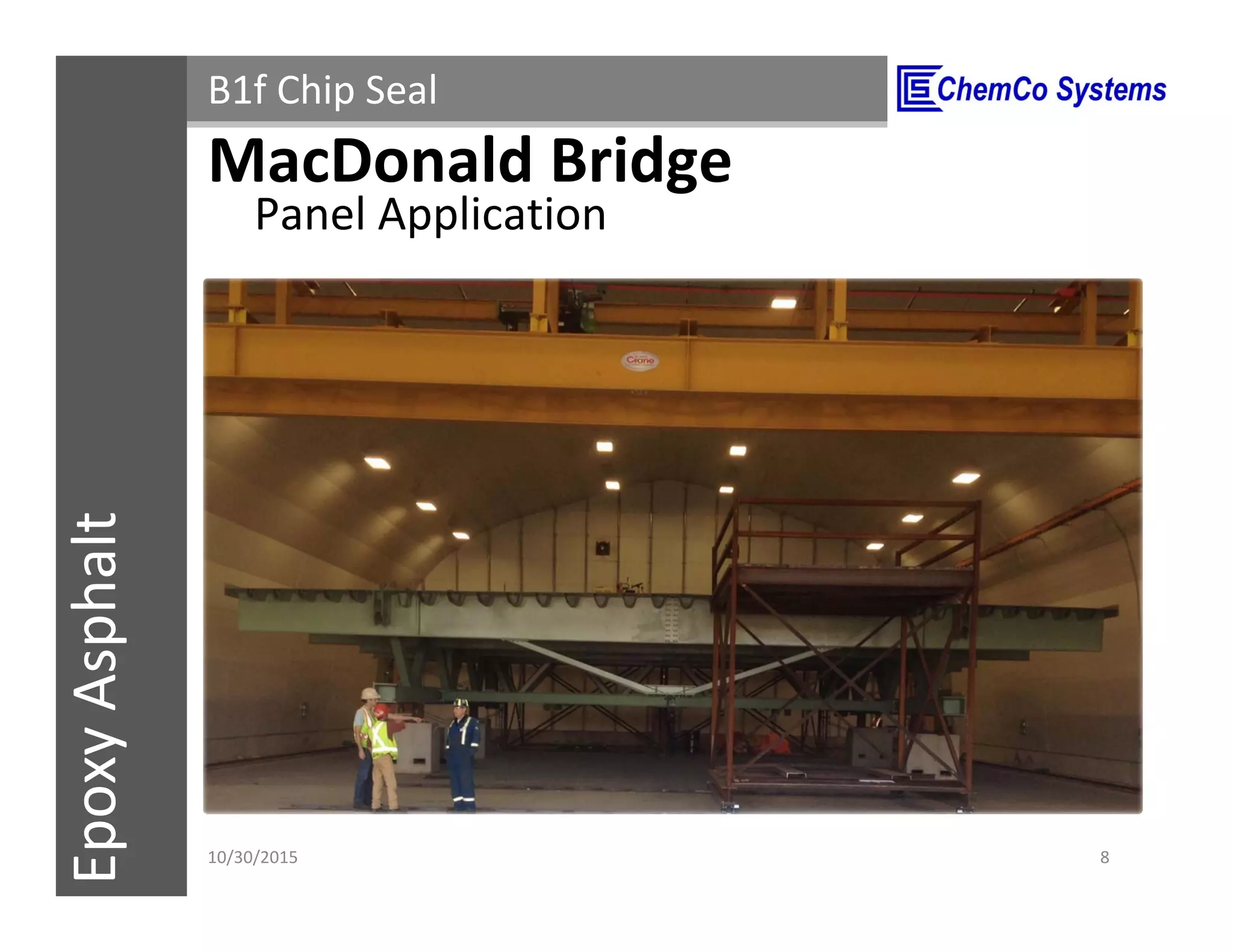

Panel Application
11/3/2015 8
MacDonald Bridge

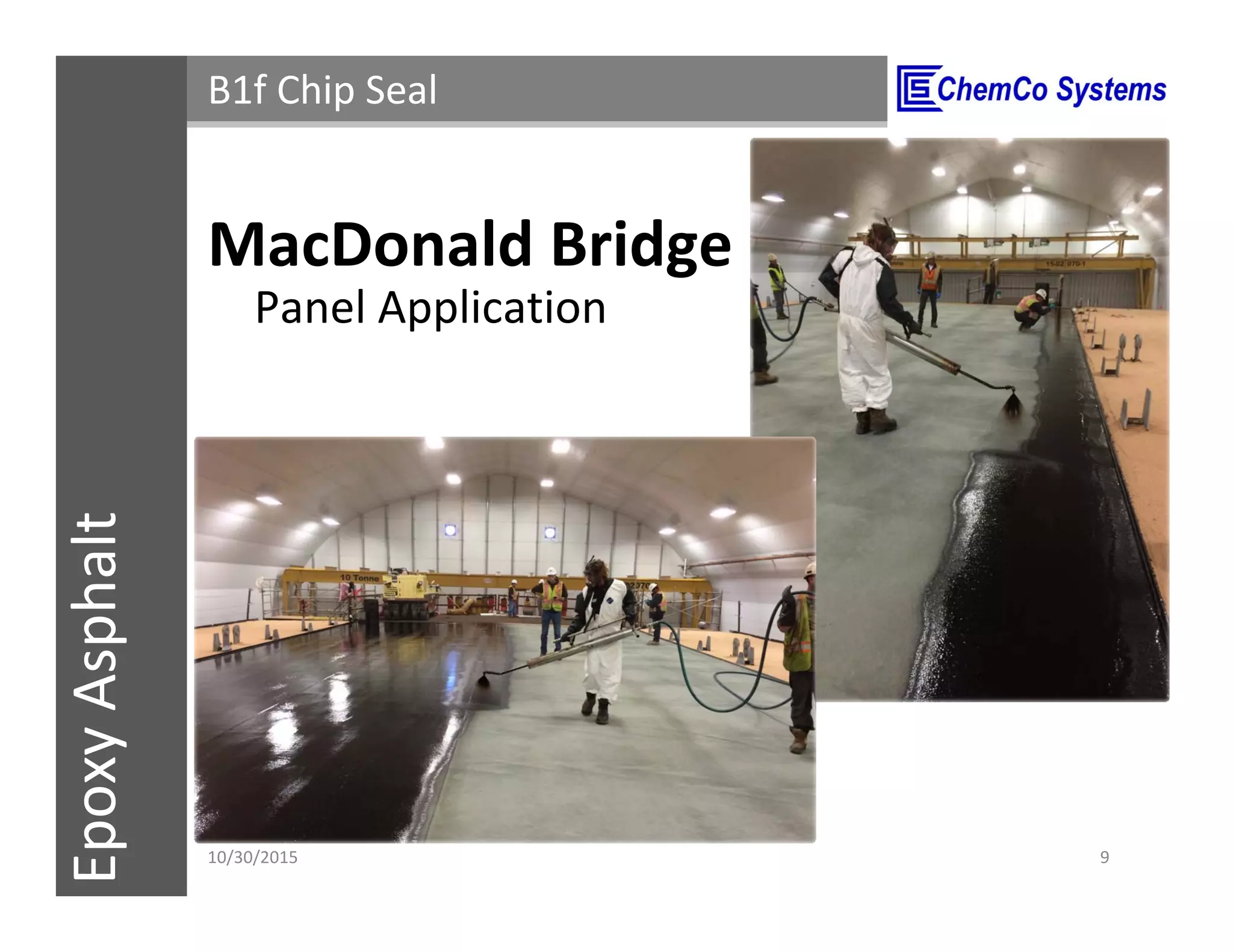

9. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

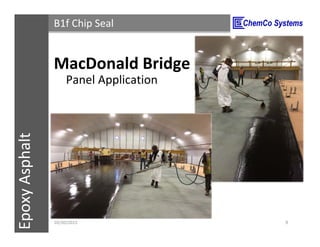

Panel Application
11/3/2015 9
MacDonald Bridge

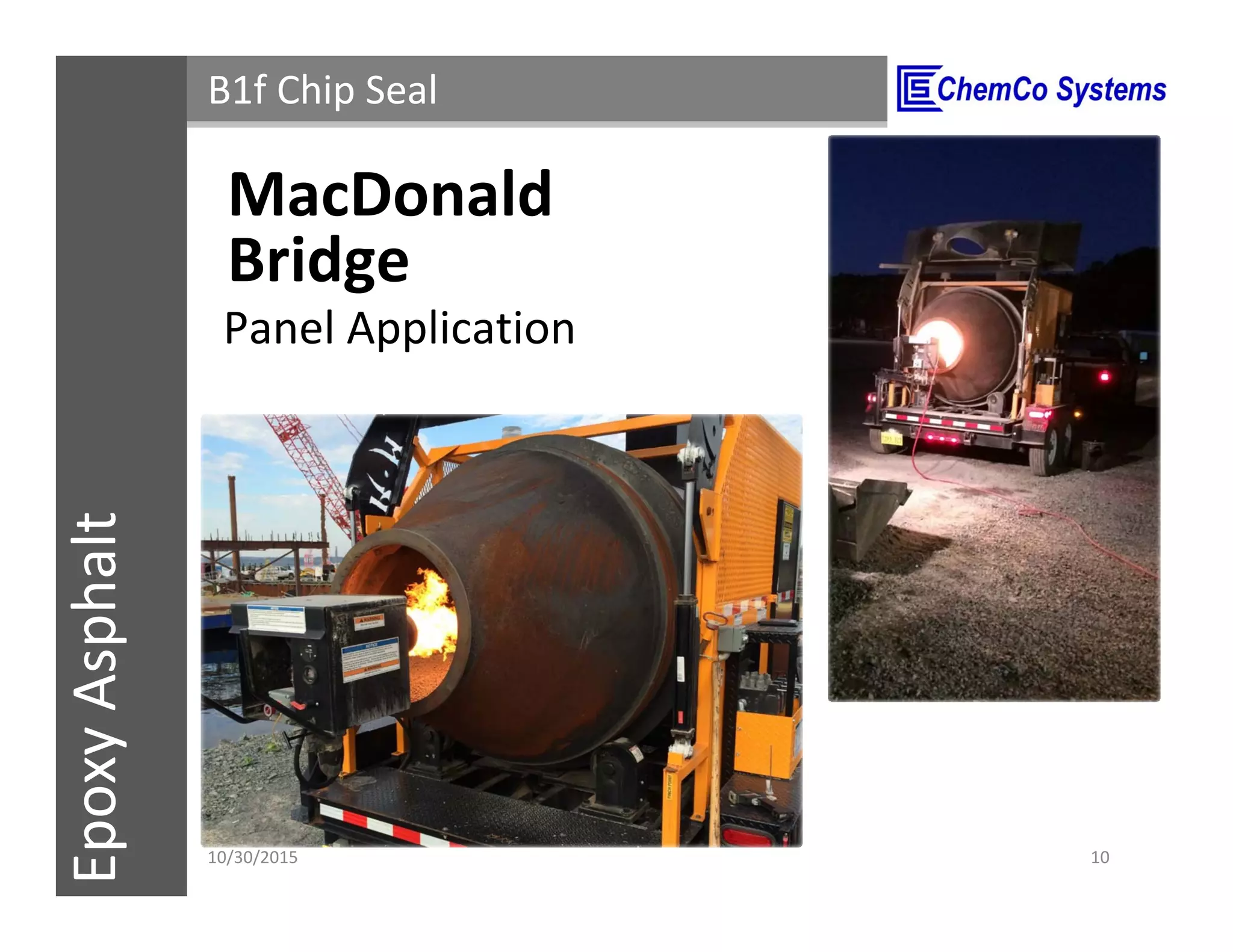

10. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal
Panel Application
11/3/2015 10
MacDonald
Bridge

11. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

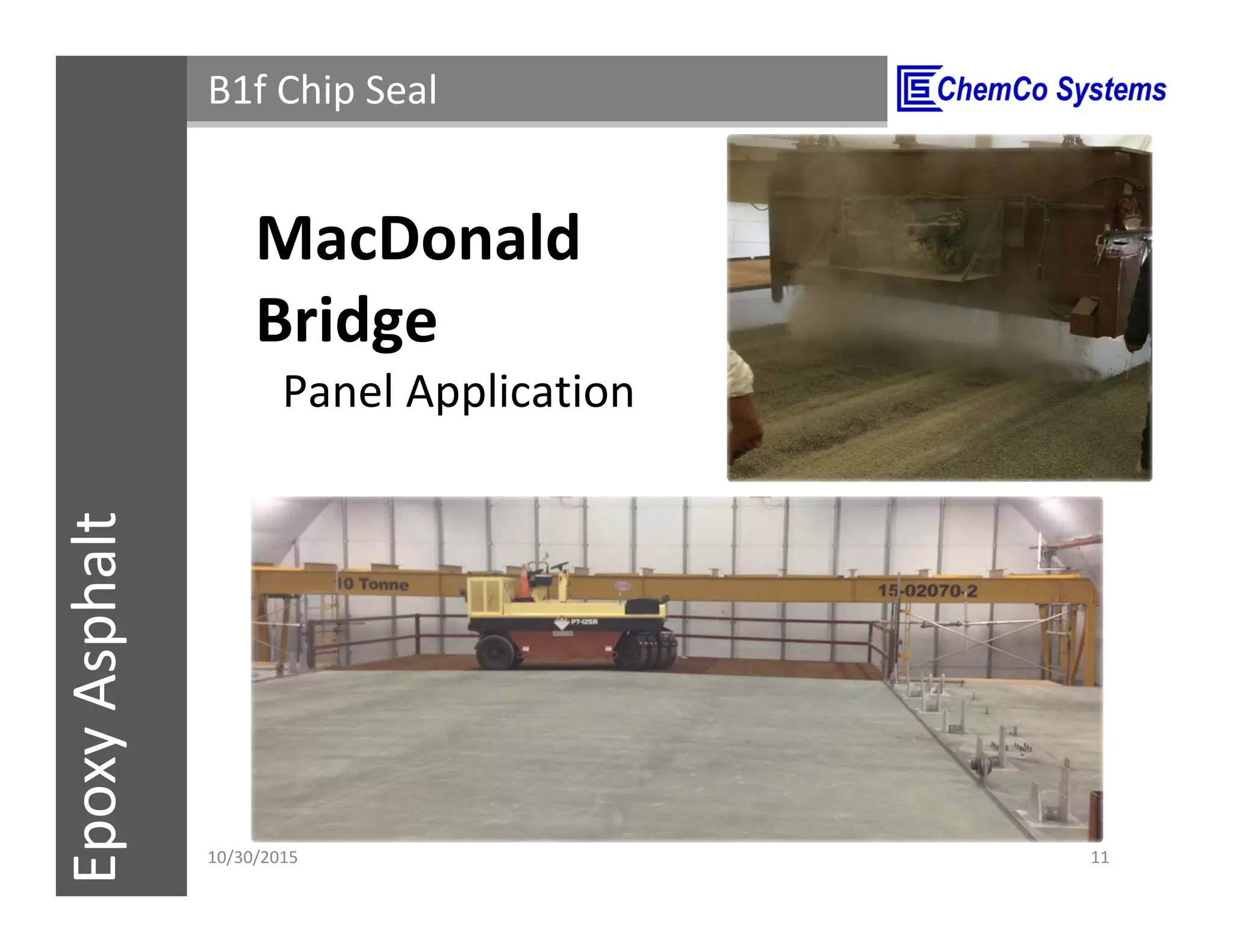

Panel Application
11/3/2015 11
MacDonald
Bridge

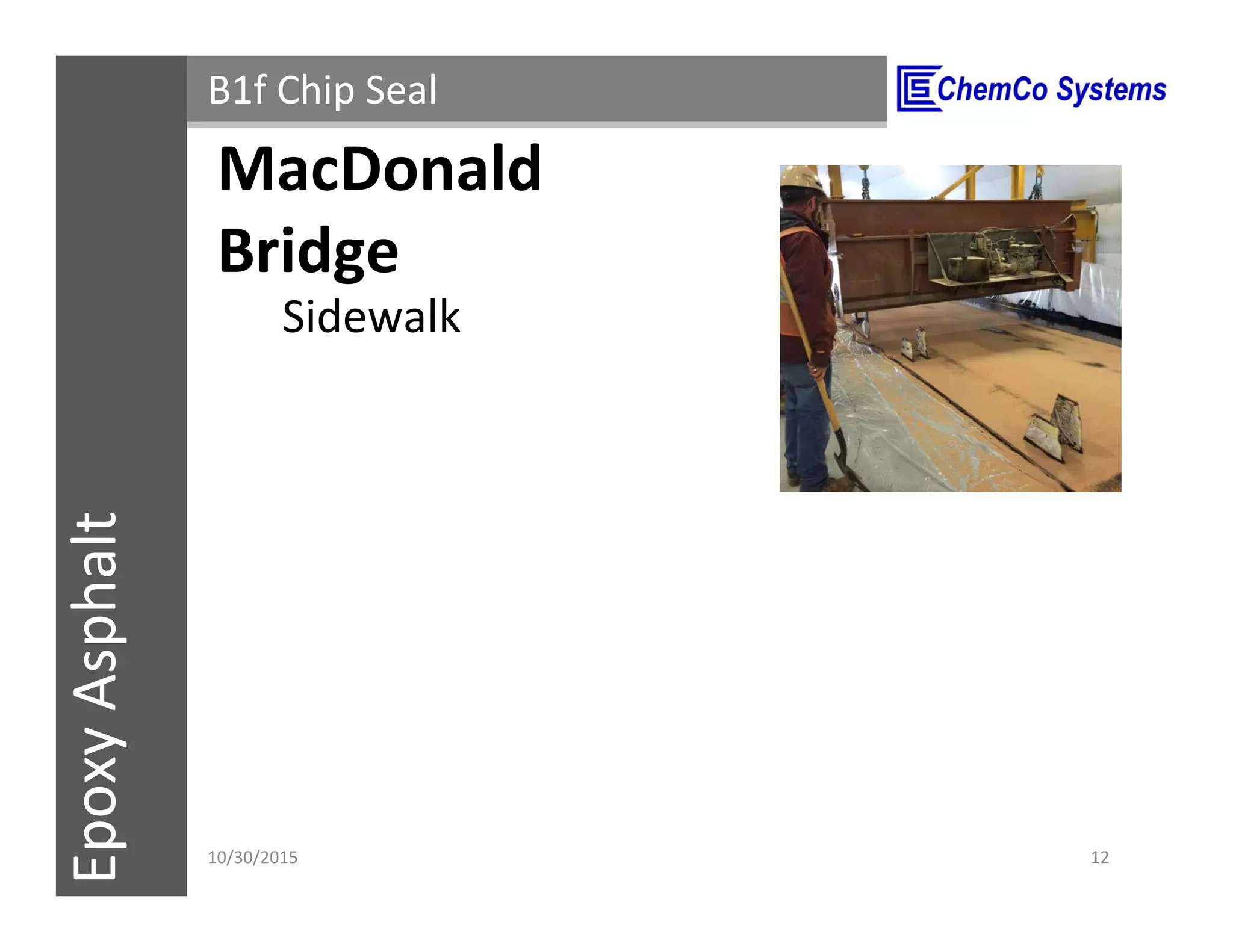

12. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal
Sidewalk
11/3/2015 12
MacDonald
Bridge

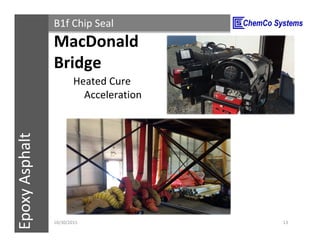

13. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

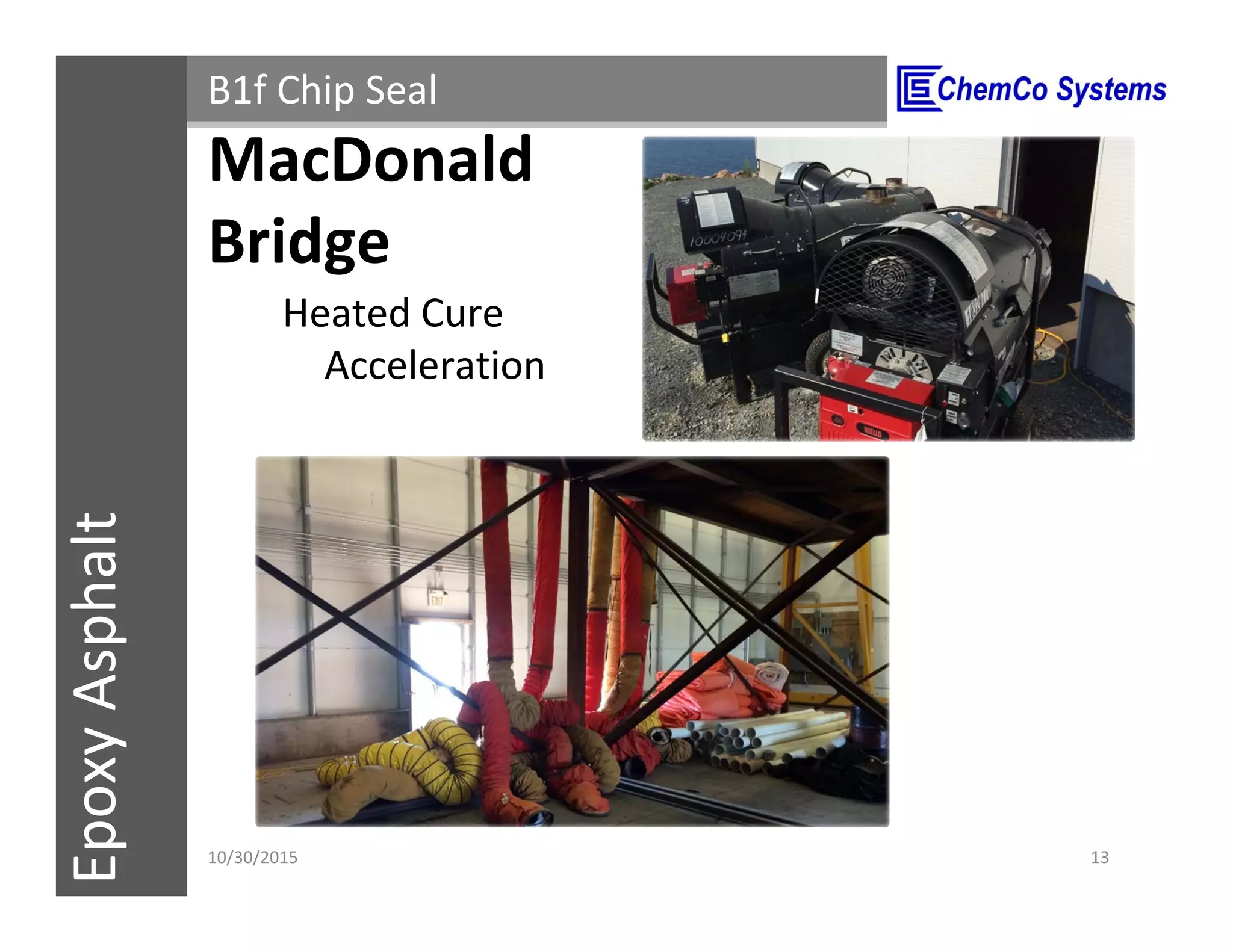

Heated Cure
Acceleration
11/3/2015 13
MacDonald
Bridge

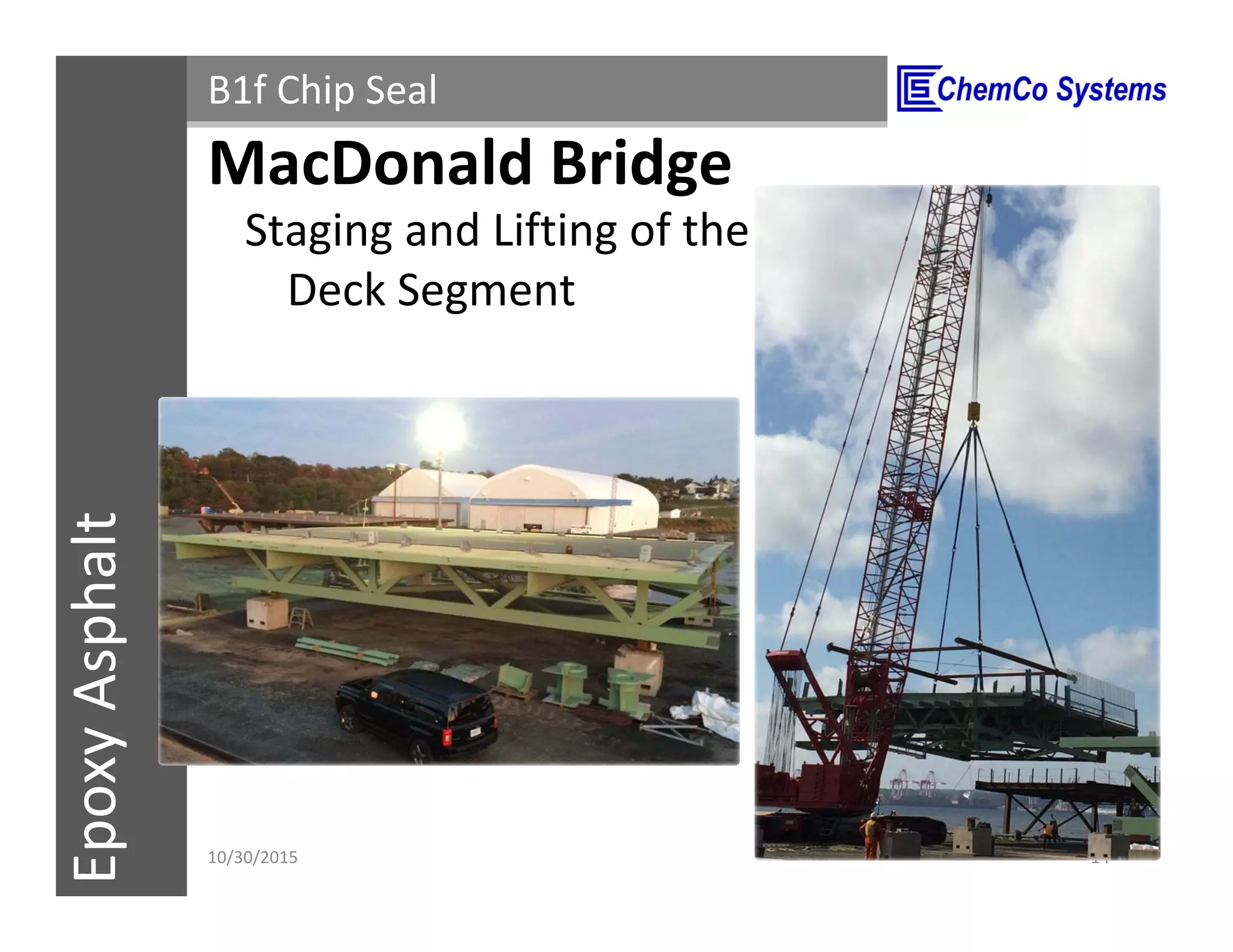

14. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal
Staging and Lifting of the
Deck Segment
11/3/2015 14
MacDonald Bridge

15. CCS InsulPOXCCSConstructionPolymersEpoxyAsphalt B1f Chip Seal

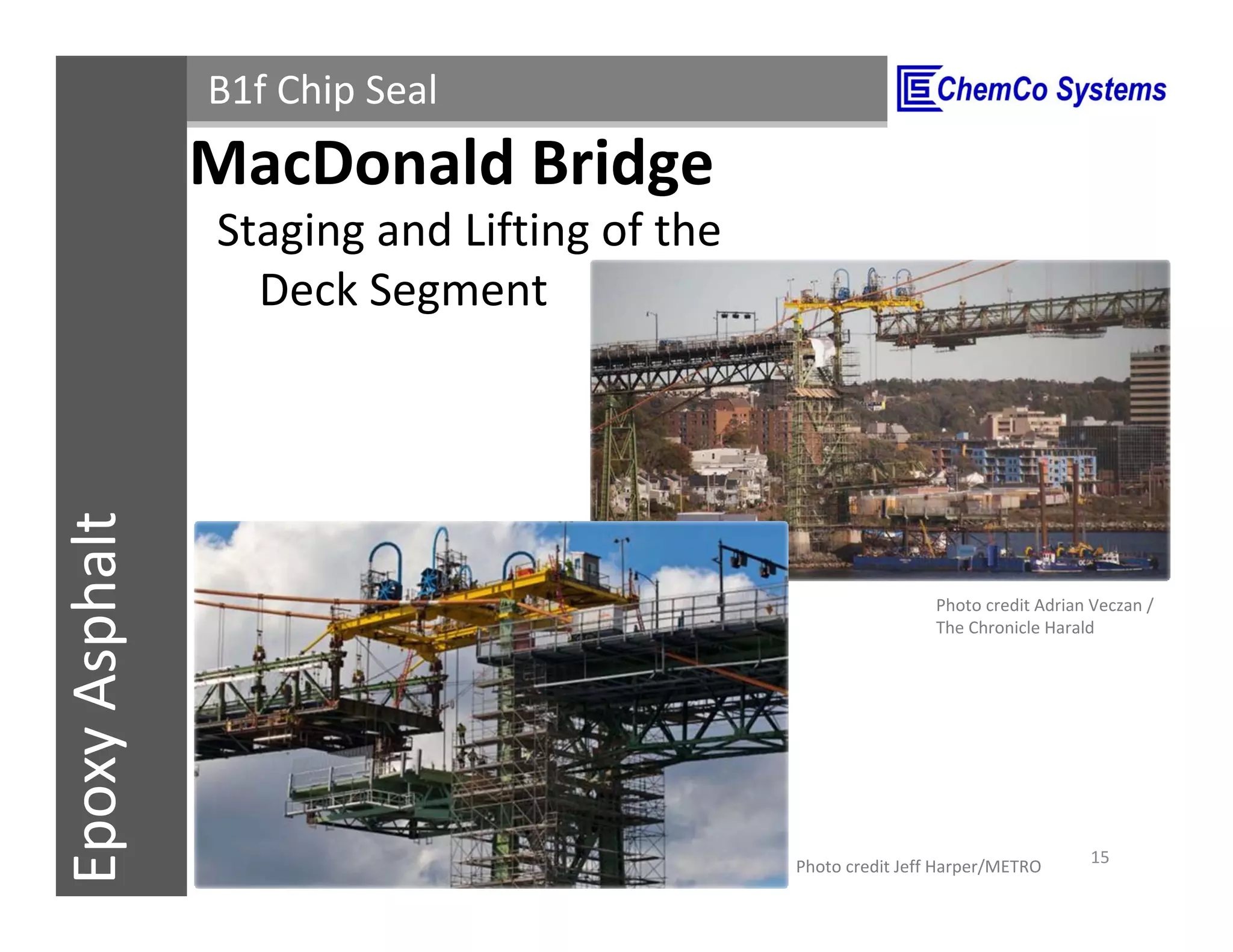

Staging and Lifting of the
Deck Segment
11/3/2015 15
MacDonald Bridge
Photo credit Jeff Harper/METRO
Photo credit Adrian Veczan /
The Chronicle Harald
