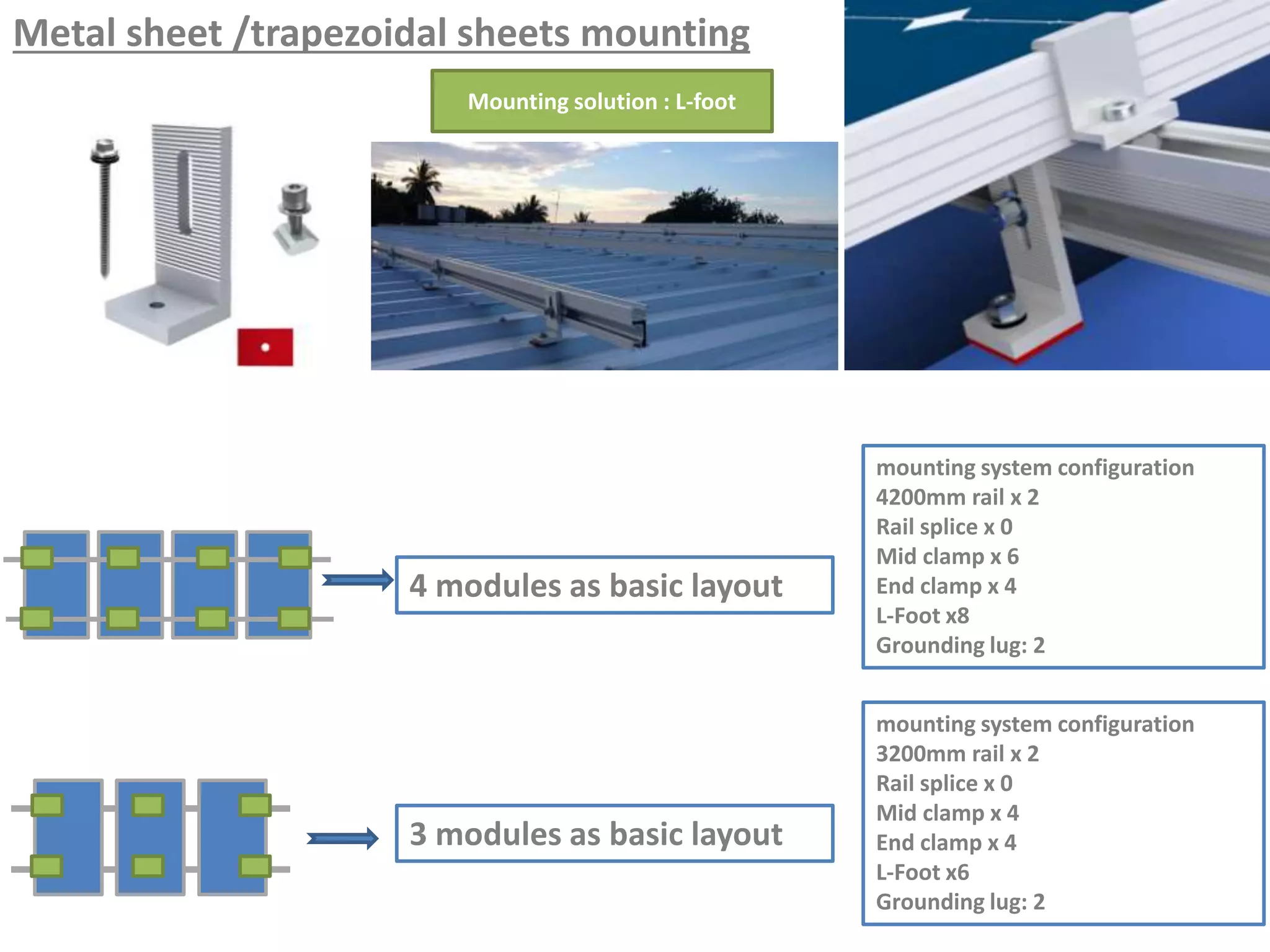

1. Metal sheet /trapezoidal sheets mounting
4 modules as basic layout
mounting system configuration
4200mm rail x 2
Rail splice x 0
Mid clamp x 6
End clamp x 4
L-Foot x8
Grounding lug: 2
Mounting solution : L-foot
3 modules as basic layout
mounting system configuration
3200mm rail x 2
Rail splice x 0
Mid clamp x 4
End clamp x 4
L-Foot x6
Grounding lug: 2

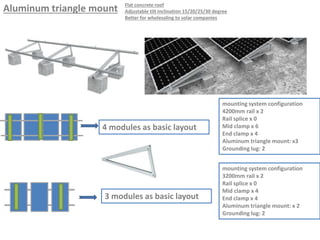

2. Aluminum triangle mount
4 modules as basic layout
mounting system configuration
4200mm rail x 2
Rail splice x 0
Mid clamp x 6
End clamp x 4
Aluminum triangle mount: x3
Grounding lug: 2
3 modules as basic layout
mounting system configuration
3200mm rail x 2
Rail splice x 0
Mid clamp x 4
End clamp x 4
Aluminum triangle mount: x 2
Grounding lug: 2
Flat concrete roof
Fix tilt inclination
Better for roof commercial project

3. Aluminum triangle mount
4 modules as basic layout
mounting system configuration
4200mm rail x 2
Rail splice x 0
Mid clamp x 6
End clamp x 4
Aluminum triangle mount: x3
Grounding lug: 2
3 modules as basic layout
mounting system configuration
3200mm rail x 2
Rail splice x 0
Mid clamp x 4
End clamp x 4
Aluminum triangle mount: x 2
Grounding lug: 2
Flat concrete roof
Adjustable tilt inclination 15/20/25/30 degree
Better for wholesaling to solar companies

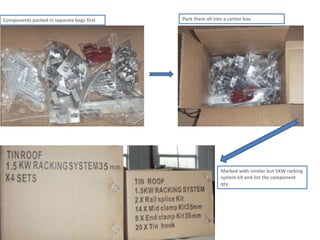

4. Components packed in separate bags first Pack them all into a carton box
Marked with similar but 5KW racking
system kit and list the component
qty

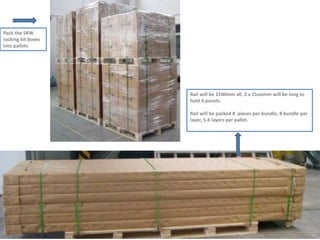

5. Pack the 5KW
racking kit boxes
into pallets
Rail will be 2100mm all, 2 x 21oomm will be long to
hold 4 panels.
Rail will be packed 8 pieces per bundle, 8 bundle per
layer, 5-6 layers per pallet.
