Charlotte FED - CSS Inheritance and Specificity
- 1. CSS Inheritance & Specificity Sarah Hudson

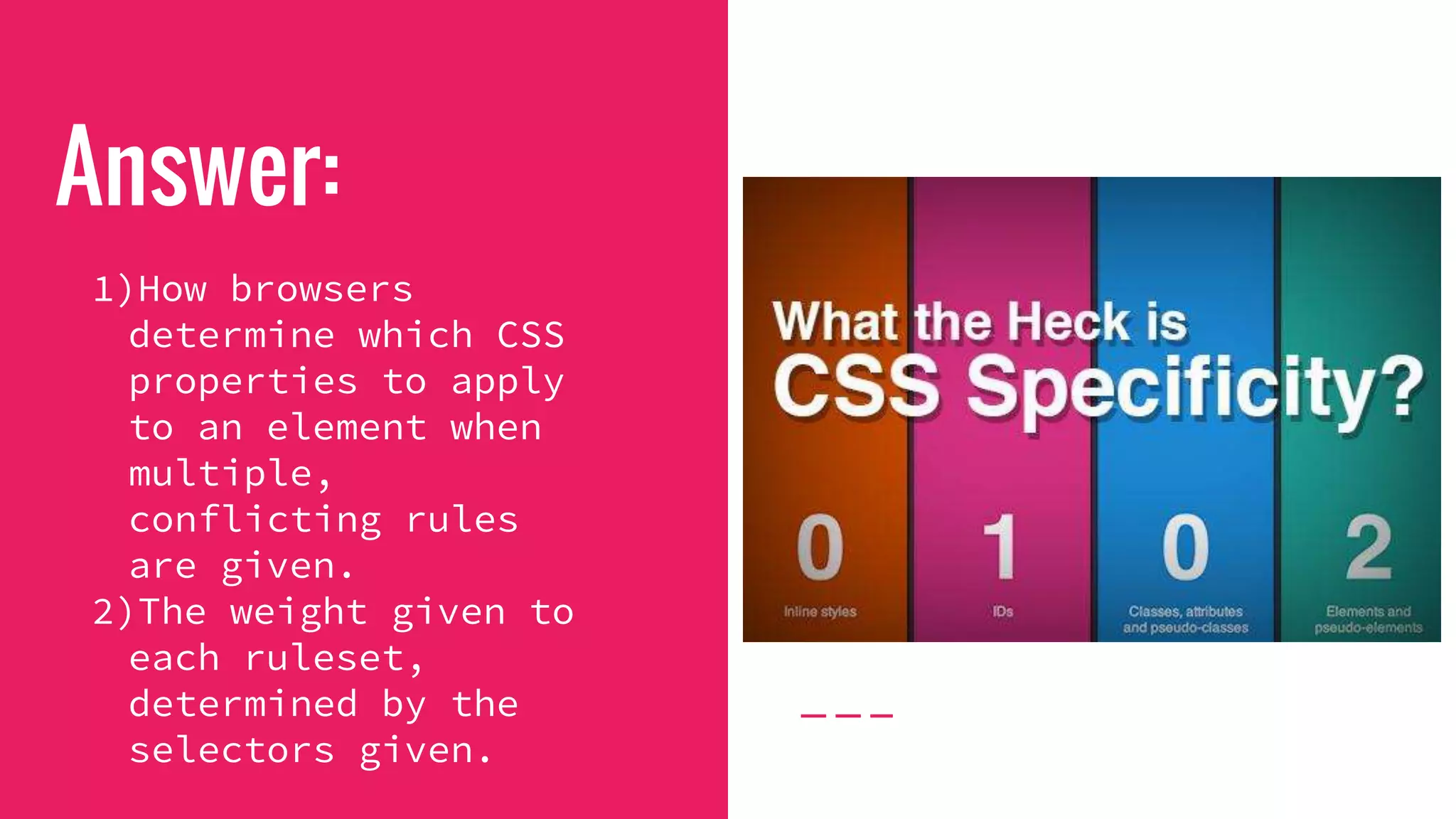

- 3. Answer: 1)How browsers determine which CSS properties to apply to an element when multiple, conflicting rules are given. 2)The weight given to each ruleset, determined by the selectors given.

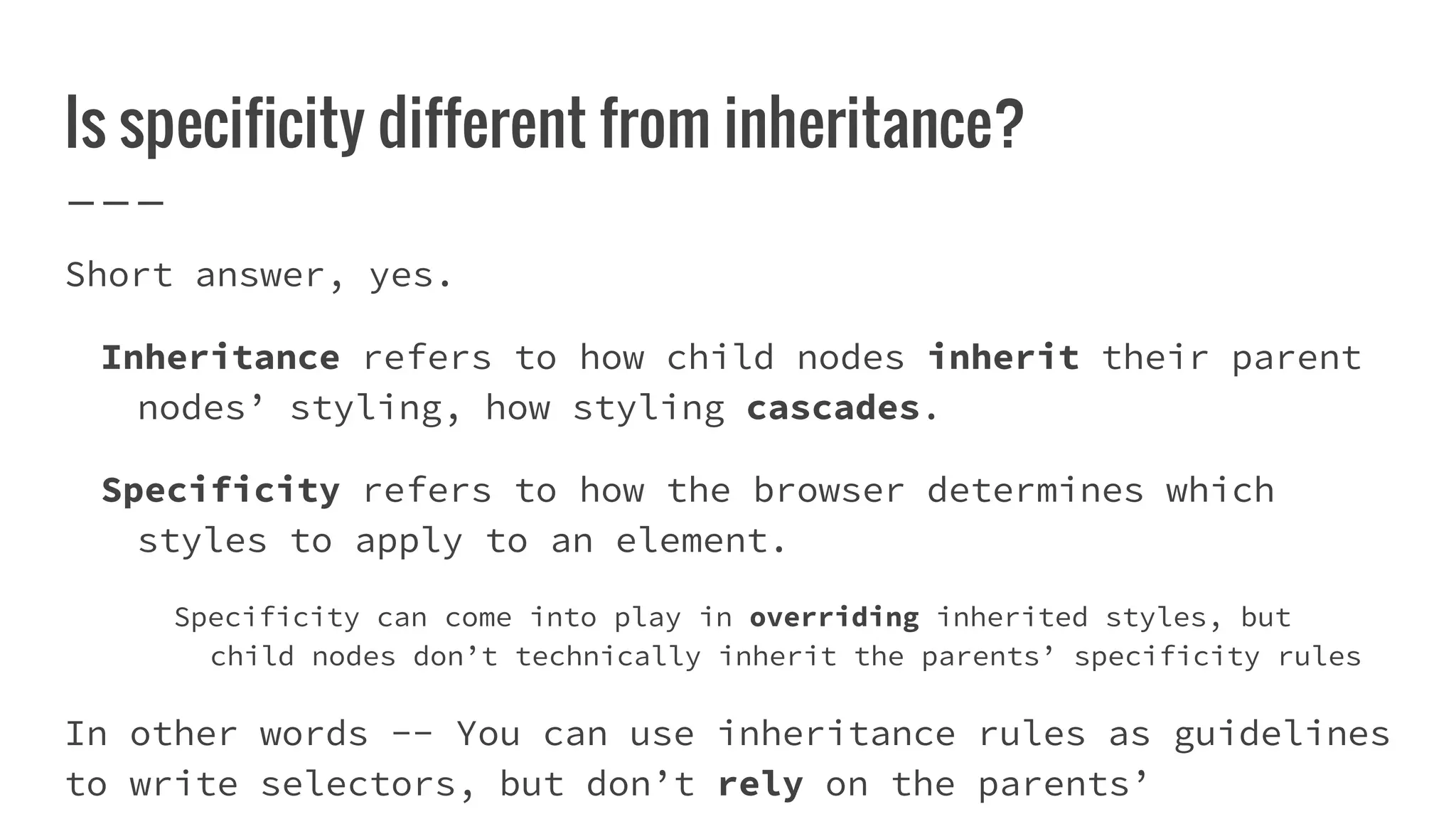

- 4. Is specificity different from inheritance? Short answer, yes. Inheritance refers to how child nodes inherit their parent nodes’ styling, how styling cascades. Specificity refers to how the browser determines which styles to apply to an element. Specificity can come into play in overriding inherited styles, but child nodes don’t technically inherit the parents’ specificity rules In other words -- You can use inheritance rules as guidelines to write selectors, but don’t rely on the parents’

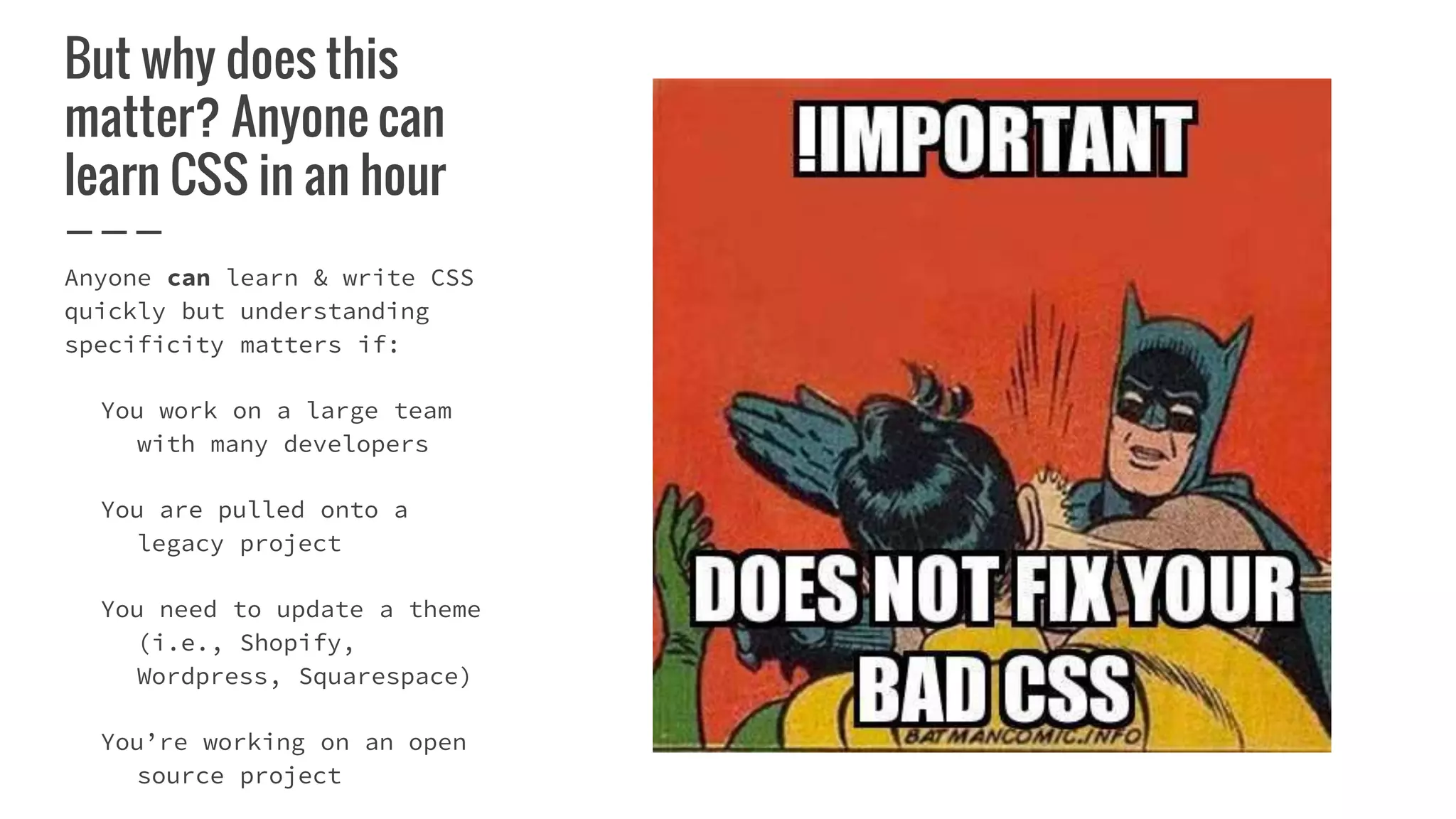

- 5. But why does this matter? Anyone can learn CSS in an hour Anyone can learn & write CSS quickly but understanding specificity matters if: You work on a large team with many developers You are pulled onto a legacy project You need to update a theme (i.e., Shopify, Wordpress, Squarespace) You’re working on an open source project

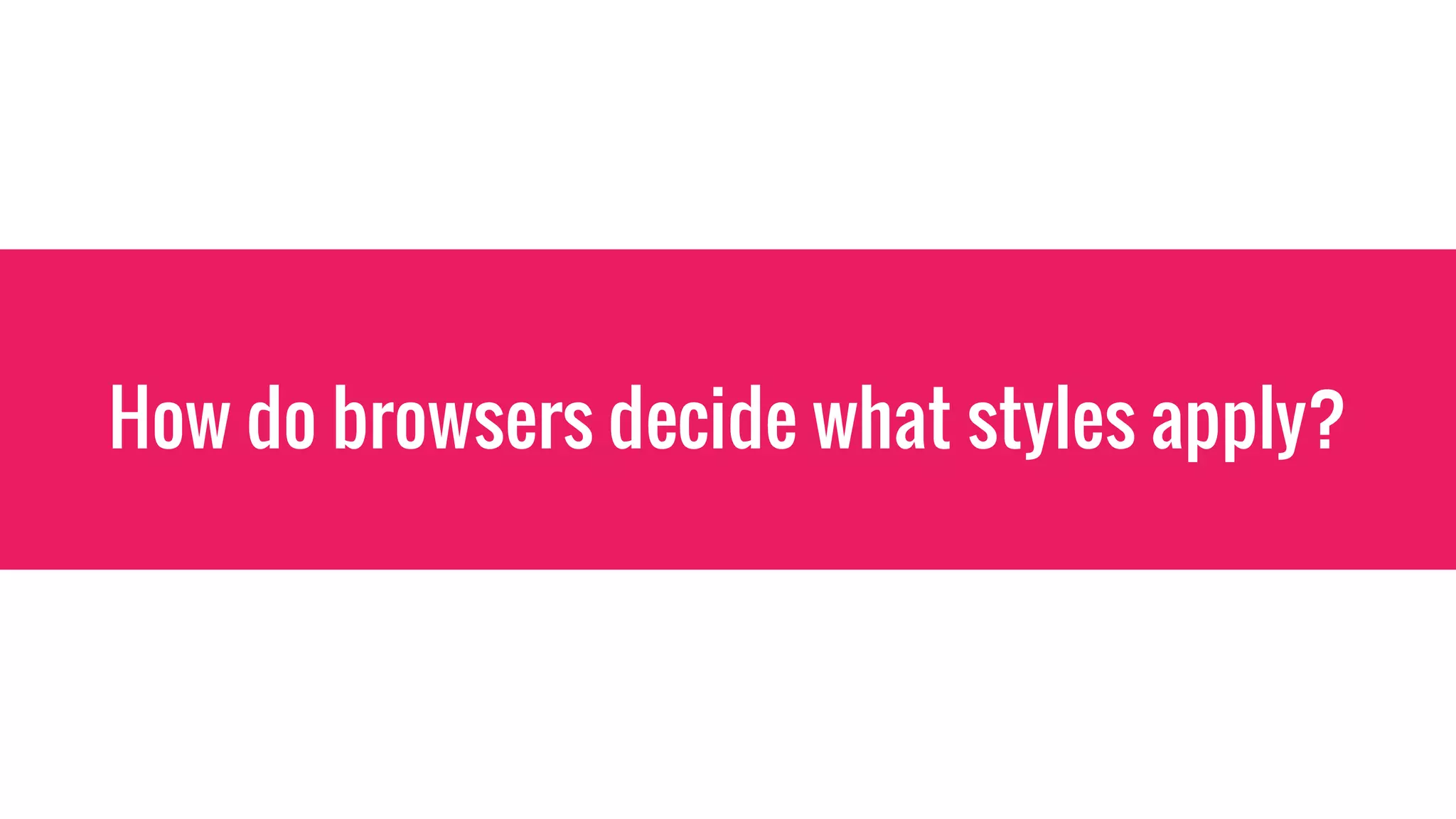

- 6. How do browsers decide what styles apply?

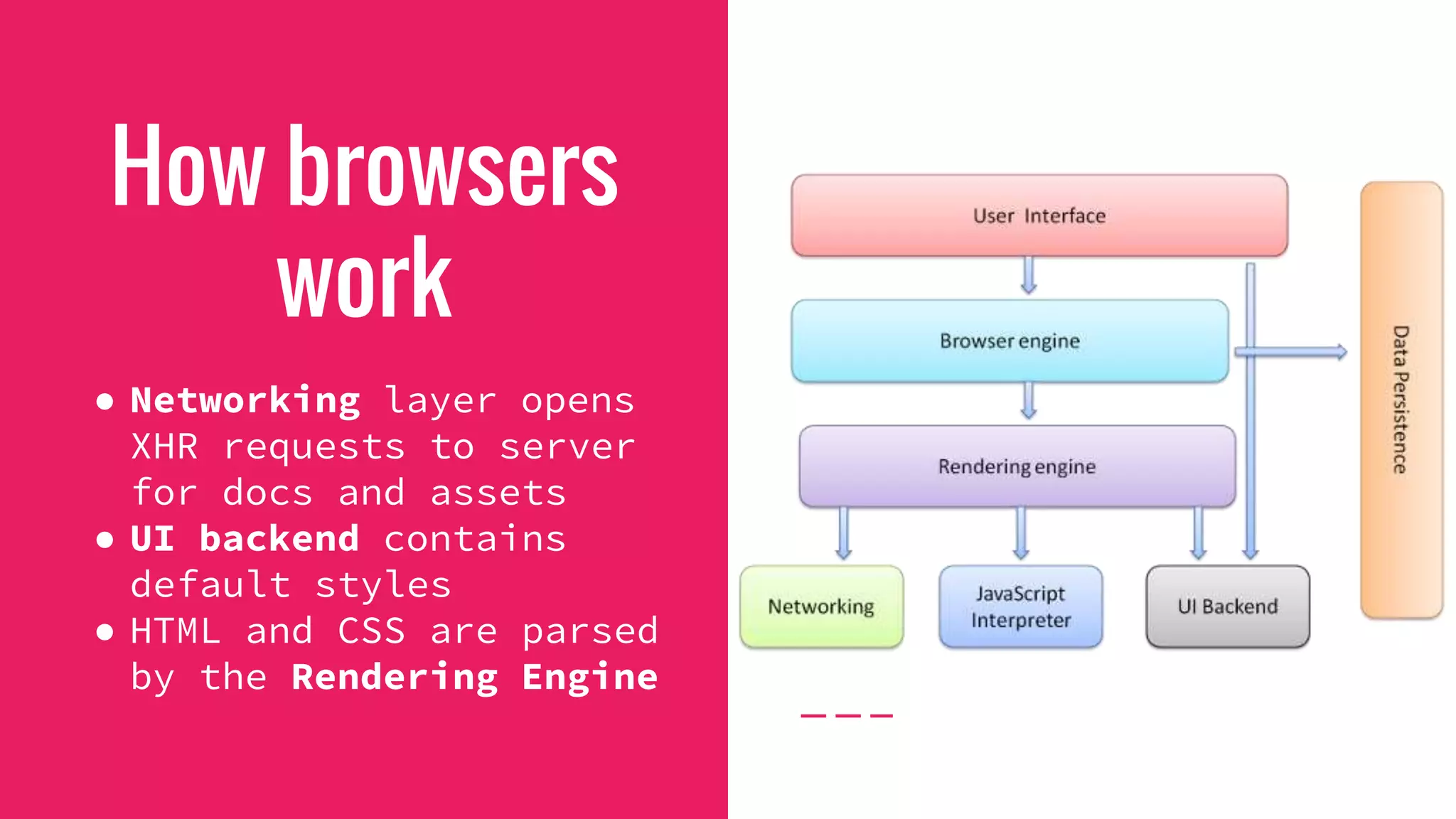

- 7. How browsers work ● Networking layer opens XHR requests to server for docs and assets ● UI backend contains default styles ● HTML and CSS are parsed by the Rendering Engine

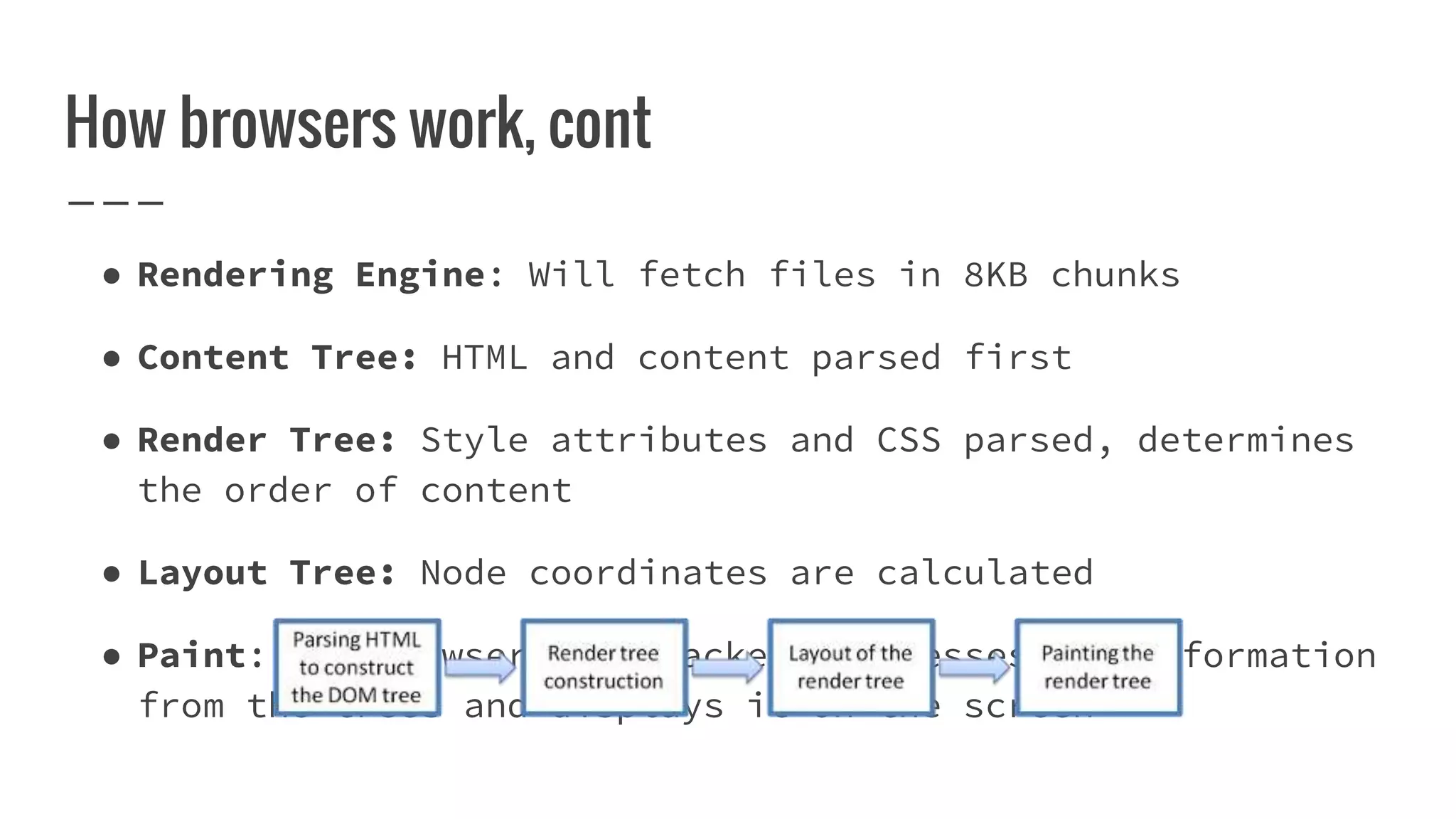

- 8. How browsers work, cont ● Rendering Engine: Will fetch files in 8KB chunks ● Content Tree: HTML and content parsed first ● Render Tree: Style attributes and CSS parsed, determines the order of content ● Layout Tree: Node coordinates are calculated ● Paint: The browser’s UI Backend processes the information from the trees and displays it on the screen

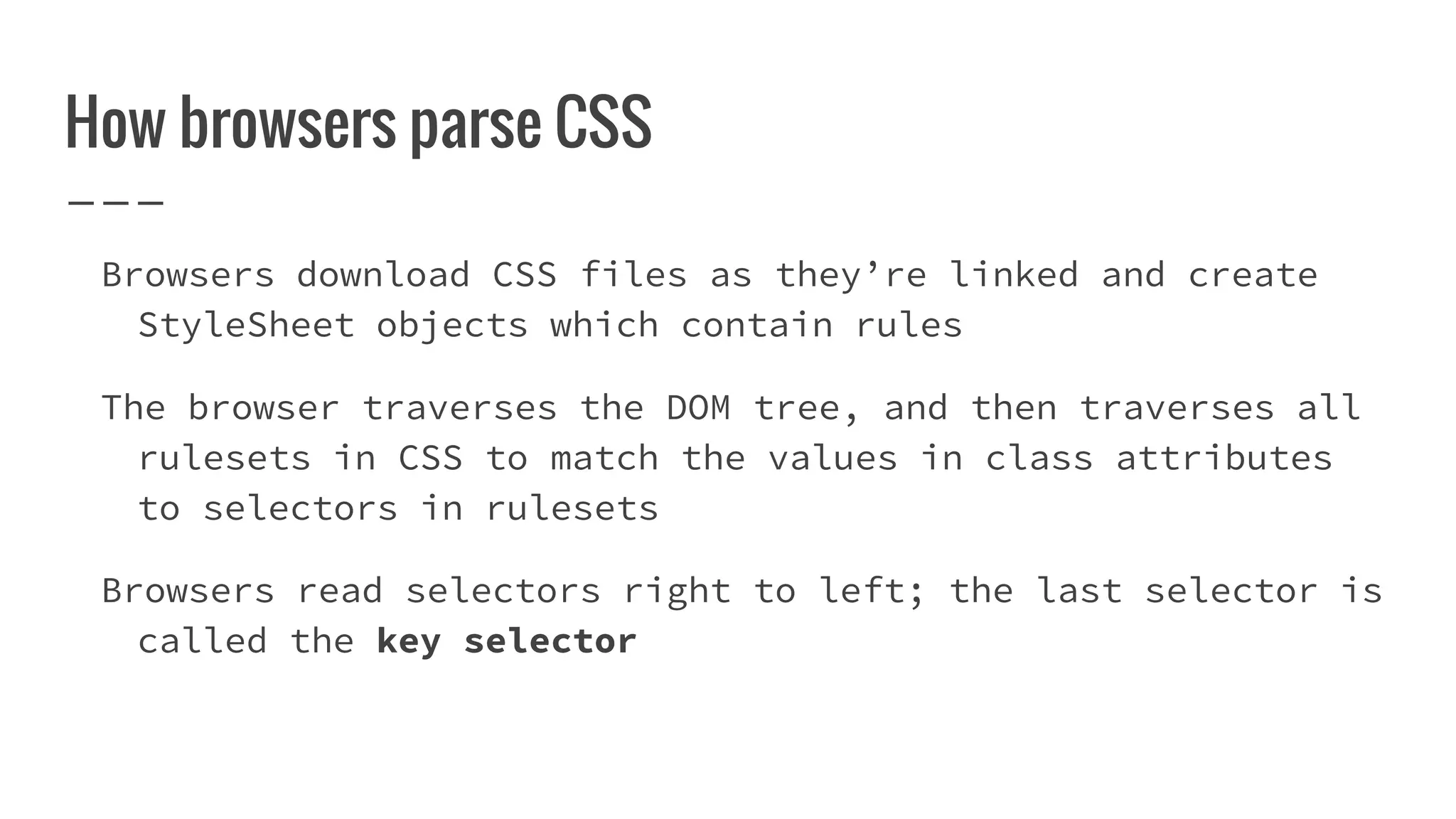

- 9. How browsers parse CSS Browsers download CSS files as they’re linked and create StyleSheet objects which contain rules The browser traverses the DOM tree, and then traverses all rulesets in CSS to match the values in class attributes to selectors in rulesets Browsers read selectors right to left; the last selector is called the key selector

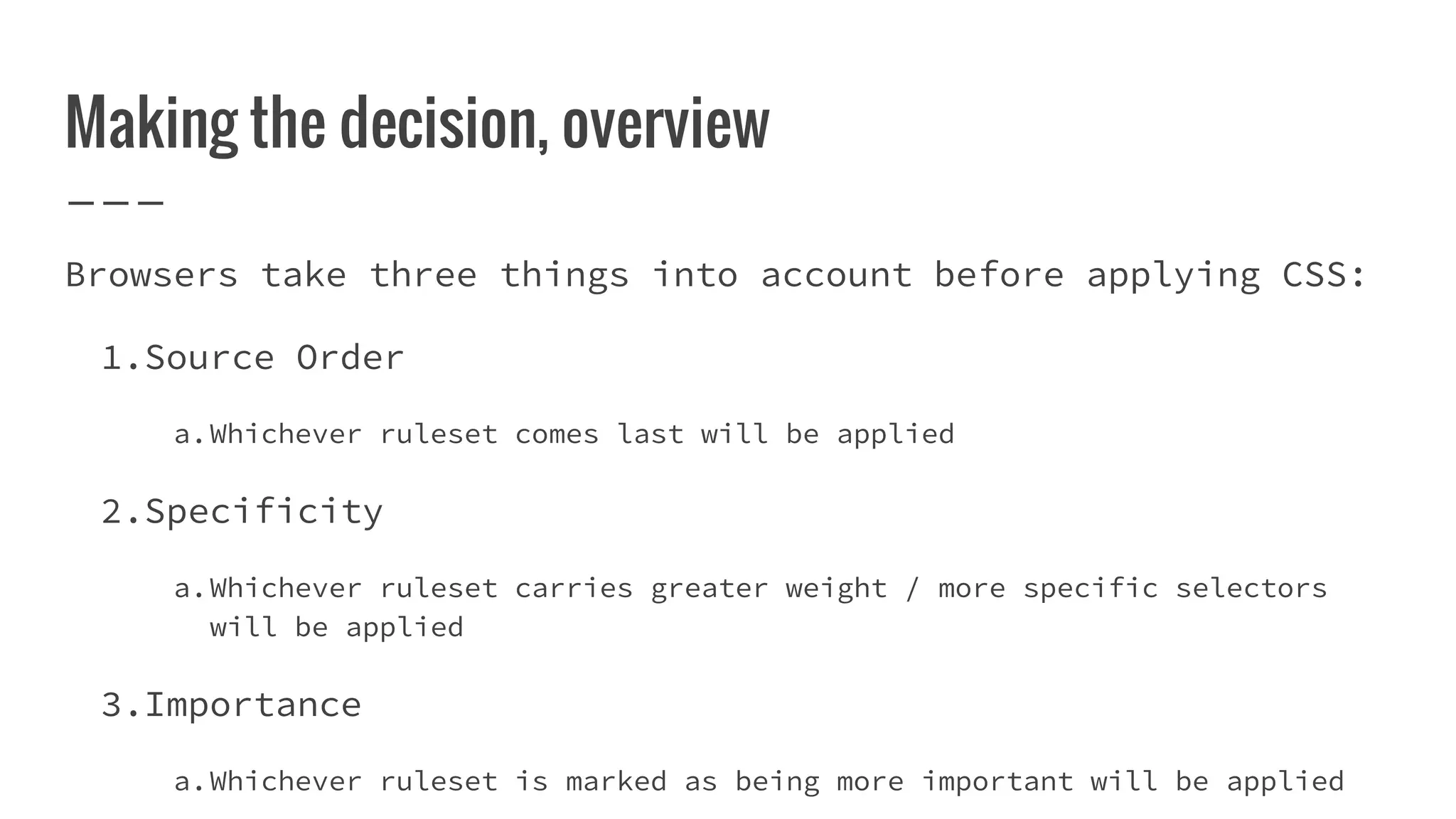

- 10. Making the decision, overview Browsers take three things into account before applying CSS: 1.Source Order a.Whichever ruleset comes last will be applied 2.Specificity a.Whichever ruleset carries greater weight / more specific selectors will be applied 3.Importance a.Whichever ruleset is marked as being more important will be applied

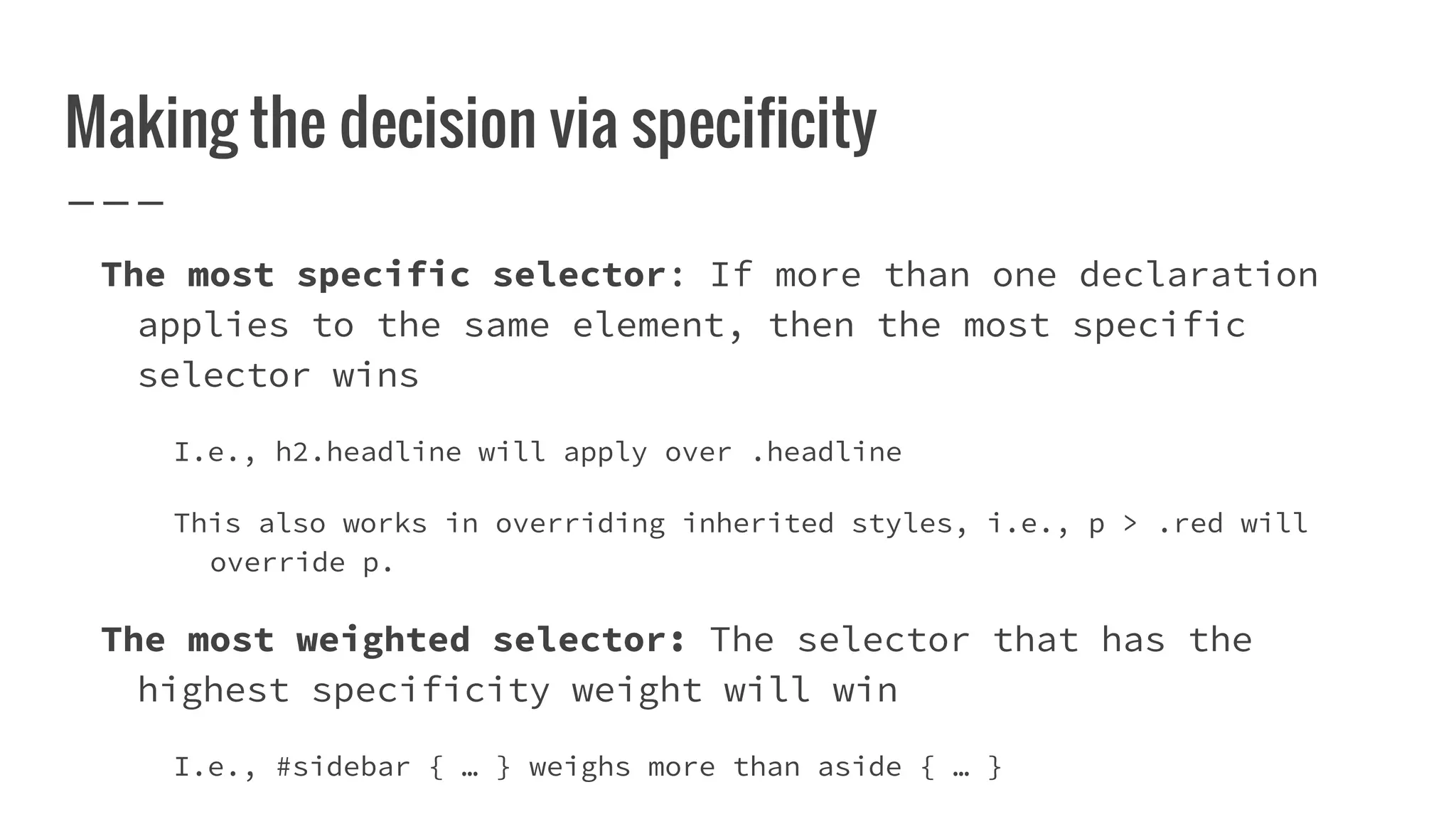

- 11. Making the decision via specificity The most specific selector: If more than one declaration applies to the same element, then the most specific selector wins I.e., h2.headline will apply over .headline This also works in overriding inherited styles, i.e., p > .red will override p. The most weighted selector: The selector that has the highest specificity weight will win I.e., #sidebar { … } weighs more than aside { … }
- 12. So how does specificity specifically work?

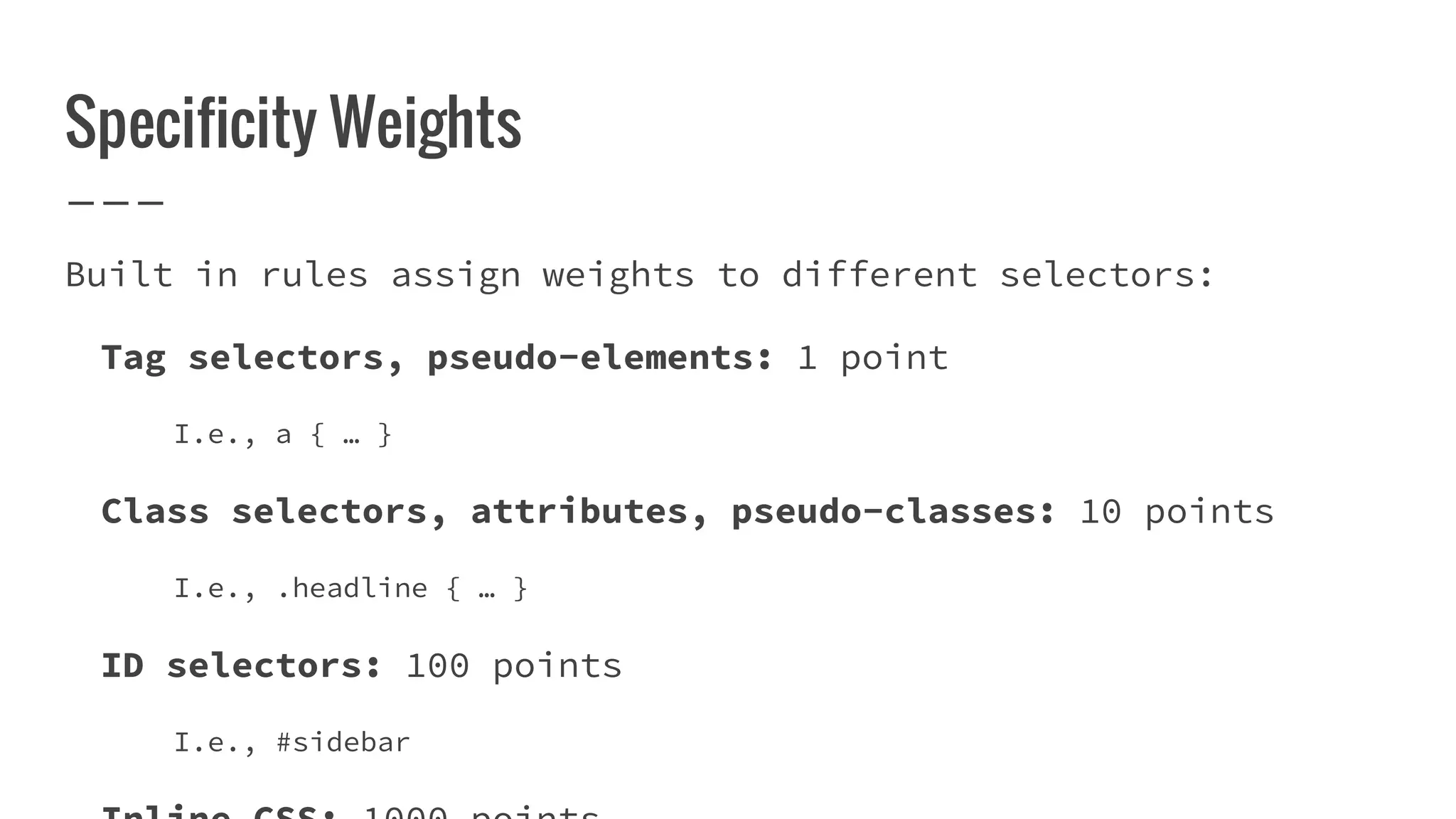

- 13. Specificity Weights Built in rules assign weights to different selectors: Tag selectors, pseudo-elements: 1 point I.e., a { … } Class selectors, attributes, pseudo-classes: 10 points I.e., .headline { … } ID selectors: 100 points I.e., #sidebar

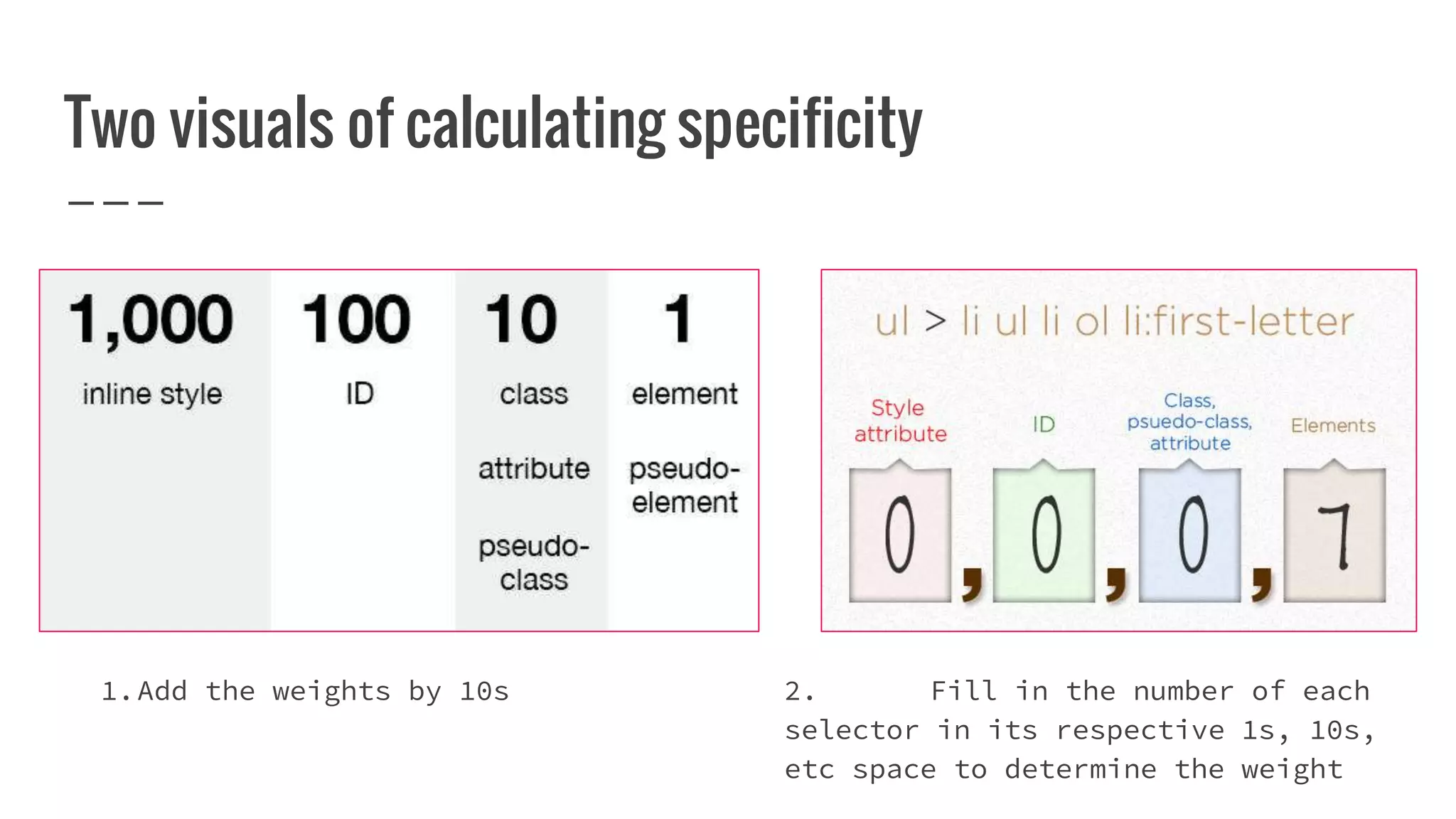

- 14. Two visuals of calculating specificity 1.Add the weights by 10s 2. Fill in the number of each selector in its respective 1s, 10s, etc space to determine the weight

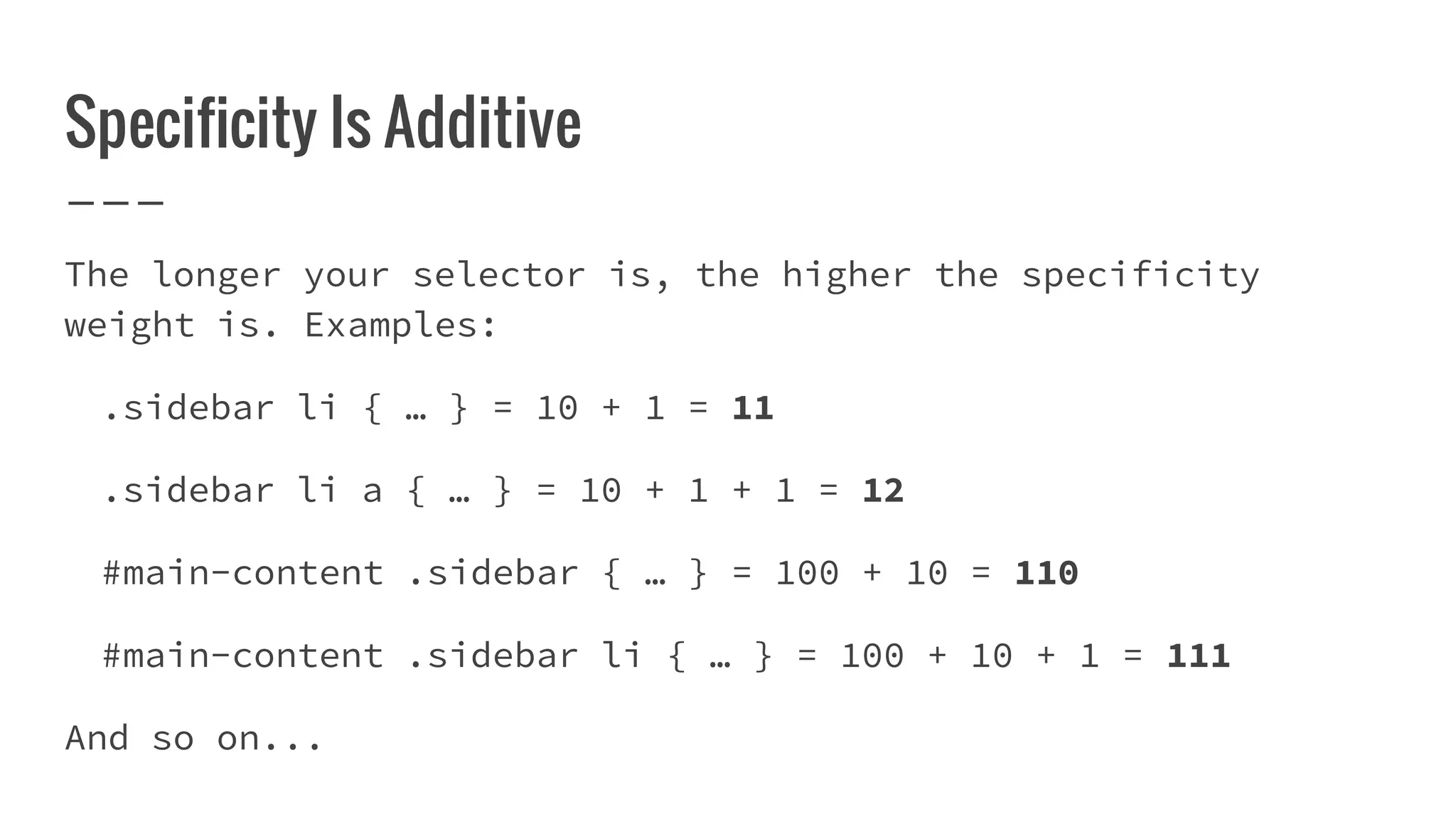

- 15. Specificity Is Additive The longer your selector is, the higher the specificity weight is. Examples: .sidebar li { … } = 10 + 1 = 11 .sidebar li a { … } = 10 + 1 + 1 = 12 #main-content .sidebar { … } = 100 + 10 = 110 #main-content .sidebar li { … } = 100 + 10 + 1 = 111 And so on...

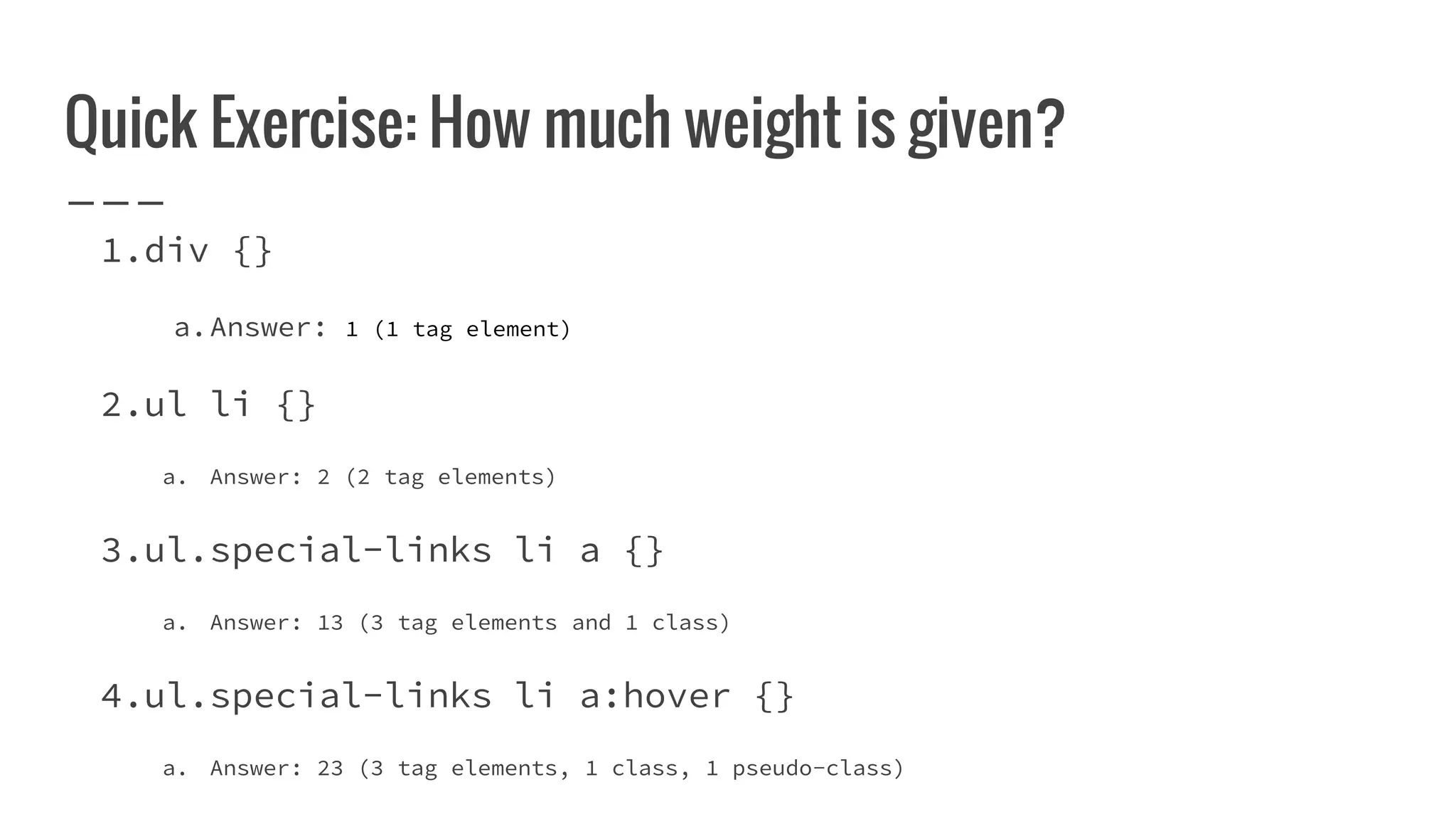

- 17. Quick Exercise: How much weight is given? 1.div {} a.Answer: 1 (1 tag element) 2.ul li {} a. Answer: 2 (2 tag elements) 3.ul.special-links li a {} a. Answer: 13 (3 tag elements and 1 class) 4.ul.special-links li a:hover {} a. Answer: 23 (3 tag elements, 1 class, 1 pseudo-class)

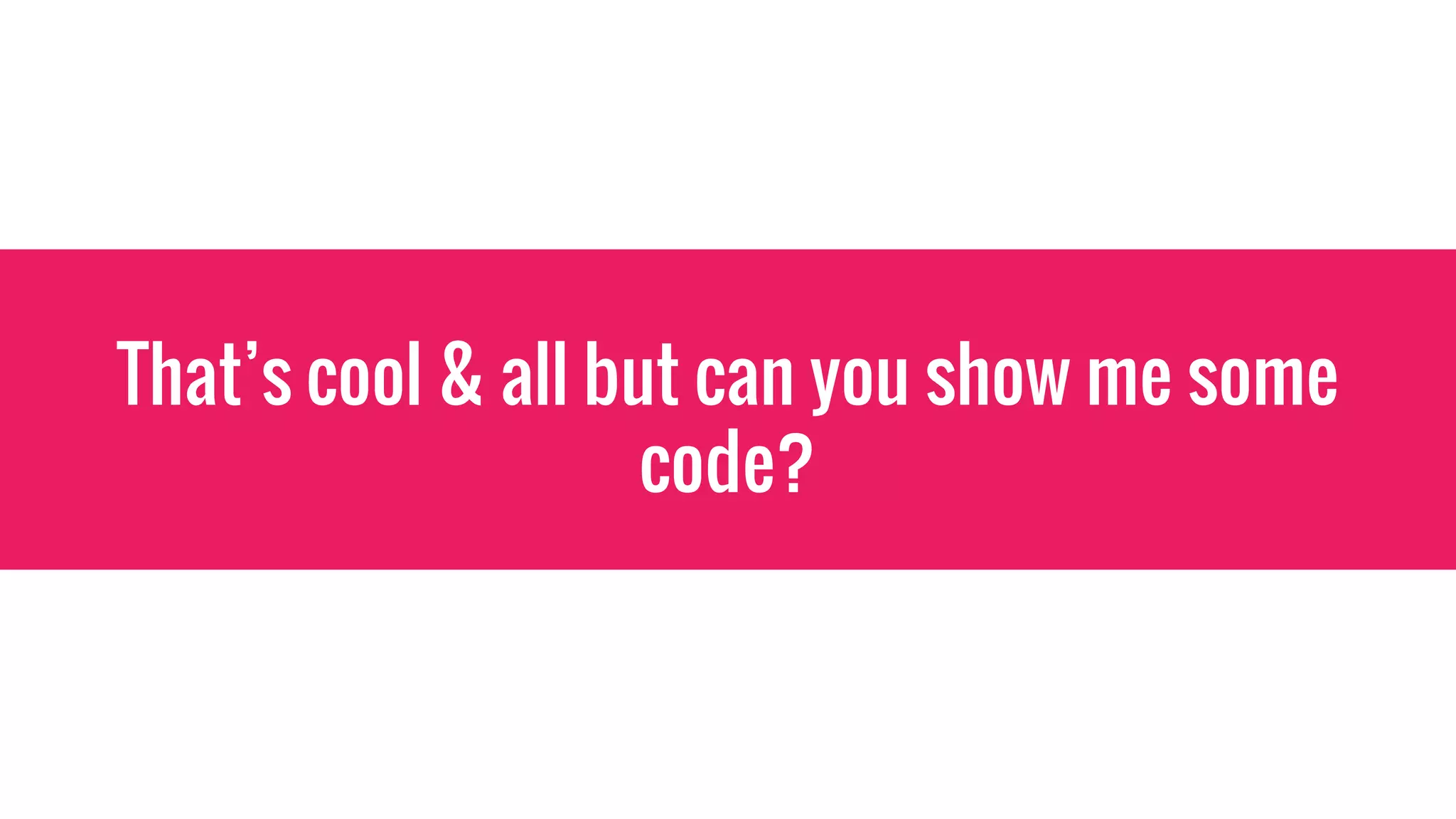

- 18. That’s cool & all but can you show me some code?

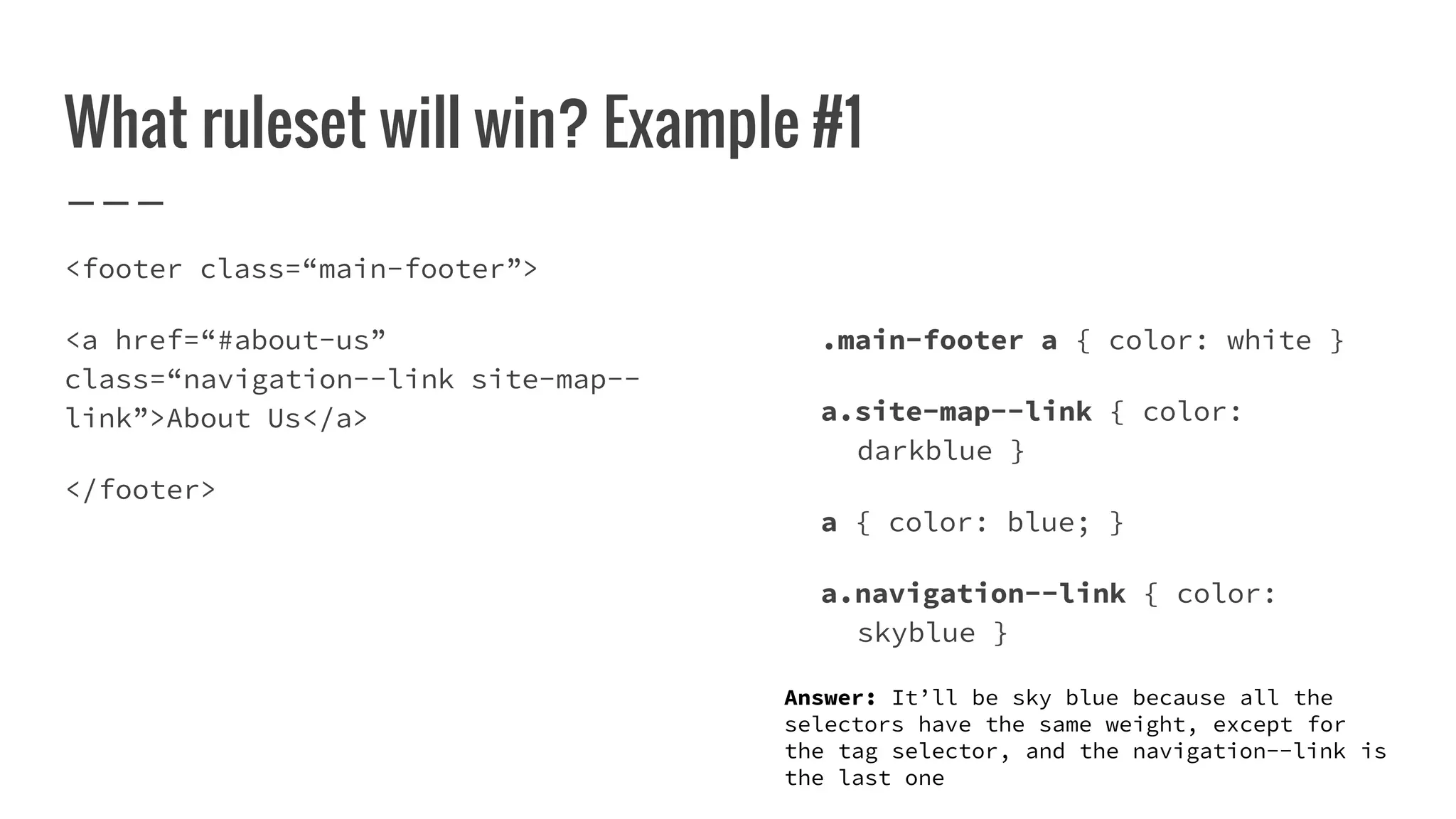

- 19. What ruleset will win? Example #1 <footer class=“main-footer”> <a href=“#about-us” class=“navigation--link site-map-- link”>About Us</a> </footer> .main-footer a { color: white } a.site-map--link { color: darkblue } a { color: blue; } a.navigation--link { color: skyblue } Answer: It’ll be sky blue because all the selectors have the same weight, except for the tag selector, and the navigation--link is the last one

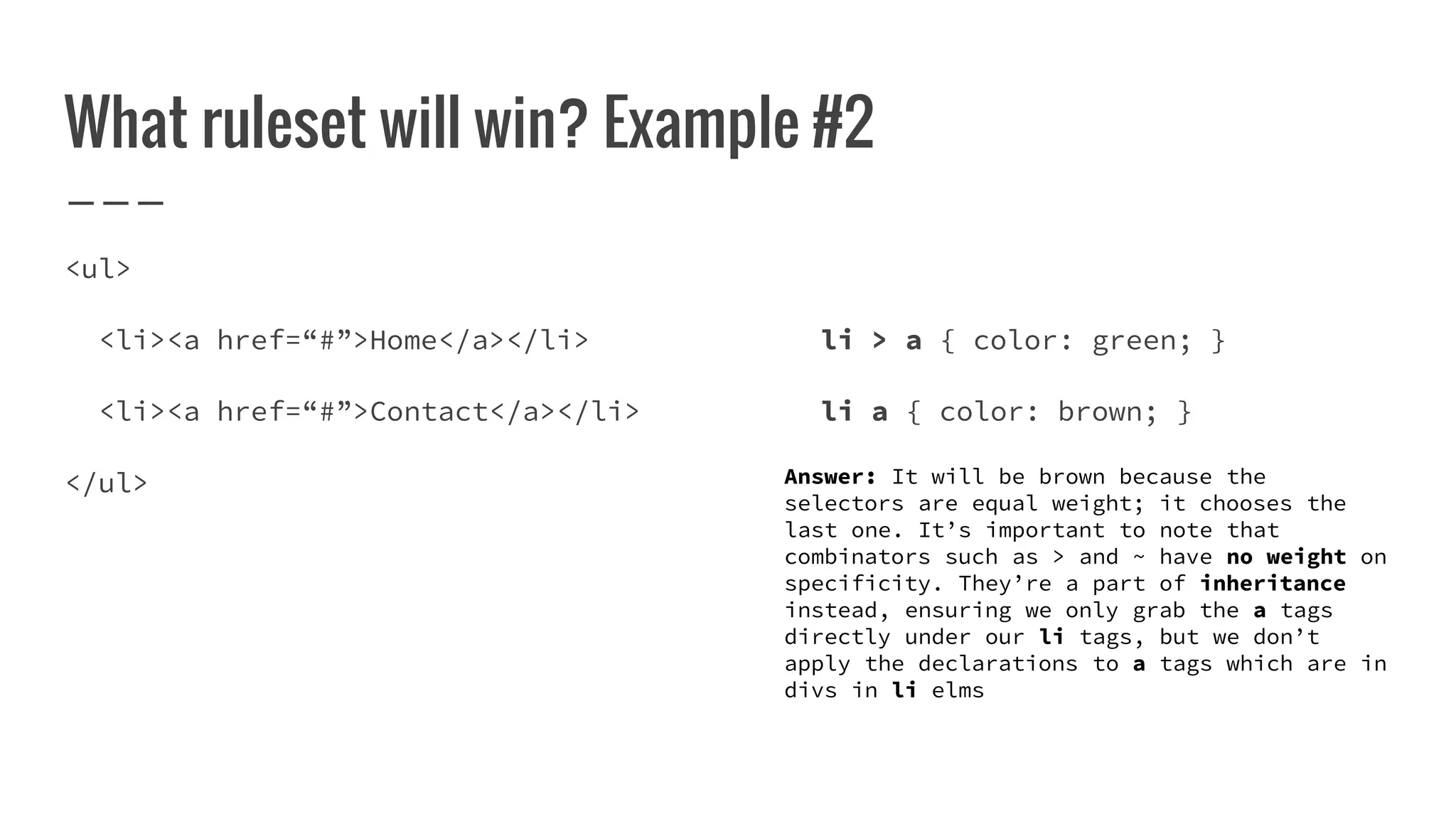

- 20. What ruleset will win? Example #2 <ul> <li><a href=“#”>Home</a></li> <li><a href=“#”>Contact</a></li> </ul> li > a { color: green; } li a { color: brown; } Answer: It will be brown because the selectors are equal weight; it chooses the last one. It’s important to note that combinators such as > and ~ have no weight on specificity. They’re a part of inheritance instead, ensuring we only grab the a tags directly under our li tags, but we don’t apply the declarations to a tags which are in divs in li elms

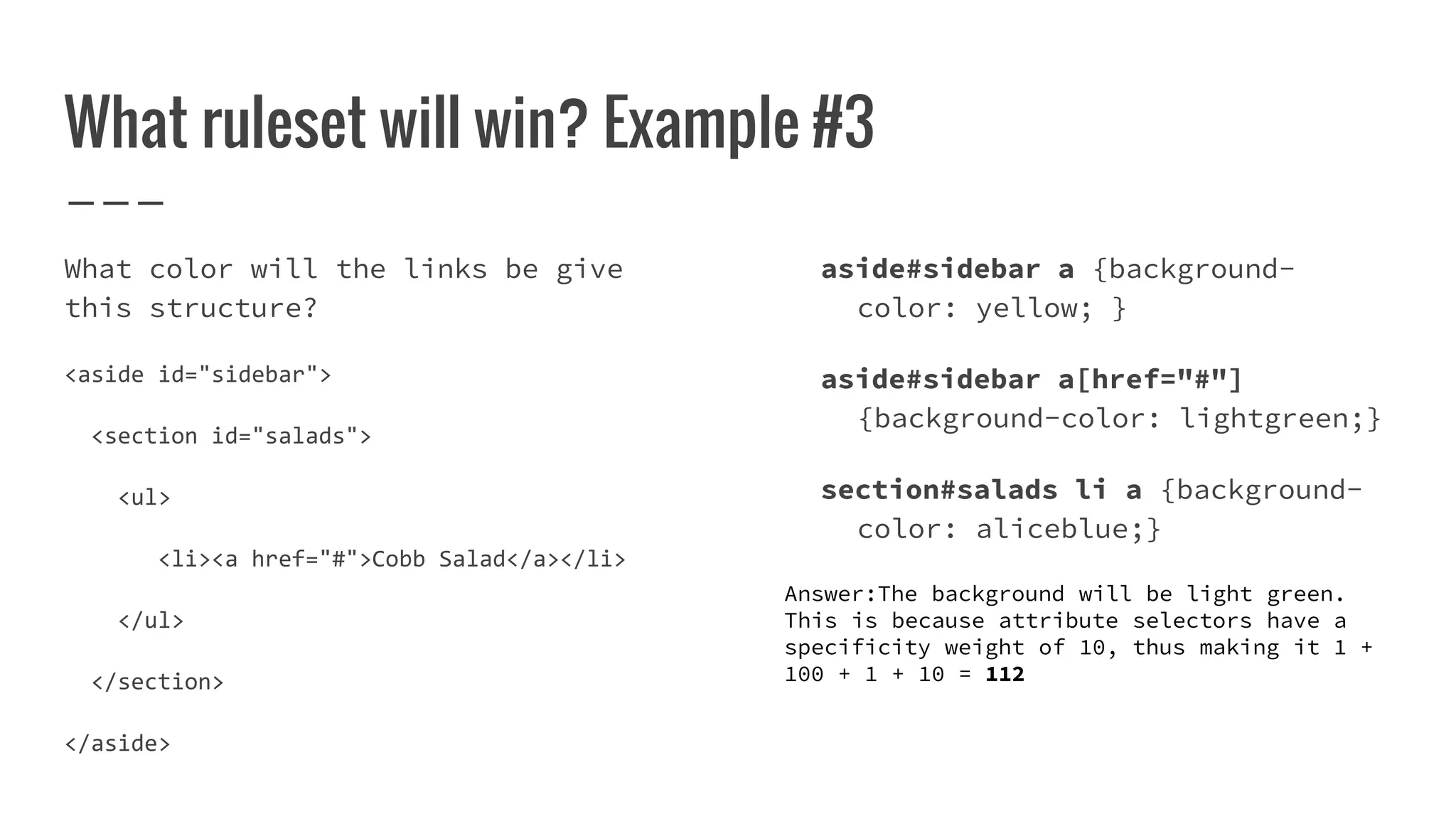

- 21. What ruleset will win? Example #3 What color will the links be give this structure? <aside id="sidebar"> <section id="salads"> <ul> <li><a href="#">Cobb Salad</a></li> </ul> </section> </aside> aside#sidebar a {background- color: yellow; } aside#sidebar a[href="#"] {background-color: lightgreen;} section#salads li a {background- color: aliceblue;} Answer:The background will be light green. This is because attribute selectors have a specificity weight of 10, thus making it 1 + 100 + 1 + 10 = 112

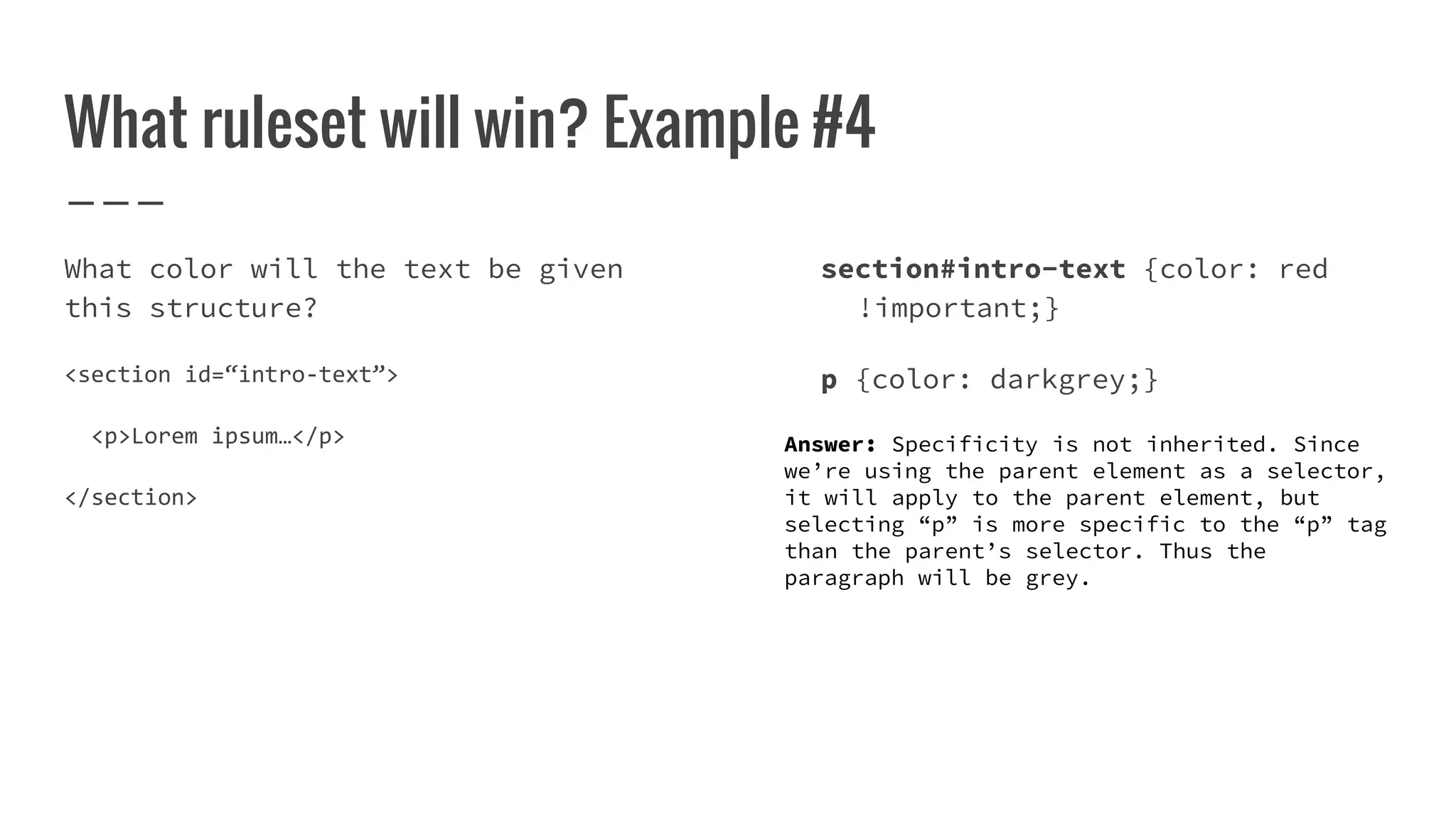

- 22. What ruleset will win? Example #4 What color will the text be given this structure? <section id=“intro-text”> <p>Lorem ipsum…</p> </section> section#intro-text {color: red !important;} p {color: darkgrey;} Answer: Specificity is not inherited. Since we’re using the parent element as a selector, it will apply to the parent element, but selecting “p” is more specific to the “p” tag than the parent’s selector. Thus the paragraph will be grey.

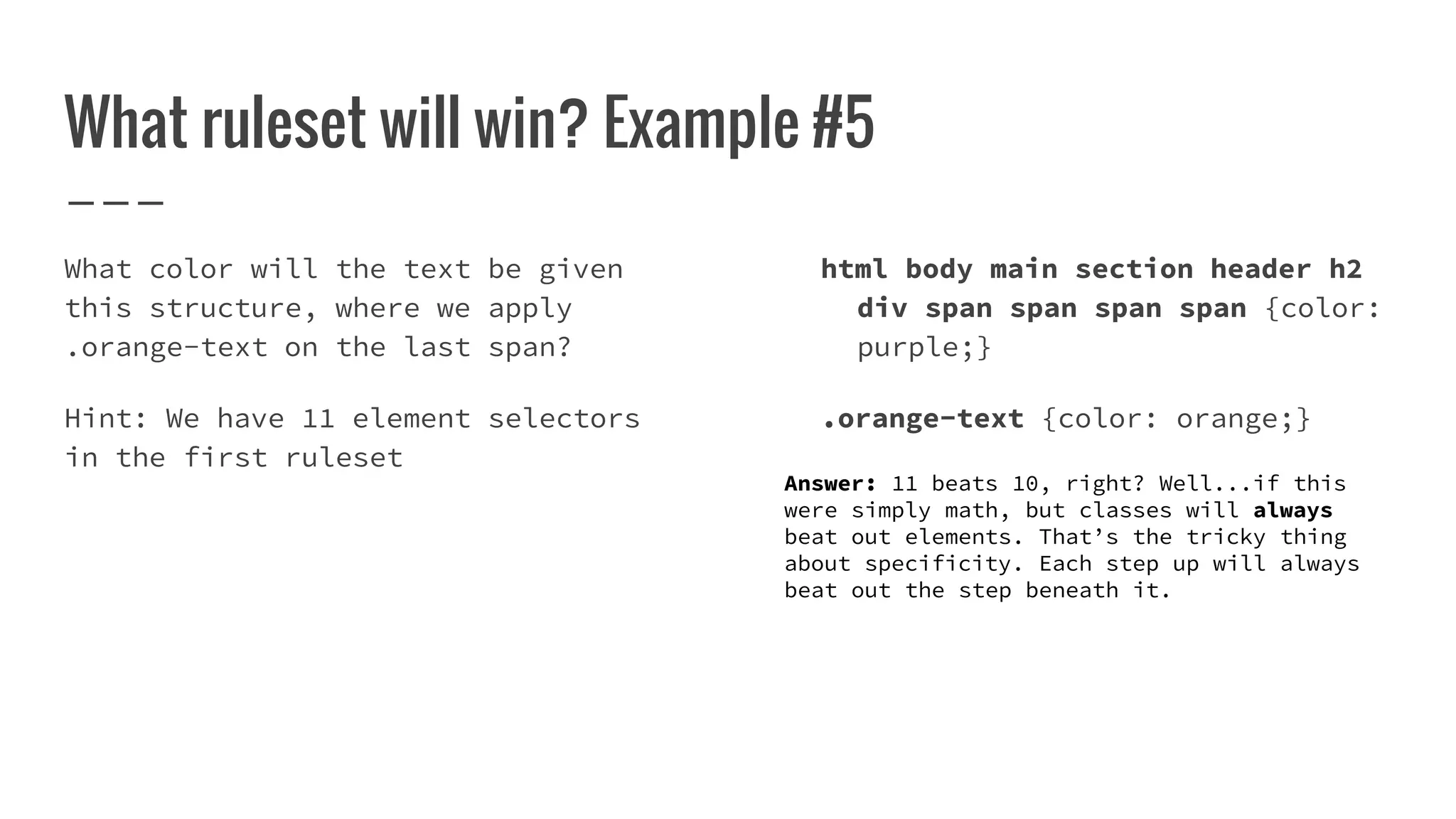

- 23. What ruleset will win? Example #5 What color will the text be given this structure, where we apply .orange-text on the last span? Hint: We have 11 element selectors in the first ruleset html body main section header h2 div span span span span {color: purple;} .orange-text {color: orange;} Answer: 11 beats 10, right? Well...if this were simply math, but classes will always beat out elements. That’s the tricky thing about specificity. Each step up will always beat out the step beneath it.

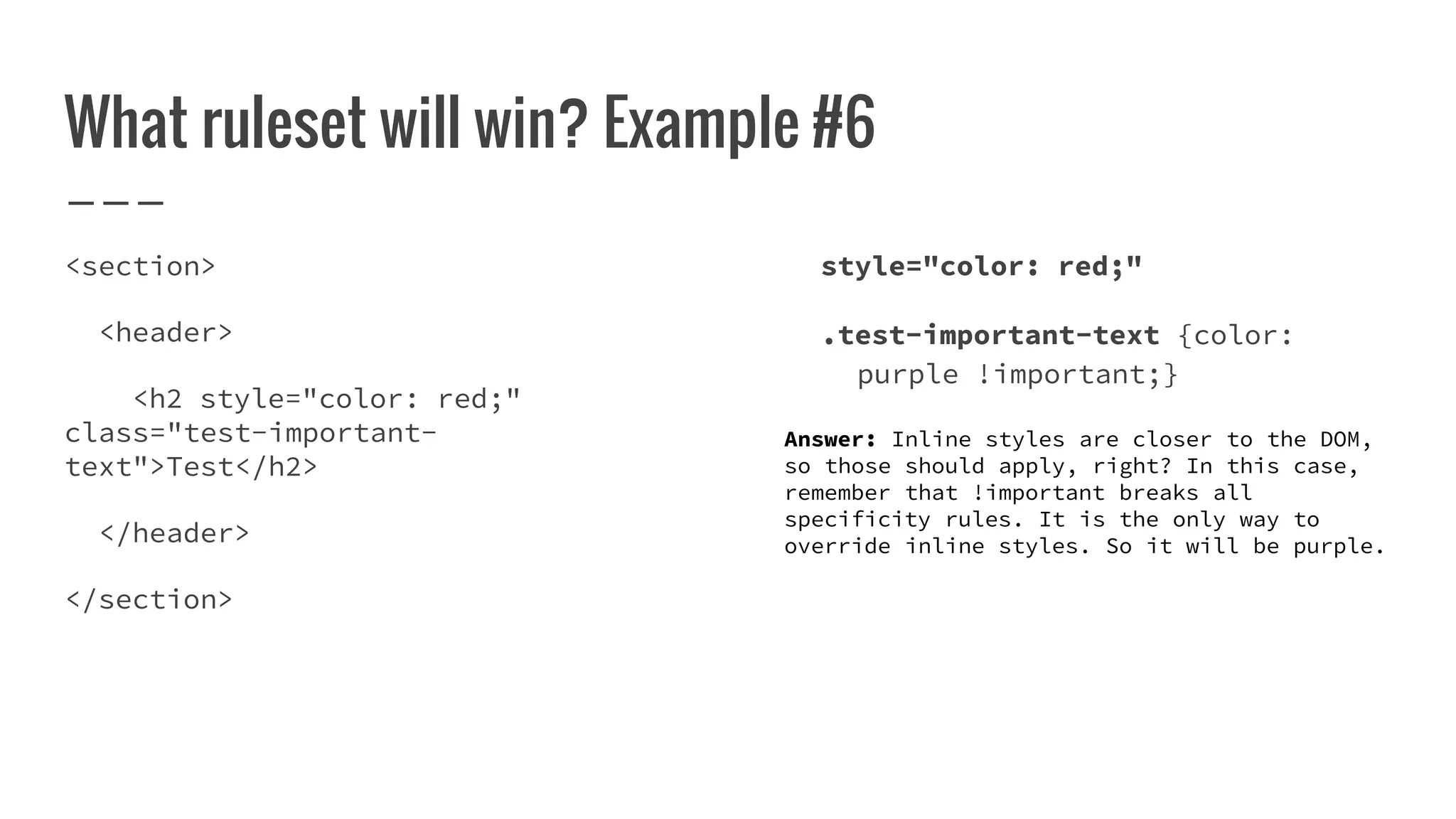

- 24. What ruleset will win? Example #6 <section> <header> <h2 style="color: red;" class="test-important- text">Test</h2> </header> </section> style="color: red;" .test-important-text {color: purple !important;} Answer: Inline styles are closer to the DOM, so those should apply, right? In this case, remember that !important breaks all specificity rules. It is the only way to override inline styles. So it will be purple.

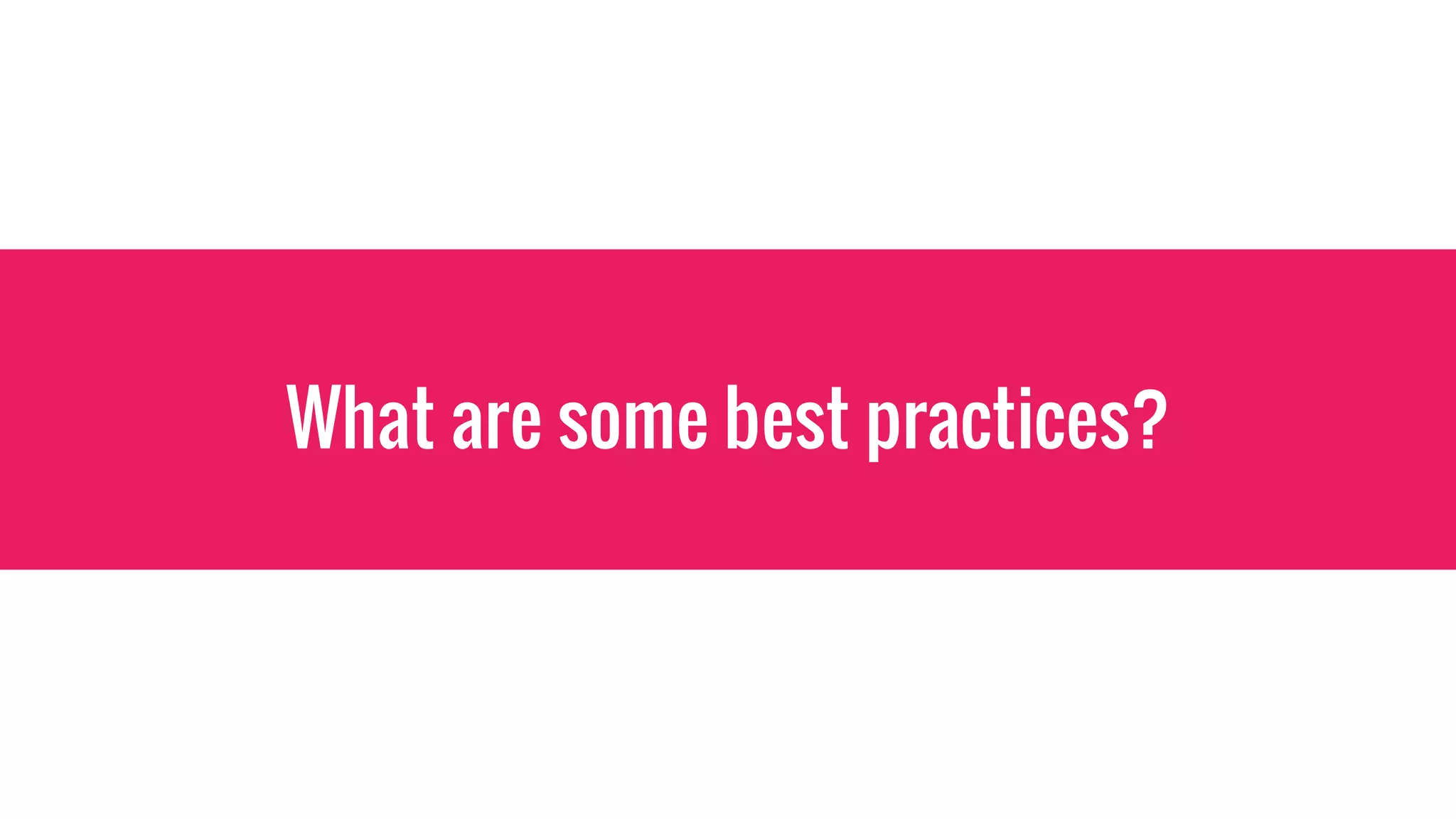

- 25. What are some best practices?

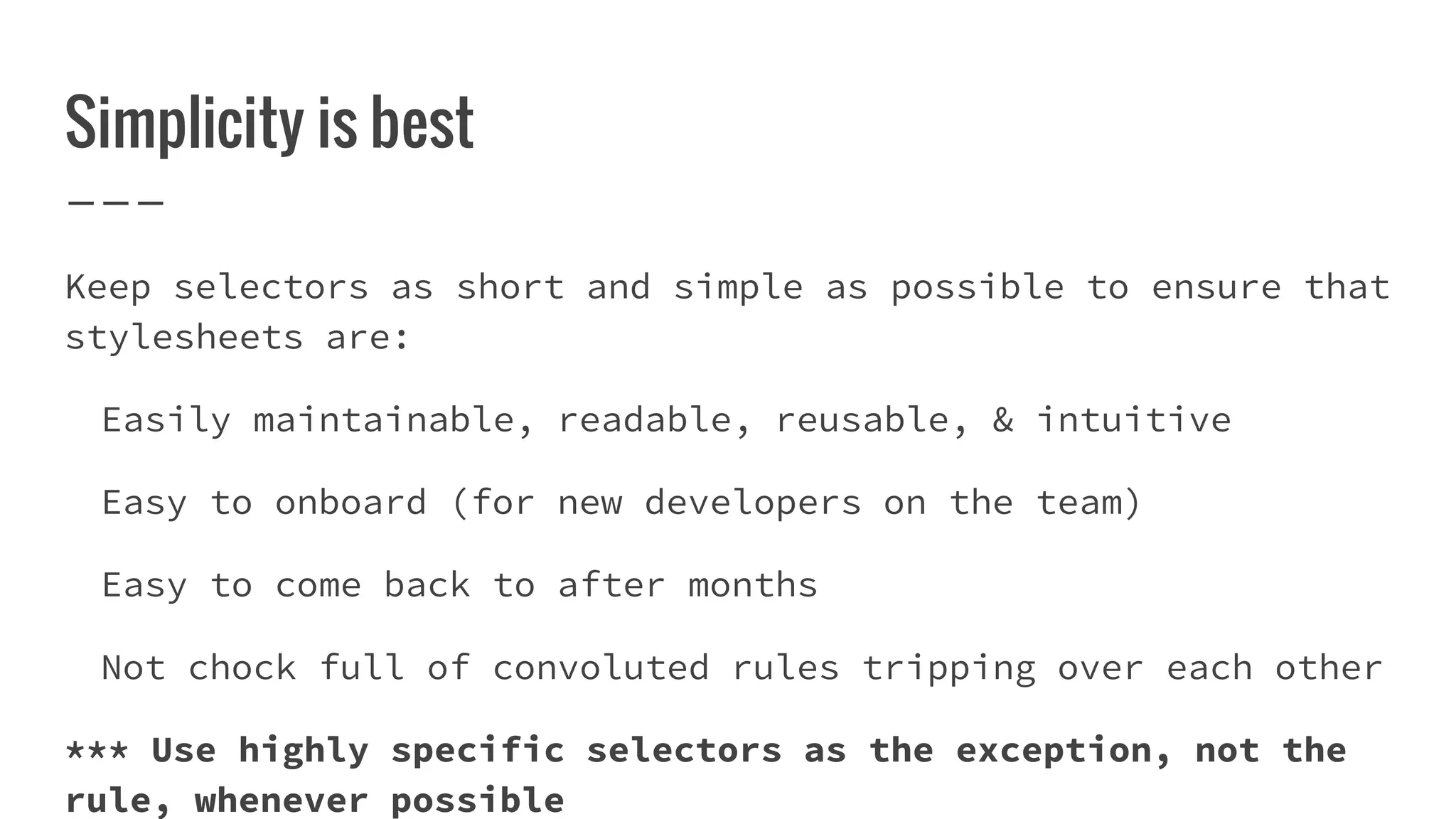

- 26. Simplicity is best Keep selectors as short and simple as possible to ensure that stylesheets are: Easily maintainable, readable, reusable, & intuitive Easy to onboard (for new developers on the team) Easy to come back to after months Not chock full of convoluted rules tripping over each other *** Use highly specific selectors as the exception, not the rule, whenever possible

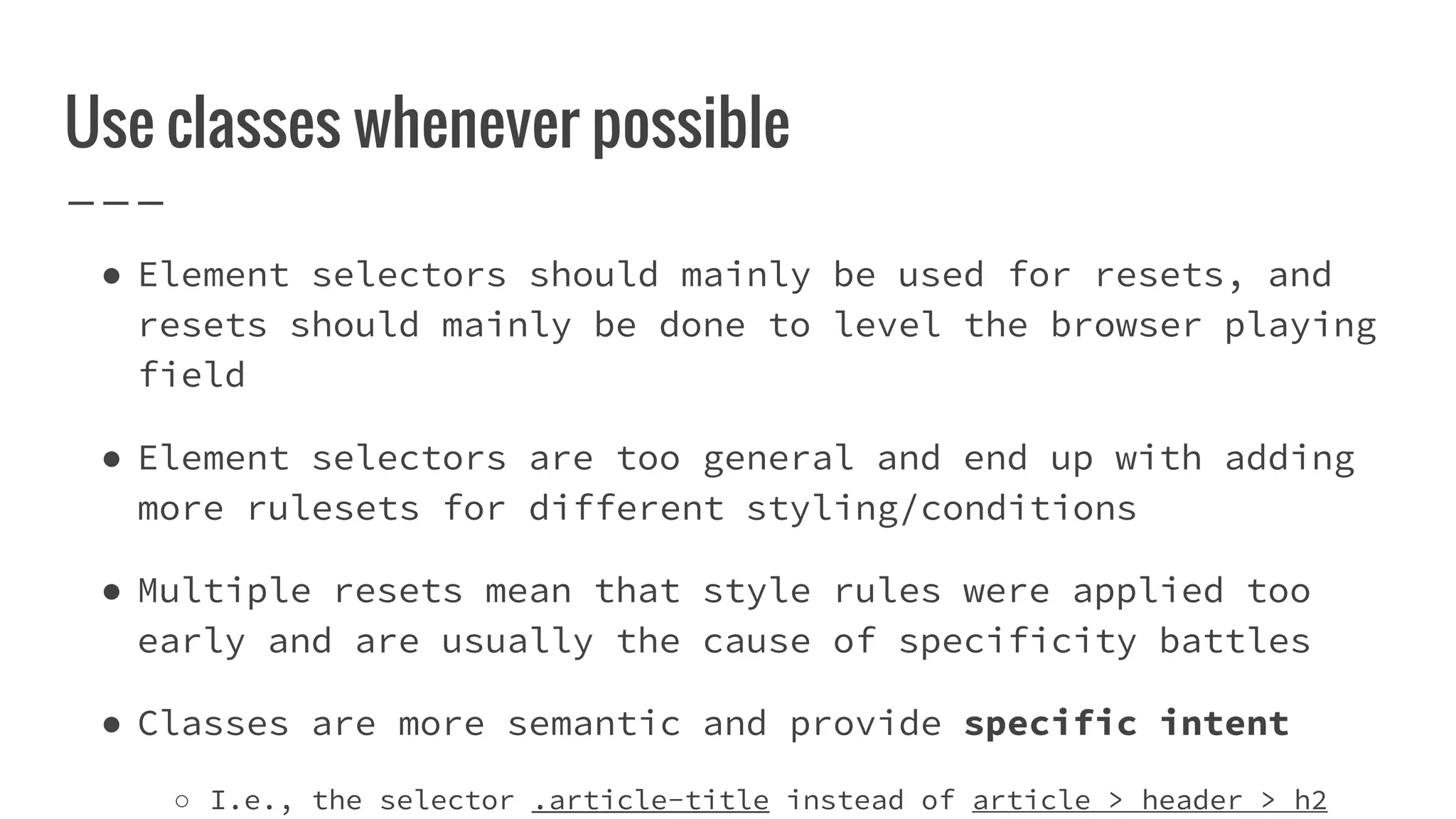

- 27. Use classes whenever possible ● Element selectors should mainly be used for resets, and resets should mainly be done to level the browser playing field ● Element selectors are too general and end up with adding more rulesets for different styling/conditions ● Multiple resets mean that style rules were applied too early and are usually the cause of specificity battles ● Classes are more semantic and provide specific intent ○ I.e., the selector .article-title instead of article > header > h2

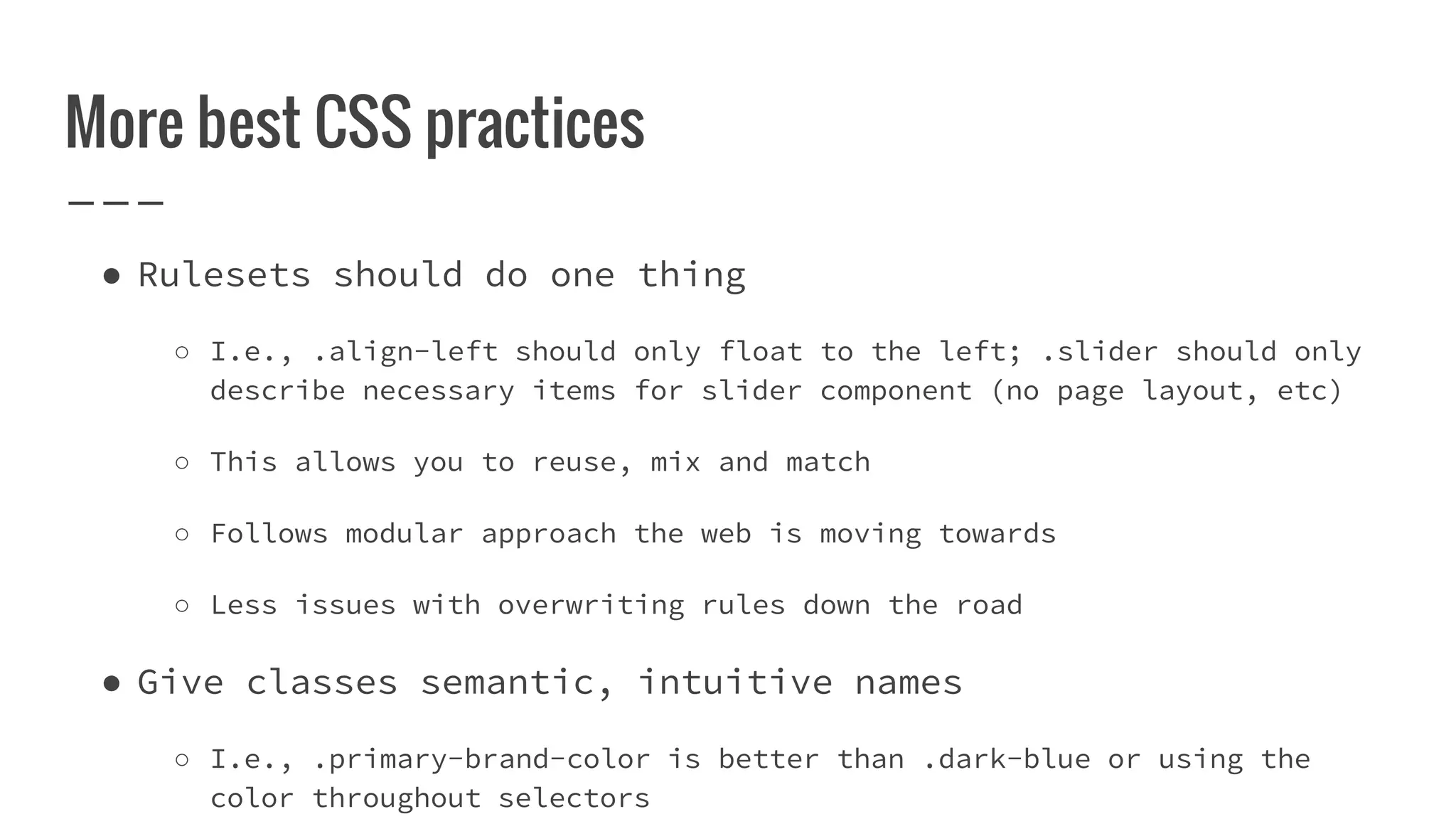

- 28. More best CSS practices ● Rulesets should do one thing ○ I.e., .align-left should only float to the left; .slider should only describe necessary items for slider component (no page layout, etc) ○ This allows you to reuse, mix and match ○ Follows modular approach the web is moving towards ○ Less issues with overwriting rules down the road ● Give classes semantic, intuitive names ○ I.e., .primary-brand-color is better than .dark-blue or using the color throughout selectors

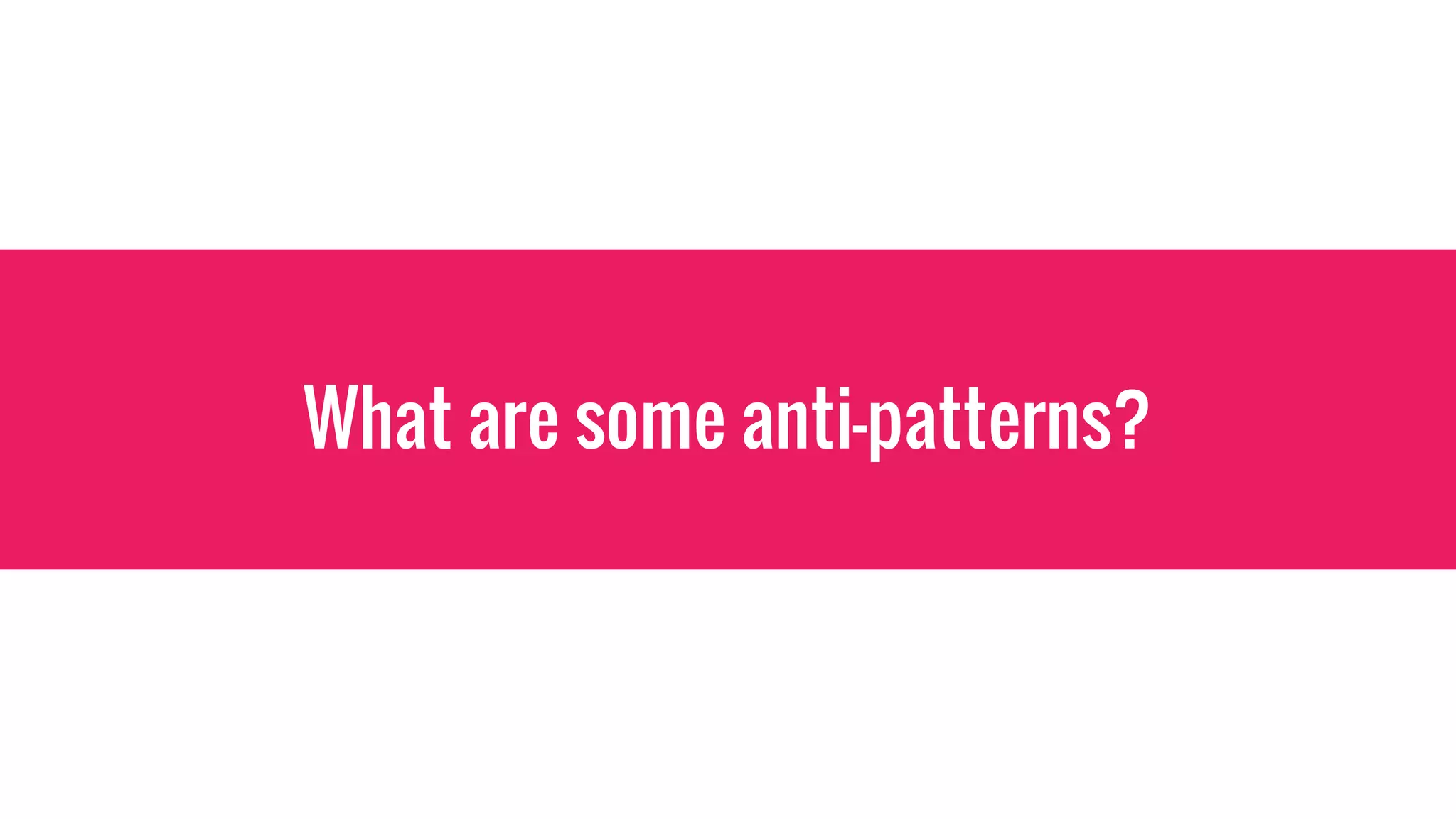

- 29. What are some anti-patterns?

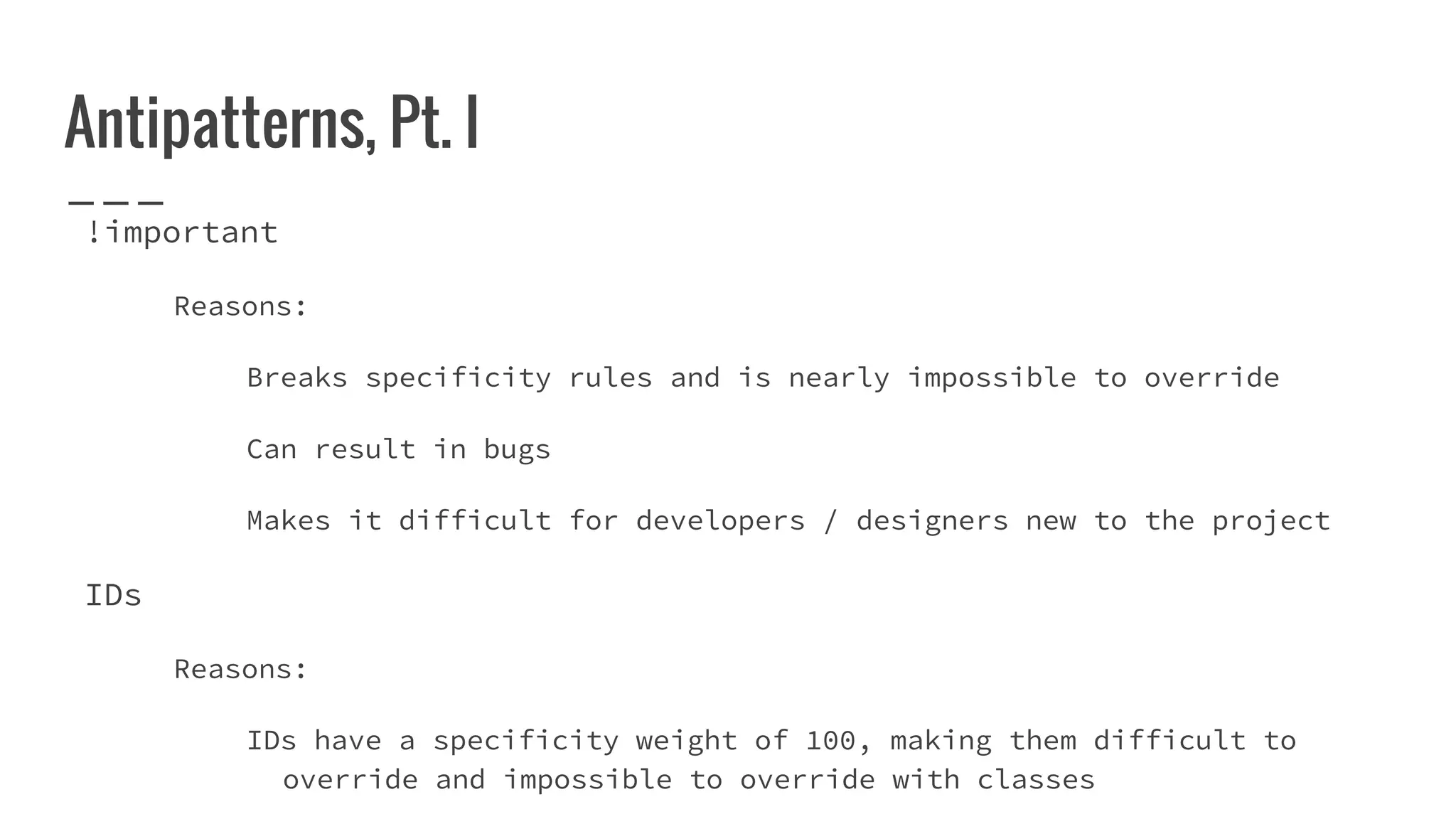

- 30. Antipatterns, Pt. I !important Reasons: Breaks specificity rules and is nearly impossible to override Can result in bugs Makes it difficult for developers / designers new to the project IDs Reasons: IDs have a specificity weight of 100, making them difficult to override and impossible to override with classes

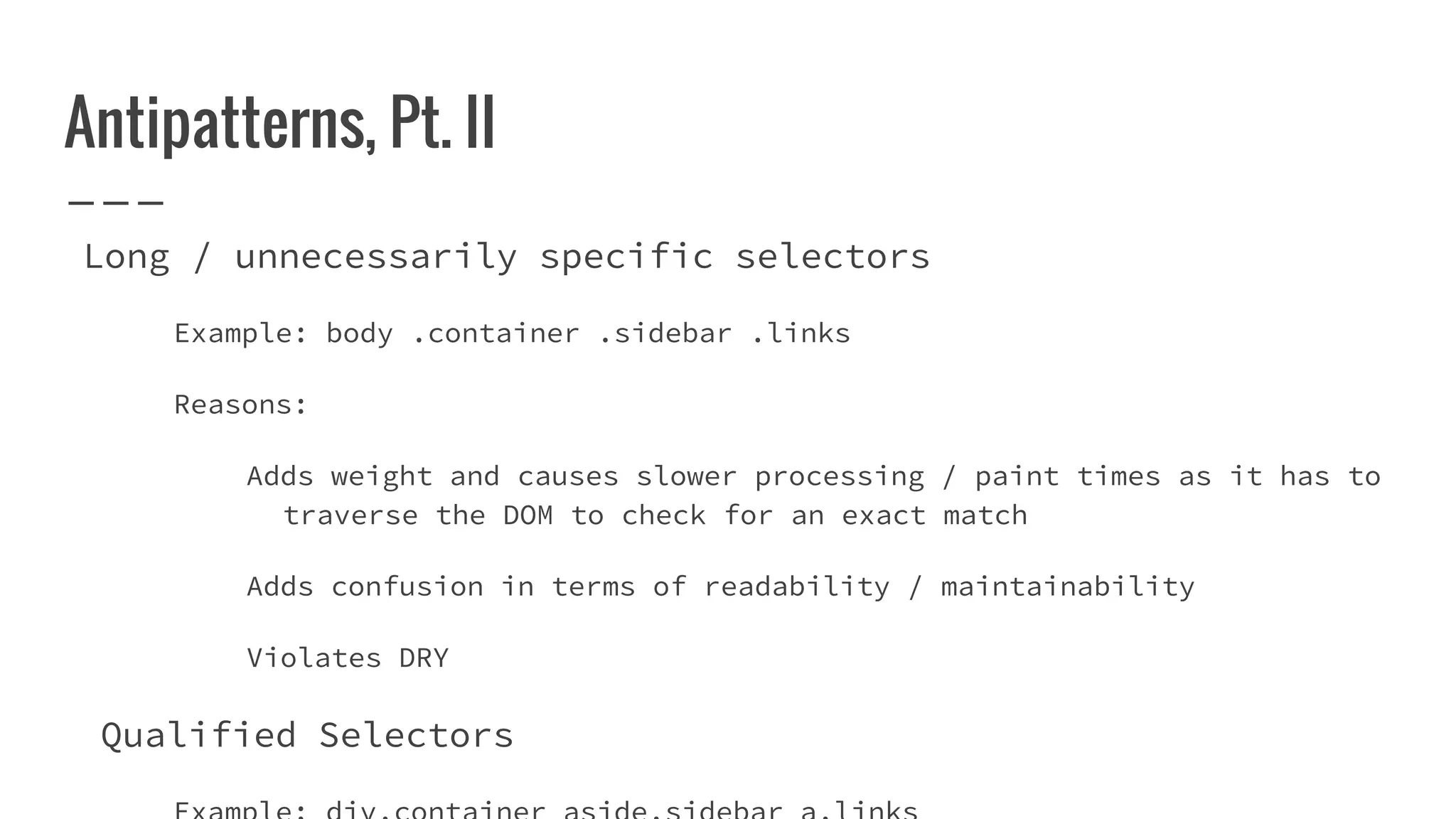

- 31. Antipatterns, Pt. II Long / unnecessarily specific selectors Example: body .container .sidebar .links Reasons: Adds weight and causes slower processing / paint times as it has to traverse the DOM to check for an exact match Adds confusion in terms of readability / maintainability Violates DRY Qualified Selectors

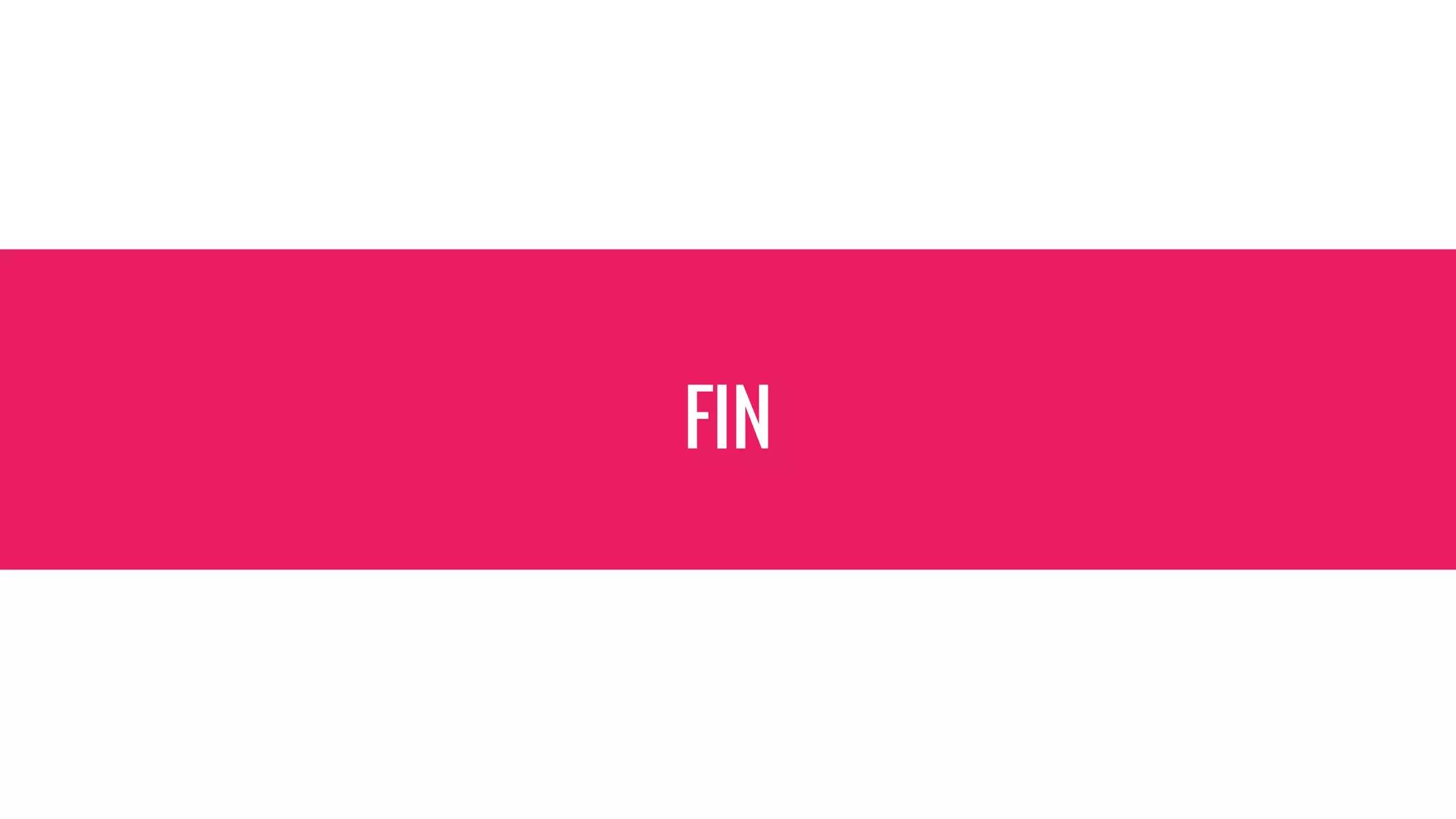

- 32. FIN

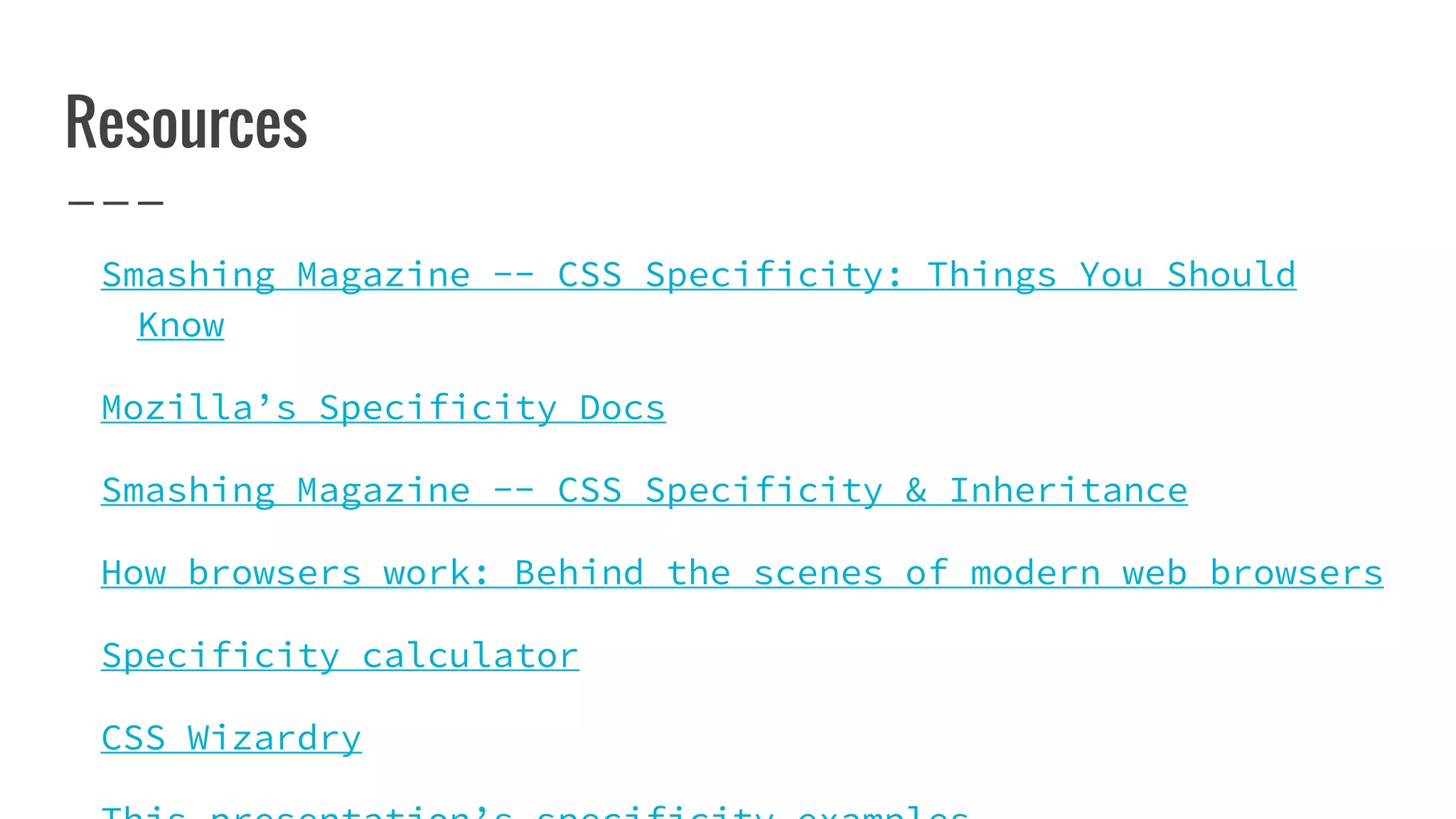

- 33. Resources Smashing Magazine -- CSS Specificity: Things You Should Know Mozilla’s Specificity Docs Smashing Magazine -- CSS Specificity & Inheritance How browsers work: Behind the scenes of modern web browsers Specificity calculator CSS Wizardry
Editor's Notes
- Intro: Senior UI dev at Cardinal Solutions, BG in product development Note: This presentation will be more about specificity than inheritance, but it will touch on topics of inheritance in regards to specificity, so it’s still relevant Also we’ll discuss CSS best practices which will help with inheritance as well
- Whether or not you use selectors in CSS has no bearing on whether the child will inherit. It has everything to do with overriding the inheritance by being aware of what kind of selector you need to write Note: According the Mozilla’s docs: “Styles for a directly targeted element will always take precedence over inherited styles, regardless of the specificity of the inherited rule.”
- CSS is simple to grasp, but if you want to work on a project that’s many pages or involves multiple people, then you need to understand how inheritance and specificity work Understanding specificity will help you minimize bugs and understand why styles aren’t applying -- we’ve all been there
- Why does this matter? Because knowing how browsers parse and interpret code allows you to make and justify better decisions and write faster, more efficient code
- UI backend -- for form controls, spacing in regards to the box model, etc Rendering Engine -- Chrome runs multiple instances of it for each tab, adding weight to processing
- Render tree -- contains basic styling info like color and the order of content. The layout is applied with the Layout Tree Paint -- this is where you see a lot of hang up too, especially if a lot of JS is involved in changing CSS styles. This is referred to as jank
- Not only does the browser have to download each linked file, opening an XHR request for each one, but it also has to run through the document and make references of the class attributes on HTML elements. It then has to compare those to the CSS declarations to find matches and partial matches. This is why more specific selectors (i.e., descendents) take longer, because instead of having to match only one class, it has to find a match for the entire selector 2) I.e., In the Bison parser, the selector “header nav ul li” a will find the first li item in the DOM tree, traverse up the tree to match every tag to the selector, then traverse all rulesets to find all matching rules. You can see how this gets expensive.
- 2) Is related to #1 in that h2.headline has more weight (a weight of 11) vs. .headline (a weight of 10) Note: Specificity doesn’t overwrite entire rulesets with the ruleset that has a higher specificity. It goes on a property by property basis. So if you have a general aside ruleset that gives it a padding of 10px and background-color of light grey, and then decide the .primary-navbar will have a background-color of blue, then the resulting styles applied will be a padding of 10px and a background-color of blue
- Note: If you use ID as an attribute, it will have the weight of an attribute (so, 10). This would look like: aside[id=“sidebar”] Pseudo-classes are things such as: :hover, :active, :disabled (typically describing a state). Note that :first-child, :nth-child are special cases of pseudo-classes called structural pseudo-classes, so it can be tricky. Pseudo-elements are elements that aren’t in the markup but are effectively inserted in the DOM, like ::after, ::before, and ::first-letter Note on !important: In the case that 2 conflicting rulesets both use !important, the browser will choose the ruleset which has a higher specificity weight. Also note on !important: This is the only way to override inline styles. So if you can’t touch the HTML and need to override legacy code, here’s your guy There are use cases where you are able to use !important, but those tend to be when it’s a change that won’t affect the entire website In some CSS naming conventions, it is recommended to use !important for state/utility styling (i.e., is-hidden) Also note that !important is utilized in IE8+
- 1 (1 tag element) 2 (2 tag elements) 13 (3 tag elements and 1 class) 23 (3 tag elements, 1 class, 1 pseudo-class ) 13 (3 tag elements, 1 class, negation is 0 ) 13 (3 tags, 1 attribute) 11 (1 tag and 1 attribute)
- Answer: It’ll be sky blue because all the selectors have the same weight, except for the tag selector, and the navigation--link is the last one
- Answer: It will be brown because the selectors are equal weight; it chooses the last one. It’s important to note that combinators such as > and ~ have no weight on specificity. They’re a part of inheritance instead, ensuring we only grab the a tags directly under our li tags, but we don’t apply the declarations to a tags which are in divs in li elms Note: The universal selector (*) and the negation pseudo-class :not also bear no weight under specificity rules. Also note it can be seen as bad practice for inheritance to use the universal selector, as that can break the rules of inheritance and it’s also a ding in performance
- Answer: It might surprise you, but the answer is that the background will be light green! This is because attribute selectors have a specificity weight of 10, thus making it 1 + 100 + 1 + 10 = 112!
- Answer: It’s going to be red, right? Wrong! Specificity is not inherited in this case! Since we’re using the parent element as a selector, it will apply to the parent element, but selecting “p” is more specific to the “p” tag than the parent’s selector. Thus the paragraph will be grey!
- Answer: 11 beats 10, right? Well...if this were simply math, but classes will always beat out elements. That’s the tricky thing about specificity. Each step up will always beat out the step beneath it.
- Answer: Inline styles are closer to the DOM, so those should apply right? Well in this case, remember that !important breaks all specificity rules. It is the only way to override inline styles. So it will be purple.
- Another exception is when you really DO want to select every item of that type instead of applying a class to each one. I.e., .main-navigation > li 4) This why BEM is so widely adopted, to help stick to low specificity and allow for use of DRY and minimal resets Using CSS also ensures that you have an even playing ground with specificity, so you’re not so worried about how it’ll behave. Note: You really want your code to document itself -- and writing good, semantic CSS is a part of this
- Only use !important to override third party stylesheets if you absolutely have to. And even then, it should only be used for page-specific CSS. Don’t use it on site wide CSS or standalone plugins that can be packaged separately 2) On IDs -- they can also be used for JS, but their main purpose is for landmarks and identification of elements; they’re so high in specificity because there’s only one per page 3) Note: The Descendents / Child selectors ARE better than straight up long selectors
- Sometimes it’s necessary to use longer selectors or descendents in your selectors; however, if writing from scratch they should be used sparingly and ONLY when you really mean it. If you need one, always go with child selectors. Note: While SASS is good in many ways, it makes it far too easy for inexperienced devs to follow these antipatterns. You tend to get trigger happy with nesting, but you need to be aware of the generated rulesets and how specific your selectors are. For that reason, I recommend learning the ins and outs of specificity before using SASS heavily
