Introduction to Distributed systems

1. Lecture 1: Introduction
Lecture 1- Introduction
Distributed Systems

2. Lecture 1: Introduction
Outline
• Introduction
• Definitions
• Examples
• Related Concepts
• Pros and Cons of Distributed Systems
• Goals of Distributed Systems
• Transparency
• Scalability
• Openness
• Connecting Users and Resources
• Types of Distributed Systems
• Distributed Computing Systems
• Distributed Information Systems
• Distributed Pervasive Systems
• Summary
2

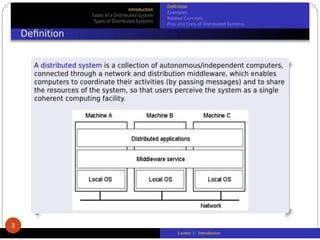

3. Lecture 1: Introduction
3

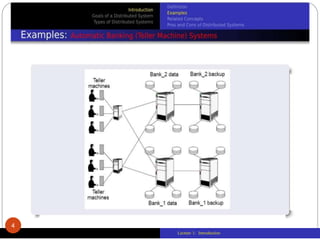

4. Lecture 1: Introduction
4

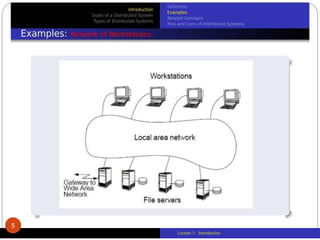

5. Lecture 1: Introduction
5

6. Lecture 1: Introduction
6

7. Lecture 1: Introduction
7

8. Lecture 1: Introduction
8

9. Lecture 1: Introduction
9

10. Lecture 1: Introduction
10

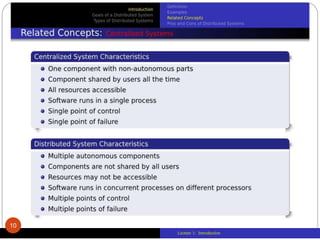

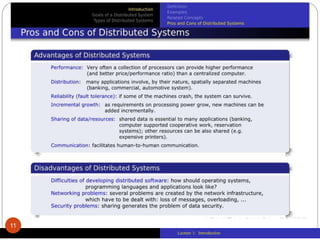

11. Lecture 1: Introduction
11

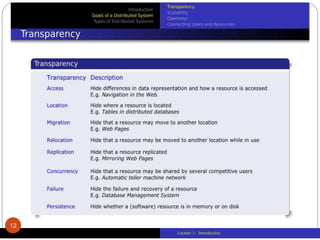

12. Lecture 1: Introduction
12

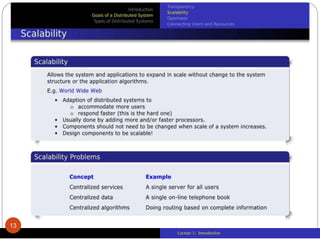

13. Lecture 1: Introduction
13

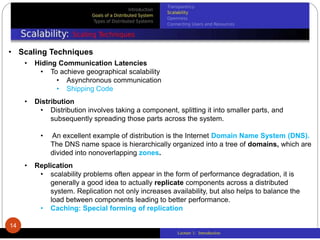

14. Lecture 1: Introduction
• Scaling Techniques
• Hiding Communication Latencies
• To achieve geographical scalability
• Asynchronous communication

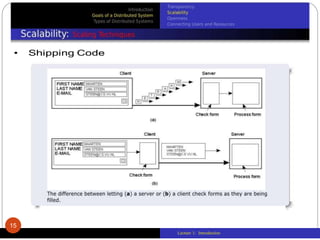

• Shipping Code
• Distribution
• Distribution involves taking a component, splitting it into smaller parts, and
subsequently spreading those parts across the system.
• An excellent example of distribution is the Internet Domain Name System (DNS).
The DNS name space is hierarchically organized into a tree of domains, which are
divided into nonoverlapping zones.
• Replication
• scalability problems often appear in the form of performance degradation, it is
generally a good idea to actually replicate components across a distributed
system. Replication not only increases availability, but also helps to balance the
load between components leading to better performance.
• Caching: Special forming of replication
14

15. Lecture 1: Introduction
15

16. Lecture 1: Introduction
16

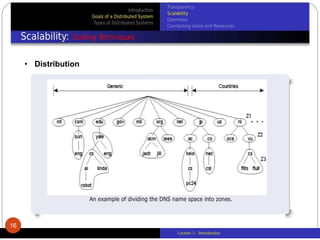

• Distribution

17. Lecture 1: Introduction
17

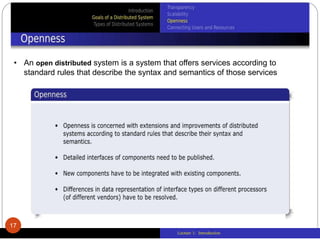

• An open distributed system is a system that offers services according to
standard rules that describe the syntax and semantics of those services

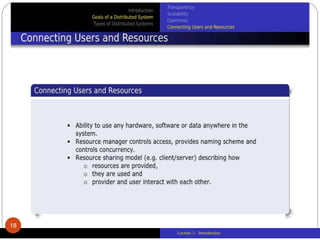

18. Lecture 1: Introduction
18

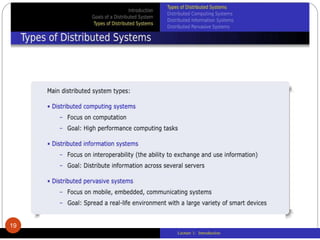

19. Lecture 1: Introduction
19

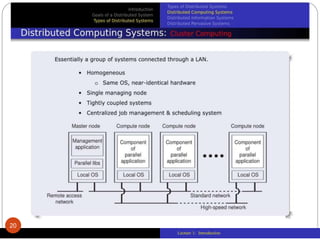

20. Lecture 1: Introduction
20

21. Lecture 1: Introduction
21

22. Lecture 1: Introduction
22

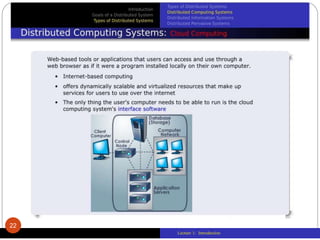

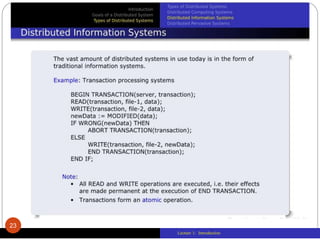

23. Lecture 1: Introduction
23

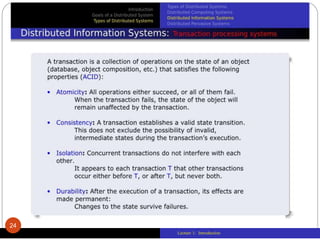

24. Lecture 1: Introduction
24

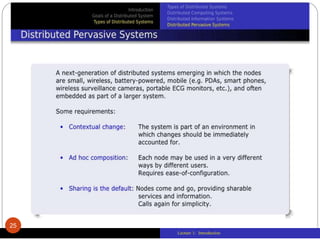

25. Lecture 1: Introduction
25

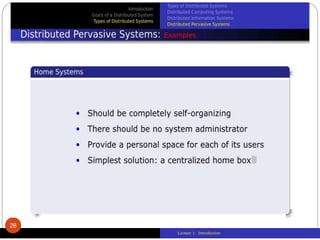

26. Lecture 1: Introduction
26

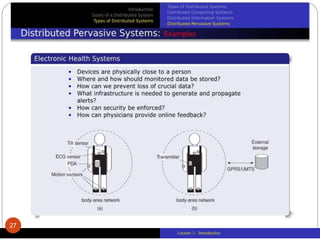

27. Lecture 1: Introduction
27

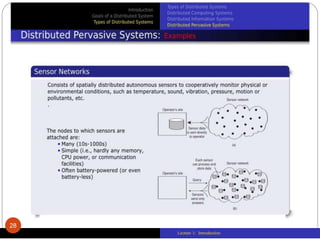

28. Lecture 1: Introduction
28

29. Lecture 1: Introduction

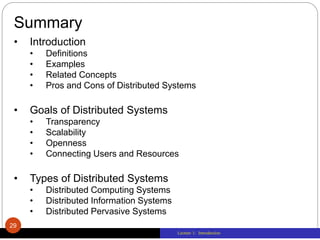

Summary
• Introduction
• Definitions
• Examples
• Related Concepts
• Pros and Cons of Distributed Systems
• Goals of Distributed Systems
• Transparency
• Scalability
• Openness
• Connecting Users and Resources
• Types of Distributed Systems
• Distributed Computing Systems
• Distributed Information Systems
• Distributed Pervasive Systems
29
