1. CENTER POINT RESIDENCY

2. Introduction

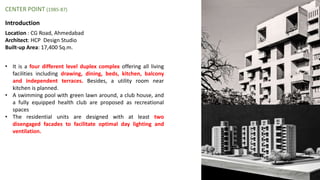

• It is a four different level duplex complex offering all living
facilities including drawing, dining, beds, kitchen, balcony
and independent terraces. Besides, a utility room near
kitchen is planned.
• A swimming pool with green lawn around, a club house, and
a fully equipped health club are proposed as recreational
spaces
• The residential units are designed with at least two
disengaged facades to facilitate optimal day lighting and
ventilation.
CENTER POINT (1985-87)
Location : CG Road, Ahmedabad
Architect: HCP Design Studio
Built-up Area: 17,400 Sq.m.

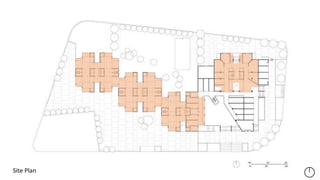

3. Site Plan

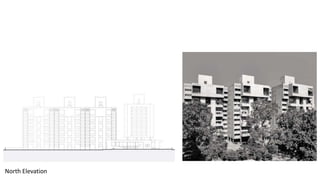

4. North Elevation

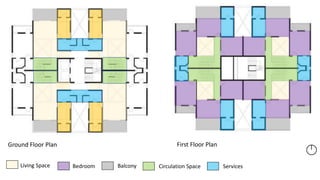

5. Ground Floor Plan First Floor Plan
Living Space Bedroom Balcony Circulation Space Services

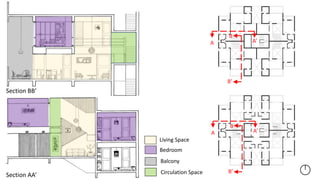

6. Section AA’
B
B’
A A’
B
B’
A A’
Section BB’
Living Space
Bedroom
Balcony
Circulation Space

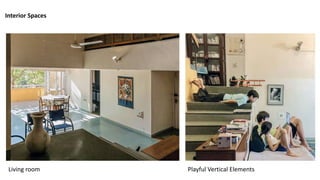

7. Living room Playful Vertical Elements
Interior Spaces
